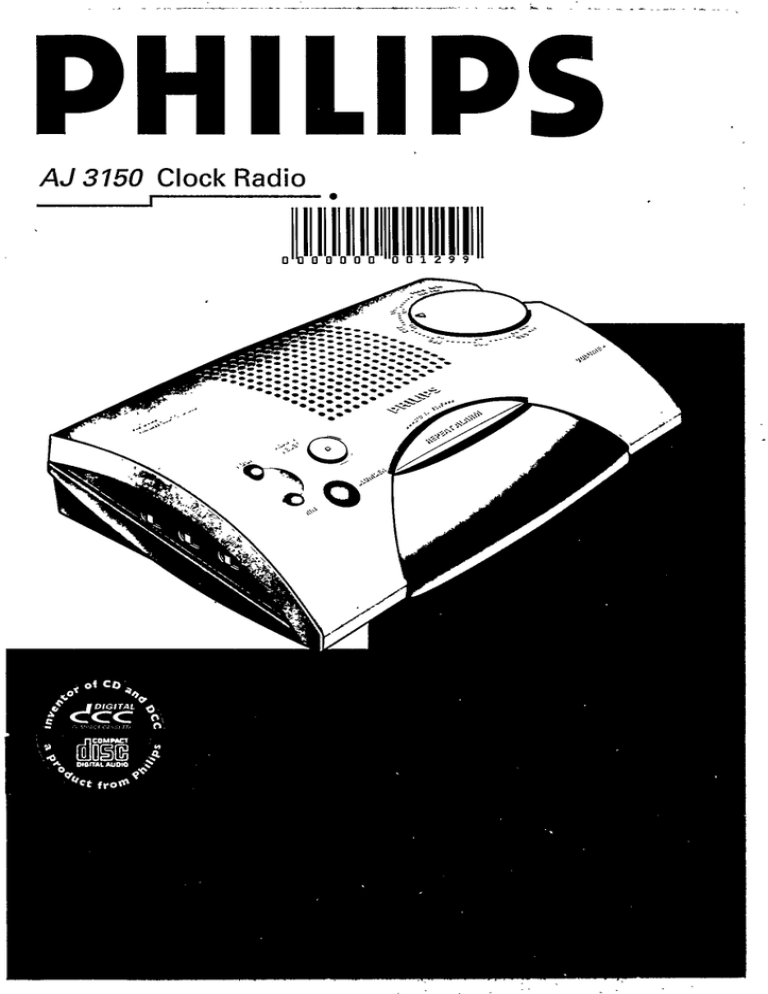

Philips AJ 3150/00W User's manual

Philips AJ 3150/00W User's manual
. oft CD
Y 2
° %
La
¿ LIZ UY
DE
[2.7 ee O
й a Ll
> E
kE
©, <
-
INDEX
(E) España
Declaración de conformidad con normas
El que suscribe, en nombre y representación de:
Beijing Philips Audio/Video Corporation.
declara, bajo su propia responsabilidad, que el
equipo: Radio reloj
fabricado -por: Beijing Philips A/V Corp.
en: People's Republic of China
marca: Philips
modelo: AJ 3150
objeto de esta declaración, cumple con la norma-
tiva siguiente: Reglamento sobre Perturbaciones
Radioeléctricas, Real Decreto 138/1989, Anexo V.
Hecho en: — Beijing 01-08-1994
Firma: 4 NI Wf
Nombre: Jin Tieming
Cargo: Quality Manager
(GE Mexico NOM
Garantia...............—...—....—...neenenceceneenzerao Página 34
PRECAUCION - ADVERTENCIA e
No abrir, riesgo de choque eléctrico Es
ATENCION
Yenfiqus que el veltaje de alimentación
sea el requerido para su aparato
Para evitar el riesfo de choque eléctrico, no quite la tapa,
En easo de requerir servicio, dirijase al personal calificado,
necesario que lea cuidadosamente su instructivo
de manejo.
Brasil
Garantia...................ee.eeenioreene nene Página 34
Australia
Guarantee ...............ennorrorzica neones Page 35
2 New Zealand
Guarantee ......... Page 35
(D Norge
Typeskilt finnes pá apparatens underside.
Observer
Nettbryteren er sekundert innkoplet. Den inne-
bygde netdelen er derfor ikke frakoplet nettet sá
lenge apparatet er tilsluttet nettkontakten.
x
wl
English paged $
N Lil
. 2
(E) Francais page7 Ë
i —
(©) Espanol página 10 5
8
| ad
@ Deutsch Seite 13 =
a
` .
GD Nederlands pagina 16 %
— =
На .
CD Italiano pagina 19 =
И г
СР) Portugués pagina 22 2
a
>
=
Dansk side 25 5
©
=
(s) Svenska sida28 E
A
` —
(a
GEN) Suomi sivu31 5
mn
ons VOLTAGE
.--- @ AC MAINS
: TUNING
RADIO OFF/ON ©
pomos BAND
ALARM VOLUME
OFF - RAD - BUZ . ' * ‘
SETO ro
E e
TIME - RUN - ALARM | et:
-
-
"=." точь
eTeTule eo a a a =
-
ee ew = wo =
gar”
at
BATTERY DOOR
CLOCK DISPLAY
O) SLUMBER OFF
— REPEAT ALARM
ALARM RESET O
HOUR ©
MIN
SLUMBER O
Installation Radio/Clock
BUTTONS RADIO
(1) RADIO switch - to switch radio on/off RADIO ON
(2) ALARM switch:
— RAD - for waking up by radio
— BUZ - for waking up by buzzer
- OFF - alarm off
(3 TIME SET switch:
— TIME - for setting the time
— RUN - normal position
— ALARM - for setting the alarm time
(3) ALARM RESET button - to switch off the
alarm for 24 hours
(6 HOUR button - for setting the hours
(6) MINUTE button - for setting the minutes
(7) SLUMBER - To slumber/set slumber time
SLUMBER OFF / REPEAT ALARM button:
— To switch off the alarm temporarily
~ To switch off the slumberfunction ,Ç
(9) Clock display with ALARM- and PM- indicator
(not all versions)
Go BATTERY door
ay VOLUME control - for adjusting the volume
a2 BAND switch - for selecting wavebands
43 TUNING dial - for locating the required station
a4) AC MAINS - for connecting the mains lead
@ VOLTAGE selector (not on all versions)
MAINS CONNECTION
r
* Check if the mains voltage as shown on the
type plate corresponds to your local mains
supply. If it does not, consult your dealer or
service organisation.
e |f the set is equipped with a voltage selector,
set this selector to the local mains voltage.
* Connect the mains lead to the AC MAINS
socket and the wall socket. The mains supply is
now switched on. As soon as the power plug is
put into the wall outlet, the numbers on the
display will start to flash. This means that you
must set the correct time.
¢ To disconnect the set from the mains
completely, withdraw the mains plug from the
wall socket.
Important note for users in the U.K.
When fitting a mains plug, follow the instructions
on page 6.
e Set the RADIO switch (1) to ON.
* Select the waveband with the BAND 2 switch.
* Select the required station with the TUNING (3
knob.
e Adjust the sound level with the VOLUME Gÿ
control.
RADIO OFF
Set the RADIO (1) switch to OFF.
Aerials
— The AM aerial is built into the appliance. You
may have to adjust the position of the clock
radio slightly for better reception.
— For FM reception, there is an aerial wire at the
rear of the clock radio. This wire must be
, extended and, if necessary adjusted slightly, in
order to obtain good reception,
CLOCK
Clock display
The clock indicates the time on the display. In
case of 12-hour clock system, the PM-indicator
will light up (on=PM, off=AM}. The ALARM
indicator comes on when you switch on the
alarm.
Adjusting the time
* Set the TIME SET switch (3) to TIME.
* Set the correct time using the MIN (©) and
HOUR 6) buttons.
* Set the TIME SET switch (3 to RUN.
LI E La
Li 1 Эд
— _— 4 pi ——— == —
Alarm Slumbering
SETTING THE ALARM TIME SLUMBER
Alarmtime The clock radio has a built-in slumber function 7), GB
* Set the TIME SET switch 3) to ALARM.
* Set the correct alarmtime using the MIN (6)
and HOUR 6) buttons.
e Set the TIME SET switch @ to RUN.
ALARM ON
which enables you to listen to the radio before
you fall asleep. You will not have to switch off the
clock radio yourself as this will take place
automatically after 59 minutes.
SLUMBER ON
The clock radio can awaken you in 2 ways:
Wake by radio
* Make sure the volume of the radio is loud
enough to wake you.
es Set ALARM switch (2) 10 RAD.
* You will be awakened at the set alarm time by
the radio. .
Wake by buzzer
* Set ALARM switch () to BUZ.
* At the set alarm time you will be awakened by
the buzzer
+ or
DOM
|
ALARM OFF
You can switch off the alarm in 3 ways:
Switching off the alarm for 9 minutes
* Press the REPEAT ALARM button (8). With this
switch you temporarily switch off the alarm.
After nine minutes the alarm (radio or buzzer)
will sound again. If you press the REPEAT
ALARM button (8) again, the same will happen.
If the REPEAT ALARM button (3) is not pressed
again, the alarm will switch itself off after 1
hour and 59 minutes. The following day the
alarm signal will sound again at the set alarm
time.
Switching off the alarm for 24 hours
* Press the ALARM RESET button (9). The alarm
is now switched off for 24 hours and will sound
again the next day at the same time.
Switching off the alarm completely
e Set the ALARM switch @) to OFF. In the
display the ALARM indicator will disappear and
the alarm is now switched off. If you wish to be
awakened the following day again, you must
reset the ALARM switch @ to RAD or BUZ
before going asleep.
жен мн ке mem AA AA A еее жжот сы еж око
The time you listen to the radio before you fall
asleep is called the slumber time. The
slumber time is 59 minutes.
If you wish to slumber, carry out the following:
e Make sure the TIME SET switch (3) is set to
RUN.
e Press the SLUMBER button (7). The display will
show that you have a slumber time of 59
minutes. .
Sy
|
I
|
|
SLUMBER OFF
You can switch off the radio before the slumber
time has elapsed:
* Press the SLUMBER OFF/REPEAT ALARM
button (8) and the radio is switched off.
— If the TIME SET switch (3) is in position TIME or
ALARM, the slumber function will not work.
— The slumber function does not affect the alarm.
Additional
Р
—
OWER FAILURE
As soon as a nower failure occurs, the
complete clock radio will be switched off.
As soon as the power supply returns, the
numbers on the display start to flash. This
indicates that you must set the correct time « on
the clock.
You can insert a 9 Volts pack battery (type
6F22) in the clock radio. Should there be a
power failure, the clock will continue to
function. You will not see this, however, —
because the battery does not illuminate the
clock display. As soon as the power is switched
on again, the display will indicate the correct
time. For clarity: Alarm, radio and display do not
work on battery.
Before inserting the battery, connect the power
plug to the wall outlet.
Place the battery in the compartment on the
base of the clock radio
Replace, the battery once a year. It is not
possible to say precisely how long the battery
will last. The battery life time depends on how
often and for how long the power supply fails.
This varies according to country and region.
MAINTENANCE
— If you do not intend to use the clock radio for a
long time, it is better to remove the plug from
the wall socket. In addition to this, it is .
advisable to remove the battery from the clock
radio. This will prevent any danger of leakage
and the clock radio will not be damaged.
— Fingerprints, dust and dirt on the clock radio
should be removed using a clean and damp
soft cloth or chamois leather. When cleaning do
not use any products wich contain abrasive
agents or solvents {benzine, thinner, alcohol
etc.). These might affect the housing.
— Rain, dampness and extreme heat may damage
the clock radio. For this reason it should not be
placed in full sun or close to heating elements
for any period of time.
This product complies with the radio interference
requirements of the European Gommunity
The type-plate is located on the base of the set.
IMPORTANT NOTES FOR USERS IN THE U.K.
Mains plug
This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse a <>
in this type of plug proceed as follows:
* Remove fuse cover and fuse,
¢ Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
eo Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug
without a fuse 1s used, the fuse at the distribution board should not be greater than 5 Amp.
Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into
a 13 Amp socket elsewhere.
How to connect a plug
proceed as follows:
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live {L).
As these colours may not correspond with the colour markings identifying the termmals’in your plug,
e Connect the blue wire to the terminal marked N or coloured blue or black.
e Connect the brown wire to the terminal marked L or coloured brown or red.
e Do not connect eíther wire to the earth terminal in the plug, marked E (or 4) or coloured green (or
green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the
lead - not simply over the two wires.
If in doubt, consult a qualified electrician.
6
— стек = те ст че
> - - — - = - - = = -—
Australia
GUARANTEE FOR AUSTRALIA
The benefits given to the purchaser by this
warranty are in addition to all other rights and
remedies, which, under the Trade Practices Act or
other Commonwealth or State law, the purchaser
or owner has in respect of the product.
The Philips product carries the following
warranties:
— C-series HiFi-systems 12 months.
— Compact Disc Players: 12 months.
- Home Audio Systems: 6 months.
- Clock radios, portable radios, cassette
recorders, cassette players and radio recorders:
90 days.
Any defect in materials or workmanship occurring:
within the specified period from the date of
delivery, will be rectified free of charge by the re-
tailer from whom this product was purchased.
Note: Please retain your purchase docket to
assist prompt service.
Conditions of this warranty
1. All claims for warranty service must be made to
the retailer from whom this product was pur-
chased. All transport charges incurred in con-
nection with.warranty service or replacement
will be paid by the purchaser.
2. These warranties do not cover batteries and
extend only to defects in materials or
workmanship occurring under normal use of
the product where operated in accordance with
our instructions.
Philips
Consumer Products Division
Technology Park
Figtree Drive, Australia Centre
Homebush 2140
New South Wales
E aw — -
AZ) New Zealand
GUARANTEE FOR NEW ZEALAND
Thank-you for purchasing this quality Philips
product.
Philips New Zealand Ltd guarantees this product
against defective components and faulty
workmanship for a period of 12 months. Any
defect in materials or workmanship occurring
within 12 months from the date of purchase
subject to the following conditions will be
rectified free of charge by the retailer from whom
this product was purchased.
Conditions
1. The product must have been purchased in New
Zealand. As proof of purchase, retain the
original sales docket indicating the date of
purchase.
2. The guarantee applies only to faults caused by
defective components, or faulty workmanship
on the part of the manufacturer.
3. The guarantee does not cover failures caused
by misuse, neglect, normal wear and tear,
accidental breakage, use on the incorrect
voltage, use contrary to operating instructions,
or unauthorised modification to the product or
repair by an unauthorised technician.
4. Reasonable evidence {in the form of a sales
docket) must be supplied to indicate that the
product was purchased no more than
12 months prior to the date of your claim.
‘5. In the event of a failure, Philips shall be under
no liability for any injury, or any loss or damage
caused to property or products other than the
. product under guarantee. -
This guarantee does not prejudice your.rights
under common law and statute, and is in addition
to the normal responsibilities of the retailer and
Philips.
How to claim :
Should your Philips product fail within the
guarantee period, please return it to the retailer
from whom it was purchased. In most cases the
retailer will be able to satisfactorily repair or
replace the product.
However, should the retailer not be able to con-
clude the matter satisfactorily, or if you have
other difficulties claiming under this guarantee,
please contact
The Guarantee Controller
Philips New Zealand Ltd.
Е Р.О. Вох 41.021
Auckland -
© (09) 84 94 160
fax @ (09) 84 97 858
35
Notes
36
aim rm em я —
Mounting the set on a shelf
* ¡Make two mounting holes on the shelf as idicated below.
* Mount the set on the shelf with two screws.
FRONT
216 mm
150 mm
pa
52.5 mm
BASE OF THE SET
>;
> ter
- - » Bench thickness + 6/3" Мах.
83 mm
68 mm
9 4 mm
^
A i
F
53 mm
37
Philips - AJ 3150 - Clock radio
~
m
E English page 4
> _
- E
3 ® Francais page 7
7 7
= \
= ©) Español página 10
>
co
Е (®) Deutsch Seite 13
=
>
= AD Nederlands pagina 16
E
_ \
= (D Italiano pagina 19
©
> N
Ë P Portugués = pégina22
7 J
o
= Dansk side 25
2
4
©
5 (s) Svenska sida 28
2
J
© =
S (FIN) Suomi sivu 31 Y
À
3140 115 21042 Printed in China
— — a _— = N A E = стен = = = окон =
Wr 2 a
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
