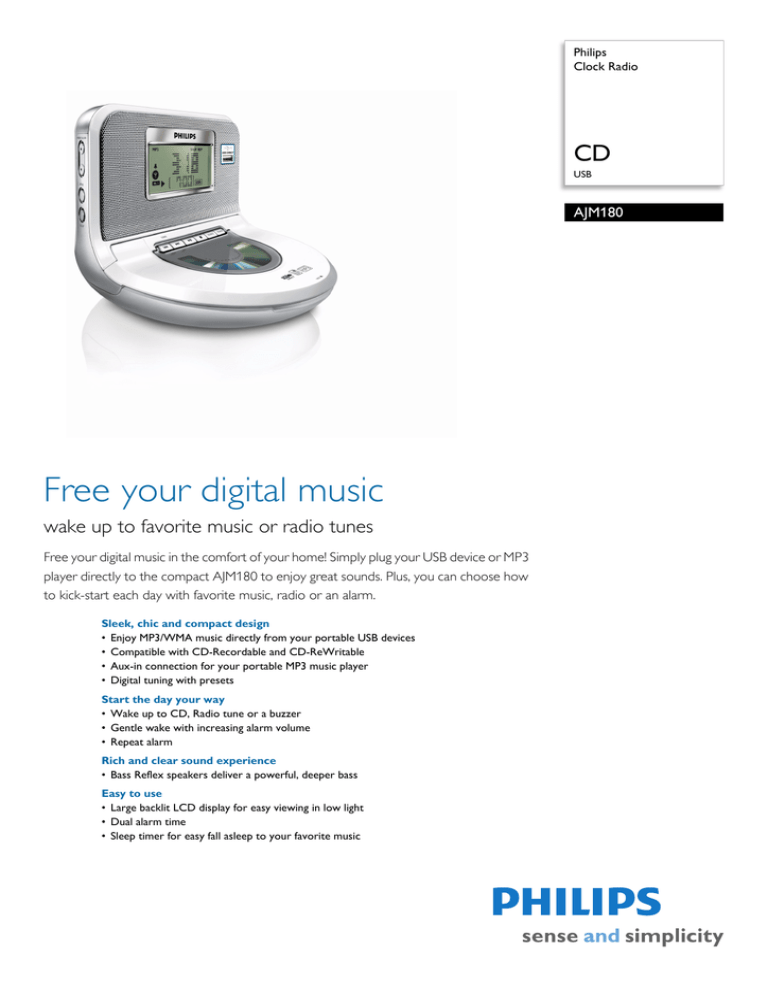

Philips
Clock Radio
CD
USB
AJM180
Free your digital music
wake up to favorite music or radio tunes
Free your digital music in the comfort of your home! Simply plug your USB device or MP3
player directly to the compact AJM180 to enjoy great sounds. Plus, you can choose how
to kick-start each day with favorite music, radio or an alarm.
Sleek, chic and compact design
• Enjoy MP3/WMA music directly from your portable USB devices
• Compatible with CD-Recordable and CD-ReWritable
• Aux-in connection for your portable MP3 music player
• Digital tuning with presets
Start the day your way
• Wake up to CD, Radio tune or a buzzer
• Gentle wake with increasing alarm volume
• Repeat alarm
Rich and clear sound experience
• Bass Reflex speakers deliver a powerful, deeper bass
Easy to use
• Large backlit LCD display for easy viewing in low light
• Dual alarm time
• Sleep timer for easy fall asleep to your favorite music
AJM180/12
Clock Radio
CD USB
Highlights
USB Direct for MP3/WMA music
Repeat alarm
Sleep Timer
Simply plug in your device to the USB port on
your Philips Hi-Fi system. Your digital music
will be played directly from the device. Now
you can share your favorite moments with
family and friends.
Repeat alarm
Sleep timer lets you decide how long you want
to listen to music or a radio station of your
choice before falling asleep. Simply set a time
limit (up to 1 hour) and choose a CD or radio
station to listen to while you drift off to sleep.
The set will continue to play for the selected
duration and then automatically switch off to a
power-efficient, silent stand-by mode. Sleep
Timer lets you fall asleep to your favorite CD
or radio DJ without counting sheep or
worrying about wasting power.
Dual alarm time
Digital tuning with presets
Digital tuning with presets
Wake up to CD, Radio or buzzer
Wake up to CD, Radio tune or a buzzer
The Philips audio system comes with two
alarm times. Set one alarm time to wake you
up and the other to wake up your partner.
AJM180/12
Clock Radio
CD USB
Specifications
Convenience
• Clock/Version: Digital
• Alarms: Wake to favourite track, 24 hour alarm
reset, Buzzer Alarm, CD Alarm, Radio Alarm,
Repeat alarm (snooze), Sleep timer
• Display Type: LCD
• Display Digits: 4
• Backlight
• Backlight color: White
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD
• Programmable Tracks: 20
• Disc Playback Modes: Fast Forward/Backward,
Next/Previous Track Search, Repeat Play, Shuffle
Play
• USB Direct Modes: Play/Pause, Previous/Next,
Repeat, Shuffle, Stop, Program Play
Tuner/Reception/Transmission
• Tuner Bands: FM, FM Stereo
• Antenna: FM Antenna
Sound
• Output power (RMS): 2 x 0.5W
• Sound System: Stereo
• Volume Control: Volume Control up/down
• Speaker diameter: 2"
Loudspeakers
• Built-in speakers: 2
Connectivity
• Aux in: Line-in, 3.5 mm
Power
•
•
•
•
•
Mains power
Battery voltage: 1.5 V
Battery type: AAA / LR03 Alkaline
Number of batteries: 2
Adaptor type: AC/DC adaptor (110V -230V)
Dimensions
• Product dimensions (W x H x D):
165 x 134 x 155 mm
• Weight: 1.3 kg
• Packaging dimensions (W x H x D):
185 x 207 x 171 mm
• Weight incl. Packaging: 1.59 kg
•
Issue date 2009-08-10
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.2.10
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 26958
EAN: 87 12581 31565 8
www.philips.com
