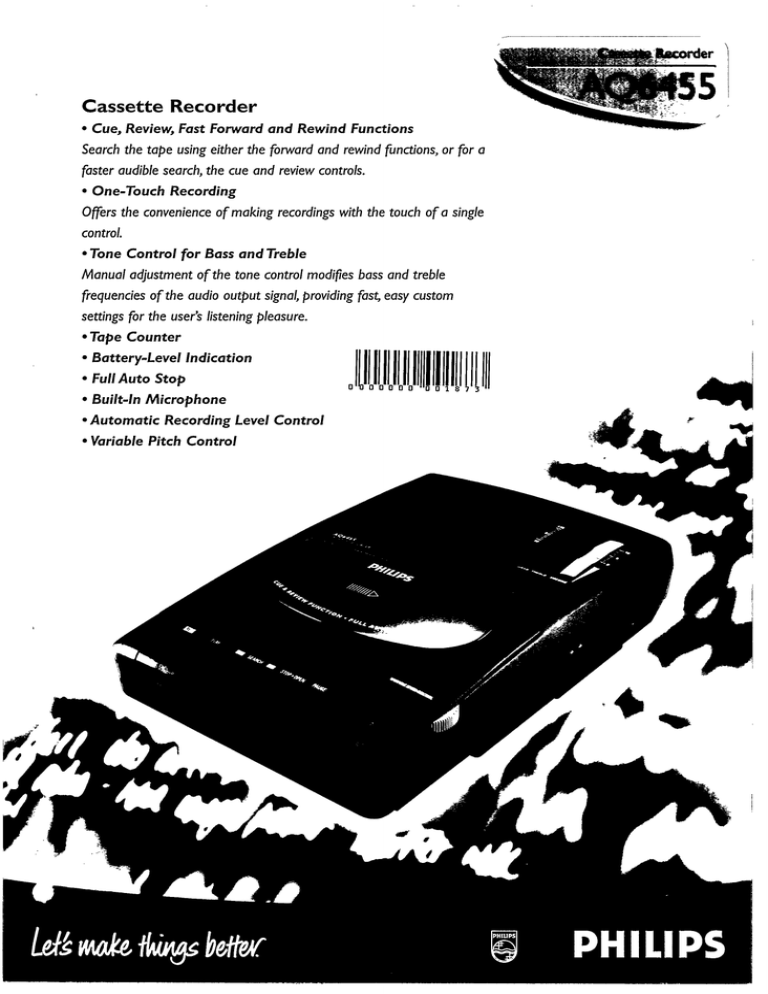

Philips AQ6455/05, AQ6455/00 User manual

Philips AQ6455/05, AQ6455/00 User manual
 Cassette Recorder
* Cue, Review, Fast Forward and Rewind Functions
Search the tape using either the forward and rewind functions, or for a
faster audible search, the cue and review controls.
* One-Touch Recording
Offers the convenience of making recordings with the touch of a single
control.
* Tone Control for Bass and Treble
Manual adjustment of the tone control modifies bass and treble
frequencies of the audio output signal, providing fast, easy custom
settings for the user's listening pleasure.
* Tape Counter
‘паевые MGI
* Built-In Microphone
* Automatic Recording Level Control
* Variable Pitch Control
Standard product information
Cassette Deck
* Motor DC, electronic control
* Tape speed : standard 4.76 cm/sec.
* Pitch contro! for adjusting tape speed
* 6-key cassette recorder
* Cue and review functions
* 3-digit tape speed counter
* Automatic recording level control
* Tone control for bass and treble
* Battery-level indication
* Full automatic stop
* Normal (type 1) cassette tape
* Signal-to-noise ratio’ : 42 dB
* Track separation : 55 dB
Amplifier
* Max, output power 2W RMS
+ 6 dB at 8 kHz
+ 6 dB at 100 kHz
* Treble control
* Bass control
Sound System
* Loud speaker 100 mm
Power Supply
* Batteries : 6x 1.5V batteries, type C, LR14 or UM 2
* AC mains 7/00, /05 : 220-240V,50 Hz
Connections
» Headphone socket 3.5 mm
Microphone socket 3.5 mm
* Line in 3.5 mm
* Loudspeaker socket 3.5 mm
* External AC mains socket
General
* Material Polystyrene
* Weight 1.6 Kg (excluding batteries)
* Dimensions (mm) 175 mm W x 64 mm H x 265 mm D
Display box dimensions : 253 mmW x 92 mm H x 302 mm D
* Quantity /mastercarton : 3
Product Highlights
* Cue, Review, Fast Forward and Rewind Functions
Search the tape using either the forward and rewind functions, or for a faster
audible search, the cue and review controls.
* One-Touch Recording
Offers the convenience of making recordings with the touch of a single control.
* Tone Control! for Bass and Treble
Manual adjustment of the tone contro! modifies bass and treble frequencies of
the audio output signal, providing fast, easy custom settings for the user's
listening pleasure.
* Full Auto Stop
A mechanism that senses a change in pressure when the tape reaches the
end and automatically stops the tape as well as disengaging the transport
mechanism.
* Automatic Recording Level Control
Automatically determines the optimal recording level to maximize your listening
pleasure.
* Variable Pitch Control
This feature allows the pitch of sounds to be altered, by changing the speed of
the tape.
* Tape Counter
* Battery-Level Indication
e Built-In Microphone
* Cassette Deck
* Headphone Socket
EAN:
/00- 8710101328966
/05- 8710101328973
Printed in Hong Kong
Subject to modification without notice
http://www.philips.com
PHILIPS
CAMA LA
