Philips | AZ 1570 | User's Manual | Philips AZ 1570 User's Manual

AZ157017
15-12-2000 18:30
Pagina 1

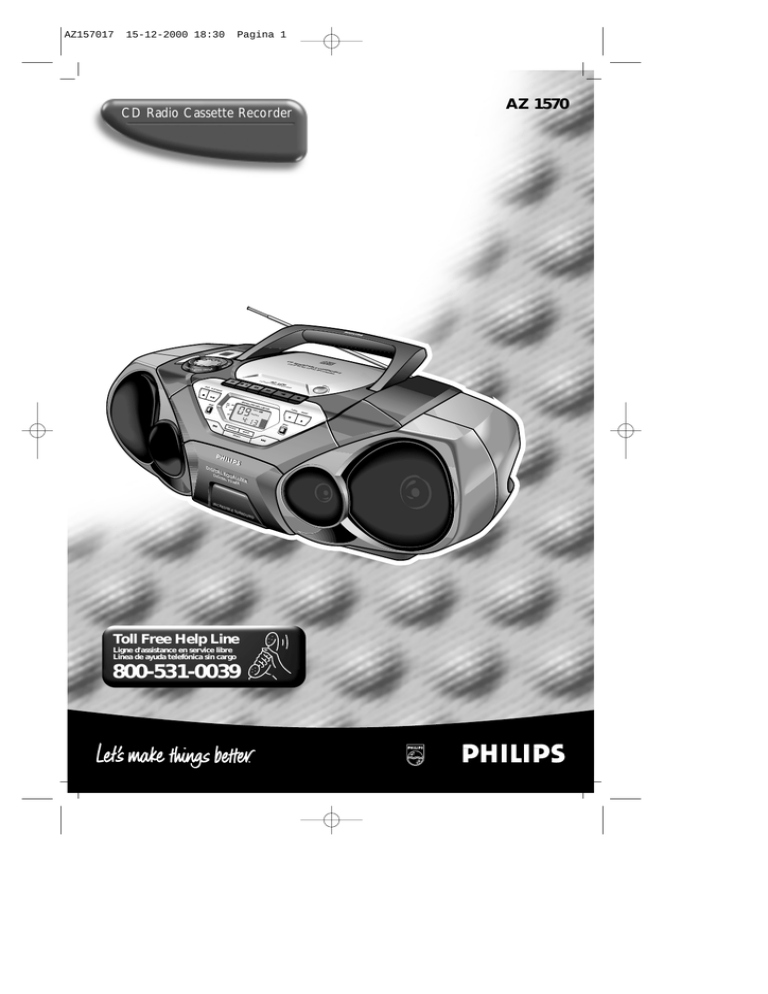

AZ 1570
CD Radio Cassette Recorder
E
CD RE
CD SY W
RITA
NCRO
BLE
STRA
COM
T RE
PATI
CORD
INGBLE
M
LU
VO
SS
OOUU
NND
DC
CO
ON
R
NT
ER
TR
TE
RO
NT
OL
EN
LC
CE
CD
RADIO
PLA
Y•PAU
SE
PRO
G
BAT
LOW
AZ 15
70
CASSE
TTE
REC
ORDE
R
SOUN
D CO
NTRO
L CE
NTER
PRO
FM
AM
TUNE
R
G VOL
SHUF
FLE
LW
•
•
BAND
SHUF
FLE
REP
SEA
EAT
RCH
DIG
ITA
L EQ
DIG
D
IGIT
U
ITA
ALL T ALIZ
TU
UN
NEE ER
RR
INC
RED
IBL
E SU
RRO
UN
D
Toll Free Help Line
Ligne d'assistance en service libre
Linea de ayuda telefónica sin cargo
800-531-0039
OPE
N
OSSEE
LLO
CC
STO
P
PRE
SET
AZ157017
15-12-2000 18:30
AZ 1570 /17
page
Pagina 2
2
Return your Warranty Registration card today to
ensure you receive all the benefits you’re entitled to.
• Once your Philips purchase is
registered, you’re eligible to receive all
the privileges of owning a Philips
product.
• So complete and return the Warranty
Registration Card enclosed with your
purchase at once. And take advantage
of these important benefits.
Warranty
Verification
Owner
Confirmation
Model
Registration
Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Philips warranty.
Your completed Warranty
Registration Card serves
as verification of
ownership in the event of
product theft or loss.
Returning your Warranty
Registration Card right
away guarantees you’ll
receive all the information
and special offers which
you qualify for as the
owner of your model.
Know these
safety symbols
For Customer Use
Enter below the Serial No. which is located
on the bottom of the cabinet. Retain this
information for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning”
indicates uninsulated material
within your unit may cause
an electrical shock. For the safety of
everyone in your household, please do
not remove product covering.
The “exclamation point” calls
attention to features for
which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
2
Model No. _______________________
Serial No. ________________________
WARNING: TO PREVENT
FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
CAUTION: To prevent electric
shock, match wide blade of plug to
wide slot, and fully insert.
15-12-2000 18:30
Pagina 3
AZ 1570 /17
page
3
*
1 2345 6
7
CD RE
CD SY W
RI
E
AZ157017
S
OU
ND
C O NT
L
VO
UM
NCROTA
BLE
STRA
COM
T RE
PATI
CORD
INGBLE
RO L C E N T E R
CD
P
RADIO
AZ 15
TT 70
CASSE
E REC
ORDE
PLA
Y•PAU
SE
PRO
BAT
LOW
G
SOUN
D CO
NTRO
L CE
NTER
PRO
FM
AM
TUNE
G VOL
SHUF
LW
OPE
N
R
LOSE
C
STO
FLE
R
PRESE
T
•
•
BAND
SHUF
FLE
REP
SEA
EAT
RCH
DIG
ITA
L
DIG EQU
A
ITA
L TU LIZE
NER R
INC
RED
IBL
E SU
RRO
UN
D
89 0 ! @ #$ % ^ &
*
(
MAINS ~
)
¡
3
AZ157017
15-12-2000 18:30
AZ 1570 /17
page
Pagina 4
4
CAUTION
Use of controls or adjustments or performance of procedures other than herein
may result in hazardous radiation exposure.
ATTENTION
L’utilisation des commandes ou réglages ou le non-respect des procédures ciincluses peuvent se traduire par une exposition dangereuse à l’irradiation.
ATENCIÓN
El uso de mandos o ajustes o la ejecucción de métodos que no sean los aquí
descritos puede ocasionar peligro de exposición a radiación.
The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
L’appareil répond aux normes FCC, Part 15 et 21 CFR 1040.10.
Fonctionnement soumis aux deux conditions suivantes:
1. Cet appareil ne doit pas provoquer d’interférences nuisibles, et
2. Cet appareil doit accepter toute interférence reçue, y compris les interférences susceptibles
de provoquer un fonctionement peu satisfaisant.
El aparato cumple las normas FCC, Parte 15 y 21 CFR 1040.10.
Funcionamiento dependiente de dos condiciones siguientes:
1. Este aparato no puede provocar interferencia dañina, y
2. Este aparato debe aceptar cualquier interferencia recibida, incluyendo las interferencias que
pueden provocar un funcionamiento insuficiente.
4
AZ157017
15-12-2000 18:30
Pagina 5
AZ 1570 /17
page
5
Safety instructions............2, 4, 6
Limited warranty .......................7
Controls .....................................8
Power supply.............................9
Basic functions........................10
Digital tuner .......................10-11
CD Player ...........................12-14
Cassette recorder ..............14-15
Recording ................................16
General information ..........11+16
Troubleshooting.......................17
Français
Conseils de sécurité .....4, 18, 19
Garantie limitée ......................20
Commandes.............................21
Alimentation............................22
Fonctions de base ...................23
Syntoniseur numérique......23-24
Lecteur de CD ....................25-27
Platine cassette .................27-28
Enregistrement........................29
Informations generales .....24+29
Dépannage ..............................30
Español
Instrucciones sobre seguridad
......................................4, 31, 32
Garantia limitada ....................33
Controles .................................34
Suministro de energía.............35
Funciones básicas ...................36
Sintonizador digital............36-37
Reproductor de CD.............38-40
Grabadora de casetas........40-41
Grabación ................................42
Información general ..........36+42
Problemas y soluciones ..........43
Español
Français
English
English
INDEX
CANADA
English: This digital apparatus does not exceed the Class B limits for noise emissions from
digital apparatus as set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Français: Cet appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de Classe B prescrites dans le
Régelement sur le Brouillage Radioélectrique édicté par le Ministère des
Communications du Canada.
5
AZ157017
15-12-2000 18:30
AZ 1570 /17
page
Pagina 6
6
IMPORTANT SAFETY INSTRUCTIONS –
Read before operating equipment
This product was designed and manufactured to
meet strict quality and safety standards. There
are, however, some installation and operation
precautions which you should be particularly
aware of.
1. Read these instructions – All the safety
and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3. Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operating and
use instructions should be followed.
5. Do not use this apparatus near water –
for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement
or near a swimming pool, etc.
6. Clean only with a damp cloth. The
appliance should be cleaned only as
recommended by the manufacturer.
7. Install in accordance with the
manufacturers instructions. Do not block
any of the ventilation openings. For
example, the appliance should not be situated
on a bed, sofa, rug, or similar surface or placed
in a built-in installation, such as a bookcase or
cabinet that may impede the flow of air
through the ventilation openings.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
6
9. Do not defeat the
safety purpose of the
polarized or groundingAC Polarized
Plug
type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety.
When the provided plug does not fit into your
outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked
on or pinched particulary at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12.
Use only with a cart, stand,
tripod, bracket, or table specified by
the manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
EL 4562-E004: 99/3
AZ157017
15-12-2000 18:30
Pagina 7
AZ 1570 /17
page
7
LIMITED WARRANTY
PORTABLE AUDIO
One Year Free Exchange
This product must be carried in for an exchange.
WHO IS COVERED?
You must have proof of purchase to exchange the
product. A sales receipt or other document showing
that you purchased the product is considered proof of
purchase. Attach it to this owner’s manual and keep
both nearby.
WHAT IS COVERED?
Warranty coverage begins the day you buy your
product. For one year thereafter, a defective or
inoperative product will be replaced with a new,
renewed or comparable product at no charge to you. A
replacement product is covered only for the original
warranty period.When the warranty on the original
product expires, the warranty on the replacement
product also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the
product, adjustment of customer controls on the
product, and installation or repair of antenna
systems outside of the product.
• product repair and/or part replacement because of
misuse, accident, unauthorized repair or other cause
not within the control of Philips Consumer
Electronics Company.
• reception problems caused by signal conditions or
cable or antenna systems outside the unit.
• a product that requires modification or adaptation
to enable it to operate in any country other than
the country for which it was designed,
manufactured, approved and/or authorized, or repair
of products damaged by these modifications.
• incidental or consequential damages resulting from
the product. (Some states do not allow the
exclusion of incidental or consequential damages, so
the above exclusion may not apply to you.This
includes, but is not limited to, prerecorded material,
whether copyrighted or not copyrighted.)
• a product used for commercial or institutional
purposes.
WHERE IS EXCHANGE AVAILABLE?
You may exchange the product in all countries where
the product is officially distributed by Philips Consumer
Electronics Company. In countries where Philips
Consumer Electronics Company does not distribute the
product, the local Philips service organization will
attempt to provide a replacement product (although
there may be a delay if the appropriate product is not
readily available).
EXCHANGING A PRODUCT IN U.S.A.,
PUERTO RICO OR U.S.VIRGIN ISLANDS...
Contact your dealer to arrange an exchange. Or, ship
the product, insured and freight prepaid, and with proof
of purchase enclosed, to the address listed below.
Small Product Service Center
Philips Service Company
907 Snapps Ferry Road, Plant 2, Building 6
Greeneville,TN 37743
(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied
warranties, including implied warranties of merchantability
and fitness for a particular purpose, are limited in duration
to the duration of this express warranty. But, because some
states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)
EXCHANGING A PRODUCT IN CANADA...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
(In Canada, this warranty is given in lieu of all other
warranties. No other warranties are expressed or
implied, including any implied warranties of
merchantability or fitness for a particular purpose.
Philips is not liable under any circumstances for any
direct, indirect, special, incidental or consequential
damages, howsoever incurred, even if notified of the
possibility of such damages.)
TO GET OUT-OF-WARRANTY EXCHANGE...
In U.S.A., Puerto Rico or U.S.Virgin Islands, contact Philips
Service Company at (800) 531-0039 to obtain the cost of
out-of-warranty exchange.Then carefully pack the product
and ship it to the Small Product Service Center (address
listed above). In Canada, call the phone number listed
above under “Exchanging a Product in Canada” to obtain
the cost of out-of-warranty exchange.
REMEMBER...
Please record the model and serial numbers found on
the product below. Also, please fill out and mail your
warranty registration card promptly. It will be easier for
us to notify you if necessary.
MODEL #
__________________________________
SERIAL #
__________________________________
BEFORE REQUESTING EXCHANGE...
Please check your owner’s manual before requesting an
exchange. Adjustments of the controls discussed there
may save you a trip.
This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.
Philips Service Solutions Group, P.O. Box 2976, Longview,Texas 75606, (903) 242-4800
EL6095T002 / MAC5433 / 1-97
7
AZ157017
15-12-2000 18:30
Pagina 8
AZ 1570/ 17 page 8
CONTROLS
TOP AND FRONT PANELS
English
1 DIGITAL EQUALIZER – selects volume or the
various frequencies for adjustment: volume,
bass, mid and high frequencies
2 VOLUME/SOUND CONTROL CENTER –
adjusts the volume level and digital equalizer
settings
3 DIGITAL DBB (Dynamic Bass Boost) –
enhances the bass
4 INCREDIBLE SURROUND – creates a superenhanced stereo effect
5 POWER slider – selects the sound source for
CD/ TUNER/ TAPE and also
switches the set off
6 CASSETTE RECORDER keys:
RECORD 0 – starts recording
PLAY 1 – starts playback
SEARCH 5, 6 – fast winds/rewinds the tape
OPEN•STOP / 9 – opens the cassette
compartment
– stops the tape;
PAUSE ; – interrupts recording or playback
7 OPEN•CLOSE – opens/ closes the CD door
8 STOP 9 – stops CD playback or erase a CD
program
9 PLAY•PAUSE 2; – starts or interrupts CD
playback
0 BATT LOW – indicates when battery power is
running low
! PROG – CD: programs tracks and reviews the
program;
Tuner: programs preset tuner stations
@ SHUFFLE – plays CD tracks in random order
# SEARCH ∞, §
Tuner: - (down, up) tunes to radio stations;
CD:
- searches back and forward within a
track;
- skips to the beginning of a current
track/ previous/ subsequent track
$ REPEAT – repeats a track / CD program /
entire CD
% Display – shows the status of the set
^ BAND – selects waveband
& TUNER PRESET 4, 3 – selects a preset tuner
station (down, up)
BACK PANEL
* p – 3.5 mm headphone jack
( Telescopic antenna – improves FM reception
) AC MAINS – inlet for power cord
¡ Battery door
Environmental information
All unnecessary packaging material has been omitted. We have done our utmost to make the
packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene
(buffer), polyethylene (bags, protective foam).
Your set consists of materials which can be recycled if disassembled by a specialized
company. Please observe the local regulations regarding the disposal of packing
materials, dead batteries and old equipment.
8
AZ157017
15-12-2000 18:30
Pagina 9
AZ 1570/ 17
page
9
POWER SUPPLY
English
Whenever convenient, use the AC power supply if you want to
conserve battery life. Make sure you remove the plug from the
set and wall outlet before inserting batteries.
BATTERIES (OPTIONAL)
1. Open the battery compartment and insert six batteries, type
R-20, UM-1 or D-cells, (preferably alkaline) with the correct
polarity as indicated by the "+" and "-" symbols inside the
compartment.
6 x D-cells - R20 - UM1
2. Replace the compartment door, making sure the batteries are
firmly and correctly in place. The set is now ready to operate.
– If BATT LOW lights up, battery power is running low.
– The BATT LOW indicator eventually goes out if the
batteries are too weak.
– Incorrect use of batteries can cause electrolyte leakage and
will corrode the compartment or cause the batteries to burst.
Therefore:
– Do not mix battery types, e.g. alkaline with carbon zinc.
Only use batteries of the same type for the set.
– When inserting new batteries, do not try to mix old
batteries with the new ones.
– Remove the batteries if the set is not to be used for a long
time.
– Batteries contain chemical substances, so they
should be disposed of properly.
USING AC POWER
1. Check if the mains voltage as shown on the type plate
located on the bottom of the set, corresponds to your local
AC power supply. If it does not, consult your dealer or service
center.
2. If your set is equipped with a voltage selector, adjust the
selector so that it matches with the local power.
3. Connect the power cord to the wall outlet and the set is now
ready for use.
4. To disconnect the set from the power completely, remove the
plug from the wall outlet.
MAINS
9
AZ157017
15-12-2000 18:30
AZ 1570 /17
page
Pagina 10
10
BASIC FUNCTIONS
DIGITAL TUNER
SWITCHING ON AND OFF
CD RE
CD SY W
RITA
NCRO
ST BLE
E
S
OU
ND
C O NT
L
VO
UM
RAT
R
RO L C E N T E R
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
PLA
Y•PAU
SE
ADJUSTING VOLUME AND SOUND
1. Turn the VOLUME/ SOUND CONTROL CENTER control
clockwise to increase or anti-clockwise to decrease volume on
the set.
™ Display shows the volume level indication, VOL and a number
from 0-32.
2. To adjust the bass, mid and high frequency levels, press
DIGITAL EQUALIZER once or more until the desired option is
displayed. While the option is shown, turn the VOLUME/
SOUND CONTROL CENTER control to increase or decrease (5 to + 5 steps maximum) the desired frequency.
™ VOLUME can also be adjusted in this way with a level range
from 0-32.
3. Press DIGITAL DBB to switch dynamic bass boost on or off.
™ If on, the DIGITAL DBB light goes on.
4. Press INCREDIBLE SURROUND to switch the surround sound
effect on or off.
™ If on, the INCREDIBLE SURROUND light goes on.
CD RE
CD
E
English
• Adjust the POWER slider to the desired sound source: CD,
TUNER or TAPE.
• The set is switched off when the POWER slider is in the
TAPE/OFF position and the keys on the tape deck are
released.
– The volume, sound settings and tuner presets will be retained
in the set's memory.
S
OU
ND
C O NT
L
VO
SY
UM
RO L C E N T E R
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
PLA
Y•PAU
SE
SOUN
BAT
L
PRO
D CO
+
•
•
•
•
0
•
•
•
•
–
VOL
Note: The effect of INCREDIBLE SURROUND may vary with
different types of music.
TUNING TO RADIO STATIONS
1. Select TUNER source.
™
is displayed briefly and then the radio station
frequency is shown.
2. Press BAND once or more to select your waveband.
3. Press SEARCH ∞ or § and release when the frequency in
the display starts running.
™ The TUNER automatically tunes to a station of sufficient
reception. Display shows
during automatic tuning.
™ If an FM station is received in stereo, STEREO is shown.
4. Repeat step 3 if necessary until you find the desired station.
• To tune to a weak station, press SEARCH ∞ or § briefly and
repeatedly until you have found optimal reception.
10
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
OPE
PLA
Y•PAU
SE
PRO
G
BAT
LOW
SOUN
FM
D CO
NT
AM
ROL
CENT
PRO
STE G VOL
REO
SHU
LW
FFL
ER
TUNE
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
R
PRE
SET
AZ157017
15-12-2000 18:30
Pagina 11
AZ 1570 /17
DIGITAL TUNER
page
11
GENERAL INFORMATION
To improve radio reception:
English
• For FM, pull out the telescopic antenna.
Incline and turn the antenna. Reduce its length if the signal is
too strong (very close to a transmitter).
• For AM, the set is provided with a built-in antenna so the
telescopic antenna is not needed. Direct the antenna by
turning the whole set.
Programming tuner stations
You can store up to a total of 30 tuner stations in the memory.
1. Tune to your desired station (see Tuning to radio stations).
2. Press PROG to activate programming.
™ Display: PROG flashes.
3. Press PRESET 3 or 4 once or more to allocate a number from
1 to 30 to this station.
4. Press PROG again to confirm the setting.
™ Display: PROG disappears, the preset number and the frequency
of the preset station are shown.
5. Repeat the above four steps to store other stations.
• You can overwrite a preset station by storing another
frequency in its place.
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
OPE
PLA
Y•PAU
SE
PRO
G
BAT
LOW
SOUN
FM
D CO
NT
AM
ROL
PRO
SHU
LW
CENT
ER
TUNE
G VOL
FFL
R
PRE
SET
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
Tuning to preset stations
Press TUNER PRESET 4 or 3 until the desired preset station is
displayed.
General maintenance
• Do not expose the set, batteries, CDs or cassettes to humidity,
rain, sand or excessive heat caused by heating equipment or
direct sunlight.
• To clean the set, use a soft, slightly dampened chamois
leather. Do not use any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may harm the
housing.
Safety information
• Place the set on a hard and flat surface so that the system
does not tilt. Make sure there is adequate ventilation to
prevent the system from overheating.
• The mechanical parts of the set contain self-lubricating
bearings and must not be oiled or lubricated.
11
AZ157017
15-12-2000 18:30
AZ 1570 /17
page
Pagina 12
12
CD PLAYER
Playing a CD
CD
STO
P
AZ 15
70
REC
RAD
IO CA
SSE
TTE
PLA
Y•PAU
SE
PRO
G
BAT
LOW
SOUN
FM
D CO
NTRO
AM
PRO
SHU
LW
L CE
NT
ER
TUNE
G VOL
FFL
E
•
•
BAND
3. Insert a CD or CD-R(W) with the printed side facing up and
press OPEN•CLOSE to close the CD door.
™ Display:
as the CD player scans the contents of a CD.
The total number of tracks and playing time are then shown.
™ Display:
is shown if the CD R(W) is not finalized.
4. Press PLAY•PAUSE 2; to start playback.
™ Display: Current track number and elapsed playing time of the
track during CD playback.
5. To interrupt playback press PLAY•PAUSE 2;. Press
PLAY•PAUSE 2; again to resume play.
™ The display freezes and the elapsed playing time flashes when
playback is paused.
6. To stop CD playback, press STOP 9.
Note: CD play will also stop when:
– the CD door is opened;
– the CD has reached the end (unless you have selected
REPEAT ALL);
– you select another source: TAPE / TUNER.
Selecting a different track
• Press SEARCH ∞ or § once or repeatedly until the desired
track number appears in the display.
• If you have selected a track number shortly after loading a CD
or in the PAUSE position, you will need to press
PLAY•PAUSE 2; to start playback.
Finding a passage within a track
1. Press and hold down on SEARCH ∞ or §.
– The CD is played at high speed and low volume.
2. When you recognize the passage you want,
release SEARCH ∞ or §.
– Normal playback continues.
Note: During a CD program or if SHUFFLE/ REPEAT active,
searching is only possible within a track.
12
OPE
N
ORDER
LOSE
C
English
1. Select CD source.
2. Press OPEN•CLOSE to open the CD door.
™ Display:
when you open the CD door.
SHU
FFL
E
REP
EAT
SEA
RCH
R
PRE
SET
AZ157017
15-12-2000 18:30
Pagina 13
AZ 1570 /17
13
page
CD PLAYER
You can select and change the various play modes before or during
playback. The play modes can also be combined with PROGRAM.
SHUFFLE - tracks of the entire CD/ program are played in random
order
SHUFFLE and REPEAT ALL - to repeat the entire CD/ program
continuously in random order
REPEAT ALL - to repeat the entire CD/ program
REPEAT and SHUFFLE REPEAT - plays the current (random) track
continuously
1. To select your play mode, press the SHUFFLE or REPEAT
button before or during playback until the display shows the
desired function.
2. Press PLAY•PAUSE 2; to start playback if in the STOP
position.
• Playback starts immediately if you have selected a SHUFFLE
mode.
3. To return to normal playback, press the respective SHUFFLE or
REPEAT button until the various SHUFFLE / REPEAT modes are
no longer displayed.
– You can also press STOP 9 to cancel your play mode.
CD
STO
P
English
Different play modes: SHUFFLE and REPEAT
AZ 15
70
REC
RAD
IO CA
SSE
TTE
ORDER
PLA
Y•PAU
SE
PRO
BAT
LOW
G
SOUN
FM
D CO
NT
AM
ROL
PRO
SHU
LW
CENT
ER
TUNE
G VOL
FFL
R
PRE
SET
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
PLA
Y•PAU
SE
PRO
BAT
LOW
G
SOUN
D CO
NT
FM
ROL
AM
PRO
SHU
LW
CENT
ER
TUNE
G VOL
FFL
R
PRE
SET
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
Programming track numbers
Program in the STOP position to select and store your CD tracks in
the desired sequence. If you like, store any track more than once.
Up to 20 tracks can be stored in the memory.
1. Press SEARCH ∞ or § once or more to select your desired
track number.
2. Press PROG.
™ Display: PROG and the selected track number.
appears
briefly.
™ If you attempt to program without first selecting a track
number,
is shown.
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
PLA
Y•PAU
SE
PRO
G
BAT
LOW
SOUN
FM
D CO
NT
AM
ROL
PRO
SHU
LW
CENT
ER
TUNE
G VOL
FFL
R
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
3. Repeat steps 1-2 to select and store all desired tracks.
™
is displayed if you attempt to program more than
20 tracks.
4. To start playback of your CD program,
press PLAY•PAUSE 2;.
Note: if you have selected the tracks during CD playback, first
press STOP 9 then PLAY•PAUSE 2;.
13
AZ157017
15-12-2000 18:30
AZ 1570 /17
page
Pagina 14
14
CD PLAYER
CASSETTE RECORDER
Reviewing the program
Erasing a program
S
OU
ND
C O NT
L
VO
W
SYNC
U
RO L C E N T E R
You can erase the program by:
– pressing STOP 9 once in the STOP position;
– pressing STOP 9 twice during playback;
• The display shows
briefly and PROG disappears.
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
PLA
Y•PAU
SE
PRO
BAT
LOW
G
SOUN
FM
D CO
NT
AM
ROL
PRO
SHU
LW
CENT
ER
TUNE
G VOL
FFL
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
The program is also erased by:
– pressing the CD door open;
– selecting another source: TAPE/ TUNER.
CASSETTE PLAYBACK
Note: The sound source cannot be changed while playing a
cassette.
14
L
VO
CD RE
CD SY W
RITA
NCRO
ST BLE
UM
RAT COM
RECO PA
TIBL
RDIN
E
G
C E N TER
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
OPE
N
LOSE
C
1. Select TAPE source.
™ The display shows TAPE throughout tape operation.
2. Press OPEN•STOP /9 to open the cassette door.
3. Insert a recorded cassette and close the cassette door.
4. Press PLAY 1 to start playback.
5. To interrupt playback press PAUSE ;. To resume, press this
key again.
6. By pressing SEARCH 5 or 6 on the set fast winding of the
tape is possible in both directions.
7. To stop the tape, press OPEN•STOP /9.
• The keys are automatically released at the end of the tape,
except if PAUSE ; has been activated.
E
English
In the stop position or during playback, press and hold down PROG
for a while until the display shows all your stored track numbers in
sequence.
PLA
Y•PAU
SE
PRO
G
BAT
LOW
A
SOUN
FM
D CO
NT
P
ROL
CENT
ER
T
R
AZ157017
15-12-2000 18:30
Pagina 15
AZ 1570 /17
page
15
CASSETTE RECORDER
• Recording is permissible insofar as copyright or other rights of
third parties are not infringed.
• This deck is not suited for recording on CHROME (IEC II) or
METAL (IEC IV) type cassettes. For recording, use only
NORMAL type cassettes (IEC I) on which the tabs have not
been broken.
• The best recording level is set automatically. Altering the
VOLUME, INCREDIBLE SURROUND, DIGITAL EQUALIZER or DBB
controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will
take place during the 7 seconds, when the leader tape passes
the recorder heads.
• To protect a tape from accidental erasure, have the tape in
front of you and break out the left tab.
Recording on this side is no longer possible. To record over this
side again, cover the tabs with a piece of adhesive tape.
English
GENERAL INFORMATION ON RECORDING
1
Synchro Start CD recording
1. Select CD source.
2. Insert a CD and if desired, program track numbers.
3. Press OPEN•STOP /9 to open the cassette door.
4. Insert a suitable tape into the cassette deck and close the
cassette door.
5. Press RECORD 0 to start recording.
– Playing of the CD program starts automatically from the
beginning of the program. It is not necessary to start the CD
player separately.
To select and record a particular passage within a track:
• Press and hold down on SEARCH ∞ or §.
• When you recognize the passage you want,
release SEARCH ∞ or §.
• To interrupt CD playback press PLAY•PAUSE 2;.
• Recording will begin from this exact point in the track when
you press RECORD 0.
6. For brief interruptions during recording, press PAUSE ;. To
resume recording, press PAUSE ; again.
7. To stop recording, press OPEN•STOP /9.
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
PLA
Y•PAU
SE
PRO
G
BAT
LOW
SOUN
FM
D CO
NT
AM
ROL
PRO
SHU
LW
CENT
ER
TUNE
G VOL
FFL
R
PRE
SET
E
•
•
BAND
SHU
FFL
E
REP
EAT
SEA
RCH
15
AZ157017
15-12-2000 18:30
AZ 1570/17
page
Pagina 16
16
RECORDING
GENERAL INFORMATION
Recording from the tuner
CD RE
CD SY W
RITA
NCRO
ST BLE
E
L
VO
UM
RAT COM
RECO PA
TIBL
RDIN
E
G
C E N TER
CD
STO
P
AZ 15
70
RAD
IO CA
SSE
TTE
REC
ORDER
OPE
N
LOSE
C
English
1. Tune to the desired radio station (see Tuning to radio stations).
2. Press OPEN•STOP /9 to open the cassette door.
3. Insert a suitable tape into the cassette deck and close the
cassette door.
4. Press RECORD 0 to start recording.
5. For brief interruptions, press PAUSE ; To resume recording,
press PAUSE ; again.
6. To stop recording, press OPEN•STOP /9.
PLA
Y•PAU
SE
PRO
G
BAT
LOW
SOUN
FM
D CO
NT
A
P
ROL
CENT
ER
T
CD player and CD handling
• If the CD player cannot read CDs correctly, use a commonly
available cleaning CD to clean the lens before taking the set to
repair. Other cleaning methods may destroy the lens.
• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause
condensation to cloud over on the lens of your CD player.
Playing a CD is then not possible. Do not attempt to clean the
lens but leave the set in a warm environment until the moisture
evaporates.
• Always keep the CD compartment closed to avoid dust on the
lens.
• To take a CD out of its box, press the center spindle while
lifting the CD. Always pick up the CD by the edge and return
the CD to its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the center towards
the edge using a soft, lint-free cloth. Do not use cleaning
agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.
X
Tape deck maintenance
To ensure quality recording and playback of the tape deck, clean
parts A, B and C shown in the diagram below, after approx.
50 hours of operation, or on average once a month. Use a cotton
bud slightly moistened with alcohol or a special head cleaning
fluid to clean both decks.
1. Open the cassette holder by pressing OPEN•STOP /9.
2. Press PLAY 1 and clean the rubber pressure rollers C.
3. Press PAUSE ; and clean the magnetic heads A and also the
capstan B.
4. After cleaning, press OPEN•STOP /9.
Note: Cleaning of the heads can also be done by playing a
cleaning cassette through once.
16
C
B
A
A
AZ157017
15-12-2000 18:30
Pagina 17
AZ 1570 /17
page
17
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service center.
WARNING: Do not open the set as there is a risk of electric shock. Under no
circumstances should you try to repair the set yourself, as this will
invalidate the warranty.
PROBLEM
– POSSIBLE CAUSE
• REMEDY
No sound/power
– VOLUME not adjusted
• Adjust the VOLUME
– Headphones connected
• Disconnect headphones
– Power cord not securely connected
• Connect AC power cord properly
Severe radio hum or noise
– Electrical interference: set too close to TV,
VCR or computer
• Increase the distance
Poor radio reception
– Weak radio signal
• FM: Direct the FM telescopic aerial for
optimum reception
–
•
–
•
The CD skips tracks
– CD damaged or dirty
• Replace or clean CD
– SHUFFLE or PROGRAM is active
• Switch off SHUFFLE / PROGRAM
Poor cassette sound quality
– Dust and dirt on the heads, etc.
• Clean deck parts, see Maintenance
– Use of incompatible cassette types (METAL
or CHROME)
• Only use NORMAL (IEC I) for recording
Recording does not work
– Cassette tab(s) may be broken
• Apply a piece of adhesive tape over the
missing tab space.
indication
– CD-R(W) is blank or the disc is not finalized
• Use a finalized CD-R(W)
indication
CD badly scratched or dirty
Replace/ clean CD, see Maintenance
Laser lens steamed up
Wait until lens has cleared
The type plate is located on the bottom of the set.
17
English
TROUBLESHOOTING
Download PDF

advertising
