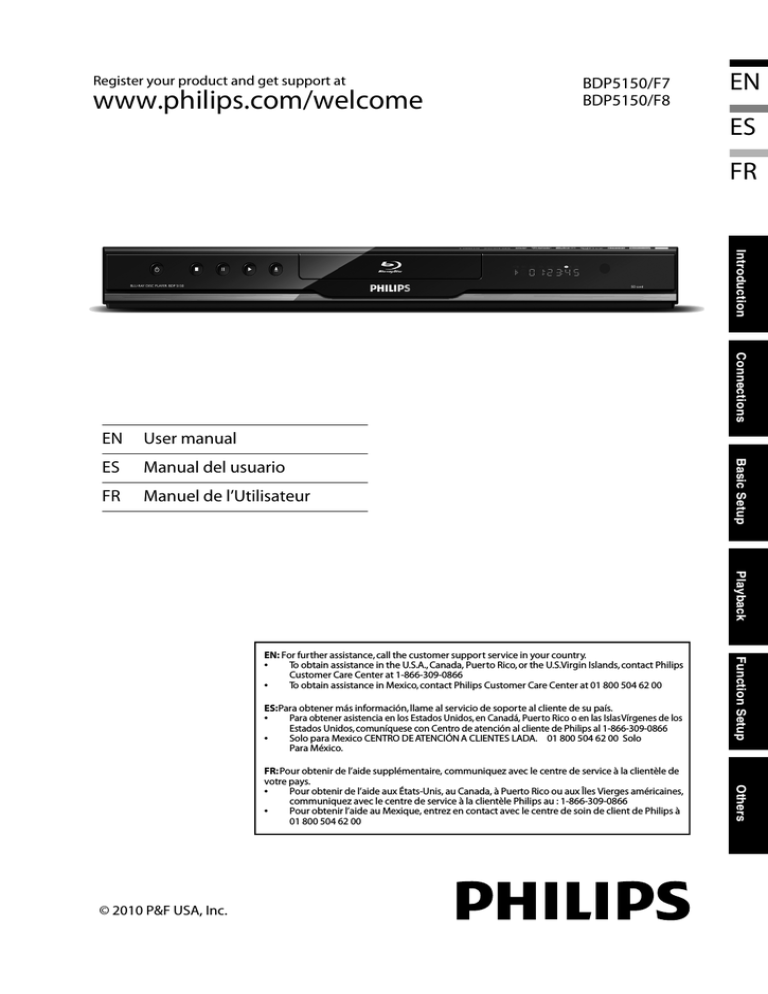

Philips BDP5150/F8 User manual

Philips BDP5150/F8 User manual
Register
and
getget
support
at at
Registeryour
yourproduct
product
and
support
www.philips.com/welcome
www.philips.com/welcome
BDP5010
BDP5150/F7
BDP5150/F8
EN
ES
FR
Introduction
Connections
User manual
ES
Manual del usuario
FR
Manuel de l’Utilisateur
Basic Setup
EN
Playback
ES: Para obtener más información, llame al servicio de soporte al cliente de su país.
•
Para obtener asistencia en los Estados Unidos, en Canadá, Puerto Rico o en las Islas Vírgenes de los
Estados Unidos, comuníquese con Centro de atención al cliente de Philips al 1-866-309-0866
•
Solo para Mexico CENTRO DE ATENCIÓN A CLIENTES LADA. 01 800 504 62 00 Solo
Para México.
© 2010 P&F USA, Inc.
Others
FR: Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service à la clientèle de
votre pays.
•
Pour obtenir de l’aide aux États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines,
communiquez avec le centre de service à la clientèle Philips au : 1-866-309-0866
•
Pour obtenir l’aide au Mexique, entrez en contact avec le centre de soin de client de Philips à
01 800 504 62 00
Function Setup
EN: For further assistance, call the customer support service in your country.
•
To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S.Virgin Islands, contact Philips
Customer Care Center at 1-866-309-0866
•
To obtain assistance in Mexico, contact Philips Customer Care Center at 01 800 504 62 00
PRECAUTIONS
Safety Instructions
The model and serial numbers of this unit may be found on the cabinet.
You should record and retain those numbers for future reference.
Model No.:
Serial No.:
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated“dangerous voltage”within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The important note and rating are located on the rear or bottom of the cabinet.
IMPORTANT SAFETY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the
authority to operate this equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.
2
EN
PRECAUTIONS
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
WARNING: Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire, or the like.
EN
LASER SAFETY
This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this
apparatus, due to possible eye injury.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION: Visible and invisible laser radiation when open and interlocks defeated. Do not stare into beam.
LOCATION: Inside, near the deck mechanism.
Introduction
IMPORTANT COPYRIGHT INFORMATION
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates
copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this
copyright protection technology must be authorized by Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing
or climbing on it. A falling unit can cause serious injury or even death.
Connections
To Avoid the Hazards of Electrical Shock and Fire
• Do not handle the AC power cord with wet hands.
• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.
• Do not put your fingers or objects into the unit.
Location and Handling
Playback
Dew Condensation Warning
Basic Setup
• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes.
• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.
Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is
placed too close to them. In this case, please ensure enough space between the external devices and the unit.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.
• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few
hours until its inside gets dry.
- The unit is moved from a cold place to a warm place.
- Under conditions of high humidity.
- After heating a cold room.
Function Setup
Note about Recycling
• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in
accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local
regulations concerning chemical wastes.
Notice for Progressive Scan Output
Products that have earned ENERGY STAR® are designed to protect the environment
through superior energy efficiency.
EN
3
Others
• Consumers should note that not all high definition television sets are fully compatible with this product and may
cause artifacts to be displayed in the picture. In case of picture problems with 525(480) progressive scan output,
it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions
regarding your TV set compatibility with this 525p(480p) BD/DVD player, please contact our customer service center.
PRECAUTIONS
Maintenance
Supplied Accessories
Servicing
• Please refer to relevant topics on “TROUBLESHOOTING”
on page 53 before returning the product.
• If you need to call a customer service representative,
please know the model number and serial number of
your product before you call. This information is
displayed on the back of the product. Also, please take a
moment to identify the problem you are having, and be
prepared to explain this to the representative. If you
believe the representative will need to help you with
operations, please stay near the product. Our
representatives will be happy to assist you. For online
reference, please visit our web site at
http://www.philips.com/welcome
Cleaning the cabinet
• Wipe the front panel and other exterior surfaces of the
unit with a soft cloth.
• Never use a solvent, thinner, benzene or alcohol to clean
the unit. Do not spray insecticide liquid near the unit.
Such chemicals may discolor the surface or damage the
unit.
Cleaning discs
• When a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the center to out. Do not wipe in a
circular motion.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, detergent, abrasive
cleaning agents or antistatic spray intended for analog
records.
Cleaning the disc lens
• If this unit still does not perform properly although you
refer to the relevant sections and to “TROUBLESHOOTING”
in this user manual, the laser optical pickup unit may be
dirty. Consult your dealer or an Authorized Service Center
for inspection and cleaning of the laser optical pickup
unit.
Disc handling
• Handle the discs so that fingerprints and dust do not
adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is not
used.
• Note that discs with special shapes (heart-shaped discs,
octagonal discs, etc.) cannot be played back on this unit.
Do not attempt to play such discs, as they may damage
the unit.
4
EN
User Manual
• remote control
• AAA (1.5V)
battery × 2
registration card
HDMI cable
(High Speed HDMI Cable)
User Manual
Quick Start
Guide
Netflix
Box-insert
RCA audio / video cables
PRECAUTIONS
Trademark Information
Manufactured under license
from Dolby Laboratories.
“Dolby” and the double-D
symbol are trademarks of
Dolby Laboratories.
Netflix and the Netflix
logo are trademarks
or registered
trademarks of Netflix,
Inc.
vTuner is a trademark of
Nothing Else Matters
Software, Ltd.
“Blu-ray Disc” and
Connections
are trademarks.
is a trademark of DVD Format/Logo Licensing
Corporation.
is trademark of Eastman Kodak Company.
Basic Setup
HDMI, the HDMI Logo, and
High-Definition Multimedia
Interface are trademarks or
registered trademarks of
HDMI Licensing LLC in the
United States and other
countries.
EN
Introduction
Manufactured under license
under U.S. Patent #’s:
5,451,942; 5,956,674;
5,974,380; 5,978,762;
6,226,616; 6,487,535;
7,392,195; 7,272,567;
7,333,929; 7,212,872 & other
U.S. and worldwide patents
issued & pending. DTS and the
Symbol are registered
trademarks, & DTS-HD,
DTS-HD Master Audio |
Essential and the DTS logos
are trademarks of DTS, Inc.
Product includes software.
© DTS, Inc. All Rights
Reserved.
“BD-LIVE” logo is trademark of
Blu-ray Disc Association.
“x.v.Color” and “x.v.Color”
logo are trademarks of Sony
Corporation.
Playback
Java and all other Java
trademarks and logos are
trademarks or registered
trademarks of Sun
Microsystems, Inc. in the United
States and/or other countries.
Function Setup
Windows Media and the
Windows logo are trademarks
or registered trademarks of
Microsoft Corporation in the
United States and/or other
countries.
Others
DivX®, DivX Certified®, and
associated logos are
trademarks of DivX, Inc. and
are used under license.
“AVCHD” and the “AVCHD” logo
are trademarks of Panasonic
Corporation and Sony
Corporation.
“BONUSVIEW” is trademark of
Blu-ray Disc Association.
EN
5
CONTENTS
Introduction
Precautions ................................................................... 2
Safety Instructions ....................................................................2
Features ........................................................................ 7
Features ........................................................................................7
Product Info .................................................................................8
Symbols Used in this User Manual ......................................8
Functional Overview .................................................... 9
Front Panel ...................................................................................9
Rear Panel .....................................................................................9
Remote Control ....................................................................... 10
Front Panel Display ................................................................ 12
Guide to On-Screen Display ............................................... 13
Connections
Connections ................................................................14
Connection to the TV ............................................................ 14
Connection to an Audio System ....................................... 17
Network Connection with LAN ......................................... 18
Basic Setup
Before You Start .........................................................19
Finding the Viewing Channel on Your TV ..................... 19
Netflix Operations ..................................................... 34
Before Activating the Connection to Netflix .................34
Activating the Connection to Netflix ...............................34
Watching Streaming Movies ...............................................34
Enjoying the Internet Radio with vTuner ................ 35
Internet Radio Playback ........................................................35
Guide to the Playback Screen .............................................36
Add to Favorite List ................................................................36
Remove from Favorite List ...................................................36
Add Stations on the vTuner Website ...............................36
Reset the Station List .............................................................36
Function Setup
List of settings ............................................................ 37
Setups ......................................................................... 43
TV Shape .....................................................................................43
HDMI Video Resolution .........................................................43
HDMI Audio ...............................................................................44
Digital Out .................................................................................46
Parental .......................................................................................47
EasyLink (HDMI CEC) ..............................................................48
Network Connection .............................................................48
Software Upgrade ...................................................................52
Reset to Factory Default .......................................................52
Playback
Information on Playback ...........................................20
Information on Playback ...................................................... 20
Guide to File List ..................................................................... 22
How to Insert a Disc ............................................................... 22
Basic Playback ............................................................23
Playing Back a BD, DVD or a Disc with AVCHD Files .....23
Playing Back an Audio CD or a Disc with DivX® /
MP3 / Windows Media™ Audio / JPEG Files ............... 24
Kodak Picture CD .................................................................... 26
Reading the SD Memory Card ........................................... 26
About DivX® and DivX® VOD .............................................. 27
Playing Back a DivX® with DivX® External Subtitle .......28
Using the Title / Disc Menu ................................................. 28
Special Playback .........................................................29
Fast Forward / Fast Reverse ................................................ 29
Slow Forward Playback ........................................................ 29
Step by Step Playback .......................................................... 29
Zoom ........................................................................................... 29
Repeat Playback ...................................................................... 30
A-B Repeat ................................................................................ 30
Slide Show ................................................................................. 30
PiP (BONUSVIEW) Setting .................................................... 30
Enjoying BD-Live Discs with Internet .............................. 31
Title / Chapter Search ........................................................... 31
Track Search ............................................................................. 32
Time Search .............................................................................. 32
Switching Subtitles ................................................................ 32
Switching Audio Soundtrack ............................................. 33
Switching Camera Angles ................................................... 33
6
EN
Others
Troubleshooting ........................................................ 53
Glossary ...................................................................... 55
Specifications ............................................................. 57
Network Service Disclaimer ...................................... 58
ONE (1) YEAR LIMITED WARRANTY .......................... 59
FEATURES
Watch movies in the highest picture quality available for your HDTV. The BDP5150 Blu-ray Disc player offers full high-definition
video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness
delivers a more true-to-life picture.
BD-Java
With some BDs which support Java applications, you can
enjoy the interactive functions such as games or interactive
menus.
HDMI Deep Color
Deep Color reduces the posterization effect of the playback
image. Refer to “HDMI Deep Color” in the “LIST OF SETTINGS”
on page 38.
Upscale DVD for enhanced picture quality
Your current DVD will look even better than before thanks to
video upscaling. Upscaling will increase the resolution of
standard definition DVD to high definition up to 1080p over
an HDMI connection. The picture will be less jagged and more
realistic for a near high definition experience.
HDMI 1080p/24 output (BD only)
This unit is equipped with the feature which can provide the
smooth movement in the playback of film originated material with
the frame rate of 24 frames per second with progressive. (Available
only when the display device is connected by an HDMI cable.)
Refer to “HDMI 1080p/24” in the “LIST OF SETTINGS” on
page 38.
Listen to the rich multi-channel surround sound
Multi-channel surround sound, which realizes real-to-life
sound and makes you feel that you are really there.
Netflix
With this unit, you can enjoy movies and TV episodes
streamed instantly from Netflix via the Internet. In order to use
this feature, you must visit netflix.com/Philips on your PC and
become a Netflix member.
(This feature is available only in the United States. )
vTuner
This unit supports vTuner which is a database service of
Internet radio stations. You can enjoy various kinds of Internet
radio stations with vTuner via the Internet.
Others
PiP (BONUSVIEW)
Some BD-videos have the PiP function which enables you to
display the secondary video in the primary video. You can call
up the secondary video by pressing [BONUSVIEW (PiP)]
whenever the scene contains the secondary video.
Function Setup
About EasyLink (HDMI CEC) (Consumer Electronics
Control)
EasyLink (HDMI CEC) allows you to operate the linked
functions of this player with Philips brand TV with EasyLink
feature.
Philips does not guarantee 100 % interoperability with other
brands of HDMI CEC compliant devices.
x.v.Color
This unit supports playback of video contents on discs
recorded with “x.v.Color” technology. To watch this video
content with the “x.v.Color” space, a TV or other display
device supporting both video image reproduction using
“x.v.Color” standard and capability of manual switching of its
color space setting is required. Please refer to the owner’s
manual of your display device for further information.
Playback
Easy and simple connection to your HDTV via HDMI
Connect your BDP5150 to your HDTV with one single HDMI
(High Definition Multimedia Interface) cable. Philips
recommends HDMI1.3 (category 2) cable (also known as High
Speed HDMI cable) for better compatibility. The high definition
video output signal will be transferred to your HDTV without
conversion to analog signals, so you will get an excellent
picture and sound quality, completely free from noise.
Thanks to other multiple outputs, you can also easily connect
to your home theater system or amplifier.
Playing back AVCHD files
This unit supports playback of AVCHD format files (new format
for high definition video camcorders) recorded on disc / SD
card. Your high definition personal archive is playable in HD
quality.
Basic Setup
Intuitive user interface and remote control
The Philips logical user interface allows you to easily navigate
through your content and settings, so you can quickly find
what you are looking for.
Playing back the contents in SD Memory Card
You can play back AVCHD / MP3 / WMA / JPEGs stored in an SD
Memory Card. You can store picture-in-picture commentary,
subtitles or other extras for BD-ROM ver. 2 (Profile 2.0 / Profile 1.1)
files in an SD Memory Card and play back with the BD-video.
Connections
Enjoy your content on different kinds of media
Full backwards compatibility with DVD, CD and SD card
ensures that you can continue to enjoy your current audiovideo collection. Additionally, you can view JPEG digital
pictures or listen to MP3 or Windows Media™ Audio music
files.
Introduction
Blu-ray Disc
You can enjoy Blu-ray Disc which is capable of storing five
times more data than a conventional DVD.
Pop-up menu
Some BD-videos have a pop-up menu which is a navigation
menu that can be called up and be operated on the TV screen
without interrupting the playback. You can call up the pop-up
menu by pressing [DISC MENU / POP-UP MENU]. Contents in
the pop-up menu vary depending on the disc.
Features
EN
BD-Live
BD-Live (BD-ROM version 2 Profile 2.0) that allows interactive
functions to be used when this unit is connected to the
Internet in addition to the BONUSVIEW function. The various
functions differ depending on the disc.
EN
7
FEATURES
Product Info
“Product Info” screen provides you with the information
on this unit’s hardware and software version information.
You can also download the latest firmware from the web
site which is displayed in the “Product Info” screen, and
update the firmware by yourself.
To access “Product Info”, select “Product Info” in the home
menu.
Symbols Used in this User Manual
To specify for which media type each function is, we put the
following symbols at the beginning of each item to operate.
Symbol
Description
Description refers to BD-video
Description refers to DVD-video
Description refers to audio CD / DTS-CD
Description refers to DVD-RW/-R and SD card
with AVCHD files
Description refers to BD-RE/-R, DVD-RW/-R
and CD-RW/-R with DivX® files
Description refers to BD-RE/-R, DVD-RW/-R,
CD-RW/-R and SD card with MP3 files
Description refers to BD-RE/-R, DVD-RW/-R,
CD-RW/-R and SD card with
Windows Media™ Audio files
Description refers to BD-RE/-R, DVD-RW/-R,
CD-RW/-R and SD card with JPEG files
If you do not find any of the symbols listed above under the
function heading, the operation is applicable to all media.
8
EN
FUNCTIONAL OVERVIEW
Front Panel
EN
1
2
3
4* 5*
6
7
8
9
* The unit can also be turned on by pressing these buttons.
1
4
3
2
L
Y
PR / CR
VIDEO
OUT
COMPONENT
VIDEO OUT
Basic Setup
Rear Panel
Connections
5. A (open/close) button*
• Press to open or close the disc tray.
6. Disc tray
• Place a disc when opening the disc tray.
7. Display
• Refer to “Front Panel Display” on page 12.
8. Infrared sensor window
• Receive signals from your remote control so that you
can control the unit from a distance.
9. SD card slot
• Insert an SD Memory Card and play back the
contents in it.
Introduction
1. Q (standby-on) button
• Press to turn on the unit, or to turn the unit into the
standby mode. (To completely turn off the unit, you
must unplug the AC power cord.)
• Press and hold for 10 seconds to shut down the unit.
• This button lights up in red when the unit is in
standby mode and turns off when the power is on.
2. C (stop) button
• Press to stop playback.
3. F (pause) button
• Press to pause playback.
4. B (play) button*
• Press to start or resume playback.
5
PB / CB
LAN
HDMI OUT
R
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
Playback
6
AUDIO
OUT
7
6. DIGITAL OUT (COAXIAL) jack
• Use to connect an AV receiver / amplifier, Dolby
Digital / DTS decoder or other device with a digital
audio coaxial input jack with a digital audio coaxial
cable.
7. VIDEO OUT jack
• Use to connect a TV monitor, an AV receiver /
amplifier or other device with an RCA video cable.
Function Setup
Note
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
• This unit does not have the RF modulator.
EN
Others
1. LAN terminal
• Use to connect a telecommunications equipment
with LAN cable.
2. HDMI OUT jack
• Use to connect to a display with an HDMI compatible
port with an HDMI cable.
3. AUDIO OUT jacks
• Use to connect a TV monitor, an AV receiver /
amplifier or other device with an RCA audio cable.
4. COMPONENT VIDEO OUT jacks
• Use to connect a TV monitor with component video
inputs with an RCA component video cable.
5. AC power cord
• Connect to a standard AC outlet to supply power to
this unit.
• Unplug this cord from the AC outlet to completely
turn off the unit.
9
FUNCTIONAL OVERVIEW
Remote Control
1
2
3
29
28
4
5
6
27
7
8
9
10*
11
26
25
24
12
13
23
22
14
21
15*
16
17
18
20
19
* The unit can also be turned on by pressing these buttons.
1. Q (standby-on) button
• Press to turn on the unit, or to turn the unit into the
standby mode. (To completely turn off the unit, you
must unplug the AC power cord.)
2. BONUSVIEW (PiP) button
• Press to switch picture in picture feature on/off
(only applicable to BD-video which supports the PiP
(BONUSVIEW) function).
3. ZOOM button
• Press to enlarge the picture on the TV screen.
4. RED / GREEN / BLUE / YELLOW button
• Press to activate short cut keys on some BD-video
function.
• When file list / setup list is shown, press to switch
between pages.
5.
(home) button
• Press to display the home menu.
6. DISC MENU / POP-UP MENU button
BD:
• Press to display the pop-up menu.
DVD:
• Press to display the disc menu.
7. K / L / s / B buttons
• Press to select items or settings.
8. OK button
• Press to confirm or select menu items.
9. BACK U button
• Press to return to the previously displayed menu or
screen function.
10
EN
10. B (play) button*
• Press to start playback or resume playback.
11. S (previous) button
• During playback, press once to return to the
beginning of the current title, chapter, track or file.
• During the JPEG playback, press to return to the
previous file.
• During playback, press twice to return to the
previous title, chapter, track or file.
12. E (reverse) button
• During playback, press to fast reverse the playback.
13. C (stop) button
• Press to stop playback.
14.
ⴐ / ⴑ (volume) button
• Press to adjust the TV volume (only applicable to
the PHILIPS brand TV).
15. A (open/close) button*
• Press to open or close the disc tray.
16. Number buttons
• Press to select a chapter during playback.
• Press to enter values in the input field.
17. SUBTITLE button
• Press to select subtitles on a disc.
18. ANGLE button
• Press to select camera angles on a disc.
• Press to rotate a picture (JPEG).
19. HDMI button
• Press to set the HDMI output mode.
20. AUDIO button
• Press to select the audio channel (such as audio
languages) on a disc.
21. TV CH ⴐ / ⴑ buttons
• Press to change the channel up and down (only
applicable to the PHILIPS brand TV).
22. d (mute) button
• Press to mute the TV volume (only applicable to the
PHILIPS brand TV).
23. D (forward) button
• During playback, press to fast forward the playback.
• When playback is in pause, press to slow forward
the playback.
24. T (next) button
• During playback, press to skip to the next chapter,
track or file.
25. F (pause) button
• Press to pause playback.
• When playback is in pause mode, press repeatedly
to forward the playback step by step.
26. INFO
button
• Press to display the information display.
27. TOP MENU button
BD:
• Press to display the top menu.
DVD:
• Press to display the title menu.
28. REPEAT A-B button
• Press to play back a defined section between point
A and B repeatedly.
29. REPEAT button
• Press to toggle between various repeat modes.
FUNCTIONAL OVERVIEW
Installing the Batteries in the Remote Control
Install 2 AAA (1.5V) batteries matching the polarity
indicated inside battery compartment of the remote
control.
1) Open the cover.
Make sure to match + and - on the batteries to the
marks indicated in the battery compartment.
30˚
16 feet (5 m)
Basic Setup
3) Close the cover.
EN
Connections
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the
remote control and the infrared sensor window on the
unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the infrared
sensor window of the unit.
• Remote control for different devices can interfere with
each other. Avoid using remote control for other device
located close to the unit.
• Replace the batteries when you notice a fall off in the
operating range of the remote control.
• The maximum operable ranges from the unit are as
follows.
- Line of sight:
approx. 23 feet (7 m)
- Either side of the center:
approx. 16 feet (5 m) within 30°
- Above:
approx. 16 feet (5 m) within 15°
- Below:
approx. 10 feet (3 m) within 30°
Introduction
2) Insert batteries.
Using a Remote Control
30˚
23 feet (7 m) 16 feet (5 m)
Playback
Note
Function Setup
Incorrect use of batteries can result in hazards such as
leakage and bursting. Please observe the following:
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
Although they may look similar, different batteries
may have different voltages.
• Make sure that the + and - ends of each battery
match the indications in the battery compartment.
• Remove batteries from battery compartment that is
not going to be used for a month or more.
• When disposing of used batteries, please comply
with governmental regulations or environmental
public instruction’s rules that apply in your country
or area.
• Do not recharge, short-circuit, heat, burn or
disassemble batteries.
Others
EN
11
FUNCTIONAL OVERVIEW
Front Panel Display
1
2
3
4
* Brightness of the display can be adjusted. Refer to “Front Panel Brightness” in “LIST OF SETTINGS” on page 40.
1.
2.
3.
4.
Displays repeat icon. (Appears during repeat playback.)
Displays media mode icon (disc mode or SD card mode).
Displays playback status icon. Refer to the table below.
Displays various kinds of information such as title number, elapsed playing time, repeat type, menu type, etc.
Playback status icon
Mode
Playback is in progress
Stop mode
Pause mode
Fast forward mode
Fast reverse mode
Slow forward mode
Loading the vTuner
e.g.)
Disc is being played back.
Indicating the current title number and the elapsed time.
Current chapter is in chapter repeat mode during playback of disc.
Loading a disc.
Dolby Digital audio is being played back during playback of disc.
DTS audio is being played back during playback of disc.
Home menu is displayed and the unit is in disc mode.
12
EN
FUNCTIONAL OVERVIEW
Guide to On-Screen Display
EN
Home Menu
When you turn on the unit, home menu will appear
automatically. Otherwise, press [ (home)].
Blu-ray Disc Player
Disc Tray
SD Card
Settings
Product Info
Introduction
“Disc Tray”
“Settings”
“Product Info”
“NETFLIX”
“vTuner”
Connections
“SD Card”
: To access the track / file list or media
filter screen
: To access the file list or media filter
screen
: To access the settings menus
: To access the product information
: To access the Netflix screen
: To access the menu screen of vTuner
Basic Setup
Menu Screen
1
2
BD-Player
Settings
Quick Setup
Player Menu
Advanced Setup
TV Shape
Factory Default
HDMI Video Resolution
3
Playback
Function Setup
1. Directory
Displays the current hierarchy.
2. Menus
3. Options
Displays options for the high-lighted item on the left
whenever available.
Others
EN
13
CONNECTIONS
Connection to the TV
1
Choose the appropriate connection, then proceed to the corresponding
instruction (A, B or C) on the next page.
Best
(Supports up to 1080i(*1), 1080p(*2), 1080p/24 resolution.)
Your TV
Video
Audio
HDMI cable
HDMI IN
High
Definition
TV
Go To
A
No analog audio connection required.
(*1)
1080i
(*2)
: Outputs the video data with frame rate of 30 frames per second.
1080p : Outputs the video data with frame rate of 60 frames per second.
Supplied cables used in this connection are as follows:
• HDMI cable (High Speed HDMI Cable) x 1
Better (Supports up to 1080i resolution.)
COMPONENT
VIDEO IN
Y
Video
RCA component video cable
PB/CB
Your TV
PR/CR
+
High
Definition
TV
Go To
B
L
Audio
RCA audio cable
AUDIO IN
R
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Basic (Supports only 480i resolution.)
VIDEO IN
Video
+
Audio
RCA video cable
Your TV
L
RCA audio cable
AUDIO IN
R
Standard
Definition
TV
Go To
C
• Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted
due to the copy right protection system.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x1
• RCA video cable x1
14
EN
CONNECTIONS
2
EN
Connect the cables by following the descriptions below.
HDMI Video / Audio Connection
A
Your TV
L
LAN
Y
PR / CR
VIDEO
OUT
COMPONENT
VIDEO OUT
PB / CB
HDMI OUT
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
R
AUDIO
OUT
Introduction
HDMI IN
HDMI cable
($-)/54
Component Video + Standard Audio Connection
L
LAN
PR / CR
VIDEO
OUT
COMPONENT
VIDEO OUT
Connections
B
Your TV
Y
PB / CB
HDMI OUT
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
R
AUDIO
OUT
RCA component
video cable
Y
Y
PR /CR
PR/CR
PB /CB
PB/CB
Basic Setup
L
COMPONENT
VIDEO IN
L
AUDIO IN
R
R
COMPONENT
VIDEO OUT
AUDIO
OUT
RCA audio cable
C
Playback
Standard Video + Standard Audio Connection
Your TV
L
LAN
Y
PR / CR
PB / CB
HDMI OUT
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
R
AUDIO
OUT
VIDEO
OUT
COMPONENT
VIDEO OUT
Function Setup
L
L
RCA video cable
VIDEO IN
AUDIO IN
R
R
AUDIO
OUT
VIDEO
OUT
RCA audio cable
Others
EN
15
CONNECTIONS
HDMI Mode and Actual Output Signals
Press [HDMI] to change the resolution of the video signal being output from the HDMI OUT jack. The video resolution
changes as follows every time [HDMI] is pressed. Or change the setting in the “HDMI Video Resolution” in the settings
menu.
Font Panel Display
HDMI Video Resolution
480 Progressive
Press [HDMI]
720 Progressive
Press [HDMI]
1080 Interlaced
Press [HDMI]
1080 Progressive
Press [HDMI]
Copyright protection system
To play back the digital video images of a BD-video or DVD-video via an HDMI connection, it is necessary that both the
player and the display device (or an AV receiver / amplifier) support a copyright protection system called HDCP (highbandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption
and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of
your display device (or AV receiver / amplifier) for more information.
Note
• When using HDCP-incompatible display device, the picture will not be viewed properly.
• The audio signals from the HDMI jack (including the sampling frequency, the number of channels and bit length)
may be limited by the device that is connected.
• Among the display device(s) that support HDMI, some do not support audio output (for example, projectors). In
connections with device such as this unit, audio signals are not output from the HDMI OUT jack.
• When this unit’s HDMI jack is connected to a DVI-D compatible display device(s) (HDCP compatible) with an HDMIDVI converter cable, the signals are output in digital RGB.
• Pressing [HDMI] does not work when HDMI cable is not connected, or when no video signal is being output from
the HDMI OUT jack.
• Pressing [HDMI] does not work during the playback of a BD-video.
• When you make a selection, the TV monitor temporarily goes blank and then comes back again. If it does not, press
[HDMI] repeatedly to change the resolution or press and hold [B (play)] on the front panel for 5 seconds to change
the setting back to its default.
16
EN
CONNECTIONS
Connection to an Audio System
EN
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
2-Channel Analog Audio Connection
Digital Audio Connection
stereo system
AV receiver / amplifier
audio
AUDIO IN
R
L
DIGITAL AUDIO INPUT
COAXIAL
digital audio coaxial
input jack
analog audio input jacks
L
L
Y
this unit
PR / CR
L
Y
PR / CR
VIDEO
OUT
COMPONENT
VIDEO OUT
PB / CB
LAN
PB / CB
LAN
HDMI OUT
HDMI OUT
R
DIGITAL OUT
PCM/BITSTREAM
AUDIO
OUT
R
VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
AUDIO
OUT
COAXIAL
Connections
COAXIAL
Introduction
digital audio
RCA cable
RCA audio
cable
DIGITAL OUT
PCM/BITSTREAM
R
AUDIO
OUT
AUDIO OUT
DIGITAL OUT (COAXIAL)
To set up “Digital Out”, refer to page 46.
Media
ª
BD-video
AVCHD
DivX®
Audio CD / MP3 /
Windows Media™ Audio
DownMix 2ch PCM*1
DownMix 2ch PCM*2
*3
DownMix 2ch PCM*4
“Mix Audio Output”
DownMix 2ch PCM
Dolby TrueHD
DTS®
DownMix 2ch PCM
DownMix 2ch PCM
DownMix 2ch PCM
DTS-HD®
DownMix 2ch PCM*1
DownMix 2ch PCM*5
LPCM
Dolby Digital
DTS®
LPCM
DTS®
Dolby Digital
LPCM
Dolby Digital
MP3 / MP2
DownMix 2ch PCM
DownMix 2ch PCM
DownMix 2ch PCM
2ch PCM
DownMix 2ch PCM
DownMix 2ch PCM
DownMix 2ch PCM
DownMix 2ch PCM
2ch PCM
DownMix 2ch PCM
PCM
2ch PCM
Function Setup
DTS-CD
DownMix 2ch PCM
Dolby Digital Plus
“Primary Audio Only”
Playback
DVD-video
“Blu-ray Disc Audio” setting A
Audio Source
ª
Dolby Digital
Basic Setup
Audio Output from Analog Out (2ch Jacks)
Others
*1) Full decoded.
*2) Only the independent substream is decoded.
*3) Dolby TrueHD stream is decoded.
*4) Only the Dolby Digital substream is decoded.
*5) Only the core substream is decoded.
EN
17
CONNECTIONS
HDMI Audio Connection
AV receiver / amplifier with an HDMI input jack
this unit
audio
HDMI IN
HDMI cable
L
Y
PR / CR
VIDEO
OUT
COMPONENT
VIDEO OUT
PB / CB
LAN
HDMI OUT
R
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
AUDIO
OUT
HDMI OUT
To set up “HDMI Audio”, refer to page 44.
Supplied cables used in these connections are as follows:
• RCA audio cable (L/R) x 1
• HDMI cable (High Speed HDMI Cable) x 1
Please purchase the rest of the necessary cables at your local store.
Network Connection with LAN
• By connecting this unit to the Internet, you can upgrade the software via the Internet or access the BD-Live, Netflix and
vTuner services.
Telecommunications
equipment (modem, etc.)
Hub or broadband router
WAN
LAN
LAN
5
4
3
2
1
LAN cable
LAN cable
Internet
this unit
LAN
L
Y
PR / CR
VIDEO
OUT
COMPONENT
VIDEO OUT
PB / CB
LAN
HDMI OUT
R
COAXIAL
DIGITAL OUT
PCM/BITSTREAM
AUDIO
OUT
No supplied cables are used in this connection:
Please purchase the necessary cables at your local store.
Note
• After connecting a LAN cable, set up necessary network settings.
(For the network setup, refer to “Network Connection” on page 48.)
• For more information about the software upgrade, refer to “Network Upgrade” on page 52.
• For more information about BD-Live, refer to “Enjoying BD-Live Discs with Internet” on page 31.
• For more information about Netflix, refer to “NETFLIX OPERATIONS” on page 34.
• For more information about vTuner, refer to “ENJOYING THE INTERNET RADIO WITH vTuner” on page 35.
• Do not insert any cable other than a LAN cable to the LAN terminal to avoid damaging the unit.
• If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a
broadband router.
• If your telecommunications equipment (modem, etc.) has broadband router functions but there is no vacant port,
use a hub.
• For a broadband router, use a router which supports 10BASE-T / 100BASE-TX.
• Do not connect your PC directly to the LAN terminal of this unit.
18
EN
BEFORE YOU START
After you have completed all the connections, you must find the viewing channel (external input channel) on your TV.
EN
Finding the Viewing Channel on Your TV
Turn on your TV.
Press the button on the TV’s remote
control that accesses the external input
channel. It may be labeled “SOURCE”,
“AV” or “SELECT” (refer to your TV’s
user manual). Or press “2” on the TV’s
remote control, then press channel
down button repeatedly until you see
the PHILIPS splash screen.
Introduction
1
2
3
After you have made all the necessary
connections, press [Q (standby-on)] to
turn on the unit.
Connections
Basic Setup
This is the correct viewing channel (external
input channel).
• If a certain amount of time has passed since
you turned on the unit, you may see the home
menu instead of the PHILIPS splash screen.
Playback
Home menu:
Blu-ray Disc Player
Disc Tray
SD Card
Settings
Product Info
Function Setup
Others
EN
19
INFORMATION ON PLAYBACK
Information on Playback
Before you start playing back a disc, read the following information.
• ABOUT DIVX VIDEO: DivX® is a digital video format
created by DivX, Inc. This is an official DivX Certified
Playable Discs and Files
device that plays DivX video. Visit www.divx.com for
This unit is compatible to play back the following discs / files.
more information and software tools to convert your files
into DivX video.
To play back a disc / file, make sure that it meets the
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®
requirements for region codes and color systems as
device must be registered in order to play DivX Video-ondescribed below. You can play back discs that have the
Demand (VOD) content. To generate the registration
following logos. Other disc types are not guaranteed to
code, locate the DivX VOD section in the device setup
play back.
menu. Go to vod.divx.com with this code to complete
the registration process and learn more about DivX VOD.
Playable discs
Logos
• Official DivX® Certified product; Plays all versions of DivX®
Blu-ray Disc
video (including DivX® 6) with standard playback of
- BD-video
DivX® media files.
- BD-RE* (ver. 2.1)
• Discs containing the DivX® files with the DivX® GMC
(Recorded in BDMV format)
(Global Motion Compensation) playback feature, which
- BD-R* (ver. 1.1 / 1.2 / 1.3)
is DivX® supplemental function, cannot be played back
(Recorded in BDMV format)
on this unit.
(Unclosed discs may not be played
• This unit cannot play back the disc contents protected by
back.)
Windows Media™ Digital Rights Management (DRM).
Readable cards
Playable files / data
DVD-video
SD Memory Card (8 MB - 2 GB)
SDHC Memory Card (4 GB - 8 GB)
miniSD Card (8 MB - 2 GB)
DVD-RW
(finalized video mode discs only)
microSD Card (8 MB - 2 GB)
DVD-R
(finalized video mode discs only)
Note for SD Memory Cards
• This unit supports SD Memory Card with FAT12 /
FAT16 file system, and SDHC Memory Card with
FAT32 file system.
• This unit does not support NTFS file system.
• This unit may not read the SD Memory Cards
formatted on a computer. If that is the case, please
reformat the SD Memory Cards in this unit and try
again.
• This unit does not support miniSDHC and microSDHC
Memory Card.
• For miniSD Card and microSD Card, the adapter is
necessary.
CD-DA (audio CD)
CD-RW
CD-R
Kodak Picture CD
-
DTS-CD
(*) Due to the intentional progression of the Blu-ray Disc
format by its standard setting authority, the company
cannot guarantee or warrant the playability of future
extensions of the Blu-ray Disc format with this product.
Playable files
AVCHD
DivX®
MP3
Windows Media™ Audio
JPEG
20
EN
AVCHD, MP3, WMA, JPEG,
picture-in-picture
commentary, subtitles or
other extras for BD-ROM
ver. 2 (Profile 2.0 / Profile 1.1)
Media
DVD-RW/-R
SD Memory Card (including SDHC)
miniSD Card
microSD Card
BD-RE/-R
DVD-RW/-R
CD-RW/-R
BD-RE/-R
DVD-RW/-R
CD-RW/-R
SD Memory Card (including SDHC)
miniSD Card
microSD Card
miniSD Card
adapter
miniSD Card
microSD Card
adapter
microSD
Card
• Portions of this product are protected under
copyright law and are provided under license by
ARIS / SOLANA / 4C.
• Please keep the SD Memory Cards in their cases when
you are not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or
any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit recognizes up to 8 characters of file name in
the SD Memory Card. Characters after 8th will not be
displayed.
INFORMATION ON PLAYBACK
Unplayable Discs and Files
Hint for Disc Playback
The contents of disc are generally divided into sections or
folders (groups of titles / files) as shown below.
EN
BD-video, DVD-video, AVCHD
title 1
chapter 1 chapter 2
track 1
track 2
chapter 1
Audio CD
track 3
title 2
chapter 2 chapter 3
track 4
track 5
Introduction
The following discs will not be played back in this unit.
• CD-ROM
• CD-I (compact disc-interactive)
• DVD-RAM
• VSD (video single disc)
• DVD-audio
• video CD
• HD DVD
• SVCD
• unfinalized disc
• BD-RE (ver.1.0)
• BD-RE (ver.2.1) (Recorded in BDAV format)
• BD-R (ver.1.1 / 1.2 / 1.3) (Recorded in BDAV format)
• SD Memory Card contains DivX® files
• BD that contains AVCHD files
• BD / DVD hybrid disc (played back as a BD-video only)
• Super Audio CD - Only the sound on the CD layer can be
heard. The sound on the high-density Super Audio CD
layer cannot be heard.
• Playability of dual discs are not guaranteed.
DivX®, MP3,Windows Media™ Audio, JPEG
folder (group) 2
folder (group) 1
file 1
file 2
file 1
file 2
file 3
Color Systems
Connections
BD-video and DVD-video are recorded in different color
systems throughout the world. The most common color
system is NTSC (which is used primarily in the United
States and Canada).
This unit employs NTSC color system, so the disc you play
back must be recorded in the NTSC system. You cannot
play back the disc recorded in other color systems.
Description for Icons
Region Codes
] : group (folder) icon
[
] : group (folder) return icon
[
] : video file icon
[
] : music file icon
[
] : information icon
- “Folders” refers to the groups of files.
- “Tracks” refers to the contents recorded on the audio
CD.
- “Files” refers to the contents on a disc which are
recorded in DivX®, MP3, Windows Media™ Audio, JPEG
file format.
Playback
Function Setup
(Mexico)
[
Basic Setup
BD-video
This unit has been designed to play back
BD-video with region “A”, DVD-video with
region “ALL” or “1” for BDP5150/F7 (USA /
Canada) and region “ALL” or “4” for
BDP5150/F8 (Mexico). You cannot play
back BD-video or DVD-video that are
DVD-video
labeled for other regions. Look for the
symbols on the right on your
BD-video or DVD-video.
If these region symbols do not appear on
your BD-video or DVD-video, you cannot For BDP5150/F7
play back the disc in this unit. The letter or (USA / Canada)
number inside the globe refers to region
of the world. A BD-video or DVD-video
labeled for a specific region can only be
played back in the unit with the same
For BDP5150/F8
region code.
Note
• Unrecognizable characters will be replaced by “…”.
• For BD, DVD and SD card, this unit can recognize up
to 999 groups (folders), and 9,999 tracks / files.
• For CD, this unit can recognize up to 255 groups
(folders), and 999 tracks / files.
Others
EN
21
INFORMATION ON PLAYBACK
Picture Mode File List
Guide to File List
1
Audio CD Track List
2
BD-Player | Disc Tray
1 2
Pictures
24
..
BD-Player
Music
9
Track 001
Track 002
3
Track 003
Track 004
8
Track 005
CDDA
Track 006
Track 001
Track 007
00 : 00 : 39
00 : 03 : 40
Track 008
4
4
5
6
Media Filter
1)
2)
3)
4)
5)
Page Down
7
1)
2)
3)
4)
5)
6)
7)
8)
9)
3
5
14
Total track number
Repeat status
Elapsed playing time of the current track
Playing track number
Total time of the current track
Playing media
Track list
Playback status
Page Down
Directory
Number of contents in the current hierarchy
Current file name
Group (folder) / File list (thumbnails)
Root folder
How to Insert a Disc
1) Press [A (open/close)] to open the disc tray.
2) Place the disc on the disc tray with its label side
facing up.
Video / Music Mode File List
e.g.) MP3 mode
10
BD-Player | Disc Tray
Music
9
Align the disc to the
disc tray guide.
1 2
* Make sure the disc is compatible with this unit (refer to page 20 for the list
of compatible discs).
9
..
3
MP3_1.mp3
MP3_2.mp3
8
MP3_3.mp3
MP3_4.mp3
MP3 00:00:13
MP3_5.mp3
MP3_3.mp3
It may take a while to load the disc.
MP3_6.mp3
7
MP3_7.mp3
Media Filter
Page Down
6
5
1) Number of contents in the current hierarchy
2) Repeat status (Music mode only)
3) Image
4) Elapsed playing time of the current track
5) Current file name
6) Media type
7) Group (folder) / File list
8) Playback status
9) Root folder
10) Directory
22
4
3) Press [A (open/close)] to close the disc tray.
EN
To eject the disc:
Press [A (open/close)] to open the disc tray.
Remove the disc.
Press [A (open/close)] to close the disc tray.
BASIC PLAYBACK
Playing Back a BD, DVD or a Disc with AVCHD Files
1
2
EN
Insert a disc (refer to page 22 on
how to insert a disc).
Playback may start automatically.
Playback
Function Setup
• Playback will also stop and the home menu will
appear when you press [ (home)].
• For BD-Java application, the Resume-On-Stop may
not be available.
• If you press [OK] instead of [B (play)], playback can
be started from the beginning of the disc even if it
was in the Resume-On-Stop mode.
• You can also start from the beginning of the disc if
you press [S (previous)] while the resume message
is displayed.
• The resume message can be removed by pressing
[BACK U].
• Resume-On-Stop mode remains in effect even after
power is turned off, but will be cancelled once the
disc is ejected.
Basic Setup
Note
Connections
<Resume-On-Stop mode>
When you press [B (play)] next time, the
playback will start from the point where it has
been stopped.
Introduction
If not, press [B (play)].
Some discs may show a title or a disc menu. In
this case, refer to “Using the Title / Disc Menu”
on page 28.
To pause playback:
Press [F (pause)].
To return to the normal playback:
Press [B (play)].
To stop playback:
Press [C (stop)].
Playback will be in Resume-On-Stop mode,
and the home menu will appear.
Others
EN
23
BASIC PLAYBACK
Playing Back an Audio CD or a Disc with DivX® / MP3 / Windows Media™ Audio / JPEG Files
How to Navigate through the Track / File List
• Use [K / L] to move the highlight up and down in the
list.
• To access the files in a group (folder), select the desired
group (folder), then press [OK].
• Press [s], or select [
], then press [OK] to go back to
the previous hierarchy.
• Press [s] to go back to the previous screen.
• Press [BLUE] or [YELLOW] to change the page of the list.
• Press [RED] to go back to the media filter screen.
• Press [ (home)] to go back to the home menu.
Recommended specifications:
DivX®
Official DivX® Certified product
• Playable codec of AVI files : DivX® 3.x, DivX® 4.x, DivX®
5.x, DivX® 6.x
• Maximum size of a video : 720 x 480 @30 fps
720 x 576 @25 fps
• Sampling frequency of
: 16 kHz - 48 kHz
audio
• Audio type
: MPEG1 audio layer 3(MP3),
MPEG1 audio layer 2, Dolby
Digital
MP3 / Windows Media™ Audio
• Sampling frequency
• Constant bit rate
: 32 kHz, 44.1 kHz or 48 kHz
: 112 kbps - 320 kbps (MP3),
48 kbps - 192 kbps
(Windows Media™ Audio)
JPEG
Resolution
• Upper limit
• Lower limit
• Maximum file size of a
: 2,560 x 1,900 dots
(sub sampling is 4:4:4)
: 5,120 x 3,840 dots
(sub sampling is up to
4:2:2)
: 32 x 32 dots
: 5 MB
Folder / File number limitations:
BD, DVD and SD card
• 999 folders (groups) and 9,999 files.
CD
• 255 folders (groups) and 999 tracks / files.
24
EN
BASIC PLAYBACK
1
2
Insert a disc (refer to page 22 on
how to insert a disc).
• Home menu appears automatically.
4
Select a group (folder) or track / file
you want to play back. Then press
[B (play)] or [OK] to start playback.
EN
Refer to “How to Navigate through the Track /
File List” on page 24.
To skip to the next track / file:
Press [T (next)].
To skip to the previous track / file:
Press [S (previous)].
With “Disc Tray” selected, press
[OK].
• Media filter screen will appear.
• For audio CD, skip to step 4.
Blu-ray Disc Player
SD Card
Settings
Product Info
<Resume-On-Stop mode for audio CD /
DivX® >
Playback will start from the point where it is
stopped next time you press [B (play)].
Select the type of the file you want
to play back in the media filter
screen. Then press [OK] to display
the file list.
If you press [OK] instead of [B (play)],
playback will start from the beginning of the
track / file instead of resuming from the stop
point.
“Video”
: If you want to play back video
files such as DivX® video, select
“Video”.
“Music”
: If you want to play back music
files such as MP3 or Windows
Media™ Audio, select “Music”.
“Pictures” : If you want to play back the still
images such as JPEG pictures,
select “Pictures”.
Pictures
To go back to the media filter screen:
Press [RED] in Resume-On-Stop mode.
Playback
Music
<Resume-On-Stop mode for MP3 /
Windows Media™ Audio / JPEG>
Playback will start from the beginning of the
current file next time you press [B (play)] or
[OK].
Basic Setup
BD-Player
Disc Tray
Video
Connections
3
Introduction
To pause playback:
Press [F (pause)].
To return to the normal playback:
Press [B (play)].
To stop playback:
Press [C (stop)].
Playback will be in Resume-On-Stop mode.
Disc Tray
Note
Function Setup
• Playback will also stop and the home menu will
appear when you press [ (home)].
• If a disc contains AVCHD files, the playback of other
files which are in the same disc is not available.
• With regard to the multi-border BD-RE/-R,
additionally recorded sections cannot be
recognized.
• With regard to the multi-border DVD-RW/-R,
additionally recorded sections may not be
recognized.
Others
EN
25
BASIC PLAYBACK
Kodak Picture CD
This unit can also run JPEG files stored on Kodak Picture CD.
You can enjoy picture images on the TV set by playing back
the Kodak Picture CD. This unit conforms to ver.7.0 of Kodak
Picture CD. For details of Kodak Picture CD, contact a shop
that provides developing service of Kodak Inc.
1
2
3
4
Insert a Kodak Picture CD.
• Home menu appears automatically.
Reading the SD Memory Card
You can play back the AVCHD / MP3 / WMA / JPEG files in
an SD Memory Card.
With the SD Memory Card, you can also enjoy the
following functions.
- Special additional contents for BD-ROM Profile 1 ver.1.1.
(For more information about the special additional
contents, refer to the instruction book that came with
the disc.)
- BD-Live function (BD-ROM ver. 2 Profile 2.0). (For more
information about BD-Live, refer to page 31.)
With “Disc Tray” selected, press
[OK].
• Media filter screen will appear.
Select “Pictures” in the media filter
screen. Then press [OK] to display
the file list.
Follow step 4 in “Playing Back an
Audio CD or a Disc with DivX® / MP3 /
Windows Media™ Audio / JPEG
Files” on pages 24-25.
Tips for JPEG / Kodak Picture CD Playback
• Every press on [ANGLE] will turn the image
clockwise by 90 degrees when an image is displayed.
Note
SD Memory Card
1
2
3
• Some unplayable folders or files may be listed due to
the recording status.
• High-resolution JPEG files take longer to be
displayed.
• Progressive JPEG files (JPEG files saved in progressive
format) cannot be played back in this unit.
Insert an SD card and then press
[ (home)].
Home menu appears.
With “SD Card” selected, press
[OK].
• Media filter screen will appear.
Select the type of the file you want
to play back in the media filter
screen. Then press [OK] to display
the file list.
Playback of AVCHD files will start right after
you choose “Video”. (The file list is not
available for AVCHD files.)
4
Follow step 4 in “Playing Back an
Audio CD or a Disc with DivX® / MP3 /
Windows Media™ Audio / JPEG
Files” on pages 24-25.
To remove the SD Memory Card:
In stop mode, gently push in the SD Memory
Card, then pull it out slowly.
26
EN
BASIC PLAYBACK
• A file with an extension of “.avi” and “.DivX” is called
as a DivX® file. All files with the “.avi” extension are
recognized as MPEG4.
• For CD-RW/-R, maximum of 255 group (folder) or 999
files may be recognized.
• For BD-RE/-R and DVD-RW/-R, maximum of 999
group (folder) or 9,999 files may be recognized.
• The 10th and deeper hierarchies cannot be
displayed.
• Unrecognizable characters will be replaced with “…”.
• When playing back the files recorded in high bit
rates, the images can be interrupted in some
occasions.
• Although DivX® logo has been obtained for this unit,
it may not be able to play back some data,
depending on the characteristics, bit rates, or audio
format settings, etc.
• If a large-sized DivX® file is selected, it may take a
while to start the playback (over 20 seconds
sometimes).
• If DivX® files written on a CD-RW/-R cannot be played
back, rewrite them on a BD-RE/-R or DVD-RW/-R, and
try playing it back again.
• For more information for DivX®, please visit
http://www.divx.com.
About DivX® and DivX® VOD
Basic Setup
Hint for the purchased or rented official DivX®
Certified product
• When you purchase or rent a DivX® file through the
official site of DivX® video which is called DivX® Video
On-Demand (VOD) services, a registration code is
required every time you get the new file from the DivX®
VOD services. Refer to “DivX® VOD” in “LIST OF SETTINGS”
on page 40.
EN
Connections
Note
• In the “SD Card” mode, the resume information will
be cleared when;
-[C (stop)] is pressed while in the Resume-On-Stop
mode.
-the SD Memory Card is removed.
-the unit is turned into the standby mode.
• Do not remove the SD Memory Card or turn the unit
to the standby mode while the contents of the card
are in playback. It may result in malfunction or loss of
the card’s data.
• Do not delete the folders or files in the SD Memory
Card with your computer. This unit may not read the
SD Memory Cards formatted on a computer.
• If a folder or file name includes one of the following
unrecognizable characters, the folder or file name
may not be displayed correctly.
-Unrecognizable characters : . , " = + [ ] ; / \ : | ¥
Introduction
Note
Possible Errors
Playback
“This rental has c views left. Do you want to use one of
your c views now?”
Some DivX® VOD files are restricted with the limited
playable times. You cannot play them back beyond the
limit.
“This player is not authorized to play this video.”
You cannot play back the DivX® VOD files obtained with
different registration codes on this unit.
“This rental is expired.”
You cannot play back the DivX® VOD files with the expired
rental period.
“This player does not support this video format.”
You cannot play back the DivX® files whose image size
exceeds 720 x 576.
“This player does not support this audio format.”
For DivX® files with audio format other than MPEG1 audio
layer 3 (MP3), MPEG1 audio layer 2 and Dolby Digital,
audio will not be output and only the video will be output.
“This player does not support this video frame rate.”
You cannot play back the DivX® files whose frame rate
exceeds 30 fps.
Function Setup
Others
EN
27
BASIC PLAYBACK
Playing Back a DivX® with DivX®
External Subtitle
Subtitles created by the user can be displayed during
DivX® playback.
1) Follow steps 1 to 3 in “Playing Back an Audio CD or a
Disc with DivX® / MP3 / Windows Media™ Audio /
JPEG Files” on pages 24-25.
2) Select a file you want to play back, then press
[GREEN].
Subtitle list will appear.
Subtitle List
3dolby.avi
Off
SMI
SRT
SUB
Cancel
• “DivX Subtitle” appears next to “Green” icon only when
DivX® subtitle is available for the selected file.
• If you press [B (play)] or [OK] instead of [GREEN],
playback without subtitle will start.
3) Select the desired subtitle file, then press
[B (play)] or [OK].
Playback of the DivX® file with DivX® subtitle will start.
Note
• To utilize this function, the following conditions
must meet.
-Playback file and the subtitle file must have the same
name.
-Playback file and the subtitle file must locate in the
same folder.
-Only the subtitle files with the following extensions
are supported; .smi (.SMI), .srt (.SRT), .sub (.SUB), .ass
(.ASS), .ssa (.SSA), .txt (.TXT). (.sub (.SUB) and .txt
(.TXT) may not be recognized.)
-The subtitles that exceeds the playback time of the
DivX® file will not be displayed.
• If the DivX® subtitle file contains more than one
subtitle language, you can toggle those by pressing
[SUBTITLE] repeatedly.
28
EN
Using the Title / Disc Menu
Some BD-video, DVD-video or AVCHD files may contain a
title menu which describes the contents of the disc, or a
disc menu which guides you through the available
functions in the disc.
With such discs, a title menu or a disc menu may appear
automatically when you insert the disc. Otherwise, press
[TOP MENU] or [DISC MENU / POP-UP MENU] to call up
the menu. Refer to the disc’s manual on how to navigate
through the menu.
Note
• Menus vary among discs. Refer to the information
accompanying the disc for details.
• [TOP MENU] or [DISC MENU / POP-UP MENU] may
not work with some discs.
• Title menu is also available for SD card with AVCHD
files.
SPECIAL PLAYBACK
Fast Forward / Fast Reverse
Zoom
EN
During playback, you can zoom up the picture.
1) During playback, press [ZOOM] repeatedly.
Every time you press [ZOOM], zoom factor will change.
.
1) During playback, press [D (forward)] repeatedly
for fast forward.
During playback, press [E (reverse)] repeatedly
for fast reverse.
Every time you press [D (forward)] or [E (reverse)],
the playback speed will change.
2) Press [B (play)] to return to the normal playback.
e.g.) DVD-video
1.2x
Zoom
2x
Introduction
Zoom
Note
Connections
• For BD, DVD and AVCHD, speed changes in 5
different levels.
• For audio CD, DivX®, MP3 and Windows Media™
Audio, speed changes in 3 different levels.
• For some DivX® files, fast forward / fast reverse may
not function.
Slow Forward Playback
2) Press [B (play)] to return to the normal playback.
Note
Step by Step Playback
Note
• For JPEG files, slide show of the zoomed picture is
not possible.
• For some DivX® files, zoom may not be available.
• For DivX® and JPEG files, 4x zoom is not available.
• For some DVD, 4x zoom is not available.
• [ZOOM] does not work during the playback of the
BD-video.
• [ZOOM] does not work while DVD menu is
displayed.
• For JPEG files, when changing the zoom factor or
moving the zoom position, the screen may become
black for a moment. This is not a malfunction.
Function Setup
1) In pause mode, press [F (pause)] repeatedly.
Every time you press [F (pause)], playback will
advance one step at a time.
2) Press [B (play)] to return to the normal playback.
Playback
• Only slow forward is available.
• For some DivX® files, slow forward may not function.
2) You can move over the zoomed picture using
[K / L / s / B].
The gray box with an inner blue box displayed at the
right bottom corner of the zoomed image is the
position guide. The inner blue box indicates the
zoomed area. (Not available for the JPEG playback.)
3) Press [ZOOM] repeatedly to return to the normal
playback.
Basic Setup
1) During playback, press [F (pause)] . Then press
[D (forward)].
Every time you press [D (forward)], the playback
speed changes in 3 different levels.
Note
Others
• Only step by step forward is available.
EN
29
SPECIAL PLAYBACK
Note
Repeat Playback
Available repeat function varies depending on the discs.
1) During playback, press [REPEAT] repeatedly to
select the desired repeat function.
REPEAT MODE
Chapter Repeat
The current chapter will be
played back repeatedly.
Title Repeat
The current title will be
played back repeatedly.
Track Repeat
The current track or file will
be played back repeatedly.
All Repeat
All tracks in the media will be
played back repeatedly.
Group Repeat
The current group (folder)
will be played back
repeatedly.
Random Repeat (Audio CD)
Repeats the random
playback.
Random Repeat
(DivX® / MP3 /
Windows Media™ Audio /
JPEG)
Repeats the random
playback in a folder.
AVAILABLE MEDIA
BD-video / DVD-video /
AVCHD
• Point B should be set within the same title or track as
point A.
• If you press [REPEAT A-B] when the repeat setting
for BD, DVD or CD playback is set, the repeat setting
will be cancelled.
• For some DivX® files, A-B repeat playback may not
function.
Slide Show
BD-video / DVD-video /
AVCHD
Audio CD / DTS-CD /
DivX® / MP3 /
Windows Media™ Audio
1) Follow steps 1 to 3 in “Playing Back an Audio CD or a
Disc with DivX® / MP3 / Windows Media™ Audio /
JPEG Files” on pages 24-25.
2) Open the folder which contains the desired JPEG files.
Audio CD / DTS-CD
DivX® / MP3 /
Windows Media™ Audio /
JPEG
Audio CD / DTS-CD
DivX® / MP3 /
Windows Media™ Audio /
JPEG
3) Use [K / L / s / B] to select a desired file to be
played back, then press [B (play)] or [OK].
• An image will be played back from the selected file
and go to the next one in turn every 10 seconds.
4) Press [C (stop)] to stop playback.
To return to the first item:
Press [TOP MENU].
To return to the file played last:
Press [DISC MENU / POP-UP MENU].
Note
• Large-size JPEG files take a few moments to be
displayed.
PiP (BONUSVIEW) Setting
Note
• The repeat setting will be cancelled when you stop
playback.
• If you press [REPEAT A-B] when the repeat setting
for BD, DVD or CD playback is set, the repeat setting
will be cancelled.
• When the repeat setting is set for a MP3 or WMA
folder (file), the repeat setting will be cancelled if you
select other MP3 or WMA folder (file) to playback.
Some BD-videos have the PiP function which enables you
to display the secondary video in the primary video. You
can call up the secondary video by pressing
[BONUSVIEW (PiP)] whenever the scene contains the
secondary video.
Primary
video
A-B Repeat
You can play back the specific part (between point A and
point B) repeatedly.
1) During playback, press [REPEAT A-B] once at the
point where you want to set point A.
2) During playback, press [REPEAT A-B] again at the
point where you want to set point B.
As soon as you set point B, the part between point A
and point B will start to play repeatedly.
To cancel A-B repeat:
Press [REPEAT A-B] repeatedly until “Off” appears.
30
EN
Secondary
video
1) During playback, press [BONUSVIEW (PiP)].
PiP information will appear.
2) Use [K / L] to select the secondary video you want
to show.
• The secondary video will be displayed with the
secondary audio.
• You can use [K / L] to switch between “On” or “Off”.
3) Press [BACK U] to remove the PiP information.
• On how to output the secondary audio, refer to
“Switching Audio Soundtrack” on page 33 and
“Blu-ray Disc Audio” on page 39.
SPECIAL PLAYBACK
Enjoying BD-Live Discs with Internet
EN
Using [S (previous)] / [T (next)]
1) During playback, press [T (next)] to skip the
current title or chapter and move to the next.
The title or chapter will move forward by one at a time.
• If there is no chapter in one title, the current title may
be skipped.
To go back to the beginning of the current title or
chapter, press [S (previous)].
Press [S (previous)] repeatedly to go to the previous
title or chapter. The title or chapter may move
backward one at a time.
Using [INFO
]
1) During playback, press [INFO
].
001/012
• You must connect the unit to the Internet and set up
necessary settings in order to use the BD-Live
function.
• For the network connection, refer to “Network
Connection with LAN” on page 18.
• For the network setup, refer to “Network
Connection” on page 48.
• For certain discs, setting for “BD-Live Setting” may
need to be changed.
• Depending on your connection environment, it may
take time to connect to the Internet or the Internet
may not be connected.
• When BD-Live functions are used and the unit is
connected to the Internet, you may be charged for
this communication.
• Some discs with BD-Live function require memory
when playing back the content. If you cannot play
back a disc with BD-Live function, insert an SD
card(1GB or more) which is formatted on this unit.
Chapter
001/023
Playing Time
00:01:31
Audio
Dolby Digital
2) Use [K / L] to select “Title” or “Chapter”.
3) Use [Number buttons] or [s / B] to enter the title /
chapter number.
4) Press [OK].
Playback will start from the beginning of the title /
chapter.
5) Press [INFO
Basic Setup
] to remove the information display.
Using [Number buttons] (Direct Search)
Playback
Title Search
1) In stop mode, enter the title number you want to
search using [Number buttons].
Playback of the title will start in a few seconds.
Chapter Search
1) During playback of a title, enter the chapter number
you want to search using [Number buttons].
Playback of the chapter will start in a few seconds.
Note
EN
Others
• As for the BD-video, how it performs will be strongly
determined by the disc, and may not perform as
described.
Function Setup
• The player or disc IDs may be sent to the content
provider when playing back a disc with BD-Live
function.
• If you save your viewing history on the server by
using these IDs, you will be introduced to other
similar movies.
• You can save game score histories.
Connections
Note
Disc
Title
Note for AACS Online
Introduction
You can enjoy the BD-Live functions which enable you to
use the interactive functions when the unit is connected to
the Internet.
Examples for BD-Live interactive functions:
• Download the additional contents such as the movie’s
trailer, subtitles and BD-Java, etc.
• While downloading, special video data may be played
back.
- Service and functions differ depending on the disc.
Follow the instructions given by the disc when using
the BD-Live function.
- You must insert an SD Memory Card when using the
BD-Live function. (SD Memory Card of 1GB is
recommended.)
- Do not remove the SD Memory Card when using the
BD-Live function.
Title / Chapter Search
31
SPECIAL PLAYBACK
Track Search
Switching Subtitles
Using [S (previous)] / [T (next)]
1) During playback, press [T (next)] to skip the
current track or file and move to the next.
The track / file will move forward one at a time. To go
back to the beginning of the current track / file press
[S (previous)].
Press it repeatedly to go to the previous track / file. The
track / file will move backward one at a time.
Time Search
1) During playback, press [INFO
].
Disc
Title
001/012
Chapter
001/023
Playing Time
00:01:31
Audio
Dolby Digital
Some BD and DVD may have subtitles in 1 or more
languages. For commercially available discs, the
supported languages can be found on the disc case.
Follow the steps below to switch the subtitle languages
during playback.
1) During playback, press [SUBTITLE] repeatedly to
display “Primary”, “Secondary” or “Subtitle Style”.
“Primary”
: Sets the subtitle for the primary
video.
“Secondary”
: Sets the subtitle for the secondary
video.
“Subtitle Style” : Sets style of the subtitle.
2) Use [K / L] to select your desired subtitle or style.
Primary
1 English
• Use [s / B] to switch between current subtitle
setting and “Off”.
3) Press [SUBTITLE] repeatedly to exit.
2) Use [K / L] to select “Playing Time”.
3) Use [Number buttons] to enter the time count you
want to jump to.
e.g.)
Entering 1 hour 45 minutes and 15 seconds.
Press
4) Press [OK].
Playback will start from the desired time count.
5) Press [INFO
] to remove the information display.
Note
• For some DivX® files, time search may not function.
32
EN
1) During playback, press [SUBTITLE].
2) Use [K / L] to select your desired subtitle.
Subtitle
1 English
• Use [s / B] to switch between current subtitle
setting and “Off”.
3) Press [SUBTITLE] to exit.
Note
• Some discs will only allow you to change the
subtitles from the disc menu or pop-up menu. Press
[TOP MENU] or [DISC MENU / POP-UP MENU] to
display the disc menu or pop-up menu.
• If the disc has no subtitle language or subtitle style,
“Not Available” will be displayed on the TV screen.
• During playback of the secondary video, the primary
subtitle setting is not available except when there is
no subtitle for the secondary video.
• For DivX® external subtitle, “Playing Back a DivX®
with DivX® External Subtitle” on page 28.
SPECIAL PLAYBACK
Switching Audio Soundtrack
Some BD and DVD contain multiple audio streams. Those
are often in different audio languages or audio formats.
For BD, available audio varies depending on “Blu-ray Disc
Audio” setting. Refer to page 39 for more information.
1) During playback, press [AUDIO] repeatedly to
display “Primary” or “Secondary”.
Primary
2 English
Dolby Digital
EN
Some BD-video and DVD-video contain scenes which have
been shot simultaneously from various angles. You can
change the camera angle if available on the disc.
1) During playback, press [ANGLE].
• The selected angle will be displayed on the display
bar at the top of the TV screen.
2) Use [K / L] to select your desired angle.
Angle
1/5
3) Press [ANGLE] to exit.
Introduction
“Primary”
: Sets the audio for the primary video.
“Secondary” : Sets the audio for the secondary video.
2) Use [K / L] to select your desired audio stream
channel.
Switching Camera Angles
Multi
• For “Secondary”, use [s / B] to switch between
current audio setting and “Off”.
3) Press [AUDIO] repeatedly to exit.
Connections
1) During playback, press [AUDIO].
2) Use [K / L] to select your desired audio stream
channel.
Audio
2 English
Dolby Digital
Multi
Basic Setup
3) Press [AUDIO] to exit.
Note
Playback
• The secondary audio will not be output when the
secondary video is not displayed or when “Blu-ray
Disc Audio” is set to “Primary Audio Only”. (For some
BD, secondary audio will be output even when
secondary video is off.)
• The sound mode cannot be changed during
playback of discs not recorded in multiple audio.
• Some discs allow changing the audio language
setting on the disc menu. (Operation varies
depending on the discs. Refer to the manual
accompanying the disc.)
• [AUDIO] may not work on some discs with multiple
audio streams or channels (e.g. DVDs that allow
changing audio setting on the disc menu).
• If the disc has no audio language, “Not Available” will
be displayed on the TV screen.
• For DTS-CD (5.1 music disc), selecting audio streams
or channels is not available.
• You can check the selected audio stream in the
information display. To call up the information
display, press [INFO ] during playback.
Function Setup
Others
EN
33
NETFLIX OPERATIONS
With this unit, you can watch movies and TV episodes streamed instantly from Netflix via the Internet.
In order to use this feature, you must visit the following website on your PC and become a Netflix member.
netflix.com/Philips
Before Activating the Connection to
Netflix
After creating a Netflix account at netflix.com/Philips, follow
the following procedure before activating the connection to
Netflix.
1) Connect this unit to the Internet.
• Refer to “Network Connection with LAN” on page 18.
2) Set up the necessary network connection settings.
• Refer to “Network Connection” on page 48.
Activating the Connection to Netflix
In order to watch movies and TV episodes streamed
instantly from Netflix via the Internet, you must activate
the connection between this unit and your Netflix
account.
1) Press [ (home)] to access the home menu.
2) Use [K / L] to select “NETFLIX”, then press [OK].
• Netflix welcome screen will appear.
• For the first time only, “Network Service Disclaimer”
screen will appear. After confirming the content, use
[s / B] to select “Agree”, then press [OK].
3) Use [K / L] to select “yes - activate instant
streaming from Netflix”, then press [OK].
• Activation screen with the activation code will appear.
4) On your PC, visit netflix.com/activate and log into
your account.
• The entry screen of activation code will appear on
your PC screen.
5) Enter the activation code which is displayed on the
TV screen.
• The instant Queue will appear.
The connection to Netflix is successfully made.
• To browse the instant Queue and watch movies, skip
to step 3 in “Watching Streaming Movies” on page 34.
Note
• Netflix is available only in the United States.
• You cannot create a Netflix account on this unit.
• If newer version of software is required, software
upgrade screen may appear after selecting
“NETFLIX” in step 2.
(For software upgrade, refer to “Software Upgrade”
on page 52.)
• You can deactivate the connection to Netflix by
setting the “Deactivation” to “Yes”. (Refer to page 41.)
• The screen image of Netflix may change after
upgrading the firmware.
• For questions regarding the Netflix service, visit
netflix.com/Help.
• When you contact the Netflix customer service, you
may be asked for the ESN number, which is a serial
number to identify this unit by Netflix. You can check
the ESN number on the bottom of the “Deactivation”
screen. (Refer to page 41.)
Watching Streaming Movies
After you set up the connection to Netflix, you can browse
the instant Queue and watch movies on your TV.
1) Press [ (home)] to access the home menu.
2) Use [K / L] to select “NETFLIX”, then press [OK].
• The instant Queue will appear.
3) Use [s / B] to select the desired movie or TV
episode, then press [B (play)] to start playback.
• After loading, playback of the selected movie or TV
episode will start.
• To stop the playback, press [C (stop)].
• To go back to the instant Queue, press [RED].
• To go back to the home menu, press [ (home)].
About the Instant Queue
• Instant Queue is the list of movies and TV episodes
you add on the Netflix website. (netflix.com)
You can manage the movies and TV episodes in your
instant Queue from the Netflix website on your PC.
• You cannot add movies or TV episodes to your
instant Queue on this unit.
• You can remove movies or TV episodes from the
instant Queue on this unit.
Note
• The picture quality differs depending on the speed
of your Internet connection at the time of loading.
34
EN
ENJOYING THE INTERNET RADIO WITH vTuner
With this unit, you can enjoy Internet radio with vTuner via the Internet.
In order to listen to Internet radio, you must connect this unit to the Internet.
EN
For the network connection, refer to “Network Connection with LAN” on page 18.
For the network setup, refer to “Network Connection” on page 48.
Internet Radio Playback
After you set up the network connection, follow the
following procedure to listen to Internet radio.
e.g.) Location
Nevada
vTuner | ... | Nevada
BD-Player
vTuner
Recently Played
8
45
All Stations
ROCK 300
FM Radio 2700
Location
AAAA Radio
ABC Public
New Stations
Most Popular Stations
Connections
Favorites
Genre
XYZ Radio
Recently Played
AAAA FM
Get access code
Introduction
1) Press [ (home)] to access the home menu.
2) Use [K / L] to select “vTuner”, then press [OK].
• Category list will appear.
• For the first time only, “Network Service Disclaimer”
screen will appear. After confirming the content, use
[s / B] to select “Agree”, then press [OK].
3) In the category list, use [K / L] to select the desired
category, then press [OK].
4) In the station / folder list, use [K / L] to select the
desired station, then press [OK].
• After loading, playback of the selected station will
start.
• If you select a folder, use [K / L] to select the desired
station in the next hierarchy, then press [OK].
• To stop playback , press [C (stop)].
• To go back to the previous or next hierarchy, press
[s] or [B].
• To start playback of the previous / next station in the
list during playback, press [S (previous)] or
[T (next)].
ROCK 300
CCCC Rock
Reset
Favorite
Page up
• This unit cannot play back stations with audio format
other than MP3 and WMA.
• For some stations, playback is not available even if
the audio format is displayed as MP3 or WMA.
• Internet radio service may not be fully available with
narrowband Internet connection. (e.g. 56k modem)
When listening to Internet radio, use broadband
Internet connection. (For details, contact your
Internet service provider.)
• Depending on the bit rate of a station or the network
environment, it may take a while to complete
loading the station or playback may not be available.
• The streaming audio may be interrupted during
playback, when the vTuner server is busy.
• Some stations cannot be displayed in the list,
depending on the network environment.
• If the loading time of a station exceeds 3 minutes,
the loading will be canceled.
• The order of station / folder in the list depends on
the information from vTuner server and may change
without notice.
Function Setup
“Recently Played” : List of stations which are recently
played
“Favorites”
: List of your favorite radio stations
“My Added
: List of stations which are added
Stations”
on vTuner website
(This category will appear only
after you add stations on vTuner
website. )
“Location”
: List of stations categorized by
location
“Genre”
: List of stations categorized by
genre
“New Stations” : List of new stations
“Most Popular
: List of popular stations
Stations”
“Get access
: Displays the access code, which
code”
will be required when creating a
vTuner account on your PC
“Reset”
: Removes all stations / folders in
“Recently Played”, “Favorites” and
“My Added Stations”
Note
Playback
5) Press [TOP MENU] to return to the category list or
press [ (home)] to exit.
Basic Setup
• Station / folder list of selected category will appear.
• For “Location” and “Genre”, use [K / L] to select the
desired location or genre after selecting the category,
then press [OK].
Others
EN
35
ENJOYING THE INTERNET RADIO WITH vTuner
Guide to the Playback Screen
Remove from Favorite List
1) Follow steps 1) to 2) in “Internet Radio Playback” on
page 35.
2) Use [K / L] to select “Favorites”, then press [OK].
3) Use [K / L] to select the station you want to remove
from “Favorites”, then press [GREEN].
• Confirmation message will appear.
e.g.) Location
11
1
Nevada
vTuner | ... | Nevada
45
All Stations
111.FM
10
ROCK 300
9
2
FM Radio 2700
AAAA Radio
8
ABC Public
MP3 01:23:45
XYZ Radio
111.FM
AAAA FM
7
CCCC Rock
Favorite
3
4
5
Page up
4) Use [s / B] to select “Yes”, then press [OK].
• The selected station is removed from “Favorites”
folder.
Remove Favorite?
Press ‘Yes’ to remove from Favorites.
Yes
6
1)
2)
3)
4)
5)
6)
Number of stations / folders in the current hierarchy
Elapsed playing time of the current station
Current station / folder name
Audio format of the current station
Color key (RED / GREEN / BLUE / YELLOW button)
guide
7) Station / folder list
8) Folder icon
9) Station icon
10) Playback status
11) Directory
Add to Favorite List
You can add your favorite stations to “Favorites” in the
category list. To add your favorite stations, follow the
following procedure.
1) Follow steps 1) to 3) in “Internet Radio Playback” on
page 35.
2) Use [K / L] to select the station you want to add to
“Favorites”, then press [GREEN].
• The selected station is added to “Favorites” folder.
• Confirmation message will appear.
• If you select a folder, use [K / L] to select the desired
station in the next hierarchy, then press [GREEN].
3) Press [OK].
Favorite Added
Please push 'OK'.
OK
4) Press [TOP MENU] to return to the category list or
press [ (home)] to exit.
Note
• You can also add your favorite stations to “Favorites”
on your PC. To add your favorite stations on your PC,
visit http://go2service.vtuner.com/ph/ and create a
vTuner account with the access code, which you can
check from the category list. (Refer to page 35.)
• You can change folder names or order of lists in your
vTuner page on the Internet.
• “My_Favorite” folder will appear after you add a
station to “Favorites” on this unit. (Your favorite
station will also be added to “My_Favorite” folder.)
36
EN
No
5) Press [TOP MENU] to return to the category list or
press [ (home)] to exit.
Add Stations on the vTuner Website
On the vTuner website, you can add stations which are not
in the vTuner station list.
To add stations, you must visit
http://go2service.vtuner.com/ph/ and create a vTuner
account with the access code for this unit.
1) Follow steps 1) to 2) in “Internet Radio Playback” on
page 35.
2) Use[K / L] to select “Get access code”, then press
[OK].
• The access code for this unit will be displayed.
Please take a note of the access code.
(This access code will be required when creating a
vTuner account.)
3) On your PC, visit http://go2service.vtuner.com/ph/
and create your vTuner account.
• Follow the instructions given by the PC screen.
4) Add stations by following the instructions given by
the PC screen.
• The stations will be added to “My Added Stations”.
Reset the Station List
You can remove all stations / folders in “Recently Played”,
“Favorites” and “My Added Stations”.
1) Follow steps 1) to 2) in “Internet Radio Playback” on
page 35.
2) Use [K / L] to select “Reset”, then press [OK].
3) Use [K / L] to select “Yes”, then press [OK].
• All stations / folders in “Recently Played”, “Favorites”
and “My Added Stations” are removed.
4) Press [TOP MENU] to return to the category list or
press [ (home)] to exit.
LIST OF SETTINGS
In the settings menu, you can customize the various kinds of settings as you prefer.
Refer to the following instruction to navigate through the settings menus.
1) Press [ (home)] to access the home menu.
2) Use [K / L] to select “Settings”, then press [OK].
3) Use [K / L] to select “Advanced Setup”, then press [OK].
4) Use [K / L] to move the highlight up and down in the list.
Options of the highlighted item will be displayed in the list on the right whenever available.
5) To make a selection or to access options of an item, select the desired item, then press [OK].
6) Press [ (home)] to exit.
Refer to the following table for the types of settings you can customize.
Settings with (*) can be accessed from the “Quick Setup” also.
The item highlighted in gray is the default setting.
Menus / Options
Audio
Disc Menu
TV Shape*
4:3 Letter Box
• Refer to page 43 for 4:3 Pan & Scan
more information. 16:9 Widescreen
16:9 Squeeze
Sets the language for disc menu.
Sets the language for player menu
(OSD menu)
“Auto”:
Activates the Get & Set Menu
Language function. Refer to page 48.
• “Auto” is available only when
“EasyLink (HDMI CEC)” is set to “On”.
• Inside the parenthesis next to “Auto”
will be the current selected
language.
Sets the aspect ratio of the playback
image to fit your TV.
EN
37
Others
Video
Output
Français
Italiano
Magyar
Nederlands
Auto (XXXX)
English
Español
Français
Norsk
Polski
Português
Русский
suomi
Svenska
Türkçe
Sets the subtitle language for BDvideo, DVD-video or AVCHD playback.
Function Setup
Player Menu*
Ceština
Dansk
Deutsch
English
Español
Norsk
Polski
Português
Русский
suomi
Svenska
Türkçe
Playback
Advanced Setup
Français
Italiano
Magyar
Nederlands
Norsk
Polski
Português
Русский
suomi
Svenska
Türkçe
Basic Setup
Français
Italiano
Magyar
Nederlands
Off
Ceština
Dansk
Deutsch
English
Español
Description
Sets the audio language for BD-video,
DVD-video or AVCHD playback.
• If you select “Default”, the disc’s
original language will be in effect.
Connections
Subtitle
Default
Ceština
Dansk
Deutsch
English
Español
Introduction
Category
Language
EN
LIST OF SETTINGS
Category
Video
Output
Menus / Options
HDMI Video
HDMI 1080p/24
Description
Auto
Off
• This feature is available
only when the display
device is connected by
an HDMI cable.
• Refer to page 43 for
more information.
Advanced Setup
HDMI Video Resolution*
• This feature is available
only when the display
device is connected by
an HDMI cable.
• Refer to page 43 for
more information.
HDMI Deep Color
• This feature is available
only when the display
device is connected by
an HDMI cable, and
when it supports Deep
Color feature.
Component Output
De-interlacing Mode
Auto
Video
Black Level
On
Off
On
Off
HD Noise Reduction
38
EN
480i
480p
720p
1080i
Auto
480p
720p
1080i
1080p
Auto
Off
With regard to the
DVD-video with a copy
protection, the resolution
will be set to 480p
regardless of the setting
here.
If 480p output is not
available, 480i will be
output.
“Auto”:
Outputs the picture in 1080p/24
(1080 progressive with 24 frames per
second) when it meets all the
conditions listed below:
• The video resolution and the frame
rate of the material is 1080p/24 .
• “HDMI Video Resolution” setting is
set to “1080p”.
• The display device supports the
1080p/24 output.
“Off”:
• Outputs the picture in 60p.
(60 frames per second, progressive)
Sets the resolution of the video signal
being output from the HDMI OUT jack.
• The selected resolution must also be
supported by your TV monitor.
Reduces the posterization effect of
the playback picture.
“Auto”:
Reduces the posterization effect by
automatically outputting the 12 bit
color whenever the unit recognizes
the connected display device
supports Deep Color feature.
“Off”:
Outputs the standard 8 bit color.
Sets the resolution for the component
output picture.
• The selected resolution must also be
supported by your TV monitor.
• Refer also to your TV’s manual.
• If you have selected the resolution
not supported by your TV by mistake
and the picture gets disturbed, press
and hold [B (play)] on the front
panel for 5 seconds to change the
setting back to its default.
• When HDMI cable is connected, only
“480i” and the resolution selected in
the “HDMI Video Resolution” will be
available.
“Auto”:
Automatically detects the film or the
video content, and appropriately
converts it.
“Video”:
Selects when the picture is distorted
when using “Auto”.
Adjust the brightness to compensate
for ambient room light.
Reduces the noise of the playback
picture.
“On”:
Activates the Noise Reduction.
“Off”:
Deactivates the Noise Reduction.
LIST OF SETTINGS
Category
Menus / Options
On
Off
Blu-ray Disc Audio
Mix Audio Output
Primary Audio Only
HDMI Audio
• This feature is
available only when
the display device is
connected by an
HDMI cable.
• Refer to page 44 for
more information.
Digital Out
• When HDMI cable is
connected, make
sure “HDMI Audio”
setting is set to “Off”
to change the
“Digital Out”
setting.
• Refer to page 46 for
more information.
HDMI Normal
PCM
Off
Bitstream
PCM
“Mix Audio Output”:
The audio for the secondary video and
the interactive application will be
output together with the audio for the
primary video.
“Primary Audio Only”:
Only the audio for the primary video
will be output.
When playing back a BD-video which
only contains the primary audio, the
audio output will be the same case as
the “Primary Audio Only” even if the
“Blu-ray Disc Audio” is set to “Mix
Audio Output”.
Sets the audio format for the sound
output from the HDMI OUT jack.
Sets the audio format for the sound
output from the DIGITAL OUT
(COAXIAL) jack.
Others
Virtual Surround
Function Setup
On
Off
EN
Playback
Down Sampling
Description
Compresses the range between soft
and loud sounds.
“Auto”:
Night Mode will be activated
automatically when Dolby TrueHD
audio is played back.
“On”:
Activates the Night Mode.
“Off”:
Deactivates the Night Mode.
Sets the sampling rate for outputting
the PCM audio from the digital output
(coaxial).
“On”:
Over 96 kHz PCM audio will be down
sampled at 48 kHz.
“Off”:
For BD or DVD recorded in LPCM
without copyright protection,
2-channel audio signals up to 96 kHz
are output as LPCM signals.
Select “On” to enjoy the stereophonic
virtual space through your existing 2
channel stereo system during
playback of BD-video or DVD-video.
Basic Setup
Auto
On
Off
Connections
Night Mode
Introduction
Advanced Setup
Audio
EN
39
LIST OF SETTINGS
Category
Menus / Options
Rating Level
Parental
• Refer to
page 47 for
more
information.
New PIN
All
8 [Adult]
to
1 [Kid Safe]
Others
On
Off
Auto Standby
Advanced Setup
Front Panel Brightness Bright
Dim
Auto
Screen Saver
On
Off
Slide Show Transition
Cut In/Out
Fade In/Out
DivX® VOD
Registration Code
Your registration code is :
cccccccccc
To learn more visit
www.divx.com/vod
Deactivation Code Your deactivation code is :
cccccccc
To learn more visit
www.divx.com/vod
Deactivation
40
EN
Description
Sets the rating level for the disc
playback.
Yes
No
Sets the new password for the
“Parental” setting.
Sets whether to turn off the unit (to
the standby mode) automatically
after 25 minutes of no action since
the screen saver is activated.
• If the screen saver is off, the unit
will be turned off after 30 minutes
if no action.
Sets the brightness of the front panel
display.
When “Auto” is selected, the front
panel display automatically goes dim
during playback.
Sets whether to activate the screen
saver after 5 minutes of no action on
the unit.
Sets the visual effect for the slide
show transition mode.
“Cut In/Out”:
The pictures will cut in and out
sharply as playback progresses.
“Fade In/Out”:
The pictures will fade in and out as
playback progresses.
This menu item provides you with
the DivX® VOD registration code. The
DivX® registration code is required
when downloading the DivX® VOD
files from the Internet. To learn more
about DivX® VOD, visit
www.divx.com/vod.
This menu item provides you with
the DivX® VOD deactivation code.
The DivX® deactivation code is
required when re-downloading the
DivX® VOD files from the Internet
after deactivating. To learn more
about DivX® VOD, visit
www.divx.com/vod.
This menu deactivates the DivX®
VOD files and provides you with new
registration code and deactivation
code in order to download the DivX®
VOD files from the Internet.
LIST OF SETTINGS
Category
Others
Menus / Options
Description
Sets whether to utilize the
EasyLink (HDMI CEC) function.
EasyLink (HDMI CEC) function
allows your PHILIPS brand
EasyLink TV to act in conjunction
with this unit or vice versa.
Connection
Test
Perform the network connection
test. After you change the IP
address or DNS setting, always
perform this test.
If you select “Enable(Easy)”,
Connection test will automatically
start.
Set the IP address.
In most cases, you can connect to
the Internet without making any
changes to the default setting.
Enable(Easy)
IP Address
Setting
Auto(DHCP)
Manual
DNS
Setting
Auto(DHCP)
Manual
Proxy
Setting
Do Not Use
Use
IP Address
Subnet Mask
Default
Gateway
Primary DNS
Secondary
DNS
Proxy
Address
Proxy Port
Yes
No
Disclaimer
Netflix
Software Upgrade
Disc
• Refer to page 52 for Upgrade
more information.
Yes
No
You can restrict Internet access
when BD-Live functions are used.
You can check the current status of
the network setting.
Deactivate the network
connection.
Displays the network service
disclaimer.
Deactivate the connection to
Netflix.
Set the disc upgrade.
You can upgrade the firmware
version by using the disc.
To download the latest firmware
version, please visit
www.philips.com/support.
Set the network upgrade.
You can upgrade the firmware
version by connecting this unit to
the Internet.
EN
41
Others
Network
Upgrade
Deactivation Yes
No
Yes
No
Set the connection speed.
In most cases, you can connect to
the Internet without making any
changes to the default setting.
Function Setup
Disable
Set the proxy server.
In most cases, you can connect to
the Internet without using proxy
server.
Playback
Connection Auto
Speed
10BASE Half
10BASE Full
100BASE Half
100BASE Full
BD-Live
Allow
Setting
Limited Allow
Prohibit
Network Status
Set the DNS setting.
In most cases, you can connect to
the Internet without making any
changes to the default setting.
Basic Setup
Advanced Setup
Enable
(Custom)
EN
Connections
On
Off
Introduction
EasyLink (HDMI CEC)
• This feature is
available only when
the display device is
connected with an
HDMI cable, and
when it supports
EasyLink (HDMI
CEC) feature.
• Refer to page 48 for
more information.
Network Connection
• Refer to pages 48-51
for more
information.
LIST OF SETTINGS
Factory Default
Category
Yes
No
Format SD
Card
Yes
No
Local
Storage
Player
Yes
No
SD Card
Yes
No
Network
Settings
42
Menus / Options
Settings
EN
Yes
No
Description
“Yes”:
Resets all the settings, except for
“Parental” and “Network
Connection”, in “Settings” to the
factory default.
“No”:
Does not perform the initialization.
“Yes”:
Re-format SD card.
“No”:
Does not perform the initialization.
“Yes”:
Re-format local storage (Player)
used for BD-Java.
“No”:
Does not perform the initialization.
“Yes”:
Re-format local storage (SD card)
used for BD-Java.
“No”:
Does not perform the initialization.
“Yes”:
Initialize network settings.
“No”:
Does not perform the initialization.
SETUPS
Actual Output Resolution by Media:
TV Shape
“Advanced
home A “Settings” A
A “Video Output” A “TV Shape”
Setup”
Use this feature to adjust the aspect ratio of the video
source which is different from your TV’s ratio to fit your TV
monitor without distorting the picture. Descriptions of
each setting are as follows:
Video
source
Your
TV
Option
4:3 Letter Box
4:3 Pan & Scan
16:9 Squeeze
4:3
home A “Settings” A
“Advanced
“Video
“HDMI
A Output” A Video”
Setup”
480p/60
480p/60
480p/60
480p/60
480p/60
720p
720p/60
720p/60
720p/60
720p/60
720p/60
1080i
1080i/60
1080i/60
1080i/60 1080i/60 1080i/60
1080p
1080p/60
1080p/60 1080p/60 1080p/60 1080p/24
or 60(*1)
The highest resolution supported by your display device
will be in effect automatically.
To output the video in 24 Hz, the connected display device must
support 24 Hz output, and “HDMI 1080p/24” should be set to “Auto”.
Otherwise, the image will be output in 60 Hz.
Media
Setting in the
“HDMI Video
Resolution”
DVD
AVCHD
DivX®
viewing
OSD-only
viewing
Source
480i/60
1080p/24
60, 30,
other
480p
480p/60
480p/60
480p/60
480p/60
480p/60
720p
720p/60
720p/60
720p/60
720p/60
720p/60
1080i
1080i/60
1080i/60
1080i/60 1080i/60 1080i/60
1080p
1080p/60 1080p/60 1080p/60 1080p/60 1080p/60
Auto
The highest resolution supported by your display
device will be in effect automatically.
• When HDMI cable is connected, only “480i” and the
resolution selected in the “HDMI Video Resolution” will
be available for the “Component Output”.
• Composite video out (VIDEO OUT) can only output
480i/60.
• For AVCHD, outputting the video in 24 Hz (1080p/24) is
not available.
Note
• The selected resolution must also be supported by
your display device.
• If your TV and the unit is connected by a DVI cable
and if you select “Auto”, “480p” will be in effect
automatically.
• Pressing [B (play)] on the front panel for 5 seconds
changes the setting back to its default.
(“Component Output” setting will also be reset to
default (480i).)
• Refer also to your TV’s manual.
Function Setup
HDMI Video Resolution
720p/24 1080p/24
480p
Auto
(*1)
1080i/60
Playback
16:9
To enjoy 16:9
picture on 4:3
monitor:
16:9 picture is
scaled down until
both sides of the
picture fits the 4:3
TV.
To enjoy 16:9
picture on 4:3
monitor:
Both sides of the
picture are
trimmed to fit the
4:3 TV without
distorting the
aspect ratio of the
picture.
To enjoy 16:9
picture on 16:9
monitor:
Select this setting
when you want to
enjoy 16:9 picture
on the 16:9 TV.
To enjoy 4:3
picture on 16:9
monitor:
Use this setting to
display 4:3 picture
on the 16:9 TV
without distorting
the aspect ratio of
the picture.
720p/60
Basic Setup
16:9 Widescreen
Description
480i/60
EN
Connections
16:9
BD
Source
Introduction
4:3
Media
Setting in
the “HDMI
Video
Resolution”
“HDMI Video
A Resolution”
Others
Set the resolution of the video signal being output from
the HDMI OUT jack.
You can select the desired “HDMI Video Resolution”
among the settings listed below:
“Auto”,“480p”,“720p”,“1080i”,“1080p”
• When you make a selection, the TV monitor temporarily
goes blank and then comes back again. If it does not,
press [HDMI] to change the resolution or press and hold
[B (play)] on the front panel for 5 seconds to change the
setting back to its default.
EN
43
SETUPS
HDMI Audio
A “Settings”
home
A “Advanced Setup”
A “Audio”
A “HDMI Audio”
Refer to the table below to see which setting you should choose.
“HDMI Audio” setting
A
Media
ª
BD-video
DVD-video
DTS-CD
AVCHD
44
EN
“HDMI Normal”
“PCM”
“Off”
“Blu-ray Disc Audio” setting “Primary Audio
“Mix Audio
“Primary Audio
“Mix Audio
Regardless
A
Only”
Output”
Only”
Output”
Audio Source
Which audio format can be output depends on the compatibility of the
ª
connected device.
Dolby Digital
Dolby Digital
or
or
Dolby Digital
PCM
Multi PCM
Multi PCM
Multi PCM
or
or
or
or
Mute
Mute
Mute
Mute
Mute
Dolby Digital Plus
or
Dolby Digital
Dolby Digital
or
or
Dolby Digital Plus
Multi PCM*1
Multi PCM*2
Multi PCM*1
Multi PCM*2
or
or
or
or
Mute
Mute
Mute
Mute
Mute
Dolby TrueHD
or
Dolby Digital
Dolby Digital
or
or
Dolby TrueHD
Multi PCM*3
Multi PCM*4
Multi PCM*3
Multi PCM*4
or
or
or
or
Mute
Mute
Mute
Mute
Mute
DTS®
DTS®
or
or
PCM
Multi PCM
Multi PCM
Multi PCM
DTS®
or
or
or
or
Mute
Mute
Mute
Mute
Mute
DTS-HD®
or
DTS®
DTS®
or
DTS-HD®
or
Multi PCM*1
Multi PCM*5
Multi PCM*1
Multi PCM*5
or
or
or
or
Mute
Mute
Mute
Mute
Mute
Multi PCM
Multi PCM
Multi PCM
Multi PCM
or
or
or
or
LPCM
Mute
Mute
Mute
Mute
Mute
Dolby Digital
Dolby Digital, Multi PCM or Mute Multi PCM or Mute
Mute
DTS®
DTS®, Multi PCM or Mute
Multi PCM or Mute
Mute
LPCM
2ch PCM or Mute
2ch PCM or Mute
Mute
DTS®
DTS®, Multi PCM or Mute
Multi PCM or Mute
Mute
Dolby Digital
or
Multi PCM
Multi PCM
Dolby Digital
or
or
Mute
Mute
Mute
Multi PCM
Multi PCM
or
or
LPCM
Mute
Mute
Mute
SETUPS
“HDMI Audio” setting
A
Media
ª
DivX®
“HDMI Normal”
“PCM”
“Off”
“Blu-ray Disc Audio” setting “Primary Audio
“Mix Audio
“Primary Audio
“Mix Audio
Regardless
A
Only”
Output”
Only”
Output”
Audio Source
Which audio format can be output depends on the compatibility of the
ª
connected device.
Dolby Digital
or
Multi PCM
2ch PCM
Dolby Digital
or
or
Mute
Mute
Mute
2ch PCM
2ch PCM
MP3 / MP2
or
or
Mute
Mute
Mute
2ch PCM or Mute
2ch PCM or Mute
Introduction
Audio CD / MP3 /
PCM
Windows Media™ Audio
EN
Mute
*1
) Full decoded.
) Only the independent substream is decoded.
*3) Dolby TrueHD stream is decoded.
*4
) Only the Dolby Digital substream is decoded.
*5) Only the core substream is decoded.
*2
Connections
• When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the
“Primary Audio Only” even if the “Blu-ray Disc Audio” is set to “Mix Audio Output”.
Basic Setup
Playback
Function Setup
Others
EN
45
SETUPS
Digital Out
A “Settings”
home
A “Advanced Setup”
A “Audio”
A
“Digital Out”
Refer to the table below to see which setting you should choose.
“Digital Out”
setting A
Media
ª
BD-video
“Bitstream”
“Blu-ray Disc Audio”
“Primary Audio
setting A
Only”
Audio Source
ª
Dolby Digital
Dolby Digital
“Mix Audio Output”
“PCM”
“Primary Audio
Only”
Dolby Digital
DownMix 2ch PCM
DownMix 2ch PCM
Dolby Digital Plus
Dolby Digital
Dolby Digital
DownMix 2ch PCM*1
DownMix 2ch PCM*2
Dolby TrueHD
DTS®
Dolby Digital
Dolby Digital
DownMix 2ch PCM*3
DownMix 2ch PCM*4
DTS®
DTS®
DownMix 2ch PCM
DownMix 2ch PCM
*1
DownMix 2ch PCM*5
DownMix 2ch PCM
DownMix 2ch PCM
DTS-HD®
DTS®
DTS®
LPCM
DownMix 2ch PCM
Dolby Digital
DownMix 2ch PCM
Dolby Digital
DownMix 2ch PCM
DownMix 2ch PCM
DVD-video
DTS®
DTS®
DownMix 2ch PCM
DTS-CD
LPCM
DTS®
Dolby Digital
2ch PCM
DTS®
Dolby Digital
2ch PCM
DownMix 2ch PCM
LPCM
DownMix 2ch PCM
Dolby Digital
DownMix 2ch PCM
2ch PCM
2ch PCM
2ch PCM
2ch PCM
AVCHD
Dolby Digital
DivX®
“Mix Audio Output”
MP3 / MP2
Audio CD / MP3 /
PCM
Windows Media™ Audio
DownMix 2ch PCM
DownMix 2ch PCM
*1) Full decoded.
*2) Only the independent substream is decoded.
*3) Dolby TrueHD stream is decoded.
*4) Only the Dolby Digital substream is decoded.
*5) Only the core substream is decoded.
• When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the
“Primary Audio Only” even if the “Blu-ray Disc Audio” is set to “Mix Audio Output”.
46
EN
SETUPS
3) After entering the PIN code, “Rating Level” appears.
(If not, use [K / L] to select “Rating Level”.)
Select desired rating level then press [OK].
Parental
home
A
“Settings”
A
“Advanced Setup”
A
“Parental”
Rating Level
New PIN
Some BD-video or DVD-video feature a parental lock level.
Playback will stop if the ratings exceed the levels you set, it
will require you to enter a password before the disc will
playback. This feature prevents your children from viewing
inappropriate material.
All
8 [Adult]
7
6
5
4
3
2
1) With “Parental” selected in the “Advanced Setup”
menu, press [OK].
Rating Level
New PIN
2-a) Enter 4 digit PIN code using
[Number buttons].
8 [Adult]
•
7
6
•
•
5
•
4
•
3
2
1 [Kid Safe]
•
•
•
To cancel parental lock temporarily
2-b) Enter 4 digit PIN code using
[Number buttons].
Select desired rating level, then press [OK].
Playback
• “4737” cannot be used.
• Press [RED] to return to the previous screen.
Some discs allow you to cancel the parental lock
temporarily. With those discs, the message below will
appear when you try to play them back.
“Please enter your PIN to unblock content”
Follow the instruction which appears on the TV screen to
cancel the parental lock. After entering the PIN code,
“Rating Level” appears.
Basic Setup
Enter new PIN.
•
Connections
2) If a PIN code has not been set, proceed to step 2-a).
If a PIN code has already been set, proceed to step
2-b).
If you want to change the PIN code, proceed to
step 2-c).
If you forget the PIN code, proceed to step 2-d).
All
RATING EXPLANATIONS
Parental Control is inactive; all discs
can playback.
DVD software of any grades (adult /
general / children) can be played
back.
[NC-17] No one under 17 admitted.
[R] Restricted; under 17 requires
accompanying parent or adult
guardian.
[PGR] Parental Guidance
Recommended.
[PG13] Unsuitable for children
under 13.
[PG] Parental Guidance suggested.
[G] General Audience.
Suitable for children.
Introduction
Language
Video Output
Audio
Parental
Others
EN
Enter your PIN.
Function Setup
Others
2-c) Follow step 2-b). Select “New PIN”, then press
[OK]. Enter the new PIN code.
2-d) Enter “4737”. Current PIN code and the “Parental”
settings are now cleared. Follow step 1) and step
2-a) to create a new PIN code.
EN
47
SETUPS
EasyLink (HDMI CEC)
home A “Settings” A
“Advanced
“EasyLink
A “Others” A
Setup”
(HDMI CEC)”
EasyLink (HDMI CEC) function allows your TV (limited to
PHILIPS brand EasyLink TV) to act in conjunction with this
unit, or vice versa.
When “EasyLink (HDMI CEC)” setting is set to “On”,
functions listed below will be available.
One Touch Play
When this unit is turned on, the TV also is turned on and
the appropriate external input channel will be selected
automatically. The appropriate external input channel
can also be selected on your TV automatically when you
press [B (play)], [S (previous)], [T (next)],
[Number buttons], [ (home)], [INFO ],
[TOP MENU], or [DISC MENU / POP-UP MENU] when
the unit’s power is on.
Standby
When you press and hold [Q (standby-on)] for 2
seconds, it turns off the power of the TV first and then
turns off the power of this unit also.
System Information
Get & Set Menu Language
The unit recognizes the OSD language set for the TV and
automatically sets the same language as the player
menu language (OSD menu language) for this unit.
Refer to the “Player Menu” on page 37 for available
languages.
• This feature is available only when “Auto” is selected in
the “Player Menu” in the settings menu.
Network Connection
Set up the network connection settings in order to use the
BD-Live function, Netflix feature, vTuner service or
network upgrade function.
Connection Test
home A “Settings” A
“Advanced
“Network
“Connection
A “Others” A
A
Setup”
Connection”
Test”
After you made IP address / DNS settings or when a LAN
cable is connected, always perform the connection test to
check if the connection is correctly made.
1) Use [K / L] to select “Settings” in the home menu,
then press [OK].
2) Use [K / L] to select “Advanced Setup”, then press
[OK].
3) Use [K / L] to select “Others”, then press [OK].
4) Use [K / L] to select “Network Connection”, then
press [OK].
5) Use [K / L] to select “Connection Test”, then press
[OK].
Connection test will start automatically and the test result
will appear right after the connection test finishes.
• “Testing...” : The test is in progress.
• “Pass” : Connection test is successfully completed.
• “Fail” : Connection test failed. Check the connection
settings.
Press [OK] to go to the list of network status confirmation
screen.
IP Address
Subnet Mask
Default Gateway
Primary DNS
Secondary DNS
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
then press 'OK'.
6) Press [OK] to go back to the previous screen, or
press [ (home)] to go back to the home menu.
Note
• If the connection test passes, you are ready to use
BD-Live function, Netflix feature, vTuner service or
network upgrade function using the Internet
without making any extra settings.
• If the connection test fails, you may need to change
the MAC address settings of your router. You can
check the MAC address of this unit on “Network
Status” screen (refer to page 51).
48
EN
SETUPS
If you select “Manual”, follow the following
instruction to set the IP address and DNS.
Enable(Easy)
home A“Settings” A
“Network
“Enable
“Advanced
A“Others” A
A
Connection”
(Easy)”
Setup”
Network settings are set to the following settings initially.
(In most cases, you can connect to the Internet without
making any changes to the default settings.)
- IP Address Setting
- DNS Setting
- Proxy Setting
- Connection Speed
- BD-Live Setting
Auto(DHCP)
Auto(DHCP)
Do Not Use
Auto
Allow
1) Follow steps 1) to 4) in “Connection Test” on page
48.
3) Press [OK] to activate the network settings and set
the network connection automatically. [ (home)]
to go back to the home menu.
Subnet Mask
Default Gateway
Clear
OK
• Enter the IP address number after checking the
specifications of your router.
• If the IP address number is unknown, check the
IP address number of other devices. (e.g. PC
connected via LAN cable) and assign a different
number from those of other devices.
After you enter all correctly, press [OK] to go to the
DNS setting screen.
4-b) DNS setting screen will appear. Enter primary DNS
and secondary DNS with cursor buttons and
number buttons.
DNS Setting
Primary DNS
• The setting of “BD-Live Setting” will not be set back
to the default, even if you follow the procedure.
Enable(Custom)
“Advanced
“Network
“Enable
A “Others” A
A
Setup”
Connection”
(Custom)”
IP Address Setting / DNS Setting
1) Follow steps 1) to 4) in “Connection Test” on page
48.
2) Use [K / L] to select “Enable(Custom)”, then press
[OK].
4-c) After you enter all correctly, press [OK].
• Confirmation message will appear. Select “Yes”
to complete the settings.
IP Address
Subnet Mask
Default Gateway
Primary DNS
Secondary DNS
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
Is Setting OK?
Yes
No
5) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
Others
3) Use [K / L] to select “IP Address Setting”, then press
[OK].
4) Use [K / L] to select the desired setting, then press
[OK].
“Auto(DHCP)”
: If your router has DHCP server
function, select “Auto(DHCP)”.
“Manual”
: If your router does not have DHCP
server function, select “Manual”.
Function Setup
- When connection test failed with the setting of
“Enable(Easy)”.
- When instructed by your Internet service provider to
make specific settings in accordance with your
network environment.
• Enter the numbers instructed by your Internet
provider.
• If the number is unknown, check the number of
other devices (e.g. PC connected via LAN cable)
and assign the same number.
Playback
In following cases, select “Enable(Custom)” to set each
setting as necessary.
OK
Clear
Basic Setup
Secondary DNS
Note
home A“Settings” A
IP Address Setting
IP Address
Connections
2) Use [K / L] to select “Enable(Easy)”, then press [OK].
• The unit will start the connection test automatically
and the test result will appear right after the test
finishes.
• After the connection test finishes, press [OK] to go to
network status confirmation screen.
EN
Introduction
If you want to set the network settings back to the default
settings as above (except “BD-Live Setting”), follow the
procedure below.
4-a) IP address setting screen will appear. Enter IP
address, subnet mask and default gateway with
cursor buttons and number buttons.
EN
49
SETUPS
Note
• The range of input number is between 0 and 255.
• If you enter a number larger than 255, the number
will automatically be 255.
• The manually entered number will be saved even if
you change the setting to “Auto(DHCP)”.
• When you enter a wrong number, press [RED] to
cancel. (the number will be back to “0”.)
• If you want to enter 1 or 2 digit number in one cell,
press [B] to move on to the next cell.
• If the entered IP address or the default gateway or
primary DNS number is same as the default setting,
IP address setting will be set to “Auto(DHCP)”. (The
manually entered number will be saved).
• When IP address setting is set to “Manual”, the
setting of DNS setting will automatically be “Manual”
and when IP address setting is set to “Auto(DHCP)”,
you can set either “Auto(DHCP)” or “Manual” for DNS
setting.
Proxy Setting
1) Follow steps 1) to 4) in “Connection Test” on page
48.
2) Use [K / L] to select “Enable(Custom)”, then press
[OK].
3) Use [K / L] to select “Proxy Setting”, then press
[OK].
4) Use [K / L] to select the desired setting, then press
[OK].
• For default settings, select “Do Not Use”.
• If you need to change the proxy setting as instructed
by your Internet service provider to set the
designated proxy address and port, select “Use”.
If you select “Use”, follow the following instructions
to set the proxy address and proxy port.
4-a) Proxy address setting screen will appear.
Enter proxy address.
• The keyboard screen will appear.
Proxy Setting
Proxy Address
xxxxxxxx_
1 2 3 4 5 6 7 8 9 0
a b c d e f g h i j
k l m n o p q r s t
u v w x y z . - _ OK
Clear
All Clear
a/A/@
OK
[K / L / s / B] : Move the highlight.
[Number buttons] : Enter number.
[OK] : Enter the highlighted number / word.
*[RED] : Clear the entered number or word.
[GREEN] : Clear all the entered numbers or words.
[BLUE] : Switch between abc, ABC and @!?
*[YELLOW] : Set the entered number or word.
* These buttons can be used in other network settings.
50
EN
After you enter all correctly, press [YELLOW] to go to
the proxy port setting screen.
4-b) Enter proxy port number with number buttons.
Proxy Setting
Proxy Port
x
Clear
OK
4-c) After you enter all correctly, Press [YELLOW].
• Confirmation message will appear. Select “Yes”
to complete the settings.
Proxy Address
Proxy Port
xxxxxxxxxxxxxxx
xxxxx
Is Setting OK?
Yes
No
5) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
Note
• The range of input number for the port number is
between 0 and 65535. (If you enter a number larger
than 65535, it will be regarded as 65535.)
• For proxy port, the selected ports may be blocked
and not be able to use depending on your network
environment.
• If the proxy address is entered with blank only, proxy
server setting will be set to “Do Not Use”.
SETUPS
Connection Speed
BD-Live Setting
You can set connection speed as your preference. (The
default setting is “Auto”.)
You can limit the Internet access from the BD-Live
functions. (The default setting is “Allow”.)
1) Follow steps 1) to 4) in “Connection Test” on page
48.
1) Follow steps 1) to 4) in “Connection Test” on page
48.
2) Use [K / L] to select “Enable(Custom)”, then press
[OK].
2) Use [K / L] to select “Enable(Custom)”, then press
[OK].
3) Use [K / L] to select “Connection Speed”, then press
[OK].
3) Use [K / L] to select “BD-Live Setting”, then press
[OK].
4) Use [K / L] to select the desired setting, then press
[OK].
4) Use [K / L] to select the desired setting, then press
[OK].
• Choose a connection speed in accordance with your
network environment.
• The network connection may be disabled depending
on the device, when the settings are changed.
Network Status
Disable
home A“Settings” A
Playback
You can check the status of network settings.
1) Follow steps 1) to 4) in “Connection Test” on page
48.
2) Use [K / L] to select “Enable(Custom)”, then press
[OK].
3) Use [K / L] to select “Network Status”, then press
[OK].
• Network setting list will be displayed.
• MAC address of this unit will be displayed in the list.
4) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
Basic Setup
Note
5) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
Connections
5) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
“Allow”:
Internet access is permitted from all BD-Live contents.
“Limited Allow”:
Internet access is permitted only for BD-Live contents
which have content owner certificates. Internet access
without the certificates are prohibited.
“Prohibit”:
Internet access is prohibited from all BD-Live contents.
Introduction
“Auto”:
Set the appropriate connection speed automatically, in
accordance with your network environment.
“10BASE Half”:
Set the connection speed to “10BASE Half”.
“10BASE Full”:
Set the connection speed to “10BASE Full”.
“100BASE Half”:
Set the connection speed to “100BASE Half”.
“100BASE Full”:
Set the connection speed to “100BASE Full”.
EN
“Advanced
“Network
A “Others” A
A“Disable”
Setup”
Connection”
Others
Note
• The network connection can be reactivated by
setting the network connection to “Enable(Easy)” or
“Enable(Custom)”.
EN
Function Setup
Deactivate all the network connection and settings.
1) Follow steps 1) to 4) in “Connection Test” on page
48.
2) Use [K / L] to select “Disable”, then press [OK].
3) Use [K / L] to select “Yes”, then press [OK].
4) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
51
SETUPS
Software Upgrade
Disc Upgrade
home A“Settings” A
“Advanced
“Software
“Disc
A “Others” A
A
Setup”
Upgrade”
Upgrade”
You can upgrade the software by using disc.
1) Follow steps 1) to 3) in “Connection Test” on page
48.
2) Use [K / L] to select “Software Upgrade”, then
press [OK].
3) Use [K / L] to select “Disc Upgrade”, then press
[OK].
4) Use [K / L] to select “Yes”, then press [OK].
5) Disc tray will open automatically.
• Insert the disc for software upgrade and then press
[A (open/close)].
6) After completing loading disc, confirmation
message will appear. Use [s / B] to select “Yes” and
press [OK] to start upgrading.
• It may take a while to complete the upgrading.
7) After the disc upgrade finishes, this unit will restart
and open the disc tray automatically. Remove the
disc.
Note
• Please visit www.philips.com/support to download
the latest firmware version.
• Please do not unplug the AC power cord while
executing the “Disc Upgrade”.
• All settings will remain the same even if you upgrade
the firmware version.
• The version of Netflix will also be upgraded if newer
version of Netflix is available when upgrading the
firmware.
Network Upgrade
home A“Settings” A
“Advanced
“Software
“Network
A“Others” A
A
Setup”
Upgrade”
Upgrade”
You can upgrade the software by connecting the unit to
the Internet.
1) Follow steps 1) to 3) in “Connection Test” on page 48.
2) Use [K / L] to select “Software Upgrade”, then press
[OK].
3) Use [K / L] to select “Network Upgrade”, then press
[OK].
4) Use [K / L] to select “Yes”, then press [OK].
• This unit will then start checking for the latest
firmware version.
5) Confirmation message will appear.
Use [s / B] to select “Yes”, then press [OK].
• The unit will start downloading the latest firmware
version.
6) When the download completes, confirmation
message will appear. Press [OK].
• The unit will start upgrading the firmware version.
• It may take a while to complete the upgrading.
7) After upgrading finishes, this unit will restart and
open the disc tray automatically.
52
EN
Note
• In order to upgrade the software via the Internet, you
must connect the unit to the Internet and set up
necessary settings.
• For the network connection, refer to “Network
Connection with LAN” on page 18.
• For the network setup, refer to “Network
Connection” on page 48.
• Please do not unplug the AC power cord or LAN
cable while executing the “Network Upgrade”.
• All settings will remain the same even if you upgrade
the software version.
• The disc tray will open automatically after upgrading
finishes. This is not a malfunction.
• The version of Netflix will also be upgraded if newer
version of Netflix is available when upgrading the
firmware.
Reset to Factory Default
Initialize the setting, SD Memory Card or network setting.
1) Use [K / L] to select “Settings” in the home menu,
then press [OK].
2) Use [K / L] to select “Factory Default”, then press
[OK].
3) Use [K / L] to select the desired setting, then press
[OK].
“Settings”:
All the settings except for the “Parental” and “Network
Connection” setting will be reset to default.
“Format SD Card” (Available only when an SD
Memory Card is inserted):
Initialize the SD Memory Card.
“Local Storage”:
Local storage for Player or SD card (Available only when
an SD Memory Card is inserted) used for BD-Java will be
initialized.
“Network Settings”:
Reset the network setting to the default.
4) Use [K / L] to select “Yes”, then press [OK].
• Confirmation message will appear. Press [OK] to
complete the setting.
5) Press [BACK U] to go back to the previous screen,
or press [ (home)] to go back to the home menu.
Note
• Do not remove the SD Memory Card while executing
the “Format SD Card” or “Local Storage” (SD card). It
will damage the card.
• “Format SD Card” and “Local Storage” (SD card) are
not available when a Blu-ray Disc is in the unit.
TROUBLESHOOTING
Problem
No reaction to the remote control.
POWER
No video signal on the display
device.
No audio signal from the
loudspeakers of the TV.
No audio signal from the
loudspeakers of the audio system.
Cannot play back Windows Media™
Audio files from a disc.
Cannot play back DivX® files from a
disc.
Cannot find a JPEG file.
Error message appears when I
select “Auto” in the “Player Menu”.
To completely reset the unit, press and hold [Q (standby-on)] on the front
panel for 10 seconds to shut down the unit or unplug the AC cord from the
AC outlet for 5-10 seconds.
Make sure that the selected group (folder) does not contain more than
9,999 files for DVD, and 999 files for CD.
Make sure that the file extension is .jpg, .JPG, .jpeg or .JPEG.
Make sure that the selected folder does not contain more than 9,999 files for
DVD, and 999 files for CD.
Make sure that the file extension is .mp3 or .MP3 for MP3, and .wma or .WMA
for Windows Media™ Audio.
Make sure that the unit is connected to the PHILIPS brand EasyLink TV and
the “EasyLink (HDMI CEC)” is set to “On”.
This error message may appear when your TV’s OSD language is not
supported by this unit.
EN
53
Others
Cannot find an MP3 and
Windows Media™ Audio file.
The operation is not possible.
Function Setup
in the upper right hand corner
of the TV screen.
Buttons do not work or the unit
stops responding.
Make sure that the disc was recorded in the UDF, ISO9660 or JOLIET format.
Make sure that the bit rate of the MP3 files is between 112 and 320 kbps.
Make sure that the sample rate of the MP3 files is 32 kHz, 44.1 kHz or 48 kHz.
Make sure that the sample rate of the Windows Media™ Audio files is
44.1 kHz or 48 kHz.
Make sure that the file extension is .avi, .AVI, .divx or .DIVX.
Playback
GENERAL
Cannot play back JPEG files from a
disc.
Cannot play back MP3 files from a
disc.
Make sure that the product supports the disc.
Check the region code of the disc. This unit supports following region codes.
-BD : “A”
-DVD : “ALL” or “1” for BDP5150/F7 (USA / Canada)
“ALL” or “4” for BDP5150/F8 (Mexico)
For DVD-RW/-R, make sure that the disc is finalized.
Clean the disc.
The format of the card does not match that accepted by this unit or the card
is not compatible.
Make sure that the disc was recorded in the UDF, ISO9660 or JOLIET format.
Basic Setup
SD Memory Card cannot be read.
Turn on the audio system.
Set the audio system to the correct external input.
Increase the volume level of the audio system.
Connections
Cannot play back a disc.
EN
Introduction
No audio / video signal on the
display device via HDMI cable.
No high-definition video signal on
the TV.
Tip
Connect the product to the power outlet.
Point the remote control at the product.
Insert the batteries correctly.
Insert new batteries in the remote control.
Turn on the TV.
Set the TV to the correct external input.
Select the correct video resolution using [HDMI] .
Press and hold [B (play)] on the front panel for 5 seconds to change the
setting back to its default.
If the unit is connected to the unauthorized display device with an HDMI
cable, the audio / video signal may not be output.
Does the disc contain high-definition video? High-definition video is not
available when the disc does not contain it.
Does the TV support high-definition video? High-definition video is not
available when the TV does not support it.
Assign the audio input of the TV to the corresponding video input.
TROUBLESHOOTING
Problem
Cannot connect to the network.
GENERAL
Cannot connect to the network
while my PC is connected to the
network.
The capacity of the SD card
decreased.
MPEG-2 video and audio on the SD
card cannot be played back.
The contents of the card cannot be
read.
Cannot use the BD-Live function or
download of data does not perform
properly.
Cannot play back BD-video(BDROM Profile 2.0).
Cannot use Netflix feature.
Cannot add movies or TV episodes
to the instant Queue.
The picture quality of Netflix
streaming movie is poor.
Even though the speed of the
Internet connection improves
during playback, the picture quality
of Netflix streaming movie does not
improve.
Cannot play back Internet radio.
Cannot play back the Internet radio
station in my favorite list.
The audio of Internet radio station
interrupted.
The quality of the Internet radio
audio is poor or noise occurs during
playback of Internet station.
54
EN
Tip
Check if the LAN cable connection is properly made.
Turn on the modem or broadband router.
Check the network settings.
Check if the broadband router and/or modem is correctly connected.
Check the “BD-Live Setting”.
Check the content of your Internet service contract to see if your Internet
Service Provider prevents multiple terminals connecting at the same time.
The data may be written to the SD card when a BD-video that supports the
virtual package is used and an SD card is in the slot.
MPEG-2 is noncompliant on this unit.
The card is not compatible or the contents on the card may be damaged.
Turn off and then turn the unit on again.
Incert an SD card with enough space(1GB or more).
Check if an SD card is correctly inserted.
Insert an SD card(1GB or more) which is formatted on this unit.
Some discs with BD-Live function require memory when playing back the
content.
Do not remove the card during playback.
Netflix is available only in the United States.
Check if the network connection is properly made.
Visit netflix.com/Philips on your PC and become a Netflix member.
Visit netflix.com on your PC.
Adding movies or TV episodes on this unit is not available.
Check the speed of your Internet connection.
The picture quality does not change during playback.
The picture quality differs depending on the speed of Internet connection
at the time of loading.
Check if the network connection is properly made.
Check the firewall setting of the modem or router.
For some stations, playback is not available on this unit.
The station is busy or no longer active.
Try again later.
vTuner server, station or the Internet connection is busy.
The bit rate of the station is high.
The bit rate of the station is low.
GLOSSARY
Analog Audio
DNS Server
An electrical signal that directly represents sound.
Compare this to digital audio which can be an electrical
signal, but is an indirect representation of sound. See also
“Digital Audio”.
A server which translates Internet domain names into IP
addresses.
Aspect Ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the TV screen is
almost square); widescreen models are 16:9 (the TV screen
is almost twice as wide as it is high).
AVCHD is a new format for high definition video camcorders
which can record and play high-resolution HD images.
Dolby Digital
The system to compress digital sound developed by Dolby
Laboratories. It offers you sound of stereo (2ch) or multichannel audio.
Dolby Digital Plus
Dolby Digital Plus is the next generation digital audio
compression technology developed as an extension to
Dolby Digital. Blu-ray Disc supports 7.1 multi-channel
surround sound output.
Dolby TrueHD
BD-Live
Dolby TrueHD is a lossless coding technology developed
for next generation optical discs. Blu-ray Disc supports
7.1 multi-channel surround sound output.
DTS® (Digital Theater System)
Blu-ray Disc (BD)
Chapter
Just as a book is split up into several chapters, a title on a
BD-video or DVD-video is usually divided into chapters.
See also “Title”.
DTS® is a multi channel surround sound system. You can
enjoy movie dynamic and realistic sound like movie
theater. DTS surround sound technologies were
developed by DTS, Inc.
DTS-HD®
DTS-HD® is a lossless coding technology developed as an
extension of the original DTS Coherent Acoustics format.
Blu-ray Disc supports 7.1 multi-channel surround sound
output.
Digital Audio
DivX®
DivX® is a codec (compression/decompression) that can
compress pictures to a very small amount of data. The
software can compress video data from almost any
devices to the size that can be sent on the Internet without
compromising visual quality of the pictures.
HDMI (High Definition Multimedia Interface)
A digital interface between audio and video source. It can
transmit component video, audio, and control signal with
one cable connection.
Hub
A device used for connecting multiple device to the
network.
IP Address
Others
An indirect representation of sound by numbers. During
recording, the sound is measured at discrete intervals
(44,100 times a second for CD audio) by an analog-todigital converter, generating a stream of numbers. On
playback, a digital-to-analog converter generates an
analog signal based on these numbers. See also “Sampling
Frequency” and “Analog Audio”.
IP address of the electronic devices (such as router) which
provide Internet access.
A set of numbers which are assigned to devices
participating in a computer network.
JPEG (Joint Photographic Experts Group)
JPEG is a method of compressing still picture files. You can
copy JPEG files on CD-RW/-R, DVD-RW/-R, BD-RE/-R or SD
Memory Card from a computer and play back the files on
this unit.
EN
Function Setup
Each signal of luminance (Y) and component (PB/CB, PR/CR)
is independent to output so that you can experience
picture color as it is.
Also, due to compatibility with progressive video (525p/
480p), you can experience higher-density picture than that
in interlace (525i/480i).
Playback
Gateway
Component Video Output
Basic Setup
Blu-ray Disc is a next generation optical video disc which is
capable of storing much more data than a conventional
DVD. The large capacity makes it possible to benefit from
the features such as high-definition videos, multi-channel
surround sounds, interactive menus and so on.
Connections
BD-Live is a BD-video (BD-ROM version 2 Profile 2.0) which
contains new functions (e.g. Internet connection), in
addition to the BONUSVIEW function.
Introduction
AVCHD
EN
55
GLOSSARY
LAN (Local Area Network)
Subnet Mask
A group of computer networks covering a small area like a
company, school or home.
A mask which is used to determine what subnet an IP
address belongs to.
Local Storage
Title
A storage area of sub contents for playing virtual packages
on BD-video.
A collection of chapters on BD-video or DVD-video. See
also “Chapter”.
MP3 (MPEG audio layer 3)
Track
MP3 is a method of compressing files. You can copy MP3
files on CD-RW/-R, DVD-RW/-R, BD-RE/-R or SD Memory
Card from the computer and play back the files on this
unit.
Audio CD uses tracks to divide up the content of a disc.
The BD-video or DVD-video equivalent is called a chapter.
See also “Chapter”.
Netflix
Netflix is online movie rental service, offering online
streaming to customers in the United States.
Virtual Package
The function which copies data to other media (local
storage) from the Internet and play the secondary video,
secondary audio and the subtitle at the same time. The
method of the playback varies depending on discs.
PCM (Pulse Code Modulation)
The most common system of encoding digital audio,
found on CD and DAT. Excellent quality, but requires a lot
of data compared to formats such as Dolby Digital and
MPEG audio. For compatibility with digital audio recorders
(CD, MD and DAT) and AV amplifiers with digital inputs,
this unit can convert Dolby Digital and MPEG audio to
PCM. See also “Digital Audio”.
Proxy Server
Proxy server is a server which acts as an intermediary
between a workstation user and the Internet to ensure
security.
Region Code
Regions associate discs and players with particular areas of
the world. This unit will only play back discs that have
compatible region codes. You can find the region code of
your unit by looking on the rear panel. Some discs are
compatible with more than one region (or all regions).
Router
A networking device which distinguishes the IP address
assigned to each device and routing and forwarding
information in the computer network.
Sampling Frequency
The rate which sound is measured by a specified interval
to turn into digital audio data. The numbers of sampling in
one second defines as sampling frequency. The higher the
rate, the better the sound quality.
56
EN
vTuner
vTuner is a database service of Internet radio.
vTuner enables users to access various kinds of Internet
radio stations through its database.
Windows Media™ Audio
Windows Media™ Audio is the audio compressing
technology developed by Microsoft. You can copy
Windows Media™ Audio files on CD-RW/-R, DVD-RW/-R or
SD Memory Card from a computer and play them back on
this unit.
x.v.Color
“x.v.Color” is a promotion name given to the products that
have the capability to realize a wide color space based on
the xvYCC specifications and is a trademark of Sony
Corporation.
SPECIFICATIONS
General
Signal System
Power requirements
Power consumption
Dimensions (width x height x depth)
Weight
Operating temperature
Operating humidity
EN
NTSC Color
120 V AC, 60 Hz
20 W (standby: 0.5 W)
17.1 x 2.0 x 8.5 inches (435 x 50 x 215 mm)
5.07 lbs. (2.3 kg)
41°F (5°C) to 104°F (40°C)
Less than 80 % (no condensation)
Front
L/R: 2 Vrms (output impedance: more than 1kΩ)
1 Vp-p (75Ω)
Y: 1 Vp-p (75Ω)
PB/CB: 700 mVp-p (75Ω)
PR/CR: 700 mVp-p (75Ω)
Connections
Audio output (Analog)
RCA jack x 2
Video output
RCA jack x 1
Component video output
RCA jack x 3
Audio output (Digital)
RCA jack x 1
HDMI output
HDMI jack x 1
LAN terminal
Introduction
SD card slot
slot x 1
Rear
Terminals
500 mVp-p (75Ω)
Video: 480p, 720p, 1080i, 1080p/Audio
10BASE-T / 100BASE-TX
Basic Setup
Note
• The specifications and design of this product are subject to change without notice.
Playback
Function Setup
Others
EN
57
NETWORK SERVICE DISCLAIMER
Network Service Disclaimer
Content and services made available through this product are transmitted by third
parties by means of networks and transmission facilities over which Company has no
control and third party services may be terminated or interrupted at any time, and
Company makes no representation or warranty that any content or service will
remain available for any period of time. Without limiting the generality of this
disclaimer, Company expressly disclaims any responsibility for any interruption or
suspension of any content or service made available through this product. Company
is not responsible for customer service related to the content and services. Any
question or request for service relating to the content or services should be made
directly to the respective content and service providers.
THIRD PARTY CONTENT AND SERVICES MADE AVAILABLE THROUGH THIS PRODUCT
ARE PROVIDED “AS IS.” COMPANY DOES NOT WARRANT CONTENT OR SERVICES SO
PROVIDED, FOR ANY PURPOSE WHATSOEVER. COMPANY EXPRESSLY DISCLAIMS ANY
WARRANTIES, EXPRESS OR IMPLIED INCLUDING WITHOUT LIMITATION, WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ACCURACY,
VALIDITY, TIMELINESS, LEGALITY, SUITABILITY, OR QUALITY OF ANY CONTENT OR
SERVICE MADE AVAILABLE THROUGH THIS PRODUCT.
IN NO EVENT SHALL COMPANY BE LIABLE FOR, ANY DAMAGES, WHETHER ARISING IN
CONTRACT OR TORT, INCLUDING WITHOUT LIMITATION, ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, LOST PROFITS, ATTORNEY
FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION
WITH, ANY CONTENT (OR ANY INFORMATION CONTAINED THEREIN) OR SERVICE
PROVIDED TO THE USER OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
All content and services accessible through this product belong to third parties and
are protected by copyright, patent, trademark and/or other intellectual property
rights. Such content and services are provided solely for the User’s personal
noncommercial use. User may not use any content or services in a manner that has
not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service
provider, you may not modify, copy, republish, upload, post, transmit, translate, sell,
create derivative works, exploit, or distribute in any manner or medium any content
or services made available through this product.
58
EN
ONE (1) YEAR LIMITED WARRANTY
WARRANTY COVERAGE:
This warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
This product is warranted to the original purchaser or the person receiving the product as a gift against defects in materials
and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
This Limited Warranty does not cover:
• Shipping charges to return defective product.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.
• Product repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of the company.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage from mishandled shipments or transit accidents when
returning product.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for which
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
The Company is not liable for any damage to or loss of any
programs, data, or other information stored on any media
contained within the product, or any non-Philips product or
part not covered by this warranty. Recovery or reinstallation
of programs, data or other information is not covered under
this Limited Warranty.
Some states do not allow the exclusions or limitation of incidental
or consequential damages, or allow limitations on how long
an implied warranty lasts, so the above limitations or exclusions
may not apply to you.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, neglect, misapplication, or non-Philips product,
(b) to damage caused by service performed by anyone other
than an Authorized Service Location, (c) to a product or
Others
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
P&F USA, Inc.
PO Box 430 Daleville, IN 47334-0430
EN
Function Setup
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE
LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT
IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
Playback
WHAT IS NOT COVERED - EXCLUSIONS AND
LIMITATIONS:
This Limited Warranty applies only to the new products that
can be identified by the trademark, trade name, or logo affixed
to it. This Limited Warranty does not apply to any non-Philips
hardware product or any software, even if packaged or sold
with the product. Non-Philips manufacturers, suppliers, or
publishers may provide a separate warranty for their own
products packaged with the bundled product.
Basic Setup
TO OBTAIN ASSISTANCE IN THE U.S.A., CANADA,
PUERTO RICO, OR U.S. VIRGIN ISLANDS...
Contact Customer Care Center at:
1-866-309-0866
Connections
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all
requirements can result in delay.
EN
Introduction
WHAT IS COVERED:
This warranty covers new products if a defect in material
or workmanship occurs and a valid claim is received within
the Warranty Period. At its option, the company will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or
most comparable to the original product in current inventory,
or (3) refund the original purchase price of the product.
The Company warrants replacement products or parts provided
under this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product or
part is exchanged, any replacement item becomes your property
and the replaced item becomes the company’s property. When a
refund is given, your product becomes the company’s property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
a part that has been modified without written permission,
or (d) if any serial number has been removed or defaced,
or (e) product, accessories or consumables sold “AS IS”
without warranty of any kind by including refurbished Philips
product sold “AS IS” by some retailers.
59
P&F USA, Inc.
PO Box 430 Daleville, IN 47334-0430
P&F Mexicana, S.A. de C.V.
Av. La Palma No. 6, Col. San Fernando La Herradura,
Huixquilucan Edo. de México C.P. 52787
Meet Philips at the Internet
http://www.philips.com/welcome
BDP5150/F7
BDP5150/F8
CLASS 1
LASER PRODUCT
ENERGIA
BDP5150
120 V ~ 60 Hz 20 W
Comercializado por :
P&F Mexicana, S.A. DE C.V.
IMPORTADOR:
Sojitz Mexicana, S.A. de C.V.
Av. Paseo de las Palmas no. 239-302
Col. Lomas de Chapultepec, c.p. 11000
México, D.F.
52 (55) 5202 - 7222
EXPORTADOR :
FUNAI ELECTRIC CO. L.T.D.
País de Origen :
CHINA
GARANTIA INCLUIDA EN EL INSTRUCTIVO DE USO
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
Printed in China
JpnYN-0952/F7-3
1VMN28513★★★★★
E5PG0UD
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
