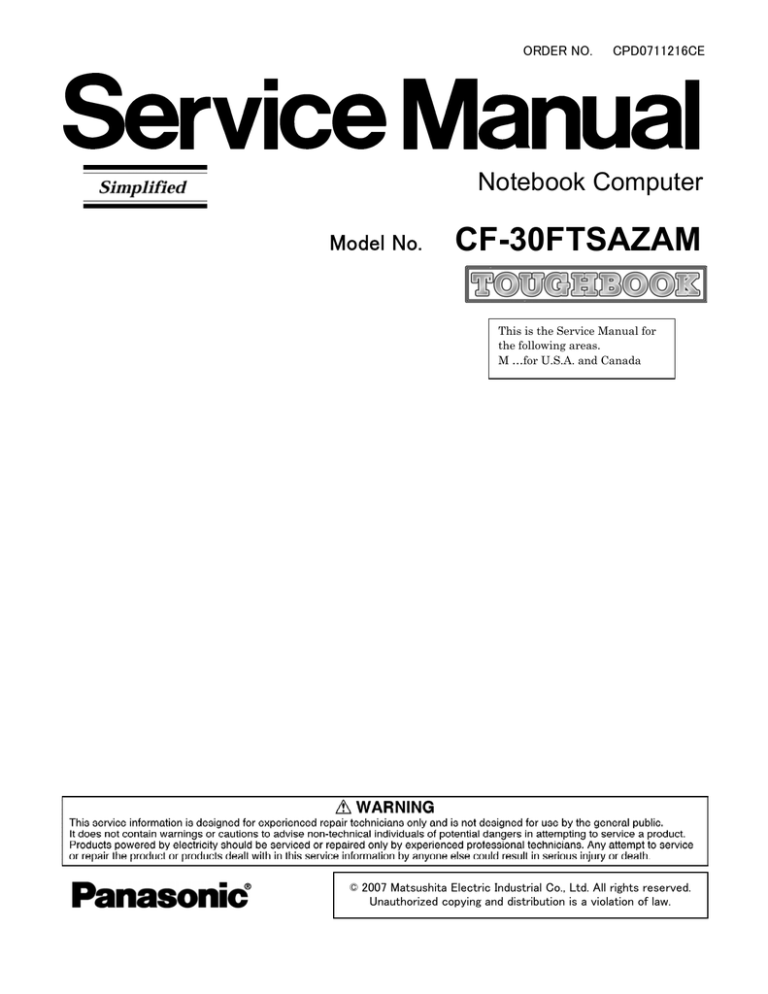

ORDER NO.
CPD0711216CE
Notebook Computer
Model No.
CF-30FTSAZAM
This is the Service Manual for
the following areas.
M …for U.S.A. and Canada
© 2007 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
WARNING
For U.K.
This apparatus must be earthed for your safety.
To ensure safe operation the three-pin plug must be inserted only into a standard three-pin power point
which is effectively earthed through the normal household wiring.
Extension cords used with the equipment must be three-core and be correctly wired to provide connection to earth. Wrongly wired extension cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily does not imply that the power point is earthed and
that the installation is completely safe.
For your safety, if you have any doubt about the effective earthing of the power point, consult a qualified electrician.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 3 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3 amps and
that it is approved by ASTA or BSI to BS 1362.
Check for the ASTA mark
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR
HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED
OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13 AMP SOCKET.
If a new plug is to be fitted please observe the wiring code as shown below.
If in any doubt please consult a qualified electrician.
Warning: THIS APPLIANCE MUST BE EARTHED.
Important
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow:
Earth
Blue:
Neutral
Brown:
Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug
coloured GREEN or GREEN-andwhich is marked by the letter E or by the safety earth symbol
YELLOW.
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or
coloured BLACK.
The wire which is coloured Brown must be connected to the terminal which is marked with the letter L
or coloured RED.
The mains plug on this equipment must be used to disconnect the mains power.
Please ensure that a socket outlet is available near the equipment and shall be easily accessible.
How to replace the fuse
Open the fuse compartment with a screwdriver and replace the fuse.
Warnings
This equipment is not designed for connection to an IT power system.
(An IT system is a system having no direct connections between live parts and Earth; the exposed-conduciveparts of the electrical installation are earthed.
An IT system is not permitted where the computer is directly connected to public supply systems in the U.K.)
Disconnect the mains plug from the supply socket when the computer is not in use.
This equipment is produced to BS800/1983.
SAFETY PRECAUTIONS
1. Before servicing, unplug the power cord to prevent an electric shock.
2. When replacing parts, use only manufacture's recommended components
for safety.
3. Check the condition of the power cord. Replace if wear or damage is evident.
4. After servicing, be sure to restore the lead dress, insulation barriers,
insulation papers, shields, etc.
Important Safety Instructions
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk
of fire, electric shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire.
They may explode. Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
LITHIUM BATTERY
This computer contains a lithium battery to enable the date, time, and other
data to be stored. The battery should only be exchanged by authorized
service personel.
Warning! A risk of explosion from incorrect installation or misapplication may
possibly occur.
LITHIUM BATTERY
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the equipment manufacturer.
Dispose of used batteries according to the manufacturer's instructions.
LITHIUMBATTERIES
Vorsicht!
Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben order einen vom
Hersteller empfohlenen ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
PILE AU LITHIUM
ATTENTION: IL Y A DANGER D'EXPLOSION S' IL Y A REMPLACEMENT INCORRECT DE LA PILE.
REMPLACER UNIQUEMENT AVEC UNE PILE DU MÈME TYPE OU D'UN TYPE RECOMMANDÉ PAR LE
CONSTRUCTEUR. METTRE AU RÉBUT LES PILES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS DU
FABRICANT.
Avoid Extreme Heat (Near the Fire, in Direct Sunlight,
for Example)
Electrolyte leakage, generation of heat, ignition or rupture
may result.
Do Not Insert Sharp Objects into the Battery Pack,
Expose It to Bumps or Shocks, Disassemble, or Modify It
Electrolyte leakage, generation of heat, ignition or rupture
may result.
Do Not Short the Positive (+) and Negative (-) Contacts
Generation of heat, ignition or rupture may result. Do not
place the battery pack together with articles such as necklaces or hairpins when carrying or storing.
Do Not Use This Product with a Battery Pack Other
Than the One Specified
Use only the specified battery pack with your product.
Use of battery packs other than those manufactured and
supplied by Panasonic may present a safety hazard
(generation of heat, ignition or rupture).
A lithium ion battery that is recyclable
powers the product you have purchased.
Please call 1-800-8-BATTERY for
information on how to recycle this
battery.
L’appareil que vous vous êtes
procuré est alimenté par une batterie
au lithium-ion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer le 1-800-8-BATTERY.
NOTE
The battery pack may become warm during
recharging or normal use. This is completely normal.
Recharging will not commence if internal temperature of the battery pack is outside of the allowable
temperature range (0 °C to 55 °C {32 °F to 131
°F}). (
Reference Manual “Battery Power”)
Once the allowable range requirement is satisfied,
charging begins automatically. Note that the
recharging time varies based on the usage conditions. (Recharging takes longer than usual when
the temperature is 10 °C {50 °F} or below.)
If the temperature is low, the operating time is
shortened. Only use the computer within the
allowable temperature range.
The battery pack is a consumable item. If the
amount of time the computer can be run by using a
particular battery pack becomes dramatically
shorter and repeated recharging does not restore
its performance, the battery pack should be
replaced with a new one.
When transporting a spare battery inside a package, briefcase, etc., it is recommended that it be
placed in a plastic bag so that its contacts are protected.
Always power off the computer when it is not in
use. Leaving the computer on when the AC adaptor is not connected will exhaust the remaining battery capacity.
Useful Information
Do Not Throw the Battery Pack into a Fire or Expose It
to Excessive Heat
Generation of heat, ignition or rupture may result.
Troubleshooting
Do Not Charge the Battery Using Methods Other Than
Those Specified
If the battery is not charged using one of the specified
methods, electrolyte leakage, generation of heat, ignition
or rupture may result.
Do not touch the terminals on the battery pack. The
battery pack may no longer function properly if the
contacts are dirty or damaged.
Do not expose the battery pack to water, or allow it to
become wet.
If the battery pack will not be used for a long period of
time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.
This computer prevents overcharging of the battery by
recharging only when the remaining power is less than
approx. 95% (when Economy Mode (ECO) is enabled:
75%) of capacity.
The battery pack is not charged when the computer is
first purchased. Be sure to charge it before using it for
the first time. When the AC adaptor is connected to
the computer, charging begins automatically.
Should the battery leak and the fluid get into your
eyes, do not rub your eyes. Immediately flush your
eyes with clear water and see a doctor for medical
treatment as soon as possible.
Appendix
Do Not Use with Any Other Product
The battery pack is rechargeable and was intended for
the specified product. If it is used with a product other
than the one for which it was designed, electrolyte leakage, generation of heat, ignition or rupture may result.
Getting Started
Precautions (Battery Pack)
CONTENTS
1. Specifications
1-1
2. Names and Functions of Parts
2-1
3. Block Diagram
3-1
4. Diagnosis Procedure
4-1
5. Power-On Self Test (Boot Check)
5-1
6. List of Error Codes <Only when the port replicator is connected>
6-1
7. Self Diagnosis Test
7-1
8. Wiring Connection Diagram
8-1
9. Disassembly/Reassembly
9-1
10. Exploded View
10-1
11. Replacement Parts List
11-1
1. Specifications
This page provides the specifications for the basic model CF-30FTSAZAM/CF-30F3SAZAM.
The model number is different according to the unit configuration.
To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
To check CPU speed, memory size and the hard disk drive (HDD) size:
Run the Setup Utility (
Reference Manual “Setup Utility”) and select [Information] menu.
[CPU Speed]: CPU speed, [System Memory]: Memory size, [Hard Disk]: Hard disk drive size
Main Specifications
Model No.
CF-30FTSAZAM
CPU
Intel® Core™ 2 Duo Processor L7500 (1.6 GHz, 4 MB*1 L2 cache, 800 MHz FSB)
Chipset
Intel® GM965
Memory*2*4
1 GB (4 GB Max.)
Video Memory*1*3
Hard Disk Drive
CF-30F3SAZAM
UMA (384 MB Max.)
*4
80 GB
Display Method
13.3 XGA type (TFT) with Touchscreen
13.3 XGA type (TFT)
Internal LCD*5
65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots)
External Display*6
65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 × 1024 dots/
1440 × 900 dots)
Wireless LAN*7
Bluetooth™
Next page
*8
Next page
LAN
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
Modem
Data: 56 kbps (V.92) FAX: 14.4 kbps
Sound
WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Monaural speaker
Security Chip
TPM (TCG V1.2 compliant)*9
Card Slot
PC Card
Type I or Type II x 1 (3.3 V: 400 mA, 5 V: 400 mA)
ExpressCard/34*10 or ExpressCard/54 x 1
ExpressCard
*11
SD Memory Card
x 1, Data transfer rate = 8 MB per second*12
Smart Card*13
ISO7816 x 1
RAM Module Slot
200-pin, 1.8 V, SO-DIMM, DDR2 SDRAM, PC2-4200 Compliant
Interface
USB port (4-pin, USB 2.0) x 3, Serial port (Dsub 9-pin male), Modem port (RJ-11), LAN port
(RJ-45), External display port (Mini Dsub 15-pin female), Expansion Bus Connector (Dedicated
80-pin female), External Antenna Connector (Dedicated 50 Ω coaxial connector), IEEE 1394a
Interface Connector (4-pin x 1), Microphone Jack (Miniature jack, 3.5 DIA, Stereo), Headphone
Jack (Miniature jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW × 2)
Keyboard / Pointing Device
87 keys / Touch Pad / Touchscreen (AntiReflection, Stylus (included) touch capable)
Power Supply
AC adaptor or Battery pack
AC Adaptor*14
Input: 100 V to 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 5.0 A
Battery Pack
87 keys / Touch Pad
Li-ion 10.65 V, 8.55 Ah
*15
Operating Time
Main Battery: Approx. 7 hours*16
Main Battery + Second Battery: Approx. 10.5 hours*16
Charging
Time*15
Power on
Main Battery: Approx. 8.5 hours
Main Battery + Second Battery: Approx. 12.5 hours
Power off
Main Battery: Approx. 5 hours
Main Battery + Second Battery: Approx. 8 hours
Clock Battery
Coin type lithium battery 3.0 V
Power Consumption*17
Approx. 50 W*18 / Approx. 70 W (Maximum when recharging in the ON state)
Physical Dimensions (W × H × D) 302 mm × 67.5 - 69.5 mm × 292 mm {11.9" × 2.7 - 2.8" × 11.5"}
Weight
Approx. 3.8 kg {Approx. 8.4 lb.}, excluding the dummy pack and dummy cards (approx. 50 g
{approx. 1.8 oz.})
Operation Environment
Temperature: 5 °C to 35 °C {41 °F to 95 °F}
Humidity: 30% to 80% RH (No condensation)
Storage Environment
Temperature: -20 °C to 60 °C {-4 °F to 140 °F}
Humidity: 30% to 90% RH (No condensation)
1-1
Main Specifications
Operating System
Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies
(NTFS File System)
Utility Programs
DMI Viewer, Microsoft® Windows® Media Player 10, Adobe Reader, PC Information Viewer,
SD Utility, Icon Enlarger, Loupe Utility, Intel® Matrix Storage Manager, Intel® PROSet/Wireless
Software*7, Bluetooth™ Stack for Windows® by TOSHIBA*8 , Wireless Switch Utility, Hotkey Settings, Battery Recalibration Utility, Panasonic Hand Writing, Infineon TPM Professional Package*19, Recover Pro™ 6*19 or Recover Pro™ VX*19, Power Saving Utility, Wireless Connection
Disable Utility
Setup Utility, Hard Disk Data Erase Utility*20, PC-Diagnostic Utility
Wireless LAN <Only for model with wireless LAN>
Intel Wireless WiFi Link 4965AG (802.11 a + b + g)*21
Data Transfer Rates*22
IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)
IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)
IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)
Standards Supported
IEEE802.11a/IEEE802.11b/IEEE802.11g
Transmission method
OFDM system, DSSS system
Wireless Channels Used
IEEE802.11a: Channels 36/40/44/48/52/56/60/64/149/153/157/161/165
IEEE802.11b/IEEE802.11g: Channels 1 to 11
RF Frequency Band
IEEE802.11a: 5.18-5.32 GHz, 5.745-5.825 GHz
IEEE802.11b/IEEE802.11g: 2.412-2.462 GHz
BluetoothTM <Only for model with Bluetooth>
Bluetooth Version
2.0 + EDR
Transmission method
FHSS system
Wireless Channels Used
Channels 1 to 79
RF Frequency Band
2.402-2.48 GHz
*1
*2
*3
*4
*5
*6
*7
*8
*9
*10
*11
*12
*13
*14
*15
*16
*17
*18
*19
*20
*21
*22
1MB = 1,048,576 bytes
You can physically expand the memory upto 4 GB, but the total amount of usable memory available will be less depending on
the actual system configuration.
A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user.
1GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.
A 16,777,216 color display is achieved by using the dithering function.
Maximum resolution depends on the specifications of the external display.
Only for model with wireless LAN
Only for model with Bluetooth
For information on TPM, click [start] - [Run] and input “c:\util\drivers\tpm\README.pdf”, and refer to the Installation Manual of
“Trusted Platform Module (TPM)”.
When using ExpressCard/34, the card slot cover cannot be closed.
SD Memory Cards that support high-speed transfer rates can be used. Windows Ready Boost function is also supported. Operation has been tested and confirmed using Panasonic SD Memory Cards and SDHC Memory Cards with a capacity of up to
8 GB. Operation on other SD equipment is not guaranteed.
This computer is not compatible with MultiMediaCards. Do not insert this kind of cards.
Theoretical value and not the actual speed. The transfer rate does not become higher even if you use a card that supports the
higher transfer rate.
Only for model with Smart Card slot
<Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor. The computer is supplied with a 125 V AC compatible AC cord. 20-M-2-1
Varies depending on the usage conditions.
Measured using MobileMark™ 2005 (LCD brightness: 60 cd/m2)
Approx. 0.9 W when the battery pack is fully charged (or not being changed) and the computer is OFF.
Rated power consumption 23-E-1
You need to install to use the feature.
The Product Recovery DVD-ROM is required.
It does not correspond to IEEE802.11.n.
These are speeds specified in IEEE802.11a+b+g standards. Actual speeds may differ.
1-2
2. Names and Functions of Parts
F
G
H
I
J
K
K
L
A
EX
PC
K
M
N
O
D
E
A: Bluetooth Antenna
<Only for model with Bluetooth>
Reference Manual “Bluetooth”
B: ExpressCard Slot
Reference Manual “PC Card / ExpressCard”
C: PC Card Slot
Reference Manual “PC Card / ExpressCard”
D: Multimedia Pocket
Reference Manual “Multimedia Pocket”
E: Battery Pack
F: Wireless LAN Antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
G: LCD
<Only for model with touchscreen>
Reference Manual “Touchscreen”
H: Function Key
Reference Manual “Key Combinations”
I: Keyboard
J: Touch Pad
K: LED Indicator
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Multimedia pocket device status or the second
battery status
Reference Manual “Multimedia Pocket”
“Battery Power”
: Hard disk drive status
: Power status of the multimedia pocket
: Battery status
Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Standby)
: Wireless ready*1
This indicator lights when Wireless LAN, Bluetooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Reference Manual “Wireless LAN” “Bluetooth” “Disabling / Enabling Wireless Communication”
: Wireless WAN status
<Only for model with wireless WAN>
Refer to the instruction manual of the wireless
device
L: Power Switch
M: Wireless Switch*1
Reference Manual “Disabling / Enabling Wireless Communication”
N: Carrying Handle
O: Stylus Holder
*1
<Only for model without both wireless LAN and Bluetooth>
Both Wireless Switch and Wireless ready indicator are
equipped with models without Wireless device as well.
Wireless ready indicator lights up when Wireless Switch
is turned on, or [Wireless Switch] is set to [Disable] ([Enable] in the default setting) on Setup Utility [Advanced]
menu, but Wireless function does not work. (Do not
change [Wireless Switch] setting.)
A lithium ion battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer le
1-800-8-BATTERY.
2-1
Right side
A
B
C DE F G
H
I
1394
Rear side
Bottom
Q
J
H
K L
M
N O
P
A: Hard Disk Drive
Reference Manual “Hard Disk Drive”
B: SD Memory Card Slot
Reference Manual “SD Memory Card”
C: SD Memory Card Indicator
(Blinking: During access)
Reference Manual “SD Memory Card”
D: IEEE 1394 Interface Connector
Reference Manual “IEEE 1394 Devices”
E: Smart Card Slot
<Only for model with Smart Card slot>
Reference Manual “Smart Card”
F: Modem Port
Reference Manual “Modem”
G: LAN Port
Reference Manual “LAN”
H: USB Port
Reference Manual “USB Devices”
I: DC-IN Jack
J: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
K: Ext Antenna Connector
L: Expansion Bus Connector
Reference Manual “Port Replicator”
R
M: External Display Port
Reference Manual “External Display”
N: Headphone Jack
You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.
O: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be possible, or malfunctions may occur as a result.
When recording in stereo using a stereo microphone:
Click [start] - [All Programs] - [SoundMAX] - [Control Panel] and select [Microphone], and then add
a check mark for [No Filtering] in [Microphone Enhancements].
• When using a monaural microphone with a 2-terminal plug:
Click [start] - [All Programs] - [SoundMAX] - [Control Panel] and select [Microphone], and then add
a check mark for [Voice Recording] in [Microphone
Enhancements].
Otherwise, only audio on the left track will be recorded.
P: Serial Port
Q: RAM Module Slot
Reference Manual “RAM Module”
R: Speaker
Reference Manual “Key Combinations”
2-2
3-1
GPS
Screen
Touch
(PortRep)
Serial
LPC
Bridge
USB 2.0
INTEL
1.5V
I
CH8M
HDD
Interface
PCI
Bridge
Serial
Buffer
Bridge
PCI Express
Interface
AC-link
INTEL
Interface
Finger Print
USB1 1
IDE
Interface
Internal USB1.1
PATA
Wireless cinfig CN
Buffer
HDD
Interface
Internal USB1.1
HUB
1.1/2.0
PATA
(1.5Gb/s)
SATA
8M
SPI
BIOS
Interface
DMI
Interface
Graphics
GM965
DRAM
(PortRep.)
Parallel
SMSC
SIO10N268
Super I/O
Mouse
KBD
(KB& Mouse)
Int. KB
BKLT
LED
Pack
Battery
Pack
2nd-Li-Ion
Battery
Li-Ion
EC/KBC
TYPE II
(M306KA)
PS/2
PCMCIA
R5C847
infineon
17Mbytes/sec
RJ45
antenna
HDD
Battery Charger
Heater
3.3V
LPCBu
s
3.3V
32b
i
tPCI
Bu
s33MHz
Ext. MIC
Headphone
Speaker
Thermister (Novato)
Flat Pad
IEEE1394
SD Card
AD1884
MDC1.5
AC Link
HDA
Sound
AMP
Data Modem
RJ11
TPM 1.2
ExpressCARD
C000
88E8055-B0-NNC1
Marvell Yucon Ultra
Et
h
e
r
n
e
tGb
E
802.11 A/B/G
4965ABG
133Mbytes/sec
SO-DIMM Memory
DDR2 SDRAM
2GB
SO-DIMM Memor
DDR2 SDRA
2GB
Wireless LAN
1.05V
Smart Card
64bit BUS 1.8V 533MHz
4.2Gbytes/sec
64bit BUS 1.8V 533MHz
4.2Gbytes/sec
Fr
o
n
ts
i
d
eBu
s 800MHz
5.3Gbytes/sec
Internal
Blue-tooth
r
t
Re
p
.)
(Po
USB2.0
3p
o
r
t
USB2.0
MP
80GB 2.5”
SATA HDD
CRT
LCD
13.3 XGA
13.3”
1000nit
1.6GHz, FSB 800MHz
4MB L2 Cache
Merom DC
1Gbytes/sec x2
Intel Core
CoreTM2
Duo processor
pro essor
3 Block Diagram
4 Diagnosis Procedure
4.1. Basic Procedures
4-1
4.2. Troubleshooting
Please take note of the following two points with regard to troubleshooting:
1. Know-how of diagnosis upon occurrence of heavy troubles, e.g. Set cannot be turned ON , Set fails to start , No display on
screen , etc.
2. Explanation of each trouble, mainly symptom of trouble in operation.
Flow Chart
START
START
Set cannot be supplied with current.
Power lamp fails to light up.
Pay attention to the following points when in pursuit of the cause of a troubleshooting.
1. Peripheral apparatus connected with the set should all be removed before operation check.
2. Make sure that cables, boards, etc. are not coming off, and recheck the contact condition.
NG
AC
Adaptor/Battery
Output voltage
Replace AC Adaptor/Battery
OK
NO
Power lamp
check
YES
Dark display on screen.
Screen fails to display.
NG
Inverter board
Check contact condition of power input terminal. Replace if
defective.
Check Power SW. Replace if defective.
Replace inverter board.
Check inverter cable continuity. Replace if defective
OK
NO
LCD back
light lighting
YES
NG
LCD unit
check
Replace LCD back light.
Replace LCD unit.
OK
Failure in starting
NO
BIOS operation
check
Replace main board (Check fuse at power source).
YES
NG
Result of
POST
OK
NG
Set-up utility
starting
Refer to POST
error code table.
Replace main board.
Replace main board.
OK
Return set-up utility setpoint to the state of delivery from factory .
NO
HDD access
YES
Not displayed properly on screen.
NG
Main board
check
Heavy trouble e.g.,
Set cannot be turned
ON , Set fails to start ,
No display on
screen , etc.
Check HDD cable connection and continuity.
Replace if defective.
Replace HDD & Reinstall.
Replace main board.
Replace main board
OK
Some or all keys cannot be input.
CD CALL not practicable.
Make sure of contact of K/B connector in use.
Replace keyboard or main board.
NO
Trouble
symptoms on some
of CD
YES
Replace main board.
Starts but operates unstably.
Reinstall HDD.
Replace main board.
START
END
4-2
Check if there are any flaws on CD media. Since
flaws may appear on specific media, CD media
can be defective.
Each kind of
trouble in
operation.
5 Power-On Self Test (Boot Check)
Outline of POST
The set has a boot check function called POST (Power-On Self Test) in it.
The condition of the main body is diagnosed by checking beep sound or error code.
Start .............Test begins automatically when power switch is set to ON.
Normal finish .....After memory checking, a beep sound is issued once and the set is placed into automatic stop.
Note: If no error occurs, nothing is displayed. (No display of OK, etc.)
Error Diagnosis by Checking Beep Signal Sound
The beep sound is as follows:
(1 (long sound) -2-3-4)
(Length of bar shows length of sound.)
= long sound (about 0.4 sec.),
= short sound (about 0.2 sec.), Length between sounds is about 0.1 sec.
Table of errors classified by beep sounds
Diagnosis
Main board
Beep signal sound
Error message
1(long sound)-2
BIOS ROM error
1-2-2-3
BIOS ROM error
1-3-1-1
RAM error
1-3-1-3
Keyboard controller error
1-3-4-1
RAM error
1-3-4-3
RAM error
1-4-1-1
RAM error
2-1-2-3
BIOS ROM error
2-2-3-1
Occurrence of unexpected offering
(Note) A beep sound is also issued in case of other I/O trouble.
5-1
6 List of Error Codes <Only when the port replicator is connected>
The following is a list of the messages that BIOS can display. Most of them occur during
POST. Some of them display information about a hardware device, e.g., the amount of memory
installed. Others may indicate a problem with a device, such as the way it has been configured.
Following the list are explanations of the messages and remedies for reported problems.
If your system displays one of except the messages marked below with an asterisk (*), write
down the message and contact Panasonic Technical Support. If your system fails after you
make changes in the Setup menus, reset the computer, enter Setup and install Setup defaults
or correct the error.
0200 Failure Fixed Disk
Fixed disk in not working or not configured properly. Check to see if fixed disk is attached
properly. Run Setup. Find out if the fixed-disk type is correctly identified.
0210 Stuck key
Stuck key on keyboard.
0211 Keyboard error
Keyboard not working.
0212 Keyboard Controller Failed
Keyboard controller failed test. May require replacing keyboard controller.
0213 Keyboard locked - Unlock key switch
Unlock the system to proceed.
0230 System RAM Failed at offset : nnnn
System RAM failed at offset nnnn of in the 64k block at which the error was detected.
0231 Shadow RAM Failed at offset : nnnn
Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.
0232 Extended RAM Failed at offset : nnnn
Extended memory not working or not configured properly at offset nnnn.
0250 System battery is dead - Replace and run SETUP
The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup
to reconfigure the system.
*0251 System CMOS checksum bad - Default configuration used
System CMOS has been corrupted or modified incorrectly, perhaps by an application program
that changes data stored in CMOS. The BIOS installed Default SETUP Values. If you do not
want these values, enter Setup and enter your own values. If the error persists, check the system
battery or contact Panasonic Technical Support.
0260 System timer error
The timer test failed. Requires repair of system board.
0270 Real time clock error
Real-time clock fails BIOS test. May require board repair.
*0280 Previous boot incomplete - Default configuration used
Previous POST did not complete successfully. POST loads default values and offers to run
Setup. If the failure was caused by incorrect values and they are not corrected, the next boot
will likely fail. On systems with control of wait states, improper Setup settings can also terminate POST and cause this error on the next boot. Run Setup and verify that the wait-state
configuration is correct. This error is cleared the next time the system is booted.
0281 Memory Size found by POST differed from EISA CMOS
Memory size found by POST differed from EISA CMOS.
6-1
6-2
Troubleshooting
02D0 System cache error - Cache disabled
Contact Panasonic Technical Support.
02F0: CPU ID:
CPU socket number for Multi-Processor error.
02F4: EISA CMOS not writable
ServerBIOS2 test error: Cannot write to EISA CMOS.
02F5: DMA Test Failed
ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.
02F6: Software NMI Failed
ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).
02F7: Fail - Safe Timer NMI Failed
ServerBIOS2 test error: Fail-Safe Timer takes too long.
device address Conflict
Address conflict for specified device.
Allocation Error for: device
Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.
Failing Bits : nnnn
The hex number nnnn is a map of the bits at the RAM address which failed the memory test.
Each 1 (one) in the map indicates a failed bit. See error 230,231 or 232 for offset address of the
failure in System, Extended or Shadow memory.
Invalid System Configuration Data
Problem with NVRAM (CMOS) data.
I/O device IRQ conflict
I/O device IRQ conflict error.
Operating System not found
Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed
disk and drive A: are properly identified.
Parity Check 1 nnnn
Parity error found in the system bus. BIOS attempts to locate the address and display it on the
screen. If it cannot locate the address, it displays ????. Parity is a method for checking errors
in binary data. A parity error indicates that some data has been corrupted.
Parity Check 2 nnnn
Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the
screen. If it cannot locate the address, it displays ????.
Press <F1> to resume, <F2> to Setup
Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to
enter a Setup and change the settings. Write down and follow the information shown on the
screen.
7 Self Diagnosis Test
As for the self-diagnosis test(PC-Diagnostic utility) to use this model, a standard test and the
enhancing test by the module of the main body building in are possible.
●Notes To skip BIOS password
Use <Ctrl>+<F10> key to skip BIOS password or authentication of fingerprint.
This key is only for entering DIAG mode. Not available to boot the computer.
If customer set "HDD Lock", the DIAG program cannot perform HDD test.
*This key is for service purpose only. Do not disclose this information to unrelated others.
1. Beginning of self-diagnosis test
1-1. Setting of content of setup
1. The power supply of the computer is turned on.
2. " F2 " is pushed on the screen of "Panasonic" while " press <F2 to enter Setup> " is displayed.
3. The setup utility starts and then takes notes of the content of the BIOS setup of present set.
4. " F9 " is pushed, " Yes" is selected on the screen of " Is the default value loaded? ", and " Enter"
is pushed.
5. " F10 " is pushed.
6. " Yes" is selected on the screen of the setup confirmation, and " Enter" is pushed.
7. The computer starts automatically.
Attention
・If the device which can be set is set to "Invalidity" by "Advanced" or "Security" menu, becomes an
error by "PC-Diagnostic utility".
(It is judged that the device which can be set to "Invalidity" by "Main" menu such as "Flat pad" is
normal if the controller operates normally though sets to "Invalidity" by the setup. )
・In the model with built-in DVD of the USB connection, even if DVD is normal, becomes an error if
legacy USB is set to "Invalidity"
1-2. When you execute an automatic test
1. "Ctrl" + "F7" is pushed while the "Panasonic" start screen is displayed after the computer is started.
2. The test of all devices begins automatically by "PC-Diagnostic utility" 's starting.
Attention
・It is a test which the customer who bought PC can execute. (As for HDD, the enhancing test is also
possible.)
・A flat pad does not work for a while after starting "PC-Diagnostic utility".
・The movement of a flat pad might become abnormal If after RAM begins from the CPU/System
test, a flat pad will be operated in about 30 seconds. In that case,restarts pushing"Alt" + "Ctrl" +
"Del" key. Or, please start "PC-Diagnostic utility" again after doing the power supply switch in the
slide, and turning off the power supply.
1-3. When you execute the enhancing test
1. Please let me discontinue diagnosing clicking
to end an automatic test.
2. Please click on the character of "D" "PC-Diagnostic utility" on the screen while pushing both of right
"Shift" and left "Shift" keys.
3. All devices which can select the enhancing test make the setting of the enhancing test possible.
4. The district device is made"FULL" display (enhancing test).
5. The test begins clicking
.
*Please refer to item 4 for the error result of each test and the division of the breakdown part.
7-1
2. Operation of PC-Diagnostic Utility
-Only the device which can be inspected on the entire screen is displayed.
-The item does not appear when the device of wireless LAN etc. is not physically connected.
-The movement of the item must use an arrow key or a flat pad.
-As for the device under the diagnosis, blue and yellow are alternately displayed at the left of the icon.
- The diagnosis result of the device greens at the left of the icon when it is normal, and becomes red when
abnormal.
-When the test of all devices ends, the test result is displayed under the right of the screen.
-Please click
while diagnosing when being stop on the way by the time the test of all devices ends.
-Please click
when you restart "PC-Diagnostic utility".
*Each device is tested from the beginning, and it is not possible to restart on the way.
-When the test of all devices ends, the test result is displayed under the right of the screen.
7-2
2-1. Selection of tested device
-To test only a specific device, "Test" and "Do not test" of each device can be selected.
-The device which can select the enhancing test changes in order of "The standard is tested" and "Do not
test" whenever the device icon is clicked.
Start the standard test
Please begin testing clicking
Do not test
if the selection of the tested device ends.
2-2. "PC-Diagnostic utility" End method
When
of "Close" on the right of the screen is clicked, the computer reactivates automatically. Or, the
power supply switch is done in the slide and the power supply is turned off.
2-3. The content of the setup is returned to the setting of the user
1. Turned on the computer.
2. "F2" is pushed on the screen while "Press<F2>to enter Setup" is displayed of "Panasonic".
3. Push "F10", and on the screen of "Is the change in the setting preserved and do end?"and then "Yes"
is selected, and "Enter" is pushed.
4. The computer reactivates automatically.
5. The end option is chosen by the start menu, and the power supply of the computer is turned off.
Standard at test time
All devices other than RAM and HDD ---------- about 1 minute
RAM standard test ----------------------------------- 1 - 2 minutes
HDD standard test ----------------------------------- 2 - 3 minutes
HDD enhancing test (60GB) ---------------------- about 40 minutes
Ex.The standard when the standard <all device> is tested becomes 1+2+3=6 minutes.
■ There is greatly a difference from RAM test when the memory is increased according to the performance
of the memory occasionally.
■ Moreover, when the main body of PC under the test is a high temperature, it occasionally takes time.
■ There is greatly a difference from HDD according to the performance of the drive occasionally.
7-3
3. Test Item and Division of trouble
Test item Stanard Enhancing
Content of standard test
Content of enhancing test
Place with possibility of breakdown
CPU /
SYSTEM
CPU is shifted to protected mode, and
"Violation of the paging", "Operation of
the violation of a privileged instruction",
and DMA, INT, TIMER, and the
RTC operation are confirmed.
CPU /
Main board
RAM
All memory space is tested in a special
memory access pattern based on
"R.S.T . technology".
Memory /
Mainboard
The record area frequently accessed
with Microsoft Windows XP to test in
about two minutes regardless of
points of HDD is emphatically tested.
HDD /
Mainboard /
Cable /
Connector
HDD
MODEM
It is confirmed not to find abnormality
in the AC97 modem controller.
Wireless
LAN
It is confirmed not to find abnormality
in the Wireless LAN modem controller.
All record area is tested.
MODEM/
Mainboard
Wireless LAN
board /
Connector /
Mainboard
Sound *5
*1
USB
*2
It is confirmed not to find abnormality
in the USB controller.
It is confirmed not to find abnormalityin the wiring between
the USB controller and the
connector by confirming
the connection of the USB
equipment connected with the
USB connector.
It is confirmed not to find abnormalityin the wiring between
the controller and the
connector by connecting to
HUB with LAN cable.
Mainboard /
Connector
Mainboard /
Connector
LAN
It is confirmed not to find abnormality
in the LAN controller.
PC Card
It is confirmed not to find abnormality
in the CardBus controller.
Mainboard
SD
It is confirmed not to find abnormality
in the SD controller.
Mainboard
Keyboard
Touch Pad
DVD-ROM
*3
It is confirmed not to find abnormality
in keyboard controller's keyboard interface.
The key is actually input, and
the operation is displayed on
the screen.
Mainboard /
Keyboard
*4
Whether keyboard controller's mouse
interface operates normally is confirmed.
The operation is actually displayed on the screen by operating the touch pad.
Mainboard /
Touch Pad
*6
The drive is normally reset, and it is
accessible is confirmed.
It is confirmed to be able to
read media normally.
7-4
Mainboard /
DVD Drive /
DVD Cable /
DVD Connector
Test Item
Standard Enhanced
Content of Standard Test
It is confirmed not to find
abnormality in the USB
connection of Touch Screen.
This test cannot find
abnormality of Touch Screen.
It is confirmed not to find
abnormality in the connection
of Main board and Bluetooth
module.
It is confirmed not to find
abnormality in the connection
of Main board and Wireless
WAN module.
It is confirmed not to find
abnormality in the legacy FD
drive.
This test cannot find
abnormality of mechanical
breakdown. (e.g.. Head, Motor)
It is confirmed not to find
abnormality in access to
VRAM with VESA.
The PC which uses main
memory as VRAM may fail with
main memory failure.
It is confirmed not to find
abnormality in the connection
of Main board and GPS
It is confirmed not to find
abnormality in the IEEE1394
controller.
Touch Screen
Bluetooth
Wireless WAN
Floppy
Video
GPS
IEEE1394
Perform Touch Screen
functionality practically.
Operator has to judge
PASS/FAIL with test result.
Smart Card
It is confirmed not to find
abnormality in the Smart Card
controller.
Serial Port
*7
It is confirmed not to find
abnormality of Super I/O
UART function.
This test cannot find lack of
wiring between Super I/O and
Serial Connector.
*8
It is confirmed not to find
abnormality of Super I/O
parallel function.
This test cannot find lack of
wiring between Super I/O and
Parallel Connector.
*1
*2
*3
*4
*5
The place with possibility of
breakdown
Main board/
Touch Screen
Bluetooth cable
WWAN cable
FD Drive/
Main board (Super I/O)/
FDD cable
FDD connector
Main board
(Chipset, Graphic
Controller)/
Memory
GPS cable
Main board
(IEEE#394 Controller)
It is confirmed not to find
abnormality in the wiring
between Chipset and Express
Card.
Express Card
Parallel Port
Content of Extend Test
Main board (Chipset)/
Express Card Connector
Main board
(Smart Card Controller)
It is confirmed not to find
abnormality in the wiring
between Super I/O and Serial
Connector.
This test cannot find failure of
cable characteristic and device
problems.
It is confirmed not to find
abnormality in the wiring
between Super I/O and
Parallel Connector.
This test cannot find failure of
cable characteristic and device
problems.
Main board (Super I/O)/
Serial Connector
Main board (Super I/O)/
Parallel Connector
Please connect the USB device with the port (USB connector) which wants to test before the tests.
Please connect LAN port with LAN HUB with LAN cable before the tests.
The operator actually inputs the key, and the operator judges PASS/FAIL of the test.
The operator actually operates the mouse, and the operator judges PASS/FAIL of the test.
It is not abnormal though the sound is emitted from the speaker while testing.
When the test result is PASS, trouble is thought by not hearing of the sound under the test from
the speaker and the headphone by the wiring of the audio output system.
*6 Please set DVD/CD media in the drive before the tests.
*7 Please set a Special Loop Back Connector Tool at serial connector for Enhanced Test.
(This Connector Tool is same as the one used before.)
*8 Please set a Special Loop Back Connector Tool at parallel connector for Enhanced Test.
(This Connector Tools is same as the one used before.)
7-5
Wiring Connection Diagram
USB USB
PORT PORT
CN100
CN102
EXTERNAL
DISPLAY
PORT
EXPANSION
BUS
CN705
CN101
CN701
HEAD MICRO
PHONE PHONE
SERIAL
PORT
CN703
CN700
CN702
JK701
I/O PCB
JK700
USB PCB
USB
PORT
BACK LIGHT
CN103
TOUCH SCREEN
INVERTER PCB
ANTENNA
PCB
LCD
CN201
CN1
TS PCB
CN2
CN1
CN200
EXT ANT.
PCB
DC-IN
JK1
CN37
CN2
W-LAN
MODULE
CN27
CN3
LAN PORT
CN21
CN1
CN17
CN11
CN20
MAIN PCB
CN22
EXPRESS
CARD
MP PCB
DIMM MEMORY CARD
CN400
CN12
CN402
CN13
CN15
CN401
RTC
BATTERY
CN19
CN6
CN10
CN5
COMBO
DRIVE
CN28
SPEAKER
CN26
CN25
CN14
CN4
CN8
IEEE1394
INTERFACE
CONNECTOR
CN9
CN7
CN31
CN30
BT PCB
PW LED SW LED
PCB
PCB
CN301
CN300
HDD FPC
BATTERY
KEYBOARD
PAD PCB
CN802
CN801
CN800
J1
MDC
MODEM
MAIN
BATTERY
HDD TOUCH
PAD
CN901
6-1
J2
JK1
CN1
LED PCB
SD
CARD
PCMCIA
CARD
CN29
CN18
CN24
MODEM
PORT
GPS PCB
7 Disassembly/Reassembly
Note:
Power off the computer. Do not shut down to the Suspend or hibernation mode.
Do not add peripherals while the computer is in the Suspend or hibernation mode; abnormal operation may result.
7.1.
7.1.1.
Disassembly Instructions
7.1.2.
Preparation
Removing the Battery Pack and HDD
Pack
Before disassembling, be sure to make the following preparations.
• Shut down Windows and turn off the power.
• Disconnect the AC adaptor.
• Remove the optional DIMM memory card and PCMCIA card if
they are connected.
• Remove other devices if they are connected.
Attention:
• Please execute writing BIOS ID when you exchange the Main
Board.
• Parts (Sheet and rubber) etc. related various the Conductive
Cloth and Heat Spreader cannot be recycled. Use new parts.
Battery
Cover
HDD Cover
Battery Pack
HDD Pack
1.
2.
3.
4.
7-1
Open the Battery Cover.
Remove the Battery Pack.
Open the HDD Cover.
Remove the HDD Pack.
7.1.3.
Removing the HDD
7.1.4.
HDD U Case Ass'y
<K1-17>
<K1-17>
HDD FPC
Removing the KB Cover, Hinge
Cover L, Hinge Cover R and Keyboard
<N6>
<N6>
Bluetooth PCB
<N6>
<N6>
<N6>
HDD
SATA Guard
<K1-16>
<N6>
<N2>
Hinge Cover L
<N6>
Heater Ins Sheet
KB Cover
Sheet
HDD Damper
Ass'y
<N6>
<N2>
Hinge Cover R
Heater
HDD L Case Ass'y
1. Remove the Screw. <K1-16>
2. Remove the 4 Screws. <K1-17>
And remove the SATA Guard.
3. Release the 2 Tabs, and remove the HDD U Case Ass'y
and the HDD L Case Ass'y.
4. Remove the HDD Dumper Ass'y.
5. Remove the Sheet.
6. Remove the Heater and the Heater Ins Sheet.
7. Remove the HDD FPC.
Keyboard
1. Remove the 4 Screws <N6>, and remove the KB Cover.
2. Remove the 2 Screws <N2> and the 3 Screws <N6>, and
remove the Hinge Cover L,R.
3. Remove the Keyboard.
Screws <N2>: DRHM5054XA
Screws <N6>: DRQT26+E4FKL
Screws <K1-16>: DFHE5025XA
Screws <K1-17>: DRQT2+E8FKL
7-2
7.1.5.
Removing the KB Cable Cover and
LCD Cable Cover
7.1.6.
<N29>
<N29>
<N29>
<N29>
<N29>
<N29>
Removing the GPS PCB and Bluetooth PCB
<N12>
<N12>
<N12> GPS BT Angle
<N12>
KB Cable Cover
<N29>
GPS PCB
<N29>
LCD Cable Cover
to Connector
to Connector
(CN13)
(CN14)
<N11>
<N29>
Bluetooth
PCB
<N11>
<N29>
Connector(CN25)
to Connector
(CN25)
Keyboard
LCD Cable Plate
1.
2.
3.
4.
Connector
(CN14)
Connector
(CN13)
Disconnect the Cable from the Connector. (CN25)
Remove the 4 Screws. <N12>
Remove the 2 Screws. <N11>
Remove the Bluetooth PCB, GPS BT Angle and GPS PCB.
Screws <N11>: DFHE5025XA
Screws <N12>: DXQT2+F3FNL
1.
2.
3.
4.
5.
6.
Remove the 3 Screws <N29>.
Remove the LCD Cable Cover.
Remove the LCD Cable Plate.
Remove the 7 Screws <N29>.
Remove the KB Cable Cover.
Disconnect the 2 Cable from the 2 Connectors (CN13,
CN14).
7. Remove the Keyboard.
Screws <N29>: DRQT26+E3FNL
7-3
7.1.7.
Removing the DIMM Cover and Bottom Cover
7.1.8.
Removing the USB PCB and Antenna
PCB
Tape
<N1> <N1> <N1>
<N1>
Connector
(CN100)
DIMM Cover
<N6>
USB PCB
<N1>
<N6>
<N6>
Antenna PCB
Antenna Cable
(White)
DIMM Stopper Base
<N3>
<N3>
DIMM Heat Plate
Antenna Cable
(White)
DIMM Memory Card
<N8>
<N17>
<N8>
<N6>
Connector Cover
<N17>
<N8>
<N6>
<N6>
<N6>
<N8>
<N8>
<N6>
<N6>
<N6>
<N6>
<N6>
Bottom Cover
<N6>
<N8>
1.
2.
3.
4.
5.
6.
7.
Remove the Screw. <N6>
Disconnect the Cable from the Connector. (CN100)
Remove the Tape.
Remove the USB PCB.
Open the Connector Cover.
Remove the 2 Screws. <N3>
Remove the 2 white Cables and remove the Antenna PCB.
Screws <N3>: DRQT2+G6FKL
Screws <N6>: DRQT26+E4FKL
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Remove the 5 Screws. <N1>
Remove the DIMM Cover.
Remove the 2 Screws. <N6>
Remove the DIMM Stopper Base.
Remove the DIMM Heat Plate.
Remove the DIMM memory card.
Remove the 6 Screws. <N8>
Remove the 11 Screws. <N6>
Remove the 2 Screws. <N17>
Remove the Bottom Cover.
Screws <N1>: DRHM0002ZA
Screws <N6>: DRQT26+E4FKL
Screws <N8>: DRSB3+8FKL
Screws <N17>: DRQT26+E6FKL
7-4
7.1.9.
Removing the FPC HDD BAT
7.1.10. Removing the PAD PCB
to Connector (CN8)
to Connector (CN7)
<N16>
TP PCB Screw Sheet
FPC HDD BAT
to Connector (CN9)
<N29>
<N29>
Tape <N29>
to Connector (CN800)
<N29>
Antenna Cable Sheet
<N29>
<N29>
Connector
(CN801)
HDD Cable Cover
Tape
Pad Protect
Sheet
to Connector (CN26)
Connector(CN10)
Pad PCB
Connector(CN26)
Connector
(CN802)
Connector
(CN8)
Tape
Connector
(CN7)
Connector(CN9)
1. Remove the Tape and disconnect the Cable from the Connector. (CN801)
2. Disconnect the Cable from the Connector. (CN802)
3. Remove the TP PCB Screw Sheet.
4. Remove the 2 Screws. <N29>
5. Remove the PAD PCB.
Connector (CN800)
Pad PCB
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Remove the 4 Screws. <N29>
Remove the HDD Cable Cover.
Remove the Antenna Cable Sheet.
Remove the 2 Tapes.
Disconnect the 2 Cables from the 2 Connectors.
(CN10,CN26)
Remove the Tape.
Disconnect the Cable from the Connector. (CN9)
Remove the Pad Protect Sheet.
Disconnect the Cable from the Connector. (CN800)
Disconnect the 2 Cables from the 2 Connectors. (CN7,CN8)
Remove the Screw. <N16>
Remove the FPC HDD BATT.
Screws <N29>: DRQT26+E3FNL
7.1.11.
Removing the Main PCB
TOP Screw Sheet <N7>
Connector
(CN17)
Connector
(CN27)
Screws <N16>: DRQT26+E5FKL
Screws <N29>: DRQT26+E3FNL
1. Remove the TOP Screw Sheet.
2. Remove the Screw. <N7>
3. Disconnect the 2 Cables from the 2 Connectors.
(CN17,CN27)
7-5
<N18>
<N16>
<N16>
11.
12.
13.
14.
15.
16.
17.
18.
19.
to Connector(CN700)
to Connector(CN701)
<N16> <N16>
<N16>
<N16>
Connector(CN700)
Main Chasis
Connector
(CN31)
(CN400,CN401)
Remove the 2 Screws. <N6>
Remove the 2 Screws. <N21>
Remove the MP Guide.
Remove the MP PCB.
Remove the Coin Battery Cushion.
Disconnect the Cable from the Connector. (CN19)
Remove the Coin Battery.
Remove the Tape.
Disconnect the 2 Cables from the 2 Connectors.
(CN4,CN11)
<N17>
Connector(CN701)
Pet Tape
<N6>
<N17>
<N17> ICH Plate
Modem Cable Sheet <N6>
<N11>
<N6>
<N6>
Tape
<N6>
<N6>
<N11>
<N11>
Modem LAN Case
<N6>
MDC
4. Remove the 6 Screws. <N16>
5. Remove the Screw. <N18>
6. Disconnect the 2 Cables from the 2 Connectors.
(CN700,CN701)
7. Remove the Pet Tape and disconnect the Cable from the
Connector. (CN31)
8. Remove the Main chasis.
Tape
Coin Battery
Cushion
Connector
(CN401)
<N6>
<N6>
<N11>
1394 Sheet
20.
21.
22.
23.
24.
25.
26.
27.
28.
MP Guide
Coin Battery
MP PCB
Connector
(CN4)
Modem Cable
<N6>
<N21>
<N21>
Connector
(CN400)
Connector
(J2)
<N6>
<N6>
29.
30.
31.
32.
Remove the 3 Screws <N17> and the Screw. <N11>
Remove the ICH Plate.
Remove the 2 Modem Cable Sheets.
Remove the 2 Screws. <N6>
Remove the Modem LAN Case.
Remove the 1394 Sheet.
Remove the 2 Screws. <N11>
Remove the Tape.
Disconnect the Cable from the Connector (J2) and remove
the MDC.
Remove the Modem Cable.
Remove the 8 Screws. <N6>
Remove the Screw. <N11>
Remove the Main PCB.
Screws <N6>: DRQT26+E4FKL
Screws <N7>: DRSB26+10HKL
Screws <N11>: DFHE5025XA
Screws <N16>: DRQT26+E5FKL
Screws <N17>: DRQT26+E6FKL
Screws <N18>: DRSB26+8FKL
Screws <N21>: DXQT2+E12FNL
Connector
(CN11)
Connector
(CN19)
9. Remove the Tape.
10. Disconnect the 2 Cables from the 2 Connectors.
7-6
7.1.12. Removing the SD PCB, Express Card
and PCMCIA Card
<N22>
7.1.13. Removing the I/O PCB
Connector
(CN701)
<N22>
<N22>
Connector
(CN700)
<N22>
<N22>
<N22>
<N22>
Connector Cover
Express Card
<N22>
I/O PCB
<N15>
<N14>
<N30>
<N14>
<N6>
PCMCIA Card
<N6>
SD PCB
Lib Cover
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
Remove the 2 Screws. <N6>
Remove the SD PCB.
Remove the 4 Screws. <N22>
Remove the Express Card.
Remove the 4 Screws. <N22>
Remove the PCMCIA Card.
Open the Connector Cover and Lid Cover.
Remove the 3 Screws <N14> and the 2 Screws <N30>.
Remove the 4 Screws. <N15>
Remove the I/O PCB.
Screws <N14>: DFHE5058ZB
Screws <N15>: DRHM5104ZA
Screws <N30>: DXHM0057ZA
Screws <N6>: DRQT26+E4FKL
Screws <N22>: DXQT2+G4FNL
7-7
7.1.14. Removing the Palm Top Cover Sheet,
Palm Top Cover, Touch Pad Adhesion Seat, Touch Pad, Touch Pad SW
Knob, LED PCB and SW LED PCB
7.1.15. Removing the Handle and Power SW
<K2-41>
Handle Base L
Handle Base R
<K2-41>
Palm Top Cover Sheet
Handle
<N29>
<N29>
<N29>
<N29>
Palm Top Cover
WM SW
Touch Pad Adhesion Seat
PW LED Sheet
<K2-42>
Touch Pad
<K2-42>
PW LED
PCB
LED PCB
Touch Pad SW Knob
Power
SW
SW LED
PCB
1. Remove the 2 Screws <K2-41>, and remove the Handle
Base L and R.
2. Remove the Handle.
3. Remove the 2 Screws. <K2-42>
4. Remove the WM SW and Power SW.
Touch Pad SW Knob In
Screws <K2-41>: DRSN4+6FKLT
Screws <K2-42>: DXQT26+D4NLT
Hole 1
Hole 2
1. Remove the Palm Top Cover sheet.
2. Remove the 5 Screws <N29>, and remove the Palm Top
Cover.
3. Remove the Touch Pad Adhesion seat.
4. Remove the Touch Pad.
5. Remove the Touch Pad SW knob and Touch Pad SW Knob
in.
6. Remove the LED PCB.
7. Remove the PW LED Sheet.
8. Remove the Screw <K2-42>, and remove the SW LCD
PCB.
Screws <N29>: DRQT26+E3FNL
Screws <K2-42>: DXQT26+D4NLT
7-8
7.1.16. Removing the Display Unit
7.1.17. Removing the LCD Rear Cabinet,
Hinge L and R
Display Unit
left LCD Cover <N7>
Side Cover
<N7>
<N9>
<N13>
<N7>
<N7>
<N7> LCD Rear Cabinet
<N7>
<N9>
<N9>
<N7>
<N13>
<N7>
<N9>
Wireless Antenna
Corner Cover
<N10>
<N7>
<N7>
<N7>
LCD Latch
<N7>
<K9-1-4>
Hinge L
right LCD Cover
Side Cover
Wireless Antenna
Corner Cover
<K9-1-4>
Hinge R
<N10>
1. Remove the 2 Screws <N10> and the 4 Screws <N9>.
2. Remove the Display Unit.
LCD Front Cabinet
1.
2.
3.
4.
5.
6.
7.
8.
9.
Screws <N9>: DRYN4+J10FKL
Screws <N10>: DXSB4+15FNLB
Remove the 4 Screws. <N7>
Remove the 2 Wireless Antenna Corner Covers.
Remove the 4 Screws <N7> and 2 Screws. <N13>
Remove the left and right LCD Cover Side Covers.
Remove the 4 Screws. <N7>
Remove the LCD Rear Cabinet.
Remove the LCD Latch.
Remove the 2 Screws. <K9-1-4>
Remove the Hinge L and R.
Screws <N2>: DRHM5054XA
Screws <N7>: DRSB26+10HKL
Screws <N13>: DRSB4+10FKL
Screws <K9-1-4>: DRYN4+J10KLT
7-9
7.1.18. Removing the Inverter PCB, TS PCB
and LCD Unit
7.1.19. Removing the Antenna PCB L and R
LCD Rear Cabinet Ass'y
W-LAN ANT Cover L
Antenna PCB L
C
LCD Drop Holder
Connector
(CN201)
TS PCB
Connector
(CN200)
A
B
LCD Drop Holder
<N2>
<N2>
<N2>
<N2>
<N2>
Inverter PCB
<N6>
LCD Unit
<N6>
1.
2.
3.
4.
A
Remove the 4 Screws <N2>.
Remove the W-LAN ANT Cover L and R.
Remove the 2 Screws. <N2>
Remove the Antenna PCB L and R.
Screws <N2>: DRHM5054XA
LCD Front Cabinet
Antenna PCB R
W-LAN ANT Cover R
C
B
<N2>
to Connector
(CN200)
1.
2.
3.
4.
Remove the 2 Screws. <N6>
Disconnect the 3 Cables from the 3 Connectors.
Remove the Inverter.
Disconnect the 2 Cables from the 2 Connectors.
(CN200,CN201)
5. Remove the TS PCB.
6. Remove the 2 Drop Holders.
7. Remove the LCD Unit.
Screws <N6>: DRQT26+E4FKL
7-10
7.2.
7.2.1.
Reassembly Instructions
Attention when CF-30 series is repaired
• Please execute writing BIOS ID when you exchange the Main Board.
• Parts (Sheet and rubber) etc. related various the Conductive Cloth and Heat Spreader cannot be recycled. Use new parts.
7.2.2.
Setting the Antenna PCB L and R
1. Set the Antenna PCB L and R using the 2 Screws. <N2>
2. Fix the W-LAN ANT Cover L and R using the 4 Screws.
<N2>
LCD Rear Cabinet Ass'y
W-LAN ANT Cover L
Antenna PCB L
Screws <N2>: DRHM5054XA
<N2>
<N2>
<N2>
<N2>
<N2>
<N2>
Antenna PCB R
W-LAN ANT Cover R
7-11
■ Arranging the Antenna L and R Cables
Safety Working
CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Insert the cable between the pins.
Insert the cable between the pins.
LCD REAR ASS'Y
REAR CABLE SHEET L
Put it along the inside of boss on X part
S2
Do not pinch the cable out of the cabinet
REAR CABLE SHEET R
Coming off the tape is arrowed
S2
Attach it fitting
to the corner
Do not pinch the cable out of the cabinet
Cable color: gray
REAR SCREW SHEET
Cable color: black
Match it to the concave
side and attach it between
the bosses.
TAPE
Match it to the protrusion side and attach it betweenthe bosses.
Tighten the screw
Place the anntena sub
Place the anntena main
7-12
S2
Do not pinch the cable out of the cabinet
Tighten the screw
7.2.3.
1.
2.
3.
4.
5.
Setting the Inverter PCB, TS PCB and LCD Unit
Set the LCD Unit to the LCD Front Cabinet in order.
Attach the 2 drop holders.
Connect the Cable to the Connector. (CN200,CN201)
Connect the 3 Cables to the 3 Connectors.
Fix the Inverter PCB using the 2 Screws. <N6>
C
LCD Drop Holder
Connector
(CN201)
TS PCB
Connector
(CN200)
Screws <N6>: DRQT26+E4FKL
A
B
LCD Drop Holder
Inverter PCB
<N6>
LCD Unit
C
B <N6>
A
LCD Front Cabinet
7-13
to Connector
(CN200)
■ Preparation of Inverter
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
2. When handling Inverter-PCB, do not bend or add impact.
N0GF1J000009(without T.S.)
Check the Part No.
N0GF1J000009
S2
Inverter Shield Case
Prepare Inverter and the Inverter
shield case outside for assysite.
Inverter Shield Case Outside
N0GF2J000002
Check the Part No.
HBL-0361
Board attachment
Wrap Inverter Shield Tape around Inverter
Shield Case and attach.
Ensure that Inverter Shield Tape does not
run over the edge of Inverter Shield Case.
Inverter Shield Case is set
Inverter is set,
attach
Attach the Inverter Shield Tape
<Inverter Shield Tapes Attachment Guide>
Protorusion by wrinkles, etc. = 0.2 or less
Air Bubble = 1 cm 2 or less / 1 bubble size
Attach it putting the protrusion mark next to the caution label.
Match the board edge and the case edge.
Difference: 0.5mm or less
■ Assembly of LCD Unit
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Confirm that the LCD Cushion is not wrapped.
LCD Drop Holder Insertion
Attach the Inverter MIL Shierd
LCD Front Ass'y
Match to the LCD edge and attach it.
Clearance : 2 mm or less
LCD Drop Holder Insertion
0 0.5mm
7-14
7.2.4.
Setting the LCD Rear Cabinet, Hinge L and R
1. Fix the Hinge L and R using the 2 Screws. <K9-1-4>
2. Set the LCD Latch.
3. Fix the LCD Rear Cabinet using the 4 Screws. <N7> No1 to
No4
4. Fix the left and right LCD Cover Side Cover using the 4
Screws <N7> and 2 Screws. <N13>
5. Fix the 2 Wireless Antenna Corner Cover using the 4
Screws. <N7>
Note:
Tighten the Screws in the numbered order (No1 to No4).
left LCD Cover <N7>
Side Cover
<N7>
<N13>
<N7>
<N7>
No.3
<N7>
No.1
<N7> LCD Rear Cabinet
No.4
<N7>
No.2
<N7>
Wireless Antenna
Corner Cover
Screws <N2>: DRHM5054XA
Screws <N7>: DRSB26+10HKL
Screws <N13>: DRSB4+10FKL
Screws <K9-1-4>: DRYN4+J10KLT
<N13>
<N7>
<N7>
<N7>
<N7>
<K9-1-4>
Hinge L
LCD Latch
right LCD Cover
Side Cover
Wireless Antenna
Corner Cover
<K9-1-4>
Hinge R
LCD Front Cabinet
7-15
7.2.5.
Setting the Display Unit
1. Fix the Display Unit using the 4 Screws. <N9> No1 to No4
2. Fix the Display Unit using the 2 Screws. <N10> No1, No2
Display Unit
Note:
Tighten the Screws in the numbered order (No1 to No2).
Tighten the Screws in the numbered order (No1 to No4).
No.1
<N9>
No.4
<N9>
Screws <N9>: DRYN4+J10FKL
Screws <N10>: DXSB4+15FNLB
No.3
<N9>
No.2
<N9>
No.1
<N10>
<N10>
No.2
7.2.6.
1.
2.
3.
4.
5.
Setting the Handle and Power SW
Set the WM SW using the 2 Screws. <K2-42>
Set the Power SW.
Set the Handle.
Fix the Handle Base L and R using the 2 Screws. <K2-41>
<K2-41>
Handle Base L
Handle Base R
<K2-41>
Screws <K2-41>: DRSN4+6FKLT
Screws <K2-42>: DXQT26+D4NLT
Handle
WM SW
<K2-42>
Power
SW
7-16
7.2.7.
Setting the Palm Top Cover Sheet, Palm Top Cover, Touch Pad Adhesion Seat, Touch
Pad SW Knob, LED PCB And SW LED PCB
1. Set the SW LED PCB.
2. Attach the Power LED Packing Sheet to the LED Spacer
Sheet.
3. Attach the LEDX6 Spacer Sheet on the SW LED PCB.
4. Fix the SW LED PCB using the Screw. <K2-42>
5. Attach the PW LED Sheet.
6. Pass the Cable of LED PCB through the hole 1 on the Top
Cabinet, then set the LED PCB.
7. Attach the LES Spacer Sheet on the LED PCB.
8. Set the touch Pad SW Knob In and Touch Pad SW Knob
9. Attach the TP Bottom Tape to the Touch Pad.
10. Pass the Cables of the Touch Pad through the hole 2 on the
Top Cabinet, set the touch Pad.
11. Attach the Touch Pad Adhesion Seat.
12. Fix the Palm Top Cover using the 5 Screws. <N29> No1 to
No5
13. Attach the Palm Top Cover Sheet.
Note:
Tighten the Screws in the numbered order (No1 to No5).
Palm Top Cover Sheet
No.2
<N29>
No.5
No.4
<N29>No.1
<N29>
<N29> No.3
<N29>
Palm Top Cover
Touch Pad Adhesion Seat
PW LED Sheet
Touch Pad
<K2-42>
PW LED
PCB
LED PCB
Screws <K2-42>: DRQT26+D4NLT
Screws <N29>: DRQT26+E3FNL
Touch Pad SW Knob
SW LED
PCB
Touch Pad SW Knob In
Hole 1
Hole 2
■ Preparation of SW LED FPC
0.5 0.5
* Notes: 1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Attach the Tape
Use a pinset.
Attach it not to overlap the SW leg.
1 1
Flex Notch Standard 0 1
White Full Line : Mountain Fold
White Dotted Line : Valley Fold
Attach the Sheet
SW-LED FPC Ass'y
7-17
■ Assembly of Power SW
Attach the Battery Cushion
Top
Connection Direction
Bottom
Battery Pack Insertion Slot
Cable Power
Connection
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
CAB Wall
12 2
Connection Direction
25 2
3 5
Tighten of Screw Attach the Battery Slide Sheet (on Battery Cushion)
FPC Power SW is set
Power SW LED Panel is set
Avoid air leaking into it. Avoid coming off 4 corners.
Fit to the line.
S3
Safety Working Attach the TP FPC Tape
10 1
Match the Cabinet slit and the tape slit. Do not run the Cabinet edge out of the tape slit.
Attach the DC Gasket
Ensure the upper and lower Flex holes match.
CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
7-18
■ Assembly of Palm Top Cover
Using the pressure jig, Ensure the loads are applied equally.
Make sure the adhesive materials are attached closely on the whole side.
Process the speaker lead wire not to put inside when applying the load.
Order of fixing
A
Screw
Screw
Attach the Pad
Screw
B
Ensure that the PAD and the button neck are attached with adhesive firmly.
Avoid running over the protrusion attached to the protrusion side of the upper Cabinet.
Screw
Screw
Insert FPC into the hole of upper cabinet.
Touch Pad SW Knob Rubber is set
Note: Separation
Touch Pad SW Knob In is set
Tighten of
Screw Tighten of
Screw Tighten of
Screw Tighten of
Screw Tighten of
Screw Notes for Separation
Attach the TP Bottom Tape
Palm Top Cover is set
Do not come over the Pad edge.
Do not attach the oil on both sides. Avoid running over!
Put to the arrow direction and attach it.
Protrusion
Attach the
PWB 6LED Attach within the range of the upper Cabinet concave.
Put to the left and set.
LEDX6 Spacer Sheet is set
Attach the Washer (See below)
Attach the Pad WP Sheet
Insert FFC into the hole of upper cabinet.
Notes:
After attaching, trace around TP, SW and circumference with finger.
FFC 6LED is set
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Palm Top Cover
Attach the Washer Attach it not to cover the hole of LEDX6 Spacer Sheet. Palmtop Preparation
7-19
7.2.8.
1.
2.
3.
4.
Setting the I/O PCB
7.2.9.
Open the Connector Cover and Lid Cover.
Fix the I/O PCB using the 3 Screws. <N15> No1 to No3
Fix the I/O PCB using the 4 Screws. <N14> No1 to No4
Fix the I/O PCB using the 2 Screws. <N30> No1, No2
Connector
(CN701)
Connector
(CN700)
Connector Cover
Setting the SD PCB, Express Card
and PCMCIA Card
1. Fix the PCMCIA Card using the 4 Screws. <N22>
2. Fix the Express Card using the 4 Screws. <N22>
3. Fix the SD PCB using the 2 Screws. <N5>
I/O PCB
No.2
<N22>
No.1
No.2
<N15> No.2 <N30>
No.1
<N14>
No.3<N15>
No.2
<N15>
No.4
<N30>
<N14>
No.3
<N14>
No.1
<N22>
No.3
No.2
<N22> No.4
<N22>
<N22>
No.4
No.1
<N22>
<N22>
No.3
<N22>
No.2
<N6>
No.1
<N14>
PCMCIA Card
LID Cover
Note:
Tighten the Screws in the numbered order (No1 to No4).
Screws <N14>: DFHE5058ZB
Screws <N15>; DRHM5104ZA
Screws <N30>; DXHM0057ZA
Express Card
Screws <N6>: DRQT26+E4FKL
Screws <N22>: DXQT2+G4FNL
7-20
No.1
<N6>
SD PCB
7.2.10. Setting the Main PCB
17. Attach the Tape.
1. Fix the Main PCB using the 8 Screws <N6> and Screw.
<N11> No1 to No8.
2. Set the Modem Cable.
3. Connect the Cable to the Connector (J2) and fix the MDC.
4. Attach the Tape.
5. Attach the 1394 Sheet.
6. Fix the MDC using the 2 Screws. <N11>
7. Fix the Modem LAN Case using the 2 Screws. <N6>
8. Attach the 2 Modem Cable Sheets.
9. Fix the ICH Plate using the 3 Screws <N17> and Screw
<N11>.
<N21>
<N21>
Tape
Coin Battery
Cushion
Connector
(CN401)
MP Guide
Connector
(CN400)
Coin Battery
MP PCB
Connector
(CN4)
<N6>
<N6>
<N17>
No.2
<N6>
<N17>
No.5
<N6>
<N17> ICH Plate
Modem Cable Sheet <N6>
<N11>
<N6>
Tape
No.4
<N6>
<N6>
<N11>
MDC
Connector
(CN11)
<N11>
Connector
(CN19)
Modem LAN Case
Connector
(J2)
Modem Cable
18. Set the Main Chasis on the Computer.
19. Connect the Cable to the Connector (CN31) and Attach the
Pet Tape.
20. Connect the Cable to the Connector. (CN700,CN701)
21. Fix the Main Chasis using the 6 Screws <N16> No1 to No6
22. Fix the Main Chasis using the Screw. <N18>
No.8
<N6>
No.3
<N6>
<N6>
No.6
<N6>
No.7
No.1
<N11>
<N18>
1394 Sheet
<N16>
10.
11.
12.
13.
14.
15.
Connect the Cable to the Connector (CN4,CN11)
Attach the Tape.
Attach the Coin Battery.
Connect the Cable to the Connector. (CN19)
Attach the Coin Battery Cushion.
Fix the MP PCB and MP Guide using the 2 Screws <N6>
and 2 Screws. <N21>
16. Connect the Cable to the Connector. (CN400,CN401)
<N16>
<N16>
<N16>
Connector(CN700)
Connector
(CN31)
to Connector(CN700)
to Connector(CN701)
<N16> <N16>
Main Chasis
Connector(CN701)
Pet Tape
23. Connect the 2 Cables to the 2 Connectors. (CN17,CN27)
7-21
24. Fix the Screw. <N7>
25. Attach the TOP Screws.
TOP Screw Sheet <N7>
Connector
(CN17)
Connector
(CN27)
Note:
Tighten the Screws in the numbered order (No1 to No8).
Tighten the Screws in the numbered order (No1 to No6).
Screws <N6>: DRQT26+E4FKL
Screws <N7>: DRSB26+10HKL
Screws <N11>: DFHE5025XA
Screws <N16>: DRQT26+E5FKL
Screws <N17>: DRQT26+E6FKL
Screws <N18>: DRSB26+8FKL
Screws <N21>: DXQT2+E12FNL
7-22
■ Assembly of LAN, Modem and MDC
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
CAUTION
Order of fixing
Tighten of Screw Tighten of Screw S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Screw
Screw
Modem LAN Case
is installed.
5 1
Pass the Cable to the back from the hole of the A side.
15 1
LAN Cable is installed.
Attach space
Separate from the coil.
Modem Cable is installed.
Tighten of Screw MDC Tighten of Screw Attach the DMD Cable Sheet
(Remove 2 places)
S2
Match to the edge of the Connector. 1
Process the cable and cover with MDM Cable Sheet
Safety Working Cable
Coil
■ Assembly of Main PCB
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
CAUTION
Insert the connector wrapped with the sheet into the connector on the board.
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Safety Working S3
Attach the PET Sheet
S3
Bend the cable avoiding the connector.
Cable SATA Signal Insertion 1 2
Safety Working Sheet wrap
0 1
0 1
Connect the LAN cable.
Put the cable ina a U-shape into the
intermediate chassis aperture next to the connector.
Do not pinch the cable out of the USB PCB.
Safety Working 7-23
S2
7.2.11.
1.
2.
3.
4.
Setting the PAD PCB
Fix the PAD PCB using the 2 Screws. <N29>
Attach the TP PCB Screw Sheet.
Connect the Cable to the Connector. (CN802)
Connect the Cable to the Connector (CN801) and attach
the Tape.
TP PCB Screw Sheet
Tape <N29>
Screws <N29>: DRQT26+E3FNL
<N29>
Connector
(CN801)
Pad PCB
Connector
(CN802)
■ Assembly of PAD PCB
Order of fixing
Screw
Screw
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Insert the boss at an angle to put here close to the Cabinet side. CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Process the SP cable between the bosses.
FFC Insertion
PCB Pad is set
Cable Hold Sheet is installed
Safety Working Safety Working Safety Working Attach the Touch Pad PCB Screw Sheet
S2
Do not insert the Connector at an angle.
0 2
S1
FFC Insertion
Attach the Touch Pad INS Sheet
Avoid running over the boss and the rib.
7 11
0 2
Safety Working S2
Safety Working S2
Attach the Tape
Fit to the Cabinet line.
LED PCB
Attach the Touch Pad FFC Fix Tape
Tighten of Screw Attach the Tape
Fit to the Cabinet line.
Process the surplus of FFC to the back. S1
Tighten of Screw 0 2
Attach the Cable Sheet
7 11
PCB Pad
Process the wire targeting the boss.
CN Connection After connecting, add the kapton tape.
7-24
0 2
7.2.12. Setting the FPC HDD BAT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Fix the FPC HDD BAT using the Screw. <N16>
Connect the 2 Cables to the 2 Connectors. (CN7,CN8)
Connect the Cable to the Connector. (CN800)
Attach the PAD Protect Sheet.
Connect the Cable to the Connector. (CN9)
Attach the Tape.
Connect the 2 Cables to the 2 Connectors. (CN10,CN26)
Attach the Tape.
Attach the Antenna Cable Sheet on the Main PCB.
Fix the HDD FPC BAT using the 4 Screws. <N29> No1 to
No4
to Connector (CN8)
to Connector (CN7)
<N16>
FPC HDD BAT
No.1
<N29>
No.2
<N29>
No.3
<N29>
No.4
<N29>
to Connector (CN800)
Antenna Cable Sheet
Tape
HDD Cable Cover
Pad Protect
Sheet
Note:
Tighten the Screws in the numbered order (No1 to No4).
to Connector (CN26)
Connector(CN10)
Connector(CN26)
Connector
(CN8)
Screw <N16>: DRQT26+E5FKL
Screw <N29>: DRQT26+E3FNL
Tape
Connector
(CN7)
Connector(CN9)
Connector (CN800)
Pad PCB
■ Preparation of HDD FPC ASSY
Order of fixing
Screw
Screw
Tighten of Screw
Tighten of Screw
Fold mountain based on the white line.
Not to forget folding
Battery Guide is set
Not to forget folding
Battery Connector PIN Cushion is set
7-25
Battery Connector PIN is set
1. Set HDD Guide and fix with Screw.
2. Fix with Screw.
3. Apply tetra coating to each connector pin.
Tighten of Screw Direction A
View
FPC HDD Battery is set
A
Do not Fold. (R1 4)
Direction B
View
B
C
Battery HDD Connector Angle is set
HDD Guide is set
This Connector does not need tetra coating.
Direction C
View
Tighten of Screw 7-26
Tighten of Screw Insert the Plug into the Socket
A
The terminal of the antenna
Relay Circuit Board Ass'y
cable must not come in
contact with this terminal.
Cable
(Put it on the metal fittings
side. )
Insert FPC into Relay Circuit Board Ass'ys socket
Figure seen from direction of arrow of A
Mountain Fold (Straight Line)
Lock after FPC insertion
Valley Fold (Dotted Line)
FPC
FIG
FPC
OK
The attention of folding : Breakage countermeasure.
1,The bending inside is R0.5 1
2,Don't mistake a bending direction.
Don't use a mistaken thing.
(R0.5 1)
FPC
NG
7.2.13. Setting the USB PCB and Antenna PCB
1.
2.
3.
4.
5.
6.
Open the Connector Cover.
Fix the Antenna PCB using the 2 Screws. <N3>
Connect the 2 white Cables.
Fix the USB PCB using the Screws. <N6>
Connect the Cable to the Connector. (CN100)
Attach the Tape.
Tape
Connector
(CN100)
<N6>
USB PCB
Antenna PCB
Screws <N3>: DRQT2+G6FKL
Screws <N6>: DRQT26+E4FKL
Antenna Cable
(White)
Connector Cover
<N3>
<N3>
Antenna Cable
(White)
7-27
■ Assembly of USB PCB
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
S2
Safety Working Attach the Tape
Safety Working S2
Attach the Antenna Cable Sheet
Fit to the groove. Difference : 1 or less
Set on the top.
Order of fixing
Screw
Screw
Process the cable from LCD.
Tighten of Screw
Antenna Cable Plate is set
W-LAN Cable Connection
EXT Antenna PCB is set
Connect the coaxial cable from LCD.
Tighten of Screw Along the groove
Tighten of Screw Pull W-LAN Cable out to the surface from the hole.
CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Match to the board edge. Difference: less than 1
Match to the CN edge. Difference: less than 1
S1
Attach the kapton tape into CD Edge Sheet.
Tighten of Screw
Safety Working PCB USB Sub is set
Cable USB is set
7-28
7.2.14. Setting the DIMM Cover and Bottom Cover
1. Set the Bottom Cover.
2. Fix the Bottom Cover using the 6 Screws. <N8> No1 to No6
3. Fix the Bottom Cover using the 11 Screws. <N6> No1 to
No11
4. Fix the Bottom Cover using the 2 Screws. <N17> No1, No2
5. Set the DIMM memory card.
6. Attach the DIMM Heat Plate.
7. Fix the DIMM Stopper Base using the 2 Screws. <N2>
8. Fix the DIMM Cover using the 5 Screws. <N1>
No.5 No.2
No.4 <N1> <N1> No.3
<N1>
<N1>
DIMM Cover
No.1
<N1>
<N6>
<N6>
DIMM Stopper Base
DIMM Heat Plate
Screws <N1>: DRHM0002ZA
Screws <N5>: DRQT26+D4FKL
Screws <N6>: DRQT26+E4FKL
Screws <N8>: DRSB3+8FKL
Screws <N17>: DRQT26+E6FKL
DIMM Memory Card
No.6
No.2 No.6 <N8>
<N17>
No.5
No.7 <N8>
No.5 <N6>
<N17>
<N8>
No.6
<N6>
No.7
No.8 <N6>
<N6>
No.3
<N8>
Note:
Tighten the Screws in the numbered order (No1 to No6).
Tighten the Screws in the numbered order (No1 to No11).
Tighten the Screws in the numbered order (No1, No2).
Tighten the Screws in the numbered order (No1 to No5).
No.10
<N6>
No.9
<N6>
Bottom Cover
7-29
No.11
<N6>
No.4
<N6>
No.4
<N8>
No.3
<N6>
No.2
<N6>
No.1
<N6>
No.1
<N8>
■ Preparation of DIMM Cover
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
DIMM Cover is set
0 0.5mm
Attach the DIMM Cover Cushion
0 0.5mm
Attach the DIMM Cover Spacer
0 0.5mm
0 0.5mm
CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
S3
Safety Working * Notes:
Keyboard Cable Cover is installed
1. Apply the load when attaching the attaching parts. 20N to 30N (2 to 3Kgf)/cm2
4 6mm
1.5 2.5mm
Attach the LCD Cable Cover Cushion
Attach the CD Edge Sheet
4 6mm
LCD Cable Cover is set
Attach the CD Edge Sheet
0 1mm
S3
Safety Working Attach the Keyboard Cable Cover Cushion
7-30
7.2.15. Setting the GPS PCB and Bluetooth PCB
1. Fix the GPS BT Angle and GPS PCB using the 2 Screws.
<N11>
2. Connect the Cable to the Connector on GPS PCB.
3. Fix the GPS Ass’y using the 4 Screws. <N12>
4. Connect the Cable to the Connector. (CN25)
<N12>
<N12>
<N12> GPS BT Angle
<N12>
GPS PCB
Screws <N11>: DFHE5025XA
Screws <N12>: DXQT2+F3FNL
Bluetooth
PCB
<N11>
<N11>
Connector(CN25)
to Connector
(CN25)
■ Cautions for Setting GPS ASSY and BT PCB ASSY
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
* Notes:
1. Do not gouge when inserting and removing the plug.
2. Do not damage the coating when handling the cable.
S2
Safety Working Attach the Tape
Fit to the plate squeeze line. 1
Process the wire of whip ANT cable from LCD to the back from the aperture.
Whip Antenna Cable
8 1
Put the Cable along the Cabinet side and tape it firmly.
Main Antenna
Sub Antenna
Process the wire to the back from the aperture.
10 2
Match to the boss center.
Insert the cable plug.
Bluetooth Cable
Pass the Cable behind the Cabinet protrusion.
Cabinet Level Standard Tolerance 0 to 1 Process the wire into the groove.
S2
GPS Antenna
Safety Working Attach the Cable Sheet into Main Cable and Whip Cable.
Connect into the coaxial Connector.
Attach the Cable Sheet into Sub Cable and GPS Cable.
0 2
Safety Working S2
Ensure that the wrapping Avoid coming over the groove.
direction is right.
Bluetooth Cable
0 2
Whip Antenna Cable
Main Antenna Cable
Ensure that the wrapping direction is right.
Sub Antenna Cable
GPS Antenna Cable
7-31
CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
7.2.16. Setting the KB Cable Cover, Keyboard and LCD Cable Cover
1. Set the Keyboard onto the Computer.
2. Connect the 2 Cables to the 2 Cables. (CN13,CN14)
3. Fix the KB Cable Cover using the 7 Screws. <N29> No1 to
No7
4. Set the LCD Cable Plate.
5. Fix the LCD Cable Cover using the 3 Screws. <N29> No1 to
No3
Note:
Tighten the Screws in the numbered order (No1 to No7).
Tighten the Screws in the numbered order (No1 to No3).
No.3 No.5
<N29> <N29>
No.7
No.1
No.4 <N29>
<N29>
to Connector
<N29>
No.2
(CN14)
<N29>
KB Cable Cover
No.6
No.2
<N29>
<N29>
LCD to Connector
Cable Cover
(CN13)
No.3
<N29>
No.1
<N29>
Screws <N29>: DRQT26+E3FNL
Keyboard
LCD Cable Plate
Connector
(CN14)
Connector
(CN13)
■ Arranging the Keyboard
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
1. Attach the Keyboard US and Keyboard Spacer. (KB Preparation)
2. Attach the Keyboard Back Plate and Keyboard Spacer Sheet. (Plate Preparation)
Keyboard US is installed
(Ensure Keyboard Spacer Sheet does not run over the level of Keyboard Back Plate.)
3. Attach the prepared KB to the prepared plate.
(Insert the KB protrusions into the plate holes and determine the position.)
Plate hole
Attach the Keyboard Spacer Tape
Attach the Keyboard Back Plate
Attach the Keyboard Spacer Sheet
Attach the Keyboard Fook Spacer Lower
: Fit to the edge of plate (KBD back plate).
Both sides should not come over the plate.
7-32
7.2.17. Setting the KB Cover, Hinge Cover L, Hinge Cover R and Keyboard
1. Insert the front hooks of the Keyboard to the Top Cabinet in
order, and set the Keyboard.
2. Fix the Hinge Cover L and R using the 3 Screws <N6> No1
to No3
3. Fix the Hinge Cover L and R using the 2 Screws. <N2>
No1, No2
4. Fix the Bluetooth PCB using the Screw. <N6>
5. Fix the KB Cover using the 4 Screws. <N6> No1 to No4
No.3
<N6>
<N6>
No.1
<N6>
Bluetooth PCB
No.2
<N6>
No.1 No.2
<N6> <N2>
Hinge Cover L
No.2 No.3
<N6> <N6>
No.1
<N2>
No.4
<N6>
KB Cover
Note:
Tighten the Screws in the numbered order (No1 to No4).
Tighten the Screws in the numbered order (No1 to No3).
Tighten the Screws in the numbered order (No1, No2).
Hinge Cover R
Screws <N2>: DRHM5054XA
Screws <N6>: DRQT26+E4FKL
Keyboard
7.2.18. Setting the HDD
1.
2.
3.
4.
5.
6.
7.
8.
9.
Set the HDD FPC to HDD.
Attach the Heater Ins Sheet and Sheet to HDD.
Attach the Heater to HDD.
Attach the 6 HDD Forming MFYPC and the two HDD
Terminal Plate Upper to the HDD Damper Ass'y.
Attach the six HDD Forming MFYPC and the two HDD
Terminal Plate Upper to the HDD Damper Ass'y.
Set the HDD Damper Ass'y to HDD.
Attach the Side Cushion to the HDD L Case Ass'y.
Set the HDD U Case Ass'y and the HDD L Case Ass'y, and
set the two Tabs of the HDD L Case Ass'y.
Fix the HDD U Case Ass'y and the HDD L Case Ass'y using
the 4 Screws <K1-17> and Screw <K1-16>.
HDD U Case Ass'y
<K1-17>
<K1-17>
HDD FPC
HDD
SATA Guard
<K1-16>
Heater Ins Sheet
Sheet
HDD Damper
Ass'y
Screws <K1-16>: DFHE5025XA
Screws <K1-17>: DRQT2+E8FKL
Heater
HDD L Case Ass'y
7-33
■ Preparation oh HDD ASSY
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
HDD TAPE S
Fit to the corner.
HDD INS SHEET
Turn it to the board side (back side).
1. Do not gouge when inserting and removing the socket.
2. Do not drop HDD or add any impacts on it.
3. Insert CN into the end firmly.
4. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Safety Working S4
HEATER
Attach it pushing the shaded part not to push the fuse.
CAUTION
Valley Fold
PET TAPE
HEATER FIXED
TAPE
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Mountain Fold
Do not bend the bending part of Heater
Center
Connect the Connector
Insert the HDD FPC Ass'y
7-34
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Do not place the damper
over the plate of FPC.
Do not place the damper
over the plate of heater.
HDD Damper Ass'y
Make sure the product with black sheet on the yellow sponge.
Fold the FPC from the board edge.
Push and bend
HDD Ass'y
HDD Set Insert after removing the Release Paper of the two-sided tape.
Remove the Release Paper on the back, close and attach it.
Attach it to HDD closely not to loosen.
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
HDD Thermal Plate
1 3
0 1
When attaching HDD Cushion (Yellow) and HDD Cushion (Black), set the bending part of the metal plate up.
1 3
1 3
1 3
Do not bend it at a sharp angle to put natural R.
1 2
HDD Cushion (Black)
To the level of attaching closely in this range Metal Plate
Longer Direction
Attach the HDD Cushion (Yelllow)
Attach the HDD Cushion (Yelllow)
Attach the HDD Cushion (Black)
Sheet
Prepare the metal plate bend.
7-35
Attach the HDD Thermal Plate
0 1
1 3
Do not bend it at a sharp angle to put natural R.
1 3
1 3
1 3
HDD Thermal Plate
0 1
When attaching HDD Cushion Plate and HDD Cushion (Black), set the bending part of the metal plate up.
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
HDD Cushion (Black)
Metal Plate
Longer Direction
To the level of attaching closely in this range
Attach the HDD Cushion (Yellow)
Attach the HDD Cushion (Yellow)
Attach the HDD Cushion (Black)
Attach the HDD thermal Plate
*Ensure the direction is right. (lateral)
7-36
Put the edge on the same line. Difference: 1
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Make the black damper get int
both sides of the green dampe
Right and left position: Match to the center
Top and bottom position: Match the edge of the base material transparent sheet to the bottom side
A
(20)
HDD Side Damper is installed
(0)
Paste the cushion with pressing in the direction of arrow.
A
HDD Side Damper
(2)
B
B
0 0.5
(Entire Circumference)
B-B SEC
A-A SEC
HDD Bottom Case Ass'y
7-37
Lower Case
Set the CN side first, and then set the TAB side pushing to the A direction.
SATA Guide Set
HDD Ass'y insertion
SATA Guard is installed
A
Insert to make the Cushion on the HDD inside of the Cushion on the lower case.
Avoid getting HDD under the side damper when inserting HDD
NG
* Notes:
Order of fixing
Screw
Screw
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Screw
Screw
Tighten of Screw Tighten of Screw Tighten of Screw Tighten of Screw Tighten of Screw Confirm that the CN board moves up/down and right/left after assembling.
7-38
7.2.19. Setting the Battery Pack and HDD Pack
1. Set the HDD Pack.
2. Set the Battery Pack.
Battery
Cover
HDD Cover
Battery Pack
HDD Pack
7-39
10 Exploded View
K77
K82
B N6
K78
K76
B N2
E2
B N6
B N2
B
N6
E1001
K32
A
B N6
K35
A
N29
N29
K33
K1210
A
N29
B
N29
B
N29
K2
K116
K74
K70
K2-48
K29
K93
E24
K2-49
E21
K2-46
K35
E4
K84
K90
K59 K71
K2-45
E13
K59
K92
B
E23
N29
B
K53
K109
B
K19
N7
K16
K75
R K2-42
B
N29
G
N29
B
B
N29 N29
N10
K30
B
N29
K35
K1122 K1201
B
N29
V
V
G
K1
K17
N10
K1-17
K1-3
K1-17
K2
K1-1
K1-16
K1214
K129
Screw tightening torque
A
+
0.19 _ 0.02 N.m
+
(2.0 _ 0.2 kgf.cm)
+
B
0.45 _ 0.05 N.m
+
(4.5 _ 0.5 kgf.cm)
+
F
0.49 _ 0.05 N.m
+
(5.0 _ 0.5 kgf.cm)
G
1.47 _ 0.20 N.m
+
+
(15 _ 2.0 kgf.cm)
+
I
0.18 _ 0.22 N.m
+
(2.0 _ 0.2 kgf.cm)
0.2 _ 0.02 N.m
+
L
(2.0 _ 0.2 kgf.cm)
+
E17
K1-9
K1-20 K1-4
K1-4
K1-19
K1-19
K1-5
K1-8
K25
K1-5
K26
K1-18
K25
K1-11
K25
K1-14
K1202
K1-20
K1-15
K1-13
K1-6
K1-4
K1-4
K1-6
K1-2
+
R 0.3 _ 0.05 N.m
+
(3 _ 0.5 kgf.cm)
CF-30FTSAZAM
R
R K2-16
K2-16
K2-3
K2-6
K2-5
K2-5-3
K2-10
K2-6-2
R
K2-6-5
K2-6-1
K2-5-1
K2-3-2
B
K2-3-3
K2-10-8
K2-5-2
K2-3-1
K2-10-1
K2-6-4
K2-10-3
L K2-3-4
K2-6-1
K2-5-4
L
K2-39
B
R
K2-6-3
K2-6-3
R K2-39
K2-10-8
K2-10-2
K2-10-5
K2-10-1
U N17
K2-8
B
K2-8-10
K2-8-2
K2-8-1
K2-8-5 K2-8-4
B
K2-8-10
K2-8-1
K104
K101
K100
K81
R
K2-39
K2-8-6 K2-8-3
K2-8-7
K2-8-9
K2-14
K2-36
K2-4-1
K2-47
K2-4-2
K2-8-3
K2-13
T K2-38
K108
K107
K2-21
K2-18
K2-50
K2-15
T
K2-20
K2-25 K106
K36
K2-44
0.19 ± 0.02 N.m
A
(2.0 ± 0.2 kgf.cm)
0.45 ± 0.05 N.m
B
(4.5 ± 0.5 kgf.cm)
1.47 ± 0.20 N.m
G
(15.0 ± 2.0 kgf.cm)
0.2 ± 0.02 N.m
L
(2.0 ± 0.2kgf.cm)
0.22 ± 0.02 N.m
Q
(2.2 ± 0.2 kgf.cm)
R
0.30 ± 0.05 N.m
(3.0 ± 0.5 kgf.cm)
0.90 ± 0.05 N.m
T
(9.0 ± 0.5 kgf.cm)
U 0.33 ± 0.03 N.m
(3.3 ± 0.3 kgf.cm)
K2-43
K2-31
K2-1-1
K2-37
L K2-2-7
K113
K2-2-3
K2-27
R
K2-42
R
K2-9-2
L
K2-9-7
K2-9-1 K2-9-4
K2-9-9
K2-9-6
B N29
K2-2
K2-41
L K2-9-5 K2-9-8
L
K2-9-9
K2-9-9
K121
K105
K2-1-3
K2-1-2
G
K114
R K2-42
K2-1
Screw tightening torque
K163
K102 K103
K2-36
T K2-38
K2-24
K2-26
R K2-16
K2-22
K2-25
K2-41
L
K2-14
K2-17
K2-18
G
K2-4-4
K2-22
L K2-8-11
K2
K2-4-3
K2-30
T
K2-50
K2-4
K2-23
K2-17
R K2-16
K2-50
K2-39
B N29
K2-8-8
K2-39
R
K2-10-4
K2-10-6
R
K2-10-7
B
K2-16
K2-10-8
K122
K2-43
R
K112
K2-2-6
K2-2-2
K2-2-5
K2-2-1
K2-2-4
K2-42
K2-9
K2-7
K2-7-1
K2-7-2
K2-7-3
K2-7-1
K2-9-1
B
K2-39
R
R
K2-9-3 K2-9-10
K2-39
K2-7-4
R
CF-30FTSAZAM
F
N14
A
N30
F
N14
A N15
A N15
A N15
A N3
K83
K157
K1211
V
W
B N11
K2-29
E1
K2-11
E19
E8
E38
K97
E22
K97
K2-12
K2-19
R K2-40
K91
W
K1123
B N29
B N29
N11
A
N11
B N11
E20 B N17
N17
K148
K149
B N29
B N29
K38
E10
K99
K1214
K117
K130
K2-28
V
Screw tightening torque
K132
K118 K21
A
B
K123
N22 K153 B N6
K97
K1214
B
N6
B N6
N17
K1208
K96
K1207
K135
K36
K1208
K1206
K144
A
0.19 _ 0.02 N.m
+
(2.0 _ 0.2 kgf.cm) +
A
A
K1205 K137
A N22
+
N22
B 0.45 _ 0.05 N.m
A
A
(4.5 _ 0.5 kgf.cm)
N22
+
B
N22
N22
B
K35
N6
B
C
0.216 _ 0.0196 N.m
+
N6
N6
(2.2 _ 0.2 kgf.cm)
E32
+
E33
B N6
A
K1203
A N22
E
0.314 _ 0.0196 N.m
+
K1214
E3
E29
N11
(3.2 _ 0.2 kgf.cm)
+
K145
K143
F
B
0.49 _ 0.05 N.m
+
K133
K1209
N16
(5.0 _ 0.5 kgf.cm)
+
K134
K139
K141
K149
G
0.441 _ 0.049 N.m
+
E34
E26
K146
(4.5 _ 0.5 kgf.cm)
+
K153
B
E31
K138
B
H
1.47 _ 0.20 N.m
+
N6
E28
N16
(15 _ 2.0 kgf.cm)
+
B
B
B
A N19
N16
K1155
E11
1.30 _ 0.17N.m
I
+
N16
N18
A
(13 _ 2.0 kgf.cm)
+
K110
K111
N11
B N16
K94
K34 B
K119
L
0.18 _ 0.02 N.m
K140
+
E18
K86
N29
K131
B
(2.0 _ 0.2 kgf.cm)
+
E25
K161
K36
K142
N16
K1204
0.2 _ 0.02 N.m
M
+
K86
K1212
A
B
(2.0 _ 0.2 kgf.cm)
+
K27
A
N21
E9
N16
N21
0.45 _ 0.03 N.m
N
+
Q N6
K35
B
E5
K119
K124
B N6
(4.5 _ 0.3 kgf.cm)
+
N6
Q N6
E12
A N20
E27
A N20
0.8 _ 0.1 N.m
P
+
K148
E30
K35
K22
(8.0 _ 1.0 kgf.cm)
+
E27
K148
B N6
K35
+
Q 0.22 _ 0.2 N.m
(2.2 _ 2.0 kgf.cm)
+
CF-30FTSAZAM
S N12
S N12
E2
K41
K42
K40
E39
E14
K118
A N11
K3
K28
R K3-8
R
K3-8
K3-4
R K3-8
K2-32
K3-3
K18
R
K3-3
K2-33
K3-8
K3-2
R
K3-9
K3-6
K3-7
K3-5
R K2-39
K2-34
R
K2-39
B
K31
B N1
K3-1
K85
N6
X
K3-4
B N1
P N8
B
B
N6
B N1
N6
B
N6
B N6
B N1
B N1
X
P N8
K85
K85
B
N6
K4
B
N17
B
N6 B
N6
B
P
B
N6
N6
P N8
N8 K85
K5
K80
P N8
B
N17
Screw tightening torque
B
0.45 _ 0.05 N.m
+
(4.5 _ 0.5 kgf.cm)
+
0.8 _ 0.1N.m
+
P
(8.0 _ 1.0 kgf.cm)
+
0.3 _ 0.05 N.m
+
R
+
(3.0 _ 0.5 kgf.cm)
0.19 _ 0.05 N.m
S
+
(2.0 _ 0.5 kgf.cm)
+
K1213
CF-30FTSAZAM
K36
K36
K50
K9
K61
K9-2-1-1
K9-2
K9-2-2
K50
K9-2-3
K60
G N9
K63
K9-1-3
K10
K62
K65
K10-1
K10-2
K9-1-2 G
K9-1-4
K12
K11
B N6
K49
E16
K91-3
K91-3
K9-4
K9-3
K9-1-3
K1151
G N9
K9-1
K9-1-1
K9-1-3
G
K9-1-4
K9-1-3
Screw tightening torque
A
+
0.19 _ 0.02 N.m
(2.0 _ 0.2 kgf.cm)
+
+
0.45 _ 0.50 N.m
B
(4.5 _ 0.5 kgf.cm)
+
F
+
0.441 _ 0.049 N.m
(4.5 _ 0.5 kgf.cm)
+
+
1.47 _ 0.20 N.m
G
(15 _ 2.0 kgf.cm)
+
H
1.30 _ 0.17N.m
+
(13.0 _ 2.0 kgf.cm)
+
CF-30FTSAZAM
K54
E35
E35-2
E35-5
A
E35-10
E35-8
E4
E15
K56
E35-1
K1214
E35-3
E35-4
K1214
E35-6
E35-4
E35-3
E35-7
K1214
A E35-10
E35-9
K1214
Screw tightening torque
A
0.19 _ 0.02 N.m
+
+
(2.0 _ 0.2 kgf.cm)
0.45 _ 0.05 N.m
+
B
(4.5 _ 0.5 kgf.cm)
+
0.216 _ 0.0196 N.m
+
C
(2.2 _ 0.2 kgf.cm)
+
+
0.314 _ 0.0196 N.m
D
+
(3.2 _ 0.2 kgf.cm)
+
0.49 _ 0.05 N.m
E
+
(5.0 _ 0.5 kgf.cm)
CF-30FTSAZAM
B
B N7
N2
B
K44
B
N2
N7
K57
B
B
N2
B
N2
N2
B
K58
N7
K1031
E36
B
B
B
N2
N7
N7
E37
K79
B
N7
G
B
N7
N13
K13-2
K13
B N7
K45
K46
K97
K52
B N7
B N7
K47
K1032
G N13
K13-1
B N7
B
N7
Screw tightening torque
0.19 _ 0.02 N.m
+
A
+
(2.0 _ 0.2 kgf.cm)
+
0.45 _ 0.05 N.m
B
(4.5 _ 0.5 kgf.cm)
+
+
C
0.216 _ 0.0196 N.m
+
(2.2 _ 0.2 kgf.cm)
0.314 _ 0.0196 N.m
+
D
+
(3.2 _ 0.2 kgf.cm)
+
1.47 _ 0.20 N.m
G
(15 _ 2.0 kgf.cm)
+
+
O
0.49 _ 0.05 N.m
+
(5.0 _ 0.5 kgf.cm)
CF-30FTSAZAM
Replacement Parts List
Note : Important Safety Notice
Components identified by
mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer's specified parts.
CF-30FTSAZAM
REF. NO and AREA
Main Block Unit
E1
E2
E3
E4
E5
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
E17
E18
E19
E20
E21
E22
E23
E24
E25
E26
E27
E28
E29
E30
E31
E32
E33
E34
E35
E35-1
E35-2
E35-3
E35-4
E35-5
E35-6
E35-7
E35-8
E35-9
E35-10
E36
E37
E38
E39
E1001
S
S
S
S
S
PART NO.
DL3UP1336BAA
DL3UP1354CAA
DL3UP1630AAA
DFWP0150ZA
DL3UP1543AAA
DL3UP1580AAA
DL3U11540BAA
DL3U21540BAA
DL3U31540BAA
DL3U41540BAA
DL3U61540BAA
DL3U71540BAA
DFJK10U050BB
DFJS1031XA
N0GF2J000002
N3CAYYY00030
N5ZZ00000129
DFJS1049ZA
N5HZC0000031
DFJK10T017BB
DFJK40T030BB
DFJS1037ZB
N2EABEC00006
BR-2330A/SF
DFJK12U050BB
DFJK40U056BB
DFJS1032YA
DFJS1035YA
DFJS1036ZA
DFJS1046YA
K1NA26Z00001
K1NA68Z00009
N5HAZ0000014
DFWV08A0090
DL3DE0183AAA
DFHG1926YA
DFHG1927ZA
DFHG1928ZA
DFHG1882YA
DFHG1883YB
DFMD3130ZA
DFMD3131ZA
L9DZYY000006
DXYN2+C3FNL
N1ZYYY000005
N1ZYYY000006
DFUP1565ZA
DL3UP1635BAA
N2ABZY000035
DESCRIPTION
PCB, EXT ANT
PCB, BT ANT UNIT
PCB, MAIN UNIT FOR MK2
SW-LED FPC UNIT
HDD BATTERY FPC UNIT
PCB, TOUCH PANEL CONTROLLER
PCB, IO
PCB, MP
PCB, PAD
PCB, SD
PCB, USB
PCB, LED
FFC
LCD CABLE
INVERTER
HDD, 80GB 5400RPM SATA
SO-DIMM, DDR2-667 1GB
W-LAN CABLE
WIRELESS LAN MODULE
FFC
FFC IO40
POWER CABLE
TOUCHPAD
LITHIUM COIN BATTERY
FFC SD
FFC MP OUTER
MODEM CABLE
SATA CABLE
CABLE USB
LAN CABLE
CONNECTOR
PCMCIA CONNECTOR
MODEM
LCD UNIT ASS'Y
LCD PREPARATION UNIT
LCD SIDE DAMPER(U)
TS SPACER(L)
TS SPACER(S)
LCD DMP L
LCD SIDE DMP R
LCD HOLD PLATE L
LCD HOLD PLATE R
HEATER(LCD)
SCREW
WLAN MAIN ANTENNA
WLAN SUB ANTENNA
FPC
BT PWB UNIT FOR 30MK2
KEYBOARD VISTA, U.S.
Q'TY
RTL
RTL
RTL
RTL
RTL
RTL
RTL
RTL
RTL
RTL
RTL
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
2
1
1
1
1
1
Accessories
A1
A2
A3
A4
A5
A6
A7
A8
A21
A22
A23
A91
Packing Material
P1
P2
P3
P4
P5
Mechanical Parts
K1
K1-1
K1-2
K1-3
K1-4
K1-5
K1-6
K1-8
K1-9
K1-11
K1-13
K1-14
K1-15
K1-16
K1-17
K1-18
K1-19
K1-20
K2
K2-1
K2-1-1
K2-1-2
K2-1-3
K2-2
K2-2-1
K2-2-2
K2-2-3
K2-2-4
K2-2-5
K2-2-6
K2-2-7
K2-3
K2-3-1
K2-3-2
K2-3-3
K2-3-4
K2-4
K2-4-1
K2-4-2
S NCR-B/901A
S CF-AA1653ASA
DFHR6207ZA
DFHS9017ZA
DFME0148YA
S DFQW5098ZA
S K2CG3DR00003
DFJS954ZA
DFHR6339ZA-0
DFHR6340ZA-0
S DFKE0911ZC-0
DFQM8357MA
LITHIUM ION BATTERY PACK
AC ADAPTOR
PEN
TOUCHPANEL CLOTH
PEN TETHER
MANUAL(CF30MK2M XP)
AC CORD
MODEM CABLE
DUMMY EXPRESS CARD
DUMMY PC CARD
MP DUMMY CASE
RECOVERY DVD, VISTA
1
1
1
1
1
1
1
1
1
1
1
1
DFPH0064ZA
DFPP0143ZA
DFPE0852ZA
DFPN0845ZA
DFPK1202WA
PACKING PAPER
PROTECTION BAG
MANUAL HOLDER
DB CUSHION
PACKING CASE(OVERSEAS)
1
1
1
1
1
DFWV99A0125
DL3UP1557AAA
DFMD8041YA
DFMD8042YA
DFHG1750YB
DFHG1933ZA
DFHG1934ZA
DFHP7101ZA
DFHR6264ZA
DFMX0634ZA
L9DZYY000008
DFHR8522XA
DFHR8523WA
DFHE5025XA
DRQT2+E8FKL
DFMX1265ZB
DFHR3H11ZA
DFMY3263ZA
DFKM8183TA-0
DFBD9010ZA-0
DFHR6251ZA-0
DFHR6252ZA-0
DFUQ0114ZA
DFBD9011XA-0
DFHG1885YA
DFHP7140ZAT
DFHR3D54ZA-0
DFHR6257ZB
DFHR6258ZA-0
DFMD7B10YA
XTB2+4GFN
DFKE8185ZA-0
DFBD0190ZA-0
DFKE0861ZA-0
DFUQ0113ZA
DRHM0110ZAT
DFKE8186ZA-0
DFBD0192ZA-0
DFKE0867ZA-0
HDD MOUNTING KIT
HDD PACK FPC UNIT
HDD LOWER CASE ASS'Y
HDD UPPER CASE ASS'Y
HDD CUSHION(YELLOW)
FIX CORE CUSHION
HDD FORMING M2
DOUBLE SIDE TAPE(7X30)
SATA GUARD
CD EDGE SHEET
HEATER(HDD)
HDD DAMPER ASS'Y
HDD SIDE DAMPER ASS'Y
SCREW
SCREW
HEATER INS SHEET
HDD CUSHION TOP SHEET
HDD THERMAL PLATE LOWER
TOP CASE ASS'Y
POWER SW ASS'Y
POWER SW FLAME
POWER SW KNOB
POWER SW KNOB SPRING
WIRELESS OFF SW ASS'Y
WM SW CUSHION
TAPE
WM SW SHEET
WIRELESS SW CASE
WIRELESS SW KNOB
WM OFF SW PLATE
SCREW
MP LATCH ASS'Y
MP LATCH LEVER
MP LATCH CASE
SD LATCH SPRING
SCREW
SD LATCH ASS'Y
SD LATCH LEVER
SD LATCH CASE
1
1
1
1
4
2
2
1
1
1
1
1
1
1
4
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
S
S
S
S
S
S
K2-4-3
K2-5-4
K2-5
K2-5-1
K2-5-2
K2-5-3
K2-5-4
K2-6
K2-6-1
K2-6-2
K2-6-3
K2-6-4
K2-6-5
K2-7
K2-7-1
K2-7-2
K2-7-3
K2-7-4
K2-8
K2-8-1
K2-8-2
K2-8-3
K2-8-4
K2-8-5
K2-8-6
K2-8-7
K2-8-8
K2-8-9
K2-8-10
K2-8-11
K2-9
K2-9-1
K2-9-2
K2-9-3
K2-9-4
K2-9-5
K2-9-6
K2-9-7
K2-9-8
K2-9-9
K2-9-10
K2-10
K2-10-1
K2-10-2
K2-10-3
K2-10-4
K2-10-5
K2-10-6
K2-10-7
K2-10-8
K2-11
K2-12
K2-13
K2-14
K2-15
K2-16
K2-17
K2-18
K2-19
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
DFUQ0113ZA
DRHM0110ZAT
DFKE8187YA-0
DFBD0193ZA-0
DFKE0869YA-0
DFUQ0116ZA
DRHM0110ZAT
DFKE8188ZA-0
DFBH3051ZA
DFGE0139ZA-0
DFHR3E55ZA
DFKE0860ZA-0
DRQT26+D3KLT
DFKE8189YA-0
DFBH3051ZA
DFGE0140YA-0
DFKE0866ZA-0
DRQT26+D3KLT
DFKE8190XB-0
DFBH3051ZA
DFGE0141ZA-0
DFHR3E56ZA
DFHR3E59ZA
DFKE0799ZA-0
DFKE0862XA-0
DFMD7B12ZA
DFUN0084XA
DFUS0323ZA
DRQT26+D3KLT
DXQT2+F3FNLT
DFKE8191YA-0
DFBH3051ZA
DFBD0191ZA-0
DFGE0149ZA-0
DFGE0150ZA-0
DFHR3E57ZA
DFKE0864YA-0
DFKE0865ZA-0
DFUS0311ZA
DRQT2+D25KMT
DRQT26+D3KLT
DFKE8192ZA-0
DFBH3051ZA
DFGE0143ZA-0
DFGE0144ZA-0
DFHR3E58ZA
DFKE0868ZA-0
DFKE0875ZA-0
DFMD7B11ZA
DRQT26+D3KLT
DFJS1030ZA
L0AA04C00012
DFGE0111YA-0
DFGE0145ZA-0
DFGL0153ZB-0
DFHE5121YA
DFHG1699ZA
DFHG1891ZA
DFHG1892YA
SD LATCH SPRING
SCREW
CN LATCH ASS'Y
CN LATCH LEVER
CN LATCH CASE
CN LATCH SPRING
SCREW
MP COVER ASS'Y
LID HINGE
MP COVER SHEET
MP COVER CUSHON
MP COVER
SCREW
SD COVER ASS'Y SDHC
LID HINGE
SD COVER SHEET
SD COVER
SCREW
BATT COVER ASS'Y
LID HINGE
BATT COVER SHEET
BATT COVER CUSHION
BATT LID KNOB SHEET
LID KNOB
BATT COVER
BATT LATCH ANGLE
BATT LATCH SPRING
LID KNOB SPRING PLATE
SCREW
SCREW
HDD COVER ASS'Y
LID HINGE
HDD COVER LOCK KNOB
HDD COVER SHEET L
HDD COVER SHEET R
HDD COVER CUSHION
HDD COVER
HDD COVER LID KNOB
HDD COVER SPRING PLATE
SCREW
SCREW
CN COVER ASS'Y
LID HINGE
CN COVER SHEET L
CN COVER SHEET R
CN PACKIN-SLIDE
CN COVER
CN SLIDE COVER
CN WATER PROOF PLATE
SCREW
SP CABLE
SPEAKER
TOP LOOK SHEET
REAR BELT COVER SHEET
SD LED SHEET (NO SC)
SCREW
LCD LOCK SHEET
HANDLE ARM CUSHION
SPEAKER CASE CUSHION
1
2
1
1
1
1
3
1
3
1
2
1
3
1
2
1
1
2
1
2
1
2
1
1
1
1
1
1
2
1
1
2
1
1
1
1
1
1
1
4
2
1
2
1
1
1
1
1
1
3
1
1
1
2
1
8
2
2
1
K2-20
K2-21
K2-22
K2-23
K2-24
K2-25
K2-26
K2-27
K2-28
K2-29
K2-30
K2-31
K2-32
K2-33
K2-34
K2-36
K2-37
K2-38
K2-39
K2-40
K2-41
K2-42
K2-43
K2-44
K2-45
K2-46
K2-47
K2-48
K2-49
K2-50
K3
K3-1
K3-2
K3-3
K3-4
K3-5
K3-6
K3-7
K3-8
K3-9
K4
K5
K9
K9-1
K9-1-1
K9-1-2
K9-1-3
K9-1-4
K9-2
K9-2-1-1
K9-2-2
K9-2-3
K9-3
K9-4
K10
K10-1
K10-2
K11
K12
S
S
S
S
S
S
S
S
DFHG1931ZA
DFHG1973ZAT
DFHM0419YA
DFHR3D56ZA-0
DFHR3E66ZA
DFHR6291YB-0
DFKE0851ZB-0
DFKE0852ZB-0
DFKE0856ZB-0
DFKE0876ZB
DFKM0516WA-0
DFMD2170ZA
DFMD2172ZA
DFMY0414ZA
DFMY5037ZA
DFUQ0102ZA
DFWP0145YA
DRHM0118ZAT
DRQT26+D3KLT
DRQT26+D5KLT
DRSN4+6FKLT
DXQT26+D4NLT
DXQT3+F4FNLT
DFKH8009YA-0
DFHP7140ZAT
DFHR3G74ZAT
DFHR3K43ZAT
DFHR3E97ZA
DFHR6356ZA
DFHR6089YA-0
DFKF8170YA-0
DFKF0271YA-0
DFMD2172ZA
DFMD2173ZA
DFMY0414ZA
DFMY0437ZA
DFMY5038YA
DFUS0324ZA
DRQT26+D3KLT
DXQT26+D4NLT
DFGE0087ZA-0
DFGE0138ZA
DFWV80A0403
DFKF8171VA-0
DFBH1180ZB
DFBH1181ZB
DFHR3E61YA
DRYN4+J10KLT
DFWV84A0310
DFHR9068ZA
DFHP7246ZA
DFHR3695ZA
DFHE0843ZA
DFHG1929ZA
DFBS8003ZA-0
DFBS0073ZA-0
DFHR6313ZA
DFDF5024ZA
DFUN0083ZA
WM SW CASE CUSHION
SD SHEET SPACER TW
LCD FOOT CAP
CN COVER SHEET
POWER SW CUSHION
FRONT BELT COVER
HANDLE BASE L
HANDLE BASE R
SPEAKER CASE A
SPEAKER CASE B
TOP CASE
KENSINGTON PLATE
HEAT PIPE ANGLE A
CPU HEAR PIPE RUBBER
HEAT PIPE UNIT A(TOP)
POTRE SPRING
FPC
SCREW
SCREW
SCREW
SCREW
TW SCREW
SCREW
HANDLE ASS'Y
DOUBLE SIDE TAPE
PW SW CUSHION
LCD HINGE SPACER
P LED SHEET
POWER SW LED PANEL TW
HANDLE ARM BUSH
BOTTOM CASE ASS'Y
BOTTOM CASE
HEAT PIPE ANGLE A
HEAT PIPE ANGLE B
CPU HEAR PIPE RUBBER
HEAT PIPE RUBBER B
HEAT SINK UNIT C
MP ESD SPRING
SCREW
TW SCREW
BOTTOM COVER SHEET D
BOTTOM CASE SHEET
LCD FRONT CABINET/TS PANEL ASS'Y
LCD FRONT ASS'Y
HINGE ASS'Y R
HINGE ASS'Y L
TS DUMPER PC
SCREW
TOUCH SCREEN PANEL KIT
PROTECTIVE FILM
TS FIXED TAPE
TS FPC SPACER
LCD MAGNET
MAGNET CUSHION
LCD LATCH ASS'Y
LCD LATCH
LCD LATCH SLIDER
LCD LATCH SHAFT
LCD LATCH SPRING
1
1
2
1
1
2
1
1
1
1
1
1
1
1
1
2
1
2
15
4
2
4
2
1
1
1
1
1
1
4
1
1
1
2
2
1
1
1
6
2
1
1
1
1
1
1
8
2
1
1
1
1
1
1
1
1
1
1
1
K13
K13-1
K13-1-1
K13-2
K16
K17
K18
K19
K21
K22
K25
K26
K27
K28
K29
K30
K31
K32
K33
K34
K35
K36
K38
K40
K41
K42
K44
K45
K46
K47
K49
K50
K52
K53
K54
K56
K57
K58
K59
K60
K61
K62
K63
K65
K70
K71
K74
K75
K76
K77
K78
K79
K80
K81
K82
K83
K84
K85
K86
DFWV80C0513
S DFKM8184ZA-0
S DFKM0517ZA-0
DFGB0131YA-0
DFHG1886ZA
DFHG1887ZA
DFHG1888ZA
DFHG1890ZA
DFHR3E98ZA
DFHR3E99ZA
DFHR3G26ZA
DFHR3G27ZA
DFHR6270YA
DFHR6296ZA
S DFKE0857ZA-0
S DFKE0858YC-0
S DFKE0859ZB-0
S DFKE0873ZB-0
S DFKE0874ZB-0
DFMD2177ZA
DFMX0634ZA
DFMX0999ZA
DFMY0438ZA
DFHR3E83YA
DFMD7B13ZA
DFMX1260YA
DFGX0457ZB-0
DFGX0458ZB-0
DFGX0459ZB-0
DFGX0460ZB-0
DFHG1881ZA
DFHG1884ZA
DFHG1942ZA
DFHR3159ZA
DFHR3F07XA
DFHR7968ZA
S DFKE0871ZA-0
S DFKE0872ZA-0
DFMC0685ZA
DFMC0863ZA
DFMC0873ZA
DFMC0874YA
DFMC0876ZA
DFMX1241ZB
DFHP7261XA
DFHR3E65VA
DFHR6260ZB-0
DFMD7B38ZB-0
DFQT0045ZA
DFQT9A29ZA
DFQT0048ZA
DFGB0165YA-0
S DFGT1260ZA
DFGE0151ZA-0
DFGP0201ZA-0
DFHE1037ZA
DFHG1901ZA-0
DFHG370ZA
DFHM0396ZA
LCD REAR CABINET ASS'Y
LCD REAR ASS'Y
LCD REAR CAB
PANASONIC BADGE
LCD CABLE COVER CUSHION
KBD CABLE COVER CUSHION
DIMM COVER CUSHION
ANT CABLE CUSHION
KB WP SHEET
ANT CABLE SHEET
BOTTOM TOP SPACER SHEET A
BOTTOM TOP SPACER SHEET B
DIMM STOPPER BASE
DIMM COVER SPACER
LCD CABLE COVER
KB CABLE COVER
DIMM COVER
HINGE COVER L
HINGE COVER R
ANTENNA CABLE PLATE
CD EDGE SHEET
RJ11 CABLE FIX SHEET
W-LAN HEAT RUBBER
CABLE TAPE
GPS BT ANGLE
GPS INS SHEET A
LCD CONER COVER L
LCD CONER COVER R
LCD CONER SIDE COVER L
LCD CONER SIDE COVER R
LCD CABLE BUSH
LCD DROP HOLDER
REAR SCREW SHEET
TOP CASE SHEET
LCD CABLE WP SHEET
CDD SHEET
W-LAN ANT COVER L
W-LAN ANT COVER R
LCD CONDUCTIVE TAPE
INV SHIELD CASE
INV MIL SHIELD
INV SHEILD TAPE
INV SHIELD CASE OUTSIDE
INV CASE
KB SPACER TAPE
KB SPACER SHEET
KB COVER
KB BACK PLATE
ENERGY STAR LABEL
WINDOWS VISTA
CENTRINO CORE2DUO LABEL
TOUGH BADGE NEW
RATING SHEET MK2 US
WM COVER 30
PALM TOP SHEET
DC GASKET
TOUCH PAD SW RUBBER
FOOT RUBBER
BATT CN PIN
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
7
6
1
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
2
K90
K91
K92
K93
K94
K96
K97
K99
K100
K101
K102
K103
K104
K105
K106
K107
K108
K109
K110
K111
K112
K113
K114
K116
K117
K118
K119
K121
K122
K123
K124
K129
K130
K131
K132
K133
K134
K135
K137
K138
K139
K140
K141
K142
K143
K144
K146
K148
K149
K153
K157
K161
K163
K1031
K1032
K1122
K1123
K1151
K1155
DFHR3619ZA
DFHR3636ZA
DFHR3643ZA
DFHR3E67ZA
DFHR3E93VA
DFHR3F46ZA
DFHR3F49ZA
DFHR3F87YA
DFHR3G02ZA
DFHR3G03ZA
DFHR3G04ZA
DFHR3G05ZA
DFHR3G09ZA
DFHR3G10ZA
DFHR3G25ZA
DFHR3G32ZA
DFHR3G41ZA
DFHR6355ZA
DFHR6246ZA
DFHR6247ZB
DFHR6253YA-0
DFHR6254YA-0
DFHR6255YA-0
DFHR6259YC-0
DFHR6295ZA
DFHR7953ZA
DFHR8521ZA
DFMD4066ZB-0
DFMD4067ZB-0
DFMD4069ZA
DFMD7B00ZA
DFMX1006ZA
DFMX1256ZA
DFHG1403YA-0
DFHG1467ZA
DFHP7275ZA
DFHP7276ZA
DFHR3E94ZA
DFHR3F59ZA
DFHR3G11ZA
DFHR3G47ZA
DFHR3G48ZA
DFHR6261ZA
DFHR6272ZA
S DFKE0895YA
DFMC0875ZA
DFMD7B22ZA
DFMX0635ZB
DFMX0702ZA
DFMX1280ZA
DFHR3F53ZA
DFHP7118ZA
DFHR3G93ZA
DFHR3H16ZA
DFHR3H17ZA
DFNW2701ZA
DFHR3741ZA
DFMC0891ZA
DFMY3257YA
LEDX6 SPACER SHEET
CABLE HOLD SHEET
TP BOTTOM TAPE
PAD WP SHEET
1394 SHEET
ICH SHEET
CABLE TAPE 5X18
PAD PROTCT SHEET
SERIAL COVER SPACER
SERIAL WP SHEET
USB COVER SPACER
USB WP SHEET
SERIAL INSIDE SPACER
USB INSIDE SPACER
TP FPC SHEET
BATTRY SLIDE SHEET
BATT CUSHION
TP SW KNOB IN
HDD GUIDE
BATT GUIDE
SERIAL COVER
USB COVER
DC-IN COVER
PALM TOP COVER
HDD CABLE COVER
LAN SHEET
BATT CN PIN CUSHION
DC USB COVER PLATE
SERIAL COVER PLATE
ICH PLATE
BATT HDD CN ANGLE
CABLE SHEET
TP INS SHEET
COIN BATTERY CUSHION
LEAD SW CUSHION
CN TAPE L
CN TAPE S
DMD CABLE SHEET
MAIN PCB SPACER
CN SHEET
USB SCREW COVER
USB SCREW COVER B
MODEM LAN CASE
MP GUIDE
MAIN CHASSIS
MAIN CHASSIS SHIELD
CN PLATE
FFC CN STOPPER
FFC CN STOPPER PAD
EXP FPC SHEET
IO PWB SHEET
TAPE
DC-IN WP SHEET
REAR CABLE SHEET L
REAR CABLE SHEET R
TOP WP WASHER
FFC CN STOPPER
LCD CABLE SHIELD TAPE
2G DIMM HEAT PLATE
1
1
1
1
1
1
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
3
2
2
1
1
1
1
1
1
1
1
1
K1201
K1202
K1203
K1204
K1205
K1206
K1207
K1208
K1209
K1210
K1211
K1212
K1213
K1214
N1
N2
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
N15
N16
N17
N18
N19
N20
N21
N22
N29
N30
DFHR3K09ZA
DFHR3H39YA
D4CZY103A003
DFHE0915ZA
DFHG830ZA
DFHR3F89ZA
DFHR3K18ZA
DFMY0486ZA
DFMY0487ZA
DFHE1106ZA
DFHR6354ZA-0
DFHG2077ZA
DFQT0055YA
DFMX0383TA
DRHM0002ZA
DRHM5054XA
DRQT2+G6FKL
DRQT26+E4FKL
DRSB26+10HKL
DRSB3+8FKL
DRYN4+J10FKL
DXSB4+15FNMB
DFHE5025XA
DXQT2+F3FNL
DRSB4+10FKL
DFHE5058ZB
DRHM5104ZA
DRQT26+E5FKL
DRQT26+E6FKL
DRSB26+8HKL
DRSN2+10FNL
DXQT2+D4FNL
DXQT2+E12FNL
DXQT2+G4FNL
DRQT26+E3FNL
DXHM0057ZA
LCD CABLE GUIDE
LCD CABLE CLAMP
THERMISTOR
EMI SHEET 10X20
CON SPACER
MCH SHEET
ANT CABLE WP SHEET
ICH MCH HEAT RUBBER
CPU HEAT RUBBER
KBD GASKET
MIC JACK HOLDER
COIN BATT CUSHION
COA SERIAL LAMINATE
INSULATION PARTS
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
1
1
1
1
1
1
1
2
1
1
1
1
1
10
5
8
2
37
13
6
4
2
10
4
2
4
3
7
7
1
2
4
2
8
27
2
Replacement Parts List
Note: Important Safety Notice
Components identified by
mark have special characteristics important for safety.
When replacing any of these components use only manufacturer's specified parts.
CF-30FTSAZAM
REF. NO and AREA
PART NO.
DESCRIPTION
Q'TY
MAIN PCB
C 1, 2, 3, 5, 6, 7, 10, 11,
12, 14, 15, 16, 18, 19,
20, 22, 23, 24, 27, 28,
29, 30, 31, 32, 33, 34,
35, 36, 37, 38, 39, 40,
44, 56, 74, 75, 78, 79,
84, 98, 100, 102, 104,
108, 115, 122, 123, 130,
132, 134, 136, 144, 146,
148, 150, 174, 177, 182,
184, 195, 199, 214, 217,
218, 219, 238, 239, 246,
269, 274, 275, 288, 350,
373, 374, 378, 394, 404,
417 442 528 610 611
C 4, 58, 86, 88, 114, 183,
191
C 8, 9, 13, 17, 21, 25, 46,
47, 48, 49, 50, 54, 57,
62, 66, 69, 70, 71, 76,
85, 87, 95, 106, 107,
112, 116, 117, 118, 125,
126, 127, 128, 131, 133,
135, 137, 139, 140, 141,
142, 145, 147, 149, 151,
170, 171, 173, 175, 176,
179, 185, 186, 187, 188,
189, 190, 192, 193, 194,
196, 197, 207, 223, 226,
232, 234, 236, 237, 240,
241, 242, 243, 245, 247,
248, 249, 250, 251, 252,
253, 254, 255, 256, 257,
258, 259, 260, 261, 262,
263, 264, 265, 267, 268,
276, 277, 278, 279, 281,
282, 289, 291, 295, 298,
302, 306, 317, 318, 319,
320, 326, 327, 328, 329,
330, 331, 332, 333, 334,
335, 336, 338, 344, 345,
346, 347, 348, 349, 392,
403, 407, 409, 410, 411,
413, 414, 415, 416, 418,
419, 420, 433, 436, 437,
438, 439, 440, 441, 445,
448, 449, 451, 452, 461,
466, 474, 478, 479, 480,
481, 482, 485, 489, 490,
496, 531, 533, 580, 581,
C 45, 504, 537, 619, 638
C 51, 52, 53, 61, 67, 89,
F1J0J106A013
CAPACITOR, 6.3V, 10µF
88
EEFCX0D221R
CAPACITOR, 2V, 220µF
7
F1G1C104A042
CAPACITOR, 16V, 0.1µF
175
F1G1H222A496
F1G0J474A001
CAPACITOR, 50V, 2200pF
CAPACITOR, 6.3V, 0.47µF
5
7
C 55, 72, 91, 152, 153,
154, 155, 200, 201, 202,
203, 211, 215, 229, 280,
299, 309, 313, 340, 397,
399, 400, 405, 406, 412,
422, 423, 435, 443, 468,
519, 525, 557, 569, 574,
575, 579
C 59, 60, 103, 105, 110,
113, 119, 120, 375, 383,
384
C 63, 65, 73, 77, 80, 81,
99, 101, 172, 178, 180,
181, 212, 216, 358, 637
C 68, 82, 83, 90, 92, 94,
111, 121, 198, 213
C 93, 205, 209, 230, 233,
235, 244, 270, 271, 272,
273, 284, 301, 305, 307,
343, 352, 387, 389, 390,
393, 408, 477, 527, 603,
617, 618, 642, 644
C 156, 157, 293, 294
C 162, 163, 164, 165, 166,
167, 168, 169, 224, 225,
353, 354, 355, 357, 359,
360, 363, 364, 371, 372,
376, 377, 395
C 204
C 206
C 208, 385, 632, 633, 634
C 227, 228
C 231, 573
C 266
C 285, 339, 341, 342, 453,
454, 455, 456, 457, 458,
459, 460, 462, 471, 473,
475, 493, 497, 498, 500,
521, 540, 542, 544, 547,
561, 564, 568, 584, 625,
626, 627, 628, 630, 635,
640
C 297, 507
C 300, 311, 312
C 321, 322, 323, 324, 325,
587, 588
C 337, 361, 426, 427, 518,
543, 559, 620
C 351, 396, 476, 483, 484,
486, 505, 506, 524, 545,
566, 643
C 365, 367, 370
C 379, 381, 672
C 380, 421, 516, 534, 551,
556, 597, 698
C 382, 530, 532
C 386, 502, 523, 538, 548,
639
C 388, 391
C 450, 499, 520, 529, 536,
539, 560, 567, 595, 598,
600, 602, 604, 605
C 467, 469
C 487, 488
F1G1E103A062
CAPACITOR, 25V, 0.01µF
37
F1G0J224A001
CAPACITOR, 6.3V, 0.22µF
11
F1G0J105A001
CAPACITOR, 6.3V, 1µF
16
F1J0J226A051
CAPACITOR, 6.3V, 22µF
10
F1H1A1050015
CAPACITOR, 10V, 1µF
29
F1G1H150A542
F1G1A104A014
CAPACITOR, 50V, 15pF
CAPACITOR, 10V, 0.1µF
4
23
F1G1H4R0A543
F1G1H3R0A543
F1H1A225A039
F1G1H2R0A543
F1G1C473A004
F1L3D102A003
F1G1H102A496
CAPACITOR, 50V, 4pF
CAPACITOR, 50V, 3pF
CAPACITOR, 10V, 2.2µF
CAPACITOR, 50V, 2pF
CAPACITOR, 16V, 0.047µF
CAPACITOR, 2000V, 1000pF
CAPACITOR, 50V, 1000pF
1
1
5
2
2
1
36
F1J1E334A081
F1G1H271A495
F1J1E105A080
CAPACITOR, 25V, 0.33µF
CAPACITOR, 50V, 270pF
CAPACITOR, 25V, 1µF
2
3
7
F1G1H1010005
CAPACITOR, 50V, 100pF
8
F1J0J475A009
CAPACITOR, 6.3V, 4.7µF
12
F1G0J334A001
F1L0J107A016
F1K1E1060001
CAPACITOR, 6.3V, 0.33µF
CAPACITOR, 6.3V, 100µF
CAPACITOR, 25V, 10µF
3
3
8
EEFCD0D101ER
F1G1H221A495
CAPACITOR, 2V, 100µF
CAPACITOR, 50V, 220pF
3
6
F1H1A474A028
F1H1H104A748
CAPACITOR, 10V, 0.47µF
CAPACITOR, 50V, 0.1µF
2
14
F1G1A683A014
F1G1H100A544
CAPACITOR, 10V, 0.068µF
CAPACITOR, 50V, 10pF
2
2
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
CF
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
CN
D
D
D
D
D
491, 562, 621
492, 629
494, 624
495, 631
501, 570, 623
508, 509, 510, 526, 571,
596, 606, 614, 615
512, 513, 514, 612
515, 552
517, 546, 558, 616
522, 541, 565, 641
549
553, 554
563
572
577
601
607, 608, 609
645, 646, 647, 648
651, 653, 654, 655, 656,
657, 658, 659, 660, 661,
662, 663, 664, 666, 668,
669, 670, 671, 675, 676,
677, 679, 680
652, 674, 682, 683, 684,
685, 686, 687
1, 4
1
2, 5, 6
3
4, 29
7, 8, 11, 30
9
10
12
13
14
15
16
17
18
19
20
21
22
24
25
26, 45
28
31
37
46
47
6, 7, 19, 58, 59
8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 20, 21, 22
24, 46, 47, 48, 49
25, 29, 30, 53, 60
26, 28, 31
F1G1H470A542
F1G1H151A495
F1H1H1830001
F1G1H561A496
F1G1H331A496
F1L1E106A017
CAPACITOR, 50V, 47pF
CAPACITOR, 50V, 150pF
CAPACITOR, 50V, 0.018µF
CAPACITOR, 50V, 560pF
CAPACITOR, 50V, 330pF
CAPACITOR, 25V, 10µF
3
2
2
2
3
9
EEFSX0D471XE
EEFCD0D151ER
F1H1C224A074
F1G1H220A542
F1G1H472A496
EEFCX0J101R
F1G1H471A496
EEFCD0G101ER
EEFCX0G151R
F1G1H152A496
DCUI1C106HDB
F1J2A103A018
F1H0J1050022
SPCAP
CAPACITOR, 2V, 150µF
CAPACITOR, 16V, 0.22µF
CAPACITOR, 50V, 22pF
CAPACITOR, 50V, 4700pF
CAPACITOR, 6.3V, 100µF
CAPACITOR, 50V, 470pF
CAPACITOR, 4V, 100µF
CAPACITOR, 2V, 150µF
CAPACITOR, 50V, 1500pF
CAPACITOR, 16V, 10µF
CAPACITOR, 100V, 0.01µF
CAPACITOR, 6.3V, 1µF
4
2
4
4
1
2
1
1
1
1
3
4
23
F1J0J4750019
CAPACITOR, 6.3V, 4.7µF
8
D4CC1103A038
K1MN50AA0018
K1MY40A00001
K1KA14AA0266
K1MN12BA0134
K1MY40BA0220
K1KY10BA0084
K1MN80BA0246
K1MY30AA0158
K1MY13BA0102
K1MY16BA0097
K1MY07BA0096
K1KB30AA0049
K1KA30BA0060
K1MN08BA0134
K1KA02AA0262
K1KA08AA0266
K1MYL0B00003
K1MYL0B00004
K1KY12A00004
K1MN10BA0134
K1KA02BA0014
K1FY104B0009
K1KA12BA0014
K1MY52BA0190
K1KA02AA0299
K1MY24BA0311
MA2J72900L
B0ADCJ000041
THERMISTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
FPC CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
FPC CONNECTOR
DIODE
DIODE
2
1
3
1
2
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
5
13
B0JCPD000023
B0JCMD000010
B0ADCJ000025
DIODE
DIODE
DIODE
5
5
3
D 33, 34, 35, 36, 37, 38,
62, 63
D 39, 55
D 40
D 42
D 43, 45, 50, 57, 64
D 44
D 51
D 52
D 54
F 1, 4, 7
F 2, 5, 6, 8, 12
F3
F 10
F 11
IC 1
IC 2
IC 3
IC 4
IC 5
IC 7, 114
IC 11, 12, 13
IC 15
IC 20
IC 21
IC 23
IC 24
IC 25
IC 27
IC 28
IC 29
IC 30
IC 31, 86, 93
IC 32, 58, 59, 61, 62, 68,
69, 87, 103, 104, 105,
108, 109
IC 33
IC 34, 35, 36
IC 37, 78
IC 38, 39
IC 40
IC 41
IC 42
IC 43, 44
IC 45
IC 47, 113
IC 50
IC 51
IC 52
IC 54, 63, 64, 66
IC 55, 110
IC 56
IC 65, 72, 96, 101, 107
IC 67
IC 70
IC 71
IC 76
IC 77
S
S
S
S
S
MAZ80620ML
DIODE
8
MA3S132E0L
B2ABAM000002
MA2S111-TX
B0JDBE000002
B0JDRE000007
MAZ81200ML
MAZ81800ML
B0KB00000044
K5H502Z00003
K5H202Z00005
K5H402Z00003
K5H802300002
K5H123Y00001
C2GBD0000038
C1CB00002802
C0JBBZ000319
C1CB00002741
C1CB00002732
C0JBAZ002192
C0DBALH00003
C1CB00002540
C3EBFY000005
C0DBEFE00003
C0DBZYY00265
C0DBZYY00016
C0ZBZ0000978
C3FBLY000048
C2CBJA000003
C0CBCBC00181
C1CB00002733
C0JBAS000215
C0JBAA000362
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE
DIODE
FUSE, 5A, 32V
FUSE, 2A, 32V
FUSE, 4A, 32V
FUSE, 8A, 72V
FUSE, 12A, 65V
CPU
CHIPSET
PLL
CHIPSET ICH8M
LAN CONTROLLER
IC
IC
IC, TEMPERATURE CENSOR IC
EEPROM
IC
POWER MANAGEMENT SWTICH
IC
IC
FLASH MEMORY
IC, MICON
IC
AUDIO CODEC
IC, GATE LOGIC
IC, LOGIC
2
1
1
5
1
1
1
1
3
5
1
1
1
1
1
1
1
1
2
3
1
1
1
1
1
1
1
1
1
1
3
13
C0ABZA000047
C0EBE0000459
C0EBH0000457
C0DBZYY00026
C0DBAYY00194
C0DBEFH00002
C0EBE0000333
C0EBH0000336
C0DBDJH00009
C0JBAA000381
C1CB00002723
C1DB00001159
C0CBCBC00137
C0JBAA000345
C0JBAB000624
C0JBAE000321
C0JBAB000621
C1CB00002790
C0ABBA000093
C0JBAD000236
C3EBDY000005
C1CB00002279
IC, AMP
IC
IC
IC, USB POWER SW
IC, DC/DC
IC, REGULATOR
IC
IC
IC, LINER
IC, LOGIC
CARDBUS CONTOLLER
IC, PERIPHERAL LSI
IC, REGULATOR
IC, LOGIC
IC
IC, LOGIC
IC, LOGIC
IC, SECURITY CHIP
IC, OP AMP
IC, LOGIC
IC, EEPROM
IC
1
3
2
2
1
1
1
2
1
2
1
1
1
4
2
1
5
1
1
1
1
1
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
IC
JK
L
L
79, 80, 88
81
83, 84
85
89
92
94, 95
99
100
102
106
126
127
128
1
1
5, 12, 27, 32, 34, 48, 51,
54, 60, 64, 68, 69, 70,
71, 77
L 8, 9
L 10, 11, 15, 16
L 17
L 18, 19, 21, 74
L 20
L 22
L 23, 53
L 24
L 25
L 26
L 30, 47
L 49, 50
L 52
L 59
PA 6
Q 1, 36, 52, 53, 59, 66, 96,
123, 130, 131, 133, 135,
142, 144, 153
Q 7, 10, 18, 34, 39, 94,
Q 9, 12, 20, 47, 49, 127,
Q 13
Q 14, 25, 75, 76, 90, 99,
111, 112, 134, 145, 158
Q 16, 30, 31, 32, 33, 35,
37, 58, 69, 81, 82, 83,
85, 86, 87, 88, 89, 101,
102, 103, 104, 107, 108,
115, 119, 121, 126, 132,
138, 139, 141, 156, 157
Q 22, 23, 24, 48, 50, 64,
74, 77, 78, 91, 98, 109,
110, 117, 118, 120, 146,
Q 26, 28, 38, 51
Q 27, 80
Q 40, 41, 42, 43, 44, 45,
137, 140
Q 54, 56, 60, 61, 67, 68,
71, 72, 84, 151, 152
Q 55, 57
Q 65, 73, 154
Q 70, 93, 129
C0JBAZ002836
C0DBGYY00423
C0JBAZ002837
C0JBAC000367
C0DBZYY00017
C1CB00002497
C0JBAZ002372
AN12945A-VB
C0JBAC000363
C0CBCAC00161
C0JBAZ002387
C0DBAYY00282
C0JBAR000515
C0DBGYY00422
S K2EEYB000001
G1CR82M00006
J0JJC0000015
IC, LOGIC
LINEAR REGULATOR
IC, LOGIC
IC, LOGIC
IC
IC, USB HUB
IC, LOGIC
IC, AUDIO AMP
GATE LOGIC
IC
IC, LOGIC
DC/DC CONTROLLER FOR GMCH
IC, Q-SWITCH
LINEAR REGULATOR
JACK
COIL
INDUCTOR
3
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
15
J0ZZB0000080
J0JCC0000186
G1CR56ZA0140
G1C4R7MA0240
G1C2R8MA0240
G1C100M00030
J0JKC0000007
G1A160HA0032
G1BYYYY00009
J0MAB0000200
G1C1R0Z00002
G1C1R0MA0076
DDAZR100KTD
G1C91NM00001
S D4FB1R100015
B1CFGD000023
IDUCTOR, COMMON MODE FILTER
INDUCTOR
INDUCTOR
CHOK COIL
COIL
COIL
INDUCTOR
COIL
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
PROTECTOR, 1.1A
TRANSISTOR
2
4
1
4
1
1
2
1
1
1
2
2
1
1
1
15
XP0421300L
B1DHDC000028
2SB0766ARL
UNR9113J0L
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
7
7
1
11
UNR9213J0L
TRANSISTOR
33
UNR9214J0L
TRANSISTOR
18
B1DDED000004
B1MBFDG00001
XP0411500L
TRANSISTOR, FET
FET
TRANSISTOR
4
2
8
B1CFRD000014
FET
11
B1CFRD000020
B1MBEDG00001
B1CFGD000003
FET
FET
TRANSISTOR
2
3
3
Q 79, 105, 106, 113, 114,
122, 124, 136
Q 92, 97
Q 116
Q 125
R 1, 2, 27, 39, 41, 43, 118,
190, 191, 262, 263, 378,
415
R3
R 7, 31, 66, 68, 70, 480,
481, 518, 650, 657, 673
R 8, 32
R 9, 10, 30
R 13, 15
R 14, 16, 35, 36
R 18
R 19, 23, 92, 97
R 20
R 21, 22, 33, 45, 56, 109,
146, 159, 161, 163, 164,
176, 182, 203, 204, 210,
241, 280, 282, 293, 296,
297, 330, 352, 366, 369,
430, 443, 444, 455, 461,
464, 474, 478, 484, 485,
486, 504, 595, 597, 647,
668, 680, 682, 684, 690
R 24
R 25
R 26, 48, 49, 90, 91, 103,
107, 124, 144, 181, 183,
209, 224, 251, 252, 256,
258, 269, 270, 271, 272,
273, 274, 275, 278, 279,
281, 283, 291, 292, 294,
299, 302, 303, 344, 350,
373, 379, 380, 381, 384,
389, 391, 393, 411, 419,
420, 421, 424, 428, 431,
440, 441, 442, 445, 446,
448, 453, 470, 501, 506,
513, 522, 523, 524, 543,
549, 575, 576, 577, 608,
609 649 653 672
R 28, 605, 606, 607, 615
R 29
R 34, 81, 137, 177
R 55, 171, 338, 339
R 64, 65
R 67
R 69, 626, 627
R 71, 72, 127, 242, 244,
276, 286, 321, 331, 332,
351, 414, 694, 695, 696,
697
R 73, 104, 112, 113, 259,
385, 390, 392, 417, 418,
432
R 74, 550
R 75
R 76, 77, 78
R 79, 80, 422, 423
R 84, 86, 89, 156, 157,
B1CHRD000001
TRANSISTOR
8
B1DHDD000031
XP0421400L
B1MBEDA00008
ERJ2GEJ102X
TRANSISTOR, FET
TRANSISTOR
TRANSISTOR
RESISTOR, 1/16W, 1KΩ
2
1
1
13
D1H85104A024
ERJ2RKF1001X
RESISTOR ARRAY
RESISTOR, 1/16W, 1KΩ
1
11
ERJ2RKF2001X
ERJ2RKF1000X
ERJ2RKF27R4X
ERJ2RKF54R9X
ERJ2RKF68R0X
ERJ2GEJ560X
ERJ2RKF2000X
ERJ2GE0R00X
RESISTOR, 1/16W, 2KΩ
RESISTOR, 1/16W, 100Ω
RESISTOR, 1/16W, 27.4Ω
RESISTOR, 1/16W, 54.9Ω
RESISTOR, 1/16W, 68Ω
RESISTOR, 1/16W, 56Ω
RESISTOR, 1/16W, 200Ω
RESISTOR, 1/16W, 0Ω
2
3
2
4
1
4
1
46
ERJ2RKF56R0X
ERJ2GEJ240X
ERJ2GEJ103X
RESISTOR, 1/16W, 56Ω
RESISTOR, 1/16W, 24Ω
RESISTOR, 1/16W, 10KΩ
1
1
75
ERJ2GEJ562X
ERJ2RKF2210X
ERJ2RKF24R9X
ERJ2GEJ203X
ERJ2RKF20R0X
ERJ2RKF3920X
ERJ2RHD302X
ERJ2GEJ330X
RESISTOR, 1/16W, 5.6KΩ
RESISTOR, 1/16W, 221Ω
RESISTOR, 1/16W, 24.9Ω
RESISTOR, 1/16W, 20KΩ
RESISTOR, 1/16W, 20Ω
RESISTOR, 1/16W, 392Ω
RESISTOR, 1/16W, 3KΩ
RESISTOR, 1/16W, 33Ω
5
1
4
4
2
1
3
16
D1H81034A024
RESISTOR ARRAY
11
ERJ2RKF1301X
ERJ2RKF2371X
ERJ2RKF1500X
ERJ2GEJ222X
ERJ2GEJ1R0X
RESISTOR, 1/16W, 1.3KΩ
RESISTOR, 1/16W, 2370Ω
RESISTOR, 1/16W, 150Ω
RESISTOR, 1/16W, 2.2KΩ
RESISTOR, 1/16W, 1Ω
2
1
3
4
6
R 85, 88, 245, 491, 492,
624, 632, 634
R 93, 94, 96, 98, 99, 101
R 95, 100, 248
R 105, 106, 188, 189
R 111, 253, 334, 498, 499,
515, 516, 527, 528, 540,
541, 553, 554, 674, 675
R 126, 148
R 128
R 129, 130, 185, 186, 187,
257, 264, 265, 266, 267,
268, 306, 307, 308, 437
R 131
R 138
R 149, 395, 397, 477, 660
R 151, 153
R 152, 154
R 155, 178
R 160
R 166, 169
R 172
R 173, 218, 454, 559, 560,
561, 562, 563
R 179
R 184, 206, 214, 215, 231,
260, 426, 427, 435, 449,
579, 580, 625
R 192, 198, 217, 246, 304,
309, 310, 315, 342, 347,
353, 357, 359, 360, 382,
404, 405, 406, 407, 408,
433, 434, 451, 456, 457,
458, 459, 497, 514, 558,
602, 610, 611, 639, 671,
685, 686, 688, 699
R 193, 200, 219, 354, 361,
362, 363, 383, 410, 425,
539, 557, 600, 601, 613
R 216, 240, 298, 300, 301,
374, 375, 402, 429, 482,
564, 565, 566, 567, 568,
569, 631, 636, 676, 677
R 220
R 221, 222, 254, 290, 295,
327, 328, 345, 376, 377,
552
R 223, 503, 551
R 227, 228, 229, 230, 232,
233, 234, 235
R 236
R 249, 473
R 284
R 287
R 288, 289, 305
R 311
R 312, 387
R 313, 547, 670
R 317
R 320, 346
R 322, 335
R 324, 325, 475, 533, 534
ERJ3GEY0R00V
RESISTOR, 1/16W, 0Ω
8
D1HY5608A007
D1H85604A024
D1H83304A024
ERJ2GEJ100X
RESISTOR ARRAY
RESISTOR ARRAY
RESISTOR ARRAY
RESISTOR, 1/16W, 10Ω
6
3
4
15
D1H84724A024
D1H81504A024
D1HY1038A007
RESISTOR ARRAY
RESISTOR ARRAY
RESISTOR ARRAY
2
1
15
D1H81044A024
ERJ2RKF22R6X
ERJ2GEJ471X
ERJ2RKF3241X
ERJ2RKF4530X
ERJ2GEJ121X
ERJ6GEYJ101V
ERJ2RKF3323X
ERJ2GEJ106X
ERJ2GEJ105X
RESISTOR, 1/16W, 100KΩ
RESISTOR, 1/16W, 22.6Ω
RESISTOR, 1/16W, 470Ω
RESISTOR, 1/16W, 3240Ω
RESISTOR, 1/16W, 453Ω
RESISTOR, 1/16W, 120Ω
RESISTOR, 1/10W, 100Ω
RESISTOR, 1/16W, 332KΩ
RESISTOR, 1/16W, 10MΩ
RESISTOR, 1/16W, 1MΩ
1
1
5
2
2
2
1
2
1
8
ERJ2GEJ331X
ERJ2GEJ472X
RESISTOR, 1/16W, 330Ω
RESISTOR, 1/16W, 4.7KΩ
1
13
ERJ2GEJ104X
RESISTOR, 1/16W, 100KΩ
39
ERJ2GEJ474X
RESISTOR, 1/16W, 470KΩ
15
ERJ2GEJ101X
RESISTOR, 1/16W, 100Ω
20
ERJ2RKF4871X
ERJ2RHD103X
RESISTOR, 1/16W, 4.87KΩ
RESISTOR, 1/16W, 10KΩ
1
11
ERJ2RHD303X
ERJ2RKF49R9X
RESISTOR, 1/16W, 30KΩ
RESISTOR, 1/16W, 49.9Ω
3
8
D1H87504A024
ERJ2RKF5101X
ERJ2GEJ150X
ERJ2RKF5602X
ERJ2RKF3901X
ERJ2RHD3922X
D1H84734A024
ERJ2RHD203X
ERJ2GEJ273X
ERJ6GEY0R00V
ERJ2RKF2671X
ERJ2RKF5601X
RESISTOR ARRAY
RESISTOR, 1/16W, 5.1KΩ
RESISTOR, 1/16W, 15Ω
RESISTOR, 1/16W, 56KΩ
RESISTOR, 1/16W, 3.9KΩ
RESISTOR, 1/16W, 39.2KΩ
RESISTOR ARRAY
RESISTOR, 1/16W, 20KΩ
RESISTOR, 1/16W, 27KΩ
RESISTOR, 1/10W, 0Ω
RESISTOR, 1/16W, 2.67KΩ
RESISTOR, 1/16W, 5.6KΩ
1
2
1
1
3
1
2
3
1
2
2
5
R 336, 337
R 340, 341, 367, 371, 472,
545, 582, 583
R 348
R 349
R 365
R 368, 370, 655
R 372
R 386, 450, 538, 588, 592,
593, 598, 599
R 388
R 394, 398, 438
R 396, 399, 510
R 400, 401
R 416
R 452
R 466
R 467, 587
R 468, 654
R 469
R 471
R 476, 488, 489, 490
R 479
R 487, 645
R 493, 630
R 494, 495, 508, 512, 531,
536, 556
R 496, 509, 511, 529, 530,
532, 537, 555
R 500, 521, 542
R 502, 517, 544, 633, 640
R 505, 507
R 519
R 520, 526, 586
R 525
R 535
R 546
R 548, 570, 637, 641, 642,
643
R 571, 572
R 573, 574
R 578, 581, 594, 596
R 584, 585
R 589, 590
R 603
R 604
R 612
R 614
R 616
R 617, 618, 619
R 620
R 622
R 623
R 628, 629
R 635
R 638
R 644
R 648
ERJ2GEJ333X
ERJ2RHD104X
RESISTOR, 1/16W, 33KΩ
RESISTOR, 1/16W, 100KΩ
2
8
ERJ2RKF1602X
ERJ2RKF9091X
ERJ2RKD684X
ERJ2RKD154X
D1ZZ00000046
ERJ2GEJ473X
RESISTOR, 1/16W, 16KΩ
CHIP RESISTOR
RESISTOR, 1/16W, 680KΩ
RESISTOR, 1/16W, 150KΩ
RESISTOR, 1W, 5mΩ
RESISTOR, 1/16W, 47KΩ
1
1
1
3
1
8
D1H81014A024
ERJ2GEJ181X
ERJ2GEJ221X
D1H82214A024
D1H81004A024
ERJ2RKF1202X
ERJ2RKF5103X
ERJ2RKF4702X
ERJ2RKF6801X
ERJ2GEJ393X
ERJ2RKF1800X
ERJ3GEYJ1R0V
ERJ2RHD222X
ERJ3GEYJ101V
D1ZZ00000093
D1BDR033A099
RESISTOR ARRAY
RESISTOR, 1/16W, 180Ω
RESISTOR, 1/16W, 220Ω
RESISTOR, 1/16W, 220Ω
RESISTOR ARRAY
RESISTOR, 1/16W, 12KΩ
RESISTOR, 1/16W, 510KΩ
RESISTOR, 1/16W, 47KΩ
RESISTOR, 1/16W, 6.80KΩ
RESISTOR, 1/16W, 39KΩ
RESISTOR, 1/16W, 180Ω
RESISTOR, 1/16W, 1Ω
RESISTOR, 1/16W, 2.2KΩ
RESISTOR, 1/16W, 100Ω
RESISTOR, 1W, 1mΩ
RESISTOR, 1/3W, 0.033Ω
1
3
3
2
1
1
1
2
2
1
1
4
1
2
2
7
D1BDR022A099
RESISTOR, 1/3W, 0.022Ω
8
ERJ2GEJ153X
ERJ3GEYJ100V
ERJ2RHD243X
ERJ2RHD752X
ERJ2RHD153X
ERJ2RHD472X
ERJ2RKF1302X
ERJ2RHD622X
ERJ2GEJ223X
RESISTOR, 1/16W, 15KΩ
RESISTOR, 1/16W, 10Ω
RESISTOR, 1/16W, 24KΩ
RESISTOR, 1/16W, 7.5KΩ
RESISTOR, 1/16W, 15KΩ
RESISTOR, 1/16W, 4.7KΩ
RESISTOR, 1/16W, 13KΩ
RESISTOR, 1/16W, 6.2KΩ
RESISTOR, 1/16W, 22KΩ
3
5
2
1
3
1
1
1
6
ERJ6GEYJ122V
ERJ6GEYJ222V
ERJ2GEJ564X
ERJ2RKF3302X
ERJ2GEJ3R3X
ERJ3GEYJ562V
D1BDR4700001
ERJ2RKD114X
ERJ2RHD3652X
ERJ2GEJ154X
D1BDR1000002
RL1220SR15F
ERA3EKB1623V
ERA3EEB1692V
D1BDR068A100
ERJ3GEYJ2R2V
ERJ2GEJ303X
D1H8R0040009
ERJ2RKF4022X
RESISTOR, 1/10W, 1.2KΩ
RESISTOR, 1/10W, 2.2KΩ
RESISTOR, 1/16W, 560KΩ
RESISTOR, 1/16W, 33KΩ
RESISTOR, 1/16W, 3.3Ω
RESISTOR, 1/16W, 5.6KΩ
RESISTOR, 1/8W, 0.47Ω
RESISTOR, 1/16W, 110KΩ
RESISTOR, 1/16W, 36.5KΩ
RESISTOR, 1/16W, 150KΩ
RESISTOR, 1/8W, 0.1Ω
RESISTOR, 1/8W, 0.15Ω
RESISTOR, 1/16W, 162KΩ
RESISTOR, 1/16W, 16.9KΩ
RESISTOR, 0.068Ω
RESISTOR, 1/16W, 2.2Ω
RESISTOR, 1/16W, 30KΩ
JUMPER
RESISTOR, 1/16W, 40.2KΩ
2
2
4
2
2
1
1
1
1
1
3
1
1
1
2
1
1
1
1
R 651, 656
R 658
R 659
R 661, 662
R 663, 664
T 1, 2
X1
X2
X3
X5
X6
X7
ZA 1, 2, 7
ZA 3, 4
ERJ2RKF6981X
ERJ2RKF1691X
ERJ2RKF1433X
ERJ2GEJ392X
ERJ2GEJ4R7X
G5BYC0000015
H0J143500058
H0J327200115
H0J250500076
H2D800400015
H0J245500083
H0J240500033
K1YGZZ000060
K1YGZZ000065
RESISTOR, 1/16W, 6.98KΩ
RESISTOR, 1/16W, 1.69KΩ
RESISTOR, 1/16W, 143KΩ
RESISTOR, 1/16W, 3,9KΩ
RESISTOR, 1/16W, 4.7Ω
TRANCE
OSCILLATOR, 14.318MHz
OSCILLATOR, 32.768KHz
XTAL
OSCILLATOR, 8MHz
XTAL
XTAL
SPACER
SPACER
2
1
1
2
2
2
1
1
1
1
1
1
3
2
F1G1C104A042
CAPACITOR, 16V, 0.1µF
6
F1H1H104A748
F1G1H1010005
CAPACITOR, 50V, 0.1µF
CAPACITOR, 50V, 100pF
1
10
F1G1H330A542
F1G1H102A496
F1H1A1050015
K1MY50BA0220
K1MN40B00048
K1FA209BA004
K1FB115BA014
K1FY180BA001
S K5H802300002
J0HAAC000059
K2HC103B0197
DDB5Z021G-Y
CAPACITOR, 50V, 33pF
CAPACITOR, 50V, 1000pF
CAPACITOR, 10V, 1µF
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
CONNECTOR
FUSE, 8A, 72V
FILTER
JACK
INDUCTOR
2
2
1
1
1
1
1
1
1
3
2
8
J0JCC0000186
J0JCC0000078
DDB5Z021C-Y
J0JHC0000032
S D4FB1R100015
ERJ2RKF1500X
F1G1A104A014
EZJP0V080KA
ERJ2GEJ472X
ERJ2GE0R00X
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
PROTECTOR, 1.1A
RESISTOR, 1/16W, 150Ω
CAPACITOR, 10V, 0.1µF
VARISTOR
RESISTOR, 1/16W, 4.7KΩ
RESISTOR, 1/16W, 0Ω
2
5
5
1
1
3
1
1
2
6
RESISTOR, 1/16W, 100Ω
RESISTOR, 1/16W, 220Ω
RESISTOR, 1/16W, 0Ω
1
2
2
CONNECTOR
CONNECTOR
FUSE, 10A, 72V
2
1
1
CAPACITOR, 10V, 1µF
CAPACITOR, 50V, 680pF
CAPACITOR, 16V, 0.1µF
CONNECTOR
CONNECTOR
CONNECTOR
2
2
1
1
1
1
IO PCB
C 700, 702, 718, 738,
739, 747
C 701
C 703, 704, 705, 706,
707, 708, 709, 710, 741,
C 712, 715
C 736, 737
C 740
CN 700
CN 701
CN 702
CN 703
CN 705
F 701
FL 703, 704, 705
JK 700, 701
L 700, 701, 702, 703,
704, 705, 706, 707
L 711, 712
L 713, 714, 721, 722, 723
L 715, 716, 717, 718, 719
L 720
PA 700
R 700, 701, 702
R 703
R 704
R 706, 719
R 711, 712, 713, 714,
722, 723
R 716
R 717, 718
R 720, 721
ERJ2GEJ101X
ERJ2GEJ221X
ERJ3GEY0R00V
MP PCB
CN 400, 401
CN 402
F 401
K1MN40B00048
K1KA62B00003
S K5H103300003
PAD PCB
C
C
C
CN
CN
CN
800, 804
801, 802
803
800
801
802
F1H1A1050015
F1G1H681A496
F1G1C104A042
K1MN14BA0059
K1MY04BA0104
K1MN10BA0059
D 800
IC 800
Q 800, 801
R 800
R 801, 803
R 802
R 804
R 805, 806
R 808
SW 800, 801
X 800
DED1SS355T17
C1DB00001417
B1GKCFJN0004
ERJ2GEJ224X
ERJ2GEJ822X
ERJ2GEJ273X
ERJ2GEJ105X
ERJ2GEJ222X
D1H81034A024
EVQPLDA15
H2D400400012
DIODE
IC, FLAT PAD CONTROLLER
TRANSISTOR
RESISTOR, 1/16W, 220KΩ
RESISTOR, 1/16W, 8.2KΩ
RESISTOR, 1/16W, 27KΩ
RESISTOR, 1/16W, 1MΩ
RESISTOR, 1/16W, 2.2KΩ
RESISTOR ARRAY
SWITCH
OSCILLATOR, 4MHz
1
1
2
1
2
1
1
2
1
2
1
F1G1A104A014
K1MN12BA0134
K1NA09E00076
B3ACB0000207
ERJ2GEJ101X
CAPACITOR, 10V, 0.1µF
CONNECTOR
CONNECTOR
LED
RESISTOR, 1/16W, 100Ω
1
1
1
1
1
EEFCX0J121R
EEFCX0J121R
K1KA14BA0014
K1FY104BA024
B0KB00000044
B0KB00000044
J0MAB0000116
J0MAB0000116
DDB5Z031J-L
CAPACITOR
CAPACITOR
CONNECTOR
CONNECTOR, USB
DIODE
DIODE
INDUCTOR
INDUCTOR
INDUCTOR
1
2
1
3
1
2
1
2
6
K1MN10AA0058
B3ABB0000210
B3ADB0000065
B3AGB0000040
CONNECTOR
DIODE
DIODE
DIODE
1
5
1
1
K1QZA1AE0001
K1QZB1AA0023
CONNECTOR
COAXIAL CONNECTOR
2
1
K1KY42B00001
K1KY10B00009
K1KY10BA0084
CONNECTOR
CONNECTOR
CONNECTOR
1
1
1
CAPACITOR, 25V, 4700pF
CAPACITOR, 50V, 680pF
CAPACITOR, 16V, 0.1µF
CAPACITOR, 25V, 0.022µF
CAPACITOR, 50V, 1000pF
CAPACITOR, 6.3V, 4.7µF
CAPACITOR, 6.3V, 0.22µF
CAPACITOR, 6.3V, 10µF
CONNECTER
CONNECTOR
IC
IC, TOUCHPANEL CONTROLLER
TRANSISTOR
TRANSISTOR
TRANSISTOR
4
4
3
1
1
1
1
1
1
1
1
1
2
1
1
SD PCB
C
CN
CN
D
R
300
300
301
300
300
USB PCB
C
C
CN
CN
D
D
L
L
L
100
101, 102
100
101, 102, 103
100
101, 102
100
101, 102
103, 104, 105, 106,
107, 108
LED PCB
LED
PC
CN
D
D
D
901
901, 902, 905, 906, 907
903
904
EXT. ANTENNA PCB
CN 1, 2
CN 3
HDD BATTERY FPC
CN 4
CN 5
CN 7
TOUCH PANEL CONTROLLER PCB
C 200, 201, 202, 203
C 204, 205, 206, 207
C 208, 211, 212
C 209
C 210
C 213
C 214
C 216
CN 200
CN 201
IC 200
IC 202
Q 200, 201
Q 202
Q 203
F1G1E472A062
F1G1H681A496
F1G1C104A042
F1G1E223A062
F1G1H102A496
F1J0J475A009
F1G0J224A001
F1J0J106A013
K1MN04BA0071
K1KA06BA0014
C0EBE0000460
C1CB00002515
XP0431400L
UNR9113J0L
UNR9213J0L
R 200, 206
R 203, 205, 207, 209, 210,
211, 212, 217, 220, 221,
222, 223
R 208
R 213, 214, 215, 216
R 218
R 226
R 227, 228
R 229
X 200
ERJ2GEJ473X
ERJ2GEJ102X
RESISTOR, 1/16W, 47KΩ
RESISTOR, 1/16W, 1KΩ
2
12
ERJ2GEJ273X
ERJ2GEJ822X
ERJ2GEJ512X
DEARA8AJ473M
ERJ2GEJ270X
ERJ2GEJ152X
H2D600400005
RESISTOR, 1/16W, 27KΩ
RESISTOR, 1/16W, 8.2KΩ
RESISTOR, 1/16W, 5.1KΩ
RESISTOR ARRAY
RESISTOR, 1/16W, 27Ω
RESISTOR, 1/16W, 1.5KΩ
OSCILLATOR, 6MHz
1
4
1
1
2
1
1
F1J0J106A016
F1G1C104A042
F1G1H102A496
F1G1E103A062
F1G1H270A542
F1G1HR50A543
K1MN10BA0070
C0JBAZ002422
N5HZZ0000056
C0EBE0000460
C0JBAC000382
K1QZA1AE0001
J0JJC0000015
G1C5N6ZA0029
J0MAB0000200
B1GBCFNN0042
B1DHDC000028
ERJ2GEJ103X
CAPACITOR, 6.3V, 10µF
CAPACITOR, 16V, 0.1µF
CAPACITOR, 50V, 1000pF
CAPACITOR, 25V, 0.01µF
CAPACITOR, 50V, 27pF
CAPACITOR, 50V, 0.5pF
CONNECTOR
IC, FET SWITCH
BLUETOOTH MODULE
IC
IC, LOGIC
CONNECTOR
INDUCTOR
INCUCTOR
INDUCTOR
TRANSISTOR
TRANSISTOR
RESISTOR, 1/16W, 10KΩ
1
4
2
2
1
1
1
1
1
1
1
1
2
1
1
1
1
3
BT PCB
C1
C 2, 4, 7, 11
C 3, 5
C 6, 9
C8
C 10
CN 1
IC 1
IC 2
IC 3
IC 5
JK 1
L 1, 2
L4
L5
Q1
Q2
R 1, 2, 3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
