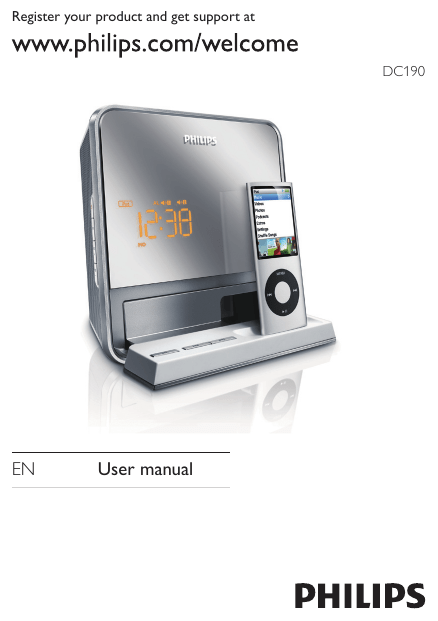

Register your product and get support at
DC190
EN User manual
English
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specified by the
manufacturer.
k Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury
from tip-over.
l Unplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
n Apparatus shall not be exposed to dripping or splashing.
o Do not place any sources of danger on the apparatus (e.g.
liquid filled objects, lighted candles).
p This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
q Where the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
Warning
••
••
••
••
••
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical equipment.
Keep this apparatus away from direct sunlight, naked flames or heat.
Ensure that you always have easy access to the power cord, plug or
adaptor to disconnect the apparatus from the power.
Notice
Any changes or modifications made to this device that are not
expressly approved by Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
When you see the crossed-out wheel bin symbol attached
to a product, it means the product is covered by the
European Directive 2002/96/EC:
Never dispose of your product with other household
waste. Please inform yourself about the local rules on the separate
collection of electrical and electronic products. The correct disposal
of your old product helps prevent potentially negative consequences
on the environment and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
2 Your Docking Entertainment
System
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod, other audio devices,
or the radio.
The radio, iPod, or buzzer can be set as the alarm timer. You can set two
alarm timers to go off at different times.
What’s in the box
Check and identify the contents of your package:
•
Main unit
•
1 x AC adaptor
•
1 x MP3 link cable
•
User manual
•
Quick start guide
Overview of the main unit
a ALARM 1/ALARM 2
•
Set the alarm timer.
•
View the alarm time.
•
Turn off the alarm tone.
b REPEAT ALARM/BRIGHTNESS CONTROL
•
Repeat the alarm.
•
Adjust the display brightness.
c
•
Turn on the unit or switch to standby mode.
d SOURCE
•
Select a source: iPod, FM tuner or MP3 link.
e PRESET +/•
Select a preset radio station.
•
Adjust time.
f Display panel
•
Show current status.
g Dock compartment
h
•
i
•
•
Start or pause iPod play.
/
Skip to the previous/next audio file.
Search within an audio file.
j TUNING +/•
Tune to a radio station.
•
Adjust time.
k TIME SET/AUTO SCAN
•
Set the clock.
•
Scan radio stations.
l WAKE TO iPod/RADIO/BUZZ
•
Select alarm mode.
m MP3-LINK
•
Jack for an external audio device.
n DC IN
•
Power supply socket.
o iPod dock
•
Load an iPod player.
p VOL +/•
Adjust volume.
•
Adjust time.
q SLEEP
•
Set the sleep timer.
3 Get started
Caution
•• Use of controls or adjustments or performance of procedures other
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number
of this apparatus. The model number and serial number are on the
bottom of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Connect power
Caution
•• Risk of product damage! Ensure that the power voltage corresponds
to the voltage printed on the back or underside of the apparatus.
•• Risk of electric shock! When you unplug the AC adaptor, always pull
the plug from the socket. Never pull the cord.
•• Before connecting the AC adaptor, ensure you have completed all
other connections.
Note
•• The type plate is located on the bottom of the main unit.
1
Connect one end of the AC adaptor to the DC IN socket on
the main unit.
2
Connect the other end of the AC adaptor to the wall outlet.
Set clock
1
2
3
4
5
6
7
In standby mode, press and hold TIME SET/AUTO SCAN for
2 seconds.
»» The hour digits begin to blink.
Press TUNING +/- to set the hour.
Press TIME SET/AUTO SCAN.
»» The minute digits begin to blink.
Press TUNING +/- to set the minute.
Press TIME SET/AUTO SCAN to confirm.
»» The week day digits begin to blink.
Press TUNING +/- to set the week day.
Press TIME SET/AUTO SCAN to confirm.
Turn on
1
Press .
»» The unit switches to the last selected source.
Switch to standby
1
Press
again to switch the unit to standby mode.
»» The clock (if set) appears on the display panel.
Adjust volume
1
During play, press VOL +/- to increase/decrease the volume.
4 Play
Play from iPod
You can enjoy audio from iPod through this unit.
Compatible iPod
Apple iPod models with a 30-pin dock connector:
•
iPod classic, iPod touch, iPod nano, iPod 5th generation (video),
iPod with color display, iPod mini.
Load the iPod
1
Push to open the dock compartment.
2
Place the iPod in the dock.
Remove the iPod
1
Pull the iPod out of the dock.
Listen to the iPod
1
2
Ensure that the iPod is loaded correctly.
Press SOURCE repeatedly to select iPod source.
»» The connected iPod plays automatically.
.
•
To pause/resume play, press
/
.
•
To skip to a track, press
/
•
To search during play, press and hold
release to resume normal play.
, then
Charge the iPod
When the unit is connected to power, the docked iPod begins to
charge.
Play from an external device
You can also listen to an external audio device through this unit.
1 Press SOURCE repeatedly to select MP3 link source.
2 Connect the supplied MP3 link cable to:
•
the MP3-LINK jack (3.5mm) on the back of the unit.
•
the headphone jack on an external device.
3 Start to play the device (see the device user manual).
5 Listen to radio
Note
•• Only FM radio reception is available on this unit.
Tune to a radio station
Tip
•• Position the antenna as far as possible from TV, VCR or other
radiation source.
•• For optimal reception, fully extend and adjust the position of the antenna.
1
2
Press SOURCE repeatedly to select FM tuner.
Press and hold TUNING +/- for more than 2 seconds.
»» The radio tunes to a station with strong reception
automatically.
3
Repeat step 2 to tune to more stations.
•
To tune to a weak station, press TUNING +/- repeatedly
until you find optimal reception.
Program radio stations automatically
You can program a maximum of 20 preset radio stations.
1 In the tuner mode, press and hold TIME SET/AUTO SCAN for
more than 2 seconds to activate automatic program mode.
»» All available stations are programmed in the order of
waveband reception strength.
»» The first programmed radio station is broadcast automatically.
Program radio stations manually
You can program a maximum of 20 preset radio stations.
1 Tune to a radio station.
2 Press TIME SET/AUTO SCAN to activate the program mode.
»» The preset number begins to blink.
3
4
5
Press PRESET +/- to select a number.
Press TIME SET/AUTO SCAN to confirm.
Repeat the above steps to program other stations.
Note
•• To overwrite a programmed station, store another station in its
place.
Select a preset radio station
1
Press PRESET +/- to select a preset number.
6 Other features
Set the alarm timer
You can set two alarms which go off at different time.
1 Ensure that you have set the clock correctly.
2 Press and hold ALARM 1 or ALARM 2 for 2 seconds.
or
and hour digits begin to blink.
»»
3
4
5
6
7
Press TUNING +/- repeatedly to set the hour.
Press ALARM 1 or ALARM 2 to confirm.
or
and minute digits begin to blink.
»»
Repeat steps 3-4 to set the minute.
Repeat steps 3-4 to select whether to ring alarm on weekdays
or at weekend.
»» “L XX(volume level)” begins to blink.
Repeat steps 3-4 to set the maximum alarm volume.
Set alarm mode
1
Adjust the WAKE TO iPod/RADIO/BUZZ control to select
the source for the alarm.
»» When the alarm time comes, the selected iPod, radio or
buzzer turns on.
Tip
•• If iPod source is selected but no iPod is loaded, the buzzer is selected
automatically.
Activate and deactivate the alarm timer
1
Press ALARM 1 or ALARM 2 repeatedly to activate the timer.
or
is displayed.
»» If the timer is activated,
•
To deactivate the alarm time, press ALARM 1 or
is displayed.
ALARM 2 repeatedly until
or
disappears.
»» If the timer is deactivated,
Repeat alarm
1
When the alarm rings, press REPEAT ALARM/BRIGHTNESS
CONTROL.
»» The alarm repeats ringing minutes later.
Tip
•• You can press TUNING+/- to adjust interval to repeat alarm.
Stop alarm ring
1
When the alarm rings, press the corresponding ALARM 1or
ALARM 2.
»» The alarm stops but the alarm settings remain.
View the alarm settings
1
Press ALARM 1orALARM 2.
Set the sleep timer
This unit can switch to standby automatically after a set period of time.
1 Press SLEEP repeatedly to select a set period of time (in minutes).
»» When the sleep timer is activated, the display shows .
Tip
•• When the sleep timer is activated, the volume will gradually
decrease.
To deactivate sleep timer
1 Press SLEEP repeatedly until [OFF] (off ) is displayed.
disappears on the
»» When the sleep timer is deactivated,
display.
Adjust display brightness
1
Press BRIGHTNESS CONTROL repeatedly to select different
levels of display brightness.
7 Product information
Note
•• Product information is subject to change without prior notice.
Specifications
Amplifier
Rated Output Power
2X1.5 W RMS
Signal to Noise Ratio
>55 dB
MP3 Link
0.6 V RMS 10 kohm
Tuner
FM
Tuning Range
87.5 - 108 MHz
Tuning grid
50 KHz
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
<22 dBu
<45 dBu
Search Selectivity
<28 dBu
Total Harmonic Distortion
<3%
Signal to Noise Ratio
>45 dB
General information
AC power (power adaptor)
Input: 100-240V~, 50/60Hz,
1.3A;
0.5A; Output: 6.5V
Brand name: Philips;
Model No.: AS100-065-AB130
Operation Power Consumption
<5W
Standby Power Consumption
<2W
Dimensions
- Main Unit (W x H x D)
144 x 144 x 62 mm
Weight
- Main Unit
0.44 kg
8 Troubleshooting
Warning
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome). When
you contact Philips, ensure that the apparatus is nearby and the model
number and serial number are available.
No power
••
Ensure that the AC power plug of the unit is connected
properly.
••
Ensure that there is power at the AC outlet.
No sound
••
Adjust the volume.
No response from the unit
••
Disconnect and reconnect the AC power plug, then turn on
the unit again.
Poor radio reception
••
Increase the distance between the unit and your TV or VCR.
••
Fully extend the FM antenna.
Timer does not work
••
Set the clock correctly.
••
Switch on the timer.
Clock/timer setting erased
••
Power has been interrupted or the power plug has been
disconnected.
••
Reset the clock/timer.
部件名称
Name of the
Parts
有毒有害物质或元素
Hazardous/toxic Substance
铅
六价铬
多溴 多溴二
汞 (Hg,
镉 (Cd,
(Pb,
(Chromium 联苯
苯醚
Mercury) cadmium)
Lead)
6+)
(PBB) (PBDE)
Housing
外壳
O
O
O
O
O
O
PWBs
电路板组件
X
O
O
O
O
O
Accessories
(Remote
control &
cables) 附件
(遥控器,
电源线,
连接线)
X
O
O
O
O
O
O: 表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T11363 - 2006 标准规定的限量要求以下。
O: Indicates that this toxic or hazardous substance contained
in all of the homogeneous materials for this part is below
the limit requirement in SJ/T11363 - 2006.
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含
量超出 SJ/T11363 – 2006 标准规定的限量要求。
X: Indicates that this toxic or hazardous substance contained
in at least one of the homogeneous materials used for this
part is above the limit requirement in SJ/T11363 – 2006.
环保使用期限 Environmental Protection Use Period
此标识指期限(十年),电子信息产品含有的有毒有害物质或元
素在正常使用的条件下不会发生外泄或突变,用户使用该电子信
息产品不会对环境造成严重污染或对其人身、财产造成严重损害
的期限。
This logo refers to the period (10 years) during which the toxic
or hazardous substances or elements contained in electronic
information products will not leak or mutate so that the use of
these [substances or elements] will not result in any severe
environmental pollution, any bodily injury or damage to any
assets.
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
DC190_93_UM_V1.2
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
