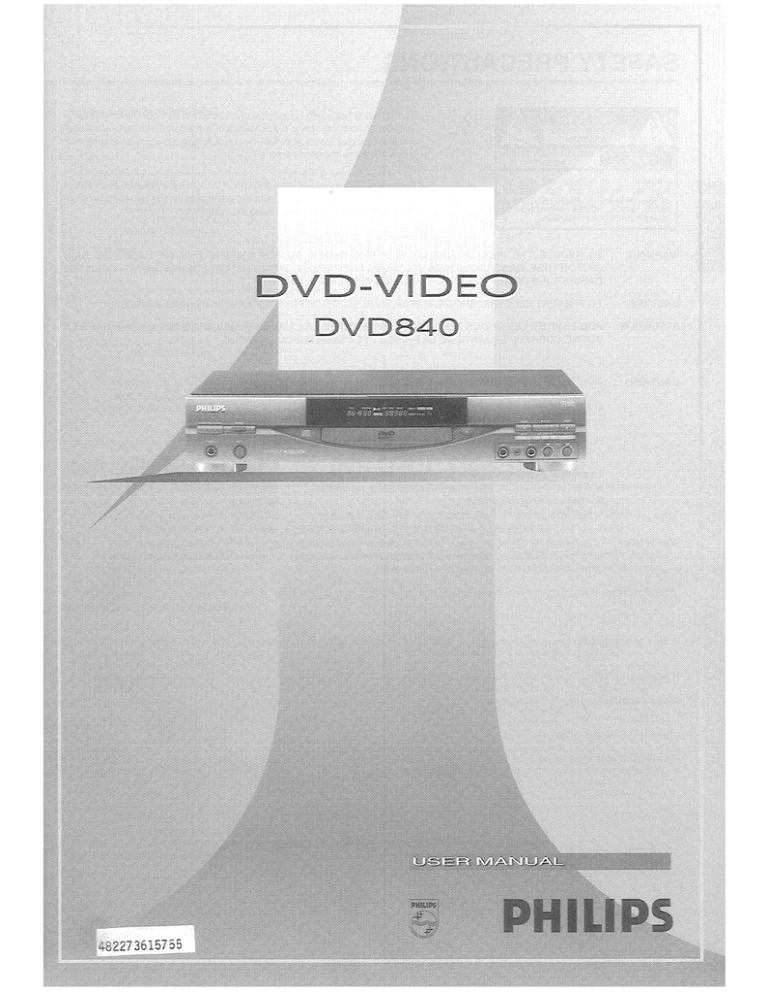

Philips DVD840 User manual

Philips DVD840 User manual
 SAFETY PRECAUTIONS
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE NE
AVIS PAS OUVRIR
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
A to the presence of important operating and maintenance (servicing) instruc-
tions in the literature accompanying the appliance.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOND.
This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain for future
reference. Should the unit require maintenance, contact an authorized service location - see service
Use of controls, adjustments or the performance of procedures other than those specified herein may result
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation when open and interlocks defeated.
WARNING:
CAUTION:
ATTENTION:
CAUTION:
procedure.
in hazardous radiation exposure.
DO NOT STARE INTO BEAM.
WARNING:
Changes or modifications made to this equipment, not expressly approved by Philips Consumer
Electronics Company, or parties authorized by Philips Consumer Electronics Company, could void
the user's authority to operate the equipment.
In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.
Model No.
Serial No.
Retain this information for future reference.
Location of the required label
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
DISTRIBUTED BY:
PHILIPS CONSUMER
ELECTRONICS CO.
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND
THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard.
The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing.
This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL ONLY.
1.
Read owners manual CNN
After unpacking this product, read - Aa
the owner's manual carefully, and NG - 9
follow all the operating and other
instructions. =
Power Sources
This product should be operated
only from the type of power source
indicated on the marking label. If
you are not sure of the type of
power supply to your home, con-
sult your product dealer or local
power company. For products in-
tended to operate from battery power, or other sources, refer
to the operating instructions.
3. Ventilation
Slots and openings in the cabinet
are provided for ventilation and to
ensure reliable operation of the
product and to protect it from over-
heating. These openings must not
be blocked or covered. The open-
ings should never be blocked by
placing the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper venti-
lation is provided or the manufacturer's instructions have
been adhered to.
2 uN
IMPORTANT SAFETY INSTRUCTIONS
. Heat
The product should be situated
away from heat sources such as
radiators, heat registers, stoves,
or other products (including am-
plifiers) that produce heat.
. Water and Moisture
Do not use this product near wa-
ter - for example, near a bath tub,
wash bowl, kitchen sink, or laun-
dry tub; in a wet basement; or
near a swimming pool and the
like.
. Cleaning
Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol clean-
ers. Use a damp cloth for cleaning.
Power-Cord Protection
Power-supply cords should be
routed so that they are not likely to
be walked on or pinched by items
placed upon or againstthem, pay-
ing particular attention to cords at
plugs, convenience receptacles,
and the point where they exit from
the product.
. Overloading
Do not overload wall outlets,
extension cords, or integral con-
venience receptacles as this can
result in a risk of fire or electric
shock.
Lightning
Foradded protection for this prod-
uct during a storm, or when it is
left unattended and unused for
long periods of time, unplug it
from the wall outlet. This will pre-
vent damage to the product due
to lightning and power-line
surges.
10.
11.
12.
13.
14.Burden
Object and Liquid Entry
Never push objects of any kind into
this product through openings as
they may touch dangerous voltage
points or short-out parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the
product.
Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
Accessories
Do not place this product on an
unstable cart, stand, tripod,
bracket, or table. The product may
fall, causing serious injury to a
child or adult, and serious damage
to the product. Use only withacart,
stand, tripod, bracket, or table rec-
ommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer's
instructions, and should use a mounting accessory recom-
mended by the manufacturer.
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.
S3125A
Disc Tray
Keep your fingers well clear of the
disc tray as it is closing. It may
cause serious personal injury.
Do not place a heavy object on
the product or step on it. The
object may fall, causing serious
personal injury and serious dam-
age to the product.
15.
16.
17.
18.
19.
Headphones
When you use the headphones,
keep the volume at a moderate
level. If you use the headphones
continuously at a high volume,
it may cause hearing damage.
Disc
Do not use a cracked, de- © >
formed, or repaired disc. These NAS /, À "e
discs are easily broken and € Th. ©
may cause serious personal 7
injury and product malfunction.
Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the
product.
C) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to its normal operation.
e) Ifthe product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in per-
formance - this indicates a need for service.
Servicing
Do not attempt to service this prod-
uct yourself as opening or
removing covers may expose you
to dangerous voltage or other haz-
ards. Refer all servicing to qualified
service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
20. Safety Check
Upon completion of any service or
repairs to this product, ask the
service technician to perform
safety checks to determine that
the product is in proper operating
condition.
4 um
Introduction )
Notes on Handling
When shipping the DVD video player, the original shipping
carton and packing materials come in handy. For maximum
protection, repack the unit as it was originally packed at the
factory.
Do not use volatile liquids, such as insect spray, near the
DVD video player. Do not leave rubber or plastic products
in contact with the DVD video player for a long time. They
will leave marks on the cabinet.
The top and rear panels of the DVD video player may
become warm after a long period of use. This is not a
malfunction.
When the DVD video player is not in use, be sure to
remove the disc and turn off the power.
If you do not use the DVD video player for a long time, the
unit may not function properly in the future. Use the DVD
video player occasionally.
Notes on Location
When you place this DVD video player near a TV, radio, or
video cassette recorder (VTR), the playback picture may
become poor and the sound may be distorted. In this case,
place the DVD video player away from the TV, radio, or
VTR.
Notes on Cleaning
Use a soft, dry cloth for cleaning.
@ For stubborn dirt, soak the cloth in a weak detergent
solution, wring the cloth well, and wipe the unit. Use a dry
cloth to wipe it dry.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the DVD
video player.
O If you use a chemical saturated cloth to clean the unit,
follow that product’s instructions.
To Obtain a Clear Picture
The DVD video player is a high technology, precision device.
If the optical pick-up lens and disc drive parts are dirty or worn
down, the picture quality becomes poor. To obtain a clear
picture, we recommend regular inspection and maintenance
(cleaning or parts replacement) every 1,000 hours of use
depending on the operating environment. For details, contact
your nearest dealer.
Notes on Moisture Condensation
Moisture condensation damages the DVD video
player. Please read the following carefully.
Moisture condensation occurs, for example, when you pour a
cold drink into a glass on a warm day. Drops of water form on
the outside of the glass. In the same way, moisture may
condense on the optical pick-up lens inside this unit, one of
the most crucial internal parts of the DVD video player.
examples of moistura
condensation #
Optical
Ae 9? pick-up lens
M Moisture condensation occurs during the
following cases.
@ When you bring the DVD video player directly from a cold
place to a warm place.
@ When you use the DVD video player in a room where you
just turned on the heater, or a place where the cold wind
from the air conditioner directly hits the unit.
O In summer, when you use the DVD video player in a hot
and humid place just after you move the unit from an air
conditioned room.
O When you use the DVD video player in a humid place.
= It's too
(warms
—
E Do not use the DVD video player when moisture
condensation may occur.
If you use the DVD video player in such a situation, it may
damage discs and internal parts. Remove the disc, connect
the power cord of the DVD video player to the wall outlet,
turn on the DVD video player, and leave it on for two or
three hours. After two or three hours, the DVD video player
will have warmed up and evaporated any moisture. Keep
the DVD video player connected to the wall outlet and
moisture condensation will seldom occur.
Introduction )
Introduction
EH SAFETY PRECAUTIONS 1 E Identification of Controls ..................—.—.. 7-10
H IMPORTANT SAFETY Front Panel/Rear Panel/DVD Display
Remote Control
INSTRUCTIONS coo 2-4 Preparing the Remote Control
NM Precautions coven eee 5 Operating with the Remote Control
Connections
EM Connectingtoa TV oii, 11 B Connecting to Optional Equipment ... 13, 14
№ Connecting to an Audio System ..................... 12 Enjoying Dolby Digital (AC-3) Sound
Basic Playback
Enjoying MPEG 2 Sound
Enjoying Dolby Pro Logic Surround Sound
Enjoying Two-channel Digital Stereo Sound
EH Playing a Disc res 15-18
Basic Playback
- Using the Shuttle Ring
Using the Jog Dial
Resuming Playback from the Same Location
Advanced Playback
NM Locating a Specific Title, Chapter,
OF Track cuir eee 19, 20
Locating a Title Using the Title Menu
Locating a Title
Locating a Specific Chapter or Track Directly
Locating a Specific Chapter or Track
Locating a Specific Location on the Disc
EM Playing Repeatedly ................................. 21
Repeating a Title, Chapter, or Track
Repeating a Specific Segment
E Playing in a Favorite Order ..................... 22
Setting Titles, Chapters, or Tracks in a Favorite Order
E Playing in Random Order ..................—... 23
Playing Titles in Random Order
Playing Chapters or Tracks in Random Order
E Zooming a Picture .................—— e... 24
Zooming a Picture
Function Setup
EI Selecting the Camera Angle/Selecting a Language ..... 25
№ Selecting Subtitles 26
E Playing Karaoke. nen 27
№ Using the On-Screen Display .................. 29
Changing the Camera Angle
Selecting a Playback Audio Setting
Displaying Subtitles
Selecting a Subtitle Language
Playing Karaoke
Various Function Setting
Checking the Operational Status
Checking the Remaining Time and Setting Status
B Customizing the Settings ................... 30-36
Displaying the SET UP MENU Screen
Setting the Audio Sound
Setting the Functions
Setting the Displays
M Setting the Parental Lock.................. 37, 38
EM Operating Other Equipment with the
Remote Control ................... eee... 39, 40
Setting the Parental Lock
Programming the Remote Control
Brand Code Table
Buttons to Operate
Others Ш Table of Languages ……....……........….….….….….….…. 41
BM Notes on DISCS over 42 BE VIEMO coon. 45
Ш Before Calling Service Personnel ........... 43
EH Specifications... 44
6 EN
mu /
Introduction )
See the page number inside the [> for details.
Front Panel/Rear Panel/DVD Display
— POWER ON / STANDBY indicator [15
— POWER ON / STANDBY button [15 >
- REPEAT button [21)
r— Disc tray 15)
DVD display
— PREVI (Previous) button
— KEY CONTROL buttons [27
an PAUSE button
~— PLAY button [15
STOP button
A (Open/Close) button 15>—
LEVEL knob [11 >
\ PHONES jack 11)
MIC CONTROL jack (27) ——
NEXT button (20) —
- S VIDEO OUT jack [11 >[12)
: VIDEO OUT jack [11 Y[12 [13 [14 >
—— ANALOG AUDIO OUT 2 (UR) jacks [12 )[14
AUDIO OUT I
PCMAC-3 DIGITAL
© ©
a
ANALOG AUDIO OUT 1 (L/R) jacks 11)—
PCM/AC-3 DIGITAL
AUDIO OUT jack 13914) ——
Power cord
VIDEO CD/Audio CD indicator
Operating status indicator
Title number indicator
MEMORY indicator
SHUFFLE indicator
р PBC indicator
» 11 т TOTAL REMAIN
Aa
Dvb 2.6 68 des)
Angle icon indicator
|
TITLE CHP/TRACK
п IC NU OCT >
Le LAIA EA LI
|
Chapter/track number indicator
DVD indicator
J
M The indicators vary depending on the kinds of discs you play.
DVD Video discs
* When closing the disc tray:
Example
a DVD
Total number of titles
Some DVD video discs may not display
the total number of titles.
VIDEO CDs
* When closing the disc tray:
Example
CHP/TRACK VCD TOTAL
de 0630 |
|
Total number of | Lights up when using
tracks a PBC-controllable
VIDEO CD
Total playing time of the disc
“— Repeat playback mode indicators
Total playing time/remaining time/elapsed time indicators
Audio CDs
* When closing the disc tray:
Example
CHPITRACK CD TOTAL
TER
Total number of Total playing
tracks time of the disc
* During playback:
Example
TITLE CHPITRACK
a 2 INN
E =, DVD PEL DIE
—_— —
Elapsed time
of the current
title
Some DVD video discs may not display
Playing chapter 3
in title 2
the chapter numbers or elapsed time.
Hl Other indicators
When playing back the
same title, chapter or
RESET track repeatedly. 21>
When playback is
Il paused.
During random
playback. (23)
During playback:
Example
CHP/TRACK VCD
С n nr m Ч
=
Playing track 6 Elapsed time of
the current track
Some VIDEO CDs may not display the
track numbers or elapsed time.
When playing back a
specific segment
REPEAT] A-B
During memory
playback. [22>
repeatedly. (A-B repeat)
* During playback:
Example
CHPITRACK > cD
1
=
3
C3
cs
Fu
[E ыы
Elapsed time of
Playing track 6
the current track
When playing back the
entire disc repeatedly.
ALL 21
When the camera angle
can be changed. 25)
REPEAT
5
Introduction )
The instructions in this manual describe the functions on the remote control.
| See the page number inside the [> for details.
Remote Control
POWER button 15)
ZOOM button
MENU button
__— A/W/</} (Direction) buttons
ENTER button
» (Play) button 15)
DI (Next) button
TV CH (+/-) buttons
| JOG/PAUSE button 16 (17)
TITLE button
RETURN/CLEAR button (21) [32)> ——
ld (Previous) button
M (Stop) / EJECT button
TV VOL (+/-) buttons
Jog Dial (17)
Shuttle Ring 17)
и Number buttons
T-C button 19) A | [2] 3|
ANGLE button [25 4 | |5 | |6 |
SUBTITLE button
[7 | [8 | |9 |
SETUP button re [|[ 0] [+0]]]- RESUME button
SETUP ANGLE SUBTITLE AUDIO RESUME
Q Г AUDIO button 25)
KARAOKE button 27)
Г SHUFFLE button 23)
KARAOKE ON/OFF button 27)
MEMORY button 22)
KARAOKE VOCAL button ||
REPEAT A-B button 21)
KARAOKE MODE button
*MENU button
Use the MENU button to display the menu screen included on DVD video discs. To operate a menu screen, follow the
instructions in “Locating a Title Using the Title Menu” .
AN REPEAT button (21 >
Ш | KARAOKE MELODY button
Preparing the Remote Control
Insert the batteries into the remote control so you can use it to
operate the DVD video player.
Open the cover.
Make sure to match the + and — on the
batteries to the marks inside the battery
compartment.
Close the cover.
Improper use of batteries may cause battery leakage and corrosion.
To operate the remote control correctly, follow the instructions below.
e Do not insert the batteries into the remote control in the wrong
direction (follow the +/— signs).
* Do not charge, heat, open, or short-circuit the batteries. Do not
throw the batteries into a fire.
* Do not leave dead or exhausted batteries in the remote control.
* Do not use different types of batteries together, or mix old and new
batteries.
* |f you do not use the remote control for a long period of time,
remove the batteries to avoid possible damage from battery
corrosion.
* |f the remote control does not function correctly or if the operating
range becomes reduced, replace all batteries with new ones.
* |f battery leakage occurs, wipe the battery liquid from the battery
compartment, then insert new batteries.
Operating with the Remote Control
This section shows you how to use the remote control.
Point the remote control at the
remote sensor and press the
buttons.
RC |
PE I= 7” JE ==
o ú 02000
o
AN
30° | 30°
Within about seven meters
Distance: About seven meters from the
front of the remote sensor
Angle: About 30° in each direction of
the front of the remote sensor
* Do not expose the remote sensor of the
DVD video player to a strong light source
such as direct sunlight or illumination. If
you do so, you may not be able to
operate the DVD video player with the
remote control.
* Point the remote control at the remote sensor of the DVD video
player.
* Do not drop the remote control.
* Do not leave the remote control near an extremely hot or humid
place.
* Do not spill water into or put anything wet on the remote control.
* Do not open the remote control.
10 mm
Connections ) For details of output sound, see [45) .
Connect the DVD video player to your TV.
ConnectingtoaTV
Ш Setting of the sound output
From the on-screen displays, set “AUDIO OUT SEL.” to “ANALOG/PCM.” 3D
To wall outlet
Ce?
To S VIDEO E
[7 ) Signal flow OUT
ОВ А
=
ç Audio/video cable (supplied) To audio input jack
| o audio input jacks
To S video input jack
S video cable (supplied)
If the TV has an S video input, connect the DVD video
player with the supplied S video cable. When using the S TV or monitor with
video cable, there is no need to connect the yellow video audio/video input jacks
cable.
| * Set your TV to accept
Auxiliary (Line) input.
If your TV has an RF (Antenna In) jack only, use an RF See your TV owners manual
modulator (not supplied) to connect the DVD player to
your TV.
* Refer to the owners manual of the connected TV as well.
* When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet before
making any connections.
* If your television set has one audio input, use a Y cable adapter (not supplied) to connect to your TV.
* Connect the DVD video player directly to your TV. If you connect the DVD video player to a video cassette recorder (VTR), or TV/VTR
combination or video selector, the playback picture will be distorted because DVD video discs are copy protected.
Headphones connection
Connect headphones that have a stereo large
size connector.
Before connecting, temporarily lower the sound
volume, then adjust the volume.
LEVEL
.
. -
- .
. >
- lo
Down Up
mm 77
Connections ) For details of output sound, see (45).
You can listen to the sound of the discs in stereo.
Connecting to an Audio System
H Setting of the sound output
From the on-screen displays, set “AUDIO OUT SEL.” to “ANALOG/PCM.” BD
To wall outlet
No
dr)
To S VIDEO OUT J
Signal flow
To audio input jacks “or o
of the amplifier (red)
O
ooloT
a
—
jm
Au
To video input jack (yellow)
mc
To S video input jack
EXE
If the TV has an S video input, connect the
DVD video player with the supplied S video
cable. When using the S video cable, there
is no need to connect the yellow video
cable.
dio system
TV or monitor with
a video input jack
» Set your amplifier to receive
Auxiliary (Line) input.
See your audio system’s
owners manual for details.
* Set your TV to accept
Auxiliary (Line) input.
See your TV owners manual
for details.
* Refer to the owner's manual of the connected equipment (TV, audio system) as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall
outlet before making any connections.
* |f you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD video
player away from the tuner and radio.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening
level. Otherwise, the speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power on, the
speakers may be damaged.
72 un
Connections )
Digital Stereo.
Enjoying Dolby Digital (AC-3) Sound
For details of output sound, see [45).
You can enjoy the high quality dynamic sound of Dolby Digital (AC-3), Dolby Pro Logic, MPEG 2 and 2 Channel
Enjoying MPEG 2 Sound |
Dolby Digital (AC-3)
Dolby Digital is the surround sound technology used in movie
theaters; it is now available in the home. You can enjoy motion
picture and live concert DVD video discs with this dynamic
MPEG 2 sound
You can enjoy motion picture and live concert DVD video discs
With this dynamic realistic sound by connecting a six- or eight-
channel amplifier equipped with an MPEG 2 audio decoder or
realistic sound by connecting the DVD video player to a six- MPEG 2 audio processor.
channel amplifier equipped with a Dolby Digital (AC-3) decoder
or Dolby Digital (AC-3) processor. If you have a Dolby Pro Logic
Surround decoder, you will obtain the full benefit of Pro Logic и
from the same DVD movies that provide full 5.1-channel Dolby 1
Digital soundtracks, as well as from titles with the Dolby Bo
Surround mark. mio peu
SL ©
Camu I
& To PCM/AC-3 DIGITAL
Вт To VIDEO OuTÉ
fu /0EO OUT O MIAC-3 DIGIT TAL |
5 y © ED Signal flow
y AUDIO OUT
Video cable 75 Q coaxial cable
A To PCM/AC-3 DIGITAL -
To VIDEO OUT : a AUDIO OUT Connection To COAXIAL type в
Е) Signal flow example digital audio input
. (MPEG 2 audio 5 Amplifier equipped
Video cable 75 Q coaxial cable 7.1ch playback) o = O | with an MPEG 2
Ces CS © 0 OJ gudio decoder
Connection : To COAXIAL type \ \
digital audio input
example 8! Р Front speaker (left) Front speaker (right)
Amplifier equipped
with a Dolby Digital С
enter Center
(AC-3) decoder speaker speaker
1 - (left) (right)
To video = 7 || |
Front speaker i of TV Front speaker = =
(left) (right) = = =
Ни — — — = = = vx
<= \ (=> S
FE — = Ny
Sub woofer
Sub woofer
conter speaker speaker
Rear speaker ==" => Rear speaker
“>> Rear speaker
(left surround) (right surround)
€, (right surround) ua = = Ww,
7
» Center speakers (left/right) are not used for MPEG 2 5.1ch
sound playback.
Rear speaker —>
(left surround)
Y =
E Setting of the sound output
* From the on-screen displays, set the “AUDIO OUT
SEL.” to “MPEG/AC-3.”
* Set the sound recording system to “AC—3” on the
audio setting indication. [25>
E Setting of the sound output
* From the on-screen displays, set the “AUDIO
OUT SEL.” to “MPEG/AC-3”.
* Set the sound recording system to “MPEG” an
| Karaoke [27) is not available with this connection. | the audio setting indication. [25)
Manufactured under license from Dolby Laboratories Licensing Karaok is n vailable with thi nnection )
Corporation. “Dolby” “AC-37 “Pro Logic,” and the double-D symbol | агаоке 27) $ not available S CO ction.
are trademarks of Dolby Laboratories Licensing Corporation.
DO NOT connect the PCM/AC-3 DIGITAL AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Dolby Digital Receiver. This input on your A/V
Receiver is reserved for Laserdisc use only and is incompatible with the PCM/AC-3 DIGITAL AUDIO OUT jack of the DVD video player.
* Connect the PCM/AC-3 DIGITAL AUDIO OUT jack of the DVD video player to the “DIGITAL or “COAXIAL input of a Dolby Digital Receiver or Processor.
* Connect the speakers according to the instructions in the owner's manual for the speaker system.
* Refer to the owners manual of the connected equipment as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making
any connections.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level. Otherwise, the
speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the DVD video players power cord. If you leave the amplifier power on, the speakers may be damaged.
= 73
Warning
Do not set “AUDIO OUT SEL” to “MPEG/AC—3” via the on-screen displays (31) unless you are connecting (via the PCM/AC-3 DIGITAL
AUDIO OUT jack) an AV decoder that has the Dolby Digital (AC-3) decoding function. High volume sound may damage your hearing as well as
the speakers.
Enjoying Dolby Pro Logic Surround Sound Enjoying Two-channel Digital Stereo Sound
Dolby Pro Logic Surround Two-channel Digital Stereo
You can enjoy Dolby Pro Logic Surround sound by connecting You can enjoy Two-channel Digital Stereo sound by
an amplifier and speaker system (right and left front speakers, a connecting an amplifier equipped with a digital audio input
center speaker, and one or two rear speakers).
and speaker system (right and left front speakers).
=» With an amplifier equipped with Dolby Digital (AC-3),
connect the equipment the same way as described in
“Enjoying Dolby Digital (AC-3) Sound” [13). Refer to that —
amplifiers owners manual and set the amplifier so you can L
enjoy Dolby Pro Logic Surround sound. 00
a With an amplifier not equipped with Dolby Digital (AC-3), || | | 60 00.0
connect the equipment as follows. mue
po Ï
To VIDEO OUT To PCM/AC-3
a DIGITAL AUDIO
PD signal flow OUT
pa - Video cable
ee 1 75 Q coaxial cable
To VIDEO OUT 1 To ANALOG
=) Signal flow y AUDIO OUT 2 Ц
Video cable Audio cable Connection )
example To digital aud
y To digital audio input
(Connection в 9 ню Ара
example Amplifier with a
a . .
Amplifier equipped with se 00000 — — J digital audio input
| Dolby Pro Logic Surround
A To video input
To video input of TV y of TV
| TV |
Front =a => Front Front speaker =) — —~"Front speaker
speaker ==" speaker (left) = = (right)
(left) = <= (right) v— ~~
= = == =
—
Center speaker e ©
== Connect one or two rear N 7
== speakers.
The output sound from the
Rear speaker "ear speakers will be
monaural even if you |
« connect two rear speakers. EM Set “AUDIO OUT SEL.” to “ANALOG/PCM” via the
on-screen displays. 31)
| ( Karaoke 27) is not available with this connection. )
H Set ‘AUDIO OUT SEL.” to “ANALOG/PCM?” ма the
on-screen displays. ED,
“Notes
* Connect the speakers according to the instructions in the owner's manual for the speaker system.
* Refer to the owners manual of the connected equipment as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making
any connections.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level. Otherwise, the
speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power on, the speakers may be
damaged.
74 um
Basic Playback )
indicator
CAUTION
Keep your fingers well clear of the disc tray as it is
closing. It may cause serious personal injury.
POWER ON / STANDBY
DVD display IIPAUSE
This section shows you how to play a disc. 1
Basic Playback
HB Preparations
* When you want to play DVD video discs or VIDEO CDs, turn on the TV and put the TV in Auxiliary (Line) input mode.
* When you want to enj
Auxiliary input.
* For connection details, see “Connections.” [11) —
* Set the playback picture size according to the picture tube shape or aspect ratio of the connected TV via the on-screen
displays. 35)
oy the sound of a disc from the audio system, turn on the audio system and set the amplifier to receive
* |f you do not have the necessary equipment to enjoy Dolby Digital (AC-3) sound, set “AUDIO OUT SEL.” to “ANALOG/PCM”
via the on-screen displays. ED
POWER ON / STANDBY
Press POWER ON / STANDBY
on the front panel.
The DVD video player turns on and the POWER ON /
STANDBY indicator on the player lights.
Press 4 on the front panel
(or hold down B/EJECT on the remote control
for longer than one second).
The disc tray opens.
Place the disc in the
disc tray.
With the label facingup — — 2
——
* There are two different disc sizes. Place the
disc in the correct guide in the disc tray. If the
disc is out of the guide, it may damage the
disc and cause the DVD video player to
malfunction.
* Do not place anything except DVD video discs,
VIDEO CDs, or audio CDs in the disc tray.
D> PLAY
Press PLAY (>).
The disc tray closes and playback starts.
If you insert a DVD video disc that contains a title menu, or
insert a PBC (Playback Control)-controllable VIDEO CD, a
menu screen may appear. See “To start playback from the
menu screen.” D
To start playback of a PBC-controllable VIDEO CD from the
menu screen, set “PBC” to “ON” via the on-screen displays.
30) 133)
* For PBC (Playback Control) of VIDEO CDs,
see “On VIDEO CD.”
* You may need to press the TITLE or MENU
button on the remote control to display the
menu screen, depending on the disc.
* Do not move the DVD video player during playback. Doing so may damage the disc.
* Use the № /EJECT button on the remote control or the Æ button on the DVD video player to open and close the disc tray. Do not push the disc
tray while it is moving. Doing so may cause the DVD video player to malfunction.
* Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.
E 75
TITLE
A/Y/4/>—— 1950)
4 a P——— ENTER
E M/EJECT
LE JOG/PAUSE
MENU
a
E To obtain a higher quality picture
Occasionally, some picture noise may appear on the TV screen
while playing back a DVD video disc because the high resolution
pictures on these discs include a lot of information. While the
amount of noise depends on the TV, you should reduce the
sharpness adjustment on your TV from the position you usually
set for normal broadcasts.
About DVD VCD» CD)
The 2» ve» ED symbols on the heading bars in this manual show
the playable discs for the function described under that heading.
DVD : You can use this function with DVD video discs.
MD : You can use this function with VIDEO CDs.
¿ED? : You can use this function with audio CDs.
To start playback from the menu screen
1 Press A/Y/</ » or the number buttons to
select the title you want.
Example
TITLE 2:. »
2 Press ENTER. (You do not have to press
ENTER to start playback if you use the
number buttons at step 1.)
ZN The DVD video player starts playback
from the selected title.
* When not using the menu screen of a PBC-
controllable VIDEO CD, set “PBC” to “OFF” via the
on-screen displays. 33)
To stop playback
EJECT
Press HB /EJECT.
The DVD video player returns to chapter
1 or track 1.
To pause playback (still playback)
JOG/PAUSE
Press JOG/PAUSE during
playback.
To resume normal playback, press the
» button.
* The sound is muted during still
playback.
To remove the disc
EJECT
Hold down M/EJECT (for longer
than one second) until the disc
tray opens.
E
— 2)
—
Remove the disc after the disc tray
opens completely.
* Be sure to press the M/EJECT button
for longer than one second to close the
disc tray after you remove the disc.
In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your
television set, permanently etching that image onto its screen. To avoid this, be sure to press the IM /EJECT button once the movie is completed.
This owner's manual explains the basic instructions of this DVD video player. Some DVD video discs are produced in a
manner that allows specific or limited operation during playback. As such, the DVD video player may not respond to all
operating commands. Refer to the instruction notes of discs.
“ 4 ” may appear on the TV screen during operation. A white “ # ” means that the operation is not permitted by the DVD
video player; a red “ # ” means the operation is not permitted by the DVD video disc.
16 mm
M
Basic Playback )
; from the location where you stopped playback.
DVD) vcD> CD
Using the Shuttle Ring
You can play discs at various speeds by turning the Shuttle
Ring.
JOG/PAUSE Press and hold JOG/PAUSE during
playback.
The JOG/PAUSE button lights and the
playback pauses.
Turn the Shuttle Ring.
The playback speed can be controlled by
the extent of the wheel rotation.
To finish operating the Shuttle Ring
JOG/PAUSE
Press JOG/PAUSE again to turn it off.
Notes
* The playback speed may differ depending on the disc.
* |f you slow down the playback speed of a DVD video disc by turning
the ring leftward, the DVD video player performs reverse frame
playback. The reverse frame playback may advance more rapidly
than a forward frame playback.
mu 77
| >
— JOG/PAUSE
Jog Dial
Shuttle Ring
Slow- Fast reverse Frame by Resume
Motion Fast forward frame
== ml nll ml
You can play discs at various speeds, then resume normal playback
= >
a, не
roca sanan DDT
DVD» VCD
Using the Jog Dial
You can advance/reverse a disc frame-by-frame using the Jog
Dial.
JOG/PAUSE Press and hold JOG/PAUSE during
playback.
The JOG/PAUSE button lights and the
playback pauses.
Turn the Jog Dial.
Rightward: To advance the picture frame-
by-frame.
Leftward: To reverse the picture frame-
by-frame.
To finish operating the Jog Dial
JOG/PAUSE
Press JOG/PAUSE again to turn it off.
» The sound is muted during frame-by-frame playback.
* The reverse frame playback may advance more rapidly than a
forward frame playback.
UT a
Resuming Playback from the Same Location
You can stop playback and resume playback later from the
same location on the disc.
EJECT Press M /EJECT at the location
where you want to interrupt
playback.
The DVD video player memorizes the
location where you stopped playback.
RESUME Press RESUME.
© The DVD video player resumes playback
from the location where you stopped
playback.
The playback resuming function is canceled when:
— you turn the power off by pressing the POWER ON / STANDBY
button on the front panel (the POWER ON / STANDBY indicator
turns off), or you unplug the DVD video player from the wall outlet
after you stop playback.
— you eject the disc.
— you adjust/change parental lock (37) or select a disc menu
language setting
* There may be a difference of the location where playback resumes
depending on the disc.
785 um
Basic Playback )
<— DVD video disc -
Title 1 >| < Title 2
Chapter 1 Chapter 2| Chapter 1 Chapter2 Chapter 3
} ! - ] - — | —
T . : - т E
DVD
Locating a Title Using the Title Menu
If a DVD video disc contains a title menu, you can locate a
specific title using the title menu.
TITLE Press TITLE.
The title menu appears on the TV screen.
Example of a title menu
TITLE2. >
Press A/ Y / «< /» to select the title
you want.
If the titles in the title menu are assigned a
number, you can directly locate a specific
title by pressing its assigned number with
the number buttons.
ENTER Press ENTER.
The DVD video player starts playback from
chapter 1 of the selected title.
(You may not need to press ENTER if you
use the number buttons at step 2.)
* The instructions above describe the basic procedure. The procedure
varies depending on the contents of the DVD video disc. If different
instructions appear on the TV screen, follow those instructions.
* If you display the title menu during playback and press the TITLE
button again without selecting any title, the DVD video player may
resume playback from the point where you first pressed the TITLE
button. If it does not, press Pp to resume playback.
m 79
< VIDEO CD/Audio CD >
Track 1 Track 2 Track 3 Track 4 Track 5
| | | | |
мл >|) Ам | Ам)
Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO
CDs and Audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.
DVD |
Locating a Title
You can locate a specific title by entering a title number.
Press T-C.
Make sure that the space next to TITLE is
highlighted.
Example
TITLE ME
Press the corresponding humber
(6) buttons for the title you want.
Le]
Lo] Example: To select title 2, press
HEE |
To select title 12, press
CE USE
CD Press >.
The DVD video player starts playback from
chapter 1 of the selected title.
* You can shift the highlight between TITLE and CHAPTER by
pressing the 4/ Y buttons.
* To clear the TITLE and CHAPTER display, press the T-C button
repeatediy.
* You can select a preferred language for on-screen displays. 35>
TITLE
RETURN/CLEAR — —
4 — — — —
A/V/</>
ENTER
— P|
|
Number buttons
If you know the chapter or track number you want to play, you
can locate it directly.
Press T-C.
Skip steps I and 2 if you are using a
VIDEO CD or an audio CD.
Example: DVD video disc
TITLE: MM
CHAPTER: 1
Press Y to highlight the space next
to CHAPTER.
00
©
Example: DVD video disc
TITLE: 1
CHAPTER:
[=]
>
+
[3] B
Press the corresponding number
buttons of the chapter or track you
want.
+]
e]
You can use the button to select
numbers from 10 through 99.
Example: To select chapter or track 25,
press Co
DVD video disc VIDEO CD/Audio CD
> L2J>[5] TITLE
OR
LE: 1
CHAPTER:
+ [2] 5) [5]
TRACK :
Press >.
The DVD video player starts playback from
the selected chapter or track.
To select a title and chapter number at the same time
Example: To select chapter 25 in title 2, press
= [2] > Су) + [2] > [5] <>
Title number Chapter number
TITLE: 2
CHAPTER: BEE
Note
To clear the TITLE and CHAPTER display, press the T-C button
repeatedly.
Locating a Specific Chapter or Track
You can fast forward or reverse through consecutive chapters
or tracks.
Press 4 or Pl repeatedly to
advance or reverse to the chapter
or track number you want.
©
©
The DVD video player starts playback from
the selected chapter or track.
4 : To locate preceding chapters or tracks
When you press the I button, the DVD
video player starts playback from the
beginning of the current chapter or track.
When you press the Ik button twice, the
DVD video player starts playback from
the beginning of the preceding chapter
or track.
DI: To locate succeeding chapters or tracks
Some titles may not display the chapter number.
Locating a Specific Location on the Disc
You can locate a specific location by entering the time (hours,
minutes, seconds).
Press T-C twice.
—
TIME HE
Press the number buttons to enter
the time.
Example [1]+[2]+[5]+[3]+[0]
SELL
[<I]
TIME IZA ECIO)
Press >.
The DVD video player starts playback from
the specified location.
Some discs may not respond to this feature.
20 um
Advanced Playback )
(Title repeat, chapter/track repeat, A-B repeat)
Repeating a Title, Chapter, or Track
You can play the same title, chapter, or track repeatedly.
(Title, chapter/track repeat)
Begin playback of the title, chapter
or track you want to repeat.
Press REPEAT.
Each time you press the REPEAT button,
the repeat mode changes as follows.
* DVD video disc
CHAPTER REPEAT
Repeats the same
chapter.
al
+
TITLE REPEAT
Repeats the same title.
Y
REPEAT OFF
Resumes normal
playback.
mm rm zeói y
* VIDEO CD/Audio CD
TRACK REPEAT Repeats the same
M track.
+
ALL REPEAT
Repeats the entire
disc.
+
REPEAT OFF
Resumes normal
playback.
L J
You can play a specific title, chapter, track, or segment repeatedly.
To resume normal playback
RETURN
Hold down RETURN/CLEAR for longer than
QE one second.
RETURN/CLEAR
REPEAT A-B
REPEAT
———
DVD> VCD> CD
Repeating a Specific Segment
You can play a specific segment repeatedly.
(A-B repeat)
REPEAT During playback, press REPEAT A-B
at the beginning of the segment
| (point A) you want to play
repeatedly.
А-
ВЕРЕАТ Press REPEAT A-B again at the end
of the segment (point B).
The DVD video player automatically
returns to point A and starts repeat
playback of the selected segment (A-B).
To resume normal playback
RETURN
Hold down RETURN/CLEAR for longer than
one second.
CLEAR
* You can specify a segment only within the current title.
* You cannot set the A-B repeat function for a segment that includes
multiple camera angles.
* There may be a slight difference between point A and the location
where playback actually resumes, depending on the disc.
Advanced Playback )
и
А/М / «< / >
- 3
TITLE : 2 TITRE: 2 -
CHARTER: 25 CHARTER : 125 #
= goes | 8 | CE RETURN/CLEAR
= la o
2
You can combine your favorite titles, chapters, or tracks and play them DE
in any order. You can program up to 30 items into the memory. (Memory Ce . 1
playback)
Setting Titles, Chapters, or Tracks in a Favorite Order
The DVD video player automatically plays titles, chapters, or tracks in the order you program.
MEMORY While playback is stopped, insert a
disc and press MEMORY.
The following menu appears.
E] MEMORY SEL. +
T--C--
T--C--
с h ON —
© © 0 0
gere 2
T: Title number C: Chapter number
MEMORY SEL. #
1 T02C25 6 T--C--
2 T02C12 7
3 TO1C--—- 8
4 9
5 0
To select another chapter in the same title,
you do not need to select the title number.
Press » while the MEMORY menu
appears on the TV screen.
Enter the items you want, in order, The DVD video player starts memory
[6] by pressing the number buttons, playback.
[9] then ENTER for each item.
9] Each time you press the </ » button, .
+ the -- indication next to T and C is To change the programmed items
ENTER highlighted in turn. Highlight the -- 1 While the MEMORY menu appears on the TV screen,
O indication next to T (to select a title) or C press 4/ Y to move the highlighted bar to the item
(to select a chapter), then press the you want to change.
number buttons. |
2 Change the item following the instructions at step 2.
Example: To play chapter 25 in title 2, chapter
12 in title 2, all the chapters in title 1,
and chapter 2 in title 4. To cancel the programmed items
Titl b Ch b
| 1 6 pate mm 1 While the MEMORY menu appears on the TV screen,
Memory 1 ©O-21-0)~-21-E1-O) press A/V to move the highlighted bar to the item
Вий you want to cancel.
Memory € Le] O 2 Hold down the RETURN/CLEAR button for longer than
Memory 3 0-0 HR O one second.
Memory 4 (@)—[2 Na To resume normal playback from memory
© A ® + O playback
To select tracks from a VIDEO CD/Audio CD in
order, press the number buttons for the track, RETURN Hold down RETURN/CLEAR for longer than
then press the ENTER button for each item you one second
want. CLEAR The MEMORY indicator disappears.
Notes
* |f you press the MEMORY button during memory playback, the programmed items will be displayed.
* You cannot select title, chapter, and track numbers not included on the disc.
* If you press the MEMORY button while the MEMORY menu appears on the TV screen, the MEMORY menu disappears.
The programmed items will be cleared when:
— you turn off the DVD video player, or
— you remove the disc.
22 uN
Advanced Playback )
TE
E Y Sí 2
CHAPTER : 2
РЯ
РЯ
| |
I
(Random playback)
DVD
Playing Titles in Random Order
The DVD video player automatically selects the titles in a DVD
video disc and plays them randomly.
You can play titles, chapters within a title, or tracks in randon order.
SHUFFLE Press SHUFFLE twice while
playback is stopped.
TITLE SHUFFLE
If you press the SHUFFLE button during
playback, the DVD video player
automatically starts random playback after
finishing the current title.
Press >.
The DVD video player starts random
playback.
Press the » button within about five
seconds after you press the SHUFFLE
button.
To resume normal playback
RETUAN
Hold down RETURN/CLEAR for longer than
CE one second.
You cannot use the random playback function and the memory
playback function at the same time.
m 23
RETURN/CLEAR
Number buttons
T-C
SHUFFLE
7 DVD> ‚VCD> CD
Playing Chapters or Tracks in Random Order
The DVD video player automatically selects chapters within a
title, or tracks on a VIDEO CD/Audio CD, and plays them
randomly.
Press T-C, then press the
appropriate number buttons for the
title which contains the chapters
you want to play in random order.
Skip this step if you are using a VIDEO CD/
Audio CD.
Example: To play the chapters in title 2 in
random order, press
eE
del
elle]
3) e) e)
* DVD video disc
> TITLE:
CHAPTER: 1
SHUFFLE Press SHUFFLE while playback is
stopped.
* DVD video disc
CHAPTER SHUFFLE
TITLE: 2
CHAPTER: 1
* VIDEO CD/Audio CD
TRACK SHUFFLE
TRACK:
If you press the SHUFFLE button during
playback, the DVD video player
automatically starts random playback after
finishing the current chapter or track.
Press >.
The DVD video player starts random
playback.
Press the Pp button within about five
seconds after you press the SHUFFLE
button.
To resume normal playback
RETURN
Hold down RETURN/CLEAR for longer than
E one second.
If you press the DI button during random playback, the DVD video
player goes to another chapter or track and starts playback.
Advanced Playback )
RETURN/CLEAR
OO amm
—
You can magnify areas within a picture.
DVD
Zooming a Picture
You can zoom a picture. You can shift the zoom point as well.
Press ZOOM during playback. | To resume normal playback
The DVD video player magnifies the
center of the ture. Press ZOOM during zoom playback.
ZOOM
If you press the 4/ Y /</ buttons
® during zoom playback, the zoom point
shifts.
If the zoom point reaches the limit, the
color of “ZOOM” changes.
If you hold down the RETURN/CLEAR
button for longer than one second, the
zoom point returns to the center of the
picture.
90
* During still playback, the ZOOM button cannot turn the zoom on or off.
* Zooming does not work on the sub-pictures such as subtitles or menu screens included on DVD video discs.
24 um
Advanced Playback )
Selecting the
camera angle
ANGLE : 1
Selecting a
language
DVD
Changing the Camera Angle
If the scene was recorded from multiple angles, you can easily
change the camera angle of the scene you are watching.
ANGLE Press ANGLE while playing a scene
© recorded from multiple angles.
Press the ANGLE button while the angle
icon in the DVD display is flashing. ( )
ANGLE
Current angle
number appears
Press ANGLE or A while the angle
number appears on the TV screen.
Each time you press the ANGLE or A
button, the camera angle changes.
ANGLE
y
ANGLE
}
ANGLE
}
|
V : Cycles backwards
* You can change the camera angle
directly by pressing the number buttons
for the angle number.
* Holding down the RETURN/CLEAR
button for longer than one second clears
the angle number indication.
* You can change the camera angle during still playback. The camera
angle changes to the new setting when you resume normal
playback.
* While playing back a title that contains at least one scene recorded
from multiple angles, the angle icon indicator flashes in the DVD
display.
* To make the angle icon appear on-screen, see pages [33) - .
Bonjour!
A preferred angle can be selected from several angles.
A preferred language can be selected from several languages.
A/V
ANGLE : 3— +
e > о вое
7 7
— - RETURN/
sesos | DS E E } CLEAR
5 ¡Buenos días! | ANGLE
AUDIO
Selecting a Playback Audio Setting
You can easily select a preferred language and sound
recording system from those included on the DVD video disc.
AUDIO Press AUDIO during playback.
O AUDIO 1 ENG PCM 20H — Current audio
. setting
Audio , | appears for
channel | about three
Recording seconds
system
Language
Position number
The abbreviation of the language appears
instead of the language name. Refer to
the list of languages and their
abbreviations.
Press AUDIO or A while the audio
setting appears on the TV screen.
Each time you press the AUDIO or A
button, the audio settings included on the
DVD video disc change.
Example
AUDIO 1 ENG PCM 2CH
}
AUDIO 2 FRE AC-3 6CH
|
AUDIO 3 SPA PCM 2CH
:
|
* Y: Cycles backwards
* Holding down the RETURN/CLEAR
button for longer than one second clears
the audio setting indication.
About recording systems
This DVD video player uses the Dolby Digital (AC-3), MPEG 2
and PCM recording systems and cannot play DVD video discs
recorded in any other recording system.
AC-3 5.1 Channel is displayed as “AC-3 ECH.”
When you turn on the DVD video player or replace a disc, the player
returns to the initial default setting. (31>
When you select a sound which is not included on the disc, the DVD
video player plays a prior sound programmed on the disc.
Advanced Playback )
language.
DVD
Displaying Subtitles
You can display subtitles from those included on the DVD
video disc.
SUBTITLE Hold down SUBTITLE for longer
than one second during playback.
SUBTITLE 1 ENG ON — Appears for
about three
seconds
Good morning! Subtitles
To turn off the subtitles
SUBTLE Hold down SUBTITLE for longer than one
second.
The subtitles disappear.
SUBTITLE 1 ENG OFF — Appears for
about three
seconds
* Some DVD video discs are set to display subtitles automatically, and
you cannot turn them off even if you set the subtitle function to off.
* During some scenes, the subtitles may not appear immediately after
you press the SUBTITLE button.
A/V
— RETURN/CLEAR
SUBTITLE
You can display subtitles on the TV screen and select a preferred subtitle
DVD
Selecting a Subtitle Language
You can easily select the subtitle language from those
included on the DVD video disc.
SUBTITLE
Press SUBTITLE during playback.
SUBTITLE 1 ENG ON
- Current subtitle
setting appears
for about three
Language
seconds
Position number
The abbreviation of the language appears
instead of the language name. Refer to the
list of languages and their
abbreviations.
SUBTITLE Press SUBTITLE or A while the
subtitle setting appears on the TV
screen.
© o с) Each time you press the SUBTITLE or A
aD button, the subtitle languages included on
the DVD video disc change.
Example
SUBTITLE 1 ENG ON
|
SUBTITLE 2 FRE ON
|
SUBTITLE 3 SPA ON
,
|
V : Cycles backwards
To turn off the subtitle setting indication
RETURN
Hold down RETURN/CLEAR for longer than
СЕ one second.
Notes
* When you turn on the DVD video player or replace a disc, the player
returns to the initial default setting.
When you select a subtitle language which is not included on the
disc, the DVD video player plays a prior language programmed on
the disc.
» During some scenes, the subtitles may not appear immediately after
you change the subtitle language by pressing the 4 / Y buttons.
26 “NI
Advanced Playback )
Microphone
You can enjoy Karaoke with one or two microphones.
H Preparations
* Connect the DVD video player to your TV using the ANALOG AUDIO OUT jacks.
DVD) VCD) CD”
Playing Karaoke
* Set “AUDIO OUT SEL.” to “ANALOG/PCM” via the on-screen displays. 31)
era Connect the microphone to MIC 1
S© or MIC 2 jack.
Me CONTROL When using a controllable microphone,
connect it to the MIC CONTROL jack.
A — KEY CONTROL—
Adjust the key.
# : To key up.
p : To key down.
A : To reset the key.
O Press KARAOKE to turn on the
KARAOKE Karaoke mode. To play karaoke using a controllable microphone
The buttons for karaoke operation on the If you connect a controllable microphone to the MIC
remote control turn available. CONTROL jack, you can use the following functions on
If you press the KARAOKE button again, the microphone.
the karaoke mode turns off and the buttons For more details, refer to the Owner's Manual of the
O Press KARAOKE ON/OFF.
ON/OFF Select the karaoke mode by pressing the
button repeatedly.
KARAOKE AUTO: The Karaoke mode is
automatically turned on only when you play a
DVD karaoke disc.
KARAOKE ON: The Karaoke mode is on
ONCE MORE
Pressing the button sends back the karaoke
song for about five seconds. This function may
turn off the superimposed lyrics.
KEY CONTROL
regardless of kinds of discs. Key can be adjusted.
KARAOKE OFF: The Karaoke mode is turned # : key up
off. b : key down
KARAOKE AUTO To finish the karaoke play
1 Press the KARAOKE ON/OFF button to select
Start playback.
“KARAOKE OFF”.
MIC 1: To adjust the volume of the microphone
KARAOKE OFF
Adjust the volume of the When a DVD karaoke disc is played to the end in the
microphone. KARAOKE AUTO mode, the karaoke mode is
automatically turned off.
connected to the MIC 1 jack. 2 Press the KARAOKE button to return to the normal
MIC 2: To adjust the volume of the microphone mode.
connected to the MIC 2 jack.
3 Disconnect the microphone from the MIC jack.
If a howl noise occurs, try as follows.
* Make the microphone away from the speaker.
* Lower the microphone volume.
* Lower the speaker volume.
E 2/7
E Functions available on this DVD video player (in the KARAOKE ON mode)
Button DVD video disc VIDEO CD/Audio CD
3 * Echo adjustment * Echo adjustment
+ MODE * Key adjustment * Key adjustment
or Sound selection of Vocal 1 and Vocal 2 Sound selection of left and right channels
O e Vocal cancel”
* Vocal change”
KARAOKE on 9
— VOCAL * Balance adjustment between Vocal 1 and Vocal 2 * Sound multiplex balance adjustment
KARAOKE O * Balance adjustment beween accompaniment and vocal
MODE MELODY |e Balance adjustment between accompaniment and melody
KARAOKE
JET MELODY *Vocal cancel: puts off only a vocal part centered in stereo-recorded sound of a VIDEO CD or an audio
@ бо е———— : KARAOKE CD. В | |
Ts *Vocal change: As you sing into the microphone, a vocal part recorded in sound-multiplex is put off and
| 7 KARAOKE 1
3 / your vocal is heard.
——] ON/OFF
Various Function Setting
Some DVD video discs are categorized as karaoke discs. In a karaoke disc, karaoke L (accompaniment for left channel), karaoke R
(accompaniment for right channel), guide melody, vocal 1 and vocal 2 are recorded. In some discs, the guide melody, vocal 1 and
vocal 2 may not be recorded.
To adjust the echo level or key:
Press KARAOKE MODE.
MODE
EH Echo adjustment EM Key adjustment
№ ECHO LEVEL 00 Adjust with <—[ ECHO LEVEL 00 Adjust with
-------------------— à >, = = = = = = — — — = — = — — — — = = = = CAD
L KEY CONTROL H «<> Ny DD > № L KEY CONTROL H CES
— | ns PA] nam
To select the sound: To adjust the balance:
O Press KARAOKE VOCAL. O Press KARAOKE MELODY.
Select the adjustment item by
VOCAL | h n ressin n lv. MELODY
Select the sound type by pressing the button repeatedly pressing the button
* The display does not show indication of the sound which is not repeatedly.
recorded. * The display does not show
| | | indication of the sound which is
m DVD video disc E VIDEO CD/Audio CD not recorded.
<= <= . .
VOCAL OFF | Los | EM DVD video disc
Vocal is not output. Stereo sound is output.
Balance adjustment between vocal
1 1 1(V1) and vocal 2 (V2)
V1 VOCAL BALANCE V2
| vocaLt. 2 | IL | 1 | ------———- poo |
Vocal 1 and Vocal 2 are Left channel sound is Adjust with © = O.
output. tput. <>
р | Cup 1 (Adjust when VOCAL 1. 3 or VOCAL
MIX is selected with the KARAOKE
| VOCAL 1 | IR VOCAL button.)
Only Vocal 1 is output. Right channel sound is Balance adjustment between
| output. 1 accompaniment and vocal
M VOCAL BALANCE 2 V |
| VOCAL2 | UE TT NU
Mixed sound of left and se
Only Vocal 2 is output. right channel is output. Adjust with © > ©.
+
Balance adjustment between
| VOCAL MIX | | VOCAL CANCEL | | accompaniment and melody
Vocal 1 and Vocal 2 is mixed Puts off the vocal part in stereo MUSIC MELODY MELODY
and output. I sound. l TT Li
Adjustwith O — O.
| VOCAL CHANGE | >
Vocal via microphone is output
from left channel. ;
I E VIDEO CD/Audio CD
Sound multiplex balance adjustment
* The vocal cancel function
. M MUSIC:VOCAL V
may not workinsome 1 =7--777—770 te
discs. ит |
* The vocal change function Adjust with O — O. 8
works with a disc recorded (Adjust when MIX is selected with
in sound-multiplex. KARAOKE VOCAL button.)
28 mu
Advanced playback ) DO
OSD
You can view information about a disc and its operational status on the
TV screen.
DVD, ven CD
Checking the Remaining Time and Setting Status
Checking the Operational Status
You can view the current title number, track number, and total You can view the elapsed time, remaining time, and setting
playing time of the disc on the TV screen. status of the disc on the TV screen.
oR Press OSD while playback is SZ Press OSD during playback.
stopped. DVD video disc
Current title number
Current chapter number
DVD video disc
Current title number
First chapter number in Example — Operational status
Example the current title | 4
; TITLE: 3- 0: 50: 45 Remaining time
TITLE: 2— STOP Operational CHAPTER: 2. 0: 10:24 in the current title
CHAPTER: 1— .10- Remaining time
CHAPTER REPEAT _|R he cumont
chapter
. _ Elapsed time of
VIDEO CD/Audio CD the current title
First track number of the disc Playback mode
Example НИЕ
Remaining time in the current title appears in
STOP 1~ Operational the DVD display.
TOTAL 0:46:30
time of the disc | Current track number
4 Co Example — Operational status
Total playing time of the disc is displayed in the Remaining
DVD display. TRACK: 3- -0:02: 0 — time in the
TRACK REPEAT Remaining time
DISC —0: 43:00 current track
ELAPSED 0:01:20
— of the disc
| Elapsed time of
the current track
Playback mode
Remaining time in the current track appears in
the DVD display.
SZ Press OSD again during playback.
When you play back a VIDEO CD/Audio CD, the
on-screen display turns off.
DVD video disc
To turn off the on-screen display
OSD
Press OSD again. Example
PLAY .
TITLE: 3 —0: 50 : 45 — Current audio
CHAPTER: 2 -0:10:24 setting
ELAPSED 0:10:15
AUDIO 1 ENG AC-3 2CH
SUBTITLE12 ENG ON—— —— Current subtitle
ANGLE 1 setting
Current angle
| setting
The abbreviation of the language (e.g. ENG)
appears instead of the language name. Refer to
the list of languages. [41)
To turn off the on-screen display
OSD
Press OSD again.
Function Setup )
| SET UP MENU |
_J1
r Г 1 | < cree 7
TED ED CD
You can change the default settings to customize performance to your
preference.
Displaying the SET UP MENU Screen
The SET UP MENU screen asks you to select a setting for AUDIO SETTING, FUNCTION and DISPLAY. You may adjust the
settings in the category using the succeeding screen.
SETUP Press SETUP while playback is stopped.
The SET UP MENU screen appears.
SET UP MENU SEL. + * The display language can be changed.
Select DISPLAY in step 2, then select SCREEN DISPLAYS to
3 AUDIO OUT SEL. change the display language [35).
D RANGE CONTROL
Press A/V to select the category (AUDIO SETTING, FUNCTION or DISPLAY), then press
ENTER. |
SET UP MENU SEL. > AUDIO SETTING SEL. «+»
AUDIO ENG .
ENTER 2 AUDIO ENTER AUDIO OUT SEL. PCM For details on the
3 AUDIO QUT SEL. D RANGE CONTROL ON
D RANGE CONTROL O AUDIO SETTING
category, see pages
31) [32)
FUNCTION SEL. «+
ENTER BLACK LEVEL NML.
TITLE STOP OFF ;
TITLE STOP PBC on | For details on the
PBC REMOTE CONFIRM. ON FUNCTION category,
REMOTE CONF | RM. OSD ON
OSD PAL: AUTO AUTO | see pages EDEN
_PAL: AUTO |
(ALE FET (ENTER
SEL. 4 E DISPLAY SEL. +
1° SCREEN DISPLAYS ENG
D ENTER TV SHAPE 16:9 ;
737 ТУ SHAPE ANGLE ICON on | For details on the
ANGLE ICON SUBTITLE ——- DISPLAY category, see
SUBTITLE DISC MENU ENG
DISC MENU pages |
= SEER à = , _ 6
Note -
E
The SET UP MENU screen disappears if you press the SETUP button while it is displayed.
30 m
Function Setup )
AUDIO
AUDIO OUT
Customizing the Settings (continued)
AUDIO SETTING
E AUDIO SETTING SEL. +
ENG To select a preferred language from those included on the disc. 25)
SEL. PCM
D RANGE CONTROL ON IT To switch MPEG/AC-3 and ANALOG/PCM. (11> 12 (13)
To turn on or off the function that makes faint sounds easier to hear,
even if you lower the volume in late hours playback.
After you select AUDIO SETTING on the SET UP MENU screen [30), adjust the categories to your preference.
Setting the Audio Sound
Press A/V to select the item, then press ENTER.
The setting screen of your selected item appears.
7
N
When AUDIO is selected:
e] AUDIO SEL.
ENGL | SH ITALIAN
FRENCH JAPANESE
SPANISH DUTCH
CHINESE KOREAN
GERMAN MALAY
DESCRIPTIVE SERVICE OFF
= ; ENTER
29
Select a preferred language by
pressing A/V/</} ,then
press ENTER.
ENTER
D
OS® =»
* Some DVD video discs contain special audio that describes the actions
on-screen for visually impaired persons. When you set DESCRIPTIVE
SERVICE to “ON” by pressing the AUDIO button, the DVD video player
automatically plays this special feature.
E AUDIO SETTING SEL, +
AUDIO ENG
AUDIO OUT SEL. PCM
D RANGE CONTROL ON
* Some DVD video discs may not include your
pre-selected language. In this case, the DVD
video player automatically plays the disc's
initial language offering.
и
(
NN
When AUDIO OUT SEL. is selected: DVD VCD) CD)
E] AUDIO OUT SEL. SEL. «$
AUDIO OUT SEL.
Select the output sound type
MPEG/AC-3 or ANALOG/PCM by
pressing < / > , then press
ENTER.
ENTER
© ©)
* Select the output sound type according to your
system connection. (11> [12) [13)
AUDIO SETTING SEL. 4
AUDIO ENG
AUDIO OUT SEL. PCM
D RANGE CONTROL ON
в
\—
Е О RANGE CONTROL SEL. «+
ON: Dynamic range is reduced.
OFF: Full dynamic range is heard.
(When D RANGE CONTROL is selected: 2%
Select ON or OFF by pressing
« / D, then press ENTER.
ENTER
ZOO»
* This function works on playback of Dolby Digital (AC-3) recorded discs.
E AUDIO SETTING SEL. «#
AUDIO ENG
AUDIO OUT SEL. PCM
D RANGE CONTROL ON
* The level of dynamic range reduction may differ depending on the
DVD video disc.
и
m 37
RETURN/ #55 ENTER
CLEAR ор СО
AUDIO
RETURN
: If you press the RETURN/CLEAR button while a menu appears on
Ss the screen, you will return to the previous menu Screen.
DVD) VC CD
SETUP Press SETUP.
The setting screen disappears.
32m
Function Setup )
(continued)
FUNCTION
FUNCT | ON SEL. % In To select the black level (contrast) of playback pictures. (for NTSC TVs only)
eL ACK LEVEL NL НГ To turn on or off the function that automatically stops playback after playing one title.
PBC on +— To use the menu screens when playing PBC-controllable VIDEO CDs.
REMOTE CONF | RM. ON +4
OSD. AUTO A E To turn on or off the confirmation beeper for each press of a remote control button.
To turn on or off the operational status display (on-screen display) on the TV screen.
To select to the video system of a disc.
Setting the Functions
After you select FUNCTION on the SET UP MENU screen (30), adjust the categories to your preference.
© a с) Press A/V to select the item, then press ENTER.
с The setting screen of your selected item appears.
+ 4 ; DVD> VCD \
ENTER When BLACK LEVEL is selected: C7 >
BLACK LEVEL SEL. «4 3
BLACK LEVEL rer Select a preferred black level by FUNCTION SEL. «
pressing < / D, then press BLACK LEVEL ML
ENTER. PBC ON
REMOTE CONFIRM. ON
OSD ON
LIGHT А ENTER PAL: AUTO AUTO
N, $
ний
NORMAL: Standard black level (contrast).
LIGHT: Brighter than in NORMAL.
\—
\—
(When TITLE STOP is selected:
TITLE STOP Select ON or OFF by pressing
TITLE STOP </ D , then press ENTER.
ENTER
SO =)
ON: Player stops playing the disc after playback of a title is completed.
\—
tl FUNCTION SEL. +
BLACK LEVEL NML.
TITLE STOP OFF
PBC ON
REMOTE CONFIRM. ON
OFF: Player continues playing the disc after playback of a title is completed.
Г When PBC is selected: °F
PBC SEL. «$» ,
a Select ON or OFF by pressing
</ D , then press ENTER.
PBC
ON: To use the menu screen when playing a PBC-controllable VIDEO CD.
OFF: When playing without using the menu screen.
* PBC is the abbreviation of Playback Control.
nm y
E FUNCTION SEL. +
BLACK LEVEL NML.
TITLE STOP OFF
PBC ON
REMOTE CONFIRM. ON
OSD ON
PAL: AUTO AUTO
m 33
a —
RETURN/
CLEAR
ENTER
RETURN
: If you press the RETURN/CLEAR button while a menu appears on
> the screen, you will return to the previous menu screen.
DVD> ‚VCD> CD)
Г When REMOTE CONFIRM. is selected: LP V2 CD )
REMOTE CONFIRM. SEL. «+
. El FUNCTION SEL. +
REMOTE CONF | BM Select ON or OFF by pressing 8 7
; BLACK LEVEL NML.
</ D , then press ENTER. TITLE STOP OFF
PBC
ENTER REMOTE CONFIRM. ON
° : © =» O PAL: AUTO AUTO
OFF
EX | TES
ON: Beeper sounds with each press of a remote control button.
« OFF: The beeper does not sound.
7
( ; >
When OSD is selected: LP > CP
OSD SEL. «# с о OFF FUNCTION SEL.
osp elect ON or by pressing
< / D>, then press ENTER. BLACK Eb “br
PBC ON
_ REMOTE CONFIRM. ON
и ENTER OSD ON
OFF ©» O) PAL: AUTO AUTO
RETURN LE serre
EX | TEED ENTER. EX | ТЕ
ON: Operational modes are displayed on-screen. (e.g. “PLAY”)
OFF: Operational modes are not displayed. |
@ ; DVD> VCD) a
When PAL:AUTO is selected: ¿> 7
PAL: AUTO SEL. # 2
FUNCTION SEL. «#
PAL: AUTO Select PAL or AUTO by pressing
BLACK LEVEL NML .
</ > , then press ENTER. TITLE STOP OFF
PBC ON
ACT, ENTER REMOTE CONF | RM. ON
So? OSD ON
PAL © ито © e PAL: AUTO AUTO
EX | TES
PAL: For PAL discs. Connect a PAL TV.
AUTO: NTSC discs and PAL discs are automatically identified.
Connect a multi-TV (compatible with PAL and NTSC).
_ A picture may be disturbed when the NTSC or PAL signal recorded is switched. В
ЗЕТОР Press SETUP.
The setting screen disappears.
34 m=
Function Setup )
DISPLAY
E DISPLAY SEL. +
SCREEN DISPLAYS ENG +
TV SHAPE 16:9 7
ANGLE ICON ON 7
SUBTITLE ——— -
DISC MENU ENG 7
disc.
To select the display language.
To select a picture size according to the aspect ratio of your TV.
TT To display the angle icon indicator on screen.
After you select DISPLAY on the SET UP MENU screen (30), adjust the categories to your preference.
To select a preferred subtitle language from those included on the DVD video
disc.
To select a preferred disc menu language from those included on the DVD video
Setting the Displays
Press A/V to select the item, then press ENTER.
The setting screen of your selected item appears.
( . в
rer When SCREEN DISPLAY is selected: "7 Ve CD
E SCREEN DISPLAYS SEL. & El DISPLAY SEL. +
Select a preferred language by SCREE S S с
: REEN DISPLAYS EN
ENGL | SH pressing A/V , then press TV SHAPE 6:9
CHINESE ENTER. ANGLE ICON ON
MALAY SUBTITLE —
a ENTER DISC MENU ENG
N 7
( i DVD >
When TV SHAPE is selected: >>”
El TV SHAPE SEL. + E DISPLAY SEL. +
Select your TV type by
TV SHAPE pressing </ P, then press SCREEN DISPLAYS ENG
ENTER. ANGLE ICON ON
4:3 SUBTITLE ---
DISC MENU ENG
NORMAL
EXI Tas:
16:9 (WIDE): — Select when a 16:9 wide TV is connected. * The displayable picture size is preset on the DVD video
4:3 (NORMAL): Select when a 4:3 normal TV is connected. disc. Therefore, the playback picture of some DVD video
discs may not conform to the picture size you select.
* When you play DVD video discs recorded in the 4:3
picture size only, the playback picture always appears in
the 4:3 picture size, regardless of the TV shape setting.
If you select 4:3 (NORMAL): PS (PAN-SCAN):
Displays pictures cropped to fill your TV
Е $ | screen. Either or both sides of the picture are
DISPLAY MODE Select PS or LB by pressing cut off.
</ >, then press ENTER. LB (LETTER BOX):
PS Displays theatrical images with masking bars
PAN-SCAN ит ENTER above and below the picture.
=
TITLE PS MENU
RETURN/ 5
CLEAR END ENTER
ANGLE HEE
[507 | SUBTITLE
4 a in a à RETURN
a. : If you press the RETURN/CLEAR button while a menu appears on
\ / oxû the screen, you will return to the previous menu screen.
DVD) VC CD
( . >
When ANGLE ICON is selected: 2%
E] ANGLE ICON SEL. «+ . El DISPLAY SEL. «+
Select ON or OFF by pressing
ANGLE ICON SCREEN DISPLAYS ENG
</P>, then press ENTER. TV SHAPE 7 46:9
ANGLE ICON ON
SUBTITLE -——
on ENTER DISC MENU ENG
OFF © O0»
EXIT
ON: The angle icon automatically appears in white on the TV screen while a
scene recorded from multiple angles is played back. When you display the
angle number on the screen by pressing the ANGLE button, the angle icon
is lit in red.
OFF: The angle icon is not displayed. |
4 в
When SUBTITLE is selected: PD
SUBTITLE SEL. «$ DISPLAY SEL. +
Select a preferred language by
ITALIAN ‘ SCREEN DISPLAYS ENG
JAPANESE pressing 4/ Y /</ D> , then TY SHAPE 16:9
DUTCH press ENTER. ANGLE ICON ON
KOREAN SUBTITLE ——
MALAY DISC MENU ENG
NO SUBTITLES © a ©» ~~
EXTENDED FEATURES OFF y O
E | ERASE
Some DVD video discs contain special subtitles, an enhancement of closed * Some DVD video discs may not include your pre-
captioning for hearing impaired persons. When you set EXTENDED FEATURES to selected language. In this case, the DVD video
“ON” by pressing the SUBTITLE button, the DVD video player automatically player automatically displays subtitles consistent
N_ displays these special subtitles. with the disc’s initial language setting. J
4 .
When DISC MENU is selected: LP
DISC MENU SEL. + | Selecta preferred language by DISPLAY SEL. $
ressing А /\ / « / then
ENGL | SH ITALIAN Р 9 >, ЗО SHAPÉ ISPLAYS ES
FRENCH JAPANESE press ENTER. ANGLE ICON ON
SPANISH DUTCH SUBTITLE _—
CHINESE KOREAN DISC MENU ENG
GERMAN MALAY © a © = O
To change the language while a disc is inserted:
1) Press the TITLE or MENU button to display the disc menu. 3) Press the SETUP button repeatedly to select the language.
2) Press the SETUP button. Refer to “Table of languages”
If the disc menu has only one language, the display does not 4) Press the ENTER button.
appear. The disc menu is displayed in the selected language.
DISC MENU:ENG
N J
SETUP Press SETUP.
© The setting screen disappears.
36 m
Function Setup )
3,4,5
la M/EJECT
\ === = NA
| LEY] —- RETURN/CLEAR
ce 2 3
al ,
You can use the parental lock function only with DVD video discs mo 1,6
equipped with the parental lock feature.
Setting the Parental Lock
DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental
lock level and the way a DVD video disc can be controlled may vary from disc to disc. For example, you can cut out violent scenes
unsuitable for children and replace them with more suitable scenes, or lock out playback of the disc altogether.
SETUP Press SETUP while playback is Ca Press </D to select “ON,” then
stopped. © DO ® press ENTER.
The SET UP MENU appears on the TV 3 The following menu appears.
screen. PARENTAL LOCK SEL. +
ENTER uE
SET UP MENU SEL. + > VIEWABLE LEVELS ment
pre EVER
2 AUDIO LEVELS
3 AUDIO OUT SEL. LEVEL4
D RANGE CONTROL LEVELS
LEVEL 1 (EERE
re
o @ Press A/V to highlight the
[9] Press 9 twice. GD parental lock level, then press
ENTER.
The following menu appears.
+ + You cannot play DVD video discs rated
PARENTAL LOCK E higher than the level you selected unless
|9 | PRESET SECURITY CODE O you cancel the parental lock function.
For example, wher: you select level 7, the
discs rated higher than level 7 are locked
out and cannot be played.
‚ PRESS [0] — [9]
PARENTAL LOCK SEL. «+
LEVELS
Press the number buttons to create LEVELS
[6] a personal four-digit security code, LEVELS
[2] then press ENTER. LEVEL:
LEVEL 1 EEE
Example
Ы
€ seee
ra
=
3
m
x
The parental lock level is equivalent to the
following USA movie ratings.
O
+ LEVEL7: NC-17 LEVEL3: PG
LEVEL6: R LEVEL 1: G
PARENTAL LOCK SEL. ++ LEVEL 4: PG 13
PARENTAL LOCK
ON
SEI Press SETUP.
The SET UP MENU disappears.
USAS
If you make a mistake before pressing the
ENTER button, press the RETURN/CLEAR
button and start over again from step 2.
m 37
+ you press the RETURN/CLEAR button while a menu appears on the screen, you will
№ return to the previous menu screen.
DVD
To change the parental lock level To cancel the parental lock function
You can change the parental lock level by following the 1 Follow steps I and 2 in “Setting the Parental Lock.”
steps in “Setting the Parental Lock.”
At step 3, press the number buttons to enter your four-
digit security code, then continue to step 4.
2 Press the number buttons to enter your four-digit
security code, then press the ENTER button.
3 Press </P to select “OFF” then press the ENTER
button.
PARENTAL LOCK SEL. «>
PARENTAL LOCK
To change your four-digit security code
You can change your four-digit security code.
1 Follow steps 7 and 2 in “Setting the Parental Lock.” The SET UP MENU appears again.
2 Press the M/EJECT button four times while the 4 Press the SETUP button.
security code menu appears on the TV screen. The SET UP MENU disappears, and the parental lock
EJECT EJECT EJECT EJECT function S cancelled.
CD + D + CD —+ HD
The four-digit security code is cleared.
3 Press the number buttons to create a new four-digit
security code, then press the ENTER button.
4 Complete steps 4 — 6 in “Setting the Parental Lock.”
DVD video discs may or may not respond to the parental lock settings.
Make sure this function works with your DVD video discs.
38 m=
Function Setup )
———— ENTER
— — JOG/PAUSE
RETURN/
CLEAR
ZZ
You can operate the basic functions of selected TVs, amplifiers and
receivers using the supplied remote control.
Programming the Remote Control Brand Code Table
You can operate other equipment with the DVD video player's
remote control.
| TV brand code
= Press and hold RETURN/CLEAR
and ENTER simultaneously until Brand name _ Brand code
AEA JOG/PAUSE lights up. Goldstar 002, 003, 017, 024, 026, 030, 032, 042, 072, 105, 164, 227,
ENTER 247, 250
Grundig 267
Panasonic 037, 041, 093, 094, 138, 149, 190, 210
| Philips 030, 040
Samsung 017, 024, 026, 032, 042, 043, 059, 105, 184, 226, 237, 253
Release RETURN/CLEAR and Sanyo 080, 086, 091, 126, 141, 211, 234, 254
ENTER Sharp 032, 062, 085, 089, 096, 136, 152, 162, 217, 222, 258, 278
‘| Sony 001, 009, 056, 075
Toshiba 029, 043, 082, 086, 088, 262
Amplifier brand code
Press the number buttons that
correspond to your equipment’s Brand name Brand code
MEE
le} le} le] [y
ee
Н | Accuphase 429
brand code (listed at right). Carver 490
Denon 411
Example: To program brand code 040 Goldstar 402
Harman/Kardon 405
press JVC 425
Kenwood 428
Lo] — > [0] Luxman 412
Marantz 420, 424
. Nakamichi 424
When you press the last digit, the JOG/ Panasonic 423
PAUSE button blinks twice, then turns off. Philips 420
Pioneer 401, 422
Sony 415
Technics 423, 434
Point the remote control at the Yamaha 408, 410, 427, 433
equipment you want to operate.
Receiver brand code
Brand name Brand code
Harman/Kardon 530, 531
Inkel 510, 517, 519, 595, 633, 637, 640, 641, 655
JVC 521, 630
Kenwood 510, 523, 556, 589, 590
Luxman 577,596, 597, 622, 623
Marantz 503, 511, 536, 557, 560, 603, 628
Onkyo 528, 535, 539, 542, 610
Panasonic 511, 588, 612
Philips 557, 677
Pioneer 544, 58?, 645, 674
Sansui 557, 558, 594, 600, 661
Sherwood 517, 519, 595, 633, 637, 640, 655, 682
Sony 545, 549, 620, 632
Technics 511, 564, 588
Techwood 580, 599, 607
Yamaha 525, 526, 551, 556, 583, 650, 691
The same brand may use different codes depending on the model. Enter the correct number, referring to the brand code table.
* For some brands, several codes are provided. Try each of them until the remote control operates your equipment.
* Some equipment may not respond to all of the functions in the table in the next page, or may not be operated at all with this remote control. In this
case, operate that equipment with its own remote control.
* If you replace the remote control's batteries, remember to reprogram the brand code.
m 39
Buttons to operate
SRR дить,
TV Amplifier Receiver
TV To mute the sound. To mute the sound. To mute the sound.
TV CH (+/-) To select channels.
To turn up or down To turn up or down To turn up or down
TV VOL (+7) the volume. the volume. the volume.
wt : mo Ea
; : o 2
; : fn a
J. a
fn, fond
ot por
~ Е :
se : 4,4
AN в
би „ ey wt we
40 un
Function Setup )
Table of Languages and Their Abbreviations
Abbreviation
Abbreviation
Abbreviation
Abbreviation
of the Language of the Language of the Language of the Language
Language Language Language Language
——— No alternate EO Esperanto LN Lingala SL Slovenian
language ET Estonian LO Laotian SM Samoan
CHI Chinese EU Basque LT Lithuanian SN Shona
DUT Dutch FA Persian LV Latvian, Lettish 50 Somali
ENG English Fl Finnish MG Malagasy SQ Albanian
FRE French FJ Fiji Mi Maori SR Serbian
GER German FO Faroese MK Macedonian SS Siswati
ITA Italian FY Frisian ML Malayalam ST Sesotho
JPN Japanese GA Irish MN Mongolian SU Sundanese
KOR Korean GD Scottish Gaelic MO Moldavian SV Swedish
MAY Malay GL Galician MR Marathi SW Swahili
SPA Spanish GN Guarani MT Maltese TA Tamil
AA Afar GU Gujarati MY Burmese TE Telugu
AB Abkhazian HA Hausa NA Nauru TG Tajik
AF Afrikaans HI Hindi NE Nepali , TH Thai
AM Amharic HR Croatian NO Norwegian TI Tigrinya
AR Arabic HU Hungarian OC Occitan TK Turkmen
AS Assamese HY Armenian OM (Afan) Oromo TL Tagalog
AY Aymara IA Interlingua OR Oriya TN Setswana
AZ Azerbaijani IE Interlingue PA Panjabi TO Tongan
BA Bashkir IK Inupiak PL Polish TR Turkish
BE Belorussian IN Indonesian PS Pashto, Pushto TS Tsonga
BG Bulgarian IS Icelandic PT Portuguese TT Tatar
BH Bihari IW Hebrew QU Quechua TW Twi
В! Bislama Ji Yiddish RM Rhaeto-Romance UK Ukrainian
BN Bengali, Bangla JW Javanese RN Kirundi UR Urdu
BO Tibetan KA Georgian RO Rumanian UZ Uzbek
BR Breton KK Kazakh RU Russian VI Vietnamese
CA Catalan KL Greenlandic RW Kinyarwanda VO Volapük
CO Corsican KM Cambodian SA Sanskrit WO Wolof
CS Czech KN Kannada SD Sindhi XH Xhosa
CY Welsh KS Kashmiri SG Sango YO Yoruba
DA Danish KU Kurdish SH Serbo-Croatian ZU Zulu
DZ Bhutani KY Kirghiz Si Singhalese
EL Greek LA Latin SK Slovak
Others )
Handling Discs
Do not touch the playback side of the disc.
Playback side
» Do not attach paper or tape to discs.
Cleaning Discs
* Fingerprints and dust on the disc cause picture and sound
deterioration. Wipe the disc from the center outward with a
soft cloth. Always keep the disc clean.
* |f you cannot wipe off the dust with a soft cloth, wipe the disc
lightly with a slightly moistened soft cloth, then dry the disc
with a dry cloth.
* Do not use any type of solvent such as thinner, benzine,
commercially available cleaners, or antistatic spray for vinyl
LPs. These may damage the disc.
Storing Dites |
Do not store discs in a place subject to direct sunlight or
heat.
Do not store discs in places subject to moisture and dust,
such as in a bathroom or near a humidifier.
* Store discs vertically in a case. Stacking or placing objects
on discs may cause warping.
About This Owner’s Manual
This owner's manual explains the basic instructions of this
DVD video player. Some DVD video discs are produced in a
manner that allows specific or limited operation during
playback. As such, the DVD video player may not respond to
all operating commands. Refer to the instruction notes of
discs.
“ 14” may appear on the TV screen during operation.
A white “ # ” means that the operation is not permitted by the
DVD video player; a red “ # ” means the operation is not
permitted by the DVD video disc.
E Notes on Copyright
This section shows you how to handle, clean, and store discs.
Playable Discs
This DVD video player can play the following discs.
Disc mark | Contents | Disc Maximum
size playback time
Approx. 4 hours
| 1 (single sided disc)
DVD Audio cm Approx. 8 hours
video Video (double sided disc)
discs DVD (moving Approx. 80 minutes
"| pictures) (single sided disc) |
8 cm Approx. 160 minutes
(double sided disc)
Approx. 74 minutes
COMPACT Audio +
. 12 cm
VIDEO О, ISE (moving
CDs pictures) | 8 ©т | Арргох. 20 minutes
: COMPACT 12 ст | Approx. 74 minutes
Audio 0 ISE Audio [gem (CD |
CDs Approx. 20 minutes
DIGITAL AUDIO single)
You cannot play discs other than those listed above.
This DVD video player uses the NTSC/PAL color system and
cannot play DVD video discs recorded in any other color
system (SECAM, etc.).
Notes on Region Numbers
The region number of this DVD video player is 3. If region
numbers, which stand for their playable area, are printed on
your DVD video disc and you do not find or , disc
playback will not be allowed by the player. (In this case, the
DVD video player displays a message.)
It is forbidden by law to copy, broadcast, show, broadcast on cable,
play in public, and rent copyrighted material without permission.
DVD video discs are copy protected, and any recordings
made from these discs will be distorted.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Type of TV system
Connect this DVD video player to a TV compatible with PAL/
3.58 NTSC system.
42
Others )
( g Service
Check the following guide for the possible cause of a problem before requesting service.
Symptoms and Correction
REPEAT A-B and SHUFFLE
buttons do not work.
mode.
mode from karaoke to normal.
Symptom Cause Correction Page
No power. The power plug is disconnected. Connect the power plug into the wall outlet | 11,12
securely.
No picture. * The TV is not set to receive DVD signal * Select the appropriate video input mode 15
output. on the TV so the picture from the DVD
video player appears on the TV screen.
* The video cable is not connected * Connect the video cable into the jacks 11, 12,
securely. securely. 13, 14
No sound. * The equipment connected with the audio | * Select the correct input mode of the 15
cable is not set to receive DVD signal audio receiver so you can listen to the
output. sound from the DVD video player.
* The audio cables are not connected * Connect the audio cable to the jacks 11, 12,
securely. securely. 13, 14
* The power of the equipment connected * Turn on the equipment connected with —
with the audio cable is turned off. the audio cable.
* The setting of output sound type is not * Set the audio setting correctly. 30, 31
correct.
The playback picture has * The disc is dirty. * Eject the disc and clean it. 42
occasional distortion. * |tis in fast forward or fast reverse * Sometimes a small amount of picture distortion —
playback. may appear. This is not a malfunction.
Brightness is unstable or * The copy protection is in effect. * Connect the DVD video player to the TV 11
noises are produced on | directly.
playback pictures.
The DVD video player does e No disc is inserted. * Insert a disc. (Check that the DVD or 8
not start playback. VCD or audio CD indicator in the DVD
display is lit.)
* An unplayable disc is inserted. * Insert a playable disc. (Check the disc 42
type and color system.)
* The disc is placed upside down. * Place the disc with the playback side 15
down (label facing up).
* The disc is not placed within the guide. * Place the disc correctly inside the guide 15
in the disc tray.
e The disc is dirty. * Clean the disc. 42
* A menu is on the TV screen. * Press the SETUP button to turn off the —
menu screen.
* The parental lock function is set. * Cancel the parental lock function or 37, 38
change the parental lock level.
Buttons do not work. Power supply fluctuations or other Turn the power on or off with the POWER —
abnormalities such as static electricity may | button. Or, disconnect the power plug and
interrupt correct operations. insert it into the wall outlet again.
The remote control does not | * The remote control is not pointed at the * Point the remote control at the remote 10
work properly. remote sensor of the DVD video player. sensor of the DVD video player.
* The remote control is too far from the * Operate the remote contro! within about 10
DVD video player. seven meters.
* The batteries in the remote control are * Replace the batteries with new ones. 10
exhausted.
The MEMORY, REPEAT, * The DVD video player is in the karaoke * Press the KARAOKE button to switch the 27
m 43
Others )
[DVD Video Player]
DVD Video Player/Outputs/Supplied Accessories
Power supply
230 V AC, 50 Hz
Power consumption
20 VA
Mass
3.6 kg
External dimensions
430 x 81 x 308 mm (W/H/D)
Signal system
PAL/3.58 NTSC
Laser
Semiconductor laser, wavelength 650 nm
Frequency range (digital audio)
DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
Audio CD : 4 Hz to 20 kHz
Signal-to-noise ratio (digital audio)
More than 108 dB
Audio dynamic range (digital audio)
More than 96 dB
Harmonic distortion (digital audio)
Less than 0.004 %
Wow and flutter
Below measurable level (less than 0.001 % (W.PEAK))
Operating conditions
Temperature: 5° C to 35° C, Operation status: Horizontal
[Outputs]
Video output
1.0 V (p-p), 75 Q, negative sync., pin jack x 1
S video output
(Y) 1.0 V (p-p), 75 Q, negative sync., Mini DIN 4-pin x 1
(C) 0.286 V (р-р), 75 ©
Audio output (digital audio)
0.5V (p-p), 75 Q, pin jack x 1
Audio output (analog audio)
2.0V (rms), 330 Q, pin jack (L, R) x 2
Headphone terminal
32 © (30mW), Impedance: more than 8 Q
[Supplied Accessories]
S video cable ...................................
Audio/video cable ......................_.......
Remote control coven.
Batteries (RO6)
* Designs and specifications are subject to change without notice.
44 um
Others )
E Discs and output sounds
DVD video discs VIDEO CDs | Audio CDs
| . Linear PCM |
Sound recording Dolby Digital MPEG 2 | MPEG 1 Linear PCM
system 48 kHz 96 kHz 44.1 kHz
; : МРЕС/ МРЕС/ МРЕС/
Audio setting on
the setting 9 MPEG/ |ANALOG/| MPEG/ |ANALOG/| AC-3or | MPEG/ |ANALOG/| AG-3or | AC-3or
screen [30) [BT AC-3 PCM AC-3 PCM ANTES AC-3 PCM ANALOG ANALOG
ANALOG AUDIO x xx
OUT jacks О О О О О О О
DIGITAL AUDIO |Dolby Digital! РСМ MPEG 2 PCM PCM PCM _ PCM PCM
OUT jack bitstream | (48 kHz) | bitstream | (48 kHz) | (48 kHz) | (48 kHz) (44.1 kHz) | (44.1 kHz)
EM On VIDEO CD
* 148 kHz processed
** 1 96 KHz processed
This DVD video player supports the VIDEO CDs equipped with the PBC (Version 2.0) function. (PBC is the
abbreviation of Playback Control.)
You can enjoy two playback variations depending on types of discs.
Type of disc
How to enjoy
(Version 1.1)
VIDEO CD not equipped with PBC function
Sound and movie can be played on this DVD video player in the
same way as an audio CD.
(Version 2.0)
VIDEO CD equipped with PBC function
In addition to operations of a VIDEO CD not equipped with the
PBC function, you can enjoy playback with interactive software
and with search function by using the menu displayed on the TV
screen (Menu Playback). Some of the functions described in this
owners manual may not work with some discs.
mm 45
Others |
482273615755
PHILIPS
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
