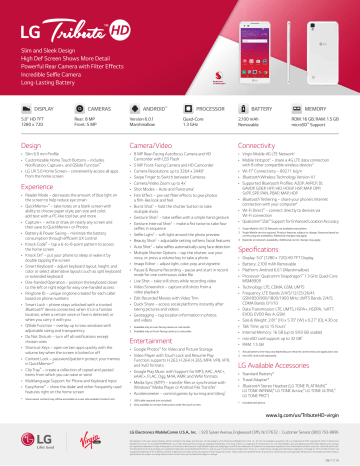

Design Experience Camera/Video Entertainment

Design Experience Camera/Video Entertainment
Slim and Sleek Design
High Def Screen Shows More Detail
Powerful Rear Camera with Filter Effects
Incredible Selfie Camera
Long-Lasting Battery
5.0" HD TFT
1280 x 720
Rear: 8 MP
Front: 5 MP
Version 6.0.1
1.3 GHz
2,100 mAh
ROM: 16 GB; RAM: 1.5 GB
microSD™ Support
• Slim 6.9 mm Profile
• Customizable Home Touch Buttons – includes
Notification, Capture+, and QSlide Function™
• LG UX 5.0 Home Screen – conveniently access all apps
from the home screen
• 8 MP Rear-Facing Autofocus Camera and HD
Camcorder with LED Flash
• 5 MP Front-Facing Camera and HD Camcorder
• Camera Resolutions: up to 3264 x 24481
• Swipe Finger to Switch between Cameras
• Camera/Video Zoom: up to 4x1
• Shot Modes – Auto and Panorama1
• Film Effect – pre-set filter effects to give photos
a film-like look and feel
• Burst Shot1 – hold the shutter button to take
multiple shots
• Gesture Shot2 – take selfies with a simple hand gesture
• Gesture Interval Shot2 – make a fist twice to take four
selfies in sequence
• Selfie Light2 – soft light around the photo preview
• Beauty Shot2 – adjustable setting softens facial features
• Auto Shot2 – take selfies automatically using face detection
• Multiple Shutter Options – tap the shutter, use your
voice, or press a volume key to take a photo
• Image Editor – adjust light, color, pop, and vignette
• Pause & Resume Recording – pause and start in record
mode for one continuous video file
• Live Shot – take still shots while recording video
• Video Screenshot – capture still shots from a
video playback
• Edit Recorded Movies with Video Trim
• Quick Share – access social platforms instantly after
taking pictures and videos
• Geotagging – tag location information in photos
and videos
• Virgin Mobile 4G LTE Network1
• Mobile Hotspot2 – share a 4G LTE data connection
with 8 other compatible wireless devices3
• Wi-Fi® Connectivity – 802.11 b/g/n
• Bluetooth Wireless Technology Version 4.1
• Supported Bluetooth Profiles: A2DP, AVRCP, DI,
• Bluetooth Tethering – share your phone’s Internet
connection with your computer2
• Wi-Fi Direct® – connect directly to devices via
Wi-Fi connection
• Qualcomm® IZat™ Support for Enhanced Location Accuracy
• Reader Mode – decreases the amount of blue light on
the screen to help reduce eye strain
• QuickMemo+® – take notes on a blank screen with
ability to choose paper style, pen size and color,
add text with a PC-like tool bar, and more
• Capture+ – write or draw on nearly any screen and
then save to QuickMemo+ or Photos
• Battery & Power Saving – minimize the battery
consumption through efficient UX control
• Knock Code® – tap a 6-to-8-point pattern to access
the home screen
• Knock On® – put your phone to sleep or wake it by
double tapping the screen
• Smart Keyboard – adjust keyboard layout, height, and
color or select alternative layouts such as split keyboard
or extended keyboard
• One-handed Operation – position the keyboard closer
to the left or right edge for easy one-handed access
• Ringtone ID – unique ringtone created for each caller
based on phone numbers
• Smart Lock – phone stays unlocked with a trusted
Bluetooth® device connected, when it’s in a familiar
location, when a certain voice or face is detected, or
when you carry it with you
• QSlide Function – overlay up to two windows with
adjustable sizing and transparency
• Do Not Disturb – turn off all notifications except
chosen ones
• Shortcut Keys – open certain apps quickly with the
volume key when the screen is locked or off
• Content Lock – password/pattern protect your memos
in QuickMemo+*
• Clip Tray ® – create a collection of copied and pasted
items from which you can save or send
• Multilanguage Support for Phone and Keyboard Input
• EasyHome™ – show the dialer and other frequently used
features right on the home screen
Some owner content may still be accessible to a user who enables Content Lock.
1 Available only on rear-facing camera or camcorder.
2 Available only on front-facing camera or camcorder.
• Google Photos™ for Video and Picture Storage
• Video Player with Touch Lock and Resume Play
Function; supports H.263, H.264, H.265, MP4, VP8, VP9,
and XviD formats
• Google Play Music with Support for MP3, AAC, AAC+,
eAAC+, FLAC, Ogg, M4A, AMR, and WAV formats
• Media Sync (MTP) – transfer files or synchronize with
Windows® Media Player or Android File Transfer1
• Accelerometer – control games by turning and tilting2
1 USB cable required (not included).
2 Only available on certain interactions with the touch screen.
1 Virgin Mobile’s 4G LTE Network not available everywhere.
2 Virgin Mobile service required. Product features subject to change. Features based on
carrier program availability. Additional charges may apply.
3 Depends on network availability. Additional carrier charges may apply.
Display: 5.0" (1280 x 720) HD TFT Display
Battery: 2,100 mAh Removable
Platform: Android 6.0.1 (Marshmallow)
Processor: Qualcomm Snapdragon™ 1.3 GHz Quad-Core
Technology: LTE, CDMA, GSM, UMTS
Frequency: LTE Bands 2/4/5/12/25/26/41;
GSM 850/900/1800/1900 MHz; UMTS Bands 2/4/5;
CDMA Bands 0/1/10
Data Transmission: LTE, UMTS, HSPA+, HSDPA, 1xRTT,
Size & Weight: 2.81" (H) x 5.70" (W) x 0.27" (D); 4.30 oz.
Talk Time: up to 15 hours1
Internal Memory: 16 GB (up to 9.93 GB usable)
microSD card support up to 32 GB2
RAM: 1.5 GB
1 Actual battery time may vary depending on network connectivity and application use.
2 microSD cards sold separately.
LG Available Accessories
• Standard Battery*
• Travel Adapter*
• Bluetooth Stereo Headset (LG TONE PLATINUM,™
Included with phone.
LG Electronics MobileComm U.S.A., Inc. | 920 Sylvan Avenue, Englewood Cliffs, NJ 07632 | Customer Service: (800) 793-8896
All materials in this spec sheet including, without limitation, the design and the text, are the property of LG Electronics MobileComm U.S.A., Inc. 4G LTE not available everywhere. LTE is a trademark of ETSI. Copyright © 2016 LG Electronics
MobileComm U.S.A., Inc. ALL RIGHTS RESERVED. LG, LG Life’s Good, and the LG logo are registered trademarks of LG Corp. Tribute is a trademark of LG Electronics, Inc. The Virgin Mobile name and signature and the Virgin Mobile name and logo
are registered trademarks of Virgin Enterprises Ltd. And used under license by Virgin Mobile. Qualcomm, Snapdragon, and IZAT are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics U.S.A., Inc. is under license. Google and Android are trademarks of Google Inc. Wi-Fi and Wi-Fi Direct are
registered trademarks of Wi-Fi Alliance. All other trademarks and trade names are property of their respective owners. Unless otherwise specified herein, all accessories referenced are sold separately. All features, functionality, and other product
specifications are subject to change without notice. Screen shots are simulated and subject to change.
