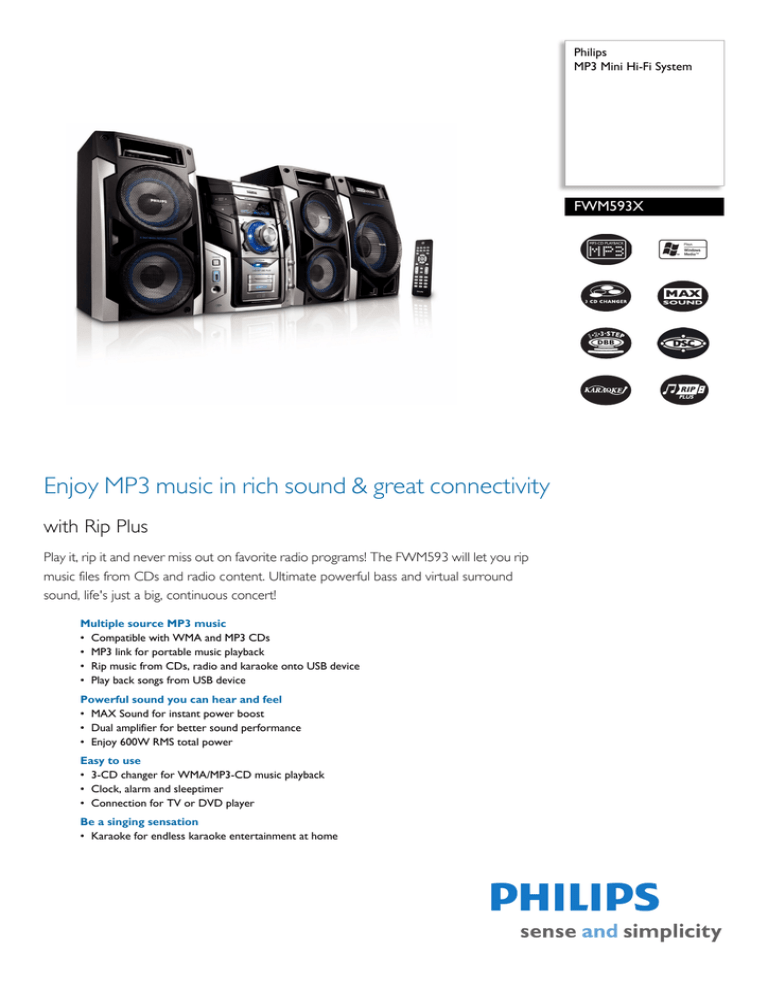

Philips
MP3 Mini Hi-Fi System
FWM593X
Enjoy MP3 music in rich sound & great connectivity
with Rip Plus
Play it, rip it and never miss out on favorite radio programs! The FWM593 will let you rip
music files from CDs and radio content. Ultimate powerful bass and virtual surround
sound, life's just a big, continuous concert!
Multiple source MP3 music
• Compatible with WMA and MP3 CDs
• MP3 link for portable music playback
• Rip music from CDs, radio and karaoke onto USB device
• Play back songs from USB device
Powerful sound you can hear and feel
• MAX Sound for instant power boost
• Dual amplifier for better sound performance
• Enjoy 600W RMS total power
Easy to use
• 3-CD changer for WMA/MP3-CD music playback
• Clock, alarm and sleeptimer
• Connection for TV or DVD player
Be a singing sensation
• Karaoke for endless karaoke entertainment at home
FWM593X/85
MP3 Mini Hi-Fi System
Specifications
Product highlights
Sound
•
•
•
•
Total Sound Power (RMS): 600 W
Output power (RMS): 4x105W/ch + 180W
Output Power: 7800W PMPO
Sound Enhancement: MAX Sound, Dynamic Bass
Boost 3 steps, Incredible Surround, Digital Sound
Control 4 modes, Virtual Ambience Control
Loudspeakers
• Number of Loudspeakers: 3
• Main Speaker: 2 x 6.5" woofer, 2" tweeter, 3 way,
Bass Reflex Speaker System
• Subwoofer driver: 8" woofer
• Subwoofer type: Passive
Audio Playback
& Play)
Connectivity
•
•
•
•
Audio Connections: RCA Aux in, 3.5mm Line in
USB: USB host
Microphone: Dual Microphone sockets
Other connections: FM Antenna, MW Antenna
Convenience
• Alarms: CD Alarm, USB alarm, Radio Alarm, Sleep
timer
• Clock: On main display
• Display Type: FTD
• Indications: DIM mode
• Karaoke: MIC volume, Echo control
• Loader Type: 3 CD Carousel
• Number of Discs: 3
• Playback Media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD
• Disc Playback Modes: 40-Track Programmable,
Repeat/one/disk/program, Shuffle Play
• USB Direct Modes: Play/Pause, Stop, Previous/
Next, Fast Backward/Fast Forward, Repeat,
Shuffle, Delete
Accessories
Audio Recording
• Set dimensions (W x H x D):
265 x 345 x 382 mm
• Main speaker dimensions (W x H x D):
225 x 430 x 275 mm
• Subwoofer dimensions (W x H x D):
274 x 430 x 340 mm
• Packaging dimensions (W x H x D):
1270 x 500 x 345 mm
• Weight incl. Packaging: 28.8 kg
• Recording Media: USB device
• USB recording modes: Instant record,
Programmed tracks, Schedule radio program,
Single disc, Single track
• USB recording sources: CD, Tuner, Microphone
in, Aux
Tuner/Reception/Transmission
•
•
•
•
Auto digital tuning
Station presets: 40
Tuner Bands: FM, MW
Tuner Enhancements: Auto Store, Easy Set (Plug
•
•
•
•
•
Remote control: 36-key with 2xAAA batteries
User Manual: Spanish
Quick start guide: Spanish
Guarantee booklet: Global version
Included Accessories: FM/MW Antenna, Batteries
for remote control, Flat pin adaptor
• Cables: MP3 line-in cable
Dimensions
Power
• Power supply: 100-240VAC, 50/60Hz
•
Issue date 2008-09-24
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 42487
EAN: 87 12581 44542 3
www.philips.com
MAX Sound
MAX Sound technology produces an instant boost in
bass, maximizing volume performance and instantly
creating the most impressive listening experience with
just the touch of a button. Its sophisticated electronic
circuitry calibrates existing sound and volume settings,
instantly boosting bass and volume to maximum levels
without distortion. The end result is a noticeable
amplifying of both sound spectrum and volume and a
potent audio boost that will add mileage to any music.
Compatible with WMA and MP3 CD
MP3 link for portable music
MP3 link allows direct playback of MP3 files from your
portable media player on your audio system. Simply
connect your portable media player to the built-in MP3
link jack on an audio system and enjoy your MP3 music
in superior sound quality.
Rip music onto USB device
