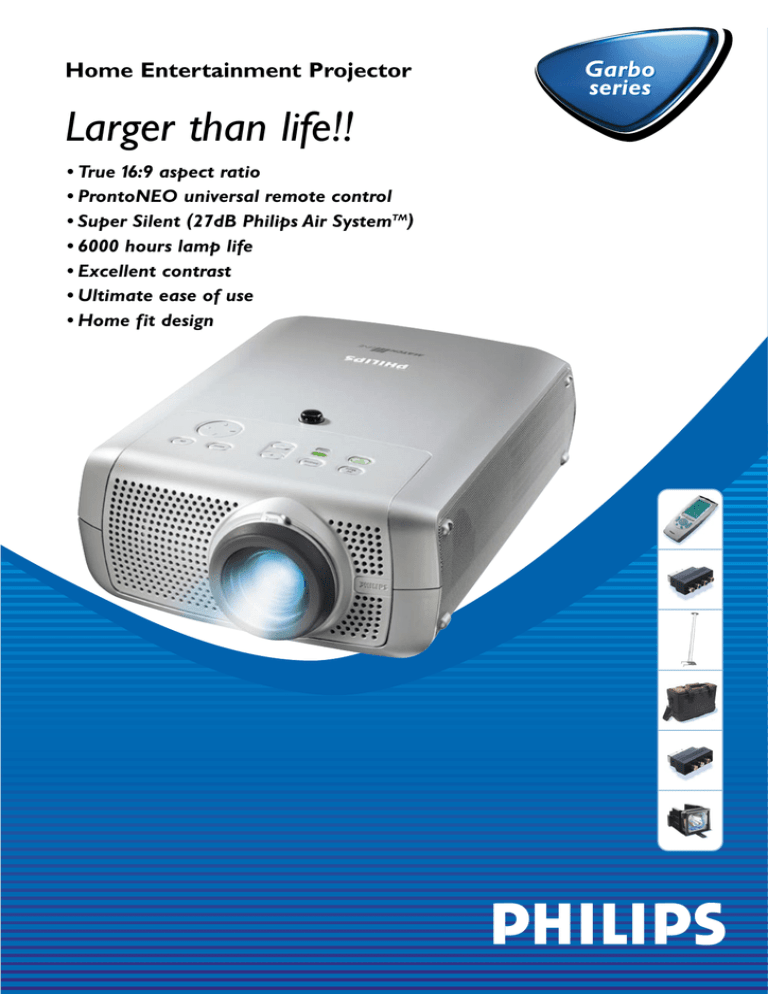

Home Entertainment Projector
Larger than life!!
• True 16:9 aspect ratio
• ProntoNEO universal remote control
• Super Silent (27dB Philips Air SystemTM)
• 6000 hours lamp life
• Excellent contrast
• Ultimate ease of use
• Home fit design
Garbo
series
Garbo series
technical specifications
Garbo (LC6231)
Garbo Matchline (LC7181)
Technical specifications
LCD
Resolution
Brightness
Lamp
Contrast
Average lifetime
Fan noise
true 16:9 SDTV 3x 0.65" high-temperature poly-silicon active matrix LCDs
854 x 480
854 x 480
1000 ANSI lumens
1100 ANSI lumens
132W UHPTM lamp
132W UHPTM lamp
400:1
500:1
6000 hours
6000 hours
27 dB
27 dB
Lens
F/1.8 - 2.2 ; f = 28.4 - 34 mm
1.2x Manual Zoom; Manual Focus
Projection distance 1,1 - 10 m (image diagonal 27.5" - 250")
Input signals
Video
NTSC 3.58, 4.43 ; PAL B,G,D,H,I,N,M ; SECAM
S-video/S-VHS (Y/C)
Component video input RGB-Y,YCbCr,YPbPr (480p,720p, 1080i)
PC and MAC compatible, Multi scan VGA-SXGA
Horizontal scan rate: 15 - 108 kHz
Vertical refresh rate: 50 - 120 Hz
Bandwidth: 140 MHz
Display Data Channel DDC 1/2B
®
Microsoft Windows® 95/98/ME/2000/XP compatible
Computer
1
3
5
2
4
6
8
Plug and play
Compatibility
Input connectors
Video
7
Computer
Audio
Video
Data
Mouse
Features
Dimensions
Net weight
1
Progressive component & component in R/Pr/Cr,G/Y,B/Pb/Cb (3x RCA)
2
1x S-Video (Y/C DIN)
3
1x CVBS Video (RCA)
4
1x Data in (15p D-sub)
6
5
Audio L/R (2x RCA)
1x Stereo Audio (3.5 mm stereo jack)
7
PS/2 (Mini Din)
8
USB (type A)
Picture in picture
SmartSetTM automatic image quality optimisation
SmartSaveTM auto-standby mode to increase effective lamp usage
Colour TrackingTM
Digital Keystone correction, Digital Zoom and -Freeze
FitScreen
6W speaker
235 x 335 x 108 mm (9.2" x 13.2" x 4.2") (WxDxH)
3.7 kg; 8.1 lbs
Power consumption
Operating voltage
Operation
Standby
Temperature range
Operational
Storage
EMC approbation
Package
**
**
For optional** accessories please contact your dealer.
Optional accessories
3122 435 95891
02/08
Check with your Philips dealer and/or warranty card for more details.
Executions
depending on regional
requirement
*
Image diagonal size
[inch]
40
60
70
80
100
150
200
250
[metres]
1,0
1,5
1,8
2,0
2,5
3,8
5,1
6,4
Projection distance
Tele zoom
Wide zoom
[inch] [metres] [inch] [metres]
75
1,9
62
1,6
114
2,9
93
2,4
133
3,4
108
2,7
153
3,9
123
3,1
191
155
4,8
3,9
286
233
7,3
5,9
381
310
9,7
7,9
477
388
12,1
9,8
* See also interactive Projection Assistant on CDROM.
w w w. c e . p h i l i p s . c o m
100 - 240V, 50/60 Hz
170W
5W
+5 to +35 °C (+41 to +95 °F)
-25 to +70 °C (-13 to +158 °F)
Class B
Compact remote control
ProntoNEO
Power cord
VGA cable (2m)
Audio/Video cable (2m)
S-Video cable (2m)
Scart adapter (scart to RCA audio/video)
Scart/RCA component video adapter
Lenscap
Printed User Guide and CD-ROM User Guide (UK, D, F, E, PT, NL, I). with Projection Assistent *
Quick Setup Card (UK, D, F, E, PT, NL, I)
Warranty card
Wallpaper CD-ROM
TM
132W UHP replacement lamp (LCA3116/00)
Softbag (LCA 1120/00)
Ceiling mount (LCA2211/00)
VGA extension cable, 15 metres (LCA5300/00)
LC6231/17 USA version
LC6231/40 RoW version
LC6231/45 UK version
The Philips Guarantee
The Philips range of advanced multimedia
projectors combines portability, reliability and
unsurpassed performance with a host of
technological innovations. All of which
ensures that you enjoy impressive and hasslefree projection wherever you are. What else
would you expect from the innovative world
leader in sound and vision technology?
2-years warranty
The Garbo comes with a 2 year worldwide
warranty that covers all parts and labour.
In addition, Philips offers a Toll-Free Customer
Support helpline. Philips technical engineers
LC7181/17 USA version
LC7181/40 RoW version
LC7181/45 UK version
are just one toll-free call away. The convenient
helpline centres are designed to smoothly
handle any situation which customers may face.
Extreme compatibility
Philips projectors are extremely compatible
with a whole range of data and video sources
like DVDs, VCRs, video cameras, computers
and game systems. So enjoy the largest, widest
and flattest picture on the market!
