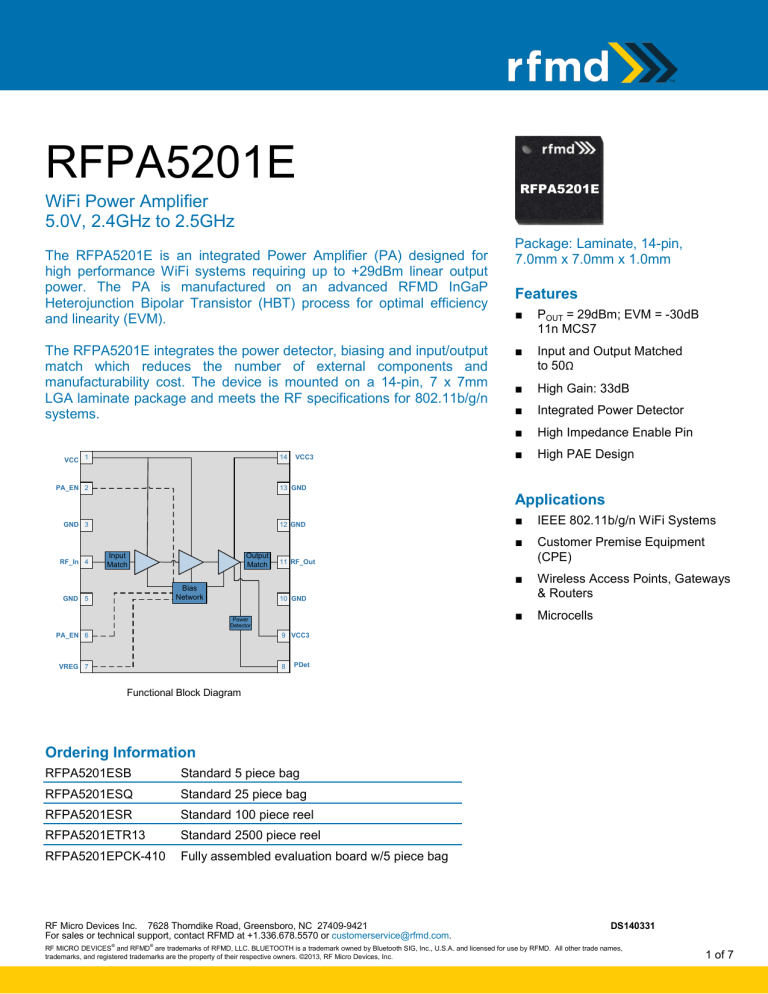

RFMD Datasheet Template
RFPA5201E
WiFi Power Amplifier
5.0V, 2.4GHz to 2.5GHz
The RFPA5201E is an integrated Power Amplifier (PA) designed for
high performance WiFi systems requiring up to +29dBm linear output
power. The PA is manufactured on an advanced RFMD InGaP
Heterojunction Bipolar Transistor (HBT) process for optimal efficiency
and linearity (EVM).
The RFPA5201E integrates the power detector, biasing and input/output
match which reduces the number of external components and
manufacturability cost. The device is mounted on a 14-pin, 7 x 7mm
LGA laminate package and meets the RF specifications for 802.11b/g/n
systems.
14
VCC 1
VCC3
RFPA5201E
Package: Laminate, 14-pin,
7.0mm x 7.0mm x 1.0mm
Features
■
POUT = 29dBm; EVM = -30dB
11n MCS7
■
Input and Output Matched
to 50Ω
■
High Gain: 33dB
■
Integrated Power Detector
■
High Impedance Enable Pin
■
High PAE Design
13 GND
PA_EN 2
Applications
GND 3
RF_In 4
12 GND
Input
Match
Output
Match
Bias
Network
GND 5
■
IEEE 802.11b/g/n WiFi Systems
■
Customer Premise Equipment
(CPE)
■
Wireless Access Points, Gateways
& Routers
■
Microcells
11 RF_Out
10 GND
Power
Detector
PA_EN 6
9 VCC3
VREG 7
8
PDet
Functional Block Diagram
Ordering Information
RFPA5201ESB
Standard 5 piece bag
RFPA5201ESQ
Standard 25 piece bag
RFPA5201ESR
Standard 100 piece reel
RFPA5201ETR13
Standard 2500 piece reel
RFPA5201EPCK-410
Fully assembled evaluation board w/5 piece bag
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
®
DS140331
®
RF MICRO DEVICES and RFMD are trademarks of RFMD, LLC. BLUETOOTH is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names,
trademarks, and registered trademarks are the property of their respective owners. ©2013, RF Micro Devices, Inc.
1 of 7
RFPA5201E
Absolute Maximum Ratings
Parameter
Rating
Unit
Supply Voltage (RF Applied)
-0.5 to +5.5
V
Supply Voltage (No RF Applied)
-0.5 to +6.0
V
1800
mA
10
dBm
DC Supply Current
Input RF Power with 50W Output Load
Maximum VSWR with no damage
Caution! ESD sensitive device.
RFMD Green: RoHS status based on EU
Directive 2011/65/EU (at time of this
document revision), halogen free per IEC
61249-2-21, < 1000ppm each of antimony
trioxide in polymeric materials and red
phosphorus as a flame retardant, and
<2% antimony in solder.
10:1
Operating Ambient Temperature
-40 to +85
°C
Storage Temperature
-40 to +150
°C
Moisture Sensitivity Level
MSL3
Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Nominal Operating Parameters
Specification
Parameter
Unit
Min
Typ
Condition
Max
Compliance
802.11b/g/n
Operating Frequency
2412
Supply Voltage
4.75
PA_EN Voltage High
1.75
PA_EN Voltage Low
VREG Voltage High
2.85
VREG Voltage Low
2484
MHz
5
5.25
V
802.11n HT20 and HT40 MCS7
2.9
5
V
Can be tied to Vreg when using 2.85v min and sources 12mA typ.
0
0.2
V
Turns PA OFF
2.9
3
V
0
0.2
V
VCC = 5.0V, VREG = 2.9V, PA_EN = 2.9V; 11n MCS7 HT20 and
HT40, temperature = 25°C, unless otherwise noted
Typical Conditions
Output Power
29
11n Dynamic EVM
2.5
3
%
Second Harmonic
-38
-36
dBm/MHz
Third Harmonic
-48
-45
dBm/MHz
Gain
Can be tied to PA_EN. Requires 12mA typ and 2.85V min
31.5
Gain Variation
Power Detect Range
0.1
Power Detect Voltage
1.8
dBm
802.11n HT20 and HT40 MCS7
At rated POUT
33.5
dB
+/-1
dB
Over 40MHz channel
+/-2.5
dB
Over temperature of -40°C to +85°C
2.2
V
POUT = 0dBm to 30dBm
1.9
2.0
V
At rated POUT
Input Return Loss
-15
-12
dB
In specified frequency band
Output Return Loss
-10
-8
dB
Operating Current
875
1000
mA
At rated POUT
Quiescent Current
350
425
mA
VCC = 5.0, VREG = PA_EN = 2.9V and RF = OFF
PAE (Power Added Efficiency)
18.5
%
Power Down Current
16
mA
PA_EN = 0V, VCC = 5V, VREG = 2.9V
IREG
12
15
mA
VCC=5V, PA_EN = 2.9V, VREG = 2.9V
Leakage Current
0.5
0.7
mA
VCC=5V, VREG = 0V, PA_EN=0V
At rated POUT (PA only)
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
DS140331
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
2 of 7
RFPA5201E
Specification
Parameter
Unit
Min
Typ
Condition
Max
Typical Conditions
(continued)
VCC = 5.0V, VREG = 2.9V, PA_EN = 2.9V; 11n MCS7 HT20 and
HT40, temperature = 25°C, unless otherwise noted
Turn-on time from setting of
VREGS
1
µsec
Turn-off time from setting of
VREGS
1
µsec
33
dBm
No spurs above -47dBm into 4:1 VSWR
CW signal
Stability
-25
Output stable to within 90% of final gain
Output P1dB
35
dBm
Spectral Mask Margin to 802.11n
limits
2
dB
POUT = 31dBm; MCS0 HT20
General Performance
ESD
Human Body Model
500
V
EIA/JESD22-114A all pins
Charge Device Model
1000
V
JESD22-C101C all pins
Thermal Resistance
Theta_jc
13
°C/W
POUT - 29dBm; duty cycle - 90%; VCC = 5V; VREG = 2.90V; junction to
bottom of laminate package; TREF = 85°C
Theta_j-ref
18
°C/W
POUT - 29dBm; duty cycle - 90%; VCC = 5V; VREG = 2.90V; junction to
bottom of PCB; TREF = 85°C
Junction Temperature for Long
Term Reliability (Tjmax)
175
°C
POUT - 29dBm; VCC = 5V; VREG = 2.90V; TREF = 85°C
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
DS140331
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 7
RFPA5201E
Evaluation Board Schematic
VCC
C1
10uF
1 VCC
P1
VREG
1
PA_EN
2
GND
3
GND
4
VCC
5
VCC
6
PDET
7
HDR_1X7
PA_EN
J1
RFIN
VREG
VCC3 14
2 PA_EN
GND 13
3 GND
GND 12
4 RF_In
C2
1uF
J2
RFOUT
RF_Out 11
5 GND
GND 10
6 PA_EN
VCC3 9
7 VREG
PDet 8
C4
1uF
R1
20 ΚΩ
PDET
C3
330pF
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
DS140331
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
4 of 7
RFPA5201E
Pin Out
VCC 1
14
VCC3
PA_EN 2
13 GND
GND 3
12 GND
RF_In 4
GND 5
PA_EN 6
VREG 7
11 RF_Out
10 GND
9 VCC3
8
PDet
Package Drawing
Notes
1. Shaded area represents Pin 1 location.
2. Thermal vias for center slug “B” should be incorporated into the PCB design. The number and size of thermal vias will depend on the application
Example of the number and size of vias can be found on the RFMD evaluation board layout
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
DS140331
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
5 of 7
RFPA5201E
PCB Pattern
Notes
1. Shaded area represents Pin 1 location.
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
DS140331
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
6 of 7
RFPA5201E
Pin Names and Descriptions
Pin
Name
Description
1
VCC
This pin is connected internally to the collectors of RF device. To achieve specified performance, the layout of
the pin should match the Recommended Land Pattern.
2
PA_EN
3
GND
4
RF_IN
5
GND
6
PA_EN
High Impedance enable pin, Apply < 0.6VDC to power down the PA. Apply 1.75VDC to 5VDC to enable the
PA.
7
VREG
PA bias voltage. This pin requires regulated supply for best performance.
8
PDET
Power detector provides an output voltage proportional to the RF output power level.
9
VCC3
This pin is connected internally to the collectors of RF device. To achieve specified performance, the layout of
the pin should match the Recommended Land Pattern
10
GND
Ground connection.
11
RFOUT
12
GND
Ground connection.
13
GND
Ground connection.
14
VCC3
This pin is connected internally to the collectors of RF device. To achieve specified performance, the layout of
the pin should match the Recommended Land Pattern
Pkg Base
GND
Ground connection. The back side of the package should be connected to the ground plane through as short
connection as possible, e.g., PCB vias under the device are recommended.
High Impedance enable pin, Apply < 0.6VDC to power down the PA. Apply 1.75VDC to 5VDC to enable the
PA.
Ground connection.
RF input, is internally matched to 50Ω. DC Blocked
Ground connection.
RF output. Internally matched to 50Ω and DC Blocked
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or [email protected]
DS140331
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
7 of 7
