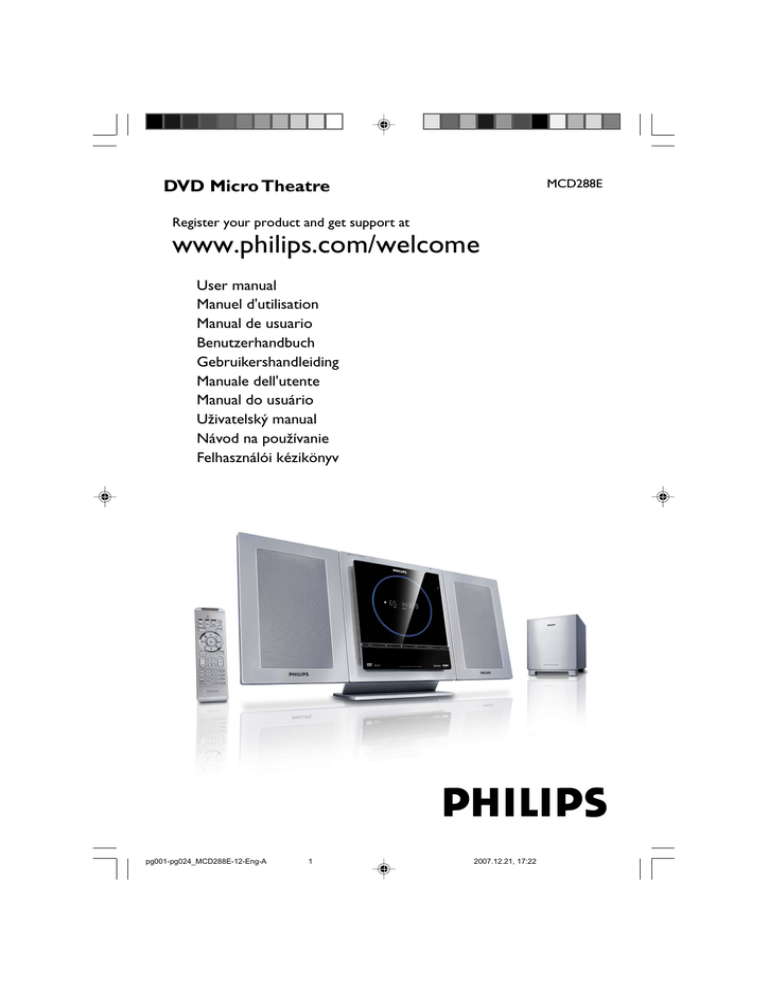

Philips MCD288E/12 User manual

MCD288E
DVD Micro Theatre
Register your product and get support at
www.philips.com/welcome
User manual
Manuel d'utilisation
Manual de usuario
Benutzerhandbuch
Gebruikershandleiding
Manuale dell'utente
Manual do usuário
Uživatelský manual
Návod na používanie
Felhasználói kézikönyv
pg001-pg024_MCD288E-12-Eng-A
1
2007.12.21, 17:22
A
Anschließen
1
Tips
Schließen Sie die Lautsprecherkabel an (subwoofer).
– Weitere Optionen zur Verbindung der
Anlage mit Ihrem Fernsehgerät finden Sie
in der Bedienungsanleitung.
– Zum Anschließen an ein ProgressiveScan-Fernsehgerät bitte im
Benutzerhandbuch für ordnungsgemäße
Anschlüsse und detaillierte
Grundeinstellungen nachschlagen.
– Schließen Sie immer erst das DINKabel und dann das Netzkabel an, um
eine Beschädigung des Geräts zu
vermeiden.
2
Schließen Sie die FM-Antennen an.
3
Schließen Sie das A/V-Kabel an ein Fernsehgerät an.
4
Schließen Sie die Anlage und den Fernseher mit den Netzkabeln an das Stromnetz an.
Wechselstromnetzkabel
AUDIO
IN
S-VIDEO
IN
TV IN
4
VIDEO IN
AUDIO
IN
S-VIDEO
IN
TV IN
VIDEO IN
4
3
Wechselstromnetzkabel
1
Lautsprecher
(links)
Lautsprecher
(rechts)
1
2
1
FM-Drahtantenne
USB/AUX
DIM
B
Einrichten
Fernsehgerät einstellen
1
Drücken Sie SOURCE (DISC auf der Fernbedienung) um die Disc-Quelle auszuwählen.
2
Schalten Sie das Fernsehgerät ein und stellen Sie den richtigen Videoeingangskanal ein.
2
pg001-pg024_MCD288E-12-Eng-A
2
2007.12.21, 17:22
B
Einrichten
Uhrzeiteinstellung
WICHTIG!
– Zum Einstellen der Uhr im EcoPower-Modus halten Sie STANDBY-ON/ECO POWER 2 am Gerät
für mindestens 3 Sekunden lang gedrückt, um zunächst in den normalen Standby-Modus zu wechseln
und anschließend anhand der unten aufgeführten Anweisungen fortzufahren.
1
Halten Sie im Standby-Modus die Taste CLOCK am System gedrückt.
2
Wenn die Stundenanzeige blinkt, drücken Sie VOLUME-/+ (VOL+/- auf der Fernbedienung)
um die Stunden einzustellen.
3
Drücken Sie CLOCK erneut; die Minutenanzeige blinkt. Drücken Sie VOLUME-/+ (VOL+/auf der Fernbedienung) um die Minuten einzustellen.
4
Bestätigen Sie die Uhrzeiteinstellung mit CLOCK.
Optionen für das DVD-Menü einstellen
Wichtig!
Wurde der Progressive Scan-Modus aktiviert, obwohl das angeschlossene Fernsehgerät keine
Progressive-Signale empfangen kann bzw. die Kabel nicht entsprechend angeschlossen wurden,
finden Sie weitere Informationen für die korrekte Einrichtung des Progressive-Modus auf Seite
Bedienungshandbuch zur Deaktivierung des Progressive Scan- Modus wie folgt vor:
1) Deaktivieren Sie den Progressive Scan-Modus Ihres Fernsehgerätes, oder aktivieren Sie den
Interlaced-Modus.
2) Drücken Sie SYSTEM MENU auf der Fernbedienung, um das Systemmenü zu verlassen, und
dann DISC und „1”, um aus der Vollbildtechnik auszusteigen.
ANALOG AUDIO SETUP
DIGITAL AUDIO SETUP
DIVX (R) VOD
PICTURE SETTING
3D
HDMI SETUP
USB/AUX
DIM
Tip
Eine detaillierte Beschreibung finden Sie in
Kapiteln "Vorbereitungen" und "DVDMenüfunktionen" der Bedienungsanleitung.
3
pg001-pg024_MCD288E-12-Eng-A
3
2007.12.21, 17:22
C
Los geht's Musik hören & mehr!
Disc abspielen
e
1
d
Legen Sie eine Disc in das Disc-Fach.
➜ Achten Sie darauf, dass das Etikett oben liegt.
➜ Stellen Sie sicher, dass sich keine weitere Disc im Disc-Fach befindet.
P
rin
ted
S
i
2
Die Wiedergabe beginnt automatisch. Wenn nicht, drücken SieÉÅ.
3
Drücken Sie 9 Um die Wiedergabe zu stoppen.
Programmieren und Radiosender einstellen
1
Drücken Sie SOURCE (TUNER auf der Fernbedienung) , um die Radio-Quelle auszuwählen.
2
Drücken Sie PROGRAM länger als zwei Sekunden gedrückt, um alle verfügbaren Sender in der Reihenfolge der
Wellenbereiche einzuprogrammieren.
3
Drücken Sie PRESET ¡ / ™ drücken, bis der gewünschte Vorwahlsender angezeigt wird.
Wiedergabe von einem USB-Massenspeichergerät
With the Hi-Fi system, you can use USB flash memory (USB 2.0 or USB1.1),
USB flash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to
work with this Hi-Fi system).
1
WesternStecken Sie den USB-Stecker des USB-Geräts in die Buchse
am Gerät.
2
Drücken Sie einmal oder mehrmals auf SOURCE, um USB auszuwählen (bzw.
betätigen Sie auf der Fernbedienung USB/AUX).
3
IMPORTANT!
Kann heruntergeschoben
werden, um Zugang zu
Tasten und Buchsen auf der
Vorderseite zu erhalten.
Spielen Sie die Audiodateien des USB-Geräts ab wie Alben bzw. Stücke auf einer CD.
4
pg001-pg024_MCD288E-12-Eng-A
4
2007.12.21, 17:22
Punto A
Collega
1
Collegare i cavi degli altoparlanti (subwoofer).
Tips
– Cfr. il Manuale Utente per ulteriori
opzioni di collegamento TV.
– Per collegarsi a una TV con Scansione
Progressiva, fare riferimento al manuale
per effettuare collegamenti corretti e per i
particolari dell'impostazione.
– Non collegare mai il cavo di
alimentazione CA prima del collegamento
del cavo DIN per evitare danni
all'apparecchio.
2
Collegare le antenne FM.
3
Collegare il Cavo A/V alla TV.
4
Collegare il cavo di alimentazione del sistema e della TV.
Cavp do
alimentazione in c.a.
AUDIO
IN
S-VIDEO
IN
TV IN
4
VIDEO IN
AUDIO
IN
S-VIDEO
IN
TV IN
Cavp do
alimentazione in c.a.
VIDEO IN
4
3
1
Altoparlante
(sinistro)
Altoparlante
(destro)
1
2
1
Antenna filare FM
USB/AUX
DIM
Punto B
Imposta
Impostare la TV
1
Premere SOURCE (DISC sul telecomando) per selezionare la fonte disco.
2
Accendere la TV ed impostare il corretto canale video.
5
pg001-pg024_MCD288E-12-Eng-A
5
2007.12.21, 17:22
Punto B
Imposta
Impostare l'orologio
IMPORTANT!
– Per impostare il timer nella modalità Eco Power, premere e tenere premuto il tasto STANDBY-ON/
ECO POWER 2 sul dispositivo, per almeno 3 secondi, per tornare alla normale modalità di standby
prima di iniziare le procedure riportate in basso.
1
In modalità standby, tenere premuto CLOCK sul sistema.
2
Quando le cifre relative all'ora lampeggiano, premere VOLUME-/+ (VOL+/- sul
telecomando) per eseguirne l'opportuna impostazione.
3
Premere nuovamente CLOCK le cifre relative ai minuti lampeggiano. Premere VOLUME-/
+ (VOL+/- sul telecomando) per impostare minuti.
4
Premere CLOCK per confermare l'impostazione ora.
Impostare le opzioni del menu DVD
AVVERTENZA!
Se la funzione di scansione progressiva è attiva, ma non è supportata dal televisore o i cavi
non sono collegati correttamente, vedere Manuale d'uso per verificare la configurazione della
scansione progressiva oppure disattivarla attenendosi a quanto riportato di seguito:
1) Disattivare la modalità scansione progressiva del televisore oppure attivare la modalità
interlacciata.
2) Premere SYSTEM MENU sul telecomando per uscire dal menù del sistema e poi DISC e “1”
per uscire dalla scansione progressiva.
ANALOG AUDIO SETUP
DIGITAL AUDIO SETUP
DIVX (R) VOD
PICTURE SETTING
3D
HDMI SETUP
USB/AUX
DIM
Tip
Cfr. i capitoli "Preparazioni" e "Operazioni
del Menu DVD" del Manuale Utente per
avere descrizioni dettagliate.
6
pg001-pg024_MCD288E-12-Eng-A
6
2007.12.21, 17:22
Punto C
Divertiti
Riprodurre un disco
e
1
d
Inserire un disco nel caricatore disco.
➜ Assicurarsi che il lato con l'etichetta sia rivolto verso di voi.
➜ Assicurarsi di aver rimosso altri dischi dal caricatore.
P
rin
ted
S
i
2
Se la riproduzione non si avvia automaticamente, premereÉÅ.
3
Premere 9 per arrestare la riproduzione.
Programmare e sintonizzare le stazioni radio
1
Premere SOURCE (TUNER sul telecomando) per selezionare la fonte tuner.
2
Tenere premuto PROGRAM per più di due secondi per programmare tutte le stazioni disponibili in ordine di
gamma di frequenze.
3
Premere PRESET ¡ / ™ sino a visualizzare il numero prestabilito della stazione desiderata.
Riproduzione di una periferica di archiviazione
di massa USB
Con il sistema Hi-Fi, si può utilizzare: memoria flash USB (USB 2.0 o USB1.1),
lettori flash USB (USB 2.0 o USB1.1), schede di memoria (è necessario un lettore di
schede supplementare per operare con questo sistema Hi-Fi)
1
WesternInserire il cavo USB del dispositivo USB nella porta
sul dispositivo.
2
Premere il tasto SOURCE una o più volte per selezionare USB (sul telecomando,
premere USB/AUX).
3
IMPORTANT!
Far scorrere in giù
per esporre alcuni
pulsanti e jack sul
pannello anteriore.
Riprodurre i file audio dell'USB con la stessa procedura utilizzata per gli album/tracce
presenti su un CD
7
pg001-pg024_MCD288E-12-Eng-A
7
2007.12.21, 17:22
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1
2
Remove fuse cover and fuse.
3
Refit the fuse cover.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio MCD288E Philips
risponde alle prescrizioni dell’art. 2 comma 1
del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Fix new fuse which should be a BS1362 3 Amp,
A.S.T.A. or BSI approved type.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 3 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 3 Amp.
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
¶ As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
VAROITUS
Muiden kuin tässä esitettyjen
toimintojen säädön tai asetusten
muutto saattaa altistaa vaaralliselle
säteilylle tai muille vaarallisille
toiminnoille.
8
pg001-pg024_MCD288E-12-Eng-A
8
2007.12.21, 17:22
9
pg001-pg024_MCD288E-12-Eng-A
9
2007.12.21, 17:22
1
4
$
¡
5
8
7
9
USB/AUX
)
^
6
DIM
7
8
&
@
#
*
0
!
(
™
£
%
≤
2
3
10
pg001-pg024_MCD288E-12-Eng-A
10
2007.12.21, 17:22
DK
SF
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen
muulla kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specificerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkkoosa on kytkettynä sähköverkkoon aina
silloin, kun pistoke on pistorasiassa.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
11
pg001-pg024_MCD288E-12-Eng-A
11
2007.12.21, 17:22
Manufactured under license from Dolby
Laboratories.
"Dolby", "Pro Logic" and the double-D symbol
are trademarks of Dolby Laboratories.
HDMI (High Definition Multimedia Interface) is a
digital interface that allows pure HD digital video
transmission without the loss of image quality.
The integrated control bus allows system control
between the TV set and connected devices like a
digital set top box.
.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reserve engineering
or disassembly is
prohibited.
DivX, DivX Certified,
and associated logos
are trademarks of
DivXNetworks, Inc and
are used under license.
Windows Media is a trademark of
Microsoft Corporation.
12
pg001-pg024_MCD288E-12-Eng-A
12
2007.12.21, 17:22
English
Français -------------------------------------------- 38
Italiano -------------------------------------------- 139
Português ---------------------------------------- 165
13
Deutsch
Slovensky
Magyar -------------------------------------------- 240
13
pg001-pg024_MCD288E-12-Eng-A
Nederlands
Slovensky ---------------------------------------- 215
Magyar
Česky ---------------------------------------------- 190
Italiano
Nederlands -------------------------------------- 114
Português
Deutsch --------------------------------------------- 88
Česky
Español --------------------------------------------- 63
Español
English ---------------------------------------------- 14
Français
Index
2007.12.21, 17:22
Contents
English
General Information
Basic Functions
Discs for playback .............................................. 16
Region Codes .................................................. 16
Supplied accessories .......................................... 16
Environmental information .............................. 16
Care and safety information ............................ 16
Hearing Safety ..................................................... 17
Switching the system on/off ............................. 25
Switching the system to Eco Power Standby
mode ..................................................................... 25
Power-saving automatic standby ..................... 25
Sound Control .................................................... 25
DBB (Dynamic Bass Boost) .......................... 25
DSC (Digital Sound Control) ....................... 25
LOUDNESS ...................................................... 25
Volume control ................................................... 25
Dimming the display screen ............................. 25
Installation
Step 1: Connecting speakers ............................ 18
Step 2: FM antenna connection ....................... 18
Step 3: Connecting TV ................................ 18~19
Using A/V OUT jack ....................................... 19
Using SCART jack ........................................... 19
Using Component Video jacks (Y Pb Pr) ........
............................................................................ 19
Step 4: Placing the set and speakers ........ 19~20
Step 5: Connecting the power cord ............... 20
Optional: Connecting additional equipment .....
................................................................................ 20
Listening to the playback of a non-USB device
............................................................................ 20
Connecting a USB device or memory card ...
............................................................................ 20
Connecting to a TV with HDMI Jack .......... 20
Controls
Controls on the system .................................... 21
Controls on the remote control ............. 21~22
Preparations
Step 1: Using the remote control ................... 23
Replacing battery (lithium CR2025) into the
remote control ................................................ 23
Step 2: Setting the clock ................................... 23
Step 3: Setting video preference .............. 23~24
Setting up Progressive Scan feature ............ 24
To deactivate Progressive manually ............ 24
Step 4: Setting language preference ................ 24
Disc Operations
Playing discs ......................................................... 26
Using the disc menu .......................................... 26
Basic playback controls ..................................... 26
Pausing playback .............................................. 26
Selecting a track/chapter/title ...................... 26
Resuming playback from the last stopped
point ................................................................... 26
Zoom ................................................................. 26
Differnt play modes: SHUFFLE and REPEAT ..
............................................................................ 26
Repeat A-B ........................................................ 26
Slow Motion ..................................................... 27
Forward/Reverse Searching .......................... 27
Time search & search by chapter/track
number .............................................................. 27
Information display during playback ............ 27
Special disc features ........................................... 27
Playing a Title .................................................... 27
Camera Angle ................................................... 27
Changing the Audio Language ...................... 27
Changing the Audio Channel ........................ 27
Subtitles ............................................................. 27
Playing MP3/WMA/JPEG Picture disc ............ 27
General operation .......................................... 27
Special JPEG features ......................................... 28
Zoom picture ................................................... 28
Playback with multi-angles ............................ 28
Playing a DivX disc ............................................. 28
14
pg001-pg024_MCD288E-12-Eng-A
14
2007.12.21, 17:22
English
Contents
System Menu Options
Basic operations ................................................. 29
GENERAL SETUP PAGE .................................. 29
TV DISPLAY ..................................................... 29
OSD LANGUAGE .......................................... 29
SCREEN SAVER .............................................. 29
DIVX(R) VOD registration code ................. 29
AUDIO SETUP PAGE ....................................... 29
ANALOG AUDIO SETUP ............................ 29
DIGITAL AUDO SETUP ................................ 29
DOLBY DIGITAL SETUP .............................. 29
3D ....................................................................... 29
HDCD ............................................................... 29
NIGHT MODE ................................................ 29
VIDEO SETUP PAGE ........................................ 30
COMPONENT ................................................ 30
TV MODE ......................................................... 30
PICTURE SETTING ....................................... 30
HDMI SETUP ................................................... 30
PREFERENCE PAGE .......................................... 30
PARENTAL ....................................................... 30
DEFAULT .......................................................... 30
PASSWORD SETUP ...................................... 30
Radio Reception
Tuning to radio stations .................................... 31
Programming radio stations ............................. 31
Automatic programming ............................... 31
Manual programming ...................................... 31
Tuning to preset radio stations ....................... 31
RDS ....................................................................... 31
Setting the RDS clock ....................................... 31
External Sources
Using a USB mass storage device ................... 32
Clock/Timer
Clock setting ....................................................... 33
Timer setting ....................................................... 33
Sleep timer setting ............................................. 33
Specifications ........................................... 34
Troubleshooting ............................. 35~37
Disposal of your old product
Your product is designed and
manufactured with high quality materials
and components, which can be recycled
and reused.
When this crossed-out
wheeled bin symbol is
attached to a product it
means the product is
covered by the European
Directive 2002/96/EC
Please inform yourself
about the local separate collection
system for electrical and electronic
products.
Please act according to your local rules
and do not dispose of your old products
with your normal household waste.The
correct disposal of your old product will
help prevent potential negative
consequences for the environment and
human health.
15
pg001-pg024_MCD288E-12-Eng-A
15
2007.12.21, 17:22
General Information
English
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the support that Philips
offers, register your product at www.philips.com/
welcome.
Notes:
– For mixed mode discs, only one mode will be
selected for playback according to the recording
format.
– If you are having trouble playing a certain disc,
remove the disc and try a different one. Improperly
formatted discs will not play on this system.
Discs for playback
Your DVD System will play:
– Digital Video Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Digital Video Discs + Rewritable
(DVD+RW)
– Compact Discs (CDs)
– Picture (Kodak, JPEG) files on CDR(W)
– Windows Media Audio (WMA)
– DivX(R) disc on CD-R(W):
– DivX 3.11, 4.x and 5.x
– Supported MP3-CD format.
• ISO 9660 / UDF format
• Max. title/album name –10 characters
• Max. title number plus album is 255.
• Max. nested directory is 8 levels.
• The max. album number is 32.
• The max. MP3 track number is 999.
• Supported sampling frequencies for MP3
disc: 32 kHz, 44.1 kHz, 48 kHz.
• Supported Bit-rates of MP3 disc are: 32, 64,
96, 128, 192, 256 (kbps).
Supplied accessories
– A/V cord (R/W/Y)
– FM wire antenna
– DIN cable to connect the subwoofer and
the main unit
– SCART adapter
– Stand
– Remote Control with battery
– This instruction booklet
Environmental information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Care and safety information
Avoid high temperatures, moisture,
water and dust
The following formats can’t be supported
• The files like *.VMA, *.AAC, *.DLF, *.M3U,
*.PLS, *.WAV,
• The discs recorded under Joliet format
Region Codes
DVDs must be labeled as shown below in order
to play on this DVD system. You cannot play
discs that are labeled for other regions.
● Do not expose the system, batteries or discs to
humidity, rain, sand or excessive heat (caused by
heating equipment or direct sunlight).
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● The apparatus shall not be exposed to dripping
or splashing.
2
ALL
16
pg001-pg024_MCD288E-12-Eng-A
16
2007.12.21, 17:22
Avoid condensation problem
● The lens may cloud over when the player is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the player in the warm environment until
the moisture evaporates.
Do not block the vents
● Do not operate the system in an enclosed
cabinet and allow about 10 cm (4 inches) of free
space all around the player for adequate
ventilation.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers table-cloths, curtains, etc.
Cleaning the cabinet
● Use soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
English
General Information/Maintenance
Hearing Safety
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distor tion.
Cleaning discs
● To clean a CD, wipe it in a
straight line from the center
towards the edge using soft and
lint-free cloth. A cleaning agent
may damage the disc.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Write only on the printed side
of a CDR(W) and only with a soft felt-tipped
pen.
● Handle the disc by its edge. Do not touch the
surface.
Finding a suitable location
● Place the player on a flat, hard, stable surface.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following
guidelines when using your headphones.
● Listen at reasonable volumes for reasonable
periods of time.
● Be careful not to adjust the volume as your
hearing adapts.
● Do not turn up the volume so high that you
can't hear what's around you.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
17
pg001-pg024_MCD288E-12-Eng-A
17
2007.12.21, 17:22
Installation
English
IMPORTANT!
– The type plate is located at the rear of
the system.
– Before connecting the AC power cord
to the wall outlet, ensure that all other
connections have been made.
– Never make or change any
connections with the power switched on.
Step 3: Connecting TV
IMPORTANT!
– You only need to make one video
connection from the following options,
depending on the capabilities of your TV.
– Connect the DVD system directly to
the TV.
– A SCART connection allows you to
use both Audio and Video features on
the system.
Step 1: Connecting speakers
Using A/V OUT jack
AUDIO
IN
S-VIDEO
IN
TV IN
VIDEO IN
AUDIO
IN
S-VIDEO
IN
TV IN
VIDEO IN
1
Place the main set with the front side facing
down on a flat and firm surface. Then remove
the detachable cover on the back of the set to
expose the terminals available for connection.
2
Connect the two front speaker cables to the
SPEAKERS terminals: right speaker to "RIGHT"
and left speaker to "LEFT".
3
Connect the DIN cable from the TO MAIN
SET jack on the back of the subwoofer to the
TO SUBWOOFER jacks on the back of the
main set: audio connector to the
SUBWOOFER OUT jack while the power
supply connector to the DC 24V jack.
Step 2: FM antenna connection
1
Connect the end of the supplied AV cord with
only one connector to the A/V OUT jack of
the DVD system.
2
For the other end, connect the video output
connector (yellow) to the video input jack (or
labeled as A/ V In, CVBS, Composite or
Baseband) on the TV. To hear the sound of this
DVD system through your TV, connect the
audio connectors (white/ red) to the audio
input jacks on the TV.
Connect the supplied FM antenna to the FM
AERIAL terminal.
18
pg001-pg024_MCD288E-12-Eng-A
18
2007.12.21, 17:22
Using SCART jack
AUDIO
IN
1
Use component video cables (with one end
providing a 3.5" connector while the other end
providing three red/blue/green connectors - not
supplied) to connect the DVD system's
COMPONENT jack to the corresponding
Component video input jacks (or labeled as Y
Pb/Cb Pr/Cr or YUV) on the TV.
2
If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability),
to activate TV Progressive Scan, please refer to
your TV user manual. For DVD system
Progressive Scan function, see “Getting StartedSetting up Progressive Scan feature”.
S-VIDEO
IN
TV IN
VIDEO IN
AUDIO
IN
S-VIDEO
IN
TV IN
VIDEO IN
Note:
– If your TV does not support Progressive Scan, you
will not be able to view the picture.
– Press SYSTEM MENU on the remote control to
exit the system menu, and then press DISC and “1”
to exit progressive scan.
● Connect the video and audio connectors of the
supplied AV cable to the corresponding jacks on
the SCART adapter, and then plug the adapter
to the SCART jack of the TV.
Step 4: Placing the set and
speakers
Using Component Video jacks (Y Pb Pr)
IMPORTANT!
– The progressive scan video quality is
only possible when using Y Pb Pr, and a
progressive scan TV is required.
1
After finishing all rear connections, mount the
detachable cover on the back of the set until
hearing a click to avoid cable clutter.
2
Align the side marked PRESS4 of the stand to
the slots at the bottom of the set.
R
19
pg001-pg024_MCD288E-12-Eng-A
19
2007.12.21, 17:22
English
Installation
Installation
English
3
Push the stand down into the slots until you hear
a click.
4
Place the set upright on the desktop with the
support of the stand.
5
Extend the bracket on the back of each front
speaker as shown so that the front speakers can
stand firmly on the desktop.
6
Place the subwoofer on the floor near an AC
outlet.
Note:
– To remove the stand from the set, while pressing
down PRESS4 , pull the stand out from the slots.
for the devices with USB cables:
1
Insert one plug of the USB cable (not supplied)
socket on the set.
to the
2
Insert the other plug of the USB cable to the
USB output terminal of the USB device.
1
2
for the memory card:
Insert the memory card into a card reader (not
supplied).
Use a USB cable (not supplied) to connect the
socket on the set.
card reader into the
Connecting to a TV with HDMI Jack
Step 5: Connecting the power
cord
After everything is connected properly,
plug in the AC power cord to the power
outlet.
Never make or change any connection with the
power switched on.
Optional: Connecting additional
equipment
HDTV
HDMI IN
Listening to the playback of a non-USB
device
● Connect the system's AUX-IN jack to the
AUDIO OUT jacks on another audio/visual
device (such as a VCR, Laser Disc player or
cassette desk) using a "single-to-double" cinch
cable (with one end providing a 3.5" connector
for connection to the AUX-IN jack while the
other end providing two white/red connectors
for connection to the other device's AUDIO
OUT jacks).
HDMI IN
● Use a HDMI cable (not supplied) to connect the
HDMI jack on the DVD Player to HDMI IN
on a HDMI compatible device (e.g.; TV, Projector,
Adaptor).
➜ It may take a while for the DVD player and
input device to communicate and initialise.
➜ Playback starts automatically.
Connecting a USB device or memory
card
IMPORTANT!
– Before connecting the USB plug, first
slide down the movable baffle as shown
on Page 9 to expose the
jack.
● Insert the USB device's USB plug into the
socket on the set.
20
pg001-pg024_MCD288E-12-Eng-A
20
2007.12.21, 17:22
Controls on the system
1 ECO POWER/STANDBY ON B
–
to switch the system on or to Eco power/normal
standby mode.
–
USB DIRECT
is the jack for the external USB mass storage
device.
@ SLIDE OPEN 4
–
2 iR sensor
–
!
English
Controls
infrared sensor for remote control.
slides down to expose some buttons and jacks
on the front panel.
3 CLOCK
–
4 Mode Selection
–
–
–
9 ............................. In DISC/USB mode, to stop
playback or clear a program.
......................................... for Demo (on the system
only) to activate/deactivate
the demonstration.
2; ........................... In DISC/USB mode, to start or
interrupt playback.
PRESETí/ë
Disc/USB: skips to the previous/next chapter/
title/track.
Tuner: selects a preset radio station.
TUNING 22/33
Tuner
press to tune to a lower/higher radio frequency
gradually.
press and hold, then release the key to start
automatic search for a radio frequency
downward/upward.
Disc/USB
searches fast backward/forward.
5 Display screen
–
to view the current status of the system.
6 SOURCE
–
7
–
–
–
Controls on the remote control
sets or displays the system clock.
to select the respective sound source: DISC
TUNER or USB/AUX.
VOLUME -/+
adjusts the volume upward/downward.
adjusts the hours and minutes in clock/timer
setting mode.
selects a source in timer setting mode.
1y
–
to switch the system on or to Eco power/normal
standby mode.
2 Numeric Keypad (0-9)
–
inputs a track/title/chapter number.
3 PROG/ANGLE
–
–
Tuner: programs preset radio stations.
DVD: selects a DVD camera angle.
4
SOURCE
to select the respective sound source : DISC
TUNER or USB/AUX.
SYSTEM MENU (disc/USB mode only)
to enter or exit the system menu bar.
–
5
–
6 DISC MENU (disc/USB mode only)
–
–
DVD/VCD: enters or exits the disc contents
menu.
VCD2.0: switches the playback control mode on
or off .
7 22/33
–
–
–
–
Tuner
press to tune to a lower/higher radio frequency
gradually.
press and hold, then release the key to start
automatic search for a radio frequency
downward/upward.
Disc
(not for MP3 CD) searches backward/forward in
a disc at different speeds.
In DISC mode, to select a movement direction in
the disc menu or system menu bar.
8n
– to connect a headphone.
9 EJECT
–
ejects a disc from the disc loader.
0 AUX-IN
–
connects an external non-USB device.
21
pg001-pg024_MCD288E-12-Eng-A
21
2007.12.21, 17:22
Controls
English
8 3/4
¡ A-B
9 OK
–
–
™ AUDIO
–
In DISC mode, to select a movement direction in
the disc menu or system menu bar.
to exit or confirm the selection.
0 í/ë
–
–
Disc: skips to the previous/next chapter/title/
track.
Tuner: selects a preset radio station.
!9
–
In DISC mode, to stop playback or clear a
program.
@ 2;
–
In DISC mode, to start or interrupt playback.
–
–
–
–
adjusts the volume upward/downward.
adjusts the hours and minutes in clock/timer
setting mode.
switches the set timer ON or OFF.
–
to select various repeat modes or the shuffle
play mode for a disc.
% SUBTITLE
–
selects a subtitle language.
^
SLEEP/TIMER
Standby mode
sets a time for switching on the system
automatically.
Playback mode
sets the sleep timer function (auto-off).
–
–
&
–
–
DVD/VCD/Picture CD: enlarges or reduces a
picture or active image on the TV screen.
≤ GOTO
–
In DISC mode, to fast search in a disc by
entering a time, title, chapter or track.
∞ DISPLAY/RDS
–
–
$ MODE
–
for VCD
sets Stereo, Mono-Left or Mono-Right sound
mode.
for DVD
selects an audio language.
£ ZOOM
# VOL +/–
–
for VCD/CD: to repeat a specific section within
the same track.
for DVD: to repeat a specific section in a disc.
for disc
selects a disc information display mode.
for tuner
selects RDS information.
Notes for remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (DISC or
TUNER, for example).
– Then select the desired function ( 2;, í,
ë for example).
LOUD/DBB
enables or disables automatic loudness
adjustment.
enables or disables DBB enhancement.
* DSC
–
selects different types of preset sound equalizer
settings (CLASSIC, JAZZ, POP, ROCK or FLAT).
(
MUTE
to interrupt or resume sound reproduction.
–
)
–
DIM
selects different levels of brightness for the
display screen.
22
pg001-pg024_MCD288E-12-Eng-A
22
2007.12.21, 17:22
IMPORTANT!
– Make sure to complete the
preparation procedures before operating
the system.
Step 3: Setting video preference
IMPORTANT!
– Make sure you have completed all the
necessary connections. (See
"Connections-Connecting TV".)
Step 1: Using the remote control
1
2
Pull out the plastic protective sheet.
1
Select the source you wish to control by pressing
one of the source select keys on the remote
control (for example DISC, TUNER).
In stop mode or during playback, press
SYSTEM MENU.
2
3
Then select the desired function (for example
ÉÅ , à , á).
Press à/á/5/4 on the remote control to
toggle through the functions and select your
preferential option.
Replacing battery (lithium CR2025) into
the remote control
1
2
3
➜ Move to PREFERENCE PAGE and press
4.
➜ Move to one of the following and press á.
–
Press the slot on the battery compartment.
Pull out the battery compartment.
Replace a new battery and fully insert the
battery compartment back to the original
position.
Note:
The format you select must be available on the
disc. If it is not, the setting for TV Type will not affect
the picture during playback.
Step 2: Setting the clock
1
2
Setting TV TYPE
Allows you to select the colour system matching
the connected TV set. The options include “PAL”
(Wide screen mode), “MULTI” and “NTSC”.
To exit the menu
Go to Standby mode.
Press SYSTEM MENU again.
Press and hold CLOCK on the system.
➜ “CLOCK SET” is displayed briefly. Then, the
hour digits flash on the display screen.
3
Press VOLUME -/+ (VOL +/- on the remote
control) to set the hours.
4
Press CLOCK again.
➜ The minute digits flash on the display screen.
5
Press VOLUME -/+ (VOL +/- on the remote
control) to set the minutes.
6
Press CLOCK to confirm the clock setting.
Notes:
– This system only supports 24-hour mode.
– The clock setting will be erased when the system
is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 30 seconds.
Setting up Progressive Scan feature (for
Progressive Scan TV only)
1
2
Turn on your TV.
3
Press ECO POWER/STANDBY-ON B (B
on the remote control) to turn on the DVD
player.
4
Select the correct Video Input channel.
➜ The DVD background screen appears on the
TV.
5
6
Press SYSTEM MENU.
Turn off your TV progressive scan mode or turn
on interlaced mode (refer to your TV user
manual).
Press à/á repeatedly to select "VIDEO
SETUP PAGE".
23
pg001-pg024_MCD288E-12-Eng-A
23
2007.12.21, 17:22
English
Preparations
Preparations
English
7
Select "TV MODE" to "P-SCAN", then OK to
confirm.
➜ The instruction menu appears on the TV.
2
Press SYSTEM MENU on the remote to exit
the system menu and then DISC and “1” to exit
progressive scan.
➜ The DVD blue background screen will appear.
Step 4: Setting language
preference
8
9
1
In stop mode or during playback, press
SYSTEM MENU.
2
Press à/á/5/4 on the remote control to
select your preferred option.
Press à/á to highlight OK in the menu and
press OK to confirm.
➜ Move to GENERAL SETUP PAGE or
PREFERENCE PAGE and press 4.
➜ Move to one of the following and press á.
There will be a distorted picture on your
TV at this state until you turn on the
progressive scan mode on your TV.
OSD LANGUAGE (On-Screen Display)
Switches the display language on the TV screen.
Select the language from the displayed list.
Turn on your TV progressive scan mode (refer to
your TV user manual).
➜ The below menu appears on the TV.
AUDIO (DVD only)
Switches the display language of the sound track.
Select the language from the displayed list.
SUBTITLE (DVD only)
Switches the display language of the subtitle.
Select the language from the displayed list.
DISC MENU (DVD only)
Select the language for the DVD menu.
0
Press à/á to highlight OK in the menu and
press OK to confirm.
➜ The setup is complete now and you can star t
enjoy the high quality picture.
To deactivate Progressive manually
●
1
When the selected language is not recorded in
the DVD, one of the recorded languages will be
selected automatically (except for OSD).
You can reset all the DVD settings except for
Rating.
When the distorted sign still appears on
the TV, it may be due to the connected TV
does not accept progressive signals, and
progressive is set by mistake. You must reset the
unit to interlace format.
If the language selected is not available on the
disc, the original language designated by each
disc will be selected.
3
4
Press 5/4 to select a language and press OK.
Repeat steps 2~3 for other settings.
To exit the menu
Press SYSTEM MENU again.
Turn off your TV progressive scan mode or turn
on to interlaced mode (refer to your TV user
manual).
24
pg001-pg024_MCD288E-12-Eng-A
24
2007.12.21, 17:22
Switching the system on/off
● Press ECO POWER/STANDBY-ON B (B
on the remote control).
➜ “HELLO” is displayed briefly. The system will
switch to the last selected source.
● Press DISC, TUNER or USB/AUX on the
remote.
➜ The system will switch to the selected source.
To switch the system to standby mode
● Press ECO POWER/STANDBY-ON B (B
on the remote control).
➜ The interactive sound settings, last selected
source and tuner presets will be retained in the
player’s memory.
Switching the system to Eco
Power Standby mode
● Press ECO POWER/STANDBY-ON B in
the active mode.
➜ The system enters Eco power standby (the
ECO POWER LED is on) or normal standby
with clock display.
● The volume level (up to a maximum volume
level of 12), interactive sound settings, last
selected mode, source and tuner presets will be
retained in the player's memory.
● If the system is normal standby with clock display,
press and hold ECO POWER/STANDBYON B for 3 seconds or more to switch to Eco
power standby or vice versa.
Power-saving automatic standby
As a power-saving feature, the system will
automatically switch to Standby mode if you do
not press any buttons within 15 minutes after a
disc has stopped playing.
Sound Control
DBB, DSC and LOUDNESS sound features
cannot be activated at the same time.
DBB (Dynamic Bass Boost)
modulation, which causes a distortion at high
volume. If this occurs, switch off DBB or reduce
the volume.
DSC (Digital Sound Control)
DSC provides a different type of preset sound
equalizer setting.
● Press DSC on the remote repeatedly to select:
CLASSIC, JAZZ, ROCK, POP or FLAT (for DVD:
NORMAL, CONCERT, DRAMA, ACTION or
SCI-FI).
LOUDNESS
LOUDNESS feature enables the system to
automatically increase the treble and bass sound
effect at low volume (the higher the volume, the
lower the treble and bass increase).
● Press LOUD/DBB on the remote control
twice to enable LOUDNESS feature. Press the
same button again to disable both DBB and
LOUDNESS features.
➜
icon appears/disappears after this feature
is enabled/disabled.
Volume control
Press VOLUME -/+ (VOL +/- on the remote
control) to increase or decrease the volume
level.
➜ ”VOLUME XX” is displayed on the display
panel. “XX” denotes the volume level.
To listen through the headphone
● Connect the headphone plug to the n socket
on the front panel of the DVD player.
➜ The speakers will be muted.
To switch off the volume temporarily
● Press MUTE on the remote control.
➜ Playback will continue without sound and
“MUTING” flashes.
● To activate sound reproduction, you can:
– press MUTE again;
– adjust the volume controls;
– change source.
DBB enhances the bass response.
● Press LOUD/DBB on the remote control once
to enable DBB feature.
➜ Some discs might be recorded in high
Dimming the display screen
● Press DIM repeatedly to select different levels of
brightness for the display screen.
25
pg025-pg037_MCD288E-12-Eng-B
25
2007.12.21, 17:22
English
Basic Functions
Disc Operations
English
Selecting a track/chapter/title (DVD/
VCD/CD/MP3/WMA)
Playing discs
1
Insert a disc into the slot loader.
➜ Make sure the label side is facing you.
➜ Make sure you have removed any other disc
from the slot loader.
2
Playback will start automatically (depending on
the disc type).
➜ If a disc menu appears on the TV, see "Using
the Disc Menu".
➜ If the disc is locked by parental control, you
must enter your four-digit password.
At any time, simply press 9 to stop playback.
3
Using the disc menu
For disc with Table Of Contents, a menu may
appear on the TV screen once you load the disc.
1
Press PRESETí/ë during playback to go to
the previous or next chapter/title/track.
2
To go directly to any chapter/ title/track, enter
the chapter/ title/track number using the
Numeric Keypad (0-9).
Resuming playback from the last
stopped point (DVD/VCD/CD/MP3
/WMA)
● In stop mode and when a disc has not been
removed, press 2;.
To cancel resume mode
●
In stop mode, press 9 again.
To select a playback feature or item
● Use 22/33/5/4 and OK or Numeric
Keypad (0-9) on the remote.
➜ Playback will start automatically.
To access or exit the menu
●
Press DISC MENU on the remote.
Zoom (DVD/VCD/JPEG)
1
2
For VCD with Playback Control (PBC)
feature (version 2.0 only)
PBC playback allows you to play Video CDs
interactively, following the menu on the display.
● During playback, press DISC MENU.
➜ If PBC was ON, it will switch to OFF and
continue playback.
➜ If PBC was OFF, it will switch to ON and
return to menu screen.
Basic playback controls
During playback, press 2;.
➜ Playback will pause and sound will be muted.
2
Press 2; again to resume.
Press 22/33/5/4 to pan across the TV
screen.
Differnt play modes: SHUFFLE and
REPEAT (DVD/VCD/CD/MP3/WMA)
● Press MODE repeatedly to choose a repeat
mode during playback.
Repeat A-B (DVD/VCD/CD/MP3/WMA)
1
2
Pausing playback (DVD/VCD/CD/MP3
/WMA)
1
Zooming allows you to enlarge or reduce the
video image during playback.
Press ZOOM repeatedly to enlarge or reduce
the playback video image.
3
Press A-B at your chosen starting point.
Press A-B again at your chosen end point.
➜ The section A and B can be set only within
the same chapter/track.
➜ The section will now repeat continuously.
To exit the sequence, press A-B again.
➜ “A-B” is displayed on the TV screen.
26
pg025-pg037_MCD288E-12-Eng-B
26
2007.12.21, 17:22
Slow Motion (DVD/VCD)
English
Disc Operations
Camera Angle (DVD)
1
Press 4 on the remote during playback to select
the required forward speed: 1/2, 1/4, 1/8 or 1/16.
➜ Sound will be muted.
2
To return to normal speed, press 2;.
Forward/Reverse Searching (DVD/VCD/
CD)
1
Press TUNING 22/33 during playback to
select the required speed: X2, X4, X8, X16 or
X32 (backward or forward).
➜ Sound will be muted.
2
To return to normal speed, press 2;.
● Press PROG/ANGLE repeatedly to select
different desired angle.
Changing the Audio Language (for DVD
recorded with multiple languages)
● Press AUDIO repeatedly to select different
audio languages.
Changing the Audio Channel (for VCD
only)
● Press AUDIO to select the available audio
channels provided by the disc (Mono Left, Mono
Right or Stereo).
Time search & search by chapter/track
number (DVD/VCD/CD/MP3/WMA)
1
Press GOTO until the time or chapter/track
edit box appears.
2
Enter hours, minutes and seconds from left to
right in the time edit box using the Numeric
Keypad (0-9) on the remote.
OR
Enter your desired chapter/track number in the
chapter/track edit box using the Numeric
Keypad (0-9) on the remote.
Information display during playback
(DVD/VCD/CD/MP3/WMA)
● During playback, press DISPLAY to show disc
information on the TV screen.
Subtitles (DVD)
● Press SUBTITLE repeatedly to select different
subtitle languages.
Playing MP3/WMA/JPEG Picture
disc
General operation
1
Load an MP3/WMA/JPEG disc.
➜ A data disc menu appears on the TV screen
and playback starts automatically from the first
track (file).
2
Press 22 to move to the album (folder)
column on the left of the TV screen, then use 5/
4 to select an album (folder) and press OK to
open it.
Press 33 to move to the track (file) column on
the right of the TV screen and then use 5/4 to
highlight a track (file); or directly use the
Numeric Keypad (0-9) to input a track (file)
number.
3
Special disc features
Playing a Title (DVD)
1
Press DISC MENU.
➜ The disc title menu appears on the TV screen.
2
3
Use 22/33/5/4 to select a play option.
4
Press OK to confirm.
➜ The playback will start from the selected
track (file) to the end of the album (folder).
Press OK to confirm.
27
pg025-pg037_MCD288E-12-Eng-B
27
2007.12.21, 17:22
Disc Operations
English
Special JPEG features
Zoom picture (JPEG)
● During playback, press ZOOM repeatedly to
display the picture with different scales (100%,
125%, 150%, 200%, 75% or 50%).
● Use 22/33/5/4 to view the zoomed picture.
Playback with multi-angles (JPEG)
● During playback, press 22/33 to rotate the
picture on the TV screen.
Playing a DivX disc
1
2
This DVD player supports the DivX movie
playback that you download from your
computer onto a CD-R/RW (see “System Menu
Options-DIVX(R) VOD registration code” for
more information).
Load a DivX disc and press ÉÅ to star t
playback.
If the DivX movie contains external subtitles, the
subtitle menu will appear on the TV screen for
your selection.
● In this case, pressing SUBTITLE on the remote
control will turn on or off the subtitle.
● If multilingual subtitles are embedded on the
DivX disc, pressing SUBTITLE will change the
subtitle language during playback.
Note:
– Subtitle files with the following filename
extensions (.srt, .smi, .sub, .ssa, .ass) are supported
but do not appear on the file navigation menu.
– The subtitle filename have to be the same as
the filename of the movie.
28
pg025-pg037_MCD288E-12-Eng-B
28
2007.12.21, 17:22
DIVX(R) VOD registration code
Basic operations
1
Press SYSTEM MENU to enter the Setup
Menu.
2
3
4
5
Press 22/33 to select a page to be set.
6
1
In ‘GENERAL SETUP PAGE’, press 3 4 to
highlight DIVX(R) VOD, then press 33 or OK
to enter its submenu and press OK again to
confirm.
➜ The registration code will appear.
2
3
Press OK to exit.
Press 5/4 to highlight an option.
Enter its submenu by pressing 33 or OK.
Move the cursor by pressing 5/4 to highlight
the selected item.
➜ In cases of value setting, press 5/4 to adjust
values.
Press OK to confirm.
To return to the upper-level menu
● Press 22.
Use the registration code to purchase or rent
the videos from DivX® VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a CD-R for playback
on this DVD player.
Notes:
– All the downloaded videos from DivX® VOD can
only be played back on this DVD player.
– Time search feature is not available during DivX
movie playback.
To exit from the menu
● Press SYSTEM MENU again.
➜ The settings will be stored in the player’s
memory even if the player is switched off.
Note:
– Some of the features in the System Menu
Options are described in “Getting Started”.
GENERAL SETUP PAGE
TV DISPLAY
Set the aspect ratio of the DVD Player according
to the TV you have connected.
➜ 4:3 PAN SCAN: If you have a normal TV
and want both sides of the picture to be
trimmed or formatted to fit your TV screen.
➜ 4:3 LETTER BOX: If you have a normal TV.
In this case, a wide picture with black bands on
the upper and lower portions of the TV screen
will be displayed.
➜ 16:9: If you have a wide-screen TV.
SCREEN SAVER
This function is used to turn the screen saver on
or off.
➜ ON: In STOP, PAUSE or No DISC mode, if
no actions are performed about 3 minutes, the
screen saver will be activated.
➜ OFF: Screen saver is disabled.
AUDIO SETUP PAGE
ANALOG AUDIO SETUP
➜ LT/RT: Selects the mixed sound output
mode.
➜ STEREO: Selects the ordinary stereo sound
output.
DIGITAL AUDO SETUP
➜ OFF: Turns off the SPDIF output.
➜ SPDIF/RAW: If you have connected your
system to a multi-channel decoder/receiver.
➜ PCM only: Only if your receiver is not
capable of decoding multi-channel audio.
DOLBY DIGITAL SETUP
➜ STEREO: Left mono sound will send output
signals to Left speaker and Right mono sound
will send output signals to Right speaker.
➜ L-MONO: Left mono sound will send
output signals to Left speaker and Right speaker.
➜ R-MONO: Right mono sound will send
output signals to Left speaker and Right speaker.
3D
➜ OFF, CONCERT, LIVING ROOM,
HALL, BATHROOM, CAVE, ARENA and
CHURCH.
HDCD
➜ OFF, 44.1K and 88.2K.
29
pg025-pg037_MCD288E-12-Eng-B
29
2007.12.21, 17:22
English
System Menu Options
System Menu Options
English
➜ ON: Select this to level out the volume. This
feature is only available for movies with Dolby
Digital mode.
➜ OFF: Select this when you want to enjoy the
surround sound with its full dynamic range.
Notes:
– This option is available only when the "HDMI" is
set to "ON".
– If no display appears on the TV screen due to
unsupported resolution, reconnect any available
interlace video output to your display and re-adjust
the resolution settings to 480p/576p.
VIDEO SETUP PAGE
PREFERENCE PAGE
NIGHT MODE
COMPONENT
This setting is not required if you are using the
VIDEO jack (yellow) to connect the DVD
micro system to your TV.
➜ S-VIDEO: Select this if you have connected
the DVD micro system to your TV using S-Video
jack.
➜ Pr/Cr Pb/Cb Y: Select this if you have
connected the DVD micro system to your TV
using Component video jacks.
➜ RGB: Select this for SCART connection.
TV MODE
Selects interlace or P-SCAN video output mode
when Pr/Cr Pb/Cb Y is selected.
➜ PROGRESSIVE and INTERLACE.
PARENTAL
1
2
3
Press 5/4 to highlight “RATING”.
Enter its submenu by pressing 33.
Use 5/4 to highlight a rating level for the disc
inserted.
➜ DVDs that are rated above the level you
selected will not play unless you enter your fourdigit password and choose a higher level rating.
DEFAULT
Setting the “DEFAULT” function will reset all
options and your personal settings to the factory
defaults and all your personal settings will be
erased.
PASSWORD SETUP
PICTURE SETTING
This menu helps you to set the video quality.
PASSWORD MODE
HDMI SETUP
This feature is used to enable/disable password
by selecting “ON”/”OFF”.
The options included in HDMI SETUP Page are:
"HDMI" and "RESOLUTION".
HDMI
This option is used to enable/disable HDMI
output.
➜ ON: Enables HDMI output.
➜ OFF: Disables HDMI output.
PASSWORD
Enter your four digit password when a hint is
displayed on the screen. The default password is
1234.
RESOLUTION
The resolution options include 480p (60Hz),
720p (60Hz), 1080i (60Hz), 576p (50Hz), 720p
(50Hz) and 1080i (50Hz).
30
pg025-pg037_MCD288E-12-Eng-B
30
2007.12.21, 17:22
Tuning to radio stations
RDS
1
Press SOURCE on the set repeatedly or
TUNER on the remote to select FM tuner
source.
2
Press and hold TUNING 22/33and release
the button.
➜ The radio automatically tunes to a station
with sufficient reception.
Radio Data System is a service that allows
FM stations to show additional information. If
you are receiving a RDS station,
and the
station name are displayed.
3
Repeat step 2 if necessary until you find the
desired station.
● To tune to a weak station, press TUNING 22/
33 briefly and repeatedly until you have found
optimal reception.
Programming radio stations
Scrolling through different RDS
information
● Press DISPLAY/RDS on the remote control
briefly and repeatedly to scroll through the
following information (if available):
– Station name
– RDS clock
– Programme type such as NEWS, SPORT,
POP M ...
– Frequency
You can store up to a total of 20 FM radio
stations in the memory.
Setting the RDS clock
Some RDS radio station may be transmitting a
real clock time at an interval of every minute. It
is possible to set the clock by using a time signal
which is broadcast together with the RDS signal.
Automatic programming
Press ANGLE/PROG on the system for more
than three seconds to activate programming.
➜ All available stations are programmed.
➜ AUTO is displayed and available stations are
programmed in order of waveband.
Manual programming
1
Tune to your desired station (refer to “Tuning to
radio stations”).
2
Press ANGLE/PROG on the system to
activate programming.
➜ PROG flashes on the display.
3
Press PRESETí/ë to allocate a number
from 1 to 20 to this station.
4
Press ANGLE/PROG again to confirm the
setting.
➜ PROG disappears.
5
Repeat the above four steps to store other
stations.
English
Radio Reception
1
Tune to a RDS station from FM band (refer to
“Tuning to radio stations”).
2
Press DISPLAY/RDS on the remote control.
➜ "RDS 00: OO" appears..
➜ If the RDS station does not transmit RDS
time, "RDS CLOCK" appears.
Note:
– Some RDS radio station may be transmitting a
real time clock at a minute interval. The accuracy
of the transmitted time depends on the
transmitting RDS radio station.
● You can override a preset station by storing
another frequency in its place.
Tuning to preset radio stations
● Press PRESETí/ë until the desired preset
station is displayed.
31
pg025-pg037_MCD288E-12-Eng-B
31
2007.12.21, 17:22
External Sources
English
How to organize your MP3/WMA files on
the USB mass storage device
This Hi-Fi system will browse the MP3/WMA
files in the folders/sub-folders/titles order.
Using a USB mass storage device
By connecting a USB mass storage device to the
Hi-Fi system, you can enjoy the device's stored
music through the powerful speakers of Hi-Fi
system.
Organize your MP3/WMA files in different
folders or subfolders as required.
Playing a USB mass storage device
Compatible USB mass storage devices
With the Hi-Fi system, you can use:
– USB flash memory (USB 2.0 or USB1.1)
– USB flash players (USB 2.0 or USB1.1)
– memory cards (requires an additional card
reader to work with this Hi-Fi system)
Notes:
– If you have not organized MP3/WMA files into
any albums on your disc, an album "00" will be
automatically assigned for all those files.
– Make sure that the file names of MP3 files end
with .mp3. and the file names of WMA files end
with .wma.
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for conversion. Visit
www.microsoft.com for details about Windows
Media Player and WM DRM (Windows Media
Digital Rights Management).
Note:
– In some USB flash players (or memory devices),
the stored contents are recorded using copyright
protection technology. Such protected contents will
be unplayable on any other devices (such as this
Hi-Fi system).
Supported formats:
– USB or memory file format FAT12, FAT16,
FAT32 (sector size: 512 bytes)
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
– WMA v9 or earlier
– Directory nesting up to a maximum of 8
levels
– Number of albums/ folders: maximum 99
– Number of tracks/titles: maximum 999
– ID3 tag v2.0 or later
– File name in Unicode UTF8 (maximum length:
128 bytes)
The system will not play or support the
following:
– Empty albums
– Non-supported file formats are skipped.
– AAC, WAV, PCM audio files
– DRM protected WMA files
– WMA files in Lossless format
1
Check the USB device has been properly
connected. (See Installation: Connecting an
additional appliance).
2
Press SOURCE once or more to select USB
(or USB/AUX on the remote control).
-NO AUDIO appears if no audio file is found in
the USB device.
3
Play the USB's audio files as you do with the
albums/tracks on a CD (See Disc Operations).
Notes:
– For compatibility reasons, the album/track
information may differ from what it is displayed
through flash players' music management
software.
– File names or ID3 tags will be displayed as --- if
they are not in English.
32
pg025-pg037_MCD288E-12-Eng-B
32
2007.12.21, 17:22
2
Clock setting
See "Preparations-Step 2: Setting the clock".
Timer setting
● The system can be used as an alarm clock,
whereby the last selected source is switched on
at a set time (one time operation). The clock
time needs to be set first before the timer can
be used.
1
In standby mode, press and hold SLEEP/
TIMER on the remote control for more than
three seconds.
➜ "TIMER SET" is displayed briefly. Then, the
hour digits flash on the display panel.
2
Press VOLUME -/+ (VOL +/- on the remote
control) to set the hours and SLEEP/TIMER
to confirm.
➜ The minute digits flash on the display panel.
3
Press VOLUME -/+ (VOL +/- on the remote
control) to set the minutes and SLEEP/TIMER
to confirm.
➜ "TUN", “DVD” or "USB" flashes.
4
Press VOLUME -/+ (VOL +/- on the remote
control) to select your desired source.
5
Press SLEEP/TIMER to complete the setting.
➜ Display shows .
When you reach the desired length of time, stop
pressing SLEEP/TIMER.
➜ Display shows .
To deactivate the sleep timer
● Press SLEEP/TIMER repeatedly until "OFF" is
displayed, or press ECO POWER/
STANDBY-ON y (y on the remote control).
➜
disappears.
To deactivate the timer
● Press SLEEP/TIMER again.
➜
disappears.
Sleep timer setting
The sleep timer enables the system to switch off
by itself after a set period of time.
1
Press SLEEP/TIMER on the remote control
repeatedly to select a preset time.
➜ The selections are as follows (time in
minutes):
OFF ™ 15 ™ 30 ™ 45 ™ 60 ™ 75 ™ 90 ™
105 ™ 120 ™ OFF
➜ "SLEEP XX" or "SLEEP OFF" is displayed.
"XX" is the time in minutes.
33
pg025-pg037_MCD288E-12-Eng-B
33
2007.12.21, 17:22
English
Clock/Timer
Specifications
English
Amplifier
Speakers
Rated output power ......... 2 x 20W + 50W RMS
Frequency response (L/R) ................. 20 - 20000Hz
(Subwoofer) ...................... 50 - 180Hz
Signal to noise ratio ............................................ > 65dB
Aux input ............................................. 1V RMS 20kohm
Speaker impedance (L/R) .................................. 4 ohm
(Subwoofer) .................................. 4 ohm
Speaker driver (L/R) ....................................................... 3”
(Subwoofer) ....................................................... 5”
Frequency response ........................... 50 - 16000 Hz
Disc
General information
Laser type ................................................ Semiconductor
Disc diameter .................................................. 12cm/8cm
Video decoding ............. MPEG-1 / MPEG-2 / Divx
Video DAC ................................................................. 12Bits
Signal system ............................................... PAL / NTSC
Video format .................................................... 4:3 / 16:9
Video S/N ............................................................... > 48dB
Audio DAC ............................................ 24Bits / 96kHz
Total harmonic distortion ............... < 0.1% (1kHz)
Frequency response ........ 4Hz - 20kHz (44.1kHz)
......................................................... 4Hz - 22kHz (48kHz)
......................................................... 4Hz - 24kHz (96kHz)
S/N ratio ............................................................... > 65dBA
Total output power ............ 2 x 25W + 50W RMS
AC power ....................... 220V - 230V, 50Hz / 60Hz
Operation power consumption ....................... 35W
Standby power consumption ........................... < 4W
Eco standby power consumption ....................... 1W
Composite video output ............... 1.0Vp-p, 75ohm
Headphone output ................... 2 X 15mW, 32ohm
USB direct ........................................................ Version 2.0
HDMI .................................................................. Version 1.1
Dimensions (W x H x D)
– Main unit .................................. 472 x 362 x 224mm
– Main speaker ............ 140 x 220 x 33mm (each)
– Subwoofer .............................. 170 x 197 x 302mm
Tuner
Weight
– With packing ........................................................... 10kg
– Main unit .................................................................. 1.35kg
– Main speaker ......................................... 0.37kg (each)
– Subwoofer .............................................................. 3.12kg
FM tuning range .................................. 87.5 - 108MHz
Tuning grid ................................................................. 50KHz
Sensitivity
– Mono, 26dB S/N ratio ........................................ 50uV
– Stereo, 46dB S/N ratio ................................... 100uV
Selectivity .................................................................. > 28dB
Image rejection ...................................................... > 25dB
Total harmonic distortion ................................... < 3%
Signal to noise ratio ........................................ > 55dBA
Specifications subject to change without
prior notice
34
pg025-pg037_MCD288E-12-Eng-B
34
2007.12.21, 17:22
English
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer or
Philips for help.
Problem
Solution
✔ Check if the AC power cord is properly
No power.
connected.
✔ Check if the disc is inserted upside down.
✔ Wait until the moisture condensed at the lens
“NO DISC” is displayed.
has cleared.
✔ Replace or clean the disc, see “Maintenance”.
✔ Use a readable disc or correctly recorded format
MP3-CD.
✔ Select the appropriate video input mode on the
No picture.
✔
✔
✔
✔
TV set.
Check if the TV set is switched on.
Check the video connection.
Check if the system is securely connected.
If the progressive scan feature is activated but
the connected TV does not support progressive
signals or the cables are not connected
accordingly, see “Preparations-Setting up
Progressive Scan feature” for proper progressive
scan setup or deactivate the progressive scan
feature as below:
1) Turn off your TV progressive scan mode or
turn on to interlaced mode.
2) Press SYSTEM MENU on the remote control
to exit the system menu and then DISC and 1
to exit progressive scan.
✔ Sometimes a slight picture distor tion may appear.
Distorted or poor picture.
This is not a malfunction.
✔ Clean the disc.
The aspect ratio of the screen cannot be
changed even though you have set the TV
shape.
✔ The aspect ratio is fixed on the DVD disc.
✔ The aspect ratio may not be changed for some
TV systems.
35
pg025-pg037_MCD288E-12-Eng-B
35
2007.12.21, 17:22
Troubleshooting
English
Problem
Solution
The DVD player does not start playback.
✔ Insert a readable disc.
✔ Check the disc type, color system and region
code.
✔ Clean the disc.
✔ Place the disc with the playback side down.
✔ Press SYSTEM MENU to turn off the setup
menu.
✔ Cancel the parental control rating function or
change the rating level.
✔ Moisture has condensed inside the system.
Remove the disc and leave the system turned on
for about an hour.
The DVD player does not respond when
buttons are pressed.
✔ Disconnect the power plug from the jack, and
The language for the sound or subtitle
cannot be changed when playing a DVD.
✔ Multi-language sound or subtitle is not recorded
insert again.
on the DVD.
✔ Changing the language for the sound or subtitle
is prohibited on the DVD.
No image is output when a function is
selected.
✔ Make sure the component is connected
correctly.
✔ Press the correct function button for the input
source.
Adjust the volume.
Disconnect the headphones.
Check that the speakers are connected correctly.
Check if the stripped speaker wire is clamped.
If the system is in pause, slow motion or fast
forward/reverse mode, press 2; to resume the
normal play mode.
✔ Make sure the MP3-CD was recorded within 32256 kbps bit rate with sampling frequencies at 48
kHz, 44.1 kHz or 32 kHz.
✔ Ensure that the DTS disc also supports Dolby
Digital output.
Sound cannot be heard or is of poor
quality
✔
✔
✔
✔
✔
Poor radio reception.
✔ If the signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
✔ Increase the distance between the System and
your TV set or VCR.
36
pg025-pg037_MCD288E-12-Eng-B
36
2007.12.21, 17:22
Problem
English
Troubleshooting
Solution
Left and right sound outputs are
reversed.
The remote control does not function.
✔ Check the speaker connections and location.
✔ Point the remote control at the remote control
✔
✔
✔
✔
sensor of the unit.
Reduce the distance to the player.
Remove any possible obstacles.
Replace the battery with a new one.
Check that the battery is loaded correctly.
The timer is not working
✔ Set the clock correctly.
The Clock/Timer setting is erased
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
Unable to select Progressive Scan.
No sound is output from the HDMI jack.
✔ Check that the output of the video signal is
switched to 'Pr/Cr Pb/Cb Y'.
✔ Check the connection between the TV and the
HDMI jack of the DVD player.
✔ See if the TV suppor ts this 480p/576p/720p/
1080i DVD player.
✔ Check your TV system setup correctly.
✔ Check that the RGB/SCART cable is connected
No sound and picture
to the correct device (See Connecting TV).
Some files on the USB device are not
displayed.
“DEVICE NOT SUPPORTED” scrolls on the
display.
✔ Check if the number of folders exceeds 99 or
the number of titles exceeds 999.
✔ Remove the USB mass storage device or select
another source.
37
pg025-pg037_MCD288E-12-Eng-B
37
2007.12.21, 17:22
Meet Philips at the Internet
http://www.philips.com
English
Français
Français
Español
Español
Deutsch Nederlands
Italiano
Nederlands Italiano
Deutsch
Português
Português
MCD288E
Čeesskkyy
Č
Suomi
Slovensky
CLASS 1
LASER PRODUCT
Português
Magyar
Polski
2007.12.21, 17:33
76
PageBack_MCD288E
PDCC-JW-0751
Printed in China
