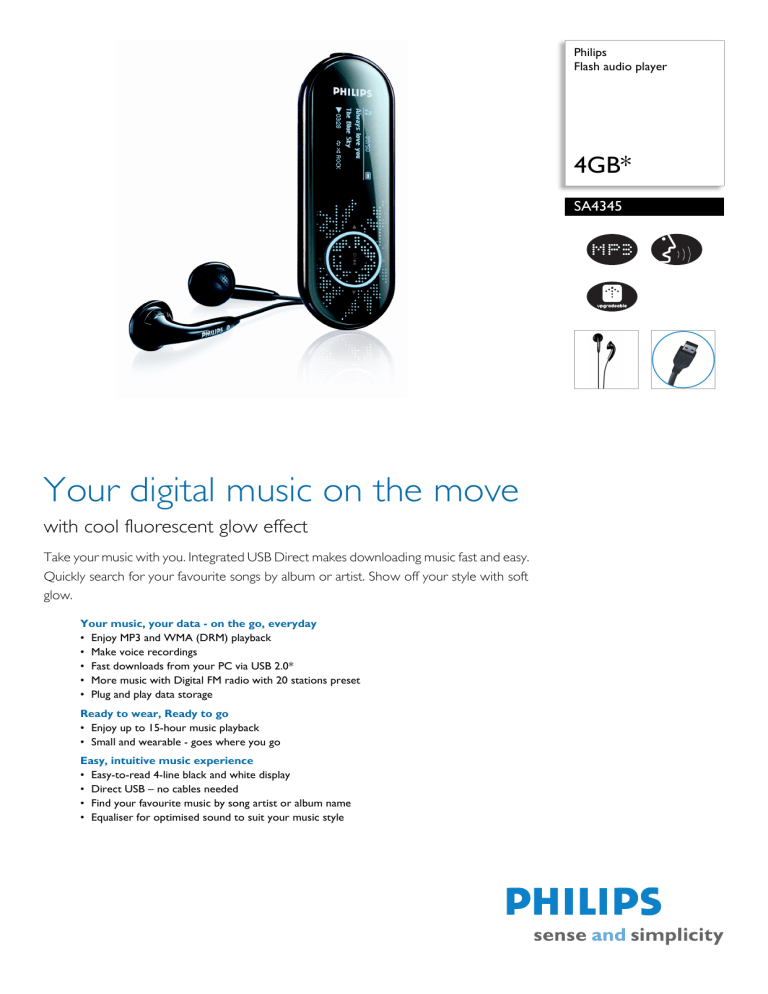

SA4345/02 Philips Flash audio player

SA4345/02 Philips Flash audio player
Philips
Flash audio player
4GB*
SA4345
Your digital music on the move
with cool fluorescent glow effect
Take your music with you. Integrated USB Direct makes downloading music fast and easy.
Quickly search for your favourite songs by album or artist. Show off your style with soft
glow.
Your music, your data - on the go, everyday
• Enjoy MP3 and WMA (DRM) playback
• Make voice recordings
• Fast downloads from your PC via USB 2.0*
• More music with Digital FM radio with 20 stations preset
• Plug and play data storage
Ready to wear, Ready to go
• Enjoy up to 15-hour music playback
• Small and wearable - goes where you go
Easy, intuitive music experience
• Easy-to-read 4-line black and white display
• Direct USB – no cables needed
• Find your favourite music by song artist or album name
• Equaliser for optimised sound to suit your music style
SA4345/02
Flash audio player
4GB*
Specifications
Picture/Display
• Lines of text: 4
• Resolution: 64 x 128
• Display screen type: OLED
Sound
•
•
•
•
•
•
Channel separation: 45 dB
Equalizer settings: Classic, Jazz, Pop, Rock
Frequency response: 45 - 16 000 Hz
Output power (RMS): 2 x 2.5 mW
Signal to noise ratio: > 88 dB
Equalizer customizable
Audio Playback
• Compression format: MP3, WAV, Windows
Media™ Audio
• ID3 Tag support: Track title and artist name
• MP3 bit rates: 8-320 kbps and VBR
• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,
44.1, 48 kHz
• WMA bit rates: 10 - 320 kbps (constant), 32 192kbps (VBR)
• WMA sample rates: 8, 11.025, 16, 22.050, 32,
44.1, 48 kHz
• DRM: Version 10
Audio Recording
• Record your own voice
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
Storage Media
•
•
•
•
Built-in memory capacity: 4 GB
Built-in memory type: NAND Flash
Mass storage class compliant
Music memory capacity, WMA: Up to 1800
tracks*
Tuner/Reception/Transmission
•
•
•
•
Tuner Bands: FM Stereo
Auto digital tuning
Frequency range: 87.5 - 108 MHz
Number of Preset Channels: 20
Connectivity
• Headphone: 3.5 mm
• USB: High-speed USB 2.0
Convenience
• Firmware upgradeable
• Function: Keypad lock
Accessories
•
•
•
•
•
Headphones: AY3809
USB cable: AY3914
User Guide on CD-ROM
Printed User Guide
Neck strap: AY4251
Software
• Device manager: Device Manager to restore and
upgrade
• Windows Media Player 10
• PlaysForSure: Audio Download, Audio
Subscription
Green Specifications
• Lead-free soldered product
System Requirements
• CD-ROM drive
• Internet connection: Yes (for access to updated
support documents, manuals, future firmware and
PC software upgrades)
• PC OS: Windows XP (SP2 or higher) or Vista
• USB: Free USB port
Dimensions
• Blister dimensions (WxDxH): 135 x 38 x 195 mm
• Packaging type: Clamshell
• Product dimensions (WxDxH): 31.2 X 16.6 X
90.2 mm
Power
• Battery Type: LI-Polymer
• Charging time: 4hr hr
• Playtime on internal battery: Up to 15 hours
•
Issue date 2007-12-08
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 34365
EAN: 87 12581 36750 3
www.philips.com
