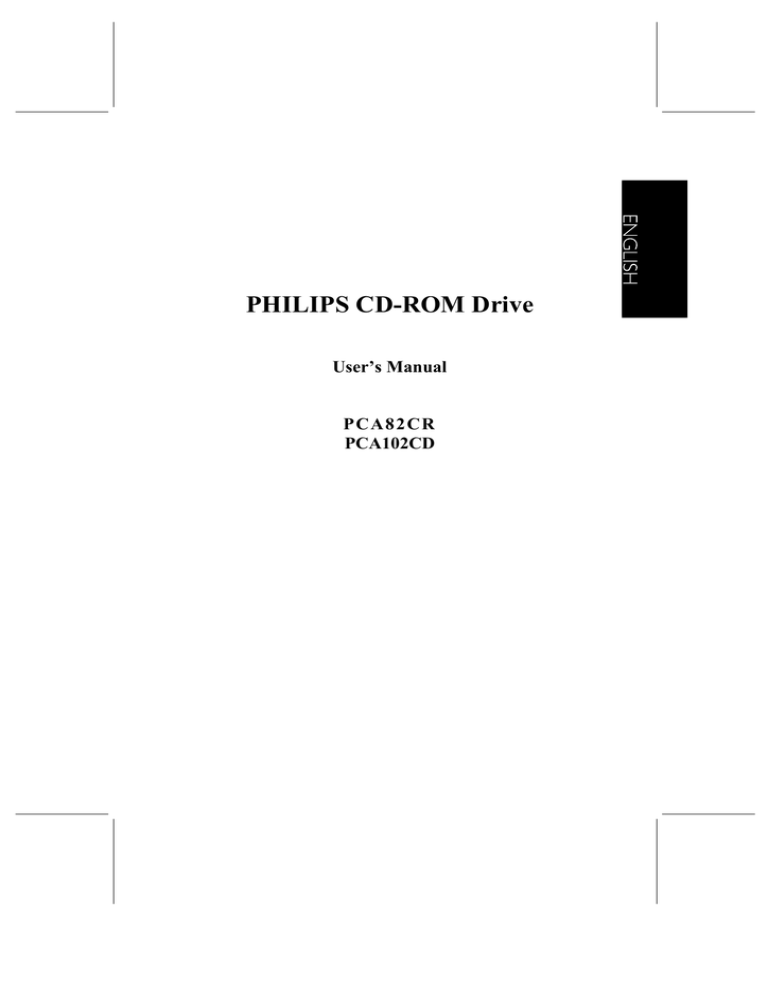

PHILIPS CD-ROM Drive
User’s Manual
PCA82CR
PCA102CD
Table of Contents
Chapter 1
INTRODUCTION ..........................1
1.1
Features ...................................1
1.2
Package Contents ...........................2
1.3
System Requirements ........................2
Chapter 2
PRECAUTIONS ...........................3
2.1
During Installation ........................3
2.2
During Operation ...........................3
2.3
During Transport ...........................4
2.4
When Handling a Disc .......................4
2.5
Servicing the Drive ........................4
Chapter 3
INSTALLING YOUR DRIVE .................5
3.1
Installing the CD-ROM Drive ................5
3.2
Letting Your System Recognize the Drive ....8
3.2.1 If You Are a DOS or Windows 3.1 User ...................................8
3.2.2 If You Are a Windows 95 User................................................10
3.2.3 If You Are an OS/2 Warp User................................................13
Chapter 4
USING YOUR CD-ROM DRIVE ...............17
4.1
Drive Applications ........................17
4.2
Front Panel Controls ......................17
Appendix A
A MASTER OR A SLAVE DEVICE? ............19
A.1
IDE Connections ...........................19
A.2
Setting Master and Slave Jumpers ..........22
Appendix B
SPECIFICATIONS .........................23
Copyrights And Liabilities
Copyright 1996 by Philips Electronics N.V.
All
rights reserved. No part of this publication may be
reproduced or transmitted in any form by any means
for any purpose without the prior written permission
of Philips Electronics N.V.
The information in this manual is subject to change
without notice and does not represent any commitment
on the part of Philips Electronics N.V. Philips
Electronics N.V. also specifically disclaims any
implied warranties of merchantability or fitness for
any particular purpose.
The software described in this document may be copied
and used by one intended user only, unless otherwise
stated, and the copying should be solely for the
purpose of backup.
In the event the product this manual supports is not
free from defects, the purchaser’s sole remedy shall
be repair or replacement within the warranty period.
By acceptance of this product, you hereby assume all
liability consequent to your use or misuse of it.
Philips Electronics N.V. assumes no liability for
incidental, special or consequential damage of any
kind.
Under no circumstances will Philips
Electronics N.V. be liable for any expenses, lost
profits, lost savings, damage to or replacement of
equipment and property, costs of recovering,
reprogramming, or reproducing any data stored in or
used with this product.
Philips and the Philips logo are registered trademarks
of Philips Electronics N.V. All other company names
i
and product names are trademarks and registered
trademarks of their respective owners.
Printed in
Taiwan
ii
FCC Notice (USA)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment
and receiver.
3. Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced
radio/television technician for help.
Notice 1:
The changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
Notice 2:
Shielded interface cables must be used in order to
comply with the emission limits.
iii
Notice 3:
This product complies with the requirements set out in
the Council Directive on the Approximation of the Laws
of the Member States relating Electromagnetic
Compatibility (89/336/EEC). For the evaluation
regarding the electromagnetic compatibility, the
following standards were applied:
EN
50
082-1,
IEC 801-2,
EN
50
081-1,
EN
55
IEC 801-3,
IEC 801-4
022
CDC Regulatory Statement
(Canada)
This digital apparatus does not exceed Class B limits
for radio noise emissions from digital apparatus set
out in the Radio Interference Regulations of the
Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits
radio-électriques dépassant les limites applicables
aux appareils numériques de la classe B prescrites
dans le Réglement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
D.N.S.F1. Regulatory
Statement
Class 1 laser product
(EN 60825: 1991)
or
Luokan 1 laserlaite
iv
Klass 1 laser apparat
(EN 60825: 1991)
Additional remarks:
VAROITUS - Laitteen käyttäminen muulla kuin tässä
käyttöohjeessa mainitulla tavalla saattaa altistaa
käyttäjän turyallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Varning - Om apparaten används pä annat sätt än i
denna bruksanvisning specificerats, kan användaren
utsättas för osynlig lasersträlning, som överskrider
gränsen för laserkläss 1.
According to EN 60825 sub-clause 6, regarding actions
to be taken against dangerous radiation including
copies of all warning labels and information about the
laser components and radiation data such as
wavelength, output power and pluse times.
v
Important Safety Notice
1. Follow all warnings and instructions marked on the
product.
2. Danger: Invisible laser radiation when open. Avoid
direct exposure to beam.
3. Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Slots and openings in the cabinet and the back or
bottom are provided for ventilation. To protect it
from overheating, these openings must not be
blocked or covered. This product should never be
placed near or over a radiator or heat register, or
in a built-in installation unless proper
ventilation is provided.
5. This product should be operated from the type of
power indicated on the marking label. If you are
not sure of the type of power available, consult
your dealer or local power company.
6. Never push objects of any kind into this product
through cabinet slots as they may touch dangerous
voltage points or short cut parts that could result
in a fire or electric shock. Never spill liquid of
any kind on the product.
Belangrijke
veiligheidsvoorschriften
1. Let op alle waarschuwingen en instructies die op
het product staan vermeld.
vi
2. GEVAAR: Bij het demonteren van dit produkt kunt u
worden blootgesteld aan onzichtbare laserstraling.
Vermijd directe blootstelling aan laserstraling.
3. Trek de stekker van de PC uit het stopcontact
voordat u dit produkt schoonmaakt. Gebruik geen
vloeibaar reinigingsmiddel of spuitbussen. Gebruik
voor het schoonmaken alleen een vochtige doek.
4. De sleuven en openingen in de kast van het produkt
dienen voor de ventilatie. Om te voorkomen dat het
produkt oververhit raakt, mogen deze sleuven en
openingen nooit worden geblokkeerd of bedekt.
Bovendien mag u dit produkt nooit in de buurt van
een radiator of een kachel plaatsen, u mag hem
alleen inbouwen als er voor voldoende ventilatie is
gezorgd.
5. U mag dit apparaat alleen aansluiten op een voeding
van het type dat op het label staat vermeld. Neem
contact op met uw leverancier of het plaatselijk
elektriciteitsbedrijf voor meer informatie.
6. Steek nooit voorwerpen of iets anders in dit
produkt via de ventilatiesleuven of de openingen,
deze voorwerpen kunnen onder spanning komen te
staan of kortsluiting veroorzaken en op die manier
brand veroorzaken of een elektrische schok. Laat
nooit enige vloeistof op of in het apparaat lopen.
Avis important en matière de
sécurité
1. Veuillez observer les avertissements et suivre les
instructions indiquées sur le produit.
vii
2. Danger : Cet appareil émet des radiations laser
invisibles lorsqu'il est ouvert. Veillez à éviter
toute exposition directe aux rayons laser.
3. Débranchez votre ordinateur avant de procéder au
nettoyage de l'appareil. N'utilisez pas de produit
liquide ou d'aérosol de nettoyage. Utilisez plutôt
un chiffon propre et humide.
4. Les fentes et les ouvertures situées sur le capot
de l'appareil sont destinées à assurer la
ventilation de ses circuits. Pour protéger
l'appareil de toute surchauffe, il convient de ne
pas obturer ou couvrir ces fentes et ces
ouvertures. En outre, il convient de ne jamais
placer cet appareil sur ou à proximité d'un
radiateur ou d'un accumulateur de chaleur, ou
encore dans une installation intégrée, à moins
qu'une ventilation adéquate soit assurée.
5. Ce produit ne doit fonctionner qu'avec le type
d'alimentation indiqué sur l'étiquette de repérage.
Veuillez consulter votre revendeur ou la société de
distribution électrique locale pour connaître le
type d'alimentation disponible dans votre région.
6. Veillez à ne jamais enfoncer d'objets de quelque
sorte que ce soit dans les fentes ou les ouvertures
de ce produit. Ces objets peuvent en effet entrer
en contact avec des parties dangereuses à haute
tension ou provoquer des coupe-circuits qui, à leur
tour, peuvent entraîner un incendie ou une
électrocution. Veillez également à ne jamais verser
de liquide d'aucune sorte dans l'appareil.
Wichtiger Sicherheitshinweis
vii
i
1. Befolgen Sie alle auf dem Produkt vorhandenen
Warnungen und Anweisungen.
2. Gefahr: Im geöffneten Zustand kann unsichtbare
Laserstrahlung entweichen. Vermeiden Sie den
direkten Kontakt mit Laserstrahlen.
3. Ziehen Sie den Netzstecker Ihres PC aus der
Steckdose, bevor Sie dieses Produkt reinigen.
Verwenden Sie keine flüssigen Reinigungsmittel oder
Reinigungssprays. Reinigen Sie das Produkt, falls
notwendig, mit einem feuchten Tuch.
4. Die Schlitze und Öffnungen am Gehäuse des Produktes
dienen zur Lüftung. Um das Produkt vor Überhitzung
zu schützen, dürfen die Schlitze und Öffnungen
nicht blockiert oder verdeckt werden. Zusätzlich
sollten Sie dieses Produkt niemals in der Nähe
einer Heizquelle stellen oder in eine Anlage
integrieren, außer wenn ausreichende Lüftung
gewährleistet ist.
5. Dieses Produkt sollte mit der auf dem Etikett
angegebenen Netzspannung betrieben werden. Fragen
Sie Ihren Händler oder Ihr lokales
Stromversorgungsunternehmen, welche Netzspannung
verfügbar ist.
6. Stecken Sie niemals Gegenstände durch die Schlitze
und Öffnungen in das Produkt, da diese Gegenstände
unter gefährlicher Spannung stehende Bereiche
berühren oder Teile kurzschließen und somit Brand
oder elektrischen Schlag verursachen können.
Verschütten Sie keine Flüssigkeiten auf dem
Produkt.
ix
Precauzioni Importanti
1. Seguire tutte le istruzioni e precauzioni indicate
sul prodotto.
2. Pericolo! Quando l’unità è aperta, c’è una
radiazione laser invisibile. Evitare l’esposizione
ai raggi laser.
3. Disinserire la spina del PC dalla presa di corrente
prima di effettuare operazioni di pulizia sul
prodotto. Quando lo si vuole pulire, non bisogna
impiegare detergenti liquidi né spray, ma soltanto
un panno umido.
4. Le fessure e aperture presenti sull’unità
permettono la ventilazione necessaria a proteggerla
da surriscaldamento; pertanto queste non devono
essere bloccate né coperte. Inoltre, questo
prodotto non dovrebbe essere mai posto vicino o
sopra termosifoni o altre fonti di calore e neppure
incorporato in altri contenitori a meno che non si
provveda ad una opportuna ventilazione.
5. Questo prodotto dovrebbe esser fatto funzionare con
l’alimentazione elettrica indicata
sull’etichetta.Consultare il proprio rivenditore o
la società elettrica locale per conoscere i tipi di
alimentazione disponbili.
6. Mai introdurre o spingere oggetti di qualsiasi tipo
attraverso le fessure e le aperture poiché
potrebbero entrare in contatto con zone a voltaggio
pericoloso oppure con parti di circuito che possono
provocare incendi o scosse elettriche. Non
rovesciare mai liquidi di alcun tipo sul prodotto.
x
Importante Advertencia de
Seguridad
1. Tenga en cuenta todas las advertencias e
instrucciones marcadas en el producto.
2. Peligro: Radiación láser invisible al estar
abierto. Evite quedar expuesto directamente a rayos
láser.
3. Desenchufe su PC de la toma de corriente antes de
limpiar este producto. No use detergentes líquidos
o detergentes en pulverizadores. Para limpiar,
sírvase de un trapo húmedo.
4. Las ranuras y aperturas en la cubierta del producto
son aptas para la ventilación. Para prevenir que
el producto se sobrecaliente, estas ranuras y
aperturas no deben ser bloqueadas o tapadas.
Además, este producto no se deberá colocar cerca de
o encima de un radiador o una calefacción, o en una
instalación incorporada, a no ser que venga con una
ventilación apropiada.
5. Este producto tendrá que funcionar con el tipo de
alimentación que se indica en la marca de fábrica.
Recurra a su distribuidor local o compañía
eléctrica para enterarse de los tipos de
alimentación disponibles.
6. No introduzca nunca ningún objeto a través de las
ranuras y aperturas del producto, dado que estos
productos podrán tocar áreas de voltaje peligrosas
y provocar cortocicuitos o choques eléctricos. No
derrame ningún tipo de líquido sobre el producto.
xi
INTRODUCTION
1
Congratulations! You have just made a very important
upgrade for your PC. By installing the PHILIPS 8X or
10X CD-ROM drive into your IBM PC/compatible, you can
now take advantage of the vast host of multimedia
software available today at a higher performance than
ever. Whether you are interested in the Encyclopedia
Britanica, educational games, using your computer as a
digital music studio or composing a business
presentation with sound, graphics and animation, your
new CD-ROM drive will be the tool to efficiently and
effectively get all that information into your
computer.
1.1 Features
This CD-ROM drive has the following key features:
IDE/ATAPI interface
Access time at 145 ms for PCA102CD and 155 ms for
PCA82CR
Data transfer rate at 1,500 KB/sec for PCA102CD
and 1,200 KB/sec for PCA82CR
Built in 128 KB buffer
Motorized tray for loading and unloading CDs
Standard size: fits into a standard 5.25 inch
half-height PC disk drive bay
Emergency eject for manual disc ejection
Automatic power-saving feature
Compatibility with the following disc formats:
Audio-CD, Video-CD, CD-ROM/XA, CD-i/FMV (CD-i
movies), Karaoke-CD, CD Plus and Photo-CD (both
single and multi-session)
1
1
PHILIPS CD-ROM DRIVE USER’S MANUAL
Front-panel Stop/Eject, audio Play/Skip track
control
Compatibility with Windows 3.1, Windows 95 and
OS/2
Note: The use of the IDE/ATAPI interface means that you
can use your PC’s existing IDE interface to set
up the drive without the need for an additional
CD-ROM interface card.
1.2 Package Contents
Your complete CD-ROM package contains the following
items:
CD-ROM drive
Audio cable
IDE cable
software diskette
Four screws
This user‘s manual
1.3 System Requirements
IBM PC or compatible, with 80286 CPU or higher (a
80386 or higher is recommended)
3.5” floppy drive
One empty 5.25” horizontally oriented disk bay
One free IDE interface connector
MS-DOS 6.0 or later, Windows 3.1 or higher, or
OS/2 Warp 3.0 or above
2
1
Please read this manual thoroughly before installing
or using your new CD-ROM drive.
1
3
PRECAUTIONS
2
2.1 During Installation
ALWAYS
install and use the drive in a horizontal
position
PROTECT THE DRIVE FROM:
high temperature, high humidity, extreme
temperature changes
dusty area
excessive vibration
direct sunlight
inclined places
2.2 During Operation
ALWAYS
keep the tray closed to prevent dust and dirt
contamination when not using the drive.
turn off your PC power before pressing a thin bar
to manually eject the disc tray (see Chapter 4)
use a voltage regulator or Uninterrupted Power
System (UPS) in areas where the power supply
voltage varies a lot
NEVER
move the drive while it is operating
operate the drive right after a sudden increase
in temperature
force the disc tray to open or close by pulling
or pushing it
2
3
PHILIPS CD-ROM DRIVE USER’S MANUAL
repeatedly open and close the disc tray for no
obvious reasons
insert any foreign objects into the disc tray
press hard on the disc tray when it is opened
expose your PC to random electrical noise
2.3 During Transport
ALWAYS
remove any disc from the drive before the
transport
pack the drive in the original packing materials
2.4 When Handling a Disc
ALWAYS
store a disc in its case to prevent dust
contamination, scratches, bending, and other
damage
use a clean, soft and dry cloth to remove dust or
fingerprints. Never use fluids like benzene or
anti-static fluids to clean a disc
handle a disc by its edges
NEVER
touch the surface of the
write on a disc or place
of the disc
bend a disc
place or store a disc in
temperature and humidity
4
disc
a label on the surface
places with high
or under direct sunlight
2
2.5 Servicing the Drive
ALWAYS
ask an authorized service technician to perform
any service operations
NEVER
attempt to open or remove the drive casing by
yourself
1
5
INSTALLING YOUR
DRIVE
3
This chapter contains detailed instructions to guide
you through the installation of your new CD-ROM drive.
To install the drive, your PC must have at least one
free IDE interface connector. If not, you need to go
to a computer retailer and buy an IDE controller card
(an Enhanced IDE controller card is needed if your PC
already has a one-port IDE controller). See Appendix
A for a brief introduction to IDE connections.
3.1 Installing the CD-ROM Drive
Here’s how to install your CD-ROM drive:
1. Adjust the Master/Slave jumpers on the back of
the CD-ROM drive as necessary.
(The factory
setting of the slave mode meets most people’s
needs and normally does not need to be changed.
See Appendix A.)
2. Disconnect the power to your PC and remove your
PC's casing.
3. Slide the CD-ROM drive into the mounting rails
of a 5.25” drive bay.
3
5
PHILIPS CD-ROM DRIVE USER’S MANUAL
Figure 3-1
Inserting the CD-ROM Drive
4. Search inside your PC for a free power cable
connector and plug it into the 4-pin connector on the back of your CD-ROM drive.
5. Find an IDE cable that has a free connector and
plug the connector into the connector
on the back of the drive. The cable’s colored
edge must be aligned with the Pin 1 position.
6
3
INSTALLING YOUR DRIVE
CABLE SELECT
SLAVE
MASTER
DIGITAL
AUDIO AUDIO
D G
CSM
RGGL SL A
DC INPUT
IDE INTERFACE
39
40
1
2
5V
G
G
12V
RED
RED
Figure 3-2
Back Panel Connections
Note: If you have a sound card, you can connect
either the sound card’s IDE cable (if
there is one) or one of your PC’s
available IDE cables to this IDE INTERFACE
connector. You must then disable the
unused interface port in the sound card’s
setup program. See the user manual of
your IDE controller or sound card for
instructions.
6. If you have a sound card
Blaster compatible 4-pin
the supplied audio cable
the back of the drive to
card.
which has a Sound
“” connector, use
to connect “” on
“” of the sound
7. If you have an audio device (e.g., a sound card
or a recorder) which supports digital audio
input, you may optionally connect “ ”
on the back of the drive to the digital input
connector of that device with an audio cable
3
7
PHILIPS CD-ROM DRIVE USER’S MANUAL
that has two 2-pin Molex or equivalent
connectors.
8
3
INSTALLING YOUR DRIVE
8. Secure the drive with the supplied four screws.
9. Replace your PC's casing and reconnect the power
supply.
This completes the hardware installation.
Wait a minute. You haven’t told me
what the leftmost thing in the picture
is about!
Don't panic. That’s just a jumper
reserved for our own testing. You
don’t need to do anything to it.
3
9
PHILIPS CD-ROM DRIVE USER’S MANUAL
3.2 Letting Your System Recognize
the Drive
For your system to recognize the new CD-ROM drive, you
need an appropriate driver to act as the system’s “eye
opener.” Because your new CD-ROM is a plug-and-play
device, in normal cases either Windows 95 or OS/2 Warp
should have no problem recognizing it with the OS’s
built-in standard IDE CD-ROM driver.
Users of DOS
and Windows 3.1, however, need to install a supplied
device driver.
Even so, the installation procedure
is easy and takes less than three minutes.
3.2.1 If You Are a DOS or Windows 3.1
User
Perform the following steps:
1. Boot your computer.
2. Insert the Installation diskette into a 3.5”
floppy drive.
3. Type or , depending on
into which drive you inserted the diskette.
The
10
menu appears:
3
INSTALLING YOUR DRIVE
Figure 3-3
The “CD-ROM Device Driver Setup” Menu
4. Press to accept the default settings for
an express setup, or press “” to start a custom
setup.
Note: Custom Setup are only for users who want
to change the default installation
settings, such as the target directory or
the IRQ lines to be used by the available
IDE ports.
A “Compile Time” message will appear when the
setup is completed.
5. Reboot your computer.
If everything is okay, you can start using
your CD-ROM drive right away. Otherwise:
If the file MSCDEX.EXE is indicated not
found, make sure that you are using DOS 6.0
or above and your AUTOEXEC.BAT file has a
path statement similar to:
3
!"#
11
PHILIPS CD-ROM DRIVE USER’S MANUAL
If the system halts, make sure that your CDROM drive has been correctly set as a master
device or a slave device. See Appendix A for
instructions.
If you still have trouble with your CD-ROM
drive, contact the retail store where you bought
your drive or call the help desk.
12
3
INSTALLING YOUR DRIVE
3.2.2 If You Are a Windows 95 User
Perform the following steps:
1. Install Windows 95, if it is not already
installed.
2. Boot your computer.
starts.
Windows 95 automatically
3. Double click the $ % icon on the desktop
and check whether the CD-ROM icon appears as in
the following window:
Figure 3-4
“My Computer” Peripherals
4. Double click the & '& (& in the same
window. The & '& folder contents are
displayed:
3
13
PHILIPS CD-ROM DRIVE USER’S MANUAL
Figure 3-5
The “Control Panel” Folder Contents
5. Double click the
folder appears:
14
$)%
icon.
The
$)% )
3
INSTALLING YOUR DRIVE
Figure 3-6
The “System Properties” Folder
6. Click the ''* tab and check whether the
CD-ROM drive is listed.
If the CD-ROM icon is listed in both Step 3 and
this step, you can stop here. Windows 95 has
successfully recognized your new CD-ROM drive.
Otherwise, proceed with Steps 7 and 8.
7. Install the supplied device driver under DOS by
following the instructions given in Section
3.2.1.
8. Restart Windows 95 and repeat Step 3.
This time the CD-ROM icon should appear in $
peripheral icon display (but not in
the Device Manager’s listing for reasons beyond
this manual’s purposes).
%’s
3
15
PHILIPS CD-ROM DRIVE USER’S MANUAL
Why couldn’t I set up Windows 95 with
its CD disc? Is my CD-ROM defective?
No. Your CD-ROM probably had nothing
to do with that problem.
If you were making an upgrade from
Windows 3.1 to Windows 95, you might
have forgotten to complete the steps
listed in Section 3.2.1 before
performing the upgrade. Remember,
without the CD-ROM driver, Windows 3.1
has no way to recognize your CD-ROM
drive.
If you were setting up Windows 95 from
scratch, the standard IDE CD-ROM driver
contained in the Windows 95
installation package might not be
working properly with your IDE
controller. Try the diskette version.
16
3
INSTALLING YOUR DRIVE
3.2.3 If You Are an OS/2 Warp User
Perform the following steps:
1. Install OS/2 Warp, if it is not already
installed. Otherwise, skip to Step 3.
When the installation comes close to the end,
the following dialog box pops up:
Figure 3-7
The “System Configuration” Dialog Box
2. Click the CD icon, select + from the list box and click the , button.
Follow the screen instructions until the
installation is completed.
3. Reboot your PC.
3
17
PHILIPS CD-ROM DRIVE USER’S MANUAL
4. Double click the -. $)% icon on the desktop
to display the following window:
Figure 3-8
The “OS/2 System - Icon View” Window
5. Double click the ) icon and check whether the
CD-ROM icon ( ) appears as in the following
list of available drives:
Figure 3-9
The “Drives - Icon View” Window
6. If it is listed, you can stop here. OS/2 Warp
has successfully recognized your new CD-ROM
drive. Otherwise, proceed with the remaining
steps.
7. Close the window and double click the %%'
%) icon in the -. $)% /0 window (see
Figure 3-8). The following window appears:
18
3
INSTALLING YOUR DRIVE
Figure 3-10
8. Double click the
appears:
The “Command Prompts - Icon View”
Window
-. 10
Figure 3-11
icon.
An OS/2 window
“OS/2 Window”
9. At the command prompt, type:
10.At the end of the opened CONFIG.SYS file, add
the following line:
11.Close the file after saving it and reboot your
PC.
12.Repeat Steps 4 and 5.
This time the CD-ROM icon should appear as an
available drive in the ) /0 window.
3
19
PHILIPS CD-ROM DRIVE USER’S MANUAL
Why couldn’t I set up OS/2 Warp with its
CD disc? Is my CD-ROM defective?
No. Your CD-ROM probably had nothing to
do with that problem.
Instead, the standard IDE CD-ROM driver
contained in Diskette 1 of the OS/2 Warp
installation package might not be
working properly with your IDE
controller.
Try the diskette version.
This page is intentionally left blank.
20
3
USING YOUR CD-ROM
DRIVE
4
4.1 Drive Applications
There are two main ways in which you will use your new
CD-ROM drive. The first way is as a typical disk
drive (albeit read-only). Here, data such as program
files, databases, sound clips, video images, etc. is
read from the CD into your PC's CPU. The other way is
as a CD player. You can use your CD-ROM drive to
listen to music CDs.
4.2 Front Panel Controls
Most of time, you will use application software to
control the CD-ROM drive no matter whether the drive
is used as a disk drive or a CD player. Nevertheless,
there are times you will need to manually control the
drive through its front panel controls.
Figure 4-1
The Front Panel Look
These controls are (from top to bottom and from left
to right):
Disc Tray
4
Opens or closes for disc loading and
removal
17
PHILIPS CD-ROM DRIVE USER’S MANUAL
Headphone
jack
For optional connection to headphones
or self-amplified speakers.
LED indicator
Lights up when disc is first put into
the tray or ready for access; flashes
during seek operation
Headphone
volume
control
Adjusts the volume level of sound
coming out from the headphone jack
Emergency
eject
Opens the disc tray when both the
Stop/Eject button and software control
fail. Press a thin bar (e.g., a
straightened paper clip) into the hole
to eject the tray.
Audio
play/skip
Plays or skips a song of an audio CD
Stop/Eject
Opens or closes the disc tray
Note: Turn off the power of your PC before pressing a
thin bar to manually eject the disc tray.
18
4
A MASTER OR A SLAVE
DEVICE?
A
Before sliding your CD-ROM drive into the 5.25” drive
bay, you have to decide whether the drive is going to
and
be a master or slave device by adjusting the
jumpers on its back. This appendix presents some
basic concepts of IDE connections to help you make the
decision and describes the way to set the jumpers.
A.1 IDE Connections
When you open your PC box, most likely you will see a
wide ribbon cable with two 40-pin connectors stemming
from a connector seat on the mother board; each of the
connectors may or may not have been connected to a
peripheral device. Such a cable is called an IDE
cable and the connector seat an IDE port, The
functionality of the cable and port is determined by
an “IDE controller”, either built-in on your
motherboard or in the form of an add-on card. This
whole set of things acts as a data bridge between your
CPU and devices that are designed for use with the IDE
standards.
IDE Cable
Floppy Cable
Red
Primary Port
Figure A-1
A
IDE Port and Cable on Motherboard
19
PHILIPS CD-ROM DRIVE USER’S MANUAL
22
20
A
A MASTER
OR A SLAVE DEVICE
IDE controllers may contain more than one port and
hence contain more than one IDE cable. Such a
controller is called an enhanced IDE controller.
Its
ports are called the primary port, secondary port,
tertiary port, etc. Currently, most enhanced IDE
controllers contain two ports: the primary port and
the secondary port. Any “bonus” port that comes with
a peripheral device, for example, your sound card, is
taken as a secondary port.
Secondary Port
Red
Primary Port
Red
Figure A-2
Enhanced IDE Controller Card
Note: Your PC system can have only one port of each
kind at any time. If you add an enhanced IDE
controller to the system, you must remove or
disable the PC’s original port(s). Similarly, if
a “bonus” port is present, you must disable
either this port or the PC’s secondary port, if
your PC already has a secondary port.
Because each IDE port supports up to two devices, you
need to tell your PC whether a device you are
connecting is the master or the slave device of that
port. As a result, if you have more than one IDE
A
21
PHILIPS CD-ROM DRIVE USER’S MANUAL
device, their assignments may look similar to the
following:
22
A
A MASTER
Device 1
Device
Device
Device
Device
Device
.
.
.
2
3
4
5
6
OR A SLAVE DEVICE
Primary master (boot
drive)
Primary slave
Secondary master
Secondary slave
Tertiary master
Tertiary slave
.
.
.
Note that the primary master, if configured, must be a
boot drive (normally a hard disk). Other than this,
an IDE device can be configured to any IDE interface
port and either as a master or a slave at your own
choice.
Here master and slave do not imply any
operating precedence; they are just the “sub-IDs” of
the devices that your computer needs to know about.
Note: 1. Currently, a CD-ROM drive cannot be used as a
boot drive. Therefore, you cannot configure
the CD-ROM drive as the primary master.
2. Your CD-ROM can be attached to any IDE
controller that supports up to eight IDE
devices.
3. If you are using OS/2 Warp and another device
has already been configured as the primary
slave, we highly recommend that you
configure the CD-ROM drive as the master
device of one of the rest available IDE
ports.
A
21
23
PHILIPS CD-ROM DRIVE USER’S MANUAL
A.2 Setting Master and Slave
Jumpers
Whether your PC system regards your CD-ROM drive as a
master device or a slave device depends on which of
the “ ” (master) and “ ” (slave) jumpers on the back
of the drive is capped.
or
Master Mode
Slave Mode
Figure A-3 Jumper Settings of Slave Mode and Master Mode
Your CD-ROM drive is shipped with the “ ” jumper
capped, In spite of this, note from Figure A-3 that
capping the “ ” jumper is optional for Slave mode.
To set your CD-ROM drive as a master device, simply
remove the cap from the “ ” jumper and place it over
the “ ” jumper.
Note: 1. The “MA” and “SL” jumpers cannot be both
capped at the same time.
2. A system halt will occur if the “MA” or “SL”
jumper is set in conflict with the other
device connected to the same IDE port. An
IDE port cannot contain two master devices or
two slave devices at any moment of time.
22
24
A
A MASTER
A
OR A SLAVE DEVICE
21
25
SPECIFICATIONS
B
Interface
ATAPI IDE (conforms to SFF8020
Drive interface type:
V1.2)
Disc formats:
Audio-CD, CD-ROM (mode 1 and mode 2)
CD-ROM/XA (mode 2, form 1 and form
2)
Video-CD, CD-i/FMV (CD-i movies)
CD Plus
Photo-CD (single and multisession)
Disc size:
80 and 120 mm
Performance
1,200 KB/sec (8X), 1,500 KB/sec
Data transfer rate:
(10X)
Access time:
155 ms typical @ 1/3 stroke (8X)
145 ms typical @ 1/3 stroke (10X)
Buffer size:
128 KB
Audio Features
Signal to noise ratio: 70 dB min
< 2%
Distortion:
Line output:
> 0.7 Vrms
Digital output:
> 0.5 Vrms
Headphone output: > 0.8 Vrms
44.1 KHz
Sampling frequency:
Output ports:
3.5 mm stereo headphone jack
4-pin stereo line out connector
2-pin stereo digital audio output
connector
Power Requirements
B
23
PHILIPS CD-ROM DRIVE USER’S MANUAL
DC 5V +/- 5%:
500 mA typical
DC 12V +/- 5%:
350 mA typical (8X), 900 mA typical
(10X)
24
B
Reliability
MTBF:
100,000 POH (25% duty cycle at room
temperature)
Error rate:
10-12 after error correction
hard read error
10
-15
Environmental Tolerance
Operating
Temperature:
Humidity:
Non-operating
+5 C ~ +40 C -20
+41 F ~ +104 F
C
-4
~ +55 C
F ~ +131
F
20% - 80% RH,
15% - 80% RH,
non-condensing non-condensing
Physical Characteristics
Dimension:
146 x 42.5 x 210 mm (W x H x D)
typical
Weight:
0.9 Kg
Front panel:
Stop/Eject button
Audio Play/Skip button
Emergency disc eject hole
Rotary volume control knob
Disc Ready/Data Seek LED indicator
Headphone jack
Rear Panel:
Power supply connector
IDE interface connector
Master/Slave configuration jumpers
Audio line output
Digital audio output
Testing jumper
25
