PET718
Philips Portable DVD Player

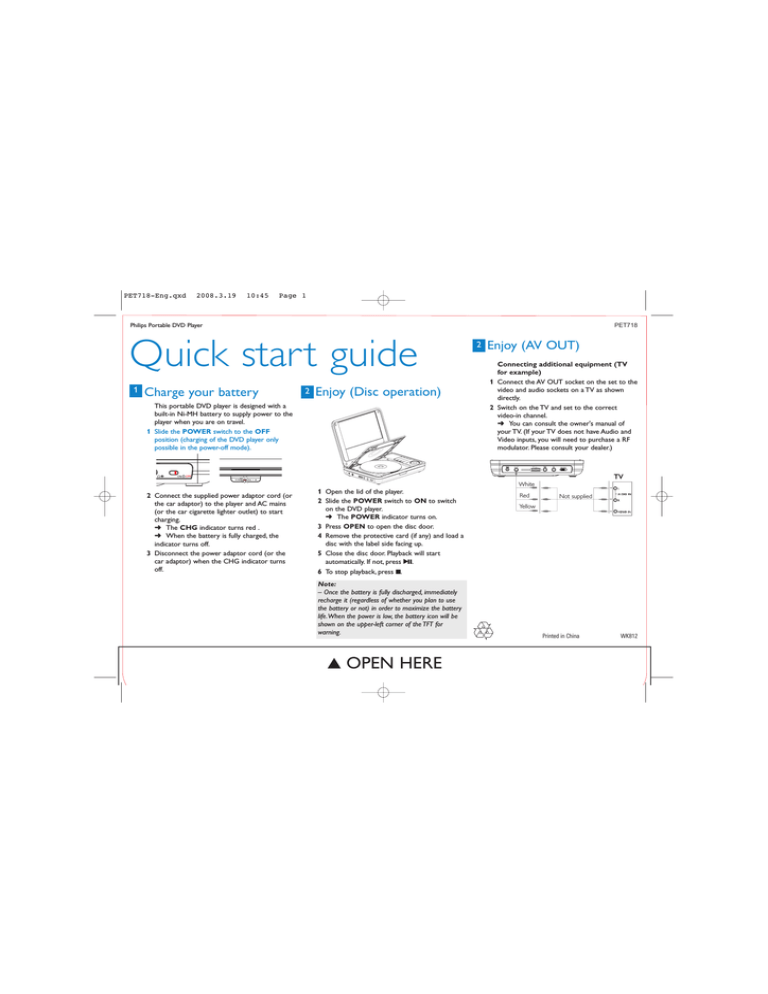

Quick start guide
1
Charge your battery
2
Enjoy (Disc operation)
This portable DVD player is designed with a
built-in Ni-MH battery to supply power to the
player when you are on travel.
1 Slide the POWER switch to the OFF
position (charging of the DVD player only
possible in the power-off mode).
2
Enjoy (AV OUT)
Connecting additional equipment (TV
for example)
1 Connect the AV OUT socket on the set to the
video and audio sockets on a TV as shown
directly.
2 Switch on the TV and set to the correct
video-in channel.
➜ You can consult the owner's manual of
your TV. (If your TV does not have Audio and
Video inputs, you will need to purchase a RF
modulator. Please consult your dealer.)
TV
White
2 Connect the supplied power adaptor cord (or
the car adaptor) to the player and AC mains
(or the car cigarette lighter outlet) to start
charging.
➜ The CHG indicator turns red .
➜ When the battery is fully charged, the
indicator turns off.
3 Disconnect the power adaptor cord (or the
car adaptor) when the CHG indicator turns
off.
1 Open the lid of the player.
2 Slide the POWER switch to ON to switch
on the DVD player.
➜ The POWER indicator turns on.
3 Press OPEN to open the disc door.
4 Remove the protective card (if any) and load a
disc with the label side facing up.
5 Close the disc door. Playback will start
automatically. If not, press 2;.
Red
Not supplied
Yellow
6 To stop playback, press 9.
Note:
– Once the battery is fully discharged, immediately
recharge it (regardless of whether you plan to use
the battery or not) in order to maximize the battery
life.When the power is low, the battery icon will be
shown on the upper-left corner of the TFT for
warning.
3 OPEN HERE
