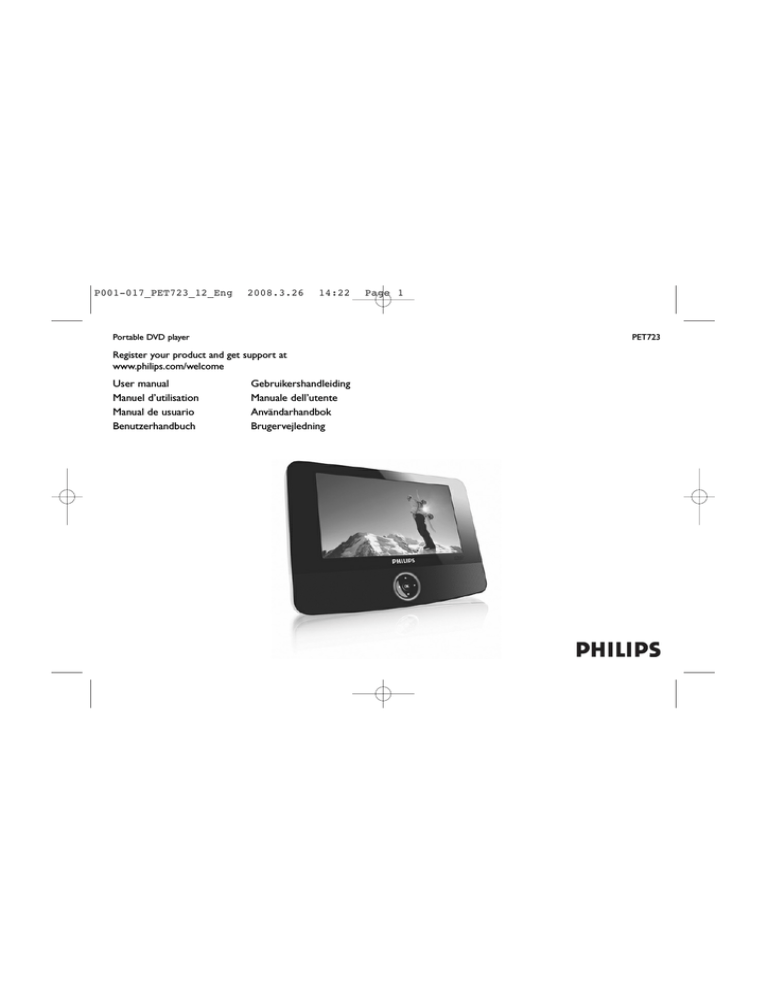

Portable DVD player
PET723
Register your product and get support at
www.philips.com/welcome
User manual
Manuel d’utilisation
Manual de usuario
Benutzerhandbuch
Page 1
Gebruikershandleiding
Manuale dell’utente
Användarhandbok
Brugervejledning
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 2
DK
Important notes for users in the U.K.
Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere
er ude af funktion. Undgå utsættelse for stråling.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in
this type of plug proceed as follows:
Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke
strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til
lysnettet så længe netstikket sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt kopplad och bryter inte
strömmen från nätet. Den inbyggda nätdelen är därför ansluten till
elnätet så länge stickproppen sitter i vägguttaget.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk støt, skal apparatet
ikke utsettes for regn eller fuktighet.
1. Remove fuse cover and fuse.
2. Fix new fuse which should be a BS1362 3 Amp, A.S.T.A. or BSI
approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off
and an appropriate plug fitted in its place. If the mains plug contains a
fuse, this should have a value of 3 Amp. If a plug without a fuse is used,
the fuse at the distribution board should not be greater than 3 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue =
neutral (N), brown = live (L). As these colours may not correspond with the
colour markings identifying the terminals in your plug, proceed as follows:
• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E
(or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped
over the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act
1956 and The Performer’s Protection Acts 1958 to 1972.
English
Page 3
Deutsch Español Français
English - - - - - - - - - - - - - - - - - - - - 4
Français - - - - - - - - - - - - - - - - - - 18
Español - - - - - - - - - - - - - - - - - - 32
Nederlands
Deutsch - - - - - - - - - - - - - - - - - - 46
Nederlands - - - - - - - - - - - - - - - 60
Italiano
14:22
Italiano - - - - - - - - - - - - - - - - - - 74
Svenska
Svenska
2008.3.26
- - - - - - - - - - - - - - - - - 88
Dansk
P001-017_PET723_12_Eng
Dansk - - - - - - - - - - - - - - - - - - - 102
3
P001-017_PET723_12_Eng
English
English
2008.3.26
14:22
Page 4
FUNCTIONAL OVERVIEW
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product
at www.philips.com/welcome.
Main unit controls
1 3, 4, 1, 2 ...........Navigate in a menu.
...........(1 / 2) Press and hold to search backward/forward in a
disc at different speeds.
...........(1 / 2) Press briefly to skip to previous/next chapter,
track or title.
OK .........................Start or interrupt playback.
.........................Confirm a selection.
.........................Power indicator (The indicator will turn off automatically
about five seconds after you press a key).
Left of player
2 p .............................Headphone jack.
3 MMC/SD................SD card slot.
4 AV OUT ..................Audio/Video output jack.
5 VOL +/- ...................Volume control.
6 DC 9V .....................Power supply socket.
CHG.........................Charge indicator.
Right of player
7 OFF PWR ON ........Switch the power on/off.
Top of player
8 SOURCE .................Switch between DVD and SD modes.
9 MENU.....................Display the MENU page.
4
SOURCE
2
MENU
8
9
7
3
4
5
6
1
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 5
1
Remote controls ( see figure 2)
1 SOURCE .................Switch between DVD and SD modes.
2 DISPLAY ................Display information on TFT during playback.
3 ZOOM.....................Enlarge or reduce a picture or active image on the TFT.
4 MENU.....................Enter or exit the disc contents menu.
5 §............................Skip to the next chapter, track or title.
6 J( ............................Skip to the previous chapter, track or title.
7 3, 4, 11, 22 .....Navigate in a menu.
.....(1 1 / 22) search backward/forward in a disc at
different speeds.
2;...........................Confirm a selection.
................................Start or interrupt playback.
8 SETUP ....................Enter or exit the system menu.
9 9 .............................Stop playback
0 0-9...........................Numeric Keypad
! REPEAT 1/ALL .......Repeat a chapter/track/title.
A-B... ......................Repeat playback of a specific section on a disc.
@ SUB ........................Select a subtitle language.
# AUDIO ....................Select an audio language when playing a DVD disc or
select an audio mode (Stereo, Mono-Left or Mono-Right)
when playing a VCD/CD disc.
$ ANGLE....................Select DVD camera angle
2
3
English
FUNCTIONAL OVERVIEW
4
5
6
11
7
8
12
9
13
10
14
CAUTION
Use of controls or adjustments or performance of procedures
other than herein may result in hazardous radiation exposure
or other unsafe operation.
5
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 6
English
INTRODUCTION
INTRODUCTION
Your portable DVD player
About Built-in Rechargeable Battery
Your portable DVD player plays digital video discs conforming to the universal
DVD Video standard. With it, you will be able to enjoy full-length movies with
true cinema picture quality, and stereo or multichannel sound (depending on the
disc and on your playback set-up).
Precautions related to battery recharge
The unique features of DVD-Video, such as selection of soundtrack and subtitle
languages, and of different camera angles (again depending on the disc), are all
included.
What’s more, parental lock lets you decide which discs your children will be able
to see. You will find your player remarkably easy to use with the On-Screen
Display and player display in combination with the remote control.
1
Once the battery is fully discharged, immediately recharge it (regardless of
whether you plan to use the battery or not) in order to maximize the battery
life. When the power is low, the battery icon will be shown on the upperright corner of the TFT for warning.
2
To charge the battery, please directly connect this DVD player to AC mains
and the charge indicator will turn on.
Using and maintaining your rechargeable batteries
1
Please make sure you always use only the AC adapter included with the
player to recharge your batteries.
2
Recharge efficiency will degrade when the environmental temperature drops
below 50oF (10oC) or exceed 95oF (35oC).
3
The lasting time of the fully charged battery when a headphone is connected
to the DVD player is approximately 2 hours.
Unpacking
First check and identify the contents of your package, as listed below:
• Portable DVD player
• Remote Control
• Car adaptor (12V)
• Audio / Video cable
• User Manual
• Warranty
• AC power adaptor, DSA-9W-09 F (DVE), AY4132 (PHILIPS) or AY4193 (PHILIPS)
Placement
• Place the player on a firm, flat surface.
• Keep away from domestic heating equipment and direct sunlight.
• If the player cannot read CDs/DVDs correctly, try using a commonly available
cleaning CD/DVD to clean the lens before taking the player to be repaired.
Other cleaning methods may destroy the lens.
• Always keep the disc door closed to avoid dust on the lens.
• The lens may cloud over when the player is suddenly moved from cold to warm
surroundings. It is then not possible to play a CD/DVD. Leave the player in a
warm environment until the moisture evaporates.
Playable disc formats
In addition to DVD-Video disc, you will also be able to play all Video CDs and
audio CDs (including CD-R, CD-RW, DVD±R and DVD±RW).
DVD-Video
Depending on the material on the disc (a movie, video clips,
a drama series, etc.) these discs may have one or more
Titles, and each Title may have one or more Chapters. To
make access easy and convenient, your player lets you move between Titles,
and also between Chapters.
CD with JPEG files
You can also view JPEG still photos on this player.
6
2008.3.26
14:22
Page 7
INTRODUCTION
GENERAL INFORMATION
English
P001-017_PET723_12_Eng
Video CD
Power Sources
Depending on the material on the disc (a movie, video clips, a drama
series, etc.) these discs may have one or more Tracks, and tracks
may have one or more indexes, as indicated on the disc case.To make access
easy and convenient, your player lets you move between tracks
and between indexes.
This unit operates on a supplied AC adapter and car adapter.
• Make sure that the input voltage of the AC adaptor is in line with the local
voltage. Otherwise, the AC adaptor and unit may be damaged.
• Do not touch the AC adaptor with wet hands to prevent electric shock.
• When connecting with car power (cigarette lighter) adaptor, be sure the
input voltage of the adaptor is identical with car voltage.
• Unplug the AC adaptor from the outlet when the unit is not used for long periods of time.
• Hold the plug to disconnect the AC adaptor. Do not pull the power cord.
Audio CD / MP3 CD
Audio CDs / MP3-CD contain music tracks only. You can play
them in the conventional way through a stereo system using the
keys on the remote control and/or main unit, or via the TV using the On Screen
Display (OSD).
About SD Memory Card
SD Memory Card is a slim and compact bridge media linking
various kinds of digital equipment through its easy connectivity. The card's control circuitry allows data to be read and written (in its protection area) only when
appropriate external devices are detected. Using decoder software, an SD
Memory Card-compatible device can play music, video clips and more without a
drive mechanism like those in CD and DVD players.
Safety and maintenance
• Do not disassemble the unit for laser rays are dangerous to eyes.
Any service should be done by qualified service personnel.
• Unplug the AC adaptor to cut the power if liquid or objects get inside the unit.
• Take care not to drop the unit or subject it to strong shocks, which may
cause malfunction.
• Important (for models with by-packed headphones): Philips guarantees compliance with the maximum sound power of its audio players as
determined by relevant regulatory bodies only with the original model of provided headphones. In case this one needs replacement, we recommend that
you contact your retailer to order a model identical to that of the original provided by Philips.
• Traffic safety: do not use while driving or cycling as you may cause an accident
• Do not expose to excessive heat caused by heating equipment or
direct sunlight.
• This product is not waterproof: do not allow your player to be submersed
in water. Water entering the player may cause major damage.
• Do not use any cleaning agents containing alcohol, ammonia, benzene,
or abrasives as these may harm the player.
• Apparatus shall not be exposed to dripping or splashing. Do not place any sources of danger on the appartus (e.g. liquid filled objects,lighted candles)
• Do not touch the lens!
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
Note: When the player is in use for a long period of time, the surface will be
heated. This is normal.
7
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 8
English
GENERAL INFORMATION
GENERAL INFORMATION
Hearing Safety
Listen at a moderate volume:
• Using headphones at a high volume can impair your hearing. This
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The higher
decibel ranges are offered for those that may have already experienced some
hearing loss.
• Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can
actually be loud and harmful to your hearing. To guard against this, set your
volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
Listen for reasonable periods of time:
• Prolonged exposure to sound, even at normally "safe" levels, can also cause
hearing loss.
• Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones:
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume as your hearing adapts.
• Do not turn up the volume so high that you can't hear what's around you.
• You should use caution or temporarily discontinue use in potentially hazardous
situations.
• Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.
8
Handling discs
• Do not attach paper or tape to the disc.
• Keep the disc away from direct sunlight or heat
sources.
• Store the disc in a disc case after playback.
• To clean, wipe the disc outwards from the center
with a soft, lint-free clean cloth.
On handling the LCD screen
The LCD is manufactured using high precision technology. You may, however, see
tiny black points and/or bright points(red,blue,green) that continuously appear on
the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction.
Environmental information
We have reduced the packaging to its minimum and made it easy to separate
into mono materials: cardboard, PS, PE and PET.
Your set consists of material which can be recycled if disassembled by a specialized company. Please observe the local regulations to dispose of packaging,
exhausted batteries and old equipment.
Copyright information
All other brand and product names are trademarks of their respective companies
or organizations.
Unauthorized duplication of any recordings downloaded from the internet or
made from CDs / VCDs / DVDs is a violation of copyright laws and international
treaties.
2008.3.26
14:22
Page 9
PREPARATIONS
Power supply
Using the AC / DC adaptor
Turn off the player before connecting the supplied adapter
to it and the main power supply (as shown). The player
must be turned off when the battery charges.
✔ TIP
• The plug is a disconnect device and shall remain readily
operable.
• To avoid damage to the player, switch off before plugging
or unplugging the AC adaptor.
PREPARATIONS
- Incorrect use of batteries can cause electrolyte leakage
and will corrode the compartment or cause the batteries to burst.
- Remove the battery if the remote control is not to be used for a long
time.
Connections
Connecting headphones
Connect the headphones into the p jack of your set.
Using the car adapter
Connecting additional equipment
Connect the supplied car adapter to the set and the car cigarette lighter outlet.
• Turn off your set before connecting to any additional equipment.
• You can connect the player to a TV or an amplifier to enjoy
DVDs or karaoke.
✔ TIP
• To avoid damage to the player, switch off before plugging or unplugging
the car adaptor.
• When connecting with car power (cigarette lighter) adaptor, be sure the
input voltage of the adaptor is identical with car voltage.
• Make sure the temperature is below 35oC when the DVD player is connected to DC 16.0V in a car.
Powering your remote control
1
2
Open the battery compartment. Remove the protective
plastic tab (first time users only).
Insert 1 x lithium 3V battery, type CR2025, then close the
compartment.
AV OUT
Connect the desired device to this terminal directly (no setting needed in the DVD
mode).
TV
White
Red
CAUTION
- Batteries contain chemical substances, so they should be disposed of properly.
- Danger of explosion if battery is incorrectly replaced. Replace only with
English
P001-017_PET723_12_Eng
Not supplied
AUDIO IN
Yellow
VIDEO IN
the same or equivalent type.
9
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 10
English
GENERAL EXPLANATION
BASIC FUNCTIONS
About this manual
Switching on for OSD language setup
This manual gives the basic instructions for operating this DVD player.
Some DVD discs however are produced in a way that requires specific operation or allows only limited operation during playback. In these cases
the player may not respond to all operating commands. When this
occurs, please refer to the instructions in the disc inlay. When a
“ ” appears on the screen, the operation is not permitted by the
player or the disc.
English is the default language of your player’s on screen display. You may
choose to use English, French, or German for your player’s on screen display.
Remote control operation
• Unless otherwise stated, all operations can be carried out with the
remote control. Always point the remote control directly at the
player, making sure there are no obstructions in the path of the
infrared beam.
• When there are corresponding keys on the main unit, they can also
be used.
Menu navigation
• Your player has an intuitive menu navigation system to guide you
through various settings and operations.
• Use the function keys to activate / disable relevant operations.
• Use 3, 4, 1, 2 to browse through menus.
• Press the OK key to confirm your selection.
Region
Europe
OSD Language Options
English, French, German
1 Slide the POWER switch to ON to switch on the
player.
2 Press SETUP for the setup menu.
3 Select Language and press 4.
4 Scroll and select On Screen Display and press 6
to select from OSD language options.
5 Select your preferred language and press 2;.
Loading discs and switching on
1 Gently push the front panel as shown to open
the disc compartment.
2 Insert your chosen disc, label side up (also when
a double sided DVD disc is inserted). Make sure
it is sitting properly in the correct recess.
3 Gently pull the front panel back to close the disc
compartment.
4 Slide the POWER switch to ON to switch on the player.
✔
TIP
A normal mechanical noise is heard during playback.
10
2008.3.26
14:22
Page 11
BASIC FUNCTIONS
BASIC FUNCTIONS
Playing a DVD disc
Playing an MP3 CD
After switching on, inserting the disc and closing the door, playback starts automatically. The screen shows the type of disc loaded. The disc may invite you to
select an item from a menu. Use the 3, 4, 5, 6 keys to highlight your selection,and press 2;.
The following playback features are available for MP3 CDs.
Please refer to the corresponding sections for more information.
Volume control, skipping tracks, searching, repeat, shuffle, etc.
Use the 3, 4 keys to highlight your selected music folder.
Press 2; to play.
Note: Since it is usual for DVD movies to be released at different times in different regions
of the world, all players have region codes and discs can have an optional region code. If
you load a disc of a different region code to your player, you will see the region code notice
on the screen. The disc will not play, and should be unloaded.
Playing an audio or video CD disc
• After switching on, inserting the disc and closing the door, playback starts
automatically. The screen shows the type of disc loaded as well as information
about the disc’s contents.
• While playing VCD with MTV/Karaoke, press number keys(0-9) to select the
track and press 2; to play the track. Press MENU to go back to menu of the
selection.
English
P001-017_PET723_12_Eng
Playing a JPEG disc
Use the 3, 4 keys to highlight your selected picture.
Press 2;. The player will then automatically enter the slide show mode.
During playback, you can:
• Use 1, 2 to rotate the picture.
• Use 3 to filp left/right.
• Use 4 to flip up/down.
• Press MENU to go back to folder screen.
• Press 9 to go to group preview.
• Press ZOOM repeatedly to display the picture with different scales.
• Use 3, 4, 1, 2 to view the zoomed picture (for picture zoomed in only).
11
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 12
English
GENERAL FEATURESS
GENERAL FEATURES
Moving to another title / track / chapter
Changing the audio output (for VCD)
When a disc has more than one title or
track, you can move to another
title/track/chapter as follows:
• Press § briefly during play to select the
next title/ track / chapter.
• Press J( briefly during play to step back
to the previous title/track/chapter.
• To go directly to any title, track or chapter, enter the corresponding number
using the numerical keys (0-9).
Press AUDIO repeatedly for the following audio options.
x1
Mono left
x2
Mono right
x3
Stereo
Search
During playback, press 6 repeatedly for the following forward search options:
Press 5 repeatedly for the following backward search options:
11
22
2 X backwards
2 X forward
4 X backwards
4 X forward
8 X backwards
8 X forward
16 X backwards
16 X forward
32 X backwards
32 X forward
normal speed
normal speed
Press 2; to resume normal playback.
12
✔ TIP
This key is used to select audio languages during DVD playback.
ZOOM
The Zoom function allows you to enlarge the video image and to pan
through the enlarged image. Press ZOOM repeatedly to select the
following zooming options.
Zoom x 1
2X
Zoom x 2
4X
Zoom x 3
normal
✔ TIP
During JPEG operation, the sequence is 100%, 125%, 150%, 200%, 50%,
75% and normal.
REPEAT
Press REPEAT 1/ALL repeatedly for the following repeat options:
DVD actions
MP3 actions
CD actions
x 1 repeats chapter repeats one
repeats track
x 2 repeats title
repeats folder
repeats all
x 3 repeats all
cancels repeat
cancels repeat
x 4 cancels repeat
2008.3.26
14:22
Page 13
GENERAL FEATURES
✔ TIP
The repeat function is also available for JPEG. The actions may vary for different media being played.
Repeat A - B
To repeat or loop a sequence in a title:
• Press A - B at your chosen starting point;
A appears on the screen.
• Press A - B again at your chosen end point;
GENERAL FEATURES
English
P001-017_PET723_12_Eng
DISPLAY
Press DISPLAY on the remote repeatedly for the following display options:
x1
x2
x3
x4
X5
DVD
Title elapsed
Title remained
Chapter elapsed
Chapter remained
Display off
VCD
Single elapsed
Single remained
Total elapsed
Total remained
Display off
AB appears on the display, and the repeat sequence begins.
• To exit the sequence, press A - B.
Volume Control
• Use the rotatary switch on the left side of the unit to increase or
decrease playback volume.
13
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 14
English
SPECIAL DVD FEATURES
SPECIAL DVD FEATURES
Checking the contents of DVD-Video discs: MENU.
Playing a title
For titles and chapters, selection menus may be included on the disc.
The DVD’s menu feature allows you to make selections from these menus. Press
the appropriate numerical key; or use the 3, 4, 11, 22 keys to highlight your
selection, and press 2;.
1
2
3
Disc menu
Press MENU. The menu may list, for example, camera
angles, spoken language and subtitle options, and chapters
for the title.
Changing the language
Press AUDIO. If the current disc has different langauge
options, this now appears on the screen.
Press AUDIO repeatedly until you have reached
your desired language option.
Subtitle
Press SUB. If the current disc has different subtitles options,
this now appears on the screen.
Press SUB repeatedly until you have reached
your desired subtitles option.
✔ TIP
The above two features depend on whether your disc contains any language
or subtitle options.
14
Press MENU to enter the disc title menu.
Use 11, 22, 3, 4 or numeric keys (0-9) to select a play option.
Press 2; to confirm.
2008.3.26
14:22
Page 15
SETUP OPERATIONS
To maximize your playback experience, use SETUP to fine tune your settings.
Use the 3, 4, 11, 2 2 keys to highlight your selection, and press 2;.
1 Press SETUP. A list of features is shown.
2 Use the 3 4 keys to highlight your selection.
SETUP OPERATIONS
Screen
When the cursor highlights these settings, press 2; to:
Language
select language options
Display Type
select display ratio
Brightness
select brightness level
Contrast
select contrast level
Press 5 to abort current settings or go back to previous menu level
Screen
select screen options
select photo options
When the cursor highlights these settings, press 2; to:
Custom
select custom options
Exit
exit the system menu
Slide Show Frequency
Slide Show Effect
Display Format
Photo Display
When the cursor highlights these settings, press 2; to:
3 Press 11 to abort current settings or go back to previous menu level.
4 Press SETUP to exit.
English
P001-017_PET723_12_Eng
set the time between two photos
select 17 slide show modes
switch between Normal and Widescreen
switch between Slide Show and Browse
Press 5 to abort current settings or go back to previous menu level
Language
Note: Parental options are only selectable when password mode is deactivated.
When the cursor highlights these settings, press 2; to:
Custom
On Screen Display
select on-screen display language
Menu
select disc menu language options
Audio
select disc audio language options
Subtitle
select disc subtitle language options
Press 11 to abort current settings or go back to previous menu level.
Note: Before using the 3,4 keys to select your desired angle mark, ensure the
disc has been recorded with angle mark and you have enabled the angle mark
option in the system menu.
When the cursor highlights these settings, press 2; to:
Parental Control
DivXR VOD
Password
Angle Mark
Default
select parental options
get DivX ID for VOD
change existing password (3308 by default)
select angle mark display options
restore factory settings
Press 5 to abort current settings or go back to previous menu level.
15
P001-017_PET723_12_Eng
2008.3.26
14:22
Page 16
English
TROUBLESHOOTING
If it appears that the DVD-Video player is faulty, first consult this checklist.
It may be that something has been overlooked.
WARNING
Under no circumstances should you try to repair the set yourself as this
will invalidate the guarantee.
If a fault occurs, first check the points listed, before taking the set for
repair. If you are unable to solve a problem by following these hints,
consult your dealer or service centre.
Symptom
Remedy
No power
– Check if both plugs of the mains cord are
properly connected.
– Check if there is power at the AC outlet by
plugging in another appliance.
– Check if the built-in battery is drained.
– Check if car adaptor is connected appropriately.
Distorted picture
Symptom
Remedy
Disc can’t be played
– Ensure the disc label is upwards.
– Clean the disc.
– Check if the disc is defective by trying another disc.
The player does not
respond to the remote
control
– Aim the remote control directly at the
sensor on the front of the player. Avoid all
obstacles that may interfere with the signal
path. Inspect or replace the batteries.
Distorted or B/W
picture with DVD
– Use only discs formatted according to the
TV-set used (PAL).
Player does not respond
to all operating commands
during playback
– Operations are not permitted by the disc.
– Refer to the instructions in the disc inlay.
Player feels warm
– When the player is in use for a long
period of time, the surface will be heated.
This is normal.
Display goes dimmer when
AC is unplugged
– The unit is saving power to ensure longer
playtime with battery. It is normal.
Adjust the brightness using the rotary brightness control.
– Check the disc for fingerprints and clean with
a soft cloth, wiping from centre to edge.
– Sometimes a small amount of picture distortion may appear. This is not a malfunction.
Completely distorted
picture / no colour in
the TV screen
– The PAL setting may be in the wrong
status. Match your TV’s setting with
the player’s setting.
No sound
– Check audio connections. If using a HiFi
amplifier, try another sound source.
16
TROUBLESHOOTING
This set complies with the radio interference requirements of the
European Union.
2008.3.26
14:22
Page 17
TECHNICAL DATA
Dimensions
Weight
Power supply
Power Consumption
Operating temperature range
Laser wavelength
Video system
Frequency response
Signal/noise ratio
Audio distortion + noise
Channel separation
Dynamic range
Audio out (analog audio)
Load impedance:
Video out Output level:
Load impedance:
210 x 158 x 39.5 mm
0.82 g
INPUT: 100-240V 50/60Hz 0.3A
OUTPUT: DC 9V 1A
9W
0 - 45°C
650nm
PAL
20Hz ~ 20KHz ± 1dB
≥ 80dB
≤ -80(1KHz)
≥ 80dB
≥ 80dB
Output level: 2V ± 10%
10KΩ
1Vp - p ± 20%
75Ω
English
P001-017_PET723_12_Eng
DISPOSAL OF YOUR OLD PRODUCT
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. The correct disposal of your old product will
help prevent potential negative consequences for the environment and human
health.
PHILIPS reserves the right to make design and specification
changes for product improvement without prior notice.
Modifications not authorized by the manufacturer may void users
authority to operate this device.
All rights reserved.
17
P102-116_PET723_12_Dan
2008.3.26
14:20
Page 116
Meet Philips at the Internet
http://www.philips.com
PET723
CLASS 1
LASER PRODUCT
Printed in China
PDCC-ZC-0812
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
