GB/SM 30 user manual
5/26/98 10:17 AM
Page 1

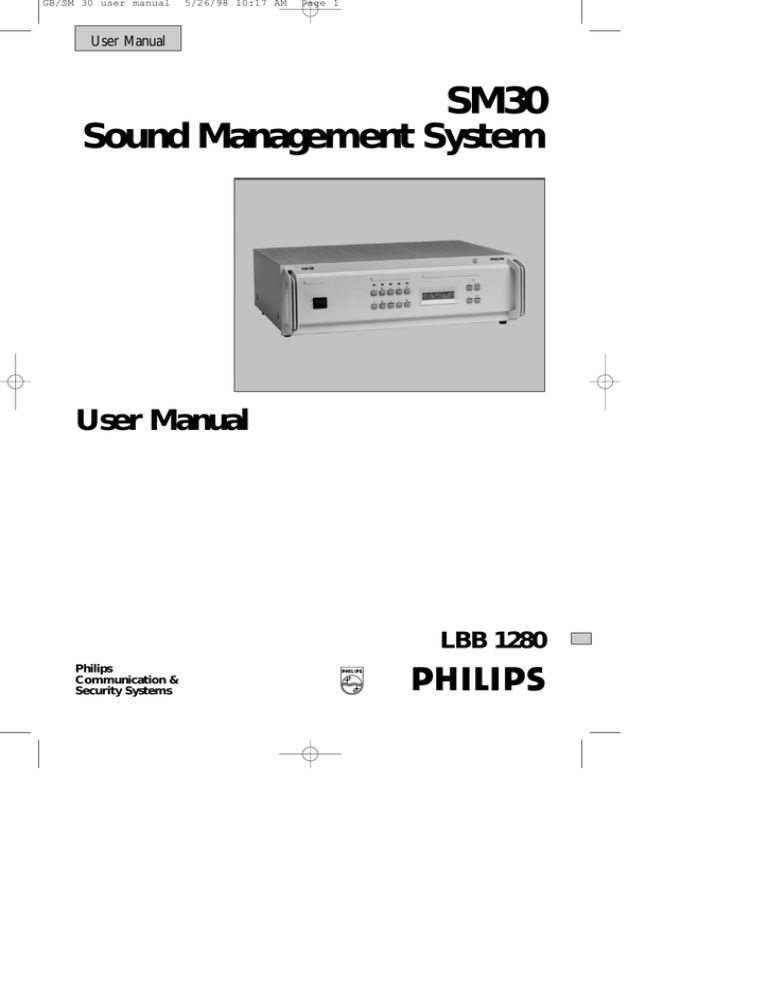

User Manual
SM30
Sound Management System
User Manual
LBB 1280
Philips
Communication &
Security Systems
GB/SM 30 user manual
5/26/98 10:17 AM
Page 2
CONTENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14.1
14.2
14.3
14.4
14.5
14.6
14.7
15
Introduction
System operation
Attention and alarm signals
Control centre
LBB 1280
Setting up the hardware
SM30 call station
LBB 9568
Call station input module
LBB 1283
Microphone input module
LBB 1282
Control input module
LBB 1284
Recorded message module
LBB 1285
Music input module
LBB 1286
Zone relay module
LBB 1287
Control relay module
LBB 1288
Programming
Summary SM30 User Programming
General
User programming
Error messages
Summary of SM30 Installer programming
Setup programming
Installer programming
Specifications
*Installer supplementary sheets
page
1
4
6
8
11
18
22
23
24
26
28
30
32
34
35
35
44
*
*
*
45
GB/SM 30 user manual
1
5/26/98 10:17 AM
Page 1
plug-in modules.
On the front panel of the Control Centre
are programming keys and associated LEDs,
an alpha-numeric LCD display, and keys for
controlling the functions of the music source
inputs. The programming keys enable the
installer to program SM30 to suit the overall
system configuration, and the user’s specific
needs. To allow the operator to control the
music sources, four Music Function Keys are
provided on the front panel.
These keys allow the operator to select the
music source; alter the music volume level
up or down; and mute the music signal.
INTRODUCTION
The SM30 sound management system
provides an ideal solution for public address
distribution systems, requiring a compact
and flexible set-up with ease of operation.
Being controlled by a microprocessor, the
system is particularly flexible, specific
functions being easily made and changed by
non technical personnel. In order to meet
differing application needs a variety of
plug-in modules are available, and a wide
range of system configurations are possible.
The total public address distribution system
comprises:
■ One Control Centre, containing a
microprocessor and plug-in modules.
■ SM30 Call stations.
■ Power amplifiers which feed loudspeakers
located in geographical and/or functional
zones where people must be reached with
background music, announcements, prerecorded messages, and alarm signals.
Programming
The displays and the programming menus
are presented in the selected language. In the
normal ‘run’ mode of the system, the LCD
display indicates the name of the current
music source (e.g. “TUNER”, or “MUSIC
OFF”), plus the current music volume level.
In the ‘programming’ mode, the display will
enable the installer/user to see:
■ Program selections while scrolling
through the programming menus.
■ Function selections within a program.
■ The number of the current Call Station;
Function Key; Microphone; Control
Inputs; etc., being programmed.
■ Call priority status.
■ Attention or Alarm signal number.
■ Pre-recorded message number.
■ Loudspeaker Zone call; Control Relay;
and music routing.
■ Alternative Function Key functions.
■ Alternative Music Input text.
■ Current program status (e.g. CLEARING
MEMORY PLEASE WAIT).
■ ‘Error’ indications.
■ Language selection.
■ Alarm interruption.
■ Power-on delay.
A maximum of 6 Call Stations may be used,
their functions being programmed from a
keyboard and display unit built into the
Control Centre. The system is designed to
handle calls and music simultaneously, so
that if a call is made to a particular zone or
combination of zones, music playing in
other zones will not be interrupted. A
system of priorities has been developed to
cope with conflict situations, for example a
person attempting to make a call when
another call is being made by someone with
a higher priority, the new call will not be
switched through.
Control Centre
At the heart of each SM30 system is the
Control Centre. This is a self contained
unit, housing the microprocessor which
controls SM30, and 12 slots which hold the
1
GB/SM 30 user manual
5/26/98 10:17 AM
Page 2
SM30 plug-in modules
All of the interconnections between
individual modules in the Control Centre
take place automatically when they are
plugged into the interconnection board of
the Control Centre, so that no complex
inter-wiring is required. Owing to the
unique construction of the housing, the
modules slide in and out quickly and easily.
These features make SM30 simple and
inexpensive to install and maintain.
All switching and routing of the system is
carried out by software, so that hard-wiring
problems are kept to a minimum. This
means that though SM30 comprises a great
amount of features, making it a
comprehensive Public Address Centre, the
unit itself is uncluttered and simple to
assemble and use.
■
Alternative functions.
These include music volume up/down;
music source selection; music mute; and
independent Control Relay switching or
toggling.
Using the Function Keys to make a call is
done in the same way as using the Key-pad.
The main difference being that instead of
the operator selecting the zones using the
Numeric Keypad, the Function Keys route
the call to a pre-programmed selection of
zones.
This of course saves a great amount of time
when an operator has to frequently call the
same selection of zones, or when an “ALL
CALL” must be made in emergencies.
Signal generator
Built into the SM30 Control Centre is a
signal generator, programmed with attention
tones and alarm signals. These can be
programmed, via the User Menu, to precede
a call or pre-recorded message, or to be
activated independently.
Call Station
The Call Station is the primary input to the
system, allowing the operator to route and
broadcast calls, announcements and music.
Each Call Station includes:
■ An electret condenser microphone.
■ A Numeric Keypad, allowing individual
selection of up to 18 loudspeaker zones
by typing in the zone number. Each Call
Station can be programmed with a
priority status, attention tone and prerecorded message. These become
operational whenever the keypad is used
to route a call.
■ Zone Selection Indicator.
Each zone has its own LED which is
illuminated when the zone is selected.
When the call is completed the LEDs will
be extinguished.
■ 4 Function Keys.
Programmable with: priority; alarm and
attention tones; pre-recorded messages;
routing to loudspeaker zones; and
Control Relay activation.
Background music
Background music sources, such as a
background music player, a radio tuner, a
compact disc player, a cassette deck, etc. are
connected and pre-adjusted.
Emergency Power Supply +48 VDC
In situations where the mains power supply
is unreliable, and SM30 is used for
security/evacuation purposes, an emergency
power supply may be used. This will be
switched on automatically whenever the
mains power fails.
Block diagram
The block diagram of a SM30 system is
shown in fig.1.
2
GB/SM 30 user manual
5/26/98 10:17 AM
SQ45
Page 3
2-channel p.a. amplifier for
call and music applications
music call
input
1V
output
100/70/50V
Pilot tone
Line output module
Radio
Cassette
CD
1
Music input
2
module
3
Recorded
Chime-,
attention-,
alarm-,
signals
message
module
1 Call station 1
2
input
module
3Microphone2
4
5
6
2
3
input
module
Optional 3
input
module
1
Microprocessor
board
Zone relay
module
Loudspeaker
zones 1-6
1
6
7
Zone relay
module 12
Loudspeaker
zones 7-12
13
Zone relay
module 18
Loudspeaker
zones 13-18
1
Control relay
module
12
1
Control input
module
8
AC
Power
supply
DC
Displ/keyboard
Management
System
SM30 Sound
Fig. 1 - Block diagram
3
4SM30011
Relay
outputs 1-12
GB/SM 30 user manual
2
5/26/98 10:17 AM
Page 4
SYSTEM OPERATION
SM30 Sound Management System presents
the operator with a logical, comprehensive,
and easy to use method of routing and
broadcasting calls, announcements, prerecorded messages, and music.
SM30 is easy to use and logical in its
operation, but it is perhaps helpful to
understand, in principle, how the system
works.
4
5
A Typical Operation
Herewith a typical series of actions, initiated
by the person (“the operator”) making an
announcement, a paging call, etc., and
carried out by the system.
6
1 The operator selects in which loudspeaker
zones the call must be broadcast. This is
done by simply typing in the number of
each desired zone using the Numeric
Keypad of the Call Station. The Zone
Routing Indicator LEDs for these zones
will illuminate.
2 The microprocessor, which is continuously monitoring the system, sees which
key is pressed. First it looks to see
whether another call is currently being
broadcast. If so, the processor activates a
flashing ‘BUSY’ LED on the call station.
3 When the ‘PRESS TO TALK’ key is
pressed, the processor checks which
priority rating each Call Station,
Function Key, microphone, etc., has been
given, and if the original caller has a
lower priority than the one being made,
its call will be muted and overridden by
the new caller. If the call being made has
the same, or a lower priority than the
original caller, the new call will be
ignored, and the ‘BUSY’ led will be
constantly illuminated to advise the
operator that the call has been aborted.
7
8
Pressing the ‘REDIAL’ key will automatically reselect the zones which were last
selected, eliminating the need to type
them in again.
If all is clear, the processor mutes any
music signal which may be broadcast in
the zone(s). Music routed to any other
zones will not be affected.
The processor checks which attention
tone has been programmed to precede an
announcement originating from the Call
Station, then it switches on the built-in
signal generator; selects a tone; and feeds
it out to the amplifier input.
If a message, recorded on the Recorded
Message Module, has been programmed
to precede a call, it will be broadcast after
the attention signal, and before the call.
Meanwhile the processor energises a
flashing green ‘WAIT/TALK’ LED in
order to tell the user that the call is going
through, but that they will have to wait
until the attention signal, or recorded
message, has finished.
The output signal of the amplifier is then
input into the SM30 Control Centre, via
its Zone Relay Module (a processor
controlled routing/switching matrix),
which routes it out again to the selected
loudspeaker zones.
When the announcement is completed
and the ‘PRESS TO TALK’ key is
released, the system returns to its idle
mode, with the processor continually
monitoring the system, until another call
is made. If music was playing in the
zone(s) it will return at its original
volume level.
Activation of Control Relays
Generating a call could also activate a relay,
or set of relays, which can be used to switch
on (or off ) external equipment.
4
GB/SM 30 user manual
5/26/98 10:17 AM
Page 5
Volume Control Override Relays
It is important that announcements and/or
alarm signals come through at full volume,
regardless of the volume settings of
individual loudspeakers. The processor can
be programmed to switch in a series of relays
mounted on the Control Relay Card, which
correspond to the loudspeaker zones
selected. These in turn activate individual
volume control override relays in the
loudspeaker enclosures.
Power on delay
In order to conserve power for battery
operated systems, the amplifier can be
switched on only when a call is made.
It causes a time delay (programmable from
2-9 seconds) between pressing an activation
key and the actual activation moment of the
call. Relay 3 of the Control Relay Module is
dedicated to switching the power to the
amplifier(s).
Alarm interrupt
In order to conform with certain European
military requirements an alarm call
generated by a contact on a Control Input
Module can be interrupted by a call with a
higher priority. After releasing the relevant
call key, the alarm signal will return for the
programmed duration. Selection of the noninterrupted or interrupted mode is
programmable in the “CTL ALARM
MODE” program of the Installer Mode.
Using the Function Keys to Make a Call
Using the four Function Keys (mounted on
the Call Station) to make a call is done in
the same way as using the Keypad.
The main difference being that instead of
the operator selecting the zones using the
Numeric Keypad, the Function Keys route
the call to a pre-programmed selection of
zones.
This of course saves a great amount of time
when an operator has to frequently call the
same selection of zones, or when an “ALL
CALL” must be made in emergencies.
The Function Keys can also be used to select
and broadcast an alarm or attention tone, or
activate a pre-recorded message, without any
microphone generated call being made.
Whenever the function key is pressed its
Function Key LED illuminates, along with
any Zone Selection Indicators activated by
the routing of the Function Key. When the
call is completed the LEDs are extinguished.
3
ATTENTION AND ALARM
SIGNALS
Built into the SM30 Control Centre is a
signal generator, programmed with more
than 40 attention tones and alarm signals.
These can be programmed, via the User
Menu, to proceed a call or pre-recorded
message, or to be activated independently.
As noted in the list below, some of these
signals are terminated when the Call Station
key, Control Input Relay, etc. is released.
Other signals stop after about 1 minute, or
when the Call Station activation key is
pressed again. In order to confirm with
STANAG (Standard Nato Agreement)
requirements, an alarm signal can be
interrupted by a call with higher priority.
After releasing the call key, the alarm signal
will return for the programmed duration.
Along with the list below, chapter 6 (Call
Microphone and Control Input Calls
Calls, signals and/or pre-recorded messages,
can also be activated by means of a
microphone switch connected to the
Microphone Input Module, and a remote
switch wired to the Control Input Module
(The last of course without a “live” call).
5
GB/SM 30 user manual
5/26/98 10:17 AM
Page 6
11 Single tone, frequency 1000 Hz, 300 msec on,
200 msec off and repeating. Signal duration 5
sec.
12 Slow whoop, sweeping from 500 up to
1200 Hz in 3.5 seconds, followed by
500 msec silence. This procedure will be
repeated twice.
Station) details the way in which each type
of call, when activated via the Call Station,
can be terminated.
Signal description
Signal numbers from 1 up to 12 are
attention or chime tones. The tone is quit as
soon as the activating key is released.
Signal numbers from 18 up to 50 are alarm
signals.
Alarm tones continue, even though the
activating key is released. An alarm tone
stops at the end of the signal duration or
after activating the relevant key again.
Signal numbers from 81 up to 87 are
identical to 1 up to 7.
These signals are meant for time signalling
purposes. However, they will always finish
their cycle, even if the activating key is
released.
Alarm Tones
18 Single tone, frequency 440 Hz.
Signal duration 60 seconds.
19 Single tone, frequency 440 Hz. Lasts until
second activation.
20 Sweeping signal, from 1200 Hz down to
500 Hz and repeating.
Signal duration 60 seconds.
21 As signal number 20, lasts until second
activation.
22 Alternating signal, frequencies 440 and
554 Hz.
Signal duration 60 seconds.
23 As signal 22, lasts until second activation.
24 Sweeping signal, from 100 up to 420 Hz in
5 seconds, holding that frequency for
60 seconds, sweeping down to 100 Hz in
5 seconds and ending.
25 Sweeping signal, from 100 up to 420 Hz in
3 seconds, holding that frequency for
10 seconds, sweeping down to 300 Hz in
3 seconds, holding that frequency for
10 seconds, repeating complete cycle until
1 minute passed and ending.
26 STANAG all clear.
Sweeping signal, from 1000 Hz down to
650 Hz in 3 seconds, followed by 2 seconds
silence and repeating.
Signal duration 60 seconds.
27 As signal 26, lasts until second activation.
28 Sweeping signal, from 700 up to 880 Hz in
400 msec, followed by 400 msec silence and
repeating. Signal duration 60 seconds.
29 As signal 28, lasts until second activation.
Attention Chime Tones
1 1-tone chime, frequency 554 Hz.
2 2-tone chime, frequencies 554 and 440 Hz.
3 3-tone chime, frequencies 392, 523 and
659 Hz.
4 3-tone chime, frequencies 659, 523 and
392 Hz.
5 4-tone chime, frequencies 554, 440, 493 and
330 Hz.
6 4-tone chime, frequencies 659, 523, 392 and
330 Hz.
7 4-tone chime, frequencies 196, 262, 330 and
392 Hz.
8 Upsweeping signal, from 700 up to 880 Hz in
400 msec, followed by 400 msec silence and
repeating.
Signal duration 5 seconds.
9 Alternating signal, frequencies 650 and
850 Hz. Signal duration 5 seconds.
10 Up and down sweeping signal, frequencies
500 and 600 Hz with sweeptime of 500 msec.
Signal duration 5 seconds.
6
GB/SM 30 user manual
5/26/98 10:17 AM
Page 7
30 Alternating signal, frequencies of 650 and
850 Hz, every frequency lasts 500 msec.
Signal duration 60 seconds.
31 As signal 30, lasts until second activation.
32 STANAG crash alarm.
Sweeping signal, from 500 up to 600 Hz in
500 msec, sweeping down to 500 Hz in
500 msec and repeating. Signal duration 60
seconds.
33 As signal 32, lasts until second activation.
34 STANAG fire alarm. Single tone, frequency
1000 Hz, 300 msec on and 200 msec off and
repeating. Signal duration 60 seconds.
35 As signal 34, lasts until second activation.
36 STANAG air raid (red alert).Sweeping signal,
from 900 up to 1000 Hz in 2.5 seconds,
sweeping down to 900 Hz in 2.5 seconds and
repeating. Signal duration 60 seconds.
37 As signal 36, lasts until second activation.
38 Single tone, frequency 1000 Hz.
Signal duration 60 seconds.
39 As signal 38, lasts until second activation.
40 Character ‘F’ in morse, frequency 1000 Hz.
Signal duration 60 seconds.
41 As signal 40, lasts until second activation.
42 Slow whoop, sweeping from 500 up to
1200 Hz in 3.5 seconds, followed by
500 msec silence and repeating. Signal
duration 60 seconds or until second
activation.
43 As signal 42, lasts until second activation.
44 STANAG NBC alarm (black alert). Sweeping
signal, from 900 up to 1000 Hz in
2.5 seconds, sweeping down to 900 Hz in
2.5 seconds and repeating. Signal duration
60 seconds or until second activation.
45 As signal 44, lasts until second activation.
46 STANAG mortar attack alarm.
Sweeping signal, from 2000 down to 1700 Hz
in 300 msec and repeating. Signal duration
60 seconds or until second activation.
47 As signal 46, lasts until second activation.
48 Muster alarm (ships).
Single signal, frequency 650 Hz, seven times 1
second on, 1 second off, followed by
continuous signal. Signal duration 60 seconds
or until second activation.
49 As signal 48, lasts until second activation.
50 Ship alarm.
Single tone, frequency 800 Hz, seven times 1
second on and 1 second off followed by 2
seconds on and 1 second off, and repeating
until the next activation.
51 Catastrophe alarm.
Single tone, frequency 440Hz, 7 seconds on,
followed by 19 times 3 seconds off and 4
seconds on. Signal duration 140 seconds.
52 General warning
Single tone, frequency 440 Hz, signal
duration 140 seconds.
53 Fire Alarm
Frequency 440 Hz; 25 seconds on followed by
10 seconds off and repeating.
54 Important Message
(Swedish standard SS081711)
Single tone, frequency 600Hz, 6 times 6
seconds on, 12 seconds off. Signal duration 96
seconds.
55 All Clear (Swedish standard SS081711)
Single tone, frequency 600 Hz, signal
duration 30 seconds.
56 Immediate Danger (Swedish standard SS031711)
Single tone of 600 Hz, 200 ms off. Signal
duration 60 seconds.
99 Dummy
Empty signal of 0.5 seconds, intended to
precede a message from the recorded message
module. This message should not be
terminated if the activating key is released
before the end of the message.
Time signals
81 1-tone chime, frequency 554 Hz.
82 2-tone chime, frequencies 554 and 440 Hz.
83 3-tone chime, frequencies 392, 523 and
659 Hz.
84 3-tone chime, frequencies 659, 523 and
392 Hz.
85 4-tone chime, frequencies 554, 440, 493 and
330 Hz.
86 4-tone chime, frequencies 659, 523, 392 and
330 Hz.
87 4-tone chime, frequencies 196, 262, 330 and
392 Hz.
7
GB/SM 30 user manual
5/26/98 10:18 AM
Page 8
4 CONTROL CENTRE LBB 1280
At the heart of each SM30 sound
management system is the Control Centre.
This is a self contained unit, housing the
microprocessor which controls SM30, and
12 slots which hold the plug-in modules.
On the front panel of the Control Centre
are programming keys and associated LEDs,
an alpha-numeric LCD display, and keys for
controlling the functions of the music source
inputs. The versatile construction allows the
Control Centre to be mounted free-standing
on a table top, or with other equipment, in a
19” rack. All of the interconnections
between individual modules take place
automatically when they are plugged into
the interconnection board of the Control
Centre, so that no complex inter wiring is
required. Thanks to the unique construction
of the housing, the modules slide in and out
quickly and easily. These features make
SM30 simple and inexpensive to install and
maintain. All switching and routing of the
system is carried out by software, so that
hardwiring problems are kept to a
minimum. This means that though SM30
comprises a great amount of features,
making it a comprehensive Public Address
Centre, the unit itself is uncluttered and
simple to assemble and use.
4.1
Programming Keys (fig.4.1C)
Ten programming keys are provided on the
front panel. These keys, marked with logical
symbols, enable the installer to program
SM30 to suit the overall system
configuration, and the user’s specific needs.
For details, see chapter 14 (Programming).
and (fig.4.1G)
The single arrow keys are used to scroll
through the main menu, in order to
move to a different program, and also to
move the cursor during zone routing.
and (fig.4.1H)
The double up and down arrow keys are
used to select ‘tens’ during selection of an
attention or alarm signal number.
and (fig.4.1I)
The single up and down arrow keys are
used to scroll through selections within
an actual program, and to select digits 1
to 9 during selection of an attention or
alarm signal number.
(fig.4.1J)
Deselects (turns off ) a zone during
Function Key; Microphone; Control
Input; and Music Source routing.
(fig.4.1.N)
Selects (turns on) a zone during Function
Key; Microphone; Control Input; and
Music Source routing.
(fig.4.1K)
BREAK will always return to the next
higher programming level.
(fig.4.1O)
ENTER will confirm your selection,
storing the information in the memory of
the system after the complete
programming sequence of e.g keypad is
completed.
Front panel controls
ON/OFF Power Switch (fig.4.1A)
This rocker switch switches mains power to
the SM30 Control Centre.
WARNING: When opening the SM30
housing or installing new modules, the
mains lead and the 48 V DC battery plug
must be removed. It is not sufficient to
switch off the ON/OFF switch.
LEDS (fig.4.1B)
Illuminated LEDs indicate which keys can
be used at the current stage of programming.
8
GB/SM 30 user manual
5/26/98 10:18 AM
Page 9
The keys are marked as follows:
+
Music Volume up (fig.4.1L)
Music Volume down (fig.4.1P)
0123 Music source Select (fig.4.1M)
Music Mute (fig.4.1Q)
Alpha-Numeric LCD Display (fig.4.1D)
In the normal ‘Run’ mode of the system, the
back-lit LCD display indicates the name of
the current music source (e.g. “TUNER”, or
“MUSIC OFF”), plus the current music
volume level.
LED (fig.4.1F)
A single LED is illuminated in ‘Run’ mode,
indicating that the Music Function keys can
be used.
Music Function Keys (fig.4.1E)
The current music source and the music
volume level can be seen on the bottom line
in the display.
Four keys are provided for use while the
system is in its normal ‘Run’ mode. These
allow the operator to select the music source;
alter the volume level; and mute the music
signal.
When either ‘Music Volume up’ or ‘Music
Volume down’ is pushed, the music volume
changes in steps of ‘3’ over a range of ‘00’ to
‘99’ (Each step of 3 represents 2 dB, with
‘99’ equalling 0 dBV).
Any, or all of the four music control
functions can also be activated via the:
■ Function Keys on the Call Stations,
■ Control inputs 1-4 on the Control Input
Module.
B
A
F
E
D
C
S M3 0
PHILIPS
PH IL IP S
Power
+
-
G
H
I
J
L
K
M
+
*
SM
30
TUNER
N
1
SYSTEM
*
-
87
P
O
Fig. 4.1 - Front panel controls
9
Q
GB/SM 30 user manual
5/26/98 10:18 AM
Page 10
4.2 SM30 basic modules
remove the mains power cable (cord) from
the socket, and carefully insert a medium
sized screwdriver under the small lip of the
fuse cover (nearest the socket pins), and
gently twist the screwdriver to lever the fuse
holder out. A ‘Mate-N-Lok’ emergency
supply socket (fig.4.3D) is provided to allow
a +48 VDC supply to be connected.
An Earth terminal (fig.4.3C) is mounted on
the Power Supply Module to allow an extra
earth (ground) wire to be connected for use
with the Emergency Power Supply, or when
the mains power earth is inadequate.
On delivery the rear panel of the SM30
Control Centre (fig.5.1) contains the Line
Output Module and the Power Supply
Module, as well as the removable blank
module panels. (The last only in LBB
1280/30). Both modules are essential
components, without which the SM30
system will not function.
Line Output Module
As its name implies, the Line Output
Module terminates line level audio signals
for the ‘Call’ output (fig.4.2D) and ‘Music’
output (fig.4.2A).
These feed the inputs of their respective
amplifiers. Both signals are terminated on 5pole 180° DIN sockets, see fig.4.2 for wiring
details. For amplifier surveillance purposes,
it is possible to activate the built-in pilot
tone generator by means of a switch
(fig.4.2E) and to adjust the volume level
(fig.4.2F).
The module is fitted on the frontpanel with
two potentiometers; Alarm Volume Control
(fig.4.2C) and Attention Tone Volume
Control (fig.4.2B).
These allow the installer to set the output
volume of the internal signal generator to
the desired level for each of the two types of
signal tone.
The output volume level of the Call signal
has no preset (setting is done on both the
Microphone Input Module and the Call
Station Input Module).
E F
symmetric
Call Ou t
1
4
2
5
3
D
Test signal
20 kHz
C
symmetric
Music out
B
1
4
2
5
A
SM30 relay not active
during Call.
Fig. 4.2
A
B
C
Power Supply Module
This module contains the terminations for
both the mains power and emergency +48
VDC supply. The mains power socket
(fig.4.3A) is of the standard “Europlug”
type, and has a mains fuse holder built in.
To remove the mains fuse (fig.4.3B), first
D
+48
Fig. 4.3
10
3
GB/SM 30 user manual
5/26/98 10:18 AM
5.
SETTING UP THE HARDWARE
5.1
General
Page 11
the Power Supply Module (PSM) mounted
in their slots. All other modules must be
fitted into their respective slots as indicated
in fig.5.1. A survey of configurations with
the maximal number of input modules is
given in the table.
The SM30 Control Centre is delivered with
only the Line Output Module (LOM) and
LOM
RMM
LBB 1 2 8 5
MU M
L B B 1 28 6
A
LBB 1285/00
LBB 1286/10
LBB 1282/00
LBB 1283/00
LBB 1284/00
LBB 1287/00
LBB 1288/00
C SM
B
M IM
L B B 1 2 8 3 LBB 1282
C
D
E
ZR M
CIM
LB B 1287
L B B 1 28 4
F
G
Line Output Module
X
Music and call output signal to amplifier
Recorded Message Module
A
4 messages = 29,5 sec
Music Input Module
B
3 music sources
Microphone Input Module
2 microphones max. 3 modules = 6 microphones
Call Station Input Module
2 Call Stations max. 3 modules = 6 Call Stations
Contact Input Module
8 contacts max. 3 modules = 24 contacts
Zone Relay Module
6 loudspeaker zones max. 3 modules = 18 zones
Control Relay Module
12 relays, only 9 or 10 relays free to programme
Power Supply Module
220 V mains supply +48 V battery supply
H
CR M
D
E
C
D
E
D
E
2
1
4
3
6
5
8
7
10
9
12
11
LB B 1288
I
C
PSM
J
F
G
H
I
J
X
Maximal configuration of input modules
CSM pos
Call Station numb.
MIM pos
Microphone numb.
CIM pos
Contact numb.
C
C
C
D,C
D,C
E,D,C,
5/6
5/6
5/6
3/4, 5/6
3/4, 5/6
1/2, 3/4, 5/6
C
D,C
E,D,C
D
E,D
E
-
5/6
3/4, 5/6
1/2, 3/4, 5/6
3/4
1/2, 3/4
1/2
-
F,E,D,
F,E,D,
F,E
F
F,E,D
F,E
F
F,E
F
F
1/8,
1/8,
1/8,
1/8
1/8,
1/8,
1/8
1/8,
1/8
1/8
Fig. 5.1
11
9/16, 17/24
9/16, 17/24
9/16
9/16, 17/24
9/16
9/16
GB/SM 30 user manual
5.2
5/26/98 10:18 AM
Page 12
Removing Module Blank Panels
The module blank panels are removed in a
similar way, by loosening the cross-head
screws a little and sliding the panels
vertically out of their keyhole slots.
Opening the housing
WARNING: Before attempting to open
the housing, the mains lead and the 48 V
DC battery plug should be disconnected.
It is not sufficient to merely switch off the
ON/OFF switch on the front panel.
Mounting the Modules
Before inserting the modules, read their
respective chapters to make sure that there
are no jumpers that need to be set in order
to carry out the desired function(s). The
modules are located, as illustrated in fig.5.1,
by aligning the front plate screw with the
keyhole slot (fig.5.2C); the key at the
bottom of the front plate (fig.5.2D) with the
slot in the bottom of the housing; and the
multi connector (fig.5.2E) with the socket
mounted on the mother board. The module
is then gently pushed into place by putting
pressure on the top of the circuit board. If it
does not slot easily into place do not
attempt to force it. Check that it is properly
aligned and try again. When the modules
are inserted, and properly seated in their
connectors, tighten their front plate screws.
Access to the inside of the Control Centre is
gained by removing the cover. This is done
by removing the four ‘cross-head’ screws
located in the sides of the unit. The cover is
then simply lifted off the housing. When the
cover is removed, a ‘retaining bar’ (fig.5.2A)
will be seen spanning the top of the housing.
This should now be removed by loosening
(not removing) the screws located in its
ends.
To access the screw heads, the screwdriver
must be inserted through the holes in the
sides of the housing (fig.5.2B). With the
screws loosened a little, the bar can be slid
vertically out of the screw slots.
FUSE 1- 2
A
X3
C
B
B
LB B 1286 LB B 1283
LB B 1282
LB B 1282
LB B 1 284
LBB 1287
LB B 1288
E
D
Fig. 5.2 - Top view
12
GB/SM 30 user manual
5/26/98 10:18 AM
Page 13
A 4-pole ‘Mate-N-Lok’ socket (fig.4.3D) is
provided on the Power Supply Module on
the back panel, to allow a +48 VDC supply
to be connected. The terminations for the
supply are clearly marked alongside the
Mate-N-Lok socket. The emergency supply
plug should be wired accordingly.
The retaining bar (fig.5.2A) can now be
replaced by sliding it down in its slots as far
as possible, and tightening the screws in its
ends (fig.5.2B).
5.3
Voltage Setting
The system is delivered with the mains
transformer wired for 220 Volts AC.
Before attempting to switch on the unit
ensure that the voltage is set correctly for
your mains supply.
To change the voltage, unplug the long (grey
coloured) screw connector block (fig.
5.2X3), and rewire it for the appropriate
voltage, shown in the circuit diagram
(fig.5.3). Push the connector block firmly
back into place. The cover of the Control
Centre can now be replaced, and the screws
reinserted in the side panels.
Earth Terminal (ground)
An Earth Terminal (fig.4.3C) is mounted on
the Power Supply Module to allow an extra
earth (ground) wire to be connected.
This should be used when the Emergency
Power Supply is used alone, or when the
mains power earth is inadequate.
If audible interference is present in the
system, caused by an inadequate, or
contaminated earth (e.g. due to heavy
equipment using the same common earth), a
separate “clean” earth may be connected to
the Earth Terminal.
48 Volt Emergency Power Supply
In situations where the mains power supply
is unreliable, and SM30 is used for
security/evacuation purposes, an emergency
power supply may be used. This can be
switched in automatically whenever the
mains power fails.
X3
X3
X3
X3
R ED
RED
RED
GRN
GRN
GRN
GRN
BLK
BLK
BLK
BLK
YEL
YEL
YEL
YEL
BL UE
BLUE
BL UE
BLUE
BRN
BRN
BRN
BRN
220V- 230V
RED
240V
127V
Fig. 5.2 - Top view
13
110V
GB/SM 30 user manual
5.4
5/26/98 10:18 AM
Page 14
scratched by metal components of SM30.
Mounting in a 19” rack
Calculating Required Rack Space
To simplify ordering of modular units and
panels to fit into standard 19” rack units,
Philips have chosen a standard height ‘HE’
equal to 44.55 mm (1.75 inches). Each
SM30 Control Centre, for instance, is 3 HE
high, requiring 133.65 mm of rack space.
The use of the HE unit eases the problem of
calculating the number of equipment
housings, blank panels, etc. that will fit into
a rack.
The SM30 Control Centre is available in
two versions:
LBB 1280/30 for table top use including the
cover.
LBB 1280/40 for 19” rack mounting,
without cover but including the mounting
brackets.
Removing Feet
WARNING: Before attempting to open
the housing, the mains lead and the 48 V
DC battery plug should be disconnected.
It is not sufficient to merely switch off the
ON/OFF switch on the front panel.
General Rules
Certain rules should be observed when
planning the equipment layout in a rack:
1 To ensure that the SM30 display is clearly
visible, and the controls are easy to
operate, the Control Centre should be
mounted at a height which makes it easily
accessible (head, or shoulder height if
possible).
2 Cassette front loaders, tuner scales, and
other frequently used equipment, should
be mounted at a height which makes
their front panels clearly visible to the
operator.
The feet of the Control Centre may be
removed for rack mounting if space is
limited. To remove the feet simply unscrew
the cross-headed screw which is recessed in
the centre of each foot.
If rack space is not limited however, it is
preferable to leave the feet in position and to
mount a narrow blank rack panel beneath
the unit. If the Control Centre then has to
be removed for servicing, the feet will
protect the surface of furniture from being
P H IL IP S
SM30
Powe r
+
3H E
-
Fig. 5.4 - Rack mounting
14
GB/SM 30 user manual
5/26/98 10:18 AM
Page 15
3 It is always preferable to mount power
amplifiers, which generate a certain
amount of heat, above heat sensitive
equipment, like SM30.If however, power
amplifiers must be mounted beneath the
Control Centre, a heat shield should be
installed above them. This is necessary to
deflect the hot air currents, which could
otherwise cause instability in the SM30
microprocessor controlled units.
5.5
One Channel System (fig.5.5.2)
When using a single amplifier system, the
following steps must be taken:
1 The ‘Call’ and ‘Music’ outputs of the
Line Output Module should be
connected to their respective ‘Call’ and
‘Music’ inputs on the SQ45 amplifier.
The relay on the Line Output Module
will switch the active input of the SQ45
amplifier from music to call.
See the relevant SQ45 amplifier
Instructions For Use for details of this
function.
2 The output of the amplifier has to be
connected to the ‘Call’ input on the
‘Mate-N-Lok’ on the SM30 Zone Relay
Module.
3 Refer to Installer Program step 9 to
program this function.
Connecting amplifiers
The SM30 system is intended for use with 2
separate amplifiers, or two separate channels
of a multi channel amplifier. One channel
will handle the ‘call’ signal, and the other
channel will amplify the ‘music’ signal. This
allows the music signal to continue,
uninterrupted, when a call is made to other
loudspeaker zones. It is possible to use only
1 amplifier channel for both the ‘calls’ and
‘music’ signal. This has the disadvantage
however, that any music playing will be
interrupted whenever a call is made,
regardless of the zone(s) to which the call is
routed. Though the SM30 system will work
with any line level input amplifier, the
amplifiers from the Philips SQ45 range have
been specifically designed to take the greatest
advantage of the functions of SM30.
As previously stated, zones with music will
be interrupted for as long as a call to any
other zone(s) lasts.
Rack Mounting
If the amplifier(s) and SM30 are mounted in
a rack unit, and an ‘earth loop’ occurs
(evident by a 50 or 60 Hz hum through the
loudspeakers) follow the Instructions For
Use given with the SQ45 amplifier for
details of earthing the units.
Two Channel System (fig.5.5.1)
Connections of SM30 to two amplifiers, or
two channels of a Philips SQ45 amplifier:
1 Connect both the ‘Call’ and ‘Music’
outputs of the Line Output Module, to
the separate ‘Call’ inputs of the SQ45
amplifier(s).
2 Connect the outputs of the amplifiers
(with two core loudspeaker cable) to their
respective ‘Call’ and ‘Music’ inputs on the
‘Mate-N-Lok’ connector on the Zone
Relay Module of the SM30.
15
GB/SM 30 user manual
5/26/98 10:18 AM
Page 16
C
3
3
1
1
C
4X
SQ45
SM30
Fig. 5.5.1 - Two channel system
16
GB/SM 30 user manual
5/26/98 10:18 AM
Page 17
C
3
1
1
SQ45
SM30
Fig. 5.5.2 - One channel system
17
GB/SM 30 user manual
6
5/26/98 10:18 AM
CALL STATION
(CST)
Page 18
Redial function (fig.6.1I)
Repeats the last zone selection.
LBB 9568
The SM30 Call Station presents the
operator with a logical, comprehensive, and
easy to use method of routing and
broadcasting calls, announcements, and
music. Since each Call Station Input
Module will accept two Call Stations, SM30
will accept up to 6 Call Stations in total.
Zone Selection Indicator (fig.6.1B)
Each zone has its own LED which is
illuminated when the zone is selected. When
the call is completed the LEDs will be
extinguished.
Function Keys (fig.6.1K)
The 4 function keys are to be programmed
with priority; alarm and attention tones;
pre-recorded messages; routing to loudspeaker zones; and Control Relay activation. The
alternative functions of these keys include:
music volume up/down; music source
selection; music mute; and independent
Control Relay switching or toggling (see
chapter 14 for programming details). Using
the Function Keys to make a call is done in
the same way as using the Keypad. The
main difference being that instead of the
operator selecting the zones using the
Numeric Keypad, the Function Keys route
the call to a pre-programmed selection of
zones. This of course saves a great amount of
time when an operator has to frequently call
the same selection of zones, or when an
“ALL CALL” must be made in emergencies.
Each Function Key may be programmed to
carry out a totally different task.
Key F1 can be programmed to route a low
priority call, preceded by an attention tone,
to several, frequently used, loudspeaker
zones.
Key F2 could be programmed to route an
alarm tone, followed by a pre-recorded
evacuation message, to all loudspeaker zones
(an “ALL CALL”).
Key F3 could be used to mute the music
signal.
Key F4 could be used to toggle a Control
Relay on and off, switching a warning lamp,
illuminated notice, etc..
Electret condenser microphone
The high quality phantom powered
microphone with built-in bass rolloff filter
(fig.6.1L) gives clear voice reproduction,
even in difficult acoustic environments.
Built-in Compressor
Helps to keep the audio output level of the
Call Station constant, even in situations
where the operator’s speech volume level
changes radically. The amount of compression is dependent on the Microphone preamplifier gain setting: the higher the gain
setting, the greater the amount of compression, and therefore the greater the effect on
the microphone signal (see paragraph 6.3).
Balanced Line Level output
Allows Call Stations to be located up to
1000 metres from the Control Centre.
6.1
Operating controls
Numeric Keypad (fig.6.1J)
Allowing individual selection of up to 18
loudspeaker zones by typing in the zone
number. Each Call Station can be
programmed with a priority status, attention
tone and pre-recorded message. These
become operational whenever the keypad is
used to route a call. (See chapter 14 for
programming details).
18
GB/SM 30 user manual
5/26/98 10:18 AM
Page 19
NOTE: If a Function Key and the Keypad
are both selected to activate a call, the last
selection will always have precedence,
cancelling any other selection.
■
During Installer programming a program is
available to prevent the user of the Call
Station from addressing specific zones
selected via the keypad (see program
14.3.12).
Call with alarm signal:
The alarm signal will continue after
release of the ‘Press-To-Talk’ Key.
It can be stopped by pressing the ‘PressTo-Talk’ Key a second time.
Busy and wait/talk LEDs
(fig.6.1F and 6.1G)
Advise the operator whether a call may be
activated, the status of the call, and whether
any other calls are active.
The red ‘BUSY’ LED flashing means that
another call is in progress.
The red ‘BUSY’ LED illuminated constantly
indicates that the call has been blocked by
another call with a higher priority.
In its ‘WAIT’ state, the green LED flashes,
indicating that the call is accepted, and the
attention tone or pre-recorded message is
being broadcast.
The green LED illuminates constantly
(‘TALK’) when the tone or message finishes
and the processor switches on the
microphone for the call to proceed.
Function Key LED (fig.6.1A)
Whenever a Function Key is pressed the
LED illuminates, together with any Zone
Selection Indicators activated by the routing
of the Function Key. When the call is
completed the LEDs will be extinguished.
‘Press-To-Talk’ Key (fig.6.1H)
Activates a call after the zones have been preselected using the Key Pad or Function Key.
The way in which a call is executed, and
how the ‘Press-To-Talk Key’ is used, depends
on the type of signal and/or message with
which the Key Pad, Function Key, or
Microphone is programmed.
■ Call without signal or message:
Will stop when the ‘Press-To-Talk’ Key is
released.
■ Call with attention signal and/or nonrepeating message:
Will stop when the ‘Press-To-Talk’ Key is
released.
■ Call with attention signal and repeating
pre-recorded message:
The message and/or signal cycle will
continue after the ‘Press-To-Talk’ Key is
released. The cycle can be stopped by
pressing the ‘Press-To-Talk’ Key a second
time.
If this is done during the attention signal,
the call stops immediately.
If the message is playing, the call will stop
at the end of the message.
A
B
C
D
E
F
F1
1
2
3
F2
4
5
6
F3
7
8
9
F4
1-
0
#
G
H
PHILIPS
L
K
J
I
Fig. 6.1 - Call Station
19
PHILIPS
GB/SM 30 user manual
6.2
5/26/98 10:18 AM
Page 20
Installation
Microphone Preamplifier Gain Preset
should only be used for setting the
amount of compression, not for lining up
the Call Station output with the rest of
the SM30 System. See ‘Built-in
Compressor’ earlier in this chapter.
Loudspeaker Zone Template
A paper template is provided, on which the
names of the loudspeaker zones can be
written. The template has a detachable blank
section at the bottom, allowing it to be used
in a typewriter.
To mount the template in the Call Station,
first remove the right hand side cheek
(fig.6.1D), by unscrewing the two screws in
its side (fig.6.1E), and the one screw located
in the bottom. The plastic template cover
(fig.6.1C) can now be slid out. Place the
(type) written template in position over the
zone LEDs (having first torn off its blank
perforated panel), and carefully slide the
plastic template cover back in place.
LED Intensity Preset
With the right hand side cheek removed, it
is possible to gain access to the LED
intensity preset.
To compensate for various local lighting
conditions, the illumination intensity of the
LEDs can be adjusted. Turning the
potentiometer (fig.6.2A) to the right
increases the intensity.
With the template and its cover in position,
and the microphone volume and LED
intensity adjusted, replace the right hand
side cheek.
Connection to Control Centre
Between the Call Station and the Call
Station Input Module (see chapter 7.1) the
following cabling is needed::
■ a shielded twisted pair for audio and
power transport;
■ a twisted pair for data transport.
When the copper diameter of each wire is
not less than 0.75 mm2 the length of the
cable can be up to 1000 meters for proper
functioning.
6.3
A
B
Fig. 6.2 - CST adjustments
Adjustments
6.4
Microphone Pre-amplifier Gain Preset
With the right hand side cheek of the Call
Station removed, the microphone
preamplifier’s gain can be preset. Turning the
potentiometer (fig.6.2B) to the right
increases the amount of gain. To obtain
nominal 1 Volt output level, the gain can be
preset from 84 to 114 dB SPL.
Using the Call Station
Using the Keypad to make a Call
1 To route a call to one or more
loudspeaker zones, simply type in the
number of each desired zone using the
numeric keypad. Numbers ‘1’ to ‘9’ allow
single digit numbers to be entered,
number ‘1-’ is for tens, and ‘0’ is the
second digit in the number 10. For
instance, to route a call to zones 7, 10,
and 15, type in: 7, then 1-, then 0; then
NOTE: The Call Station Input Modules
also have input gain presets. The
20
GB/SM 30 user manual
2
3
4
5
5/26/98 10:18 AM
Page 21
1-, then 5. As stated earlier, the Zone
Routing Indicator LEDs for these zones
will be illuminated.
If the red ‘BUSY’ LED is flashing, this
means that another call is in progress. If
the other call has lower priority than your
call, pressing your ‘PRESS TO TALK’
key will abort the other call.
If the other call has a higher priority, your
call will not be accepted and you will
have no affect on the other call.
If neither the ‘BUSY’ or ‘WAIT/TALK’
LEDs are illuminated, press and hold
down the ‘PRESS TO TALK’ key.
If an attention tone has been
programmed to precede a call, the green
‘WAIT/TALK’ LED will flash until the
tone has finished. When the LED stops
flashing, the microphone is activated and
then you may begin to speak.
If your call is interrupted by a call with a
higher priority, the red ‘BUSY’ LED will
illuminate to tell you that your call is no
longer being heard.
The call should then be aborted and tried
again when no LEDs are illuminated.
Pressing the ‘REDIAL’ key will
automatically reselect the zones which
were last selected, eliminating the need to
type them in again.
When the call is finished, release the
‘PRESS TO TALK’ key, and the system
will return to its idle mode, ready for the
next call.
Using the Function Key to make a Call
Using the Function Key to make a call is
done in the same way as using the Keypad.
The main difference being that instead of
the operator selecting the zones using the
Numeric Keypad, the Function Keys route
the call to a pre-programmed selection of
zones.
This of course saves a great amount of time
when an operator has to frequently call the
same selection of zones, or when an “ALL
CALL” must be made in emergencies. As
previously described, whenever the function
key is pressed its Function Key LED
illuminates, along with any Zone Selection
Indicators activated by the routing of the
Function Key. When the call is completed
the LEDs are extinguished.
21
GB/SM 30 user manual
7
5/26/98 10:18 AM
Page 22
CALL STATION INPUT MODULE
(CSM)
LBB 1283
DIN plug.
The DIN connections, viewed from the
solder side of the cable plugs, are illustrated
in fig.7.
Each Call Station Input Module allows two
SM30 Call Stations to be connected to the
Control Centre. SM30 will accept up to 3
Call Station Input Modules and/or
Microphone Input Modules in total.
7.2
Adjustments
Volume Level Controls
The 2 front panel controls are input volume
level controls, used for “lining up” the
volume level of the Call Station microphone
with the rest of the SM30 signal sources
(microphones, attention signals, background
music players, etc.).
Since the strength of each person’s voice
differs, set each volume level “by ear” so that
a clear, comfortable listening level, which is
in balance with the other amplified signals,
is attained.
7.1 Installation
Mounting in the Control Centre
The Call Station Input Modules must be
located in the Control Centre slots E, D,
and/or C, as indicated in fig. 5.1.
The number designated to a Call Station by
the microprocessor is dependent on the slot
in which the module is located.
If, for instance, only one Call Station Input
Module is used in a system, and that module
is located in slot E, then the two Call
Stations plugged into the module would be
numbered 1 and 2.
If the same module were plugged into slot
D, then the Call Stations would be
numbered 3 and 4.
If plugged into slot C, the Call Stations
would be numbered 5 and 6.
This regardless of the fact that they are the
only Call Stations in the system.
REMARK: Reducing the gain by means of
the module volume level controls means
that it is no longer possible to get the full
volume level output from the connected
SQ45 amplifiers.
1
Connection of Call Stations
The design of SM30 allows a single cable,
up to 1000 metres long, to be used to
connect a Call Station to one of the Input
Module’s sockets. This cable has two
screened wires, plus two twisted wires. The
screened wires carry the audio signal and
Call Station phantom powering, and the
twisted wires carry the control signal.
Terminate the cable at the side of the Call
Station with a lockable 5-pole 180° female
DIN socket, and at the side of the Input
Module with a lockable 5-pole 180° male
1
2
2
3
1
4
5
2
}
2
LBB 1283
Fig. 7 - CSM
22
LED Data
Key Data
GB/SM 30 user manual
8
5/26/98 10:18 AM
Page 23
MICROPHONE INPUT MODULE
(MIM)
LBB 1282
switch block as the Line Input switch, the
Bass Cut can be de-activated.
In its up position, switch 2 on the switch
block is set for Bass Cut (the default).
In its down position, it is set for Flat
response.
Each Microphone Input Module allows two
electret microphones or two dynamic
microphones to be connected to the SM30
Control Centre.
SM30 will accept up to 3 Microphone Input
Modules and/or Call Station Input Modules
in total.
8.1
8.2
Installation
Mounting in the Control Centre
The Microphone Input Modules must be
located in the Control Centre slots E, D,
and/or C, as indicated in fig.5.1.
The number designated to a Microphone by
the microprocessor is dependent on the slot
in which the module is located.
If, for instance, only one Microphone Input
Module is used in a system, and that module
is located in slot E, then the two
Microphones plugged into the module
would be numbered 1 and 2.
If the same module were plugged into slot
D, then the Microphones would be
numbered 3 and 4.
If plugged into slot C, the Microphones
would be numbered 5 and 6.
This regardless of the fact that they are the
only Microphones in the system.
Operation
Remote Switching Function
SM30 makes use of the remote switching
facility of certain Philips electret
microphones and dynamic microphones.
This switch is used to activate calls
originating from the microphone, including
all of the programmed functions available
(priority, routing, attention signals, etc.) (See
chapter 14 for programming details).
Line Input Facility
By changing a switch, mounted on the
circuit board of the module (one double
switch block for each channel), it is possible
to connect a line level input source, instead
of a microphone. In its up position, switch 1
on the switch block is set for Microphone
(the default). In its down position, it is set
for Line Level Input. It is possible to
distribute this line source by means of
contacts on the Contact Input Module 1.
1
2
2
1
1
Bass Cut Facility
In noisy environments the operator often
has to speak very close to the microphone,
which exaggerates the bass frequencies of the
microphone.
A bass-cut facility is available to reduce the
bass, helping the call to be clearly heard.
On delivery, the bass-cut is active. By
changing switch 2, located on the same
1
4
1
2
2
3
5
Microphone
Remote on/off
2
2
Microphone
Line level
LBB 1282
Fig. 8 - MIM
23
1
2
Bass cut
Flat response
Switch positions
GB/SM 30 user manual
5/26/98 10:18 AM
Page 24
Connection of Microphones
The design of SM30 allows a single cable to
be used to connect a Microphone to one of
the sockets of the Microphone Input
Module.
This cable has two screened wires, plus two
unscreened wires.
The screened wires carry the audio signal
and phantom powering, and the unscreened
wires are connected to the remote switch of
the microphone. Terminate the cable at side
of the microphone with a lockable 5-pole
180° DIN female socket, and at the side of
the Input Module with a lockable 5-pole
180° DIN male socket.
The DIN connections, viewed from the
solder side of the cable plugs, are illustrated
in fig.8.
8.3
9
CONTROL INPUT MODULE
(CIM)
LBB 1284
Each Control Input Module allows eight
remote switches to be connected to the
Control Centre. Up to 3 Control Input
Modules can be located in the SM30
Control Centre allowing a total of 24
remote switches to be used, but resulting in
less of Call Station Input Modules and
Microphone Input Modules. When a remote
switch closes the normally open circuit, the
Control Input circuit senses this, and the
SM30 microprocessor carries out a series of
actions.
9.1
Operation
All Control Inputs
Each Control Input can be programmed to
carry out SM30 switching functions,
including:
■ Activation of one of the SM30 attention
or alarm signals.
■ Activation of a pre-recorded message.
■ Routing of the above listed signals to
loudspeaker zones, after giving the call a
programmed priority status.
Adjustments
Gain Control Potentiometers
The 2 front panel controls are input gain
controls, used for “lining up” the volume
level of the microphone with the rest of the
SM30 signal sources (Call Stations, attention
signals, pre-recorded messages, background
music players, etc.). Because the strength of
each person’s voice differs, set each gain
control “by ear” so that a clear, comfortable
listening level is attained, which is in balance
with the other amplified signals.
Inputs 1 to 8 of first CIM (fig.5.1F).
Apart from the above listed functions, inputs
1-4 may be given an alternative function.
This allows remote control of the Music
Function Keys, located on the front panel of
the SM30 Control Centre:
Input 1 Music volume up activation
Input 2 Music volume down activation
Input 3 Music mute on/off
Input 4 Music source selection
Input 5-8 Apart from the normal switching
functions, inputs 5-8 may be
programmed to activate Control
Relays, which can be used to start
24
GB/SM 30 user manual
5/26/98 10:18 AM
Page 25
remote equipment, activate
signalling/warning lamps, etc..
Input 1-8 Apart from the normal functions,
inputs 1-8 can be programmed to
distribute an external audio source
connected to a Microphone Input
Module to zone 1-36 preceded
with an attention signal and/or
pre-recorded message. in that case
relay 4 of the Control Relay
Module of the basic frame is used
to start the audio source.
The remote switch wires are connected to
the screw terminals, which are marked in
pairs 1 to 8.
The great advantage of the connector block
is that if, for some reason, the SM30
Control Centre has to be removed, the block
has simply to be unplugged and the wires
remain intact.
This avoids the tedious and risky business of
rewiring the blocks in their original
configurations.
9.3
Direct routing
Control inputs 1-6, 1-12, or 1-18 can be
programmed to route a call or music directly
to loudspeaker zones 1-6, 1-12, or 1-18.
9.2
Programming
Control inputs can be programmed for
different facilities:
■ normal Call activation (see installer
programming par.14.7 menu 8 ‘Store
Hardware’);
■ remote music control or Control Relay
switching (see user programming par.14.3
menu 3 ‘Control Inputs’);
■ direct zone routing (see installer
programming par.14.7 menu 13 ‘Direct
Routing’).
Installation
Mounting in the Control Centre
The Control Input Modules must be located
in the Control Centre slots F, E, and/or D,
as indicated in fig.5.1.
The numbers designated to Control Inputs
by the microprocessor are dependent on the
slot in which their module is located. If only
one Control Input Module is used in the
system, that module should be located in
slot F, then the eight Control Inputs are
numbered 1 to 8.
If another module were plugged into slot E
instead of F, then the Control Inputs are
numbered 9 to 16. Accordingly, slot D will
carry inputs numbered 17 to 24.
Note should be taken of the paragraphs
referring to Inputs 1-4 and Inputs 5-8 when
planning the location of the Control Input
Module(s) in the Control Centre.
1
2
3
Individual
return
4
5
6
7
8
Common return
LBB 1284
Wiring control inputs
Each Control Input Module is supplied with
a plug-in, 16 terminal, screw connector
block.
Fig. 9 - CIM
25
GB/SM 30 user manual
10
5/26/98 10:18 AM
Page 26
RECORDED MESSAGE MODULE
(RMM)
LBB 1285
10.1 Installation
Mounting in the Control Centre
The SM30 Control Centre provides space
for one Recorded Message Module, which
must be located in slot A (see fig.5.1).
A unique feature of SM30 is its Recorded
Message Module, which allows up to 4
individual messages to be recorded, and
played back as desired.
The recording is digitally stored in memory
chips, ensuring that the quality will not
deteriorate for as long as the message is in
memory. Messages will remain in memory so
long as the power is turned on. If SM30 is
switched off, a backup battery will enable
the messages to remain intact for up to 30
days. The maximum total recording time is
65 seconds, and up to 4 messages of varying
durations may be recorded, so long as the
sum of the durations does not exceed the
maximum recording time. SM30 can be
programmed so that a message is played
back either alone, or preceding a call
(following an attention signal, if desired).
Playback can be activated by a Control
Input; a microphone remote switch; or a
Call Station Keypad or Function Key.
Microphone Input
The microphone input (fig.10I), terminated
with a 5-pole 180° DIN socket, provides
phantom powering, so that either a Philips
electret microphone or a dynamic
microphone may be used to record the
messages. (See fig.8 for Microphone Input
plug wiring details).
10.2
Adjustments
Output Volume Control
A volume control potentiometer (fig.10B)
on the front panel allows the output volume
level to be “lined up” with other SM30
signal sources (attention signals,
microphones, music sources, etc.). Turning
the control clockwise increases the volume
level; anti-clockwise decreases the level.
Automatic Gain Control
A limiter ensures that, even though the
microphone signal fluctuates severely, the
message is recorded at a fairly constant level.
This, however, is not an overload protection
device. The operator should speak at about
30 cm from the microphone, with a normal
speaking voice, to ensure that the input is
not overloaded.
10.3
Recording messages
Clearing the Memory
On delivery of the unit the memory of the
module must be cleared, before any messages
can be recorded, as following:
■ Slide the Message Selection switch
(fig.10C) to position ‘1’.
■ Move the Function switch (fig.10H) to
the top position ‘record’.
■ Now press the (erase) button (fig.10G).
Both the green Message Present LED
(fig.10E) and the red Record LED
(fig.10F) will illuminate for as long as the
button is pushed.
When recording for the first time, or when
the memory of the module has been cleared,
it is important to record messages in
Headphone Monitoring
A headphone socket (fig.10A) allows the
recorded messages to be monitored, both
during and after recording, without them
having to be amplified via the system. This
is especially useful, during a recording
session, for checking that a recording is
being, or has been, successfully made.
26
GB/SM 30 user manual
5/26/98 10:18 AM
Page 27
■
E
F
D
G
C
H
B
I
If the recording is satisfactory, either
move the Message Selection slide switch
to position ‘2’, and follow the above steps
to record the second message.
With the Function switch in its lowest
(system) position, the recording is ready to
be played back via the system when desired.
Recording over an Existing Message
When a message is recorded, its time
duration is stored in memory. When a new
message is recorded over an existing one, the
new message will automatically be the same
length as the original. The red Recording
LED will illuminate for the original
duration of the message, and extinguish at
the end of that time, indicating that the
recording is finished. The recording cannot
be terminated by the Start/Stop switch
when recording over an existing message.
A
L BB 1 2 8 5
Fig. 10 - RMM
numerical order, commencing with message
1.
Recording a Message
■ To record the first message, slide the
Message Selection switch to position ‘1’.
■ Next move the Function switch to the
top position ‘record’.
■ To commence recording, press the
Start/Stop button (fig.10D). The red
Record LED will now illuminate and
begin to speak into the microphone.
■ Immediately after the message has been
spoken, push the Start/Stop button once
more to stop the recording. The green
Message Present LED will now
illuminate to advise that a message is
present at that position.
■ The message can now be checked by
moving the Function switch to its middle
(monitor) position and listening through
a set of headphones.
When the message is being replayed,
either through headphones, or through
the system, the green Message Present
LED will flash.
REMARK: If the new message is too long,
it will be cut off before it is finished. If it
is too short, there will be a silence at the
end of the message, for the remaining
time, before the system can continue with
its next function.
If this is unworkable, the messages which are
currently in memory should be erased, and
all of the messages should be re-recorded.
(See paragraph ‘Clearing Memory’).
Safety Features
With the Function switch in its lowest
(system) position, the Message Select switch
and the Start/Stop button and Erase button
will be inoperative.
The Erase button will only become
operative when the Message Select switch is
in position ‘1’, and the Function switch is in
the top (record) position.
27
GB/SM 30 user manual
5/26/98 10:18 AM
Page 28
The Function switch must be in its lowest
(system) position for messages to be replayed
through the system.
When the Function switch is in its top
(record) or middle (monitor) position,
SM30 will not be able to use the Recorded
Message function, and the messages already
recorded will not be accessible to the user.
An ERROR warning will be seen on the
display of the Control Centre, indicating
that the Message Module is not in its
‘system’ mode.
If the Function switch is in the top (record)
position, and the Message Selection switch
is moved to a position where a message is
already recorded, the green Message Present
LED illuminates to warn that a message is
present at that position.
11
MUSIC INPUT MODULE
(MUM)
LBB 1286/10
The ability of SM30 to play music, which is
uninterrupted, even though the system is
handling a call routed to other loudspeaker
zones, is an important feature of the system.
To make best use of this feature, Philips have
developed the Music Input Module. The
module enables 3 independent music sources
to be connected to the Control Centre.
11.1
Installation
Mounting in the Control Centre
One Music Input Module may be installed
in the Control Centre.
This module must be located in slot B as
illustrated in fig.5.1.
Remote Location Recording
Because the Record and Monitor functions
are independent of the SM30
microprocessor, the unit may be taken out of
the Control Centre, and transported to a
remote location.
There, with the aid of suitable power
supplies of +5 V and +35 V, the module
may be used to record the messages in a
more suitable/convenient recording
environment. Refer to the service
documentation of SM30 how to make the
connections.
Music Source Inputs
The module provides 3 sets of double cinch
sockets (fig.11A) for connection of the
music sources. The double sockets allow
stereo signal sources to be connected, using
standard double cinch/ cinch Hi-Fi cables.
The stereo signal is mixed to mono in the
module. A mono signal (e.g. from a radio
tuner) should simply be plugged into either
one of the two sockets.
11.2
Adjustments
Individual Input Volume Controls
Three potentiometers (fig.11B)
corresponding to the three inputs, give the
user/installer the capability of setting the
input volume levels of each source
independently.
Adjust the source signal levels so that when
the operator selects a different source, no
great change in music volume level occurs.
28
GB/SM 30 user manual
5/26/98 10:18 AM
Page 29
Each step of 3 represents 2 dB, with ‘99’
equalling 0 dBV. Any, or all of these four
functions can also be remote controlled via
the Function Keys on the Call Station.
Output Treble and Bass Tone Controls
Treble and Bass potentiometers (fig.11C and
D) provide tone control facilities for the
output of the module.
In the vertical (12 o’clock) position, the
signal is unaffected. Turning the control
clockwise increases the level of the relevant
treble or bass frequency range by up to 10
dB. Turning it anticlockwise decreases the
frequency range volume level by up to 10
dB.
11.3
Programming
Software routing to zones
For details of routing the music signal to
specific loudspeaker zones see user
programming 14.3.1 step 19 ‘F-key music
routing’ and menu 4 ‘Music routing’ and
installer programming 14.7 menu 13 ‘Direct
routing’.
Front panel controls of Control Centre
(fig.4.1E)
To allow the operator to control the music
sources, four Music Function Keys are
provided on the front panel of the SM30
Control Centre. These keys allow the
operator to select the music source; alter the
music volume level up or down; and mute
the music signal. When either the ‘Music
Volume up’ or ‘Music Volume down’ key on
the Control Centre is pushed, the output
volume of the Music Input Module changes
in steps of ‘3’ over a range of ‘00’ to ‘99’.
Display music source status
The current music source and the output
volume level can be seen on the bottom line
in the display when SM30 is in its normal
‘run’ mode. See installer programming
14.7.6 ‘Music Input text’ to alternate the
names for sources 2 and 3 for showing on
the display.
D
C
B
A
L BB 1 2 8 6
Fig. 11 - MUM
29
GB/SM 30 user manual
12
5/26/98 10:18 AM
Page 30
ZONE RELAY MODULE
(ZRM)
LBB 1287
fact that they are the only loudspeaker zone
outputs in the system. This should be taken
into consideration when planning the
location of the Zone Relay Module(s) in the
Control Centre.
The SM30 system is intended for use with 2
separate amplifiers, or two separate channels
of a multi channel amplifier. One channel
will handle the ‘Call’ signal, and the other
channel will amplify the ‘Music’ signal.
This allows the music signal to continue,
uninterrupted, when a call is made to other
loudspeaker zones.
Both the Call and Music signals are
processed via SM30, and are available on the
output on the Line Output Module. The
signals are then amplified by their separate
power amplifiers, and the amplified signals
return to SM30, via the inputs of the Zone
Relay Module.
The SM30 software uses the relays of the
Zone Relay Modules to route the separate
signals to their relevant loudspeaker zones.
Each Zone Relay Module is capable of
routing the amplified Call and Music signals
to 6 separate loudspeaker zones. Up to 3
units may be installed in the Control
Centre, giving SM30 the capacity to route
the signals to 18 loudspeaker zones.
12.1
Terminations
The module is fitted with 2 ‘Mate-N-Lok
connectors. All wiring is done in the plugs
provided with the module, which means
that the wiring itself remains intact if SM30
is ever removed for servicing, etc.. The top
connector (fig.12.1B) is the input connector.
The outputs of the amplifiers are plugged
into the right row of the sockets.
The centre row of 4 sockets are used for
linking the module to the next Zone Relay
Module. The bottom connector (fig.12.1A)
feeds the routed outputs to the 6
loudspeaker zones. Fig.12.2 and fig.12.3
show how to connect the Mate-N-Lok
connectors and illustrates several possibilities
for configuring amplifier connections, some
of which are briefly described below.
Installation
F3
Mounting in the Control Centre
Up to three Zone Relay Modules can be
installed in the Control Centre, in slots G,
H, & I, as illustrated in fig.5.1.
The numbers designated to Loudspeaker
Zones by the microprocessor are dependent
on the slot in which the Zone Relay Module
is located. If, for instance, only one Zone
Relay Module is used in a system, and that
module is located in slot I, then the six
loudspeaker zones would be numbered 1-6.
If the same module were plugged into slot
H, instead of I, then the loudspeaker zones
would be numbered 7-12, regardless of the
F2
B
F1
A
LBB 1287
Fig. 12.1 - ZRM
30
GB/SM 30 user manual
12.2
5/26/98 10:18 AM
Page 31
extra power amplifiers. This can be done in
one of several different ways:
Unlinked multiple modules.
Separate amplifiers may be used to feed each
Zone Relay Module. This enables each
amplifier to be dedicated to 6 specific zones.
Module input splitting
(fig.12.3).
The Zone Relay Module provides the
possibility of connecting more amplifiers to
a single module, so that each amplifier feeds
fewer loudspeaker zones. Three miniature
fuses, link the centre and left rows of sockets
of each of the Call, Music, and (common)
Ground sockets of the amplifier input
connector (fig.12.1).
If one of the fuses is removed, the amplifier
connected to the corresponding (right)
socket will only feed sockets 1-4 of the LS
output connector.
Another amplifier, connected to the
corresponding left socket, will then feed only
sockets 5 and 6 of the LS output connector.
Coupling Zone Relay Modules
When more than 1 Zone Relay Module is
used in a system, the inputs of the modules
may be linked together (fig.12.2), so that the
same amplifier(s) can feed up to 18
loudspeaker zones. This is done by making
short linking wires, fitted with Mate-N-Lok
connector pins at each end. One end is
pushed into one of the centre row of
termination sockets in the first ‘Input’ MateN-Lok connector plug (I).
The other end is pushed into the
corresponding right row of termination
sockets in the second ‘Input’ Mate-N-Lok
connector plug (H), and if applicable also
connected to the third ‘input’ Mate-N-Lok
connector plug (G).
12.3
Multiple Amplifier Configurations
In large systems, comprising many
loudspeakers, it may be necessary, because
the large amount of amplifier power
required exceeds the power available, to use
G
H
I
3
2
1
3
2
1
3
2
1
6
5
4
6
5
4
6
5
4
9
8
7
9
8
7
9
8
7
12
11
10
12
11
10
12
11
10
9
8
7
15
14
13
3
1
3
2
1
3
2
1
6
5
4
6
5
4
9
8
7
12
11
10
6
5
4
8
7
9
8
7
12
11
10
12
11
10
10
11
12
16
17
18
Fig. 12.2 - Coupling zones
31
MUSIC
3
2
1
2
9
CAL L
4
5
6
LS GROUP
GB/SM 30 user manual
5/26/98 10:18 AM
Page 32
13
I
CALL ( ZONE 5,6 )
3X
2
1
6
5
4
8
7
11
10
9
X
12
X
MUSIC ( ZONE 5,6 )
The Control Relay module provides SM30
with a set of switching contacts, which can
be opened or closed (dependent on the
contact, and its terminations) as
programmed by the installer or operator.
Relays 1 to 8 have both make and break
contacts. Relays 9 to 12 have make contacts.
These contacts can be used to start remote
equipment, such as cassette players, message
loggers, etc.; to activate signalling/warning
lamps; to release fire door relays; etc..
CALL ( ZONE 1,2,3,4 )
MUSIC ( ZONE 1,2,3,4 )
LS GROUP
3
2
1
3
2
1
6
5
4
9
8
7
12
11
10
CONTROL RELAY MODULE
(CRM)
LBB 1288
4
5
6
13.1
Relay 1 is reserved for the indication of
microprocessor errors, and cannot be used
for any other function.
Relay 2 is reserved for indication of all other
internal errors (modules and Call Stations),
and cannot be used for any other function.
Relay 3 is dedicated to the ‘Delayed Power
On’ function, but may be used for other
functions if Power On Delay is not required.
The Delayed Power On function is intended
for battery operated systems where, in order
to conserve battery power, the SQ45
amplifier(s) is/are switched on only when a
call is made. It causes a time delay (selectable
from 2-9 seconds) between pressing the Call
Station ‘Press-To-Talk’ key, the Microphone
‘on’ switch or switching-on of a Control
Input and the actual activation of the call.
Both sides of the normal ‘open’ contact of
relay 3 are wired to the switch terminations
on the SQ45 ‘DC Power’ Mate-N-Lok
connector(s). The software causes the relay
contacts to close (‘make’), switching on the
DC power of SQ45. (See the SQ45
Instructions for Use for further details).
Relay 4 is dedicated in case an external
audio source connected to an input of the
Fig. 12.3 - Input splitting
2
1
4
3
6
5
8
7
10
9
12
11
Operation
LBB 1288
Fig. 13 - CRM
32
GB/SM 30 user manual
5/26/98 10:18 AM
Page 33
Microphone Input module should be started
with contact 1-8 of the Control Input
Module. See user programming 14.3 menu
item 3.8 ‘Control inputs 1-8’.
Relays 3-12
Relays 3 (or 4 if power-on delay is used) to
12 can be activated by different sources, and
may be used for a number of functions.
13.3
Power-on delay
The Power-on delay function can be
programmed with a time delay of 2-9
seconds (see installer programming 14.7
menu 5 ‘Power-on delay’).
Coupling relays to zones
Each Control Relay is programmable,
‘linked’ or ‘locked’, to a specific Zone Relay,
so that when a call is routed to a loudspeaker zone, the Control Relay linked to it will
activate automatically (see installer programming 14.7 menu 11 ‘Override relays’). The
display will show ‘Z’ for the relays involved.
Remote Volume Control Overrides
The ‘make’ contacts of Relays 3 to 12 may
be used to activate up to 10 loudspeaker
volume control override relays. These relays,
mounted in the loudspeaker enclosures,
override the volume control setting of the
actual loudspeaker itself. This means that
regardless of the individual ‘music’ volume
setting of each loudspeaker, all the
loudspeakers in a particular zone will work
at full volume when a Call is routed to it.
13.2
Programming
Activation by Call Station and Function
Keys
Relays 3 (or 4, if power on delay is used) to
12 may be programmed to be activated by
Call Stations, and Function Keys on Call
Stations. Activation by a Call Station
happens whenever a call is made using
Keypad of the Call Station Keypad (see user
programming 14.3 menu 1.7). Activation by
a Function Key happens whenever a preprogrammed Function Key (followed by the
‘Press-To-Talk’ key) is pressed (see user
programming 14.3 menu 1.14).
Installation
Mounting in the Control Centre
One Control Relay Module is used in
SM30. This must be located in Control
Centre slot J, as indicated in fig.5.1.
Wiring Control Relays
Each Control Relay Module is supplied with
two plug-in, 16 terminal, screw connector
blocks (fig.13). The wires to remote
equipment are connected to the screw
terminals, which are marked in threes 1 to 8
(make and break contacts), and in pairs 9 to
12 (make contact). The great advantage of
the connector block is that if, for some
reason, the SM30 Control Centre has to be
removed, the blocks have simply to be
unplugged and the wires remain intact. This
avoids the tedious and risky business of
rewiring the blocks in their original
configurations.
Activation by Control Inputs
Relays 3 (or 4, if power on delay is used) to
12 may also be programmed to be activated
by Control Input contacts (see user
programming 14.3 menu 3.12). Control
Input contacts 5 to 8 can be programmed to
activate one, or a group of, Control Relay(s).
This means that when the remote switch of
a control input is closed, the programmed
Control Relays become activated (see user
programming 14.3 menu 3.7).
The display will show ‘A’ for the relays
involved.
33
GB/SM 30 user manual
14
14.1
5/26/98 10:18 AM
Page 34
PROGRAMMING
Summary SM30 User Programming
program step
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
1.11
1.12
1.13
1.14
1.15
1.16
1.17
1.18
1.19
1.20
1.21
1.22
2.1
2.2
2.3
2.4
2.5
2.6
2.7
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
3.11
3.12
4.1
4.2
selection
User password
CALL STATIONS
- number
- Keypad
0
- priority number
- signal number
- message number
- control relay number
- Function key number
- Call programming
- priority number
- signal number
- message number
- zone number
- control relay number
- Remote music up
- Remote music down
- Remote music mute
- Remote music select
- Remote relay switch
-control relay number
- Remote relay toggle
- control relay number
MICROPHONES
- number
- priority number
- signal number
- message number
- zone number
- control relay number
CONTROL INPUTS
- number
-1
music volume up
-2
music volume down
-3
music mute
-4
music source select
- 5/8 remote relay switch
- 1/24
- priority number
- signal number
- message number
- zone number
- relay number
MUSIC ROUTING
- zone number
34
1-2, 3-4, 5-6
0-6, 7-12, 13-18
1-9
00-nn
0,1,2,3,4,1R,2R,3R,4R
4-12
1,2,3,4
1-9
00-nn
0,1,2,3,4,1R,2R,3R,4R
1-6, 7-12, 13-18
4-12
on/off
on/off
on/off
on/off
on/off
4-12
on/off
4-12
1-2, 3-4, 5-6
1-9
00-nn
0,1,2,3,4,1R,2R,3R,4R
1-6, 7-12, 13-18
4-12
1-8, 9-16, 17-24
on/off
on/off
on/off
on/off
on/off
1-9
00-nn
0,1,2,3,4,1R,2R,3R,4R
1-6, 7-12, 13-18
4-12
on/off
GB/SM 30 user manual
14.2
5/26/98 10:18 AM
Page 35
Introduction
14.2.2 User Program
The User Program is a limited version
(programming menus 1 up to 4) of the
Installer Program, detachable at the rear of
the book. This program is intended, as its
name implies, to allow the user(s) of the
system to alter priorities, routing, etc. as
their needs change, without having to call in
expert help. The program contains a variety
of items which are dependent upon the
system configuration.
Programs marked * in the program step list
will only appear on the display if the
relevant modules and/or Call Stations are
present in the system. When a module is not
present in the system the relevant program
step will not be shown on the display.
14.2.1 General
Programming is carried out using the keys
on the front panel of SM30 Control Centre.
A password must be keyed in via the
programming keys in order to enter a
Programming mode.
Illuminated LEDs on the front panel
indicate which keys can be used at the
current stage of programming.
The left/right arrow keys are used to scroll
through the main menu in order to move to
a different program, and also to move the
cursor during zone routing and relay
assignment.
The double up/down arrow keys are used to
select tens during attention and alarm signal
programming.
The single up/down arrow keys are used to
scroll through selections within an actual
program, and to select digits 1 to 9 during
attention and alarm signal programming.
If the system is in normal operation (in its
‘Run’ mode), the display will show:
* SM30 SYSTEM *
XXXXXXXXX YY
If the Music Input Module is present, the
second display line shows XXXXXXXX as
the current music source name, and YY as
the current volume level (marked, in steps of
3, from 00 to 99).
If the Music Input Module is not present,
the bottom line will be empty.
Pressing BREAK will always return to the
next higher programming level.
Pressing ENTER will confirm your
selection, storing the information in the
system’s memory.
The main menu can always be recognised by
“SELECT PROGRAM:” in the upper line
of the display. Scrolling through the menu
can be done with the left /right arrow keys.
14.2.3 User Programming Mode
To enter the User Programming mode, type
the correct password: O > ENTER
The display will show:
* SOFTWARE *
* VERSION x.xx *
This programming guide assumes that all
possible modules and Call Stations are
present in the system.
After a few seconds the display shows:
SELECT PROGRAM:
CALL STATIONS
This is the first program step in the main
menu.
35
GB/SM 30 user manual
5/26/98 10:18 AM
Page 36
1
SELECT PROGRAM :
CALL STATIONS
1
2
SELECT ITEM :
CALL STATION : X
3
SELECT FUNCTION :
8
KEY PAD
4
SELECT FUNCTION :
FUNCTION KEY : F1 - 4
CALLST : X KEYPAD
9
PRIORITY : X
15
CALLST : X FKEY : X
CALLST : X FKEY : X
CALL PROGRAMMING
MUSIC VOLUME
10
5
16
CALLST : X KEYPAD
CALLST : X FKEY : X
CALLST : X FKEY : X
SIGNAL : XX
PRIORITY : X
MUSIC VOLUME
6
11
17
CALLST : X KEYPAD
CALLST : X FKEY : X
CALLST : X FKEY : X
MESSAGE : X
SIGNAL : XX
MUSIC MUTE
12
7
18
CALLST : X KEYPAD
CALLST : X FKEY : X
CALLST : X FKEY : X
XX0000
MESSAGE : X
MUSIC SELECT
REL : 03
13
19
CALLST : X FKEY : X
CALLST : X FKEY : X
000000
MUSIC ROUTING
ZONE : 01
14
20
21
CALLST : X FKEY : X
CALLST : X FKEY : X
CALLST : X FKEY : X
XX0000
RELAY SWITCH
XX0000
REL : 03
23
22
Call Stations
36
REL : 03
CALLST : X FKEY : X
CALLST : X FKEY : X
RELAY TOGGLE
XX0000
REL : 03
GB/SM 30 user manual
14.3
5/26/98 10:18 AM
Page 37
User Programming
Signal number “00” means: no signal.
If the selected signal number does not exist,
the display will show:
* NOT EXISTING *
SIGNAL : XX
14.3.1 CALL STATIONS
1.1
Main menu selection
Select from the main menu by means of the
left/right arrow keys:
CALL STATIONS
Pressing any key will return to signal
number selection.
1.6
1.2
Call Station number selection
The cursor will be blinking below the
number of the first Call Station found. The
numbers of Call Stations not present will be
skipped. Selection of another Call Station
can be made using the up/down arrow keys.
Pre-recorded Message number
selection
Default is selected the Key Pad of the Call
Station. To program the Function Keys of
the Call Station, select the function key: F1,
F2, F3 or F4 by means of the up/down
arrow keys, and continue with program step
1.8.
This display will be skipped if the Recorded
Message Module is not present.
The message number can be selected using
the up/down arrow keys.
The sequence of message number selection
on the display is:
0, 1, 2, 3, 4, 1 REPEAT, 2 REPEAT, 3
REPEAT, 4 REPEAT.
“MESSAGE: 0” means: no message. Pressing
BREAK will return to priority level
selection.
See chapter ‘Recorded Message Module’ for
a full explanation, and details of how to
record messages.
1.4
1.7
1.3
Key Pad Selection
Priority level selection
The display will show the current priority.
Changing the priority level can be done with
the up/down arrow keys. Level 1 is the
lowest; level 9 is the highest priority. (See
chapter ‘System Operation’ for description
of the priority function.)
1.5
Programming Control Relays
This display will be skipped if the Control
Relay Module is not present in the system.
The current relay programming of Control
relays 1-6 is shown. Shifting the cursor to
the right, further than the last position, will
display the current setting of relays 7-12.
The lower right of the display will show the
relay number which is being indicated by
the cursor. Moving the cursor to a different
relay can be done with the left/right arrow
keys. Relays which are already selected are
indicated by 1, non-selected relays are
indicated by 0. Selecting a relay can be done
with the ‘|’ key. Deselecting a relay can be
done with the ‘O’ key.
Signal number selection
This is the attention or alarm signal that
either precedes a call, or may be used alone.
Signals are selectable using the up/down
arrow keys. Double up/down arrows keys
change the tens, and single arrow keys
change the single numbers.
37
GB/SM 30 user manual
5/26/98 10:18 AM
Page 38
Relay 1 (marked ‘X’) is reserved for the
activation of error indicators, if a processor
failure is detected, and cannot be
programmed for any other function.
Relay 2 (marked ‘X’) is reserved for the
activation of error indicators, if a Call
Station or module failure is detected, and
cannot be programmed for any other
function.
Relay 3 is dedicated to the ‘Delayed Power
On’ function explained in paragraph 5
‘Programming Power On Delay’, but may be
used for other functions if ‘Power On Delay’
is not used. If it is used, the third position
will be marked with an ‘X’ in the display.
Relay 4-6 (marked ‘O’) are not selected.
If Control Relays are to be used for
alternative functions, refer to program step
1.15. Pressing BREAK will return to Key
Pad selection.
1.8
1.11
See program step 1.5.
1.12
1.13
F-key Call Routing to Zones
The current programmed call routing will be
displayed.
The lower right of the display will show the
zone number which is being indicated by
the cursor.
Moving the cursor to a different zone can be
done with the left/right arrow keys. Shifting
the cursor to the right, further than the last
position, will display the routing of zones 712, if Zone Relay Module 2 is present.
Shifting the cursor to the right again, further
than the last position, will display the
routing of zones 13-18, if Zone Relay
Module 3 is present.
If only Zone Relay Modules 1 and 3 are
present, the routing of zones 13-18 will be
displayed instead of 7-12. On the display,
zones which are already selected are
indicated by 1, non-selected zones are
indicated by 0.
Selecting a zone can be done with the ‘|’ key.
Deselecting a zone can be done with the ‘O’
key.
Function Key number selection
F-key programming selection
Each Function Key on a Call Station can be
used for activation of one of two main
purposes:
■ Call Programming after pressing ENTER.
■ Remote control of the Music and Control
Relay functions to be selected by means
of the left/right arrow keys (see program
step 1.15 and 1.22).
1.10
F-key Pre-recorded Message number
selection
See program step 1.6.
Selection of the Function Key number can
be made with the up/down arrow keys. The
display sequence is:
KEYPAD, FUNCTION KEY: F1, F2, F3,
F4
1.9
F-key Signal number selection
1.14
F-key programming Control Relays
See program step 1.7.
Programming of alternative Function Key
Each Function Key on a Call Station can be
used for one of two main purposes.
Instead of selection of Call Programming
(program step 1.9) , each Function Key can
F-key Priority selection
See program step 1.4.
38
GB/SM 30 user manual
5/26/98 10:18 AM
Page 39
also be programmed with one of six more
functions. The ‘music’ functions are only
available if the Music Input Module is
present.
The ‘relays’ functions are only available if
the Control Relay Module is present.
The Function Key LED on the Call Station
indicates whether the relays are on or off.
Scroll with the up/down arrow keys to select
the alternative function.
broadcasting music. However, adding or
deleting of zone numbers is possible by
means of the numeric keypad of the Call
Station. Pressing the F-key again will store
the new zone selection into the memory
while the previous selection will be erased.
1.20
F-key Relay switching selection
Pressing the assigned Function Key on the
Call Station increases the music volume
level.
This function allows the selected relays to be
active only while the Function Key is
pressed.
Already assigned relays are indicated by ‘A’
and can not be used.
The function key LED indicates whether the
relays are on or off.
1.16
1.21
1.15
F-key Music volume up
F-key Music volume down
Programming Control Relays
Pressing the assigned Function Key on the
Call Station decreases the music volume
level.
See program step 1.7
1.17
This function allows the selected relays to be
switched on when the Function Key is
pressed the first time, and switched off when
the key is pressed a second time.
Already assigned relays are indicated by ‘A’
and can not be used.
The function key LED indicates whether the
relays are on or off.
1.22
F-key Music on/off
Pressing the assigned Function Key on the
Call Station switches on/off the music.
1.18
F-key Music source select
Pressing the assigned Function Key on the
Call Station allows selecting one of three
music sources.
1.19
1.22
Music routing
F-key Relay toggling selection
Programming Control Relays
See program step 1.7
This program step provides music routing
programming of F-keys by means of the
numeric keys on the Call Station.
After pressing the assigned F-key on the Call
Station, the red and green LEDs illuminate
to indicate that this F-key has been
programmed as a music routing F-key. The
zone LEDs show the zones that are currently
39
GB/SM 30 user manual
2
2.1
5/26/98 10:18 AM
Page 40
MICROPHONES
2.5
Main menu selection
This display will be skipped if the Re-corded
Message Module is not present.
Message number can be selected using the
up/down arrow keys.
The sequence of message number selection
on the display is:
0, 1, 2, 3, 4, 1 REPEAT, 2 REPEAT, 3
REPEAT, 4 REPEAT.
“MESSAGE: 0” means: no message.
Pressing BREAK will return to ‘priority level
selection’.
See chapter ‘Recorded Message Module’ for
a full explanation, and details of how to
record messages.
Select from the main menu by means of the
left/right arrow keys:
MICROPHONES.
2.2
Microphone number selection
Pressing ENTER will show the number of
the first microphone found in the system.
The system can detect the presence of the
Microphone Input Module, but not whether
a microphone is connected to that
Microphone Input Module. So it is, in
principle, possible to program microphones
on an Microphone Input Module even if
those microphones are not present. Another
microphone number can be selected using
the up/down arrow keys.
2.3
2.6
Call Routing to Zones
The current programmed call routing will be
displayed. On the display, zones which are
already selected are indicated by 1, nonselected zones are indicated by 0.
The lower right of the display will show the
zone number which is being indicated by
the cursor.
Moving the cursor to a different zone can be
done with the left/right arrow keys. Shifting
the cursor to the right, further than the last
position, will display the routing of zones 712, if Zone Relay Module 2 is present.
Shifting the cursor to the right again, further
than the last position, will display the
routing of zones 13-18, if Zone Relay
Module 3 is present.
If only Zone Relay Modules 1 and 3 are
present, the routing of zones 13-18 will be
displayed instead of 7-12.
Selecting a zone can be done with the ‘|’ key.
Deselecting a zone can be done with the ‘O’
key. Pressing BREAK will continue with
programming the control relays.
Priority level selection
The display will show the current priority.
Changing the priority level can be done with
the up/down arrow keys.
Level 1 is the lowest; level 9 is the highest
priority. See chapter ‘System Operation’ for
description of the priority function.
2.4
Pre-recorded message number
selection
Signal number selection
This is the attention or alarm signal that
either precedes a call, or may be used alone.
Signals are selectable using the up/down
arrow keys. Double up/down arrow keys
change the tens, and single up/down arrow
keys change the single numbers. Signal
number “00” means: no signal. If the
selected signal number does not exist the
display shows:
* NOT EXISTING *
SIGNAL: XX
40
GB/SM 30 user manual
5/26/98 10:18 AM
Page 41
2.7
2
This display will be skipped if the Control
Relay Module is not present in the system.
The current setting of Control relays 1-6 is
shown. Shifting the cursor to the right,
further than the last position, will display
the current setting of relays 7-12. Selecting a
zone can be done with the ‘|’ key.
Deselecting a zone can be done with the ‘O’
key. Relay 1 (marked ‘X’) is reserved for the
activation of internal system error indicators
and cannot be programmed for any other
function. Relay 2 (marked ‘X’) is reserved
for the activation of Call Station error
indicators and cannot be programmed for
any other function. Relay 3 is dedicated to
the ‘Delayed Power On’ function, but may
be used for other functions if Power On
Delay is not used. If it is used, the third
position will be marked with an ‘X’ in the
display.
SELECT PROGRAM :
MICROPHONES
1
2
SELECT ITEM :
MICROPHONE : X
3
MICROPHONE : X
PRIORITY : X
4
MICROPHONE : X
SIGNAL : XX
Programming next microphone
When programming of the first microphone
is completed, pressing ENTER returns to
the next microphone number to be
programmed.
5
MICROPHONE : X
MESSAGE : X
6
MICROPHONE : X
000000
ZONE : 01
7
MICROPHONE : X
XX0000
Programming Control Relays
REL : 03
Microphones
41
GB/SM 30 user manual
5/26/98 10:18 AM
Page 42
14.3.3 CONTROL INPUTS
3.6
3.1
Enables remote select of music source.
Pressing the ‘|’ key selects music volume up
activation, entering ‘O’ continues normal
call activation (program step 3.8).
3.7
Control input 5-8
Main menu selection
Select from the main menu by means of the
left/right arrow keys: CONTROL INPUTS.
3.2
Control input 4
Control input number selection
Enables Control Relay switching selection.
Pressing the ‘|’ key selects Control Relay
switching ‘on’ and pressing ENTER
continues programming Control Relays
(program step 3.12). Pressing the ‘O’ key
continues with normal call activation.
Pressing ENTER will show the number of
the first free input. The number displayed is
dependent on the Control Input Module
being present in the system. Inputs assigned
to Direct Zone Routing will be skipped.
Numbers of modules not present will be
skipped. Inputs 1-8 of Control Input
Module 1 can have one of two functions:
remote music control or normal call
activation. All other inputs available on
Control Input Module 2 and 3, can only be
used for normal call activation. Use the
up/down arrow keys to select a Control
Input number.
3.8
Control input 1-8
Enables remote control of music volume up.
Pressing the ‘|’ key selects music volume up
activation, pressing the ‘O’ key continues
normal call activation (program step 3.8).
Enables the distribution of an external audio
source connected to microphone/line input
x (1 - 6) to one or more loudspeaker zones
with priority, attention signal followed
eventually by a pre-recorded message. Relay
4 of the Control Relay Module (LBB
1288/00) is reserved to start (and to stop)
the audio source.
A contact, connected to pins 4 and 5 of the
relevant microphone/line connector (5-pole
DIN), starts and stops the action (4 - 5
closed starts the action and 4 - 5 open stops
the action).
3.4
3.9
3.3
Control input 1
Control input 2
Priority level selection input 1-24
Enables remote control of music volume
down. Pressing the ‘|’ key selects music
volume up activation, pressing the ‘O’ key
continues normal call activation (program
step 3.8).
See program step 1.4.
3.5
3.11
3.10
Signal number selection
See program step 1.5.
Control input 3
Enables remote control of music mute.
Pressing the ‘|’ key selects music volume up
activation, pressing the ‘O’ key continues
normal call activation (program step 3.8).
Pre-recorded Message number
selection
See program step 1.6.
42
GB/SM 30 user manual
3.12
5/26/98 10:18 AM
Page 43
Call routing to Zones
3.13
See program step 1.13.
Programming Control Relays
See program step 1.7.
SELECT PROGRAM :
CONTROL INPUTS
SELECT ITEM :
CONTROL INPUT : XX
1-8
9 - 17
CONTRO L INPU T : XX
E NA BLE R EMO TE
1
MUS IC V O LUME: X
PRIORITY : X
CONTROL INPUT : XX
ENABLE REMOTE
2
MUSI C VOLUME: X
SIGNAL : XX
CONTROL INPUT : XX
ENABLE REMOTE
3
MUS IC MUTE : X
MES SA G E : X
ENABLE REMOTE
CONTRO L INPU T : XX
MU SIC SE LE CT : X
000000
4
ZONE : 01
ENABLE REMOTE
5-8
RELAY SWITCH : X
CONTROL INPUT : XX
XX0000
Control Inputs
43
REL : 03
GB/SM 30 user manual
15
5/26/98 10:18 AM
Page 44
SM30 SYSTEM
SPECIFICATION
GENERAL
The specification relates to a Control Centre with corresponding modules.
MICROPROCESSOR HARDWARE
EEPROM data storage time
: > 10 years
RECORDED MESSAGE MODULE
data retention
audio bandwidth
max. total recording time
max. number of messages
microphone phantom power supply voltage
:
:
:
:
:
> 30 days
320 - 6000 Hz
65 seconds
4
12 V DC
AUDIO OUTPUTS
Music input to music output
gain:
control range
mute
input level
output level symmetrical:
nominal
maximum
amplifier output distortion:
THD at nominal level
THD at max.output
amplifier S/N output at nominal level
: > 60 dB (2 dB steps)
: > 80 dB
: > 150 mV
: 0 dBV
: +12 dBV
: 0.1%
: 0.3%
: > 80 dB (flat)
Call Station or Microphone input to call output
output level symmetrical:
nominal
maximum
Microphone Input Module:
input level
frequency response
signal-to-noise ratio
Call Station:
input level
frequency response
signal-to-noise ratio
amplifier output distortion:
THD at nominal level
THD at max.output
: 0.1%
: 0.3%
Music and call Output Impedance
at 1 kHz
: < 50 Ω
44
: 0 dBV
: +12 dBV
: > 1.5 mV
: 50 - 15000 Hz (± 2 dB)
: 68 dB (flat)
: > 84 db (SPL)
: 440 - 12500 Hz (± 3 dB)
: 58 dB (flat)
GB/SM 30 user manual
5/26/98 10:18 AM
Page 45
Click suppression in combination for any module
for audio switching
for power on/off switching
mute by on/off switch
: > 60 dB
: > 30 dB
: > 80 dB
Pilot tone 20 kHz sinus asymmetrical
volume preset at least
mute by on/off switch
: 0.05 - 1 V
: > 80 dB
CRM Output relays
A.C. switching
D.C. switching
: 32 V @ 2 Amps
: 48 V @ 2 Amps
MAINS SUPPLY
voltage setting at delivery
mains voltage selection range
maximum voltage deviation:
for all selected ranges
however at 230 V mains
mains frequency
power consumption at mains voltage
mains fuse: at 220/240 Volt
at 110/127 Volt
mains transformer:
temperature switch self restoring type
: 220-230 V
: 110 V, 127 V, 220-230 V or 240 V
:
:
:
:
:
+10 /-10%
+ 6 /-10%
50 - 60 Hz
< 90 VA
T2.5 A
T5 A
: +125 °C
EMERGENCY SUPPLY
The unit can be supplied from an external DC voltage
V DC nominal
V DC minimum
V DC maximum
fuse in 48 V DC line on PCB located in housing
polarity protection against reverse connection
MECHANICAL DATA
dimensions:
19” rack mounting
desktop use
weight LBB 1280
: 48 V @ current: < 1.2 A
: 42 V @ current: < 1.2 A
: 58 V @ current: < 1.2 A
: 483 x 310 x 132 mm
: 440 x 310 x 132 mm
: 8.8 kg (unpacked)
ENVIRONMENTAL REQUIREMENTS
Rated range of use
ambient temperature
relative humidity
: -10 to +45 °C
: 15 - 90%
Climatic conditions during transporting handling and storage
according to
: UN-D 1639/01
temperature
: -40 to +70 °C
relative humidity
: 5 - 95%
45
GB/SM 30 user manual
5/26/98 10:18 AM
Page 46
MIM
MUM
MUSI C
S M3 0
CONTROL
CE NTRE
134
MAX
CS T
124
114
20
104
10
L B B 94
9520/10
0
84
-10
CS M
CAL L
10V
DL L
Limiter
1V
Signal
74
100mV
64
-30
54
-40
44
-50
34
-60
24
-70
14
-80
10mV
Noise
CS T
1mV
Noise
MI M
CS M
100 µ V
MUM
4
dB
SP L
-90
-100
10 µ V
-110
-120
1µV
d BV
= Equivalent Input Noise
(RMS B=20kHz Flat)
Audio signal level diagram
46
GB/SM 30 user manual
5/26/98 10:18 AM
Page 47
14.3.4 MUSIC ROUTING
14.4
4.1
During normal operation, all modules
present in the system are continuously
tested. If a module stops communicating
with the processor, a message is sent to the
display stating the faulty module type and
the module number. If a Call Station stops
communicating with the system, this is also
displayed. If a Control Relay Module is
present, an SM30 system fault will
deactivate relay 1, providing the possibility
to switch on a remote warning light, buzzer,
etc..
** ERROR **
CALL STATION:XX
MUSIC INPUT MOD
LINE OUTPUT MOD
CST INPUT MOD XX
MIC INPUT MOD XX
ZONE REL. MOD XX
CTL RELAY MOD
REC MESSAGE MOD
CTL INPUT MOD XX
Main menu selection
Select from the main menu by means of the
left/right arrow keys:
MUSIC ROUTING.
4.2
Zone selection
The current music routing will be displayed.
Zones which are already selected are
indicated on the display by 1, not selected
zones are indicated by a 0.
The lower right of the display shows the
number of the zone indicated by the cursor
position. Moving the cursor to another zone
can be done with the left/right arrow keys.
Shifting the cursor to the right, further than
the last position, will display the routing of
zones 7-12, if Zone Relay Module 2 is
present. Shifting the cursor to the right
again, further than the last position, will
display the routing of zones 13-18, if Zone
Relay Module 3 is present. If only Zone
Relay Modules 1 and 3 are present, the
routing of zones 13-18 will be displayed
instead of 7-12. Selecting a zone can be
done with the ‘|’ key, deselecting a zone can
be done with the ‘O’ key.
ERROR MESSAGES
If more then 1 error occurs, the different
messages will be displayed sequentially.
When the Recorded Message Module is
installed, but the mode switch is not set in
the ‘SYS’ position, the following message
will be displayed:
** ERROR **
MESSAGE MODULE
SWITCH POSITION
Return to ‘RUN’ mode
User Programming is now completed.
Pressing BREAK will exit the user
programming mode, and return to the
normal ‘RUN’ mode.
4
SELECT PROGRAM :
MUSIC R OUTING
1
MUSIC R OUTING
000000
2
Music Routing
47
ZONE : 01
GB/SM 30 user manual
5/26/98 10:18 AM
Page 48
48
GB/SM 30 user manual
5/26/98 10:18 AM
Page 49
SM30
Sound Management System
Supplement
Instructions for installation
LBB 1280
Philips
Communication &
Security Systems
GB/SM 30 user manual
5/26/98 10:18 AM
Page 50
CONTENTS
14.5
14.6
14.7
Summary SM 30 installer programming
Setup programming
Installer programming
page
1
3
3
GB/SM 30 user manual
14.5
5/26/98 10:18 AM
Summary SM30 Installer Programming
Setup programming steps
5.0
7.1
8.1
1.1
Page 1
selection
Installer password
LANGUAGE SELECT
STORE HARDWARE
CALL STATION
|
Installer programming stepsselection
5.0
5.1
5.2
6.1
6.2
6.3
7.1
7.2
8.1
8.2
9.1
9.2
9.3
10.1
10.2
10.3
11.1
11.2
11.3
12.1
12.2
12.3
13.1
13.2
13.3
14.1
14.2
14.3
14.4
14.5
15.1
15.2
15.3
16.1
16.2
16.3
17.1
17.2
17.3
Installer password
POWER-ON DELAY
delay time
1-9 sec
MUSIC INPUT TEXT
music input number
1,2,3
text selection
see text
LANGUAGE SELECT
language selection
E,G, S, D, I, F
STORE HARDWARE
busy storing
AMPLIFIER CONFIGURATION
separate amplifiers
single amplifier
VOLUME STEP/REPEAT
step mode
repeat mode
OVERRIDE RELAYS
zone number
1-6, 7-12, 13-18
control relay number
3-12
ROUTING LIMITS
call station number
1-2, 3-4, 5-6
zone number
1-6, 7-12, 13-18
DIRECT ROUTING
alarm/music zones selection
enable/disable
CLEAR MEMORY
confirmation
please wait
power-on delay
system down
CONTROL ALARM MODE
non-interrupt
interruptable
FLEXIBLE F-KEY PROGRAMMING
selection Call Station number
activation flexible F-key
EXTENDED CALL STATION PROGRAMMING
selection Call Station input number
confirmation
1
GB/SM 30 user manual
5/26/98 10:18 AM
Page 2
SETUP PROGRAMMING
MAINS "ON"
POWER - ON - DELAY
"RUN-MODE"
"SET-UP MODE"
FACTORY SETTING/
WITH / WITHOUT
EMPTY MEMORY
MUM INSTALLED
1
MEMORY CLEARED
* SM30 SYSTEM *
SYSTEM IS DOWN
** MUSIC SOURCE ...
USER
USER
INSTALLER
INSTALLER
PASSWORD
3
SELECT LANGUAGE
2
4
INSTALLER MODE
STORE HARDWARE
FIRST REOUIRED
5
BUSY STORING...
6
*SOFTWARE*
VERSION.XX
7
SELECT PROGRAM :
SELECT PROGRAM :
CALL STATIONS
CALL STATIONS
ALL OPTIONS
ONLY USER OPTIONS
Setup
2
GB/SM 30 user manual
14.6
5/26/98 10:18 AM
Page 3
SETUP PROGRAMMING
6
Display software version
When the hardware setup is stored, the
setup is complete and programming will
automatically continue with the first step of
the Installer Programming. First the display
will show the current software version.
If the memory is clear, the software must be
able to recognise the hardware that is
installed before programming can be
undertaken.
This is done via the Setup Program, which
stores the system hardware setup in memory,
telling the processor which modules and
Call Stations are present in the system.
Also the display language version has to be
selected the first time.
7
Main menu
After a few seconds, the display will show
the first step from the main menu.
The main menu can always be recognised by
“SELECT PROGRAM:” in the upper line
of the display. Scrolling through the menu
can be done with the left/right arrow keys.
The SM30 system can be programmed now
by the installer to suit the requirements of
the user.
1
System down
When an SM30 system is first delivered, the
relevant modules have been installed, and
the system is switched on, the LCD display
on the front panel will show that the system
is down.
14.7
2
Installer mode
If the memory has been cleared and the
User Programming password is entered, the
display will show that the installer mode is
first required.
To enter the Setup Program, the Installer
Program password must be typed.
INSTALLER PROGRAMMING
To enter the Installer Programming mode,
type in the Installer password.
The display will show the Software Version
x.xx, and after a few seconds the display is
replaced by SELECT PROGRAM: CALL
STATIONS
This is the first program step of the main
menu. Refer to User Programming step
numbers:
3
Language selection
The display will show the current language.
Select the desired language by scrolling
through the menu using the up/down arrow
keys.
1
2
3
4
4
Store hardware
After pressing ENTER, programming
continues with storing the hardware
configuration.
5
Busy storing
After pressing ENTER, the display will
show busy storing for a short moment.
3
CALL STATIONS
MICROPHONES
CONTROL INPUTS
MUSIC SOURCES
GB/SM 30 user manual
5/26/98 10:18 AM
Page 4
14.7.5 POWER-ON DELAY
5
This program is intended for battery
operated systems where, in order to conserve
battery power, the amplifier is switched on
only when a call is made.
It causes a time delay (selectable from 1-9
seconds) between pressing the Call Station
‘Press-To-Talk’ key, Microphone ‘on’ switch,
or switching on of a Control Input, and
actual activation of the call.
Relay 3 of the Control Relay Module is
dedicated to switching the power to the
amplifier(s), but if “0” seconds is selected,
relay 3 is free to be programmed for any
other function. (See program step 1.7.)
5.1
SELECT PROGRAM :
POWER - ON - DELAY
1
POWER - ON - DELAY
ENTER SECONDS : X
2
Power-on Delay
Main menu selection
6
Select from the main menu by means of the
left/right arrow keys: POWER-ON DELAY.
SELECT PROGRAM :
MUSIC INPUT TEXT
5.2
1
Delay time
The delay time can be selected with the up
and down arrow keys.
Pressing ENTER confirms the selection and
returns to the main menu.
2
SELECT TEXT OF
MUSIC INPUT : X
3
SCROLL WITH
XXXXXX
Music Input Text
4
GB/SM 30 user manual
5/26/98 10:18 AM
Page 5
14.7.6 ALTERNATIVE MUSIC INPUT
TEXT
14.7.7 SELECTING MENU
LANGUAGE
If the music input module is present, the
second line of the display shows in the
normal RUN mode the currently selected
music source and the volume. The default
text of the music source is:
MUSIC OFF, MUSIC INPUT 1, MUSIC
INPUT 2, MUSIC INPUT 3.
Alternative text for music inputs 1,2 and 3
can be chosen.
The Setup Program automatically starts with
the Select Language menu, see chapter 14.5.
If the memory has been already loaded, it is
still possible to change the display language.
Six menu and/or display languages are
available: English, Italian, Spanish, French,
Dutch and German.
6.1
Select from the main menu by means of the
left/right arrow keys:
SELECT LANGUAGE
7.1
Main menu selection
Select from the main menu by means of the
left/right arrow keys: MUSIC INPUT
TEXT.
6.2
7.2
Input number selection
language selection
The current setting will be displayed. The
language option can be altered using the
up/down arrow keys. Pressing ENTER
continues programming with the menu
“Store hardware”
Input number 1,2 or 3 can be selected with
the up and down arrow keys.
6.3
Main menu selection
Alternative text selection
The first alternative text “TUNER” will be
displayed.
The new text can be selected using the
up/down arrow keys. The possible texts
variants are:
tuner
cd player
cassette
tape
bms
dat player
tuner 1
cd player 1
cassette 1
tape 1
bms 1
dat player 1
7
tuner 2
cd player 2
cassette 2
tape 2
bms 2
dat player 2
SELECT PROGRAM :
SELECT PROGRAM :
SELECT LANGUAGE
STORE HARDWARE
1
SELECT LANGUAGE
EN GLISH
2
SELECT LANGUAGE
G E R MA N
Pressing ENTER confirms the selection for
that input.
The display will return to music input
number selection.
Select Language
5
GB/SM 30 user manual
5/26/98 10:18 AM
Page 6
14.7.8 STORING HARDWARE
CONFIGURATION
14.7.9 SELECTING AMPLIFIER
CONFIGURATION
To enable the system to check that all
modules are communicating with the
processor, the hardware configuration has to
be stored in the memory of the system. This
must be done whenever a change is made in
the hardware configuration and after the
memory is cleared.
This is the only possible program option
when entering the programming mode after
clearing the memory.
The SM30 system is intended for use with 2
separate amplifier channels: a music channel
and a call channel. It is possible however, to
use only 1 amplifier channel for both calls
and music.
In order for the system to function correctly,
SM30 must know which option is chosen.
See chapter 5, ‘Connecting Amplifiers’ for
consequences of using 1 channel.
9.1
8.1
Select from the main menu by means of the
left/right arrow keys: AMPLIFIER
CONFIG.
Select from the main menu by means of the
left/right arrow keys:
STORE HARDWARE
9.2
8.2
Main menu selection
Main menu selection
Configuration display
Busy storing
The current setting will be displayed. If the
memory has been cleared, the default option
‘SEPARATE AMPS’ is displayed.
After pressing ENTER, the display will
show ‘busy storing’ for a short moment.
Programming will automatically continue
with the first step of the Installer
Programming.
9.3
Altering selection
The option can be altered using the
up/down arrow keys.
9
1
8
SELECT PROGRAM :
AMPLI FI ER CONFIG
SELECT PROGRAM :
1
STO RE HARDWARE
1
2
AMPLI FI ER CONFIG
SEPARATE AM PL'S
2
SELECT PROGRAM :
BUSY STORING .. .
3
AMPLI FI ER CONFIG
SI NGLE AMPLI FI ERS
Store Hardware
Amplifier Configuration
6
GB/SM 30 user manual
5/26/98 10:18 AM
Page 7
10.3
14.7.10 REMOTE VOLUME CONTROL
MUSIC
Selecting STEP or REPEAT can be done
with the up/down arrow keys.
This program effects the operation of the
music volume control, which is activated via
the Call Station Function Keys and Control
Inputs 1 and 2.
STEP mode means that at every push of the
programmed Function Key or Control
Input, in normal Run mode, the volume
level will change 3 steps (approx. 2 dB) as
indicated on the bottom line of the display.
REPEAT mode means that as long as the
Function Key or Control Input is pushed,
the volume level will continue to go up or
down until it reaches its limit (marked ‘99’
maximum and ‘00’ minimum).
10.1
Main menu selection
Select from the main menu by means of the
left/right arrow keys: VOL STEP/REPEAT
10.2
Altering selection
Mode display
The current mode will be displayed.
10
SELECT PROGRAM :
VOL STEP / REPEAT
1
2
VOLUME CONTROL
STEP MODE
3
VOLUME CONTROL
REPEAT MODE
Volume Step/Repeat
7
GB/SM 30 user manual
5/26/98 10:18 AM
Page 8
14.7.11 VOLUME CONTROL
OVERRIDE RELAYS
12
With this function one or more Control
Relays (1-12) can be coupled to Zone Relays
(1-6, 7-12, 13-18) for volume override of
the loudspeakers.
This program may be used to prevent
selection of specific zones via the keypad on
a Call Station. Disabled zones can not be
selected anymore from the Call Station
keypad, and will reacts as if those zones are
not present. The Call Station zone LEDs
will remain ‘off ’.
11.1
Main menu selection
Select from the main menu by means of the
left/right arrow keys: OVERRIDE RELAYS
11.2
12.1
Zone selection
Main menu selection
Select from the main menu by means of the
left/right arrow keys: ROUTING LIMITS
The display will be skipped if the Control
Relay Module is not present in the system.
The current setting of relays 1-6 is shown.
Shifting the cursor to the right, further,
further than the last position, will display
the current setting of relays 7-12.
Moving the cursor to a different zone can be
done with the up/down arrow keys.
11.3
ROUTING LIMITS CALL
STATION
12.2
Call Station selection
Selection of a Call Station can be made
using the up/down arrow keys.
12.3
Zone selection
Shifting from one zone to another is
accomplished by using the left/right arrow
keys.
All zones are enabled by default. Each zone
can be individually disabled using the ‘0’
key and enabled using the ‘|’ key.
Relay selection
Programming the Control Relays is done in
the same way as described at programming
step 1.7. However, designated override relays
will be marked with the letter ‘Z’. Pressing
ENTER will increase the zone number.
11
SELECT PROGRAM :
OVERRIDE RELAYS
1
2
SELECT ZONE : XX
3
SELECT ZONE : XX
XXX000
REL : XX
Override Relays
8
GB/SM 30 user manual
13
5/26/98 10:18 AM
Page 9
DIRECT ROUTING
12
This program is used to directly activate the
Zone Relay Module(s) e.g. via an external
fire detection system.
Control inputs 1-6, 1-12 or 1-18 can be
used to activate loudspeaker zones 1-6, 1-12
or 1-18.
This function is only available if the
corresponding Zone Relay Modules and
Control Input Modules are installed.
SELECT PROGRAM :
ROUTING LIMITS
1
2
SELECT ITEM
CALL STATION : X
3
CST: X ENABLED TO
XXXXXX
13.1
Select from the main menu by means of the
left/right arrow keys:
DIRECT ROUTING
13.2
ZONE : XX
Main menu selection
Routing Limits
Current zone display
The display will show the current direct
zone selection (ALARM or MUSIC zones).
Press ENTER for confirmation.
13.3
Direct zone selection
Alter the selection of the ALARM ZONES
or MUSIC ZONES by means of the
left/right arrow keys and press ENTER for
confirmation.
13
SELECT PROGRAM :
13.4
Routing setting
DIRECT ROUTING
1
The direct routing function can be enabled
using the ‘|’ key and disabled using the ‘0’
key.
01-XX: will be the highest available input
(01-06, 01-12 or 01-18).
2
DIRECT ROUTING
OF ALARM ZONES
3
DIRECT ROUTING
OF MUSIC ZONES
4
SET ROUTING VIA
CTL INP.01 - XX : X
Direct Routing
9
GB/SM 30 user manual
5/26/98 10:18 AM
Page 10
14.7.14 CLEARING MEMORY
14.3
14.1
After pressing the ENTER key, the display
will show that clearing memory is in
advance.
Main menu selection
Select from the main menu by means of the
left/right arrow keys: CLEAR MEMORY
14.2
Wait display
14.4
Power-on delay
14.5
System down
Confirmation
Since this is a potentially hazardous program
(it will erase all programming) after pressing
ENTER the display will show: ARE YOU
SURE ?
PRESS < TO CLEAR
Only the left arrow key will proceed with
clearing; any other key will return to the
main menu without clearing the memory.
When the memory is cleared the display will
show that the SM30 system is down. The
installer programming password must be reentered, and the setup program run, in
order to continue.
14.7.15 ALARM MODE
Alarm signals activated by a control input
can be interrupted by a Call Station with
higher priority. When the overruling call
ends, the alarm signal will return and
continue till the end of the signal.
14
SELECT PROGRAM :
CLEAR MEMORY
1
15.1
2
Main menu selection
Select from the main menu by means of the
left/right arrow keys: CTL ALARM MODE
ARE YOU SURE ?
PRESS < TO CLEAR
SELECT PROGRAM :
3
CLEARING MEMORY
CTL ALARM MODE
1
PLEASE WAIT
2
CT L ALA RM MODE
4
POWER - ON - DELAY
NON - INTERRUPT
3
CTL ALARM MODE
5
MEMO RY CLEARED
INTERRUPTABLE
SYSTEM IS DOWN
Clear Memory
Control Alarm Mode
10
GB/SM 30 user manual
15.2
5/26/98 10:18 AM
Page 11
Current mode display
‘Press-To-Talk’ key will broadcast message 2
to zone 4, 5 and 6.
The display will show the current mode.
16.1
15.3
Main menu selection
Mode selection
Select from the main menu by means of the
left/right arrow keys:
FLEXIBLE KEYS
Selection of the non-interruptable or
interruptable mode can be made using the
up/down arrow keys.
16.2
14.7.16 FLEXIBLE F-KEY
PROGRAMMING
Selection Call Station number
Select the number of the Call Station by
means of the up/down arrow keys.
This program step provides flexible
programming of the F-keys (F1, F2, F3 or
F4) of a Call Station.
After pressing the flexible programmed Fkey on the Call Station, the preprogrammed zone selection can be
temporarily changed by means of the
numeric keypad on the Call Station.
Pressing the F-key next time, the originally
pre-programmed zones will be selected
again.
16.3
Activation flexible F-key
Activate the flexible function of an F-key by
means of the ‘|’ key. If necessary, deactivate
the flexible function by means of the ‘O’
key.
Example:
F1-key: flexibly programmed, preprogrammed with message 1
routing to zones 1, 2 and 3.
F2-key: pre-programmed with message 2,
routing to zones 4, 5 and 6.
16
S E L E C T P R OG R A M :
F L E XIB L E F K E Y S
1
If the F1-key is pressed, the zone LEDs 1, 2
and 3 will light to indicate the preprogrammed routing. If you want to route
message 1 to other zones, adding or deleting
of zone numbers is done by means of the
numeric keys. Pressing the ‘Press-To-Talk’
key will broadcast the message 1 to the
actually selected zones.
If the F2-key is pressed, the zone LEDs 4, 5
and 6 will light to indicate the preprogrammed routing, but no additional
zone selection is possible. Pressing the
SELECT ITEM :
CALL STATION : X
2
3
CS T X F K E Y S : 1 2 3 4
F L E X. F UNCT. 1000
Flexible F-keys
11
GB/SM 30 user manual
5/26/98 10:18 AM
Page 12
17.1
14.7.17 EXTENDED CALL STATION
PROGRAMMING
Select from the main menu by means of the
left/right arrow keys:
EXTENDED CALL ST.
The SM30 system with more than 18
loudspeaker zones needs one Module Frame
LBB 1291/40 and eventually one or more
Extended Call Stations LBB 9568/36 (Call
Station with 36 zone confirmation LEDs).
An extended Call Station requires both
inputs of the Call Station Input Module.
17.2
17.3
Confirmation
Confirm the used inputs for Extended Call
Stations by means of the |/O keys.
CST input 1 coupled to input 2.
CST input 3 coupled to input 4.
CST input 5 coupled to input 6.
For detailed information of the Module
Frame, see the Instructions for use packed
with the Module Frame.
17
SE LECT PROGRAM :
E XTE NDED CALLS T
1
SELECT ITEM :
CALL STATION : X
X=1,3,5
3
Selection Call Station input number
Select the Call Station input number (1, 3
or 5) by means of the up/down arrow keys.
The Module Frame contains the extra Zone
Relay Modules and eventually the extra
Control Relay Module(s) and Control Input
Module(s).
2
Main menu selection
SELECT ITEM :
EXTE ND CST: X:-
I/O
Extended Call Station
12
GB/SM 30 user manual
5/26/98 10:18 AM
Page 13
SE TU P P R OG R AM
INSTALLER PASWORD
SO FT WAR E
VERSION.**
5
6
S EL ECT PR OG RAM :
S EL ECT PR OG RAM :
S EL ECT PR OG RAM :
S EL ECT PR OG RAM :
MUSIC INPUT TEXT
S EL EC T LA NG UA GE
ST O R E HA R D WA R E
POWER - ON - DELAY
1
1
2
8
7
POWER - ON - DELAY
2
EN TER SE CON DS : X
3
9
S EL ECT PR OG RAM :
AMPLIFIER CONFIG
1
SEL ECT TEX T O F
S EL EC T LA NG UA GE
MUSIC INPUT : X
EN GL IS H
S CRO LL WIT H
SE LE C T LA N GU A GE
XXXXXX
G E R MA N
13
2 S EL ECT PR OG RAM :
2 A MPL IF IE R C ONF IG
BUS Y STO RIN G ...
SE PAR AT E AMPL' S
3
A MPL IF IE R C ONF IG
SINGL E AMP LIF IE RS
GB/SM 30 user manual
5/26/98 10:18 AM
Page 14
INST AL LE R P RO GR AM
11
10
S EL ECT PR OG RAM :
2
VO LU ME CO N TR O L
2
SEL ECT Z ONE : X X
2
3
VO LU ME CO N TR O L
RE P E AT MO D E
1
SE LE CT IT EM
3
SEL ECT Z ONE : X X
XXX000
REL : XX
3
CS T: X ENA BLE D T O
XXXXXX
3
ZO NE : XX
2
AR E Y OU S URE ?
O F AL ARM ZO NE S
PR ESS < T O CL EAR
DIREC T RO UTING
3 C LE A RIN G ME MO RY
O F MU SIC Z ON ES
4
C LE A R ME MOR Y
1
2 DIREC T RO UTING
CAL L S TATION : X
S TE P MO DE
S EL ECT PR OG RAM :
DIREC T RO UTING
R OUT IN G LIMITS
1
1
14
13
S EL ECT PR OG RAM :
S EL ECT PR OG RAM :
O VER RIDE RE LA YS
VOL S TEP / RE PEA T
1
12
S EL ECT PR OG RAM :
SE T ROU TIN G VIA
PL EAS E WAIT
4 PO WE R - ON - DE LA Y
CTL INP.01 - XX : X
5 ME MO R Y C LE AR E D
S YS TE M IS DO WN
GO TO SETUP
14
GB/SM 30 user manual
5/26/98 10:18 AM
Page 15
INST AL LE R P RO GR AM
16
15
S EL ECT PR OG RAM :
2
2
EXTENDED CALLST
1
1
CT L AL AR M MOD E
S EL ECT PR OG RAM :
FLE XIB LE KEYS
CT L AL AR M MOD E
1
17
S EL ECT PR OG RAM :
SE LE CT IT EM
2
CALL STATION : X
NO N - INT ERR UP T
SE LE CT IT EM
CAL L S TATION : X
X = 1,3,5
3
CTL ALARM MODE
INTE R RU PT AB LE
3
CST X FKEYS: 1 234
FLEX. FU NCT.0010
3
SE LE CT IT EM
EXTEND CST: X :-
15
GB/SM 30 user manual
5/26/98 10:18 AM
Page 16
US ER PA SS WO RD
SO FT WAR E
VERSION.**
1
2
S EL ECT PR OG RAM :
S EL ECT PR OG RAM :
MICR O P H O NE S
CA LL STA TION S
1
1
2
2
SELECT ITEM :
SELECT ITEM :
MICROPHONE : X
CALL STATION : X
3
3 SE LEC T FUN CTION :
8 SEL ECT FUN CTIO N :
K EY PA D
FUNCTION KEY : F1 - 4
4
4
MICROPHONE : X
PRIORITY : X
CA LLST : X KE YPA D
9
PRIORITY : X
15
CALLST : X FKEY : X
CALLST : X FKEY : X
MUS IC VO L U ME
C AL L PR O GR A MMING
5
10
5
CALLST : X FKEY : X
CALLST : X FKEY : X
SIGNAL : XX
PRIORITY : X
MU S IC VO LU ME
MESSAGE : X
6
11
CALLST : X FKEY : X
CALLST : X FKEY : X
MESSAGE : X
SIGNAL : XX
MUSIC MUTE
000000
7
12
ZONE : 01
MIC ROP HO NE : X
18
CA LLST : X KE YPA D
CALLST : X FKEY : X
CALLST : X FKEY : X
XX0000
MESSAGE : X
MUSIC S E LE CT
REL : 03
MIC ROP HO NE : X
17
CA LLST : X KE YPA D
7
MICROPHONE : X
16
CA LLST : X KE YPA D
6
MICROPHONE : X
SIGNAL : XX
13
XX0000
20
19
CALLST : X FKEY : X
CALLST : X FKEY : X
CALLST : X FKEY : X
000000
R EL AY S WITC H
XX0000
ZONE : 01
14
REL : 03
22
21
CALLST : X FKEY : X
CALLST : X FKEY : X
CALLST : X FKEY : X
XX0000
R EL AY TO G GL E
XX0000
REL : 03
16
REL : 03
REL : 03
GB/SM 30 user manual
5/26/98 10:18 AM
U S ER PR O G R AM
3
3
S EL ECT PR OG RAM :
4
S EL ECT PR OG RAM :
S EL ECT PR OG RAM :
MICR O P H O NE S
1
2
Page 17
C ON TRO L IN PU TS
MU S IC R OU T IN G
1
1
SELECT ITEM :
MICROPHONE : X
2
SELECT ITEM :
MU S IC R OU T IN G
CO NT ROL INPU T : XX
000000
ZONE : 01
2
3
MIC ROP HO NE : X
9 - 17
18-2 4
PRIORITY : X
1-8
4
3
MICROPHONE : X
8 CO NT ROL INPU T : XX
EN AB L E R EMOT E
1
MUS IC VO L U ME
SIGNAL : XX
5
4
MICROPHONE : X
:X
PRIORITY : X
9 CO NT ROL INPU T : XX
ENABLE REMOTE
2
MESSAGE : X
6
MU S IC VO LU ME
5
MIC ROP HO NE : X
:X
EN AB LE R EMO TE
SIGNAL : XX
10 CO NT ROL INPU T : XX
3
000000
7
ZONE : 01
MUSIC MUTE : X
6
MIC ROP HO NE : X
EN AB LE R EMO TE
MESSAGE : X
11 CO NTRO L IN PUT : XX
4
XX0000
REL : 03
MUSIC SELECT : X
7
000000
ZONE : 01
EN AB LE R EMO TE
5-8
RELAY SWITCH : X
12 CO NTRO L IN PUT : XX
XX0000
17
REL : 03
GB/SM 30 user manual
5/26/98 10:18 AM
Page 18
GB/SM 30 user manual
5/26/98 10:18 AM
Page 19
GB/SM 30 user manual
5/26/98 10:18 AM
Page 20
Data subject to changes without notice
Printed in the Netherlands
3922 988 33415 20/97
Download PDF

advertising
