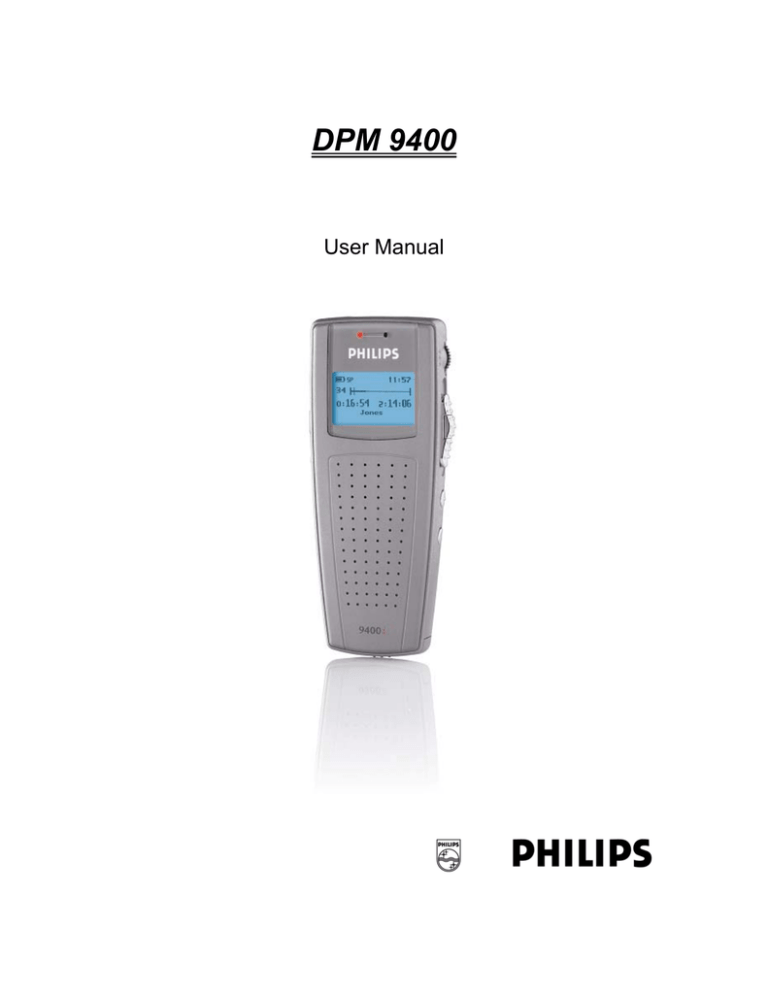

DPM 9400
User Manual
DPM 9400 - User Manual
VERSION
DPM 9400 - 05/2005 (English)
COPYRIGHT
© 2003 - 2005 Philips Austria GmbH, PSP - Dictation Systems. All rights reserved. Reproduction in whole or in
part is prohibited without the written consent of the copyright owner. Information in this manual is subject to
change without notice.
TRADEMARKS
®
Pocket Memo is a registered trademark of Philips. Windows 2000 and Windows XP are registered trademarks of
Microsoft Corporation. All other names are trademarks, registered trademarks or service marks of their respective
owners.
DISCLAIMER AND NOTICES
Philips has carried out extensive testing with most popular configurations. However, since PC add-ons and device
drivers change very rapidly, we are unable to guarantee conflict-free operation.
The CE mark confirms that the device corresponds to the relevant guidelines of the European Union. The
cardboard used for packaging can be recycled. This electronic facility contains recyclable material.
Technical changes and errors excepted.
Please note that not all accessories mentioned in this manual are necessarily part of the package contents.
Descriptions of accessories, such as memory cards, additional microphones or the Foot Control, are for
information only and do not require Philips to deliver any of these accessories with DPM 9400.
Declaration of Conformity
Tested to comply with FCC standards. For home or office use.
Model number:
DPM 9400
Trade name:
Philips Digital Pocket Memo
Responsible party:
Philips Speech Processing - Dictation Systems
Address:
64 Perimeter Center East, Fifth Floor, Atlanta,
GA 30346, USA
Telephone number:
+1 770 821 2400
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
ii
DPM 9400 - User Manual
Table of Contents
Chapter 1: Introduction ...................................................................................................................... 1
DPM features......................................................................................................................................................... 1
Package contents.................................................................................................................................................. 1
Chapter 2: Introducing the DPM ........................................................................................................ 2
DPM graphic.......................................................................................................................................................... 2
LCD display ........................................................................................................................................................... 3
Batteries ................................................................................................................................................................ 4
Recharging the batteries ................................................................................................................................. 4
Chapter 3: Getting Started ................................................................................................................. 5
Activating the DPM................................................................................................................................................ 5
Memory card.......................................................................................................................................................... 5
Formatting the memory card ........................................................................................................................... 5
Full memory card ............................................................................................................................................. 6
Start screen ........................................................................................................................................................... 6
Display appearance............................................................................................................................................... 7
DPM menu............................................................................................................................................................. 7
Accessing the DPM menu ............................................................................................................................... 7
User-defined labels.......................................................................................................................................... 8
Assigning Keywords ........................................................................................................................................ 8
Setting the date and time (DPM 9400/00)....................................................................................................... 8
Setting the date and time (DPM 9400/52)....................................................................................................... 9
Setting the recording format ............................................................................................................................ 9
DPM device beep .......................................................................................................................................... 10
Setting the microphone sensitivity................................................................................................................. 10
Voice-activated recording .............................................................................................................................. 10
Backlight on/off .............................................................................................................................................. 10
Changing the contrast ................................................................................................................................... 11
Displaying the recording time ........................................................................................................................ 11
Reformatting the memory card...................................................................................................................... 11
Power Save mode ............................................................................................................................................... 11
Chapter 4: Basic Operations............................................................................................................ 12
Recording - DPM 9400/00................................................................................................................................... 12
Recording - DPM 9400/52................................................................................................................................... 13
Finishing a dictation (EOL and Priority) .............................................................................................................. 13
Recording mode (Insert/Overwrite)..................................................................................................................... 14
Playback .............................................................................................................................................................. 14
Adjusting the volume ..................................................................................................................................... 14
Fast Forward and Fast Rewind........................................................................................................................... 15
DPM 9400/00................................................................................................................................................. 15
DPM 9400/52................................................................................................................................................. 15
Deleting ............................................................................................................................................................... 15
Deleting a section .......................................................................................................................................... 15
Deleting a file ................................................................................................................................................. 16
Recording format (Standard Play/Long Play mobile) ......................................................................................... 16
Voice-activated recording.................................................................................................................................... 16
DPM 9400/00................................................................................................................................................. 16
DPM 9400/52................................................................................................................................................. 17
Skip Forward and Skip Back ............................................................................................................................... 17
Chapter 5: Advanced Operations .................................................................................................... 18
Inserting index marks .......................................................................................................................................... 18
Deleting index marks ..................................................................................................................................... 18
Entering user-defined labels ............................................................................................................................... 19
Assigning Keywords ............................................................................................................................................ 19
Example: Assigning Keywords ...................................................................................................................... 20
Scanning barcode information into Keywords .................................................................................................... 21
Example: Barcode scanning.......................................................................................................................... 21
Linked Keywords ................................................................................................................................................. 22
Example: Linked Keywords ........................................................................................................................... 22
Recording spoken instructions ............................................................................................................................ 23
Recording spoken instructions in Overwrite mode ....................................................................................... 23
Recording spoken instructions in Insert mode .............................................................................................. 24
Deleting spoken instructions ......................................................................................................................... 24
Transferring data between DPM and PC............................................................................................................ 24
Mandatory user input........................................................................................................................................... 25
iii
DPM 9400 - User Manual
Appendix: Troubleshooting the DPM.............................................................................................. 26
Index .................................................................................................................................................. 28
iv
DPM 9400 - User Manual
Chapter 1: Introduction
The DPM 9400 (Digital Pocket Memo) has been designed to offer optimum user convenience and greater
efficiency for your daily work. This manual provides a comprehensive overview of all the device's features and
detailed instructions on how to operate the device.
DPM features
•
The DPM 9400 is a state-of-the-art digital voice recorder for the professional user.
•
Digital recording allows instant access to any point in the dictation and enables you to make precise deletions
from sound files and to correctly place insertions.
•
The DPM 9400 provides workflow management capabilities for easy transfer of files to the PC.
•
4-Position Switch for single-handed operation and ease-of-use.
•
User-defined information (Keywords and labels) can be stored with the sound file.
•
USB connection for simple data transfer between the device and the PC.
•
Ergonomic design.
•
High-resolution LCD display with backlight.
•
Recording of spoken instructions.
•
Utmost flexibility through the low level API and easy integration via the high level API.
Package contents
•
DPM 9400 - the digital voice recorder for the professional user.
•
Philips memory card of the type MMC.
•
A luxury pouch.
•
2 Philips AAA batteries.
•
A USB cable.
•
Quick Reference for DPM 9400/00 or DPM 9400/52.
•
The DPM models 9400/00E and 9400/52E further include:
•
DPM Docking Station 9110 with Philips rechargable batteries LFH 9144.
•
Installation CD for SpeechExec Dictate for Windows 2000 and Windows XP.
Accessories available from your vendor
•
Power Supply LFH 9145
•
DPM Docking Station 9110
•
Rechargeable batteries LFH 9144
For more information on Philips and the available products, go to:
www.philips.com
www.philips.com/dictation
1
DPM 9400 - User Manual
Chapter 2: Introducing the DPM
This chapter introduces the DPM 9400. Below you find a graphic of the device which shows and explains the
various parts. You also find a detailed description of the DPM display and useful information on how to operate
the device with batteries.
DPM graphic
The following graphics show the device and the names of the various parts.
1
4
2
5
6
3
7
8
9
10
1: Record LED: Depending on the setting for the recording mode, the LED can be either red or green. In
Overwrite mode the LED is red; Overwrite is the default setting for the recording mode. In Insert mode, the
LED is green.
2: LCD display.
3: Built-in loudspeaker.
4: Built-in microphone.
5: Jog Dial ( ): Volume control, Skip Forward and Skip Back, access to the DPM menu and moving between
menu entries, and confirmation of selections.
6: 4-Position Switch with Lock/Hold switch functionality. Depending on your DPM model, the positions on the
4-Position Switch are (from top to bottom):
DPM 9400/00: Fast Forward ( ), Play ( ), Stop ( ) and Fast Rewind ( ).
DPM 9400/52: Record (REC), Stop (STOP), Play (PLAY), Fast Rewind (FRWD).
7: INS/OVR: Button for switching between Insert (INS) and Overwrite (OVR) mode.
8: DEL: The Delete button.
9: USB socket.
10: Battery compartment.
2
DPM 9400 - User Manual
11
13
12
14
15
16
17
11: Memory card slot: Insert the memory card and push it down until you hear a click. To remove the memory card
from the DPM, push it down again until you hear the click.
12: L/P: Press this button once (●EOL) to evoke the End-of-Letter function which marks the dictation as finished.
Press this button twice (●●P) to mark the dictation as finished and to assign priority to it.
13: MIC: The microphone socket.
14: EAR: The earphone socket.
15: The function of this button depends on your DPM model:
DPM 9400/00: Record (REC).
DPM 9400/52: Fast Forward (FFWD).
16: DL/S.Instr: This is a multi-function button which supports the following operations:
•
When the DPM is connected to the PC, this button activates the download function.
•
When you press the button for about 0.3 seconds in Playback or Recording mode, an index mark is
inserted into the sound file.
•
When you press the button for at least 1 second in Recording mode, a spoken instruction is inserted into
the sound file.
17: Power supply socket for Philips LFH 9145.
LCD display
The DPM 9400 has a high-quality graphical LCD display. You will see the following symbols:
Standard Play
Long Play mobile
AM symbol (hours before noon)
PM symbol (hours after noon)
Fast Rewind
Fast Forward
Recording
Record Standby
Stop
Playback
Voice-activated recording
Insert mode
EOL (End-of-Letter)
Priority
Write-protected SD card
Barcode information
Batteries: 100%
Batteries: 80%
3
DPM 9400 - User Manual
Batteries: 60%
Batteries: 40%
Batteries: 20%
Batteries: empty
Status indication bar
The status indication bar may appear as follows (note that the following overview only lists the most common
displays of the status indication bar):
:
A dictation is being recorded.
:
A sound file is being played back.
:
A section of the sound file is marked for deletion.
:
The whole sound file is marked for deletion.
:
The sound file has index marks.
:
The sound file includes spoken instructions.
Batteries
The DPM 9400 can be operated with the two standard AAA alkaline batteries delivered with the product. You can
also use rechargable Philips NiMH batteries (LFH 9144). For recharging the batteries, only use the power supply
LFH 9145; it can also be used for running the DPM from the mains power supply.
The power indicator on the display may appear as follows:
: The batteries are full (100%).
: 4/5 of the battery power is available (80%).
: 3/5 of the battery power available (60%).
: 2/5 of the battery power available (40%).
: 1/5 of the battery power available (20%).
:
The batteries are empty and should be replaced.
If the batteries are dangerously low and should be replaced or recharged, this symbol is displayed:
Note: If the power level in the batteries drops below 2.0 V, no recording or playback is possible.
Recharging the batteries
The DPM can be operated with the rechargable Philips NiMH batteries LFH 9144. For recharging these batteries,
either use the DPM Docking Station 9110 or the Philips power supply LFH 9145.
For more information on recharging the batteries with the DPM Docking Station 9110, refer to the documentation
delivered with the product.
To recharge the batteries (fast recharge) with the Philips power supply LFH 9145, do the following:
1. Connect the Philips power supply LFH 9145 to the mains power supply.
2. Deactivate the DPM via the Lock/Hold switch; this starts the recharging process.
Important: The DPM can become quite warm during fast recharging.
The recharging process is indicated on the DPM display with these alternating symbols:
and
When recharging is finished, only the symbol for full battery power is displayed:
Note: When working with standard rechargable batteries, the DPM only displays the symbol for 80% battery
power ( ) even if the batteries have been fully recharged. The symbol for 100% battery power ( ) is only
displayed when completely new standard batteries (not rechargable) are inserted or when the DPM is run from
the mains power supply.
4
DPM 9400 - User Manual
Chapter 3: Getting Started
This chapter provides an introduction to the basic functions of the DPM 9400:
•
Activating the DPM
•
Memory card
•
Start screen
•
DPM menu
•
Power Save mode
Activating the DPM
The DPM can be turned on and off via the Lock/Hold switch. If the device is locked, it is not possible to use any of
the DPM buttons and none of the buttons can be pressed accidentally.
The device is unlocked.
The device is locked.
When you work with the DPM for the first time, insert the batteries and unlock the Lock/Hold switch. The device is
now operational and you can insert the memory card.
For activating the device when it has already been in use, there are the following options:
•
If the Lock/Hold switch was activated, unlock the device.
•
If the device has gone into Power Save mode (the device has been left inactive for for more than four
minutes), activate the device by pressing any button or by moving the 4-Position Switch.
•
If the DPM has been left inactive for more than two hours, it is automatically turned off. In this case, it can only
be turned on via the Lock/Hold switch (OFF-ON functionality) or by moving the 4-Position Switch.
Memory card
The DPM 9400 operates with a memory card of the type MMC or SD. It supports MMC and SD cards with storage
capacities of up to 1 GB. For example, a 32 MB memory card of the type MMC supports about 312 minutes of
recording time in SP format or 468 minutes of recording time in LPm format.
If there is no memory card inserted into the DPM, this screen is displayed:
After inserting the memory card, one of the following screens will be displayed:
•
If the memory card is new and has not been formatted, a confirmation dialog for formatting the memory card is
displayed; for more information, see below.
•
If the memory card has been in use before, a start screen with the information stored on the memory card is
displayed.
Formatting the memory card
When you insert a new, unformatted memory card, the following screen is displayed:
To confirm and start the formatting process, press the DEL (Delete) button for at least two seconds. If you want to
cancel the formatting process, either remove the memory card or move the 4-Position Switch.
5
DPM 9400 - User Manual
Note: The memory card delivered with your DPM 9400 has already been preformatted.
Important: Any memory card used with the DPM should be formatted by the DPM itself and not any other device.
For more information on reformatting the memory card, refer to the corresponding DPM menu section in this
manual.
Full memory card
If only two minutes of recording time are left on the memory card, the recording time on the DPM display will start
to blink. This can either be the remaining recording time or the used-up recording time. Note that this additional
time display is only available in combination with the Advanced display option.
When the memory card is full, a warning is displayed and the device beeps; recording stops.
Start screen
After the memory card has been inserted or the DPM is turned on, a start screen is displayed. This screen is
identical to the screen which is displayed when the DPM is in Stop mode.
The following screen is a fictional screen with the maximum number of symbols which could appear.
1
2
3 4 5
6
7
8
9
10
11
12
13
14
1: The battery power.
2: The recording format. This can be either SP or LPm.
3: The SD memory card is write-protected.
4: Insert mode is activated. The default setting is Overwrite mode. For Overwrite mode, no symbol is displayed.
5: Voice-activated recording mode is enabled.
6: AM (or PM) symbol if the US time format is used. The US time format is the default setting for DPM 9400/52.
7: Current time in HH:MM (hours:minutes).
8: The current file number. The current file will always be the last file you worked on. If you do not jump to a
different file, this file will be opened automatically.
9: The dictation is marked as finished (EOL, End-of-Letter: ) and has a Priority ( ) assignment.
10: The recording or playback time of the current dictation.
11: The status indication bar. This is a graphical display for the space left on the memory card. When recording,
playback, winding etc. is done in the sound file, the bar displays the corresponding symbols and actions. The
bar above also indicates that the sound file contains a spoken instruction.
12: The remaining recording time (-) or used-up recording time (+) on the memory card depending on the setting
made with SpeechExec Dictate. The displayed time also depends on the SP/LPm setting.
13: The current recording has barcode information.
14: The current Keyword 1 assignment.
Note: If you inserted and formatted a new memory card, moving the Jog Dial (Skip Forward), pressing the
REC button (DPM 9400/00) or moving the 4-Position Switch to the Record position (DPM 9400/52) will
automatically generate a new file:
• DPM 9400/00: The new file is immediately in Record Standby mode.
•
DPM 9400/52: The new file is immediately in Recording mode.
6
DPM 9400 - User Manual
Display appearance
The appearance of the DPM display depends on the corresponding setting (Standard display and Advanced
display options) in SpeechExec Dictate. For more information, refer to the SpeechExec Dictate Online Help.
•
The Standard display option uses larger symbols without showing the status indication bar:
•
The Advanced display option uses smaller symbols. It enables to view more information on the current
dictation and shows the status indication bar. This bar provides visual feedback when a dication, for example,
is recorded or played back.
DPM menu
The DPM 9400 comes with a menu which provides the following options:
•
User-defined labels
•
Assigning Keywords
•
Setting the date and time
•
Setting the recording format
•
Enabling and disabling the DPM device beep
•
Setting the microphone sensitivity
•
Voice-activated recording
•
Backlight on/off
•
Changing the contrast
•
Displaying the recording time
•
Reformatting the memory card
Note: The setting for the DPM display appearance (Standard display and Advanced display options), for
enabling/disabling the record notification beep and for recording into one file only can only be made via the
SpeechExec Dictate.
Note: If the one file function is activated, any recording will be stored in a single file. The Skip Forward, Skip Back
and EOL functions are not available. If the record notification beep is enabled, you will hear two beeps every time
the DPM goes into Recording mode.
Accessing the DPM menu
You can access the DPM menu by pressing the Jog Dial ( ) for about two seconds. The DPM menu can only be
accessed when the DPM is in Stop mode.
•
To move between the DPM menu entries, move the Jog Dial up or down:
•
To select a menu entry, for example the date and time setting, go to this menu entry by moving the Jog Dial
up or down. Then press the Jog Dial to confirm the selection. This enables you to access the menu entry and
change the settings for it. Confirm the changes by pressing the Jog Dial; this returns you to the DPM main
menu.
To exit a menu entry selection without confirming the changes, press the DEL (Delete) button on the DPM.
This exits the DPM main menu and discards any changes.
Note: If no menu entry selection is made within ten seconds, the DPM automatically exits the DPM menu and
goes back into Stop mode.
7
DPM 9400 - User Manual
To exit the DPM menu, do one of the following:
•
Select the menu entry for exiting the DPM menu and confirm the selection by pressing the Jog Dial:
•
Press the DEL button.
User-defined labels
This menu entry is only available if the corresponding option has been enabled in SpeechExec Dictate and the
setting was transferred to the DPM. If enabled, it is displayed as the first entry when you access the menu.
The DPM stores the last user-defined label(s) you entered. These will be displayed when you access the menu
entry. You can either accept the existing labels or enter new labels. For more information, refer to the Entering
user-defined labels section in this manual. For more information on SpeechExec Dictate, refer to the Online Help
delivered with the program.
Assigning Keywords
This menu entry is only available if Keywords have been defined for the DPM with SpeechExec Dictate. It is
always displayed as the first menu entry unless you can also create user-defined labels on the DPM:
This is an example screen for a Keyword menu entry which has been defined as follows: usage = Author, content
= a selection of author names; the current Keyword assignment is the author name Jones. When you confirm the
menu entry selection by pressing the Jog Dial, the list of all defined author names is displayed.
For more information on assigning DPM Keywords, refer to the Assigning Keywords section in this manual. For
more information on DPM Keywords, refer to the SpeechExec Dictate Online Help.
If the DPM has been configured with the Linked Keywords setting, this menu contains the available Keyword
sets. For more information, refer to the Linked Keywords section in this manual.
Note: If no Keywords are defined and no user-defined labels are enabled, the menu selection starts with the
menu entry for setting the date and time on the DPM.
Setting the date and time (DPM 9400/00)
This is the default date and time format for DPM 9400/00:
YYYY-MM-DD (year-month-day) and HH:MM (hours:minutes)
The menu entry for the date and time displays the current date setting:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
1. Set the year by moving the Jog Dial up or down. Confirm the setting by pressing the Jog Dial.
2. Set the month and the day.
8
DPM 9400 - User Manual
3. Set the time.
When you have set and confirmed the MM (minutes) setting, you will automatically return to the DPM main
menu.
See also the Additional information section below.
Setting the date and time (DPM 9400/52)
This is the default date and time format for DPM 9400/52:
YYYY-MM-DD (year-month-day) and HH:MM (hours:minutes)
The menu entry for the date and time displays the current date setting:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
1. Set the year by moving the Jog Dial up or down. Confirm the setting by pressing the Jog Dial.
2. Set the month and the day.
3. Set the time.
When you have set and confirmed the MM (minutes) setting, you will automatically return to the DPM main
menu.
Additional information
•
If you do not want to change, for example, the YY (year) setting, you can proceed to the MM (month) setting by
pressing the Jog Dial.
•
When you change the batteries for the DPM, a built-in power storage will keep the clock active for ten hours.
After that, the time setting has to be repeated as described above. Alternatively, you can also connect the
DPM to the PC and enable the Synchronize DPM time with PC time option in SpeechExec Dictate.
Setting the recording format
The DPM enables you to record dictations either in the Standard Play or the Long Play mobile recording format.
The default setting is Standard Play (SP).
This is the menu entry for the recording format; the current setting is indicated with large, bold letters:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
•
Set LPm:
9
DPM 9400 - User Manual
•
Set SP:
Confirm the setting by pressing the Jog Dial and to return to the DPM main menu. For more information on the
recording format, refer to the Recording format section in this manual.
DPM device beep
You can define whether you want the DPM to beep when specific operations take place. Otherwise the DPM is
muted except for warnings, for example, when the batteries are almost empty or the memory card is almost full.
This is the menu entry for the device beep; a check mark next to the symbol indicates that the beep function is
enabled. The symbol always shows the current setting:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
•
Enable the device beep; this is the default setting:
•
Disable the device beep:
Confirm the setting by pressing the Jog Dial and to return to the DPM main menu.
Setting the microphone sensitivity
The setting for the microphone sensitivity defines the audio input level for the DPM's built-in microphone.
This is the menu entry for the microphone sensitivity; the symbol always shows the current setting:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
•
Set the microphone sensitivity to low when recording dictations in a noisy environment :
•
Set the microphone sensitivity to medium when recording dictations in a normal environment; this is the
default setting:
•
Set the microphone sensitivity to high when, for example, recording at a conference:
Confirm the setting by pressing the Jog Dial and to return to the DPM main menu.
Voice-activated recording
The DPM supports the voice-activated recording mode.
This is the menu entry for voice-activated recording; a check mark next to the symbol indicates that voiceactivated recording is enabled. The symbol always shows the current setting:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
•
Enable voice-activated recording:
•
Disable voice-activated recording; this is the default setting:
Confirm the setting by pressing the Jog Dial and to return to the DPM main menu.
For more information on the voice-activated recording mode, refer to the Voice-activated recording section in
this manual.
Backlight on/off
The DPM provides a backlit display for improved visibility.
This is the menu entry for the display backlight; a check mark next to the symbol indicates that the backlit display
function is enabled. The symbol always shows the current setting:
Confirm the menu entry selection by pressing the Jog Dial and do the following:
10
DPM 9400 - User Manual
•
Enable the backlight; this is the default setting. When you press a button on the DPM, the DPM display will be
backlit for about eight seconds:
•
Disable the backlight; this setting guarantees a longer lifetime for the DPM's batteries:
Confirm the setting by pressing the Jog Dial and to return you to the DPM main menu.
Changing the contrast
You can change the contrast setting for the DPM display.
This is the menu entry for the contrast setting:
Confirm the menu entry selection by pressing the Jog Dial.
The DPM provides seven contrast levels, from low contrast
setting is level 5:
.
to high contrast
. The default
Confirm your preferred contrast setting by pressing the Jog Dial; this also returns you to the DPM main menu.
Displaying the recording time
The DPM enables you to have an additional time displayed for the recording time. Depending on the setting which
has been made in SpeechExec Dictate you will either see the used-up recording time or the remaining recording
time. This time display also depends on the setting for the recording format (SP/LPm).
Note: The recording time is only displayed if you have set the Advanced display option for the DPM appearance
in SpeechExec Dictate.
•
This is the menu entry for the remaining recording time setting; the check mark next to the symbol indicates
that this additional time is currently displayed on the DPM:
•
This is the menu entry for the used-up recording time setting; the check mark next to the symbol indicates that
this additional time is currently displayed on the DPM:
To disable the display of this additional time, confirm the menu entry selection by pressing the Jog Dial. Move the
Jog Dial to have the symbol without the check mark and confirm your changes by pressing the Jog Dial again.
You will return to the DPM main menu.
Reformatting the memory card
You can erase any data on the memory card by reformatting the memory card.
This is the menu entry for reformatting:
Confirm the menu entry selection by pressing the Jog Dial. The following screen is displayed:
To reconfirm and start the reformatting process, press the DEL button for at least two seconds. This will erase all
data on the memory card permanently.
Note: You can cancel the reformatting process by removing the memory card or by moving the 4-Position Switch.
Note: When reformatting a memory card of the type SD, make sure the card is not write-protected. A writeprotected SD card is indicated with this symbol on the DPM display:
Power Save mode
If the DPM is left inactive for more than four minutes, it goes automatically into Power Save mode and the display
is turned off. You can reactivate the DPM by pressing any button or moving the 4-Position Switch. This does not
initiate the function of the corresponding button. The only exception is if you move the 4-Position Switch to the
Play position; this will start playback.
When the device has been reactivated, it will either display the start screen or reenter the mode which was active
before it entered the Power Save mode.
Note: If you have voice-activated recording enabled and the DPM is in Record Standby mode, the device will go
into Power Save mode after 60 minutes.
11
DPM 9400 - User Manual
Chapter 4: Basic Operations
This chapter provides an introduction to the basic functions of the DPM 9400:
•
Recording a dictation
•
Recording mode (Insert/Overwrite)
•
Playing back a dictation
•
Fast Forward and Fast Rewind
•
Deleting parts of a sound file and deleting entire sound files
•
Finishing a dictation (EOL and Priority)
•
Additional settings
Recording - DPM 9400/00
DPM 9400/00 enables you to create high-quality digital recordings. To make a recording with DPM 9400/00, do
the following:
1. Make sure that the 4-Position Switch is in the Stop position ( ) and that you have the memory card inserted.
2. Press the REC (Record) button; DPM 9400/00 goes into Record Standby mode.
While DPM 9400/00 is in Record Standby mode, the Record LED blinks red.
Note: Depending on the setting for the recording mode, the LED can be either red or green. In Overwrite
mode the LED is red; Overwrite is the default setting for the recording mode. In Insert mode, the LED is green.
3. To start recording, move the 4-Position Switch to the Play position ( ) and start dictating. Speak clearly and
keep a distance of approximately 4 inches (ten centimeters) between your mouth and the DPM.
While DPM 9400/00 is in Recording mode, the Record LED shines permanently red (if Overwrite mode).
Note: In Recording mode, the following buttons are not available: L/P, INS/OVR, DEL, REC
4. Move the 4-Position Switch to the Stop position ( ) to return to Record Standby mode.
Note: Pressing the REC button enables to switch between Record Standby mode and Stop mode.
5. While DPM 9400/00 is in Record Standby mode, you can do one of the following:
•
To continue recording, move the 4-Position Switch to the Play position ( ) again.
•
To leave Record Standby and enter Stop mode, either move the 4-Position Switch to the Fast Rewind
position ( ) or press the REC button.
12
DPM 9400 - User Manual
6. When you are finished and do not want to make any further changes to the dictation, press the L/P button
(End-of-Letter and Priority) to mark the current dictation as finished (EOL symbol: ). Finishing a dictation via
the L/P button is also possible in Record Standby mode.
The file is closed and a new, empty file is automatically generated. The file number is increased by one.
Recording - DPM 9400/52
DPM 9400/52 enables you to create high-quality digital recordings. To make a recording with DPM 9400/52, do
the following:
1. Move the 4-Position Switch to the REC (Record) position and start dictating.
Speak clearly and keep a distance of approximately 4 inches (ten centimeters) between your mouth and the
DPM.
While DPM 9400/52 is in Recording mode, the Record LED shines permanently red (if Overwrite mode).
Note: Depending on the setting for the recording mode, the LED can be either red or green. In Overwrite
mode the LED is red; Overwrite is the default setting for the recording mode. In Insert mode, the LED is green.
Note: In Recording mode, the following buttons are not available: L/P, INS/OVR, DEL, REC
2. Move the 4-Position Switch to the STOP (Stop) position to stop recording.
The Record LED goes out.
3. To continue recording, move the 4-Position Switch to the REC (Record) position again.
4. When you are finished and do not want to make any further changes to the dictation, press the L/P button to
mark the current dictation as finished (EOL symbol: ).
The file is closed and a new, empty file is automatically generated. The file number is increased by one.
Finishing a dictation (EOL and Priority)
The L/P button on the DPM has two functions: marking a dictation as finished (EOL function, End-of-Letter) and
assigning priority to a dictation (Priority function). The L/P button is only operational if the 4-Position Switch is in
the Stop position and recording has been done in the file.
:
The dictation is marked as finished (EOL, End-of-Letter).
:
The dictation has been assigned priority.
Note: Finishing a dictation via the L/P button is also possible in Record Standby mode.
The functions of the L/P button are as follows:
•
If you press the L/P button once, the current file is marked as finished (EOL attribute). The file is closed and a
new, empty file is created.
•
If you press the L/P button twice within half a second, the current file is marked as finished (EOL attribute) and
assigned the Priority status. This also closes the current file and creates a new, empty file.
13
DPM 9400 - User Manual
Note: If you have finished a file with the EOL attribute, no further recording is possible in this file. It is also not
possible to delete the file or to delete a section from the file.
Removing EOL and Priority from a dictation
To remove the EOL attribute or Priority assignment from a dictation, do the following:
1. Make sure the 4-Position Switch is in the Stop position.
2. Go to the respective file by moving the Jog Dial up or down.
3. To confirm the file selection and access the file, press the Jog Dial.
4. To either remove the EOL attribute or the Priority assignment, do one of the following:
•
To remove the EOL attribute, press the L/P button once.
•
To remove the Priority status, press the L/P button twice within half a second.
Recording mode (Insert/Overwrite)
The INS/OVR button switches between Insert and Overwrite mode:
The default setting is Overwrite mode which means that new speech replaces existing speech in the sound file
from the insertion point forward.
If the mode setting is Overwrite, the LED is red. If the device is set to Insert mode, the LED is green and an
additional symbol is shown on the DPM display.
•
This is the DPM display in Stop mode and with Overwrite mode enabled:
•
This is the DPM display in Stop mode and with Insert mode enabled:
Playback
To play back a selected sound file through the earphones or the built-in loudspeaker, move the 4-Position Switch
to the Play position.
To stop playback, move the 4-Position Switch to the Stop position. When the end of the file is reached, playback
stops automatically.
Note: In Playback mode, the following buttons do not function: L/P, DEL, INS/OVR, REC and DL/S.Instr.
Adjusting the volume
Moving the Jog Dial up and down during playback adjusts the playback volume for the earphones and the built-in
loudspeaker. While the volume is being adjusted, a speaker symbol and volume slider are displayed:
14
DPM 9400 - User Manual
Fast Forward and Fast Rewind
The DPM supports fast forwarding and fast rewinding through a sound file.
DPM 9400/00
On DPM 9400/00, move the 4-Position Switch to the Fast Forward position ( ) or Fast Rewind position ( ) to start
winding. Hold it at that position to carry out the winding operation. When the end or beginning of the file is
reached, winding stops automatically.
DPM 9400/52
•
To fast forward a sound file, press the FFWD (Fast Forward) button on DPM 9400/52. When the end of the file
is reached, winding stops automatically.
•
To fast rewind a sound file, move the 4-Position Switch to the FRWD (Fast Rewind) position and hold it at that
position. Winding is stopped when you either release the 4-Position Switch or it stops automatically when the
beginning of the file is reached.
DPM display during winding
•
This is the DPM display in Fast Forward mode:
•
This is the DPM display in Fast Rewind mode:
The winding speed starts at 5 times the playback speed. After two seconds it is accelerated to 10 times the
playback speed; after eight seconds to 20 times and after thirty seconds to 100 times the playback speed.
Deleting
The DEL button on the DPM can be used for two purposes: deleting a section from a sound file and deleting the
whole sound file.
Deleting a section
To delete a section from the current dictation, do the following:
1. Go to the beginning of a section which is to be deleted by using Fast Forward, Fast Rewind or Play, move the
4-Position Switch to the Stop position and press the DEL (Delete) button once.
The beginning of the section is marked with X.
2. Use either Play, Fast Forward or Fast Rewind to go to the end of the section that is to be deleted and press
the DEL (Delete) button again.
The end of the section is marked with another X. The open waste bin with a question mark indicates that the
delete operation must be confirmed.
15
DPM 9400 - User Manual
3. Confirm the operation by pressing the DEL button again for at least two seconds and the section is deleted
permanently from the file.
The waste bin symbol indicates that the section has been deleted.
Deleting a file
To permanently delete an entire sound file, do the following:
1. If you do not have the file you want to delete already open, go to the file by moving the Jog Dial up or down.
2. Confirm the file selection by pressing the Jog Dial and make sure that the 4-Position Switch is in the Stop
position.
3. Press the DEL (Delete) button for at least two seconds.
An X symbol appears at the beginning and the end of the file to indicate that the sound file is marked to be
deleted.
4. Confirm the operation by pressing the DEL button again for at least two seconds.
Note: To cancel any delete operation, move the 4-Position Switch to any position. Dictations which have been
finished with the EOL (End-of-Letter) attribute cannot be deleted unless the EOL attribute is removed from the
file.
Recording format (Standard Play/Long Play mobile)
The recording format determines the recording speed and audio quality of the recorded sound files.
: Standard Play recording format.
: Long Play mobile recording format.
The default setting is SP. For more information on changing this setting, refer to the corresponding DPM menu
section in this manual.
Note: Only one format can be selected for each file; the format for a file can be changed as long as no recording
has been done in the file.
After recording has been done in the file, it is possible to switch between the SP and LPm recording format in the
DPM menu. This change will not take effect for the current file but from the next new file onwards. From that point
on, any new files are recorded in the selected format until the setting is changed again.
The values for the two formats are as follows:
Standard Play (SP) 13.7 kbit/s
With this format, about 312 minutes of recording time are available on a 32 MB memory card. This recording
format provides excellent audio quality. It is recommended when the dictation sound files are used, for
example, for speech recognition.
Long Play mobile (LPm) 9.1 kbit/s
This recording format provides good audio quality. With this format, about 468 minutes of recording time are
available on a 32 MB memory card.
Voice-activated recording
Voice-activated recording mode is a convenient feature for hands-free dictation. When voice-activated recording
is enabled, the DPM is in Record Standby mode; recording will start automatically when the input level exceeds a
certain threshold (i.e. usually when you start dictating). This means that recording stops a few seconds after you
stop speaking and restarts automatically when you start speaking again.
DPM 9400/00
To operate DPM 9400/00 in voice-activated recording mode, do the following:
1. Enable voice-activated recording in the DPM menu. For more information, refer to the corresponding
DPM menu section in this manual.
16
DPM 9400 - User Manual
2. Make sure that the 4-Position Switch is in the Stop position ( ).
3. Press the REC (Record) button; DPM 9400/00 goes into in Record Standby mode.
4. Move the 4-Position Switch to the Play position ( ).
5. Start dictating and recording will start automatically. The symbol for voice-activated recording is shown on the
DPM display.
When you stop dictating, the DPM goes back into Record Standby after three seconds.
DPM 9400/52
To operate DPM 9400/52 in voice-activated recording mode, do the following:
1. Enable voice-activated recording in the DPM menu. For more information, refer to the corresponding
DPM menu section in this manual.
2. Move the 4-Position Switch to the REC (Record) position; DPM 9400/52 goes into Record Standby mode.
3. Start dictating and recording will start automatically. The symbol for voice-activated recording is shown on the
DPM display (see above).
When you stop dictating, the DPM goes back into Record Standby after three seconds.
Skip Forward and Skip Back
The Jog Dial on the DPM supports a skip function for moving between files:
Before you move the Jog Dial up or down, make sure that the 4-Position Switch is in the Stop position
(DPM 9400/00: , DPM 9400/52: STOP):
•
Moving the Jog Dial up skips to the end of the current file. Then, moving the Jog Dial up will always skip to the
end of the next file.
For example, the current file number is 5. Moving the Jog Dial up goes to the end of file number 5. Moving the
Jog Dial further up goes to the end of file number 6, then to the end of file number 7, and so on.
•
Moving the Jog Dial down skips to the beginning of the current file. Then, moving the Jog Dial down will
always skip to the beginning of the previous file.
For example, the current file number is 5. Moving the Jog Dial down goes to the beginning of file number 5.
Moving the Jog Dial further down goes to the beginning of file number 4, then to the beginning of file number
3, and so on.
When you want to continue working on a specific file, confirm the file selection by pressing the Jog Dial.
Note: When you skip forward and the last file is reached, a new empty file is created automatically.
Note: If you do not move the Jog Dial for more than two seconds, the DPM returns to the position prior to moving
the Jog Dial.
17
DPM 9400 - User Manual
Chapter 5: Advanced Operations
This chapter introduces you to some of the more advanced aspects of the DPM:
•
Inserting index marks
•
Entering user-defined labels
•
Assigning Keywords
•
Recording spoken instructions
•
Transferring data between the DPM and a PC
•
Mandatory user input
Note: These functions for assigning Keywords and for transferring data are only available when using the DPM
together with SpeechExec Dictate.
Inserting index marks
Index marks can be inserted at any position in the sound file. You can insert an index mark during Playback or
Recording mode. Proceed as follows:
1. Press the DL/S.Instr button for about 0.3 seconds. An index mark will be inserted at the current position in the
sound file. The index mark appears a vertical bar on the display; additionally, the string Index 1 is shown.
2. Continue recording.
3. Press the DL/S.Instr button again to insert another index mark. Another vertical bar appears on the display
and the string Index 2 is shown.
Additional infomation
•
When you fast forward or fast rewind the file, the DPM will interrupt the current action at the insertion point of
an index mark for about 1 second and the DPM will beep. The action is then continued automatically.
•
In Playback mode, only the index mark string is shown on the display when the playback cursor moves over
an index mark. The DPM will not beep and playback will not be interrupted.
•
When you are recording in Overwrite mode, index marks will be overwritten without any warning.
•
You can insert up to 32 index marks into one file.
•
You cannot insert index marks into dictations which have been finished with EOL.
Deleting index marks
To delete an index mark, do the following:
1. Go to the position of the index mark in the file using the fast forward or fast rewind function. Fast forward or
fast rewind will stop automatically at the insertion point of an index mark and the DPM will beep.
Note: Do not use the playback function because playback does not allow you to position correctly at the
insertion point of an index mark.
2. Press the DEL button for about 2 seconds. The string for the index mark will flash. The index mark will be
deleted after 2 seconds.
18
DPM 9400 - User Manual
Entering user-defined labels
A user-defined label is an alphanumeric string which can have up to 13 characters. Such a label is entered
directly on the DPM. If and how many user-defined labels can be entered depends on the corresponding setting in
SpeechExec Dictate. For more information, refer to the Online Help delivered with the program.
When entering user-defined labels on the DPM you can use the characters A-Z and the numbers 0-9; spaces are
also allowed.
To enter a user-defined label, do the following:
1. Press the Jog Dial for about two seconds to access the DPM menu.
The menu entry for user-defined labels is displayed first per default. If you have previously entered a userdefined label, the menu entry will display this label.
2. To start editing the label, press the Jog Dial again.
Note: If the mandatory user input option for entering user-defined labels has been set in SpeechExec Dictate,
you will immediately access the DPM menu at this level.
3. Select or change the first character/number of the label by moving the Jog Dial up or down. Confirm a
character/number selection by pressing the Jog Dial.
4. When you have entered the complete label string, confirm by pressing the Jog Dial for about two seconds.
Additional information
•
If there is more than one user-defined label enabled, you will automatically go to the next label upon
confirming the first label:
•
To delete a character from a label string, press the DEL (Delete) button briefly. To discard any changes you
have made and to exit the DPM menu, press the DEL button for about two seconds.
•
To insert a character into a label string, press the INS/OVR (Insert/Overwrite)button.
•
To move one character to the left, press the REC (Record) button.
•
To re-use an already existing label without changing it, confirm the label by pressing the Jog Dial for about two
seconds. The DPM will beep and you are required to confirm again.
Assigning Keywords
The DPM allows you to personalize your dictations via predefined Keywords. For this purpose, you create a
configuration file on the PC using SpeechExec Dictate. For DPM 9400 this configuration file can have up to five
Keywords defined to be used on the DPM.
Note: Assigning Keywords as described below is only available if the DPM has not been configured with the
Linked Keywords setting in SpeechExec Dictate.
Note: If the DPM has been configured with the Barcode into Keywords setting, you have to scan in the barcode
information because this is a mandatory setting. In this case, you can later change the Keyword assignment
manually via the DPM menu as described below.
19
DPM 9400 - User Manual
Keywords are a combination of their usage definition and the content definitions for that usage. All this information
is stored in the configuration file which is transferred to the DPM. On the DPM, the authors can select from the
predefined entries and assign them to their dictations. These entries are saved together with the dictation and can
finally be used by the transcriptionist for filtering the dictations.
For more information on DPM Keywords, refer to the SpeechExec Dictate Online Help.
Example: Assigning Keywords
In the example, the following Keywords have been defined with the SpeechExec Dictate:
Keyword 1
Keyword 2
Keyword 3
Keyword 4
Keyword 5
Usage
Author
Patient
Document
Typist
Delivery
Content
Jones
Peter
Letter
Smith
Fax
Singh
Steve
Memo
Simpson
Print
Watson
Patricia
Report
Green
Email
This information is transferred to the DPM where the author makes the required Keyword assingments.
Do the following:
1. Press the Jog Dial for about two seconds to access the DPM menu and display the Keyword's usage
definition: Author
Note: If a Keyword assignment has already been made, the current assignment is displayed as the menu
entry, for example: AUTHOR: Jones
2. Confirm the Keyword selection by pressing the Jog Dial. The Keyword's content definitions are displayed:
Jones, Singh, Watson
3. Move the Jog Dial to scroll to the name you want to assign.
4. Confirm your selection by pressing the Jog Dial and to return to the DPM main menu.
5. Assign a second Keyword by moving the Jog Dial to display its usage definition: Patient
6. Confirm the Keyword selection by pressing the Jog Dial. The Keyword's content definitions are displayed:
Peter, Steve, Patricia
7. Move the Jog Dial to scroll to the patient name you want to assign.
8. Confirm your selection by pressing the Jog Dial and to return to the DPM main menu.
9. Assign a third Keyword by repeating the steps from above: Document
20
DPM 9400 - User Manual
10. Assign a fourth Keyword: Typist
11. Assign a fifth Keyword: Delivery
The selected Keyword definitions will be stored with your dictation. Any new dictation you create will be assigned
the same information unless you select different Keyword definitions.
You can select different Keyword definitions as long as no recording has been done in the file. After recording has
been done in the file, it is possible to choose different Keyword definitions on the DPM display. These changes
will not take effect for the current file but from the next new file onwards.
Note: If the DPM goes into Power Save mode while assigning Keywords, the DPM is reactivated in Stop mode.
Any unconfirmed Keyword assignments will have been discarded. You have to access the DPM menu and repeat
the Keyword assignment.
Scanning barcode information into Keywords
When using the DPM in combination with the DPM Barcode Scanner Module 9284, you can scan barcode
information into the Keyword fields if the corresponding setting has been enabled in SpeechExec Dictate. For
more information on this setting, refer to the Online Help delivered with the program.
Note: The Barcode into Keywords setting is a mandatory setting if your DPM has been configured with it.
When you create a new dictation file and have the Barcode Module attached, you must scan in the barcode
information before you can start to record your dictation.
If no Barcode Module is attached to the DPM, the setting will be ignored.
Example: Barcode scanning
Keyword 1 has been configured as patient ID and Keyword 2 as insurance no. Keywords 3 - 5 are left empty. The
DPM is configured for barcode input and the Barcode Module is attached. Do the following:
1. Make sure the DPM is in Stop mode and create a new dictation file, e.g. by pressing the REC (Record) button.
The DPM now expects the barcode input; on the DPM display this is indicated by the following screen:
2. Press the Jog Dial only briefly and release it again to set Barcode Scanning mode.
3. Scan the barcode. If the Barcode Module recognizes the barcode input, it will beep and the barcode
information is displayed on the DPM.
4. Confirm the barcode input for Keyword 1 by pressing the Jog Dial briefly.
Note: To discard the barcode input, press the DEL (Delete) button.
5. You are now asked for the Keyword 2 input.
21
DPM 9400 - User Manual
6. Repeat steps 2 and 3 from above.
7. Confirm the barcode input for Keyword 2.
This concludes the mandatory barcode input. You can now start to record your dictation.
For more information on the DPM Barcode Scanner Module 9284, refer to the documentation delivered with the
product.
Linked Keywords
When the Linked Keywords setting is enabled in SpeechExec Dictate and the DPM has been configured with
this setting, you can transfer sets of Keyword strings to the DPM. These sets can then be selected on the DPM
and assigned to a dictation file.
A Keyword set is the sum of all content definitions which have been made in SpeechExec Dictate in the same row
(see below). The name of the Keyword set is taken from the usage definition of Keyword 1; this name is also
displayed on the DPM when you enter the DPM menu. The usage definitions of any other Keywords are ignored.
Example: Linked Keywords
The usage definition of Keyword 1 is patient; the content definitions of the Keyword 1 column are patient names.
Keyword 2 is the department, Keyword 3 the patient ID, Keyword 4 a comment, Keyword 5 the patient's gender.
In this example, a Keyword set thus combines all of this patient data.
The Keyword Definition tab in SpeechExec Dictate is as follows:
This defines the following Keyword sets:
Keyword set 1 = Peter, intensive care, 123, yes, m
Keyword set 2 = Steve, first aid, 456, yes, m
Keyword set 3 = Patricia, surgery, 789, private, f
After this configuration has been transferred to the DPM, the Keyword sets can be selected on the DPM as
follows:
1. Press the Jog Dial for about two seconds to access the DPM menu. The Keyword set name (taken from the
usage definition of Keyword 1) is displayed. If a Keyword set has already been assigned previously, two of the
content definitions of the currently assigned set are also displayed, for example:
22
DPM 9400 - User Manual
2. Press the Jog Dial again to access the available Keyword sets. The currently assigned set is displayed:
3. Move the Jog Dial to scroll to the Keyword set you want to assign.
4. Confirm the new assignment by pressing the Jog Dial and to return to the DPM main menu. The menu entry
displays the new Keyword set:
This Keyword set is now assigned automatically to any new dictation file.
Note: The Linked Keyword setting and the Barcode into Keywords setting do not overrule each other. If the
DPM has been configured with both settings, you will have to scan in the barcode information first (mandatory
setting). To overwrite the barcode information with a Keyword set, enter the Keyword menu manually and change
the assignment.
Recording spoken instructions
Spoken instructions can be compared to comments which are recorded by the author during dictation. They are
stored within the dictation sound file at the position in the sound file where the instruction was actually recorded.
Examples for spoken instructions are 'insert a paragraph here' or 'correct spelling is Z E L A Z O W S K I'.
DPM 9400 supports the recording of spoken instructions for your dictations. Spoken instructions can only be
inserted in Recording mode.
To insert an instruction, do the following:
1. Make sure that the DPM is in Recording mode and that the device is disconnected from your PC. Otherwise
the DL/S.Instr button has the download function.
2. Press and hold the DL/S.Instr button for at least 1 second to insert your spoken instruction.
3. Keep the button pressed as long as you record your spoken instruction. When you are finished, release the
button and continue with your normal dictation.
A spoken instruction appears as a thick horizontal bar on the status bar of the DPM display. The pictures
below show the DPM display while a spoken instruction is being recorded and after you have returned to
normal recording.
4. To insert another spoken instruction, follow the steps from above.
Recording spoken instructions in Overwrite mode
When Overwrite mode is enabled on your DPM, the behavior is as follows:
•
Spoken instructions will be overwritten, partially or completely, without any warning.
•
When you start normal recording inside a spoken instruction and finish recording before you have reached the
end of the spoken instruction, the instruction is split into two parts.
23
DPM 9400 - User Manual
For example, you have a spoken instruction with a length of 12 seconds. You position inside the instruction at
5 seconds and do normal recording for 5 seconds. Your sound file will then have a spoken instruction of
5 seconds followed by normal recording of 5 seconds followed by the remainder of the instruction of
2 seconds.
However, the total length of the instruction has been decreased to 7 seconds because the middle part has
been overwritten with the normal recording.
Recording spoken instructions in Insert mode
When Overwrite mode is enabled on your device, the behavior is as follows:
•
When you insert a spoken instruction before an existing one, the numbering of the consecutive instructions is
increased by 1. For example, if you inserted an instruction before INSTR 2, INSTR 2 would become INSTR 3,
INSTR 3 would become INSTR 4 and so on.
•
When you insert normal recording into an existing spoken instruction, the spoken instruction is split into two
individual instructions. The total number of instructions in your sound file is increased by 1. However, the
contents of the instruction are preserved and not overwritten.
Additional infomation
•
When you fast forward or fast rewind the file, the device will interrupt the current action at the insertion point of
a spoken instruction for about 1 second and it will beep. The action is then continued automatically.
While the device stops at a spoken instruction, the corresponding string is displayed on the device:
•
In Playback mode, only the spoken instruction string is shown on the display when the playback cursor moves
over a spoken instruction. The device will not beep and playback will not be interrupted.
•
You can insert up to 32 spoken instructions into one file.
•
You cannot insert spoken instructions into dictations which have been finished with EOL.
•
You cannot insert an index mark into a spoken instruction.
Deleting spoken instructions
Deleting a spoken instruction is similar to deleting a section from the sound file. Do the following:
1. Go to the beginning of the spoken instruction and press the DEL button once.
2. Go to the end of the spoken instruction and press the DEL button again.
3. Confirm the delete operation by pressing the DEL button for at least two seconds.
Transferring data between DPM and PC
You can use your DPM as part of the workflow management for exchanging and transferring data with the PC.
With SpeechExec Dictate, you make settings and choose options on how to operate the device. This data can
then be downloaded and is stored on the DPM. With the DPM you create your dictations which are then
transferred to the PC for further processing.
24
DPM 9400 - User Manual
Depending on how you have configured the download process with SpeechExec Dictate, the download process is
either started automatically or by pressing the DL/S.Instr button on the DPM. You can also configure whether
individual sound files or all of the sound files will be transferred from the DPM to the PC.
To transfer data from the DPM to the PC with the automatic download functionality enabled in the DPM
Downlod/Configuration program, do the following:
1. Make sure the DPM is connected to the PC and that the 4-Position Switch is in the Stop position
(DPM 9400/00: , DPM 9400/52: STOP).
The data transfer is started either automatically or by pressing the DL/S.Instr button on the DPM, depending
on how you have configured the download process.
2. The progress of the file transfer is displayed.
3. When the download is finished, one of the following symbols will appear:
•
The download finished successfully:
•
The download did not succeed:
Note: Whether the downloaded files on the DPM are deleted after transferring depends on the corresponding
settings in SpeechExec Dictate.
Additional information
•
During transfer and as long as the DPM is connected to the PC, all buttons and switches on the DPM are
inactive.
•
For more information on the different download configuration options, including the automatic download
procedure, refer to the SpeechExec Online Help or the User Manual delivered with the CD.
Mandatory user input
SpeechExec Dictate enables you to configure the DPM in such a way that mandatory information must be
provided before you can start a recording. The mandatory user input options are:
•
Mandatory Keyword input: This means that the menu entry for assigning Keywords is displayed automatically
on the DPM when you create a new dictation. You cannot start recording the dictation unless you make
selections for all predefined Keywords available on the DPM.
•
Mandatory user-defined label: This means that the menu entry for entering user-defined labels is displayed
automatically when you create a new dictation. You cannot start recording the dictation unless you enter the
required user-defined labels. For information on entering labels, refer to the Entering user-defined label
section in this manual.
25
DPM 9400 - User Manual
Appendix: Troubleshooting the DPM
If you have problems with your DPM, please try the following before you contact your vendor.
Nothing appears on the DPM display
•
The batteries are not loaded properly: Verify that the polarity is correct.
•
The batteries are dead: Change the batteries.
•
The DPM is turned off: Turn the DPM on.
DPM warning:
•
The memory card cannot be read. Try a different memory card or a different type of memory card.
•
The memory card is not formatted: Format the memory card via the DPM menu.
•
One of the DPM buttons could be stuck: Make sure none of the buttons is stuck.
DPM is inactive
•
The DPM is turned off: Turn the DPM on.
•
The batteries are dead: Change the batteries.
Recording is not possible
•
There is not enough space left on the memory card: Delete files from the memory card or use a new memory
card.
•
The memory card is not formatted: Format the memory card.
No sound during playback
•
The volume is turned down (0): Turn the volume up.
•
Earphones are plugged into the DPM: Unplug the earphones to listen to playback via the built-in loudspeaker.
Deleting files is not possible
•
The file has been finished with EOL: Remove the EOL attribute from the file by pressing the L/P or EOL/P
(End-of-Letter and Priority) button once.
•
Your memory card, of the type SD, is write-protected (
): Remove write protection from the SD card.
Wrong file
•
The wrong file is being played back: Open the correct file.
Connection to the PC is not possible
USB driver has not been installed properly
Solution: Check whether the USB drivers have been installed correctly. If you did not complete the
installation of the USB driver or canceled the 'Unknown device detected' process the first time you
connected the DPM to your PC. Proceed as follows:
1. Connect the DPM to your PC.
2. Go to the Start menu, Settings, Control Panel, System, Device Manager.
3. Look for an unknown USB device in the list.
4. Select the Unknown Device and click Remove.
5. Click OK and close the Control Panel window.
6. Disconnect the DPM and reconnect it again.
7. The Add New Hardware Wizard is started. Click Next.
8. Follow the instructions which appear on the screen. When the wizard detects the driver (USB Mass
Storage Device), click Next to copy the driver to your PC.
9. On the last wizard page, click Finish to complete the installation.
Windows XP
When installing the DPM, the operating system automatically assigns a drive for the DPM. This drive
appears as a 'removable disk' in the Windows Explorer. Sometimes, the drive letter assignment for the
DPM conflicts with an existing drive letter mapping; this is why the DPM cannot be seen in the Windows
Explorer. Additionally, SpeechExec Dictate displays the DPM status as DPM (disconnected).
Solution: Mount all network drives starting with drive letters Z, Y, X (in reverse alphabetical order).
26
DPM 9400 - User Manual
PC sound system is not functioning
•
The DPM is used as a USB sound device: Open the Sounds and Multimedia Properties dialog box in the
Control Panel. Make sure your PC’s sound system is the Preferred device selection. Activate the Use only
preferred devices option.
Recharging batteries is not possible
•
The DPM is turned on and connected to the PC with download mode activated: Turn the DPM off to start
recharging.
Important: The DPM can only recharge the rechargable Philips NiMH batteries LFH 9144.
27
DPM 9400 - User Manual
Index
DPM 9400/00, 8, 12
VA, 16
DPM 9400/52, 9, 13
VA, 17
DPM display, 7, 10, 11
DPM menu, 7, 8, 9, 10, 11
4
4-Position Switch
Lock/Hold switch, 5
Playback, 14
A
E
Advanced display, 7
Advanced operations, 18
Appearance, 7
Assign
Keywords, 8
Authors, 20
Automatic recording, 10, 16
End-of-Letter button, 13
Entering user-defined labels, 19
EOL, 13
EOL button, 13
F
Fast Forward, 15
DPM 9400/00, 15
DPM 9400/52, 15
Fast Rewind, 15
DPM 9400/00, 15
DPM 9400/52, 15
Features, 1
FFWD, 15
File
Delete, 16
Skip Back, 17
Skip Forward, 17
First steps, 12
Format for recording
Long Play mobile, 16
Standard Play, 16
Formatting
Memory card, 5
FRWD, 15
B
Backlight, 10
Barcode into Keywords, 21
Barcode scanning, 21
Basics, 12
Batteries, 4
Recharge, 4
Beep, 10
Button
DEL, 15
DL/S.Instr, 23
EOL, 13
Fast Forward, 15
INS/OVR, 14
L/P, 13
Priority, 13
REC, 12
C
G
Card, 5
Configuration file, 20
Contrast, 11
Getting started, 5
Graphic
DPM, 2
D
I
Data transfer, 24
Date (DPM 9400/00), 8
Date (DPM 9400/52), 9
DEL, 15
DEL button, 15
Delete
File, 16
Section, 15
Spoken instruction, 24
Delete operations, 15
Dictation
DPM 9400/00, 12
DPM 9400/52, 13
Display, 3
DL/S.Instr, 23
DL/S.Instr button, 23
DPM
Activate, 5
Batteries, 4
Formatting the memory card, 5
Graphic, 2
Keywords, 20
Memory card, 5
Overview, 2
Troubleshooting, 26
Index marks, 18
INS/OVR, 14
INS/OVR button, 14
Insert, 24
Memory card, 5
Insert mode, 14
Inserting index marks, 18
Instructions
Record, 23
Introduction, 1
J
Jog Dial, 7
Keywords, 20
Skip Back, 17
Skip Forward, 17
Volume, 14
K
Keywords, 20
Barcode information, 21
DPM menu, 8
28
DPM 9400 - User Manual
DPM 9400/00, 12
DPM 9400/52, 13
Recording format
Long Play mobile, 9, 16
Standard Play, 9, 16
Recording mode
Insert, 14
Overwrite, 14
Recording time, 11
Reformat
Memory card, 11
Linked, 22
L
L/P, 13
L/P button, 13
Label, 19
LCD display, 3
LED, 12, 13
Green, 14
Red, 14
Linked Keywords, 22
Lock/Hold switch, 5
Long Play mobile, 9, 16
S
Scan
Barcode, 21
SD, 5
Section (sound file)
Delete, 15
Skip Back, 17
Skip Forward, 17
Software
SpeechExec Dictate, 20, 24
Sound file
Delete - file, 16
Delete section, 15
Playback, 14
Skip Back, 17
Skip Forward, 17
Sound file format
Long Play mobile, 9, 16
Standard Play, 9, 16
SP/LPm, 9, 16
SpeechExec Dictate, 20, 24
Spoken instruction
Delete, 24
Insert mode, 24
Overwrite mode, 23
Spoken instructions, 23
Standard display, 7
Standard Play, 9, 16
Start screen, 6
Symbols, 3
M
Memory card, 5
Format, 5
Insert, 5
Reformat, 11
Menu, 7
Backlight, 10
Contrast, 11
Date and time, 8, 9
Device beep, 10
Keywords, 8
Microphone sensitivity, 10
Recording time, 11
Reformatting the memory card, 11
SP/LPm, 9
User-defined label, 8
Voice-activated recording, 10
Microphone sensitivity, 10
MMC, 5
Mode
Insert, 14
Overwrite, 14
Power Save, 11
Record Standby, 12
O
Operations
Advanced, 18
Basic, 12
Overwrite, 23
Overwrite mode, 14
T
Time (DPM 9400/00), 8
Time (DPM 9400/52), 9
Transfer
Data, 24
Troubleshooting, 26
P
Package contents, 1
Playback, 14
Power Save mode, 11
Priority, 13
Priority button, 13
Program
SpeechExec Dictate, 24
U
User-defined label, 19
DPM menu, 8
V
VA, 10, 16
DPM 9400/00, 16
DPM 9400/52, 17
Voice-activated recording, 10, 16
Volume, 14
R
REC, 12, 13
REC button, 12
Recharge
Batteries, 4
Record, 13
Instructions, 23
Record LED, 12, 13
Record Standby, 12
Recording
W
Warning, 26
Winding, 15
DPM 9400/00, 15
29
DPM 9400 - User Manual
DPM 9400/52, 15
Workflow management, 24
30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
