Philips M2540 User's Manual
Copyright © 2002 by Philips Medical Systems All rights reserved
M2540-92000-01 A
November 2002
M2540 Ultrasound System
Field Service Manual
1

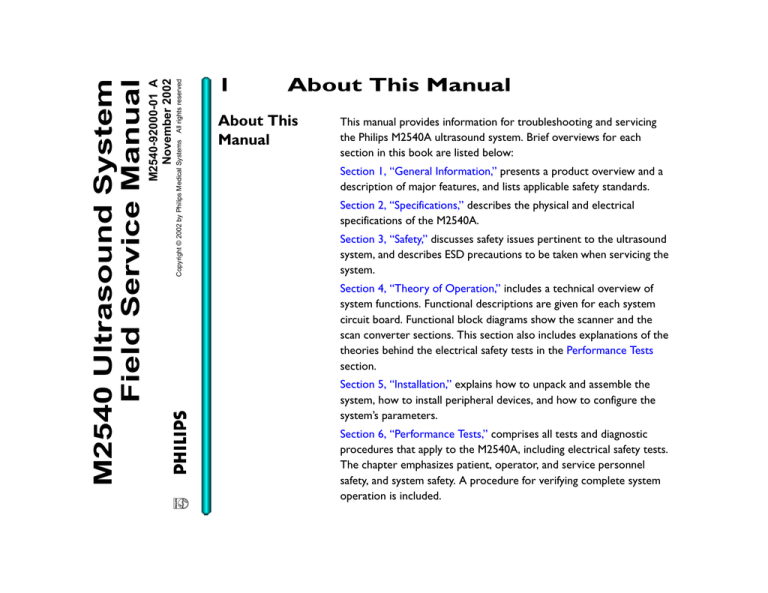

About This Manual
About This
Manual
This manual provides information for troubleshooting and servicing
the Philips M2540A ultrasound system. Brief overviews for each
section in this book are listed below:
Section 1, “General Information,” presents a product overview and a
description of major features, and lists applicable safety standards.
Section 2, “Specifications,” describes the physical and electrical
specifications of the M2540A.
Section 3, “Safety,” discusses safety issues pertinent to the ultrasound
system, and describes ESD precautions to be taken when servicing the
system.
Section 4, “Theory of Operation,” includes a technical overview of
system functions. Functional descriptions are given for each system
circuit board. Functional block diagrams show the scanner and the
scan converter sections. This section also includes explanations of the
theories behind the electrical safety tests in the Performance Tests
section.
Section 5, “Installation,” explains how to unpack and assemble the
system, how to install peripheral devices, and how to configure the
system’s parameters.
Section 6, “Performance Tests,” comprises all tests and diagnostic
procedures that apply to the M2540A, including electrical safety tests.
The chapter emphasizes patient, operator, and service personnel
safety, and system safety. A procedure for verifying complete system
operation is included.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 2
About This Manual: About This Manual
Section 7, “Adjustments,” contains instructions for adjusting the system monitor.
Section 8, “Preventive Maintenance,” includes procedures for periodic maintenance of the
system.
Section 9, “Troubleshooting,” contains information and procedures for finding and repairing the
causes of faults in the M2540A, including software error codes. The error-code section opens
with a key for interpreting the codes.
Section 10, “Service Procedures,” includes all service procedures, including a discussion of ESD
precautions, component removal and replacement, and peripherals installation. The chapter also
presents software procedures for backup and retrieval of customer presets, and for reloading or
upgrading system software.
Section 11, “Cabling,” includes tables listing all the standard and optional M2540A cables.
Section 12, “Configuration,” lists the jumper and switch settings for the M2540A’s disk drives.
Section 13, “Parts,” comprises parts lists and exploded diagrams of the M2540A and its
assemblies. Parts ordering methods are discussed.
Section 14, “Transducers,” lists the transducers compatible with the M2540A and their
characteristics.
Section 15, “Glossary,” is a glossary of terms used in this manual and in the ultrasound imaging
field.
Audience
This manual supports the field service maintenance and repair of the M2540A Ultrasound
System. The user of this document is a qualified ultrasound electronics technician who has
completed training classes on the system and its peripherals.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 3
About This Manual: About This Manual
Format
This manual is in Portable Document Format (PDF), for viewing on a laptop computer using
Acrobat Reader. A list of bookmarks functions as a table of contents. Those bookmarks and
cross-references use hypertext links to provide access to the referenced information.
Conventions
The following conventions are used in this manual:
Service Manual
Questions or
Comments
•
Hypertext links are blue.
•
All procedures are numbered. You must complete steps in the sequence they are presented
to ensure reliable results.
•
Bulleted lists indicate general information about a function or a procedure. They do not
imply a sequential procedure.
•
Control names are spelled and capitalized in the manual as they are on the system.
•
Menu items or titles appearing on the display are spelled and capitalized in the manual as they
are on the display.
•
An English system is assumed.
If you have questions about the service manual, or if you discover an error in the manual, contact
Philips Ultrasound Technical Publications:
•
atl-bothell.techpubs@philips.com
•
Technical Publications, MS 964, at the first address below
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Customer
Assistance
Page 4
About This Manual: About This Manual
Various support locations around the world can provide customers with technical assistance
regarding the ultrasound system. Customers should contact the sales office where they
purchased the system or the nearest Philips Ultrasound office for assistance.
•
Philips Ultrasound
P.O. Box 3003
Bothell, WA 98041-3003
USA
(425) 487-7000 or (800) 426-2670
www.ultrasound.philips.com
•
Philips Ultrasound
3000 Minuteman Road
Andover, Massachusetts 01810-1099
(978) 687-1501
•
Authorized EU Representative:
Philips Medizin Systeme Boeblingen GmbH
Hewlett-Packard-Str. 2
71034 Boeblingen
Germany
To find your local service center phone number, go to:
www.philips.medical.com
Non-Philips Medical Systems product names may be trademarks or registered trademarks of their respective owners.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 5
About This Manual: About This Manual
© 2002 Philips North America
Corporation
WARNING
The cautions explain potential
damage to equipment.
Important
All Rights Reserved.
Reproduction in whole or part
is prohibited without the prior
written consent of the copyright
holder.
Electrical Shock Hazard
Caution Symbol Used in the
Text:
0123 marking is for
Council Directive
93/42/EEC.
Publication number
M2540-98000-01
Edition 1
Published: December 2002
Printed in U.S.A.
Warranty
The information contained in
this document is subject to
change without notice.
Philips Medical Systems makes
no warranty of any kind with
regard to this material,
including, but not limited to, the
implied warranties or
merchantability and fitness for a
particular purpose.
Philips Medical Systems shall
not be liable for errors
contained herein or for
incidental or consequential
damages in connection with the
furnishing, performance,
or use of this material.
Trademarks
Cannon is a registered
trademark of Cannon
Corporation.
Windows XP is a trademark of
Microsoft Corporation
Do not remove system covers.
To avoid electrical shock, use
only supplied power cords and
connect only to properly
grounded (3-hole) wall outlets.
CAUTION
Explosion Hazard
Do not operate the system in the
presence of flammable
anesthetics.
Safety Information
Before you use a specialty
transducer for the first time, be
sure to read the “Description
and Use” section of the chapter
that is applicable to your
transducer. Also, for TEE and
intraoperative transducers,
review the “Electrical Safety”
sections in those chapters.
Pay special attention to the
Warnings and Cautions.
The warnings explain the
dangers of electrical shock and
explosion hazard, the safety of
ultrasound, applications,
guidelines for fetal use, and
guidelines for setting controls
that affect acoustic output and
accuracy of clinical
measurements.
Warning Symbol Used in the
Text:
WARNING
Symbols on the System
Warning symbols, as well as
other symbols appearing on the
system or its probes:
This symbol on the
system advises
operators to consult
the user documentation for that
part of the system.
!
This symbol on the
system indicates a
potential for
electrical shock.
Monitor Radiation
The monitor used in this
system complies with the FDA
regulations that were
applicable at the date of
manufacture (21 CFR
Subcategory J).
Prescription Device
The United States Food and
Drug Administration requires
the following labeling
statement:
Caution - Federal Law restricts
this device to use by or on the
This system complies with the
Medical Device Directive.
Authorized EU
Representative:
Philips Medizinsysteme
Boeblingen GmbH
Hewlett-Packard Strasse 2
71034 Boeblingen, Germany
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 6
General Information: Product Overview
1
General Information
This chapter includes the following sections:
Product
Overview
•
“Product Overview” on page 6
•
“System Description” on page 7
•
“Optional Peripherals (VCR, Printers, and Image Devices)” on page 9
•
“Preset Functions” on page 10
•
“Safety Specifications” on page 12
The M2540A ultrasound system comprises a cart, a system control panel, and a monitor. A foot
pedal on each caster locks and unlocks the front cart wheels. All four wheels swivel. The system
control panel and the monitor adjust up and down and swivel as a unit, and the monitor tilts and
swivels on its mount.
The cart’s lower enclosure contains the M2540A’s computer, disk drives, and ultrasound
generating and processing boards.
CD-RW and floppy disk drives are standard equipment.
Optional peripheral components include a video cassette recorder, various types of printer, a
foot switch, and a magneto-optical disk (MOD) drive. The VCR is available in either NTSC or
PAL configuration. For a complete list of optional components, see “Optional Peripherals” on
page 201.
Most peripheral devices mount on top of the lower enclosure. The optional plain-paper printer
is not mounted on or powered by the system, but is connected from a remote location.
The Resident Self Test (RST) software verifies system performance and helps diagnose problems.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 7
General Information: System Description
The system control panel includes four numbered option buttons whose functions are assigned
by the customer. See the online Help file for details on configuring these controls.
System
Description
Major ultrasound system components are described on the following pages. These descriptions
include important features of the cart, monitor, system control panel, Physio module, e-box, and
system power supply.
References to the left and the right sides of the system are as viewed from the front of the cart.
Cart
The cart supports the system and acts as the chassis into which all system components are
installed and interconnected.
A height adjustment lets you adjust the system control panel and monitor for operator comfort.
An Input/Output (I/O) panel at the rear of the cart contains three connectors for
communication between the system and a network, and for controlling certain legacy printers.
The foot switch port, an equipotential lug, and the system ground lug are also on the I/O panel.
The panel is at the center of the lower part of the cart, and is accessible to the system operator.
See “I/O Panel” on page 45 for more information about the I/O panel.
Cart Wheels
Four wheels at the cart base provide system maneuverability and braking. All four wheels swivel,
and the front wheels can be fixed straight and locked. Foot pedals on the two front wheels lock
and unlock the front wheels to prevent the cart from rolling. Locking the wheels immobilizes the
system during patient procedures.
PC
The M2540A uses a personal computer (PC) as a central processor. The PC houses several
components as standard equipment. These include the acoustic processor input/output (APIO)
board, a video card, a CD-RW drive, and a floppy disk drive.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 8
General Information: System Description
The optional Physio module installs in one of the PC’s front drive bays. An optional
magneto-optical disk (MOD) drive can also be installed in one of the drive bays. The VCR option
includes three boards that reside in the PC’s PCI slots, and a VCR that mounts on the cart.
See “Internal PC” on page 39 for more detailed information about the PC and its components.
System Monitor
The monitor at the top of the cart is a 15-inch color display mounted on a “twivel” assembly.
The twivel allows tilt and swivel positioning of the display for ease of viewing.
e-box
The e-box houses the scanner circuit boards, and is accessible by opening the door at the right
rear of the cart.
There are several circuit boards in the e-box:
System Control
Panel
•
Two transmit and receive (TR) boards
•
A beam processor/acoustic processor (BPAP) board
•
A demodulator board
•
The system motherboard
•
The distribution board
The system control panel at the top front of the cart is a replaceable, self-contained module. See
“Replacing the System Control Panel” on page 159. The panel interfaces with the imaging system
through a USB cable that connects to the internal PC. Power for the trackball is provided via the
USB cable. All the other control-panel functions are powered by a cable from the system power
supply.
The system control panel contains a backlit alphanumeric keyboard, slide controls, rotary
controls, hard-coded and software-driven keys, and a trackball.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 9
General Information: Optional Peripherals (VCR, Printers, and Image Devices)
Physio Module
The optional Physio module (see “Physio Module Option” on page 43) installs in one of the PC
drive bays. The front panel of the module bears two input connectors:
•
A 3-lead ECG physio connector
•
An auxiliary analog input (standard ¼-inch phone jack)
An externally generated auxiliary analog input signal using the phone jack can substitute for the
3-lead ECG physio connector at the front panel. You can also input an auxiliary ECG waveform
from an external patient monitor and display it, in all modes. The R-wave from this signal can
serve as a time reference for the system.
Power Supply
The power supply is an enclosed, self-contained, replaceable module that mounts under the
e-box at the right side of the cart. It accepts AC input sources from 100 V to 240 V, at 50 Hz or
60 Hz.
The power supply provides all required AC and DC voltages to the system. Three switched
120 VAC outlets for powering the monitor and two peripheral devices are at the rear of the
power supply. An unswitched outlet powers the M2540A’s internal PC. When the system is shut
down, only the 120 VAC outlet to the PC is enabled. A green LED on the left front of the power
supply lights when the power supply is energized.
Optional
Peripherals
(VCR,
Printers, and
Devices)
The M2540A supports several types of optional peripheral devices:
•
VCRs, including NTSC-format and PAL-format models
•
Thermal color and thermal black-and-white printers
•
Various biopsy kits (See “Supplies and Accessories” on page 202.)
•
A magneto-optical disk (MOD) drive for data storage
“Optional Peripherals” on page 201 lists all peripherals supported by the ultrasound system.
Some peripherals mount on a shelf below the system control panel.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Preset
Functions
Page 10
General Information: Preset Functions
The ultrasound system includes programmable presets that configure the system for best imaging
results in a particular situation. Activating a preset initializes system settings to values that are
optimal for a chosen exam. The factory installed software includes several presets, tailored to
different applications. The user can define as many as 20 additional presets in each of 8 exam
types, to adjust system variables (including acoustic power) to any required configuration.
For specific information regarding the configuration and use of presets or other features of the
system, see the online Help file.
NOTE Backing up presets to a floppy disk safeguards them and preserves the operator’s
preferred configurations. If preset configurations are subsequently changed, they can be
quickly restored from the backup copy, without having to reset them manually. Keeping
a backup copy also eliminates the need to manually reconfigure the presets after a
software upgrade. See “Backing Up and Restoring Presets” on page 143 for the
procedures to back up and restore presets.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 11
General Information: Keyboard Equivalencies
Keyboard
Equivalencies
Some of the keys found on a standard PC keyboard are not present on the M2540A. Many of the
functions performed by those keys are mapped to keys that are present on the M2540A
keyboard. The M2540 keys act as PC-equivalent keys whenever the ultrasound application is not
running. The following table lists the missing PC keys and their equivalents on the M2540A:
Table 1-1
Keyboard Equivalents
PC Key
M2540A Key
PC Key
M2540A Key
F1
F2
F3
F4
F5
F6
F7
F8
Patient
Preset
Review
Report
Setup
Help
VCR
Mic
F9
F10
F11
F12
Esc
Delete
Page Up
Page Down
Blank 1
Blank 2
Blank 3
Probe
THI
Fusion
Left
Right
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 12
General Information: Safety Specifications
Safety
Specifications
This section describes the safety specifications of the M2540A.
Safety Limits
Table 1-2
Parameter
Specification
Power supply
Ground wire leakage
Complies with IEC60601-1
See Section 6, “Performance Tests”, and the Safety and Standards Guide
shipped with the M2540A.
Will not tip over on an incline of up to 10° under normal use.
With wheel locks engaged, system remains stationary on slopes of up
to 5 ° in any orientation.
System surfaces do not exceed temperature limits specified in
IEC 60601-1 and EN 60601-1
The power supply and monitor comply with UL 2601-1 1997.
System tip over
Wheel locks
System surface
temperature
Potentially hazardous
components
External sharp edges
Regulatory
Compliance
Safety Limits
The system exterior has no sharp edges, in compliance with IEC
60601-1 and EN 60601-1
For information about applicable safety standards and specifications, consult the Safety and
Standards Guide shipped with the M2540A.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
2
Page 13
Specifications:
Specifications
This section lists the specifications of the M2540A ultrasound system. The following specification
types are included in this section:
•
“Physical Dimensions” on page 14
•
“Electrical Specifications” on page 19
•
“Monitor” on page 19
•
“Transducer Specifications” on page 20
•
“Connection and Communication Specifications” on page 21
•
“Physio Port Specifications” on page 23
•
“Audio/Video Specifications” on page 23
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 14
Specifications: Physical Dimensions
Physical
Dimensions
The tables and diagrams that follow detail the physical specifications of the M2540A.
Table 2-1
Physical Specifications
Parameter
Dimensions
Depth (front to back)
Width
Height (to monitor top)
Specification
103 cm (40.5 inches)
53.5 cm (21 inches)
Lowest position: 129.5 cm (51 inches)
Highest position: 147.5 cm (58 inches)
Height of lower enclosure
76.2 cm (30 inches)
Monitor to control panel front edge 43.18 cm (17 inches)
Monitor depth
41.71 cm (16.42 inches)
(front to back)
Weight
Less than 91 kg (200 lbs) including display but no peripherals
Environmental
Operational
Temperature range: 0° to 40° C
Relative humidity: 20% to 80%
Atmospheric pressure: 572hPa to 1013 hPa
(VCR and printers temperature limit: 0° to 40° C at 80% RH)
Storage
Temperature range: –40° to 55° C
Relative humidity: 20% to 90%, non-condensing
Atmospheric pressure: 572hPa to 1013 hPa
Reference
See Figure 2-2
See Figure 2-1
See Figure 2-1
See Figure 2-2
See Figure 2-2
See Figure 2-2
See Figure 2-2
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 2-1
System Front Dimensions
-
+
-
+
Range:
129.5 cm (51 in) 147.5 cm (58 in)
........... .
53.5 cm
(21 in)
Page 15
Specifications: Physical Dimensions
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 2-2
Page 16
Specifications: Physical Dimensions
System Side Dimensions
41.71 cm
(16.42 in)
43.18 cm (17 in)
99 cm (39 in)
95.25 cm (37.5 in)
74.3 cm (29.25 in)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 2-3
System Rear Dimensions
Range:
129.5 cm (51 in) 147.5 cm (58 in)
53.5 cm (21 in)
Page 17
Specifications: Physical Dimensions
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 2-4
Page 18
Specifications: Physical Dimensions
System Top Dimensions
39.4 cm
(15.5 in)
33 cm
(13 in)
-
+
-
+
72.6 cm
(28.5 in)
53.45 cm (2
1 in)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Electrical
Specifications
Table 2-2
Page 19
Specifications: Electrical Specifications
Electrical Specifications
Parameter
Specification
AC input
Ground impedance
Dielectric withstand
90 VAC to 264 VAC, 47 Hz to 63 Hz
200 milliohm maximum
1500 VAC mains to safety ground
2000 V mains to AC secondaries
4000 V mains to DC secondaries
1150 VA maximum.
120 VAC, 60 Hz, quasi square-wave, 500 VA maximum
Load
AC output
Monitor
Table 2-3
Main Display
Parameter
Specification
Screen size
Display format
15-inch diagonal
VGA, 800x600
75 Hz refresh rate
RGB color display
Tilt ±30 degrees
Swivel ±135 degrees
Features
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 20
Specifications: Transducer Specifications
Transducer
Specifications
The following table lists the specifications of the transducers that the M2540A supports.
Table 2-4
Description
Transducers
Part
Number
c3540 biopsy capable 1
21330A
21350A
21380A
21321A
EC6509 endocavity
L7535 linear
TEE (Omni II)
L1038A small parts
15-6L intraoperative
PA 4-2 biopsy capable
CA 5-2
D1914c
21336A
21359A
21369A
21376A
21390A
21422A
21425A
21221B
S4 1
S8
S12
Frequency Connector
3.5 MHz
7.5 MHz
6 MHz
2 to 4 MHz
2 to 5 MHz
1.9 MHz
Cannon
Cannon
Cannon
Cannon
Cannon
Cannon
Cannon
Cannon
Cannon
Advance Vision
Advance Vision
Pencil
1. This transducer is compatible with the M2540A, but is only sold separately.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 21
Specifications: Connection and Communication Specifications
Connection
and Communication
Specifications
The following tables list the communication and connector specifications of the M2540A.
System I/O
Ports
PC Ports
The following table lists the ports on the rear of the internal PC and describes their locations.
Table 2-5
PC Ports
Port
Specification
Composite video output
(optional) 1
Female phono (RCA) on TV and video converter board
S-Video output (optional) 1
S-Video input (optional) 1
Print trigger output
VCR audio output (line out)
(optional) 1
VCR audio input (line in) 1
4-pin mini circular DIN on SVGA to TV video card
4-pin mini circular DIN on video capture card
3.5-mm phone jack on APIO board
Green 3.5-mm stereo phone jack on sound card
Microphone
Speakers
Monitor
Foot switch
Pink 3.5-mm stereo phone jack
Green 3.5 mm stereo phone jack to system speaker amplifier
15-pin D connector on graphics adapter board
9-pin female D-sub connector on the APIO board that carries
foot switch signals from the external I/O panel
Blue 3.5-mm stereo phone jack on sound card
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 22
Specifications: Connection and Communication Specifications
Table 2-5
PC Ports (Continued)
Port
Specification
Com 1
Keyboard
9-pin D connector, RS-232; spare serial port used for serial
VCRs
DIN circular connector
Mouse
Token ring
LAN
USB
USB
USB
USB
PS-2 keyboard
PS-2 mouse
Parallel port
Audio input on main board
DIN circular connector
50-pin connector on the APIO board
RJ-45 to I/O panel for network communication
USB (A) for data and power to system control panel
For black-and-white thermal printer
For color printer
For remote plain-paper printer
Not used
Not used
Not used
Not used
1. Only available with VCR option or external video/print option
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 23
Specifications: Physio Port Specifications
I/O Panel Ports
The following table lists the ports on the I/O panel and the signals they carry.
Table 2-6
Physio Port
Specifications
Port
Connector
Signal
Composite video
Foot switch
BNC
D-sub 9
Print
LAN
BNC
RJ-45
Composite video signal from SVGA board
Control signal from foot switch to APIO board
Defaults are: record, freeze, and record 2
Each signal is a contact closure to ground, active low, and
TTL compatible
Trigger signal from APIO board
Communication with local area network
The following table lists the specifications of the M2540A’s physio ports.
Table 2-7
Physio Port Specifications
Port
Specification
ECG
3 patient leads with R-wave detection
Monitoring quality only
Frequency response: 1 ±0.5 to 30 ±6 Hz
Sensitivity: 3 mVpp ±2.5 mV for full scale at 100% gain
3-dB bandwidth: full scale DC to 100 Hz minimum
Maximum input signal: ±4 V
Sensitivity: 2.5 ±0.5 Vpp for full scale at 100% gain
Aux 1
Audio/Video
Specifications
I/O Panel Ports
The following tables list the audio and video specifications of the M2540A.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 24
Specifications: Audio/Video Specifications
Audio
Table 2-8
Audio Specifications
Description
Specification
Speakers
Stereo—VCR, Doppler
Doppler spectrum toward transducer — left speaker
Doppler spectrum away from transducer — right speaker
Maximum power input: 4 watts
Impedance: 8 ohms
Frequency
Response
Microphone
130 Hz to 12 KHz
Faces front. 10 Hz to 20 KHz electret type
External Video
Table 2-9
External Video Specifications
Description
Specification
Color Composite
NTSC 3.58 (USA), PAL 4.43 (Europe)
1.0 V p to p ±5% into 75 ohms (only with VCR option)
Trigger 1 signal from the APIO board
Active low: ON = 0.5 V max @ 1 mA; OFF = 5.25 VDC maximum
voltage
Print
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 25
Specifications: Audio/Video Specifications
Video Output
Specifications
Table 2-10
Video Output Specifications
Output
Specification
RGBSync to system
monitor
S-Video Output to
VCR
0.7 Vpp RGB with TTL sync
1.0 Vpp luminance incorporating sync and 0.3 Vpp chrominance as
shown in Table 2-9. This timing is essentially RS-170 (60 Hz) or CCIR
(50Hz) video timing.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
3
Page 26
Safety:
Safety
This section provides an overview of safety considerations for the ultrasound system. These
safety concerns apply to patients, operators, and service engineers. For more detailed safety
information, see the Philips Safety and Standards Guide.
The following topics are included in this section:
•
“Transmit Power (Acoustical)” on page 27
•
“Acoustic Exposure” on page 27
•
“AIUM/NEMA Output Display Standard” on page 28
•
“Explosive Hazards” on page 30
•
“Electrical Warnings” on page 31
•
“Peripheral Connections” on page 31
•
“Glutaraldehyde Exposure” on page 32
•
“Moving the System” on page 32
•
“Electromagnetic Compatibility” on page 35
•
“Restrictions for Use” on page 36
•
“Electrosurgical Units” on page 37
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Transmit
Power
(Acoustical)
Page 27
Safety: Transmit Power (Acoustical)
Acoustic output, expressed as an index, is displayed on the screen to allow the best possible
diagnostic image with minimal power output. A display standard presents this index using one of
the following four power indices:
•
Mechanical index (MI)
•
Thermal index for soft tissue (TIS)
•
Thermal index for bone (TIB)
•
Thermal index for cranial bone (TIC)
The index setting on the System Setup menu selects the power index used. The displayed
index is based on this setting and on preset configuration and imaging mode.
NOTES
• The power index setting on the System Setup menu selects any of the four power indices
for display at any time.
•
The Power rotary control at the right side of the system control panel is the only control
that affects transmit power level.
For additional information on acoustical power settings and power index, see the Philips Safety
and Standards Guide.
Acoustic
Exposure
Although no harmful effects have been demonstrated for any of the ultrasound frequencies,
intensities, and exposure times used in examinations with Philips ultrasound systems, Philips
recommends that you consider the following, and use the lowest ultrasound exposure that
produces diagnostically acceptable information:
•
Use diagnostic ultrasound only when there is a good medical reason.
•
Reset the controls at the start of every examination.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 28
Safety: AIUM/NEMA Output Display Standard
•
Reduce exposure time, independent of acoustic index value.
•
Use techniques that let you collect clinical data quickly and end the examination promptly.
•
Select a transducer that provides good resolution and focal depth for the region of interest.
Then use the imaging controls to fine-tune image resolution.
For more detailed information on acoustic exposure, see the Output Display Standards and ODS
Acoustic Tables booklet.
AIUM/NEMA
Output
Display
Standard
In compliance with the Output Display Standard (ODS) jointly proposed by the American
Institute of Ultrasound in Medicine and the National Electrical Manufacturers Association, the
Philips ultrasound system displays power output indices related to the potential for bioeffects.
Real-time information related to the power output is displayed on the monitor, indicating the
type of index displayed and the value of that index for the acoustic output currently being used.
For example, if the output corresponds to a mechanical index of 0.8, the following is displayed:
MI: 0.8
The displayed index is one of four types: MI, TIS, TIB, or TIC. These ultrasound abbreviations
conform to the AIUM/NEMA Output Display Standard.
Soft tissue thermal index (TIS) is used in cardiac, fetal, and abdominal scanning.
The thermal index for bone (TIB) is used in applications such as second or third trimester fetal
scanning and neonatal cephalic (through the fontanelle) scanning.
The cranial bone thermal index (TIC) is used for transcranial imaging.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 29
Safety: AIUM/NEMA Output Display Standard
NOTE The power index displayed on the screen depends on the preset type, the active
transducer type, the imaging mode, and the selected power index. Any of the four
power indices is selectable for display at any time, using the power index setting in the
System Setup menu.
Automatic
Index Selection
For automatic selection of a power index based on system mode, the user selects the power
index setting of Normal from the System Setup menu. This directs the system to choose an
index based on the active preset and imaging mode.
When MI is Displayed With the Normal Setting
MI is displayed if any of the following conditions exist:
•
2D Only is the active imaging mode.
•
Black-and White MMode Preview is the active imaging mode.
•
Black-and White Doppler Preview is the active imaging mode.
•
Black-and White Doppler 2D Live is the active imaging mode.
When TIS is Displayed With Normal Setting
If none of the conditions in “When MI is Displayed With the Normal Setting” on page 29 exist, if
no transcranial preset is active, and any of the following conditions exist, TIS displays:
•
Color is turned on.
•
Angio is turned on.
•
MMode Trace is the active imaging mode.
•
Doppler Spectral is the active imaging mode (with 2D Live off).
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 30
Safety: Explosive Hazards
When TIC is Displayed With Normal Setting
If none of the conditions in “When MI is Displayed With the Normal Setting” on page 29 exist, a
transcranial preset is active, and any of the following conditions exist, TIS displays:
•
Color is turned on.
•
Angio is turned on.
•
MMode Trace is the active imaging mode.
•
Doppler Spectral is the active imaging mode (with 2D Live off).
If the user selects an ODS setting other than Normal, the selected index type is used as the
preferred acoustic power display format, regardless of the mode, the transducer, or the preset
that is selected.
The displayed index value does not provide an exact value of the potential for adverse bioeffects
in the patient. However, for any patient, the higher the value, the higher the potential for adverse
bioeffects. The user can minimize the potential for bioeffects by keeping the index value as low as
possible, by choosing the right transducer and making adjustments. Minimizing examination time
also minimizes bioeffects.
WARNING
The ODS power index formulas were defined for reasonable worst case patient conditions. It is
likely that a particular patient's actual conditions are better than indicated by the index. The
operator should be aware of patient conditions that mitigate the actual exposure.
Explosive
Hazards
Observe the following practices to avoid explosive hazards:
•
Do not operate the system in the presence of flammable anesthetics.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
•
When using the imaging system in the operating room, do not switch system power on or
off. Be sure system power is on before the operation starts, and leave it on for the duration
of the procedure.
WARNING
Do not use the foot switch in the operating room.
Electrical
Warnings
Observe the following precautions to prevent electric shock:
WARNINGS
Peripheral
Connections
Page 31
Safety: Electrical Warnings
•
Only qualified service personnel should remove system covers (trim and service panels).
Accidental contact with electrical circuits inside the system could cause serious injury.
•
Use only the power cords supplied with the system, and connect them only to properly
grounded electrical outlets.
•
Failure to follow these warnings can affect both patient and operator safety.
•
Do not connect the ultrasound system to the same circuit used for life support devices.
Peripherals (such as a VCR or a printer) typically meet general electrical safety usage
requirements, but do not meet medical device standards. Therefore, do not use system
peripherals within six feet of a patient unless the peripherals receive power from an isolated
power outlet on the imaging system, or from an isolation transformer that meets medical safety
standards. The 120 VAC outlets on the power supply are isolated. The specific peripherals listed
in “Optional Peripherals” on page 201 meet medical device standards when installed in the
system as recommended.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Glutaraldehyde
Exposure
Page 32
Safety: Glutaraldehyde Exposure
The United States Occupational Safety and Health Administration (OSHA) has issued a
regulation dealing with levels of acceptable glutaraldehyde exposure in the working environment.
Philips does not sell glutaraldehyde-based disinfectants with its products. However, this type of
disinfectant is recommended for disinfection of transesophageal (TEE) or endocavity
transducers.
To minimize exposure to glutaraldehyde fumes, make sure the area is well ventilated and use
appropriate eye and skin protection.
Moving the
System
Although the system is designed to be mobile, remember that it is very heavy, and that you
must take precautions when moving the system.
The ultrasound system has been designed to be as lightweight and mobile as possible. However,
the system weight—including the weight of the monitor, a printer, and a +VCR—is
approximately 100 kg (220 pounds). Because of this weight, you must use caution when moving
the system, since the ability to move any ultrasound machine is directly related to an individual’s
size and strength.
Some sonographers, particularly those weighing less than 100 pounds, have stated that they
injured their backs moving similar systems. These complaints could not be directly tied to one
particular incident. They do, however, point out the need to be careful in transporting medical
equipment such as an ultrasound system.
Before Moving
the System
To move the system, take the precautions listed in the following sections, and
•
Before moving the system, be sure to remove any loose equipment from the top of the system, disconnect the system power cord, and disconnect all external devices.
•
Before transporting the system in a vehicle, remove the monitor and all transducers from the
system and put them in a packing box.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 33
Safety: Moving the System
When Moving
the System
This system is equipped with a front handle and brakes on the front wheels.
WARNING
Never strap or secure the system at any point above the peripheral tray.
Always use the handle at the front of the cart to move the system from place to place.
NOTE Use caution and follow these steps when moving the system from patient to patient.
1. Unlock the wheel locks before moving the system.
2. Make sure the control top is locked, to prevent its pivoting during transport.
3. Engage the track locks on the front wheels to ease straight-line travel.
4. Push with the handle at the front of the cart.
5. After the system is in position, engage the wheel locks to immobilize the system, and unlock
the control top to allow it to pivot.
Moving on
Ramps or
Uneven Surfaces
Do not move the system over uneven elevator entrances by lifting the machine or any part of the
machine.
System Tilting
The system has been tested for stability using the IEC 60601-1 test protocol. Following this
protocol, the system will not tip over on an incline of up to 10 degrees in any direction. When
this amount of incline is exceeded, there is a potential for the system to tip over.
Always use two people when moving the ultrasound system up and down ramps longer than 20
feet or steeper than 5 degrees. (Wheelchair ramps are usually less than 5 degrees.) Avoid ramps
that are steeper than 10 degrees, to eliminate the danger of the system tipping over.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 34
Safety: Moving the System
WARNING
Use care when tilting the system for an incline. The amount of incline allowable to prevent
tip-over is 10 degrees. Moving the system over a roadside curb or other small but steep incline
can cause the system to exceed 10 degrees of incline.
Transporting
the System in a
Vehicle
Always engage the wheel locks while transporting the system in a vehicle, and use restraining
straps to secure the system in place. Do not rely on the wheel locks to hold the system on
inclines greater than 5 degrees.
Be sure that the transporting vehicle can handle the weight of the system (or systems) plus the
passengers.
Be sure the load capacity of the loading lift can accommodate the weight of the ultrasound
system. A minimum capacity of 550 pounds is recommended.
Always secure the ultrasound system while it is on the loading lift so that it cannot roll. Make
sure the control top is locked, to prevent its pivoting. Engage the wheel locks and use wood
chocks, restraining straps, or other similar types of constraints as an added safety measure. Do
not attempt to hold the system in place manually.
WARNING
Never strap or secure the system at any point on the control top or monitor.
Load and unload the ultrasound system while the transporting vehicle is parked on a level
surface. The system’s weight can easily cause it to roll on any incline.
The system’s weight on an extended loading lift may cause the transporting vehicle to tilt, which
could cause personal injury or system damage.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
WARNING
Page 35
Safety: Electromagnetic Compatibility
Never ride on a loading lift with the system. Your weight combined with the system's weight can
exceed the lift's load capacity.
Be sure the ultrasound system is firmly secured while inside the transporting vehicle. Any
movement, combined with the system’s weight, could cause the system to break loose.
NOTE If you use the ultrasound system in a mobile van, follow the same fundamental
transporting precautions listed in the sections above.
Electromagnetic
Compatibility
This system has been tested for electromagnetic compatibility (EMC) according to the
international standard for EMC with medical devices, as determined by the International
Electrotechnical Commission (IEC 60601-1-2). This IEC standard has been adopted in Europe as
the European Norm EN 60601-1-2.
Avoiding
Electromagnetic
Interference
Medical devices can generate or receive electromagnetic interference (EMI). The EMC standards
describe tests for both emitted and received interference. Emission tests deal with interference
generated by the device being tested. The Philips ultrasound system does not generate
interference based on the tests described in the standards.
Ultrasound systems are designed to receive radio frequency (RF) energy and are therefore
susceptible to EMI generated by other RF energy sources. Examples of other sources of EMI are
medical devices, information technology products, and radio and television transmission towers.
Tracing the source of radiated interference can be a difficult task.
See “Electromagnetic Interference” on page 137 to identify sources of EMI.
Only a physician can determine if an artifact caused by radiated interference has a negative
impact on image quality and the subsequent diagnosis.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 36
Safety: Restrictions for Use
Restrictions
for Use
The M2540A ultrasound system is subject to certain restrictions that are described in the
following sections.
Immunity Level
Test Results
The EMC standards require that manufacturers of patient-coupled equipment specify
electrostatic discharge immunity levels for their systems. This type of device is designed to
receive and amplify low-level signals in the same bandwidth as the interference to which it is
susceptible.
Immunity is defined in the standard as the ability of a system to perform without degradation in
the presence of an electromagnetic disturbance. Degradation in image quality is a qualitative
assessment that can be subjective. The simplest way to assess degradation is to note when the
first sign of an artifact is seen. This method has two advantages: It removes the issue of subjective
decision-making and provides the most stringent test results.
Caution should therefore be taken in comparing immunity levels of different ultrasound systems.
The criteria used for measuring degradation are not specified by the standard, and can vary with
the manufacturer.
Philips has tested each class of transducer for every operating mode over a wide range of
frequencies. This testing showed PW Doppler to be the most susceptible to radio-frequency
interference.
Please see the Philips Safety and Standards Guide shipped with your system for additional
information about compliance with EMC standards.
Electrostatic
Discharge
Electrostatic discharges can cause the ECG heart rate display to increase by 10 to 15% for a few
seconds after the discharge. However, the ECG heart rate display returns to normal within four
seconds.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Electrosurgical Units
Page 37
Safety: Electrosurgical Units
Electrosurgical units (ESUs) and other devices intentionally introduce radio frequency
electromagnetic fields or currents into patients. Because imaging ultrasound frequencies are also
in the radio frequency range, ultrasound transducer circuits are susceptible to radio frequency
interference. While an ESU is in use, the noise generated severely interferes with the
black-and-white image and completely obliterates the color image.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
4
Overview
Page 38
Theory of Operation: Overview
Theory of Operation
This section provides a technical overview of system functions. The discussion focuses on the
main functions and features of the system’s PC, circuit boards, and power distribution. Main
system functions are also shown in the functional block diagrams at the end of this section.
The M2540A’s internal PC replaces the back-end electronics used in earlier ultrasound systems
to handle display processing. The beam processor/acoustic processor (BPAP) board handles the
acoustic and beam processing front-end functions.
This section covers the following areas of the system:
•
“Internal PC” on page 39
•
“TR Boards” on page 40
•
“BPAP Board” on page 42
•
“Demodulator Board” on page 43
•
“APIO Board” on page 43
•
“Physio Module Option” on page 43
•
“System Motherboard” on page 44
•
“Distribution Board and Connector Modules” on page 44
•
“I/O Panel” on page 45
•
“System Control Panel” on page 45
•
“Power Supply” on page 46
•
“Functional Block Diagrams” on page 47
•
“Transducer Safety Testing: Test Setup and Theory” on page 52
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 39
Theory of Operation: Internal PC
Internal PC
The M2540A uses an internal PC to coordinate and perform many of the functions that required
dedicated circuit boards in earlier ultrasound systems. The power button on the front of the PC
is the system power switch. Turning on the PC starts the ultrasound system.
Standard PC
Components
The M2540A’s internal PC contains the following standard components:
•
A motherboard
•
A hard drive
•
A graphics card in the AGP slot
•
The Acoustic Processor I/O (APIO) board, in a PCI slot (See “APIO Board” on page 43)
•
A 31/2-inch floppy disk drive
•
A CD-RW drive
PC Ports
The PC motherboard’s ports are used as follows:
•
A USB port communicates with the system control panel.
•
A USB port communicates with an optional black-and-white thermal printer.
•
A USB port communicates with an optional color printer.
•
A USB port communicates with an optional plain-paper printer.
•
A USB port communicates with the optional physio module.
•
A LAN port connects the PC to a network.
•
A 3.5 mm phono jack receives audio signals from a microphone.
•
A 3.5 mm phono jack supplies the signal that drives the system’s speakers.
•
An RS-232 port (Com1) controls an optional VCR.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 40
Theory of Operation: TR Boards
VCR-Option Components in the PC
The VCR option includes several cards inside the PC and an adapter that connects to the SVGA
output of the PC’s graphics adapter board. See Figure 4-1 on page 48 for a detailed
representation of how the VCR option’s components function in the ultrasound system.
The following cards are part of the VCR option, and reside in the PC’s PCI slots:
•
A sound card that receives audio from the VCR, and supplies sound to the VCR
•
A video capture board that receives S-Video signals from the VCR
•
An SVGA-to-S-Video card that converts the SVGA signal from the graphics adapter board (in
the AGP slot) to S-Video for the VCR
•
An SVGA adapter that connects the graphics adapter board to the SVGA-to-TV video card
and to the monitor
See “VCR Option Parts” on page 198 for a list of all the components of the VCR option.
Optional Drive-Bay Components
The PC’s drive bays accept the following components:
TR Boards
•
The Physio module that provides ECG monitoring capability. The drive bay’s power connector powers the module, but the module does not use the drive bay’s data port. The module
communicates with the ultrasound system through a USB cable to the PC motherboard. See
“Physio Module Option” on page 43, and Figure 4-3 on page 51 for detailed information on
the Physio module.
•
A magneto-optical disk (MOD) drive that allows archiving of images, studies, and reports on
removable disks. The MOD uses the drive bay’s data and power ports.
The M2540A’s e-box contains two transmit-and-receive (TR) boards. Each has a connector that
plugs into the motherboard and another connector that passes through the motherboard and
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 41
Theory of Operation: TR Boards
plugs into the distribution board. The two boards form electronic beams of the transmit and
receive signals. Each TR board contains 64 transmitters and 32 preamps multiplexed into 64
receive channels. This allows multiplexing the system’s 64 active channels into 128 element
arrays. Each receive channel consists of time gain compensation (TGC) amplifiers, low pass
filters, 10-bit A/D converters, and one eighth of a digital beam-forming circuit. Each TR board
sends on its output bus a value that is the sum of the data from its 32 channels plus its 18-bit
input bus. The last TR board in this chain outputs the final summed radio-frequency (RF) data to
the demodulator board.
The transmit and receive beam-forming coefficients for acoustic lines are downloaded on the
coefficient bus from the BPAP board.
The BPAP board generates the timing to start and stop each firing line, and sends the transmit
signal to the TR board, through the distribution board and the connector modules to the
transducer. Analog drivers generate the transmitted RF data. A digital timing generator delays
and times each of the analog drivers. The delay generators receive the appropriate delay values
from the BPAP for each channel. The system power supply controls the amplitude of the
transmitted waveform.
The received signal is preamplified, TGC amplified, low-pass filtered, and digitized (in all modes
except CW). The BPAP board generates TGC control signals through the demodulator board.
After being digitized, the signal on each line is delayed appropriately. The outputs of all channels
are daisy-chained together to sum the outputs. The RF data output of one TR board is the input
to the next TR board, and the outputs of the TR boards are summed to form the received beam.
The summed output signal (RF DATA) goes to the demodulator board.
The CW Doppler signal is mixed to an analog intermediate frequency (IF) signal. The CW
Doppler output is a single differential signal routed to the demodulator board.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
BPAP Board
Page 42
Theory of Operation: BPAP Board
The beam processor/acoustic processor (BPAP) board contains two processors. One of them
controls beam-forming, line-to-line operation. The other handles the processing of scan
conversion, color flow, and Doppler signals.
The BPAP board does the following:
Omni TEE
Circuitry
•
Provides the interface between the PC and the TR boards
•
Provides the interface between the PC and the demodulator board
•
Receives control data sets from the PC, processes them for specific register values, and
sends them to the TR boards
•
Houses the transesophageal echo cardiography (TEE) transducer interface circuitry (TEE
motor control and temperature monitoring)
•
Houses the transducer ID circuitry
•
Detects the presence of standalone transducers
•
Houses electronic switching that allows selection of a single active transducer from the four
that can be connected
•
Controls the high-voltage output from the system power supply
The Omni Probe control circuitry on the BPAP board supplies power to the TEE transducer's
motor. It also measures the position of the angle-position sensor. The signal is digitized and sent
to the APIO board for monitoring by the PC.
The beam processor circuitry monitors thermistors in the transducer and insures that high
voltage is not applied to the transmitter unless the thermistor values are within limits.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 43
Theory of Operation: Demodulator Board
Demodulator
Board
The demodulator board performs image and Doppler demodulation for BMode, MMode, PW
and CW phased and non-imaging Doppler modes, and color flow mode. It sends a baseband data
stream to the BPAP board.
The demodulator board contains the following:
APIO Board
•
Digital filters and mixers for demodulating 2D, color flow, and PW RF data
•
The independent transducer CW Doppler electronics and steerable CW detector functions
•
The 120 MHz system clock. The clock signal is distributed to the TR and BPAP boards.
•
Circuitry that generates TGC signals
The acoustic processor I/O (APIO) board is the token ring interface between the system’s PC
and the e-box. The APIO board also handles input from the foot switch’s three control buttons
(via the I/O panel) and forwards them to the PC. The board also generates trigger signals for
legacy printers.
The board handles these signals from the PC:
Physio Module
Option
•
The R-wave pulse from the physio module that it sends to the BPAP board
•
The DC on-off bit that it sends to the power supply
•
Commands that program the BPAP board at startup
•
Acoustic data from the BPAP board for the acoustic imaging display
The self-contained Physio module resides in one of the PC’s drive bays. The module receives
power from the drive bay’s power connector, but it communicates with the system through a
USB cable to the PC’s motherboard. A shielded and grounded enclosure prevents
electromagnetic interference. See Figure 4-3 on page 51 for a detailed representation of the
module’s functions and connections.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 44
Theory of Operation: System Motherboard
Primary
Functions
Connectors
The module’s primary functions are as follows:
•
Process electrocardiogram (ECG) signals from patient electrodes and deliver the data to the
M2540A’s PC
•
Send a detected R-wave trigger to the APIO board for frame triggering in various scanning
modes
•
Provide gain control for ECG waveforms
The Physio module has two connectors on its front panel:
•
The ECG-input connector is a round, 12-pin connector that is isolated from chassis ground.
•
A ¼-inch phone plug jack accepts auxiliary input and has both signal and shield grounds.
System
Motherboard
This board connects all data paths between the TR boards, the BPAP board, and the distribution
board. It is also the distribution point for DC power and ground to all boards (the BPAP board
and distribution board also receive power directly from the system power supply.). It also sends
filtered high voltage to the TR boards.
Distribution
Board and
Connector
Modules
The distribution board passes transducer signal inputs to the imaging system. The system power
supply provides high voltage directly to the distribution board to fire transducers.
Signals that pass through this board include
•
Transducer identification signals from the BPAP board to and from the transducer
•
Transmit and receive signals from the TR boards to the active transducer
•
TEE motor-control and temperature-sense signals from the BPAP to and from the TEE transducer
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Transducer
Connector
Module Types
Page 45
Theory of Operation: I/O Panel
The four transducer module bays accept the following types of modules in any combination:
•
Cannon connector
•
Advance Vision connector
•
Pencil-type transducer connector
•
Blank module
See Table 13-2 on page 179 for a list of the modules and their part numbers.
I/O Panel
The I/O panel bears four connectors and two ground points. The main system ground used for
safety testing, and an equipotential post are the two ground points on the panel.
The I/O panel’s connectors are
System
Control Panel
•
An RJ-45 (CAT 5) connector for connection to a LAN
•
A BNC connector that carries composite video signals for a legacy printer
•
A BNC connector that carries trigger signals for a legacy printer
•
A 9-pin D connector for the optional foot switch
The system control panel contains the circuitry to process control inputs, the system keyboard,
rotary and slide controls, and the trackball. A USB cable carries control inputs from the control
panel to the PC. An auxiliary cable carries power from the system power supply. The system
control panel circuit board also carries the amplifiers for the system’s stereo speakers.
All control inputs and LEDs are controlled by the system’s PC, and their functions are
determined by resident control-panel and system software.
Circuit boards inside the system control panel are not field serviceable or replaceable. The
entire assembly, including circuit boards, bezel assembly, and labels, is available as a replaceable
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 46
Theory of Operation: Power Supply
part. Rotary and sliding knobs, rotary encoders for the knobs, the trackball assembly, and the
trackball cable are all available as separate parts.
Power Supply
The M2540A power supply is a self-contained unit that accepts AC input from 90 to 264 V, at 50
or 60 Hz, and supplies 120 VAC at 60 Hz to the system’s PC, monitor, and two peripherals. It
also provides all DC power required by system components. No switch settings are required to
configure the power supply for different AC mains; the power supply automatically adjusts to use
the power connected to it. Except for the 120 VAC to the PC, all power output is activated by a
signal from the PC. The system cooling fan is the only serviceable part on the power supply. See
Figure 4-1 on page 48 for details of the power supply’s outputs. The power supply activates when
it receives an “AWAKE_N” signal, which is generated by the PC, and then sent through the BPAP
board to the power supply.
The system power supply does the following:
•
Provides DC power to all system electronics through the system motherboard and the BPAP
board
•
Provides DC power directly to the system cooling fan
•
Provides high voltage to the distribution board for multiplexing transducers
•
Isolates AC mains from secondary AC and DC circuitry
•
Transforms primary voltages to secondary voltages
•
Filters line AC
•
Provides an isolated 120 VAC unswitched outlet to power the internal PC
•
Provides three isolated 120 VAC switched outlets to power the monitor and two peripherals
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 47
Theory of Operation: Functional Block Diagrams
Functional
Block
Diagrams
System
Functional Block
Diagram
This section contains block diagrams of the system’s components and their connections.
The section includes the following block diagrams:
•
Figure 4-1 on page 48 shows the ultrasound system with the VCR option installed. This diagram does not include the e-box or the system’s power supply. Those components are
shown in Figure 4-2 on page 49.
•
Figure 4-2 shows the e-box and the system power supply and their connections to other
components of the ultrasound system.
•
Figure 4-3 on page 51 shows the optional Physio module and its internal connections.
Figure 4-1 shows the M2540A system with the VCR option installed.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 48
Theory of Operation: Functional Block Diagrams
Figure 4-1
System Block Diagram with VCR Option
Speaker
Speaker
System control panel
Floppy disk
drive
DC power
Optional
MO drive
Audio
Optional printers
(up to 2)
USB
CD-RW drive
PC
motherboar
USB
USB
Optional
Physio module
LAN
Com
RS-232
Audio
USB
Internal PC
AC power
Microphone
Audio
Audio
Optional
VCR
VCR option
sound board
VCR option
capture board
VCR option
converter
board
Graphics
adapter board
R-wav
S-video
AC power
S-video
Composite video
Monitor
SVGA
adapter
SVGA video
I/O
panel
Trigger
APIO board
Hard disk drive
Foot switch
Token ring
AC power
PC power
To e-box (see Figure 4-2)
AC power
System power
supply
(see Figure 4-2
for detail)
To remote
USB printer
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 49
Theory of Operation: Functional Block Diagrams
e-box and Power
Supply
Functional Block
Diagram
Figure 4-2 shows the system’s power supply and the e-box and their connections to each other
and other components.
Figure 4-2
e-box and Power Supply Block Diagram
To APIO board in PC
To system
control panel
Distribution board
Motherboard
Connector
module
TR board
Connector
module
TR board
To peripherals
To monitor
To PC
Demodulator board
Connector
module
BPAP board
Connector
module
+3, +5
VDC
Fan
Token ring
±12, -5,
+11, +5
+60, -140 ±HV
mux V
+12 VDC variable
+2 VDC
Control
Unswitched
120 VAC
Switched 120 VAC
Switched 120 VAC
Power supply
Switched 120 VAC
+5, +12, -12 VDC
90 - 264 VAC
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 50
Theory of Operation: Functional Block Diagrams
Token Ring Cable
The token ring cable carries the following signals between the BPAP board and the APIO board:
•
R-wave communication
•
On and off signal that switches on the outputs from the power supply (the 120 VAC output
for the PC is always on)
•
Program enable and program done (on separate circuits)
•
Ring in and ring out (on separate circuits)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 51
Theory of Operation: Functional Block Diagrams
Physio
Functional Block
Diagram
Figure 4-3 shows how the Physio module functions, its internal connections, and connections to
other components.
Figure 4-3
Physio Module Block Diagram
R-wave
detector
Isolated front end
ECG leads
Differential
amp
and
driver
Signal
isolation
islout
X216
Bandpass
filter
0.35 to 30Hz
M
U
X
Phy1 offset
and
gain adjust
AUX In
auxsel
nlddac2 dacdata
Clock
divider
EZ-USB
controller
clk24
To APIO
R-wave trig
To PC motherboard
phy1
A/D
converter
Phy2 offset
and
gain adjust
Power
isolation
phy1
USB
phy2
r-raw
spi-do
spi-di
spi-ck
nadccs
dacdata
nlddac1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 52
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
Transducer
Safety Testing:
Test Setup
and Theory
This section provides background and supporting information for the transducer leakage tests in
Section 6, “Performance Tests”; this information is not required to perform the tests.
In transducer safety tests, a container filled with saline solution functions as a conductive
medium (see Figure 4-4 on page 53). The solution penetrates any faults in the transducer
insulation and provides an electrical path between the submerged lead wire and the grounded
inner transducer shield.
The test for transthoracic and endocavity transducers differs from the test for TEE transducers
only by the extent that the transducers are submerged in the test solution.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 53
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
Figure 4-4
See Key for
Figure 4-4
Transducer Leakage Current Test Setup and Theory Diagram
Ultrasound
metal chassis
I system
Hot
Neutral
Internal
circuitry
Open Neutral button
C
Ground
Transducer Cable
Grounded
Outer
shielding
plastic
jacket
skin
I chassis
Open Ground button
Imeasured
Insertion
depth
Z
2
S
A
1
Saline
ECG
lead wire
I transducer
SAFETY ANALYZER
Ground condition: Closed for normal condition
Neutral condition: Closed for normal condition
Closed for 1st single fault condition
Open for 1st single fault condition
Open for 2nd single fault condition
Closed for 2nd single fault condition
Mode selector on safety analyzer: ECG for transducer leakage test
Case Leakage, Ground Conductor for ground wire leakage test
7ASW030-1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 54
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
Table 4-1
Key for Figure 4-4
A
=
Microammeter in the safety analyzer
Imeasured
=
Leakage current
S
=
Switch that connects the ammeter either directly to the chassis or
through the ECG lead wire. (This is the mode selector on the Safety
Analyzer. Select ECG for transducer leakage and Case Leakage, or select
Ground Conductor for chassis leakage.)
C
=
Stray capacitance from the system's power wiring to the chassis.
Z
=
Impedance between the transducer’s metal parts and the test electrode:
≈ 800 KΩ if the outer insulating layer is intact
< 500 Ω if the outer layer is compromised
Insertion depth:
•
For transthoracic and endocavity transducers, submerge the head and 5 cm of the cable,
being careful to not submerge the connector.
•
For TEE transducers, submerge all of the flexible shaft that would normally enter the body of
the patient: 100 cm for adult TEE, 60 cm for pediatric TEE.
Theory of the Transducer Leakage Current Test
Leakage current Ichassis, driven by the line supply, flows through the stray capacitance C between
the primary wiring and the system’s metal chassis.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 55
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
Figure 4-5
Transducer Leakage Current Test Diagram for the Normal Condition
I system
Hot
Neutral
C
I chassis
Ground
Imeasured
A
Z
S
I transducer
7ASW030-2
The leakage current normally flows from the chassis safely out through the ground wire. If there
is a fault in the transducer insulation, some of the current follows this path and is measured by
the safety analyzer. This Itransducer is still fairly low, unless the chassis is not properly grounded.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 56
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
Figure 4-6
Transducer Leakage Current Test Diagram for 1st Single Fault Condition
I system
Hot
Neutral
C
I chassis
Ground
Imeasured
Z
S
A
I transducer
7ASW030-3
When an open ground condition is imposed, all Ichassis is forced through the transducer. This
Itransducer is still fairly low unless its sheath is compromised.
Figure 4-7
Transducer Leakage Current Test Diagram for 2nd Single Fault Condition
I system
Hot
Neutral
C
I chassis
Ground
Imeasured
A
Z
S
I transducer
7ASW030-4
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 57
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
Imposing an open neutral condition prevents all system current from flowing. This creates a
higher potential for leakage current Ichassis. Most flows safely through the ground wire; some
flows through the transducer. This Itransducer is still fairly low, unless the chassis is not properly
grounded.
Figure 4-8
Ground Wire Leakage Test Diagram (for Comparison with 1st Single Fault
Condition)
I system
Hot
Neutral
C
I chassis
Ground
Imeasured
Z
S
A
I transducer
7ASW030-5
With the transducer circuit disconnected, all of the leakage current Ichassis flows through the
analyzer by way of the ground wire.
In the 1st single fault condition transducer leakage test (Figure 4-6 on page 56), all the leakage
current Ichassis flows through the analyzer by way of the transducer. In that condition, only the
resistance or impedance of the respective paths varies.
•
If the transducer sheath is intact, its resistance is high, and Imeasured in the transducer leakage
test is low when compared with Imeasured in the ground wire leakage test.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 58
Theory of Operation: Transducer Safety Testing: Test Setup and Theory
•
If the transducer sheath is compromised, its resistance is close to that of the ground wire.
Transducer leakage current equaling 80% or more of ground wire leakage current indicates a
fault or break in the transducer insulation.
Sheath integrity is tested this way because there could be a break in the transducer sheath
causing significant Itransducer, and yet that leakage current could still be within acceptable limits.
Comparison to the ground wire leakage current is the only way to ensure sheath integrity.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
5
Page 59
Installation: Overview
Installation
Overview
This chapter includes procedures for installing and setting up the M2540A.
The following sections are in this chapter:
•
“Assemble the System” on page 59
•
“System Startup” on page 62
•
“System Configuration” on page 64
•
“Customer Training” on page 88
Assemble the
System
Complete the following steps to assemble the M2540A ultrasound system:
Power Cord and
Monitor
Installation
➤ Installing the Power Cord and Monitor
1. Attach the system power cord to the receptacle at the bottom rear of the system.
2. Loosen the screw that secures the cord retainer, rotate the retainer 180 degrees, and
tighten the screw.
3. Rotate the twivel base to its proper position. (The monitor cables pass through the rear of
the twivel base.)
4. Install the monitor on the twivel.
5. Connect the VGA cable the and monitor power cable to the monitor.
Peripherals
Installation
When installing peripherals, keep the following points in mind:
•
No more than two peripherals can be mounted on the cart.
•
When two peripherals are installed, the smaller one must be on top of the larger one.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
•
Page 60
Installation: Assemble the System
Peripherals should mount toward the rear of the system, with about one centimeter
between the lower peripheral and the inside edge of cart top.
➤ Installing a VCR
1. Loosen the peripheral strap, and slide the VCR under it.
2. Connect the power cable, audio input cable, audio output cable, and S-video cable
to the VCR.
3. Connect the serial cable to the VCR, and screw it in place.
4. If another peripheral is part of the installation, place the VCR peripheral tray on the top of
the VCR.
5. Tighten the peripheral strap on top of the peripherals.
6. Turn on the VCR power switch.
7. Set the VCR switches to the following settings:
•
Audio Out left switch: Mix
•
Audio Out right switch: Norm
•
Input: S-Video
•
S-VHS: Auto
•
Menu: Off
•
Mode Lock: Off
8. Save the VCR manual and any other documentation from the shipping box.
➤ Installing a Sony Color Printer
NOTE If a VCR is also part of the installation, install it with its tray before the printer.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 61
Installation: Assemble the System
1. Loosen the peripheral strap, and slide the printer under it.
2. Connect the power cable and a USB cable to the printer.
3. Take a cable stop bracket from the accessories shipping box and slip it onto the peripheral
strap.
4. Hook the bracket in a slot of the cart top or the peripheral tray so the bracket is as close as
possible to the printer.
5. Tighten the strap.
6. Switch the printer power switch on.
7. Save the following material from the printer’s shipping box:
•
Printer paper
•
Print ribbon
•
Cleaning ribbon
•
Printer manual
•
Any other documentation
➤ Installing a Sony Black-and-White Printer
NOTE If a VCR or color printer is also part of the installation, install it with its tray before the
black-and-white printer.
1. Loosen the peripheral strap, and slide the printer under it.
2. Connect the power cable and a USB cable to the printer.
3. Take a cable stop bracket from the accessories shipping box and slip it onto the peripheral
strap.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 62
Installation: System Startup
4. Hook the bracket in a slot of the cart top or the peripheral tray so the bracket is as close as
possible to the printer.
5. Tighten the strap.
6. On the back of the printer, set dip switch number 5 to the UP position. All the other
switches should be down.
7. Switch the printer power switch on.
8. Save the following material from the printer’s shipping box:
System
Startup
•
Thermal paper
•
Cleaning sheet
•
Printer manual
•
Any other documentation
Complete the procedures in this section to set up the system for the customer’s use.
➤ Powering On the System
1. Connect the system power cord to a wall outlet.
2. Press the power switch on the front of the system’s PC.
Monitor Signal
Voltage
When shipped from the factory, the monitor signal input voltage is set to 1.0 V. This must be
reset to 0.7 V, using the following procedure:
➤ Setting the Monitor Signal Input Voltage
1. Disconnect the power cord from the rear of the monitor.
2. Press the two right-hand monitor buttons, and hold them in while reconnecting the
power cord.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 63
Installation: System Startup
3. Press the two center monitor buttons.
The OSD Main Menu displays.
Figure 5-1
OSD Main Menu
4. The two right-hand monitor buttons scroll up or down in the OSD Main Menu. Use them to
select Advanced Controls.
5. Press the far left monitor button.
The Advanced Controls menu displays.
Figure 5-2
Advanced Controls Menu
6. Use the two right-hand monitor buttons to select INPUT 0.7V.
7. Press the far left monitor button.
8. Use the two right-hand monitor buttons to select SAVE & RETURN.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 64
Installation: System Configuration
9. Press the far left monitor button.
10. On the OSD Main menu, use the two right-hand monitor buttons to select EXIT OSD.
11. Press the far left monitor button to exit OSD.
Printer
Preparation
➤ Preparing the Sony Black-and-White Printer
1. Load thermal paper in the printer’s paper drawer.
2. Set the paper type switch inside the printer’s paper drawer to the loaded paper type. (The
paper type is marked on the paper’s foil wrapper, and on the tube at the center of the paper
roll.)
➤ Preparing the Sony Color Printer
1. Load paper in the printer’s paper tray.
2. Insert the paper tray in the printer.
NOTE The paper tray does not sit flush with the printer’s front.
3. Turn the printer power on, to move the print head from its shipping park position.
4. Load the print ribbon.
NOTE Do not confuse the print ribbon with the cleaning ribbon.
System
Configuration
The following procedures configure the system’s software:
NOTE If the system is to communicate over a network, the customer site’s Network
Administrator must be available to supply configuration data.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Localization
➤ Setting the Localization Parameters
1. Press Setup. The Setup window displays.
Figure 5-3
Setup Window
Page 65
Installation: System Configuration
2. Click the System tab.
3. Click the Top Border button. The Top Border window opens.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-4
Top Border Window
4. Enter the institution name, and click OK.
5. On the Setup window, click the Date/Time button.
The Date and Time Properties window opens.
Page 66
Installation: System Configuration
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-5
Page 67
Installation: System Configuration
Date and Time Properties Window
6. Click the Time Zone tab.
7. Choose the local time zone from the drop-down list.
8. Click the Date & Time tab.
9. Change the settings to the local date and time, and click OK.
10. On the Setup window, click the Locale button. The Regional and Languages Options
window opens.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-6
Page 68
Installation: System Configuration
Regional and Languages Options Window (Regional Options)
11. Click the drop-down list in the Standards and Formats section, and select the
configuration set in the list that most nearly matches the site locale.
12. If the number, currency, time, or date formats in the selected configuration set do not match
the site locale, click Customize and change the incorrect settings.
NOTES
• Customizing the date format to one that’s longer than any in the drop-down list may cause
dates in the display to be truncated.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
•
Page 69
Installation: System Configuration
The locale selected in Standards and formats section (step 11) determines what language the
online Help displays in, if that language is available. If it’s not, Help uses the same language as
the rest of the system.
13. Click the Location drop-down list, and select the location that most nearly matches the
site.
14. On the Regional and Languages Options window, click the Languages tab.
Figure 5-7
Regional and Languages Options Window (Languages)
15. Click the Language used in menus and dialogs menu, and select the local language.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 70
Installation: System Configuration
16. Click the Advanced tab.
Figure 5-8
Regional and Languages Options Window (Advanced)
17. Click the drop-down menu and select the language for non-Unicode programs. The
selection should be the one that most closely matches that chosen in step 13.
18. Click OK to close the Regional and Languages Options window.
NOTE After any change to settings in the Regional and Language Options window, reboot the
system. You may be prompted to restart or to “use existing files.” Click Yes in either
case.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Options
Installation
Page 71
Installation: System Configuration
The M2540A leaves the factory with all purchased options enabled. If an option must be enabled
in the field, complete the following procedure:
➤ Installing Options
1. On the Setup window, click the Options tab.
Figure 5-9
Setup Window (Options)
2. Click the Options... button. An installation window opens.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-10
Page 72
Installation: System Configuration
Options Installation Window
3. Select an application to enable by clicking it so it is highlighted.
4. Click Install.
5. Enter the access code in the window, and click OK.
The selected option is enabled.
6. Repeat steps 3 through 5 to enable any additional options.
7. When all the required options are installed, click OK.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
DICOM
Network
Configuration
Complete the following procedures to configure the system for DICOM communications over a
network. The procedure requires information from the customer’s network administrator.
➤ Changing the System’s Network Parameters
1. Press the Setup key. The Setup window displays.
2. Click the DICOM button.
The DICOM Setup window displays.
Figure 5-11
Page 73
Installation: System Configuration
DICOM Setup Window
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 74
Installation: System Configuration
3. Click the This System tab.
4. Click Network Settings.
5. Enter the settings provided by the customer.
6. Click OK.
NOTE If the system will join a domain, or if you must enter a network ID, you must use the
following procedure to change the network settings.
➤ Using the Field Service Options Window for Advanced Network Settings
1. On the Setup window, click the Options tab.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-12
Setup Window (Options)
2. Click Service.
The Field Service Options window opens.
Page 75
Installation: System Configuration
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-13
Page 76
Installation: System Configuration
Field Service Options Window
3. Click Control Panel.
The Control Panel window opens.
4. Click Switch to Classic View.
The display changes to Windows Classic format.
5. Double-click Network Connections.
6. Double-click Local Area Connections.
7. Click the General tab.
8. Click Internet Protocol (TCP/IP).
9. Click Properties.
10. Enter the values supplied by the customer.
NOTE After opening the Control Panel window, you must reboot the system before it will
work as an ultrasound imaging device. This is true even if no settings are changed.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 77
Installation: System Configuration
➤ Adding Server Information
1. On the DICOM Setup window, click the Servers & Roles tab.
Figure 5-14
DICOM Setup Window (Servers & Roles)
2. In the Servers section, click New.
3. Enter the server information supplied by the network administrator in the appropriate fields.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 78
Installation: System Configuration
NOTES
• The value in the Name: field need not be the server’s DNS or network name. It is used only
to identify the server in error messages and dialog boxes.
•
The value in the Host: field is the server’s IP address, or the name that the DNS server
resolves to an IP address.
4. Click Done.
5. Make sure the network cable is connected, and click Ping.
The M2540A tests communication with the server, and opens a window that shows the
result.
➤ Assigning Servers to DICOM Roles
1. In the Roles section under the Servers & Roles tab, click Modify.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-15
Page 79
Installation: System Configuration
DICOM Setup Window (Servers & Roles)
2. Select the correct server for each role from the drop-down lists.
3. To modify or verify attributes of storage or print servers, click Advanced next to the
server’s drop-down list.
4. Click Done.
➤ Configuring Autodelete
The following procedure configures how the system automatically deletes studies.
1. On the DICOM Setup window, click the This System tab.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-16
Page 80
Installation: System Configuration
DICOM Setup (This System)
2. Click Disk Full Strategy.... The Disk Full Strategy window opens.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-17
Page 81
Installation: System Configuration
Disk Full Strategy Window
3. Set the parameters to the customer’s preference.
4. Click OK to close the window.
➤ Configuring Logging
1. On the DICOM Setup window, click the Diagnostics tab.
2. Click Logging.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-18
Page 82
Installation: System Configuration
DICOM Setup Window (Diagnostics)
3. Under DICOM log contents, select No logging (disables logging).
4. Under Service log, select Enable Service logging.
5. Under System Log, make sure the Logging level is set to Error Level Logging.
6. Click OK to close the DICOM Setup window.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 83
Installation: System Configuration
System
Hardware
Configuration
The following procedures configure the system for the installed peripherals and system
hardware.
Figure 5-19
Setup Window (Peripherals)
➤ Assigning Record Buttons
1. On the Setup window, click the Peripherals tab.
2. Select a peripheral device from the Record, Rec2, and Rec3 drop-down lists.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
➤ Assigning Option Buttons
1. On the Setup window, click the Options tab.
Figure 5-20
Setup window (Options)
2. Click Keyboard....
The Define Option Keys window opens.
Page 84
Installation: System Configuration
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-21
Page 85
Installation: System Configuration
Define Option Keys Window
3. Click the drop-down list for each option key, and select the appropriate functions.
NOTE The drop-down lists include only those options that are part of the purchased software
features.
4. Click OK.
VCR configuration
The system is configured at the factory for NTSC format. To reconfigure the system for PAL
format, complete the following procedure:
➤ Configuring the System for PAL Format
1. On the Setup window, click the Peripherals tab
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Figure 5-22
Setup Window (Peripherals)
.
2. Click Install Software Drivers.
The Install Software Drivers window opens.
3. Click Video Installation.
4. Click OK.
5. Select PAL.
6. Click OK.
Page 86
Installation: System Configuration
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 87
Installation: System Configuration
The driver is reinstalled with the correct configuration. This takes about 20 seconds.
7. Click Close to close the Setup window.
The new setting takes effect after the system is restarted.
➤ Setting the Monitor Color Temperature
Cardiologists prefer a bluer tint to the monitor display than radiologists do. Pressing the two left
monitor buttons together toggles between the two color settings.
•
Setting 1 is appropriate for cardiology use.
•
Setting 2 is appropriate for non-cardiology use.
To set the monitor color temperature:
1. In normal ultrasound mode, press the two left monitor buttons at the same time.
2. A window displays the current color temperature setting.
3. To change the setting, press the two left buttons again, while the current setting is displayed.
Configuring for printers
The drivers for Sony UP-D895, Sony UP-D21MD, HP920, and HP1200 printers are loaded
automatically. These printers are ready to use when connected to a USB port.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Customer
Training
Page 88
Installation: Customer Training
The customer needs some instruction in maintenance and use of the system:
•
Instruct the customer how to back up and restore presets (see “Backing Up and Restoring
Presets” on page 143). Make a backup floppy disk of the customer’s presets and configurations, and store it behind the lower enclosure’s left rear door. If the software is reloaded
later, the backup floppy disk lets you quickly restore settings and options.
•
Explain the importance of letting the system shut down completely before disconnecting the
power cord.
•
Demonstrate how to clean the air filter (“Cleaning the Air Filter” on page 131), and explain
the importance of the filter to system performance.
•
Demonstrate how to remove and clean the trackball. (See “Cleaning the Trackball” on
page 132.)
•
If the system is connected to a DICOM network, show the customer the job queue, and
explain that the queue is empty if all studies have transferred successfully.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
6
Page 89
Performance Tests: Overview
Performance Tests
Overview
This chapter includes all test procedures for diagnosing problems with the M2540A and assuring
its safe and accurate operation.
The following sections are in this chapter:
Electrical
Safety Tests
•
“Electrical Safety Tests” on page 89
•
“PC Diagnostics” on page 105
•
“Resident Self Tests” on page 107
The tests described on the following pages are part of a comprehensive preventive maintenance
program. They detect abnormalities that could prove dangerous to patient or operator.
NOTES
• The system power supply is a self-contained unit that is safety-tested by its manufacturer. No
further safety testing is needed when the power supply is installed or replaced.
•
After any service or maintenance, perform the required tests to assure that system safety
and functions are not compromised.
•
Inspect power cords frequently, especially at their ends.
The following safety tests are described in this section:
•
The Chassis to Ground Resistance test checks the entire system for electrical resistance
between the chassis and ground. See “Chassis to Ground Resistance Test” on page 90.
•
The Ground Wire Leakage Current test checks the entire system for leakage on ground
leads. See “Ground Wire Leakage Current Test” on page 92.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 90
Performance Tests: Electrical Safety Tests
•
The ECG Lead Leakage Current test checks ECG leads connected to the optional Physio
module for electrical leakage. See “ECG Lead Leakage Current Test (Source)” on page 94.
•
The ECG Lead Isolation Leakage test checks ECG leads by applying voltage from the mains to
the leads, to assure that the system is isolated from such voltages. See “ECG Lead Isolation
Leakage Current Test” on page 96.
•
The Transducer Leakage Current test checks a transducer for electrical leakage while it is
connected to the ultrasound system. The system sends normal operating voltages to the
transducer, which is tested for leakage. See “Transducer Leakage Current Test Procedure”
on page 100.
•
The Transducer Isolation Leakage Current test checks a transducer for electrical leakage by
applying mains voltage to the leads, and checking the transducer for leakage. See “Transducer
Isolation Leakage Current Test” on page 102
All tests can be performed using commercially available safety analyzer test equipment. Basic
measurements can be performed with multifunction instruments like the HP 3469A multimeter.
NOTE These procedures require a safety analyzer. Routinely use a safety analyzer as a final
step in any repair or upgrade, to maintain agency approved status. The safety analyzer is
also useful in detecting abnormalities of line voltage, grounding, and total current loads.
Follow the instructions of the analyzer manufacturer.
The limits referenced in these tests are prescribed by UL, CSA, and IEC. Local regulations may
require additional tests.
Chassis to
Ground
Resistance Test
This test checks the entire system for electrical resistance between the chassis and ground.
Figure 6-1 on page 91 shows the basic electrical concept of the ground resistance test. Use a
safety analyzer and complete the procedure that follows the figure.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 91
Performance Tests: Electrical Safety Tests
WARNING
Some users routinely perform a safety-earth or ground-bonding test at currents in excess of
10 amps. Test currents in excess of 1 amp will likely exceed the impedance limit specification,
and can damage the RFI protection finger contacts. Exposed metal on the transducer assembly,
including the connector, are for RFI and are not safety grounds.
Figure 6-1
Chassis to Ground Resistance Test Diagram
Power cord disconnected from AC power.
Hot -
System
under
test
Neutral -
Ground wire
Green or
Green/Yellow
Chassis
ground
R
(resistance)
300e036
LIMIT: UL, CSA and IEC:R = 200 milliohms maximum
➤ Chassis to Ground Resistance Test Procedure
To test the system for resistance between chassis and ground:
1. Inspect the power cord for cracks and wear.
2. Set the mode on the analyzer to measure resistance in the power cord.
3. Plug the analyzer into an available AC wall outlet. Plug the ultrasound system power plug into
the test receptacle on the analyzer.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 92
Performance Tests: Electrical Safety Tests
4. Make the appropriate connections between the analyzer and the ground lug on the
ultrasound system’s I/O panel.
5. Read chassis ground resistance in milliohms. Flex the ultrasound power cord during the test
to detect intermittent changes in resistance value.
6. Record the highest resistance value measured in step 5. Check that the highest resistance
value is within the limit specified in Figure 6-1on page 91.
NOTE If the reading exceeds the specified limit, check the power cord and the associated
primary wiring.
A comprehensive ground impedance measurement can be performed using the safety analyzer.
The impedance test drives a load current through the ground wire while measuring the AC
voltage drop across the entire length of the power cord and to the system chassis. The reading
will be in milliohms.
Ground Wire
Leakage
Current Test
This test checks the entire system for leakage on chassis ground wires. Figure 6-2 on page 93
shows the basic electrical concept of the test. Use a safety analyzer and complete the procedure
that follows the figure.
CAUTION
If the safety analyzer is used for an extended period, it may be damaged by the high current draw
of the system.
WARNING
This test can be hazardous. Avoid any contact with line voltage. Any time during the test that the
ground connection is open, do not touch the M2540A chassis or the patient cable.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 93
Performance Tests: Electrical Safety Tests
Figure 6-2
Ground Wire Leakage Current Test Diagram
Power cord connected to AC power.
Hot -
System
under
test
(open neutral)
Neutral -
Powered on
(open ground)
Ground wire
Green or
Green/Yellow
LIMITS:
AC microammeter
I
(current)
Ground wire open for Normal condition
Ground wire and neutral wire open
simultaneously for Single Fault condition
UL: I = 300 microamperes Normal condition,
1000 microamperes Single Fault condition
CSA and IEC: I = 500 microamperes Normal condition,
1000 microamperes Single Fault condition
7ASW025
➤ Ground Wire Leakage Current Test Procedure
To test the system’s ground wiring for leakage:
1. Set the mode on the analyzer to detect leakage.
2. Plug the analyzer into an available wall outlet. Plug the ultrasound system power plug into the
test receptacle on the analyzer. Turn on the ultrasound system’s power by starting the
internal PC.
3. Take ground wire leakage current measurements in an open ground condition, with both
normal and reverse polarity. Record the highest value, and compare it to the limit specified
for Normal condition in Figure 6-2 on page 93.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 94
Performance Tests: Electrical Safety Tests
4. Take ground wire leakage current measurements in an open ground and open neutral
condition, with both normal and reverse polarity. Record the highest value, and compare it
to the limit specified for Single Fault condition in Figure 6-2 on page 93.
A reading higher than acceptable limits can indicate a problem with the power cord, with its
associated connections, or with the power transformer.
ECG Lead
Leakage
Current Test
(Source)
This test checks ECG leads connected to the optional Physio module for electrical leakage.
Figure 6-3 on page 95 shows the basic electrical concept of the ECG Lead Leakage Current test.
Use a safety analyzer and complete the procedure that follows the figure.
WARNING
This test can be hazardous. Avoid any contact with line voltage. Any time during the test that the
ground connection is open, do not touch the M2540A chassis or the patient cable.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 95
Performance Tests: Electrical Safety Tests
Figure 6-3
ECG Lead Leakage Current Test Diagram
Power cord connected to AC power.
Hot Neutral -
(open neutral)
System
under
test
ECG
cable
Powered on
(open ground)
Ground wire:
Green or Green/Yellow
Ground wire closed for Normal condition,
AC microammeter
Ground wire open for first Single Fault condition,
Neutral wire open (ground closed) for second Single Fault condition
I
(current)
LIMITS: UL, IEC, and CSA:
ECG input (defibrillator proof):
For
I = 10 microamperes Normal condition
50 microamperes Single Fault condition
7ASW026
➤ ECG Lead Leakage Current Test Procedure
1. Set the analyzer to test ECG leads.
2. Plug the analyzer into an available AC wall outlet. Plug the ultrasound system power plug into
the test receptacle on the analyzer.
3. Power the ultrasound system by starting its internal PC.
4. Connect all ECG leads to the ultrasound system and to the appropriate jacks on the analyzer.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 96
Performance Tests: Electrical Safety Tests
5. Take ECG lead leakage current measurements with both normal and reverse polarity. Check
that the highest value is within the limit specified for Normal condition in Figure 6-3 on
page 95.
6. Take ECG lead leakage current measurements in open ground condition, with both normal
and reverse polarity. Check that the highest value is within the limit specified for Single Fault
condition in Figure 6-3. Write down the highest value; this is the value for the first single fault
condition.
7. Take ECG lead leakage current measurements in open neutral condition, with both normal
and reverse polarity. Check that the highest value is within the limit specified for Single Fault
condition in Figure 6-3. Write down the highest value; this is the value for the second single
fault condition.
8. Record the highest current value measured in step 6 and step 7. Check that the highest value
is within the limit specified for Single Fault condition in Figure 6-3.
Failure to meet the specified limits may indicate a fault with the isolation of the Physio module.
ECG Lead
Isolation
Leakage
Current Test
This test checks ECG leads by applying voltage from the mains to the ECG leads, to check that
the system is isolated from such voltages. Figure 6-4 on page 97 shows the basic electrical
concept of the ECG Lead Isolation Leakage Current test. Use a safety analyzer and complete the
procedure that follows the figure.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 97
Performance Tests: Electrical Safety Tests
Figure 6-4
ECG Lead Isolation Leakage Current Test Diagram
ECG patient
cable
Power cord connected to AC power.
Hot Neutral -
System
under
test
Powered on
Ground wire
Green or
Green/Yellow
LIMITS:
UL, IEC, and CSA: I = 50 microamperes RMS
WARNING
AC microammeter
Mains
Voltage
I
(current)
1011E29
This test is hazardous. It applies line voltage to the ECG leads. Avoid accidental contact with the
line voltage. Do not touch the chassis or the ECG cable while performing the test. Keep the
ECG cable at least 20 cm from any grounded or conductive surfaces.
NOTE During the isolation test, select only normal polarity. Do not impose open ground or
open neutral conditions.
➤ ECG Lead Isolation Leakage Current Test Procedure
1. Set the analyzer’s mode to test ECG isolation.
2. Plug the analyzer into an available AC wall outlet. Plug the ultrasound system power plug into
the test receptacle on the analyzer.
3. Power up the ultrasound system by starting its internal PC.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 98
Performance Tests: Electrical Safety Tests
4. Connect ECG leads to the ultrasound system, but do not connect the ECG leads to the
analyzer yet.
5. In normal polarity, perform a lead isolation test. Record the reading in microamperes. This
reading is the correction factor used in step 7.
6. Connect all ECG leads to the appropriate jacks on the analyzer and perform a lead isolation
test. Record the reading in microamperes.
7. Subtract the step 5 correction factor from the step 6 reading to get an accurate isolation
leakage measurement. Record this value. Check that the value is within the limit specified in
Figure 6-4 on page 97.
NOTE Some analyzers do not require subtracting the correction factor from the lead isolation
reading. Refer to the analyzer’s documentation for more information.
Transducer
Tests
Two electrical leakage current tests for transducers are described in this section. To insure
patient safety, it is very important to verify the integrity of the insulating layers of all transducers.
When performing the safety tests, saline solution in a container is used as a conductive medium
(see Figure 4-4 on page 53). The solution penetrates any cracks or holes in the transducer
insulation and provides an electrical path between the submerged lead wire and the inner
transducer shield.
“Transducer Safety Testing: Test Setup and Theory” on page 52 includes supporting information
about the transducer tests. This is supplemental information, and is not required to complete the
tests.
NOTE Before proceeding with any transducer test, thoroughly inspect the transducer. If the
transducer is a TEE, check that its steering controls are working properly.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 99
Performance Tests: Electrical Safety Tests
The following tools are required for transducer safety tests:
•
Safety analyzer
•
Saline holder
•
ECG lead wire
•
Saline solution. If saline is not available, mix 27 grams of table salt in 3 liters of tap water.
Transducer Leakage Current Test (Source)
This test checks a transducer for electrical leakage while it is connected to the ultrasound
system. The system sends normal operating voltages to the transducer, and leakage is measured
using a safety analyzer. Figure 6-5 on page 100 shows the basic electrical concept of the
Transducer Leakage Current test. Complete the procedure that follows the figure.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 100
Performance Tests: Electrical Safety Tests
Figure 6-5
Transducer Leakage Current Test Diagram
Power cord connected to AC power.
Hot Neutral -
System
under
test
(open neutral)
Transducer
submerged in
saline
Powered on
(open ground)
Ground wire:
Green or Green/Yellow
AC microammeter
Ground wire closed for Normal condition,
Ground wire open for first Single Fault condition,
Neutral wire open (ground closed) for second Single Fault condition
I
(current)
ECG
lead
wire
LIMITS: UL, IEC, and CSA:
type transducers:
For
I = 10 microamperes Normal condition,
50 microamperes Single Fault condition
For
type transducers:
I = 100 microamperes Normal condition,
500 microamperes Single Fault condition
7ASW027
➤ Transducer Leakage Current Test Procedure
1. Set the analyzer mode to test ECG leads.
2. Plug the analyzer into an available AC wall outlet. Plug the ultrasound system power plug into
the test receptacle on the analyzer.
3. Power up the ultrasound system by starting its internal PC.
4. Plug the transducer to be tested into the ultrasound system. Connect an ECG lead wire to
the appropriate jack on the analyzer.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 101
Performance Tests: Electrical Safety Tests
5. Fill a test container with enough saline to completely cover the appropriate parts of the
transducer. Insert the exposed end of the ECG lead into the saline, and carefully insert the
transducer:
CAUTION
•
For transthoracic and endocavity transducers, submerge the head and 5 cm of the
cable. Be careful not to submerge the connector.
•
For TEE transducers, submerge all of the flexible shaft that would normally enter the
body of the patient: 100 cm for adult TEE, 60 cm for pediatric TEE.
When submerging a TEE transducer, be careful to not submerge its control handle or allow
saline to contact its control handle. Liquid inside the control handle causes corrosion and failure.
6. Set the analyzer to read leakage current in microamperes.
7. Read the current in both normal and reverse polarity, and record the highest value. Check
that the highest value is within the limit specified for Normal condition in Figure 6-5 on
page 100. (Match the transducer type symbol on the transducer connector or cable with the
symbol in the figure.)
8. Read the current with an open ground condition imposed, in both normal and reverse
polarity. Write down the highest value; this is the value for the first single fault condition.
9. Read the current with an open neutral condition imposed, in both normal and reverse
polarity. Write down the highest value; this is the value for the second single fault condition.
10. Check that the highest current value measured in step 8 and step 9 is within the limit
specified for Single Fault condition in Figure 6-5.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 102
Performance Tests: Electrical Safety Tests
Values exceeding the limits may indicate a fault in the transducer housing or the cable sheath.
To locate a fault precisely, repeat the measurement while slowly inserting the transducer into
the saline. The aberrant reading appears when the fault in the cable enters the saline.
NOTE TEE and endocavity transducers have a grounded jacket just under the outer plastic skin
of the cable. Their leakage currents can measure within the specified limits even if there
is a fault in the outer skin. Step 11 tests for this condition.
11. In normal polarity with an open ground condition imposed, measure ground wire leakage
(see “Ground Wire Leakage Current Test” on page 92). Compare this to the highest value
for transducer leakage current, Single Fault condition obtained in step 10.
If the transducer leakage is greater than 80% of the chassis leakage, there is a fault in the
transducer. To locate the fault, slowly insert the transducer in the saline, as in step 10.
Transducer Isolation Leakage Current Test
Figure 6-6 on page 103 shows the basic electrical concept of the Transducer Isolation Leakage
Current test. The transducer is submerged in a container of saline solution. Mains AC voltage is
introduced into the saline solution, and leakage current in the transducer is measured using a
safety analyzer. Complete the procedure that follows the figure.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 103
Performance Tests: Electrical Safety Tests
Figure 6-6
Transducer Isolation Leakage Current Test Diagram
Power cord connected to AC power.
System
under
test
Hot Neutral -
Transducer
submerged in
saline
Powered on
Ground wire
Green or
Green/Yellow
AC microammeter
Mains
voltage
LIMITS: UL, IEC, and CSA:
type transducers:
For
I = 50 microamperes
For
I
(current)
ECG
lead
wire
type transducers:
I = 500 microamperes
1101e30
WARNING
This test is hazardous. It applies line voltage to the ECG and transducer cables. Avoid accidental
contact with the line voltage. Do not touch the chassis, or the ECG or transducer cables while
performing the test. Keep the ECG and transducer cables at least 20 cm from any grounded or
conductive surfaces.
NOTE During the isolation test, select only normal polarity. Do not impose open ground or
open neutral conditions.
➤ Transducer Isolation Leakage Current Test Procedure
1. Set the analyzer to test ECG.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 104
Performance Tests: Electrical Safety Tests
2. Plug the analyzer into an available AC wall outlet. Plug the ultrasound system power plug into
the test receptacle on the analyzer.
3. Power up the ultrasound system by starting its internal PC.
4. Plug the transducer to be tested into the ultrasound system.
5. Fill a test container with enough saline to completely cover the appropriate parts of the
transducer.
6. Insert the exposed end of the ECG lead wire into the saline, then carefully insert the
transducer:
CAUTION
•
For transthoracic and endocavity transducers, submerge the head and 5 cm of the
cable. Be careful not to submerge the connector.
•
For TEE transducers, submerge all of the flexible shaft that would normally enter the
body of the patient: 100 cm for adult TEE, 60 cm for pediatric TEE.
When submerging a TEE transducer, be careful to not submerge its control handle or allow
saline to contact its control handle. Liquid inside the control handle causes corrosion and failure.
7. Measure the isolation leakage current of the transducer. Record the value, and check that it
is within the limit specified in Figure 6-6 on page 103.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 105
Performance Tests: PC Diagnostics
PC
Diagnostics
PC problems can often be diagnosed using the IBM Drive Fitness test or Checkit Pro.
IBM Drive
Fitness Test
The Drive Fitness test (DFT) is described at:
http://www.storage.ibm.com/hdd/technolo/dft/dftnew.htm
You must make a bootable floppy disk to use the Drive Fitness test.
➤ Creating a DFT Bootable Floppy Disk
1. Download the bootable version of the DFT setup program from
http://www.storage.ibm.com/hdd/support/download.htm
into a temporary directory on your PC.
2. Click Start, then select Run.
3. Click the Browse button to locate the setup program.
4. Click the filename, then click Open.
5. Click OK to run the setup program.
6. Insert a blank formatted 1.44 MB diskette when prompted.
➤ Testing PC Functions Using the Drive Fitness Test
1. Change the VGA display height adjustment to show the whole screen. See “Adjusting VGA
Vertical Size” on page 128.
2. Change the boot sequence so the floppy disk is the first item. (See “Changing the Boot
Sequence” on page 130.)
3. Insert the DFT disk in the floppy disk drive.
4. Reboot the system
5. Select ATA support.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 106
Performance Tests: PC Diagnostics
6. Follow the onscreen instructions.
NOTE Ignore the error messages about missing SCSI disk controllers.
For detailed information on using DFT, go to:
http://service.boulder.ibm.com/storage/hddtech/DFT32-V300USER-DOC.pdf
NOTE When DFT testing is complete, set the boot sequence so that the CD-ROM drive is
first. (See “Changing the Boot Sequence” on page 130.)
Checkit Pro
Test PC functions using the CheckIt Pro software on the Diagnostic floppy disk.
➤ Testing PC Functions Using Checkit Pro
1. Change the VGA display height adjustment to show the whole screen. See “Adjusting VGA
Vertical Size” on page 128.
2. Change the boot sequence so the floppy disk is the first item. (See “Changing the Boot
Sequence” on page 130.)
3. Insert the Diagnostic disk in the floppy disk drive.
4. Restart the system
5. Run the CheckIt Pro application.
6. When the CheckIt Pro testing is complete, enter the BIOS again, and make the CD-ROM
drive the first item in the boot sequence. (See “Changing the Boot Sequence” on page 130.)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 107
Performance Tests: Resident Self Tests
Resident Self
Tests
The M2540A Resident Self Tests (RST) are a suite of tests that verify system hardware, using no
external instrumentation.
The RST suite consists of tests for custom M2540A hardware and software. The Resident Self
Tests also exercise individual subsystems such as the acoustic processor and the beam former
processor.
The stand-alone RST application provides access to all the tests. RST also provides information
on hardware and software, and service information on the ultrasound system. System
information, test pass and fail results, and errors can be viewed, saved, and printed by the RST
application.
Availability
The RST application is available whenever the ultrasound application is running. You can also
launch RST as the system powers up. When it starts, the RST application stops the main
ultrasound application.
Logging On
To launch the RST application, see “Launching the RST Application” on page 113. The RST
application opens with a logon window, which asks you to enter a user name and a password.
The logon window also includes a check box that skips the logon dialog the next time the RST
application is launched. Only service personnel can enable that option, and it only applies for
24 hours. After 24 hours, the logon dialog shows at launch, even if the option is selected.
Customers or service personnel who log on with a valid user name and password can create and
modify service log entries. See “Using the Service Log” on page 125.
If RST is installed on the system, logging on is not required.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 108
Performance Tests: Resident Self Tests
User Interface
You can control the RST software using the system control panel’s keyboard and trackball. When
using the system control panel, the two keys just above the trackball perform the functions of
mouse buttons. The Enter key acts as a left mouse button, and the Select key acts as a right
mouse button.
Figure 6-7 shows the RST window.
Figure 6-7
RST Window
A tab view is on the left side of the RST window. On each tab is tree control that displays a
hierarchy of supported functions. A list view is on the right side. The list view displays information
related to items selected in a tree control.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 109
Performance Tests: Resident Self Tests
There are three tabs in the RST window:
Information
Types
•
The Info tab shows software, hardware, and system information. See “Information Types” on
page 109.
•
The Test tab invokes various test modes and displays test status and results. See “Tests” on
page 111
•
The Log tab displays errors and test parameter data in the event viewer and displays service
log entries in the service log. See “Viewing Error Logs” on page 119. There is also a service
log on the Log tab, for service personnel to record information about the system. See “Using
the Service Log” on page 125.
The RST application provides information on the hardware and the software of the ultrasound
system. You can select the Info tab and choose specific information types in the tree control.
Choosing a tree item and pressing the Select key opens a drop-down list that contains Save Info
and Print Info functions. Information can be saved to a text file or printed on a connected plain
paper printer.
System Information
The RST application provides system information that includes the system serial number, the
institution name, installed software and hardware options, and installed peripherals. Figure 6-7,
on page 108 illustrates this display.
The software information provided includes the revision number and the revision date and time
of the operating system, the main ultrasound application, and the common off-the-shelf (COTS)
software.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 110
Performance Tests: Resident Self Tests
Hardware Information
The hardware information provided includes information about the custom M2540A boards and
transducer connector modules, identified as shown in the following figure:
Figure 6-8
Hardware Information Display
NOTE The figure shows an example. The connector information displayed depends on the
connector modules installed.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 111
Performance Tests: Resident Self Tests
Tests
The following figure shows the RST Test display.
Figure 6-9
RST Test Display
Available Tests
The following tests are available when you log on using a valid service name and password:
•
Basic Test: A basic test of custom M2540A hardware. The basic test executes in less than
five minutes. The test requires no operator interaction while executing. See “Running a Basic
Test” on page 114 for instructions on running basic tests.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 112
Performance Tests: Resident Self Tests
•
Extended Test: This is a comprehensive test of M2540A hardware. The test requires no
operator interaction while it executes. The test verifies detailed system operation with fault
isolation to the board level. This test reports only failures that adversely impact system
performance. See “Running an Extended Test” on page 115 for instructions on running
extended tests.
•
Interactive Test: These tests verify operation of the system’s controls, and require your
participation. Included are tests of the display and system control panel. See “Running an
Interactive Test” on page 118 for instructions on running interactive tests.
Testing Options
The left-hand panel under the RST Test tab contains three testing options and the Run button
that begins a selected test. When an interactive test begins, the Run button is grayed out.
NOTE The RST tests do not execute properly when a transducer is connected to the system.
Disconnect all transducers before beginning any RST testing.
The three test options are:
•
Stop On Errors stops all tests when an error occurs. If this option is not enabled, the
selected tests run until completed. Any errors occurring during the tests are recorded in the
error log.
•
Save Parameter Data saves the measured test parameters.
•
Repeat Test Count defines the number of time tests are repeated. The default is one. A
value of zero runs tests continuously.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 113
Performance Tests: Resident Self Tests
Test Results
The test results are shown in the list view on the right-hand side of the RST window. The display
shows the name of each test, the components it tested, and the number of times the component
passed and failed the test.
To view details of the test results, click the Log tab, and select the information type from the
Event Viewer tree. For information on errors generated during tests, see “RST Test Log” on
page 121.
When the tests are finished, the following message box opens:
Service Log
You can enter notes in the service log section of the event viewer, to record service procedures
you perform or problems you encounter. See “Using the Service Log” on page 125.
➤ Launching the RST Application
You can launch the RST application as the PC boots up or while the ultrasound application is
running. The procedure is the same in both cases.
To launch the RST application when the system is fully booted:
1. Launch the ultrasound application.
2. Press the key combination Ctrl+Alt+R.
To launch the RST application during system boot-up:
•
Press the key combination Ctrl+Alt+R while the ultrasound splash screen is on the display.
When it launches, the RST application closes the ultrasound application.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 114
Performance Tests: Resident Self Tests
➤ Closing the RST Application
You can close the RST application using either of the following two methods:
•
Click the Close button at the upper right corner of the RST window.
•
Press the Alt and Report keys together.
When the RST application closes, a window asks if you want to reboot.
➤ Running a Basic Test
The basic test checks custom M2540A hardware. The basic test executes in less than five
minutes and requires no operator interaction while executing.
To run a basic test:
1. Launch the RST application. (See “Launching the RST Application” on page 113.)
2. Log on using a valid service name and password.
3. Click the Test tab in the main RST window.
4. Click Basic Test in the tree view.
5. To run the test a specific number of times, enter the number in the Repeat Test Count:
field. To run the test continuously, enter zero in the field.
6. Click Run. Testing begins.
7. When the testing is done, click OK in the message box.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 115
Performance Tests: Resident Self Tests
➤ Running an Extended Test
The extended tests check the system’s hardware to the board level, and do not require your
participation after they are started.
To run an extended test:
1. Launch the RST application. (See “Launching the RST Application” on page 113.)
2. Log on using a valid service name and password.
3. Click the Test tab in the main RST window.
4. Click Extended Test in the tree view, to show the available extended tests.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 116
Performance Tests: Resident Self Tests
Figure 6-10
RST Extended Tests
5. If you want to run specific tests, click the names of those tests. (See “Test Modules” on page
6-117.) To select all the extended tests, leave Extended Test selected.
6. To run the test a specific number of times, enter the number in the Repeat Test Count:
field. To run the test continuously, enter zero in the field.
7. Click Run. Testing begins.
8. When the testing is done, click OK in the message box.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 117
Performance Tests: Resident Self Tests
Test Modules
Each subsystem test consists of test modules, and each test module has submodules. You can
select individual modules or submodules to run separate from the other tests in its group by
using the tree control in the left side of the RST window. As an example, Figure 6-11 shows the
BP/AP subsystem test’s Demodulator test module and the module’s submodules.
Figure 6-11
Demodulator Tests (Example)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 118
Performance Tests: Resident Self Tests
The two-digit codes that precede the submodule names are used in the Application Test Log
display, in its Category column, and in the Status window at the lower left of the window. See
“RST Test Log” on page 121.
➤ Running an Interactive Test
The interactive tests check the operation of the system’s controls. They require you to make
selections and operate controls as they execute.
To run an interactive test:
1. Launch the RST application. (See “Launching the RST Application” on page 113.)
2. Log on using a valid service name and password.
3. Click the Test tab in the main RST window.
4. Click Interactive Test in the tree view, to show the available interactive tests.
5. Select the test you want to run.
NOTE Only one interactive test can run at a time.
6. Click Run. Testing begins.
7. Follow the instructions that the RST application displays.
8. To end a test, do the following:
•
To end a display test, press the THI key.
•
To end a keyboard test, right-click the test name, and select Stop from the pop-up
menu.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 119
Performance Tests: Resident Self Tests
➤ Viewing Error Logs
The RST application logs errors during operation of the system and when you run a test. View
the logs by clicking Event Viewer under the Log tab of the RST window and selecting the log
you want to see. Figure 6-12 shows the RST log display.
The logs list errors in chronological order, with the most recent errors at the top of the list. You
can view more detail of an error by double-clicking the entry in the list view.
Figure 6-12
RST Log Display
The Event Viewer includes application logs, a security log, and a system log.
Ultrasound Application Log
This log includes run-time errors encountered by both the ultrasound application and the RST
application. The log lists the date and time the error occurred, the name of the error, the
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 120
Performance Tests: Resident Self Tests
applications and subsystems affected, and other information. Figure 6-13 shows the ultrasound
application log display.
Figure 6-13
Ultrasound Application Log Display
To clear the Ultrasound Application Log, complete the following procedure:
➤ Clearing the Ultrasound Application Log
1. Right-click on Ultrasound App Log.
2. In the pop-up menu, select Clear Log.
3. Click Yes in the confirmation dialog box.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 121
Performance Tests: Resident Self Tests
RST Test Log
This log includes parameters of past RST tests and errors encountered while running the tests.
Figure 6-14 shows the Event Viewer application RST test log.
Figure 6-14
RST Application Test Log Display
.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 122
Performance Tests: Resident Self Tests
RST Log Codes
The Application Test Log’s Category column contains coded information. The code is in the
following format:
SSnnNN
Where:
•
SS is the subsystem tested.
•
BP is the beam processor subsystem.
•
DP is the display processor subsystem.
•
nn is the module number of the tested module.
•
NN is the submodule number.
Example: DP0102
The example indicates that the A/D converter (submodule 02 of module 01) of the display
processor was tested.
To find the meaning of the numeric codes, use the tree control in the RST window’s left side as
described in “Test Modules” on page 117.
➤ Clearing the RST Test Log
1. Right-click RST Test Log in the tree view.
2. In the pop-up menu, select Clear Log.
3. Click Yes in the confirmation dialog box.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 123
Performance Tests: Resident Self Tests
Test Result Details
To view detailed test results, open the Event Properties window as follows:
➤ Viewing Test Details
1. In the right-hand side of the Event Viewer window, double-click the event you want detailed
information on.
The Event Properties window opens.
Figure 6-15
Event Properties Window (Example)
2. Click the appropriate Data: radio button to change the data display type.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 124
Performance Tests: Resident Self Tests
System Log
The Event Viewer system log includes hardware errors filtered from the application run-time
error log and the RST test log. Figure 6-16 shows the Event Viewer system log.
Figure 6-16
System Log Display
➤ Clearing the System Log
1. Right-click System Log in the tree view.
2. In the pop-up menu, select Clear Log.
3. Click Yes in the confirmation dialog box.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 125
Performance Tests: Resident Self Tests
Using the
Service Log
The service log on the Log tab’s tree is a list of comments entered by service personnel.
➤ Making an Entry in the Service Log
You can enter information in the service log that is displayed under the Log tab. You must log on
to the RST application using a valid service name and password to make an entry in the service
log.
To make a new entry in the service log:
1. Launch the RST application. (See “Launching the RST Application” on page 113.)
2. Log on using a valid service name and password.
3. Right-click Service Log on the tree (use the Select key on the system control panel). A
pop-up menu appears.
4. Click Add Service Entry on the pop-up menu. The Add Service Entry window displays.
5. Enter your name in the top two fields, and the service information in the Comments: field.
6. Click OK. Your entry appears in the service log.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 126
Performance Tests: Resident Self Tests
7. Right-click Service Log and select Save Log to File to save the entry.
➤ Modifying an Entry in the Service Log
You can change the information in an existing service log entry. You must log on to the RST
application using a valid service name and password to modify an entry in the service log.
To modify a service log entry:
1. Launch the RST application. (See “Launching the RST Application” on page 113.)
2. Log on using a valid service name and password.
3. Click Service Log on the tree.
4. Double-click the log entry you want to modify. The Change Service Entry window displays.
5. Click in the entry field and modify the text.
6. Click OK.
7. Right-click Service Log and select Save Log to File to save the modification.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
7
Page 127
Adjustments: Monitor Adjustment
Adjustments
Monitor
Adjustment
The four buttons on the front of the monitor adjust brightness and contrast. When the two
right-hand buttons are pressed together as the monitor powers up, the OSD Main menu is
available. Submenus of the OSD Main Menu control the size and geometry of the display and set
the monitor’s signal input voltage (see “Monitor Signal Voltage” on page 62).
Pressing the two right-hand buttons together degausses the CRT.
OSD Main Menu
➤ Opening the OSD Main Menu
1. Disconnect the power cord from the rear of the monitor.
2. Press the two right-hand monitor buttons, and hold them in while reconnecting the power
cord.
3. Press the two center monitor buttons.
The OSD Main Menu displays.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 128
Adjustments: Monitor Adjustment
Navigating the OSD Menus
The four buttons on the front of the monitor control all the OSD functions, as follows:
Adjusting VGA
Vertical Size
•
Brightness down (far-left button) applies the selected menu item.
•
Brightness up + Brightness down exits a menu without saving any changes.
•
Contrast down moves down one OSD Menu item or decreases the value of the selected
parameter.
•
Contrast up (far-right button) moves up to the previous OSD menu item or increases the
value of the selected parameter.
For viewing BIOS settings mode, you must adjust the VGA vertical size. This adjustment does
not affect the normal display mode.
➤ Adjust the VGA Vertical Size
1. Reboot the system.
2. As the system boots up, press the Patient key repeatedly, until the BIOS screen opens.
3. Disconnect the power cord from the rear of the monitor.
4. Press the two right-hand monitor buttons, and hold them in while reconnecting the power
cord.
5. Press the two center monitor buttons.
The OSD Main menu displays.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 129
Adjustments: Monitor Adjustment
6. Use the two right-hand monitor buttons to scroll up or down in the OSD Main menu and
select SIZE & POSITION.
7. Press the far left monitor button.
The Size & Position menu displays.
8. Use the two right-hand monitor buttons to select VERTICAL SIZE.
9. Press the far left monitor button.
The vertical size adjustment bar displays.
10. Use the two right-hand monitor buttons to adjust the vertical size so the bottom of the
display is visible.
11. Press the far left monitor button.
The vertical size adjustment bar closes.
12. Use the two right-hand monitor buttons to select SAVE & RETURN in the SIze & Position
menu.
13. Press the far left monitor button.
The SIze & Position menu closes.
14. In the OSD Main menu, use the two right-hand monitor buttons to select EXIT OSD.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 130
Adjustments: Monitor Adjustment
15. Press the far left monitor button.
Changing the
Boot Sequence
➤ Change the Boot Sequence
1. Change the VGA display height adjustment to show the whole screen. See “Adjusting VGA
Vertical Size” on page 128.
2. Reboot the system.
3. As the system boots up, press the Patient key repeatedly, until the BIOS screen opens.
4. Use the arrow keys to select Boot. Press Enter.
5. Use the arrow keys to select Boot Device Priority. Press Enter.
The Device menu opens.
6. Use the arrow keys to select the drive to boot from:
•
Select Removable Dev. for the floppy disk drive.
•
Select ATAPI CD-ROM for the CD-ROM drive.
7. Press Enter.
8. Press the THI key to return to the Device menu.
9. Use the arrow keys to select Exit. Press Enter.
10. Press Enter to confirm the changes.
11. Press the power switch to shut down the system. (Don’t let it reboot from the dialog box.)
12. After 15 seconds, press the power switch to start the system.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
8
Page 131
Preventive Maintenance:
Preventive Maintenance
This section contains procedures for cleaning the M2540A and its components.
During preventive maintenance, look for conditions that may cause problems, and loose knobs
or worn TGC controls.
CAUTION
Use adequate ESD safeguards when performing service and maintenance procedures. See “ESD
Safeguards” on page 139.
NOTE Do not use commercial cleaners to clean any surfaces of the ultrasound system. These
cleaners may cause the colors to fade. Use only mild soap.
➤ Cleaning the Air Filter
The air filter resides inside the service panel at the right front of the lower enclosure, in front of
the fan. If the filter becomes very dirty, it can impede airflow, which may cause overheating of the
power supply or the e-box.
To remove and clean the air filter:
1. Remove the service panel at the right front of the lower enclosure. See “Front Service Panel”
on page 141.
2. Slide the filter up and out of the panel’s back.
3. Wash the filter with a spray of water from the side that faced the fan.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
CAUTION
Page 132
Preventive Maintenance:
Do not use any solvent other than water to wash the air filter. Other solvents may attack its
material.
4. Dry the filter thoroughly before replacing it in the system. Compressed air can speed drying.
5. Reverse step 1 and step 2 to complete the procedure.
➤ Cleaning the Trackball
To clean the trackball:
1. Unscrew and remove the bezel that surrounds the trackball in the surface of the system
control panel. A paper clip inserted in one of the small holes in the bezel can help to start
unscrewing the bezel.
2. Press up from under the trackball and remove it.
3. Clean the trackball with an alcohol-dampened pad.
4. Clean the two encoder shafts and the bearing surface with an alcohol-dampened pad.
5. Reverse step 1 and step 2 to reinstall the trackball.
➤ Cleaning the e-box
Inspect the interior of the e-box for dust (See “Replacing E-box Circuit Boards” on page 151),
and vacuum as necessary.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 133
Preventive Maintenance:
CAUTION
Use proper ESD precautions for the vacuum itself and when removing circuit boards for
vacuuming. See “ESD Safeguards” on page 139.
CAUTION
Because the M2540A’s circuit boards have components on both sides, use caution when
removing them from the system. After removal, make sure the boards lie flat on an ESD
protected surface. Use adequate ESD safeguards when performing any service or maintenance
procedure. See “ESD Safeguards” on page 139.
Perform all RST and system checks to verify performance.
➤ Degaussing the Monitor
To degauss the monitor, press the two right-hand monitor buttons at the same time.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
9
Page 134
Troubleshooting: PC Won’t Boot
Troubleshooting
This section contains tips and procedures for finding the causes of malfunctions of the M2540A.
For problems with optional peripherals, see the Peripherals Manual.
Always check that power cords are plugged in, and inspect them for wear.
PC Won’t
Boot
If the M2540A does not start when the PC’s power button is pressed, proceed as follows:
1. Confirm that the system power cord is plugged in.
2. Remove the service panel from the front of the lower enclosure by pressing down its two
latches. A green LED on the left side of the power supply, above the fan, indicates that the
power supply is energized by line voltage from the mains. The LED takes a few seconds to
light when the system is first plugged in.
NOTE When the PC is not on, or the token ring cable is disconnected, you can activate the
power supply by jumping the PWR DOWN pin on the BPAP board to chassis ground.
3. Unplug the PC power cord from the top outlet on the power supply, and connect the PC to
a power source using one of the following methods:
•
Plug the PC’s power cord into a known 120 VAC source.
•
Set the PC’s power selector switch to the local voltage, and use the system power
cord to connect the PC to mains.
4. Press the PC’s power button.
•
If the PC starts, the power supply is bad. Replace it. See “Power Supply” on page 154.
•
If the PC does not start, try replacing its power cord. If the PC still does not boot, it
is faulty. See “PC Service” on page 142.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 135
Troubleshooting: PC Boots, but Monitor is Blank
5. Reset the PC power selector switch to 120 V, if the switch was moved in step 3.
PC Boots, but
Monitor is
Blank
If the M2540A’s internal PC starts, but the monitor stays black, proceed as follows:
1. Connect a jumper between chassis ground and the PWR DOWN pin on the BPAP board.
•
If the monitor now powers up, check the token ring cable.
•
If the monitor remains black, continue with the following steps.
2. Shut down the PC.
3. Unplug the PC from the top outlet on the power supply.
4. Move the monitor’s power plug to the PC power outlet on the power supply.
PC Boots, But
Peripherals
Don’t Work
•
If the monitor powers up, the power supply is bad. Replace it. See “Power Supply” on
page 154.
•
If the monitor does not power up, it is faulty. Replace it. See “Replacing the Monitor” on
page 157.
If the M2540A’s internal PC starts, and the monitor functions normally, but one or more
peripheral devices don’t work, proceed as follows:
1. Run the RST and other system checks, and check the device’s power cord connections.
2. Shut down the PC.
3. Unplug the PC from the power supply.
4. Move the malfunctioning device’s power plug to the PC power outlet on the power supply.
•
If the device powers up, the power supply is bad. Replace it. See “Power Supply” on
page 154.
•
If the device does not power up, try replacing its power cord. If the device still does not
power up, it is faulty. Replace the device.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 136
Troubleshooting: Printer Problems
Printer
Problems
HP940 Startup
The first time the HP940 printer is powered up, it may cause the system to hunt for more
peripherals to install. Rebooting the system stops this activity.
Printer Installation Problems
If a connected printer does not show up on the Setup/Peripherals screen, perform the following
procedure:
1. Use the scroll bar in the options field to make sure you see all the printers in the list.
2. Make sure that the printer is connected to a live power source, that its USB cable is properly
connected at both ends, that the printer is turned on, and that the printer shows no error
indicators.
3. Reboot the M2540A, and see if the printer appears on the Setup/Peripherals screen.
4. Disconnect the USB cable from the printer.
5. Press the Setup key.
6. On the Setup window, click the Peripherals tab.
7. Click Install Software Drivers.
8. Click Printer.
9. Click OK.
10. Click Close.
11. Shut down the M2540A.
12. Connect the USB cable to the printer.
13. Start the M2540A.
If the procedure does not solve the problem, contact your service representative.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 137
Troubleshooting: Electromagnetic Interference
Electromagnetic
Interference
Electromagnetic interference (EMI) can degrade the performance of the M2540A. Answering the
following questions can help locate the source of interference:
•
Is the interference intermittent or constant?
•
Does the interference appear with only one transducer or with several transducers?
•
Do two different transducers operating at the same frequency have the same problem?
•
Is the interference present if the system is moved to a different location in the facility?
•
Can the EMC coupling path be attenuated?
A transducer placed close to an ECG cable can increase interference. Moving the ECG cable
or other medical equipment away from the transducer can reduce interference.
Answers to these questions help determine whether the problem is with the system or with the
scanning environment. Contact your local Philips service representative with a full description
and your observations.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
10
Overview
Page 138
Service Procedures: Overview
Service Procedures
This chapter includes all the service procedures that apply to the M2540A. To locate parts and
assemblies referred in the procedures, see the exploded diagrams and parts lists in “Parts” on
page 177.
This manual does not include service procedures for optional peripherals. See the Philips
Ultrasound Systems Peripherals Guide for that information.
The chapter includes these sections:
•
“Repair Philosophy” on page 139
•
“ESD Safeguards” on page 139
•
“General Precautions” on page 139
•
“Service Access” on page 140
•
“Record Keeping” on page 141
•
“PC Service” on page 142
•
“E-box” on page 151
•
“Power Supply” on page 154
•
“Transducer Connector Modules” on page 156
•
“Fan” on page 156
•
“Monitor” on page 157
•
“Monitor Twivel” on page 158
•
“System Control Panel” on page 158
•
“Monitor Support and Front Panel” on page 160
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Repair
Philosophy
•
“Cables” on page 160
•
“Cart” on page 163
Page 139
Service Procedures: Repair Philosophy
Most components in the M2540A are replaced as modules. The power supply, the monitor, and
the system control panel are not serviceable, and are replaced as units. The circuit boards and
function cards inside the M2540A’s internal PC and e-box are replaceable in the field.
Some parts are available at reduced cost, as exchange items. See Table 13-12 on page 200 for a
list of exchange parts and their part numbers.
ESD
Safeguards
General
Precautions
Follow the electrical static discharge (ESD) guidelines in this section to prevent deterioration or
destruction of sensitive electronic components. General guidelines include:
•
Avoid working in carpeted areas.
•
If you use a vacuum cleaner to clean the interior of any part of the system sensitive to static
electricity, take the necessary ESD precautions to avoid static buildup and discharge.
•
Use a properly grounded wrist strap.
•
Use a grounding mat for assembly work on sensitive areas.
Liquids, including ultrasound gel, can adversely affect the system control panel and other
surfaces. A protective membrane under the keyboard provides some protection against spills,
but liquids may seep into electrical components under the panel and cause problems.
To prevent damage to the system, keep the following good practices in mind:
•
Turn the system off when not in use.
•
Do not remove or install boards or cables with the system power on.
•
Lock the system’s wheels when removing or installing circuit boards.
•
When the system is on but not in use, leave the Power control at the lowest setting.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 140
Service Procedures: Service Access
Service
Access
This section describes how to gain access to the serviceable components of the M2540A system.
Servicing
Components
Above the
Lower Enclosure
You can service components mounted above the lower enclosure without opening any panels in
the lower enclosure. These components include the following:
Servicing
Components in
the Lower
Enclosure
•
External peripheral components (see the Philips Ultrasound Systems Peripherals Guide)
•
Monitor (page 157)
•
Twivel (page 158)
•
System control panel (page 158)
•
Monitor support (page 160)
To service components mounted in the lower enclosure, you must open one or more panels on
the lower enclosure. For locations of the panels and components, see Figure 13-3 on page 185.
The components in the lower enclosure include the following:
•
System PC (page 142)
•
e-box (page 151)
•
Power supply (page 154)
•
Transducer connector modules (page 156)
•
Fan (page 156)
•
Cables (page 160)
•
Lift column (page 165)
•
Cart wheels (page 163)
•
Lower enclosure top panel (page 164)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Rear Service
Doors
Page 141
Service Procedures: Record Keeping
Two doors in the rear of the lower enclosure give access to the rear of the PC, the e-box, and
the power supply. The doors are hinged near the center of the system, and are held closed by
quarter-turn latches near the sides of the system. To open the doors, turn the latches
counter-clockwise.
NOTE References to the left and right sides of the system are as viewed from the front of the
system.
Front Service
Panel
A panel at the right side of the system’s front gives access to the transducer connector module
mounting, the air filter, the fan, the front of the e-box, and the front of the power supply. To
open this panel, press down the two latches at its top, pull the top edge out, and lift the panel
clear of the system.
Side Panels
The two lower enclosure side panels are attached with screws on their lower edge. To remove
either panel, remove the three screws along its lower edge, pull the bottom of the panel out, and
lower the panel clear of the system.
Record
Keeping
You can make notes in the RST application’s service log, to help with later service procedures. To
read service log entries, see “Using the Service Log” on page 125. To make an entry in the RST
service log, see “Making an Entry in the Service Log” on page 125.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 142
Service Procedures: PC Service
PC Service
This section contains procedures for servicing M2540A software and the hardware components
of the internal PC.
Software
Service
Procedures
The following procedures describe reloading and upgrading the ultrasound software, and backing
up and restoring customer presets.
System Software
Complete the following procedure to reload or upgrade the system software. The procedure
takes about 45 minutes to complete and requires three CDs:
•
Operating System
•
Ultrasound Application
•
COTS Drivers
➤ Reloading or Upgrading System Software
NOTE Disconnect the USB cables from all printers, and make sure the floppy disk drive and
the MOD drive are empty before beginning software installation.
1. Back up the customer’s presets. (See “Backing Up Customer Presets” on page 143.)
2. Put the Operating System CD in the CD drive.
3. Restart the system.
4. Watch for the message, “Press any key to boot from CD” which displays briefly during
startup. When the message appears, press the Return key.
5. When the message “Do you wish to delete all data and install XPE?” displays, press A.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 143
Service Procedures: PC Service
NOTE The message “Press any key to boot from CD” displays two more times during the
installation. Do not press a key when it does. The message clears after a few moments.
6. When the message, “Please insert the M2540A Ultrasound Application CD” displays, remove
the Operating System CD from the CD drive and put the Ultrasound Application CD in.
Press Y.
7. When the message “Please insert the M2540A COTS Drivers CD” displays, remove the
Ultrasound Application CD from the CD drive and put the COTS CD in. Press Y.
When the COTS software installation finishes, the system automatically restarts. If the
installation is successful, the monitor displays the ultrasound imaging screen.
8. When the ultrasound imaging screen appears, remove the COTS CD.
9. Restore the customer’s presets. (See “Restoring Customer Presets” on page 146.)
Backing Up and Restoring Presets
Before performing any service that deletes a customer’s presets, back them up to a floppy disk.
After the procedure is complete, restore the customer’s presets from the floppy disk.
NOTE If the system is connected to a DICOM network, you must manually record the
network settings. The backup function records settings made on the DICOM Setup
window, but does not record those settings made on the Network Settings window.
➤ Backing Up Customer Presets
To back up a customer’s presets:
1. Start the M2540A.
2. Insert a blank floppy disk in the PC’s floppy disk drive.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 144
Service Procedures: PC Service
3. With the ultrasound application running, press the Setup key on the system control panel.
The Setup window opens.
4. Click the Floppy Disk tab.
5. Click Backup. The Backup Settings window opens.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 145
Service Procedures: PC Service
6. Click Select All.
7. Click Start. The backup procedure executes. When the procedure is done, the Backup
Settings window closes.
NOTE While it backs up the presets, the backup program also automatically backs up the
system settings, the peripheral settings, and the installed options.
8. Click Close. The Setup window closes.
9. Remove the floppy disk.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 146
Service Procedures: PC Service
➤ Restoring Customer Presets
To restore a customer’s presets:
1. Insert the floppy disk that contains the backed up presets in the PC’s floppy disk drive.
2. With the ultrasound application running, press the Setup key on the system control panel.
The Setup window opens (see the illustration on page 144.)
3. Click the Floppy Disk tab.
4. Click Restore. The Restore Settings window opens.
5. Click Select All, to select all of the customer’s presets for restoration.
6. Select whether to restore system settings, peripheral settings, and options.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 147
Service Procedures: PC Service
NOTE Options can be restored only to the system that created the backup disk. The software
matches the serial number of the system to that of the system that created the disk.
7. Click Start.
8. When the restoration is complete, click Close. The Setup window closes.
9. Remove the floppy disk.
PC Components
None of the PC’s internal components are adjustable or repairable. Faulty PC components
require replacement. You can replace some PC components without removing the PC from the
system, by opening the side of the PC. (See “Opening the PC Side Cover” on page 148.) To
replace other components, you must remove the PC from the system. (See “Removing the PC
from the System” on page 150.)
The PC contains the following replaceable components (shown in Figure 13-1, on page 180):
•
PC motherboard
•
PC power supply
•
Hard drive
NOTE The hard drive’s jumper must be set as shown in Figure 12-1on page 174.
•
CD-RW drive
•
Floppy drive
•
APIO board
•
Graphics adapter board
•
Sound board (part of the VCR option)
•
Video capture board (part of the VCR option)
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
•
Video converter board (part of the VCR option)
•
Optional Physio module
•
Optional MOD drive
Page 148
Service Procedures: PC Service
➤ Opening the PC Side Cover
You can gain access to components in the PC without removing the PC from the system, by
opening the PC side cover.
To open the PC side cover, see Figure 13-3 on page 185 to locate parts and assemblies, and
complete the following procedure:
CAUTION
Always observe proper ESD procedures when servicing the inside of the PC. Wear a grounded
wrist band, and work on a static-dissipating mat if possible.
1. Disconnect the system power cord from the main AC supply.
2. Remove the three screws from the lower edge of the lower enclosure’s left side panel, pull
the bottom of the panel out, and lower the panel clear of the system.
3. Remove the knurled screws from the back of the PC, and slide the cover to the rear.
4. Remove the PC side cover.
5. Disconnect any cables that are connected to the component you are removing.
6. If you are replacing the CD-RW drive, the Physio module, the MO drive, or the floppy disk
drive, complete the following:
a. Slide the PC two cm to the left, away from the center of the system.
b. Gently pull the four plastic latches at the left side of the PC’s bezel, while pulling the left
side of the bezel forward until the latches clear the PC case.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 149
Service Procedures: PC Service
c. Slide the bezel to the right until it can be removed.
d. Each of the replaceable parts listed in step 6 is retained by two plastic latches. To remove
the part, press the two latches in toward the part, and slide the part out of the PC case.
Reverse the procedure to reassemble the PC. Perform all RST and system checks to verify
performance.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 150
Service Procedures: PC Service
➤ Removing the PC from the System
To remove the PC, see Figure 13-3 on page 185 to locate parts and assemblies, and complete the
following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Remove the three screws from the lower edge of the lower enclosure’s left side panel, pull
the bottom of the panel out, and lower the panel clear of the system.
3. Disconnect all the cables from the PC. Note their locations so you can reinstall them
properly.
4. Loosen the screws in the angle bracket on the wall toward the center of the system. Remove
the screws that secures the PC to the angle bracket.
5. Remove the PC through the side of the system.
To install the PC in the system, reverse the procedure above. Perform all RST and system checks
to verify performance.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
E-box
Page 151
Service Procedures: E-box
You can perform most e-box service without removing the e-box from the system. To perform
service that does require removing the e-box, you must also remove the power supply (See
“Removing the Power Supply and the E-box” on page 154).
➤ Replacing E-box Circuit Boards
CAUTION
Always observe proper ESD procedures when servicing the inside of the e-box. Wear a
grounded wrist band, and work on a static-dissipating mat if possible. See “ESD Safeguards” on
page 139.
To replace a circuit board in the e-box, see Figure 13-2 on page 183 to locate parts and
assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Open the door at the right rear of the lower enclosure by turning its latch
counter-clockwise.
3. Disconnect the token ring cable from the rear of the e-box.
CAUTION
The token ring cable connectors are easily damaged. Be gentle when connecting and
disconnecting the cable.
4. Lift the handles of the two latches on the e-box rear cover, and rotate them a quarter turn.
Remove the cover.
5. If the faulty board is the BPAP board, disconnect the two cables from its face before
removing it.
6. Remove the faulty board.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 152
Service Procedures: E-box
7. Install the replacement board.
8. Reverse step 5 through step 2 to complete the procedure.
9. Perform all RST and system checks to verify performance.
➤ Replacing the Motherboard
To replace the e-box motherboard, See Figure 13-2 on page 183 to locate parts and assemblies,
and complete the following procedure:
NOTE You can perform this procedure with the e-box mounted in the system, but it is easier
with the e-box removed and separated from the power supply. See “Removing the
Power Supply and the E-box” on page 154 and “Separating the E-box and the Power
Supply” on page 155.
CAUTION
Always observe proper ESD procedures when servicing the inside of the e-box. Wear a
grounded wrist band, and work on a static-dissipating mat when possible. See “ESD Safeguards”
on page 139.
1. Remove the BPAP board, the demodulator board, and the two TR boards from the e-box,
following the steps in “Replacing E-box Circuit Boards” on page 151.
2. Disconnect the power cables from the motherboard and the distribution board.
3. Loosen the four screws that secure each of the two septum panels in the e-box, and remove
the septum panels.
4. Remove the 15 screws that secure the motherboard to the e-box center wall.
5. Tilt out the top edge of the motherboard to clear the board racks, and remove the
motherboard.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 153
Service Procedures: E-box
6. Reverse step 5 through step 1 to install the motherboard.
7. Perform all RST and system checks to verify performance.
➤ Replacing the Distribution Board
To replace the distribution board, see Figure 13-2on page 183 to locate parts and assemblies,
and complete the following procedure:
NOTE You can perform this procedure with the e-box mounted in the system, but some steps
are easier with the e-box removed and separated from the power supply. See
“Removing the Power Supply and the E-box” on page 154 and “Separating the E-box
and the Power Supply” on page 155.
CAUTION
Always observe proper ESD procedures when servicing the inside of the e-box. Wear a
grounded wrist band, and work on a static-dissipating mat if possible. See “ESD Safeguards” on
page 139.
1. Remove the BPAP board, the demodulator board, and the two TR boards from the e-box,
following the steps in “Replacing E-box Circuit Boards” on page 151.
2. Disconnect the power cable from the distribution board.
3. Remove all the transducer connector modules and blank-off plates from the front of the
e-box. See “Replacing Transducer Connector Modules” on page 156.
CAUTION
Be careful when removing and installing the transducer connector modules, to prevent damage
to the distribution board’s connectors.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 154
Service Procedures: Power Supply
4. Remove the eight screws that secure the distribution board to the e-box center wall.
5. Tilt out the top edge of the distribution board and remove the board.
6. Reverse step 5 through step 1 to install the motherboard.
7. Perform all RST and system checks to verify performance.
Power Supply
The M2540A power supply is not serviceable in the field, except for replacing the fan. The power
supply and the e-box are bolted together and must be removed from the system before they can
be separated. Replacement power supplies are supplied with the fan and the finger guard
installed.
➤ Removing the Power Supply and the E-box
To remove the power supply and the e-box from the system, see Figure 13-3 on page 185 to
locate parts and assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Remove the service panel at the right front of the lower enclosure by pressing down the two
latches at the panel’s top.
3. Remove the two screws that secure the power supply to the angle bracket at the front of the
enclosure floor.
4. Remove the three screws from the bottom of the lower enclosure’s right side panel, and
remove the panel.
5. Disconnect all the cables from the rear of the e-box and the power supply. Mark the cable in
the top outlet. It powers the PC, and that outlet is powered whenever the system power
cable is plugged into a power source. If the PC is connected to one of the other outlets, it
does not boot up.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 155
Service Procedures: Power Supply
6. Remove the two screws that secure the power supply to the angle bracket at the rear of the
enclosure floor.
7. Carefully slide the power supply and the e-box out the side of the system.
8. Reverse step 7 through step 1 to install the power supply and the e-box in the system. Make
sure the PC’s power cord is in the top outlet.
9. Perform all RST and system checks to verify performance.
➤ Separating the E-box and the Power Supply
To separate the e-box from the power supply:
1. Remove the rear cover of the e-box.
CAUTION
Always observe proper ESD procedures when servicing the inside of the e-box. Wear a
grounded wrist band, and work on a static-dissipating mat if possible. See “ESD Safeguards” on
page 139.
2. Disconnect the control and power cables from the BPAP board, and remove the BPAP board.
3. Disconnect the power cables from the motherboard and the distribution board.
4. Remove the two screws at the bottom rear of the e-box.
5. Remove the two screws at the bottom front of the e-box.
6. Remove the four screws from the bottom of each side of the e-box.
7. Lift the e-box straight up from the power supply, while feeding the cables through the hole in
the bottom of the e-box.
8. Reverse step 7 through step 1 to attach the e-box to the power supply.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 156
Service Procedures: Transducer Connector Modules
Transducer
Connector
Modules
The screws that secure the transducer connector modules are behind the service panel on the
front of the lower enclosure.
➤ Replacing Transducer Connector Modules
To replace a transducer connector module, see Figure 13-2 on page 183 to locate parts and
assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Remove the service panel at the right front of the lower enclosure by pressing down the two
latches at the panel’s top.
3. Remove the screws that secure the module bezel to the e-box, remove the bezel, and pull
the module out.
CAUTION
Be careful when removing and installing the transducer connector modules, to prevent damage
to the distribution board’s connectors.
4. Reverse step 3 through step 1 to install a transducer connector module.
5. Perform all RST and system checks to verify performance.
Fan
The M2540A’s cooling fan is attached to the front of the power supply. Replacement fans are
supplied with the finger guard installed.
➤ Replacing the Fan
To remove the fan, see Figure 13-2 on page 183 to locate parts and assemblies, and complete the
following procedure:
1. Disconnect the system power cord from the main AC supply.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 157
Service Procedures: Monitor
2. Remove the service panel at the right front of the lower enclosure by pressing down the two
latches at the panel’s top.
3. Disconnect the fan power cable from the power supply.
4. Use pliers or a small screwdriver to lift the heads of the four drive rivets that secure the fan
to the power supply. Remove the fan.
5. Align the fan for correct airflow direction (into the power supply) and connection to the
power cables.
6. Reverse step 4 through step 1 to install the fan on the power supply.
NOTE Removing the pins from the drive rivets and compressing the expanding ends of the
rivet bodies with pliers may ease installation.
Monitor
The color monitor is a critical component of the system. The monitor is not serviceable in the
field, so a monitor that does not perform properly must be replaced. See “Monitor Adjustment”
on page 127 for information on adjusting the monitor display.
➤ Replacing the Monitor
To remove the monitor from the system, see Figure 13-5 on page 193 to locate parts and
assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Disconnect the video monitor cable and the monitor power cable from the monitor.
3. Press up on the latch handle under the front edge of the monitor and pull the monitor
forward until it stops.
4. Tilt up the front of the monitor and lift the monitor off the twivel.
5. Reverse step 4 through step 1 to install the monitor on the system.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 158
Service Procedures: Monitor Twivel
6. Perform all RST and system checks to verify performance.
Monitor
Twivel
The M2540A twivel is not adjustable. The following procedure describes how to disassemble the
twivel to replace its parts.
➤ Disassembling the Twivel
To disassemble the twivel, see Figure 13-5 on page 193 to locate parts and assemblies, and
complete the following procedure:
1. Remove the monitor as described in “Replacing the Monitor” on page 157.
2. Remove the twivel shoe’s two mounting screws, and remove the twivel shoe.
3. Lift the twivel base from the cart, while carefully passing the monitor power cord and the
VGA cable through the hole in the twivel base. Pass the power cord through the hole first,
before the video cable.
NOTE The VGA cable’s connector does not fit through one of the two holes in the twivel
base. Note which hole the cables go through.
4. Remove the four screws that secure the monitor support bezel to the monitor support.
To reassemble the twivel assembly, perform the above procedure in reverse. When completing
step 3, pass the VGA cable’s connector through the twivel base first, before passing the power
cord connector through.
Perform all RST and system checks to verify performance.
System
Control Panel
Except for the trackball (see “Cleaning the Trackball” on page 132), the system control panel
contains no serviceable parts, and is replaced as a unit.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 159
Service Procedures: System Control Panel
➤ Replacing the System Control Panel
To replace the system control panel, see Figure 13-5 on page 193 to locate parts and assemblies,
and complete the following procedure:
CAUTION
Always observe proper ESD procedures when servicing circuit boards. Wear a grounded wrist
band, and work on a static-dissipating mat if possible.
1. Disconnect the system power cord from the main AC supply.
2. Remove the seven long and the nine short flathead screws that secure the control panel to
the control panel surround.
3. Push up on the bottom of the trackball, and lift the front edge of the control panel.
4. Disconnect the USB cable, the twisted-pair audio cables, the power cable, and the soft key
ribbon cable from the control panel circuit board.
5. Remove the system control panel from the system.
6. Reverse step 5 through step 1 to install the control panel.
7. Perform all RST and system checks to verify performance.
CAUTION
When installing the system control panel, make sure that none of the cables rests directly under
the control panel standoffs. The standoffs will cut any cables underneath them when the screws
are tightened.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 160
Service Procedures: Monitor Support and Front Panel
Monitor
Support and
Front Panel
The angular enclosure on top of the control panel surround is the monitor support. To replace
the mechlok cable, lift column slides, upper cable harness, or lower enclosure top panel, you
must remove the monitor support and its front panel.
➤ Replacing the Monitor Support and its Front Panel
To replace the monitor support and its front panel, see Figure 13-5 on page 193 to locate parts
and assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Remove the monitor. See “Replacing the Monitor” on page 157.
3. Remove the system control panel. See “Replacing the System Control Panel” on page 159.
4. From under the control panel surround, remove the 19 screws that secure the monitor
support and front panel.
5. Remove the monitor support front panel by rotating its bottom edge forward.
6. Remove the twivel assembly. See “Disassembling the Twivel” on page 158.
7. Remove the monitor support while feeding the VGA cable and the monitor power cable
through the twivel base. Feed the monitor power cable through before the VGA cable.
NOTE The VGA cable connector does not fit through one of the two holes in the twivel. Note
which hole the cables are in as you take the support off.
8. Reverse step 7 through step 1 to install the monitor support and its front panel.
9. Perform all RST and system checks to verify performance.
Cables
Most of the cables in the M2540A system pass through the lower enclosure’s central plenum.
You may have to remove the panels from the rear of the plenum when replacing a cable.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
System Control
Panel and
Monitor Cables
Page 161
Service Procedures: Cables
Cables that connect the lower components to the system control panel and the monitor are
bundled together. To replace any one of these cables, you must remove the entire bundle. The
following cables comprise the bundle:
•
M2540-69140 VGA cable, which connects the PC’s SVGA port to the monitor
•
M2540-69110 keyboard USB cable, which connects a USB port on the PC to the system
control panel
•
M2540-69050 keyboard auxiliary power cable, which connects the power supply to the
system control panel
•
M2540-69060 keyboard audio line cables, which connect the PC’s sound board to the system
control panel
•
M2540-69180 monitor power cable, which connects the power supply to the monitor
•
M2540-0457 microphone cable
•
M2540-69010 speaker cable
•
M2540-69170 control panel ground cable
➤ Replacing the Upper Assembly Cable Bundle
To replace the cable bundle:
1. Disconnect the system power cord from the main AC supply.
2. Remove the monitor. See “Replacing the Monitor” on page 157.
3. Remove the system control panel. See “Replacing the System Control Panel” on page 159.
4. Remove the ties that secure the keyboard auxiliary power cable, the keyboard USB cable,
and the keyboard audio line cables to the system control panel surround.
5. Remove the monitor support and its front panel. See “Monitor Support and Front Panel” on
page 160.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 162
Service Procedures: Cables
6. Remove the four P-clips from the speaker supports.
7. Open the two service doors at the rear of the lower enclosure by turning their latches
counter-clockwise.
8. Disconnect the keyboard auxiliary power cable, the monitor power cable, and the control
panel ground cable from the power supply.
9. Disconnect the keyboard USB cable, the keyboard audio line cables, the microphone cable,
and the VGA cable from the PC.
10. Feed the lower ends of the cables into the lower enclosure central plenum, while pulling on
the upper end of the cable bundle.
11. Reverse step 10 through step 1 to install the cable bundle.
12. Perform all RST and system checks to verify performance.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Cart
Page 163
Service Procedures: Cart
This section contains procedures for servicing the lift column, the wheels, and the lower
enclosure top panel.
➤ Replacing Cart Wheels (Caster Assemblies)
Although the front wheel assemblies on the cart are different from the rear wheels (front wheels
have swivel locks and brakes, rear wheels do not lock), the replacement procedure for all wheels
is the same.
Each cart wheel is supplied as a caster assembly. The front caster assembly includes the integral
brake and swivel lock.
WARNING
The cart is heavy. Use caution while performing this procedure.
To replace a caster assembly:
1. Disconnect the system power cord from the main AC supply.
2. Secure the wheel locks.
3. Chock both front wheels if a rear wheel is being replaced, or chock both rear wheels if a
front wheel is being replaced. The chocks are a safety measure, to prevent the cart from
rolling during this procedure.
4. Carefully lift the front or the back of the cart (depending on which wheel you are replacing),
and slide a support block under the front or rear edge of the lower enclosure to hold both
wheels at that end slightly off the floor. Make sure the cart is stable in this raised position.
5. Use a 13-mm wrench to remove the four bolts that secure the wheel assembly to the
bottom of the cart base, and remove the wheel.
6. Reverse step 5 through step 1 to install the new wheel assembly.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 164
Service Procedures: Cart
➤ Replacing the Top Panel of the Lower Enclosure
You can remove and install the top panel of the lower enclosure without taking out the lift
column or the upper cable bundle.
To replace the top panel of the lower enclosure, see Figure 13-3 on page 185 to locate parts and
assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Remove all the peripherals from the top of the lower enclosure.
3. Remove the system control panel. See “Replacing the System Control Panel” on page 159.
4. Unfasten the height release handle and the cable clamp, and remove them from the cable.
5. Remove the monitor support and its front panel. See “Monitor Support and Front Panel” on
page 160.
6. Remove all the cable clamps and cable ties from the cables.
Note that the power and USB cables loop forward of the standoffs, and make note of the
cable ends’ positions.
7. Remove the six screws that secure the pivot latch to the top of the lift column.
8. Remove the 11 screws that secure the system control panel surround to the column, and
remove the surround.
9. Remove the PC. See “Removing the PC from the System” on page 150.
10. Remove the e-box and the power supply. See “Removing the Power Supply and the E-box”
on page 154.
11. Remove the peripherals strap.
12. Remove the 10 nuts that secure the top panel to the lower enclosure.
13. Lift the top panel of the lower enclosure and tilt it to clear the lift column top flange.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 165
Service Procedures: Cart
14. Reverse step 13 through step 1 to install the lower enclosure top panel.
15. Perform all RST and system checks to verify performance.
Lift Column
The lift column has four replaceable components:
•
The gas spring
•
The mechlok assembly
•
The mechlok cable
•
Three slide assemblies
The column is also available as an assembly, including all the components listed above. After
reassembling the system, perform all RST and system checks to assure proper performance.
Preparation
➤ Preparing the System for Servicing the Lift Column
WARNING
To prevent personal injury and damage to the system, complete this procedure before servicing
the lift column.
The procedures for replacing the lift column components are the most complex of the field
service procedures. Because the lift column supports the weight of the upper system, you must
complete the following procedure before performing any service to the column.
To prepare the system for lift column servicing, see Figure 13-4 on page 190 and Figure 13-3 on
page 185 to locate parts and assemblies, and complete the following procedure:
1. Disconnect the system power cord from the main AC supply.
2. Remove all peripherals from the top of the lower enclosure.
3. Remove the monitor. See “Replacing the Monitor” on page 157.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 166
Service Procedures: Cart
4. Remove the PC. See “Removing the PC from the System” on page 150.
5. Remove the e-box and power supply. See “Removing the Power Supply and the E-box” on
page 154.
6. Remove the cable hook on the front of the lower enclosure.
7. Remove the four screws on each side of the lower enclosure front center panel and the two
screws at the bottom of the panel, and remove the panel.
8. Extend the lift column to its highest position.
NOTE When you are replacing only the gas spring, step 9 and step 10 are not required.
9. Remove the system control panel. See “Replacing the System Control Panel” on page 159.
10. Remove the monitor support and front panel. See “Monitor Support and Front Panel” on
page 160.
11. Rotate the control panel surround to face the rear of the system.
12. Carefully lay the system down on its rear side.
Gas Spring
➤ Replacing the Gas Spring
The gas spring supports the weight of the upper assembly when the system is upright. Before
working on the gas spring, you must relieve the weight.
WARNING
Before beginning this procedure, complete “Preparation” on page 165, to prevent bodily injury
and damage to the system.
To replace the gas spring:
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 167
Service Procedures: Cart
1. Complete “Preparation” on page 165.
2. Remove the two screws that secure the upper gas spring bracket to the column.
3. Swing the top of the gas spring out, and unscrew the gas spring shaft from the pivot at the
bottom of the cart.
4. Unclip and remove the retaining spring from the ball-cup end of the gas spring.
5. Pull the gas spring’s cup end off the ball stud on the gas spring upper bracket.
6. Reverse step 5 through step 1 to install the gas spring.
7. Perform all RST and system checks to verify performance.
Mechlok and Cable
➤ Replacing the Mechlok and Cable
The mechlok assembly locks the lift column at any height in the column’s range. The mechlok is
controlled by a cable connected to a handle under the front of the system control panel
surround. You can replace the cable without completely removing the mechlok, and you can
replace the mechlok mechanism without removing the cable from the system.
WARNING
Before beginning this procedure, complete “Preparation” on page 165, to prevent bodily injury
and damage to the system.
To remove the mechlok and cable:
1. Complete “Preparation” on page 165.
2. Remove the three screws that secure the mechlok handle to the control panel surround, and
unclip the handle from the cable end.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 168
Service Procedures: Cart
3. Remove the two screws that secure the cable clamp to the control panel surround, and
unclip the clamp from the cable outer sheath.
4. From under the bottom of the system, remove the two screws that secure the gas spring and
mechlok lower bracket to the floor of the lower enclosure.
5. Remove the two screws that secure the upper gas spring bracket to the column.
6. Grasp the ring on the mechlok locking pin, and pull the pin out of the column. Remove the
mechlok and gas spring.
7. Slide the cable locking clip off the tab on the mechlok to remove the cable.
8. If you are replacing the cable, pull the upper end of the cable up through the control panel
surround and down through the lift column.
9. If you are replacing the mechlok, remove the retaining clip from the pivot pin in the gas spring
and the mechlok lower bracket, and remove the pin.
10. Reverse step 9 through step 1 to install the mechlok and cable.
11. After installation and righting of the system, adjust the position of the cable clamp under the
control panel surround to provide proper locking and unlocking.
12. Perform all RST and system checks to verify performance.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 169
Service Procedures: Cart
Slides
➤ Replacing the Slides
Each of the three lift column slide assemblies consists of an inner slide mounted on the lift
column and an outer slide mounted in the lower enclosure plenum.
WARNING
Before beginning this procedure, complete “Preparation” on page 165, to prevent bodily injury
and damage to the system.
To replace the lift column slides:
1. Complete “Preparation” on page 165.
2. Remove the I/O panel and the anchor panel for the peripheral strap.
3. Remove the two screws at the bottom of the rear center panel, near the door hinges, and
remove the panel and the doors.
4. Remove the gas spring and mechlok assembly. See “Replacing the Mechlok and Cable” on
page 167.
When replacing slides, it is not necessary to remove the mechlok cable, or to disconnect the
mechlok or the gas spring from their lower bracket.
5. Push the lower ends of the upper cable bundle into the plenum, to prevent their snagging in
the plenum openings.
6. Stand the system upright.
7. Remove the four nylock nuts that secure the lift column surround plate to the top panel of
the lower enclosure.
8. Carefully pull the lift column out of the lower enclosure.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
CAUTION
Page 170
Service Procedures: Cart
Make sure none of the cables snags in the lower enclosure.
9. Remove the four nylock nuts that secure each outer slide to the lower enclosure plenum,
and remove the outer slides from the lower enclosure.
NOTE The stop on each outer slide goes toward the bottom of the system.
10. Remove the four screws that secure each inner slide to the lift column, and remove the inner
slides.
11. Reverse step 10 through step 1 to install the lift column slides.
NOTE
CAUTION
Do not fully tighten the slide fasteners until the column is in the slides.
Use great care to align the slides correctly when installing the lift column, to avoid damaging the
ball carriers.
12. Run the column through its entire range of motion. If it binds, loosen all the outer slide
mounting nuts, run the column through its entire range of motion, and then tighten the nuts.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
11
Page 171
Cabling:
Cabling
The following table lists the cables in the M2540A. The cables may also be listed in assembly
parts lists shown in the “Reference” column of this table.
Table 11-1
Cables
Description
Part Number
Qty Reference
Cart to external AC power cable
PC (DP) power cable
Internal LAN cable
Composite video RCA cable
Trigger miniphone cable
Printer USB cable
Peripheral power cable (IEC)
I/O panel foot switch cable
Token ring cable
Ground cable
System cable harness
Monitor power cable
Monitor video cable
Speaker cable
Keyboard USB cable
Keyboard auxiliary power cable
M2540-69120
8120-2572
M2540-69130
M2540-69140
M2540-69150
M2540-69100
8120-2572
M2540-69160
M2540-69000
M2540-69170
M2540-69220
M2540-69180
M2540-69040
M2540-69010
M2540-69110
M2540-69050
1
1
1
1
1
2
3
1
1
1
1
1
1
1
1
1
Table 13-5
Table 13-5
Table 13-5
Table 13-5
Table 13-5
Table 13-5
Table 13-5
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 11-1
Page 172
Cabling:
Cables (Continued)
Description
Part Number
Qty Reference
Keyboard line audio cable
Power cords
UK power cord
Australia power cord
Europe power cord
US, Canada, and Japan power cord
Switzerland power cord
Denmark power cord
South Africa power cord
Israel power cord
Argentina power cord
PRC power cord
Physio option cables
Physio option USB cable
Physio option trigger cable
3-Lead AAMI grabber set
3-Lead AAMI trunk cable
3 Lead AAMI mini-clip set
3-lead IEC trunk cable
M2540-69060
1
M2540-60900
M2540-60901
M2540-60902
M2540-60903
M2540-60906
M2540-60912
M2540-60917
M2540-60919
M2540-60920
M2540-60922
1
1
1
1
1
1
1
1
1
1
M2540-69020
M2540-69030
M1603A
M1500A
M1609A
M1510A
1
1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 11-1
Page 173
Cabling:
Cables (Continued)
Description
VCR option cables
VCR option video in/out cable
VCR option audio in/out cable
VCR option serial cable
Optional accessory cables
External LAN cable
USB cable 10-foot
Part Number
Qty Reference
M2540-69070
M2540-69200
M2540-69090
2
2
1
M2540-69080
M2540-69110
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
12
Page 174
Configuration: Disk Drive Settings
Configuration
Disk Drive
Settings
The jumper positions and switch settings of the drives in the M2540A depend on the
manufacturer of the drives.
Hard Drive
Jumpers
Figure 12-1shows typical hard disk drive jumper positions. Examine the drive itself for
information on the correct settings. The hard disk drive is the only device on the primary IDE,
and is usually set to MASTER or SINGLE.
Figure 12-1
Hard Disk Drive Jumper Settings
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 175
Configuration: VCR Switch Settings
CD Drive
Jumpers
Figure 12-2 shows typical CD-RW drive jumper positions. Set the jumper to the MASTER
position on the secondary IDE.
Figure 12-2
CD-RW Drive Jumper Position
MO Drive
Jumpers
Set the MO drive jumpers to SLAVE on the secondary IDE.
VCR Switch
Settings
The VCR’s switches must be set to the following positions:
•
Audio Out left switch: Mix
•
Audio Out right switch: Norm
•
Input: S-Video
•
S-VHS: Auto
•
Menu: Off
•
Mode Lock: Off
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 176
Configuration: Sony B/W Printer Dip Switch Settings
Sony B/W
Printer Dip
Switch
Settings
On the Sony black-and-white printer, dip switch number 5 should be up. All the other dip
switches should be down.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
13
Overview
Ordering
Parts
Page 177
Parts: Overview
Parts
This section contains lists of the M2540A’s parts, supplies, and accessories available for use with
the system, and information on ordering parts, accessories, and supplies.
•
“Ordering Parts” on page 177
•
“Major Assemblies” on page 178
•
“Transducer Connector Modules” on page 179
•
“Internal PC” on page 180
•
“e-box and Power Supply” on page 183
•
“Lower Assembly” on page 185
•
“Lift Column Assembly” on page 190
•
“Upper Assembly” on page 193
•
“Top Shelf” on page 196
•
“VCR Option Parts” on page 198
•
“Software” on page 198
•
“Physio Option Parts” on page 199
•
“Exchange Part Numbers” on page 200
•
“Optional Peripherals” on page 201
•
“Supplies and Accessories” on page 202
Address all parts orders or inquiries to your local Philips Sales and Service office. Always specify
the correct part number or exchange number for the assembly or component being ordered, as
well as the serial and revision numbers of the system in which the assembly is being installed.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 178
Parts: Major Assemblies
To learn about transducer parts, please see the M2540A Transducer Guide.
New Parts
Be sure to specify the correct sub-assembly or component part number, as listed throughout this
section.
Exchange Parts
Some circuit boards, transducers, and OEM peripherals are available as exchange items (repaired
or refurbished), at reduced cost. Exchange item part numbers are different from original equipment part numbers. See “Exchange Part Numbers” on page 200
System Serial
Number and
Revision Level
When ordering any new or exchange part, be sure to include the system serial number and the
software revision prefix (for example, B.0). The serial number is on the system ID label, on the
rear of the cart. The ID label also identifies installed system options. Use the system Help file to
find software revision numbers, or run the RST application, and under the Info tab, click System. (See “System Information” on page 109.)
Major
Assemblies
The following table lists the major assemblies of the M2540A, and the drawings that show them.
Table 13-1
Major Assemblies
Description
Drawing and Page
PC
Power supply
e-box
Upper assembly
Lower assembly
Lift column
Figure 13-1 on page 180
Figure 13-2 on page 183
Figure 13-2 on page 183
Figure 13-5 on page 193
Figure 13-3 on page 185
Figure 13-4 on page 190
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Transducer
Connector
Modules
Page 179
Parts: Transducer Connector Modules
The following table lists the available transducer connector modules and their part numbers.
Table 13-2
Transducer Connector Modules
Description
Cannon transducer connector module
Advance Vision transducer connector module
Pencil transducer connector module
Blank module
Part Number
Qty
M2540-62100
M2540-62000
M2540-62200
M2540-62010
1
1
1
1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 180
Parts: Internal PC
Internal PC
The following figure shows the replaceable components of the M2540A’s PC. Numbers refer to
Table 13-3, on page 181.
Figure 13-1
Internal PC Components
5
8
10
7
13
12
11
6
3
4
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
2
16
14
15
1
9
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 181
Parts: Internal PC
The following table lists the replaceable components of the internal PC shown in Figure 13-1.
Numbers in the # column are the item numbers on the drawing. A dash (—) in the # column
means the part is not numbered on the drawing.
Table 13-3
#
PC
1
2
3
4
5
6
7
8
9
—
—
—
—
—
Internal PC Components
Description
Part Number
Qty Reference
APIO board
PC motherboard
CPU
Hard disk drive
CD-RW drive
Floppy disk drive
PC power supply
PA 810 enclosure
PC bezel
Ribbon Cable kit
256 MB memory module
512 MB memory module
Drive bay blank cover kit
Screw, 6-32 x 5/8, panhead
M2540-67000
M2540-60030
M2540-67110
M2540-67140
M2540-67100
M2540-67130
M2540-67120
M2540-67150
M2540-67170
M2540-67210
M2540-67160
M2540-67180
M2540-67190
M2540-67200
2360-0123
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
Figure 13-3
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-3
#
Page 182
Parts: Internal PC
Internal PC Components (Continued)
Description
Optional physio module
10 Physio module
11 Physio USB cable
12 Physio trigger cable
Optional magneto optical drive
13 MOD drive
— MOD adapter assembly
PC components for VCR option
14 Video converter board
15 Video capture board
16 Sound card
Part Number
Qty Reference
Table 13-11
M2540-62300
M2540-69020
M2540-69030
—
M2540-80100
M2540-80400
—
M2540-80070
M2540-80080
M3150-60020
1
1
1
—
1
1
—
1
1
1
Table 11-1
Table 11-1
Table 13-9
Table 13-9
Table 13-9
Table 13-9
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 183
Parts: e-box and Power Supply
e-box and
Power Supply
The following figure shows the system power supply and the components of the e-box listed in
Table 13-4. The power supply contains no replaceable parts.
Figure 13-2
e-box and Power Supply Components
10
6
9
4
14
3
8
7
5
12
11
1
2
13
13
12
12
10
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 184
Parts: e-box and Power Supply
The following table lists the components of the power supply and e-box assembly shown in
Figure 13-2. Numbers in the # column are the item numbers on the drawing. A dash (—) in the
# column means the part is not numbered on the drawing.
Table 13-4
Power Supply and e-box Assembly Components
#
Description
Part Number
Qty Reference
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Power supply
Cooling fan
e-box assembly
Motherboard
Distribution board
TR board
Demodulator board
BPAP board
Chassis septum
Card guide
RFI shielding kit
M3 x 6mm screw
M4 x 10-mm screw
e-box door assembly
M2540-66000
M2540-66010
M2540-64000
M2540-60000
M2540-60010
M2540-60040
M2540-60050
M2540-60060
M2540-00040
4040-2551
M2540-86040
0515-0430
M2540-80322
M2540-64010
1
1
1
1
1
2
1
1
2
8
1
27
16
1
Exchange part, see Table 13-12
Does not include circuit boards
Exchange part, see Table 13-12
Exchange part, see Table 13-12
Exchange part, see Table 13-12
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 185
Parts: Lower Assembly
Lower
Assembly
The following figure shows the components of the lower assembly listed in Table 13-5.
Figure 13-3
Lower Assembly
7
11
26
25
5
24
6
15
28
23
3
19
10
19
4
20
8
16
22
29
17
9
12
2
21
1
14
13
27
30
18
31
32
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 186
Parts: Lower Assembly
The following table lists the components of the lower assembly shown in Figure 13-3. Numbers
in the # column are the item numbers on the drawing. A dash (—) in the # column means the
part is not numbered on the drawing.
Table 13-5
#
Lower Assembly
Description
Cart assembly
1 PC
2 Air filter
3 e-box and power supply
4 Column assembly
5 Control top
6 VCR
7 Printer
8 Side panel, right
9 Side panel, left assembly
10 Rear panel assembly
11 Cart top
12 Center column, front
13 Latch, rear door
14 Front panel
15 Top front trim
16 Upper I/O panel
Part Number
Qty Reference
M2540-65000
M2540-67000
M2540-80050
—
M2540-65100
—
—
—
M2540-00400
M2540-65190
M2540-65170
M2540-00420
M2540-00370
1390-1326
M2540-00440
M2540-00590
M2540-00660
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
Table 13-3
Bolted together, see Figure 13-2
Table 13-6
Figure 13-5
Table 13-13
Table 13-13
Includes rear doors
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-5
#
Page 187
Parts: Lower Assembly
Lower Assembly (Continued)
Description
17 Lower I/O panel
LAN bulkhead connector
Grounding stud
I/O panel trigger cable
I/O panel foot switch cable
Internal LAN cable
Composite video cable
18 Cart front panel bracket
19 Power supply bracket
20 PC bracket
21 Transducer cable hook
22 Cable hook, rear
23 External power plug and cable
24 Peripheral strap
25 Strap bracket kit
— Color printer tray kit
26 VCR tray
— Printer spacer
— Nylon bushing, 2-inch
— VCR option video in/out cable
— VCR option audio in/out cable
Part Number
Qty Reference
M2540-00670
1252-6178
1251-5964
M2540-69150
M2540-69160
M2540-69130
M2540-69140
M2540-00620
M2540-00530
M2540-00600
M2540-40690
M2540-40680
M2540-69120
77922-80290
M2540-86020
M2540-86010
M2540-00810
M2540-40750
0040-0951
M2540-69070
M2409-69200
1
1
1
1
1
1
1
1
2
1
4
1
1
1
1
1
1
4
1
2
2
Table 11-1
Table 11-1
Table 11-1
Table 11-1
Table 13-9
Table 13-9
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-5
Page 188
Parts: Lower Assembly
Lower Assembly (Continued)
#
Description
Part Number
Qty Reference
—
—
—
—
—
—
27
VCR option serial cable
Printer USB cable
Peripheral power cable (IEC)
Token ring cable
Ground cable
Power cord
M4 x 10-mm Phillips locking
screw
M3 x 12-mm screw
M4 nylock nut
Foam strip
Center cart assembly
Plain swivel caster
Locking swivel caster
M8 x 16-mm hex locking bolt
M4 x 10-mm screw with
washer
M6 lock nut
M5 x 16-mm screw
M5 plastic hex nut
Nameplate BASIC
M2540-69090
M2540-69100
8120-2572
M2540-69000
M2540-69170
M2540-40700
0515-2859
1
2
3
1
1
1
4
0515-0664
0535-1029
M2540-80120
M2540-65140
M2540-80240
M2540-80250
0515-2466
M2540-80322
10
12
4
1
2
2
16
39
0535-1030
0515-0671
0535-0090
M2540-83010
4
1
1
1
—
28
—
29
30
31
32
—
—
—
—
—
Table 13-9
Table 11-1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-5
Page 189
Parts: Lower Assembly
Lower Assembly (Continued)
#
Description
Part Number
Qty Reference
—
—
—
—
—
Nameplate Performance
System Serial Overlay Label
Performance label strip
Nameplate CV
Nameplate CV performance
M2540-83020
M2540-83030
M2540-83040
M2540-83050
M2540-83060
1
1
1
1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 190
Parts: Lift Column Assembly
Lift Column
Assembly
The following figure shows the components of the lift column assembly listed in Table 13-6.
Figure 13-4
Lift Column
2
13
11
2
10
6
5
1
6
8
4
2
16
12
15
9
17
10
7
14
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 191
Parts: Lift Column Assembly
The following table lists the components of the lift column assembly shown in Figure 13-4. Numbers in the # column are the item numbers on the drawing. A dash (—) in the # column means
the part is not numbered on the drawing.
Table 13-6
Lift Column Components
#
Description
Part Number
Qty
1
2
3
—
Column assembly
Slide assembly
Gas spring bracket
Mechlok bracket hardware kit
M2540-65100
M2540-65030
M2540-00310
M2540-65180
1
3
1
—
4
Mechlok bracket
—
1
5
Grommet, 5/16-inch ID
—
4
6
Flat washer, 5/16-inch
—
4
7
Clevis pin
—
2
8
9
10
11
—
Gas strut assembly
Column cover
Mechlok
Slide bracket, front
Mechlock cable
M2540-80020
M2540-00430
M2540-80030
M2540-00320
M2540-80035
1
1
1
1
1
Reference
Includes items 4, 5,
6, 7, and strut eyelet
Part of
M2540-65180
Part of
M2540-65180
Part of
M2540-65180
Part of
M2540-65180
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-6
#
—
—
12
13
14
15
16
—
—
Page 192
Parts: Lift Column Assembly
Lift Column Components (Continued)
Description
Friction ring
Belleville washer
Detent ring
Cable protector cap
Quick release pin and ring
Pivot mount
M4 x 6-mm panhead screw
M4 x 10-mm screw with washer
M4 x 10-mm screw with washer,
mushroom
— M4 x 10-mm screw with washer, light gray
17 M4 lock nut
Part Number
Qty
M2540-80010
3050-1403
M2540-00270
M2540-40710
1480-1141
M2540-00230
0515-0684
M2540-80322
M2540-80320
2
8
1
1
1
1
12
12
10
M2540-80325
0535-1029
2
12
Reference
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 193
Parts: Upper Assembly
Upper
Assembly
The following figure shows the components of the upper assembly listed in Table 13-7.
Figure 13-5
Upper Assembly
12
9
13
5
15
14
4
18
16
11
25
22
24
2
17
1
23
8
10
7
6
20. 19.
21
3
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 194
Parts: Upper Assembly
Table 13-7 lists the components of the upper assembly shown in Figure 13-5. Numbers in the #
column are the item numbers on the drawing. A dash (—) in the # column means the part is not
numbered on the drawing.
Table 13-7
Upper Assembly Components
#
Description
1
—
2
3
4
5
Top shelf assembly
FIMI monitor, mushroom
System control panel (keyboard)
Height release handle
Monitor support
Monitor support front panel
assembly
Cable stop bracket
M4 x 16-mm flathead screw
M4 x 25-mm flathead screw
M4 x 25-mm panhead screw
Transducer cable hook
Twivel assembly
Twivel ring
Twivel shoe
Monitor mount (twivel base)
Twivel hat
6
7
8
9
10
—
11
12
13
14
Part Number
Qty Reference
M2540-66500
M2540-40100
M2540-40560
M2540-00210
M2540-65120
1
1
1
1
1
1
M2540-00550
0515-4620
0515-4622
0515-2860
M2540-40690
1
12
25
2
3
M2540-40740
M2540-40730
M2540-40630
M2540-40610
1
1
1
1
Figure 13-6 on page 196
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-7
Upper Assembly Components (Continued)
#
Description
—
—
15
16
17
18
19
20
21
Pivot mount assembly
Pivot mount
Pivot knob
Latch cam
Pivot latch assembly
Latch bearing
M4 x 6-mm Phillips screw
Delrin flat washer
Precision flat washer
0.171-inch ID
M4 nylock nut
M4 x 10-mm screw with washer
Trackball assembly
Trackball
Trackball ring
Control panel replacement knob kit
Rotary encoder
Cable tie
22
—
23
24
25
—
—
—
Page 195
Parts: Upper Assembly
Part Number
Qty Reference
M2540-00230
M2540-40550
M2540-40590
M2540-65150
M2540-40600
0515-2859
3050-2184
3050-2186
1
1
1
1
1
1
3
3
3
0535-1029
M2540-80322
M2540-80200
M2540-80210
M2540-80220
M2540-86070
M2540-40210
1400-0401
2
2
1
1
1
—
7
12
Used with items 20, 21
Includes items 24 and 25
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 196
Parts: Top Shelf
Top Shelf
The following figure shows the components of the upper assembly listed in Table 13-8.
Figure 13-6
Top Shelf
8
9
10
7
5
12
11
4
3
2
1
6
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 197
Parts: Top Shelf
The following table lists the parts shown in Figure 13-6. Numbers in the # column are the item
numbers on the drawing. A dash (—) in the # column means the part is not numbered on the
drawing.
Table 13-8
Top Shelf Components
#
Description
Part Number
Qty
1
2
3
4
5
6
7
8
9
10
11
12
—
Bottom sheet
Keyboard surround
Top sheet
Speaker support, left
Speaker support, right
Front panel retainer clip
Speaker
P-clip, 1-inch
P-clip, 5/8-inch
P-clip, 3/16-inch
M4 x 10-mm Phillips screw
M3 x 6-mm Phillips screw
Speaker foam
M2540-00160
M2540-40500
M2540-00150
M2540-00190
M2540-00200
M2540-00880
M2540-80230
1
1
1
1
1
4
2
2
1
2
4
8
2
0515-2859
0515-0430
M2540-80110
Reference
Part of M2540-86050
Part of M2540-86050
Part of M2540-86050
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
VCR Option
Parts
The following table lists the parts of the VCR option. For part numbers of available VCRs, see
“Optional Peripherals” on page 201.
Table 13-9
Software
Page 198
Parts: VCR Option Parts
VCR Option Parts
Description
Part Number
Qty
Video converter board
Video capture board
Sound card
Video in/out cable
Audio in/out cable
Serial cable
M2540-80070
M2540-80080
M3150-60020
M2540-69070
M2450-69200
M2540-69090
1
1
1
2
1
1
The following table lists the part numbers for the M2540A’s software CDs.
Table 13-10
M2540A Software CDs
Description
Part Number
Ultrasound application CD
COTS CD
Operating system CD
M2540-81000-01
M2540-82000-01
M2540-82500-01
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Physio Option
Parts
Page 199
Parts: Physio Option Parts
The following table lists the parts of the physio option.
Table 13-11
Physio Option Parts
Description
Part Number
Qty Reference
Physio module (ECG module)
Physio USB cable
Physio trigger cable
3-Lead AAMI grabber set
3-Lead AAMI trunk cable
3 Lead AAMI mini-clip set
3-lead IEC trunk cable
3-lead IEC grabber set
3-lead IEC mini-clip set
ECG electrodes
Pediatric electrodes, disposable
M2540-62300
M2540-69020
M2540-69030
M1603A
M1500A
M1609A
M1510A
M1613A
M1619A
77020-62180
77020-62190
1
1
1
Table 13-3
Table 11-1
Table 11-1
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Exchange Part
Numbers
Page 200
Parts: Exchange Part Numbers
Some parts are available at reduced cost, as exchange items. The following table lists the part
numbers for exchange parts and assemblies.
Table 13-12
Exchange Part Numbers
Description
Part Number
Exchange Part
Number
FIMI monitor
System power supply
Keyboard
M2540-66500
M2540-66000
M2540-40100
M2540-66508
M2540-66008
M2540-40108
TR board
Demodulator board
BPAP board
NTSC VCR
M2540-60040
M2540-60050
M2540-60060
77616A
M2540-60048
M2540-60058
M2540-60068
77616-68000
PAL VCR
Black-and-white printer UPD-895 (USB)
Color printer UPD-21MD (USB)
S4 ultraband sector transducer
S8 ultraband sector transducer
S12 transducer
c3540 biopsy capable transducer
EC6509 endocavity transducer
L7535 linear transducer
77626A
M2540-66700
M2540-66800
21330A
21350A
21380A
21321A
21336A
21359A
77626-68000
M2540-66708
M2540-66808
21330-68000
21350-68000
21380-68000
21320-68000
21336-68000
21359-68000
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-12
Optional
Peripherals
Page 201
Parts: Optional Peripherals
Exchange Part Numbers
Description
Part Number
Exchange Part
Number
L5035 linear transducer
TEE (Omniplane II) transducer
L1038A small parts transducer
15-6L intraoperative transducer
PA 4-2 sector transducer
CA 5-2 transducer
21360A
21369-60000
21376A
21390A
21422A
21425A
21360-68000
21369-68000
21376-68000
21390-68000
21422-68000
21425-68000
The following table lists the part numbers of peripheral options available for the M2540A.
Table 13-13
Optional Peripherals
Description
Part Number
Note
NTSC VCR
PAL VCR
Black-and-white printer UPD-895 (USB)
Color printer UPD-21MD (USB)
Color plain-paper printer
Black-and-white plain paper laser printer
MOD drive
77616A
77626A
M2540-66700
M2540-66800
HP 940C
HP1200
M2540-80100
Exchange part, see Table 13-12
Exchange part, see Table 13-12
Exchange part, see Table 13-12
Exchange part, see Table 13-12
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Supplies and
Accessories
Page 202
Parts: Supplies and Accessories
The following table lists supplies and accessories available from Philips for use with the M2540A.
To order supplies and accessories, see “Ordering Parts” on page 177. To learn about transducer
accessories, please see the M2540A Transducer Guide.
NOTE Using any accessory not listed below may affect electromagnetic emissions or immunity
compliance.
Table 13-14
Supplies and Accessories
Description
Part Number
Shipping package
Microphone
Foot switch
External LAN cable
USB cable 10-foot
MO disk
Floppy disk
M2540-85000
9164-0719
M2540-80280
M2540-69080
M2540-69110
M2540-80101
9164-0361
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-14
Page 203
Parts: Supplies and Accessories
Supplies and Accessories (Continued)
Description
Part Number
Paper
Sony UPP-110S standard paper 5 roll box
Sony UPC 21 L color printing pack for the Sony digital color
printer UP-D21MD
Sony UPP-110 HG glossy paper printing pack for the
black-and-white Sony digital graphic printer UP-D895
Sony UPP-110 HD high density paper printing pack for the
black-and-white Sony digital graphic printer UP-D895MD
Ultrasound Gel
Aquasonic gel, US, 12 8.5-oz. bottles
Aquasonic gel, US, 1 5-liter-bottle refill
Ultrasound gel, Europe, 12 bottles
Ultrasound gel, Europe, 1 5-liter-bottle refill
SNY110S
SNY21L
SNY110HG
SNY110HD
40483A
40483B
40404A
40404B
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Table 13-14
Page 204
Parts: Supplies and Accessories
Supplies and Accessories (Continued)
Description
Biopsy kits
Biopsy kit C3540
Biopsy kit PA4-2
Biopsy kit CA5-2
Biopsy kit L1038
Biopsy kits L7535 and L5035
Biopsy kit E6509
ECG electrodes
Foam electrodes, pregelled, 100 packs
Pediatric electrodes, disposable
ECG Lead Sets
3-lead set, grabber, AAMI
3 lead trunk cable, AAMI
3-lead set, snap, AAMI
3-lead set, mini-clip, AAMI
3 lead trunk cable, IEC
3-lead set, grabber, IEC
3-lead set, snap, IEC
3-lead set, mini-clip, IEC
Part Number
Civco 645-057
Civco 645-069
Civco 645-067
Civco 645-059
Civco 645-039
Civco 610-588
40420A
13951C
M1603A
M1500A
M1605A
M1609A
M1510A
M1613A
M1615A
M1619A
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
14
Page 205
Transducers:
Transducers
Table 14-1 lists the transducers you can use with the M2540A.
Table 14-1
Transducers
Description
Part Number Frequency
Connector
S4 ultraband sector1
S8 ultraband sector
S12
21330A
Cannon
21350A
21380A
21321A
Cannon
Cannon
Cannon
c3540 biopsy capable1
EC6509 endocavity
L7535 linear
L5035 linear
TEE (Omniplane II)
L1038A small parts
15-6L intraoperative
PA 4-2 sector
CA 5-2
Pencil
21336A
21359A
21360A
21369-60000
21376A
21390A
21422A
21425A
21221-60062
3.5 MHz
7.5 MHz
5 MHz
6 MHz
2-4 MHz
2-5 MHz
1.9 MHz
Cannon
Cannon
Cannon
Cannon
Cannon
Cannon
Advance Vision
Advance Vision
Pencil
1. This transducer is compatible with the M2540A, but is only sold separately.
NOTE All of the transducers except the 21221-60062 Pencil transducer are available as
exchange items. See Table 13-12 on page 200 for a list of exchange part numbers.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
15
Page 206
Glossary:
Glossary
2D mode
A mode of operation where the display represents reflected ultrasound information as points of
light of varying intensity arrayed linearly, concordant with the arrival time.
Angio mode
This mode presents two-dimensional, real-time Doppler or time shift information superimposed
as colored pixels on a real-time, gray scale anatomic cross-sectional image. The colored pixel
information represents the amplitudes of the selected blood flows within the angio window.
Archive
A depository for the final reports.
Color mode
This mode presents two-dimensional, real-time Doppler or time shift information superimposed
as colored pixels on a real-time, gray scale anatomic cross-sectional image. Flow directions
toward and away from the transducer are presented as different colors on the display. The
colored pixel information represents the velocities of all the blood flows, or the flow velocities,
within the color window.
CW Doppler mode
In the Continuous Wave Doppler mode, the transducer array uses separate transmitting and
receiving piezoelectric elements. It processes the entire continuum of reflected signal
information, regardless of delay. The detected frequency shifts can produce audio signals, or they
can display graphically in a spectral trace.
Control
Any mechanism (softkey, touch key, push button, toggle, rotary knob, etc.) that changes a
parameter that, in turn, affects the displayed image.
Control setting
The current setting of an active control.
Custom preset
A preset created by the user.
Default preset
A preset created at the factory and shipped with the ultrasound system.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 207
Glossary:
Display
All the information visible on the system's monitor, including ultrasound images, measurements,
system state, patient information, etc.
Documentation
Everything produced as a result of an ultrasound exam: prints, film, VCR tape, M/O disk of
images, network archive of images, all measurements and calculations, image annotations, and
the sonographer's or physician's exam-related comments.
ECG
Electrocardiogram. The system displays a live ECG waveform if one is connected and activated.
Highlight
An indication that a control is active. Text on a CRT screen is highlighted by displaying it in
reverse video (light-on-dark, or dark-on-light, whichever is the reverse of the normal display).
Keys on the keyboard are highlighted by lighting an adjacent LED. Softkeys are highlighted by
changing the value associated with them.
Hospital information system
The computer databases and networks of an institution.
An ultrasound view that is either actively displayed or archived. An image can be represented by
a single frame, a continuous loop, a 3D volume set, a Doppler spectral trace, Doppler audio, an
ECG waveform, etc.
Imaging mode
2D, Color, Angio, Mmode, PW Doppler, CW Doppler, 3D, etc.
Institution
A hospital, lab, clinic, or office.
Live imaging mode
Any unfrozen system mode that includes a two-dimensional image being created in real-time
(that is, not retrieved from VCR tape, Cine Loop memory, etc.).
Live mode
Any unfrozen system mode that shows acoustic data in real-time. Live mode includes scanning
with a non-imaging transducer. Compare to Live Imaging mode.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 208
Glossary:
Mmode
Method of image processing in which the display is recorded as a spot of light for each detected
sound pulse returning from a moving target. Produces a single-dimensional time/motion display
of detected anatomical structures.
MOD
Magneto-optical disk; a type of removable data storage.
Modality work list
A list of patient names and associated studies to occur.
Option
A piece of system functionality that a user can purchase.
Peripherals
Output devices such as VCR, MOD, hard-copy printers, network interface, etc.
Preset
A group of control settings that optimizes the system for a particular exam.
Pulsed Wave
Doppler mode
(PW)
A mode that uses pulsed ultrasound. The detected frequency shifts can produce audio signals, or
they can display graphically as a spectral trace.
Scanning window
An area of the 2D image pertaining to one of three specific modes: 2D, Color, or Zoom. The
windows pertaining to these areas are called the 2D, Flow, and Zoom windows
Select
To indicate a choice, as in choosing an item from a menu.
Setup parameters
System settings that can be configured to accommodate the user's requirements and
preferences.
Sonographer
A non-physician who has been trained to perform ultrasound studies. The sonographer performs
the patient study directly on the patient and captures results for later review by a reviewing
physician.
System text
Text showing settings of parameters having to do with system operation.
System settings
Refers to the values of a set of controls of the ultrasound system.
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 209
Glossary:
Transducer
The element of the ultrasound system that the sonographer places on the patient. Sometimes
called a probe. The transducer emits high-frequency sound waves into the patient and receives
their echoes. The ultrasound system controls the transmitting and receiving of the ultrasound
waves according to imaging parameters set by the sonographer. The ultrasound system
processes the received echoes to construct the displayed images, also in accordance with the
imaging parameters set by the sonographer.
Transducer icon
A graphic symbol that represents the ultrasonic transducer. This symbol indicates the scan plane
by placing it in the proper position and orientation to a body mark icon.
Ultrasound system
Any system that can perform diagnostic sonography, which is medical cross-sectional anatomic
and flow imaging using pulse-echo sound waves that are greater than 20 kHz (above the range of
human hearing).
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 1
:
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1
2
3
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Service Manual Questions or Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
e-box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physio Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5
6
6
6
7
7
7
8
8
Optional Peripherals (VCR, Printers, and Image Devices) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preset Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Keyboard Equivalencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 2
:
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
13
18
18
Transducer Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection and Communication Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System I/O Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Panel Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physio Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/Video Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
20
20
22
22
23
23
23
24
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
......................................................................................
Transmit Power (Acoustical) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Acoustic Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
25
26
26
AIUM/NEMA Output Display Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Index Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Explosive Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peripheral Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glutaraldehyde Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
28
29
30
30
31
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 3
:
Moving the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before Moving the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
When Moving the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moving on Ramps or Uneven Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Tilting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the System in a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Avoiding Electromagnetic Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restrictions for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Immunity Level Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrosurgical Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
31
32
32
32
33
34
34
35
35
35
36
Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standard PC Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TR Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BPAP Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Omni TEE Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Demodulator Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
APIO Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physio Module Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Primary Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
37
38
38
39
41
41
42
42
42
43
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 4
:
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Motherboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distribution Board and Connector Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transducer Connector Module Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
e-box and Power Supply Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physio Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transducer Safety Testing: Test Setup and Theory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
43
43
44
44
44
45
46
46
48
50
51
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uncrate the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Removing the System From the Crate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assemble the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Cord and Monitor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Installing the Power Cord and Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peripherals Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Installing a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Installing a Sony Color Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Installing a Sony Black-and-White Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
58
58
58
59
62
62
62
62
62
63
64
65
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 5
:
➤ Powering On the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitor Signal Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Setting the Monitor Signal Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printer Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Preparing the Sony Black-and-White Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Preparing the Sony Color Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Localization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Setting the Localization Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Options Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Installing Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DICOM Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Changing the System’s Network Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Using the Field Service Options Window for Advanced Network Settings . . . . . . . . . . . . . . . . . . . . . . .
➤ Adding Server Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Assigning Servers to DICOM Roles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Configuring Autodelete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Configuring Logging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Hardware Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Assigning Record Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Assigning Option Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Configuring the System for PAL Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Setting the Monitor Color Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Customer Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
65
65
66
66
66
67
67
67
74
74
76
76
78
80
81
82
84
86
86
87
88
90
90
Performance Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Electrical Safety Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 6
:
Chassis to Ground
Resistance Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
➤ Chassis to Ground Resistance Test Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Ground Wire Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
➤ Ground Wire Leakage Current Test Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
ECG Lead Leakage Current Test (Source) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
➤ ECG Lead Leakage Current Test Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
ECG Lead Isolation Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
➤ ECG Lead Isolation Leakage Current Test Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Transducer Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
➤ Transducer Leakage Current Test Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
➤ Transducer Isolation Leakage Current Test Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
PC Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
IBM Drive Fitness Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
➤ Creating a DFT Bootable Floppy Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
➤ Testing PC Functions Using the Drive Fitness Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Checkit Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
➤ Testing PC Functions Using Checkit Pro. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Resident Self Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Logging On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Information Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 7
:
➤ Launching the RST Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Closing the RST Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Running a Basic Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Running an Extended Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Running an Interactive Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Viewing Error Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Service Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Making an Entry in the Service Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Modifying an Entry in the Service Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitor Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OSD Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Opening the OSD Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting VGA Vertical Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Adjust the VGA Vertical Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Cleaning the Trackball . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Cleaning the e-box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Degaussing the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Won’t Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Boots, but Monitor is Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Boots, But Peripherals Don’t Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP940 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116
117
117
118
118
119
124
124
126
127
127
127
127
128
128
130
130
131
131
132
133
133
134
134
135
135
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 8
:
Printer
Installation
Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Electromagnetic Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Service Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repair Philosophy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ESD Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Servicing Components Above the Lower Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Servicing Components in the Lower Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Service Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Service Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Record Keeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Service Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Reloading or Upgrading System Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Backing Up Customer Presets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Restoring Customer Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Opening the PC Side Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Removing the PC from the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
137
137
138
138
138
139
139
139
140
140
140
140
141
141
141
142
145
146
147
149
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 9
:
E-box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing E-box Circuit Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Motherboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Distribution Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Removing the Power Supply and the E-box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Separating the E-box and the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transducer Connector Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing Transducer Connector Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitor Twivel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Disassembling the Twivel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the System Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitor Support and Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Monitor Support and its Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Control Panel and Monitor Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Upper Assembly Cable Bundle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing Cart Wheels (Caster Assemblies). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Top Panel of the Lower Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lift Column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
150
150
151
152
153
153
154
154
155
155
155
156
156
156
157
157
157
158
159
159
159
160
162
162
163
164
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 10
:
➤ Preparing the System for Servicing the Lift Column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Gas Spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Mechlok and Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
➤ Replacing the Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disk Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hard Drive Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD Drive Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VCR Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sony B/W Printer Dip Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
164
165
166
168
170
173
173
173
174
174
174
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ordering Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
New Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exchange Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Serial Number and Revision Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Major Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transducer Connector Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
e-box and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lower Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lift Column Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
175
175
175
176
176
176
176
177
177
178
181
185
188
M2540-92000-01 A M2540 Ultrasound System Field Service Manual
Page 11
:
Top Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VCR Option Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standard and Optional Software Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physio Option Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exchange Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplies and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
190
193
193
194
195
195
196
Transducers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
