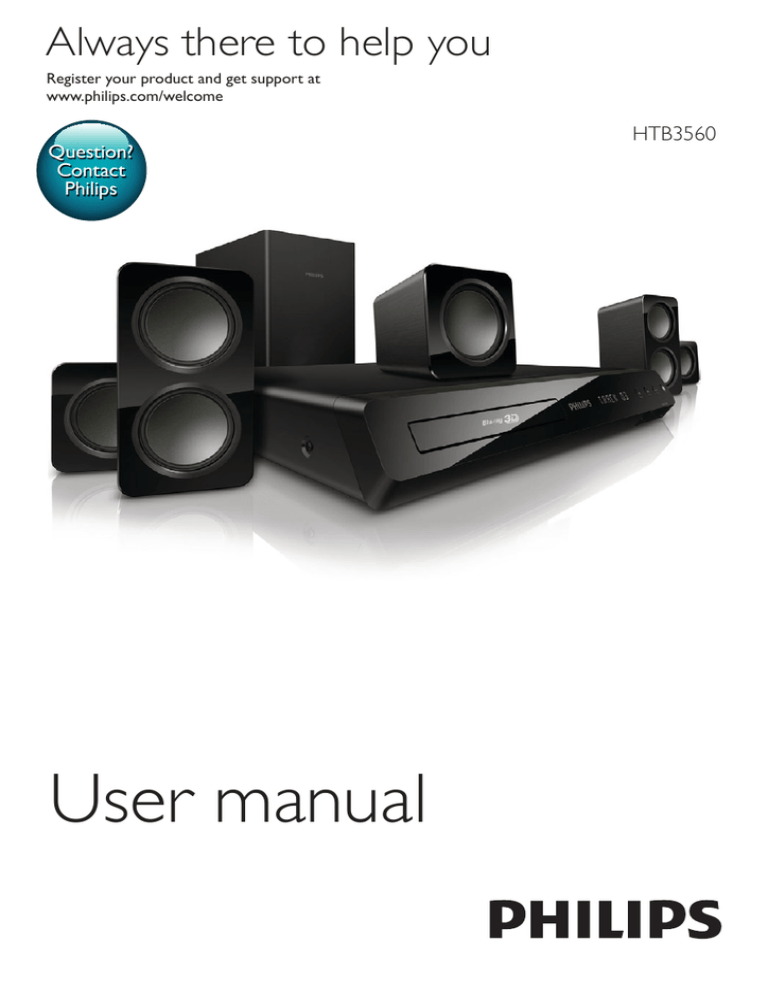

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
HTB3560
Contents
Energy saving settings Speaker settings Restore default settings 1 Important 3
3
4
4
4
2 Your home theater 5
5
5
6
Safety 3D health warning Care for your product Care of the environment Main unit Connectors Remote control 3 Connect and set up Connect speakers Connect to TV Connect audio from TV and other
devices Set up speakers Set up EasyLink (HDMI-CEC control) Connect and set up a home network 8
8
9
10
11
11
12
4 Use your home theater 14
14
14
16
16
17
18
19
19
19
20
20
22
5 Change settings 24
24
24
24
25
25
Access the home menu Discs Data files USB storage devices Audio, video, and picture options Radio MP3 player YouTube videos Picasa web albums Smartphone control Browse PC through DLNA Choose sound Language settings Picture and video settings Audio settings Parental control settings Display settings 25
25
26
6 Update software 26
Check software version 26
Update software through the Internet 26
Update software through USB 27
7 Product specifications 28
8 Troubleshooting 31
9 Notice 33
33
34
34
34
10 Language code 36
11 Index 37
Copyright Open source software Compliance Trademarks EN
2
1Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Read and understand all instructions before you
use your home theater. If damage is caused by
failure to follow instructions, the warranty does
not apply.
Safety
Risk of electric shock or fire!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked flames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or fire!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
3
EN
Risk of injury or damage to the home theater!
• For wall-mountable products, use only the
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount. Koninklijke Philips Electronics
N.V. bears no responsibility for improper
wall mounting that results in accident,
injury or damage.
• For speakers with stands, use only the
supplied stands. Secure the stands to the
speakers tightly. Place the assembled stands
on flat, level surfaces that can support the
combined weight of the speaker and stand.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside
the disc compartment.
• Parts of this product can be made of
glass. Handle with care to avoid injury and
damage.
Risk of overheating!
• Never install this product in a confined
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Risk of contamination!
• Do not mix batteries (old and new or
carbon and alkaine, etc.).
• Danger of explosion if batteries are
incorrectly replaced. Replace only with the
same or equivalent type.
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
Parents should monitor their children during
3D viewing and ensure they do not experience
any discomfort as mentioned above. Watching
3D is not recommended for children under six
years of age as their visual system is not fully
developed yet.
Care for your product
•
•
•
•
Do not insert any objects other than discs
into the disc compartment.
Do not insert warped or cracked discs into
the disc compartment.
Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
Use only microfiber cloth to clean the
product.
Care of the environment
This is CLASS II apparatus with double
insulation, and no protective earth provided.
3D health warning
If you or your family has a history of epilepsy
or photosensitive seizures, consult a medical
professional before exposing yourself to flashing
light sources, rapid image sequences or 3D
viewing.
To avoid discomfort such as dizziness, headache
or disorientation, we recommend not watching
3D for extended periods of time. If you
experience any discomfort, stop watching
3D and do not immediately engage in any
potentially hazardous activity (for example
driving a car) until your symptoms have
disappeared. If symptoms persist, do not resume
watching 3D without consulting a medical
professional first.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
EN
4
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
2 Your home
theater
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers(e.g. notification
of product software upgrade), register your
product at www.philips.com/welcome.
Main unit
This section includes an overview of the main
unit.
a Disc compartment
b Display panel
c (Open/Close)
Open or close the disc compartment, or
eject the disc.
d
(Play/Pause)
Start, pause or resume play.
e SOURCE
Select an audio or video source for the
home theater.
f
(Standby-On)
Switch the home theater on or to standby.
Connectors
This section includes an overview of the
connectors available on your home theater.
5
EN
Front connectors
g LAN
Connect to the LAN input on a
broadband modem or router.
h DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
a
(USB)
Audio, video or picture input from a USB
storage device.
Connect to a Wi-Fi dongle (Model: Philips
WUB1110, sold separately).
Remote control
This section includes an overview of the
remote control.
b MUSIC iLINK
Audio input from an MP3 player.
1
Rear connectors
3
14
4
15
2
5
6
7
a AC MAINS
Connect to the power supply.
8
9
b SPEAKERS
Connect to the supplied speakers and
subwoofer.
10
c ANTENNA FM
Fixed FM antenna.
11
d AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
e VIDEO OUT
Connect to the composite video input on
the TV.
16
17
18
19
12
13
20
21
f HDMI OUT (ARC)
Connect to the HDMI input on the TV.
EN
6
a
b
(Standby-On)
• Switch the home theater on or to
standby.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
(Home)
Access the home menu.
c Source buttons
• DISC/POP-UP MENU : Switch to disc
source.Access or exit the disc menu
when you play a disc.
• RADIO : Switch to FM radio.
• AUDIO SOURCE : Select an audio
input source.
d
BACK
• Return to a previous menu screen.
• In radio mode, press and hold to erase
the current preset radio stations.
e Navigation buttons
• Navigate menus.
• In radio mode, press left or right to
start auto search.
• In radio mode, press up or down to
tune the radio frequency.
f OK
Confirm an entry or selection.
g
/ (Previous/Next)
• Skip to the previous or next track,
chapter or file.
• In radio mode, select a preset radio
station.
h
(Stop) / (Eject/Open/Close)
• Stop play.
• Press and hold for three seconds to
open or close the disc compartment,
or eject the disc.
i
/
(Fast Backward / Fast Forward)
Search backwards or forward. Press
repeatedly to change the search speed.
7
EN
j
+/- (Volume)
Increase or decrease volume.
k
SOUND SETTINGS
Access or exit sound options.
l Alphanumeric buttons
Enter values or letters (using SMS style
entry).
m REPEAT
Select or turn off repeat mode.
n TOP MENU
Access the main menu of a disc.
o
OPTIONS
• Access more play options while playing
a disc or a USB storage device.
• In radio mode, set a radio station.
p
(Play)
Start or resume play.
q
(Pause)
Pause play.
r (Mute)
Mute or restore volume.
s AUDIO
Select an audio language or channel.
t SUBTITLE
Select subtitle language for video.
u Color buttons
Select tasks or options for Blu-ray discs.
3 Connect and set
up
This section helps you connect your home
theater to a TV and other devices, and then set
it up.
For information about the basic connections
of your home theater and accessories, see the
quick start guide.
Note
•• For identification and supply ratings, see the type plate
at the back or bottom of the product.
•• Before you make or change any connections, make sure
Note
that all devices are disconnected from the power outlet.
•• Surround sound depends on factors such as room
shape and size, type of wall and ceiling, windows and
reflective surfaces, and speaker acoustics. Experiment
with the speaker positions to find the optimum setting
for you.
Connect speakers
The speaker cables are color-coded for easy
connection. To connect a speaker to your home
theater, match the color on the speaker cable to
the color on the connector.
Speaker position plays a critical role in setting
up a surround sound effect. For best effect,
position all the speakers towards the seating
position and place them close to your ear level
(seated).
Follow these general guidelines for speakers
placement.
1
2
3
4
5
Seating position:
This is the center of your listening area.
FRONT CENTER (front center) speaker:
Place the center speaker directly in front of
the seating position, either above or below
your TV.
FRONT LEFT (front left) and FRONT
RIGHT (front right) speakers:
Place the left and right speakers in the
front, and at equal distance from the center
speaker. Make sure that the left, right, and
the center speakers are at equal distance
from your seating position.
REAR LEFT (rear left) and REAR RIGHT
(rear right) speakers:
Place the rear surround speakers to the
left and right side of your seating position,
either in line with it or slightly behind it.
SUBWOOFER (subwoofer):
EN
8
Place the subwoofer at least one meter
to the left or right of the TV. Leave about
10-centimeter clearance from the wall.
3
Connect to TV
Connect your home theater to a TV to
watch videos. You can listen to audio from TV
programs through your home theater speakers.
Use the best quality connection available on
your home theater and TV.
Option 1: Connect to TV through
HDMI (ARC)
Best quality video
Your home theater supports HDMI version
with Audio Return Channel (ARC). If your TV
is HDMI ARC compliant, connect your home
theater to the TV through the HDMI ARC
connection for easy and quick setup.
With HDMI ARC, you do not need an
additional audio cable to play audio from TV
through your home theater.
1
Best quality video
If your TV is not HDMI ARC compliant, connect
your home theater to the TV through a
standard HDMI connection.
With a standard HDMI connection, you need
an additional audio cable to play the audio from
the TV through your home theater.
1
Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on
your home theater to the HDMI ARC
connector on the TV.
The HDMI ARC connector on the TV
might be labeled HDMI IN or HDMI. For
details on TV connectors, see the TV user
manual.
9
3
EN
Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
home theater to the HDMI connector on
the TV.
The HDMI connector on the TV might be
labeled HDMI IN.
TV
TV
On your TV, turn on HDMI-CEC. For
details, see the TV user manual.
»» When you play a disc on your home
theater, the video is automatically
If audio from the TV does not play
automatically on your home theater, set up
the audio manually (see 'Set up the audio'
on page 12).
Option 2: Connect to TV through
HDMI
2
2
displayed on TV and the audio is
automatically played on the home
theater.
On your TV, turn on HDMI-CEC. For
details, see the TV user manual.
»» When you play a disc on your home
theater, the video is automatically
displayed on TV and the audio is
automatically played on the home
theater.
To play audio from TV programs through
your home theater, connect an additional
audio cable.
4
If audio from the TV does not play
automatically on your home theater, set up
the audio manually (see 'Set up the audio'
on page 12).
Note
•• If your TV has a DVI connector, you can use an HDMI/
DVI adapter to connect to TV.
Connect audio from TV and
other devices
Play audio from TV or other devices through
your home theater speakers.
Use the best quality connection available on
your TV, home theater, and other devices.
Note
Option 3: Connect to the TV through
composite video
Basic quality video
If your TV does not have HDMI connectors,
connect your home theater to the TV through a
composite connection. A composite connection
does not support high-definition video.
With a composite connection, you need an
additional audio cable to play the audio from
the TV through your home theater.
1
•• When your home theater and TV are connected
through HDMI ARC, an audio connection is not
required.
Option 1: Connect audio through a
digital optical cable
Best quality audio
1
Using a composite video cable, connect
the VIDEO OUT connector on your
home theater to the composite video
connector on the TV.
The composite video connector might be
labeled AV IN, VIDEO IN, COMPOSITE,
or BASEBAND.
Using an optical cable, connect the
OPTICAL connector on your home
theater to the OPTICAL OUT connector
on the TV or other device.
• The digital optical connector might be
labeled SPDIF or SPDIF OUT.
TV
TV
2
3
On your TV, switch to the correct video
input.
To play audio from TV programs through
your home theater, connect an additional
audio cable.
On your home theater, press SOURCE
repeatedly to select the correct audio
input.
Option 2: Connect audio through
analog audio cables
Basic quality audio
1
Using an analog cable, connect the AUX
connectors on your home theater to the
AUDIO OUT connectors on the TV or
other device.
EN
10
VCR
Note
•• Depending on the manufacturer, HDMI-CEC is known
by many names. For information on your device, see
the user manual of the device.
•• Philips does not guarantee 100% interoperability with
all HDMI-CEC devices.
Set up speakers
Set up the speakers manually to experience
customized surround sound.
Before you start
Make the necessary connections described in
the quick start guide, and then switch the TV to
the correct source for your home theater.
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [Audio] > [Speaker Setup].
Enter the distance for each speaker, and
then listen to the test tones and change
the volume. Experiment with the speaker
positions to find the ideal setting.
Set up EasyLink (HDMI-CEC
control)
This home theater supports Philips EasyLink,
which uses the HDMI-CEC (Consumer
Electronics Control) protocol. EasyLinkcompliant devices that are connected through
HDMI can be controlled by a single remote
control.
11
EN
Before you start
• Connect your home theater to the HDMICEC compliant device through HDMI
connection.
• Make the necessary connections described
in the quick start guide, and then switch
the TV to the correct source for your
home theater.
Enable EasyLink
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [EasyLink] > [EasyLink] > [On].
On your TV and other connected devices,
turn on HDMI-CEC control. For details, see
the user manual of the TV or other devices.
• On your TV, set the audio output to
'Amplifier' (instead of TV speakers).
For details, see the TV user manual.
EasyLink controls
With EasyLink, you can control your home
theater, TV, and other connected HDMI-CEC
compliant devices with a single remote control.
• [One Touch Play] (One-touch play): When
a video disc is in the disc compartment,
press (Play) to wake up the TV from
standby, and then play a disc.
• [One Touch Standby] (One-touch
standby): If one-touch standby is enabled,
your home theater can switch to standby
with the remote control of the TV or other
HDMI-CEC devices.
• [System Audio Control] (System audio
control): If system audio control is enabled,
the audio of the connected device is
•
output through your home theater
speakers automatically when you play the
device.
[Audio Input Mapping] (Audio input
mapping):If system audio control does not
work, map the connected device to the
correct audio input connector on your
home theater (see 'Set up the audio' on
page 12).
Connect and set up a home
network
Connect your home theater to a home
network with internet access and enjoy:
• YouTube leanback
• Picasa web albums
• BD-Live applications
• Software update
Note
•• To change the EasyLink control settings, press
(Home), select [Setup] > [EasyLink].
Caution
•• Familiarize yourself with the network router and
networking principles. If necessary, read documentation
that accompanies the network components. Philips is
not responsible for lost, damaged, or corrupt data.
Set up the audio
If you cannot hear the audio output of a
connected device through your home theater
speakers, check that you have enabled Easylink
on all the devices (see 'Enable EasyLink' on
page 11). Then, set up the EasyLink audio
control.
1
2
3
4
5
Press
(Home).
Select [Setup], and then press OK.
Select [EasyLink] > [System Audio
Control] > [On].
• To play the audio from the TV
speakers, select [Off], and skip the
following steps.
Select [EasyLink] > [Audio Input
Mapping].
Follow the onscreen instructions to map
the connected device to the audio inputs
on your home theater.
• If you connect your home theater
to the TV through an HDMI ARC
connection, make sure that the TV
audio is mapped to the ARC input on
your home theater.
Before you start
• For software updates, make sure that the
network router has access to the Internet
with high-speed connection and is not
restricted by firewalls or other security
systems.
• Make the necessary connections described
in the quick start guide, and then switch
the TV to the correct source for your
home theater.
Set up the wired network
What you need
• A network cable (RJ45 straight cable).
• A network router (with DHCP enabled).
EN
12
LAN
Wi-Fi
www
1
2
3
4
5
6
Using a network cable, connect the LAN
connector on your home theater to the
network router.
Press
(Home).
1
2
3
Select [Setup], and then press OK.
Select [Network] > [Network
Installation] > [Wired (Ethernet)].
Follow the onscreen instructions to
complete the setup.
• If connection fails, select [Retry], and
then press OK.
Select [Finish], and then press OK to exit.
• To view the network settings, select
[Setup] > [Network] > [View
Network Settings].
Set up the wireless network
Your home theater is Wi-Fi ready. Connect
a Wi-Fi dongle for easy access to a wireless
network.
What you need
• A network router (with DHCP enabled).
For best wireless performance, coverage,
and compatibility, use 802.11n router;
• Connect a Wi-Fi dongle (Model: Philips
WUB1110, sold separately) to the
connector on your home theater.
13
www
EN
4
5
Press
(Home).
Select [Setup], and then press OK.
Select [Network] > [Network
installation] > [Wireless (Wi-Fi)], and
then press OK.
Follow the onscreen instructions to select
and set up the wireless network.
• If connection fails, select [Retry], and
then press OK.
Select [Finish], and then press OK to exit.
• To view the network settings, select
[Setup] > [Network] > [View
wireless settings].
4 Use your home
theater
2
If the disc does not play automatically, press
DISC or select [play Disc] from the home
menu.
3
Use the remote control to control play
(see 'Remote control' on page 6).
• It is normal to hear a little noise when
you play a Blu-ray disc. This does not
mean that your home theater is faulty.
This section helps you use the home theater to
play media from a wide range of sources.
Before you start
• Make the necessary connections described
in the Quick start guide and the user
manual.
• Switch the TV to the correct source for
the home theater.
Access the home menu
The home menu provides easy access to
connected devices, setup and other useful
features in your home theater.
1
2
3
Button
Action
Navigation
buttons
OK
(Play)
Navigate menus.
/
/
Press (Home).
»» The home menu is displayed.
Press the Navigation buttons and OK to
select the following:
• [play Disc]: Start disc play.
• [browse USB]: Access the USB
content browser
• [Picasa]: Access Picasa web albums.
• [YouTube]: Access YouTube Leanback
page.
• [browse PC]: Access the computer
content browser.
• [Setup]: Access menus to change video,
audio and other settings.
Press
AUDIO
SUBTITLE
DISC/
POP-UP
MENU
OPTIONS
REPEAT
Confirm an entry or selection.
Start or resume play.
Pause play.
Stop play.
Skip to the previous or next track,
chapter or file.
Fast backward or fast forward.
Press repeatedly to change the
search speed.
Select an audio language or
channel.
Select subtitle language for video.
Access or exit the disc menu.
Access the advanced options
when you play your audio, video,
or media files (see 'Audio, video,
and picture options' on page 17).
Select or turn off repeat mode.
(Home) to exit.
Discs
Your home theater can play DVDs, VCDs, CDs,
and Blu-ray discs. It can also play discs that
you’ve made at home, such as CD-R discs of
photos, videos, and music.
1
Play buttons
Insert a disc into the home theater.
Synchronize picture and sound
If the audio and video are not synchronized,
delay the audio to match the video.
1
2
3
Press
SOUND SETTINGS.
Select AUD SYNC, and then press OK.
Press the Navigation buttons (up/down)
to synchronize the audio with the video.
EN
14
4
Press OK to confirm.
4
Select [2nd Audio Language] or [2nd
Subtitle Language].
Play Blu-ray 3D disc
5
Your home theater can play Blu-ray 3D video.
Read the 3D health warning before playing a
3D disc.
BD-Live on Blu-ray
What you need
• A 3D TV
• A pair of 3D glasses that are compatible
with your 3D TV
• A 3D Blu-ray video
• A high speed HDMI cable
1
2
3
Using the high speed HDMI cable, connect
your home theater to a 3D compatible TV.
Make sure that the 3D video setting is
enabled. Press (Home), select [Setup] >
[Video] > [Watch 3D video] > [Auto].
• To play 3D discs in 2D mode, select
[Off].
Play a Blu-ray 3D disc and put on the 3D
glasses.
• During video search and in certain play
modes, the video is displayed in 2D.
The video display returns to 3D when
you resume play.
Bonus View on Blu-ray
On Blu-ray discs that support the Bonus View,
enjoy extra content such as commentaries in a
small screen window. Bonus View is also known
as picture-in-picture.
1
2
3
15
Enable Bonus View in the Blu-ray disc
menu.
While you play the movie, press
OPTIONS.
»» The options menu is displayed.
Select [PIP Selection] > [PIP].
• Depending on the video, PIP menu [1]
or [2] is displayed.
• To disable Bonus View, select [Off].
EN
Select the language, and then press OK.
Access additional features on the Blu-ray discs
with BD-Live content, such as internet chats
with the director, the latest movie trailers,
games, wallpaper, and ringtones.
BD-Live services and content vary from disc to
disc.
What you need
• Blu-ray disc with BD-Live content
• a USB storage device, with at least 1 GB of
memory
1
2
3
4
5
6
Connect your home theater to a home
network with Internet access (see
'Connect and set up a home network' on
page 12).
Connect a USB storage device to your
home theater.
Press
(Home) and select [Setup].
Select [Advanced] > [BD-Live Security] >
[Off] to enable BD-Live.
• To disable BD-Live, select [On].
Select the BD-Live icon in the disc menu,
and then press OK.
»» BD-Live starts to load. The loading
time depends on the disc and your
internet connection.
Press the Navigation buttons to navigate
BD-Live, and then press OK to select an
option.
Note
•• To clear the memory on the storage device, press
(Home), select [Setup] > [Advanced] > [Clear
memory].
Data files
Your home theater can play pictures, audio and
video files contained in a disc or a USB storage
device. Before you play a file, check that the file
format is supported by your home theater (see
'File formats' on page 28).
1
2
Play the files from a disc or USB storage
device.
To stop play, press .
• To resume the video from where you
stopped, press (Play).
• To play the video from the start, press
OK.
Note
•• To play DivX DRM protected files, connect your home
Europe, India, LATAM, and Russia
Character
Set
Language
[Standard]
English, Albanian, Danish,
Dutch, Finnish, French, Gaelic,
German, Italian, Kurdish (Latin),
Norwegian, Portuguese, Spanish,
Swedish and Turkish
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene
and Sorbian
Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian and Ukrainian
Greek
Estonian, Latvian and Lithuanian
[Central
Europe]
[Cyrillic]
[Greek]
[Baltic]
theater to a TV through an HDMI cable.
VOD code for DivX
Subtitles
If your video has subtitles in multiple languages,
select a subtitle language.
Note
•• Make sure that the subtitle file has the exact same
name as the video file. For example, if the video file is
named 'movie.avi', name the subtitle file as 'movie.srt'
or 'movie.sub'.
•• Your home theater supports the following file formats:
.srt, .sub, .txt, .ssa, .ass, smi, and .sami. If the subtitles do
not appear correctly, change the character set.
1
2
3
4
While playing video, press SUBTITLE to
select a language.
For DivX videos, if the subtitles do not
appear correctly, continue the following
steps to change the character set.
Press OPTIONS.
»» The options menu is displayed.
Select [Character Set], and then select a
character set that supports the subtitle.
Before you purchase DivX videos and play
them on your home theater, register the home
theater on www.divx.com using the DivX VOD
code.
1
2
3
Press
(Home).
Select [Setup], and then press OK.
Select [Advanced] > [DivX® VOD Code].
»» The DivX VOD registration code for
your home theater is displayed.
USB storage devices
Enjoy pictures, audio, and video stored on a
USB storage device such as an MP4 player or
digital camera.
What you need
• A USB storage device that is formatted for
FAT or NTFS file systems, and complies
with the Mass Storage Class.
• A media file in one of the supported file
formats (see 'File formats' on page 28).
EN
16
Note
•• If you use a USB extension cable, USB HUB, or USB
2
multi-reader, the USB storage device may not be
recognized.
1
2
3
4
5
Connect a USB storage device to the
(USB) connector on your home theater.
Press
(Home).
Select [browse USB], and then press OK.
»» A content browser is displayed.
Select a file, and then press OK.
Press the play buttons to control play (see
'Play buttons' on page 14).
Audio, video, and picture
options
Use advanced features when you play pictures,
audio and video files from a disc or a USB
storage device.
Audio options
While playing audio, repeat an audio track, a
disc, or a folder.
1
Press OPTIONS repeatedly to cycle
through the following functions:
• RPT TRACK / RPT FILE: Repeat the
current track or file.
• RPT DISC / RPT FOLDER: Repeat all
the tracks on the disc or the folder.
• RPT RANDOM: Play audio tracks in
random order.
• RPT OFF: Turn off the repeat mode.
Video options
While watching video, select options such
as subtitles, audio language, time search, and
picture settings. Depending on the video source,
some options are not available.
1
Press OPTIONS.
17
EN
»» The video options menu is displayed.
Press the Navigation buttons and OK to
select and change:
• [Audio Language]: Select audio
language for video.
• [Subtitle Language]: Select subtitle
language for video.
• [Subtitle Shift]: Change the subtitle
position on the screen.
• [Info]: Display information about what
is playing.
• [Character Set]: Select a character set
that supports the DivX subtitle.
• [Time Search]: Skip to a specific part
of the video by entering the time of
the scene.
• [2nd Audio Language]: Select the
second audio language for Blu-ray
video.
• [2nd Subtitle Language]: Select the
second subtitle language for Blu-ray
video.
• [Titles]: Select a specific title.
• [Chapters]: Select a specific chapter.
• [Angle List]: Select a different camera
angle.
• [Menus]: Display the disc menu.
• [PIP Selection]: Display Picture-inPicture window when playing a Blu-ray
disc that supports the Bonus View.
• [Zoom]: Zoom into a video scene or
picture. Press the Navigation buttons
(left/right) to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a
chapter or track to repeat play, or turn
off the repeat mode.
• [Picture Settings]: Select a predefined
color setting.
Picture options
While viewing a picture, zoom into the picture,
rotate it, add animation to a slideshow, and
change the picture settings.
1
Press OPTIONS.
2
»» The picture options menu appears.
Press the Navigation buttons and OK to
select and change the following settings:
• [Rotate +90]: Rotate the picture 90
degree clockwise.
• [Rotate -90]: Rotate the picture 90
degree counter-clockwise.
• [Zoom]: Zoom into a video scene or
picture. Press the Navigation buttons
(left/right) to select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Select the display
speed for each picture in a slide show.
• [Slide Animation]: Select animation for
the slide show.
• [Picture Settings]: Select a predefined
color setting.
• [Repeat]: Repeat a selected folder.
Musical slideshow
If the picture and audio files are from the same
disc or USB storage device, you can create a
musical slideshow.
1
2
3
4
5
Select an audio track, and then press OK.
Press
folder.
BACK, and go to the picture
Select a picture, and then press
start the slideshow.
Press
to stop slideshow.
Press
again to stop music.
(Play) to
Note
•• AM and digital radio are not supported.
•• If no stereo signal is detected, or if fewer than five
stations are found, you are prompted to install the
radio stations again.
1
2
3
Extend the FM antenna at the back of your
home theater and place it away from the
TV or other sources of radiation.
Press RADIO.
»» If you have already installed the radio
stations, the last channel that you
listened to is played.
»» If you have not installed any radio
stations, the message AUTO
INSTALL...PRESS PLAY appears on
the display panel. press (Play).
Use the remote control to listen or to
change radio stations.
Button
Action
/
or
Alphanumeric
buttons
Navigation
buttons
Select a preset radio station.
BACK
Note
•• Make sure that the picture and audio formats are
supported by your home theater (see 'File formats' on
page 28).
Radio
Listen to FM radio on your home theater, and
store up to 40 radio stations.
OPTIONS
Left/Right: Search for a radio
station.
Up/Down: Fine tune a radio
frequency.
Press to stop the installation
of radio stations.
Press and hold to erase the
preset radio station.
Manual:
1) Press
OPTIONS.
2) Press / to select
your preset. 3) Press
OPTIONS again to store the
radio station.
Automatic: Press and hold for
three seconds to reinstall the
radio stations.
EN
18
Tuning grid
In some countries, you can toggle the FM tuning
grid between 50 kHz and 100 kHz. Switching
the tuning grid erases all preset radio stations.
1
2
3
Press RADIO.
5
Button
Action
Navigation
buttons
Up: Access the onscreen
keyboard.
Down: Access the onscreen
playback buttons.
Left/Right: Select a video from the
playlist.
Press .
Press and hold (Play) to toggle between
50 kHz or 100 kHz.
MP3 player
Connect a MP3 player to play audio files.
What you need
• An MP3 player.
• A 3.5mm stereo audio cable.
1
2
3
Using the 3.5mm stereo audio cable,
connect the MP3 player to the MUSIC
iLINK connector on your home theater.
Press AUDIO SOURCE repeatedly until
MUSIC I-LINK appears on the display
panel.
Enjoy YouTube videos through your home
theater.
2
3
4
19
6
Connect your home theater to a home
network with a high-speed Internet access
(see 'Connect and set up a home network'
on page 12).
Press
(Home).
Select [YouTube], and then press OK.
»» The YouTube Leanback page is
displayed.
Follow the onscreen instructions to
browse the YouTube page.
EN
• If you do not press a button within
few seconds, the onscreen buttons and
menu exit automatically.
Press
(Home) to exit YouTube page.
Picasa web albums
Access Picasa Web Albums through your home
theater.
What you need
• An account with Picasa Web Albums.
1
Press the buttons on the MP3 player to
select and play audio files.
YouTube videos
1
Use the remote control to select and
navigate the application.
2
3
4
5
6
Connect your home theater to a home
network with Internet access (see
'Connect and set up a home network' on
page 12).
Press
(Home).
Select [Picasa], and then press OK.
Log in to your Picasa web account.
• The first time you log in, select [New
user], and then enter your user
name and password. Save your login
information for subsequent use.
• If you have logged in before, select
a stored user name and enter the
password.
Select the onscreen options to view the
albums or photos.
Press
(Home) to exit Picasa menu.
View slideshow
Control your home theater
1
1
2
3
4
5
Select [My photos] from the Picasa menu,
and then press OK.
»» The photo albums in your Picasa Web
Albums are displayed.
2
Select a photo, and then press OK to view
the photo in full screen.
Press OK again to view the photos in a
slideshow.
While viewing a slideshow, press
OPTIONS to access more play options.
Press
BACK to return to the previous
screen.
Smartphone control
Use your mobile device such as iPhone (iOS
3.1.3 and above), Android phone (2.1 and
above), iPad, or tablet to:
• Control your home theater
• Browse a data disc or USB storage device
• Personalize your sound settings
• Stream and share content from the devices
on your home network
Before you start
• Connect your home theater, mobile device,
and other DLNA-compatible devices to
the same home network (see 'Connect
and set up a home network' on page 12).
• For better video quality, use wired
connection whenever possible. • Personalize the network name for your
home theater.
• Download Philips MyRemote application
on your mobile device.
• For iPhone or iPad, search for the app
in App Store (App Store).
• For Android based phone or tablet,
search for the app in Market (Market).
3
On the mobile device, access MyRemote
application.
Select your home theater (by its network
name) from the home screen.
»» A browsing bar is displayed at the
bottom of the screen.
• If your home theater is not found,
check the network connection or tap
the Devices tab on your mobile device
to search again.
Select one of the following tabs to access
more options.
• To return to the previous screen, press
back button.
Option
Action
App
Home
Media
Return to the home screen of your
device.
DISC: Browse and play a file stored
on a data disc.
USB: Browse and play a file stored
on a USB storage device.
Access the remote control on your
mobile device. Swipe the screen
to the left or right to access more
buttons. Only the relevant buttons
are enabled on your mobile device.
Some functions such as standby and
long press, are not available on the
mobile device.
Remote
4
Follow the onscreen instructions to select
an option or complete the set up.
Browse PC through DLNA
Access and play the pictures, audio and video
files from a computer or media server on the
home network through your home theater.
Before you start
• Install a DLNA-compliant media server
application on your device. Make sure that
EN
20
•
you download an application that works
best for you. For example,
• Windows Media Player 11 or higher
for PC
• Twonky Media Server for Mac or PC
Enable media sharing of files. For ease of
use, we have included the steps for the
following applications:
• Windows Media Player 11 (see
'Microsoft Windows Media Player 11'
on page 21)
• Windows Media Player 12 (see
'Microsoft Windows Media Player 12'
on page 21)
• Twonky Media for Mac (see 'Macintosh
OS X Twonky Media (v4.4.2)' on page
22)
Note
2
3
4
5
6
•• For additional help on these applications or other
media servers, check the user manual of the media
server software software.
Set up media server software
7
To enable media sharing, set up the media
server software.
8
Before you start
• Connect your home theater to a home
network (see 'Connect and set up a home
network' on page 12). For better video
quality, use wired connection whenever
possible.
• Connect the computer and other DLNAcompatible devices to the same home
network.
• Make sure that your PC firewall allows
you to run Media Player programs (or
the firewall’s exemption list has the media
server software included).
• Switch on your computer and the router.
Microsoft Windows Media Player 11
1
Start Windows Media Player on your PC.
21
EN
Click the Library tab, and then select
Media Sharing.
The first time you select Media Sharing on
your PC,a pop-up screen appears. Check
the Share my media box and click OK.
»» The Media Sharing screen is displayed.
In the Media Sharing screen, make sure
that you see a device marked as Unknown
Device.
»» If you don't see an unknown device
after a minute or so, check that
your PC firewall is not blocking the
connection.
Select the unknown device and click Allow.
»» A green tick appears next to the
device.
By default, Windows Media Player shares
from these folders: My Music, My Pictures,
and My Videos. If your files are in other
folders, select Library > Add to Library.
»» The Add to Library screen is displayed.
• If necessary, select Advanced options
to display a list of monitored folders.
Select My folders and those of others I
can access, and then click Add.
Follow the onscreen instructions to add
the other folders that contain your media
files.
Microsoft Windows Media Player 12
1
2
3
4
Start Windows Media Player on your PC.
In Windows Media Player, click the Stream
tab, and then select Turn on media
streaming.
»» The Media streaming options screen
is displayed.
Click Turn on media streaming.
»» You return to Windows Media Player
screen.
Click the Stream tab and select More
streaming options.
»» The Media streaming options screen
is displayed.
5
6
7
8
Make sure that you see a media program
in the Local network screen.
»» If you don't see a media program,
check that your PC firewall is not
blocking the connection.
Select the media program and click
Allowed.
»» A green arrow appears next to the
media program.
By default, Windows Media Player shares
from these folders: My Music, My Pictures,
and My Videos. If your files are in other
folders, click the Organize tab and select
Manage libraries > Music.
»» The Music Library Locations screen is
displayed.
Follow the onscreen instructions to add
the other folders that contain your media
files.
Macintosh OS X Twonky Media (v4.4.2)
1
2
3
4
5
6
Visit www.twonkymedia.com to purchase
the software, or download a free 30-day
trial to your Macintosh.
Start Twonky Media on the Macintosh.
In the Twonky Media Server screen, select
Basic Setup and First Steps.
»» The First steps screen is displayed.
Type a name for your media server, and
then click Save changes.
Back in the Twonky Media screen, select
Basic Setup and Sharing.
»» The Sharing screen is displayed.
Browse and select folders to share, and
then select Save Changes.
»» Your Macintosh rescans the folders
automatically so that they are ready to
share.
Play files from your PC
Note
•• Before you play multimedia content from the computer,
make sure that the home theater is connected to
the home network, and the media server software is
properly set up.
1
2
3
4
5
Press
(Home).
Select [browse PC], and then press OK.
»» A content browser is displayed.
Select a device on the network.
»» The folders in the selected device are
displayed. Depending on the media
server, the folder names may vary.
• If you cannot see the folders, check
that you have enabled media sharing
on the selected device so that the
content is available for sharing.
Select a file, and then press OK.
• Some media files may not play due
to compatibility issues. Check the file
formats supported by your home
theater.
Press the play buttons to control play (see
'Play buttons' on page 14).
Choose sound
This section helps you choose the ideal sound
for your video or music.
1
2
Press
SOUND SETTINGS.
Press the Navigation buttons (left/ right)
to access the sound options on the display.
Sound settings
Description
SOUND
SURROUND
Select a sound mode.
Select surround sound or
stereo sound.
Change the high frequency
output.
TREBLE
EN
22
Sound settings
Description
MID
Change the middle frequency
output.
Change the low frequency
output.
Delay the audio to match the
video.
BASS
AUD SYNC
3
4
Select an option, and then press OK.
Press
BACK to exit.
If you do not press a button within a
minute, the menu exits automatically.
Sound mode
Select predefined sound modes to suit your
video or music.
1
2
3
4
Press
SOUND SETTINGS.
Select SOUND, and then press OK.
Press the Navigation buttons (up/down)
to select a setting on the display:
• MOVIE: Enjoy a cinematic audio
experience, specially enhanced for
movies.
• MUSIC: Recreate the original recording
environment of your music, in the
studio or at a concert.
• ORIGINAL: Experience the original
sound of your movies and music,
without added sound effects.
• NEWS: Hear every word with
optimized speech and clear vocals.
• GAMING: Enjoy thrilling arcade
sounds, ideal for action-packed video
games or loud parties.
Press OK to confirm.
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
1
2
23
Press
SOUND SETTINGS.
Select SURROUND, and then press OK.
EN
3
4
Press the Navigation buttons (up/down)
to select a setting on the display:
• AUTO: Surround sound based on the
audio stream.
• MULTI-CH: Immersive multi-channel
sound for an enhanced movie
experience.
• STEREO: Two-channel stereo sound.
Ideal for listening to music.
Press OK to confirm.
Equalizer
Change the high frequency (treble), mid
frequency (mid), and low frequency (bass)
settings of the home theater.
1
2
3
4
Press
SOUND SETTINGS.
Select TREBLE, MID or BASS, and then
press OK.
Press the Navigation buttons (up/down)
to change the frequency.
Press OK to confirm.
5 Change settings
Picture and video settings
The home theater settings are already
configured for optimal performance. Unless
you have a reason to change a setting, we
recommend that you keep the default setting.
1
2
3
4
Note
•• You cannot change a setting that is grayed out.
•• To return to the previous menu, press
BACK. To
exit the menu, press
(Home).
Language settings
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [Preference], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [Menu language]: Select a display
language for menu.
• [Audio]: Select an audio language for
discs.
• [Subtitle]: Select a subtitle language
for discs.
• [Disc Menu]: Select a menu language
for discs.
Note
•• If your preferred disc language is not available, select
[Others] from the list, and enter the 4-digit language
code found at the end of this user manual (see
'Language code' on page 36).
•• If you select a language that is not available on a disc,
the home theater uses the default language of the disc.
Press
(Home).
Select [Setup], and then press OK.
Select [Video], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [TV Display]: Select a picture format
to fit the TV screen.
• [HDMI Video]: Select the resolution of
video signal that is output from HDMI
OUT (ARC) on your home theater.
To enjoy the selected resolution,
make sure that your TV supports the
selected resolution.
• [HDMI Deep Color]: Recreate the
natural world on your TV screen by
displaying vivid images using billion
colors. Your home theater must be
connected to a Deep Color enabled
TV through an HDMI cable.
• [Picture Settings]: Select pre defined
color settings for the video display.
• [Watch 3D video]: Set HDMI video to
support 3D or 2D video.
Note
•• If you change a setting, make sure that the TV supports
the new setting.
Audio settings
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [Audio], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [Night Mode]: For quiet listening,
decrease the volume of loud sounds
on your home theater. Night mode is
EN
24
only available for Dolby-encoded DVD
and Blu-ray discs.
• [HDMI Audio]: Set the HDMI audio
output from your TV, or disable HDMI
audio output from the TV.
• [Default sound settings]: Restore
the equalizer settings of all the sound
modes to the default values.
Energy saving settings
1
2
3
4
Parental control settings
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [Preference], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [Change Password]: Set or change
your password for parental control
access. If you do not have a password
or have forgotten your password, enter
0000.
• [Parental Control]: Restrict access
to discs that are recorded with age
ratings. To play all discs, irrespective of
the ratings, select 8 or [Off].
Display settings
1
2
3
4
25
Press
(Home).
Select [Setup], and then press OK.
Select [Preference], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [Auto Subtitle Shift]: Enable or disable
automatic repositioning of subtitles on
TVs that support this feature.
• [Display Panel]: Set the brightness of
the home theater front panel display.
• [VCD PBC]: Enable or disable the
content menu navigation of VCD and
SVCD discs with Play Back Control
feature.
EN
Press
(Home).
Select [Setup], and then press OK.
Select [Preference], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [Screen Saver]: Switch the home
theater to screen saver mode after 10
minutes of inactivity.
• [Auto Standby]: Switch the home
theater to standby after 30 minutes of
inactivity. This timer works only when a
disc or USB play is paused or stopped.
• [Sleep Timer]: Set the duration of the
sleep timer so that the home theater is
switched to standby after the specified
period.
Speaker settings
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [Advanced], and then press OK.
Press the Navigation buttons and OK to
select and change:
• [Enhanced Audio]: Select [On] to
enable audio post processing at the
speaker and enable karaoke settings
(if your product supports Karaoke).
To play the original audio of the disc,
select [Off].
Tip
•• Enable audio post processing before you select a
predefined sound mode (see 'Sound mode' on page
23).
Restore default settings
1
2
3
4
Press
(Home).
Select [Setup], and then press OK.
Select [Advanced] > [Restore default
settings], and then press OK.
Select [OK], and then press OK to
confirm.
»» Your home theater is reset to its
default settings except for some
settings such as parental control and
DivX VOD registration code.
6 Update software
Philips continually tries to improve its products.
To get the best features and support, update
your home theater with the latest software.
Compare the version of your current software
with the latest version on www.philips.com/
support. If the current version is lower than the
latest version available on the Philips support
website, upgrade your home theater with the
latest software.
Caution
•• Do not install a lower version of software than the
current version installed on your product. Philips is not
liable for problems caused due to software downgrade.
Check software version
Check the version of the current software
installed on your home theater.
1
2
3
Press
(Home).
Select [Setup], and then press OK.
Select [Advanced] > [Version Info.], and
then press OK.
»» The software version is displayed.
Update software through the
Internet
1
2
3
Connect your home theater to a home
network with a high-speed Internet access.
(see 'Connect and set up a home network'
on page 12)
Press
(Home).
Select [Setup], and then press OK.
EN
26
4
5
Select [Advanced] > [Software Update] >
[Network].
»» If an upgrade media is detected, you
are prompted to start or cancel the
update.
Follow the instruction on the TV to
confirm the update.
»» When the software update is
complete, the home theater
automatically switches off . If it does
not, disconnect the power cord for a
few seconds and then reconnect it.
Note
•• If the home theater cannot connect to the Philips
server, press
(Home).
•• Select [Setup] > [Network] > [Network Installation]
to set up the network.
4
5
6
•• Do not switch off the home theater or remove the
USB flash drive during the update.
1
What you need
• A USB flash drive that is FAT or NTFSformatted, with at least 75MB of memory.
Do not use a USB hard drive.
• A computer with Internet access.
• An archive utility that supports the ZIP file
format.
5
2
3
27
Connect a USB flash drive to your
computer.
In your web browser, go to www.philips.
com/support.
At the Philips Support website, find your
product and locate the Software and
drivers.
»» The software update is available as a
zip file.
EN
Disconnect the USB flash drive from your
computer.
Caution
2
3
4
1
Use the archive utility to extract the
software update file in the root directory.
»» The files are extracted under the
UPG_ALL folder of your USB flash
drive.
Step 2: Update the software
Update software through
USB
Step 1: Download the latest software
Save the zip file in the root directory of
your USB flash drive.
Connect the USB flash drive containing the
downloaded file to your home theater.
• Make sure that the disc compartment
is closed and no disc inside.
Press
(Home).
Select [Setup], and then press OK.
Select [Advanced] > [Software Update]
> [USB].
Follow the onscreen instructions to
confirm the update.
»» Once complete, the home theater
automatically switches off . If it does
not, disconnect the power cord for a
few seconds and then reconnect it.
7Product
specifications
File formats
•
•
•
Audio: .aac, .mka, .mp3, .wma, .wav
Video: .avi, .divx, .mp4, .mkv, .mpg, .mpeg
Picture: .jpg, .jpeg, .gif, .png
Audio formats
Note
•• Specifications and design are subject to change without
notice.
Your home theater supports the following
audio files.
Extension
Container
Audio
codec
Region codes
.mp3
MP3
MP3
The type plate on the back or bottom of the
home theater shows which regions it supports.
.wma
ASF
.aac
AAC
.wav
.m4a
.mka
WAV
MKV
MKA
.mka
MKA
.mka
.mka
.mka
MKA
MKA
MKA
Country
Europe,
United Kingdom
Asia Pacific, Taiwan,
Korea
Latin America
DVD
BD
A
A
Australia,
New Zealand
Russia, India
C
.mka
MKA
China
C
.mka
MKA
Media formats
•
AVCHD, BD, BD-R/ BD-RE, BD-Video,
DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL, CD-R/CD-RW, Audio CD,
Video CD/SVCD, Picture files, MP3 media,
WMA media, DivX Plus HD media, USB
storage device
Bit rate
32 kbps ~
320 kbps
WMA
64 kbps ~
160 kbps
AAC, HE- 192 kbps
AAC
PCM
1.4 Mbps
AAC
192 kbps
PCM
27.648
Mbps
Dolby
640 kbps
Digital
DTS core 1.54 Mbps
MPEG
912 kbps
MP3
32 kbps ~
320 kbps
WMA
64 kbps ~
160 kbps
AAC,
192 kbps
HEAAC
Video formats
If you have a high definition TV, your home
theater allows you to play your video files with:
• Resolution: 1920 x 1080 pixels at
• Frame rate: 6 ~ 30 frames per second.
.avi files in AVI container
EN
28
Audio
codec
Video codec
Bit rate
PCM,
Dolby
Digital,
DTS
core,
MP3,
WMA
DivX 3.11,
DivX 4.x, DivX 5.x,
DivX 6.x
10 Mbps max
MPEG 1, MPEG 2
20 Mbps
(peak 40
Mbps)
10 Mbps max
20 Mbps
(peak 40
Mbps)
MPEG 4 ASP
H.264/AVC
HP@4.1/4.0;
MP@3.2/3.1/3.0
.divx files in AVI container
Video codec
Bit rate
PCM,
Dolby
Digital,
MP3,
WMA
DivX 3.11,
DivX 4.x,
DivX 5.x, DivX 6.x
10 Mbps max
MPEG 1, MPEG 2
20 Mbps
(peak 40
Mbps)
10 Mbps max
Audio
codec
Video codec
Bit rate
Dolby
Digital,
MPEG,
MP3, AAC,
HE-AAC
MPEG 1, MPEG
2
20 Mbps (peak
40 Mbps)
Bit rate
MPEG 1, MPEG
2
20 Mbps
(peak 40
Mbps)
MPEG 4 ASP
10 Mbps
max
20 Mbps
(peak 40
Mbps)
H.264/AVC
HP@4.1/4.0;
MP@3.2/3.1/3.0
Amplifier
•
•
10 Mbps max
20 Mbps (peak
40 Mbps)
Total output power: 300W RMS (30%
THD)
Frequency response: 20 Hz-20 kHz / ±3
dB
Signal-to-noise ratio: > 65 dB (CCIR) /
(A-weighted)
Input sensitivity:
• AUX: 2 V
• Music iLink: 1 V
Video
•
•
Signal system: PAL / NTSC
HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p24
Audio
•
•
MPEG 4 ASP
H.264/AVC
HP@4.1/4.0;
MP@3.2/3.1/3.0
EN
Video codec
PCM, Dolby
Digital, DTS
core, MPEG,
MP3, WMA,
AAC, HEAAC
•
.mp4 or .m4v files in MP4 container
29
Audio codec
•
Audio
codec
MPEG 4 ASP
.mkv files in MKV container
•
S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
• Optical: TOSLINK
Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
Constant bit rate:
• MP3: 32 kbps - 320 kbps
• WMA: 48 kbps - 192 kbps
Radio
•
•
•
Tuning range:
• Europe/Russia/China: FM 87.5-108
MHz (50 kHz)
• Asia Pacific/Latin America: FM 87.5-108
MHz (50/100 kHz)
Signal-to-noise ratio: FM 50 dB
Frequency response: FM 200 Hz-12.5 kHz
/ ±6 dB
USB
•
•
•
•
Compatibility: Hi-Speed USB (2.0)
Class support: USB Mass Storage Class
(MSC)
File system: FAT16, FAT32, NTFS
Maximum memory support: < 160 GB
•
•
Dimensions (WxHxD): 84.5 x 89 x 89 mm
Weight: 0.27 kg
Front speaker:
• Output power: 2 x 50 W RMS (30% THD)
• Speaker impedance: 4 ohm
• Speaker drivers: 1 x 63.5 mm (2.5") woofer
• Dimensions (WxHxD): 84.5 x 159 x 80
mm
• Weight: 0.35 kg/each
Rear speaker:
• Output power: 2 x 50 W RMS (30% THD)
• Speaker impedance: 4 ohm
• Speaker drivers: 1 x 63.5 mm (2.5") woofer
• Dimensions (WxHxD): 84.5 x 89 x 89 mm
• Weight: 0.27 kg/each
Remote control batteries
Main unit
•
•
Laser
•
•
•
•
Power supply:
• Europe/China/Russia/India: 220-240
V~, 50 Hz
• Latin America/Asia Pacific: 110-240 V~,
50-60 Hz
Power consumption: 70 W
Standby power consumption: ≤ 0.5 W
Dimensions (WxHxD): 360 x 58 x 325
mm
Weight: 2.4 kg
•
•
•
2 x AAA-R03-1.5 V
Laser Type (Diode): InGaN/AIGaN (BD),
AIGaInP (DVD/CD)
Wave length: 405 +7 nm/-7 nm (BD), 655
+10 nm/-10 nm (DVD), 790 +10 nm/-20
nm (CD)
Output power (Max. ratings): 20 mW
(BD), 6 mW (DVD), 7 mW (CD)
Subwoofer
•
•
•
•
•
Output power: 50 W RMS (30% THD)
Impedance: 4 ohm
Speaker drivers: 133 mm (5.25") woofer
Dimensions (WxHxD): 160 x 265 x 265
mm
Weight: 2.50 kg
Speakers
Center speaker:
• Output power: 50 W RMS (30% THD)
• Speaker impedance: 4 ohm
• Speaker drivers: 1 x 63.5 mm (2.5") woofer
EN
30
8Troubleshooting
Warning
•• Risk of electric shock. Never remove the casing of the
product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, get support at www.
philips.com/support.
Main unit
The buttons on the home theater do not
work.
• Disconnect the home theater from the
power supply for a few minutes, then
reconnect.
No picture.
• Make sure that the TV is switched to the
correct source for the home theater.
No picture on a TV connected through HDMI.
• Make sure that you use a High Speed
HDMI cable to connect the home theater
and TV. Some Standard HDMI cables do
not display properly for some images, 3D
video, or Deep Color.
• Make sure that the HDMI cable is not
faulty. If it is faulty, replace it with a new
cable.
• Press (Home) and then 731 on the
remote control to restore the default
picture resolution.
• Change the HDMI video setting, or wait
for 10 seconds for auto recovery (see
'Picture and video settings' on page 24).
31
EN
Disc does not play high-definition video.
• Make sure that the disc contains highdefinition video.
• Make sure that the TV supports highdefinition video.
• Use an HDMI cable to connect to the TV.
Sound
No sound from home theater speakers.
• Connect the audio cable from your home
theater to your TV or other devices.
You do not need a separate audio
connection when the home theater and
TV are connected through an HDMI ARC
connection.
• Set up the audio for the connected device
(see 'Set up the audio' on page 12).
• Reset your home theater to its factory
settings (see 'Restore default settings' on
page 26), then switch it off and switch on
again.
• On your home theater, press SOURCE
repeatedly to select the correct audio
input.
Distorted sound or echo.
• If you play audio from the TV through the
home theater, make sure that the TV is
muted.
Audio and video are not synchronized.
• 1) Press SOUND SETTINGS. 2) Press
the Navigation buttons (left/right) to
select AUD SYNC, and then press OK. 3)
Press the Navigation buttons (up/down)
to synchronize the audio with the video.
Play
Cannot play a disc.
• Clean the disc.
• Make sure that the home theater supports
the type of disc (see 'Media formats' on
page 28).
•
•
Make sure that the home theater supports
the region code of the disc (see 'Region
codes' on page 28).
If the disc is a DVD±RW or DVD±R disc,
make sure that it is finalized.
Cannot play a DivX file.
• Make sure that the DivX file is encoded
according to the 'Home Theater Profile'
with the DivX encoder.
• Make sure that the DivX file is complete.
DivX subtitles do not display correctly.
• Make sure that the subtitle file name is
the same as the movie file name (see
'Subtitles' on page 16).
• Select the correct character set: 1) Press
OPTIONS. 2) Select [Character Set]. 3)
Select the supported character set. 4)
Press OK.
Cannot read the contents of a USB storage
device.
• Make sure that the format of the USB
storage device is compatible with the
home theater.
• Make sure that the file system on the USB
storage device is supported by the home
theater.
'No entry' or 'x' sign appears on the TV.
• The operation is not possible.
EasyLink does not work.
• Make sure that the home theater is
connected to a Philips brand EasyLink TV,
and the EasyLink option is turned on (see
'Set up EasyLink (HDMI-CEC control)' on
page 11).
• For TVs from different manufacturers, the
HDMI CEC could be called differently.
Check theTV user manual on how to
enable it.
Cannot access BD-Live features.
• Make sure that the home theater is
connected a home network with internet
access (see 'Connect and set up a home
network' on page 12).
• Make sure that the network is set up.
Use a wired network installation (see 'Set
up the wired network' on page 12) or
wireless network installation (see 'Set up
the wireless network' on page 13).
• Make sure that the Blu-ray disc supports
BD-Live features.
• Clear memory storage (see 'BD-Live on
Blu-ray' on page 15).
My 3D video played in 2D mode.
• Make sure that your home theater is
connected to a 3D TV through an HDMI
cable.
• Make sure that the disc is a Blu-ray 3D disc,
and the Blu-ray 3D video option is on (see
'Play Blu-ray 3D disc' on page 15).
TV screen is black when you play a Blu-ray 3D
video or a DivX copy protected video.
• Make sure that the home theater is
connected to the TV through an HDMI
cable.
• Switch to the correct HDMI source on
the TV.
Poor playback on YouTube Leanback or Picasa.
• Make sure that the home theater is
connected to a home network and is
properly set up (see 'Connect and set up a
home network' on page 12).
• Make sure that the internet connection
speed is higher than 2 MBPS to obtain
optimum performance.
When you switch on the TV, the home theater
automatically switches on.
• This behavior is normal when you are using
Philips EasyLink (HDMI-CEC). To make the
home theater work independently, switch
off EasyLink.
EN
32
Network
Wireless network distorted or not found.
• Make sure that the wireless network is
not disturbed by microwave ovens, DECT
phones, or other neighboring Wi-Fi devices.
• Place the wireless router and the home
theater within five meters of each other.
• Use a USB extension cable to connect the
Wi-Fi dongle to the home theater.
• If the wireless network does not work
properly, try a wired network installation
(see 'Set up the wireless network' on
page 13).
9Notice
This section contains the legal and trademark
notices.
Copyright
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
This product incorporates proprietary
technology under license from Verance
Corporation and is protected by U.S. Patent
7,369,677 and other U.S. and worldwide
patents issued and pending as well as copyright
and trade secret protection for certain aspects
of such technology. Cinavia is a trademark of
Verance Corporation. Copyright 2004-2010
Verance Corporation. All rights reserved by
Verance. Reverse engineering or disassembly is
prohibited.
Cinavia notice
This product uses Cinavia technology to
limit the use of unauthorized copies of some
commercially-produced film and videos and
their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology
is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia
by mail, send a postcard with your mailing
address to: Cinavia Consumer Information
Center, P.O. Box 86851, San Diego, CA, 92138,
USA.
33
EN
Open source software
Philips Electronics Singapore Pte Ltd hereby
offers to deliver, upon request, a copy of the
complete corresponding source code for the
copyrighted open source software packages
used in this product for which such offer is
requested by the respective licenses. This offer
is valid up to three years after product purchase
to anyone in receipt of this information. To
obtain source code, please contact open.
source@philips.com. If you prefer not to use
email or if you do not receive confirmation
receipt within a week after mailing to this email
address, please write to "Open Source Team,
Philips Intellectual Property & Standards, P.O.
Box 220, 5600 AE Eindhoven, The Netherlands".
If you do not receive timely confirmation
of your letter, please email to the email
address above. The texts of the licenses and
acknowledgements for open source software
used in this product are included on a separate
leaflet.
Java and all other Java trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and/or
other countries.
Manufactured under license under U.S. Patent
Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535;
7,392,195; 7,272,567; 7,333,929; 7,212,872
& other U.S. and worldwide patents issued
& pending. DTS-HD, the Symbol, & DTSHD and the Symbol together are registered
trademarks & DTS-HD Master Audio | Essential
is a trademark of DTS, Inc. Product includes
software. DTS, Inc. All Rights Reserved.
Compliance
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
This product complies with the radio
interference requirements of the European
Community.
Trademarks
"Blu-ray 3DTM" and "Blu-ray 3DTM" logo are
trademarks of Blu-ray Disc Association.
Covered by one or more of the following
U.S. patents: 7,295,673; 7,460,668; 7,515,710;
7,519,274.
DivX®, DivX Certified®, DivX Plus® HD
and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used
under license.
ABOUT DIVX PLUS® HD: DivX® is a digital
video format created by DivX, Inc. This is an
official DivX Certified® device that plays DivX
video, including DivX® Plus HD video (H.264/.
MKV) up to 1080p and premium content.
EN
34
Visit www.divx.com for more information and
software tools to convert your files into DivX
video.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit
divx.com for more information and software
tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified® device must be registered
in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
HDMI, the HDMI logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.
CLASS 1
LASER PRODUCT
35
EN
10Language code
Abkhazian
6566
Afar
6565
Afrikaans
6570
Amharic
6577
Arabic
6582
Armenian
7289
Assamese
6583
Avestan
6569
Aymara
6589
Azerhaijani
6590
Bahasa Melayu
7783
Bashkir
6665
Belarusian
6669
Bengali
6678
Bihari
6672
Bislama
6673
Bokmål, Norwegian
7866
Bosanski
6683
Brezhoneg
6682
Bulgarian
6671
Burmese
7789
Castellano, Español
6983
Catalán
6765
Chamorro
6772
Chechen
6769
Chewa; Chichewa; Nyanja 7889
9072
Ё᭛
Chuang; Zhuang
9065
Church Slavic; Slavonic 6785
Chuvash
6786
Corsican
6779
Česky
6783
Dansk
6865
Deutsch
6869
Dzongkha
6890
English
6978
Esperanto
6979
Estonian
6984
Euskara
6985
6976
Faroese
7079
Français
7082
Frysk
7089
Fijian
7074
Gaelic; Scottish Gaelic 7168
Gallegan
7176
Georgian
7565
Gikuyu; Kikuyu
7573
Guarani
7178
Gujarati
7185
Hausa
7265
Herero
7290
Hindi
7273
Hiri Motu
7279
Hrwatski
6779
Ido
7379
Interlingua (International)7365
Interlingue
7365
Inuktitut
7385
Inupiaq
Irish
Íslenska
Italiano
Ivrit
Japanese
Javanese
Kalaallisut
Kannada
Kashmiri
Kazakh
Kernewek
Khmer
Kinyarwanda
Kirghiz
Komi
Korean
Kuanyama; Kwanyama
Kurdish
Lao
Latina
Latvian
Letzeburgesch;
Limburgan; Limburger
Lingala
Lithuanian
Luxembourgish;
Macedonian
Malagasy
Magyar
Malayalam
Maltese
Manx
Maori
Marathi
Marshallese
Moldavian
Mongolian
Nauru
Navaho; Navajo
Ndebele, North
Ndebele, South
Ndonga
Nederlands
Nepali
Norsk
Northern Sami
North Ndebele
Norwegian Nynorsk;
Occitan; Provencal
Old Bulgarian; Old Slavonic
Oriya
Oromo
Ossetian; Ossetic
Pali
Panjabi
Persian
Polski
Português
7375
7165
7383
7384
7269
7465
7486
7576
7578
7583
7575
7587
7577
8287
7589
7586
7579
7574
7585
7679
7665
7686
7666
7673
7678
7684
7666
7775
7771
7285
7776
7784
7186
7773
7782
7772
7779
7778
7865
7886
7868
7882
7871
7876
7869
7879
8369
7868
7878
7967
6785
7982
7977
7983
8073
8065
7065
8076
8084
Pushto
Russian
Quechua
Raeto-Romance
Romanian
Rundi
Samoan
Sango
Sanskrit
Sardinian
Serbian
Shona
Shqip
Sindhi
Sinhalese
Slovensky
Slovenian
Somali
Sotho; Southern
South Ndebele
Sundanese
Suomi
Swahili
Swati
Svenska
Tagalog
Tahitian
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga (Tonga Islands)
Tsonga
Tswana
Türkçe
Turkmen
Twi
Uighur
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Walloon
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
8083
8285
8185
8277
8279
8278
8377
8371
8365
8367
8382
8378
8381
8368
8373
8373
8376
8379
8384
7882
8385
7073
8387
8383
8386
8476
8489
8471
8465
8484
8469
8472
6679
8473
8479
8483
8478
8482
8475
8487
8571
8575
8582
8590
8673
8679
8765
6789
8779
8872
8973
8979
9085
EN
36
11Index
2
2nd audio language15
2nd subtitle language15
control buttons (disc)14
control buttons (USB)14
copyright protection33
D
3
3D disc in 2D mode15
3D safety4
3D video15
data files16
deep color24
disc language24
disc menu24
display panel25
disposal4
DivX16
5
E
5.1 speakers8
A
advanced settings25
amplifier29
audio connection (optical cable)10
audio formats28
audio from other devices10
audio input mapping12
audio language24
audio options17
audio post processing25
audio settings24
audio setup12
auto standby25
auto subtitle shift25
F
factory settings26
file formats28
H
HDMI audio24
HDMI-CEC11
home menu14
home network12
I
internet12
B
batteries30
BD-Live15
Blu-ray14
Bonus View15
brightness25
C
change password25
character set16
clear BD-Live memory15
connectors5
37
Easylink (HDMI-CEC)11
eject disc5
enhanced audio25
environment4
EN
L
language code36
M
main unit5
manual setup11
media formats28
media sharing20
menu language24
MP319
N
network12
night mode24
O
one-touch play11
one-touch standby11
options17
P
parental control25
PBC (play back control)25
picture options17
picture resolution24
picture-in-picture15
play disc14
play from PC22
play radio18
play USB storage device16
predefined sound mode23
program radio stations18
T
troubleshooting (network)33
troubleshooting (picture)31
troubleshooting (play)31
troubleshooting (sound)31
tuning grid19
U
update software (through USB)27
V
VCD25
video formats29
video options17
video settings24
VOD code (DivX)16
W
watch 3D15
wired network12
wireless network13
R
radio18
recycling4
remote control6
repeat17
S
shuffle17
sleep timer25
slide animation17
software update26
software version26
sound22
speaker position8
speaker setup11
speaker specifications28
subtitle language24
subtitle position25
surround sound23
synchronize picture and sound14
system audio control12
EN
38
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
HTB3560_12_UM_V1.0
Download PDF

advertising
