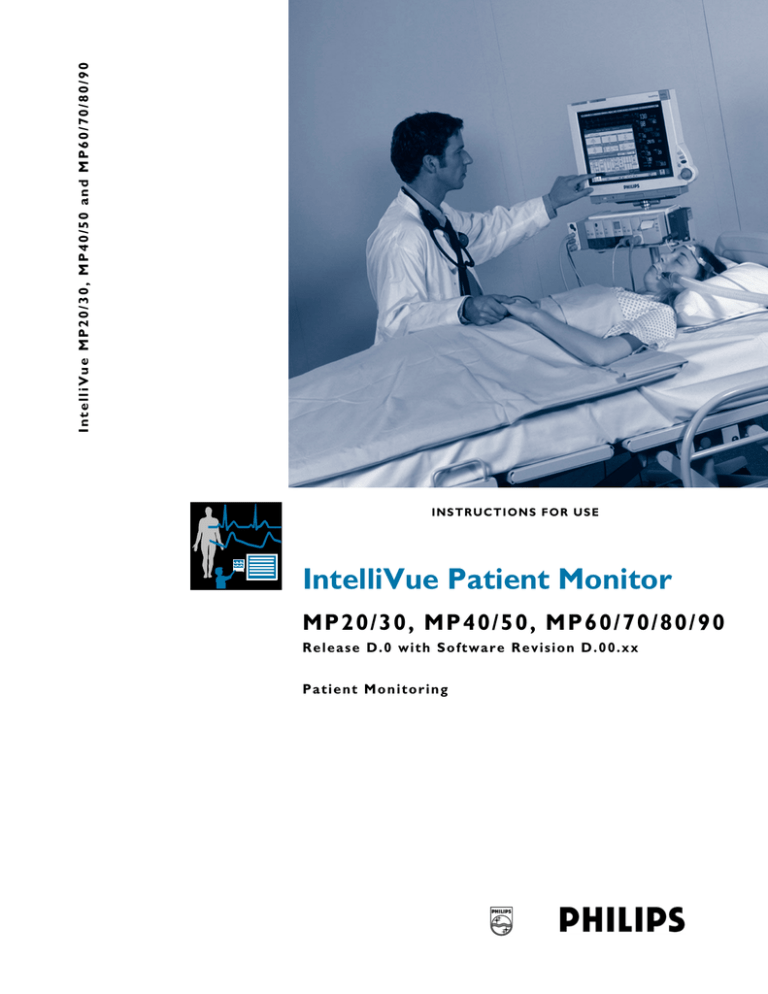

I n t e l l i V u e M P 2 0 / 30 , M P 4 0/ 5 0 a n d M P 6 0 / 70 / 8 0/ 9 0
I NS TR UCTI ON S FOR US E
IntelliVue Patient Monitor
MP20/30, MP40/50, MP60/70/80/90
R e l ea se D. 0 wi th So ft wa r e R e v is i on D . 0 0. x x
P a t i e nt M o n i t o r i n g
Part Number M8000-9001G
Printed in Germany 02/06
4512 610 13551
*M8000-9001G*
M8000-9001G
Table Of Contents
1
1 Basic Operation
Introducing the IntelliVue Family
IntelliVue MP20/MP30
MP20/MP30 Major Parts and Keys
IntelliVue MP40/MP50
MP40/MP50 Major Parts and Keys
IntelliVue MP60/MP70
MP60/MP70 Major Parts and Keys
IntelliVue MP80/MP90
MP80/MP90 Major Parts and Keys
D80 Intelligent Display
Remote Alarm Device
Docking Station
Related Products
Flexible Module Server (M8048A)
Measurement Modules
Multi-Measurement Server (M3001A)
Measurement Server Extensions
M3014A, M3015A and M3016A Capnography Extensions
M3012A Hemodynamic Measurement Server Extension
Operating and Navigating
Selecting Screen Elements
Using the Setup Menu
Using the Touchscreen
Disabling Touchscreen Operation
Using the SpeedPoint
Using the Navigation Point
Using a Mouse or Trackball
Using Keys
Permanent Keys
SmartKeys
Hardkeys
Pop-Up Keys
Using the On-Screen Keyboard
Using the On-Screen Calculator
Operating Modes
Standby Mode
Understanding Screens
Switching to a Different Screen
Changing a Screen’s Content
Using Additional Displays
Using the Visitor Screen
1
1
2
3
4
4
5
6
6
7
7
7
8
8
8
9
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
19
20
20
21
21
22
22
22
23
24
i
Understanding Profiles
Swapping a Complete Profile
Swapping a Settings Block
Default Profile
Locked Profiles
Understanding Settings
Changing Measurement Settings
Switching a Measurement On and Off
Switching Numerics On and Off
Adjusting a Measurement Wave
Changing Wave Speeds
Changing the Wave Group Speed
Changing Wave Speed for a Channel
Freezing Waves
Freezing An Individual Wave
Freezing All Waves
Measuring Frozen Waves
Changing The Wave Speed
Updating The Frozen Wave
Releasing Frozen Waves
Using Labels
About Label Sets
Changing Measurement Labels (e.g. Pressure)
Resolving Label Conflicts
Changing Monitor Settings
Adjusting the Screen Brightness
Adjusting Touch Tone Volume
Setting the Date and Time
Checking Your Monitor Revision
Getting Started
Inspecting the Monitor
Switching On
Setting up the Measurement Servers and Modules
Starting Monitoring
Disconnecting from Power
Monitoring After a Power Failure
Networked Monitoring
Using Remote Applications
Remote Application Popup Keys
24
25
26
26
26
26
26
27
27
27
27
27
28
28
28
28
28
29
29
29
29
29
29
30
31
31
31
31
32
32
32
32
32
33
33
33
33
33
34
2 What’s New?
What’s New in Release D.0?
What’s New in Release C.0?
What’s New in Release B.1?
What’s New in Release B.0?
What’s New in Release A.2?
ii
35
35
36
37
38
39
3 Alarms
Visual Alarm Indicators
Audible Alarm Indicators
Alarm Tone Configuration
Traditional Audible Alarms (HP/Agilent/Philips/Carenet)
ISO/IEC Standard 9703-2 Audible Alarms
Changing the Alarm Tone Volume
Minimum Volume for No Central Monitoring INOP
Acknowledging Alarms
Acknowledging Disconnect INOPs
Alarm Reminder (ReAlarm)
Pausing or Switching Off Alarms
To Pause All Alarms
To Switch All Alarms Off
To Switch Individual Measurement Alarms On or Off
While Alarms are Paused or Off
Restarting Paused Alarms
Resetting Arrhythmia Alarm Timeouts
Extending the Alarm Pause Time
Alarm Limits
Viewing Individual Alarm Limits
Viewing All Alarm Limits
Changing Alarm Limits
About Automatic Alarm Limits (AutoLimits)
Documenting Alarm Limits
Reviewing Alarms
Alarm Messages Window
Review Alarms Window
Understanding Alarm Messages
Latching Alarms
Viewing the Alarm Latching Settings
Alarm Latching Behavior
Testing Alarms
Alarm Behavior at On/Off
41
42
42
42
43
43
43
43
44
44
44
44
45
45
45
45
46
46
46
46
46
47
48
49
49
50
50
50
51
51
51
52
52
52
4 Patient Alarms and INOPs
Patient Alarm Messages
Technical Alarm Messages (INOPs)
53
53
59
5 Managing Patients
Admitting a Patient
Patient Category and Paced Status
Admitting a Centrally-Monitored Patient
Quick Admitting a Patient
Editing Patient Information
77
77
78
78
78
79
iii
Discharging a Patient
Transferring Patients
Transferring a Centrally-Monitored Patient
Transferring a Patient with an MMS (no Central Station)
Data Upload from an MMS
Data Exchange Between Information Centers
Resolving Patient Information Mismatch
Manually Resolving Patient Mismatch
Patient Mismatch - If One Set of Patient Data is Correct
Patient Mismatch - If Neither Patient Data Set is Correct
Patient Mismatch - If Both Patient Data Sets Are Correct
Automatically Resolving Patient Mismatch
Care Groups
Understanding the Care Group Overview Bar
Viewing the My Care Group Window
Viewing the Other Bed Window
Other Bed Pop-Up Keys
Visual Alarm Status Information in the Other Bed Window
Care Group Alarms
Telemetry Data Overview
Unpairing a Telemetry Device
Telemetry Data Overview Screen Element
Silencing Telemetry Alarms from the Bedside
Suspending Telemetry Alarms
Using Standby
79
80
80
81
81
82
82
82
83
83
84
84
84
85
86
87
88
88
88
89
89
90
90
90
90
6 ECG, Arrhythmia, and ST Monitoring
Skin Preparation for Electrode Placement
Connecting ECG Cables
Selecting the Primary and Secondary ECG Leads
Checking Paced Status
Understanding the ECG Display
Monitoring Paced Patients
Setting the Paced Status (Pace Pulse Rejection)
Avoiding Pace Pulse Repolarization Tails
Changing the Size of the ECG Wave
To Change the Size of an Individual ECG Wave
To Change the Size of all the ECG Waves
Changing the Volume of the QRS Tone
Changing the ECG Filter Settings
Choosing EASI or Standard Lead Placement
About ECG Leads
ECG Leads Monitored
Changing Lead Sets
ECG Lead Fallback
ECG Lead Placements
iv
91
91
91
92
92
93
93
94
94
94
94
95
95
95
96
96
96
96
97
97
Standard 3-Lead Placement
Standard 5-Lead Placement
Chest Electrode Placement
10-Lead Placement
Conventional 12-Lead ECG
Modified 12-Lead ECG
Choosing Standard or Modified Electrode Placement
Labelling 12-Lead ECG Reports
Capture 12-Lead
EASI ECG Lead Placement
ECG, Arrhythmia, and ST Alarm Overview
Using ECG Alarms
Extreme Alarm Limits
ECG Alarms Off Disabled
HR Alarms When Arrhythmia Analysis is Switched Off
HR Alarms When Arrhythmia Analysis is Switched On
ECG Safety Information
About Arrhythmia Monitoring
Arrhythmia Options
Where Can I Find More Information?
Switching Arrhythmia Analysis On and Off
Choosing an ECG Lead for Arrhythmia Monitoring
Aberrantly-Conducted Beats
Atrial Fibrillation and Flutter
Intermittent Bundle Branch Block
Understanding the Arrhythmia Display
Viewing Arrhythmia Waves
Arrhythmia Beat Labels
Arrhythmia Status Messages
Rhythm Status Messages
Ectopic Status Messages
Arrhythmia Relearning
Initiating Arrhythmia Relearning Manually
Automatic Arrhythmia Relearn
Arrhythmia Relearn and Lead Fallback
Arrhythmia Alarms
Yellow Arrhythmia Alarms
Arrhythmia Alarms and Latching
Switching Individual Arrhythmia Alarms On and Off
Switching All Yellow Arrhythmia Alarms On or Off
Adjusting the Arrhythmia Alarm Limits
Arrhythmia Alarm Timeout Periods
What is a Timeout Period?
Resetting the Timeout Period
How are Yellow Arrhythmia Alarms Indicated?
Behavior of Unsilenced Arrhythmia Alarms
98
98
99
100
100
101
101
101
102
102
104
105
105
105
105
105
105
107
107
107
108
108
108
108
109
109
109
109
110
110
111
111
111
112
112
112
113
113
113
113
113
113
114
114
114
114
v
Behavior of Silenced Arrhythmia Alarms
Arrhythmia Alarm Chaining
Understanding PVC-Related Alarms
About ST Monitoring
Switching ST On and Off
Selecting ST Leads for Analysis
Understanding the ST Display
Updating ST Baseline Snippets
Recording ST Segments
About the ST Measurement Points
Adjusting ST Measurement Points
ST Alarms
Single- or Multi-lead ST Alarming
Changing ST Alarm Limits
Viewing ST Maps
Current View
Trend View
Viewing an ST Map
Working in the ST Map Task Window
Switching Between ST Map Views
Displaying an ST Reference Baseline
Updating an ST Map Reference Baseline
Changing the Scale of the ST Map
Changing the Trending Interval
Printing an ST Map Report
114
115
116
117
117
117
118
119
119
120
120
122
122
122
122
122
123
124
124
124
125
125
125
125
125
7 Monitoring Pulse Rate
Entering the Setup Pulse Menu
System Pulse Source
Switching Pulse On and Off
Using Pulse Alarms
Selecting the Active Alarm Source: HR or Pulse?
Alarm Source Selection Disabled
Changing HR/Pulse Alarm Limits
Extreme Alarm Limits
QRS Tone
127
127
127
128
128
128
129
129
129
129
8 Monitoring Respiration Rate (Resp)
Lead Placement for Monitoring Resp
Optimizing Lead Placement for Resp
Cardiac Overlay
Lateral Chest Expansion
Abdominal Breathing
Understanding the Resp Display
Changing Resp Detection Modes
Auto Detection Mode
vi
131
131
131
131
132
132
132
132
132
Manual Detection Mode
Resp Detection Modes and Cardiac Overlay
Changing the Size of the Respiration Wave
Changing the Speed of the Respiration Wave
Using Resp Alarms
Changing the Apnea Alarm Delay
Resp Safety Information
133
133
133
134
134
134
134
9 Monitoring SpO2
SpO2 Sensors
Applying the Sensor
Connecting SpO2 Cables
Measuring SpO2
Assessing a Suspicious SpO2 Reading
Understanding SpO2 Alarms
Alarm Delays
Adjusting the Alarm Limits
Adjusting the Desat Limit Alarm
Pleth Wave
Perfusion (Pleth) Indicator
Setting SpO2/Pleth as Pulse Source
Setting Up Tone Modulation
Setting the QRS Volume
Calculating SpO2 Difference
137
137
137
138
138
139
140
140
140
140
140
141
141
141
141
141
10 Monitoring NBP
Introducing the Oscillometric NBP Measurement
Measurement Limitations
Measurement Methods
Reference Method
Preparing to Measure NBP
Correcting the Measurement if Limb is not at Heart Level
Understanding the NBP Numerics
Starting and Stopping Measurements
Enabling Automatic Mode and Setting Repetition Time
Choosing the NBP Alarm Source
Assisting Venous Puncture
Calibrating NBP
143
143
144
144
144
144
145
145
146
146
147
147
147
11 Monitoring Temperature
Making a Temp Measurement
Selecting a Temperature for Monitoring
Extended Temperature Label Set
Calculating Temp Difference
149
149
149
150
150
vii
12 Monitoring Invasive Pressure
Setting up the Pressure Measurement
Selecting a Pressure for Monitoring
Extended Pressure Label Set
Zeroing the Pressure Transducer
Zeroing ICP (or IC1/IC2)
Determining a Pressure’s Most Recent Zero
Zeroing a Pressure Measurement
Using the Zero Hardkey
Zeroing All Pressures Simultaneously
Troubleshooting the Zero
Adjusting the Calibration Factor
Displaying a Mean Pressure Value Only
Changing the Pressure Wave Scale
Optimizing the Waveform
Non-Physiological Artifact Suppression
Choosing the Pressure Alarm Source
Calibrating Reusable Transducer CPJ840J6
Making the Pressure Calibration
Troubleshooting the Pressure Calibration
Calculating Cerebral Perfusion
Calculating Pulse Pressure Variation
Measuring Pulmonary Artery Wedge Pressure
Editing the Wedge
Identifying the Pressure Analog Output Connector
151
151
152
152
152
153
153
153
153
153
154
154
154
154
155
155
155
156
156
157
157
157
158
159
160
13 Monitoring Cardiac Output
Hemodynamic Parameters
Using the C.O. Procedure Window
Accessing the Setup C.O. and Setup CCO Menus
Entering the HemoCalc Window
Measuring C. O. Using the PiCCO Method
Measuring Continuous Cardiac Output
Measuring Systemic Vascular Resistance
Setting Up the PiCCO C.O. Measurement
Performing PiCCO C.O. Measurements
Editing PiCCO C.O. Measurements
Saving and Calibrating PiCCO C.O. Measurements
CCO Calibration Status Indicators
Measuring C.O. Using the Right Heart Thermodilution Method
Setting up RH C.O. Measurements
Ice-Bath Setup for RH Thermodilution C.O. Measurements
Setting the Computation Constant
Performing RH C.O. Measurements
Editing and Saving RH C.O. Measurements
viii
161
162
163
164
164
164
164
164
165
166
166
167
167
168
168
168
169
169
169
Documenting C.O. Measurements
C.O. Injectate Guidelines
Guidelines for Right Heart Thermodilution C.O. Injectate
Guidelines for PiCCO C.O. Injectate
Injectate Volume, Patient Weight and ETVI Values (PiCCO Only)
C.O./CCO Curve Alert Messages
C.O./CCO Prompt Messages
C.O./CCO Warning Messages
C.O./CCO Safety Information
169
170
170
170
170
171
172
173
173
14 Monitoring Carbon Dioxide
Using the Capnography Extension (M3014A)
Preparing to Measure Mainstream CO2
Preparing to Measure Sidestream CO2
Using the Sidestream Sensor Holder
Removing Exhaust Gases from the System
Using the Mainstream CO2 Extension (M3016A)
Preparing to Measure Mainstream CO2
Checking Transducer Accuracy
Calibrating the Transducer
Attaching and Removing the CO2 Transducer
Using the Microstream CO2 Extension (M3015A)
Preparing to Measure Microstream CO2
Using Microstream Accessories
Using the FilterLine and Airway Adapter
Removing Exhaust Gases from the System
Suppressing Zero Calibration
Setting up Mainstream and Sidestream CO2
Adjusting the CO2 Wave Scale
Setting up CO2 Corrections
Suppressing Sampling (not Mainstream CO2)
Changing CO2 Alarms
Changing the Apnea Alarm Delay
Deriving Alarms From awRR
Changing awRR Alarm Limits
175
176
176
177
178
179
179
179
179
180
180
181
181
181
182
182
183
183
183
183
184
184
184
184
184
15 Monitoring Airway Flow, Volume and Pressure
Attaching the Flow Sensor
Zero Calibration
Automatic Purging
Adult Mode
Neonatal and Pediatric Modes
Manual Purging
Gas Compensation
Setting up Spirometry
Optimizing Scale Settings
187
188
190
190
191
191
191
191
192
192
ix
Spirometry Values Window
Alarms and Alarm Limits
Changing the Apnea Alarm Delay
Automatic Alarm Suppression
Choosing Measured AWV Components
Setting the Gas Compensation Mode
Changing the Type of Balance Gas
Changing the Concentration of Inspired O2 and the Inspired Agents
Changing the Temperature of the Inspired Gas
192
192
192
193
193
193
193
193
194
16 Monitoring tcGas
Identifying tcGas Module Components
Setting the tcGas Sensor Temperature
Using the tcGas Site Timer
Setting the tcGas Site Timer
Restarting the tcGas SiteTimer
Disabling the tcGas Site Timer
Setting the tcGas Barometric Pressure
Remembraning the tcGas Transducer
New/Dried Out Transducers
Storing tcGas Transducers
Calibrating the tcGas Transducer
Calibration Failure
Troubleshooting tcGas Calibration
Applying the tcGas Transducer
Selecting the tcGas HeatPowerDisplay Mode
Zeroing the tcGas Relative Heat Power
Finishing tcGas Monitoring
TcGas Corrections
Temperature Correction for tcpCO2
Metabolism Correction for tcpCO2
195
195
196
196
196
197
197
197
197
198
198
199
200
200
201
202
202
202
202
202
202
17 Monitoring SvO2
Preparing to Monitor SvO2
Carrying out a Pre-insertion Calibration
Inserting the Catheter
Performing a Light Intensity Calibration
Performing In-Vivo Calibration
Setting Up the In-Vivo Calibration
Making the In-Vivo Calibration
Calculating Oxygen Extraction
203
204
204
205
205
206
206
206
206
18 Monitoring EEG
EEG Monitoring Setup
Using the EEG Impedance/Montage Window
Choosing an EEG Electrode Montage
x
207
208
208
209
Changing the Impedance Limit
About Electrode-to-Skin Impedance
Impedance Indicators
About Compressed Spectral Arrays (CSA)
Changing CSA Settings
Changing EEG Settings
Switching EEG Numerics On and Off
Changing the Scale of the EEG Waves for Display
Changing Filter Frequencies
Changing the Speed of the EEG Wave
EEG Reports
EEG Safety Information
EEG and Electrical Interference
209
210
210
211
212
212
212
212
213
213
213
214
214
19 Monitoring BIS
BIS Monitoring Setup
Monitoring BIS Using the DSC and BIS Engine
Monitoring BIS using the BISx
Manufacturer’s Information
BIS Continuous Impedance Check
BIS Cyclic Impedance Check
Starting a Cyclic Impedance Check
Stopping a Cyclic Impedance Check
BIS Window
BIS Impedance Indicators
Changing the BIS Smoothing Rate
Switching BIS and Individual Numerics On and Off
Changing the Scale of the EEG Wave
Switching BIS Filters On or Off
BIS Safety Information
215
216
216
217
218
218
218
218
218
219
219
220
220
220
220
221
20 Trends
Viewing Trends
Viewing Graphic Trends
Viewing Vital Signs Trends
Trends Pop-Up Keys
Setting Up Trends
Making Segment Settings
Expanded View
Trend Scales for Segment Measurements
Optimum Scale
Trend Group
No. of Segments
Trend Groups
Trend Interval
Trend Priority
223
223
224
224
225
225
226
226
226
226
226
226
227
227
227
xi
Trend Parameter Scales
Graphical Trend Presentation
Documenting Trends
Trends Databases
Aperiodic Trends Database
Trending Multiple-Value Measurements
Screen Trends
Setting the Screen Trend Time
Changing the Selection of Screen Trends Displayed
Activating the Cursor for Screen Trends
Changing the Screen Trend View
Tabular View
Horizon View
Setting the Horizon
Setting the Horizon Trend Scale
227
228
228
229
229
229
229
230
231
231
231
231
232
232
232
21 Calculations
Viewing Calculations
Calculations Windows
Calculations Pop-Up Keys
Reviewing Calculations
Performing Calculations
Entering Values for Calculations
Automatic Value Substitution
Automatic Unit Conversion
Manual Unit Conversion
BSA Formula
Documenting Calculations
233
233
234
234
235
235
236
236
236
236
236
237
22 High Resolution Trend Waves
Changing the Hi-Res Trend Waves Displayed
Hi-Res Trend Wave Scales
Hi-Res Trend Waves and OxyCRG
Printing Hi-Res Trend Wave Reports
Hi-Res Trend Wave Recordings
239
239
239
239
240
240
23 Event Surveillance
Levels of Event Surveillance
Event Groups
Event Episodes
Events Pop-Up Keys
Event Triggers
Event Retriggering
Event Notification
Setting Triggers for NER and Basic Event Surveillance
Setting Triggers and Notification for Advanced Event Surveillance
xii
241
241
242
242
243
244
245
245
245
246
Triggering Events Manually
The Events Database
Viewing Events
Event Counter
Counting Combi-Events
Counting Neonatal Event Review (NER) Events
Event Summary Window
Event Review Window
Event Episode Window
Annotating Events
Documenting Events
Documenting Event Review
Documenting an Event Episode
Event Recordings
Event Review Recordings
Event Episode Recordings
Event Reports
Event Review Reports
Event Episode Reports
Event Summary Reports
246
247
247
247
248
248
249
249
250
251
251
251
252
252
252
253
253
254
255
255
24 Recording
Starting and Stopping Recordings
Quickstarting Recordings
Extending Recordings
Stopping Recordings
Recording Without a Template
Overview of Recording Types
All ECG Waves Recordings
Creating and Changing Recordings Templates
Changing ECG Wave Gain
Recording Priorities
Sample Recording Strip
Recording Strip Code
Recorded Waveforms
Maintaining Recording Strips
Reloading Paper
Recorder Status Messages
257
258
258
259
259
259
259
260
260
261
262
262
262
263
263
264
265
25 Printing Patient Reports
Starting Reports Printouts
Stopping Reports Printouts
Setting Up Reports
Setting Up ECG Reports
Setting Up Vital Signs and Graphic Trend Reports
Setting Up Auto Reports
267
267
268
268
268
269
269
xiii
Setting Up Individual Print Jobs
Checking Printer Settings
Printing a Test Report
Switching Printers On Or Off for Reports
Dashed Lines on Reports
Unavailable Printer: Re-routing Reports
Printer Status Messages
Sample Report Printouts
Alarm Limits Report
Realtime Report
Cardiac Output Report
ECG Reports
Other Reports
270
270
271
271
271
271
272
272
273
274
275
276
276
26 Using the Drug Calculator
Accessing the Drug Calculator
Performing Drug Calculations
About the Rule of Six
Performing Calculations for a Non-Specific Drug
Performing Calculations for a Specific Drug
Charting Infusion Progress
Using the Titration Table
Documenting Drug Calculations
277
277
278
278
278
279
280
280
280
27 VueLink Modules
Connecting an External Device
Changing VueLink Waves and Numerics Displayed
Viewing the VueLink Device Data Window
Using VueLink Screens
Switching VueLink On and Off
Alarms/INOPs From External Devices
Language Conflict with External Device Drivers
281
282
282
282
283
283
283
284
28 Using Timers
Viewing Timers
Notification
Timer Types
Timer Setup Pop-up Keys
Setting Up Timers
Timer Label
Run Time
Timer Counting Direction
Displaying Timers On The Main Screen
Main Screen Timer Pop-up Keys
Displaying A Clock On The Main Screen
xiv
285
285
285
286
286
286
286
287
287
287
288
288
29 Respiratory Loops
Viewing Loops
Capturing and Deleting Loops
Showing/Hiding Loops
Changing Loops Display Size
Using the Loops Cursor
Changing Loops Type
Setting Up Source Device
Documenting Loops
289
289
290
290
291
291
291
291
292
30 Care and Cleaning
General Points
Cleaning
Disinfecting
Cleaning Monitoring Accessories
Sterilizing
Cleaning the Recorder Printhead (M1116B only)
Cleaning the Batteries and Battery Compartment
293
293
294
294
294
295
295
295
31 Using the Batteries
Battery Power Indicators
Battery LED
Battery Status on the Main Screen
Battery Status Window
Viewing Individual Battery Status
Recording Battery Status
Printing Battery Reports
Checking Battery Charge
Replacing Batteries
Optimizing Battery Performance
Display Brightness Setting
Charging Batteries
Conditioning Batteries
Unequally-Charged Batteries
Battery Safety Information
297
298
298
298
300
300
300
300
300
301
301
302
302
302
302
303
32 Maintenance and Troubleshooting
Inspecting the Equipment and Accessories
Inspecting the Cables and Cords
Maintenance Task and Test Schedule
Troubleshooting
Disposing of the Monitor
Disposing of Empty Calibration Gas Cylinders
305
305
305
306
307
307
307
xv
33 Accessories
ECG/Resp Accessories
Trunk Cables
3-Electrode Cable Sets
5-Electrode Cable Sets
10-Electrode Cable Sets
3-Electrode One Piece Cables
5-Electrode One Piece Cables
Set Combiners and Organizers
NBP Accessories
Adult/Pediatric Multi-Patient Comfort Cuffs and Disposable Cuffs
Reusable Cuff Kits
Adult/Pediatric Antimicrobial Coated Reusable cuffs
Adult/Pediatric Soft Single Patient Single-Hose Disposable Cuffs
Neonatal/Infant Cuffs (Disposable, non-sterile)
Invasive Pressure Accessories
SpO2 Accessories
Temperature Accessories
Cardiac Output (C.O.) Accessories
Mainstream CO2 Accessories (for M3014A)
Sidestream CO2 Accessories (for M3014A)
Mainstream CO2 Accessories (for M3016A)
Microstream CO2 Accessories
Spirometry Accessories
tcGas Accessories
EEG Accessories
BIS Accessories
BIS Sensors
Other BIS Accessories
SvO2 Accessories
Recorder Accessories
309
309
309
309
310
310
310
310
311
311
311
311
312
312
312
313
313
318
319
320
320
320
321
321
322
322
322
323
323
323
324
34 Installation and Specifications
Intended Use
Indication for Use
Manufacturer’s Information
BIS Manufacturer’s Information
Trademark Acknowledgement
Symbols
Installation Safety Information
Connectors
MP20/MP30
MP40/MP50
MP60/MP70
MP80/MP90
xvi
325
325
325
326
326
327
328
329
329
330
331
332
334
802.11 Bedside Adapter (Wireless Network Adapter)
Altitude Setting
Monitor Safety Specifications
Physical Specifications
Environmental Specifications
M4605A Battery Specifications
Monitor Performance Specifications
Measurement Specifications
ECG/Arrhythmia/ST
Respiration
SpO2
NBP
Invasive Pressure and Pulse
Temp
CO2
Interfering Gas and Vapor Effects On CO2 Measurement Values
Spirometry
Cardiac Output / Continuous Cardiac Output
tcGas
SvO2
EEG
BIS
Safety and Performance Tests
Electromagnetic Compatibility (EMC) Specifications
Accessories Compliant with EMC Standards
Electromagnetic Emissions
Avoiding Electromagnetic Interference (Resp and BIS)
335
336
336
337
339
341
342
348
348
350
350
352
354
355
356
359
359
361
362
363
363
364
365
365
365
365
365
366
366
Electromagnetic Immunity
Recommended Separation Distance
Recommended separation distances from portable and mobile RF communication equipment367
Electrosurgery Interference/Defibrillation/Electrostatic Discharge
Fast Transients/Bursts
Restart time
368
368
368
35 Default Settings Appendix
Alarm Default Settings
ECG, Arrhythmia, and ST Default Settings
Pulse Default Settings
Respiration Default Settings
SpO2 Default Settings
NBP Default Settings
Temperature Default Settings
Invasive Pressure Default Settings
Cardiac Output Default Settings
CO2 Default Settings
Spirometry Default Settings
369
370
370
373
374
374
375
375
376
377
378
378
xvii
tcGas Default Settings
SvO2 Default Settings
EEG Default Settings
BIS Default Settings
VueLink Default Settings
xviii
379
379
380
380
381
1
Basic Operation
1
These Instructions for Use are for clinical professionals using the IntelliVue MP20/MP30 (M8001A/
M8002A), MP40/50 (M8003A/M8004A) and MP60/70/80/90 (M8005A/M8007A/M8008A/
M8010A) patient monitors. Unless otherwise specified, the information here is valid for all the above
IntelliVue patient monitors.
The basic operation section gives you an overview of the monitor and its functions. It tells you how to
perform tasks that are common to all measurements (such as entering data, switching a measurement
on and off, setting up and adjusting wave speeds, working with profiles). The alarms section gives an
overview of alarms. The remaining sections tell you how to perform individual measurements, and how
to care for and maintain the equipment.
Familiarize yourself with all instructions including warnings and cautions before starting to monitor
patients. Read and keep the Instructions for Use that come with any accessories, as these contain
important information about care and cleaning that is not repeated here.
This guide describes all features and options. Your monitor may not have all of them; they are not all
available in all geographies. Your monitor is highly configurable. What you see on the screen, how the
menus appear and so forth, depends on the way it has been tailored for your hospital and may not be
exactly as shown here.
In this guide:
• A warning alerts you to a potential serious outcome, adverse event or safety hazard. Failure to
observe a warning may result in death or serious injury to the user or patient.
• A caution alerts you to where special care is necessary for the safe and effective use of the product.
Failure to observe a caution may result in minor or moderate personal injury or damage to the
product or other property, and possibly in a remote risk of more serious injury.
• Monitor refers to the entire patient monitor. Display refers to the physical display unit. Display
Screen and Screen refer to everything you see on monitor’s display, such as measurements, alarms,
patient data and so forth.
Introducing the IntelliVue Family
The Philips IntelliVue family of patient monitors offers a monitoring solution optimized for the
surgical, cardiac, medical and neonatal care environments. Combining patient surveillance and data
management, it allows multi-measurement monitoring by linking separate modules with “plug-andplay” convenience.
1
1 Basic Operation
Introducing the IntelliVue Family
Your monitor stores data in trend, event, and calculation databases. You can see tabular trends (vital
signs) and document them on a local or remote printer. You can view measurement trend graphs, with
up to three measurements combined in each graph, to help you identify changes in the patient’s
physiological condition. You can view fast-changing measurement trends with beat to beat resolution
and see up to four high resolution trend segments. Event surveillance enhances documentation and
review of physiologically significant events by automatically detecting and storing up to 50 userdefined clinical events over a 24 hour period.
There is a choice of monitor configurations, as explained below. All models can also use computer
devices such as a mouse, a trackball and a keyboard.
IntelliVue MP20/MP30
The IntelliVue MP20/MP30 (M8001A/M8002A)
patient monitor has a 10-inch TFT LCD flat panel
SVGA display. The standard input devices for the
MP30 are the Touchscreen and integrated navigation
point; the MP20 is supplied with an integrated
navigation point only. Up to six waves can be shown
on MP20/MP30 Screens (USA - up to four waves). 12
ECG traces can be shown on the 12-Lead ECG
Screen.
The MP20/MP30 can be connected to one MultiMeasurement Server (MMS) and any one of the
measurement server extensions. There is an optional
built-in recorder. The Flexible Module Server
(M8048A) and all plug-in modules cannot be used
with the MP20/MP30. With an optional Interface
board Bispectral Index (BIS) monitoring is possible.
MP20Junior and MP20L are options of MP20
(M8001A) and are not referred to separately in these
Instructions for Use.
2
Introducing the IntelliVue Family
1 Basic Operation
MP20/MP30 Major Parts and Keys
MP20/MP30 left side
1
2
1
2
3
4
3
4
5
5
1
Color-coded alarm lamps
2
Alarms off lamp
3
Model indicator
4
ECG out
5
Navigation Point
6
Part number and serial number
7
Mounting quick-release lever
6
6
7
7
MP20/MP30 front panel
1
2 3
4
5
6
1
On/Standby switch
2
On/Standby LED
3
Error LED
4
Battery status LED
5
AC power operation LED
6
“read the documentation” symbol
7
Mounting quick-release lever
7
MP20/MP30 LED Colors and their Meanings
On/Standby LED
Green when monitor is switched on
Error LED
Red if there is a problem with the monitor
Battery LED
Green, yellow, and red.
See the section on Using the Batteries for details
AC Power LED
Green while the monitor is connected to AC power (mains)
3
1 Basic Operation
Introducing the IntelliVue Family
IntelliVue MP40/MP50
The IntelliVue MP40/MP50 (M8003A/M8004A)
patient monitor has a 12-inch TFT LCD flat panel
SVGA display. The standard input devices for the MP50
are the Touchscreen and integrated navigation point; the
MP40 is supplied with an integrated navigation point
only. Up to six waves can be shown on MP40/MP50
Screens, 12 ECG traces can be shown on the 12-Lead
ECG Screen.
The MP40/MP50 can be connected to one MultiMeasurement Server (MMS) and any one of the
measurement server extensions. The IntelliVue family
plug-in measurement modules can be connected to its
four integrated plug-in module slots with plug-and-play convenience (the only exception is the SvO2
module, M1021A, which cannot be used with the MP40/MP50). The Flexible Module Server
(M8048A) cannot be used with the MP40/MP50.
MP40/MP50 Major Parts and Keys
MP40/MP50 left side
4
1
Color-coded alarm lamps
2
Alarms off lamp
3
Model indicator
4
ECG out
5
Navigation Point
6
Part number and serial number
7
Mounting quick-release lever
8
Plug-in module slots
Introducing the IntelliVue Family
1 Basic Operation
MP40/MP50 front panel
1
2
3
4 5 6
1
On/Standby switch
2
On/Standby LED
3
Error LED
4
Battery status LED
5
AC power operation LED
6
“read the documentation” symbol
7
Mounting quick-release lever
7
MP40/MP50 LED Colors and their Meanings
On/Standby LED
Green when monitor is switched on
Error LED
Red if there is a problem with the monitor
Battery LED
Green, yellow, and red.
See the section on Using the Batteries for details
AC Power LED
Green while the monitor is connected to AC power (mains)
IntelliVue MP60/MP70
The IntelliVue MP60/MP70 (M8005A/M8007A) patient monitors integrate the display unit, with a
15” color LCD display, and the data processing unit into one. Up to eight waves can be shown on the
screens, as well as the 12-Lead ECG Screen. The MP60 uses the SpeedPoint as its primary input device
while the MP70 uses touch screen operation but may have an optional SpeedPoint.
The monitors can be connected to the Multi-Measurement Server (MMS) and any one of the
measurement server extensions, and to the Flexible Module Server (M8048A). The IntelliVue family
plug-in measurement modules can be connected to its FMS module slots with plug-and-play
convenience.
The MP60/MP70 has two integrated slots for plug-in modules. You can combine one each of the
following modules in these slots: Pressure, Temperature, C.O., SpO2 and VueLink. Two of the same
type of module cannot be used. You can also use the two-slot recorder module in the integrated slots.
5
1 Basic Operation
Introducing the IntelliVue Family
MP60/MP70 Major Parts and Keys
3
2
1
4
5
11
10 9
8
7
1
Color coded alarm lamps
2
Alarms Off lamp
3
Display
4
Model indicator
5
SpeedPoint (optional for MP70)
6
Part number and serial number
7
Mounting quick-release lever
8
AC power LED
9
Error LED
10
Power on/standby switch
11
Power on LED
6
IntelliVue MP80/MP90
Note: The MP80 monitor (M8008A) is not available in the USA.
The IntelliVue MP80/MP90 (M8008A/M8010A) patient monitors have the display and the
processing unit as separate components. They offer both touchscreen and the Remote SpeedPoint as
standard input devices. The MP80 can display up to 8 waves simultaneously and the MP90 up to 12
waves.
The monitors can be connected to the Multi-Measurement Server (MMS) and any one of the
measurement server extensions, and to the Flexible Module Server (M8048A). The IntelliVue family
plug-in measurement modules can be connected to its FMS module slots. The MP90 can be connected
to two Flexible Module Servers (FMS). The MP90 has the capability for two displays and can have a
third main display with the D80 Intelligent Display.
6
Introducing the IntelliVue Family
1 Basic Operation
MP80/MP90 Major Parts and Keys
AC Power LED
Power on LED
Error LED
Power on Switch
Processing Unit
Display Unit
D80 Intelligent Display
The D80 Intelligent Display can be used as a third main display with the MP90 monitor. You then
have three displays able to be configured individually and to be operated independently.
Remote Alarm Device
The Remote Alarm Device provides audio and visual indicators of alarms, in addition to those shown
on the display.
1
2
3
1
Two color coded alarm lamps (right-hand lamp flashes
red or yellow for patient alarms, left-hand lamp flashes
light blue for INOPs)
2
Alarms off lamp - when illuminated it indicates that all
alarms are deactivated.
3
Speaker - for alarm tones, QRS tones and so forth
4
Monitor power on /standby switch. Press to switch
monitor on remotely. Press and hold for one second to
turn monitor off.
5
Power on LED - green when monitor is on
5
4
7
1 Basic Operation
Related Products
Docking Station
MP20/30/
40/50 only
WARNING
The docking station provides quick mounting and connections in a one-step operation. By placing the
monitor on the docking station and closing the lever you can make the connection to power and to a
wired network, if present.
If the docking station is in a tilted position, you must hold the monitor in place while closing the
locking lever.
When using the monitor for transport directly after use on the docking station, insert the batteries
before placing the monitor on the docking station.
Power Connector
Data Connector
Open Position
Power On LED
Locked Position
Related Products
Related products extend the measurement capabilities of your monitor. None of the related devices
have their own power on/standby switches. They take their power from the monitor, and switch on
automatically when you turn on the monitor. A green power-on LED indicates when they are drawing
power from the monitor. A permanently illuminated, or flashing, red LED indicates a problem with
the unit that requires the attention of qualified service personnel.
Flexible Module Server (M8048A)
MP60/70/80
/90 only
The flexible module server (FMS) lets you use up to eight plug-in physiological measurement modules.
With the MP60/70/80 you can connect only one FMS. With the MP90 (M8010A) you can connect
two FMSs to use up to 10 measurement modules. For individual modules, the maximum that can be
used simultaneously in an FMS is: five pressure modules, four temperature modules, four VueLink
modules.
Connect the FMS to the monitor via the measurement server link cable (MSL). Use the MSL
connector on the left-hand side to connect additional measurement servers. Use the connector on the
right to connect to the monitor.
8
Related Products
1 Basic Operation
1
2
3
4
1
Multi-Measurement
Server
2
Measurement server
mount
3
Flexible Module Server
4
Power on LED
5
Interruption indicator
5
Measurement Modules
You can use up to eight measurement modules with the Flexible Module Server (M8048A), two
additional modules in the integrated module slots in the MP60/MP70, and up to four in the integrated
slots in the MP40/MP50. Available modules are:
• Invasive blood pressure (M1006B)
• Temperature (M1029A)
• Oxygen saturation of arterial blood (SpO2) (M1020B)
• Cardiac output (M1012A), and Continuous cardiac output with M1012A Option #C10
• Transcutaneous gas (M1018A)
• Mixed venous oxygen saturation - SvO2 (M1021A) MP60/70/80/90 monitor only
• Recorder (M1116B)
• VueLink device interface (M1032A)
• EEG (M1027A)
• Bispectral Index - BIS (M1034A)
• Spirometry (M1014A)
You can plug and unplug modules during monitoring. Insert the module until the lever on the module
clicks into place. Remove a module by pressing the lever upwards and pulling the module out.
Reconnecting a module to the same monitor restores its label and measurement settings, such as alarms
limits. If you connect it to a different monitor, the module remembers only its label.
The connector socket on the front of each module is the same color as the corresponding connector
plug on the transducer or patient cable.
Press the Setup key on the module’s front to display the measurement’s setup menu on the monitor
screen. When the setup menu is open, a light appears above the key. Some modules have a second key.
On the pressure module, for example, it initiates a zeroing procedure.
9
1 Basic Operation
Related Products
Example Module (Pressure)
1
Module name
2
Setup key LED
3
Setup key to enter setup menu of
measurement modules or VueLink
device data window
1
4
Connector socket for patient cable/
transducer
3
5
Second module-specific key, for
example Zero
PRESS
2
Press
80x80
5
4
Multi-Measurement Server (M3001A)
The Multi-Measurement Server (MMS) can simultaneously monitor 3-, 5- or 10-lead ECG (including
arrhythmia and ST monitoring), respiration, SpO2, NBP and either invasive pressure or temperature.
Depending on the monitor model, you can connect it to the monitor via a cable or mount it either on
the left side of the FMS or on the back of the monitor, as shown here.
MMS mounted on rear of MP40/MP50
(left) and MP60/MP70
10
Related Products
1 Basic Operation
M3001A Connectors and Symbols
5
4
3
1
White ECG/Resp connector
2
Blue SpO2 connector
3
Red NBP connector
4 & Combined pressure (red) and temperature
5
(brown) connector - connect either invasive
pressure transducer or temperature probe.
You might have a version of the MMS that
does not have this connector.
2
1
6
6
NBP Start/Stop key starts or stops NBP
measurements
7
7
NBP STAT key - starts NBP
STAT series of
measurements
3
9
OR
Zero key - initiates a zero procedure for the
connected pressure transducer when
pressed and held for a second
8
8
Silence: acknowledges all active
alarms by switching off audible
alarm indicators and lamps
9
MSL cable connector to the monitor
Measurement Server Extensions
The measurement server extensions connect to the MMS and use the MMS settings and power. Trend
data and measurement settings from the measurements in the extensions are stored in the measurement
server. To separate an extension from the MMS, press the release lever down, and push the server
forward.
11
1 Basic Operation
WARNING
Related Products
The measurement server extensions can only function when they are connected to a measurement
server. If the measurement server is removed during monitoring, the measurements from both the
measurement server and the measurement server extension are lost.
M3014A, M3015A and M3016A Capnography Extensions
The M3014A Capnography Extension adds mainstream capnography, and optionally one pressure
plus either a pressure or a temperature, Cardiac Output and Continuous Cardiac Output to the MMS.
The optional M3015A Microstream CO2 Extension adds microstream capnography and optionally
either pressure or temperature to the MMS. The optional M3016A Mainstream CO2 Extension adds
mainstream capnography and optionally either pressure or temperature to the MMS.
M3015A Microstream
M3014A Capnography
1
1
2
4
3
2
7
6
M3016A Mainstream
1
2
12
1
Pressure connectors (red)
5
Inlet
2
Temperature connector (brown)
6
Microstream connector CO2
3
Mainstream connector CO2 (optional)
7
Gas sample outlet
4
Cardiac Output connector
5
Related Products
1 Basic Operation
M3012A Hemodynamic Measurement Server Extension
Connection to MMS
Pressure connectors
(red)
The M3012A Hemodynamic
Measurement Server Extension
(HMSE) can be connected to the
M3001A Multi-Measurement Server to
provide the following additional
measurements: Temperature, Pressure,
an additional Pressure or Temperature,
and C.O. and CCO measurements.
Cardiac Output (orange;
optional)
Temperature connectors (brown)
13
1 Basic Operation
Operating and Navigating
Operating and Navigating
Everything you need to operate the monitor is contained on its screen. Almost every element on the
screen is interactive. Screen elements include measurement numerics, waveforms, screen keys,
information fields, alarms fields and menus.
The configurability of the monitor means that often you can access the same element in different ways.
For example, you might be able to access an item through its on-screen setup menu, via a hard key, or
via a SmartKey. These Instructions for Use always describe how to access items via an on-screen menu.
You may use whichever way you find most convenient.
3
2
1
4
5
6
7
9
8
10
11
ABP Zero done at 11 Nov 02 7:31 am
18
16
15
14
13
12
Monitor information line
Other screen elements
1
network connection indicator
(documented in Information
Center Instructions for Use)
10 alarm status area - shows active alarm messages
2
bed label
11 status line - shows information messages and prompting you for action
3
patient identification
12 close all open menus and windows and return to main screen
4
patient category
13 enter Main Setup menu
5
paced status
14 scroll right to display more SmartKeys
6
date and time
15 SmartKeys - these change according to your monitor’s configuration
7
access the profiles menu
16 scroll left to display more SmartKeys
8
current screen name/enter
change screen menu
17 Pause Alarms - pauses alarm indicators. Pause duration depends on monitor
adjust alarm volume/level
indicator
18 Silence - acknowledges all active alarms by switching off audible alarm indicators and
9
14
17
configuration. If pause duration is infinite, this key is labeled Alarms Off. Select again to
immediately re-enable alarm indicators.
lamps permanently or temporarily, if alarm reminder (ReAlarm) is configured on.
Operating and Navigating
1 Basic Operation
Selecting Screen Elements
Select a screen element to tell the monitor to carry out the actions linked to the element. For example,
select the Patient Identification element to call up the Patient Demographics window, or
select the HR numeric to call up the Setup ECG menu. Select the ECG wave segment to call up the
ECG lead menu.
Note that the space between each line of a menu may be configured to wide or narrow to facilitate your
most common method of operation, either touch, Speedpoint or navigation point, or mouse.
Using the Setup Menu
MP20/MP30/
MP40/MP50
Only
Setup
Alarm Messages
Alarm Limits
Alarm Volume
My Care Group
For the MP20/MP30 and MP40/MP50 monitors, the
elements at the top of the Screen are grouped together for
ease of navigation. Select any item at the top of the Screen
to open the Setup menu; scroll down the menu to
highlight the element you want then press the navigation
point to select the element.
Change Screens
Profiles
Admit/Dischrg
Paced
No
Network
Bed Information
Date, Time
Using the Touchscreen
Select screen elements by pressing them directly on the monitor’s screen.
Disabling Touchscreen Operation
♦
To temporarily disable touchscreen operation of the monitor, press and hold the Main
Screen permanent key. A padlock will appear on the Main Screen permanent key.
♦
Press and hold the Main Screen permanent key again to re-enable the touchscreen operation.
15
1 Basic Operation
Operating and Navigating
Using the SpeedPoint
1
2
3
4
5
integrated SpeedPoint
(MP60/MP70 only)
6
7
Remote SpeedPoint
(all monitors)
1
Silence - acknowledges all active alarms by switching off audible alarm indicators and lamps. Behavior
follows the Silence permanent key configuration.
2
Alarms Off/Pause Alarms- pauses alarm indicators. Behavior follows the Pause Alarms permanent key
configuration.
3
Main Screen - close all open menus and windows and return to the main screen.
4
Back - go back one step to the previous menu.
5
SpeedPoint knob - rotate and tilt to highlight elements. Press to select.
6
Function keys on remote SpeedPoint - function identical to the first five SmartKeys configured for a
screen.
7
On/standby key
Rotate the SpeedPoint knob left or right. With each click, the highlight jumps to the neighboring
screen element. Alternatively, tilt the knob to move it in the direction of a screen element. A cursor
moves across the screen, following the direction of the knob. Any screen element under the cursor is
highlighted. When you reach the screen element you want, press the knob to select the element.
Using the remote SpeedPoint, you can operate the monitor from a distant location such as at the foot
of the bed. The remote SpeedPoint can be used with all monitors.
16
Operating and Navigating
1 Basic Operation
Using the Navigation Point
MP20/MP30/
MP40/MP50
Only
1
Silence - acknowledges all active alarms by
switching off audible alarm indicators and
lamps. Exact behavior depends on permanent
key configuration
2
Alarms Off/Pause Alarms - pauses alarm
indicators. Exact behavior depends on Pause
Alarms permanent key configuration
3
Main Screen - closes all open menus and
windows and return to the main screen.
4
Back - takes you back one step to the previous
menu.
5
Navigation Point knob
To use the navigation point, rotate it left or right. With each click, the highlight jumps to the
neighboring screen element. The element under the cursor is highlighted. When you reach the screen
element you want, press the knob to select the element.
Using a Mouse or Trackball
If you are using a mouse or trackball, select screen elements by clicking on them (press and release the
left mouse button). While you are moving the mouse, a cursor appears and a highlight shows your
current position.
Using Keys
The monitor has four different types of keys.
Permanent Keys
A permanent key is a graphical key that remains on the screen all the time to give you fast access to
functions.
Pause Alarms - pauses alarm indicators. Pause duration depends on monitor
configuration. If pause duration is infinite, this key is labeled Alarms Off.
Select again to immediately re-enable alarm indicators.
Silence - acknowledges all active alarms by switching off audible alarm indicators and
lamps.
Main Screen - close all open menus and windows and return to the main screen.
Main Setup - enter main setup menu.
17
1 Basic Operation
Operating and Navigating
SmartKeys
A SmartKey is a configurable graphical key, located at the bottom of the main screen. It gives you fast
access to functions. The selection of SmartKeys available on your monitor depends on your monitor
configuration and on the options purchased.
enter profile menu, or
revert to default profile
change Screen, or
revert to default screen
show BIS Sensor
previous Screen
freeze waves
quick admit a patient
set alarm limits
enter patient identification menu to
admit/discharge/transfer
change alarm volume
end case to discharge a patient
change QRS volume
view information for patients in other
beds
enter standby mode - suspends patient
monitoring. All waves and numerics
disappear from the display. All settings
and patient data information are
retained.
change screen brightness (not for
independent displays)
review beat labels (annotate
arrhythmia wave)
re-learn arrhythmia
change amplitude (size) of ECG wave
enter cardiac output procedure
- start/stop manual NBP measurement
- start auto series
- stop current automatic measurement
within series
start NBP STAT measurement
stop automatic or STAT NBP
measurement and measurement series
18
start veni puncture (inflate cuff to
subdiastolic pressure)
set the NBP repeat time
access patient reports
zero invasive pressure transducer
Operating and Navigating
1 Basic Operation
start a delayed recording
Realtime Record SmartKey to access popup recording keys
set wide automatic alarm limits
set narrow automatic alarm limits
access wedge procedure window
access the Loops window
review vital signs trend
review graph trend
access event surveillance
access calculations
access the calculator
access the Drug Calculator
gas analyzer - exit standby mode
suppress zero for all gas measurements
unpair equipment
access ST Map application
start 12-Lead Capture (only available
if Information Center is connected)
access remote applications (if Application
Server is connected)
access EEG CSA
access the EEG montage
display VueLink information
access timers
access the spirometry data window
switch CO2 pump off
Hardkeys
A hardkey is a physical key on a monitoring device, such as the zero pressure key on the MMS or a
setup key on a module.
Pop-Up Keys
Pop-up keys are task-related graphical keys that appear automatically on the monitor screen when
required. For example, the confirm pop-up key appears only when you need to confirm a change.
19
1 Basic Operation
Operating and Navigating
Using the On-Screen Keyboard
Use this as you would a conventional keyboard. Enter the information by selecting one character after
another. Use the Shift and capital Lock keys to access uppercase letters. Use the Back key to delete
single characters, or use the Clr key to delete entire entries. Select Enter to confirm what you have
entered and close the on-screen keyboard.
If a conventional keyboard is connected to the monitor, you can use this instead of or in combination
with the on-screen keyboard.
Using the On-Screen Calculator
You can use the on-screen calculator to perform any of
the standard operations for which you would normally
use a handheld calculator.
♦
20
To access the on-screen calculator, select the
Calculator SmartKey, or select Main Setup
-> Calculations -> Calculator.
Calculator
MC
MR
M+
Back
√
C/CE
Operating Modes
1 Basic Operation
Operating Modes
When you switch the monitor on, it starts up in monitoring mode. To change to a different mode:
1
Select the Main Setup menu.
2
Select Operating Modes and choose the mode you require.
Your monitor has four operating modes. Some are passcode protected.
• Monitoring Mode: This is the normal, every day working mode that you use for monitoring
patients. You can change elements such as alarm limits, patient category and so forth. When you
discharge the patient, these elements return to their default values. Changes can be stored
permanently only in Configuration Mode. You may see items, such as some menu options or the
altitude setting, that are visible but ‘grayed out’ so that you can neither select nor change them.
These are for your information and can be changed only in Configuration Mode.
• Demonstration Mode: Passcode protected, this is for demonstration purposes only. You must not
change into Demonstration Mode during monitoring. In Demonstration Mode, all stored trend
information is deleted from the monitor’s memory.
• Configuration Mode: Passcode protected, this mode is for personnel trained in configuration tasks.
These tasks are described in the Configuration Guide. During installation the monitor is configured
for use in your environment. This configuration defines the default settings you work with when
you switch on, the number of waves you see and so forth.
• Service Mode: Passcode protected, this is for trained service personnel.
When the monitor is in Demonstration Mode, Configuration Mode, or
Service Mode, this is indicated by a box with the mode name in the center
of the Screen and in the bottom right-hand corner. Select this field to
change to a different mode.
Config
Standby Mode
Standby mode can be used when you want to temporarily interrupt monitoring.
To enter Standby mode,
♦
select the Monitor Standby SmartKey or
♦
select Main Setup, followed by Monitor Standby.
The monitor enters Standby mode automatically after the End Case function is used to discharge a
patient.
Standby suspends patient monitoring. All waves and numerics disappear from the display but all
settings and patient data information are retained. A special Standby screen is displayed. If a patient
location is entered at the Information Center, this will also be displayed on the Standby screen
(availability depends on Information Center revision).
To resume monitoring,
♦
Select anything on the screen or press any key.
21
1 Basic Operation
Understanding Screens
Understanding Screens
Your monitor comes with a set of preconfigured Screens, optimized for common monitoring scenarios
such as OR adult, or ICU neonatal. A Screen defines the overall selection, size and position of waves,
numerics and SmartKeys on the monitor screen when you switch on. You can easily switch between
different Screens during monitoring. Screens do NOT affect alarm settings, patient category and so
forth.
When you switch from a complex to a less complex Screen layout, some measurements may not be
visible but are still monitored in the background. If you switch to a more complex Screen with, for
example, four invasive pressure waves but you have only two pressures connected to the monitor, the
“missing” two pressures are either left blank or the available space is filled by another measurement.
Switching to a Different Screen
1
To switch to a different Screen, select the current Screen name in the monitor info line,
or select the Change Screen SmartKey.
2
Choose the new Screen from the pop-up list.
Changing a Screen’s Content
If you do not want to change the entire Screen content, but only some parts of it, you can substitute
individual waves, numerics, high-res waves, or trends. Be aware that these changes cannot be stored
permanently in Monitoring Mode.
To change the selection of elements on a Screen,
1
Select the element you want to change.
2
From the menu that appears, select Change Wave, Change Numeric, or
Change HiResTrend, and then select the wave or numeric you want, or select the highresolution trend wave you want from the list of available waves.
If you do not see Change Numeric in the menu, this Screen may be configured to always
display the numeric beside its wave. Changing the wave will automatically change the numeric.
The changed Screen is shown with an asterisk in the monitor info line.
22
Using Additional Displays
In the Change Screen menu, the changed Screen is
shown linked to the original Screen and marked with an
asterisk.
Up to three modified Screens can be accessed via the
Change Screen menu.
To recall Screens, either
♦
select the name of the Screen in the
Change Screen menu
or
♦
1 Basic Operation
Change Screen
6 Waves A
Split Screen A
Loops
Cardiac Output
use the previous/next arrows at the top of the
Change Screen menu to move back and forth in the
Screen history. The ten most recently-used Screens
including up to three modified Screens can be
accessed.
Vital Signs A
Vital Signs A*
After a patient discharge, the monitor’s default Screen is
shown. Modified Screens are still available in the
Change Screen menu.
If the monitor is switched off and then on again, modified Screens are erased from the monitor’s
memory and cannot be recalled. If a modified Screen was the last active Screen when the monitor was
switched off, it is retained (unless Automat. Default is configured to Yes).
Using Additional Displays
A second display, showing the same Screen as the main display, can be connected to any of the
monitors, for viewing only.
The MP90 can have two main displays and additionally, as a third main display, the D80 Intelligent
Display connected. All main displays can be configured and operated individually using standard input
devices.
For MP90 monitors with multiple displays and multiple input devices, the usage and behavior can be
configured according to specific requirements at installation (for example, use for two independent
operators or tracking of mouse input across two displays). For details refer to the Service Guide.
When two operators are using two displays, the scope of an action depends on the type of operation:
• Patient monitoring operations such as Silence or Pause alarms take effect for the monitor as a
whole, the results will be seen on both displays.
• Display operations such as the Main Screen key and Back hardkey will take effect only on the
display being operated.
If you are operating two displays with one remote SpeedPoint, to navigate from one display to another:
1
Move the highlight to the Main Screen key and then turn one click further.
The highlighting moves to a special “jump” field at the edge of the Screen
2
Press the knob on the SpeedPoint to confirm; the highlighting will automatically move to the other
display.
The content of each Screen can be changed individually as described in the previous section. If you are
operating two or three displays, you can choose Screens for all displays from one location:
23
1 Basic Operation
Understanding Profiles
1
Select Profiles in the monitor info line of the first display,
2
Select Display 1, Display 2, or Display 3 then select the Screen you want to display
on the that display from the list of available Screens.
When two displays are mounted next to each other or one above the other, a special Screen can be
assigned which spans across both displays. The Screen content for these Tall and Wide Screens can
then use the increased area available with two displays. These Screens appear in the Screen list with a
special Tall Screen or Wide Screen symbol.
Certain windows (for example: cardiac output procedure) can only be shown on one display at a time.
If you try to open one of these windows when it is already shown on another display, you will see a
blank grey window with a cross through it.
Using the Visitor Screen
If a visitor Screen is configured for your monitor, you can use it to clear the screen of all waves and
numerics but continue to monitor the patient with active alarms and trend storage at the bedside and
Information Center. You can change the name of the visitor Screen in Configuration Mode.
♦
To activate this Screen, select the Screen name in the monitor info line to open the Screen
menu, then select the name of the visitor Screen configured for your monitor from the list of
available Screens.
♦
Select any element on the Screen to open the Screen menu and select a different Screen to show
waves and numerics again.
Understanding Profiles
Profiles are predefined monitor configurations. They let you change the configuration of the whole
monitor so you can adapt it to different monitoring situations. The changes that occur when you
change a complete profile are more far reaching than those made when you change a Screen. Screens
affect only what is shown on the display. Profiles affect all monitor and measurement settings.
The settings that are defined by Profiles are grouped into three categories. Each category offers a choice
of ‘settings blocks’ customized for specific monitoring situations. These categories are:
• Display (screens)
– Each profile can have a choice of many different predefined screens. If you are using a second
display, each display can have its own individual screen selection. When you change the profile,
the screen selection configured for the new profile becomes active.
• Measurement Settings
– Each profile can have a choice of different predefined measurement settings. These relate directly
to individual measurements, for example, measurement on/off, measurement color, alarms limits,
NBP alarm source, NBP repeat time, temperature unit (oF or oC) pressure unit (mmHg or kPa).
• Monitor Settings
– Each profile can have a choice of different predefined monitor settings. These relate to the
monitor as a whole; for example, display brightness, alarms off/paused, alarm volume, QRS tone
volume, tone modulation, prompt tone volume, wave speed, resp wave speed, pulse source.
24
Understanding Profiles
1 Basic Operation
Profiles
Profile
: Profile A
Patient Category: Adult
Measurement A
Paced
: No
Measurement B
Display
: S-014
Measurement C
Meas Settings: Measurement A
Measurement D
Monitor Settings: Monitor A
Profiles Menu, showing current settings
Available choices in measurement
menu
You can change from one complete profile to another or swap individual settings blocks (display
screen/monitor settings/measurement settings) to change a subset of a profile. Changes you make to
any element within the settings blocks are not saved when you discharge the patient, unless you save
them in Configuration Mode.
You might find it helpful to think of the three categories in terms of a restaurant menu. The Screens
are like the first course, offering you a choice of “starters” (many different screen configurations from
which you can choose the one that best suits your requirements). The Monitor Settings category is like
the main course, offering a choice of different “main dishes” from which you can pick one. The
Measurement Settings are like the dessert course. From these you build your meal. You can choose one
from the “starters”, one from the main course, then one from the dessert or simply pick one or two
courses without having a full meal.
Depending on your monitor configuration, when you switch on or discharge a patient the monitor
either continues with the previous profile, or resets to the default profile configured for that monitor.
WARNING
If you switch to a different profile, the patient category and paced status normally change to the setting
specified in the new profile. However some profiles may be setup to leave the patient category and
paced status unchanged. Always check the patient category, paced status, and all alarms and settings,
when you change profiles.
When you leave Demonstration Mode, the monitor uses the default profile.
Swapping a Complete Profile
1
Select Profiles in the monitor info line, or select the Profiles SmartKey.
2
In the Profiles menu, select Profile.
3
Chose a profile from the pop-up list.
4
Confirm your selection.
25
1 Basic Operation
Understanding Settings
Swapping a Settings Block
1
Select Profiles in the monitor info line, or select the Profiles SmartKey.
2
In the Profiles menu, select Display or Measmnt. Settings or
Monitor Settings to call up a list of the settings blocks in each category.
3
Choose a settings block from the pop-up list.
4
Confirm your selection.
Default Profile
Your monitor has a default profile that it uses when you leave Demonstration, or Service modes, or
when you discharge a patient. This profile is indicated by a diamond
.
Locked Profiles
Some profiles are locked, so that you cannot change them, even in Configuration Mode. These are
indicated by this lock symbol.
Understanding Settings
Each aspect of how the monitor works and looks is defined by a setting. There are a number of
different categories of settings, including,
Screen Settings, to define the selection and appearance of elements on each individual Screen
Measurement settings, to define settings unique to each measurement, for example, high and low
alarm limits
Monitor settings, including settings that affect more than one measurement or Screen and define
general aspects of how the monitor works, for example, alarm volume, reports and recordings, and
display brightness.
You must be aware that, although many settings can be changed in Monitoring Mode, permanent
changes to settings can only be done in the monitor’s Configuration Mode. All settings are reset to the
stored defaults:
• when you discharge a patient
• when you load a Profile
• when the monitor is switched off for more than one minute (if Automat. Default is set to
Yes).
Changing Measurement Settings
Each measurement has a setup menu in which you can adjust all of its settings. You can enter a setup
menu:
• via the measurement numeric - select the measurement numeric to enter its setup menu. For
example, to enter the Setup ECG menu, select the HR (heart rate) numeric.
• via the Setup hardkey (on plug-in modules) - press the Setup hardkey on the module front.
26
Changing Wave Speeds
1 Basic Operation
• via the Main Setup SmartKey - if you want to setup a measurement when the measurement is
switched off, use the Main Setup SmartKey and select Measurements. Then select the
measurement name from the popup list. With this SmartKey you can access any setup menu in the
monitor.
• via the Measurement Selection key.
This guide always describes the entry method using the setup menu. But you can use any method you
prefer.
Switching a Measurement On and Off
When a measurement is off, its waves and numerics are removed from the monitor’s screen. The
monitor stops data acquisition and alarming for this measurement. A measurement automatically
switches off if you disconnect its module or measurement server. If you disconnect a transducer, the
monitor replaces the measurement numeric with question marks.
1
Enter the measurement’s setup menu and select the measurement.
2
Select the measurement name to toggle between on and off. The screen display indicates the active
setting.
Switching Numerics On and Off
For some measurements, such as EEG, you can choose which numerics to view on the screen.
♦
In the measurement’s setup menu, select the numeric name to toggle between on and off.
For example in the Setup EEG menu, select the EEG numeric name to toggle between on and
off.
Adjusting a Measurement Wave
♦
To quickly adjust wave-related measurement settings (such as speed or size), select the
measurement wave itself. This displays the measurement Wave menu, which has only waverelated measurement settings.
Changing Wave Speeds
Lowering the wave speed compresses the wave and lets you view a longer time period. Increasing the
speed expands the waveform, giving you a more detailed view.
The monitor distinguishes three groups of wave speed settings,
• RespiratorySpeed, for all respiratory waves: CO2, Resp. anesthetic agents and O2
• EEG Speed, for all EEG and BIS waves
• Global Speed, for all waves not included in the other two groups.
Changing the Wave Group Speed
The wave speed group setting defines the speed of all the waves in the group.
To change the wave speed of a wave speed group,
1
Select Main Setup -> User Interface
2
Select Global Speed, RespiratorySpeed, or EEG Speed as required
27
1 Basic Operation
3
Freezing Waves
Select a value from the list of available speeds.
Changing Wave Speed for a Channel
To change the wave speed of an individual wave channel,
1
Enter the Wave menu for a measurement by selecting its wave.
2
Select Change Speed.
3
To set the speed to the wave group speed, select RespiratorySpeed, EEG Speed, or
Global Speed.
To set an individual channel speed, select a numeric value from the list of available speeds. This
overrides the wave group speed setting and set the speed for the individual wave channel on the
monitor Screen. The wave channel speed is independent of the wave (label) depicted in the
channel, if you change the wave, the new wave will retain the set channel speed.
Freezing Waves
You can freeze waves on the screen and measure parts of the wave using cursors. The waves are frozen
with a history of 20 seconds so that you can go back and measure what you have seen.
Freezing An Individual Wave
To freeze a wave,
1
Enter the Wave menu for the measurement by selecting the wave on the screen.
2
Select Freeze Wave.
The realtime wave is replaced with the frozen wave.
Freezing All Waves
To freeze all waves on the screen,
1
Select the Freeze Waves SmartKey.
All realtime waves are replaced with frozen waves.
Measuring Frozen Waves
To measure a frozen wave,
28
1
Select the frozen wave.
If you are using touch, this automatically positions the vertical cursor. The cursor can be
repositioned by touching the required point on the wave, or
2
Using the Speedpoint or another pointing device or touch: use the right/left arrow keys to move
the vertical cursor.
The vertical cursor moves through the time axis and the current value is displayed next to the
cursor.
3
Use the up/down arrow keys to activate and move the horizontal cursor.
The horizontal cursor measures the wave value, which is displayed above the cursor line.
Using Labels
1 Basic Operation
Changing The Wave Speed
Lowering the wave speed compresses the wave and lets you view a longer time period. Increasing the
speed expands the waveform, giving you a more detailed view.
To change the wave speed:
1
Select the frozen wave.
2
Select Change Speed.
3
Select a speed from the list.
Updating The Frozen Wave
To update the wave, that is freeze the current wave:
1
Select the frozen wave.
2
Select Freeze Again.
Releasing Frozen Waves
To release frozen waves,
1
Select a frozen wave.
2
Select Unfreeze Waves.
All frozen waves are released.
Using Labels
You can measure multiple invasive pressures, temperatures, and SpO2 simultaneously. The monitor
uses labels to distinguish between them. The default settings defined in the profile (such as
measurement color, wave scale, and alarm settings) are stored within each label. When you assign a
label to a measurement, the monitor automatically applies these default settings to the measurement.
The labels assigned are used throughout the monitor, in reports, recordings, and in trends.
About Label Sets
Your monitor may be configured to use a Restricted or Full label set. The Full label set
provides extra labels for Pressure and Temp. See the sections in this Instructions for Use on Pressure
and Temp for more information.
If you connect a measurement server from a monitor using a Full label set to an IntelliVue monitor
using a Restricted label set or an M3/M4 monitor, any additional labels switch to labels available
in the target monitor. This may cause a label conflict with other monitored measurements.
Be aware that connecting a monitor using the Full label set to an Information Center with certain
software revisions may affect the availability of measurement information from the additional labels on
the Information Center. See the Information Center documentation and your monitor’s
Configuration Guide for information on label set compatibility.
Changing Measurement Labels (e.g. Pressure)
To change a measurement label of a measurement with multiple labels (invasive pressure, temperature,
or SpO2),
29
1 Basic Operation
Using Labels
1
Enter the Wave menu of the measurement.
2
Select Label.
3
Choose a label from the list.
The monitor automatically applies the scale, color, etc. settings stored in the Profile for the label you
select. You can change scale settings in Monitoring Mode, but color can only be changed in the
monitor’s Configuration Mode.
Any labels already being used in the monitor are shown “grayed-out” in the list and cannot be selected.
Give me an example Let’s imagine you used a Press module to monitor your previous patient’s CVP.
Now you want to use the same module to measure ABP with a new patient. You’ve set up your arterial
line. When you connect the pressure transducer to the module, the pressure shown on the screen still
uses the CVP color and wave scale and is labeled CVP. To rectify this, just change the pressure label to
ABP. Now the pressure has the correct color, the wave is shown in the correct scale, and the
appropriate alarm limits for ABP are active.
Resolving Label Conflicts
Each label must be unique, that is, it can only be assigned once. You cannot monitor two pressures
labelled “ICP” at the same time. If you need to use two identical pressures, you must assign different
labels to them, for example, P and ICP.
Measurement labels are stored in the measurement device (module or measurement server). If you try
to use two measurement devices that have identical labels, this causes a label conflict in the monitor.
Depending on your configuration, the monitor will either
• resolve the conflict automatically, by assigning a new, generic label
to the most recently connected conflicting label (e.g. a second FAP
label could be changed to ABP)
• display the Measurement Selection window automatically
for you to resolve the conflict
measurement selection key
with question marks
indicating a label conflict
• take no action, you must enter the Measurement
Selection window and resolve the conflict
All the currently available measurement devices are depicted in the Measurement Selection
window. Any measurement labels causing a label conflict are shown in red. If a measurement device is
connected but currently unavailable, for example, because it was deactivated due to a label conflict, the
device is shown “grayed-out”.
Conflicting measurement
labels are shown in red
Measurement Selection
SpO2
De-activated labels are
grayed-out
BIS
Tskin C.O.
EcgRsp SpO2
CO2
NBP
ABP
Temp
To resolve a label conflict,
1
30
Select the measurement selection key or select Main Setup -> Measurement Selection
to display the Measurement Selection window.
Changing Monitor Settings
2
3
1 Basic Operation
Select the device whose label you want to correct.
Use the measurement selection pop-up keys to resolve the conflict. Select either:
– Change Label to assign a different label to the conflicting label
– De-activate: to disable the conflicting device. It retains its label for future use but becomes
invisible to the monitor, as though it had been unplugged. When the device has been deactivated
the question marks under the measurement selection key will be replaced by XXX.
– Setup <Measurement label>: to enter the Setup menu for the measurement and change
the conflicting device’s label to a different label.
– Modify Driver (VueLink only) - change the VueLink device driver.
Changing Monitor Settings
♦
To change monitor settings such as date and time, brightness, or QRS tone volume, select the
Main Setup SmartKey and then select the setting you want to change, or select User
Interface to enter a submenu where you can change user interface settings.
Adjusting the Screen Brightness
1
Select the Brightness SmartKey.
2
Select the appropriate setting for the screen brightness. 10 is the brightest, 1 is the least
bright.
Your monitor may be configured with a lower brightness for Standby mode and also (for battery
powered monitors) for transport to conserve battery power.These settings can only be changed in the
monitor’s Configuration Mode.
If you are using an MP80 or MP90 with an external display, the Brightness SmartKey does not
adjust the brightness of this display. See the instructions supplied with the external display for
instructions.
Adjusting Touch Tone Volume
The touch tone volume is the tone you hear when you select any field on the monitor screen. To adjust
the touch tone volume,
1
In the Main Setup menu, select User Interface
2
Select TouchToneVolume, then select the appropriate setting for the touch tone volume: 10 is
the loudest and 1 is the quietest. Selecting zero switches the touch tone volume off.
Setting the Date and Time
If your monitor is connected to an Information Center, the date and time are automatically taken from
this. Once it is set, the internal clock retains the setting even when you switch off the monitor.
WARNING
Changing the date or time will affect the storage of trends and events.
1
Select the Date, Time screen element from the monitor’s info line to enter the Date, Time
menu.
31
1 Basic Operation
Checking Your Monitor Revision
2
Select, in turn, the Year, Month, Day, Hour (in 24 hour format, only) and Minute as
necessary. Select the correct values from the pop-up list.
3
Select Store Date, Time to change the date and time.
Checking Your Monitor Revision
1
Select Main Setup -> Revision to open the Monitor Revision menu.
2
Select the correct device from the device pop-up keys.
3
From the Monitor Revision menu, select the monitor component for which you need
revision information.
Getting Started
Once you understand the basic operation principles, you can get ready for monitoring.
Inspecting the Monitor
WARNING
If the monitor is mechanically damaged, or if it is not working properly, do not use it for any
monitoring procedure on a patient. Contact your service personnel.
1
Before you start to make measurements, carry out the following checks on the monitor including
all connected Measurement Servers, modules, or measurement server extensions.
– Check for any mechanical damage.
– Check all the external cables, plug-ins and accessories.
2
Plug the power cord into the AC power source. If you are using battery power, ensure that the
battery has sufficient power for monitoring. When you use a battery for the first time, you must
charge it, following the instructions given in the section on Charging Batteries.
3
Check all the functions of the instrument that you need to monitor the patient, and ensure that the
instrument is in good working order.
Switching On
♦
Press the on/off switch on the monitor for one second. The monitor performs a self test and is then
ready to use. If you see a message such as CO2 Sensor Warmup wait until it disappears before
starting monitoring that measurement. Connected devices usually take their power from the
monitor. External devices such as gas monitors and those connected via VueLink have their own
power switches.
CAUTION When using an MP90 monitor with a D80 Intelligent Display, always switch power on directly at the
MP90 or at a remote SpeedPoint or remote alarm device directly connected to the MP90.
Setting up the Measurement Servers and Modules
1
32
Decide which measurements you want to make.
Disconnecting from Power
1 Basic Operation
2
Connect the required modules, Measurement Servers, or measurement server extensions.
3
Check that you have the correct patient cables and transducers plugged in. The connectors are
color-coded to the patient cables and transducers for easy identification.
Starting Monitoring
After you switch on the monitor,
1
Admit your patient to the monitor.
2
Check that the profile, alarm limits, alarm and QRS volumes, patient category and paced status
and so forth are appropriate for your patient. Change them if necessary.
3
Refer to the appropriate measurement section for details of how to perform the measurements you
require.
Disconnecting from Power
The On/Standby switch does not disconnect the monitor from the ac power source. To disconnect,
unplug the power cable.
Monitoring After a Power Failure
If the monitor is without power for less than one minute, monitoring will resume with all active
settings unchanged. If the monitor is without power for more than one minute, the behavior depends
on your configuration. If Automat. Default is set to Yes, the default profile will be loaded
when power is restored. If Automat. Default is set to No, all active settings are retained, if power
is restored within 48 hours. The Automat. Default setting is made in Configuration Mode.
Networked Monitoring
If your monitor is connected to a network, a network symbol is displayed in the upper left corner next
to the bed label. To see details about the Care Group, the monitoring equipment, and technical
information about the network,
♦
MP20/MP30/MP40/MP50 - select the monitor info line to enter the Setup menu, then select
Bed Information.
♦
MP60/MP70/MP80/MP90 - in the monitor info line, select the bed label.
Be aware that some network-based functions may be limited for monitors on wireless networks in
comparison to those on wired networks.
Using Remote Applications
If your monitor is connected to a Philips Application Server, you can access applications hosted
remotely on the Application Server and display and operate them on the bedside monitor screen. The
Application Server provides portal technology to allow information access through a web browser,
terminal emulation, or served applications. The applications available depend on the Application
Server configuration: see the device documentation for details. A Remote Application window can also
be embedded in a monitoring Screen.
To display remote applications on the monitor,
33
1 Basic Operation
Using Remote Applications
1
In the Main Setup menu, select Remote Applics, or select the
Remote Applications SmartKey.
2
Select the required application from the pop-up list of available applications.
3
Operate the application with your preferred monitor input device: touchscreen, SpeedPoint,
navigation point, keyboard or mouse.
Remote Application Popup Keys
Pop-Up Keys
Selecting this pop-up key lets you....
Minimize
minimize the Remote Application window; the session continues running in the
background. Select the Remote Application symbol to show the window at full size
again.
Keyboard
start a keyboard application to show a keyboard on the display. This key is not available
if the keyboard application is not installed or not supported on the Philips Application
Server.
Refresh
update the content of the Remote Application window.
Close
close the Remote Application session.
The Remote Application window occupies a pre-defined area on the monitor Screen. The maximum
size of the area depends on the resolution of your display. If the pre-defined area for the Remote
Application covers the full monitor Screen (on independent second displays only), the pop-up keys are
not displayed. In this case a small window appears with two keys: one (with the Remote Application
symbol) to display the pop-up keys and another to move the small window if it is obstructing viewing.
If you change the monitor Screen while a Remote Application is running, and the pre-defined area on
the second Screen is smaller, the Remote Application cannot be shown at full size. You must select a
suitable monitor Screen to display the Remote Application again.
34
2
What’s New?
2
This section lists the most important new features and improvements to the monitor and its user
interface introduced with each release. Further information is provided in other sections of this book.
You may not have all of these features, depending on the monitor configuration purchased by your
hospital.
What’s New in Release D.0?
M1014A Spirometry Module
The spirometry module produces a real time wave for flow, volume and pressure of respiratory gases
together with numerics for analysis of ventilatory mechanics. It is designed to be used in combination
with Philips-branded airway flow sensors and combined CO2/airway flow sensors.
M3014A Capnography Extension
The M3014A Capnography Extension offers an additional measurement method - sidestream CO2
with the M2741A sensor.
M8016A D80 Intelligent Display
The D80 Intelligent Display can be used as a third main display with the MP90 monitor. You then
have three displays able to be configured individually and to be operated independently.
IntelliVue 802.11 Bedside Adapter
The 802.11 Bedside Adapter is a wireless ethernet adapter which can be built in to the patient monitor
(option J35). It provides wireless connectivity to standard IEEE 802.11a/b/g wireless networks.
Improved Multiple Display Support
• Wide and Tall screen layouts are supported which allow screen content to be spread over two screens
next to each other (wide acreen) or one above the other (tall screen).
• An additional main display used for a surgeon can be configured not to show alarm information.
The permanent keys and SmartKeys can also be configured not to display.
• Input devices can be assigned to an operator, independent of physical connector location.
New SmartKeys
For the new spirometry module there is a SmartKey to provide direct access to the spirometry data
window. For microstream and sidestream CO2, sampling can now be suppressed directly with the
SmartKey CO2 Pump Off.
35
2 What’s New?
What’s New in Release C.0?
What’s New in Release C.0?
IntelliVue MP80
The MP80 patient monitor is a new addition to the IntelliVue patient monitor family. The
functionality is similar to that of the MP70 but with the flexibility of component modularity as in the
MP90.
M3014A Capnography Extension
The M3014A Capnography Extension offers a new measurement combination - mainstream CO2,
cardiac output, invasive pressure and invasive pressure/temperature.
M8045A Docking Station
The docking station provides quick mounting and connections for the MP20/MP30/MP40/MP50 in
a one-step operation. By placing the monitor on the docking station and closing the lever you can
make the connection to AC power and to a network, if present.
BIS Interface Board
This interface board allows use of Bispectral Index monitoring with the MP20 and MP30.
Timers Application
The new Timers application allows you to set timers to notify you when a specific time period has
expired. The timers can have varying characteristics and can be located on the Main screen for easy
viewing.
IntelliVue Instrument Telemetry (USA only)
Wireless network capabilities via the IntelliVue Instrument Telemetry network using a built-in
interface (MP20/MP30) or an external adapter (MP40/MP50).
Remote Applications
Remote applications can now be embedded in a monitoring Screen. The display colors for remote
applications have been enhanced.
Basic Operation
• Selection and order of SmartKeys can now be configured in the monitor’s Configuration mode.
• A new SmartKey exits Standby mode at the gas monitor.
• Direct operation of a second independent display with the MP90, using standard input devices.
• Networked monitors can now show Telemetry information for the “Own Bed” in an overview
window or embedded in a Screen.
• Overview bed information can be configured to display in the colors used at the Information Center
(with Information Center System G or higher).
• Support for Unit-based Care Group model for up to 64 beds (with Information Center System G or
higher).
• Battery status information on the main screen now includes estimated monitoring time available
during battery charging.
• Barcode reader support during patient admission.
• Direct entry to graphical trends when a limit alarm is selected in alarm review and to the event
episode window when an event alarm is selected.
• MP90: screen trends can now also be viewed on the second display.
36
What’s New in Release B.1?
2 What’s New?
Trends
• In graphical trends, a segment menu allows direct adjustment of trend scales, automatic scale
optimization, expanded view for an individual segment.
• In graphical and horizon Screen Trends a cursor is available.
• In the Vital Signs window, the values can be shown with the parameter color.
Events
• Events can be configured to be signaled as alarms (advanced event surveillance only).
• Deviation triggers can be set which trigger an event when measured values change by a defined
amount over a set time (advanced event surveillance only).
• Up to six event groups can be active simultaneously (advanced event surveillance only).
Measurements
• Pulse Pressure Variation is a new derived measurement calculated from beat-to-beat arterial pressure
values.
• MAC value calculations
Applications
• Improved Drug Calculator meeting JCAHO requirements.
• The ST Map application shows ST changes over time in two multi-axis spider diagrams.
• Freeze and measure waves on the Main Screen.
What’s New in Release B.1?
IntelliVue MP20/MP30
The MP20/MP30 patient monitor is a new addition to the IntelliVue patient monitor family. It is
smaller and lighter than the MP40/MP50 monitors and can be powered by battery. It can be used with
the measurement server and server extensions and has a built-in recorder.
Basic Operation
• New Measurement Selection window makes it easier to resolve measurement label conflicts
• New Previous/Next Screen function provides access to the ten most recently modified Screens
• Wave speeds can now be set for individual wave channels
Trends
• Cursor in graphical trend window improves navigation in the trends database
• Vital Signs and Graphical Trend screen elements can be embedded on a Screen
• New band style format for displaying trends of measurements with multiple numerics
• Horizon trend is a new format for screen trends, showing the deviation from a stored baseline
• Aperiodic measurements now stored with a timestamp in Vital Signs
• New symbol representing NBP measurements in Graphical Trends
Measurements
• ST numerics in the Alarm Limits window can be shown and hidden
37
2 What’s New?
What’s New in Release B.0?
• ST Point can be set directly by selecting a numeric value
• New NBP countdown timer shows the time remaining until the next NBP measurement in a series
• Networked monitors can now show Other Bed information embedded on Screen
• Additional labels available for Pressure and Temp
• Additional options for SpO2, support for an extended list of accessories
• Suppress Zero function for Microstream CO2
Applications
• Drug Calculator can now be configured to include a list of commonly-used drugs
• Cursor in the Loops window improves navigation through the stored loops
• Volume-flow loops added to the list of respiratory loops types
• Loops Report for documentation of stored loops
• EEG CSA can now be called up and viewed in a window over the currently displayed Screen
What’s New in Release B.0?
IntelliVue MP40/MP50 The MP40/MP50 patient monitor is a new addition to the IntelliVue
patient monitor family. It uses the same measurement devices as the MP60/MP70/MP90 monitors
and shares the same technological platform and user interface, but is more compact in size and can be
operated by battery.
M3012A Measurement Server Extension The new Hemodynamic Measurement Server Extension
extends measurement capability by adding two additional pressures and Cardiac Output.
M1020B SpO2 Module New SpO2 measurement module, M1020B, enables dual SpO2
measurement without the need to use the VueLink module. Two options are available:
– Option A01 for use with Philips reusable and disposable sensors and Nellcor “R-Cal” disposable
sensors.
– Option A02 for use with Nellcor OxiMax sensors, including the MAX-FAST forehead sensor.
M1020B Option A02 for use with Nellcor OxiMax sensors may not be available in all countries.
PV Loops: compares graphic representations of airway waves to help detect changes in the patient
airway condition.
High-resolution waves per Screen: the number of high-resolution waves that can be shown on a
Screen is increased, limited only by the Axx Option purchased.
Alarms symbols: New alarm symbols are introduced, and “short” yellow alarms were renamed “onestar” yellow alarms (yellow arrhythmia alarms).
Aperiodic measurements available as Screen Trends: patient trend information for NBP, C.O., C.I.,
and Wedge can now be permanently displayed on the Screen in tabular and graphical form.
38
What’s New in Release A.2?
2 What’s New?
What’s New in Release A.2?
12-Lead ECG recordings: 12-Lead ECG waves and numerics can be sent to a connected recorder
High-Resolution Trend Report: high-resolution trend report can be sent to a connected printer
ST Snippets ST snippets, showing a one second wave segment for each measured ST lead, can be
permanently displayed on the Screen or called up as required.
EEG Wave Speed: new EEG-specific wave speeds have been added to the list of wave speeds available
Drug Calculator: this new feature helps you to calculate drug dosages for your patients
On-Screen Calculator: a mathematics calculator can be used on the Screen
Visitor Screen: this new Screen is designed to hide sensitive patient information from the Screen.
Monitoring and alarm generation function as usual.
Touch selection volume control: The volume of the audio prompt given when a screen element is
selected is now adjustable
VueLink interface: the VueLink on-screen appearance and controls are improved
M3001A: Trend upload from the Multi-Measurement Server (M3001A) improved
Screen Trends: lets you display patient trend information in graphic form permanently on the Screen
Alarm Limits Page: lets you view and control alarm settings for all measurements in one window
New Option for Event Surveillance: a new neonatal event review option #C04 is introduced
Second display To simultaneously show two different Screens, a second display can be connected to
the MP90. The second display is for viewing only.
39
2 What’s New?
40
What’s New in Release A.2?
3
Alarms
3
The alarm information here applies to all measurements. Measurement-specific alarm information is
discussed in the sections on individual measurements.
The monitor has three alarm levels: red, yellow, and INOP.
Red and yellow alarms are patient alarms. A red alarm indicates a high priority patient alarm such as a
potentially life threatening situation (for example, asystole). A yellow alarm indicates a lower priority
patient alarm (for example, a respiration alarm limit violation). Yellow arrhythmia alarms are specific to
arrhythmia-related patient conditions (for example, ventricular bigeminy).
INOPs are technical alarms, they indicate that the monitor cannot measure or detect alarm conditions
reliably. If an INOP interrupts monitoring and alarm detection (for example, LEADS OFF), the
monitor places a question mark in place of the measurement numeric and an audible indicator tone
will be sounded. INOPs without this audible indicator indicate that there may a problem with the
reliability of the data, but that monitoring is not interrupted.
Alarms are indicated after the alarm delay time. This is made up of the system delay time plus the
trigger delay time for the individual measurement. See the specifications section for details.
If more than one alarm is active, the alarm messages are shown in the
alarm status area in succession. An arrow symbol next to the alarm
message informs you that more than one message is active.
↑ ** HR HIGH
The monitor sounds an audible indicator for the highest priority alarm. If more than one alarm
condition is active in the same measurement, the monitor announces the most severe. Your monitor
may be configured to increase alarm indicator volume automatically during the time when the alarm is
not acknowledged.
41
3 Alarms
Visual Alarm Indicators
Visual Alarm Indicators
Alarm message: An alarm message text appears in the alarm status area at the top of the screen
indicating the source of the alarm. If more than one measurement is in an alarm condition, the message
changes every two seconds, and has an arrow ( ) at the side. The background color of the alarm
message matches the alarm priority: red for red alarms, yellow for yellow alarms, and light blue for
INOPs. The asterisk symbols (*) beside the alarm message match the alarm priority: *** for red alarms,
** for yellow alarms, * for yellow arrhythmia alarms. INOPs are displayed without asterisks.
Depending on how your monitor is configured, it may display alarm limit violation messages
• in text form, for example “**SpO2 LOW” or
• in numeric form, for example “**SpO2 94<96”, where the first number shows the maximum
deviation from the alarm limit, and the second number shows the currently set limit.
Flashing numeric: The numeric of the measurement in alarm flashes.
Bright alarm limits: If the alarm was triggered by an alarm limit violation, the corresponding alarm
limit on the monitor screen is shown more brightly.
Alarm lamp: A lamp on the monitor’s front panel flashes. This has the same color as the alarm
priority.
Nurse call systems: Alarm conditions are indicated on any device connected to the nurse call relay, if
configured to do so.
Audible Alarm Indicators
The audible alarm indicators configured for your monitor depend on which alarm standard applies in
your hospital. Audible alarm indicator patterns are repeated until you acknowledge the alarm by
switching it off or pausing it. or until the alarm condition ceases (if audible alarm indication is set to
non-latching).
WARNING
Do not rely exclusively on the audible alarm system for patient monitoring. Adjustment of alarm
volume to a low level or off during patient monitoring may result in patient danger. Remember that
the most reliable method of patient monitoring combines close personal surveillance with correct
operation of monitoring equipment.
Alarm Tone Configuration
The audible alarm indicators of your monitor are configurable. In the monitor’s Configuration Mode,
you can:
• increase the alarm volume of unacknowledged alarms at regular intervals
• change the interval between alarm sounds (ISO/IEC Standard 9703-2 alarms only)
• change the base volume of the red and yellow alarm tones and the INOP tones
• change the alarm sound to suit the different alarm standards valid in different countries.
42
Audible Alarm Indicators
3 Alarms
Traditional Audible Alarms (HP/Agilent/Philips/Carenet)
• Red alarms: A high pitched sound is repeated once a second.
• Two-star yellow alarms: A lower pitched sound is repeated every two seconds.
• One-star yellow alarms (arrhythmia alarms): The audible indicator is the same as for yellow alarms,
but of shorter duration.
• INOPs: an INOP tone is repeated every two seconds.
ISO/IEC Standard 9703-2 Audible Alarms
• Red alarms: A high pitched tone is repeated five times, followed by a pause.
• Two-star yellow alarms: A lower pitched tone is repeated three times, followed by a pause.
• One-star yellow alarms (arrhythmia alarms): The audible indicator is the same as for yellow alarms,
but of shorter duration.
• INOPs: a lower pitched tone is repeated twice, followed by a pause.
Changing the Alarm Tone Volume
♦
The alarm volume symbol at the top right of the monitor screen gives you an
indication of the current volume. To change the volume, select the volume symbol
and then select the required volume from the pop-up selection.
♦
If you want to see a numerical indication of the current alarm volume on a scale
from zero to 10, select the Alarm Volume SmartKey. The volume scale pops up.
The current setting is indented. To change the setting, select the required number
on the scale. Any settings that are inactive (“grayed out”) have been disabled in the
monitor’s Configuration Mode.
Alarm
When the alarm volume is set to zero (off), the alarm volume symbol reflects this. If you
switch the alarm volume off, you will not get any audible indication of alarm conditions.
Minimum Volume for No Central Monitoring INOP
If your monitor is connected to an Information Center, and the connection is interrupted, the INOP
message No Central Monit. will appear within 30 seconds, accompanied by an INOP tone. To
help ensure that this INOP, and any other active alarm, is not overlooked, the INOP and alarm tones
may be configured to have a minimum volume. In this case, INOP and alarm tones will sound even if
the monitor alarm volume is set to zero.
43
3 Alarms
Acknowledging Alarms
Acknowledging Alarms
To acknowledge all active alarms and INOPs, select the Silence permanent
key. This switches off the audible alarm indicators and alarm lamps. Alternatively,
you can acknowledge alarms by pressing the Silence hardkey on the MMS or
on the SpeedPoint. The hardkeys follow the behavior configured for the
permanent key.
Silence
A check mark beside the alarm message indicates that the alarm has been
acknowledged. If the monitor is configured to re-alarm, a dashed check mark will
be shown.
If the condition that triggered the alarm is still present
after the alarm has been acknowledged, the alarm message
stays on the screen with a check mark symbol beside it.
APNEA
If the alarm condition is no longer present, all alarm indicators stop and the alarm is reset.
Switching off the alarms for the measurement in alarm, or switching off the measurement itself, also
stops alarm indication.
Acknowledging Disconnect INOPs
Acknowledging an INOP that results from a disconnected transducer switches off the associated
measurement. The only exception is ECG/Resp: acknowledging a disconnect INOP for ECG leads
does not switch off the ECG and Resp measurements. Acknowledging a disconnect INOP at the
Information Center switches off the audible INOP indicator but does not switch off the measurement.
Unplugging an MMS or a plug-in module automatically switches off its measurements.
Alarm Reminder (ReAlarm)
If Alarm Reminder is configured on for your monitor, you will get an audible reminder of alarm
conditions that remain active after you have acknowledged the alarm. This reminder may take the form
of a repetition of the alarm tone for a limited time, or an unlimited repetition of the alarm tone (this is
the same as a new alarm). There is no alarm reminder for INOPs.
In Configuration Mode, you can set the interval between silencing the alarm and sounding the
reminder tone to one, two, or three minutes.
Pausing or Switching Off Alarms
If you want to temporarily prevent alarms from sounding, for example while you are moving a patient,
you can pause alarms. Depending on your monitor configuration, alarms are paused for one, two, or
three minutes, or infinitely.
To view the alarm pause setting chosen for your unit,
1
Select Main Setup -> Alarm Settings
2
Check the Alarms Off setting.
This setting can only be changed in Configuration Mode.
44
Pausing or Switching Off Alarms
3 Alarms
To Pause All Alarms
♦
♦
Select the Pause Alarms permanent key. If your monitor is configured to
infinite pause time, the permanent key is labelled Alarms Off, and selecting it
switches alarms off.
Pause
Alarms
Or press the Alarms hardkey on the SpeedPoint or Navigation Point. The hardkey
follows the behavior configured for the permanent key.
To Switch All Alarms Off
You can only switch alarms off permanently if your monitor is configured to allow infinite alarms
pause and the permanent key is labelled Alarms Off.
♦
Select the Alarms Off permanent key.
♦
Or press the Alarms hardkey on the SpeedPoint or Navigation Point. The
hardkey follows the behavior configured for the permanent key.
Alarms
Off
Pausing alarms infinitely is the same as switching them off.
To Switch Individual Measurement Alarms On or Off
1
Select the measurement numeric to enter its setup menu.
2
Select Alarms to toggle between On and Off.
The alarms off symbol is shown beside the measurement numeric.
While Alarms are Paused or Off
• The red Alarms Paused lamp on the monitor front panel is lit.
• In the alarm field, the monitor displays the message
Alarms Paused or Alarms Off, together with
the alarms paused symbol and the remaining pause
time in minutes and seconds, or alarms off symbol.
• No alarms are sounded and no alarm messages are
shown.
ALARMS PAUSED 1:28
ALARMS OFF
• INOP messages are shown but no INOP tones are
sounded.
The only exceptions are the INOPs Battery/Batteries Empty, Battery/
Batteries Malfunction, Batt 1/2 Missing, and NBP Cuff Overpressure.
These INOPs are sounded even if alarms are paused or off.
• The nurse call relay is not active.
If a disconnect INOP is present and alarms are paused or switched off, the measurement in question is
switched off.
45
3 Alarms
Alarm Limits
Restarting Paused Alarms
♦
To manually switch on alarm indication again after a pause, select the permanent key
Pause Alarms (or Alarms Off ) again.
Alarm indication starts again automatically after the pause period expires. If the monitor is configured
to stay paused infinitely, you must select Alarms Off again to restart alarm indication.
Resetting Arrhythmia Alarm Timeouts
♦
To reset the arrhythmia alarm timeout period, select the Alarms Off or Pause Alarms
permanent key and then reselect it.
Extending the Alarm Pause Time
If your monitor has extended alarm pause enabled, you can extend the alarm pause time. Use this to
prevent alarms being indicated, for example, while you are washing a patient or carrying out a
procedure. Only extend the alarm pause time when you are sure that clinical personnel are available to
monitor the patient’s condition closely.
To extend the alarm pause time to five or 10 minutes,
1
Select one of the alarm fields. This calls up the Alarm Messages window.
2
Select either the pop-up key Pause Al. 5 min or the pop-up key Pause Al. 10 min.
Each time you select one of these pop-up keys, the Alarm Pause Time is reset to five (or 10)
minutes.
Alarm Limits
The alarm limits you set determine the conditions that trigger yellow and red limit alarms. For some
measurements (for example, BIS and SpO2), where the value ranges from 100 to 0, setting the high
alarm limit to 100 switches the high alarm off, and setting the low alarm limit to 0 switches it off. In
these cases, the alarms off symbol is not displayed.
WARNING
Be aware that the monitors in your care area may each have different alarm settings, to suit different
patients. Always check that the alarm settings are appropriate for your patient before you start
monitoring.
Viewing Individual Alarm Limits
HR
120
50
85
Alarm limits
46
You can usually see the alarm limits set for each measurement next to the
measurement numeric on the main screen.
If your monitor is not configured to show the alarm limits next to the numeric,
you can see them in the appropriate measurement setup menu. Select the
measurement numeric to enter the menu and check the limits.
Alarm Limits
3 Alarms
Viewing All Alarm Limits
The Alarm Limits overview window lists the currently set alarm limits for all measurements. If an
Apnea alarm delay time is set, this is also shown. The Alarms Off symbol is shown beside the
measurement label of any measurement whose alarm switched off.
To open the Alarm Limits window, either select any alarm field to open the Alarm
Messages window, then select the Alarm Limits pop-up key, or select the Alarm
Limits SmartKey, if configured.
Alarm Limits
ST-V4
ST-V5
Graphic view of current
yellow and red alarm
limits and currently
monitored measurement
value
Off indicates the
measurement is switched
off
ST-V6
SpO2
Pulse (SpO2)
NBPs
ABPs
PAPd
awRR
Apnea Time
Measurement labels, with alarms
off symbol where appropriate
♦
Off
sec
Current alarm limits
Select Show ST Limits to expand the list of ST leads and view the currently set alarm limits.
Selecting Hide ST Limits hides the list again.
You can use the pop-up keys that open with the Alarm Limits window to perform common tasks:
– All Al. On/All Al. Off,
– All Lim. Narrow/All Lim. Wide to set narrow or wide alarm AutoLimits for all
measurements.
– Print Limits/Record Limits to print a list of all current alarm limit settings on a
connected printer or recorder.
47
3 Alarms
Alarm Limits
These pop-up keys are not available in the window for changing individual alarm limits which you
access by selecting the measurement label in the Alarm Limits window.
Changing Alarm Limits
To change individual measurement alarm limits using the measurement’s Setup Menu,
1
in the measurement’s setup menu, select the alarm limit you want to change. This calls up a list of
available values for the alarm limit.
2
Select a value from the list to adjust the alarm limit.
Alternatively, you can use the keys in the measurement Change Limits window, which you access by
selecting the measurement label in the Alarm Limits window.
High red alarm (view only)
High yellow alarm field
Up/down arrow keys for
changing high yellow alarm
limits
HR
Alarms On/Off key - select to
toggle between alarms on or off
Alarms
On/Off
Preview Alarm AutoLimits for a
measurement before applying
Select to apply wide AutoLimits
Select to apply narrow
AutoLimits
Up/down arrow keys for
changing low yellow alarm limits
15-min trend, showing alarm
limits and monitored
measurement values
(MP40/50/60/70/90 only)
Graphic view of alarm limits
with currently measured value
Low yellow alarm field
Low red alarm (view only)
To change alarm limits,
1
2
48
In the Change Limits window,
– if you are using touch, select the up or down arrow buttons to adjust the high and low alarm
limits as required.
– if you are using a SpeedPoint or Navigation Point, position the cursor in the high yellow alarm
field, then press the knob inwards. Rotate the knob to the left or right to adjust the limit. Press
the knob again to set the displayed limit.
Repeat to set the low yellow alarm limit.
Alarm Limits
3 Alarms
If you set the yellow alarm limit outside the red alarm limit, the monitor will automatically set the red
alarm to the yellow alarm limit.
When an ST measurement is in the Change Limits window there are also two pop-up keys
available labeled All ST Narrow/All ST Wide. With these keys you can set Auto Limits for all
ST Leads.
About Automatic Alarm Limits (AutoLimits)
The monitor can automatically set alarm limits suited to your individual patient, using the Automatic
Alarm Limits function. This tells the monitor to adapt the alarm limits of selected measurements to the
measured vital signs within a defined safe limit. The monitor calculates safe AutoLimits for each
patient based on the measured values from the last 12 seconds.
The defined safe limits never exceed the non-pathological range.
Limits Narrow sets limits close to the currently measured values for situations where it is critical
for you to be informed about small changes in your patient’s vital signs.
Limits Wide sets limits further away from the currently measured values for situations where small
changes are not so critical.
♦
Use the keys in the Change Limits window to apply AutoLimits for individual measurements.
These keys are not available if AutoLimits have been disabled for the measurement in the monitor’s
Configuration Mode.
High alarm limit, wide
High alarm limit, narrow
Alarm
limits
Low alarm limit, narrow
Low alarm limit, wide
Measurement value
Lower limit
clamps
Upper limit
clamps
AutoLimits are not available for all measurements. The list of measurements for which AutoLimits can
be used is defined in the monitor’s Configuration mode.
Use the Change Limits window to check AutoLimits before you apply them to ensure that they are
appropriate for your individual patient and their clinical condition. Once applied, AutoLimits are
shown on the monitor screen just like manually-set alarm limits. If the AutoLimits are not appropriate
for your patient, you must set alarm limits manually. The limits remain unchanged until you set them
again or change them manually.
Documenting Alarm Limits
The alarm limits pop-up keys appear with the Alarm Limits and Change Limits windows.
♦
Select the Print Limits pop-up key to print an overview of all alarm limits on a connected
printer.
♦
Select the Record Limits pop-up key to send a recording of the alarm limits to a recorder.
49
3 Alarms
Reviewing Alarms
Reviewing Alarms
To review the currently active alarms and INOPs, select any of the alarm status areas on the monitor
screen. The Alarm Messages window pops up. All alarms and INOPs are erased from the
monitor’s alarm history when you discharge a patient, or if you change to Demonstration Mode.
Alarm Messages Window
The Alarm Messages window shows all the currently active alarms and INOPs in chronological
order, beginning at the top with the most recent. INOPs are shown on the left hand side and patient
alarms are shown on the right hand side. Any active red alarms are shown first, followed by yellow
alarms. Acknowledged alarms or INOPs are shown with the check mark symbol.
The Alarm Messages window pop-up keys appear when the window is opened. If alarm pause
extension is disabled, the pause pop-up keys are inactive (“grayed-out”). Selecting the Review
Alarms pop-up key opens the Review Alarms window.
Alarm
Limits
Review
Alarms
Pause Al. Pause Al.
5 Min.
10 Min.
Review Alarms Window
The Review Alarms window
contains a list of up to 100 of the most
recent alarms and INOPs with date and
time information. If configured to do so,
each alarm is shown with the alarm limit
active when the alarm was triggered and
the maximum value measured beyond
this limit. The Review Alarms
window also shows any changes made to
the Alarms On/Off or Silence status.
Review Alarms
5 Apr 16:55:18 *** Apnea
5 Apr 16:55:18 ** ABPs HIGH (120 >95)
5 Apr 16:55:18 Alarms On
5 Apr 16:45:15 ** SpO2 NON-PULSAT.
5 Apr 16:44:57 Alarms Off
5 Apr 16:44:46 ** awRR LOW (14<15)
5 Apr 16:44:39 ** SpO2 LOW (95<99)
5 Apr 16:44:28 ** ABPs HIGH
If you select a high or low limit alarm in
the list, the Graphical Trends
window will open to provide further
data. If you select an alarm resulting
from an event alarm notification, the Event Episode window for that event will open. When you
close these windows you will return to the Review Alarms window.
The information in the Review Alarms window is deleted when a patient is discharged, when the
monitor is switched off for longer than one minute, and when you leave Demonstration Mode.
The Review Alarms window pop-up keys appear when the window is opened. If alarm pause
extension is disabled, the pause pop-up keys are inactive. Selecting the Active Alarms pop-up key
opens the Alarm Messages window.
Alarm
Limits
50
Active
Alarms
Pause Al. Pause Al.
5 Min.
10 Min.
Understanding Alarm Messages
3 Alarms
Understanding Alarm Messages
If you do not immediately understand an INOP or alarm message, refer to its help text.
♦
In the Alarm Messages window, select the INOP message. This calls up a help window with
an explanation of the INOP message and, where appropriate, a suggested solution for the problem.
Alarm Messages
Resp LEADS OFF
LL LEAD OFF
** awRR LOW
The lead LL has become detached from the
patient or the lead set has been changed.
Attach the missing electrode or select <New
Lead Setup> to confirm the new lead set
Latching Alarms
The alarm latching setting for your monitor defines how the alarm indicators behave when you do not
acknowledge them. When alarms are set to non-latching, their indicators end when the alarm
condition ends. Switching alarm latching on means that visual and/or audible alarm indications are still
displayed or announced by the monitor after the alarm condition ends. The indication lasts until you
acknowledge the alarm.
Viewing the Alarm Latching Settings
To see the alarm latching setting for your monitor
1
In the monitor’s Main Setup menu, select Alarms.
2
Select Alarm Settings, and see the Visual Latching and Audible Latching
settings.
This setting can only be changed in Configuration Mode. You should be aware of the settings chosen
for your unit. There are three possible choices each for visual and audible latching, Red, Red and
Yellow, and Off. These choices can be combined to give the following settings:
Visual Latching
R&Y
R&Y
R&Y
R
R
Off
Audible latching
R&Y
R
Off
R
Off
Off
R = red alarms, Y = yellow alarms
51
3 Alarms
Testing Alarms
Alarm Latching Behavior
Red and Yellow Measurement
Alarms
Non-latching
alarms
Alarm has not been
acknowledged.
Alarm tone on. Alarm lamp on. Alarm message. Flashing numerics.
Alarm condition
still present.
Visual and audible Visual latching,
latching
audible non-latching
Alarm condition All audible and visual Alarm tone on.
no longer present. alarm indicators
Alarm lamp on.
automatically stop.
Alarm message.
Flashing numerics.
Alarm has been
acknowledged.
Alarm condition
still present.
Alarm message. Flashing
numerics.
Audible alarm indicators
automatically stop.
Audible alarm acknowledged. Alarm lamp off. Alarm message. Flashing
numerics. Audible alarm reminder (if configured).
Alarm condition Audible and visual alarm indicators automatically stop.
no longer present.
All INOPs except DISCONNECT and UNPLUGGED INOPs from measurement servers and modules
are non-latching. See “Yellow Arrhythmia Alarms” on page 113 for information on short yellow
arrhythmia alarms latching behavior.
Testing Alarms
When you switch the monitor on, a selftest is started. You must check that the alarms lamps light, one
after the other, and that you hear a single tone. This indicates that the visible and audible alarm
indicators are functioning correctly. For further testing of indidual measurement alarms, perform the
measurement on yourself (for example SpO2 or CO2) or use a simulator. Adjust alarm limits and check
that appropriate alarm behavior is observed.
Alarm Behavior at On/Off
When you switch alarms on, the settings defined in the currently active Profile are used.
If the monitor is switched off for longer than one minute and then switched on again, or after a loss of
power lasting longer than one minute, or when a patient is discharged, the monitor can be configured
to restore either the alarm settings from the monitor's configured default Profile, or the most recently
used alarm settings. After any of these situations, you should check that the alarm settings are
appropriate for your patient, and if necessary, select the correct Profile and patient category.
If power is lost for less than one minute, the alarm settings prior to the power loss are restored.
52
4
Patient Alarms and INOPs
4
This chapter lists patient alarms and technical alarms (INOPs) alphabetically, irrespective of their
priority. INOPs start on page 59.
For information on alarms and INOPs from the gas modules refer to your Gas Module Instructions for
Use.
Patient Alarm Messages
The measurement labels and abbreviations for pressure, temperature, SpO2, and anesthetic agent
alarms are explained in the individual chapters.
Some alarms may be shown at the Information Center in shortened form, when transferred through
IntelliVue Instrument Telemetry (USA only). These shortened alarm texts are included in the list and
identified with the note “at Information Center”.
Note that yellow arrhythmia alarms (“short yellow alarms”) may be shown with one or with two stars,
depending on your monitor configuration and the Information Center revision you are using.
Refer to your Gas Module Instructions for Use for patient alarms and INOPs from the gas modules.
Alarm Message
From
Condition
Indication
***APNEA or
***APNEA xxx sec
CO2, Resp,
AGM
Respiration has stopped for longer than numeric flashes, red alarm
the preset apnea time. “xxx” denotes the lamp, alarm tone.
Apnea duration.
***ASYSTOLE
ECG
No QRS detected for a period greater
than the asystole threshold (in the
absence of Vfib or chaotic ECG).
**awRR HIGH
CO2, Resp,
AGM
The airway respiration rate has exceeded numeric flashes and high limit
the high alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
**awRR LOW
CO2, Resp,
AGM
The airway respiration rate has dropped numeric flashes and low limit
below the low alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
**BIS HIGH
BIS
The Bispectral Index value has exceeded numeric flashes and high limit
the high alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
**BIS LOW
BIS
The Bispectral Index value has dropped numeric flashes and low limit
below the low alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
numeric flashes, red alarm
lamp, alarm tone.
53
4 Patient Alarms and INOPs
54
Patient Alarm Messages
Alarm Message
From
Condition
Indication
***BRADY (Pulse)
or
***BRADY xxx<yyy
Press, SpO2
The heart rate from the Pulse signal has numeric flashes and alarm
fallen below the bradycardia limit. xxx limit is highlighted, red alarm
denotes the lowest measured value; yyy lamp, alarm tone.
is the bradycardia limit.
**CCO/CCI HIGH
CCO
Continuous Cardiac Output or CC
Index is above the high alarm limit.
numeric flashes and high alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**CCO/CCI LOW
CCO
Continuous Cardiac Output or CC
Index is below the low alarm limit.
numeric flashes and low alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**CPP HIGH
CPP
The CPP value has exceeded the high
alarm limit.
numeric flashes and high limit
is highlighted, yellow alarm
lamp, alarm tone
**CPP LOW
CPP
The CPP value has fallen below the low numeric flashes and low limit
alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
***DESAT or
***DESAT xxx<yyy
SpO2
The SpO2 value has fallen below the
desaturation alarm limit. xxx denotes
the lowest measured value, and yyy is
the desaturation limit.
numeric flashes, red alarm
lamp, alarm tone.
**et <Agent label> AGM
HIGH
The end tidal agent high alarm limit has numeric flashes and high limit
been exceeded.
is highlighted, yellow alarm
lamp, alarm tone.
**et <Agent label> AGM
LOW
The end tidal agent value has fallen
below the low alarm limit.
numeric flashes and low alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**etCO2 HIGH
CO2, Resp,
AGM
The end tidal CO2 high alarm limit has numeric flashes and high limit
been exceeded.
is highlighted, yellow alarm
lamp, alarm tone.
**etCO2 LOW
CO2, Resp,
AGM
The end tidal CO2 value has fallen
below the low alarm limit.
numeric flashes and low limit
is highlighted, yellow alarm
lamp, alarm tone.
**etO2 HIGH
O2, AGM
The end tidal O2 high alarm limit has
been exceeded.
numeric flashes and high limit
is highlighted, yellow alarm
lamp, alarm tone.
**etO2 LOW
O2, AGM
The end tidal O2 value has fallen below numeric flashes, and low limit
the low alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
*/**/***
EVENT:<GRP>
Event
surveillance
An event has occurred and the event
notification is configured to alarm.
<GRP> is the event group
event group name flashes,
yellow or red alarm lamp and
alarm tone
*/**/*** EVENT
at Information center
Event
surveillance
An event has occurred and the event
notification is configured to alarm.
Check on the monitor for more details
on event group.
(on monitor) event group
name flashes, yellow or red
alarm lamp and alarm tone
***EXTREME BRADY
ECG
The bradycardia limit has been
exceeded.
numeric flashes and alarm
limit is highlighted, red alarm
lamp, alarm tone.
***EXTREME TACHY
ECG
The tachycardia limit has been
exceeded.
numeric flashes and alarm
limit is highlighted, red alarm
lamp, alarm tone.
Patient Alarm Messages
4 Patient Alarms and INOPs
Alarm Message
From
Condition
Indication
**HR HIGH
ECG
The heart rate high alarm limit has been numeric flashes and high limit
exceeded.
is highlighted, yellow alarm
lamp, alarm tone. The sound
switches off after 5 seconds if
Arrhythmia is On.
**HR LOW
ECG
The heart rate has fallen below the low
alarm limit.
**imCO2 HIGH
CO2, Resp,
AGM
The inspired minimum CO2 high alarm numeric flashes and high limit
limit has been exceeded.
is highlighted, yellow alarm
lamp, alarm tone.
numeric flashes and low limit
is highlighted, yellow alarm
lamp, alarm tone. The sound
switches off after 5 seconds if
Arrhythmia is On.
**in <Agent label> AGM
HIGH
The inspired agent high alarm limit has numeric flashes, high limit is
been exceeded.
highlighted, yellow alarm
lamp, alarm tone.
**in <Agent label> AGM
LOW
The inspired agent value has fallen
below the AGT low alarm limit.
numeric flashes, low limit is
highlighted, yellow alarm
lamp, alarm tone.
**inN2O HIGH
N2O, AGM
The inspired N2O high alarm limit has numeric flashes, high limit is
been exceeded.
highlighted, yellow alarm
lamp, alarm tone.
**inO2 HIGH
O2, AGM
The inspired O2 high alarm limit has
been exceeded.
numeric flashes, high limit is
highlighted, yellow alarm
lamp, alarm tone.
**inO2 LOW
O2, AGM
The inspired O2 value has fallen below
the low alarm limit.
numeric flashes, low limit is
highlighted, yellow alarm
lamp, alarm tone.
***inO2 LOW OXYGEN O2, AGM
The inspired O2 value has fallen below
18 vol.%.
numeric flashes, low limit is
highlighted, red alarm lamp,
alarm tone.
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
*/**IRREGULAR HR
ECG/
Arrhythmia
Consistently irregular heart rhythm.
*/**MISSED BEAT
ECG/
Arrhythmia
No beat detected for 1.75*R-R interval, numeric flashes, yellow alarm
or if HR>120bpm no beat detected for lamp, short yellow audible
one second (non-paced patients only). alarm.
*/**MULTIFORM PVCs ECG/
Arrhythmia
Two differently shaped Vs detected,
each occurring at least twice within the
last 300 beats and at least once within
the last 60 beats.
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
**NBP HIGH
NBP
The measured NBP value is above the
high alarm limit.
s, d, or m after the label indicates
whether the systolic, diastolic or mean
pressure has crossed the limit.
numeric flashes and high limit
is highlighted, yellow alarm
lamp, alarm tone.
**NBP LOW
NBP
The measured NBP value is below the
low alarm limit.
s, d, or m after the label indicates
whether the systolic, diastolic or mean
pressure has crossed the limit.
numeric flashes and low limit
is highlighted, yellow alarm
lamp, alarm tone.
55
4 Patient Alarms and INOPs
Alarm Message
Patient Alarm Messages
From
*/**NON-SUSTAIN VT ECG/
Arrhythmia
Condition
A run of Vs having a ventricular HR>V- numeric flashes, yellow alarm
Tach HR limit, but lasting for less than lamp, short yellow audible
the V-Tach Run limit has been detected. alarm.
*/**PACER NOT CAPT ECG/
A missed beat with a pace pulse was
Arrhythmia detected.
(paced
patients only)
56
Indication
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
*/**PACER NT
PACING
ECG/
A missed beat without a pace pulse was numeric flashes, yellow alarm
Arrhythmia detected.
lamp, short yellow audible
(paced
alarm.
patients only)
*/**PAIR PVCs
ECG/
Arrhythmia
A non-ventricular contraction, followed numeric flashes, yellow alarm
by two ventricular contractions,
lamp, short yellow audible
followed by a non-ventricular
alarm.
contraction has been detected.
*/**PAUSE
ECG/
Arrhythmia
No beat detected for a period greater
than the pause threshold.
***<Pressure>
DISCONNECT
PRESS
The pressure is non-pulsatile and the
numeric flashes, red alarm
mean pressure is continuously less than lamp, alarm tone.
10mmHg (1.3kPa). This alarm occurs
only with arterial pressures (P, ABP,
ART, Ao, BAP, FAP, PAP, UAP).
**<Pressure> HIGH
PRESS
The measured pressure value is above
numeric flashes, high limit is
the high alarm limit. s, d, or m after the highlighted, yellow alarm
label indicates whether the systolic,
lamp, alarm tone.
diastolic or mean pressure has crossed
the limit.
**<Pressure> LOW
PRESS
The measured pressure value is below
the low alarm limit. s, d, or m after the
label indicates whether the systolic,
diastolic or mean pressure has crossed
the limit.
numeric flashes and low limit
is highlighted, yellow alarm
lamp, alarm tone.
**PULSE HIGH
PRESS
SpO2
The pulse rate has exceeded the high
alarm limit.
numeric flashes and high limit
is highlighted, yellow alarm
lamp, alarm tone.
**PULSE LOW
PRESS
SpO2
The pulse rate has dropped below the
low alarm limit.
numeric flashes and low limit
is highlighted, yellow alarm
lamp, alarm tone.
*/**PVCs/min HIGH
ECG/
Arrhythmia
More premature ventricular
contractions have been detected in a
minute than the limit.
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
*/**R-ON-T PVCs
ECG/
Arrhythmia
For HR <100, a PVC with R-R interval numeric flashes, yellow alarm
< 1/3 the average interval followed by a lamp, short yellow audible
compensatory pause of 1.25 x average
alarm.
R-R interval or two such Vs without
compensatory pause occurring within 5
minutes of each other. (When HR
>100, 1/3 R-R interval is too short for
detection.).
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
Patient Alarm Messages
4 Patient Alarms and INOPs
Alarm Message
From
Condition
Indication
**RR HIGH
RESP
The respiration rate has exceeded the
high alarm limit.
numeric flashes and high limit
is highlighted, yellow alarm
lamp, alarm tone.
**RR LOW
RESP
The respiration rate has dropped below numeric flashes and low limit
the low alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
*/**RUN PVCs HIGH
ECG/
Arrhythmia
A run of PVCs greater than 2 was
detected.
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
**<SpO2 label>
HIGH
SpO2
The arterial oxygen saturation has
exceeded the high alarm limit.
numeric flashes and high limit
is highlighted, yellow alarm
lamp, alarm tone.
**<SpO2 label> LOW SpO2
The arterial oxygen saturation has fallen numeric flashes and low limit
below the low alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
**ST<n> HIGH
ECG/
Arrhythmia
The ST elevation in lead <n> is higher
than the limit.
numeric flashes and high alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**ST<n> LOW
ECG/
Arrhythmia
The ST depression in lead <n> is lower
than the limit.
numeric flashes and low alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**ST MULTI <n>,<n> ECG/
Arrhythmia
The ST depression or elevation is
numeric flashes, yellow alarm
outside of the limit in two or more leads lamp, alarm tone
<n> and <n>
**ST MULTI
at Information Center
ECG/
Arrhythmia
The ST depression or elevation is
outside of the limit in two or more
leads. Check on the monitor for more
details about which leads are affected.
(on monitor) numeric flashes,
yellow alarm lamp, alarm tone
**SvO2 HIGH
SvO2
The SvO2 value has exceeded the high
limit.
numeric flashes and high alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**SvO2 LOW
SvO2
The SvO2 value has fallen below the low numeric flashes and low alarm
limit.
limit is highlighted, yellow
alarm lamp, alarm tone.
*/**SVT
ECG/
Arrhythmia
A run of supraventricular beats greater
than the SVT run limit has been
detected and the HR has exceeded the
SVT HR limit.
***TACHY (Pulse)
or
***TACHY xxx>yyy
Press, SpO2
The heart rate from the Pulse signal has numeric flashes, alarm limit is
exceeded the tachycardia limit. xxx
highlighted, red alarm lamp,
denotes the highest measured value; yyy alarm tone.
is the tachycardia limit.
**Tblood HIGH
C.O.
The blood temperature value has
exceeded the high alarm limit.
numeric flashes, high alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**Tblood LOW
C.O.
The blood temperature value has fallen
below the low alarm limit.
numeric flashes, low alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**tcpO2 HIGH/
**tcpCO2 HIGH
tcGas
The tcpO2 or tcpCO2 value has
exceeded the high alarm limit.
numeric flashes, high alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
numeric flashes, yellow alarm
lamp, alarm tone.
57
4 Patient Alarms and INOPs
Patient Alarm Messages
Alarm Message
From
Condition
Indication
**tcpO2 LOW/
**tcpCO2 LOW
tcGas
The tcpO2 or tcpCO2 value has fallen
below the low alarm limit.
numeric flashes, low alarm
limit is highlighted, yellow
alarm lamp, alarm tone.
**<Temperature
label> HIGH
TEMP
The temperature has exceeded the high numeric flashes and high limit
alarm limit.
is highlighted, yellow alarm
lamp, alarm tone.
**<Temperature
label> LOW
TEMP
The temperature has fallen below the
low alarm limit.
*/**VENT BIGEMINY
ECG/
Arrhythmia
A dominant rhythm of N, V, N, V (N = numeric flashes, yellow alarm
supraventricular beat, V = ventricular
lamp, short yellow audible
beat) was detected.
alarm.
***VENT FIB/TACH
ECG
A fibrillatory waveform for 4
consecutive seconds was detected.
*/**VENT RHYTHM
ECG/
Arrhythmia
A dominant rhythm of adjacent Vs >
numeric flashes, yellow alarm
vent rhythm limit and ventricular HR < lamp, short yellow audible
VTach HR limit was detected.
alarm.
*/**VENT TRIGEMINY ECG/
Arrhythmia
58
A dominant rhythm of N, N, V, N, N,
V (N = supraventricular beat, V =
ventricular beat) was detected.
numeric flashes and low limit
is highlighted, yellow alarm
lamp, alarm tone.
numeric flashes, red alarm
lamp, alarm tone.
numeric flashes, yellow alarm
lamp, short yellow audible
alarm.
***VTACH
ECG,
Arrhythmia
Ventricular tachycardia has been
numeric flashes, yellow alarm
detected (Consecutive PVCs exceed V- lamp, short yellow audible
Tach Run limit and HR exceeds V-Tach alarm.
HR limit).
**/***VueLink
ALARM
at Information Center
VueLink
A yellow (**) or red (***) patient alarm
is present on the VueLink module.
Check the monitor display for more
detailed alarm information.
(on monitor) yellow or red
alarm lamp, alarm tone
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
The measurement labels and abbreviations for pressure, temperature, SpO2, anesthetic agent, and
VueLink INOP messages are explained in the individual chapters.
INOP Message, Indication
Source
What to do
ABP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
ALL ECG ALARMS OFF
ECG/
All ECG alarms have been switched off, or the HR alarm
Arrhythmia source is not ECG. To resume ECG alarm generation, switch
ECG alarms on or select ECG as the alarms source.
Ao INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
ART INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
AWF CHANGE SCALE
Spirometry
Airway flow signal exceeds range of selected scale. Adjust scale
to display complete wave.
AWP CHANGE SCALE
Spirometry
Airway pressure signal exceeds range of selected scale. Adjust
scale to display complete wave
AWV CHANGE SCALE
Spirometry
Airway volume signal exceeds range of selected scale. Adjust
scale to display complete wave.
Bad Serverlink
Monitor
1) An MMS with an incompatible software revision is
connected to the monitor. This combination does not allow
monitoring, OR
2) You cannot use this combination of monitor, MMS and
cable. Switch off the monitor and contact your service
personnel.
PRESS
See <Pressure label> INOPS (under Pressure).
INOP tone
BAP INOPS
BATTERIES EMPTY or BATT 1/ Batteries
BATT 2 EMPTY
INOP tone, battery LED flashes
During this INOP, alarms cannot be
paused or switched off.
The estimated remaining battery-powered operating time of
the indicated battery or batteries is less than 10 minutes.
Replace the batteries immediately.
If the condition persists and the monitor is not connected to
mains power, this INOP is re-issued two minutes after you
acknowledge it.
BATTERIES INCOMPAT or BATT Batteries
1/BATT 2 INCOMPAT
The indicated battery or batteries cannot be used with this
monitor. Replace with the correct batteries (M4605A).
INOP tone
BATTERIES LOW or BATT 1/
BATT 2 LOW
Batteries
The estimated battery-powered operating time remaining is less
than 20 minutes.
Batteries
The monitor cannot determine the battery status. If this INOP
persists, replace the faulty battery or batteries. If the condition
persists and the monitor is not connected to mains power, this
INOP is re-issued two minutes after you acknowledge it.
INOP tone
BATTERIES MALF or BATT 1/
BATT 2 MALFUNCTION
INOP tone, battery LED flashes
During this INOP, alarms cannot be
paused or switched off unless the
monitor is connected to mains power.
BATT 1/BATT 2 MISSING
INOP tone.
During this INOP, alarms cannot be
paused or switched off.
Place the batteries in a different monitor or in a battery charger.
If the same INOP is shown, contact your service personnel.
Batteries
The monitor requires two batteries but can detect only one
battery. Insert the missing battery immediately.
59
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
BIS CABLE INCOMPAT
INOP tone.
BIS
The semi-reusable sensor cable connected is unknown or not
supported by your software revision. Replace it with a Philipssupported sensor cable.
BIS CABLE USAGE
INOP tone.
BIS
The semi-reusable sensor cable has exceeded the maximum
number of uses. Replace the cable.
BIS DSC DISCONN
BIS
DSC is not properly connected OR either DSC or BIS engine
may be faulty.
Make sure that the DSC is properly connected to the BIS
Engine. If INOP persists, replace DSC with a known good one
of the same type.
If INOP persists replace BIS engine.
Silencing this INOP switches the measurement off.
BIS
DSC is not supported by the BIS engine or new DSC
connected to an old BIS engine. A software upgrade may be
required. Contact your service personnel.
BIS DSC MALFUNC
BIS
Electrocautery used during self-test OR malfunction in the
DSC hardware.
Make sure not to use electrocautery during the self-test
procedure. Disconnect and reconnect the DSC to the BIS
engine. If the INOP persists, replace the DSC or contact your
service personnel.
BIS DSC UPDATE
BIS
DSC update currently being carried out. This INOP will
disappear when the DSC update is finished. Do not disconnect
the DSC during the update. No action is needed.
BIS ELECTR. DISC
INOP tone.
BIS
One or more electrodes are not connected to the semi-reusable
sensor cable. Check all electrode connections.
BIS ENGINE DISC.
BIS
BIS engine not connected OR Module Cable defective.
Make sure that the Module Cable is properly connected. If
INOP persists, replace the Module Cable.
Silencing this INOP switches the measurement off.
BIS
BIS engine software is not supported. A software upgrade may
be required. Contact your service personnel.
MP20/30 - BIS engine not supported.
BIS
Malfunction in the BIS engine hardware. Disconnect and
reconnect the BIS engine. If the INOP persists, replace BIS
engine.
BIS
There is a malfunction in the BIS hardware. Unplug and replug
the BIS module. If the INOP persists, contact your service
personnel.
BIS
Impedance of one or more electrode(s) is above the valid range,
most often caused by bad skin preparation. Check the sensor
montage and press the electrode pads firmly. If this INOP
persists, replace the sensor(s) in question using correct skin
preparation.
If INOP persists, contact your service personnel.
BIS
The Cyclic Impedance check is running. It will stop
automatically if all impedances are within the valid range. If
any electrodes do not pass the impedance test, check the sensor
montage and press the electrode pads firmly.
To manually stop the Cyclic Impedance Check, select
Cyclic Check Off in the Setup BIS menu.
INOP tone
BIS DSC INCOMPT
INOP tone
INOP tone
INOP tone
BIS ENGINE INCOMPT
INOP tone
BIS ENGINE MALFUNC
INOP tone
BIS EQUIP MALF
INOP tone
BIS HIGH IMPEDANCE
INOP tone may sound
BIS IMPEDANCE CHCK
INOP tone may sound
60
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
BIS ISOELECTRC EEG
BIS
No discernible EEG activity is detected for longer than one
minute.
Check the patient. Check that the electrodes are properly
connected.
BIS LEAD OFF
BIS
One or more electrodes have no skin contact and therefore
impedances cannot be measured. Check the sensor montage
and press the electrode pads firmly.
If this INOP persists, replace the sensor(s) in question, using
correct skin preparation.
BIS
Unplug and replug the BIS module or, f or the MP20/MP30,
disconnect and reconnect the BISx from the Interface board. If
the INOP persists, contact your service personnel.
BIS
The sensor is not properly connected to the patient interface
cable (PIC) and/or the PIC is not properly connected to the
DSC or BISx, or the sensor or PIC or DSC or BISx may be
faulty.
Check all the connections.
Disconnect and reconnect the sensor, PIC, DSC, BISx.
If the INOP persists, replace the sensor.
If the INOP persists, replace PIC. If INOP persists, contact
your service personnel.
Silencing this INOP switches the measurement off.
BIS
Unsupported sensor connected or sensor type unknown or not
supported by your software revision. Replace the sensor, using
only Philips supported sensors.
BIS
Malfunction in the sensor hardware, most often caused by
liquids permeating into the connectors OR patient interface
cable (PIC) or DSC or BISx may be faulty.
Replace the sensor. Manually initiate a Cyclic Impedance
Check. Make sure all electrodes pass the test. Make sure that
the both sides of the PIC connector (between PIC and sensor)
are dry. If you are not sure that the connector is dry, replace the
PIC until it has dried. If this INOP persists, contact your
service personnel.
BIS
Excessive sensor usage. Replace sensor.
A Cyclic Impedance Check will start automatically.
BIS
If the signal quality is below 50%, BIS numerics cannot be
reliably derived.
If the signal quality is below 15%, no BIS numerics can be
derived.
This may occur as a result of artifacts such as those generated
from motion or the presence of electrocautery devices. Make
sure the sensor is properly attached to the patient. Manually
initiate a Cyclic Impedance Check. Make sure all electrodes
pass the test. Make sure the patient is completely relaxed (even
small motions of the facial muscles affect the signal quality).
BIS
Plug in the BIS module. Silencing this INOP switches off the
measurement.
BIS
The BISx is not connected to the BIS module or the BIS
interface board. Silencing this INOP switches the measurement
off.
INOP tone may sound
BIS OVERCURRENT
INOP tone
BIS SENSOR DISCONN
INOP tone
BIS SENSOR INCOMPAT
INOP tone
BIS SENSOR MALFUNC
INOP tone
BIS SENSOR USAGE
INOP tone
BIS SQI < 15% (INOP tone)
OR
BIS SQI < 50% (no INOP tone)
BIS UNPLUGGED
INOP tone
BISx DISCONNECTED
INOP tone
61
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
BISx INCOMPATIBLE
BIS
The BISx software is not compatible with the BIS module or
with the MP20/MP30 monitor software. A software upgrade
may be required. Contact your service personnel.
BIS
The BISx is faulty. Disconnect and reconnect it to the module
or BIS interface board. If the INOP persists, replace the BISx.
MP20/MP30 - Malfunction on interface board. If the INOP
persists, contact your service personnel.
INOP tone
BISx MALFUNCTION
INOP tone
62
CANNOT ANALYZE ECG
ECG/
The arrhythmia algorithm cannot reliably analyze the ECG
Arrhythmia data. Check the ECG signal quality of the selected primary and
secondary leads. If necessary, improve lead position or reduce
patient motion.
If you have arrhythmia analysis on, and you are not getting a
reliable HR because the signal is below a minimum amplitude,
unstable, or contains artifact, and you have tried to improve the
system performance by choosing another lead and changing
electrodes, you should consider turning arrhythmia analysis off.
CANNOT ANALYZE ST
ST
The ST algorithm cannot generate a valid ST value. Possible
causes are large variations in the measured ST values for
consecutive beats, or ventricular paced beats. Review the ECG
signal quality and the ST measurement points.
If the patient has a ventricular pacemaker, ST analysis is not
possible.
CCI NO BSA
CCI numeric unavailable
INOP tone
C.O.
CCI cannot be calculated because the patient's body surface
area is unknown. Enter the patient weight and height to
provide the BSA for CCI calculation.
CCO BAD PRESS SIGN
numeric is replaced by -?INOP tone
C.O.
The arterial pressure wave can currently not be used for pulse
contour calculation for CCO or CCI measurement. Possible
causes are air bubbles in the tubing or a physiological
condition, for example severe arrhythmia.
CCO NO <Pressure label>
numeric is replaced by -?INOP tone may sound
C.O.
CCO/CCI cannot be calculated. Make sure that the pressure
chosen in the Setup CCO menu under CCO From
matches the pressure measured with the arterial catheter for
CCO measurement. A VueLink pressure cannot be used. Select
another pressure label, either ABP, Ao, ART, BAP, FAP, or UAP.
CCO NO CALIBRATION
numeric is replaced by -?-
C.O.
The CCO measurement is currently not calibrated.
CCO NO PRESS
at Information Center
C.O.
CCO/CCI cannot be calculated. Make sure that the pressure
chosen in the Setup CCO menu under CCO From
matches the pressure measured with the arterial catheter for
CCO measurement. A VueLink pressure cannot be used. Select
another pressure label, either ABP, Ao, ART, BAP, FAP, or UAP.
CCO NOT SUPPORTED
numeric is replaced by -?INOP tone
C.O.
A catheter for transpulmonary C.O. measurements has been
unplugged and replaced with a Right Heart C.O. catheter, or
the measurement mode has been changed manually. Silencing
this INOP switches the measurement off.
CCO/CCI OVERRANGE
numeric is replaced by -?INOP tone
C.O.
The measured CCO or CCI value is not within the specified
range for CCO/CCI measurement.
CCO <Pressure label>
INVALID
numeric is replaced by -?INOP tone may sound
C.O.
The arterial pressure selected for pulse contour calculation for
CCO is available but currently invalid. Make sure the pressure
transducer is connected and the zero calibration is valid.
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
CCO PRESS INVALID
at Information Center
C.O.
The arterial pressure selected for pulse contour calculation for
CCO is available but currently invalid. Make sure the pressure
transducer is connected and the zero calibration is valid.
CCO PRESS OVERRANG
numeric is replaced by -?INOP tone
C.O.
The mean value of the arterial pressure values used for pulse
contour calculation for CCO is below 0 mmHg or above 300
mmHg.
CCO PULSE OVERRANG
numeric is replaced by -?INOP tone
C.O.
The pulse rate of the pressure used for pulse contour
calculation for CCO is below 30 bpm or above 240 bpm.
CCO/Tbl NO TRANSD
Numeric is replaced by -?INOP tone
C.O.
No transducer attached to the module or catheter
disconnected.
CCO RECALIBRATE
numeric is replaced by -?-
C.O.
The most recent CCO or CCI calibration was made over 8
hours ago. You should recalibrate CCO or CCI with
transpulmonary C.O. measurements at least every 8 hours or
when the hemodynamic condition of the patient has changed.
Charge BATT1/BATT2 now
INOP tone
Batteries
Battery must be charged. Connect the monitor to mains power
or exchange the battery.
CHARGER MALFUNCT
Batteries
There is a problem with the battery charger in the monitor.
Connect the monitor to mains power and contact your service
personnel.
Check Alarm Lamps
INOP tone.
Monitor
Perform a visual check of the alarm lamp to establish whether
there is a problem. Contact your service personnel to check the
internal connections to the alarm lamps.
CHECK BATT TEMP
INOP tone
Battery
The temperature of one or both batteries is too high. Check
that ventilation openings are not blocked and monitor is not
exposed to heat.
Check Flex Texts
INOP tone
Monitor
Check the names of the monitor menus, for example the labels
for screens, profiles, event or trend group names, before you
resume monitoring. If they are unexpected, there may be a
problem with the monitor software. Contact your service
personnel.
CheckInternVoltage
at Information Center
Monitor
Potential problem with alarm lamps, display or interfaces
detected. Contact your service personnel. This INOP will
appear on the monitor as Check Monitor Func.
Check Keyboard
Monitor
Perform a visual and functional check of the keyboard. Contact
your service personnel.
Check Main Board 2
INOP tone.
Monitor
There is a problem with the second main board in the monitor.
Contact your service personnel.
Check MCC
Monitor
The monitor cannot communicate with the D80 Intelligent
Display. Check the MSL coupling cable. The end with the grey
connector must be connected to the Intelligent Display.
Check Monitor Func
INOP tone.
Monitor
Potential problem with alarm lamps, display or interfaces
detected. Contact your service personnel. This INOP may
appear on the Information Center as
CheckInternVoltage.
Check Monitor Temp
INOP tone
Monitor
The temperature inside the monitor is too high. Check that the
monitor ventilation is not obstructed. If the situation
continues, contact your service personnel.
INOP tone, battery LED may flash
INOP tone
63
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
Check Mouse Device
INOP tone.
Monitor
Perform a visual and functional check of the mouse input
device. Contact your service personnel.
Check MSL Voltage
INOP tone
Monitor/
Measuremt
Server
There is a problem with the voltage of the Measurement Server
Link (MSL). Contact your service personnel.
Check Network Conf
Monitor
The monitor is receiving network topology information from
more than one source, e.g.the Database Server and an
Application Server. Contact your service personnel.
Check Nurse Relay
INOP tone
Monitor
There is a problem with the connection to the nurse relay.
Contact your service personnel.
Check Screen Res
INOP tone
Monitor
The Screen you have selected uses a resolution which is not
supported by the display. The monitor will show a generic
Screen instead until you select a different Screen.
INOP tone
Contact your service personnel if you want the Screen deleted
from the Profile(s) to avoid this in future.
Monitor
If this INOP appears, check the monitor and patient settings
before you resume monitoring. If the settings are unexpected,
there may be a problem with the monitor software. Contact
your service personnel.
Check Speedpoint
INOP tone.
Monitor
Perform a visual and functional check of the SpeedPoint input
device. Contact your service personnel.
Check Touch Input
Monitor
Perform a visual and functional check of the touch input
device. Contact your service personnel.
Check Waves
INOP tone
Monitor
The options purchased with this monitor may not support the
number of waves required to show the selected Screen, so some
waves or high resolution trends are missing from the Screen.
Select a different Screen with fewer waves.
Check Settings
INOP tone
Contact your service personnel if you want the Screen deleted
from the Profile(s) to avoid this in future.
64
Chk IndepDsp Cable
Monitor
The monitor cannot communicate with the D80 Intelligent
Display. Check the MSL coupling cable. The end with the grey
connector must be connected to the Intelligent Display.
C LEAD OFF
HR Numeric is replaced by -?- for 10
seconds. INOP tone.
ECG
The C electrode (AAMI: V electrode) has become detached
from the patient or the lead set has been changed. Reattach the
electrode or select New Lead Setup in the Setup ECG
menu to confirm the new lead set.
CO2 AUTO ZERO
Numeric is replaced by a - ? if the Autozero lasts >15 sec, INOP
tone sounds.
CO2
The automatic zero calibration is in progress. This typically
takes 10 seconds. During this time the CO2 values may not be
updated, or they may be replaced by -?-. Wait until the zero
calibration is complete to resume monitoring.
CO2 CAL MODE
CO2 numeric displays current CO2
value for accuracy check
CO2
Currently no calibration is running. Accuracy can be checked
by placing the transducer on the two cells of the calstick and
starting calibration. To start monitoring, leave Cal. Mode.
CO2 CAL RUNNING
Numeric is replaced by a - ? -
CO2
Wait until calibration is finished.
CO2 CHANGE SCALE
CO2
The CO2 wave is clipped. Select a more appropriate wave scale
to display the whole wave.
CO2 CHECK ADAPTER
Numeric is replaced by a - ? INOP tone.
CO2
Check that the sensor is connected to the airway adapter, clean
the airway adapter, if necessary. Perform a zero calibration. If
the INOP persists, contact your service personnel.
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
CO2 CHECK CAL
Numeric is replaced by a - ? INOP tone.
CO2
The CO2 value is outside the measurement range. Perform an
accuracy check for both calstick cells and, if necessary,
recalibrate the transducer.
C.O. EQUIP MALF
Numeric is replaced by a - ? INOP tone.
C.O.
There is a problem with the C.O. hardware. Contact your
service personnel.
CO2 EQUIP MALF
Numeric is replaced by - ? INOP tone.
CO2
The Measurement Server Extension is faulty. Unplug and
replug the Measurement Server with Extension. If you are using
the mainstream method, unplug and replug the transducer or
try another transducer. If the INOP persists, contact your
service personnel.
CO2 FAILED CAL
Numeric is replaced by -?INOP tone.
CO2
Make sure that the Cal cell was changed between CAL1 and
CAL2. Repeat the calibration. If the INOP reappears, try
another transducer. If the INOP persists, contact your service
personnel.
CO2 NO SENSOR
Numeric is replaced by - ? INOP tone.
CO2
There is no CO2 sensor connected. If you silence this INOP
the CO2 measurement will be switched off.
CO2 NO TRANSDUC
Numeric is replaced by - ? INOP tone.
CO2
There is no CO2 transducer connected. If you replace the
transducer, the new transducer must be calibrated. If you
silence this INOP the CO2 measurement will be switched off.
CO2 NO TUBING
Numeric is replaced by - ? INOP tone.
CO2
Either the FilterLine is disconnected, or an incorrect line is
attached. Check the connection. If necessary, connect another
Microstream Filterline (only Microstream accessories can be
used).
If you silence this INOP, the measurement will be switched off.
CO2 OCCLUSION
Numeric is replaced by a - ? INOP tone.
CO2
The FilterLine or exhaust tube is blocked. Check the FilterLine
and exhaust tube, then disconnect and reconnect the
FilterLine. If the INOP persists, connect a new FilterLine.
CO2 OVERRANGE
Numeric is replaced by - ? INOP tone.
CO2
The CO2 value is higher than the measurement range. If you
suspect a false high value, contact your service personnel.
CO2 PUMP OFF
Numeric is replaced by a - ? -.
CO2
The pump has been switched off for fifteen minutes. To switch
it on again, select Pump On in the Setup CO2 menu.
CO2 PURGING
Numeric is replaced by a - ? INOP tone.
CO2
The Filterline is being purged to remove an occlusion in the
line or airway adapter. If the occlusion is removed, the INOP
will disappear. If not, the INOP CO2 OCCLUSION is
displayed.
CO2 SENSOR WARMUP
Numeric is displayed with a - ? Microstream CO2: INOP tone.
Mainstream CO2: no INOP tone
CO2
Wait until the sensor reaches operating temperature and the
INOP disappears.
C.O. UNPLUGGED
numeric is replaced by -?INOP tone.
C.O.
Plug in the C.O. module. Silencing this INOP switches off the
measurement.
CO2 UPDATE FW
Numeric is replaced by a - ? INOP tone.
CO2
The software in the Measurement Server Extension does not
match the software in the MMS. Contact your service
personnel.
CO2 WAIT CAL2
Numeric is replaced by a - ? -
CO2
Calibration on the first calstick cell is complete. Place the
transducer on the other calstick cell and start the CAL2
calibration cycle.
65
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
CO2 ZERO FAILED
Numeric is replaced by a - ? INOP tone.
CO2
An error occurred during the last zero calibration. Check the
airway adapter and clean, if necessary. Perform another zero
calibration. If the INOP persists, contact your service
personnel.
CO2 ZERO REQUIRED
Numeric is replaced by a - ? INOP tone
CO2
Perform zero calibration for the CO2 sensor. If the INOP
persists, contact your service personnel.
CO2 ZERO RUNNING
CO2
Wait until zero calibration is finished.
CPP CHK SOURCES
Numeric is replaced by a - ? -
CPP
Not all measurements or values required to perform the
calculation are available. Check the measurement sources.
CPP CHK UNITS
Numeric is replaced by a - ? -
CPP
The monitor has detected a conflict in the units used for this
calculation. Check the unit settings.
CUFF NOT DEFLATED
NBP
Remove the cuff from the patient. Make sure that the tubing is
not kinked or twisted and that the correct patient category is
selected. Try repeating the measurement.
You can silence the INOP, but the INOP message remains
visible until the next NBP measurement is started or the Stop
All SmartKey is selected.
[Adult or pediatric patients: The NBP cuff pressure has exceeded
15mmHg (2kPa) for more than 3 minutes.
Neonatal patients: The NBP cuff pressure has exceeded 5mmHg
(0.7kPa) for more than 90 seconds.]
CVP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
ECG EQUIP MALF
Numeric is displayed with a - ? INOP tone.
ECG
Contact your service personnel.
The ECG hardware is faulty.
<ECG LEAD> LEAD OFF
Numeric is displayed with a - ? INOP tone.
ECG
Not all the required leads for ECG monitoring are connected.
Check the ECG connections and make sure that the electrode
indicated by <ECG lead> [RA, LA, LL, RL, V or C] electrodes
is attached. In EASI mode, all 5 electrodes must be connected.
ECG EL. NOISY <ECG LEAD>
ECG
The ECG signal from the named ECG electrodes [RA, LA, LL,
RL, V (or C)] is noisy. Check the ECG connections and make
sure that the electrode indicated is attached.
ECG NOISY SIGN.
INOP tone.
ECG
The ECG signal is too noisy. Check that the electrodes are
properly placed and have not dried out. Remove any possible
sources of signal noise (such as power cords) from the area
around the cable and the patient.
The ECG signal may be saturated or overloaded.
EcgOut EQUIP MALF
ECG
Check that the ECG out cable is securely connected. Contact
your service personnel.
EEG
The EEG hardware is faulty. Contact your service personnel.
EEG IMPEDANCE HIGH or
EEG1 and/or EEG2 IMPED.
HIGH
EEG
The signal electrode in one or both channels exceeds the userselected impedance limit, or the impedance of a single electrode
exceeds the limit. Check the impedance. If the impedance is
too high, reconnect the electrodes according to the EEG
monitoring setup guidelines.If the INOP persists, contact your
service personnel.
EEG<X> LEAD OFF <n>
[X = channel, n = electrode]
EEG
Reconnect specified electrode.
Numeric is displayed with a - ? INOP tone.
During this INOP, alarms cannot be
paused or switched off.
INOP tone
EEG EQUIP MALFUNC
INOP tone
66
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
EEG<X> LEAD OFF
[X = channel]
at Information Center
EEG
One or more electrodes are not connected. Check in the EEG
Impedance/Montage window on the monitor which
electrode(s) are affected and reconnect the electrodes.
EEG<X> LEADS OFF
[X = channel]
EEG
Two or more electrodes are not connected. Check in the EEG
Impedance/Montage window which electrodes are
affected and reconnect the electrodes.
EEG LINE NOISE
EEG
Excessive line noise has been detected in either channel EEG1
or EEG2, or in both EEG channels.
Keep all cables together and away from metallic bodies, other
cables & radiated fields.
EEG
Too much power above 30 Hz has been detected in channel
EEG1 or EEG2, or both.
Check the Electrode-to-Skin Impedance and reposition the
electrode away from possible muscle activity, if necessary.
EEG
The trunk cable is disconnected from the EEG plug-in module.
Reconnect the trunk cable.Silencing this INOP switches the
measurement off.
EEG
Plug in module. Silencing this INOP switches off the
measurement.
EEG
Input signal is too high in one or both channels. This is usually
caused by interfering signals such as line noise or electrosurgery.
X denotes the EEG channel.
FAP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
FMS UNPLUGGED
INOP tone.
FMS
Make sure that the Flexible Module Server is connected to the
monitor. All FMS measurements are off while the FMS is
unplugged.
FMS UNSUPPORTED
INOP tone.
FMS
The Flexible Module Server is not supported by your monitor.
Contact your service personnel.
IC1/IC2INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
ICP INOPs
PRESS
See <Pressure label> INOPS (under Pressure).
Indep.Dsp Malfunc.
Display
A problem has occurred with the second main display. Contact
your service personnel.
Indep.Dsp NotSupp.
Display
The monitor does not support a second main display. The
monitor software is incompatible. Contact your service
personnel.
Intell.Dsp Malf.
Display
There is a problem with the Intelligent Display. Check the
MSL coupling cable then contact your service personnel.
Intell.Dsp Missing
Display
The monitor has lost contact with the connected Intelligent
Display. Contact your service personnel.
Intell.Dsp Unsupp.
Display
The monitor does not support the connected Intelligent
Display. The monitor software is incompatible.
Internal.Comm.Malf
Monitor
There is a problem with I2C Bus communication in the
monitor. Contact your service personnel.
LA LEAD OFF
Numeric is replaced by -?- for 10
seconds; INOP tone.
ECG
The LA electrode has become detached from the patient or the
lead set has been changed. Reattach the electrode or select New
Lead Setup in the Setup ECG menu to confirm the
new lead set.
LAP INOPs
PRESS
See <Pressure label> INOPS (under Pressure).
EEG 1 or 2 LINE NOISE
EEG MUSCLE NOISE
EEG 1 or 2 MUSCLE NOISE
EEG NO TRANSDUCER
INOP tone
EEG UNPLUGGED
INOP tone
EEG OVERRANGE, or
EEG<X> OVERRANGE
INOP tone
INOP tone
67
4 Patient Alarms and INOPs
68
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
LEADS OFF
Numeric is replaced by -?- for 10
seconds; INOP tone.
ECG
Check that all of the required ECG leads are attached, and that
none of the electrodes have been displaced.
LL LEAD OFF
Numeric is replaced by -?- for 10
seconds; INOP tone.
ECG
The LL electrode has become detached from the patient or the
lead set has been changed. Reattach the electrode or select New
Lead Setup in the Setup ECG menu to confirm the
new lead set.
MCC Reversed
Monitor
The MSL coupling cable is reversed. Connect the end with the
grey connector to the Intelligent Display.
MCC Unsupported
Monitor
An MSL coupling cable has been connected to a device which
does not support MSL coupling.
Measserv Unsupportd
Monitor
The measurement server is not supported by the monitor.
Contact your service personnel.
MMS UNPLUGGED
INOP tone.
MMS
Make sure that the Multi-Measurement Server is connected to
the monitor. All MMS measurements are off while the MMS is
unplugged.
MMS UNSUPPORTED
INOP tone.
MMS
The Multi-measurement Server is not supported by your
monitor. Contact your service personnel.
MSL Power High
Monitor
The power consumption of the devices connected to the
Measurement Server Link (MSL) cable is too high. If this
situation continues, the MSL will be switched off. Contact
your service personnel.
MSL Power Off
INOP tone.
Monitor
The power consumption of the devices connected to the
Measurement Server Link (MSL) cable was too high for too
long and the MSL has been switched off. Contact your service
personnel.
MSL Power Overload
INOP tone.
Monitor
The power consumption of the devices connected to the
Measurement Server Link (MSL) cable is much too high or
there has been a short circuit. The MSL has been switched off.
Contact your service personnel.
NBP CUFF OVERPRESS
Numeric displayed with -?- ; INOP
tone.
During this INOP, alarms cannot be
paused or switched off.
NBP
The NBP cuff pressure exceeds the overpressure safety limits.
Remove the cuff from the patient. Make sure that the tubing is
not kinked or twisted and that the correct patient category is
selected. Try restarting the measurement.
You can silence this INOP, but the INOP message remains
visible until the next measurement is started or the Stop All
SmartKey is selected.
NBP EQUIP MALF
Numeric is replaced by -?INOP tone.
NBP
Remove the cuff from the patient. The NBP hardware is faulty.
Contact your service personnel.
You can silence this INOP, but the INOP message remains
visible until the next measurement is started or the Stop All
SmartKey is selected.
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
NBP INTERRUPTED
Numeric is replaced by -?INOP tone.
NBP
Check the tubing and cuff for leakages or kinks. Check that
you are using the correct cuff size and placement, and that the
correct patient category is selected. Try restarting the
measurement.
If the INOP occurs repeatedly, contact your service personnel.
You can silence this INOP, but the INOP message remains
visible until the next measurement is started or the Stop All
SmartKey is selected.
This INOP arises when the measurement needed longer than
the maximum time for inflation, deflation or the total
measurement.
NBP MEASURE FAILED
Numeric may be displayed with a -?INOP tone.
NBP
Check that you are using the correct cuff size and placement,
and that the correct patient category is selected. Try restarting
the measurement.
If numerics are displayed, the monitor is able to measure mean
only and the alarm source is set to S, D or S&D.
You can silence this INOP, but the INOP message remains
visible until the next measurement is started or the Stop All
SmartKey is selected.
Check the condition and suitability of the patient for NBP
monitoring. Use another cuff to continue measuring.
No Central Monit.
INOP tone
Monitor
There is a problem with the communication to the network.
Central monitoring is currently not possible (no patient alarms
or information). Check the connection. Contact your service
personnel.
NO PPV FROM MeasSrv
at Information Center
MMS or
FMS
The measurement server does not supply a beat-to-beat arterial
pressure value. Contact your service personnel.
NO PPV FROM <Server>
MMS or
FMS
The measurement server does not supply a beat-to-beat arterial
pressure value. Contact your service personnel.
P/P1/P2/P3/P4 INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
PAP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
PPV BAD <Pressure Label>
SIGNAL
PRESS
The arterial pressure source selected for PPV is not providing a
pulsatile signal.
PPV BAD SIGNAL
at Information Center
PRESS
The arterial pressure source selected for PPV is not providing a
pulsatile signal.
PPV CHK SOURCES
PRESS
The arterial pressure source selected for PPV is unplugged or
switched off. When this INOP has displayed for 1 minute PPV
will be switched off.
<Pressure label> ARTIFACT PRESS
Numeric displayed with -?-
A non-physiological event is detected (for example, a flush or
blood sample). A resulting high limit alarm will be suppressed.
PRESS
A Pressure measurement label in the measurement server or
extension has been deactivated, either by connecting a Temp
transducer in the shared Press/Temp socket, or by deactivating
the label in the Measurement Selection window.
<Pressure label>
DEACTIVATED
INOP tone
The measurement automatically disappears from the display.
To switch the measurement on again, either reconnect a
Pressure transducer or reactivate the measurement label in the
Measurement Selection window.
69
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
<Pressure label> EQUIP
MALF
Numeric displayed with -?INOP tone.
PRESS
Contact your service personnel.
The pressure hardware is faulty.
<Pressure label> NO
TRANSDUCER
Numeric is replaced by -?INOP tone.
PRESS
Make sure that the pressure transducer is connected to the
measurement server or module server.
If you silence this INOP, the measurement will be switched off.
<Pressure label> NOISY
SIGNAL
Pulse numeric is replaced by -?INOP tone.
PRESS
This INOP can only arise when a pressure is selected as the
pulse source. It occurs when the pulse detector finds a pulse
rate above 350bpm. This is usually caused by movement
artifact or electrical interference.
<Pressure label> NONPULSATILE
Pulse numeric is replaced by -?INOP tone.
PRESS
This INOP can only arise when a pressure is selected as the
pulse source. It occurs when the pulse rate being measured is
less than 25 beats per minute or the amplitude is less than three
mmHg.
Check the catheter and connections to the patient.
<Pressure label>
OVERRANGE
Numeric is replaced by -?INOP tone.
PRESS
Make sure that the measurement has been properly prepared
and zeroed, and that the transducer is level with the heart. If
this INOP persists, try another transducer.
Possible causes are a measured pressure outside the allowed
pressure range, or a broken wire to the transducer.
<Pressure label> REDUCE
SIZE
PRESS
Increase the scale for the pressure wave.
<Pressure label> TRANSDUC PRESS
MALF
Numeric is replaced by -?INOP tone.
<Pressure label>
UNPLUGGED
PRESS
Contact your service personnel.
The transducer is faulty.
A Pressure measurement label has been deactivated, either by
unplugging a module, or by deactivating the label in the
Measurement Selection window.
The measurement automatically disappears from the display.
To switch the measurement on again, either replug the module
or reactivate the measurement label in the Measurement
Selection window.
<Pressure label>
ZERO+CHECK CAL
Numeric is replaced by -?-
PRESS
Perform a zero and check the calibration of the transducer.
RA LEAD OFF
Numeric is replaced by -?INOP tone.
ECG
The RA electrode has become detached from the patient or the
lead set has been changed. Reattach the electrode or select New
Lead Setup in the Setup ECG menu to confirm the
new lead set.
RAP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
Rem.Alarmdev.Malf
Monitor
There is a problem with the connection to the remote alert
device. Contact your service personnel to check the remote
alert device and its connections.
RESP
Contact your service personnel. The RESP hardware is faulty.
INOP tone
RESP EQUIP MALF
Numeric is replaced by -?INOP tone.
70
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
RESP ERRATIC
Numeric is replaced by -?-
RESP
The monitor has detected too many artifacts in the measured
Resp signal. Check that the RA and LL electrodes are correctly
attached and have not dried out.
RESP LEADS OFF
Numeric is replaced by -?INOP tone.
RESP
Not all the required leads for Resp monitoring are attached.
Make sure that the RA and LL leads are attached.
RL LEAD OFF
Numeric is replaced by -?- for 10
seconds; INOP tone.
ECG
The RL electrode has become detached from the patient or the
lead set has been changed. Reattach the electrode or select New
Lead Setup in the Setup ECG menu to confirm the
new lead set.
Settings Malfunc.
INOP tone.
Monitor
The monitor cannot use the predefined settings for
monitoring. Contact your service personnel.
SOME ECG ALARMS OFF
Arrhythmia This message appears (if configured to do so) when the on/off
settings of the yellow arrhythmia alarms differ from the current
Profile.
Speaker Malfunct.
Monitor
INOP tone
Contact your service personnel to check the speaker and the
connection to the speaker.
SPIRO MALFUNCTION
Spirometry
Module failure detected. Contact your service personnel.
SPIRO INCOMPATIBLE
Spirometry
Module revision not compatible with the host monitor
software revision. Contact your service personnel.
SPIRO UPGRADE
Spirometry
The module is running a firmware upgrade. Wait until upgrade
is completed before resuming monitoring.
SPIRO CANNOT MEAS
Spirometry
Measurement is at its limit, e.g. ambient pressure out of range.
SPIRO PURGE FAILED
Spirometry
The purge operation could not be completed successfully.
Check for kinked sensor tubings, hard occlusions and make
sure that the pump is running and all valves are switching.
SPIRO UNKN. SENSOR
Spirometry
An unknown sensor ID code was detected. Use only the sensors
listed in the Accessories chapter.
SPIRO ALARMS SUPPR
Spirometry
Alarming is suppressed for the spirometry module.
SPIRO PURGING
Spirometry
A purge operation is in progress - no data update on the screen.
Wait until purge is complete.
SPIRO NO SENSOR
Spirometry
No sensor detected. Make sure the correct sensor is attached to
the breathing circuit.
SPIRO NO BREATH
Spirometry
No breath was detected for more than 25 seconds. Breath
derived numerics are not available.
SPIRO GAS COMPENS?
Spirometry
Gas compensation is set to “gas analyzer” but not all gases
necessary for compensation are measured by a gas monitor.
Some of the fall-back values provided by the user are used.
Measurement accuracy might be reduced.
SPIRO PATIENT CAT.
Spirometry
Mismatch of patient size configured in the host monitor and
sensor type plugged into the module. Check the instructions
on selecting the correct sensor in the Spirometry chapter.
SpO2
Difference
Not all measurements or values required to perform the
calculation are available. Check measurement sources.
SpO2
Difference
The monitor has detected a conflict in the units used for this
calculation. Check the unit settings.
∆SpO2
CHK SOURCES
Numeric is replaced by -?-
∆SpO2
CHK UNITS
Numeric is replaced by -?-
71
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
<SpO2 label> DEACTIVATED
INOP tone
SpO2
You have connected a measurement server that uses a label the
monitor has already assigned to a different source. To activate
the new source, choose a new label in the Measurement
Selection window.
<SpO2 label> EQUIP MALF
Numeric is replaced by -?INOP tone.
SpO2
The MMS is faulty. Unplug and replug the MMS. If the INOP
persists, contact your service personnel.
<SpO2 label> ERRATIC
Numeric is replaced by -?INOP tone.
SpO2
Check the sensor placement. Try another adapter cable and
sensor. If the INOP persists, contact your service personnel.
<SpO2 label> EXTD. UPDATE SpO2
Label is displayed with a -?(questionable numeric)
The update period of displayed values is extended due to an
NBP measurement on the same limb or an excessively noisy
signal.
<SpO2 label> INTERFERNCE
Numeric is replaced by -?INOP tone.
SpO2
There is too much interference, caused by a high level of
ambient light and/or electrical interference. Cover the sensor to
minimize ambient light. If the INOP persists, make sure that
the sensor cable is not damaged or positioned too close to
power cables.
<SpO2 label> LOW PERF
Label is displayed with a -?(questionable numeric)
SpO2
Accuracy may be compromised due to very low perfusion.
Stimulate circulation at sensor site. If INOP persists, change
the measurement site.
<SpO2 label> NOISY SIGN.
Numeric is replaced by -?INOP tone.
SpO2
Excessive patient movement or electrical interference is causing
irregular pulse patterns. Try to reduce patient movement or to
relieve the cable strain on the sensor.
<SpO2 label> NON-PULSAT.
Numeric is replaced by -?INOP tone.
SpO2
Check the perfusion at measurement site. If necessary,
stimulate circulation or change measurement site. If the INOP
is due to NBP measurement on the same limb, wait until the
NBP measurement is finished.
<SpO2 label> NO SENSOR
Numeric is replaced by -?INOP tone.
SpO2
Make sure the SpO2 sensor is connected. If the INOP persists,
try another adapter cable and sensor. If you silence this INOP,
the measurement will be switched off.
<SpO2 LABEL> POOR SIGNAL
SpO2
The signal condition of the SpO2 measurement is poor and
measurement accuracy may be compromised.
SpO2
The detectable pulsations of the SpO2 signal are outside the
specified pulse rate range.
SpO2
SpO2 is analyzing the patient signal to derive Pulse, SpO2 and
Perf values. Please wait until the search analysis is complete.
<SpO2 label> SENSOR MALF
Numeric is replaced by -?INOP tone.
SpO2
The SpO2 sensor or adapter cable is faulty. Try another adapter
cable and sensor. If the INOP persists, contact your service
personnel.
<SpO2 LABEL> SENSOR OFF
SpO2
The SpO2 sensor is not properly applied to the patient. Apply
the sensor following the instructions supplied by the
manufacturer.
SpO2
The connected sensor or adapter cable is not supported by the
SpO2 measurement. Use only specified sensors and cables.
Label is displayed with a - ? (questionable numeric)
<SpO2 LABEL> PULSE?
Numeric is replaced by -?INOP tone
<SpO2 LABEL> SEARCHING
Numeric unavailable
Numeric is replaced by -?INOP tone
<SpO2 LABEL> UNKN.SENSOR
Numeric is replaced by a - ? -
72
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
<SpO2 LABEL> UPGRADE
SpO2
The SpO2 measurement is currently in UPGRADE mode.
Monitoring is not possible in this mode.
Sp - vO2 CHK SOURCES
Numeric is replaced by -?-
Sp - vO2
Not all measurements or values required to perform the
calculation are available. Check measurement sources.
Sp - vO2 CHK UNITS
Numeric is replaced by -?-
Sp - vO2
The monitor has detected a conflict in the units used for this
calculation. Check the unit settings.
SvO2 CAL FAILED
SvO2 numeric is displayed with ?
SvO2
The calibration failed. Check the catheter-to-Optical-Module
connection. Manually restart the calibration. Try another
catheter and Optical Module. If the catheter is already inserted,
perform an in-vivo calibration.
SvO2 CAL MODE
SvO2 numeric is replaced by -?-
SvO2
Pre-insertion calibration is complete, but the catheter tip is still
inside the optical reference. The catheter is now ready for
insertion.
SvO2 CAL REQUIRED
SvO2 numeric is replaced by -?-.
INOP tone may sound
SvO2
There is no valid calibration data in the Optical Module.
Perform either a pre-insertion or an in-vivo calibration.
SvO2 CONFIGURATION
SvO2 numeric is replaced by -?-.
INOP tone
SvO2
The Optical Module has been configured to SaO2 Mode. Use
Change to SvO2 in the Setup SvO2 menu to
reconfigure to SvO2 Mode.
SvO2 CONNCT OPTMOD
SvO2 numeric is replaced by -?-.
INOP tone
SvO2
The Optical Module was disconnected during data storage.
Reconnect the Optical Module for at least 20 seconds.
SvO2 EQUIP MALF
SvO2 numeric is replaced by -?-.
INOP tone
SvO2
The SvO2 Module or Optical Module is faulty. Unplug and
replug the Optical Module and SvO2 module. Exchange the
modules. If the INOP persists, contact your service personnel.
SvO2 IN-VIVO CALIB
SvO2 numeric is replaced by -?-.
SvO2
The in-vivo calibration is not yet complete. Lab values must be
stored to the Optical Module to complete the calibration.
Either continue with the next steps of the current calibration or
recall the previous calibration.
SvO2 LIGHT INTENS
SvO2 numeric is replaced by -?- or
numeric is displayed with ?
INOP tone with -?- display
SvO2
The intensity changed considerably since the last light intensity
calibration. This may indicate that the catheter tip is positioned
against a blood vessel wall or that there is low blood flow.
Reposition the catheter and perform a light intensity
calibration.
SvO2 LOW LIGHT
SvO2 numeric is replaced by -?- or
numeric is displayed with ?
INOP tone may sound
SvO2
The optical signal levels are too low. Check that the catheter is
either in the optical reference or inserted into the patient.
Check the catheter-to-Optical Module connection. If INOP
persists, try another catheter and Optical Module.
SvO2 NO OPTMOD
SvO2 numeric is replaced by -?-.
INOP tone
SvO2
Connect the Optical Module. If the INOP persists, try another
Optical Module. Silencing this INOP switches the
measurement off.
SvO2 OPTMOD DEFECT
SvO2
The Optical Module memory is faulty, and calibration data
cannot be stored for transport or during power failure. If this
feature is needed, use another Optical Module.
SvO2 OPTMOD WARMUP
SvO2 numeric is displayed with ?
SvO2
The Optical Module has not yet reached the operating
temperature. Wait a few minutes until warm-up is finished.
SvO2 PRE-INS CALIB
SvO2 numeric is replaced by -?INOP tone
SvO2
The pre-insertion calibration is running. This typically takes
one minute. During this time SvO2 alarms are switched off.
Wait until the calibration is complete.
Label is displayed with a -?-, numeric is
unavailable
73
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
SvO2 UNABL TO MEAS
SvO2 numeric is replaced by -?-.
INOP tone
SvO2
The signal is out of the normal range, and no SvO2 value can
be derived. Perform an in-vivo calibration. If the INOP
persists, try another Optical Module and catheter.
SvO2 UNPLUGGED
SvO2 numeric is replaced by -?-.
INOP tone
SvO2
Measurement switched on and SvO2 module unplugged from
the rack.
SVR/SVRI CHK SOURCES
Numeric is replaced by -?-
SVR/SVRI
Not all measurements or values required to perform the
calculation are available. Check measurement sources.
SVR/SVRI CHK UNITS
Numeric is replaced by -?-
SVR/SVRI
The monitor has detected a conflict in the units used for this
calculation. Check the unit settings.
SVR/SVRI SET CVP USED
Numeric is replaced by -?-
SVR/SVRI
A CVP value is required for this calculation, but is not
currently being measured. The monitor is using the CVP value
preset in the Setup SVR menu.
T/T1/T2/T3/T4 INOPs
TEMP
See <Temp label> INOPs (under Temp)
Tamb INOPs
TEMP
See <Temp label> INOPs (under Temp)
Tart INOPs
TEMP
See <Temp label> INOPs (under Temp)
Tblood NO TRANSDUC
Numeric is replaced by -?INOP tone
C.O.
No transducer attached to the module or catheter
disconnected.
Tblood OVERRANGE
Numeric is replaced by -?-
C.O.
Tblood out of range 17°C - 43°C.
Tcereb INOPS
TEMP
See <Temp label> INOPs (under Temp)
Tcore INOPs
TEMP
See <Temp label> INOPs (under Temp).
tcpO2 (or tcpCO2 or tcGas)
CAL FAILED
Numeric is replaced by -?INOP tone.
tcGas
A calibration failed. Check the cal. unit, gas pressure, and
tubing connections, then restart the cal. If the cal. has failed
more than once, remembrane the transducer and restart the
calibration. If this INOP persists, contact your service
personnel.
tcpO2 (or tcpCO2 or tcGas)
CAL REQUIRD
Numeric is replaced by -?INOP tone.
tcGas
Calibration is required before applying the transducer to the
patient.
Insert a membraned transducer into the cal. chamber on the
module, connect the cal. unit to the cal. chamber, open the gas
valve and start the calibration. If this INOP occurs during a
calibration, there may be a module or transducer malfunction:
contact your service personnel.
tcpO2 (or tcpCO2 or tcGas)
CAL RUNNING
Numeric displays first -?- , then
numeric is displayed with a ?
tcGas
Wait until the tcpO2/tcpCO2 calibration is finished.
tcpO2 (or tcpCO2 or tcGas)
CHECK TIME
tcGas
Site Timer due to time out in 15 minutes or less.
The measurement automatically disappears from the display.
Silencing this INOP switches off the measurement.
tcpO2 (or tcpCO2 or tcGas) tcGas
CHANGE SITE
If Heat Switch Off is configured to Yes,
numeric is replaced by -?INOP tone.
74
Site Timer has timed out. Change the application site to avoid
skin burns. To reset the Site Timer, either calibrate and change
the measurement site, or change the measurement site and reset
the Site Timer manually by selecting the appropriate site time
from the Setup TCGas menu.
Technical Alarm Messages (INOPs)
4 Patient Alarms and INOPs
INOP Message, Indication
Source
What to do
tcpO2 (or tcpCO2 or tcGas)
EQUIP MALF
Numeric is replaced by -?INOP tone.
tcGas
There is a malfunction in the transducer or module. Connect
another transducer. If this INOP persists, contact your service
personnel.
tcpO2 (or tcpCO2 or tcGas)
NO TRANSDUC
Numeric is replaced by -?INOP tone.
tcGas
No transducer is connected to the tcpO2/tcpCO2 module.
Silencing the alarm switches off the measurement.
tcpO2 (or tcpCO2 or tcGas)
STABILIZING
Numeric is displayed with a ?
tcGas
The transducer has not yet reached the selected temperature
and/or skin hyperemization is not yet finished. This INOP will
disappear within three minutes.
tcpO2 (or tcpCO2 or tcGas)
UNPLUGGED
Numeric is replaced by -?INOP tone.
tcGas
The measurement is switched on but the module is unplugged.
The measurement automatically disappears from the display.
Silencing this INOP switches off the measurement.
<∆Temp> CHK SOURCES
Numeric is replaced by -?-
TEMP
Difference
Not all measurements or values required to perform the
calculation are available. Check measurement sources.
<∆Temp> CHK UNITS
Numeric is replaced by -?-
TEMP
Difference
The monitor has detected a conflict in the units used for this
calculation. Check the unit settings.
TEMP
A Temp measurement label in the measurement server or
extension has been deactivated, either by connecting a Pressure
transducer in the shared Press/Temp socket, or by deactivating
the label in the Measurement Selection window.
<Temp label> DEACTIVATED
INOP tone
The measurement automatically disappears from the display.
To switch the measurement on again, either reconnect a Temp
transducer or reactivate the measurement label in the
Measurement Selection window.
<Temp label> EQUIP MALF
Numeric is replaced by -?INOP tone.
TEMP
Contact your service personnel.
The temperature hardware is faulty.
<Temp label> NO
TRANSDUCER
Numeric is replaced by -?INOP tone.
TEMP
Make sure the TEMP probe is connected to the MMS or
module.
If you silence this INOP, the measurement will be switched off.
<Temp label> UNPLUGGED
TEMP
A Temp measurement label has been deactivated, either by
unplugging a module, or by deactivating the label in the
Measurement Selection window.
INOP tone
The measurement automatically disappears from the display.
To switch the measurement on again, either replug the module
or reactivate the measurement label in the Measurement
Selection window.
<Temp label> OVERRANGE
Numeric is replaced by -?INOP tone.
TEMP
Try changing the application site of the transducer.
Tesoph INOPS
TEMP
See <Temp label> INOPs (under Temp).
TimeExpired:<timer label>
INOP tone
Monitor
The time has expired for the timer indicated in the INOP text.
Clearing the timer clears the INOP.
Tnaso INOPS
TEMP
See <Temp label> INOPs (under Temp).
Trect INOPS
TEMP
See <Temp label> INOPs (under Temp).
Tskin INOPS
TEMP
See <Temp label> INOPs (under Temp).
[The temperature is less than -1°C, or greater than 45°C.]
75
4 Patient Alarms and INOPs
Technical Alarm Messages (INOPs)
INOP Message, Indication
Source
What to do
Ttymp INOPS
TEMP
See <Temp label> INOPs (under Temp)
Tven INOPS
TEMP
See <Temp label> INOPs (under Temp).
Tvesic INOPS
TEMP
See <Temp label> INOPs (under Temp)
UAP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
Unsupported LAN
Monitor
There is a problem with the communication to the network
and central monitoring is currently not possible. Check the
connection.If the INOP persists, switch off the monitor and
contact your service personnel.
User I/F Malfunct.
INOP tone.
Monitor
Perform a visual and functional check of all the monitor input
devices. Contact your service personnel.
UVP INOPS
PRESS
See <Pressure label> INOPS (under Pressure).
V LEAD OFF
Numeric is replaced by -?- for 10
seconds; INOP tone.
ECG
The V electrode (IEC: C electrode) has become detached from
the patient or the lead set has been changed. Reattach the
electrode or select New Lead Setup in the Setup ECG
menu to confirm the new lead set.
<VueLink option> CHK
CABLE
INOP tone.
VueLink
No cable or the wrong cable connected to the VueLink module,
or incorrect device selected. Silencing this INOP switches the
measurement off.
VueLink INOP abbreviations may differ slightly depending on
the device category.
<VueLink option> CHK
CONF.
INOP tone.
VueLink
The wrong external device has been selected on the VueLink
module, or the external device has not been correctly setup, or
the wrong cable has been used to connect the device to the
VueLink module.
VueLink INOP abbreviations may differ slightly depending on
the device category.
<VueLink option> CHECK
SETUP
INOP tone.
VueLink
No information was received from the external device. The
device may be switched off or disconnected.
VueLink INOP abbreviations may differ slightly depending on
the device category.
VueLnk EQUIP MALF
INOP tone.
VueLink
Malfunction in the VueLink module. If this message appears
repeatedly, the module must be replaced. Contact your service
personnel.
VueLink INOP abbreviations may differ slightly depending on
the device category.
VueLnk NO CONFIG
INOP tone.
VueLink
The VueLink module has not been configured during
installation. The installation process should be completed by
either your biomedical engineering department or the Philips
service engineer.
VueLink INOP abbreviations may differ slightly depending on
the device category.
VueLnk UNPLUGGED
INOP tone.
VueLink
The VueLink module has been unplugged from the rack, or the
whole rack has been disconnected. The measurement
automatically disappears from the display. Silencing this INOP
switches off the measurement.
VueLink INOP abbreviations may differ slightly depending on
the device category.
INOP tone
76
5
Managing Patients
5
Use the Patient Demographics window and its associated pop-up keys to admit, discharge, and transfer
(ADT) patients.
All patient demographic and ADT information is shared between the patient monitor and the
Information Center, for example, patients admitted to the monitor are automatically admitted to a
connected Information Center.
Admitting a Patient
The monitor displays physiological data and stores it in the trends as soon as a patient is connected.
This lets you monitor a patient who is not yet admitted. It is however important to admit patients
properly so that you can identify your patient on recordings, reports, and networked devices.
During admission you enter data that the monitor needs for safe and accurate operation. For example,
the patient category setting determines the algorithm the monitor uses to process and calculate some
measurements, the safety limits that apply for some measurements, and the alarm limit ranges.
To admit a patient,
1
Select the patient name field or select the
Admit/Dischrge SmartKey to open the
Patient Demographics window.
2
Clear any previous patient data by selecting
the Dischrge Patient or End Case
pop-up key and then Confirm.
If you do not discharge the previous patient,
you will not be able to distinguish data from
the previous and current patients, for
example, in the trend database.
3
Select Admit Patient.
4
Patient Demographics
Last Name
First Name
MRN
Patient Cat.
Paced
Height
Weight
BSA (D)
Date of Birth
Age
Gender
Notes (1):
Notes (2):
Adult
No
Enter the patient information: select each
field and use the on-screen keyboard or
choose from the pop-up list of alternatives to
input information. If a conventional
keyboard or a barcode scanner is connected to the monitor you can use this to enter patient
information.
– Last name: Enter the patient’s last name (family name), for example Smith.
77
5 Managing Patients
–
–
–
–
–
–
–
–
–
–
–
5
Quick Admitting a Patient
First name: Enter the patient’s first name, for example Joseph.
MRN: Enter the patient’s medical record number (MRN), for example 12345678.
Patient Cat: Choose the patient category, either Adult, Pediatric, or Neonatal.
Paced: Choose Yes or No (You must use “Yes” if your patient has a pacemaker).
Height: Enter the patient’s height.
Weight: Enter the patient’s weight.
BSA: The monitor calculates the body surface area automatically.
Date Of Birth: Enter the patient’s date of birth. Enter this in the form dd/mm/yyyy.
Age: The monitor calculates the patient age automatically.
Gender: Choose Male or Female.
Notes: Enter any extra information about the patient or treatment.
Select Confirm. The patient status changes to admitted.
Patient Category and Paced Status
The patient category setting determines the algorithm the monitor uses to process and calculate some
measurements, the safety limits that apply for some measurements, and the alarm limit ranges.
The paced setting determines whether the monitor shows pacemaker pulses or not. When Paced is
set to No, pace pulses are filtered and therefore do not show in the ECG wave.
WARNING
Patient Category and Paced status will always contain a value, regardless of whether the
patient is fully admitted or not. If you do not specify settings for these fields, the monitor uses the
default settings from the current profile, which might not be correct for your patient.
Patient category Changing the patient category may change the arrhythmia and NBP alarm limits.
Always check alarm limits to make sure that they are appropriate for your patient.
Paced status For paced patients, you must set Paced to Yes. If it is incorrectly set to No, the monitor
could mistake a pace pulse for a QRS and fail to alarm during asystole.
Admitting a Centrally-Monitored Patient
You can admit a patient at either the bedside or the Information Center. When you admit a patient,
the patient’s name appears on the bedside monitor and the Information Center.
If you do not fill in all patient information required by the Information Center, the Information
Center may reject the admission. Complete all the required fields and try again to admit the patient.
Quick Admitting a Patient
Use Quick Admit only if you do not have the time or information to fully admit a patient. Complete
the rest of the patient demographic details later. If you do not, the patient name will not be written on
reports and on information stored in the database or sent to an Information Center.
78
1
Select the Quick Admit SmartKey.
2
Enter the required data (MRN or Last Name depending on configuration) with the keyboard or a
barcode scanner.
Editing Patient Information
5 Managing Patients
3
Select Enter.
4
In the confirmation window, select Confirm to discharge the previous patient (if confirmation is
configured).
5
Check that patient category and paced status are correct for the new patient.
If the monitor is connected to an Information Center and only the MRN is entered, the patient name
is set to - - - . The patient name field on the monitor shows Not Admitted and the patient name
space on printed reports is blank. To fully admit this patient, select Admit Patient again and
complete all required fields.
Editing Patient Information
To edit the patient information after a patient has been admitted, select the patient name field on the
Main Screen to open the Patient Demographics window, and make the required changes.
Discharging a Patient
You should always perform a discharge even if your previous patient was not admitted. A discharge:
– clears the information in the Patient Demographics window
– erases all patient data (such as trend, event, and calculation data) from the monitor, measurement
servers and Information Center. This ensures that data from a previous patient are not mixed
with data from the new patient.
– resets patient category and paced settings to the settings defined in the default Profile
– resets all monitor and measurement settings as well as the active Screen to the settings defined in
the default Profile
– discharges the patient from the Information Center.
When a patient is discharged from the monitor or from an Information Center, all patient data is
deleted. Make sure that you have printed out any required reports before discharging. Check that a
functioning local or central printer is available before you use End Case.
To discharge a patient,
1
Select the patient name field to display the Patient Demographics window and associated
pop-up keys.
2
Select the pop-up key for either:
– End Case - to print any configured end case reports or vital signs recording, discharge the
patient and clear the patient database, then enter standby mode. If an End Case SmartKey is
configured for your monitor, you can also select this instead and then confirm.
To see which end case reports are set up for your monitor, select Main Setup -> Reports ->
Auto Reports. For each auto report, if End Case Report is set to On, this report will
be printed when you select End Case. See the section on AutoReports for information on
setting up end case reports.
– Dischrge Patient - to discharge the patient without printing any reports.
79
5 Managing Patients
Transferring Patients
Transferring Patients
To save you from having to enter the same patient data multiple times and enable patient transfer
without loss of data, information can be shared between measurement servers, patient monitors, and
Information Centers.
– patient demographic information is shared between connected measurement servers, patient
monitors, and Information Centers
– measurement settings and calibration data can be uploaded from an MMS to a patient monitor, if
configured
– trend information can be uploaded from an MMS to a patient monitor, if configured.
Different sets of patient- and measurement-related data are stored in the monitor and the MultiMeasurement Server. Understanding this will help you to understand what happens to patient data
when you transfer patients.
WARNING
Patient Information
Stored in Monitor
Stored in MMS and extensions
Patient demographics (name,
DOB, MRN)
yes
yes
Monitor settings (alarm pause yes
time, alarm volume)
no
Measurement settings for all
measurements (alarm limits,
measurement on/off, etc.)
yes
yes, for all MMS and extensions
measurements
Trend data
yes, for all MMS and extensions
measurements (up to a maximum
of 16 or 32, depending on your
database configuration)
most recent 8 hours of
information, for all MMS and
extensions measurements
Calculation data (HemoCalc
data)
yes
no
Events data
yes
no
If the monitor is not battery-powered, you cannot monitor during transport.
Transferring a Centrally-Monitored Patient
Scenario: A centrally-monitored patient is moved to another monitoring location on the same
Information Center database server without interrupting the collection of patient trend information.
80
1
Before you disconnect the MMS from the monitor, select the patient name in the monitor info line
to enter the Patient Demographics window, then select the Transfer pop-up key. If
the patient is not admitted or not monitored by an Information Center, the Transfer key is
inactive (“grayed-out”).
This step preserves the patient’s demographic data during the transfer.
2
Remove the MMS and any connected extensions from the monitor.
3
Connect the MMS to the transfer monitor and monitor your patient during the move.
Data Upload from an MMS
5 Managing Patients
4
At the new location, connect the MMS to the monitor. If the monitor detects a patient conflict,
the patient selection window will be displayed.
5
Select Continue MMS and Confirm your selection. This re-admits the patient from the
transfer list to the new monitor, completing the transfer. This will upload the patient
demographics, and, if configured, the measurement settings and trend data stored in the MMS to
the receiving monitor.
6
Verify that the settings for patient category and paced mode are correct.
If you accidentally transfer a patient, use Re-admit to restore this patient’s data to the Information
Center. If you are not connected to the network, select Clear Transfer to leave transfer mode.The
patient data remains in the monitor.
Transferring a Patient with an MMS (no Central Station)
Scenario: A patient is moved to another monitoring location using a transport monitor and readmitted at the new monitor.
1
Disconnect the MMS from the original monitor and silence the resulting MMS UNPLUGGED
INOP.
If you are sure that the patient will not be returning to this monitor, you should perform a
discharge or end-case. This prevents data from the next patient accidentally being mixed up with
your current patient’s data.
2
Connect the MMS to the transport monitor and move the patient.
3
At the new monitoring location, remove the MMS from the transport monitor and connect it to
the new monitor.
4
If prompted, re-admit the patient to the new monitor: in the Patient Selection window,
select Continue MMS to retain the data in the MMS. This will upload the patient
demographics, and, if configured, the measurement settings and trend data stored in the MMS to
the monitor. Verify that the settings for patient category and paced mode are correct.
Data Upload from an MMS
The Multi-Measurement Server stores eight hours of patient trend data at one-minute resolution. It
also stores patient demographic information and the measurement settings and calibration data for the
measurements carried out by the MMS and any connected extensions. This data can be uploaded to an
IntelliVue patient monitor, if your monitor is configured to do so and if at least five minutes of trend
information is stored in the MMS.
Your monitor’s data upload settings are defined in Configuration Mode to suit your patient transfer
use model.
How data is uploaded to the host monitor depends on the configuration mode settings
MMS Trend Upload and MMS Settings Upload.
If there is a patient conflict and you select Continue Monitor, no data will be uploaded from the
MMS.
81
5 Managing Patients
Data Exchange Between Information Centers
Data Exchange Between Information Centers
You can transfer demographic data and trend data from one IIC to another by selecting Transfer
on the patient monitor. Trend data is not shared between Information Centers and monitors.
Resolving Patient Information Mismatch
When you connect an MMS to a monitor, or a monitor to the network, the monitor compares patient
category, paced status, and a unique patient identification number that is internally stored in both the
MMS and the monitor. The monitor indicates a mismatch if the information is not identical.
Depending on your monitor’s configuration, this mismatch may be automatically resolved or you may
have to resolve it manually. If your monitor is configured to resolve mismatches automatically,
depending on the configuration, either the monitor or the Multi-Measurement Server data is
automatically retained.
WARNING
USA only When a monitor is connected to an Information Center by the wireless IntelliVue
Instrument Telemetry interface, the patient data will automatically be merged in the case of a transfer.
This means there is no patient discharge at the monitor and settings and trend data will be retained.
You will see a message on the monitor and the Patient Demographics window will automatically
appear so that you can check the data and change it if necessary.
Manually Resolving Patient Mismatch
The patient mismatch is indicated by question marks (???) beside the questionable fields in the Monitor
Info Line and in the Patient Demographics window. The monitor displays a message such as
Different patients in Central and Monitor. The Patient Selection window
automatically opens so you can decide which patient data to use. You do not have to resolve the
mismatch immediately, however, the indicators remain until you do. There can be up to three columns
of data in the Patient Selection window if the patient is different in the Information Center,
monitor, and MMS.
After you resolve the mismatch, the monitor displays a confirmation window that explains the
consequences of your choice, telling you where the patient will be continued/discontinued. Confirm
your choice. The monitor automatically displays the Patient Demographics window after
confirmation. Verify that the settings shown are correct for the patient.
Gender, date of birth, height, weight, and nursing notes do not generate a mismatch. If these fields are
different on different devices, the monitor resolves them itself. For example, it may take date of birth
from the Information Center, whilst taking gender from the MMS. Always check the Patient
Demographics after combining patients, to ensure that you are satisfied with the results. Change them
if necessary.
WARNING
82
After resolving a patient mismatch, check that the monitor settings (especially patient category, paced
status and alarm limits) are correct for the patient.
Resolving Patient Information Mismatch
5 Managing Patients
Patient Mismatch - If One Set of Patient Data is Correct
♦
♦
If there is a mismatch between an
Information Center and a monitor,
choose the data set you want to
continue using for this patient,
either:
Patient Selection
Continue Central: to continue with
the patient demographics from the
Information Center, discharge the
patient in the monitor, and use the
default monitor profile.
Continue Monitor: to continue with
the patient in the monitor and
discharge the patient in the
Information Center, permanently
deleting all data in the Information
Center.
If there is a mismatch between a
monitor and a measurement server,
choose the data set you want to
continue using for this patient,
either:
Central
Monitor
Last name
DOE
MILLER
First name
JOHN
MRN
1234HG9556
Patient Cat Adult
Neo
Paced
Yes
No
Continue Continue
Central Monitor
New
Same
Patient Patient
Patient Selection
Last name
First name
Monitor
MeasServ
MILLER
ADAMS
PETER
MRN
Continue Monitor: to continue with
Patient Cat Neo
Neo
the patient demographics, trend
data, and settings in the monitor.
Paced
Yes
No
This discharges the patient in the
measurement server, and resets all
MMS settings to the defaults
Continue Continue
New
Same
currently active for the monitor.
Monitor MMS
Patient Patient
Continue MMS: to upload the data
- patient demographics, trend data
(if configured), and measurement
settings (if configured) - stored in the MMS to the monitor. This clears all data in the monitor,
resets the monitor to the default Profile, and discharges the patient in the monitor.
Patient Mismatch - If Neither Patient Data Set is Correct
A patient mismatch where neither set of patient data is correct might occur if you connect a new MMS
to a monitor in order to prepare for a new patient, before you actually start measuring.
♦
Select New Patient if you are sure that none of the information is correct. This discharges all
patients, erases all data in both the monitor and MMS, resets all settings to the default Profile, and
lets you admit a new patient.
83
5 Managing Patients
Care Groups
Patient Mismatch - If Both Patient Data Sets Are Correct
A patient mismatch where both sets of patient data are correct might occur if you admit a new patient
at the monitor (or Information Center) before the patient arrives at your unit and then connect the
MMS that was used during the patient transport to the monitor.
♦
Select Same Patient if the patient information is different, but you are sure it is the same
patient. This merges the demographics and updates them in the Information Center, monitor, and
MMS, according to this table. Be aware that your monitor may be configured to merge trend data
from the MMS and the monitor, and to upload measurement settings from the MMS to the
monitor.
Patient Information
This information is taken from...
Patient name
the monitor, if the patient was admitted there. For centrally-admitted
patients, this information is taken from the Information Center.
MRN
Screen Notes
Patient Category
Date of Birth
the Multi-Measurement Server. if connected, otherwise the data is
taken from the monitor.
Height
Weight
Gender
Paced Status
Paced status is always set to Yes where there is a conflict in patient
information.
Trend data
if there is newer trend data stored in the MMS, it is uploaded to the
monitor.
Automatically Resolving Patient Mismatch
Your monitor can be configured to automatically resolve mismatches in one of two ways.
• continue using the patient in the MMS, and delete the old data in the monitor. This is suitable for
transport monitors.
• continue with the patient in the monitor, and delete the data in the MMS.
Care Groups
If your monitor is connected to an Information Center, you can group bedside monitors into Care
Groups. This lets you:
• view information on the monitor screen from another bed in the same or in a different Care Group.
• be notified of yellow or red alarm conditions at the other beds in the Care Group.
• see the alarm status of all the beds in the Care Group on each monitor screen.
There are two main types of Care Groups:
• standard care group (Bed-based Care Group) - up to 12 patients monitored by up to 4
Information Centers
• unit group (Unit-based Care Group) - for a complete unit with up to 64 patients
monitored by up to 4 Information Centers
84
Care Groups
5 Managing Patients
Monitors must be assigned to these Care Groups at the Information Center. There is a third care group
which can be assigned locally at the bedside. This is the My Central care group which includes all beds
(up to 16) from the Information Center your bed is connected to. This care group setting is typically
used in facilities with only one Information center. The selection of beds is automatic and cannot be
changed.
The functions available with Care Groups depend on the Information Center revision your monitors
are connected to. See your Information Center Instructions for Use for further details.
Understanding the Care Group Overview Bar
The Care Group monitors’ status is shown in symbol form in the Care Group overview bar. Flashing
symbols indicate active alarms, symbols that are not flashing indicate alarms that have been
acknowledged. Selecting a bed symbol calls up the Other Patient window for that bed.
Bed 1
Bed 2
Bed 3
Bed 4
Bed 5
Bed 6
Bed 7 Bed 8
Bed 9
Bed11 Bed 12 Bed 13 Bed 14
The Care Group overview bar must be configured to display on the monitor Screen. If it is not visible
on your monitor, select a Screen which has been configured to show the bar.
Care Group Symbols (four alternative display possibilities
depending on space available)
No data from this bed
Bed 8
Bed 8
The alarms are on but there are no
currently active alarms at this monitor
Bed 5
Bed 5
The highest priority alarm at this
monitor is an INOP condition
Bed 14
Bed 14
The highest priority alarm at this
monitor is a yellow alarm
Bed 9
Bed 9
The highest priority alarm at this
monitor is a red alarm
Bed 7
Bed 11
Bed 7
Bed 11
The alarms at this monitor are
suspended
The monitor is in standby mode
The monitor is in Demonstration
mode
The current monitor
85
5 Managing Patients
Care Groups
Care Group Symbols (used in the Care Group overview bar
and the My Care Group window)
This is a telemetry bed
This bed is on a wireless network
This bed is on a wired network
This is a “paired” bed, with a bedside
monitor and a telemetry transmitter
assigned.
Viewing the My Care Group Window
This window shows the alarm status, bed name,
and patient name for every bed in the Care
Group.
The window for the Unit group (shown here)
shows first the beds of the Information Center
this bed is connected to. By selecting the
Information Center name you can display a list
of all Information Centers associated with the
Unit group, and select another Information
Center to view.
To enter the My Care Group window,
♦
select the Other Patients SmartKey, if
configured, or
♦
in the Main Setup menu, select My Care
Group.
My Care Group
Beds From:
Room 2
Smith, Mary
Room 4
Jones, Paul
Bed 2
Murphy, Sarah
Bed 4
Miller, John
Bed 8
Baker, Jane
Room 1
Green, Liza
Room 3
Scott, James
Room 5
Black, Harald
Use the My Care Group pop-up keys to navigate
through the Care Groups:
My Unit lets you view a list of all the Information Centers in your Care Unit. Select an Information
Center to see a list of the monitors connected to it. Select any monitor to see the Other Patient
window for that bed.
Other Units lets you view a list of all the Care Units in your Care Domain. Select any Care Unit
to view a list of the Information Centers connected to it. Select an Information Center to see a list of
the monitors connected to it. Select any monitor to see the Other Patient window for that bed.
Alarming Beds lets you view a list of all beds in your care group with an unacknowledged
alarm. The beds are listed in order of alarm severity.
86
Care Groups
5 Managing Patients
Viewing the Other Bed Window
The Other Bed window lets you view a subset of the waveform and numeric information from another
bed on the same network. Waves and numeric information from another bed are delayed. If
configured, Other Bed information is displayed in color, using the colors defined by the Information
Center.
To open the Other Bed window,
♦
MP60/MP70/MP80/MP90: select the required bed label or patient name in the Care Group
Overview Bar. If you are in a Unit Group with many beds, the My Care Group window may open
for you to select the bed.
MP20/MP30/MP40/MP50: select any field in the monitor info line to enter the Setup menu,
then select My CareGroup and select the required bed, or
♦
Select the Other Patients SmartKey, if configured, and select the required bed.
Bed Label, Patient Name
** HR HIGH
NO TRANSDUC
HR
SpO2
110
Next
Wave
99
More
Vitals
Next
Bed
My Care
Group
Silence
Bed
The Other Bed window may be configured to display embedded in a specially designed Screen.
♦
To display the
embedded Other Bed
screen element, in the
Change Screen menu,
select a Screen designed
to show the Other Bed
information
permanently.
Bed Label
Patient Name
VTACH
Note that a Screen with an
embedded Other Bed screen
element cannot be displayed
on the D80 Intelligent
Display.
87
5 Managing Patients
Care Groups
Note that changing the Screen may automatically change the bed shown in the other bed window. If
you switch to a different Screen, you should check if the correct other bed is displayed.
Other Bed Pop-Up Keys
Select the Other Patients SmartKey or the Other Bed window or embedded screen element to
access the associated pop-up keys:
Next Wave lets you view waveforms not currently shown in the other bed window.
More Vitals lets you view more numerics not currently shown in the other bed window.
Next Bed lets you view waveforms and numerics from the next available bed in the Care Group.
My Care Group lets you call up the Care Group window to select another bed.
Alarming Beds lets you view a list of all beds in your care group with an unacknowledged alarm.
The beds are listed in order of alarm severity.
Silence Bed lets you silence active alarms at the other bed. (Whether you see this key depends
on the revision and configuration of the Information Center your monitors are connected to.)
WARNING
The Silence Bed pop-up key in the Other Bed window silences alarms at a remote bed. Be aware
that accidental use of this key could silence alarms for the wrong patient.
To silence own bed alarms use the Silence permanent key on screen or the Silence hardkey.
Visual Alarm Status Information in the Other Bed Window
• If individual alarms are switched off at the other bed, this is indicated by the crossed alarm symbol
beside the measurement numeric.
• If alarms are switched off at the other bed, the message Alarms Off is shown in the other bed
window.
• In the embedded Other Bed window, the crossed speaker symbol in the upper right hand indicates
that the volume of the audible alarm status change notification for the other beds in the care group
is set to zero at the overview monitor.
Care Group Alarms
Changes in the alarm status of beds in a Care Group are announced visually and audibly at all other
beds in the same Care Group. The visual and audible indicators used depend on the monitor and
Information Center configuration.
When an alarm is detected at another bed in the Care Group,
• the alarm status is shown in the Care Group overview bar as an icon.
• a message informing you about the care group alarm is shown in the monitor status line.
• if configured, the Other Bed window, the Alarming Beds window or the My Care Group window
may pop up on the Screen (if automatic alarm notification is enabled at the bedside monitor and at
the Information Center). The automatic alarm notification is suppressed when a window, menu or
pop-up keys are active.
• if configured, an audible status change notification is issued. The tone type and volume can be
configured.
88
Care Groups
5 Managing Patients
Automatic alarm notification can be switched off permanently in the monitor’s Configuration Mode
or at the Information Center. To temporarily disable and re-enable automatic alarm notification at the
bedside monitor, for example if you want to carry out a procedure, in Monitoring Mode:
1
Select the network symbol on the monitor screen to call up the Network menu.
2
Select Auto Window to toggle between the settings Enabled and Disabled.
This setting resets to the default at discharge and when the monitor is switched on. Always re-enable
the Auto Window as soon as possible.
Telemetry Data Overview
You can assign a monitor and a telemetry device to the same patient. This is called “pairing” and is
done at the Information Center. In paired mode, the telemetry data can be displayed as a permanent
overview session on the monitor. To do this, one of the available Screens must have the Telemetry
Data Overview screen element embedded. If configured, this Screen will automatically display when
the monitor is paired with a telemetry device at the Information Center. Be aware that the data from a
paired telemetry device is stored at the Information Center and not in the monitor.
Unpairing a Telemetry Device
To disconnect the patient from the telemetry device and reconnect them to the monitor
(for example, to see realtime waves),
♦
select the Unpair Equipment SmartKey to have the Information Center receive
the ECG data from the monitor again. In this case data from the telemetry device will
no longer be monitored at the Information Center. (Behavior depends on the revision of your
Information Center.)
or
♦
use the Unpair function at the Information Center. In this case you can decide whether the
Information Center will continue to monitor data from the telemetry device.
89
5 Managing Patients
Care Groups
Telemetry Data Overview Screen Element
Bed4
Bed1
Room3
Bed5
Bed7
Mayer, John Adult
Bed9
23Feb 17:51
Room1 Room3
Profiles
Room1 Room4
Telemetry
Tele 3
HR
PVC
MCL
1mV
1mV
Delayed
Pleth
Telemetry
data overview
screen element
Pulse
WARNING
CO2
etCO2 mmHg
NBP mmHg
Temp
Perf
awRR rpm
Waves and numeric information on the telemetry screen element are delayed for several seconds. If you
need realtime data, for example for defibrillation, always use the monitor ECG instead of telemetry.
Silencing Telemetry Alarms from the Bedside
When a telemetry device is paired with the monitor, an audible status change notification is issued for
new telemetry alarms. The volume can be configured.
If configured, alarms generated from a paired telemetry device can be silenced at the bedside.
To silence telemetry alarms from the bedside,
1
select the telemetry screen element
2
select the Silence Bed pop-up key
Depending on your configuration, the Silence Bed key may silence both telemetry alarms and
bedside alarms.
Suspending Telemetry Alarms
When you select Pause Alarms or Alarms Off at the monitor, the alarms are off or paused for
the bedside measurements.
Refer to the Information Center Instructions for Use for the Suspend/Pause alarms behavior of the
Information Center and telemetry device.
Using Standby
When you select Standby mode at the monitor, the bedside goes into Standby mode.
Refer to the Information Center Instructions for Use for the Standby behavior of the Information
Center and telemetry device.
90
6
ECG, Arrhythmia, and ST
Monitoring
6
The electrocardiogram (ECG) measures the electrical activity of the heart and displays it on the
monitor as a waveform and a numeric. This section also tells you about arrhythmia monitoring (see
page 107) and ST monitoring (see page 117).
Skin Preparation for Electrode Placement
Good electrode-to-skin contact is important for a good ECG signal, as the skin is a poor conductor of
electricity.
1
Select sites with intact skin, without impairment of any kind.
2
Clip or shave hair from sites as necessary.
3
Wash sites thoroughly with soap and water, leaving no soap residue.
We do not recommend using ether or pure alcohol, because this dries the skin and increases the
resistance.
4
Dry skin thoroughly.
5
Gently abrade the skin using ECG skin preparation paper to remove dead skin cells to improve the
conductivity of the electrode site.
Connecting ECG Cables
1
Attach the clips or snaps to the electrodes before placing them. If you are not using pre-gelled
electrodes, apply electrode gel to the electrodes before placement.
2
Place the electrodes on the patient according to the lead placement you have chosen.
3
Attach the electrode cable to the patient cable.
4
Plug the patient cable into the white ECG
connector on the measurement server. An ECG
waveform and numeric appears on the monitor
display.
ECG Connector
91
6 ECG, Arrhythmia, and ST Monitoring
Selecting the Primary and Secondary ECG Leads
CAUTION To protect the monitor from damage during defibrillation, for accurate ECG information and to
protect against noise and other interference, use only ECG electrodes and cables specified by Philips.
Selecting the Primary and Secondary ECG Leads
The monitor uses the primary and secondary lead to compute HR and to analyze and detect cardiac
arrhythmias. They are also available for recordings and for display on the Information Center.
The secondary lead setting is used only if your monitor is configured for multi-lead (instead of singlelead) arrhythmia analysis. It determines which additional lead will be used for arrhythmia analysis.
You should choose a lead as primary or secondary lead
that has the following characteristics:
• the QRS should be either completely above or below
the baseline and it should not be biphasic
• the QRS should be tall and narrow
• the P-waves and T-waves should be less than 0.2 mV
To select a lead as primary or secondary lead:
♦
In the Setup ECG menu, select Primary Lead or Secondary Lead, then select the
appropriate lead. You can assign any available lead whether it is currently displayed or not.
Checking Paced Status
It is important to set the paced status correctly when you start monitoring ECG.
♦
WARNING
To change the paced status in the Setup ECG menu, select Paced, then select Yes or No.
Pace pulse rejection must be switched on for paced patients by setting “Paced” to Yes. Switching pace
pulse rejection off for paced patients may result in pace pulses being counted as regular QRS
complexes, which could prevent an asystole alarm from being detected. When changing profiles, and at
admission/discharge, always check that paced status is correct for the patient.
Some pace pulses can be difficult to reject. When this happens, the pulses are counted as a QRS
complex, and could result in an incorrect HR and failure to detect cardiac arrest or some arrhythmias.
Keep pacemaker patients under close observation.
92
Understanding the ECG Display
6 ECG, Arrhythmia, and ST Monitoring
Understanding the ECG Display
Your display may be configured to look slightly different.
1 mV calibration bar
Lead
label of
the
displayed
wave
Pace pulse marks
Defibrillator synchronization marks
Pacer spikes
HR
M
EASI
ECG Filter
label
EASI lead placement label
Current heart rate alarm limits
Current heart rate
ECG numeric: This is derived from the monitored ECG.
Pace pulse markers: These are shown if the Paced status has been set to Yes and the patient has a
paced signal.
Defibrillator synchronization marks: If an HP/Agilent/Philips defibrillator is connected, the
synchronization marks (vertical lines on the ECG wave) are shown on the ECG wave.
ST numerics in ECG wave: ST numerics can be configured to show underneath the ECG wave on
the bottom left.
Monitoring Paced Patients
An ECG optimized for monitoring a paced patient should look like this:
Normal Beats
Pace Pulses/Beats
You should choose a lead as primary or secondary lead that has these characteristics:
• the normal QRS should be either completely above or below the baseline and it should not be
biphasic. For paced patients, the QRS complexes should be at least twice the height of pace pulses.
• the QRS should be tall and narrow
• the P-waves and the T-waves should be less than 0.2 mV.
93
6 ECG, Arrhythmia, and ST Monitoring
Changing the Size of the ECG Wave
Setting the Paced Status (Pace Pulse Rejection)
♦
In the Setup ECG menu, select Paced to toggle between Yes and No.
Paced
You can also change the paced status in the Patient Demographics window.
When Paced is set to Yes:
– Pace Pulse Rejection is switched on. This means that pacemaker pulses are
not counted as extra QRS complexes.
Non-Paced
– pace pulse marks are shown on the ECG wave as a small dash
– the paced symbol is displayed on the main screen.
When Paced is set to No, pacer spikes are not shown in the ECG wave. Be
aware that switching pace pulse rejection off for paced patients may result in
pace pulses being counted as regular QRS complexes, which could prevent an
asystole alarm from being detected.
Avoiding Pace Pulse Repolarization Tails
Some unipolar pacemakers display pace pulses with repolarization tails. These tails may be counted as
QRSs in the event of cardiac arrest or other arrhythmias.
If you note a visible repolarization tail, choose a lead that decreases the size of the repolarization tail.
Repolarization tail
(note width)
Changing the Size of the ECG Wave
If any of the displayed ECG waves is too small or clipped, you can change the size of one or all of the
ECG waves on the screen.
Changing the adjustment factor only changes the visual appearance of the ECG wave on the screen. It
does not affect the ECG signal analyzed by the monitor.
Comparing the wave size to the 1 mV calibration bar on the ECG wave segment can help you to get an
idea of the true ECG signal strength. If you choose a fixed adjustment factor, the 1 mV calibration bar
will be the same size for all the displayed ECG waves. If you choose AutoSize, the calibration bar may
be a different size for each wave.
To Change the Size of an Individual ECG Wave
94
1
Select the wave segment you want to change. This calls up the lead menu for this segment.
2
In the lead menu, select Size Up to increase wave size or Size Down to decrease the size.
Selecting AutoSize lets the monitor choose the optimal adjustment factor for all displayed ECG
waves.
Changing the Volume of the QRS Tone
6 ECG, Arrhythmia, and ST Monitoring
To Change the Size of all the ECG Waves
To change the size of all the ECG waves on the screen by a fixed adjustment factor,
1
2
In the Setup ECG Lead menu, select Adjust Size.
Select the required adjustment factor from the line of pop-up keys.
– Size x0.5 to halve the wave size
– Size x1 to display the wave without zoom
– Size x2 to double the wave size
– Size x4: to multiply the wave size by four
– Previous Size: to return one step to the previous size
– Auto Size: to let the monitor choose the optimal adjustment factor for all the ECG waves.
Changing the Volume of the QRS Tone
The QRS tone is derived from either the HR or Pulse, depending on which is currently selected as the
alarm source. The QRS volume can be set from 0 to 10 (0 means off).
♦
To change the QRS volume, in the Setup ECG menu select QRS Volume and then select the
appropriate volume from the pop-up list.
Changing the ECG Filter Settings
The ECG filter setting defines how ECG waves are smoothed. A letter indicating the filter type is
shown underneath the lead label on the monitor display. Filter settings do not affect ST measurement.
12-Lead ECG captures are analyzed in the PIC using the diagnostic filter and displayed on the
Information Center using the filter setting from the bedside monitor. Any changes you make to the
filter setting at the bedside monitor may take up to a minute to be reflected at a connected Information
Center. For this reason, you should wait one minute between changing the filter setting and sending a
12-lead capture to an Information Center.
♦
To change the filter setting, in the Setup ECG menu, select Filter and then select the
appropriate setting.
– Monitor: Use under normal measurement conditions.
– Filter: The filter reduces interference to the signal. It should be used if the signal is distorted
by high frequency or low frequency interference. High frequency interference usually results in
large amplitude spikes making the ECG signal look irregular. Low frequency interference usually
leads to a wandering or rough baseline. In the operating room, the Filter reduces artifacts and
interference from electrosurgical units. Under normal measurement conditions, selecting
Filter may suppress the QRS complexes too much and thus interfere with the clinical
evaluation of the ECG displayed on the monitor. This does not affect the ECG analysis
performed by the monitor.
If AutoFilter is set to On in Configuration Mode, the filter setting will automatically be set to
Filter if electromagnetic interference is detected.
95
6 ECG, Arrhythmia, and ST Monitoring
Choosing EASI or Standard Lead Placement
– Diag (Diagnostic): Use when diagnostic quality is required. The unfiltered ECG wave is
displayed so that changes such as R-wave notching or discrete elevation or depression of the ST
segments are visible.
The setting Diag selects the highest available ECG bandwidth which is 0.05 to 150 Hz for the
Adult and 0.5 to 150 Hz for the Pedi and Neo patient category. The term “diagnostic” relates
only to the ECG bandwidth requirements for diagnostic electrocardiographic devices as
outlined in the ANSI/AAMI standard EC11-1991.
Choosing EASI or Standard Lead Placement
If EASI™ monitoring is available on your monitor, you must enable either standard lead placement or
EASI lead placement.
♦
In the Setup ECG menu, select Lead Placement and then Standard or EASI.
EASI is shown beside the 1mV calibration bar on the ECG wave on the display, and EASI is marked
on any recorder strips and printouts.
See the section on EASI ECG Lead Placement for electrode placement diagrams.
About ECG Leads
To make it possible to compare measured ECG signals, the electrodes (or lead sets) are placed in
standardized positions, forming so-called “leads.” To obtain ECG signals optimized for use in
diagnosis and patient management in different care environments, different lead sets in varying lead
placements can be used. You can use either standard lead placements or EASI lead placements with this
monitor.
When placing electrodes, choose a flat, non-muscular site where the signal will not be interfered with
by either movement or bones. Correct lead placement is always important for accurate diagnosis.
Especially in the precordial leads, which are close to the heart, QRS morphology can be greatly altered
if an electrode is moved away from its correct location.
ECG Leads Monitored
If you are using
these leads are available:
Resp is measured
between electrodes:
a 3-electrode set
I, II, III
RA and LL
a 5-electrode set
I, II, III, aVR, aVL, aVF, V and MCL
RA and LL
a 10-electrode set
I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 RA and LL
an EASI 5-electrode set I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 I and A
Changing Lead Sets
To change the ECG lead set,
96
1
Remove the electrodes and then replace them as required.
2
If the new lead set has more leads than the previous, the monitor automatically recognizes the new
lead placement. If the new lead set has fewer leads, then you must select New Lead Setup in the
Setup ECG menu. If you remove electrodes and do not select New Lead Setup, the monitor
ECG Lead Fallback
6 ECG, Arrhythmia, and ST Monitoring
will issue a Lead Off INOP message. Select New Lead Setup and the INOP message will
disappear.
ECG Lead Fallback
If fallback is configured on and there is a leads off INOP in the primary lead (and in the secondary
lead, if you are using multi-lead monitoring) for longer than 10 seconds, and if another lead is
available, this available lead automatically becomes the primary lead. This is known as lead fallback.
When the Leads Off condition is corrected, the leads are automatically switched back.
This setting can only be changed in Configuration Mode.
ECG Lead Placements
The labels and colors of the ECG electrodes differ according to the standards that apply for your
hospital. The electrode placement illustrations in this chapter use the AAMI labels and colors.
Electrode labels
Electrode colors
AAMI
EASI
IEC
AAMI
IEC
RA
I
R
White
Red
LA
S
L
Black
Yellow
LL
A
F
Red
Green
RL
N
N
Green
Black
V
E
C
Brown
White
V1
C1
Brown/Red
White/Red
V2
C2
Brown/Yellow
White/Yellow
V3
C3
Brown/Green
White/Green
V4
C4
Brown/Blue
White/Brown
V5
C5
Brown/Orange
White/Black
V6
C6
Brown/Violet
White/Violet
97
6 ECG, Arrhythmia, and ST Monitoring
ECG Lead Placements
Standard 3-Lead Placement
RA placement: directly below the clavicle and
near the right shoulder
LA
RA
LA placement: directly below the clavicle and
near the left shoulder
LL placement: on the left lower abdomen
LL
Standard 5-Lead Placement
RA placement: directly below the clavicle and
near the right shoulder
RA
LA
I
II
R
V
RL placement: on the right lower abdomen
aV
L
aV
III
98
LL placement: on the left lower abdomen
V placement: on the chest, the position depends
on your required lead selection
a VF
RL
LA placement: directly below the clavicle and
near the left shoulder
LL
ECG Lead Placements
6 ECG, Arrhythmia, and ST Monitoring
Chest Electrode Placement
For accurate chest electrode placement and measurement, it is important to locate the fourth
intercostal space.
1
Locate the second intercostal space by first palpating the Angle of Lewis (the little bony
protuberance where the body of the sternum joins the manubrium). This rise in the sternum is
where the second rib is attached, and the space just below this is the second intercostal space.
2
Palpate and count down the chest until you locate the fourth intercostal space.
V1 placement: on the fourth
intercostal space at the right sternal
border
Angle of
Lewis
V2 placement: on the fourth
intercostal space at the left sternal
border
2
3
4
V4R V3R
V1
V7
V2
VE
V3
V6
V4
V5
V3 placement: midway between the
V2 and V4 electrode positions
V4 placement: on the fifth
intercostal space at the left
midclavicular line
V5 placement: on the left anterior
axillary line, horizontal with the V4
electrode position
V6 placement: on the left midaxillary line, horizontal with the V4 electrode position
V3R to V6R placement: on the right side of the chest in positions corresponding to those on the left
VE placement: over the xiphoid process
V7 placement: on posterior chest at the left posterior axillary line in the fifth intercostal space
V7R placement: on posterior chest at the right posterior axillary line in the fifth intercostal space
99
6 ECG, Arrhythmia, and ST Monitoring
ECG Lead Placements
10-Lead Placement
When monitoring 12-leads of ECG, using a 10-Electrode Lead Placement, it is important to correctly
place electrodes and to label all 12-lead ECG reports with the correct lead placement.
Conventional 12-Lead ECG
In conventional 12-Lead ECG using 10
electrodes, an electrode is placed on the right
arm, left arm, right leg, and left leg. Six Velectrodes are placed on the chest. The right leg
electrode is the reference electrode.
Limb electrodes:
V1 - V6
– Place arm electrodes on the inside of each
arm, between the wrist and the elbow.
– Place leg electrodes inside of each calf,
between the knee and the ankle.
Chest electrodes:
RA
LA
V1 - on the 4th intercostal space at the right
sternal border
V2 - on the 4th intercostal space at the left
sternal border
V3 - midway between the V2 and V4 electrode
positions
V4 - on the 5th intercostal space at the left
midclavicular line
V5 - on the left anterior axillary line, horizontal
with the V4 electrode position
V6 - on the left midaxillary line, horizontal with
the V4 electrode position
RL
100
LL
ECG Lead Placements
6 ECG, Arrhythmia, and ST Monitoring
Modified 12-Lead ECG
If your institution uses modified 10
Lead ECG electrode placement (the
Mason-Likar Lead System), place the
four limb electrodes close to the
shoulders and lower abdomen.
Angle of Lewis
LA
RA
V1 - V6
RL
The six V electrodes are placed on the
chest in the same position as the
conventional 12-lead placement.
LL
Choosing Standard or Modified Electrode Placement
If your institution uses modified 10 Lead ECG electrode placement (the Mason-Likar Lead System),
you must switch Mod. Lead Placment to On in the monitor. To do this,
♦
in the Setup ECG menu, select Mod. LeadPlacement to toggle between On and Off.
– When Mod. Lead Placment is set to On, 12 Lead ECG Reports will be labelled 12 Lead
ECG Report (Mason-Likar), and captured 12-lead ECGs will be labelled MasonLikar to the right of the bandwidth annotation at the Information Center.
– When Mod. LeadPlacment is set to Off, 12 Lead ECG Reports will be labelled 12
Lead ECG Report, and captured 12-lead ECGs will not be annotated at the Information
Center.
WARNING
Do not use ECG analysis interpretation statements and measurements for 12-lead ECGs obtained
using the modified (Mason-Likar) limb electrode placement.This may lead to misdiagnosis since the
modified (Mason-Likar) limb electrode placement does not look the same as the conventional 12-lead
ECG and may mask inferior infarction due to calculated axis, R, P and T wave magnitudes shifts and
ST slope.
Do not export 12-lead ECGs obtained using the modified (Mason-Likar) limb electrode placement.
Captured 12-Lead ECGs using the modified (Mason-Likar) limb electrode placement exported from
the Information Center are not annotated with the Mason-Likar label.
Labelling 12-Lead ECG Reports
To label 12-lead ECG monitor reports and Captured 12-lead ECGs reports:
♦
In the Setup ECG menu, select Mod. LeadPlacement to toggle between On and Off.
When Mod LeadPlacement is set to On:
101
6 ECG, Arrhythmia, and ST Monitoring
Capture 12-Lead
– 12 Lead ECG Reports will be labelled 12 Lead ECG Report (Mason-Likar).
– Captured 12-lead ECGs will be labelled Mason-Likar to the right of the bandwidth annotation at
the Information Center.
When Mod. LeadPlacement is set to Off,
– 12 Lead ECG Reports will be labelled 12 Lead ECG Report.
– Captured 12-lead ECGs will have no annotation next to the bandwidth annotation at the
Information Center.
Capture 12-Lead
If the monitor is connected to an Information Center via a wired network, the Capture 12-Lead
SmartKey may be configured to show on the screen. Selecting this exports 12-Lead ECG information
to the Information Center for analysis. For details see the Instructions for Use supplied with the
Information Center.
EASI ECG Lead Placement
Using a standard 5-electrode set in EASI lead placement you can monitor up to 12 standard ECG leads
simultaneously and continuously at the bedside. EASI provides a monitoring method for trending ST
segment changes that can provide an early indication of ischemia. EASI-derived 12-lead ECGs and
their measurements are approximations to conventional 12-lead ECGs. As the 12-lead ECG derived
with EASI is not exactly identical to the 12-lead conventional ECG obtained from an
electrocardiograph, it should not be used for diagnostic interpretations.
Respiratory monitoring is also possible with the EASI placement; respiration is measured between the I
and A electrodes.
Place the electrodes as accurately as possible to obtain the best quality EASI measurements.
When EASI lead placement is selected, EASI is shown beside the 1mV calibration bar on the ECG
wave on the display, and EASI is marked on any recorder strips and printouts.
EASI Monitoring During INOP Conditions If one of the derived EASI leads has an INOP
condition (for example, LEAD OFF), a flat line is displayed. After 10 seconds, the directly acquired
EASI AI, AS, or ES lead (depending on which is available) is displayed with the corresponding lead
label. This causes an arrhythmia relearn.
102
EASI ECG Lead Placement
6 ECG, Arrhythmia, and ST Monitoring
EASI Electrode Placement
3
4
2
1
1
E (V)
on the lower sternum at the level of
the fifth intercostal space
2
A (LL)
on the left midaxillary line at the
same level as the E electrode
3
S (LA)
on the upper sternum
4
I (RA)
on the right midaxillary line at the
same level as the E electrode
5
N
reference electrode - can be anywhere,
usually below the sixth rib on the
right hip
5
103
6 ECG, Arrhythmia, and ST Monitoring
ECG, Arrhythmia, and ST Alarm Overview
ECG, Arrhythmia, and ST Alarm Overview
The ECG, arrhythmia, and ST alarms available depend on which measurements are switched on, and
the arrhythmia option enabled for your monitor.
• Cardiotach alarms are available when HR is on and the active alarm source is ECG
• Basic arrhythmia alarms are available when Arrhythmia is switched on
• Advanced arrhythmia alarms are available when Arrhythmia is switched on and the Advanced
Arrhythmia option has been enabled for your monitor
• ST alarms are available when ST analysis is switched on and ST leads are selected for analysis.
Cardiotach Alarms
Alarms with Basic
Arrhythmia Option
Alarms with Enhanced
Arrhythmia Option
ST Alarms
***Asystole
***Ventricular Tachycardia
**Supraventricular Tach
**ST <Lead> High
***Ventricular
Fibrillation/Tachycardia
**Pacer Not Capture
**Missed Beat
**ST <Lead> Low
**Pacer Not Pacing
**Pause
**Frequent PVCs (PVC >
limit/min)
**Irregular HR
***Extreme Bradycardia
***Extreme Tachycardia
**High heart rate
**Low heart rate
**Ventricular Rhythm
**Run PVCs High
**Pair PVCs
**R-on-T PVCs
**Ventricular bigeminy
**Ventricular trigeminy
**Nonsustained V-Tach
**Multiform PVCs
104
Using ECG Alarms
6 ECG, Arrhythmia, and ST Monitoring
Using ECG Alarms
ECG alarms can be switched on and off and the high and low alarm limits changed just like other
measurement alarms, as described in the Alarms section. Special alarm features which apply only to
ECG are described here.
Extreme Alarm Limits
The extreme rate alarms, Extreme Tachy and Extreme Brady, generated by the active alarm source,
either HR or Pulse, are set in Configuration Mode by adding a set value to the high and low alarm
limits. You need to know what value has been configured for your monitor. Changing the high and
low alarm limits automatically changes the extreme alarm limits within the allowed range.
♦
To see the extreme rate alarms set for your monitor, in the Setup ECG menu, see the menu items
∆ExtrTachy and ∆ExtrBrady.
ECG Alarms Off Disabled
Be aware that your hospital department may have decided to disable the setting ECG Alarms Off in
the monitor’s Configuration Mode. In this case, HR alarms cannot be switched off in Monitoring
Mode. If you try to switch off the HR alarms, you will see the message To activate enter
Config and enable Alarms Off.
HR Alarms When Arrhythmia Analysis is Switched Off
When arrhythmia analysis is switched off, only these HR-related alarms will be detected:
• the asystole alarm
• the ventricular fibrillation/ventricular tachycardia alarm
• the extreme tachycardia/extreme bradycardia alarms
• the high heart rate/low heart rate alarms.
HR Alarms When Arrhythmia Analysis is Switched On
WARNING
When arrhythmia analysis is on, all yellow alarms connected with ECG are short (one-star). This
means that the yellow alarm lamp and the tones are active for a configured number of seconds only,
after which the flashing numeric and the alarm message remain for up to three minutes. Alarm
reminders are not provided for yellow arrhythmia alarms. Red alarms behave as usual.
ECG Safety Information
CAUTION Interference from instruments near the patient and ESU interference can cause problems with the
ECG wave. See the monitor specifications for more information.
105
6 ECG, Arrhythmia, and ST Monitoring
WARNING
ECG Safety Information
Defibrillation and Electrosurgery: Do not touch the patient, or table, or instruments, during
defibrillation.
After defibrillation, the screen display recovers within 10 seconds if the correct electrodes are used and
applied in accordance with the manufacturers instructions.
According to AAMI specifications the peak of the synchronized defibrillator discharge should be
delivered within 60 ms of the peak of the R wave. The signal at the ECG output on the IntelliVue
patient monitors is delayed by a maximum of 30 ms. Your biomedical engineer should verify that your
ECG/Defibrillator combination does not exceed the recommended maximum delay of 60 ms.
When using electrosurgical (ES) equipment, never place ECG electrodes near to the grounding plate of
the ES device, as this can cause a lot of interference on the ECG signal.
General: When you are connecting the electrodes or the patient cable, make sure that the connectors
never come into contact with other conductive parts, or with earth. In particular, make sure that all of
the ECG electrodes are attached to the patient, to prevent them from contacting conductive parts or
earth.
During surgery: Use the appropriate orange electrode ECG safety cable for measuring ECG in the
operating room. These cables have extra circuitry to protect the patient from burns during cautery, and
they decrease electrical interference. These cables cannot be used for measuring respiration.
Pacemaker failure: During complete heart block or pacemaker failure to pace/capture, tall P-waves
(greater than 1/5 of the average R-wave height) may be erroneously counted by the monitor, resulting
in missed detection of cardiac arrest.
Patients exhibiting intrinsic rhythm: When monitoring paced patients who exhibit only intrinsic
rhythm, the monitor may erroneously count pace pulses as QRS complexes when the algorithm first
encounters them, resulting in missed detection of cardiac arrest.
The risk of missing cardiac arrest may be reduced by monitoring these patients with low heart rate limit
at or slightly above the basic/demand pacemaker rate. A low heart rate alarm alerts you when the
patient’s heart rate drops to a level where pacing is needed. Proper detection and classification of the
paced rhythm can then be determined.
Filtered ECG signal from external instruments: Instruments such as defibrillators or telemetry units
produce a filtered ECG signal. When this signal is used as an input to the bedside monitor, it is filtered
again. If this twice-filtered signal is passed to the arrhythmia algorithm, it may cause the algorithm to
fail to detect pace pulses, pacemaker non-capture, or asystole, thus compromising paced patient
monitoring performance.
External pacing electrodes: When a pacemaker with external pacing electrodes is being used on a
patient, arrhythmia monitoring is severely compromised due to the high energy level in the pacer pulse.
This may result in the arrhythmia algorithm’s failure to detect pacemaker noncapture or asystole.
Fusion beat pacemakers: Pacemakers that create fusion beats (pace pulse on top of the QRS complex)
cannot be detected by the monitor’s QRS detector.
Rate adaptive pacemakers: Implanted pacemakers which can adapt to the Minute Volume may
occasionally react on the Impedance measurement used by patient monitors for the determination of
the Resp value and execute pacing with the maximum programmed rate. Switching off the Resp
measurement can prevent this.
106
About Arrhythmia Monitoring
6 ECG, Arrhythmia, and ST Monitoring
About Arrhythmia Monitoring
Arrhythmia analysis provides information on your patient’s condition, including heart rate, PVC rate,
rhythm, and ectopics. The monitor uses the user-selected primary and secondary ECG leads for singlelead or multi-lead arrhythmia analysis. During arrhythmia analysis, the monitor continuously
• optimizes ECG signal quality. This is important for arrhythmia analysis. The monitor continuously
filters the ECG signal to remove baseline wander, muscle artifact, and signal irregularities. Also, if
the Patient Paced status is set to Yes, pace pulses are filtered out to avoid processing them as QRS
beats.
• detects beats, for example, QRS complexes, identifying them for further analysis.
• measures signal features such as R-wave height, width, and timing.
• creates beat templates, and classifies and labels beats to aid in rhythm analysis and alarm detection.
• examines the ECG signal for ventricular fibrillation, asystole, and noise.
Arrhythmia Options
Your monitor has either the basic or the enhanced arrhythmia option. Both options provide rhythm
and ectopic status messages and beat labelling. The number of rhythms being classified, events being
detected, and alarms generated differs according to the option. The alarms available with the different
options are listed in the section “ECG, Arrhythmia, and ST Alarm Overview” on page 104, the rhythm
and ectopic messages detected are listed in “Arrhythmia Status Messages” on page 110.
Where Can I Find More Information?
See the Application Notes on ST and Arrhythmia supplied on your documentation CD-Rom for
detailed information on the arrhythmia algorithm and its clinical application.
107
6 ECG, Arrhythmia, and ST Monitoring
Switching Arrhythmia Analysis On and Off
Switching Arrhythmia Analysis On and Off
1
In the Setup Arrhythmia menu, select Arrhythmia to toggle between On and Off.
2
Select the Confirm pop-up key which appears at the bottom of the screen.
Be aware that when arrhythmia analysis is switched off,
– the message Arrythmia OFF appears beside the ECG wave, if configured to do so
– only the HR-related alarms are detected (the asystole alarm, the ventricular fibrillation/ventricular
tachycardia alarm, the extreme tachycardia/extreme bradycardia alarms, the high heart rate/ low
heart rate alarms)
– HR High and HR Low alarms behave like normal yellow alarms, no timeout periods are active.
Choosing an ECG Lead for Arrhythmia Monitoring
It is important to select a suitable lead for arrhythmia monitoring.
Guidelines for non-paced patients are:
–
–
–
–
QRS should be tall and narrow (recommended amplitude > 0.5 mV)
R-Wave should be above or below the baseline (but not bi-phasic)
T-wave should be smaller than 1/3 R-wave height
the P-wave should be smaller than 1/5 R-wave height.
For paced patients, in addition to the above, the pace pulse should be:
– not wider than the normal QRS
– the QRS complexes should be at least twice the height of pace pulses
– large enough to be detected, with no re-polarization.
To prevent detection of P-waves or baseline noises as QRS complexes, the minimum detection level for
QRS complexes is set at 0.15 mV, according to AAMI-EC 13 specifications. Adjusting the ECG wave
size on the monitor display (gain adjustment) does not affect the ECG signal which is used for
arrhythmia analysis. If the ECG signal is too small, you may get false alarms for pause or asystole.
Aberrantly-Conducted Beats
As P-waves are not analyzed, it is difficult and sometimes impossible for the monitor to distinguish
between an aberrantly-conducted supraventricular beat and a ventricular beat. If the aberrant beat
resembles a ventricular beat, it is classified as ventricular. You should always select a lead where the
aberrantly-conducted beats have an R-wave that is as narrow as possible to minimize incorrect calls.
Ventricular beats should look different from these ‘normal beats’. Instead of trying to select two leads
with a narrow R-wave, it may be easier to just select one lead and use single lead arrhythmia
monitoring. Extra vigilance is required by the clinician for this type of patient.
Atrial Fibrillation and Flutter
Since P-waves are not analyzed, it is not possible to discriminate atrial rhythms. If there is constant
variance in the R-R interval, the rhythm is classified as Irregular. It is extremely important for accurate
analysis of the rhythm to have p-waves with an amplitude of less than 1/5 the height of the R-wave or
< 0.15 mV. If the p-waves are larger than this, they may be counted as QRS complexes.
108
Understanding the Arrhythmia Display
6 ECG, Arrhythmia, and ST Monitoring
Intermittent Bundle Branch Block
Bundle branch and the other fascicular blocks create a challenge for the arrhythmia algorithm. If the
QRS during the block changes considerably from the learned normal, the blocked beat may be
incorrectly classified as ventricular, causing false PVC alarms. You should always select a lead where the
bundle branch block beats have an R-wave that is as narrow as possible to minimize incorrect calls.
Ventricular beats should look different from these ‘normal beats’. Instead of trying to select two leads
with a narrow R-wave, it may be easier to just select one lead and use single lead arrhythmia
monitoring. Extra vigilance is required by the clinician for this type of patient.
Understanding the Arrhythmia Display
Your monitor screen may look slightly different from the illustration.
Beat label
II
M
Delayed
Rhythm status message
Pace pulse marks
P
P
P
Paced Rhythm
Pair PVCs
1mV
Delayed arrhythmia wave
PVC Numeric
HR Numeric
PVC
HR
2
75
Ectopic status message
Viewing Arrhythmia Waves
♦
To review arrhythmia beat labels, in the Setup Arrhythmia menu, select Annotate Arrhy.
The wave showing the primary ECG lead will be delayed by six seconds and shown on a grey
background. Beat labels will be annotated above the ECG wave and Delayed will be written
beside it.
♦
To return to the normal ECG primary lead display, select Annotate Arrhy again.
Arrhythmia Beat Labels
Arrhythmia beat labels tell you how the monitor is classifying beats.
N = Normal
V = Ventricular Ectopic
S = Supra-ventricular Premature
P = Paced
' = Pacer spike
L = Learning patient's ECG
A = Artifact (noisy episode)
? = Insufficient information to classify beats
I = Inoperative condition (e.g., LEADS OFF)
M = Pause or missed beat
109
6 ECG, Arrhythmia, and ST Monitoring
Understanding the Arrhythmia Display
Arrhythmia Status Messages
The monitor displays two types of status messages:
• Rhythm Status Messages -- to indicate the patient’s rhythm.
• Ectopic Status Messages -- to indicate the presence of ectopic beats.
These status messages are shown on the right hand side of the primary ECG wave. They are updated
every second, with the exception of the Sinus and Supraventricular (SV) rhythm messages.
The Sinus and SV rhythm messages are updated based on the current heart rate, taking into account
the patient category (adult, pediatric, or neonatal). For the message to change from one rhythm status
to another, the HR must be in the new range for five beats.
If you have basic arrhythmia capability, you will get only messages for the alarms provided with this
level.
Rhythm Status Messages
The label B or E indicates basic (B) or enhanced (E) arrhythmia capability.
Rhythm Status Message Description
110
B or E
ASYSTOLE
No QRS for 4 consecutive seconds in absence of vent fib or chaotic B, E
signal
VENT FIB/TACH
A fibrillatory wave for 4 consecutive seconds
B, E
V-TACH
A dominant rhythm of adjacent Vs and a HR > the V-Tach Heart
Rate Limit
B, E
SUST V-TACH
Ventricular tachycardia rhythm for more than 15 seconds
E
VENT RHYTHM
A dominant rhythm of adjacent PVCs and a HR ≤ the V-Tach HR E
Limit
VENT BIGEMINY
A dominant rhythm of N, V, N, V
E
VENT TRIGEMINY
A dominant rhythm of N, N, V, N, N, V
E
PACED RHYTHM
A dominant rhythm of paced beats
B, E
IRREGULAR HR
Consistently irregular rhythm
E
SINUS BRADY
SINUS RHYTHM
SINUS TACHY
A dominant rhythm of SV beats preceded by P-waves
B, E
SV BRADY
SV RHYTHM
SV TACHY
A dominant rhythm of SV beats not preceded by P-waves
B, E
UNKNOWN ECG
RHYTHM
Rhythm cannot be determined
B, E
LEARNING ECG
Algorithm is learning the ECG beat morphology
B, E
LEARNING RHYTHM
Algorithm is learning the rhythm of the classified beats
B, E
CANNOT ANALYZE
ECG
ECG signal is predominantly invalid and therefore cannot be
analyzed
B, E
Arrhythmia Relearning
6 ECG, Arrhythmia, and ST Monitoring
Ectopic Status Messages
The label B or E indicates basic (B) or enhanced (E) arrhythmia capability.
Ectopic Status Message Explanation
B or E
(No message displayed)
No ectopic activity within the last minute
RUN PVCs
More than 2 consecutive PVCs within the last minute
E
PAIR PVCs
Pair PVCs within the last minute
E
PACER NOT CAPT
Pause with pace pulse (paced patient only) within the last minute
B, E
PACER NOT PACE
Pause without pace pulse (paced patient only) within the last minute B, E
PAUSE
No beat detected for 1.75 x average R-R interval for HR <120, or
No beat for 1 second with HR >120 (non-paced patient only), or
No beat detected for more than the set pause threshold.
E
R-ON-T PVCs
R-ON-T detected within the last minute
E
MULTIFORM PVCs
Multiform PVCs detected within the last minute
E
FREQUENT SVPBs
SVPB count within last minute is greater than 5
E
SVPBs
1-5 SVPBs in the last minute with a sinus rhythm and no Vs
E
SV BEATS
SV count within last minute and rhythm status is PACED
B, E
PACED BEATS
Paced beat count within last minute and rhythm status is NOT
PACED
B, E
Arrhythmia Relearning
During a learning phase:
• Alarm timeout periods are cleared
• Stored arrhythmia templates are cleared
• Asystole, Vfib, and HR alarms (when there are enough beats to compute the HR) are active. No other
alarms are active.
Initiating Arrhythmia Relearning Manually
1
To initiate relearning manually, in the Setup Arrhythmia menu, select Relearn Arrhy.
– While the monitor is learning, the delayed arrhythmia wave displays the beat label L and the
rhythm status message LEARNING ECG.
– Next, the monitor determines the dominant rhythm. The beats are labeled N, and the rhythm
status message changes to LEARNING RHYTHM.
2
After relearning is complete, you should check the delayed arrhythmia wave to ensure that the
algorithm is labeling the beats correctly.
3
If beats are still not classified correctly, check that the ECG is optimized for arrhythmia
monitoring. You may need to select a different lead or change the electrodes or electrode positions
if there is excessive noise, unstable voltage, low amplitude, or large P- or T-waves.
111
6 ECG, Arrhythmia, and ST Monitoring
Arrhythmia Alarms
Automatic Arrhythmia Relearn
Arrhythmia relearning is initiated automatically whenever:
• ECG monitoring is switched on
• The ECG Lead or Lead Label is changed manually, or when fallback occurs
• A Leads Off INOP condition (that has been active for > 60 seconds) ends.
If you are monitoring multi-lead arrhythmia and there is a change in one lead only, relearning happens
only in the affected lead. During this learning phase, the system will continue monitoring using the
other lead. Therefore, the delayed arrhythmia wave is not labeled L and there is no LEARNING ECG
rhythm status message. In addition, alarm timeout periods are maintained, stored arrhythmia
templates are maintained for the operative lead, and all alarms switched on are active.
Arrhythmia Relearn and Lead Fallback
Lead fallback triggers an automatic arrhythmia relearn.
WARNING
If arrhythmia learning takes place during ventricular rhythm, the ectopics may be incorrectly learned as
the normal QRS complex. This may result in missed detection of subsequent events of V-Tach and VFib.
For this reason you should:
• take care to initiate arrhythmia relearning only during periods of predominantly normal rhythm and
when the ECG signal is relatively noise-free
• be aware that arrhythmia relearning can happen automatically
• respond to any INOP messages (for example, if you are prompted to reconnect electrodes)
• be aware that a disconnected EASI electrode triggers an arrhythmia relearn on all leads
• always ensure that the arrhythmia algorithm is labeling beats correctly.
Arrhythmia Alarms
Arrhythmia alarms can be switched on and off and the settings changed just like other measurement
alarms, as described in the Alarms section. Special alarm features which apply only to arrhythmia are
described here.
The different alarms detected and generated by the monitor depend on the level of arrhythmia analysis
that is enabled. For a complete list of arrhythmia alarms and INOPs, see the Alarms chapter.
The monitor detects arrhythmia alarm conditions by comparing ECG data to a set of pre-defined
criteria. An alarm can be triggered by a rate exceeding a threshold (for example, HR >xx), an abnormal
rhythm (for example, Ventricular Bigeminy), or an ectopic event (for example, Pair PVCs).
112
Arrhythmia Alarms
6 ECG, Arrhythmia, and ST Monitoring
Yellow Arrhythmia Alarms
Yellow arrhythmia alarms are short yellow alarms specific to arrhythmia-related patient conditions.
Depending on your monitor and Information Center revision, they may be shown with one or two
stars.
WARNING
When arrhythmia analysis is on, all yellow alarms connected with ECG are short (one-star). This
means that the yellow alarm lamp and the tones are active for a configured number of seconds only,
after which the blinking numeric and the alarm message remain for up to three minutes. Red alarms
behave as usual.
Arrhythmia Alarms and Latching
When using arrhythmia analysis, Visual Latching and Audible Latching should be on
for red alarms, or at least Visual Latching should be on. Because of the transient nature of
arrhythmia alarms, many arrhythmia conditions may go unnoticed if alarm latching is off. This setting
can only be changed in Configuration Mode.
Switching Individual Arrhythmia Alarms On and Off
Some arrhythmia alarms can be individually switched on or off. They are:
Pacer not capture, Pacer not pace, Non-Sustain VT, Vent Rhythm, Run PVCs, Pair PVCs, R-on-T
PVCs, V.Bigeminy, V.Trigeminy, Multif.PVCs, Pause, SVT, Irregular HR, Missed Beat, PVCs/min.
♦
To switch individual alarms on or off, in the Setup Arrhythmia menu, select the alarm from
the list to toggle between On and Off. The monitor displays the INOP message SOME ECG
ALRMS OFF.
Switching All Yellow Arrhythmia Alarms On or Off
All yellow arrhythmia alarms can be switched on and off together. To do this,
♦
In the Setup Arrhythmia menu, select All Yellow Off or All Yellow On.
Adjusting the Arrhythmia Alarm Limits
Some arrhythmia alarms have limits which can be individually adjusted. They are:
Vtach HR, Vtach Run, PVCs/min, Vent Rhythm, SVT HR, SVT Run, Asystole Thresh., Pause
Threshold.
1
To adjust alarm limits, in the Setup Arrhythmia menu, select the alarm to be adjusted.
2
Select the appropriate setting from the pop-up list.
Arrhythmia Alarm Timeout Periods
Normally, an arrhythmia alarm is announced when an alarm condition is detected. However, there are
certain situations that can inhibit the audible and visible indications of the alarm even though the
alarm condition was detected. These include:
• if a more serious alarm condition is active in the same chain
• if a timeout period is in effect for a particular alarm
• if a timeout period is in effect for a higher alarm in that chain.
113
6 ECG, Arrhythmia, and ST Monitoring
Arrhythmia Alarms
What is a Timeout Period?
Timeout periods are automatically started when a yellow arrhythmia alarm is detected. During this
period, the same alarm condition will not generate another alarm. Alarm conditions further down the
same arrhythmia alarm chain will also not generate an alarm, but alarms further up the chain will: see
“Arrhythmia Alarm Chaining” on page 115).
This setting can only be changed in Configuration Mode.
♦
To view the timeout period configured for your monitor, in the Setup Arrhythmia menu,
see the menu items TimeOut 1st and TimeOut 2nd.
♦
To reset the timeout period, select the Alarms Off or Pause Alarms permanent key and
then reselect it.
Resetting the Timeout Period
Switching alarms off and then on again cancels all visual and audible indicators and resets the timeout
periods.
Silencing an alarm cancels all visual and audible indicators, if the alarm condition is no longer present.
How are Yellow Arrhythmia Alarms Indicated?
When a yellow arrhythmia alarm is generated, it triggers visual and audible indicators.
Behavior of Unsilenced Arrhythmia Alarms
Yellow arrhythmia alarms are always set to latch visually for three minutes.
Yellow arrhythmia alarms that have not been silenced behave as explained in this table:
Alarm condition
Example
Configured time Short yellow alarm
out period
tone sounds ...
Alarm message
displayed ...
Single alarm instance
Non-sustained
V-tach
All settings
for 3 minutes (latching
time)
Continuous alarm condition HR LOW
All settings
Same intermittent alarm
condition, occurring
frequently (more than once
per minute)
2 minutes or less
Pair of PVCs
when alarm condition is
initially detected
3 minutes or more each time the alarm
condition is detected,
provided that the timeout
period has expired and the
alarm message has cleared
until the alarm condition
stops, plus a maximum of
3 minutes latching time
Behavior of Silenced Arrhythmia Alarms
If you silence a yellow arrhythmia alarm and the alarm condition still exists, the visual indicators
continue until the condition stops. You will not get a realarm for the same condition or another
condition lower down on the same chain until the alarm condition has stopped and reoccurred, and
the timeout period has expired.
If you silence a yellow arrhythmia alarm and the alarm condition has stopped, the visual indicators
are immediately cleared. Silencing an alarm does not reset its time out period, so you will not get a
realarm for the same condition or lower on the chain until the time out expires.
114
Arrhythmia Alarms
6 ECG, Arrhythmia, and ST Monitoring
Arrhythmia Alarm Chaining
When arrhythmia analysis is switched on, multiple alarm conditions may be present. Announcing all of
the detected alarm conditions would be confusing, and might hide a more serious condition. For this
reason, arrhythmia alarms are prioritized in three alarm “chains”: PVC Alarms; Beat Detection Alarms,
and Rate Alarms.
Only the highest priority alarm condition in each chain is announced. Lower priority alarms in the
same chain will not be announced while an alarm is active or during the configured timeout period. If
alarm conditions of equal severity from different chains are detected, the alarm condition that occurred
most recently is announced. The exception is Irregular HR, which only occurs if no other alarms are
occurring.
See “ECG, Arrhythmia, and ST Alarm Overview” on page 104 for information on which alarms are
included in the different arrhythmia options. See “Arrhythmia Alarm Timeout Periods” on page 113
for an explanation of how alarm timeouts work.
Red Arrhythmia Alarms
Asystole
Vent Fib/Tach
V-Tach
Extreme Tachy/Extreme Brady
higher priority
Yellow Arrhythmia Alarms
PVC Alarms Chain
Rate Alarms Chain
Non-sustain VT/
Vent Rhythm
Pause
SVT
HR High/ HR Low
Run PVCs
Pacer Not Captured/
Pacer Not Pacing/
Missed Beat
Pair PVCs
lower priority
Beat Detection Alarms Chain
R-on-T PVCs
Vent Bigeminy
Vent Trigeminy
PVCs > xx/min
Multiform PVCs
First level
timeout
period
(TimeOut
1st)
Second level
timeout
Irregular HR
period
(occurs only if no other (TimeOut
arrhythmia alarms are 2nd)
present)
– If there is an active Vent Bigeminy alarm, a PVCs > xx/min will not be triggered because it is
lower on the same chain. However, a high HR alarm will become active because it is on a
different chain.
– Higher priority alarms supersede previous alarms. For example, if a Vent Trigeminy alarm is active
and a Pair PVCs occurs, the Pair alarm will be activated.
115
6 ECG, Arrhythmia, and ST Monitoring
Arrhythmia Alarms
Understanding PVC-Related Alarms
PVC-related alarms are detected on the basis of the current ventricular heart rate and the number of
consecutive PVCs counted (referred to as PVC Runs). Changing one alarm limit automatically changes
linked alarm limits.
Example: This diagram illustrates the conditions under which PVC alarms would be generated if the
Vent Rhythm Run limit is set to 12, the V-Tach Run Limit is set to eight, and the V-Tach HR Limit
is set to 100.
Ventricular Heart Rate
V-Tach Run Limit
**Pair
PVCs
PVC =
2
** Non-Sustain
VT
PVC Run < 8
HR > 100
100
***V-Tach
PVC Run ≥ 8
HR > 100
** Run PVCs
PVC Run > 2 but ≤ 12
HR ≤ 100
1
2
3
4
5
6
7
8
9
** Vent Rhythm
PVC Run > 12
HR ≤ 100
10 11 12
Number of Consecutive PVCs (PVC Run)
V-Tach
Heart Rate
Limit
Ventricular Rhythm
Run Limit
You will see that
• if both the V-Tach Heart Rate Limit and the V-Tach Run Limit are exceeded, a red V-Tach alarm is
generated
• if the ventricular heart rate exceeds the V-Tach Heart Rate Limit but not the V-Tach Run Limit, a
yellow Non-Sustain VT alarm is generated.
116
About ST Monitoring
6 ECG, Arrhythmia, and ST Monitoring
About ST Monitoring
The monitor performs ST segment analysis on normal and atrially paced beats and calculates ST
segment elevations and depressions. This information can be displayed in the form of ST numerics and
snippets on the monitor.
All available leads can be monitored continuously. The ECG waveform does not need to be displayed
on the Screen for ST Segment analysis.
ST segment monitoring is intended for use with adult patients only and is not clinically validated for
use with neonatal and pediatric patients. For this reason, the recommended - and default - setting for
ST monitoring in neonatal and pediatric modes is ST Analysis: Off.
ST analysis is always performed using a dedicated filter which ensures diagnostic quality. If you are
monitoring ECG using an ECG filter mode other than Diagnostic, the ST segment of the ECG wave
may look different from the ST segment of the ST snippet for the same wave. For diagnostic evaluation
of the ST segment, always switch to Diagnostic filter mode or use the ST snippet.
WARNING
Some clinical conditions may make it difficult to achieve reliable ST monitoring, for example:
• if you are unable to get a lead that is not noisy
• if arrhythmias such as atrial fib/flutter are present, which may cause an irregular baseline
• if the patient is continuously ventricularly paced
• if the patient has left bundle branch block.
You should consider switching ST monitoring off if these conditions are present.
This monitor provides ST level change information; the clinical significance of the ST level change
information should be determined by a physician.
Switching ST On and Off
♦
To switch all ST monitoring on or off, in the Setup ST Analysis menu, select ST Analysis
to toggle between On and Off.
Selecting ST Leads for Analysis
♦
To switch ST monitoring for individual leads on or off, in the Setup ST Analysis menu,
select Setup ST Leads. In the pop-up window, the leads in the left column under Choices
are the leads you can choose from, and the leads in the right-hand column Selected are the
leads chosen to be displayed. Select the ST leads on the left and use the arrow keys to move the
leads from one list to the other, then select Done to apply the changes.
117
6 ECG, Arrhythmia, and ST Monitoring
Understanding the ST Display
Understanding the ST Display
Your monitor screen may be configured to look slightly different from the illustrations.
ST Numerics Up to 12 ST numerics plus the
ST index can be displayed on the monitor
screen. They can be configured to show beside
the measurement numerics, beside the ECG
wave, or beside the ST snippet.
A positive ST value indicates ST segment
elevation; a negative value indicates depression.
Current heart rate
Current HR
alarm limits
ST numerics
ST-II
1.2
ST-V
2.5
ST-aVR -3.0
ST numerics are displayed in the order in
which you select ST leads for analysis. If there
is additional space in the field assigned to ST numerics, the monitor will display extra numerics in the
order in which they appear in the Setup ST Analysis -> Setup ST Leads -> Choices
list. Any ST leads switched on for analysis that do not fit in the assigned numerics field are shown in
succession in place of the last ST numeric.
ST Index The ST index numeric (STindx) is the sum of the absolute values for the ST leads V2, V5,
aVF. Because it is based on absolute values, it is always a positive number. If you haven’t selected one of
the leads V2, V5, and aVF for ST analysis, the STindx numeric will display a question mark “?”.
♦
To switch the ST index numeric on or off for display, in the Setup ST Analysis menu,
select ST-Index to toggle between On and Off.
ST Snippets ST snippets show a one second wave segment for each measured ST lead. The most
recent snippet is drawn in the same color as the ECG wave, usually green, superimposed over the
stored baseline snippet, drawn in a different color. The comparison shows any deviation in the
measurement since the baseline snippet was stored, for example as a result of a procedure carried out on
the patient.
The information is updated once per minute.
If you do not see ST snippets on the Screen, select the Screen name in the Monitor Info Line and select
a Screen configured to show snippets from the pop-up list of available Screens.
ST Baseline Window The ST Baseline Window shows an ST snippet drawn on a grid. The current
ST numeric and the ST numeric stored with the baseline are shown, as well as the difference between
these two numerics.
A “?” in front of the difference numeric indicates that the ST measurement points were adjusted since
the baseline snippet was stored.
The Baseline Window opens with the ST pop-up keys Update Baseline, Record ST,
Change ST Lead, Adjust ST Points, ST Map and arrow keys for scrolling through the
available leads.
♦
118
To view the ST Baseline window, select any snippet on the Screen.
Updating ST Baseline Snippets
ST label and
numeric
Baseline ST numeric
and difference since
baseline was stored
6 ECG, Arrhythmia, and ST Monitoring
ST Baseline
ST-II
-0.8
1.9
?-2.7
1mV calibration
bar
Current snippet
ST baseline
ST Baseline stored at 14 Feb 03 9:38
Timestamp of most recently stored baseline snippet
Updating ST Baseline Snippets
ST analysis requires valid samples to measure and store a snippet. ST Snippets and ST values are
updated every minute. If there is artifact in the signal, it may take longer for an ST snippet and an ST
value to appear.
The first baseline is stored automatically after ST monitoring is started, or when a new patient is
admitted. To update ST baselines,
1
Select an ST snippet to open the ST Baseline window.
2
In the ST Baseline window, select Update Baseline to store all current snippets as
baselines. This deletes all previously-stored baselines.
Recording ST Segments
♦
To record all currently available ST snippets and baselines, in the ST Baseline window, select
the pop-up key Record ST.
119
6 ECG, Arrhythmia, and ST Monitoring
About the ST Measurement Points
About the ST Measurement Points
The ST value for each beat complex is the vertical difference between the ISO point and the ST point,
as shown in the diagram below. The isoelectric (ISO) point provides the baseline, the ST point is at the
midpoint of the ST segment. The J point is where the QRS complex changes its slope; as it is a fixed
distance away from the ST point, it can be useful to help you position the ST point correctly.
R-wave peak at 0 msec
J point, for example, 48 msec
T
P
Difference = ST value
Q
S
Isoelectric point set to -80 msec
ST measurement point, for example, J + 60 msec
CAUTION The ST measurement points need to be adjusted when you start monitoring, and if the patient's heart
rate or ECG morphology changes significantly, as this may affect the size of the QT interval and thus
the placement of the ST point. Artifactual ST segment depression or elevation may occur if the
isoelectric point or the ST point is incorrectly set.
Always ensure that ST measurement points are appropriate for your patient.
Adjusting ST Measurement Points
Depending on your monitor’s configuration, the ST point can be positioned either
• relative to the J-point.
In the Adjust ST Points window, the pop-up keys ISO Point, J Point and ST Point are
visible and can be adjusted.
or
• directly. by selecting a numeric value for the ST point.
In the Adjust ST Points window, you can adjust the ISO and ST point.
The ST Uses setting can only be changed in Configuration Mode.
To adjust the ST measurement points,
120
1
In the Setup ST Analysis menu, select Adjust ST Points to open the Adjust ST
Points window. Alternatively, you can use the Adjust ST Points pop-up key in the ST
Baseline window.
2
Select a suitable ECG lead for ST measurement, with a visible J-point and a visible P wave. Use the
up and down arrow keys to scroll through the ST snippets for the other ECG leads.
About the ST Measurement Points
3
6 ECG, Arrhythmia, and ST Monitoring
Use the Select Point pop-up key to scroll through the points and activate the point you need
to adjust, then use the left and right arrow keys to move the measurement point. Each point is
highlighted while active.
ST label and the ST
numeric that would
apply using the
current points
Adjust ST Points
ST-I
0.0
1mV
calibration
bar
Cursors for
adjusting ST
points
Timestamp of
most recent ST
point adjustment
ST Points adjusted at 04 Apr 03 11:38
ISO Point -80
J Point 48
ST Point J+60
Highlighted ST point
ISO
The ISO-point cursor positions the isoelectric point relative to the R-wave
peak. The relation is shown beside the ISO-point in milliseconds. Position the
ISO-point in the middle of the flattest part of the baseline (between the P and
Q waves or in front of the P wave).
The J-point cursor positions the J-point relative to the R-wave peak. It helps
you to correctly position the ST-point. Position the J-point at the end of the
QRS complex and the beginning of the ST segment.
The J-point cursor is not available if your monitor is configured to let you set
the ST point directly.
To position the ST-point relative to the J-point:
select either J + 60 or J + 80. Select J Point and use the arrow keys
to move the J-Point and position the ST-point at the midpoint of the ST
segment.
To position the ST-point directly:
select ST Point and use the left and right arrow keys to position the ST
point at the midpoint of the ST segment.
4
Select the Apply Changes pop-up key to activate the new ST measurement points and
recalculate all ST values.
The most recent ST Points adjustment time is displayed in the Adjust ST Points window.
This information is cleared when a patient is discharged or when a new Profile is loaded into the
monitor.
121
6 ECG, Arrhythmia, and ST Monitoring
5
ST Alarms
To update the ST snippet shown in the Adjust ST Points window, select the Update pop-up
key.
ST Alarms
ST alarms are yellow alarms. Each ST lead has its own alarm limit. ST alarms are triggered when an ST
value exceeds its alarm limit for more than one minute. Switching ST alarms off switches off alarms for
all ST leads.
If more than one ST measurement is in alarm, the monitor only displays the alarm message of the ST
lead which is currently furthest from its set alarm limits.
Single- or Multi-lead ST Alarming
Be aware that if multi-lead ST alarming is switched on, only alarms involving more than one ST lead
will be announced.
To choose individual or multi-lead ST alarming,
♦
In the Setup ST Analysis menu, select ST Alarm Mode and select either Single ST or
Multi ST.
Changing ST Alarm Limits
The monitor can detect alarms on each ST lead separately, so you can set high and low ST alarm limits
individually for each ST lead. You can also set separate alarm limits for single-lead and multi-lead ST
monitoring. Set the high and low alarm limits based on your assessment of the patient's clinical
condition, unit protocols, physician orders or medication specified limits. A good guideline is + 1.0
mm or - 1.0 mm from the patients's ST, or follow your hospital protocol.
1
In the Setup ST Analysis menu, select ST Alarm Mode and select Single ST or
Multi ST.
2
Select the alarm to be adjusted.
3
Select the appropriate setting.
Viewing ST Maps
The monitor can derive a multi-axis portrait (map) from the ST analysis to help you detect changes in
ST values. It displays two planes obtained from a multilead ECG in a multi-axis diagram, where each
axis represents a lead. The ST value at the J point is given. The position of the axes within the diagram
correspond to the placement of the ECG leads. Each ST value is assigned to either a limb lead, or to a
chest lead. Every axis shows the polarity of the lead it represents. By joining adjacent ST values, the
monitor obtains the ST map. The contour line, and the map shading, is shown in the same color as the
ECG parameter.
Current View
In current view, the monitor displays an ST map that corresponds to the current ST values. Three or
more leads per plane are necessary to display a map.
The left of the following diagram shows leads I, II, III, aVR, aVL, and aVF on the limb leads. On the
right, the V-leads (V1, V2, V3, V4, V5, and V6) are on the chest leads.
122
Viewing ST Maps
6 ECG, Arrhythmia, and ST Monitoring
alarm status
indicator
12-Lead EASI indicator
ST index (for EASI)
ST Map (Current)
EASI Limb leads
ST map
EASI Chest Leads
ST label, value and polarity of
corresponding lead
If an ST lead is switched off, its axis is not shown in the map.
If a lead is in INOP (the value is being measured but is invalid or unavailable because, for example, the
corresponding ECG electrode is unplugged), the area formed by the remaining ST leads is left open.
Trend View
In trend view, you can see up to four trended ST maps, and the current ST map, simultaneously. You
can configure the time interval between trended samples. The most recent map is shown in the same
color as the parameter itself. Past values change from white through dark gray. In the diagram below,
the time interval between trends is 12 seconds. The first trended sample is white and is 12 seconds old.
The second trended sample corresponds to the ST values 24 seconds ago and so forth. The ST values
on the diagrams show the current ST values.
123
6 ECG, Arrhythmia, and ST Monitoring
Viewing ST Maps
If a lead is turned off, its axis is no longer shown. This has no impact on the presentation of trended
values that were recorded while the lead was still on. In the diagram below, lead V4 was switched off 20
seconds ago. The current ST values and the first trended value reflect this change in the lead setup. All
other maps are displayed the way in which they were recorded.
ST Map (Trend)
Chest Leads
Limb Leads
Interval
12 sec
trending interval
current ST values
In this diagram, V4 was either temporarily switched off, or in INOP, for
around 30 seconds. No data was recorded. Consequently, the affected maps
are not closed.
Viewing an ST Map
To display an ST map,
♦
In the Setup ST Analysis menu, select ST Map.
Working in the ST Map Task Window
You may need to activate the ST map task window to see all the data, and to access the pop-up keys.
Select the map view on screen to activate its task window. Once you activate it, you can perform the
tasks detailed here.
Switching Between ST Map Views
To switch between views,
♦
Select Current View or Trend View to toggle between views.
If your trend view is empty, you need to adjust the priority of this measurement in the trending
priority list. See “Trend Priority” on page 227.
124
Viewing ST Maps
6 ECG, Arrhythmia, and ST Monitoring
Displaying an ST Reference Baseline
You can display an ST reference baseline for the current view, or for the trended view. The baseline is
shown in yellow. However, if the ECG color is yellow, the baseline is shown in green. Use this baseline
to detect ST changes. The baseline is derived automatically whenever the monitor relearns arrhythmia
and also on user request.
♦
Select Show Baseline/Hide Baseline to toggle between baseline display on and off.
Updating an ST Map Reference Baseline
To update the baseline,
♦
In the Setup ST Analysis menu, select ST Baseline -> Update baseline.
Changing the Scale of the ST Map
To change scale,
♦
Select Size Up or Size Down to alter the size at which monitor displays the map.
Changing the Trending Interval
To determine how frequently the monitor displays a trended sample,
1
In Trend view, select Select Interval.
2
Select the required interval from the menu. The interval ranges between 12 seconds to 30 minutes.
Printing an ST Map Report
To print the most recently viewed (current or trend) window,
1
Select Main Setup - > Reports.
2
Select ST Map.
3
Press Print.
125
6 ECG, Arrhythmia, and ST Monitoring
126
Viewing ST Maps
7
Monitoring Pulse Rate
7
The pulse numeric counts the arterial pulsations that result from the mechanical activity of the heart in
beats per minute (bpm). You can display a pulse from any measured SpO2 signal (pleth wave) or any
arterial pressure (ABP, ART, Ao, BAP, FAP, PAP, UAP, P: see the pressure section for an explanation
of the pressure labels). The displayed pulse numeric is labeled and color-coded to match its source
wave. If the pulse numeric is not displayed, see the Setup Pulse menu to check whether it is
switched on.
Entering the Setup Pulse Menu
If a pulse numeric is displayed on the screen, select it to enter the Setup Pulse (Pulse Source)
menu. If no pulse numeric is visible, in the Setup SpO2 menu or an Setup arterial pressure menu,
select Pulse (Pulse Source).
System Pulse Source
The currently active system pulse source is shown in the setup menus of the pulse source
measurements. The pulse rate chosen as system pulse:
• is monitored as system pulse and generates alarms when you select pulse as the active alarm source
• is sent via the network to the Information Center, if available
• is trended in the HighRes Trends and stored in the monitor’s databases.
To define which pulse rate is used as system pulse,
1
In the Setup Pulse menu, select System Pulse.
2
Select one of the SpO2 or arterial pressure labels from the pop-up list, or select Auto.
If you select Auto, the monitor automatically chooses a pulse rate to be used as system pulse. It
looks through the list from top to bottom and activates the first pulse rate that is switched on and
available.
127
7 Monitoring Pulse Rate
Switching Pulse On and Off
Switching Pulse On and Off
To switch a particular pulse numeric on or off, enter the Setup Pulse menu via the measurement
setup menu or wave menu of the pulse source. For example, to switch an SpO2 pulse numeric on or
off,
1
Enter the Setup Pulse menu by selecting the Pulse numeric or by selecting Pulse in the
Setup SpO2 menu.
2
In the Setup Pulse menu, select Pulse (Pulse source) to toggle between On and
Off.
To switch the system pulse on or off, in any Setup Pulse (Pulse Source) menu, check
which measurement is currently selected as pulse source. Enter the Setup Pulse menu for this
pulse source and then switch off the pulse measurement as described.
Using Pulse Alarms
You can change pulse rate alarm limits in the Setup Pulse menu accessed via any Pulse source, or
in the Setup ECG menu. Changing the alarm limits for a specific Pulse numeric changes the alarm
limits for all pulse rate alarms and heart rate alarms.
Pulse alarms are only generated when the active alarm source is set to Pulse and a pulse source is set as
system pulse.
Selecting the Active Alarm Source: HR or Pulse?
In most cases the HR and Pulse numerics are identical. In order to avoid simultaneous alarms on HR
and Pulse, the monitor uses either HR or Pulse as its active alarm source. To change the alarm source,
select Alarm Source in the Setup ECG or Setup Pulse menu, then select either
• HR: if you want the HR to be the alarm source for HR/Pulse.
• Pulse: If you select Pulse as the active alarm source, the monitor will prompt you to confirm your
choice. Be aware that if you select Pulse as the alarm source, all arrhythmia and ECG HR alarms are
switched off.
• Auto: If the Alarm Source is set to Auto, the monitor will use the heart rate from the ECG
measurement as the alarm source whenever the ECG measurement is switched on and no ECG
LEADS OFF INOP is active.
The monitor will automatically switch to Pulse as the alarm source if:
– a Pulse source is switched on and available,
and
– the heart rate becomes unavailable and the ECG LEADS OFF inop is active.
The monitor then uses the pulse rate from the measurement currently selected as system pulse.
While Pulse is the alarm source, all arrhythmia and ECG HR alarms are switched off. If the HR
becomes available again, the monitor automatically uses this as alarm source.
128
Using Pulse Alarms
WARNING
7 Monitoring Pulse Rate
Selecting Pulse as the active alarm source for HR/Pulse switches off the arrhythmia alarms listed in the
section “ECG, Arrhythmia, and ST Alarm Overview” on page 104, and the heart rate alarms. This is
indicated by the message All ECG Alarms Off (unless this has been configured off for your
monitor), and the crossed-out alarm symbol beside the ECG heart rate numeric.
High and low pulse rate and extreme bradycardia and extreme tachycardia alarms from pulse are active.
Alarm Source Selection Disabled
If Alarm Source Selection is disabled, you cannot change the alarm source. If you try to change the
source, the monitor displays the message To activate enter Config and enable
AlarmSourceSel. This setting can only be changed in Configuration Mode.
Changing HR/Pulse Alarm Limits
As Pulse and HR share the same high and low alarm limits, if you change the alarm limit in the
Setup Pulse menu, the high or low alarm limits for HR in the Setup ECG menu change
automatically, and vice versa. The only exceptions are caused by a low limit clamp for each
measurement: the lowest value for Pulse when derived from SpO2 is 30 bpm; for HR 15 bpm, and for
Pressure 25 bpm.
Extreme Alarm Limits
The extreme rate alarms, Extreme Tachy and Extreme Brady, generated by the active alarm source,
either HR or Pulse, are set in Configuration Mode by adding a set value to the high and low alarm
limits. You need to know what value has been configured for your monitor. Changing the high and
low alarm limits automatically changes the extreme alarm limits within the allowed range.
♦
To see the values added to the high and low limit alarms to create the extreme rate alarms for your
monitor, in the Setup ECG menu, see the menu items ∆ExtrTachy and ∆ExtrBrady.
QRS Tone
The active alarm source is also used as a source for the QRS tone. You can change the tone volume in
the Setup SpO2 and Setup ECG menus and the QRS tone modulation in the Setup SpO2 menu.
129
7 Monitoring Pulse Rate
130
Using Pulse Alarms
8
Monitoring Respiration Rate
(Resp)
8
For the respiratory measurement (Resp), the monitor measures the thoracic impedance between two
ECG electrodes on the patient’s chest. Changes in the impedance due to thoracic movement produce
the Resp waveform on the monitor screen. The monitor counts the waveform cycles to calculate the
respiration rate (RR).
Lead Placement for Monitoring Resp
Correct patient skin preparation techniques for electrode placement are important for Resp
measurement: you will find this information in the chapter on ECG.
The Resp measurement uses the standard ECG cable sets and lead placements. You can use any of the
different types of ECG cable sets - 3-lead, 5-lead, or 10-lead, using either standard or EASI™
placement - to measure Resp, as long as you use ICU ECG cables.
The Resp signal is always measured between two of the ECG electrodes. If you are using standard ECG
electrode placement, Resp is measured between the RA and LL electrodes. If you are using EASI™
ECG electrode placement, Resp is measured between the I and A electrodes.
Optimizing Lead Placement for Resp
If you want to measure Resp and you are already measuring ECG, you may need to optimize
placement of the two electrodes between which Resp will be measured for some patients. Repositioning
ECG electrodes from standard positions, especially when you are using EASI™ ECG electrode
placement, results in changes in the ECG waveform and may influence ST and arrhythmia
interpretation.
Cardiac Overlay
Cardiac activity that affects the Resp waveform is called cardiac overlay. It happens when the Resp
electrodes pick up impedance changes caused by the rhythmic blood flow. Correct electrode placement
can help to reduce cardiac overlay: avoid the liver area and the ventricles of the heart in the line
between the respiratory electrodes. This is particularly important for neonates.
131
8 Monitoring Respiration Rate (Resp)
Understanding the Resp Display
Lateral Chest Expansion
Some patients, especially neonates, expand
their chests laterally. In these cases it is best
to place the two respiratory electrodes in the
right midaxillary and left lateral chest areas at
the patient’s maximum point of breathing
movement to optimize the respiratory wave.
Abdominal Breathing
Some patients with restricted chest movement breathe mainly abdominally. In these cases, you may
need to place the left leg electrode on the left abdomen at the point of maximum abdominal expansion
to optimize the respiratory wave.
Understanding the Resp Display
The Resp measurement is displayed on the monitor as a continuous wave and a numeric respiration
rate. If the detected respiration rate is close to the heart rate, this is indicated by the text HR = RR next
to the respiration wave if you are in manual monitoring mode. Your monitor screen may look slightly
different from the illustration.
1 Ohm calibration bar
Manually-set Resp detection level
Resp numeric
and label
Resp
RR
1 Ohm
22
Changing Resp Detection Modes
The Resp detection level can be set either automatically or manually.
♦
To change the resp detection mode, in the Setup Resp menu, select Auto/Manual to toggle
between the settings.
Auto Detection Mode
In Auto Detection Mode, the monitor adjusts the detection level automatically, depending on the wave
height and the presence of cardiac artifact. Note that in Auto Detection Mode,
• the detection level (a dotted line) is not displayed on the waveform,
132
Changing the Size of the Respiration Wave
8 Monitoring Respiration Rate (Resp)
• the algorithm expects a heart rate and therefore needs at least 3 electrodes attached to the patient. If
you are monitoring respiration with only two electrodes, the detection algorithm becomes less
sensitive which may result in reduced breath detection performance.
Use Auto Detection Mode for situations where:
• the respiration rate is not close to the heart rate
• breathing is spontaneous, with or without continuous positive airway pressure (CPAP)
• patients are ventilated, except patients with Intermittent Mandatory Ventilation (IMV).
Manual Detection Mode
In Manual Detection Mode you must set the Resp detection level.
♦
In the Setup Resp menu, select Manual Up or Manual Down. Use the dotted detection level
line in the Resp waveform to determine when the desired level is reached.
Once set, the detection level will not adapt automatically to different respiration depths. It is important
to remember that if the depth of breathing changes, you may need to change the detection level.
Use Manual Detection Mode for situations where:
• the respiration rate and the heart rate are close.
• patients have Intermittent Mandatory Ventilation.
• respiration is weak. Try repositioning the electrodes to improve the signal.
Resp Detection Modes and Cardiac Overlay
In Auto Detection Mode: If you are monitoring Resp and the ECG is switched off, the monitor
cannot compare the ECG and Resp rates to detect cardiac overlay. The respiration detection level is
automatically set higher to prevent the detection of cardiac overlay as respiration.
In Manual Detection Mode: Cardiac overlay can in certain situations trigger the respiration counter.
This may lead to a false indication of a high respiration rate or an undetected apnea condition. If you
suspect that cardiac overlay is being registered as breathing activity, raise the detection level above the
zone of cardiac overlay. If the Resp wave is so small that raising the detection level is not possible, you
may need to optimize the electrode placement as described in the section ”Lateral Chest Expansion”.
Changing the Size of the Respiration Wave
WARNING
When monitoring in Manual Detection Mode, make sure to check the respiration detection level after
you have increased or decreased the size of the respiration wave.
♦
In the Setup Resp menu, select Size Up to increase the size of the wave or Size Down to
decrease it.
133
8 Monitoring Respiration Rate (Resp)
Changing the Speed of the Respiration Wave
Changing the Speed of the Respiration Wave
Resp waveforms are usually viewed at a slower speed than other waveforms. For this reason, the Resp
measurement has its own speed control and is not affected by the wave speed settings of the other
measurements.
♦
Select the Resp wave to enter the Resp Wave menu, then select Change Speed. Choose the
required speed from the pop-up list. This defines the speed at which the wave is drawn across the
screen in millimeters per second (mm/s).
Using Resp Alarms
Resp alarms can be switched on and off and the high and low alarm limits can be changed just like
other measurement alarms, as described in the Alarms chapter.
Changing the Apnea Alarm Delay
The apnea alarm is a high priority red alarm used to detect apneas. The apnea alarm delay time defines
the time period between the point where the monitor cannot detect any respiration activity and the
indication of the apnea alarm.
1
In the Setup Resp menu, select Apnea Time.
2
Select the appropriate setting.
Resp Safety Information
WARNING
Respiration detection level If you do not set the detection level for the respiration correctly in manual
detection mode, it may not be possible for the monitor to detect apnea. If you set the detection level
too low, the monitor is more likely to detect cardiac activity, and to falsely interpret cardiac activity as
respiratory activity in the case of apnea.
Apnea The respiration measurement does not recognize obstructive and mixed apneas — it only
indicates an alarm when a pre-adjusted time has elapsed since the last detected breath.
The safety and effectiveness of the respiration measurement method in the detection of apnea,
particularly the apnea of prematurity and apnea of infancy, has not been established.
Interference If operating under conditions according to the EMC Standard EN 60601-1-2 (Radiated
Immunity 3V/m), field strengths above 1V/m may cause erroneous measurements at various
frequencies. Therefore it is recommended to avoid the use of electrically radiating equipment in close
proximity to the respiration measurement unit.
Resp Accessories To monitor respiration, use only the non-OR ECG accessories listed in the Resp
section of the accessories chapter. You cannot measure respiration if you are using an orange OR ECG
cable set. This is because of the higher internal impedance of the OR cable set, required for use if
electro-surgery is being performed.
134
Resp Safety Information
8 Monitoring Respiration Rate (Resp)
Rate adaptive pacemakers: Implanted pacemakers which can adapt to the Minute Volume may
occasionally react on the Impedance measurement used by patient monitors for the determination of
the Resp value and execute pacing with the maximum programmed rate. Switching off the Resp
measurement can prevent this.
135
8 Monitoring Respiration Rate (Resp)
136
Resp Safety Information
9
Monitoring SpO2
9
Philips pulse oximetry uses a motion-tolerant signal processing algorithm, based on Fourier artefact
suppression technology (FAST). It provides four measurements:
• Oxygen saturation of arterial blood (SpO2) - percentage of oxygenated hemoglobin in relation to the
sum of oxyhemoglobin and deoxyhemoglobin (functional arterial oxygen saturation).
• Pleth waveform - visual indication of patient’s pulse.
• Pulse rate (derived from pleth wave) - detected pulsations per minute.
• Perfusion indicator - numerical value for the pulsatile portion of the measured signal caused by
arterial pulsation.
The monitors are also compatible with SpO2 technologies from other manufacturers. Please refer to the
instructions for use provided with these devices for further information.
SpO2 Sensors
Depending on the purchased SpO2 option, different sensors and adapter cables can be used. The
sensors for the different options are color-coded to match the connectors. See the section on
Accessories for a compatibility table.
Familiarize yourself with the instructions for use supplied with your sensor before using it. In
particular, check that the sensor being used is appropriate for your patient category and application
site.
CAUTION Do not use OxiCliq disposable sensors in a high humidity environment, such as in neonatal incubators
or in the presence of fluids, which may contaminate sensor and electrical connections causing
unreliable or intermittent measurements. Do not use disposable sensors on patients who have allergic
reactions to the adhesive. Always use the MAX-FAST forehead sensor with the foam headband
provided by Nellcor.
Applying the Sensor
1
Follow the SpO2 sensor’s instructions for use, adhering to all warnings and cautions.
2
Remove colored nail polish from the application site.
3
Apply the sensor to the patient. The application site should match the sensor size so that the sensor
can neither fall off, nor apply excessive pressure. When using the M1195A Infant Finger Sensor,
137
9 Monitoring SpO2
Connecting SpO2 Cables
select a finger or toe with a diameter of between 7 and 8 mm (0.27” and 0.31”). When applying a
M1193A neonatal sensor do not overtighten the strap.
4
WARNING
Check that the light emitter and the photodetector are directly opposite each other. All light from
the emitter must pass through the patient’s tissue.
Loose Sensor: If a sensor is too loose, it might compromise the optical alignment or fall off. If it is too
tight, for example because the application site is too large or becomes too large due to edema, excessive
pressure may be applied. This can result in venous congestion distal from the application site, leading
to interstitial edema, hypoxemia and tissue malnutrition. Skin irritations or lacerations may occur as a
result of the sensor being attached to one location for too long. To avoid skin irritations and
lacerations, periodically inspect the sensor application site and change the application site at least every
four hours.
Venous Pulsation: Do not apply sensor too tightly as this results in venous pulsation which may
severely obstruct circulation and lead to inaccurate measurements.
Ambient Temperature: Never apply an SpO2 sensor at ambient temperatures from above 37 oC
because this can cause severe burns after prolonged application.
Extremities to Avoid: Avoid placing the sensor on extremities with an arterial catheter, or intravascular
venous infusion line.
Connecting SpO2 Cables
♦
Connect the sensor cable to the color-coded socket on the
measurement device (MMS or module). If you are using a
disposable sensor, plug the sensor into the adapter cable and connect
this to the measurement device. Connect reusable sensors directly to
the measurement device.
SpO2
CAUTION Extension cables: Do not use more than one extension cable (M1941A). Do not use an extension cable
with Philips reusable sensors or adapter cables with part numbers ending in -L (indicates “long” cable
version).
Electrical Interference: Position the sensor cable and connector away from power cables, to avoid
electrical interference.
Humidity: For neonatal patients, make sure that all sensor connectors and adapter cable connectors are
outside the incubator. The humid atmosphere inside can cause inaccurate measurements.
Measuring SpO2
1
2
138
Select the correct patient category setting (adult/pediatric and neonatal), as this is used to optimize
the calculation of the SpO2 and pulse numerics.
During measurement, ensure that the application site:
– has a pulsatile flow, ideally with a perfusion indicator value above 1.0.
Assessing a Suspicious SpO2 Reading
9 Monitoring SpO2
– has not changed in its thickness (for example, due to edema), causing an improper fit of the
sensor.
WARNING
Inspect the application site every two to three hours to ensure skin quality and correct optical
alignment. If the skin quality changes, move the sensor to another site. Change the application site at
least every four hours.
Using an SpO2 sensor during MR imaging can cause severe burns. Minimize this risk by positioning
the cable so that no inductive loops are formed. If the sensor does not appear to be operating properly,
remove it immediately from the patient.
CAUTION Injected dyes such as methylene blue, or intravascular dyshemoglobins such as methemoglobin and
carboxyhemoglobin may lead to inaccurate measurements.
Interference can be caused by:
• High levels of ambient light. (Hint: cover application site with opaque material.)
• Electromagnetic interference.
• Excessive patient movement and vibration.
Assessing a Suspicious SpO2 Reading
Traditionally, pulse rate from SpO2 was compared with heart rate from ECG to confirm the validity of
the SpO2 reading. With newer algorithms, such as FAST-SpO2, this is no longer a valid criteria
because the correct calculation of SpO2 is not directly linked to the correct detection of each pulse.
When pulse rate is very low, or strong arrhythmia is present, the SpO2/Pleth pulse rate may differ from
the heart rate calculated from ECG but this does not indicate an inaccurate SpO2 value.
If you doubt the measured SpO2, use the pleth wave and perfusion indicator instead to assess the signal
quality.
139
9 Monitoring SpO2
Understanding SpO2 Alarms
Understanding SpO2 Alarms
This refers to SpO2 specific alarms. See the Alarms section for general alarm information. SpO2 offers
high and low limit alarms, and a high priority desat alarm. You cannot set the low alarm limit below
the desat alarm limit.
CAUTION If you measure SpO2 on a limb that has an inflated NBP cuff, a non-pulsatile SpO2 INOP can occur.
If the monitor is configured to suppress this alarm there may be a delay of up to 60 seconds in
indicating critical patient status, such as sudden pulse loss or hypoxia.
Alarm Delays
There is a delay between a physiological event at the measurement site and the corresponding alarm at
the monitor. This delay has two components:
• The time between the occurrence of the physiological event and when this event is represented by
the displayed numerical values. This delay depends on the algorithmic processing and the
configured averaging time. The longer the averaging time configured, the longer the time needed
until the numerical values reflect the physiological event.
• The time between the displayed numerical values crossing an alarm limit and the alarm indication
on the monitor. This delay is the combination of the configured alarm delay time plus the general
system delay time (see “Monitor Performance Specifications” on page 342).
Adjusting the Alarm Limits
In the Setup SpO2 menu:
• Select High Limit then choose the upper alarm limit.
• Select Low Limit then choose the lower alarm limit.
WARNING
High oxygen levels may predispose a premature infant to retrolental fibroplasia. If this is a
consideration do NOT set the high alarm limit to 100%, which is equivalent to switching the alarm
off. Transcutaneous pO2 monitoring is recommended for premature infants receiving supplemental
oxygen.
Adjusting the Desat Limit Alarm
The Desat alarm is a high priority (red) alarm notifying you of potentially life threatening drops in
oxygen saturation.
1
In the Setup SpO2 menu, select Desat Limit.
2
Adjust the limit.
Pleth Wave
The Pleth wave is autoscaled to maximum display size. It decreases only when the signal quality
becomes marginal. It is NOT directly proportional to the pulse volume. If you need an indication of
change in pulse volume, use the perfusion indicator.
140
Perfusion (Pleth) Indicator
9 Monitoring SpO2
minimum size for reliable SpO2 value
Perfusion (Pleth) Indicator
The perfusion indicator gives a numerical value for the pulsatile portion of the measured signal caused
by the pulsating arterial blood flow.
As pulse oximetry is based on the pulsatile nature of the signal, you can also use the perfusion indicator
as a quality indicator for the SpO2 measurement. Above 1 is optimal, between 0.3-1 is acceptable.
Below 0.3 is marginal; reposition the sensor or find a better site.
Setting SpO2/Pleth as Pulse Source
1
In the Setup SpO2 menu, select Pulse (SpO2) to enter the Setup Pulse menu.
2
In the Setup Pulse menu, select System Pulse and select SpO2 from the pop-up list.
Setting Up Tone Modulation
If tone modulation is on, the QRS tone pitch lowers when the SpO2 level drops. Remember, the QRS
tone is derived from either heart rate or pulse depending on which is currently selected as the active
alarm source.
♦
In the Setup SpO2 menu, select Tone Modulation to toggle between Yes (for on) and No
(for off ).
Tone modulation is licensed under US patent US 4,653,498 from Nellcor Puritan Bennett
Incorporated, a Tyco Healthcare company.
Setting the QRS Volume
♦
In the Setup SpO2 menu, select QRS Volume and set the appropriate QRS tone volume.
Calculating SpO2 Difference
When a second SpO2 measurement is present (either through the SpO2 module or through VueLink),
the monitor displays both SpO2 values, and calculates the difference between them. The second value
is subtracted from the first.
141
9 Monitoring SpO2
142
1
From the Main Setup menu, select Measurements.
2
From the ∆SpO2 Setup menu, select First SpO2.
3
Choose the first measurement source.
4
Select Second SpO2.
5
Choose the second measurement source.
Calculating SpO2 Difference
10
Monitoring NBP
10
This monitor uses the oscillometric method for measuring NBP. In adult and pediatric mode, the
blood pressure measurements determined with this device comply with the American National
Standard for Electronic or Automated Sphygmomanometers (ANSI/AAMI SP10-1992) in relation to
mean error and standard deviation, when compared to intra-arterial or auscultatory measurements
(depending on the configuration) in a representative patient population. For the auscultatory reference,
the fifth Korotkoff sound was used to determine the diastolic pressure.
In neonatal mode, the blood pressure measurements determined with this device comply with the
American National Standard for Electronic or Automated Sphygmomanometers (ANSI/AAMI SP101992) in relation to mean error and standard deviation, when compared to intra-arterial measurements
in a representative patient population.
The NBP measurement is suitable for use in the presence of electrosurgery and during the discharge of
a cardiac defibrillator according to IEC 601-2-30/EN 60601-2-30.
A physician must determine the clinical significance of the NBP information.
Introducing the Oscillometric NBP Measurement
Oscillometric devices measure the amplitude of pressure changes in the occluding cuff as the cuff
deflates from above systolic pressure. The amplitude suddenly increases as the pulse breaks through the
occlusion in the artery. As the cuff pressure decreases further, the pulsations increase in amplitude,
reach a maximum (which approximates to the mean pressure), and then diminish.
Studies show that, especially in critical cases (arrhythmia, vasoconstriction, hypertension, shock),
oscillometric devices are more accurate and consistent than devices using other noninvasive measuring
techniques.
WARNING
Patient Category: Select the correct patient category setting for your patient. Do not apply the higher
adult inflation, overpressure limits and measurement duration to neonatal patients.
Intravenous infusion: Do not use the NBP cuff on a limb with an intravenous infusion or arterial
catheter in place. This could cause tissue damage around the catheter when the infusion is slowed or
blocked during cuff inflation.
Skin Damage: Do not measure NBP on patients with sickle-cell disease or any condition where skin
damage has occurred or is expected.
Unattended measurement: Use clinical judgement to decide whether to perform frequent unattended
blood pressure measurements on patients with severe blood clotting disorders because of the risk of
hematoma in the limb fitted with the cuff.
143
10 Monitoring NBP
Preparing to Measure NBP
CAUTION If you spill liquid onto the equipment or accessories, particularly if there is a chance that it can get
inside the tubing or the MMS, contact your service personnel.
Measurement Limitations
Measurements are impossible with heart rate extremes of less than 40 bpm or greater than 300 bpm, or
if the patient is on a heart-lung machine.
The measurement may be inaccurate or impossible:
• if a regular arterial pressure pulse is hard to detect
• with cardiac arrhythmias
• with excessive and continuous patient movement such as shivering or convulsions
• with rapid blood pressure changes
• with severe shock or hypothermia that reduces blood flow to the peripheries
• with obesity, where a thick layer of fat surrounding a limb dampens the oscillations coming from the
artery
• on an edematous extremity.
Measurement Methods
There are three methods of measuring NBP:
• Manual - measurement on demand.
• Auto - continually repeated measurements (between one and 120 minute adjustable interval).
• STAT - rapid series of measurements over a five minute period, then the monitor returns to the
previous mode. Use only on supervised patients.
Reference Method
The NBP measurement reference method can be Auscultatory (manual cuff) or Invasive (intraarterial). For further information, see the Application Note on NBP supplied on the monitor
documentation CD-ROM.
In Adult and Pediatric mode to check the current setting, select Main Setup -> Measurements
-> NBP, and check whether the Reference setting is set to Auscultatory or Invasive. This
setting can only be changed in Configuration Mode.
In Neonatal mode, to comply with safety standards, invasive is always used as the reference method.
This setting cannot be changed and is not visible in any operating mode.
Preparing to Measure NBP
144
1
Connect the cuff to the air tubing.
2
Plug the air tubing into the red NBP connector. Avoid compression or restriction of pressure tubes.
Air must pass unrestricted through the tubing.
Preparing to Measure NBP
10 Monitoring NBP
NBP
3
Make sure that you are using a Philips-approved correct sized cuff and that the bladder inside the
cover is not folded or twisted.
A wrong cuff size, and a folded or twisted bladder, can cause inaccurate measurements. The width
of the cuff should be in the range from 37% to 47% of the limb circumference. The inflatable part
of the cuff should be long enough to encircle at least 80% of the limb.
4
Apply the cuff to a limb at the same level as the patient’s heart. If it is not, you must use the
measurement correction formula to correct the measurement.
The marking on the cuff must match the artery location. Do not wrap the cuff too tightly around
the limb. It may cause discoloration, and ischemia of the extremities. Inspect the application site
regularly to ensure skin quality and inspect the extremity of the cuffed limb for normal color,
warmth and sensitivity. If the skin quality changes, or if the extremity circulation is being affected,
move the cuff to another site or stop the blood pressure measurements immediately. Check more
frequently when making automatic or stat measurements.
Correcting the Measurement if Limb is not at Heart Level
To correct the measurement if the limb is not at heart level, to the displayed value
add 0.75mmHg (0.10kPa) for each centimeter
higher or
deduct 0.75mmHg (0.10kPa) for each centimeter
lower or
add 1.9mmHg (0.25kPa) for each inch higher.
deduct 1.9mmHg (0.25kPa) for each inch lower.
Understanding the NBP Numerics
Alarm source
Sys.
NBP
Measurement Mode
mmHg Cuff Auto
151 Auto
60min
17:15
Timestamp/
Timer
Mean
120
90
Alarm limits
Systolic
Diastolic
Mean pressure
Depending on the NBP numeric size, not all elements may be visible. Your monitor may be configured
to display only the systolic and diastolic values.
Alarm Sources if you have parallel alarm sources, the sources are displayed instead of the alarm limits.
NBP Timestamp depending on the configured NBP Time setting, the time shown beside the NBP
numeric can be:
145
10 Monitoring NBP
Starting and Stopping Measurements
– Meas Time: the time of the most recent NBP measurement, or
– Next Meas: the time until the next measurement in an
automatic series, displayed with a graphic representation of the
remaining time, as shown here.
During measurements the cuff pressure is displayed instead of the units and the repeat time. An early
systolic value gives you a preliminary indication of the systolic blood pressure during measurement.
Starting and Stopping Measurements
Use the Setup menu, SmartKeys or the MMS hardkey to start and stop measurements.
Action to be performed
NBP Setup menu
Start/Stop manual measurement
Start/Stop
SmartKeys
MMS hardkey
Start/Stop
Start Auto series
Stop current automatic
measurement
Stop Automatic, Manual or STAT Stop All
measurement AND series
---
Start STAT measurement
NBP STAT
STAT (for MMS
without Pressure/Temp
measurement)
Stop current STAT measurement
and end series
Start/Stop
Start/Stop
NBP STAT
STAT (for MMS
without Pressure/Temp
measurement)
CAUTION Use clinical judgement to decide whether to perform repeated series of STAT measurements because of
the risk of purpura, ischemia and neuropathy in the limb with the cuff.
Enabling Automatic Mode and Setting Repetition
Time
146
1
In the Setup NBP menu, select Auto/Man.
2
Toggle between Auto/Man, if necessary, to pick the measurement method.
3
If making an automatic measurement, select Repeat Time and set the time interval between two
measurements.
Choosing the NBP Alarm Source
10 Monitoring NBP
Choosing the NBP Alarm Source
You can monitor for alarm conditions in systolic, diastolic and mean pressure, either singly or in
parallel. Only one alarm is given, with the priority of mean, systolic, diastolic. In the Setup NBP
menu, select Alarms from and choose from:
Menu option Pressure value monitored
Sys.
systolic
Dia.
diastolic
Mean
mean
Sys&Dia
systolic and diastolic in parallel
Dia&Mean
diastolic and mean in parallel
Sys&Mean
systolic and mean in parallel
S&D&M
all three pressures in parallel
Assisting Venous Puncture
You can use the NBP cuff to cause sub-diastolic pressure. The cuff deflates automatically after a set
time (adult/pediatric 170 seconds, neonatal 85 seconds) if you do not deflate it.
1
In the NBP Setup menu select VeniPuncture.
2
Puncture vein and draw blood sample.
3
Reselect VeniPuncture to deflate the cuff.
During measurement, the NBP display shows the inflation pressure of the cuff and the remaining time
in venous puncture mode.
Venous puncture measurement mode
Cuff pressure
NBP
VP
01:45
Time left in venous
puncture mode
(60)
Calibrating NBP
NBP is not user-calibrated. Cuff-pressure transducers must be verified and calibrated, if necessary, at
least once every two years by a qualified service professional. See the Service Guide for details.
147
10 Monitoring NBP
148
Calibrating NBP
11
Monitoring Temperature
11
You can measure temperature using the Multi-Measurement Server (MMS), one of the measurement
server extensions, or the temperature plug-in module. Temp measurement automatically switches on
when you connect a probe. You can switch the measurement off manually.
Making a Temp Measurement
1
Select the correct type and size of probe for your patient.
2
If you are using a disposable probe, connect the probe to the temperature cable.
3
Plug the probe or temperature cable into the temperature connector socket.
Temp connector socket
WARNING
4
Apply the probe to the patient. You are advised to use a protective rubber cover on rectal probes.
5
Select an appropriate temperature label.
6
Check that the alarm settings (on or off, high and low limits) are appropriate for this patient and
this type of temperature measurement.
Make sure you set alarm limits for the correct label. The alarm limits you set are stored for that
particular label only. Changing the label may change the alarm limits.
Selecting a Temperature for Monitoring
Tell the monitor which temperature you want to monitor by selecting its temperature label. The label
is a unique identifier for each type of temperature. When you choose a label, the monitor uses that
label’s stored color and alarm settings.
1
In the Setup <Temp> menu, select Label.
2
Select the appropriate label from the list.
149
11 Monitoring Temperature
Calculating Temp Difference
Temp
non-specific temperature label.
Trect
rectal temperature
Tart
arterial temperature
Tskin
skin temperature
Tcore
core temperature
Tven
venous temperature
Tesoph
esophageal temperature
Tnaso
nasopharyngeal temperature
Extended Temperature Label Set
The following additional labels are available if Label Set is set to Full. This setting can only be
changed in Configuration Mode.
Note that if your monitor is connected to an Information Center, the additional labels in the extended
label set may not be correctly displayed. See the Configuration Guide for your monitor for more
information.
T1, T2, T3, T4
Non-specific temperature labels
Tamb
ambient temperature
Tcereb
cerebral temperature
Ttymp
tympanic temperature
Tvesic
vesical temperature
Calculating Temp Difference
The monitor can calculate and display the difference between two temperature values by subtracting
the second value from the first. The difference is labeled ∆Temp.
150
1
In the Setup Main menu, select Measurements.
2
In the Setup ∆Temp menu, select First Temp.
3
Label the measurement source as appropriate.
4
Select Second Temp.
5
Label the measurement source as appropriate.
12
Monitoring Invasive Pressure
12
You can measure pressure using the Multi-Measurement Server (MMS), one of the measurement
server extensions or the pressure plug-in module.
Setting up the Pressure Measurement
1
Plug in the pressure cable.
MMS
WARNING
Module
2
Prepare the flush solution.
3
Flush the system to exhaust all air from the tubing. Ensure that the transducer and stopcocks are
free of air bubbles.
If air bubbles appear in the tubing system, flush the system with the infusion solution again. Air
bubbles may lead to a wrong pressure reading.
4
Connect the pressure line to the patient catheter.
5
If you are using an infusion pressure cuff with the pressure line, attach the pressure cuff to the fluid
to be infused. Inflate it according to your standard hospital procedure, then start the infusion.
6
Position the transducer so that it is level with the heart, approximately at the level of the
midaxillary line.
151
12 Monitoring Invasive Pressure
WARNING
Zeroing the Pressure Transducer
If measuring intracranial pressure (ICP) with a sitting patient, level the transducer with the top of the
patient’s ear. Incorrect leveling may give incorrect values.
Selecting a Pressure for Monitoring
Tell the monitor which pressure you want to monitor by selecting its pressure label. The label is a
unique identifier for each type of pressure. When you chose a label, the monitor uses that label’s stored
color, wave scale and alarm settings.
1
In the Setup <Press> menu, select Label.
2
Select the appropriate label from the list.
Label
Description
Label
Description
ABP
Arterial blood pressure
P
Non-specific pressure label
ART
Arterial blood pressure (alternative)
PAP
Pulmonary artery pressure
Ao
Aortic pressure
RAP
Right atrial pressure
CVP
Central venous pressure
UAP
Umbilical arterial pressure
ICP
Intracranial pressure
UVP
Umbilical venous pressure
LAP
Left atrial pressure
Extended Pressure Label Set
The following additional labels are available if Label Set is set to Full. This setting can only be
changed in Configuration Mode.
Note that if your monitor is connected to an Information Center, the additional labels in the extended
label set may not be correctly displayed. See the Configuration Guide for your monitor for more
information.
Label
Description
BAP
Brachial arterial pressure
FAP
Femoral arterial pressure
IC1, IC2
Alternative intracranial pressures
P1, P2, P3, P4 Alternative non-specific pressure labels
Zeroing the Pressure Transducer
To avoid inaccurate pressure readings, the monitor requires a valid zero. Zero the transducer in
accordance with your hospital policy (at least once per day). You must perform a zero:
• when you use a new transducer or tubing
• every time you reconnect the transducer cable to the monitor
• if you think the monitor’s pressure readings are not correct.
152
Zeroing the Pressure Transducer
12 Monitoring Invasive Pressure
Zeroing ICP (or IC1/IC2)
Your hospital guidelines may require you to zero the ICP transducer less frequently than other
transducers, due to the need for aseptic conditions. When you zero an ICP transducer, the zero values
are automatically stored and you will not be prompted to repeat the zero procedure.
If you want to simultaneously zero all pressures except ICP, disconnect the ICP transducer from the
measurement server or module while zeroing. Reconnecting the transducer recalls the stored values.
WARNING
If you select the label ICP (or IC1/IC2), the measurement device uses the most recently stored zero.
Therefore, make sure you zeroed the transducer correctly in accordance with the transducer
manufacturer’s instructions and your hospital policy. When you use a transducer that you cannot
rezero after placement, ensure that you keep the measuring device with the patient so that you are
certain you have the correct zero data for this patient.
Determining a Pressure’s Most Recent Zero
The monitor displays the most recent zero on the status line. If this has “timed-out” after you have
performed a zero, redisplay the information in the status line by entering the pressure’s setup menu.
Zeroing a Pressure Measurement
WARNING
Invasive pressure alarms (and pulse alarms, if derived from invasive pressure) are temporarily
suppressed until 30 seconds after the transducer finishes zeroing.
1
Turn off the stopcock to the patient.
2
Vent the transducer to atmospheric pressure, to compensate for the static and atmospheric pressure
exerted on the transducer.
3
In the setup menu for the pressure, select Zero <Press>.
4
When you see the message <Press> zero done at <date and time> on the status line,
(for example, ABP zero done at 13 Mar 02 23.35) close the stopcock to atmospheric
pressure, and open the stopcock to the patient.
Using the Zero Hardkey
Pressing the Zero hardkey for two seconds on the M1006B Pressure module starts a zero for the
pressure currently measured with the module.
Pressing the Zero hardkey for two seconds on the M3001A Multi-Measurement Server zeros the
pressure being measured by the measurement server and the pressures from any connected
measurement extensions.
Zeroing All Pressures Simultaneously
WARNING
Before zeroing all pressures, make sure that all pressure transducers are vented to atmospheric pressure.
153
12 Monitoring Invasive Pressure
Adjusting the Calibration Factor
If you are measuring pressures with more than one measuring device, using the Zero SmartKey to
initiate the zeroing calls up a list of all active pressures. Select the pressure you want to zero or select
All Press to zero all pressures simultaneously.
Troubleshooting the Zero
The status line lists the probable cause of an unsuccessful zero:
Message
Corrective Action
unable to zero equipment
malfunction
The hardware is faulty. Contact your service personnel.
unable to zero - Make sure the transducer is vented to air and try again. If this fails, the hardware
excessive offset may be faulty. Replace the adapter cable and try again. If it fails, replace the
unable to zero - transducer and try again. If it still fails, contact your service personnel.
unstable signal
unable to zero no transducer
Make sure that the transducer is connected and try again. If this fails, exchange
the adapter cable and try again. If this fails, exchange the transducer.
unable to zero pulsatile
pressure
Make sure that the transducer is vented to air, not to the patient, and try again.
unable to zero timed out
Try pressing the Zero key again. If this fails, replace the transducer and adapter
cable and contact your service personnel.
switch <Press> on Pressure measurement is switched off. To switch it on, in the Setup Pressure
first
menu, select the pressure’s label.
Adjusting the Calibration Factor
Each time you use a reusable transducer, compare the calibration factor written on your transducer
with the calibration factor shown on the monitor. To ensure accurate measurement, they must be the
same.
1
In the Setup <Press> menu, select Cal. Factor.
If the value here does not match that on the transducer, select the corresponding value from the
list now in accordance with your hospital’s procedure.
2
To confirm you want to use the new calibration factor, select the Confirm popup.
Displaying a Mean Pressure Value Only
Use this when you want to see only the mean pressure.
♦
In the pressure’s setup menu, select Mean Only. Toggle between On to display mean pressure
value only, and Off to display all pressure values (systolic, diastolic and mean).
Changing the Pressure Wave Scale
154
1
Select the label of the pressure wave whose scale you want to set to enter the Setup menu.
2
In the Setup <Press> menu, (for example ABP) select Scale.
Optimizing the Waveform
3
12 Monitoring Invasive Pressure
Select a value from the pop-up list:
– a positive value sets the top gridline. The bottom gridline is set at zero.
– a negative value sets the bottom gridline. The middle gridline is set at zero.
Optimizing the Waveform
♦
In the Setup <Press> menu, select Optimum Scale to let the monitor select the best
minimum and maximum scales for the current wave.
Non-Physiological Artifact Suppression
Some clinical procedures may affect blood pressure, for example, a flush procedure or a blood sample.
Your monitor may be configured to suppress these non-physiological artifacts for a specified duration
(Artifact Suppression is configured to 30, 60, or 90 seconds). During artifact suppression,
the monitor shows the INOP message <Pressure label> ARTIFACT, and a question mark is
shown beside the pressure numerics. Pressure alarms and the Pulse Non-Pulsatile INOP are
suppressed during the configured period. The CPP high alarm is not suppressed.
Choosing the Pressure Alarm Source
WARNING
Make sure you set alarm limits for the correct label. The alarm limits you set are stored for that
particular label only. Changing the label may change the alarm limits.
You can monitor for alarm conditions in systolic, diastolic and mean pressure, either singly or in
parallel. Only one alarm is given at a time, in this order of priority: mean, systolic, diastolic.
♦
In the Setup <Press> menu, select Alarms from and choose the source.
Menu option
Pressure value monitored
Sys.
systolic
Dia.
diastolic
Mean
mean
Sys&Dia
systolic and diastolic in parallel
Dia&Mean
diastolic and mean in parallel
Sys&Mean
systolic and mean in parallel
Sys&Dia&Mean
all three pressures in parallel
♦
Select and set the High Limit and Low Limit for the pressure(s) you have selected.
155
12 Monitoring Invasive Pressure
Calibrating Reusable Transducer CPJ840J6
Calibrating Reusable Transducer CPJ840J6
Depending on your monitor’s configuration, you may be able to perform a calibration in monitoring
mode. Perform a mercury calibration when you use a new transducer, and at regular intervals according
to your hospital policy. You require:
• standard sphygmomanometer.
• sterile 10cc syringe with heparinised solution.
• 3-way stopcock.
• approximately 25cm of tubing.
Making the Pressure Calibration
WARNING
Never perform the invasive pressure calibration while a patient is being monitored.
1
Zero the transducer.
2
Connect the syringe and manometer.
a. Attach the tubing to the manometer.
b. Connect the 3-way stopcock to the stopcock that is not connected to the patient catheter when
you measure a patient.
c. Attach the syringe to one port and the manometer tubing to the other port.
d. Open the port to the manometer.
tubing to manometer
Syringe with
heparinised
solution
Patient
connection
stoppered
Off
PRESS M1006A T
PRESS
ZERO
12
PIN
156
3
Move the syringe barrel in and raise the mercury to 200mmHg (30kPa). 200mmHg is the
recommended calibration pressure.
4
In the Setup Pressure menu, select Cal. Press.
Calculating Cerebral Perfusion
12 Monitoring Invasive Pressure
5
Select the calibration pressure from the list, for example 200 mmHg.
6
Select Confirm to recalculate the calibration factor using the applied pressure.
7
When the monitor displays <Press> calibration done at <date and time>, remove
the manometer tubing, syringe and extra stopcock. We recommend you replace the transducer
dome and tubing with sterile ones.
8
Label the transducer with the calibration factor shown in the Cal. Factor field in the pressure’s
setup menu.
9
Reconnect the patient and start measuring again.
Troubleshooting the Pressure Calibration
The status line lists the probable cause of an unsuccessful calibration.
Message
Corrective Action
unable to calibrate equipment malfunction
Contact your service department. The pressure hardware is faulty.
unable to calibrate out of range
Make sure that you have selected the value for Cal. Press that
you are applying to the transducer, and repeat the calibration.
unable to calibrate - no Make sure that the transducer is connected and try again.
transducer
unable to calibrate unstable signal
Make sure there are no disturbances to the transducer, and repeat
the calibration.
unable to calibrate perform zero first
No valid zero. Zero the transducer.
Calculating Cerebral Perfusion
The monitor can calculate the difference between mean arterial pressure and the intracranial pressure.
The difference is labeled CPP.
1
In the Main Setup menu, select Measurements.
2
In the Setup CPP menu, select ABP, ART, Ao, BAP or FAP as the arterial pressure source.
Calculating Pulse Pressure Variation
Note: The derived measurement Pulse Pressure Variation is not available in the USA.
Pulse Pressure Variation (PPV) is calculated from beat-to-beat arterial pressure values. Pulse pressure is
the difference between the systolic and the diastolic pressure values for a single beat. The average
variation in pulse pressure is calculated over periods of 32 seconds.
WARNING
• This monitor can calculate PPV from beat-to-beat values of any arterial pulsatile pressure. The
circumstances under which the calculation of a PPV value is clinically meaningful, appropriate and
reliable must be determined by a physician.
157
12 Monitoring Invasive Pressure
Measuring Pulmonary Artery Wedge Pressure
• The clinical value of the derived PPV information must be determined by a physician. According to
recent scientific literature, the clinical relevance of PPV information is restricted to sedated patients
receiving controlled mechanical ventilation and mainly free from cardiac arrhythmia.
To select an arterial pressure as PPV source:
1
In the Main Setup menu, select Measurements.
2
In the Setup PPV menu, select ABP, ART, Ao, BAP, P or FAP as the arterial pressure source.
CAUTION Older measurement servers cannot supply a beat-to-beat arterial pressure value. In this case the
monitor shows a NO PPV FROM <Server> INOP.
At respiration rates below 8 rpm, PPV calculation may lead to inaccurate values.
Measuring Pulmonary Artery Wedge Pressure
Pulmonary Artery Wedge Pressure (PAWP) values, used to assess cardiac function, are affected by:
• Fluid status
• Myocardial contractility
• Valve and pulmonary circulation integrity
Obtain the measurement by introducing a balloon-tipped pulmonary artery flotation catheter into the
pulmonary artery. When the catheter is in one of the smaller pulmonary arteries, the inflated balloon
occludes the artery allowing the monitor to record changes in the intrathoraic pressures that occur
throughout the respiration cycle. The pulmonary wedge pressure is the left ventricular end diastolic
pressure (preload).
The most accurate PAWP values are obtained at the end of the respiration cycle when the intrathoraic
pressure is fairly constant. Use the ECG waveform to determine the waveform of the wedge pressure.
You can use the respiration waveform as a reference when assessing the PAWP waveform, to ensure
constant measurement timing relative to the respiratory cycle. The monitor displays the PAWP value
for up to 48 hours or until you admit a new patient.
WARNING
The pressure receptor in the catheter records pressure changes that occur only in front of the
occlusion. Even though the catheter tip is in the pulmonary artery, the receptor records pressure
changes transmitted back through the pulmonary circulation from the left side of the heart.
While performing the wedge procedure, the monitor switches off the pressure alarms for pulmonary
artery pressure (PAP).
Due to a slight measurement delay, you should not use Microstream (sidestream) CO2 as a direct
reference for determining the end expiratory point in the pressure curve.
To start the Wedge procedure,
158
1
In the Main Setup menu, select Wedge to display the wedge procedures window.
2
Prepare and check the pressure line according to your hospital policy. If the PAP waveform scale is
set to Optimum prior to the wedge procedure, it is possible that after wedging the catheter, the
resulting pressure waveform will fall below the lower scale. In this case, the wedge waveform will
Editing the Wedge
12 Monitoring Invasive Pressure
not be displayed or recorded properly. To avoid this, switch out of optimum scale before
performing a wedge procedure.
3
Use the Reference Wave 1 and 2 popup keys to select any ECG or respiratory wave as
reference waves.
4
Select Wave Speed if you want to synchronize all displayed waves to your preferred speed.
5
Inflate the balloon when the monitor prompts you: Ready for balloon inflation. The
waveform changes from the PAP to the PAWP wave. The measurement takes approximately 12
seconds. On completion, the monitor stores the PAWP waveform display and prompts you to
deflate the balloon. If the monitor cannot detect a wedging waveform you must use Store
Trace to store the wedge and two reference waves manually.
6
Deflate the balloon when the monitor prompts you: Ready for balloon deflation and
verify that the waveform returns to pulmonary artery shape.
7
If you need to start a new measurement, select Restart Wedge.
Editing the Wedge
WARNING
1
Select the Edit Wedge pop-up key to see the stored waveforms.
2
The monitor displays a cursor in the waveform at the PAWP mean value. It also displays any
previously stored value and the time it was stored.
3
Move the cursors up, down, right and left to set them on the correct wedge position.
4
Select Store Wedge to store the PAWP value.
5
Select Print Wedge to print the PAWP waveform and any reference waves or Record Wedge to
record them. While recording or printing, you cannot perform any more Wedge tasks.
Prolonged inflation can cause pulmonary hemorrhage, infarction or both. Inflate the balloon for the
minimum time necessary to get an accurate measurement.
If the pulmonary artery flotation catheter drifts into the wedge position without inflation of the balloon, the
pulmonary artery pressure waveform assumes a wedged appearance. Take appropriate action, in accordance
with standard procedures, to correct the situation.
If the PAWP (mean) is greater than the PAP (systolic), deflate the balloon and report the incident in
accordance with hospital policy, because the pulmonary artery could be accidently ruptured, and the wedge
value derived will not reflect the patient’s hemodynamic state, but will merely reflect the pressure in the
catheter or balloon.
159
12 Monitoring Invasive Pressure
Identifying the Pressure Analog Output Connector
Identifying the Pressure Analog Output Connector
analog output
(module M1006B,
option C01 only)
160
13
Monitoring Cardiac Output
13
The Cardiac Output (C.O.) measurement invasively measures cardiac output and other hemodynamic
parameters using a technique called thermodilution. This can be used to determine the flow rate of a
system by introducing a cold solution into the system and measuring the resulting drop in temperature
at a downstream site. The temperature change is displayed as a curve in the C.O. procedure window,
and the monitor calculates the C.O. value from this curve. The C.O. value is inversely proportional to
the area under the curve. As cardiac output varies continuously, a series of measurements must be
carried out to achieve a reliable C.O. average value. Always use the average of multiple thermodilution
measurements for therapy decisions.
The measurements can be carried out using the right heart thermodilution method or the PiCCO
method (transpulmonary thermodilution).
• The right heart method is available with
– C.O. module M1012A, standard and option #C10
– M3012A Hemodynamic Measurement Server Extension, options #C05 and #C10
– M3014A Capnography Measurement Server Extension, option #C05 and #C10
• The PiCCO method is available with
– C.O. module M1012A, option #C10
– M3012A Hemodynamic Measurement Server Extension. option #C10
– M3014A Capnography Measurement Server Extension, option #C10
The PiCCO method additionally lets you measure Continuous Cardiac Output (CCO) by performing
pulse contour analysis on the blood pressure waveform.
161
13 Monitoring Cardiac Output
Hemodynamic Parameters
Hemodynamic Parameters
This table illustrates the hemodynamic parameters available with each method, whether they are
measured continuously, and whether they can be shown on the monitor’s resting display or in the
HemoCalc Window.
PiCCO Method
(Transpulmonary
Thermodilution)
Right Heart Thermodilution
Measured and Calculated Hemodynamic
Parameters and Indexes
Continu Resting HemoCalc Contin Resting
ous?
Display Window
uous?
Display
HemoCalc
Window
Blood Temperature (Tblood)
Y
Y
N
Y
Y
N
C.O./C.I.: Cardiac Output
N
Y
Y
N
Y
Y
CCO/CCI: Continuous Cardiac Output
Y
Y
Y (in the
Not available
C.O. field)
SVR/SVRI: Systemic Vascular Resistance
N and Y Y
Y
N
N
Y
SV/SI: Stroke Volume/SV Index
N and Y Y
Y
N
N
Y
SVV: Stroke Volume Variation
Y
Y
N
Not available
*dPmax: Left Ventricular Contractility Index
Y
Y
N
Not available
CFI: Cardiac Function Index
N
Y
N
Not available
ITBV/ITBVI: Intrathoracic Blood Volume
N
Y
Y
Not available
*EVLW/EVLWI: Extravascular Lung Water
N
Y
Y
Not available
*GEDV/GEDVI: Global End-Diastolic Volume N
Y
Y
Not available
PVR/PVRI: Pulmonary Vascular Resistance
Not available
N
N
Y
LCW/LCWI: Left Cardiac Work
N
N
N
Y
RCW/RCWI: Right Cardiac Work
Not available
N
N
Y
RVSW/RVSWI: Right Ventricular Stroke Work Not available
N
N
Y
N
Y
* currently not available in the U.S.A or in clinical environments under FDA control.
162
Using the C.O. Procedure Window
13 Monitoring Cardiac Output
Using the C.O. Procedure Window
The C.O. procedure window displays up to six trials (measurement curves) with the trial number and
the C.O. value under the thermodilution curve. When you open the window, a line of pop-up keys
automatically appears to let you carry out C.O.-related tasks. This example shows the procedure
window for the transpulmonary (PiCCO) Method. The window may be configured to look slightly
different on your monitor.
To open the C.O. procedure window,
♦
Select Cardiac Output in the Setup C.O. or Setup CCO menu, or
♦
Select the Cardiac Output SmartKey on the Screen, if configured, or
♦
Press the START hardkey on the front of the C.O. plug-in module, if available, or
♦
Press a remote start switch, if you are using one.
Trial curves
Results table of current trial
Trial curve scale
Averaged values
Cardiac Output (Transpulmonary)
o
0.3 C
Trial
CCO-CAL
C.O.
CFI
C.I
ITBVI
ETVI
Tinj
InjVol
Setup
information
#1
Cal
#2
Cal
#3
Cal
8.53
5.5
4.42
996
6.0
2.0
10
11.4
6.0
5.88
1225
5.0
2.0
10
8.49
5.5
4.40
998
6.1
2.0
10
CathCt
Current trial
number
InjVol
Average
8.51
5.5
4.41
996
l/min
l/min/m2
ml/m2
oC
ml
C.I. 4.40
C.O. 8.49
Tblood 37.0
BSA 1.93
Curve alert
message field
Unit
Continuously
measured
numeric
Tblood
Thermodilution
curve of current
trial
Ready for new measurement
Prompt
message field
Start Stop
C.O. C.O.
Select
Trial
Accept/
Reject
Save C.O.&
Cal CCO
Print/
Record
Table
Hemo
Contents Calc
Change Setup
Scale C.O.
♦
To change the measurement parameters shown in the results table of the C.O. procedure window,
select the Table Contents pop-up key and choose from the list of available parameters.
♦
To view the currently-used temperature unit, see the “grayed-out” setting Temperature Unit
in the Setup C.O. menu. This setting can only be changed in Configuration Mode.
♦
The Cardiac Output screen element may be configured to display permanently on a specially
designed Screen. Selecting the screen element opens the cardiac output pop-up keys.
163
13 Monitoring Cardiac Output
Accessing the Setup C.O. and Setup CCO Menus
Accessing the Setup C.O. and Setup CCO Menus
C.O. settings can be changed in the Setup C.O. menu. To access this menu,
♦
press the C.O. hard key on the C.O. module
♦
select any of the discontinuous C.O. numerics (for example, C.O., C.I.) on the screen.
CCO/CCI settings can be changed in the Setup CCO menu. To access this menu,
♦
select any of the continuously measured hemodynamic numerics (CCO, CCI.) on the screen.
Entering the HemoCalc Window
♦
From the C.O. procedure window, select the pop-up key HemoCalc to open the HemoCalc
window.
Measuring C. O. Using the PiCCO Method
The PiCCO method combines transpulmonary thermodilution and pulse contour analysis on the
blood pressure waveform. A fluid with a known volume and temperature is injected into the right
atrium through a CVP catheter. The injectate bolus mixes with the blood in the heart and the change
in blood temperature is measured with a thermistor at the distal end of an arterial catheter placed in
one of the bigger systemic arteries, for example, the femoral or the axillary artery.
The PiCCO Method requires a pressure measurement made using either the M1006B Pressure
module, or a M3001A MMS, or a measurement server extension M3015A, M3014A, or M3012A. (A
VueLink pressure may not be used.) You will also need a conventional central venous (CVP) line and
an arterial catheter from Pulsion Medical Systems. You must use the approved catheters and puncture
locations.
Measuring Continuous Cardiac Output
Every time C.O. is measured with the PiCCO method, the monitor uses this C.O. value and the result
of the pulse contour analysis to calculate a patient-specific calibration factor. The monitor uses this
value to compute CCO and the other continuous hemodynamic parameters. CCO values are
calculated on a beat-to-beat basis and then averaged over a 12-second time frame. The calculated values
are displayed as numerics on the monitor screen.
Measuring Systemic Vascular Resistance
The monitor uses CCO, an arterial pressure, and CVP to calculate a continuous SVR value. If a
continuously measured CVP value is not available, the monitor uses a preset, static CVP value to
calculate the SVR (you will see the INOP message SVR SET CVP USED). If the BSA is available, the
monitor uses the CCI to calculate the SVRI.
SVR/SVRI settings can be changed in the Setup SVR/SVRI menu. To enter the menu, select ->
Main Setup -> Measurements -> SVR or SVRI.
To display a SVR/SVRI numeric on the Screen, select any numeric, then select Change Numeric
and select SVR or SVRI from the list of available numerics.
164
Measuring C. O. Using the PiCCO Method
13 Monitoring Cardiac Output
Setting Up the PiCCO C.O. Measurement
C.O. Module
1
Set up the arterial line using the arterial
catheter (transpulmonary catheter) and
the transducer kit from Pulsion Medical
Systems. It must be placed in one of the
bigger systemic arteries, for example, the
femoral or the axillary artery. You must
use the approved catheters and puncture
locations.
2
Set up the central venous line.
3
Connect the injectate temperature probe
housing to the venous line.
4
Plug the C.O. interface cable into the
C.O. module or measurement server
extension and connect the following
devices to the C.O. interface cable:
– Injectate temperature probe
– Thermistor connector
– Remote start switch (if used).
Follow your hospital standards to avoid
unintentional extraction of the C.O.
catheter. Secure the cable using the
mounting clip shipped with each C.O.
interface cable. You may also find it
helpful to loop the C.O. interface cable,
tape the loop, and attach it to the
undersheet of the patient's bed using a
safety pin.
Press Module
C.O.
Interface
Cable
Remote
Switch
Injectate
Temperature
Probe
Pulsion
Pressure
Transducer
Pressure
Adapter
Cable
Thermistor
Connection
Cable
Injectate
Syringe
Thermistor
Connection
Injectate
Temperatur
e Probe
Housing
CVP
Line
Pulsion Arterial
Catheter
5
If you are measuring CCO, set up the
pressure measurement now. The CCO measurement requires a minimally dampened invasive
pressure setup. You must ensure that there are no air bubbles in the pressure line or dome and use
only specified accessories.
6
Check that the correct measurement method is selected.
If a catheter is already connected to the Cardiac Output Interface Cable, the monitor automatically
recognizes the method used. If not, in the Setup C.O. menu, select Method and then select
Transpulmonary.
7
Check that the Tinj Probe Type setting in the Setup C.O. menu matches the type of
injectate temperature probe used. The probe type is usually printed on the plug of the probe.
To change the probe type, in the Setup C.O. menu, select Tinj Probe Type to call up a list
of available probes.
– 23001: it is recommended to use this probe with cold injectate
– M1646: this probe can be used with room temperature injectate or with cold injectate.
165
13 Monitoring Cardiac Output
Measuring C. O. Using the PiCCO Method
8
Check that the correct arterial catheter constant is selected.
If the catheter is recognized by the monitor, the catheter constant is automatically displayed and
cannot be changed manually. If it is not recognized, in the C.O. procedure window, select CathCt
and use the pop-up keypad to enter the correct value. The catheter constant is usually written
either on the catheter or on the catheter packaging.
9
Make sure that the injectate volume setting matches the injectate volume you will use. To change
the volume, in the C.O. procedure window, select InjVol and select the correct injectate volume
from the pop-up list.
If there is a problem with the volume or temperature you have chosen, the monitor will issue a curve
alert message to inform you of this.
10 If you are measuring CCO or CCI, check that the correct pressure source is selected in the
Setup CCO menu. The pressure label under CCO from must match the pressure measured with
the arterial catheter. To change the pressure source, select CCO from to call up a list of available
pressure labels and select the correct label.
11 If you are measuring CCO or CCI, verify that the correct alarm source is selected in the menu item
Alarms From. To change the alarm source, select Alarms From and choose either CCO or CCI.
Performing PiCCO C.O. Measurements
Always wait for the monitor to indicate readiness for the next step before proceeding.
If you are measuring CCO, all measurements should be conducted within 15 minutes. Older
measurements “expire” for CCO calibration.
1
Enter the C.O. procedure window.
2
When you see the message ...Ready for new measurement, start the measurement by
selecting the pop-up key Start C.O. or pressing the Start hardkey on the C.O. module, or
pressing the remote start switch.
3
When you hear the ready tone and see the message ...Stable baseline, inject now!,
inject the solution into the CVP catheter.
At the end of the measurement the thermodilution curve, cardiac output, index values, ITBV and
EVLW values and any curve alerts are displayed and a message will appear “...Wait before
starting new measurement”.
4
When you see the ...Ready for new measurement message, repeat the procedure until you
have completed the measurements you want to perform. You can perform a maximum of 6
measurements before editing. If you perform more than 6 measurements without rejecting any, the
oldest will automatically be deleted when a 7th curve is stored.
Editing PiCCO C.O. Measurements
It is important to identify and reject erroneous trials, as the monitor uses all the measurement trial
values you do not reject to calculate the averaged cardiac output.
166
1
Review the trials. Irregular trials or trials marked with a “?” should be reviewed carefully. Consider
the similarity of the values and the shape of the C.O. curve. A normal C.O. curve has one smooth
peak and returns to the temperature baseline level after the peak.
2
Reject unsatisfactory trials: use the Select Trial pop-up key to move between trials, then
select the Accept Reject pop-up key to accept or reject trials. If you are using a touch screen
Measuring C. O. Using the PiCCO Method
13 Monitoring Cardiac Output
you can accept or reject trials directly by tipping on the trial curve. Discard conspicuously different
values. The background of rejected trials is red and the background of accepted trials is green. The
monitor recalculates the average values after you reject or accept trials.
If all values are different from each other, there may be true hemodynamic instability caused, for
example, by severe cardiac arrhythmia.
Saving and Calibrating PiCCO C.O. Measurements
When you have finished editing the trials, you must save the results. This closes the measurement
series, sends the average C.O. numeric to be displayed on the main screen, and stores the averaged
values in the trends and calculations databases.
Before the monitor can calculate CCO, you must calibrate the measurement. You should also calibrate
CCO every eight hours, or if the hemodynamic condition of the patient changes consistently in the
same direction over 15 minutes, or if there are large or sudden changes in the patient’s condition.
The monitor only uses C.O. measurements from within the last 15 minutes for calibrating CCO.
To save and calibrate,
♦
In the C.O. procedure window, select the pop-up key Save C.O. & Cal CCO to use the
averaged C.O. value to calibrate Continuous Cardiac Output (CCO).
Your monitor may be configured to have two separate pop-up keys, Save C.O. and Cal CCO,
instead of the combined Save C.O. & Cal CCO.
WARNING
CCO calibration is patient-specific. When the C.O. module or measurement server extension is
plugged in after the patient has changed, make sure that the correct CCO calibration is used. When in
doubt perform a new CCO calibration first.
CCO Calibration Status Indicators
Each measurement trial is tagged with a calibration status indicator next to its trial number. Reflecting
the quality of the pressure signal during the thermodilution measurement, this tag indicates each trial’s
validity to be used in a CCO calibration.
For a trial to be eligible for calibration, the pressure signal must be continuously available and
undisturbed starting 30 seconds before the first C.O. measurement of the series. Do not zero the
pressure measurement, change the pressure label, or disturb the pressure signal in any other way during
this time.
CAL
A pressure signal for CCO was available during the measurement (valid for calibration)
?CAL A disturbed pressure signal for CCO was available during the measurement (valid for
calibration)
N/A
No adequate pressure signal for CCO was available during the measurement (no valid
calibration data)
EXP
This trial is more than 15 minutes older than the most recent trial and has expired for CCO
calibration (no valid calibration data)
167
13 Monitoring Cardiac Output
Measuring C.O. Using the Right Heart Thermodilution Method
Measuring C.O. Using the Right Heart
Thermodilution Method
In the right heart thermodilution method, a fluid of known volume and temperature is injected into
the right atrium through the proximal port of a pulmonary artery (PA) (Swan-Ganz) catheter. The
injectate bolus mixes with the blood in the right ventricle and the change in blood temperature is
measured with a thermistor at the distal end of the catheter in the pulmonary artery.
Setting up RH C.O. Measurements
1
Set up the PA line using a PA catheter.
2
Attach the injectate temperature probe
housing to the PA line.
3
Plug the C.O. interface cable into the
C.O. module or measurement server
extension and connect the following
devices into the C.O. interface cable:
– injectate temperature probe
– remote start switch (if used).
Follow your hospital standards to avoid
unintentional extraction of the C.O.
catheter. Secure the cable using the
mounting clip shipped with each C.O.
interface cable. You may also find it
helpful to loop the C.O. interface cable,
tape the loop, and attach it to the
undersheet of the patient's bed using a
safety pin.
C.O. Module
C.O. Interface Cable
Remote Start Switch
Thermistor
Connector
Injectate
Temperature
Probe
Thermistor
Connection
Cable
Injectate
Syringe
Injectate
Temperature
Probe Housing
PA Catheter
4
Plug the thermistor connection cable of
the PA catheter into the thermistor
connector.
5
Connect the injectate temperature probe
to the injectate temperature probe
housing.
6
Check that the correct measurement
method is selected.
If a catheter is already connected to the Cardiac Output Interface Cable, the monitor automatically
recognizes the method used. If not, in the Setup C.O. menu, select Method and then select
Right Heart.
Ice-Bath Setup for RH Thermodilution C.O. Measurements
If you are using the flow-through method illustrated above, the injectate temperature is measured at
the time of injection by the temperature probe in the injectate temperature probe housing.
168
Documenting C.O. Measurements
13 Monitoring Cardiac Output
If you are using the ice-bath setup, the injectate temperature probe and the injectate are both placed in
an ice-bath and the probe measures the temperature of the contents of the ice bucket.
Setting the Computation Constant
Check that the correct Computation Constant is entered in the C.O. procedure window. This can
be found in the documentation supplied with the catheter and is based on the injectate volume,
injectate temperature and catheter type. To change the value, in the C.O. procedure window, select
Computation Constant and use the pop-up keypad to enter the correct value.
Performing RH C.O. Measurements
1
2
Enter the C.O. procedure window.
When you see the message ...Ready for new measurement, select the pop-up key Start
C.O.
3
When you hear a ready tone and see the message ...Inject now!, inject the solution into the
right atrial port of the Swan-Ganz catheter. The optimal injection rate is 2.5 ml/second.
At the end of the measurement the thermodilution curve, cardiac output, index values and curve
alerts (if necessary) are displayed and a message will appear ...Wait before starting new
measurement.
4
When you see the ...Ready for new measurement message, repeat the procedure until you
have completed the measurements you want to perform. You can perform a maximum of six
measurements before editing. If you perform more than six measurements without rejecting any,
the oldest will automatically be deleted when a seventh curve is stored.
Editing and Saving RH C.O. Measurements
It is important to identify and reject erroneous measurements (called “trials”), as the monitor uses all
the measurement trial values you do not reject to calculate the averaged cardiac output.
1
Review the trials. Irregular trials or trials marked with a “?” should be reviewed carefully. Consider
the similarity of the values and the shape of the C.O. curve. A normal C.O. curve has one smooth
peak and returns to the temperature baseline level after the peak.
2
Reject unsatisfactory trials: use the Select Trial pop-up key to move between trials, then
select the Accept Reject pop-up key to accept or reject trials. If you are using a touch screen
you can accept or reject trials directly by tipping on the trial curve. Discard conspicuously different
values. The background of rejected trials is red and the background of accepted trials is green. The
monitor recalculates the average values after you reject or accept trials.
If all values are different from each other, there may be true hemodynamic instability caused, for
example, by severe cardiac arrhythmia.
3
Save average C.O. values. To close a measurement series, you must save the average values by
selecting the pop-up key Save C.O. This sends the average C.O. numeric to be displayed on the
main screen, and stores the averaged values in the trends and calculations databases.
Documenting C.O. Measurements
You can document C.O. measurements on the default printer or recorder.
1
In the C.O. procedure window, select the pop-up key Print/Record.
169
13 Monitoring Cardiac Output
2
C.O. Injectate Guidelines
From the pop-up list, choose:
– Print Results to print the contents of the C.O. procedure window
– Record Results to record the contents of the C.O. procedure window
– Record Trial to send an individual trial curve to the recorder.
C.O. Injectate Guidelines
The greater the injectate volume and the colder the temperature, the more accurate the measurement.
Reduced injectate volume or higher injectate temperature may reduce the specified accuracy.
For adult patients, to ensure the greatest measurement accuracy, use a cold injectate (< 8°C) of 10 ml
volume, if not contra-indicated by the patient's condition. Your choice of injectate volume should be
based on the injectate temperature and the patient’s cardiac output.
Guidelines for Right Heart Thermodilution C.O. Injectate
If you are using the right heart thermodilution method, the use of injectate with a temperature less
than 8°C lower than the blood temperature may cause incorrect values for the thermodilution.
Guidelines for PiCCO C.O. Injectate
If you are using the PiCCO method, the use of injectate with a temperature less than 12°C lower than
the blood temperature may cause incorrect values for the thermodilution and CCO calibration.
Injectate Volume, Patient Weight and ETVI Values (PiCCO Only)
When deciding on an injectate volume and temperature, you must consider your patient’s weight and
extra-vascular thermal volume index (ETVI).
High ETVI: The dilution of injectate is influenced by extravascular tissue and fluid. The accuracy of
the PiCCO method may be reduced in patients with high extra-vascular thermal volume index (ETVI)
values. Use the table below as a guide in selecting the correct injectate temperature. As shown in the
table, if your patient has an ETVI > 10, you must use cold injectate.
Weight: Use the table below as a guide in choosing an injectate volume appropriate for the patient
weight.
Patient Weight Cold Injectate
170
Room Temperature Injectate
ETVI < 10
ETVI ≥ 10
ETVI < 10
ETVI ≥ 10
Use cold injectate
< 3 kg
2 ml
2 ml
3 ml
< 10 kg
2 ml
3 ml
3 ml
< 25 kg
3 ml
5 ml
5 ml
< 50 kg
5 ml
10 ml
10 ml
< 100 kg
10 ml
15 ml
15 ml
≥ 100 kg
15 ml
20 ml
20 ml
C.O./CCO Curve Alert Messages
13 Monitoring Cardiac Output
C.O./CCO Curve Alert Messages
After each measurement trial, the monitor analyzes the thermodilution curve. If the curve appears
abnormal, a curve alert message appears in the C.O. procedure window. A question mark symbol (“?”)
may appear next to the cardiac output numeric if any of these messages appear. The curve alert
messages are not error messages and do not necessarily mean that the measured values are invalid.
C.O./CCO Curve Alert Messages Possible Causes
Tinj off scale
The Tinjectate is out of the range -1°C and 30°C. Cool down or heat
up the injectate or change the injectate solution and repeat the
measurement.
Noisy Baseline
A blood temperature baseline drift that could not be compensated
was detected during the C.O. measurement. Possible causes are:
- Interference may be caused by a ventilator.
- Interference may be caused by an infusion pump: infusions of
significant volume through the central line should be paused at least
30 seconds before the first thermodilution measurement in a series
and should not recommence until the measurement series is
completed.
- Do not administer injections through the central line during a
measurement series.
- Electrical devices in the vicinity can cause interference: check for
infusion pumps connected to the central catheter, cables parallel to
the thermodilution cable, electrocautery. Make sure all devices are
properly grounded.
- Wait until measurement results are displayed before moving the
patient or catheter.
- Close the stopcock to the injectate syringe after the injection.
- Do not rinse the catheter during measurement, to avoid
temperature fluctuations.
Temperature Baseline
Drift
May occur if patient is recovering from open heart surgery, or if
patient was cooled down for surgery and is in the process of regaining
normal body temperature when the measurement is made.
Small signal, more
indicator required
The peak of the transpulmonary thermodilution curve was below
0.1ºC. Increase injectate volume and/or lower injectate temperature.
Injectate Temperature
too High
The difference between the blood and injectate temperatures is too
small. The calculated value for C.O. may not be accurate.
High ETVI, use cold
injectate or greater
inj. volume
The ETVI value is too high. The accuracy of the transpulmonary
thermodilution measurement may be reduced. Increase injectate
volume and/or lower injectate temperature following the guidelines
given in the section “Guidelines for PiCCO C.O. Injectate” on
page 170.
Disturbed Injection
The injection should be performed quickly and with a steady
pressure. Shaking, unsteady pressure, or injections that take longer
than six seconds may cause this message to appear; you should bear
this in mind if you are using a large injectate volume (> 10 ml).
171
13 Monitoring Cardiac Output
C.O./CCO Prompt Messages
C.O./CCO Curve Alert Messages Possible Causes
Check Injectate
Temperature Probe Type
The recorded Tinj signal is uncharacteristic for the M1646 injectate
temperature probe. The probe may be defective or an incorrect probe
type may have been used.
Unsteady Baseline
There is a noisy baseline, and thermal baseline drift.
Multiple Peaks
Caused by faulty injection technique.
Abnormal Decay Time
May be caused by low cardiac output. Calculated value for C.O. may
not be accurate.
Very Long Curve
The decay time of the curve is longer than 15 seconds.
Very Short Curve
Decay time of the curve is less than 0.5 seconds. If there is a noisy
baseline, part of the baseline may have been mistaken for a
thermodilution curve. Calculated value for C.O. may not be accurate.
Irregular Curve
Any combination of curve alert messages.
Delayed Injection
Injection is given more than 15 seconds after Start C.O. is
selected. Calculated value for C.O. may not be accurate.
If you have followed all of these guidelines, your measurement values should be valid, even if you still
see a curve alert message. Ensure that at least three subsequent measurements within the current series
do no differ by more than 15%. If the difference exceeds 15%, use your clinical judgement to
determine the appropriate intervention.
C.O./CCO Prompt Messages
Prompt messages appear in the C.O. procedure window if a C.O. measurement trial must be
terminated.
C.O./CCO Prompt Messages
Possible Causes
Curve Below Baseline,
measurement terminated
May be caused by thermal baseline drift. No C.O. value
calculated.
Excessive Curve Height,
measurement terminated
The curve exceeds the upper limit. This may be caused by an
injectate that was too cold. No C.O. value calculated.
Unstable Baseline,
The baseline is unstable. Wait until the baseline is stable before
injection not recommended injecting. If this does not occur within a reasonable time,
injection is possible but the accuracy of the measured values may
be reduced.
Excessive baseline drift, No measurement is possible. Measured values are incorrect.
don’t inject now
172
C.O./CCO Warning Messages
13 Monitoring Cardiac Output
C.O./CCO Warning Messages
Warning messages contain important information about the C.O. measurement.
C.O./CCO Warning Messages
Possible Causes
Next measurement erases
older curve
Six curves are stored, this is the maximum possible. If another
measurement is stored, the oldest thermodilution curve will be erased.
Previous C.O. Setup Data
replaced
A C.O. module or measurement server extension has been plugged in
with different C.O. setup data from the previous data. The new C.O.
setup data is read from the new C.O. device, and replaces the current
data. The message disappears when the Start C.O. pop-up key is
pressed.
Verify the C.O. Setup
Data
A new transpulmonary thermodilution catheter has been connected to
the C.O. Interface Cable.
Check arterial pressure,
CCO cal currently not
possible
Poor or invalid pressure signal, for example if pressure was not zeroed.
Verify the Computation
Constant
A new catheter has been plugged in, or the computation constant has
been changed and Start C.O. has not been selected.
Previous Comp. Constant
replaced
A new C.O. module or measurement server extension with a different
computation constant from the current one has been connected. The
new computation constant is read from the new C.O. device, and
replaces the current one. The message disappears when Start
C.O.is selected.
C.O./CCO Safety Information
WARNING
Catheter constant: Make sure that the arterial catheter constant for the measurement is appropriate
to the catheter used.
Computation Constant: Make sure that the computation constant for the measurement is
appropriate to the injectate volume, injectate temperature and catheter type used.
IABP: Do not perform transpulmonary thermodilution measurements on patients undergoing IABP
treatment.
CCO accuracy: Accuracy of the CCO measurement and all the derived values may be influenced by
patients with valve diseases or artificial valves.
C.O. and MRI: Do not use the Cardiac Output Interface Cable in Magnetic Resonance Imaging
(MRI) Applications.
Aortic graft patients: Do not use an arterial catheter in the arteria femoralis when it is contra
indicated, for example, with patients who have an aortic graft.
173
13 Monitoring Cardiac Output
C.O./CCO Safety Information
CAUTION During the cardiac output measurement procedure the blood temperature alarms are inactive. This is
indicated by a crossed-out alarm symbol next to the temperature numeric. Making alarms inactive
during this procedure prevents false alarms. The alarms are automatically reactivated when you have
completed the measurement procedure.
174
14
Monitoring Carbon Dioxide
14
Use the CO2 measurement to monitor the patient’s respiratory status and to control patient
ventilation.
There are two methods for measuring carbon dioxide in the patient’s airway:
• Mainstream measurement uses a CO2 sensor attached to an airway adapter directly inserted into the
patient’s breathing system. This method is available with the M3014A Capnography Extension and
the M3016A Mainstream Extension to the M3001A Multi-Measurement Server.
• Sidestream measurement takes a sample of the respiratory gas with a constant sample flow from the
patient’s airway and analyzes it with a remote CO2 sensor built into the measurement system. Philips
offers the sidestream CO2 measurement in the M3014A Capnography Extension and the
Microstream method of sidestream CO2 measurement in the M3015A Microstream CO2
Measurement Extension.
In both cases, the measurement principle is infrared transmission, where the intensity of infrared light
passing the respiratory gas is measured with a photo detector. As some of the infrared light is absorbed
by the CO2 molecules, the amount of light passing the gas probe depends on the concentration of the
measured CO2.
When using a wet ventilator circuit, monitor mainstream CO2 if available, in preference to sidestream
CO2.
The partial pressure is calculated from the gas concentration by multiplying the concentration value
with the ambient pressure.
The measurement provides:
• a CO2 waveform.
• an end tidal CO2 (etCO2) value: the CO2 value measured at the end of the expiration phase.
• an inspired minimum CO2 (imCO2): the smallest value measured during inspiration.
• an airway respiration rate (awRR): the number of breaths per minute, calculated from the CO2
waveform.
Depending on the Max Hold setting configured for your monitor, the etCO2 numeric shows either
the highest CO2 value measured within the configured time period (Max Hold set to 10 sec or 20
sec) or the etCO2 numeric shows breath-to-breath value (Max Hold set to Off).
Refer to your Gas Module Instructions for Use, if you are using a Gas Module to monitor CO2.
175
14 Monitoring Carbon Dioxide
WARNING
Using the Capnography Extension (M3014A)
Correlation: The etCO2 readings do not always correlate closely with paCO2, especially in neonatal
patients and patients with pulmonary disease, pulmonary embolism or inappropriate ventilation.
Pharmaceuticals in aerosols: Do not measure CO2 in the presence of pharmaceuticals in aerosols.
Explosion Hazard: Do not use in the presence of flammable anesthetics, such as a flammable
anesthetic mixture with air, oxygen or nitrous oxide.Use of the devices in such an environment may
present an explosion hazard.
Failure of operation: if the measurement extension or a sensor fails to respond as described, do not use
it until the situation has been corrected by qualified personnel.
Low etCO2 values: Leakages in the breathing system or sampling system may cause the displayed
etCO2 values to be significantly too low. Always connect all components securely and check for leaks
according to standard clinical procedures. Displacement of the nasal or combined nasal oral cannulas
can cause lower than actual etCO2 readings. Even with combined nasal oral cannulas, the etCO2
readings may be slightly lower than actual in patients breathing through the mouth only.
Using the Capnography Extension (M3014A)
The M3014A Capnography Extension measures partial pressure of carbon dioxide in a patient’s
expired gas using the mainstream method or the sidestream method. The mainstream CO2
measurement can be used, with appropriate accessories, with intubated adult, pediatric and neonatal
patients. The sidestream CO2 measurement can be used, with appropriate accessories, with intubated
and nonintubated adult, pediatric and infant patients. With intubated patients, a sample of the
respiratory gas is drawn from the patient’s breathing circuit through an airway adapter and a gas
sampling tube. With non-intubated patients, the gas sample is drawn through a nasal or oral-nasal
cannula.
WARNING
Altitude Setting: The monitor is not equipped with automatic barometric pressure compensation.
Before the CO2 measurement is used for the first time, the altitude must be set to the correct value. An
incorrect altitude setting will result in incorrect CO2 readings. The CO2 readings will typically deviate
5% for every 1000m difference.
Electrical Shock Hazard: Do not open the measurement extension. Contact with exposed electrical
components may cause electrical shock. Always turn off and remove power before cleaning the sensor
or measurement server. Do not use a damaged sensor or one with exposed electrical contacts. Refer
servicing to qualified service personnel.
CAUTION Use the M3014A measurement extension with Philips approved accessories only. Refer to the
instructions for use provided with the accessory.
Preparing to Measure Mainstream CO2
You must perform a zero as described in this procedure each time you use a new airway adapter.
176
1
Attach the sensor connector to the CO2 connector on the measurement extension.
2
Wait 2 minutes, allowing the sensor to reach its operating temperature and a stable thermal
condition.
Using the Capnography Extension (M3014A)
3
4
5
WARNING
14 Monitoring Carbon Dioxide
Choose the appropriate airway adapter and connect it to
the sensor head. The airway adapter clicks into place when
seated correctly.
To zero the sensor:
– expose the sensor to room air and keep it away from all
sources of CO2 including the ventilator, the patient’s
breath and your own.
– in the setup menu for the CO2, select Start Zero
Cal.
– When you see the message Zero done at <date
and time> on the status line, the zero calibration is finished and you can begin monitoring.
Install the airway adapter at the proximal end of the circuit
between the elbow and the ventilator Y-section.
To prevent stress on the endotrachial tube, support the sensor and airway adapter.
Position sensor cables and tubing carefully to avoid entanglement or potential strangulation. Do not
apply excessive tension to any cable.
Replace the airway adapter, if excessive moisture or secretions are observed in the tubing or if the CO2
waveform changes unexpectedly without a change in patient status.
To avoid infection, use only sterilized, disinfected or disposable airway adapters.
Inspect the airway adapters prior to use. Do not use if airway adapter appears to have been damaged or
broken. Observe airway adapter color coding for patient population.
Preparing to Measure Sidestream CO2
1
Plug the sensor cable into the monitor’s CO2 input connector. Allow the sensor
two minutes warm up time
2
Connect the cannula, airway adapter, or sample line as appropriate, to the
sensor. It will click into place when seated correctly.
3
To zero the sensor:
177
14 Monitoring Carbon Dioxide
Using the Capnography Extension (M3014A)
– expose the sensor to room air and keep it away from all sources of CO2 including the ventilator,
the patient’s breath and your own.
– In the setup menu for the CO2, select Start Zero Cal.
– When you see the message Zero done at <date and time> on the status line, the zero
calibration is finished and you can begin monitoring.
4
For intubated patients requiring an airway adapter: Install the airway adapter at
the proximal end of the circuit between the elbow and the ventilator Ysection.
For intubated patients with an integrated airway adapter in the breathing
circuit.: Connect the male luer connector on the straight sample line to the
female port on the airway adapter.
For non-intubated patients: Place the nasal cannula onto the patient.
For patients prone to mouth breathing use an oral-nasal cannula. Trim the
oral sampling tip if necessary to fit the patient. It should extend down past the
teeth and be positioned in the mouth opening. Remove the cannula from the
patient if the tip needs to be trimmed.
For nasal or oral-nasal cannulas with oxygen delivery, place the cannula on the
patient as shown then attach the oxygen supply tubing to the oxygen delivery system and set the
prescribed oxygen flow.
WARNING
Always connect the airway adapter to the sensor before inserting the airway adapter into the breathing
circuit. In reverse, always remove the airway adapter from the breathing circuit before removing the
sensor.
CAUTION Always disconnect the cannula, airway adapter or sample line from the sensor when not in use.
Using the Sidestream Sensor Holder
The holder delivered with the sensor can be used to clamp the sensor onto an IV pole or a shelf.
178
Using the Mainstream CO2 Extension (M3016A)
1
Push the sensor into the holder until it clicks into
position.
2
Clamp the holder onto an IV pole, a shelf or
another appropriate location.
14 Monitoring Carbon Dioxide
To remove the sensor from the holder, release the clip
and pull the sensor out of the holder.
clip
Removing Exhaust Gases from the System
WARNING
Anesthetics: When using the sidestream CO2 measurement on patients who are receiving or have
recently received anesthetics, connect the outlet to a scavenging system, or to the anesthesia machine/
ventilator, to avoid exposing medical staff to anesthetics.
Use an exhaust tube to remove the sample gas to a scavenging system. Attach it to the sidestream sensor
at the outlet connector.
Using the Mainstream CO2 Extension (M3016A)
The M3016A Measurement Server Extension measures partial pressure of carbon dioxide in a patient’s
expired gas using the mainstream method. When using the appropriate accessories you can use the
mainstream CO2 measurement with ventilated adults, pediatric and neonatal patients.
WARNING
Infra-red radiation: Do not expose the airway adapter or M1460A transducer to infra-red radiation
during use. This may cause incorrect readings.
Preparing to Measure Mainstream CO2
1
Attach the transducer connector to the CO2 connector on the measurement extension.
2
Wait 20 minutes, allowing the transducer to reach its operating temperature and a stable thermal
condition.
3
Perform an accuracy check and then, if necessary, calibrate the transducer.
Checking Transducer Accuracy
WARNING
Check transducer accuracy at least once a week or if you doubt the CO2 readings.
1
In Setup CO2 menu, select Cal. Mode to switch on calibration mode.
2
Look at the calibration value displayed in the Setup CO2 menu next to Start Cal 1:. Is it
the same as the value on the calstick? If not, calibrate the transducer now.
3
Place the transducer on the low cell of the calstick (labelled 0.0 mmHg or “ZERO”). The reading
on the screen should be zero within ±1 mmHg within one minute.
179
14 Monitoring Carbon Dioxide
Using the Mainstream CO2 Extension (M3016A)
4
Place the transducer on the high cell of the calstick. The reading on the screen should be within ±1
mmHg of the value on the calstick within one minute.
5
If both readings are in range, you can leave calibration mode and begin monitoring. If either of the
readings is out of range, calibrate the transducer.
Calibrating the Transducer
1
Check that the windows on the calstick are clean and clear.
2
Place the transducer on one of the calstick cells and select Start Cal 1.
3
Enter the calibration value printed on the calstick then press Confirm to start calibration.
4
When the message CO2 CAL 1 calibration done - start CAL 2 calibration
appears, put the transducer on the other cell and select Start Cal 2 then press Confirm.
5
When you see the message CO2 calibration completed. Leave calibration
mode., calibration is complete.
6
Select Cal Mode to switch calibration mode off. You cannot monitor in calibration mode.
Attaching and Removing the CO2 Transducer
Airway Adapter
1
180
Open the latch and place the
transducer onto the airway adapter.
Place the airway adapter in the
patient’s breathing circuit between
the endotracheal tube and the Ypiece. You may see the CO2 SENSOR
WARM UP message until the
transducer reaches operating
temperature. Wait until this
disappears before starting the
measurement.
CO2 Transducer
Using the Microstream CO2 Extension (M3015A)
2
WARNING
14 Monitoring Carbon Dioxide
To remove the transducer from the
airway adapter, open the latch and
pull out the airway adapter.
To prevent stress on the endotrachial tube, support the transducer and airway adapter.
To avoid infection, use only sterilized airway adapters.
Using the Microstream CO2 Extension (M3015A)
The M3015A Microstream CO2 Extension measures the partial pressure of carbon dioxide in a
patient’s expired gas using Microstream technology.
In intubated patients, a sample of the respiratory gas is drawn from the patient’s breathing circuit
through an airway adapter and a gas sampling tube. In non-intubated patients, the gas sample is drawn
through a nasal or oral-nasal cannula.
When using the appropriate accessories, you can use the Microstream CO2 measurement with adult,
pediatric, and neonatal patients.
The M3015A is equipped with an automatic barometric pressure compensation.
Preparing to Measure Microstream CO2
Use appropriate accessories for:
• the patient type (adult, pediatric or neonatal),
• the ventilation situation (including humidification)
• the duration - short term use, up to 24 hours (typically OR), or long term use (typically ICU).
All accessories are for single patient use only.
Using Microstream Accessories
M3015A can be operated with the special Microstream accessories only. Refer to the instructions for
use provided with the accessory.
181
14 Monitoring Carbon Dioxide
Using the Microstream CO2 Extension (M3015A)
For intubated patient with non-humidified ventilation, you can use a Microstream FilterLine set. For
humidified ventilation, use a FilterLine H Set.
For non-intubated patients, the gas sample is taken through a Nasal FilterLine, or a Smart CapnoLine
(which is a combined oral-nasal FilterLine). In parallel to the measurement of the CO2, oxygen (O2)
may be delivered to the patient to support gas exchange. This is done by using an O2/CO2 FilterLine,
or a Smart CapnoLine O2 (a combined oral-nasal O2/CO2 FilterLine).
Using the FilterLine and Airway Adapter
1
Attach the female Luer connector to the CO2 inlet connector on the measurement extension by
pushing the socket cover down and screwing the connector into place.
inlet connector cover
outlet connector
2
Check that the FilterLine is not kinked.
3
Change the FilterLine if a “CO2 OCCLUSION” INOP appears on the monitor or if the readings
become extremely erratic.
Disconnect the FilterLine during suctioning and nebulizing therapies.
For best results change the FilterLines for non-humidified use (with orange connectors) after 24 hours
of continuous use and the FilterLines H, for humidified use, (with yellow connectors) after 72 hours of
continuous use.
CO2 values for non-intubated patients using Microstream accessories will always tend to be lower than
for intubated patients. If values appear extremely low, check whether the patient is breathing through
the mouth or whether one nostril is blocked
Removing Exhaust Gases from the System
WARNING
Anesthetics: When using the Microstream CO2 measurement on patients who are receiving or have
recently received anesthetics, connect the outlet to a scavenging system, or to the anesthesia machine/
ventilator, to avoid exposing medical staff to anesthetics.
Use an exhaust tube to remove the sample gas to a scavenging system. Attach it to the Measurement
Server Extension at the outlet connector.
182
Setting up Mainstream and Sidestream CO2
14 Monitoring Carbon Dioxide
Suppressing Zero Calibration
To prevent an automatic zero calibration from being started in the next five minutes,
♦
in the Setup CO2 menu, select No Zero for 5 Min, or select the Suppress CO2 Zero
SmartKey, if configured.
Selecting No Zero for 5 Min or selecting the Suppress CO2 Zero SmartKey again before the
timer has timed out resets the timer to five minutes, unless an AutoZero became due during the
previous suppression.
Setting up Mainstream and Sidestream CO2
These tasks are common to all CO2 measurements except where otherwise noted.
Adjusting the CO2 Wave Scale
1
In the CO2 Wave menu or the Setup CO2 menu, select Scale.
2
Choose a suitable scale range from the pop-up list.
Setting up CO2 Corrections
Temperature, water vapor in the patient’s breath, barometric pressure, and the proportions of O2, N2O
and Helium in the mixture all influence CO2 absorption. If values seem inaccurately high or low,
check that the monitor is using the appropriate corrections.
Correction
Altitude
(M3014A
only)
Altitude is set during installation. The monitor automatically applies an appropriate
correction.
O2
(M3014A
only)
In the Setup CO2 menu, select Oxygen Corr and select a value between 0% and
100%, the default value is 16%.
Humidity
At installation, the monitor is configured to automatically apply either Body Temperature
Pressure Saturated (BTPS) or Standard Temperature Pressure Dry (STPD). To see
which, go to the Setup CO2 menu, and scroll down to look at HumidtyCorr.
N2O
(M3016A
mainstream
and M3015A
microstream
only)
In the Setup CO2 menu, select N2O Corr and turn on or off. If N2O is present in
the ventilation gas mixture, you must turn this on.
Gas
(M3014A
only)
In the Setup CO2 menu, select Gas Corr and select Helium, N2O or turn off. If
Helium or N2O is present in the ventilation gas mixture, you must make the
appropriate selection.
If the O2 correction is not available in the Setup CO2 menu, the CO2 measurement
in your Measurement Server Extension does not require O2 correction.
If the N2O correction is not available in the Setup CO2 menu, the CO2
measurement in your Measurement Server Extension does not require N2O correction
or it is setup with Gas Corr (see below).
If the Gas correction is not available in the Setup CO2 menu, the CO2 measurement
in your Measurement Server Extension does not require N2O or Helium correction or
the N2O correction is setup with N2O Corr (see above).
183
14 Monitoring Carbon Dioxide
Setting up Mainstream and Sidestream CO2
Correction
Agent
(M3014A
only)
In the Setup CO2 menu, select Agent Corr and select the concentration of the
anesthetic agent (between 0.0% and 20.0%). If an anesthetic agent is present in the
ventilation gas mixture, you must select the appropriate concentration.
Suppressing Sampling (not Mainstream CO2)
To temporarily stop sampling,
♦
in the Setup CO2 menu, select Pump 15Min Off or use the CO2 Pump Off SmartKey if
available.
Selecting Pump 15Min Off again before fifteen minutes have passed resets the timer to fifteen
minutes.
To re-start the pump,
♦
in the Setup CO2 menu, select Pump On.
Changing CO2 Alarms
This refers to CO2 specific alarms. See the Alarms section for general alarm information.
1
In the Setup CO2 menu, select etCO2 High or imCO2 High and choose the upper alarm limit.
2
Select etCO2 Low and choose the lower alarm limit.
Changing the Apnea Alarm Delay
This determines the time limit after which the monitor alarms if the patient stops breathing.
WARNING
1
In the Setup CO2 menu, select awRR.
2
In Setup awRR menu, select Apnea Time.
3
Choose the apnea alarm delay time.
Safety and effectiveness of the respiration measurement method in the detection of apnea, particularly
the apnea of prematurity and apnea of infancy, has not been established.
Prolonged delay: The selected apnea alarm delay may be prolonged by up to 17 seconds, if an apnea
occurs during the automatic zero process. This applies to the Microstream (M3015A) measurement
only.
Deriving Alarms From awRR
1
In the Setup CO2 menu, select awRR.
2
In the Setup awRR menu, select Alarms.
3
Choose On to derive alarms from the airway respiration signal or Off to disable them.
Changing awRR Alarm Limits
1
184
In the Setup CO2 menu, select awRR.
Setting up Mainstream and Sidestream CO2
2
Select High Limit to set the upper alarm limit.
Select Low Limit to set the lower alarm limit.
3
Select the appropriate setting.
14 Monitoring Carbon Dioxide
185
14 Monitoring Carbon Dioxide
186
Setting up Mainstream and Sidestream CO2
15
Monitoring Airway Flow,
Volume and Pressure
15
The M1014A Spirometry Module is designed to be used in combination with Philips-branded airway
flow sensors and combined CO2/airway flow sensors. It produces a real time wave for flow, volume and
pressure of respiratory gases together with numerics for analysis of ventilatory mechanics.
The measurement provides:
• Airway flow, airway volume and airway pressure waveform.
• Numerics for:
– respiratory rate
– tidal volume
– minute volume
– PEEP (positive end-expiratory pressure)
– PIP (peak inspiration pressure)
– dynamic compliance
– airway resistance
• Numerics for: (only visible in Spirometry Values Window, no alarming, no trending)
– peak inspiratory flow
– peak expiratory flow
– negative inspiratory pressure
– mean airway pressure
– plateau pressure numeric
– I:E ratio
The measurement also provides pressure-volume loops, flow-volume loops and pressure-flow loops.
Please see the Respiratory Loops chapter for details on loops.
When using combined CO2/Flow sensors you can also perform mainstream capnography with
intubated adult, pediatric and neonatal patients. See the Measuring CO2 chapter for details on the CO2
measurement and the Accessories chapter for a list of compatible accessories.
WARNING
Electrical Shock Hazard: Do not open the module. Contact with exposed electrical components may
cause electrical shock. Always turn off and remove power before cleaning the module. Refer servicing
to qualified service personnel.
187
15 Monitoring Airway Flow, Volume and Pressure
Attaching the Flow Sensor
Attaching the Flow Sensor
CAUTION Use the M1014A Spirometry Module with Philips approved accessories only. Refer to the instructions
for use provided with the accessory.
1
Select the appropriate flow sensor. Make sure that you are using the correct sensor for the respective
patient category. Otherwise accuracy may be reduced.
Pediatric/Adult Flow Sensor (M2785A). Color: clear
For intubated patients with endotracheal tube diameters >4 mm. Adds
approximately 6.5 cc of deadspace.
Infant/Neonatal Flow Sensor (M2786A) Color: violet
For intubated patients with endotracheal tube diameters ≤ 4 mm.
Adds less than 1 cc of deadspace.
You can also use combined CO2/flow sensors. Note that the M3014A Capnography Extension is
required to measure CO2.
Pediatric/Adult Combined CO2/Flow Sensor (M2781A). Color: clear
For intubated patients with endotracheal tube diameters >5.5 mm.
Adds 8 cc of deadspace.
Pediatric Combined CO2/Flow Sensor (M2783A): Color: green
For intubated patients with endotracheal tube diameters of 3.5 6 mm. Adds less than 4 cc of deadspace.
Infant/Neonatal Combined CO2/Flow Sensor (M2782A).
Color: violet
For intubated patients with endotracheal tube diameters of 2.5 4 mm. Adds less than 1 cc of deadspace.
188
2
If you are using a combined CO2/Flow sensor, connect it to the CO2 sensor head first. The airway
adapter clicks into place when seated correctly.
3
Click the connector into place in the flow sensor receptacle on the monitor before connecting to
the breathing circuit.
4
Install the flow sensor or the combined CO2/Flow sensor at the proximal end of the breathing
circuit between the elbow and the ventilator Y-piece. Make sure that the spirometry sensor is in a
horizontal position with its tubing pointing upwards. The correct position is also indicated by an
arrow on some of the sensors. (Graphic shows combined CO2/Flow Sensors).
Attaching the Flow Sensor
Pediatric/adult sensor
WARNING
15 Monitoring Airway Flow, Volume and Pressure
Pediatric sensor
Infant/Neonatal sensor
To prevent stress on the endotrachial tube, support the sensor and airway adapter.
Position sensor cables and tubing carefully to avoid entanglement or potential strangulation. Do not
apply excessive tension to any cable or tubing.
Replace the sensor, if excessive moisture or secretions are observed in the tubing and cannot be
removed by a purge cycle.
Reuse poses a patient hazard. Do not disassemble, clean, disinfect or sterilize the sensor.
A system leak may significantly affect readings of flow, volume, pressure and other respiratory
mechanics parameters.
Do not leave the sensor in the patient circuit when not connected to the monitor.
NOTE
• Do NOT place the airway adapter between the endotrachial tube and the elbow (pediatric/adult
circuit), as this may allow patient secretions to block adapter windows.
• The striped tubing of the flow sensor should always be proximal to the patient.
• Position the airway adapter with the spirometry tubing pointing upwards.
• To prevent “rain-out” and moisture from draining into the airway adapter, do NOT place the airway
adapter in a gravity dependent position.
• Periodically check the flow sensor and tubing for excessive moisture or secretion build up. Perform a
purge cycle if droplets are visible within the sensor or tubing. Repeat if necessary. If purging does not
remove the droplets, replace the sensor.
• For routine performance of airway care, separate the system between the endotrachial tube and the
airway adapter (neonatal circuit), or between the endotracheal tube and elbow (pediatric/adult
circuit). Lavage and suctioning of the airway can then be performed without fluids and mucous
accumulating on the airway adapter windows.
• Measurement values provided by a ventilator may differ significantly from the values provided by
the spirometry module, due to different locations of the flow sensor.
• Incorrect entry of gas compensation parameters (i.e. temperature, gas composition) may reduce the
accuracy of the measured values.
189
15 Monitoring Airway Flow, Volume and Pressure
Zero Calibration
• A volume waveform as displayed below on the left may be an indicator of an air leak:
Abnormal waveform due to leak
Normal waveform
In general, if MVexp or TVexp are significantly smaller than MVin or TVin, the tubing should be
checked for leaks.
Zero Calibration
The zero calibration maintains the accuracy of the spirometry waves and numerics by regularly
compensating for drifts within the measurement section. It is performed automatically without user
interaction and takes about 2 seconds to complete. The automatic zero calibration is normally carried
out every ten minutes. During warm-up or when the ambient pressure changes, this interval may be
reduced to two minutes.
During the zero calibration the waveform is flat but the numerics remain on the screen. Typically, a
zero calibration is started at the beginning of a respiration cycle, therefore a waveform may begin
normally and then immediately become flat for the time of the zero calibration.
Zero Calibration
Automatic Purging
A double lumen connecting line (tubing) connects the flow sensors to the patient monitor. The
M1014A Spirometry Module includes an automatic and manual purge feature which provides a flush
of room air to keep the sensor tubing free from water condensation and patient secretions. This feature
is available for the adult, pediatric, and neonatal modes. The purge will begin with the exhalation
portion of the ventilator cycle.
N O TE
• During the purge cycle the pump will be heard
• If the purge does not sufficiently clear the flow tubing lines, the flow sensor should be replaced
• With each purge cycle, a zero calibration is automatically performed
190
Manual Purging
15 Monitoring Airway Flow, Volume and Pressure
Adult Mode
The system automatically purges the sensor tubing every ten minutes or less, depending on system
conditions. In adult mode, the system will purge both sides of the line, one at a time, during each
purge cycle. The higher the pressure, the more frequent the purging. This action anticipates increased
moisture migration into the sensor tubing due to the increase in circuit pressure.
Neonatal and Pediatric Modes
The automatic purge cycles used in the neonatal or pediatric mode is fixed at every three minutes
regardless of circuit pressure. Only one side of the sensor tubing will be purged during each purge
cycle.
Unlike the adult purge mode, the neonatal or pediatric purge mode does not use the full force of the
internal pump, but rather pressurizes an internal reservoir which is used for the purge. This minimizes
the pressure delivered to the ventilator circuit, but does deliver a sufficient pressure to purge the sensor
tubing.
Manual Purging
Occasionally, purging may be required in between the automatic purge cycles. The manual purge may
be used as often as needed. Check the orientation of the flow sensor if repeated manual purge cycles
become necessary.
To manually purge, press the Purge button on the module (marked by
on international
versions of the module) or select Purge in the Setup Spirometry window to initiate a combined
purge and zero cycle.
Gas Compensation
Temperature and the proportions of individual gases influence the flow measurement. If values seem
inaccurately high or low, check that the monitor is using the appropriate gas compensation. Gas
compensation can be done using either manually entered gas concentrations or gas concentrations
from the gas analyzer.
N O TE
If you unintentionally switch the gas compensation to the incorrect setting, the accuracy of the
measured flow and volume values may be significantly reduced. The tables below show examples of
incorrect gas compensation settings and the resulting inaccuracies:
N2
Actual Gas Composition
Gas Compensation Setting
60
O2
N2O
Agent Difference between measured
and actual values
40
40
60
15%
Table 1 Incorrect Balance Gas Setting (N2O instead of N2)
191
15 Monitoring Airway Flow, Volume and Pressure
N2
Setting up Spirometry
O2
N2O
Agent
Actual Gas Composition
55
40
5
Gas Compensation Setting
60
40
0
Difference between measured
and actual values
15%
Table 2 Incorrect Agent Percentage Setting
Setting up Spirometry
The following settings can be accessed through the Setup Spirometry menu.
Optimizing Scale Settings
In the Setup Spirometry menu, select Optimize Scales.The scale settings for all three
spirometry waves (AWF, AWP, AWV) will be optimized.
Spirometry Values Window
You can view all spirometry measurement data in the spirometry data window. In the Setup
Spirometry menu, select Show All Values.
Spirometry
Adult/Pedi Flow Sensor
RRspir
10 rpm
I:E 1:
1.9
24 ml/cmH2O
COMP
4 cmH2O/l/s
Raw
MVexp
7.2 l/min
PIP
MVin
7.3 l/min
PEEP
TVexp
720 ml
MnAwP
17 cmH2O
TVin
720 ml
Pplat
30 cmH2O
-5 cmH2O
PEF
8 l/min
PIF
12 l/min
NgInsP
31 cmH2O
4 cmH2O
Figure 1 Example for Spirometry Values Window
Alarms and Alarm Limits
Alarms can be derived from PEEP, PIP, MV and RRspir. In the Setup Spirometry menu you
can set the alarm limits. Please refer to the Alarms chapter of this manual for details on alarm settings.
Changing the Apnea Alarm Delay
This determines the time limit after which the monitor alarms if the patient stops breathing.
192
1
In the Setup Spirometry menu, select RRspir.
2
In Setup RRspir menu, select Apnea Time.
3
Choose the apnea alarm delay time.
Setting up Spirometry
15 Monitoring Airway Flow, Volume and Pressure
WARNING
Safety and effectiveness of the respiration measurement method in the detection of apnea, particularly
the apnea of prematurity and apnea of infancy, has not been established.
WARNING
If an apnea occurs during a zero calibration, the time delay between the start of apnea and the
activation of the apnea alarm could be up to 10 seconds plus the configured apnea delay time.
Automatic Alarm Suppression
If the automatic alarm suppression is switched on, all spirometry alarms are suppressed until breathing
activity has been detected. This setting must be made in configuration mode.
Choosing Measured AWV Components
N O TE
1
In the Setup Spirometry menu, select AWV.
2
Select MV to choose the measured components for Minute Volume
(inspiratory and/or expiratory or off ).
Select TV to choose the measured components for Tidal Volume
(inspiratory and/or expiratory or off ).
If MV and TV are set to off, there will be no alarming for these parameters.
Setting the Gas Compensation Mode
1
2
N O TE
In the Setup Spirometry menu, select Gas Compensation.
Select Mode to choose the Gas Compensation mode:
– select Manual for manually entered gas concentrations or
– select Gas Analyzer for gas concentrations from the gas analyzer.
• Gas concentrations from the gas analyzer are only available for Philips gas analyzers, not for devices
connected via the Vuelink module.
• If gas concentrations from the gas analyzer are selected but not all data is available, the missing data
is taken from manually entered values. In case of invalid data or no data at all, the INOP message
SPIRO GAS COMPENS? is displayed.
Changing the Type of Balance Gas
1
In the Setup Spirometry menu, select Gas Compensation.
2
Select Balance Gas to change the type of balance gas.
3
Select the appropriate setting (N2 or N2O).
Changing the Concentration of Inspired O2 and the Inspired Agents
1
In the Setup Spirometry menu, select Gas Compensation.
2
Select Inspired O2 to change the concentration of inspired O2.
Select Inspired Agent to change the concentration of the inspired agent(s).
193
15 Monitoring Airway Flow, Volume and Pressure
3
Setting up Spirometry
Select the appropriate setting.
Changing the Temperature of the Inspired Gas
Depending on the type of ventilator environment (e.g. if you are using a Heat Moisture Exchanger)
you may want to change the temperature setting of the inspired gas:
N O TE
194
1
In the Setup Spirometry menu, select Gas Compensation.
2
Select Inspired Temp to change the temperature of the inspired gas.
3
Select the appropriate temperature setting.
Changing the temperature setting unintentionally will result in approximately 3% reduced accuracy
per 10°C ( 18°F) temperature setting change.
16
Monitoring tcGas
16
The tcGas module measures the partial pressure of the oxygen and carbon dioxide that diffuses through
the skin, thereby providing a measure of these gases in the capillary blood.
The monitor’s settings for altitude and barometric pressure influence the measurement. The tcpO2/
tcpCO2 measurement is valid for an infant patient not under gas anesthesia. Anesthetic agents, such as
halothane, can cause incorrect or drifting readings.
Transcutaneous measurements cannot replace arterial blood gas monitoring. However, you can use
transcutaneous monitoring to reduce the frequency of arterial sampling. The values at tissue level will
not be the same as those measured arterially because the measurement is transcutaneous. They correlate
with (track closely) the arterial values. For example, a drop in transcutaneous values usually indicates a
corresponding drop in arterial values.
Transcutaneous values will not always correlate with blood samples taken from the capillary blood of
the heel (heelsticks or astrups).
Identifying tcGas Module Components
tcGas
1 press to enter Setup tcGas menu
M1018A
2 press to start calibration
3 calibration chamber
1
O2/CO2
4 transducer connector
2
CAL
80 x 70
3
4
195
16 Monitoring tcGas
Setting the tcGas Sensor Temperature
Setting the tcGas Sensor Temperature
1
In the Setup tcGas menu, select Transducer Temp.
2
Choose a temperature value appropriate for your patient’s age, weight and physical condition in
accordance with your hospital policy.
Usually, a higher transducer temperature gives a better correlation and a quicker response time.
However, higher temperatures also increase the risk of skin burns. Most physicians prefer a
temperature between 42°C (107° F) and 44°C (111° F), and a site time of four hours or less.
Usually, the higher the transducer temperature, the less the site time should be. Whenever you
change the temperature setting, the monitor forces you to make a new calibration.
Using the tcGas Site Timer
Availability and behavior of the site timer depend on your monitor’s configuration.
WARNING
Prolonged continuous monitoring may increase the risk of undesirable changes in skin characteristics,
such as irritation, reddening, blistering or burns. If the site timer is disabled, the transducer will heat
indefinitely while on a patient. Change the site regularly, in accordance with medical procedures in
your hospital.
Setting the tcGas Site Timer
The site timer helps reduce the risk of skin burn by ensuring that the transducer is used at one site for
no longer than a predefined period. It reminds you when this period expires.
1
In the Setup tcGas menu, select Site Time.
2
Choose the time you want the transducer to remain on the measurement site. The optimum time
depends on the transducer temperature and your patient’s skin sensitivity.
The site timer starts automatically when you remove the calibrated transducer from the calibration
chamber. If you return the transducer to the chamber and then remove it again, the site time continues
to count down the remaining time; it does not start a new time period. The time remaining before the
site timer expires appears in the status line which is visible as long as the Setup tcGas menu is
open. When the time expires, the monitor sounds a tone and a displays a change site INOP. The
monitor either switches off the transducer heating or continues monitoring, depending on its
configuration. Although you can reuse the transducer for up to two hours after the heating is switched
off, without making a new calibration, you are recommended to recalibrate before applying it to a
patient. After two hours without heat, you must recalibrate.
During the initial few minutes of use, the monitor eliminates false alarms by temporarily suppressing
tcGas alarms. It displays the “STABILIZING” INOP. After you apply the transducer to the skin, the
instrument reading slowly assumes a steady value. The reading stabilizes when the measurement site is
warm and local hyperemization is complete. This takes 10 to 20 minutes for the tcpO2 reading and
three to seven minutes for tcpCO2.
196
Setting the tcGas Barometric Pressure
16 Monitoring tcGas
Restarting the tcGas SiteTimer
To restart the site timer without recalibration (for example, after the site time has elapsed):
1
In the Setup tcGas menu, select Site Time.
2
Enter and confirm your desired time.
Disabling the tcGas Site Timer
Depending on your monitor’s configuration, you might be able to disable the site timer. Remember,
this means that the transducer heats indefinitely while on a patient.
1
In Setup tcGas menu, select Site Timer and switch this to Disabled.
2
Select the Confirm popup key.
Setting the tcGas Barometric Pressure
Altitude and barometric pressure affect tcGas values. The monitor derives barometric pressure from its
altitude setting. If you want to set the true barometric pressure you must do this before starting a
calibration - changes after calibration do not influence tcGas values. The monitor remembers this
pressure setting until you enter a new one.
1
In the Setup tcGas menu, select AmbientPress.
2
Enter the current barometric pressure reading indicated by your barometer.
3
Select the Confirm popup key.
Remembraning the tcGas Transducer
CAUTION The tcGas transducer is thin and flexible. You must treat it with care. Avoid kinking, bending or
pulling the cable.
Remembrane the transducer if the electrolyte in your transducer has dried out or:
• if the transducer is new
• if you are using the transducer with a new patient
• if the membranes are damaged (scratched or wrinkled)
• after five days of continued use or 28 days of storage.
197
16 Monitoring tcGas
1
Unscrew the protection cap from the transducer and
hook the O-ring remover under both O-rings to remove
them.
2
Remove both of the clear plastic membranes using your
fingers.
3
Clean the transducer head, including the groove and
rim, with absorbent paper to remove all old electrolyte
(old electrolyte causes incorrect values) and apply
approximately two drops of electrolyte solution to the
transducer head.
4
Press the transducer head downwards into an unused
membrane replacer until the replacer retracts as far as it
can and you hear a click. Discard used replacer.
Remembraning the tcGas Transducer
5
Remove any surplus electrolyte solution on the outside of the membranes with a soft tissue.
6
Make sure that the new membranes are secured by two O-rings on the transducer. If any air
bubbles are visible under the membranes, repeat this procedure - air bubbles will cause incorrect
readings.
7
After 24 hours you can calibrate the transducer. You must remembrane all new and dried out
transducers twice before calibration.
New/Dried Out Transducers
Remembrane all new or dried out transducers twice before using. After the first remembraning, unplug
the transducer from the module and leave it for 24 hours with the cap on. Remembrane again before
calibrating.
Storing tcGas Transducers
If you need to store a sensor for more than 24 hours, protect it for up to 28 days by putting two drops
of electrolyte solution into the cap. Screw the cap on the sensor. Remembrane if it dries out or after 28
days.
198
Calibrating the tcGas Transducer
16 Monitoring tcGas
Calibrating the tcGas Transducer
You can use either a Philips (15210B) or a Radiometer TCC3 calibration unit and a gas cylinder whose
pressure indicator is above the ‘out-of-gas’ zone (black on 15210B, red on TCC3). To maintain
accuracy, it is recommended to calibrate the transducer every four hours, even if the monitor does not
prompt you to do so. You MUST calibrate when:
• you remembrane the transducer
• you change the transducer heat setting
• you doubt the measurement accuracy
• you start a new monitoring period or use a new site
• the monitor displays the “calibration required” INOP message.
1
Connect the calibration unit to the inlet on the side of the module’s calibration chamber using the
recommended gas tubing. Different tubing will cause inaccurate measurements.
2
Plug the transducer cable into the module. Swing the calibration chamber cover open and insert
the transducer into the chamber. Close the cover to secure the transducer. Set the transducer
temperature at the monitor now.
3
On the 15210B calibration unit, turn the timer control clockwise as far as you can. On the
Radiometer calibration unit, press the button with the green arrow once.
199
16 Monitoring tcGas
4
Calibrating the tcGas Transducer
Press CAL on the module until the light above the key comes on and wait (three - 20 minutes) for
the “calibration complete” message to appear on the monitor. Alternatively, in the Setup tcGas
menu, select Start Calibration. To save gas on 15210B, if the timer control dial is not in the
start position when the monitor displays the calibration complete message, turn the dial counterclockwise to the start position. For TCC3, if the green light is still flashing when INOP “tcGas
CalRunning” disappears, press the green arrow button again.
Calibration Failure
If calibration fails, the monitor displays “...tcGas transducer or Cal Unit malf” and the
CAL FAILED INOP for the measurement.
Troubleshooting tcGas Calibration
Perform each of the following steps, in order, until calibration is successful.
200
1
Check the calibration unit, then recalibrate, remembering to turn on the gas supply on the
calibration unit. If the pressure indicator reading is in the out of gas zone, there is insufficient gas
in the cylinder. Connect the gas tubing firmly to the calibration unit and to the module’s
calibration chamber.
2
If Step 1 fails, check whether you need to activate the transducer (necessary if the electrolyte has
dried out or if you have a new transducer). Remembrane the transducer, removing the old
membranes, and cleaning the transducer head thoroughly.
3
Calibrate a second time.
4
If Step 2 is unsuccessful, calibrate again. This calibration may be required to stabilize the
electrochemical system in the transducer.
5
Only if the above steps are unsuccessful (you have activated and remembraned the transducer and
calibration has still failed twice), replace the transducer.
Applying the tcGas Transducer
16 Monitoring tcGas
Applying the tcGas Transducer
1
Peel protection film from fixation ring. Using a finger, press the sticky side of the ring on to clean,
dry skin. Press around the outside to ensure a good seal. Apply three to five drops of contact fluid
in the ring’s center. Remove transducer from chamber.
2
Align the arrow on the transducer with the tab on the ring and fasten by turning turn a quarterturn clockwise. Wait 10-20 minutes for readings to stabilize.
3
Apply the transducer as soon as possible after you see the “...calibration complete” message. If you
wait longer than 30 minutes, the heat supply to the transducer switches off to prevent the
electrolyte from drying out and a new calibration is necessary.
Optimize the measurement by selecting a site with high capillary density and blood flow, thin
epidermis and no cardiovascular disorders. Most physicians use the abdomen, chest and back.
WARNING You must either remove the transducer before defibrillating, or remembrane and calibrate the
transducer after defibrillating.
CAUTION To avoid transducer damage, remove it from the patient during high frequency surgical procedures.
201
16 Monitoring tcGas
Finishing tcGas Monitoring
Selecting the tcGas HeatPowerDisplay Mode
The heat power display gives an indication of the skin’s perfusion below the transducer and of the
transducer’s contact with the skin. If the transducer loses contact, the heat power value drops
significantly. When perfusion is poor you need less heat power to maintain the transducer temperature.
♦
In the Setup tcGas menu, select HeatPowerDisplay to toggle between Relative and
Absolute. Choose Relative when the skin temperature is stable (the STABILIZING INOP
disappears). This indicates subsequent changes in the relative heat power (and therefore changes in
perfusion or transducer contact) since the last zeroing.
Zeroing the tcGas Relative Heat Power
When you start a calibration, the HeatPowerDisplay is set to Absolute. When you switch to
Relative, it automatically zeros. Zero again if you change application site.
Finishing tcGas Monitoring
♦
Replace the transducer in the calibration chamber.
When changing the application site after a measuring period, some users leave the fixation rings in
position to allow them to quickly move the transducer from site to site. Always unscrew the transducer
from the fixation ring before removing the fixation ring from the skin.
TcGas Corrections
Transcutaneous pCO2 values tend to be higher than arterial values due to the metabolic processes of
the skin and the effect of heating on the blood under the transducer. Depending on your monitor’s
configuration, one or both of these corrections may automatically apply.
Temperature Correction for tcpCO2
The transducer temperature causes an increase in partial CO2 pressure. Your monitor may be
configured to correct this.
♦
In the Setup tcpGas menu, look at the menu item CO2 Correction. If correction is enabled,
it is set to On.
Metabolism Correction for tcpCO2
CO2 production in the epidermis increases the CO2 value. Your monitor may be configured to
automatically deduct a metabolism factor (only applies when CO2 Correction is on).
♦
202
In the Setup tcGas menu, look at the value shown for the menu item MetabolismFactor.
This is deducted from the CO2 value.
17
Monitoring SvO2
17
MP60/70/
80/90
monitors
only
WARNING
The SvO2 module measures the percentage of mixed venous oxygen saturation continuously and
invasively using the Hospira, Inc. (formerly Abbott Laboratories) OptiCath family of catheters routed
via the right side of the heart into the pulmonary artery. Can be used only with the MP60/MP70/
MP80/MP90 monitors.
Injected dyes, such as methylene blue, or intravascular dyshemoglobin may lead to inaccurate
measurements.
Do not monitor oxygen saturation during infusion of I.V. fat emulsion or other turbid substances
through the distal lumen of the OptiCath catheter. These liquids might temporarily modify the blood
scattering and absorption characteristics at the catheter tip. This interferes with the optical
measurement of oxygen saturation. After infusion is complete, you can again monitor oxygen
saturation accurately.
During injection of the bolus for thermodilution cardiac output measurements, the SvO2
measurement might be disturbed.
203
17 Monitoring SvO2
Preparing to Monitor SvO2
Preparing to Monitor SvO2
In addition to an SvO2 module, you need a Hospira OptiCath catheter, and 50131 Optical Module.
Use only the Hospira accessories listed in the Accessories section.
1
optical module
2
balloon
inflation
stopcock
3
Hospira fiber
optic catheter
4
optical
reference
5
enter setup/
calibration
4
5
1
3
2
Connect the optical module (Hospira 50131) to the SvO2 module. Allow the optical module to warm
up before you perform a calibration. Although the warm up message disappears from the screen after
one minute, Hospira recommends letting the optical module warm up for 15 minutes for best
accuracy. Please refer to the instructions for the optical module.
To avoid false alarms during the pre-insertion calibration and insertion of the catheter into the patient,
the monitor automatically suspends alarms during the pre-insertion calibration, for up to three minutes
after you remove the catheter tip from the optical reference. After light intensity calibration, or after
three minutes (whichever comes first), the monitor returns to the alarm state it was in prior to preinsertion calibration.
Carrying out a Pre-insertion Calibration
WARNING
It is strongly recommended to carry out a pre-insertion calibration prior to all insertions. If this is not
possible, you must perform an in-vivo calibration after insertion.
Refer to the instructions for use that accompany the catheter. Do not use the catheter if the packaging
is damaged. If you have to disconnect the monitor from the patient (for example, when transferring the
patient from one location to another), you must disconnect at the SvO2 module. The catheter should
remain in the optical module, otherwise you need to recalibrate.
204
1
Remove outer wrapping from catheter tray to uncover optical connector.
2
Place the optical module on the catheter tray in the space provided and open the lid.
Inserting the Catheter
17 Monitoring SvO2
3
Place the optical connector into the optical module (with the label “TOP” facing upwards) and
close the lid.
4
In the Setup SvO2 menu, select Start Pre-InsCal. Ensure that the tip of the catheter is still
in the optical reference.
5
Insert the catheter when you see the message SvO2 calibration completed - catheter
ready for insertion. If the calibration fails, repeat the calibration before inserting the
catheter. If it fails a second time, replace the optical module.
Inserting the Catheter
1
Remove the inner cover of the catheter tray.
2
Remove the catheter tip from the optical reference. Check the catheter's proper operation (for
example: the balloon tip).
3
Prepare and insert the catheter in accordance with standard hospital practice.
The SvO2 catheter is thin and flexible, treat it carefully. Avoid kinking, bending or grasping the
catheter with forceps or a hemostat. Damage to the fiber results in low intensity light and sudden
decrease in intensity readings. Refer to the documentation provided with the fibre-optic catheter,
paying special attention to any precautions, warnings or contraindications.
Secure the optical module directly or in close proximity to the patient, to avoid placing excessive
tension on the catheter, which would result in movement of the catheter tip from the optimal position
in the patient. Position the optical module to avoid contact with liquids, because fluid entering the
catheter-optical module connection may impair light transmission.
If you place the catheter in the patient without performing the pre-insertion calibration, you must
perform an in-vivo calibration once the catheter is in place.
Performing a Light Intensity Calibration
Perform a light intensity calibration after the catheter is in its proper position. When the catheter is
positioned properly, the light intensity indicator must cover at least two small divisions above the
midpoint.
SvO2
80
60
♦
67
In the Setup SvO2 menu, select Start Light Cal.
Calibration is complete after a few seconds. If you doubt existing light intensity readings, recalibrate.
205
17 Monitoring SvO2
Performing In-Vivo Calibration
Performing In-Vivo Calibration
Perform an in-vivo calibration:
• if you place the catheter in a patient without performing a pre-insertion calibration.
• if the catheter was disconnected from the optical module.
• when the catheter has been in the patient for 24 hours.
• if any significant change in light intensity occurs that the monitor cannot correct automatically.
Setting Up the In-Vivo Calibration
Check for:
• proper positioning of the catheter in the patient.
• relatively stable oxygen saturation in patient.
• that the SvO2 light intensity indicator covers at least two divisions above the midpoint.
Making the In-Vivo Calibration
1
Be prepared to draw a blood sample from the patient.
2
In the Setup SvO2 menu, select Start In-VivoCal.
3
To clear the distal lumen, draw off and discard at least 2 ml of blood before taking the sample.
4
Draw a blood sample from the distal port of the catheter and flush the line according to standard
hospital practice.
5
Obtain laboratory analysis of the sample using direct measurements.
6
Compare the results with the stored calibration value displayed in the Setup SvO2 menu. If the
difference is less, or equal, to 4%, you can skip the next step.
7
If there is a difference of more than 4% between the stored value and the laboratory value, select
CalibrationValue to adjust the stored value. Selecting Recall PreviousC recalls the
previously stored calibration value.
8
Complete the calibration by selecting Store In-VivoCal (even if you did not adjust the
calibration value). This updates the data stored in the optical module.
Calculating Oxygen Extraction
Oxygen extraction is the difference between the measured SpO2 and SvO2 values. If you are
monitoring SpO2 and SvO2, the monitor can calculate this value and display it as a numeric.
♦
To switch oxygen extraction calculation on or off, in the Setup Sp-vO2 menu, select Sp-vO2
and toggle between On and Off.
♦
If more than one SpO2 value is available, you must choose which value is used in the calculation.
In the Setup Sp-vO2 menu, select SpO2 Source and select the required source.
If one of the calculation sources becomes unavailable, the monitor displays the INOP
Sp-vO2 CHK SOURCES for one minute. After this time, the calculation automatically switches off.
If the missing source becomes available again, the calculation automatically switches on again.
206
18
Monitoring EEG
18
The Electroencephalograph (EEG) module monitors the patient’s cerebral function by measuring the
electrical activity of the brain. It provides the monitor with two channels of realtime EEG waves, EEG
trend information in the form of Compressed Spectral Arrays (CSA), and up to eight of the following
numerics:
Spectral Edge Frequency (SEF): The SEF is the frequency below which a defined percentage of the
Total Power lies. The percentage is set in Configuration Mode.
Mean Dominant Frequency (MDF): The MDF is the mean value of the frequency which dominates
the measured EEG.
Peak Power Frequency (PPF): The PPF is the frequency with the highest measured amplitude.
Total Power (TP): The TP numeric indicates the power in the measured frequency band.
Percentage of total power in each frequency band:
–
–
–
–
Alpha waves (8 to 13 Hz)
Beta waves (13 to 30 Hz)
Theta waves (4 to 8 Hz)
Delta waves (0.5 to 4 Hz).
207
18 Monitoring EEG
EEG Monitoring Setup
EEG Monitoring Setup
1
Plug the trunk cable into the EEG module in the Flexible Module Server.
2
Prepare the patient’s skin prior to placing the electrodes. Good electrode-to-skin contact is
important for a good EEG signal, as the skin is a poor conductor of electricity.
– Shave hair from sites, if necessary.
– Wash sites thoroughly with soap and water. We do not recommend using ether or pure alcohol,
because this dries the skin and increases the resistance.
– Use a skin preparation paste to remove skin cells and oil before placing the electrodes.
3
Select the desired electrode montage in the Setup EEG menu or in the EEG Impedance/
Montage window.
4
Attach the reference electrode first.
5
Place the electrodes on the patient’s head according to the selected montage. Use electrode gel if
you are not using pre-gelled electrodes. Remember to select a site where the signal will not be
interfered with by muscle artifacts.
6
Connect the electrode connector end to the trunk cable.
7
Check the electrode-to-skin impedance in the EEG Impedance/Montage window.
8
For good signal quality, keep all lead wires together and away from other electric devices and
metallic bodies.
Using the EEG Impedance/Montage Window
♦
To open the window, in the Setup EEG menu, select Show Montage, or select the
EEG Montage SmartKey.
The window may be configured to look slightly different on your monitor.
Electrode locations on the patient’s head. The symbols
represent the electrode-to-skin impedance.
Wiring and impedance values for the
selected montage
EEG Impedance/Montage
+
- +
EEG 1
EEG 2
1
1 1 kOhm 1
ImpedanceLimit:5kOhm
EEG 1: F3-P3
EEG 2: F4-P4
Montage A
208
Using the EEG Impedance/Montage Window
18 Monitoring EEG
Choosing an EEG Electrode Montage
1
To activate one of the five pre-configured electrode montages, select the arrow beside the label in
the EEG Impedance/Montage window and choose a montage from the list.
2
Attach the electrodes as illustrated in the EEG Impedance/Montage window.
The five default electrode montage configurations can be modified and renamed in Configuration
Mode.
Montage Name
EEG1+
EEG1- Label1
EEG2+ EEG2-
Label2
Mont.A
Fp1
T3
Fp1-T3
Fp2
T4
Fp2-T4
Mont.B
O1
T3
O1-T3
O2
T4
O2-T4
Mont.C
F3
C3
F3-C3
F4
C4
F4-C4
Mont.D
C3
P3
C3-P3
C4
P4
C4-P4
Mont.E
Fp1
T5
Fp1-T5
Fp2
T6
Fp2-T6
The electrode locations are labeled according to the international 10-20 electrode placement system.
Changing the Impedance Limit
The impedance limit can be set for all electrodes simultaneously in the Setup EEG menu, or in the
EEG Impedance/Montage window using the pop-up keys. If the limit is exceeded during
monitoring, an INOP will appear and the graphic impedance indicator will change.
To change the impedance limit, either
♦
use the pop-up keys that appear with the EEG Impedance /Montage window, or
♦
in the Setup EEG menu, select Impedance Limit to call up a list of selections between 1 and
30 kOhm, then select the required limit from this list.
209
18 Monitoring EEG
Using the EEG Impedance/Montage Window
About Electrode-to-Skin Impedance
Electrode-to-skin impedance is the main quality indicator for the measured EEG signal. During
normal EEG monitoring, electrode-to-skin impedance is measured continuously and disconnected
electrodes are detected. The impedance value for each single, independent signal electrode is displayed
in the EEG Impedance/Montage window. If the measured electrode-to skin impedance of one or
more electrodes is above the limit, an INOP will be issued.
For impedance measurement at least two electrodes, plus the reference electrode, must be connected.
Impedance Indicators
Electrode/Skin Impedance
210
Symbol
Color
Displayed
Impedance
Value
Action
Electrode not connected
red
no value
connect electrode
Noisy signal
gray
60 kΩ (fixed)
check electrode-to-skin
connections
Electrode connected, impedance
above limit
yellow
measured value
(e.g 15 kΩ)
check limit, check
electrode-to-skin contact
Electrode connected, impedance
at or below limit
green
measured value
(e.g. 3 kΩ)
no action necessary
About Compressed Spectral Arrays (CSA)
18 Monitoring EEG
About Compressed Spectral Arrays (CSA)
The continuous EEG signal is sampled periodically and this value is stored in a frame. Each frame is
processed using Fast Fourier Transformation (FFT) to provide a frequency spectrum displayed as a
compressed spectral array (CSA).
The CSA window provides an overview of the patient’s EEG values over time. It may be configured to
look slightly different on your monitor.
♦
To view the CSA window permanently embedded on a Screen, select a Screen configured to
display the CSA window.
♦
To view the CSA window over the current Screen, select the EEG CSA SmartKey, if configured, or
select Setup EEG or Main Setup then Show CSA.
Fp1-T3 Filter:0.5 - 30 Hz
Montage:
CSA1
SEF (90%)
Buffer: A (2 Sec)
Montage A
Fp2-T4
PPF
CSA2
The CSA contains the following information
Status line
Lead label
for example, Fp1-T3, Fp2-T4
CSA label
CSA1 or CSA2 according to EEG channel
Montage label
for example, Montage A
Filter settings
for example, 1-30 Hz
Buffer label and time
the buffer and interval between spectral lines on the CSA
Current SEF Threshold can only be changed in Configuration Mode
Spectral lines
The energy at each frequency is computed and displayed as a spectral line
Trendlines
EEG values are sampled at configured time intervals and displayed as color-coded trendlines.
Trendlines are available for the three frequency numerics (SEF, PPF, MDF)
Annotations:
INOP marker
?
Filter change marker
Montage change marker
211
18 Monitoring EEG
Changing EEG Settings
Changing CSA Settings
When CSAs are shown embedded on the Main Screen, select the CSA to show the pop-up keys. When
the CSA is shown in a window over the current screen, the pop-up keys are always displayed.
Setup CSA
This menu entry lets you
Buffer
choose one of the three pre-configured buffers. A buffer defines the interval
between the spectral lines displayed in the CSA.
On/Off SEF/MDF/PPF switch the trendline of the specific numeric on or off
Changing EEG Settings
Be aware that any changes made to EEG settings apply to both EEG channels.
Switching EEG Numerics On and Off
Each EEG numeric can be individually switched on or off in the Setup EEG menu.
1
In the Setup EEG menu, select the numeric label.
2
Select On/Off to toggle between the settings.
Changing the Scale of the EEG Waves for Display
This only changes the visual appearance of the wave. It does not affect the signal analyzed by the
monitor or printed in reports or recordings.
1
In the Setup EEG menu, select Wave Scale to call up a list of wave scales.
2
Select the required scale from this list.
Scaling information is displayed with each EEG wave.
• If Show Gridlines is set to On in Configuration Mode, gridlines and the current wave scale
values are shown with the EEG wave.
• If Show Gridlines is set to Off in Configuration Mode, the current wave scale is indicated by a
size bar beside the EEG wave.
212
EEG Reports
18 Monitoring EEG
Changing Filter Frequencies
The low and high pass filters screen out undesirable interference from the raw EEG wave display. The
current EEG filter frequency settings are shown in the header of the CSA. Changing filter settings
affects the EEG wave and all the EEG numerics. Whenever the filter setting is changed, a filter change
marker appears next to the spectral lines.
To change the filter settings:
1
In the Setup EEG menu, select Low Filter or High Filter to call up a list of available
frequencies.
2
Select the required frequency from this list.
Changing the Speed of the EEG Wave
The EEG measurement has its own speed control and is not affected by the wave speed settings of the
other measurements.
♦
In the Setup EEG menu, select Wave Speed. Choose the required speed from the pop-up list.
This defines the speed at which the wave is drawn across the screen in millimeters per second (mm/
s).
EEG Reports
The content of EEG Reports is always the same and does not need to be configured.
♦
To print an EEG Report, in the Setup EEG menu, select Print Report.
Alternatively, you can select the CSA and use the Print Report pop-up key to start the report.
♦
To modify the buffer and trendline settings on the CSA Report, in the Reports menu, select
CSA On EEG Rep.. If you do not change these settings, the monitor will use the default
settings SEF Trendlines: On, Buffer: C.
CSA on Report
This menu entry lets you
Buffer
choose one of the three pre-configured buffer times
Trend SEF/MDF/PPF
switch the trendline of the specific numeric on or off
213
18 Monitoring EEG
EEG Safety Information
EEG Safety Information
EEG Configuration and Monitor Upgrades The A.2 monitor release (software revision A.20.xx)
introduced a new feature that lets you rename EEG montages. It is not possible to clone EEG settings
between montages with different names, therefore all EEG settings are reset to factory defaults during
any upgrade/downgrade/cloning actions that mix releases/software revisions/configurations before A.2/
A.20.xx with subsequent versions. You must check that all EEG settings are correct before resuming
monitoring with a monitor that has been upgraded or cloned.
WARNING
Do not touch the patient, or table, or instruments during defibrillation.
When connecting electrodes and/or patient cables, ensure that the EEG leads and connectors do not
come into contact with other conductive parts or earth.
High-frequency Surgery To reduce the hazard of burns in the high-frequency surgical neutral
electrode connection, the EEG electrodes should not be located between the surgical site and the
electro-surgical unit return electrode.
EEG and Electrical Interference
CAUTION Interference from a non-grounded instrument near the patient and electrosurgery interference can
cause problems with the waveform and the CSA.
Radiated field strengths above 1 V/m and patient signals ≤ 50 µV may cause noise on the EEG waves
at various frequencies. Therefore, it is recommended to avoid the use of electrical radiating equipment
in close proximity to the patient monitor. The noise does not influence the measurement accuracy.
Interference from ECG can be eliminated by adjusting the low filter settings.
214
19
Monitoring BIS
19
Bispectral Index monitoring helps to monitor the level of consciousness of a patient under general
anesthesia or sedation in the OR and ICU. The BIS sensor is placed on the patient’s forehead to
capture electroencephalographic (EEG) signals from which several numerics are derived, including a
single BIS value representing the level of consciousness. See the chapter on Specifications for the BIS
intended use statement.
The BIS Module or BIS Interface board (for MP20/MP30) provides the monitor with an EEG wave
and the following numerics:
Bispectral Index (BIS). The BIS numeric reflects the patient’s level of consciousness. It ranges from
100 (fully awake) to 0 (suppression; no electrical brain activity).
Signal Quality Index (SQI). The SQI numeric reflects signal quality and provides information about
the reliability of the BIS, SEF, TP, SR, and Bursts numerics during the last minute.
It ranges from 0 to 100%:
SQI < 15%: the numerics cannot be derived
SQI 15% to 50%: the numerics cannot be reliably derived
SQI 50% to 100%: the numerics are reliable.
Electromyographic Activity (EMG). The EMG numeric reflects the electrical power of muscle
activity and high frequency artifacts.
EMG < 55 dB: this is an acceptable EMG
EMG ≤ 30 dB: this is an optimal EMG
(note that the minimum possible EMG is approximately 25 dB).
Suppression Ratio (SR). The SR is the percentage of time over the last 63-second period during
which the EEG is considered to be in a suppressed state.
Spectral Edge Frequency (SEF). The SEF is the frequency below which 95% of the Total Power is
measured.
Total Power (TP). The TP numeric indicates the power in the frequency band 0.5 to 30 Hz. The
useful range is 30 - 100 dB.
Bursts (BISx module used with the Extend Sensor only) The Bursts numeric helps you quantify
suppression by measuring the number of EEG bursts per minute, where an EEG burst is defined as a
period of activity followed and preceded by inactivity (at least 0.5 second).
215
19 Monitoring BIS
BIS Monitoring Setup
BIS Monitoring Setup
There are two BIS solutions available for use with the M1034A BIS module: using the DSC and BIS
engine or using the BISx.
Monitoring BIS Using the DSC and BIS Engine
Aspect
BIS Engine
185-0111
Aspect
Digital Signal
Converter
185-0124
BIS
Module
Aspect Patient
Interface Cable
186-0131
BIS
Engine
Cable
Aspect BIS Sensor
1
If you are monitoring BIS with the DSC and BIS engine,
a. Connect the BIS engine to the BIS module using the BIS Engine Cable.
b. Connect the digital signal converter (DSC) to the digital signal converter port on the front of
the BIS Engine. Use the attachment clip to secure the digital signal converter near, but not
above the patient’s head.
c. Attach the patient interface cable (PIC) to the digital signal converter (DSC).
2
Attach the BIS sensor to the patient following the instructions supplied with the sensor.
Make sure that the patient’s skin is dry. Be aware that a wet sensor or a salt bridge may cause
erroneous BIS and impedance values.
A variety of sensors are available for use in the OR and ICU environments: see the chapter on
accessories for information.
3
Connect the BIS sensor to the patient interface cable.
As soon as a valid sensor is detected, the impedances of all electrodes are measured automatically
and the results are shown in the BIS window.
216
BIS Monitoring Setup
19 Monitoring BIS
Monitoring BIS using the BISx
BIS Module
Aspect BISx
185-0145-PH
Aspect Patient
Interface Cable
186-0131
Aspect BIS Sensor
1
BIS Interface
Board
Aspect BISx
Aspect BIS Sensor
185-0145-PH
If you are monitoring BIS using the BISx,
a. Connect the BISx device to the BIS module or BIS Interface board connector (MP20/MP30)
b. Use the clip on the rear of the BISx device to affix it in a position convenient for your patient,
not above the patient’s head.
2
Attach the BIS sensor/BIS electrodes to the patient following the instructions supplied with the
sensor.
Make sure that the patient’s skin is dry. Be aware that a wet sensor or a salt bridge may cause
erroneous BIS and impedance values.
A variety of sensors are available for use in the OR and ICU environments: see the chapter on
accessories for information.
CAUTION Ensure that the BISx does not come into prolonged contact with your patient’s skin, as it may generate
heat and cause discomfort.
The BISx may remain connected to a patient during defibrillation as long as the sensor is not located
between the defibrillator pads.
3
With sensors for single-patient use:
a. Attach the patient interface cable (PIC) to the BISx device.
b. Connect the BIS sensor to the PIC.
With Semi Re-usable Sensors:
a. Attach the sensor cable to the BISx device.
b. Snap the sensor cable onto the electrodes.
As soon as a valid sensor is detected, the impedances of all electrodes are measured automatically
and the results are shown in the BIS window. The number of uses remaining for the semi re-usable
sensor is shown in the status line when the BIS window is open.
217
19 Monitoring BIS
BIS Continuous Impedance Check
Manufacturer’s Information
BISx, the BIS Engine, the DSC, the Patient Interface Cable and the BIS Sensors are manufactured by
Aspect Medical Systems.
BIS Continuous Impedance Check
This checks:
• the combined impedance of the signal electrodes plus the reference electrode.
This is done continuously and does not affect the EEG wave. As long as the impedances are within
the valid range, there is no notification of this check or its results.
• the impedance of the ground electrode.
This is done every ten minutes and takes approximately 4 seconds. It causes an artifact in the EEG
wave, and the message Ground Check is shown on the monitor screen during the check. If the
ground electrode does not pass this check, another check is started. This continues until the ground
electrode passes the check.
If the Continuous Impedance Check interferes with other measurements, it can be switched off. To do
this:
1
In the Setup BIS menu, select Cont.Imp.Check.
2
Select On/Off to toggle between the settings.
CAUTION Switching the continuous impedance check off will disable automatic notification to the user of
impedance value changes, which may lead to incorrect BIS values. Therefore, this should only be done
if the check interferes with or disturbs other measurements.
When a Semi-reusable Sensor is in use the continuous impedance check cannot be switched off. If it is
switched off when the sensor is connected, it will automatically be switched on again.
BIS Cyclic Impedance Check
This measures the exact impedance of each individual electrode. It causes a disturbed EEG wave, and
the INOP BIS IMPEDANCE CHCK is shown on the monitor screen during the check.
Starting a Cyclic Impedance Check
The Cyclic Impedance Check is automatically started when a sensor is connected. To manually start a
Cyclic Impedance Check:
♦
select Cyclic Check in the BIS Setup menu to toggle between On and Off, or
♦
select Start Cyclic Check in the BIS window.
Stopping a Cyclic Impedance Check
The Cyclic Impedance Check stops automatically if the impedances of all electrodes are within the
valid range. To manually stop a Cyclic Impedance Check:
♦
218
select Cyclic Check in the BIS Setup menu to toggle between On and Off, or
BIS Window
19 Monitoring BIS
♦
select Stop Cyclic Check in the BIS Impedance Check Window.
If you stop a Cyclic Impedance Check before the ground electrode has passed, a ground electrode
impedance check will be started automatically. This cannot be switched off.
BIS Window
♦
To open the BIS window, in the Setup BIS menu, select Show Sensor.
The window may look slightly different on your monitor. The graphic in the BIS Window
automatically adapts to show the type of sensor you are using, showing three or four electrodes as
required. Each symbol in the graphic represents an electrode and illustrates the most recently-measured
impedance status of the electrodes. Although BIS may still be measured when the electrode status is red
or yellow, for best performance, all electrodes should be green.
In addition, if the measured electrode-to skin impedance of any electrode or electrode combination is
above the limit, or if disconnected electrodes are detected, an INOP will be issued, either BIS HIGH
IMPEDANCE or BIS LEAD OFF.
Reference Electrode
Ground Electrode
Signal Electrode(s)
BIS - Quatro Sensor
Cyclic Check: 15 May 11:05
Start Cyclic Check
Time of the most recent cyclic check
BIS Impedance Indicators
Electrode-to-Skin Impedance Symbol
Color
Action
Electrode has no skin contact
red
Reconnect electrode, or check the sensor-toskin contact. If necessary, clean and dry skin.
Too much signal noise,
impedance cannot be measured
gray
Check sensor-to-skin contact. Press sensor more
firmly to skin. If necessary, clean and dry skin.
Impedance above limit
yellow
Check sensor-to-skin contact. Press sensor more
firmly to skin. If necessary, clean and dry skin.
Impedance within valid range
green
No action necessary
219
19 Monitoring BIS
Changing the BIS Smoothing Rate
Changing the BIS Smoothing Rate
The smoothing rate defines how the monitor averages the BIS value.
♦
To change the smoothing rate, in the Setup BIS menu, select BIS Smoothing Rate then
choose either:
– 15 seconds: this provides increased responsiveness to changes in the patient’s state.
– 30 seconds: this provides a smoother BIS trend with decreased variability and sensitivity to
artifacts.
Switching BIS and Individual Numerics On and Off
To switch the BIS measurement on or off:
♦
In the Setup BIS menu, select BIS to toggle between On and Off.
To switch individual numerics provided by the BIS Module on or off:
♦
In the Setup BIS menu, select SQI, TP, SEF, SR, EMG, or BURSTS to toggle between On and
Off.
Changing the Scale of the EEG Wave
Changing the scale only changes the visual appearance of the wave. It does not affect the signal
analyzed by the monitor or printed in reports or recordings.
The scale information shown depends on whether gridlines are switched on or off for display. This
setting can only be changed in Configuration Mode.
1
In the Setup BIS menu, select Change Scale to call up a list of wave scales.
2
Select the required scale from this list.
• When gridlines are switched off, you can choose from the available scale values: 50 µV, 100 µV,
200 µV, and 500 µV. Scaling information is displayed as a vertical bar on the EEG wave together
with its height equivalent in µV.
• When gridlines are switched on, scales are defined as a range, either ± 25 µV, ± 50 µV, ± 100 µV,
or ± 250 µV. Scaling information is shown in the form of gridlines.
Switching BIS Filters On or Off
The low and high pass filters screen out undesirable interference from the raw EEG wave display. The
notch filter removes line frequency interference. Filter settings affect the EEG wave and the SEF and
TP values, but they do not affect the BIS, EMG, SR, and SQI values.
The filter settings are set in Configuration Mode. You can switch all the filters on or off together in
Monitoring Mode.
220
1
In the Setup BIS menu, select Filters.
2
Select On/Off to toggle between all filters On or Off.
BIS Safety Information
19 Monitoring BIS
BIS Safety Information
For information on the use of BIS in specific monitoring situations and on pharmacological responses
to the anesthetic agents Nitrous Oxide (when used as the sole anesthetic agent), Ketamine, and
Etomidate, please contact Aspect Medical Systems to request a copy of their publication “A Clinician’s
Guide to the Bispectral Index®”.
Considerations for Use Due to limited clinical experience in the following applications, BIS values
should be interpreted cautiously in patients with known neurological disorders, those taking
psychoactive medications, and in children below the age of 1.
WARNING
Conductive Parts The conductive parts of sensors and connectors should not contact other
conductive parts, including earth.
High-frequency Surgery To reduce the hazard of burns in the high-frequency surgical neutral
electrode connection, the BIS sensor should not be located between the surgical site and the electrosurgical unit return electrode.
Defibrillation The BIS sensor must not be located between defibrillator pads when a defibrillator is
used on a patient connected to the patient monitor.
Securing Cables To minimize the risk of patient strangulation, the patient interface cable (PIC) must
be carefully placed and secured.
CAUTION Revisions The system will only function if all component revisions are compatible. Otherwise, an
incompatibility INOP is displayed.
If the DSC has an older software revision than the BIS Engine, the DSC will automatically be
upgraded by the BIS Engine. Do not disconnect the DSC from the BIS Engine, or disconnect the BIS
module from the monitor, or switch the monitor power off within the first ten seconds after
connection, as this will disrupt a possible software upgrade and cause damage to the DSC.
The BIS Interface board for the MP20/MP30 can only be used with BISx, not with the BIS engine. If
the BIS engine is connected to the MP20/MP30 a BIS ENGINE INCOMPT INOP will be issued.
Impedance Checks Impedance checks may influence data acquisition of other
electroencephalographic devices.
221
19 Monitoring BIS
222
BIS Safety Information
20
Trends
20
Trends are patient data collected over time and displayed in graphic or tabular form to give you a
picture of how your patient’s condition is developing. Trend information is stored in the trends
database for continuously-monitored measurements, such as ECG, as well as for aperiodicallymeasured parameters, such as Cardiac Output.
Viewing Trends
Trend information can be viewed embedded as a screen element on specially-designed Screens, or you
can open a trend window over the current Screen.
♦
♦
To view trends embedded as a screen element, select the Screen name in the monitor info line to
enter the Change Screen menu, then select a Screen designed to show an embedded trend
window.
To open the tabular trends window over the current Screen, select the Vitals
Trend SmartKey.
♦
Vital
To open the graphic trends window over the current Screen, select the Graph
Trends SmartKey.
The trend windows open displaying the most recent data and are updated as new data
is stored. A timescale along the bottom of the screen shows you where you are in the
trends database. The preview column on the right-hand side shows the latest available
measurement value. The preview column is updated every five minutes or whenever an
NBP or other aperiodic measurement is completed.
Graph
A question mark (?) beside a value means that the data may not be reliable, due perhaps to an INOP
condition in the measurement.
Your monitor screen may look slightly different to the examples shown here.
223
20 Trends
Viewing Trends
Viewing Graphic Trends
Graphical Trends: All
HR
SpO2
ABP
9 Apr
Graphical Trends
Select
Group
Select
Interva
Print
Vital
Signs
A cursor spanning all measurements in the trend group helps you to navigate through the trends
database and shows you your current position in the database. When the cursor is moved across the
time line, the values measured at the cursor time are shown in the right hand column.
In graphical trends, aperiodic measurement trends are shown as an asterisk, NBP has a special symbol.
To use the trend cursor to navigate in time through the trends database,
1
Select the graphical trend or the arrow pop-up keys to activate the cursor.
2
Use the arrow pop-up keys to move the trend cursor backwards and forwards in time, or
3
Place the cursor at a specific time by touching the graph.
Viewing Vital Signs Trends
Vital Signs: Standard
HR
NBPs
NBPd
NBPm
RR
20 Feb
Aperiodic values are shown with
a timestamp
224
Setting Up Trends
20 Trends
The currently-selected column is highlighted. The values can be configured to display in the same
colors as the waves and numerics on the realtime display.
Any values available for display before the next scheduled update are shown in the right hand column,
with a timestamp in brackets
If more than one value is available for an aperiodic trend for a certain trend period, all measured values
are stored in the database and the value closest to the timestamp is shown in the Vital Signs display
marked with an arrow.
Trends Pop-Up Keys
When you open the trends window, a selection of pop-up keys appears to let you navigate through the
stored trend data and carry out trends-related tasks.
Pop-Up Keys
Selecting this pop-up key lets you....
Select
Group
see a pop-up list of trend groups and select a group for viewing.
Select
Interval
see a pop-up list of available data resolution settings and select the level of detail shown
in the trend view.
Print/
Record
print a tabular trends report or make a tabular trend recording of the data in the
current window. The report will use the current trend interval settings.
Print
print a graphic trends report of the data in the current window. The report will use the
current trend interval settings.
move the cursor one step to the left or right to navigate through the trends database
timeline.
move the cursor one page to the left or right to navigate through the trends database
timeline.
jump to the beginning or the end of the trends database to see the most recent or oldest
trend information stored.
scroll up and down the screen to see measurement trends that do not fit in the current
view.
Vital
Signs
open the current trend view in tabular form. The displayed time period and resolution
stay the same.
Graph
Trends
open the current trend view in graphic form. The displayed time period and resolution
stay the same.
Setting Up Trends
Trends are set up in Configuration Mode. You can make temporary changes to trends settings such as
trend groups, priorities, or scales in Monitoring Mode. The general settings for all Trends are under
Main Setup -> Trends.
Settings for a single segment in graphical trends or for the corresponding trend group can be made
more easily in that segment menu.
225
20 Trends
Setting Up Trends
Making Segment Settings
The Graphical Trends window is divided into measurement segments, each of which has its own
settings.
To enter the segment menu,
♦
select the left hand column of the segment, where the measurement label is displayed.
Expanded View
To expand the segment to fill the Graphical Trends window,
♦
in the Segment menu, select Expand to have that segment enlarged to fill the window.
In the expanded view, you can also highlight a measurement to make it more easily visible (for example
when multiple ST trends are in one segment). To highlight a measurement,
♦
in the Segment menu, select Highlight repeatedly until the highlight is on the required
measurement.
To return the segment to its original size,
♦
in the Segment menu, select Expand again.
Trend Scales for Segment Measurements
To change the trend scales for a measurement in the current segment:
1
In the segment menu, select the measurement label
2
Select Upper to change the upper limit of the scale or Lower to change the lower limit of the
scale.
Optimum Scale
To have the monitor automatically select an optimum scale for viewing, based on current values,
♦
in the Segment menu, select Optimum Scale.
This scale change is temporary. When the graphical trend window is closed the scale reverts back to the
setting in Parameter Scales.
To switch off automatic optimum scaling,
♦
in the Segment menu, select Optimum Scale again.
Trend Group
To add or remove measurements for this trend group or change the order of the existing
measurements:
1
In the Segment menu, select Change Group
2
Use the Add, Change, Sort Up and Sort Down popup keys to change or re-order the group as
required.
No. of Segments
In an embedded graphical trend window, you can select the number of segments to be displayed in the
Segment menu:
226
Setting Up Trends
20 Trends
1
In the Segment menu, select No. of Segments
2
Select 1, 2, or 3 segments.
Trend Groups
The measurements grouped in trend groups define the trends displayed together in the Vital Signs or
Graphics Trends windows and printed in trends reports and recordings. The sequence of the
measurements in the group defines the order in which they are displayed. Measurements listed between
dotted line separators are displayed overlapping. The trend group All contains all available
measurements, you cannot change the order or selection of this group.
To change the selection of measurements in a trend group, either use the Change Group setting in
the Segment menu or:
1
Select Main Setup -> Trends -> Trend Groups
2
Select the Trend Group you want to change and use the pop-up keys to Add, Change, or Delete
the selection of measurements trended.
To temporarily change the order in which the measurements are displayed in a group,
1
Select Main Setup -> Trends -> Trend Groups
2
Select the Trend Group and then the measurement you want to move and use the Sort Up/Sort
Down pop-up keys.
Trend Interval
The trend interval defines the resolution of trend data shown on the Screen. High-resolution data is
especially suited for neonatal applications, where the clinical situation may change very quickly. In
adult monitoring, where the patient’s status typically changes more gradually, a longer trend may be
more informative.
To set the trend resolution, in the Vital Signs or Graphical Trends window,
♦
Select the Select Interval pop-up key and then select the required interval from the list.
Trend Priority
The monitor stores trend information for all monitored measurements, if configured to do so. If your
configuration restricts the number of measurements trended, you must choose which measurements
will be included. A priority list is used to select the trended measurements.
To see the measurement priority list for trending,
1
In the Main Setup menu, select Trends.
2
Select Trend Priority.
To add measurements to the priority list,
1
Select the pop-up key Add and choose from the pop-up list of available measurements.
2
Use the Sort Up and Sort Down pop-up keys to change the priority order.
Trend Parameter Scales
Parameter scales define how the trend waveform will appear on the screen and in trend reports.
Separate scales can be set for adult, pediatric, and neonatal patient trends.
To change the trend parameter scales settings, either use the Scale setting in the Segment menu or:
227
20 Trends
Documenting Trends
1
In the Main Setup menu, select Trends.
2
Select Parameter Scales.
3
Select the measurement or parameter you want to change from the list.
4
Select the pop-up key Change to call up the Scale menu.
5
In the Scale menu, select the parameter label you want to define settings for. Select Adult,
Pedi, and Neo and use the pop-up keypad to enter new upper and lower scale definitions.
Graphical Trend Presentation
Graphical trends and screen trends for measurements with compound values (for example ABP or
CO2) can be viewed in line or band form.
To change the presentation style,
1
Select Main Setup -> Trends
2
Select Global Style and choose
• Line to display the trends as a continuous line
• Band to fill the area between the trend lines, for example, between the systolic and diastolic
pressures, with color.
This sample ABP
trend shows the
continuouslymeasured values for
the systolic, diastolic
and mean pressures
displayed in band
form.
ABP
240
50
Documenting Trends
To print a Vital Signs or Graphical Trends report,
♦
in the Vital Signs or Graph Trends window, select the pop-up key Print to print a report
for the trend group currently on the monitor screen.
Reports include the most recent information in the trends database and extend backwards in time
according to the selected trend interval and your monitor’s configuration. Trends reports can be
printed on central or local printers.
To make a Vital Signs recording,
♦
in the Vital Signs window, select the Print/Record pop-up key, then select the Record
Vitals pop-up key.
Vital Signs recordings print the trend data for the current group and trend period shown in the
Vital Signs window.
228
Trends Databases
20 Trends
Trends Databases
Depending on the purchased options and the monitor’s configuration, the trends databases store
information for up to 32 measurements for up to 72 hours.
The values in the trends database are stored as measured by the monitor, they are not averaged values.
The trend resolution defines how often a value is stored. In general, if more than one value is available
for storage in the trends database, the most recent value is used. Some values in the trends are marked
with arrows. This indicates that for this time period, more values were available and the most recent
one is shown.
Example database configuration In this example, we see that the monitor stores the most recent data
at the highest resolution, older data are stored at a lower resolution.
“4 hours @ 12 second resolution” means that the monitor stores trend data every 12 seconds, for the
most recent four hours.
- 48
hours
- 24
hours
-4
hours
now
time
4 hours @12 second resolution
24 hours @ 1 minute resolution
48 hours @ 5 minute resolution
Aperiodic Trends Database
Aperiodic trends do not count toward the maximum number of trends allowed by the trend
configuration. Trend data for aperiodic measurements is stored in a separate database and timestamped
with the measurement time.
Trending Multiple-Value Measurements
Some measurements generate multiple values, for example invasive pressure measurements can provide
systolic, diastolic, and mean values. These values are trended as separate measurements.
Screen Trends
Trends configured to display permanently on special monitor Screens are called screen trends. The
selection and number of measurement waves in the Screen Trend segment depends on your monitor
configuration. Screen trends are color-coded to match the measurement wave and numerics, and they
can be viewed in graphical, tabular, or horizon format.
If you do not see screen trends on the monitor Screen, select a different Screen, one that is configured
to show screen trends. Screen trends are only available on specially designed Screens.
229
20 Trends
Screen Trends
Screen Trend information is taken from the Trends database. If you do not see a Screen Trend for a
particular measurement on the Screen, check the trend priority list to ensure that this measurement is
being trended.
Measurement waves
or high-res trend
waves
ABP
Screen trends
Measurement
numerics
240
50
Setting the Screen Trend Time
To set the ScreenTrend Time for all graphical and horizon screen trends (“global” trend time),
1
Select a screen trend then select Setup Trend, or select Main Setup -> Trends.
2
Select ScreenTrend Time and select the required time: 30 minutes, one, two, four, eight, or
twelve hours.
This is now the Global screen trend time and defines the period of trend information shown for all
screen trends.
To set a different ScreenTrend Time for a screen trends or a group of aligned screen trends,
230
1
Select a screen trend
2
Select Change TrendTime
3
Select the required trend time.
Selecting Global leaves the trend time set to the global screen trend time.
Screen Trends
20 Trends
Changing the Selection of Screen Trends Displayed
1
Select the screen trend.
2
Select Change Trend and select the required trend from the list of available trends.
Select Blank to remove the selected trend from the Screen.
If you do not see Change Trend in the screen trend menu, the trend is aligned to display with
the measurement wave. Changing the wave automatically changes the trend.
To display two or more screen trends overlapping,
1
Select the screen trend to open the screen trend menu,
2
Select Change Trend -> Add Trend and select a screen trend from the pop-up list.
Activating the Cursor for Screen Trends
To activate the cursor for Screen Trends:
1
Select the screen trend.
2
Select Activate Cursor
You can now use the arrow keys to move the cursor across the time line. The values measured at the
cursor time are shown next to the cursor.
To de-activate the cursor,
♦
Select Main Screen.
Changing the Screen Trend View
♦
To switch between tabular, graphic and horizon views, select the screen trend then select Change
View and select the required view.
Tabular View
Aperiodic measurements such as
NBP, C.O., C.I., and Wedge can be
viewed as a screen trend in tabular
form. The measured values and their
timestamps are shown, with the
measurement label.
NBP
15:15
mmHg
15:30
15:45
16:00
16:15
120/80(95)
120/80(95)
120/80(95)
120/80(95)
120/80(95)
16:30
16:45
17:00
17:15
17:30
120/80(95)
120/80(95)
120/80(95)
120/80(95)
120/80(95)
The trend time for tabular screen trends depends on the space available on the Screen. Up to 30
measurements or 12 hours information can be shown.
231
20 Trends
Screen Trends
Horizon View
The horizon view presents trend information
superimposed over a defined baseline. This
helps you visualize changes in your patient’s
condition since the baseline was set.
The horizon view is made up of:
• a horizon, drawn in white, as a reference
1
point or baseline to help you visualize
changes in your patient’s condition. The
horizon can be set to represent your patient’s current condition, or a target condition.
2
3
• a graphical trend, displaying patient data for the set TrendTime (1).
• a trend indicator arrow, indicating how the patient trend has developed in the last ten minutes (2).
• a deviation bar, showing how the currently measured value deviates from the stored baseline (3). The
height of the deviation bar is an indication of the extent of the change in your patient’s condition
relative to the (horizon) baseline.
Your monitor may not be configured to show all three elements of the screen trend horizon view.
Setting the Horizon
The horizon is the reference value to which deviations in the measurements are compared.
1
To set the baseline, select the horizon trend
2
Select
– Auto All to reset the horizon for all horizon screen trends to the currently-measured values
– Auto Horizon to set the horizon for the selected horizon trend to the currently-measured value
– Set Horizon to set the horizon to a specific value from a pop-up list.
Setting the Horizon Trend Scale
The horizon trend scale is defined with respect to the horizon. If your horizon is set to 100 and you
select 20 as the horizon scale delta, the upper limit of the horizon scale will be 120 and lower limit 80.
To set the horizon trend scale delta,
1
Select the horizon trend.
2
Select Set Scale Delta and select a value to define the distance between the horizon and the
the upper and lower scale limits.
Be aware that changing the horizon trend scale can change the angle of the trend indicator, without the
patient’s condition having changed.
If a measurement exceeds the outer limits of the scale, the wave will be clipped and you must either
reset the horizon or the horizon trend scale to display the values outside the scale limits.
232
21
Calculations
21
Calculations are patient data that is not directly measured but calculated by the monitor when you
provide it with the appropriate information.
Your monitor can perform the following hemodynamic, oxygenation, and ventilation calculations.
Hemodynamic
Oxygenation
Ventilation
Cardiac Index (C.I.)
Arterial Oxygen Content (CaO2)
Minute Volume (MINVOL)
Stroke Volume (SV)
Venous Oxygen Content (CvO2)
Compliance (COMP)
Stroke Index (SI)
Arteriovenous Oxygen Content
(avDO2)
Dead Space (Vd)
Systemic Vascular Resistance Index (SVRI)
Dead Space/Tidal Volume
Oxygen Availability Index (O2AVI) Ratio (Vd/TV)
Pulmonary Vascular Resistance (PVR)
Oxygen Consumption (VO2)
Pulmonary Vascular Resistance Index (PVRI)
Oxygen Consumption Index
(VO2I)
Alveolar Ventilation
(ALVENT)
Systemic Vascular Resistance (SVR)
Left Cardiac Work (LCW)
Left Cardiac Work Index (LCWI)
Left Ventricular Stroke Work (LVSW)
Left Ventricular Stroke Work Index (LVSWI)
Right Cardiac Work (RCW)
Oxygen Extraction Ratio (O2ER)
Alveolar-Arterial Oxygen
Difference (AaDO2)
Percent Arteriovenous Shunt
(Qs/Qt)
Right Cardiac Work Index (RCWI)
Right Ventricular Stroke Work (RVSW)
Right Ventricular Stroke Work Index (RVSWI)
Extra Vascular Lung Water Index (EVLWI)
Intrathoracic Blood Volume Index (ITBVI)
Global End Diastolic Volume Index (GEDVI)
The hemodynamic calculations available depend on the Cardiac Output measurement method being
used and the regulatory standards that apply for your hospital: see the C.O. chapter for availability
details.
Viewing Calculations
♦
Select the Calculations SmartKey to open the Calculations window.
♦
Select the Calc Type field and select the required calculation type for display.
233
21 Calculations
Viewing Calculations
Calculations Windows
This example calculations window shows the hemodynamic calculations window. The ventilation and
oxygenation windows are similar.
Calculations
input values
Indexed
calculation
values
Output
values
Calculation type
Calculations
C.O.
Hemodynamic
HR
ABPs
BSA
C.I.
ABPd
SV
SI
ABPm
SVR
SVRI
PAPs
PVR
PVRI
PAPd
LCW
LCWI
PAPm
LVSW
LVSWI
PAWP
RCW
RCWI
CVPm
RVSW
RVSWI
Calculations
Resample
Vitals
Perform
Calc
Print/
Record
On/Off
DateTime
On/Off
Ranges
Cardiac
Output
Hemo
Review
Calculations Pop-Up Keys
Depending on the calculations group you choose, a selection of pop-up keys will appear to let you
navigate through the stored events and carry out calculations-related tasks.
234
Pop-Up Keys
Selecting this pop-up key lets you....
Resample
Vitals
tell the monitor to override the values in the calculations database and use the most
recent continuously monitored values. Resampling sets the calculation time to the
current time, and displays the corresponding values for the previous second.
Perform
Calc
perform the displayed calculation using the currently-input values and store the
calculation in the calculations database
Print/
Record
print or record the displayed calculation.
On/Off
DateTime
toggle between showing the date and time or the units for the calculation input
values.
On/Off
Ranges
toggle between showing the normal ranges or the units for the calculation output
values.
Reviewing Calculations
21 Calculations
Pop-Up Keys
Selecting this pop-up key lets you....
Cardiac
Output
access the C.O. procedure window.
Hemo
Review
open the hemodynamic calculations review window.
Vent
Review
open the ventilation calculations review window.
Oxygen
Review
open the oxygenation calculations review window.
Reviewing Calculations
♦
To enter the calculations review window, select the Oxy Review, Ventil Review, or Hemo
Review pop-up key as required.
The review window lists all the input and output values for each measurement in the calculations
group. The timeline in the review window lists the times the calculations were performed.
♦
To review individual calculations, select the calculation in the Calculation Review window and
then select the Original Calc pop-up key.
Performing Calculations
You must check that all input values are appropriate for your patient before performing calculations.
1
Select the Calculations SmartKey to open the Calculations window.
2
Select the Calc Type field and select the required calculation type for display.
3
Check the calculation time in the Calc Time field.
When you enter the calculation window, this field will show either the current time or the time of
the most recent available C.O. measurement, depending on your monitor configuration.
– To choose a different calculation time, select the Calc Time field. This calls up a list showing
the timestamps of calculations performed earlier. Select a time from this list, or select
Select Time to enter a time of your choice.
– To enter the current time, select the Resample Vitals pop-up key. If you choose the current
time, the monitor will resample all the required values that are continuously monitored.
4
Enter any values that must be entered or edited manually. Select the value field and then use the
pop-up keypad to enter the required values. Select Enter to confirm each entered value.
Manually-entered values are marked with an asterisk (*).
235
21 Calculations
Entering Values for Calculations
Entering Values for Calculations
The monitor automatically enters any available values for calculations. For aperiodically-measured
values such as C.O., the monitor will re-use the most recent value in the calculation database until a
new value becomes available.
♦
To enter calculations values manually or edit automatically-entered values, select the value field to
open the on-screen keyboard and use this to enter the correct value. Values edited manually are
marked with an asterisk symbol (*).
If you enter a value that has more decimal places than allowed for a particular input, the value you
enter will be rounded off after you select Enter. If you enter a value which cannot be stored, the
message Warning: Value out of range will appear. Enter a new value.
In hemodynamic calculations, if the systolic and diastolic pressures are manually entered, the mean
pressure is calculated and marked with an asterisk. The formula used to estimate the mean pressure is
[systolic + (diastolic x 2)] / 3.
Automatic Value Substitution
If the monitor cannot find a value required for calculation, it automatically tries to find an equivalent
source for this value. For example, if C.O. is required but unavailable, the monitor automatically looks
for CCO as a alternative source of C.O. values, or a alternative Pressure label may be used instead of
ABP. The label of the value in the Calculations window does not change. Substituted values are
marked with an asterisk (*).
Automatic Unit Conversion
The monitor needs consistent units for performing calculations. It automatically converts units where
necessary before it performs the calculation, for example, pressures sourced in kPa, cmH2O, or mbar
are automatically converted to mmHg, or to cmH2O for ventilation calculations.
Manual Unit Conversion
If you need to convert units for other purposes you can use the Unit Conversion window:
1
Select Main Setup -> Calculations
2
Select Unit Conversion.
3
Select the field under the unit you know and use the onscreen keypad to enter the known value. The converted
value automatically appears in the adjacent field.
Unit Conversion
Fahrenheit
Inch
Pound
Celsius
Centimeter
Kilogram
BSA Formula
Your monitor provides both the Boyd and Dubois formulas for the calculation of body surface area
(BSA). For calculations, the monitor uses the setting defined in the Patient Demographics menu. All
calculation results that use BSA are indexed to the selected formula.
236
Documenting Calculations
♦
21 Calculations
To check the current setting, select the patient name to enter the Patient Demographics menu.
BSA(B) indicates that the Boyd formula is used; BSA(D) indicates that the Dubois formula is
used.
Documenting Calculations
♦
To send a Calculations recording to a connected recorder, in the Calculations window, select
the Print/Record pop-up key, then select the Record Calc pop-up key.
Calculations recordings print the patient demographic information and the content of the current
Calculations window on the recorder strip.
♦
To print a report for the calculation group currently on the monitor screen, select the pop-up key
Print Calc. To print the Calculations Review window, select the pop-up key Print in the
Calculations Review window. All the calculations in the current group will be printed in the report.
Calculation Reports can be printed on central or local printers.
This example report shows the oxygen calculation group. Ventilation and hemodynamic calculation
reports are similar.
Patient information
Calculation group
Three columns of
calculations input and
output values, with
times, units and
ranges, where
appropriate
237
21 Calculations
238
Documenting Calculations
22
High Resolution Trend
Waves
22
High resolution (hi-res) trend waves provide information for fast-changing parameters at a glance.
They can help you to recognize trend patterns and to find interrelationships between measurements, by
comparing changes in your patient’s condition across different hi-res trend waves. This can aid in the
early detection of cardiorespiratory and hemodynamic problems.
The amount of data you can show on a screen depends on the display size and resolution: for example,
on an eight inch (20 cm) wave trace on your monitor screen, you can view approximately six minutes
of hi-res trend wave trace. The hi-res waves are drawn at a speed of 3 cm/minute.
The availability of hi-res trend waves depends on your monitor configuration and on the options
purchased for your monitor.
Changing the Hi-Res Trend Waves Displayed
♦
To change the selection of hi-res trend waves on the Screen, select the hi-res trend wave and select
the required hi-res trend wave from the list of available measurements.
If there are no hi-res trend waves on the Screen, you must change to a Screen with hi-res trend waves.
Hi-Res Trend Wave Scales
High-resolution trend waves are either compressed realtime waves or fast numeric trends.
• Hi-res trend waves from compressed realtime waves include: Resp, CO2, ABP, PAP, CVP, ICP, AWP,
anesthetic agents.
• Hi-res trend waves from fast numeric trends include: btbHR, SpO2, tcpO2, tcpCO2, Pulse, Perf,
CPP, BIS, CCO, inO2, Delta SpO2.
Hi-res trend waves from waves use the wave scale as their display scale. Changing the wave scale
changes the hi-res trend wave scale.
Hi-res trend waves from numerics use a pre-defined display scale dependent on the patient category.
Hi-Res Trend Waves and OxyCRG
OxyCRG is a combination of three hi-res trend waves, btbHR, SpO2, and Resp, mainly used in
neonatal monitoring.
239
22 High Resolution Trend Waves
Printing Hi-Res Trend Wave Reports
Printing Hi-Res Trend Wave Reports
To print hi-res trend waves on reports, you can choose to print either
• all VisibleWaves - prints all waves and hi-res trend waves currently displayed
• All Waves - prints realtime waves and hi-res trend waves for all currently-monitored
measurements
• HiRes Waves - prints hi-res trend waves for the currently-monitored measurements
• OxyCRG Waves - prints hi-res trend waves for btbHR, SpO2, and Resp.
For each hi-res trend wave, six minutes of measurement data will be printed.
See the section on Reports for more information on setting up reports.
Hi-Res Trend Wave Recordings
The selection of waves in hi-res trend wave recordings and the printing speed are defined by the preconfigured HiResTrd recording template. See the section on Recordings for more information.
To start a hi-res trend waves recording,
240
1
select the Realtime Record SmartKey, if configured, or select Main Setup ->
Recordings
2
select the Start HiResTrd pop-up key.
23
Event Surveillance
23
Events are electronic records of episodes in your patient’s condition. You can trigger them manually, or
set them to trigger automatically during pre-defined clinical situations. Depending on the level of event
surveillance available on your monitor, the information stored for each event episode can include:
• waveforms for up to four measurements of your choice (depending on episode type, see table on
page 243 for more details)
• numeric vital signs for all the measurements monitored
• any alarm conditions active when the event episode was triggered
• any annotations connected with the event.
You can navigate through the event database to view events retrospectively, and you can document
events on a recording or report marked with the patient name, bed label, and the data and time.
Levels of Event Surveillance
The appearance of the Events windows and menus and the settings you can select for events depends
on the event surveillance option purchased for your monitor: basic event surveillance, advanced event
surveillance, or neonatal event review. This table lists the differences between the options.
To determine which level of event surveillance your monitor has, select Main Setup ->
Event Surveill. -> Setup Events and select the trigger group to see the available event groups.
• if the only event group listed is NER, your monitor has the Neonatal Event Review option
• if there is one event group and it is not NER, your monitor has the Basic Event Surveillance option
• if you see six event groups, your monitor has the Advanced Event Surveillance option.
Event Functionality
Basic Event
Surveillance
Option C06
Advanced Event Surveillance
Option C07
Neonatal Event Review
(NER)
Option C04
Event groups
1
5 + NER
NER
Measurements per group
3
4
3
Triggers per measurement
1
2
1
Trigger types
Simple (“at least one”)
Combined (“at least two”)
Simple (“at least one”)
Annotation
no
yes
no
241
23 Event Surveillance
Event Functionality
Event Groups
Basic Event
Surveillance
Option C06
Advanced Event Surveillance
Option C07
Average trend
Average trend
High resolution trend
Snapshot events
High Resolution Trend
Graphic Event Review
window, graphic
Event Episode window
Summary view, graphic and
tabular
Event Review window, graphic
and tabular
Event Episode window
Graphic and tabular
Event Review window,
graphic and tabular
Event Episode window
25 events for 24 hours
25 events for 24 hours
25 events for 8 hours
50 events for 8 hours
50 events for 24 hours
25 events for 24 hours
25 events for 8 hours
50 events for 8 hours
50 events for 24 hours
no
yes
no
Types of event episode
Event views
Database capability
Event Notification
Neonatal Event Review
(NER)
Option C04
Event Groups
The event group
• monitors the patient’s signals to detect event triggers
• defines which waveforms are recorded in the event data.
In basic event surveillance only one event group can be active at a time, with Advanced Event
Surveillance all six groups can be active simultaneously. Active event groups monitor for event triggers.
Event groups are defined in Configuration Mode. In monitoring mode the groups can be adapted to
current conditions, for example episode types and threshold levels can be changed .
Event Episodes
When an event occurs, information for a
predefined duration is stored. This is the
event episode. It includes information
from a defined period before the trigger,
called the event pre-time. The episode
time after the event is called the event
post-time. If a further event occurs during
the event post-time it changes a single
event to a combined event (combi-event).
Manually-triggered event episodes
document patient information from the
time leading up to the event trigger; they
do not have a post-time.
242
Event trigger
Event pretime
Event post-time
Event Episode
Events Pop-Up Keys
23 Event Surveillance
The episode type defines the level of detail captured in an event episode. The higher the data
resolution, the shorter the period that the monitor can store in its memory. High-resolution data is
suited for neonatal applications, where the clinical situation may change very quickly. In adult
monitoring, where the patient’s status typically changes more gradually, a longer trend may be more
informative.
Event Episode Types
Pre-time
Post-time
Average trend
2 minutes
18 minutes
20 minutes, five samples per minute
4 minutes
16 minutes
6 minutes
14 minutes
8 minutes
12 minutes
10 minutes
10 minutes
12 minutes
8 minutes
14 minutes
6 minutes
16 minutes
4 minutes
18 minutes
2 minutes
HiResTrnd
1 minute
3 minutes
Four minutes, four samples per second.
Neonatal Event Review (NER) is a type of
HiResTrnd
2 minutes
2 minutes
3 minutes
1 minute
Realtime Wave Snapshot
5 seconds
10 seconds
15 seconds
10 seconds
5 seconds
Events Pop-Up Keys
Depending on the events view you choose, a selection of the events pop-up keys let you navigate
through the stored events and carry out events-related tasks.
Pop-Up Keys
Selecting this pop-up key lets you....
Event
Setup
open the Event Surveillance Setup menu.
Show
Episode
open the Event Episode window to review the selected event in
detail.
Show
Review
open the Event Review window.
Review
Group
choose a different event group for reviewing in the Event Review
window (Advanced Event Surveillance only).
Show
Summary
open the Event Summary window.
Manual
Event
start a manually-triggered event capture.
move the cursor left or right to the next event to navigate through the
events database. Placing the cursor over an event highlights it and shows
the event values for the selected event.
243
23 Event Surveillance
Event Triggers
Pop-Up Keys
Selecting this pop-up key lets you....
jump to the first or last event in the event database.
Vitals
View
Graphic
View
toggle between a tabular and graphic version of the Event Episode
window currently viewed.
Table
Review
Graphic
Review
toggle between a tabular and graphic version of the Event Review
window currently viewed.
Delete
Event
delete the currently-selected event from the database. The monitor asks
you to confirm this deletion. You cannot retrieve deleted events.
Select
Annot.
access the list of available annotations to add a nursing note for the
current event episode (Advanced Event Surveillance only).
Print/
Record
access the printing and recording pop-up keys to document events.
Event Triggers
You can trigger event capture manually, for example, if you want to record a patient’s condition before
a procedure. You can also set events to trigger automatically, when the patient’s values cross a
predefined threshold value, or when a particular measurement or procedure is carried out, for example,
when an NBP measurement or a Cardiac Output or Wedge procedure is carried out.
If more than one trigger is available for the measurements in the active event group, the trigger
condition may be AtLeast1Par, AtLeast2Par, AtLeast3Par,or All4Par. If the trigger is
AtLeast1Par (this is short for ‘at least one measurement parameter’), the monitor starts an event
capture if a trigger occurs in any of this event group’s measurements. If the trigger is AtLeast3Par,
the monitor captures events when three or more trigger thresholds from this event group’s
measurements are violated. With Enhanced Condition you can not only select a minimum
number of triggers to trigger an event but define which specific measurement triggers these must be.
For example, AtLeast2Par will cause an event to be captured if a trigger occurs in any two of this
event group’s measurements - with Enhanced Condition you can select that only when triggers are
in HR and SpO2 an event will be captured.
Enhanced TriggerCondition
Single
Pair
Triple
All
HR (Pulse)
SpO2
Resp
ABP
At Least One Param At Least Two Param At Least Three Par All Four Parameter
The trigger condition for event groups is set in the monitor’s Configuration Mode.
244
Event Triggers
23 Event Surveillance
If you use alarm limits as event triggers, the event capture is triggered automatically when your
patient’s values violate set alarm limits, or when a specified alarm condition, such as apnea, occurs. No
events of this kind are triggered if alarms are switched off. Changing alarm limits changes the event
trigger definitions.
The asterisk symbols beside the trigger tell you about the alarm triggers:
*** indicates a high priority (red) alarm
** indicates a lower priority (yellow) alarm. This category includes short yellow arrhythmia alarms,
which may be configured to be shown as one star alarms (*) on your monitor.
Triggers without asterisk symbols are user-defined triggers.
If you set user-defined threshold triggers, you can define event triggers that are independent of alarm
limits. You must set a threshold value and a threshold time for the trigger. If you set the trigger
threshold time to 12 seconds, the monitor triggers an event if the threshold is violated for more than 12
seconds.
If you set On Measurement triggers, you can set aperiodic measurements (such as NBP) or
procedures (such as Cardiac Output) to trigger an event whenever they start.
If you set user-defined deviation triggers, you can define event triggers that are independent of
specific limits and based instead on deviations from the current values. You must set a deviation and a
period of time in which the deviation occurs. There are three types of deviation available: ANY
deviation, UP deviation where only changes in a positive direction are detected and DOWN
deviation where only changes in a negative direction are detected. The deviation can be defined
either in relative terms as a percentage, for example 10%, or as an absolute value, such as 10 bpm.
Event Retriggering
If a condition that triggered an event persists and the values remain beyond the trigger threshold, a new
event will not be triggered.
For a new event to be triggered by the same condition, the measured values for at least one of the
triggers must cross back into the normal range and then recross the trigger threshold.
Event Notification
(Advanced Event Surveillance Only). You can be notified when an event is detected. For each event
group you can define a type of notification depending on the severity of the event conditions. The
notification can be a status message with a prompt tone or a standard *, **, or *** alarm notification.
These event alarms are handled exactly like measurement alarms; they can be silenced and are also
suspended when all alarms are suspended. You should only use alarm notification for events which are
comparable in severity to standard measurement alarms to avoid potential confusion due to too many
alarms. Notification in the form of an alarm is not available when the trigger condition is At Least
One Param. Selecting None switches event notification off.
Setting the type of notification, or switching notification off, is done in Configuration Mode.
Setting Triggers for NER and Basic Event Surveillance
1
Select Main Setup -> Event Surveill. -> Setup Events to enter the Event Setup
window.
245
23 Event Surveillance
2
Select the name of
the current episode
type to set the
episode pre/post
time.
Event Triggers
Event Setup
Group Name:
Group 1
Episode Type:
Average Trend (20min): -10/+10 min
Activated
All ***/** Alarms
HR (Pulse)
3
sec
for
HIGH
Set the event trigger
SpO2
for each
All ***/** Alarms
measurement.
Resp
Select each trigger
name and select, if
available, either an
alarm trigger, or a
user-defined trigger from the pop-up trigger list. If you select a user-defined trigger, set the
required threshold level and delay time.
4
Set the trigger status to Activated to start event triggering. If the status is Deactivated event
surveillance is effectively switched off.
5
Select Confirm to confirm your changes.
Setting Triggers and Notification for Advanced Event Surveillance
1
Select the group name to enter the Event Setup <Group Name> window.
2
Set the trigger status to Activated, to have this event group trigger events, or Deactivated.
3
Set the episode
type.
Select the name of
the current episode
type and select an
episode type from
the pop-up list. The
pre/post episode
time for the selected
episode type is
displayed.
Event Setup
Group Name:
Notification Type:
Activated
Standard
Screen Prompt
Episode Type
Average Trend (20 min): -16 / +4 min
Trigger Condition
At least one param.
Enhanced ...
*** EXTREME TACHY
HR (Pulse) *** EXTREME BRADY
SpO2
ABP
Any Deviation
10
%(dev)
within
10
sec
All ** HIGH ALARMS
All ** LOW ALARMS
4
HIGH
35 sec
Set the trigger for
rpm
for
35
Resp
each measurement.
Select each trigger
name and select either an alarm trigger or a user-defined trigger from the pop-up trigger list. If you
select a user-defined trigger, set the required threshold level and delay time. If a deviation trigger is
configured, set the deviation and duration.
5
Select Confirm to confirm your changes.
Triggering Events Manually
♦
246
To manually trigger an event, select the SmartKey Manual Event and (for Advanced Event
Surveillance) select the group in which the event will be triggered.
The Events Database
23 Event Surveillance
For manually-triggered events. patient information for the time leading up to the trigger moment is
stored using the settings of the assigned event group.
The Events Database
The maximum number of events that can be stored in the event database depends on the database
configuration and the level of event surveillance used. The event database is set up in the monitor’s
Configuration Mode. Events are stored in the monitor’s event database for the configured lifetime,
either 8 hours or 24 hours. Deleted events cannot be retrieved. Events are automatically deleted when:
• their configured lifetime is over
• the storage capacity of the database is exceeded (storing a further event deletes the oldest event in the
memory)
• a patient is discharged.
As the event database is cleared when you discharge a patient, you should ensure that you have
documented any events you require for the patient records before you confirm the discharge.
Viewing Events
• To see a summary of all the events in every group in the event database, use the Event Summary
window.
• To review all the events in a particular event group, use the Event Review window.
• To review individual event episodes in detail, use the Event Episode window.
To start viewing events, either:
♦
in the Main Setup menu, select Event Surveillance and then select the event view
you require from the list, or
♦
select the Event Surveillance SmartKey and then select the event view
you require from the list.
Event Counter
Vertical bars mark
events in the Event Event Counter
Event Counter (Graphic)
Summary window.
The timeline shows
the position of the stored events in the event database. Selecting this view activates a cursor that lets
you navigate across the timeline and select individual events for review in the Episode Review
window. It also calls up the events pop-up keys.
The event counter counts the total number of events in the database. If more than one event group was
set to trigger events within the event history, the event counter also counts the event group totals.
247
23 Event Surveillance
Viewing Events
Counting Combi-Events
If one or more events occur during the same Episode Time, the monitor combines them and displays
them as distinct events in one event episode, called a combi-event. The first event is the trigger event,
and the others are follow-up events. For example, if an apnea event is followed 40 seconds later by a
brady event, the brady event is not counted as a single event but as part of the apnea event.
Counting Neonatal Event Review (NER) Events
For neonatal events (NER, formerly “OxyCRG”), apnea events (A), bradycardia events (B), and
combinations of these events are counted and classified by the event counter in the Event Summary. If
they are associated with a Desaturation (D), this is also marked. Manual events (M) are counted
separately. In the example below, A(D):2(1) indicates that two apnea events occurred and one of
them was associated with a desaturation.
16 Stored Events:
248
A(D):2(1) B(D):7(1) AB (D): 1(1) D:6 M:0
Viewing Events
23 Event Surveillance
Event Summary Window
(Advanced Event Surveillance only). The Event Summary window shows the number of stored events
in each event group and the total number of events in the database. Vertical bars mark events on a
timeline showing the position of the stored events in the event database. The symbol next to the group
name indicates the activation and notification status:
symbol
meaning
group activated,
notification set to
***alarm
group activated,
notification set to
**alarm
group activated,
notification set to
*alarm
group activated,
notification set to
screen prompt
group is activated,
notification is
switched off
no symbol
group not
activated
Selecting the Event Summary window calls up the events pop-up keys.
Parts of the Event Summary window can also be embedded in Screens so that they are always visible,
for example the Total row showing the total number of events with the bars on the timeline or the
column showing all the groups with the activation and notification status.
Event Review Window
♦
To enter the Event Review window, select the graphic event summary, if available, or select the
events pop-up key Show Review.
♦
When you open the Event Review window, it automatically shows the event group with the
most recent event. To view other event groups, select the pop-up key Review Group and select
the group from the list.
249
23 Event Surveillance
Viewing Events
Event Review
(Total: 4)
HR
Brady
SpO2
DESAT
Resp
APNEA
Manual
Total
Event bars: Each event bar represents one event. The height indicates the event severity. Bars that
extend over more than one channel represent combi-events. Manually-captured events are marked with
a bar above the timeline instead of in the measurement channels.
Event values: Event information for the currently-selected event is shown on the left of the review
window. The trigger measurement is highlighted.
– If an alarm triggers the event, the monitor shows the alarm conditions that triggered the event.
– If the event trigger was user-defined, instead of an alarm condition the monitor shows for
example SpO2 94<96, where the second number is the current event trigger threshold and the
first number is the maximum deviation from the set limit.
Trigger threshold: The horizontal lines show the trigger thresholds. Gaps in the line indicate that the
trigger was inactive for a while, possibly because alarms were switched off or because there was an
INOP condition in the group measurements.
Timeline: The timeline at the bottom indicates the period currently stored in the event database.
Event Episode Window
♦
To enter the Event Episode window, select the pop-up key Show Episode.
Depending on the event group settings, the Event Episode window shows either 20 minutes of
average trend event information, four minutes of high-resolution event information, or 15 seconds of
realtime wave information.
250
Annotating Events
23 Event Surveillance
Event Episode
Trigger event values,
highlighted
HR
Brady
104 < 110
SpO2
Follow-on event
values
Desat
71 < 85
Timeline, showing
episode Pre/Posttime
Active event group
Resp
7 Jul
NER
The event values to the left of the measurement channels show the trigger threshold set and the
maximum amount by which this limit was exceeded. In this example, Brady 104<110 tells you that
104 was the lowest HR value measured during the event time and that the low HR trigger threshold
was set to 110 when the event was triggered. If the event was manually triggered, the event value boxes
display “manual”.
Annotating Events
1
To annotate an event, in the Event Episode window, select the pop-up key
Select Annotation.
2
Select the required annotation from the pop-up list of available annotations for the currently active
event group.
Up to 20 annotations can be configured to let you add commonly-used clinical notes to event episodes
for documentation purposes. To see the complete list of available annotations, in the Event Setup
menu, select Event Annotation.
Documenting Events
You can print a report or make a recording of the events history stored in the database or of individual
event episodes.
Documenting Event Review
1
In the Event Review window, select the pop-up key Print/Record. This calls up the event
documentation pop-up keys.
251
23 Event Surveillance
2
Documenting Events
For a graphic Event Review recording, select the Record Graphic pop-up key.
For a tabular Event Review recording, select the Record Tabular pop-up key.
To print an Event Report, select the Print Review pop-up key.
Documenting an Event Episode
1
In the Event Episode window, select the pop-up key Print/Record. This calls up the event
documentation pop-up keys.
2
To make an Event Episode recording, select the Record pop-up key.
To print an Event Episode, select the Print Episode pop-up key.
Event Recordings
Event recordings can be sent to a locally-connected M1116B recorder module.
Event Review Recordings
Each event review
recording strip
begins with a
summary of the
events stored in
the event
database.
Recording strip
annotation is
explained in the
Recording
chapter.
Recording
strip
code
Event types
90MIN
23 Jan 02 10:43
Event
group
s
Green, Sarah
ICU 37
Event
total per
event
group
37549201
Single: Manual
Standar
: 1
d:
Combi: 2
0
(Total: 3)
Neuro:
Single: Manual
Combi: 0
: 2
0
(Total: 2)
Hemo:
Single: Manual
Combi: 0
: 2
0
(Total: 2)
Total
events in
database
In graphic event review recordings,
events are represented by bars, and each
event group is printed on a separate
channel.
The timeline reflects the period stored in
the database, either 24 hours (divided
into 4 hour sections) or 8 hours (divided
into one-hour sections).
252
Patient
information
and medical
record no.
Standa
rd
09:0
11:0
15:0
19
Documenting Events
23 Event Surveillance
In tabular event
review recordings,
the events stored in
the event database
are shown in
chronological order,
with a number and
time-stamp.
#
Time
Group Parameter 1
Parameter
2
Parmeter 3
1
23 Jan 02
07:56
Neuro Resp
BIS LOW
51<60
ABP
2
23 Jan 02
07:59
Stand HR(Pulse)
ard
TACHY 201>180
ST-II
SpO2
3
23 Jan 02
08 02
Neuro Resp HIGH
76 60
BIS
ABP
The measurements in the event group are shown in the next columns, marked “Parameter 1, Parameter
2...”, along with the event values measured at the time of the event. For each event, the trigger values are
shown.
This section of the recording is A4 or letter size, so that it fits in a patient file.
Event Episode Recordings
Event episode recordings are divided into four sections.
1
2
The first section shows the patient information and the event
group of the episode with the event values for the group
measurements. The trigger symbol marks the event trigger.
The second section shows the waveforms recorded during the
episode. The trigger moment is marked with a triangle and
divides the episode into the pre/post time. Any calibration marks
and grid marks on the screen are automatically printed on the
recording.
1.
91MIN
Green, Sarah
37549201
23 Jan 02 10:43
ICU 3
Standard:HR(Pulse)
If there are four measurements in the event group being recorded, two waveforms will be recorded in
two separate waveforms segments.
3.
2.
-5
6.25
II
Plet
Res
+10
4.
No
HR 130
interventi
bpm
SPO2 98% on req.
RR 80 rpm
**TACHY
**Resp
HIGH
**TACHY
**Resp
HIGH
HR 130 bpm
Pulse 130
bpm
3
The third section shows the most important vital signs information, including numerics, active
alarms, and any annotations made on the event episode.
4
The fourth section shows the numerics for all the currently monitored vital signs and any alarm
conditions or INOPs active at the time the event was triggered.
Event Reports
Event reports can be printed on A4 and letter size paper on a printer connected locally or centrally to
your monitor.
253
23 Event Surveillance
Documenting Events
Event Review Reports
The event review report documents all the events stored in the event database for a selected group.
254
Documenting Events
23 Event Surveillance
Event Episode Reports
The event episode report documents the patient information from the currently-selected event. See the
section on event recordings for an explanation of the report elements.
Event Summary Reports
(Advanced Event Surveillance only). The event summary report shows a graphical view and a tabular
view of all events in the database for all groups.
255
23 Event Surveillance
256
Documenting Events
24
24
Recording
MP40/MP50/ The M1116B plug-in recorder records numerics for all active measurements and up to three
MP60/MP70/ waveforms. You can use it for local recording mounted either in the monitor’s FMS or in the integrated
MP90 module slots (MP40/MP50, MP60/MP70).
Continue LED
Flashes if a continuous recording is
ongoing
RUN/CONT key
Starts a delayed recording or makes
the current recording continuous
STOP key
Stops the current recording
M1116B Plug-in Recorder
257
24 Recording
Starting and Stopping Recordings
MP20/MP30
The integrated recorder records numerics for all
active measurements and up to three waveforms.
MP20/MP30 Integrated Recorder
Central
Recording
For central recording from the bedside, your monitor must be connected via a network to an
Information Center. You can use either the M1116B recorder or the standalone M3160A 4-Channel
Recorder. Recordings made on the M3160A may look slightly different to those described here. See the
documentation supplied with the Information Center for information on the 4-Channel Recorder.
Starting and Stopping Recordings
The recordings pop-up keys let you start and stop recordings. Select the Recordings SmartKey to
call up the line of pop-up keys. Scroll right or left to see any pop-up keys not displayed.
The selection of pop-up keys available depends on the monitor and recorder model you are using.
Delayed
RT A
RT B
RT C
Select
Recordng Recordng Recordng Recordng Waves
Vital
Signs
Alarm
Limits
HiRes
All ECG
Recordng Waves
ST
Setup
Stop all
Segments Recordng Recordng
Quickstarting Recordings
To quickstart any type of recording using a preconfigured recordings template,
♦
Select the Recordings SmartKey and then select the pop-up key of the recording type you want
to start.
Alternatively, you can
♦
258
Select the Main Setup SmartKey, select Recordings, then select the recording type.
Overview of Recording Types
24 Recording
To quickstart a delayed recording,
♦
M1116B ♦
only
Select the SmartKey Delayed Record to immediately start a delayed recording.
You can also start a delayed recording by pressing the RUN/CONT key on the recorder module.
Extending Recordings
Timed (non-continuous) recordings stop when their runtime is over. Continuous recordings continue
until stopped manually or by an INOP condition.
M1116B
only
♦
To extend an ongoing recording by its runtime, reselect its Start pop-up key once.
♦
To make an ongoing recording continuous, reselect its Start pop-up key twice within 5 seconds.
♦
You can also make an ongoing recording continuous by pressing the RUN/CONT key on the
recorder module.
Stopping Recordings
Recordings stop automatically when the preset runtime is over, when the recorder runs out of paper, or
when the recorder has an INOP condition.
♦
M1116B ♦
only
To manually stop a recording, select the Recordings SmartKey and then select the pop-up key
Stop all Recordng.
You can also stop a recording by pressing the STOP key on the recorder module.
Recording Without a Template
To record without a preconfigured template, selecting the waves you require,
1
Select the Recordings SmartKey.
2
Select the pop-up key Select Waves and use the pop-up keys to choose up to three
measurement waves to be printed on the recording. If you want fewer than three waves on the
recording, select the waves you want then select the Continue pop-up key.
3
Select one of the recording speed pop-up keys to set the required recording speed.
4
Select the Start pop-up key to start the recording.
Select Waves recordings use default values for any recorder settings not defined: runtime is
continuous, overlapping is set to non-overlapping.
Overview of Recording Types
This table details settings for local recordings, using either the integrated recorder or the M1116B. For
details on recordings made on the central recorder, see your Information Center Instructions for Use.
259
24 Recording
All ECG Waves Recordings
Procedure or
Context
Delayed
Alarm
Realtime (RT)
All ECG Waves HiResTrnd
Type of
recording
manual
automatic,
triggered by
defined alarm
conditions
manual
manual
manual
manual, use the
context
window’s popup keys to start
Local or
Central
local and central
local and central
local and central
local only
local only
local only
from the start
trigger minus the
delay time
from the start
trigger
from the start
trigger, in
realtime
from the start
trigger minus
delay time
defined by the
context
up to 3
up to 3
all ECG waves
currently
monitored and
available
up to 3 highresolution trends
(beat-to-beat)
waves
up to 3 waves,
or specific to
the context,
e.g. a C.O. trial
curve or a
wedge
procedure
Information from the start
trigger minus the
recorded
delay time
Number of
waves
up to 3
Speed
50, 25, 12.5, 6.25, 50, 25, 12.5, 6.25, 50, 25, 12.5,
25 mm/sec
2.5 mm/sec
2.5 mm/sec
6.25, 2.5 mm/sec
1, 2, 2.5, 3, 6
cm/min
defined by the
context
Runtime
15, 20, 25, or 30
seconds
15, 20, 25, or 30
seconds
15 seconds or
continuously
10 minutes, or
continuously
defined by the
context
Stops
automatically
automatically
automatically
automatically if
limited, manually
if continuous
automatically if defined by the
limited, manually context
if continuous
10, 15 seconds
none
none
6, 5, 4, 3, 2, 1
minutes
defined by the
context
up to 3 waves
up to 3 waves
none
up to 3 waves
defined by the
context
Delay Time 10, 15 seconds
Overlap
up to 3 waves
4 seconds per
wave
All ECG Waves Recordings
An All ECG Waves recording shows a 4 second recording of each lead with a calibration bar
preceding each ECG lead. All available leads are recorded sequentially in the standardized lead order.
The recording is realtime, that is, the information recorded is not simultaneous.
Creating and Changing Recordings Templates
To save you defining recording settings each time you start a recording, you can create templates for
commonly-used types of recordings in the Setup Recording menu. You can create templates for
one delayed recording, one alarm recording, three realtime recordings, and one high resolution
recording. All ECG Waves recordings do not need to be configured, they always use the same
format.
Changing recordings templates changes the settings that will be used each time a recording of this
name is triggered.
260
1
Select the Main Setup permanent key to call up the Main Setup menu.
2
Select the item Recordings to enter the Setup Recordings menu.
Changing ECG Wave Gain
24 Recording
3
Select the name of the template you want to create or change. Each recording name is linked to a
recording type, delayed, alarm, realtime, and high res trends. Recording names can be changed in
the monitor’s Configuration Mode.
4
Design the template by selecting each menu item and entering the information for the template.
• Recorder: choose which recorder the recording will print to (Local, Central 2-Ch. or Central 4Ch.).
• Channels 1 - 4: choose which waveform to record in each channel. If the wave assigned to a
recording channel in a particular template is not available when a recording is triggered, the channel
is left blank on the recording strip. The pop-up list of available (currently monitored) waves differs
according to the recording type:
– Realtime, delayed and alarm recordings: the list shows all the currently available waves.
– High-resolution recordings: the list shows all the available high-resolution waves
In addition to the currently available waves, you can choose from several other settings which make
an automatic allocation when the recording starts:
– Alarm Par will always record the measurement in alarm in the chosen recorder channel
– Primary Lead will always record the current primary lead in the chosen recorder channel
– Secondary Lead will always record the current secondary lead in the chosen recorder
channel
– Agent will always record the currently selected anesthetic agent.
For high-resolution recordings only the Agent setting is available.
• Overlap: define whether the recorded waveforms will be printed overlapping or beside each other.
• Speed: choose the recording print speed.
• Delay Time: Delayed recordings start documenting on the recorder strip from a pre-set time
before the recording is started. This interval is called the “Delay Time” and can be set to 10 or 15
seconds. This setting can only be changed in Configuration Mode.
• Runtime: see how long this type of recording is configured to run. This setting can only be changed
in Configuration Mode. Continuous recordings run indefinitely.
• Central Config - if available, select this setting to use the recordings settings set for the
centrally-connected recorder.
Changing ECG Wave Gain
The ECG Gain setting in the General menu defines how every recorded ECG wave, irrespective of
template or recording type, will appear on the recorder strip. This does not affect the displayed ECG
wave, or printed ECG reports. To change the ECG gain setting for recordings,
1
In the Setup Recording menu select General
2
Select ECG Gain.
3
Select the required setting:
– Auto: the wave recording will use the same scale as the ECG wave on the monitor screen
– 5 mm/mV, 10 mm/mv, 20 mm/mV: the wave recording will use a scale of 5, 10, or 20
millimeters per millivolt.
261
24 Recording
Recording Priorities
Recording Priorities
Manually-started recordings have priority over automatically-started recordings. If an
automatically-triggered alarm recording is running, and a realtime or delayed recording is manually
started, the alarm recording is stopped and the manually-requested recording is started.
More recent manually-started recordings have priority over older manually-started recordings. If a
manually-started recording is running, and another manually-started recording is triggered, then the
older recording is stopped and the more recent manually-started recording is started.
Alarm recordings are prioritized according to alarm priority. If an alarm recording triggered by a
yellow alarm is running and a new alarm recording is triggered by a red alarm, the yellow alarm
recording is stopped and the red alarm recording is started.
Sample Recording Strip
The information printed on the recording strip includes the patient name and MRN, bed number,
date and time of recording, recording speed, and recording code. Active alarm and INOP messages as
well as numerics for all currently monitored measurements are also printed.
Recording strip annotations are printed at the beginning of the recording strip and updated at regular
intervals, every 15 minutes for recordings made at speeds lower than 6.25 mm/s, and every 60 seconds
for recordings made at speeds greater or equal to 6.25 mm/s.
This sample recording strip shows a typical initial annotation:
Recording
strip code
Patient
information
and medical
record no.
Alarms
and
INOPs
Measurement numerics
Recording speed
90DIN
23 Jan 02 10:43
Green, Sarah
*** EXTREME BRADY
** ABPs HIGH
** PAPd HIGH
CCO NO CALIBRATION
SOME ECG ALARMS OFF
ABP REDUCE SIZE
25 mm/sec
Bed 3
37549201
HR 120 bpm
SPO2 95%
Pulse 120 bpm
PERF 10.0
ABP 120/70 (91) mmHg
PAP 28/15 /21) mmHg
NBP 120/80 (90) mmHg 23 Jan 02
10:31
C.O.
C.I.
CCO -?- l/min
CCI
etCO2 40 mmHg
imCO2 0 mmHg
awRR
RR 15 rpm
Tnaso 37.0×C
Tblood 37.0×C
SV 94 ml
SI 48 ml/m2
Recording Strip Code
The recording strip code printed in the first line of the initial annotation has up to seven characters,
specifying recording type, operating mode, application area, patient category, and delay time, if
applicable.
262
Sample Recording Strip
Recording type
Operating mode
Application area
Patient category
24 Recording
Code
Meaning
90
Realtime
8A
Delayed
0B
Alarm
91
Context (Procedures)
M
Monitoring
D
Demo
C
Configuration
S
Service
I
ICU
O
OR
C
CCU
N
NICU
A
Adult
P
Pediatric
N
Neonatal
Recorded Waveforms
A selection of up to three waveforms is recorded, marked with wave labels and wave scale information.
Wave scale information can be in the form of a calibration bar, like the 1 mV calibration bar for ECG,
or calibration steps before the waveform starts.
Maintaining Recording Strips
Recording ink sometimes fades when covered with transparent tape. Avoid covering any part of a
recording that is clinically relevant (annotation or waveforms) when taping a recording strip to a
patient record or other patient documentation.
263
24 Recording
Reloading Paper
Reloading Paper
M1116B
MP20/MP30
1
Use the latch on the right side of the recorder door to pull the door open.
2
Remove the empty core.
3
Insert a new roll so that it fits snugly into its housing and the paper end is
feeding from the top.
4
Pull out some paper and fold along the front edge at a 45° angle. This makes it easier to feed the
paper under the roller as shown.
5
Feed the paper through and pull some paper out from the top of the roller.
6
Close the recorder door.
7
To test if paper is loaded correctly, start a recording. If no printing appears,
paper may be loaded backwards. Try reloading the paper.
1
Use the latch on the right side of the recorder door to pull the door open.
2
Remove the empty core.
3
Insert a new roll and secure it in place on the paper holder. The paper
feeds from the bottom of the roll and over the top of the recorder door.
4
With at least one inch of paper extending beyond the edge of the door,
swing the recorder door up and push it firmly closed.
5
To test if paper is loaded correctly, start a recording. If no printing appears, paper may be loaded
backwards. Try reloading the paper.
CAUTION When the recorder is disabled (by removal from its slot, door open, or out of paper), any alarm
recordings will be sent to the central station recorder, if there is one. If no recorder is available, alarm
recordings may be lost during the time the recorder is disabled. The message no alarm recording
available will be displayed.
264
Recorder Status Messages
24 Recording
Recorder Status Messages
Recorder Status Messages
Explanation
<Recording name> running
The named recording is currently running.
No <recorder name> alarm
recording available
No alarm recording can be made on the selected recorder.
If available, try selecting another recorder. If a local
recorder was selected, the monitor will try to reroute the
recording. Recordings sent to a central recorder cannot
be rerouted. Alarm recordings may be lost.
No alarm recording available
The selected recording cannot be made. Alarm
recordings will be lost.
Check that the recording has been correctly configured.
<Recorder name> out of paper
The named recorder is out of paper.
<Recorder name> door open
The door of the specified recorder is open.
<Recorder name> not supported
The M1116A recorder is not supported. Connect a
M1116B plug-in recorder.
265
24 Recording
266
Recorder Status Messages
25
Printing Patient Reports
25
Starting Reports Printouts
Most patient reports can be printed by selecting Main Setup - > Reports (or the Reports
SmartKey) and then selecting the report name in the top half of the Reports menu. Report names
are shown only for reports that have been correctly set up.
Data from the time of the print request is printed, even if the print job is delayed in the printer queue.
Report types
Report contents
How to start printing reports
Vital Signs Report
depends on selected trend group, data
resolution, and period.
In the Vital Signs window, select Print/Record,
then select Print
Event Episode with up to 5 episodes
In the Events window, select the pop-up key
Print/Record, then select the pop-up key
Print Review or Print Episode
Graphic Trends Report
Events Reports
In the Graphic Trends window, select Print
Graphic or tabular Event Review
EEG Report
EEG Waves, numerics, CSAs, montage
information and impedance values
In the Setup EEG menu, select Print Report
ECG Reports
Depends on format selected
Select the ECG Report SmartKeys, if configured
ST Map Report
ST data in a transversal and/or horizontal In the ST Map window, select Print.
multiaxis diagram,
Cardiac Output Report Trial curves and numerics
In the Cardiac Output window, select the popup key Print/Record
Wedge Report
Wedge numerics and reference wave
In the Wedge window, select the Print Wedge
pop-up key
Calculations Report
Hemodynamic, Oxygenation, or
Ventilation Review
In the Calculations windows, select the
Print/Record pop-up key
Drug Calculator
Report
Titration Table
In the Titration Table window, select the
Print Titr.Tbl pop-up key
Drip Table
In the Drip Table window, select the Print
Drip Tbl pop-up key
267
25 Printing Patient Reports
Stopping Reports Printouts
Report types
Report contents
How to start printing reports
Alarm Limits Report
Graphic and numeric report of all
current alarm limits
In the Alarm Limits window, select Print
Limits
Realtime Reports,
including oxyCRG
Reports (Neonatal
Event Review)
patient data and numerics, and either:
Select the Realtime Reports SmartKey, if
all displayed waves OR all measured
configured
waves OR all measured RT waves Or all
measured HiRes waves, OR oxyCRG
waves (RT waves: ECG Primary lead,
Pleth, Resp; HiRes waves: btbHR, HiRes
SpO2, HiRes Resp)
Loops Report
Individual Loops diagram with
In the Loops window, select Print Loop
timestamp, currently measured numerics
Battery Report
Battery serial numbers, information on
the currently-measured and potential
charge status of the battery or batteries
In the Battery Status window, select Print
Status.
Stopping Reports Printouts
♦
To stop Reports printing, in the Reports menu, select
– Stop Report to stop the current print job
– Stop All Reports to cancel all queued report printouts
– Scheduled Rep. to toggle to Off and switch off scheduled reports.
Setting Up Reports
ECG, Vital Signs, Graphic Trends, and Auto Reports settings must be defined in Configuration
Mode. As the content of context-linked reports, such as Cardiac Output, Calculations, and Wedge, is
defined by the content of the procedure window, these reports do not need to be set up.
The content you define in the individual Setup Reports menus will be used in all reports of this
type: for example, if you set a print speed of 50 mm/sec in the ECG Reports menu, every ECG report
will be printed at this speed, irrespective of format.
Setting Up ECG Reports
The settings you choose in the ECG Reports menu apply for all ECG reports printed. To set up
ECG Reports,
268
1
Select Main Setup -> Reports -> ECG Reports. Note the report layout configured for
your monitor, either Internat. or Cabrera. This setting is inactive (“grayed-out”) in Monitoring Mode
and can only be changed in Configuration Mode.
2
Select ECG Gain and set the required ECG Gain to define how ECG waves will appear on the
ECG report printouts.
3
Select Speed and select the report print speed.
4
Select Annotation and toggle to On if the printed ECG wave should be annotated with beat
labels or not. See the chapter on ECG for a list of beat labels. Pace pulse marks are automatically
printed beside the wave for paced patients.
Setting Up Reports
25 Printing Patient Reports
Setting Up Vital Signs and Graphic Trend Reports
The settings you choose in the Setup Vital Signs Report and Graphical Trend Report
menus apply for all Vital Signs and Graphic Trend reports printed.
To set up Vital Signs and Graphic Trend reports,
1
Select Main Setup -> Reports -> Vital Signs Rep. or Graph Trend Rep.
2
Select Trend Group and select the group you want to print on the report. The groups available
depend on your monitor’s trend configuration.
3
Select Period and select the period of time for which trend data should be printed on the report. If
Automatic Period is configured to On, all trend data for the current patient will be printed,
irrespective which trend period is selected.
4
Select Interval (Vital Signs Reports only) and select the resolution of the trend data printed on the
report,
Setting Up Auto Reports
Auto Reports print automatically when a specified trigger occurs. There are two types of Auto Reports:
Scheduled Reports, which print at predefined intervals, and End Case Reports, which print when a
patient is discharged using the End Case function. An Auto Report can be both a Scheduled Report
and an End Case report.
To set up Auto Reports,
1
Select Main Setup -> Reports -> Auto Reports and select the Auto Report you want to set up (A, B,
C, or D).
2
Select Report and assign a report type to the Auto Report.
3
Select End Case Report and toggle to On if you want the selected report to print
automatically when you select End Case to discharge a patient.
Toggle End Case Report to Off if the report is a Scheduled Report only.
4
5
Select Scheduled Rep. and toggle to On if you want the selected report to print at predefined
intervals, starting at a predefined time of day. The start time you set applies for every following day.
For example, if you set a start time of 07:00 and a repeat time of six hours, the first report will print
at 07:00 every day, the next at 13:00 and so on.
– To set the time of day at which you want the report to print every day: select Start Hour and
Start Minute and select the required time from the pop-up list
– To set the time interval in minutes between two scheduled reports: select Rep. Freq. (Hr)
and Rep. Freq. (Min) and select the time interval from the pop-up list.
If you are setting up an end case report, these settings will be inactive (“grayed-out”).
Toggle Scheduled Rep. to Off if the report is an End Case Report only.
Repeat the procedure for all Auto Reports you want to set up.
All Auto Reports or Scheduled Reports set to On print automatically at the predefined trigger.
Be aware that the monitor’s memory for reports is limited. If the memory is full, Auto Reports cannot
be printed and the information may be lost.
269
25 Printing Patient Reports
Setting Up Individual Print Jobs
Setting Up Individual Print Jobs
To adjust the appearance of individual print jobs, in the Reports menu,
1
Select Main Setup -> Reports -> Setup Reports to enter the Setup Reports menu.
2
Select Report and then select the report you want to set up.
3
Select Report Type and then select the reports template you want the report selected in Step 2
to use. The selection of templates listed depends on the report type selected.
Each template includes patient demographic data, and each Realtime Report also includes alarm
and INOP information. In addition, the templates include:
Visible Waves: all waves currently visible, in the order they appear on the screen.
All Waves: all measured waves,
RT Waves: all currently measured realtime waves, according to the monitor’s priority list.
HiRes Waves: all measured HiRes waves
OxyCRG Waves: the OxyCRG/Neonatal Event Review waves.
Vital Signs: trend information in tabular form.
Graph Trend: trend information in graphic form.
ECG3X4, ECG6X2, ECG12X1, ECG4X2, ECG8X1, ECG12X1(2P): ECG reports.
EEG: EEG reports.
Episode: a single patient event episode.
Review: an overview of patient events
Alarm Limits: a list of all currently set alarm limits.
4
Select Report Size to set choose the paper size to be used for the report: Unspecified to use
the default size for the template chosen, Universal, A4, Letter, LrgUniversal, A3, or
Ledger. The list of available sizes depends on the connected printers.
5
Select Orientation to set the orientation of the report printout: Unspec. to use the default
size for the template chosen, Landscape or Portrait.
6
Select Target Device choose which printer the print job will be sent to: Unspec. to use the
default printer, or the printer name defined at the Information Center or in the monitor’s
Configuration Mode (for example, Local 1).
Some settings may be inactive (“grayed-out”) in this menu for reports that can only be started in a
special window.
Checking Printer Settings
The printer settings for your monitor are defined in Configuration Mode. The printer settings Paper
Size, Resolution, Color Support, and Duplex Option for the active printer are visible but
inactive (“grayed-out”) in the Setup Printers menu.
Printer names for locally-connected printers can be defined in Configuration Mode. You can see
whether a specified printer is centrally or locally connected in the Setup Printers menu under
Port: Local <name> indicates locally-connected printers, Remote <name> indicates
centrally-connected printers.
♦
270
To enter the Setup Printers menu, in the Reports menu, select Setup Printers.
Printing a Test Report
25 Printing Patient Reports
Printing a Test Report
A test report can be printed in Configuration mode, refer to the Service Guide for details.
Switching Printers On Or Off for Reports
You can enable or disable printer status to switch individual printers on or off for report printouts.
1
In the Setup Printers menu, select Printer and then select the name of the device you want
to switch on or off for Reports printing from the pop-up list.
2
Select Printer Status to toggle between the settings Enable and Disable. If you set this to
Disable, no reports will be printed to the named printer.
If the monitor detects that no printer of a particular type is available, the Enable/Disable
setting will automatically be set to Disable and “grayed out”.
Dashed Lines on Reports
If a section of a wave on a report is drawn with dashed lines, this tells
you that a setting that affects the appearance of the wave on the
screen was changed while the report was printing.
For example, if you change the wave scale while a report is printing,
the wave scale and wave size are changed immediately on the
monitor screen and on the report. To indicate that the scale
information printed at the beginning of the report no longer matches the currently used scale, the wave
will be printed using dashed lines, starting from the moment the change took place.
Some examples of settings that cause dashed lines in reports if changed during printing are: Filter
mode, ECG lead placement, wave scale, measurement unit, paced/non-paced setting, and
measurement mode. Note that as ECG waves are drawn with a fixed gain on reports (either 10 mm/
mV or 20 mm/mV), changing the ECG wave scale will not cause dashed-line reports.
To avoid dashed lines on reports, wait 15 seconds after changing a setting before you trigger a report.
Unavailable Printer: Re-routing Reports
If you send a report to be printed on a printer that is not available, for example, because it has run out
of paper, this print job is suspended and stored in the monitor’s memory.
If the target device of this print job was set to Unspecified, the monitor will periodically try to
resend the print job to the first printer listed in the Setup Printers menu under Printer that
is set to Enabled and that has paper of the correct size.
To allow the report to print, you must either solve the problem with the target printer, or re-route the
print job to another printer with paper of the correct size. To re-rout a print job,
♦
Enable the new target printer by selecting it in the Setup Printers menu and toggling to
Enabled. As the monitor tries to send the report to the printers in the order they are listed, you
must make sure that all the printers above the new target printer are disabled.
If the target device of the print job was set to a specific printer, re-routing is not possible.
271
25 Printing Patient Reports
Printer Status Messages
Printer Status Messages
Printer Status Message
Possible causes and suggested action
Print job could not
be queued
The printer queue is full and the monitor cannot accept another report
request. Wait until some more reports have been printed, then try again,
OR
A report has been triggered that uses a paper size unavailable with the
target printer. Try another printer, if available, or change the paper size of
the print request.
Cancelling all
print jobs
Cancelling N print
jobs due to patient
discharge
Stop All Reports has been selected in the Report menu, OR
The Operating Mode has been changed from Monitoring Mode to
Demonstration or Service Mode.
When a patient is discharged, all queued print jobs are cancelled. “N” is the
number of print jobs queued.
Printing failed: no A report has been triggered which has not been correctly set up. Enter the
report configured
setup menu for the report type to set up the report.
Printer <Printer
The chosen device is unavailable. Check that the printer is properly
name> unavailable - connected and that paper is available. The requested report will start
job suspended
printing when the printer becomes available.
Job on <Printer
name> failed
A report cannot be started on the requested printer.
Make sure the printer is plugged in, switched on, and has paper loaded. Try
another printer, if available. If this problem persists, call your service
personnel.
Sample Report Printouts
Each report header contains the patient’s bed label, last name and first name, the patient ID, the date
and time, and the name of the report. The report footer contains the hospital label and page number,
and the last page contains a note to mark the report end.
The monitor may be configured to leave a space on the top left or right of the report printout to enable
you to stick a patient address label on it. This setting is called the Addressograph and it can only be
changed in the monitor’s Configuration Mode.
272
Sample Report Printouts
25 Printing Patient Reports
Alarm Limits Report
Patient Name
Measurement
labels, with
alarms off symbol
where alarms are
switched off
Graphic view of current alarm limits in
relation to currently monitored
measurement value
273
25 Printing Patient Reports
Realtime Report
Patient
demographic
information,
time stamp
Active Alarms
and INOPs,
followed by
vital signs
Measurement
waves section,
including HiRes
waves
274
Sample Report Printouts
Sample Report Printouts
25 Printing Patient Reports
Cardiac Output Report
Patient
information
Numbered trial
curves
Trial information
in tabular form
275
25 Printing Patient Reports
Sample Report Printouts
ECG Reports
Patient
information
Numeric
block
Wave area
Below the header on ECG Reports, the numeric block shows the current HR, PVC, and ST values.
The wave area shows the printed waves for all available ECG leads. A 1 mV calibration bar is printed at
the beginning of each wave. With the 3X4, 6X2, and 2X4 formats, a rhythm stripe prints a longer
section of the ECG wave from the primary ECG lead for ECG rhythm evaluation. The ECG signal
bandwidth, the patient’s paced status, the ECG gain, and the print speed are printed at the bottom of
the wave area. Pace pulse marks are automatically printed beside the wave for paced patients. Beat
labels can be set to print on the rhythm stripe. The 12X1 (2P) format prints the report over two pages.
ECG Report type
Available Formats
Available Paper Sizes
12-Lead ECG
3X4 landscape
A4, letter, A3, ledger
6X2 landscape
A4, letter, A3, ledger
12X1 portrait
A4 and letter only
12X1 landscape
A4, letter, A3, ledger
12X1 (2P) landscape
A4, letter (2 pages)
2X4 landscape
A4, letter, A3, ledger
8X1 portrait
A4 and letter only
8X1 landscape
A4, letter, A3, ledger
Multi-lead ECG
Other Reports
See the sections on Trends and Calculations and the chapter on Event Surveillance for other example
reports.
276
26
Using the Drug Calculator
26
Drug mixtures for intravenous (IV) drug infusions combine information on drug dose, rate, amount,
volume, concentration, and standardized rate. The Drug Calculator helps you to manage infusions by
calculating one of these values at a time.
Term
Definition
Units
Dose
total quantity of drug to be delivered to the
patient over time
amount units per time or per kg/
time, if the drug is weight-dependent
Rate
volume of the mixture to be delivered to the ml/hour
patient over time
Amount
amount of drug to be added to diluent to
make up a mixture
ng, mcg*, mg, g, mUnit, Unit, where
g stands for gram
Volume
quantity of mixture of diluent and drug
ml
Concentration
ratio of the amount of drug to the solution
volume
amount units per ml
Standardized
Rate
1ml volume of the mixture to be delivered to ml/hr
the patient per hour
*Be aware that your hospital may use either ‘µg’ or ‘mcg’ as an abbreviation for microgram. These
abbreviations are equivalent.
WARNING
Before you administer any drug, always check that the correct calculation units and patient category are
selected. Consult your pharmacy if you have questions.
Decisions on the choice and dosage of drugs administered to patients must always be made by the
physician in charge. The Drug Calculator performs calculations based on the values input during use,
it does not check the plausibility of the calculations performed.
Accessing the Drug Calculator
♦
To access the Drug Calculator, select Main Setup -> Calculations ->
Drug Calculator, or select the Drug Calculator SmartKey, if
configured.
277
26 Using the Drug Calculator
Performing Drug Calculations
Performing Drug Calculations
Using the service Support Tool, a list of drugs can be configured for the monitor containing predefined dosage recommendations and unit settings. Selecting the arrow beside the drug name in the
Drug Calculator window opens a list of configured drugs. Contact your pharmacist if you have any
questions about the drugs in the list.
If Any Drug is the only entry in the list of drugs, no drugs have been preconfigured for your
monitor. Drug calculations can be performed for non-specific drugs.
You must have a Support Tool to add additional drugs to the Drug Calculator.
About the Rule of Six
If the Rule of Six has been enabled for use with individual drugs in your Drug Calculator, you can use
the formula in crisis situations to quickly calculate the amount of a drug needed to yield a target dose
for continuous infusion for neonatal or pediatric patients (the drug amount is given in “mg”, the
patient weight in “kg”). The Rule of Six can only be used with the dose unit mcg/kg/min.
CAUTION JCAHO recommends disabling the Rule of Six. The configuration is not JCAHO-compliant if Rule of
Six is enabled.
The Drug Calculator uses the following formula for Rule of Six calculations, based on the patient’s
weight:
• For a target dose of 0.1 mcg/kg/min, the Drug Calculator multiplies 0.6 x patient weight to
calculate the amount you need to add to the IV solution to equal a total of 100 ml.
• For a target dose of 1.0 mcg/kg/min, the Drug Calculator multiplies 6.0 x patient weight to
calculate the amount you need to add to the IV solution to equal a total of 100 ml.
Performing Calculations for a Non-Specific Drug
If a list of drugs has not been configured for your monitor,
Drug Calculator
you can use the Drug Calculator to calculate drug doses for a
ANY DRUG
single, generic drug called “Any Drug”. Selecting the arrow
2 mg/min
beside the drug name in the Drug Calculator window shows Dose
that are no other drugs configured.
Rate
480 ml/hour
1 Enter three of these four values: dose, amount, volume,
25 mg
Amount
and rate of the infusion solution.
Volume
100 ml
To enter values, select the correct unit, then select each
0.25 mg/ml
value field and use the pop-up keypad to enter the correct Concentr
0.004 mg/min
value.
1 ml/hr
2
278
Weight
150 lb
If you have chosen a weight-dependent dose unit, you
must enter the patient weight now or choose a different
unit.
If available, the patient weight from the Patient Demographic window is entered
automatically in the Drug Calculator window when the Drug Calculator is accessed. To change the
patient weight, select the Weight key then use the on-screen keypad to enter the correct value.
This will not change the patient weight stored in the patient demographic information.
Performing Drug Calculations
3
26 Using the Drug Calculator
When you have entered three values, the Drug Calculator automatically calculates the unknown
fourth value and shows it in the highlighted field. Standardized rate and concentration are also
calculated.
Performing Calculations for a Specific Drug
1
2
Select the arrow beside
Any Drug, then select
the required drug from
the list of drugs.
This opens the
Drug Calculator
window for the selected
drug.
Drug Calculator
Patient Category
Lidocaine
Adult
Dose
mg/min
Pedi
Rate
ml/hour
Neo
Amount
mg
Volume
ml
Concentr.
mg/ml
Select the correct patient
category for your patient.
Reset Values
If you have a neonatal or
pediatric patient, the
Rule of Six choice
may be available. Select if required.
ml/hr
Weight
mg/min
lb
3
Enter the patient weight, if necessary.
If available, the patient weight from the Patient Demographic window is entered
automatically in the Drug Calculator window. To change the patient weight, select the Weight
key then use the on-screen keypad to enter the correct value. This will not change the patient
weight stored in the patient demographic information. Select the weight unit shown to change
between lb and kg.
4
When a specific drug is selected, the initial values for Dose, Amount and Volume are the
configured Start values for this drug. The Rate is then calculated. If other values are required you
can calculate any value by entering the remaining three values as described in ”Performing
Calculations for a Non-Specific Drug”.
The column on the right of the Drug Calculator window shows either drug dose or dosage rate,
whichever is the calculated value. The current calculated value is shown on a scale with the
recommended range in green. If the current calculated value lies outside the recommended range it is
shown in red.
If you have changed values in the Drug Calculator and you want to revert to the configured values,
select Reset Values key at any time.
279
26 Using the Drug Calculator
Charting Infusion Progress
Charting Infusion Progress
The Drip Table shows you at
a glance how much of the
infusion has been
administered to your patient
and how much time is left.
♦
Drip Table
Amount
Lidocaine
To see the Drip Table, in
the Drug Calculator
window, select the Drip
Table pop-up key.
If the DripTime exceeds 24
hours, the DripTime
timestamp shows - - :- - : - - .
Dose
mg/min
Rate
ml/hour
Amount
mg
Volume
ml
Weight
lb
DripTime
hr:min:sec
Volume
Drip Time
Using the Titration Table
Use the Titration Table to see
at a glance what dose your
patient would receive of a
drug at different infusion
rates. By clicking on the title
row of the table you can
switch between the Dose
Increments and Rate
Increments view.
Titration Table
Lidocaine
Dose
mg/min
Dose increments
Rate
ml/hour
From a low of
mg/min
Amount
mcg
To a high of
mg/min
Volume
ml
In increments of
mg/min
Dose
Rate
Dose
Rate
Weight
Dose
lb
Rate
Dose
Rate
Values outside of the
recommended range are
shown in red.
To see the Titration Table,
♦
in the Drug
Calculator window,
select the pop-up key
Titr.Table.
The Titration Table is configured with the service Support Tool.
Documenting Drug Calculations
280
♦
In the Drug Calculator window, select the pop-up key Record DrugCalc to immediately start
a recording of the current drug calculation.
♦
In the Titration Table window, select the pop-up key Print Titr. Tbl to print a report of
the current Titration Table.
♦
In the Drip Table window, select the pop-up key Print Drip Tbl to print a report of the
current Drip Table.
27
VueLink Modules
27
A VueLink module transmits information from a connected external device to your monitor. Each
module can be connected to up to three external devices, and supports alarms from the external device.
Although the external device may transmit more information, the number of waves and numerics you
can view simultaneously on your monitor’s main screen depends on the module type. Type A modules
support one wave and two numerics, type B modules support two waves and six numerics.
Module:
Type
Max
Wave
Max
numeric
External Devices
Auxiliary
A
1
2
standalone measurement module
Ventilator
B
2
6
ventilators
Gas Analyzer
B
2
6
gas analyzers
Anesthesia Machine B
2
6
anesthesia machines
Auxiliary Plus
2
6
external multi-measurement devices
B
a module name
a
VueLink
b device label
b
c selection LED
c
d setup key
d
e external device cable connector
M1032A
VENTILATOR
T
g
B
PB 7200a/ae
SIEMENS
900C/D/E NEO
SIEMENS
900C/D/E AD
VueLink
f
60x145
f setup indicator LED
g module type (A or B)
e
The device labels (b) on the module indicate for which external devices the module is configured. The
selection LED (C) shows which device is currently active. The device label text may differ slightly from
the labels on the external devices.
See the documentation supplied with the VueLink module for a list of supported devices and
accessories, and for configuration information.
281
27 VueLink Modules
Connecting an External Device
Connecting an External Device
1
Insert the module into the FMS or integrated module slot.
2
Check that the device selection LED (c) lights to show that it has correctly identified the external
device. If not, select Main Setup -> Measurements -> <VueLink Device Name> to
enter the setup menu for the connected device, headed Setup <VueLink Device Name>.
3
In the device setup menu, select Device, select the correct device from the list, and confirm the
selection.
4
Connect the external device to the module (e) and switch it on.
Once the VueLink device has been correctly connected, you can select the VueLink SmartKey and
then select the Setup VueLink pop-up key to access the Setup VueLink menu for the
connected device.
CAUTION Selecting the wrong device can cause unpredictable system behavior. Rectify this by switching off the
external device when it is safe to do so, and selecting the correct device.
Changing VueLink Waves and Numerics Displayed
To change the waves and numerics from the VueLink module displayed on the Screen,
1
Select Main Setup -> Measurements -> <VueLink Device Name> to enter the setup
menu for the connected device, headed Setup <VueLink Device Name>.
2
Select the item you want to change, then select the new item from the pop-up list,
or
Select Show Device Data to view the device data window.
3
Close the setup menu. The monitor takes a few seconds to activate the change.
Viewing the VueLink Device Data Window
To view the VueLink device data window,
either
• select the setup hardkey on the VueLink
module or the VueLink SmartKey,
and then select the <Device Name>
pop-up key, or
• in the Setup <Device Name>
menu, select Show Device Data.
Selecting the device data window opens
the setup menu for the connected device.
282
Using VueLink Screens
27 VueLink Modules
Using VueLink Screens
Your monitor may be
configured to show
VueLink device data
permanently on the
Screens.
Select the device data
window to display the
VueLink pop-up keys that
let you access the setup
menu and carry out
VueLink tasks.
Switching VueLink On and Off
♦
To switch VueLink measurements on and off, in the Setup VueLink menu, select
Device Interface to toggle between the settings On and Off.
Alarms/INOPs From External Devices
The VueLink module itself generates INOPs, but does not generate alarms. If the external device’s
alarms are on, the module transmits these to the monitor. A message in the VueLink info window tells
you either Device Alarms Ignored or Device Alarms Accepted or No Alarms
Available. External device alarms status symbols precede some, but not all, measurement labels.
the monitor is configured to accept external device alarms,
but the alarms are switched off at the external device.
!
alarms status of this external measurement is unknown
Alarms from external devices are:
• all transmitted to the monitor. For all numerics configured in the Setup VueLink menu, an
alarm condition is announced at the monitor. For one or more measurements not configured in the
Setup VueLink menu, an alarm is announced as a text message for the highest priority alarm.
Priority is determined at the external device.
• always non-latching on the monitor.
• announced as a flashing numeric while the alarm condition persists.
• announced audibly and visibly at the Information Center.
283
27 VueLink Modules
Language Conflict with External Device Drivers
Language Conflict with External Device Drivers
You should avoid language conflicts between the VueLink module device driver and the monitor. Be
aware that if you connect a VueLink module with a different operating language to the monitor, the
monitor will show:
• measurement labels in the monitor language
• alarm and INOP texts in the VueLink module device driver language.
284
28
Using Timers
28
With the Timers function you can set timers to notify you when a specific time period has expired.
CAUTION Do not use the timers to schedule critical patient-related tasks.
Viewing Timers
You can view currently active timers in the Timers window or directly on the Main Screen (if a timer
has been substituted for a numeric).
To open the Timers window:
♦
Select the Timers SmartKey
or
♦
Select Main Setup -> Timers
The maximum number of timers which can be active depends on your monitor model.
For each timer with a defined run time a progress bar is shown with the run time for that timer. Next
to the progress bar the elapsed time or the remaining time is shown, depending on whether the timer is
counting Up or Down. On the left, the label of the timer and a symbol indicating the type of expiry
notification is shown.
Notification
When any timer expires (except a No Limit timer), the color changes to red and a message appears in
the status line on the Main Screen. Be aware that if a timer has been configured to display in red, the
color will not change when the timer expires.
Additional notification is also available and can be pre-configured to:
Alarm An INOP alarm indicates the expiry of the timer
Sound A single tone indicates the expiry of the timer
No Sound No additional notification
This additional notification setting is made in the monitor’s Configuration Mode and is associated
with the timer label. The volume of the tone can also be set in Configuration Mode
285
28 Using Timers
Timer Setup Pop-up Keys
Timer Types
There are four types of timer: Basic, Enhanced, Cyclic and No Limit. A Basic timer has
a single, defined run time and progress is shown in the progress bar. An Enhanced timer is like a
Basic timer but the progress bar shows progress beyond the end of the run time. A Cyclic timer
is like a Basic timer but restarts automatically when the run time is expired. A No Limit timer has
no run time or progress bar and shows the time elapsed since the timer was started.
The type of timer is set in the monitor’s Configuration Mode and is associated with the timer label.
Timer Setup Pop-up Keys
When you open the Timers window and select a timer, the Setup window opens and a selection of
pop-up keys appear to let you activate and control the timers.
Pop-Up Keys
Selecting this pop-up key lets you....
Start
start the timer.
Stop
stop the timer, allowing either restarting after a pause (Start key) or clearing
(Clear key).
Clear
clear the timer, ending this timer episode.
Timers
return to the timer window showing all active timers
Setting Up Timers
The additional notification setting is made in the monitor’s Configuration Mode and is associated with
the timer label. The timer type, display color of the timer and whether a window automatically pops up
on expiry are also settings made in Configuration Mode for each timer label.
The remaining timer settings can be made in Monitoring Mode. If you change settings when a timer is
running it will not be stopped. The timer will continue to count but the new settings will be applied.
To display the Setup window for a timer,
♦
in the Timers window, select the required timer, or
♦
select a timer on the Main Screen then select Setup Timers
Timer Label
You can select from a variety of specific labels, for example Tourniquet, Infusion, Documentation or
from four non-specific labels Timer A, B, C, D. When you assign a label to a timer, the monitor
automatically applies the associated configuration settings to this timer, but the timer continues
counting and is not reset.
To select a label, in the Timers window:
286
1
Select the required timer to display the Setup window.
2
Select Label.
3
Select a specific or non-specific label from the list.
Displaying Timers On The Main Screen
28 Using Timers
Run Time
The run time can be set between 1 minute and 96 hours. No Limit timers have no run time.
To set the run time, in the Timers window:
1
Select the required timer to display the Setup window.
2
Select Run Time.
3
Select a run time from the list.
Timer Counting Direction
Timers can count up or down, showing elapsed time or remaining time. No Limit timers
automatically count up.
To change the direction, in the Timers window:
1
Select the required timer to display the Setup window.
2
Select Direction to switch between Up and Down.
Displaying Timers On The Main Screen
If you want to have a timer displayed on the Main Screen, you can substitute it for a numeric which is
not directly associated with a wave. If limited space is available, some elements displayed in the
Timers window may not be displayed. The minimum information displayed is the label and the
elapsed or remaining time.
TimerA
2 hrs
To display a timer on the Main Screen:
1
Select the numeric you want to substitute.
2
Select Change Numeric.
3
Select Any Timer.
4
Select the timer to be displayed.
287
28 Using Timers
Displaying A Clock On The Main Screen
Main Screen Timer Pop-up Keys
When you select a timer displayed on the Main Screen, additional pop-up keys become available:
Pop-Up Keys
Selecting this pop-up key lets you....
Setup
“Label”
enter the setup screen for the currently selected timer.
Change
Timer
select a different timer for display.
Displaying A Clock On The Main Screen
In the same way that you can substitute a timer for a numeric, you can also substitute a larger clock
display for a numeric.
To display a clock on the Main Screen:
288
1
Select the numeric you want to substitute.
2
Select Change Numeric.
3
Select Clock.
29
Respiratory Loops
29
Using a VueLink module connected to a ventilator, you can measure and store graphic representations
of realtime respiratory loops. Respiratory loops can help you recognize changes in your patient’s lung
function , and they can also indicate a fault in the airway tubing (for example, if the respiratory loop
does not close).
You can measure:
• Pressure-volume loops
• Pressure-flow loops
• Volume-flow loops.
Note that you cannot store loops from different patients and different source devices in the same list as
they are patient and device specific.This prevents you from inadvertently comparing information from
different patients.
Viewing Loops
In the loops display, the current loop is drawn in white, and up to six stored loops are color-coded to
match their timestamps. The currently-used source device is shown in the window title.
To view respiratory loops permanently on your Screen,
♦
select the current Screen name to open the Change Screen menu, then select a Screen
configured to display the loops screen element.
Select the loops screen element to access the loops pop-up keys.
289
29 Respiratory Loops
Capturing and Deleting Loops
Loops: Ohmeda 7900
To open the Loops window,
and its associated pop-up keys,
♦
select Main Setup ->
Loops, or select the Loops
SmartKey, if configured.
In the Loops window, in
addition to the stored loops, three
realtime airway waves and six
available numerics from the
source device can be shown.
Loop capture in progress......
Loops
Capture
Loop
Select
Loop
Select
Size
Print
Loop
Loop
Type
Setup
Device
Capturing and Deleting Loops
Up to six loops of each kind can be stored for reference.
To capture the current Loop and display it in the Loops window,
♦
select the Capture Loop pop-up key.
The monitor will prompt you to save the loop for reference, either in addition to or in place of
previously stored loops.
Status messages at the bottom of the window provide information on the loop capture process.
To delete Loops from the reference list,
♦
Select the Select Loop pop-up key to view the list of stored loops and delete the loops from
the list.
Showing/Hiding Loops
Colored rectangles beside the loops timestamps and color-coded with the loops tell you whether each
loop is currently displayed or not:
– A filled-in rectangle marks loops currently shown in the Loops window
– A rectangle outline marks loops not currently shown.
Selecting the timestamp of the currently-displayed loop hides it and shows the next in the list; selecting
the timestamp of a currently hidden loop displays it.
290
Changing Loops Display Size
29 Respiratory Loops
Changing Loops Display Size
To change the loops display size, in the Loops window, select the pop-up key Select Size then
select
• Size x 0.5 to display loops at half the usual size
• Size x 1 to display loops at the usual size
• Size x 2 to display loops at twice the usual size
This does not affect the size of loops printed in reports.
Using the Loops Cursor
To view the coordinates for any point on a stored loop,
1
Select the pop-up key Select Loop.
2
Select the required loop from the list of available loops.
3
Use the arrow pop-up keys to move the cursor around the loop. The values for both loop axes are
shown for every point on the loop.
Select the X at the top of the loop list to exit the cursor.
Changing Loops Type
To change the loop type, in the Loops window, select the Loop Type pop-up key (only available if
the source device delivers three waves), then select
• Press/Volume to display Pressure/Volume loops
• Flow/Volume to display Volume/Flow loops
• Press/Flow to display Pressure/Flow loops.
or, if the source device only delivers two waves,
1
In the Loops window, select the Setup Device pop-up key to enter the
Setup <VueLink Device> menu.
2
Select Wave 1 and select pressure, flow, or volume waves as required. Repeat for Wave 2.
Setting Up Source Device
The source device for the loops is indicated in the Loops window title.
♦
Select the Setup Device pop-up key to view the settings of the current source device.
If the source device is changed, all reference loops from a previous device are cleared from the reference
list when the first loop from the new source device is captured. Reconnecting the previous device recalls
its reference list.
291
29 Respiratory Loops
Documenting Loops
Documenting Loops
1
In the Loops window, select the pop-up key Print Loop
2
From the list of available loops, select an individual loop, or select Print All to print a report of all
For each loop, the report prints
• the currently-displayed loop, with the loop capture timestamp
• up to six realtime numerics provided by the loop source device
• SpO2, etCO2, PO2, and PCO2 numerics from the patient monitor, if available.
Lastname, Firstname
Bed Label
10 Jan 13:30
Respiratory Loops Report
Source Device
Loop Captured at 10 Jan 2004 13:10
2.0
A
W 1.0
V
[l]
TV
550
ml
MV
7.15
l/min
awRR
13
rpm
inO2
100
mmHg
etCO2
38
mmHg
imCO2
0.1
mmHg
SpO2
99
%
SpO2 l
98
%
SpO2 r
99
%
0.0
0
Philips
292
AWP [mmHg]
50
Hospital Name
Page number
30
Care and Cleaning
30
Use only the Philips-approved substances and methods listed in this chapter to clean or disinfect your
equipment. Warranty does not cover damage caused by using unapproved substances or methods.
Philips makes no claims regarding the efficacy of the listed chemicals or methods as a means for
controlling infection. Consult your hospital’s Infection Control Officer or Epidemiologist. For
comprehensive details on cleaning agents and their efficacy refer to “Guidelines for Prevention of
Transmission of Human Immunodeficiency Virus and Hepatitis B Virus to Health Care and PublicSafety Workers” issued by the U.S. Department of Health and Human Services, Public Health Service,
Centers for Disease Control, Atlanta, Georgia, February 1989. See also any local policies that apply
within your hospital, and country.
General Points
Keep your monitor, modules, Multi-Measurement Server, measurement server extensions, Flexible
Module Server, cables and accessories free of dust and dirt. After cleaning and disinfection, check the
equipment carefully. Do not use if you see signs of deterioration or damage. If you need to return any
equipment to Philips, decontaminate it first.
Observe the following general precautions:
• Always dilute according to the manufacturer’s instructions or use lowest possible concentration.
• Do not allow liquid to enter the case.
• Do not immerse any part of the equipment in liquid.
• Do not pour liquid onto the system.
• Never use abrasive material (such as steel wool or silver polish).
• Never use bleach.
WARNING
Do not operate any devices when they are wet. If you spill liquid on the equipment, battery, or
accessories, contact your service personnel or Philips service engineer.
The general care and cleaning information given here meets the requirements of Aspect Medical
Systems for their BIS measurement devices.
293
30 Care and Cleaning
Cleaning
Cleaning
Clean with a lint-free cloth, moistened with warm water (40°C/104°F maximum) and soap, a diluted
non-caustic detergent, tenside, ammonia- or alcohol-based cleaning agent. Do not use strong solvents
such as acetone or trichloroethylene.
Take extra care when cleaning the screen of the monitor because it is more sensitive to rough cleaning
methods than the housing. Do not permit any liquid to enter the monitor case and avoid pouring it on
the monitor while cleaning. Do not allow water or cleaning solution to enter the connectors of the
Multi-Measurement Server, the measurement server extensions and measurement modules. Wipe
around, not over, connector sockets.
CAUTION To clean the touch-enabled display, disable the touch operation by switching off the monitor during
the cleaning procedure, or by selecting and holding the Main Screen key until the padlock symbol
appears on it, indicating that touch operation is disabled. Select and hold again to re-enable touch
operation. Unplug a mouse before cleaning it. Switch off the monitor to disable an attached
SpeedPoint Device before cleaning the device.
Recommended cleaning agents are:
Tensides (dishwasher detergents)
Edisonite Schnellreiniger, Alconox
Ammonias
Dilution of Ammonia <3%, Window cleaner
Alcohol
Ethanol 70%, Isopropanol 70%, Window cleaner
Disinfecting
CAUTION Solutions: Do not mix disinfecting solutions (such as bleach and ammonia) as hazardous gases may
result.
Hospital policy: Disinfect the product as determined by your hospital’s policy, to avoid long term
damage to the product.
Clean equipment before disinfecting. Recommended disinfecting agents are:
Alcohol based
Aldehyde based
Ethanol 70%, Isopropanol 70%, Cutasept, Hospisept, Kodan Tinktur
forte, Sagrosept, Spitacid, Sterilium fluid
(only Ethanol 70% and Isopropanol 70% are tested and qualified)
Cidexactivated dialdehyde solution, Gigasept
(only Cidex is tested and qualified)
Cleaning Monitoring Accessories
To clean, disinfect and sterilize reusable transducers, sensors, cables, leads, and so forth, refer to the
instructions delivered with the accessory.
294
Sterilizing
30 Care and Cleaning
Sterilizing
Sterilization is not recommended for this monitor, related products, accessories or supplies unless
otherwise indicated in the Instructions for Use that accompany the accessories and supplies.
Cleaning the Recorder Printhead (M1116B only)
If you run recordings at low speed (1 or 2cm/min) for extended periods, deposits of paper debris may
collect on the print head making recordings unevenly fainter in horizontal stripes.
1
Remove the recorder.
2
Open the recorder door and un-thread the paper from behind the rubber roller.
3
Tear off or roll up the excess paper into the roll chamber to get it out of your way.
4
Thread the cloth cleaning strip instead of paper around the rubber roller until approximately two
inches of the strip come out from the top of the roller.
5
Close the recorder door, aligning both ends of the strip over the top of the door.
6
Holding the top end of the cleaning strip between your thumb and forefinger, pull the strip
through and out of the recorder.
7
Open the door and ensure that the paper cavity is dust-free. Re-thread the paper and replace the
recorder.
Cleaning the Batteries and Battery Compartment
MP20/MP30
MP40/MP50
Only
Wipe with a lint-free cloth, moistened with warm water (40°C/104°F maximum) and soap. Do not use
strong solvents. Do not soak the battery.
295
30 Care and Cleaning
296
Cleaning the Batteries and Battery Compartment
31
Using the Batteries
31
IntelliVue
MP20/MP30/ MP20/MP30: one OR two Philips
MP40/MP50 M4605A rechargeable Lithium Ion
only batteries must be inserted into the
battery compartment at the rear of the
monitor to use the MP20/MP30
monitor with battery power.
Battery compartment
MP40/MP50: two Philips M4605A
rechargeable Lithium Ion batteries must
be inserted into the battery
compartment at the rear of the monitor
to use the MP40/MP50 monitor with
battery power.
Battery compartment
297
31 Using the Batteries
Battery Power Indicators
The MP60/MP70/MP80/MP90 monitors cannot be powered by battery.
You can switch between battery-powered and mains-powered (AC) operation without interrupting
monitoring.
The batteries recharge automatically whenever the monitor is connected to mains power.
Battery operation may not be available in all geographies.
Battery Power Indicators
The battery LED and battery status information on the Main Screen, in combination with INOP
messages and prompts, help you keep track of the battery power status. The indicators always show the
remaining capacity in relation to the battery’s actual maximum capacity, which may lessen as the
battery ages. You can see the actual capacity in the Battery Status window.
When both batteries are empty the monitor switches off automatically.
Battery LED
The battery LED on the front panel of the
monitor is indicated by a battery symbol.
Battery LED
Battery LED Colors
If the monitor is connected to
mains power, this means
Green
battery power is > 90%
Yellow
batteries charging (battery power
< 90%)
less than 10 minutes power
remaining
Red, flashing
Red, flashes intermittently
battery malfunction
Red, flashes once when on/
standby switch is pressed
MP40/50
only
If the monitor is running on
battery power, this means
battery malfunction
not enough battery power left to
power monitor
If only one battery is inserted during charging, the battery LED is yellow during charging and switches
off when the battery is charged.
Battery Status on the Main Screen
Battery status information can be configured to display
permanently on all Screens. It shows the status of each of the
batteries detected and the combined battery power remaining,
with an estimate of the monitoring time this represents.
298
1 2
3:40 hrs
Battery Power Indicators
31 Using the Batteries
Battery status symbols: These symbols tell you the status of the batteries (see table below) and which
battery compartment they are in, either 1 or 2.
Battery power gauge: This shows the remaining battery power in the combined batteries. It is divided
into sections, each representing 20% of the total power. If three and a half sections are shaded, as in
this example, this indicates that 70% battery power remains. If no batteries are detected, the battery
gauge is grayed-out. If no data is available from the batteries, questions marks are shown in the gauge.
Monitoring Time Available: Below the battery power gauge a time is displayed. This is the estimated
monitoring time available with the current battery power. Note that this time fluctuates depending on
the system load (the display brightness and how many measurements and recordings you carry out),
the age of the battery, and the remaining capacity of the battery.
Battery malfunction symbols: If a problem is detected with a battery, these symbols alternate with
the symbol indicating the position of the battery affected. They may be accompanied by an INOP
message or by a battery status message in the monitor information line providing more details. Symbols
indicating critical situations are colored red.
Battery status symbols
Battery malfunction symbols
1
Battery 1 is
present
2
Battery
compartments
are empty
Battery requires
maintenance
Incompatible
battery
(Battery 1)
2
Battery
malfunction
(Battery 1)
1
Battery 2 is
missing, insert
battery (MP40/
50 only)
1
battery is
empty
battery not
charging as the
temperature is
above or below
the specified
range
(red) battery
temperature
too high
Battery 2 has no
power left
If both batteries are malfunctioning or incompatible, the monitor will switch off automatically for
safety reasons, if it is not connected to AC power.
299
31 Using the Batteries
Checking Battery Charge
Battery Status Window
♦
To access the Battery
Status window and its
associated pop-up keys,
select the battery status
information on the
Screen, or select Main
Setup -> Battery.
Battery Status
hrs
Capacity
remaining
fullCharge
TimeToEmpty: 5hrs 10 min
Batt 1
Batt 2
[mAh]
[mAh]
Capacity, Remaining tells you how much power is left in each battery.
Capacity, Full Charge tells you how much power each battery can hold when fully charged.
Time To Empty tells you approximately how long you can continue to use the monitor with these
batteries. Note that this time fluctuates depending on the system load (the display brightness and how
many measurements and recordings you carry out), the age of the battery, and the remaining capacity
of the battery.
Time To Full is shown in place of Time To Empty if the monitor is connected to mains
power, and tells you how much time is left until the batteries are charged to 90%. When the batteries
are charging you can see how much monitoring time the current charging status represents under the
battery symbol.
Viewing Individual Battery Status
♦
To view information for individual batteries, select the pop-up key Battery 1 or Battery 2.
Recording Battery Status
To print the information in the Battery Status window on a connected recorder,
1
Select the battery status information on the Screen to open the Battery Status window
2
Select the Record Status pop-up key.
Printing Battery Reports
To print the information in the Battery Status window on a connected printer,
1
Select the battery status information on the Screen to open the Battery Status window
2
Select the Print Status pop-up key.
Checking Battery Charge
300
♦
To check the charge status of a battery in a monitor, see the battery power gauge on the Screen or
select Main Setup -> Battery to enter the Battery Status window.
♦
To check the charge status of a battery that is not connected to a monitor or battery charger, press
the black dot marked “PUSH” on the labeled side of the battery. The remaining charge is indicated
by four LEDs on the electronic fuel gauge directly above the dot. Each LED represents 25% of
Replacing Batteries
31 Using the Batteries
charge. If all LEDs are lit, the battery is fully charged, if only one LED is lit, 25% or less charge is
left.
Replacing Batteries
MP40/MP50
You can replace batteries without switching off the monitor, if you replace them one at a time and if
the remaining battery has sufficient power. The Battery Missing INOP is suppressed for 30
seconds while you exchange each battery.
MP20/MP30
When using the monitor with only one battery, insert the new battery before removing the previous
battery, to avoid leaving the monitor without power.
To replace batteries,
1
Press the battery compartment latch to open the battery compartment door.
2
To replace battery 1, rotate the battery retainer until the battery can
be removed.
To replace battery 2, rotate the battery retainer until the battery can
be removed.
3
Pull gently on the canvas strap to move the battery towards you, then
grasp the battery and pull it out fully.
4
Slide the new battery into position, making sure that the positive and
negative poles are facing in the correct direction, as outlined on the inside of the battery
compartment door.
5
Repeat with the second battery if required.
6
Center the battery retainer and close the battery compartment door.
Optimizing Battery Performance
The performance of rechargeable batteries may deteriorate over time. Maintaining your batteries as
recommended here can help to slow down this process.
301
31 Using the Batteries
Optimizing Battery Performance
Display Brightness Setting
♦
In the Main Setup menu, select User Interface -> Brightness - > Optimum.
This selects a level of brightness suitable for most monitoring locations that uses less battery power
than brighter settings.
Satisfy yourself that this level of brightness is suitable for your monitoring location.
Note that your monitor may be configured to dim or brighten the display brightness automatically
when you disconnect from power, to suit the most common transport scenario
(“TransportBrightn” setting).
Charging Batteries
Batteries can be charged in monitors used to monitor patients. Charging is quicker in unused
monitors. Contact your local Philips representative for information on external battery chargers. Use
only Lithium Ion battery chargers approved by Philips.
1
Insert the batteries into a monitor connected to mains power. The battery LED will light yellow to
indicate that charging is in process.
2
Charge the battery until it is full, the battery LED is green, and the battery power gauge is fully
shaded.
Conditioning Batteries
CAUTION Do not use a monitor being used to monitor patients to condition batteries. The monitor switches off
automatically when the batteries are empty.
You must condition a battery when its “battery requires maintenance” symbol shows on the Screen. Do
not interrupt the charge or discharge cycle during conditioning. To condition a battery,
1
Insert the battery into a monitor connected to mains power.
2
Charge the battery until it is completely full. Open the Battery Status window and check
that the Batteries fully charged or Battery 1 / Battery 2 fully charged
message is displayed.
3
Disconnect the monitor from mains power, and let the monitor run until the battery is empty and
the monitor switches itself off.
4
Reconnect the monitor to mains power and charge the battery until it is full for use or charge to
50% for storage.
Contact your local Philips representative for information on external battery chargers/conditioners.
Use only Lithium Ion battery chargers approved by Philips.
Unequally-Charged Batteries
If two batteries in a monitor are unequally charged, the monitor can compensate by causing the fuller
battery to discharge faster. For this mechanism to work, the charge state of the two batteries should not
differ by more than 50%.
302
Battery Safety Information
31 Using the Batteries
Battery Safety Information
WARNING
Use only Philips batteries part number M4605A. Use of a different battery may present a risk of fire or
explosion.
Do not open batteries, or dispose of them in fire, or cause them to short circuit. They may ignite,
explode, leak or heat up, causing personal injury.
Dispose of used batteries promptly and in an environmentally-responsible manner. Do not dispose of
the battery in normal waste containers. Consult your hospital administrator to find out about local
arrangements.
CAUTION Do not disassemble, heat above 100°C (212°F) or incinerate the batteries, to avoid the risk of fire and
burns. Keep batteries out of the reach of children and in their original package until you are ready to
use them.
If battery leakage should occur, use caution in removing the battery. Avoid contact with skin. Clean
the battery compartment according to the instructions.
303
31 Using the Batteries
304
Battery Safety Information
32
Maintenance and
Troubleshooting
32
WARNING
Schedule: Failure on the part of the responsible individual hospital or institution employing the use of
this equipment to implement a satisfactory maintenance schedule may cause undue equipment failure
and possible health hazards.
Contact: If you discover a problem with any of the equipment, contact your service personnel, Philips,
or your authorized supplier.
Inspecting the Equipment and Accessories
You should perform a visual inspection before every use, and in accordance with your hospital’s policy.
With the monitor switched off:
1
Examine unit exteriors for cleanliness and general physical condition. Make sure that the housings
are not cracked or broken, that everything is present, that there are no spilled liquids and that there
are no signs of abuse.
2
If the MMS and Server Extensions are mounted on the monitor, make sure that they are locked
into place and do not slide out without releasing the locking mechanism.
3
Inspect all accessories (cables, transducers, sensors and so forth). If any show signs of damage, do
not use.
4
Switch the monitor on and make sure the backlight is bright enough. Check that screen is at its full
brightness. If the brightness is not adequate, contact your service personnel or your supplier.
Inspecting the Cables and Cords
1
Examine all system cables, the power plug and cord for damage. Make sure that the prongs of the
plug do not move in the casing. If damaged, replace it with an appropriate Philips power cord.
2
Inspect the Measurement Server Link cable and ensure that it makes good connection with the
MMS and the FMS. Make sure that there are no breaks in the insulation.
3
If the MMS is not mounted directly on the monitor, inspect the cable connecting it to the
monitor. Make sure the connectors are properly engaged.
305
32 Maintenance and Troubleshooting
Maintenance Task and Test Schedule
4
Inspect the patient cables, leads and their strain reliefs for general condition. Make sure there are
no breaks in the insulation. Make sure that the connectors are properly engaged at each end to
prevent rotation or other strain.
5
Apply the transducer or electrodes to the patient, and with the monitor switched on, flex the
patient cables near each end to make sure that there are no intermittent faults.
Maintenance Task and Test Schedule
The following tasks are for Philips-qualified service professionals only. All maintenance tasks and
performance tests are documented in detail in the service documentation supplied on the monitor
documentation CD.
Ensure that these tasks are carried out as indicated by the monitor’s maintenance schedule, or as
specified by local laws. Contact a Philips-qualified service provider if your monitor needs a safety or
performance test. Clean and disinfect equipment to decontaminate it before testing or maintaining it.
Maintenance and Test Schedule
Frequency
Monitor Tests
Safety checks. Selected tests on the basis At least once every two years, or as needed, after any repairs
of IEC 60601-1
where the power supply is removed or replaced, or if the
monitor has been dropped.
Monitor Maintenance
Check ECG synchronization of the
monitor and defibrillator (only if
hospital protocol requires use of
monitor during defibrillation)
At least once every two years, or as needed.
Replace backlight
(integrated displays only)
25,000 - 30,000 hours (about three years) of continuous usage,
or as needed.
Measurement Server and Module Tests
Performance assurance for all
measurements not listed below.
At least once every two years, or if you suspect the measurement
values are incorrect.
Measurement Server and Module Maintenance
NBP calibration
At least once every two years, or as specified by local laws.
Microstream CO2 calibration and
performance test
At least once a year or after 4000 operating hours.
Mainstream and sidestream CO2
calibration check (M3014A)
At least once a year, or if you suspect the measurement values are
incorrect.
Battery Maintenance
Battery
306
See the section on Maintaining Batteries
Troubleshooting
32 Maintenance and Troubleshooting
Troubleshooting
If you suspect a problem with an individual measurement, read the Instructions for Use and
doublecheck that you have set up the measurement correctly.
If you suspect an intermittent, system-wide problem call your service personnel. You may be asked for
information from the status log. To view the status log,
1
In the Main Setup menu, select Revision.
2
Select a pop-up key according to the status log you want to consult, for example, to check the
status log for the MMS, select the M3001A pop-up key.
3
View the status log by selecting the Stat Log pop-up key.
Disposing of the Monitor
WARNING
To avoid contaminating or infecting personnel, the environment or other equipment, make sure you
disinfect and decontaminate the monitor appropriately before disposing of it in accordance with your
country’s laws for equipment containing electrical and electronic parts. For disposal of parts and
accessories such as thermometers, where not otherwise specified, follow local regulations regarding
disposal of hospital waste.
You can disassemble the monitor, MMS, FMS and modules as described in the Service Guide.
– There is no metal molded into the plastic case, and there are no metal sprays on the plastic.
– All plastic parts with a weight greater than 10g (0.35 ounces) are marked with the ISO code for
identification.
– The sheet metal card cage uses only one kind of steel.
– The screen has a touch resistor laminate.
– You can recycle the paper Instructions for Use.
The battery can be easily removed (see “Replacing Batteries” on page 301), and can be returned, free of
charge, to the worldwide-recycling program run by the battery manufacturer (contact your local supplier).
Disposing of Empty Calibration Gas Cylinders
WARNING
1
Empty the cylinder completely by pushing in the pin of the regulator valve or by pulling out the
pin of the fill valve using a tire valve stem wrench or a pair of needle nose pliers.
2
When the cylinder is empty, either remove the valve stem from the fill (or regulator) hole, or drill a
hole in the cylinder.
3
Write “Empty” on the cylinder and dispose of it appropriately for scrap metal.
Ensure that the cylinder is completely empty before trying to remove the valve stem or drill a hole in
the cylinder.
307
32 Maintenance and Troubleshooting
308
Disposing of Empty Calibration Gas Cylinders
33
Accessories
33
You can order parts and accessories from Philips supplies at www.medical.philips.com or consult your
local Philips representative for details.
WARNING
Reuse: Never reuse disposable transducers, sensors, accessories and so forth that are intended for single
use, or single patient use only. Reuse may compromise device functionality and system performance
and cause a potential hazard.
Philips’ approval: Use only Philips-approved accessories.
Packaging: Do not use a sterilized accessory if its packaging is damaged.
ECG/Resp Accessories
This symbol indicates that the cables and accessories are designed to have special
protection against electric shocks (particularly regarding allowable leakage currents),
and are defibrillator proof.
Trunk Cables
Length
3-Electrode Cable Set
5-Electrode Cable Set
10-Electrode
Cable set
AAMI
Part No.
IEC
Part No.
AAMI
Part No.
IEC
Part No.
AAMI/IEC
Part No.
0.9m
M1540C
M1550C
M1560C
M1570C
n/a
2.7m
M1500A
M1510A
M1520A
M1530A
M1949A
3-Electrode Cable Sets
Description
Length
AAMI Part No.
IEC Part No.
OR
1.0m
M1601A
M1611A
309
33 Accessories
ECG/Resp Accessories
Description
Length
AAMI Part No.
IEC Part No.
ICU Grabber shielded
1.0m
M1603A
M1613A
ICU snap shielded
1.0m
M1605A
M1615A
ICU Clip non-shielded
0.45m
M1608A
M1618A
ICU Clip non-shielded
0.7m
M1609A
M1619A
5-Electrode Cable Sets
Description
Length
AAMI Part No.
IEC Part No.
OR Grabber shielded
1.0m/1.6m
M1621A
M1631A
ICU Grabber shielded
1.0m/1.6m
M1623A
M1633A
ICU Snap shielded
1.0m/1.6m
M1625A
M1635A
ICU Clip non-shielded
0.7m/1.3m
M1629A
M1639A
10-Electrode Cable Sets
Description
Length
AAMI Part No.
IEC Part No.
OR Grabber - extremities
1.0m/1.6m
M1973A
M1974A
OR Grabber - chest
1.0m
M1979A
M1984A
ICU Extremities
1.0m/1.6m
M1968A (grabber)
M1971A (grabber)
ICU Chest
1.0m
M1976A (grabber)
M1978A (grabber)
3-Electrode One Piece Cables
AAMI 3-Electrode
One Piece Cables
Length
AAMI
Part No.
IEC 3-electrode One
Piece Cables
IEC
Part No.
OR Grabber
1.9m
M1970A
OR Grabber
M1980A
ICU Snap
1.9m
M1972A
ICU Grabber
M1981A
5-Electrode One Piece Cables
310
AAMI 5-electrode
One Piece Cables
Length
AAMI
Part No.
IEC 5-electrode One
Piece Cables
IEC
Part No.
OR Grabber
2.5m
M1975A
OR Grabber
M1985A
ICU Snap
2.5m
M1977A
ICU Grabber
M1986A
NBP Accessories
33 Accessories
Set Combiners and Organizers
Set combiners and organizers
Part No.
Set combiner
3-electrode
M1501A
5-electrode
M1502A
Shielded 3-electrode
M1503A
Shielded 5-electrode
M1504A
Set organizer
Bedsheet clip
M1509A
NBP Accessories
These cuffs and tubings are designed to have special protection against electric shocks
(particularly regarding allowable leakage currents), and are defibrillator proof. You can
use them during electrosurgery.
Adult/Pediatric Multi-Patient Comfort Cuffs and Disposable Cuffs
Patient Category
Limb
Bladder
Circumference Width
Disposable
cuff
Part No.
Reusable cuff
Part No.
Tubing
Adult (Thigh)
42 to 54 cm
20 cm
M1879A
M1576A
Large Adult
34 to 43 cm
16 cm
M1878A
M1575A
Adult
27 to 35 cm
13 cm
M1877A
M1574A
M1598B (1.5m)
or
M1599B (3m)
Small Adult
20.5 to 28 cm
10.5 cm
M1876A
M1573A
Pediatric
14 to 21.5 cm
8 cm
M1875A
M1572A
Infant
10 to 15 cm
5.5 cm
M1874A
M1571A
Reusable Cuff Kits
Cuff Kits
Part No.
Infant, pediatric, small adult, adult
M1577A
Small adult, adult, large adult, thigh
M1578A
Infant, pediatric, small adult, adult, large adult, thigh
M1579A
311
33 Accessories
NBP Accessories
Adult/Pediatric Antimicrobial Coated Reusable cuffs
Patient Category (color)
Limb
Circumference
(cm)
Bladder Width Part No.
Tubing
Adult Thigh (grey)
45 - 56.5
21.0 cm
M4559A
Large Adult X-Long (burgundy) 35.5 - 46.0
17.0 cm
M4558A
M1598B
(1.5m) or
Large Adult (burgundy)
35.5 - 46.0
17.0 cm
M4557A
M1599B (3m)
Adult X-Long (navy blue)
27.5 - 36.5
13.5 cm
M4556A
Adult (navy blue)
27.5 - 36.5
13.5 cm
M4555A
Small Adult (royal blue)
20.5 - 28.5
10.6 cm
M4554A
Pediatric (green)
13.8 - 21.5
8.0 cm
M4553A
Infant (orange)
9 - 14.8
5.4 cm
M4552A
Adult/Pediatric Soft Single Patient Single-Hose Disposable Cuffs
Patient Category
Limb Circumference Bladder
(cm)
Width
Part No.
Tubing
Adult (Thigh)
45 - 56.5 cm
20.4 cm
M4579A
Large Adult X-Long
35.5 - 46 cm
16.4 cm
M4578A
M1598B (1.5m)
or
Large Adult
35.5 - 46 cm
16.4 cm
M4577A
M1599B (3m)
Adult X-Long
27.5 - 36.5
13.1 cm
M4576A
Adult
27.5 - 36.5 cm
13.1 cm
M4575A
Small Adult
20.5 - 28.5 cm
10.4 cm
M4574A
Pediatric
15.0 - 21.5 cm
8.0 cm
M4573A
Infant
9 - 15 cm
5.6 cm
M4572A
Neonatal/Infant Cuffs (Disposable, non-sterile)
312
Cuffs
Limb Circumference
(cm)
Bladder Width Part No.
Tubing
Size 1
3.1 to 5.7 cm
2.2 cm
M1866A
Size 2
4.3 to 8.0 cm
2.8 cm
M1868A
Size 3
5.8 to 10.9 cm
3.9 cm
M1870A
M1596B (1.5m)
or
M1597B (3m)
Size 4
7.1 to 13.1 cm
4.7 cm
M1872A
Invasive Pressure Accessories
33 Accessories
Invasive Pressure Accessories
These transducers and accessories are designed to have special protection against electric
shocks (particularly regarding allowable leakage currents), and are defibrillator proof.
If you are using the M3012A Hemodynamic Measurement Server Extension, and you
want to measure temperature and invasive pressure at the same time, we recommend
that you use the pressure transducer CPJ840J6, with a round module connector piece, and
not a transducer with a square connector. Pressure transducers with square connectors may
make it difficult to connect the adjacent Temperature connector at the same time.
Transducer, accessories, sensor kits
Part No
Reusable pressure transducer 5 µV/.V/mmHg sensitivity
CPJ840J6
Sterile disposable pressure domes for CPJ840J6 (pack of 50)
CPJ84022
Transducer holder for CPJ840J6 (pack of 4)
CPJ84046
IV pole mount for CPJ840J6
CPJ84447
Single channel disposable sensor kit (20) - (EU/EFTA only)
M1567A
Dual channel disposable sensor kit (20) (EU/EFTA only)
M1568A
Transducer holder for M1567/8A (EU/EFTA only)
M2271A
IV pole mount for M1567/8A (EU/EFTA only)
M2272C
Adapter cable for disposable sensor kit 3,0m for M1567/8A
M1634A
Pressure transducer kits
PiCCO monitoring kit, 30cm pressure line, includes PV4046 injectate temperature
sensor housing for M1646A
PV8103
PiCCO monitoring kit, 150cm pressure line, includes PV4046 injectate temperature PV8115
sensor housing for M1646A
PiCCO monitoring kit, 150cm pressure line, includes PV4046 injectate temperature PV8115CVP
sensor housing for M1646A and central venous pressure line
PULSION Pressure Interface Cable for disposable pressure transducer
PMK 206
SpO2 Accessories
This section lists accessories for use with Philips SpO2 technology. For accessory lists for other SpO2
technologies, refer to the instructions for use provided with these devices.
Some Nellcor sensors contain natural rubber latex which may cause allergic reactions. See the
Instructions for Use supplied with the sensors for more information. M1901B, M1902B, M1903B
and M1904B disposable sensors are not available in USA from Philips. Purchase Nellcor sensors and
adapter cables directly from Tyco Healthcare.
Do not use more than one extension cable with any sensors or adapter cables. Do not use an extension
cable with Philips reusable sensors or adapter cables with part numbers ending in -L (indicates “Long”
version).
All listed sensors operate without risk of exceeding 41oC on the skin if ambient temperature is below
37oC.
313
33 Accessories
SpO2 Accessories
The M1020B SpO2 module with Option A02 may not be available in all countries. Some sensors may
not be available in all countries. Always use the MAX-FAST forehead sensor with the foam headband
provided by Nellcor.
Make sure that you use only the accessories that are specified for use with this device, otherwise patient
injury can result.
Option A01 is the Philips FAST-SpO2 version; Option A02 is the Nellcor OxiMax-compatible
version.
Product
Number
Description
Compatible with:
Comments
Opt. A01 Opt. A02
Philips reusable sensors.
314
M1191A
Adult sensor (2m cable), for patients yes
over 50 kg. Any finger, except thumb.
no
M1191AL
M1191A with longer cable (3 m)
yes
no
M1192A
yes
Small adult, pediatric sensor (1.5m
cable) for patients between 15 kg and
50 kg. Any finger except thumb.
no
M1193A
yes
Neonatal sensor (1.5m cable) for
patients between 1kg and 4 kg. Hand
or foot.
no
M1194A
Ear sensor (1.5m cable) for patients
more than 40 kg.
yes
no
M1195A
Infant sensor (1.5m cable) for patients yes
between 4kg and 15 kg. Any finger
except thumb.
no
M1191T
Adult sensor (0.45m cable), for
yes
patients over 50 kg. Any finger, except
thumb.
no
M1192T
Small adult, pediatric sensor (0.45m yes
cable) for patients between 15 kg and
50 kg. Any finger except thumb.
no
M1193T
yes
Neonatal sensor (0.9m cable) for
patients between 1kg and 4 kg. Hand
or foot.
no
No adapter cable
required.
Requires M1943
(1 m) or M1943AL
(3 m) adapter cable
SpO2 Accessories
33 Accessories
Product
Number
Description
M1191ANL
Special Edition (SE)
Compatible with:
Opt. A01 Opt. A02
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
Adult sensor (3m cable), for patients
over 50 kg. Any finger, except thumb.
M1192AN
Comments
Special Edition (SE)
No adapter cable
required.
Small adult, pediatric sensor (1.5m
cable) for patients between 15 kg and
50 kg. Any finger except thumb.
M1193AN
Special Edition (SE)
Neonatal sensor (1.5m cable) for
patients between 1kg and 4 kg. Hand
or foot.
M1194AN
Special Edition (SE)
Ear sensor (1.5m cable) for patients
more than 40 kg.
M1195AN
Special Edition (SE)
No adapter cable
required.
Infant sensor (1.5m cable) for patients
between 4 kg and 15 kg. Any finger
except thumb.
Philips disposable sensors. Not available in the USA.
Option A01: Use
adapter cable
M1943A or
M1943AL.
M1904B
Identical to OxiMax MAX-A
yes
yes
M1903B
Identical to OxiMax MAX-P
yes
yes
M1902B
Identical to OxiMax MAX-I
yes
yes
M1901B
Identical to OxiMax MAX-N
yes
yes
Option A02: Must
use adapter cable
M1943NL.
Philips disposable sensors. Available worldwide.
M1131A
Adult/Pediatric finger sensor, 0.45m
cable (patient size >20 kg)
yes
no
Use adapter cable
M1943A or
M1943AL.
M1132A
Infant finger or toe sensor, 0.9m cable yes
(patient size 3 - 10 kg)
no
Use adapter cable
M1943A or
M1943AL.
M1133A
yes
Adult/Infant/Neonatal, 0.9m cable
Foot or hand for neonates < 3 kg
Big toe or thumb for patients between
10kg and 20kg
Any finger except thumb for patients
> 40kg
no
Use adapter cable
M1943A or
M1943AL.
315
33 Accessories
Product
Number
SpO2 Accessories
Description
Compatible with:
Comments
Opt. A01 Opt. A02
NELLCOR disposable sensors (must be ordered from Nellcor)
OxiMax
MAX-A
Adult finger sensor (patient size >30
kg)
yes
yes
OxiMax
MAX-AL
OxiMax MAX-A with long cable
yes
yes
OxiMax
MAX-P
Pediatric foot/hand sensor (patient
size 10-50 kg)
yes
yes
OxiMax
MAX-I
Infant foot/hand sensor (patient size
3-20 kg)
yes
yes
OxiMax
MAX-N
Adult finger or neonatal foot/hand
sensor (patient size >40 kg or <3 kg)
yes
yes
MAX-FAST
Forehead sensor
no
yes
OxiMax
MAX-R
Adult nasal sensor
no
yes
OxiMax SC- Adult softcare sensor
A
no
yes
OxiMax SC- Neonatal softcare sensor
NEO
no
yes
OxiMax SC- Preterm infant softcare sensor
PR
no
yes
Oxisensor II
D-25
Adult sensor (patient size >30kg)
yes
no
Oxisensor II
D-20
Pediatric sensor (patient size 10-50 kg) yes
no
Oxisensor II
I-20
Infant sensor (patient size 3-20 kg)
yes
no
Oxisensor II
N-25
Neonatal sensor (patient size <3 kg or
>40 kg)
yes
no
OxiCliq A
See OxiMax MAX-A
yes
yes
OxiCliq P
See OxiMax MAX-P
yes
yes
OxiCliq I
See OxiMax MAX-I
yes
yes
OxiCliq N
See OxiMax MAX-N
yes
yes
Option A01: Use
adapter cable
M1943A or
M1943AL.
Option A02: Must
use adapter cable
M1943NL.
Must use
M1943NL adapter
cable.
Must use M1943A
or M1943 AL
adapter cable
Option A01: Use
adapter cable
M1943A or
M1943AL together
with OC3 adapter
cable.
Option A02: Must
use adapter cables
M1943NL and
OC3 adapter cable.
316
SpO2 Accessories
33 Accessories
Product
Number
Description
Compatible with:
Oxiband
OXI-A/N
Adult / neonatal sensor
no
yes
Oxiband
OXI-P/I
Pediatric / infant sensor
no
yes
Durasensor
DS100A
Adult finger clip sensor
no
yes
no
yes
Comments
Opt. A01 Opt. A02
Dura-Y D-YS Y-sensor
Must use
M1943NL adapter
cable
Extension / Adapter Cables for Philips and Nellcor Sensors
M1941A
Extension cable (2 m)
yes
yes
For use with Philips
reusable sensors and
adapter cables.
M1943A
Adapter cable (1.1 m cable)
yes
no
M1943AL
Adapter cable (3 m cable)
yes
no
Adapter cable for
Philips/Nellcor
disposable sensors.
M1943NL
OxiMax adapter cable (3 m cable)
no
yes
Adapter cable for
Philips disposable/
Nellcor disposable
and reusable
sensors.
OC 3
Adapter Cable for OxiCliq sensors
yes
yes
Available from
Nellcor only.
Product
Number
Description
Compatible with:
Opt. A01
Philips Part
Opt. A02 Number
MASIMO LNOP reusable sensors. Require AC-1 adapter cable
LNOP DC-I
LNOP DC-IP
LNOP-Y-I
LNOP TC-I
Adult Sensor
yes
Pediatric Sensor
yes
Reusable Multi-Site Sensor
yes
Tip Clip reusable Sensor
yes
MASIMO LNOP disposable sensors. Require AC-1 adapter cable
no
no
no
no
989803140321
989803140331
n/a
989803140341
LNOP Adt
LNOP Adtx
LNOP Pdt
LNOP Pdtx
LNOP INF-L
LNOP NEO-L
LNOP NEOPTL
yes
yes
yes
yes
yes
yes
yes
no
no
no
no
no
no
no
989803140231
n/a
989803140261
n/a
989803140311
989803140291
989803140301
yes
no
451261000771
Adult Sensor
Adult Sensor
Pediatric Adhesive Sensor
Pediatric Sensor
Neo/Infant Adhesive Sensor
Neo Adhesive Sensor
Neo Pre-Term Sensitive Skin Adhesive
Sensors
Adapter Cable for MASIMO sensors.
M1020-61101
AC-1 Adapter Cable for Masimo
Sensors (8-pin version)
317
33 Accessories
Temperature Accessories
The Philips M3001A option A01 Multi-Measurement server and the M1020B option
A01 SpO2 Module use Masimo certified pulse oximetry for reduced noise and low
perfusion performance with Masimo Sensors under the Masimo NR&LP protocol
available from Masimo.
Sensors for use with the Masimo SET SpO2 Module and orderable from Philips
Sensors
Philps Order No
LNOP Adult Adhesive Sensors (box of 20)
989803140231
Adult Sensor Sample Pack (4 sensors)
989803140241
Neo Sensor Sample Pack (4 sensors)
989803140251
Pediatric Adhesive Sensors (box of 20)
989803140261
LNOP Neonatal Adhesive Sensors (box of 20)
989803140271
Neo Pre-term Sensitive Skin Adhesive Sensors (box of 20)
989803140281
Neo Adhesive Sensors (box of 20)
989803140291
Neo Pre-term Sensitive Skin Adhesive Sensors (box of 20)
989803140301
Neo/Infant Adhesive Sensors (box of 20)
989803140311
DC-I Adult Reusable Sensor
989803140321
DCIP Pediatric Reusable Sensor
989803140331
LNOP TC-I Tip Clip Reusable Sensor
989803140341
Neo Sensitive Replacement Posey Wrap (12)
989803140351
Neo Replacement Tapes (100)
989803140361
Temperature Accessories
Temperature Probes
Part No.
Minimum measurement time
for accurate readings
General purpose probe
21075A
90 sec
Small flexible vinyl probe (Infant/Pediatric)
21076A
60 sec
Attachable surface probe
21078A
60 sec
General purpose probe
M1837A
90 sec
Skin probe
21091A
60 sec
Esophageal/Stethoscope Probe (12 French)
21093A
180 sec
Esophageal/Stethoscope Probe (French 18)
21094A
210 sec
Esophageal/Stethoscope Probe (French 24)
21095A
310 sec
Foley Catheter Probe (12 French)
M2255A
180 sec
Reusable
Disposable
318
Cardiac Output (C.O.) Accessories
33 Accessories
Temperature Probes
Part No.
Minimum measurement time
for accurate readings
Foley Catheter Probe (16 French)
21096A
180 sec
Foley Catheter Probe (18 French)
21097A
180 sec
Adapter cable 1.5m
21082B
Adapter cable 3.0m
21082A
Cardiac Output (C.O.) Accessories
See Pressure accessories for PULSION continuous cardiac output accessories.
Description
Part No
Accessories common to both methods
Accessories
PiCCO inline temperature probe for
warmer injectate
Set of ice buckets
14455A
Remote handswitch
15244A
Latex free
M1646A
2.7 meter cable (right heart only)
M1642A
2.4 m + 2.4 m cable
M1643A
(from Baxter)
831HF75
Right Heart Thermodilution
C. O. Interface Cables
Right heart catheter for thermodilution
Baxter CO-set (only with HP 23001A/B) contact Baxter for information
Injectate Probes
2.4m injectate temp. probe (reusable)
23001A
0.5m injectate temp. probe (reusable)
23001B
Ice bath temp. probe (right heart only)
23002A
C. O. Interface Cables
2.4 m + 2.4 m cable
M1643A
Injectate Probes
2.4m injectate temp. probe (reusable)
23001A
0.5m injectate temp. probe (reusable)
23001B
Transpulmonary Thermodilution
Baxter CO-set (only with HP 23001A/B) contact Baxter for information
Pressure Transducer Kits (PULSION)
PV 8003 (30cm pressure line)
PV 8010 (100cm pressure line)
PV 8015 (150cm pressure line)
Pressure Interface Cable for disposable
pressure transducer
PULSION PMK 206
319
33 Accessories
Mainstream CO2 Accessories (for M3014A)
Mainstream CO2 Accessories (for M3014A)
Description
Part No.
CO2 Sensor
M2501A
Adult/Pediatric Airway Adapter (reusable)
M2513A
Infant Airway Adapter (reusable)
M2516A
Adult Airway Adapter (single-patient use)
M2533A
Infant Airway Adapter (single-patient use)
M2536A
Sidestream CO2 Accessories (for M3014A)
Description
Part No.
CO2 Sensor
M2741A
Nasal and Oral-Nasal Cannulas
CO2 Nasal Cannula, Adult
M2744A
CO2 Nasal Cannula, Pediatric
M2745A
CO2 Nasal Cannula, Infant
M2746A
CO2 / O2 Nasal Cannula, Adult
M2750A
CO2 / O2 Nasal Cannula, Pediatric
M2751A
CO2 Oral-Nasal Cannula, Adult
M2756A
CO2 Oral-Nasal Cannula, Pediatric
M2757A
CO2 / O2 Oral-Nasal Cannula, Adult
M2760A
CO2 / O2 Oral-Nasal Cannula, Pediatric
M2761A
Airway Adapters
Airway Adapter Set, ET > 4.0 mm
M2768A
Airway Adapter Set H, ET > 4.0 mm
M2772A
Airway Adapter Set H, ET =< 4.0 mm
M2773A
Straight Sample Lines
Straight Sample Line
M2776A
Straight Sample Line H
M2777A
Mainstream CO2 Accessories (for M3016A)
320
Description
Part No.
CO2 Sensor
M1460A
Standard Airway Adapter (reusable)
M1465A
Small Airway Adapter (reusable)
14363A
Microstream CO2 Accessories
33 Accessories
Microstream CO2 Accessories
• “FilterLine Set” is a combination of a FilterLine with an Airway Adapter.
• “H” in the accessory name indicates suitability for humidified ventilation and longer usage due to
the active removal of humidity from the sample line.
• “Smart CapnoLine” is a combined oral-nasal FilterLine.
• “Smart CapnoLine O2” is a combined oral-nasal-O2-CO2 FilterLine.
• “NIV Line” is a nasal FilterLine suitable for mask ventilation (for example, C-PAP).
• “Single purpose” means CO2 measurement only, “dual purpose” means CO2 measurement and O2
delivery.
• The accessories are supplied in packs of 25.
Microstream accessory selection flowchart
Is the patient intubated?
Yes
No
Does the patient need oxygen?
Yes
Short-term
Long-term
(up to 6 hours) (up to 72 hours)
Short term
(up to 8 hours)
Oral/Nasal
No
Long term
Long-term
Short term Short term
(up to 24 hours) (up to 24 hours) (up to 8 hours) (up to 8 hours)
Nasal
Nasal
Oral/Nasal
Nasal
Procedural
Sedation,
Critical Care,
EMS, ED
EMS, ED
NIV Line:
P: M4687A
Key Applications
Critical Care
OR, EMS, ED
Procedural
Critical Care,
Sedation, Critical Sleep Lab, LongCare, EMS, ED term Pain
Management
Critical Care,
Sleep Lab
Philips part numbers (A = Adult, P= Pediatric, I = Infant, N = Neonate)
FilterLine Set: FilterLine H Set: Smart
A/P: M1920A A/P: M1921A CapnoLine O2:
I/N: M1923A
A: M2522A
P: M2520A
CapnoLine HO2: CapnoLine H:
A: M4680A
A: M4689A
Smart
CapnoLine:
P: M4681A
P: M4690A
A: M2526A
I/N: M4691A
P: M2524A
A: 4686A
Spirometry Accessories
Description
Part No.
Adult/Pediatric Flow Sensor
M2785A
Neonatal Flow Sensor
M2786A
Adult/Pediatric CO2/Flow Sensor
M2781A
Neonatal CO2/Flow Sensor
M2782A
Pediatric CO2/Flow Sensor
M2783A
321
33 Accessories
tcGas Accessories
tcGas Accessories
This symbol indicates that the specified transducer (but not its membranes) is designed
to have special protection against electric shocks (particularly regarding allowable
leakage currents), and is defibrillator proof.
Description
Part No.
12x tc Accessory Kit (O-ring remover, absorbent paper, electrolyte solution,
replacement membrane)
15209-60010
tc Application Kit (4x25 disposable fixation rings, 4x20ml contact fluid)
15209-60020
Calibration gas - 6 gas bottles
15210-60010
Calibration gas - 6 gas bottles (Europe and Japan only)
15210-64010
Replacement tubing (5 tubes)
M2205A
tcpO2/CO2 transducer
M1918A
Calibration unit
15210B
Radiometer TCC3 calibration unit (available from Radiometer)
n/a
EEG Accessories
Description
Part No.
Trunk Cable 2.7m
M2268A
Trunk Cable, 1.0 m
M2269A
Reusable 80-cm-long 5-lead cables with 10mm silver/silverchloride leadwired cup
electrodes (Adult)
M1931A
Reusable 80-cm-long 5-lead cables with 6mm silver/silverchloride leadwired cup
electrodes (Pediatric/Neonatal)
M1932A
Reusable 80 cm 5-lead cables with clip
M1934A
Disposable EEG electrodes
M1935A
EC2™ Electrode Cream (conductive paste)
M1937A
BIS Accessories
Use only Aspect BIS sensors with the BIS module or BIS Interface board (MP20/MP30). The sensor is
a silver/silverchloride electrode array that uses Aspect’s patented ZipPrep technology and a proprietary
connector. The sensor/electrodes are for single patient use only. Check shelf-life before use.
The patient interface cable (Philips Ordering No. M1034-61630, Aspect Part No. 186-0131) has an
estimated lifetime of one year. Do not scrap it when disposing of the BIS sensor.
The sensor cable from the Semi-Reusable Sensor is re-usable but has a maximum number of uses, the
electrodes are single patient use only. The monitor displays how many uses remain for the sensor cable.
322
SvO2 Accessories
33 Accessories
BIS Sensors
To re-order sensors outside North America, contact your nearest Philips sales office and quote the
Philips ordering number. In North America, contact Aspect Medical Systems.
Description
Pieces per pack Philips Ordering No Aspect Part No
BIS and BISx - compatible
BIS Sensor Quatro (formerly Sensor XP)
50
M1997A
186-0106
BIS Sensor Plus
50
M4546A
186-0076
BIS Sensor Pediatric
25
M1998A
186-0110
BIS Sensor Pediatric (4 electrode)
25
989803143581
186-0200
BIS Semi-reusable Sensor (not available in 100
USA, Japan)
M4615A
186-0164
BIS Sensor Extend
n/a
186-0160
50
Other BIS Accessories
Order the following parts from your nearest Philips sales office and quote the Philips ordering number
Description
Philips Ordering No
BIS M1034A only
BIS Engine Cable - Short (0.8 m)
M1034-61610
BIS Engine Cable - Long (2.0 m)
M1034-61620
PIC PLUS Cable
M1034-61630
BIS Universal Clamp Mount
M1180A #C32
BIS FMS Mount (Flexible Module Server)
M1180A #C33
BIS Mount for MP40/MP50
M8003- 64011
SvO2 Accessories
Contact your local Hospira representative for information on accessories. They are not available from
Philips. Part numbers may vary according to country of purchase.
Description
Hospira Part No. French Size
Length
Optical Module
50131
Pulmonary artery catheter
50324-05
7.5F
110cm
Pulmonary artery catheter
50355-03
5.5F
75cm
Pulmonary artery catheter
50328-05
8F
110cm
Intravascular catheters
50404-01
4F
40cm
Intravascular catheters
50405-01
4F
25cm
Intravascular catheters
50407-01
5.5F
40cm
323
33 Accessories
Recorder Accessories
Recorder Accessories
Description
Part No.
For M1116B recorder:
10 rolls of paper
40477A
80 rolls of paper
40477B
For integrated recorder (MP20/MP30):
324
10 rolls of paper
M4816A
80 rolls of paper
M4817A
34
Installation and Specifications
34
The specifications in this section apply to the MP20, MP30, MP40, MP50, MP60, MP70, MP80 and
MP90 patient monitors, unless otherwise stated.
The monitors are not user installable. They must be installed by qualified service personnel.
Intended Use
The monitors are intended to be used for monitoring, recording, and alarming of multiple
physiological parameters of adults, pediatrics, and neonates in health care facilities. The devices are to
be used by trained health care professionals.
All the monitors are intended for use in health care facilities; the MP20/MP30/MP40/MP50 monitors
are additionally intended for use in transport situations within the hospital setting.
The monitors are only for use on one patient at a time. They are not intended for home use. Rx only:
U.S. Federal Law restricts this device to sale by or on the order of a physician. Not a therapeutic device.
The transcutaneous gas measurement (tcGas) is restricted to neonatal patients only.
ST segment monitoring is intended for use with adult patients only and is not clinically validated for
use with neonatal and pediatric patients.
The ECG measurement is intended to be used for diagnostic recording of rhythm and detailed
morphology of complex cardiac complexes (according to AAMI EC 11).
BIS is intended for use under the direct supervision of a licensed health care practitioner or by
personnel trained in its proper use. It is intended for use on adult and pediatric patients within a
hospital or medical facility providing patient care to monitor the state of the brain by data acquisition
of EEG signals. The BIS may be used as an aid in monitoring the effects of certain anesthetic agents.
Use of BIS monitoring to help guide anesthetic administration may be associated with the reduction of
the incidence of awareness with recall in adults during general anesthesia and sedation.
Indication for Use
The monitor is indicated for use by health care professionals whenever there is a need for monitoring
the physiological parameters of patients.
325
34 Installation and Specifications
Manufacturer’s Information
Manufacturer’s Information
You can write to Philips at this address
Philips Medizin Systeme Boeblingen GmbH
Hewlett-Packard-Str. 2
71034 Boeblingen
Germany
Visit our website at: www.philips.com.
© Copyright 2002 - 2005. Koninklijke Philips Electronics N.V. All Rights Reserved.
BIS Manufacturer’s Information
BISx, the BIS engine, the DSC, the Patient Interface Cable and the BIS Sensor are manufactured by
Aspect Medical Systems:
Aspect Medical Systems, Inc
141 Needham St
Newton,
MA 02464
USA
1-617-559-7000
Free call:
1-888-BIS_INDEX
1-888-247-4633
Email: [email protected]
Web: www.aspectmedical.com
Address of the EU Authorized Representative:
Aspect Medical Systems International B.V.
Rijnzathe 7d2
3454 PV De Meern
The Netherlands
Phone: +31.30.662.9140
Email: [email protected]
326
Manufacturer’s Information
34 Installation and Specifications
Trademark Acknowledgement
PiCCOΤΜ is a trademark of Pulsion Medical Systems AG.
Bispectral Index and BIS are trademarks of Aspect Medical Systems Inc, and are registered in the USA,
EU and other countries.
OxisensorΤΜ II, Oxi-CliqΤΜ, and OxiMaxΤΜ are trademarks of Tyco Healthcare Group LP, Nellcor
Puritan Bennett Division.
Microstream, FilterLine, and Smart CapnoLine are trademarks or registered trademarks of Oridion
Systems Ltd.
Citrix® and ICA® (Independent Computing Architecture) are registered trademarks of Citrix
Systems, Inc.
Masimo, Masimo SET, and LNOP are federally registered trademarks of the Masimo Corporation.
Other product and company names mentioned in this book may be trademarks of their respective
owners.
327
34 Installation and Specifications
Symbols
Symbols
These symbols appear on the monitor and its associated equipment.
Symbols
Refer to accompanying
documents
Equipotential
grounding
Connection direction
indicator
Alternating current
(On some older measurement
servers and extensions, and
modules, this symbol may indicate
the gas input.)
RS232 connector
RS-232
Standby
Electrical input
indicator
Electrical output
indicator
(On some older measurement
servers and extensions, and
modules, this symbol may indicate
the gas output.)
200206
Identifies year
and month of
manufacture
Connection direction
indicator
Connector has
special protection
against electric
shocks and is
defibrillator proof
Gas input indicator
Gas output indicator
Quick mount release
FMS Power On
Indicator - Ready for
operation
Serial/MIB connector
Interruption indicator
Mouse connection
indicator
Parallel interface
indicator for
connection to parallel
printer
Measurement
server link
connection
indicator
328
Protective earth
Keyboard
connection
indicator
Nurse call relay
connection indicator
12 Volt DC LAN
connection, for
connection to wireless
device
Printer connection
indicator
Digital video device
connection indicator
for connection to
independent display
LAN connection
indicator for
connection to a wired
network
Installation Safety Information
34 Installation and Specifications
Symbols
Philips
remote
device
(SpeedPoint or Alarm Device)
connection indicator
Antenna
connector
Analog interface
indicator for
connection to any
analog video display
Battery symbol
Digital interface
indicator for
connection to any
digital video display
12V
LAN/SER
Non-ionizing
radiation symbol
Data input/output
symbol
Locked position
Unlocked position
12 Volt DC LAN
connection
indicator for
connection to
serial interface
12V
12 Volt DC
socket
Always use separate
collection for waste
electrical and
electronic equipment (WEEE)
Installation Safety Information
WARNING
If multiple instruments are connected to a patient, the sum of the leakage currents may exceed the
limits given in IEC/EN60601-1. Consult your service personnel.
Grounding
The monitors or the MP80/MP90 processing unit must be grounded during operation. If
a three-wire receptacle is not available, consult the hospital electrician. Never use a threewire to two-wire adapter.
Equipotential
Grounding
If the monitors or MP80/MP90 processing unit are used in internal examinations on the
heart or brain, ensure that the room incorporates an equipotential grounding system to
which the monitor and MP80/MP90 processing unit have separate connections.
Combining equipment Combinations of medical equipment with non-medical equipment must comply with
IEC 60601-1-1. Never use a multiple portable socket-outlet or extension cord when
combining equipment unless the socket outlet is supplied specifically for use with that
equipment.
Fusing
The monitors use double pole/neutral fusing.
Connectors
The actual placement of boards and configuration of connections for your monitor depends on how
your hardware has been configured. See the symbols table on page 328 to see which symbols are used
to mark the connections.
WARNING
Connect only medical devices to the ECG output connector socket.
329
34 Installation and Specifications
Installation Safety Information
MP20/MP30
MP20/MP30 Left side of monitor
1
1
MMS and one extension
2
ECG analog output/marker
input connector
2
MP20/MP30 Rear of monitor
1
10
2
11
330
3
4 5 6
7
8
9
1
Measurement Server
Link connector
2
AC power inlet
3
Remote alarm
connector
4
Analog video out
connector
5
Wired network
connector
6
Wireless network
connector
7
Battery compartment
8
Equipotential
grounding
9
Protective earth
10
Space for optional
interface boards, e.g.
serial/MIB (RS232)
connectors, or
optional parallel
printer connection
11
Side cover with
antenna for IntelliVue
Instrument Telemetry
Wireless Network
(USA only)
Installation Safety Information
34 Installation and Specifications
MP40/MP50
MP40/MP50 Rear of monitor
10
1
Space for optional
interface boards, e.g.
serial/MIB (RS232)
connectors, or
optional parallel
printer connection
2
Equipotential
grounding
3
Protective earth
4
AC power inlet
5
Wireless network
connector for use with
wireless LAN or
Instrument Telemetry
adapter
6
Remote alarm
connector
7
Analog video out
connector
8
Wired network
connector
9
Battery compartment
10
Measurement Server
Link connector
11
IntelliVue Instrument
Telemetry adapter
(USA only)
12
Monitor connector (to
5 above)
13
12V DC Power Inlet
(to 5 above)
14
Antenna connector
1
2
3 4 5
6
7
8
14
9
11
12
13
331
34 Installation and Specifications
Installation Safety Information
MP40/MP50 Left side of monitor
1
1
MMS and one extension
2
Plug-in module slots
3
ECG analog output/marker
input connector
3
2
MP60/MP70
Right side of monitor (MP60/70)
1
1
Serial/MIB (RS232) connectors
(optional), type RJ45
2
2
Parallel printer connector
3
Keyboard connector
4
Mouse/trackball connector
5
Main measurement server link (MSL)
6
Wired network connector
7
Wireless network connector
3
4
5
8
Analog video out connector
6
9
Equipotential ground connector
7
10
AC power input
11
Protective earth screw hole
8
332
9
10
11
Installation Safety Information
34 Installation and Specifications
Left side of monitor (MP60/70)
1
MMS patient cable connectors
2
Slot for integrated recorder module or
measurement module
3
Additional measurement server link
(MSL) cable (alternative or additional to
MSL on right of monitor)
4
ECG analog output/marker input
connector
1
2
3
4
333
34 Installation and Specifications
Installation Safety Information
MP80/MP90
MP80/MP90 (rear of processing unit) - MP80 does not have the top row of connectors
2
3
4
5
6
7
8
9
10
1
11
21
334
20
19
18 17
16
15
14
13
12
1
Serial/MIB (RS232) connectors, type RJ45
12
ECG analog output/marker input
2
Serial/MIB (RS232) connectors, type RJ45
13
Wired network connector
3
Independent display - remote alarm device connector 14
Wireless network connector
4
Keyboard connector
15
Primary measurement server link
5
Independent display - remote SpeedPoint connector
16
Parallel printer connector
6
Independent display - mouse/trackball connector
17
Additional measurement server link
7
Independent display - keyboard connector
18
Remote SpeedPoint connector
8
Independent display analog video out connector
19
Mouse/trackball connector
9
Primary display - analog video out connector
20
Remote alarm connector
10
Independent display - digital video out connector
21
Flexible nurse call interface
11
Primary display - digital video out connector
Installation Safety Information
34 Installation and Specifications
MP80/MP90 (front of processing unit)
1
2
3
5
4
6
7
8
1
AC Power LED
5
Power supply
2
Error LED
6
AC power input
3
Power on LED
7
Protective earth screw hole
4
Power on switch
8
Equipotential grounding point
802.11 Bedside Adapter (Wireless Network Adapter)
802.11 Bedside Adapter (can be used with all monitors)
1
Antenna
2
LEDs - green and yellow LEDs light up
during startup while selftests are
performed. During normal operation the
green LED indicates whether Radio is
currently on or off; the yellow LED
remains off
3
Combined power/network cable
1
2
3
335
34 Installation and Specifications
Altitude Setting
Altitude Setting
Altitude affects tcGas and CO2 measurements. The monitor must be configured at installation to the
correct altitude.
Monitor Safety Specifications
0366
The monitors, together with the Multi-Measurement Server (M3001A), and the Flexible Module
Server (M8048A), all modules and measurement server extensions, comply with the Medical Device
Directive 93/42/EEC.
In addition, the product complies with:
IEC 60601-1:1988 + A1:1991 + A2:1995; EN60601-1:1990 + A1:1993 + A2:1995; UL 606011:2003; UL 2601.1:1994; CAN/CSA C22.2#601.1-M90; JIS T 1001-1992; IEC 60601-1-1:2000;
EN 60601-1-1:2001; IEC 60601-1-2:2001; EN 60601-1-2:2001.
Classification (according to IEC 60601-1): Class 1, Type CF, Continuous Operation. The BIS
measurement uses a Type BF applied part.
The possibility of hazards arising from software errors was minimized in compliance with ISO
14971:2000, EN60601-1-4:1996 + A1:1999 and IEC 60601-1-4:1996 + A1:1999.
This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme a la norme NMB001 du Canada.
0123
185-0145-PH Aspect BISx, 185-0111 Aspect BIS Engine and 185-0124 Aspect DSC comply with the
requirements of the Council Directive 93/42/EEC of 14 June 1993 (Medical Device Directive).
The MP20/30 including IntelliVue Instrument Telemetry and the MP40/50 with the IntelliVue
Instrument Telemetry adapter comply with part 15 of the FCC Rules. Operation is subject to the
condition that these devices do not cause harmful interference. Operation of this equipment requires
the prior coordination with a frequency coordinator designated by the FCC for the Wireless Medical
Telemetry Service.
IntelliVue 802.11 Bedside Adapter (Option J35 Wireless Network Adapter) - FCC and Industry
Canada Radio Compliance: This device complies with Part 15 of the FCC Rules and RSS-210 of
Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. Any changes or modifications to this equipment not expressly
approved by Philips Medical Systems may cause harmful radio frequency interference and void your
authority to operate this equipment.
The maximum antenna gain permitted (for devices in the 5250-5350 MHz and 5470-5725 MHz
bands) complies with the e.i.r.p. limits as stated in RSS-210.
The maximum antenna gain permitted (for devices in the 5725-5825 MHz band) complies with the
e.i.r.p. limits specified for point-to-point operation, as stated in RSS-210.
The device for the band 5150-5350 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
336
Monitor Safety Specifications
34 Installation and Specifications
The OEM radio device used in this product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. This product is intended to be connected to the Publicly
Available Interfaces (PAI) and used throughout the EEA.
CAUTION High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference and /or damage to LE-LAN devices.
IntelliVue 802.11 Bedside Adapter CE compliances:
This device is compliant to Council Directive 73/23/EEC (Low voltage directive) & 89/
336/EEC (EMC directive) & 1999/5/EC (Radio Equipment and Telecommunications
Terminal Equipment Directive)
The radio component contained in this device is compliant to Council Directive 1999/5/
EC (Radio Equipment and Telecommunications Terminal Equipment Directive)
WARNING
To minimize the risk of causing severe burns during MR imaging, ensure that transducers, sensors and
cables are positioned so that no inductive loops are formed. If the measurement does not appear to be
operating properly, remove all transducers, sensors and cables immediately from the patient.
Physical Specifications
Product
Max Weight W x H x D
Comments
MP20/MP30
< 6 kg
< 345 x 275 x 230 mm
< 13 lb
13.6 x 11 x 9 in
including M3001A, recorder,
and battery, without options
< 8.6 kg
< 365 x 330 x 217 mm
< 19 lb
14 x 13 x 8.5 in
< 10 kg
< 405 x 360 x 170 mm
< 22.05 lb
15.95 x 14.17 x 6.69 in
< 10 kg
342 x 108 x 505 mm
< 22.05 lb
13.47 x 4.25 x 19.88 in
M3001A
< 650g
188 x 96.5 x 51.5 mm
Multi-Measurement Server (MMS)
< 1.4lb
7.4 x 3.8 x 2 in
M3012A
< 550 g
< 190 x 98 x 40 mm
Hemodynamic Measurement Server
Extension
1.2 lb
< 7.5 x 4 x 1.6 in
M3014A
< 500 g
< 190 x 98 x 40 mm
Measurement Server Extension Capnography
< 0.99 lb
< 7.5 x 4 x 1.6 in
M3015A
< 550 g
< 190 x 98 x 40 mm
Measurement Server Extension Microstream CO2
< 1.21 lb
< 7.5 x 4 x 1.6 in
MP40/MP50
MP60/MP70
(with speedpoint)
including M3001A, recorder,
and battery, without options
without handle and speedpoint
device, without options
MP70
(with touchscreen operation)
MP80/MP90/D80
including AC cable, cable cover
and feet
337
34 Installation and Specifications
Monitor Safety Specifications
Product
Max Weight W x H x D
M3016A
< 450 g
< 190 x 98 x 40 mm
Measurement Server Extension Mainstream CO2
< 0.99 lb
< 7.5 x 4 x 1.6 in
M8048A
< 3500g
< 320 x 120 x 35 mm
Flexible Module Server (FMS)
< 7.7lb
12.6 x 4.7 x 5.3 in
M8045A
2700g
250 x 160 x 270 mm
Docking Station
5.95lb
9.8 x 6.3 x 10.6 in
M8025A
< 300 g
62 x 125 x 63 mm
Remote Alarm Device
< 0.7 lb
2.4 x 5 x 2.5 in
M8026A
< 400 g
103 x 139 x 63 mm
Remote SpeedPoint
< 0.9 lb
4 x 5.5 x 2.5 in
M8031A
< 4.9 kg
408 x 333 x 85 mm
XGA Touchscreen LCD Display
< 10.8 lb
16 x 13.1 x 3.4 in
M1006B
Invasive Press Module
190 g (6.7 oz) 36 x 99.6 x 97.5 mm
Option #C01: 1.4 x 3.9 x 3.8 in
225 g (7.9 oz)
M1029A
215 g (7.6 oz)
Temperature Module
225 g (7.9 oz.) 36 x 99.6 x 97.5 mm
1.4 x 3.9 x 3.8 in
M1014A
Spirometry Module
250 g (8.8 oz.) 36 x 99.6 x 97.5 mm
1.4 x 3.9 x 3.8 in3
M1018A
Transcutaneous Gas Module
350 g (11.3 oz) 72.5 x 99.6 x 97.5 mm,
2.9 x 3.9 x 3.8 in
M1020B
SpO2 Module
< 250 g
0.55 lb
36 x 99.6 x 97.5 mm
1.4 x 3.9 x 3.8 in
M1021A
Mixed Venous Oxygen Saturation
Module
460 g
(13.04 oz)
72.5 x 99.6 x 97.5 mm
2.9 x 3.9 x 3.8 in)
M1027A
210 g (7.4 oz)
36 x 99.6 x 97.5 mm
1.4 x 3.9 x 3.8 in
M1034A
215 g
36 x 99.6 x 97.5 mm
BIS Interface Module
7.6 oz
1.4 x 3.9 x 3.8 in
BISx
450 gr
102 x 38 mm
1 lb
4 x 1.5 in
130 g (4.6 oz)
(without
cabling)
66 x 25 x 107 mm
- BIS Engine
170 g (6.0 oz)
43 x 93 x 95 mm
1.7 x 3.7 x 3.8 in
M1032A
240 g (8.4 oz)
36 x 99.6 x 97.5 mm
1.4 x 3.9 x 3.8 in
507.5 g
17.9 oz.
73 x 99.6 x 97 mm
2.9 x 3.6 x 3.9 in.
- DSC Digital Signal Converter
Vuelink Module
M1116B
Thermal Array Recorder Module
338
without plug-in modules
dimensions without lever
with mounting bracket
36 x 99.6 x 97.5 mm,
1.4 x 3.9 x 3.8 in
M1012A
Cardiac Output Module
Electroencephalograph Module
Comments
2.6 x 1.0 x 4.25 in
without cables
with PIC Plus Cable (1.22 m, 4
ft) and cable to BIS module
with PIC Plus Cable (1.22 m, 4
ft)
Monitor Safety Specifications
34 Installation and Specifications
Environmental Specifications
The monitor may not meet the performance specifications given here if stored or used outside the
specified temperature and humidity ranges.
When the monitor and related products have differing environmental specifications, the effective range
for the combined products is that range which is common to the specifications for all products.
Monitor MP40, MP50, MP60, MP70, MP80, MP90
Item
Condition
Range
Temperature Range
Operating
0 to 35 °C (32 to 95 °F)
Non-operating
-20 to 60 °C (-4 to 140 °F)
Battery storage
-20 to 50 °C (-4 to 122 °F)
Monitor MP60, MP70 in conjunction with IntelliVue 802.11 Bedside Adapter (option #J35)
Operating
0 to 30 oC (32 to 86oF)
Item
Condition
Range
Temperature Range
Operating
0 to 40 °C (32 to 104°F)
Operating when
charging battery or
when equipped with
IntelliVue Instrument
Telemetry
0 to 35 °C (32 to 95 °F)
Non-operating
-20 to 60 °C (-4 to 140 °F)
Battery storage
-20 to 50 °C (-4 to 122 °F)
Temperature Range
Monitor MP20, MP30
Monitor MP20, MP30, MP40, MP50, MP60, MP70, MP80, MP90
Item
Humidity Range
Altitude Range
Condition
Range
Operating
20% to 85% Relative Humidity (RH) (non condensing)
Non-operating
5% to 85% Relative Humidity (RH)
Operating
-500 m to 3000 m (10000 ft)
Non-operating
-500 m to 12000 m (40000 ft)
339
34 Installation and Specifications
Monitor Safety Specifications
Measurement Server M3001A, Measurement Server Extensions M3016A M3015A, M3014A,
M3012A, Measurement Modules, and Flexible Module Server M8048A
Item
Condition
Range
Temperature Range
Operating
0 to 45 °C (32 to 113 °F)
Non-operating
-40 to 70 °C (-40 to 158 °F)
Operating
95% Relative Humidity (RH) max. @ 40 °C (104 °F). M3015A
only non-condensing.
Non-operating
90% Relative Humidity (RH) max. @ 65 °C (150 °F)
Operating
-500 m to 4600 m (-1600 to 15000 ft)
Non-operating
-500 m to 15300 m (-1600 to 50000 ft)
Humidity Range
Altitude Range
D80 Intelligent Display
Item
Condition
Range
Temperature Range
Operating
0 to 35 °C (32 to 95 °F)
Non-operating
-20 to 60 °C (-4 to 140 °F)
Battery storage
-20 to 50 °C (-4 to 122 °F)
Operating
20% to 85% Relative Humidity (RH) (non condensing)
Non-operating
5% to 85% Relative Humidity (RH)
Operating
-500 m to 3000 m (10000 ft)
Non-operating
-500 m to 12000 m (40000 ft)
Humidity Range
Altitude Range
Docking Station M8045A
Item
Condition
Range
Temperature Range
Operating
0 to 40 °C (32 to 100 °F)
Non-operating
-20 to 60 °C (-4 to 140 °F)
Operating
20% to 85% Relative Humidity (RH) (non condensing)
Non-operating
5% to 85% Relative Humidity (RH)
Operating
-500 m to 3000 m (10000 ft)
Non-operating
-500 m to 12000 m (40000 ft)
Humidity Range
Altitude Range
Thermal Array Recorder Module M1116B
340
Item
Condition
Range
Temperature Range
Operating
+5 to 45 °C (41 to 113°F)
Non-operating
-10 to 70 °C (14 to 158 °F)
M4605A Battery Specifications
34 Installation and Specifications
Thermal Array Recorder Module M1116B
Item
Condition
Range
Humidity Range
Operating
95% Relative Humidity (RH) max @ 40°C (104°F) (non
condensing)
Non-operating
95% Relative Humidity (RH) max @ 65°C (150°F) (non
condensing)
Operating
up to 3048 m (10000 ft)
Non-operating
up to 3048 m (10000 ft)
Altitude Range
Remote SpeedPoint M8026A
Item
Condition
Range
Temperature range
Operating
0 ... 55 °C (32 ...130 °F)
Storage
-20 … 60 °C (-4 ... 140 °F)
Operating
95 %RH max. at 40 °C (100 °F)
Storage
85 %RH max. at 50 °C (120 °F)
Operating
-500 … 4.600 m (-1600 ... 15000 ft)
Storage
-500 … 13.100 m (-1600 ... 43000 ft)
Humidity range
Altitude range
Remote Alarm Device M8025A
Item
Condition
Range
Temperature range
Operating
0 ... 55 °C (32 ...130 °F)
Storage
-20 … 60 °C (-4 ... 140 °F)
Humidity range
Altitude range
Operating
95 %RH max. at 40 °C (100 °F)
Storage
85 %RH max. at 50 °C (120 °F)
Operating
-500 … 4.600 m (-1600 ... 15000 ft)
Storage
-500 … 13.100 m (-1600 ... 43000 ft)
M4605A Battery Specifications
MP20/MP30/ Two batteries are required to operate the MP40/MP50 monitors. The MP20/MP30 monitors can
MP40/MP50 operate with one battery.
Only
M4605A Battery Specifications
Physical Specifications
WxDxH
149 mm (5.866 in) x89 mm (3.504 in) x 19.8 mm (0.78 in)
Weight
490 g (1.08 lb) per battery
Performance Specifications
Nominal Voltage
10.8 Volt
Rated Capacity at discharge C/5
6000 mAh
Continuous Discharge Capability
6.5 A
Environmental Specifications
341
34 Installation and Specifications
Monitor Performance Specifications
M4605A Battery Specifications
Discharge 0 to 50 °C (32 to 122 °F)
Charge 0 to 45 °C (32 to 113 °F)
Storage -20 to 60 °C (-4 to 140 °F)
Temperature Range
Humidity Range
40% to 95% Relative Humidity (RH)
Battery Type
Smart Battery 10.8V, 6000mAh, Lithium Ion
Safety
complies with UL 1642 (UL Recognized) and IEC 61960-2:2001
Electromagnetic Compatibility (EMC)
complies with the requirements for FCC Type B computing Device,
and EN 61000-4-2 and EN 61000-3
Communication Standard
complies with the SMBus specification v1.1
Monitor Performance Specifications
MP20/30, MP40/50, MP60/70/80/90
Power Specifications
Power consumption
MP60/70/80/90: < 145 W
MP20/30, MP40/50: < 100 W
Line Voltage
100 to 240 V ~
MP60/MP70/MP80/
MP90 Current
1.6 to 0.7 A
MP20/MP30/MP40/
MP50
Current
1.8 to 1.0 A
Frequency
50/60 Hz ~
Battery Specifications
Operating Time
Basic monitoring configuration: 5 hours
MP40/MP50
(with 2 new, fully
charged batteries)
(Brightness set to Optimum, MMS connected, NBP
measurement every 15 minutes)
Extended monitoring configuration: 4 hours
(Brightness set to Optimum, MMS and measurement
server extension connected, NBP every 15 minutes, Recorder,
Pressure, Temperature modules connected)
Charge Time
342
When monitor is off: 4 hours
When monitor is in use: 5 to 12 hours, depending on monitor
configuration
Monitor Performance Specifications
34 Installation and Specifications
MP20/30, MP40/50, MP60/70/80/90
Battery Specifications
Operating Time
Basic monitoring configuration: 5 hours
MP20/MP30
(with 2 new, fully
charged batteries)
(Brightness set to Optimum, MMS connected, NBP
measurement every 15 minutes)
Extended monitoring configuration: 4 hours
(Brightness set to Optimum, MMS and measurement
server extension connected, NBP every 15 minutes, Recorder,
every 15 minutes)
Operating Time
Basic monitoring configuration: 2.5 hours
(with 1 new, fully
charged battery)
(Brightness set to Optimum, MMS connected, NBP
measurement every 15 minutes)
Extended monitoring configuration: 2 hours
(Brightness set to Optimum, MMS and measurement
server extension connected, NBP every 15 minutes, Recorder,
every 15 minutes)
Indicators
Charge Time
When monitor is off: 4 hours
When monitor is in use: 5 to 12 hours, depending on monitor
configuration
Alarms Off
red (crossed-out alarm symbol) LED
Alarms
red/yellow/cyan LED
On/Standby
green LED
AC Power
green LED
Error
red LED
Battery LED (MP20/
30/40/50 only)
red/yellow/green LED
Sounds
Audible feedback for user input
Prompt tone
QRS tone, or SpO2 modulation tone
4 different alarm sounds
Remote tone for alarms on other beds in network
Tone for Timer expired
Trends
Resolution
12, 16, 24 or 32 numerics @ 12 sec, 1 minute, 5 minute
resolution
Information
Multiple choices of number of numerics, resolution and
duration depending on trend option and application area.
For example:
neonatal extended 12 numerics, 24 hours @ 12 secs or 32
numerics 32 hours @ 1 minute
intensive care extended: 16 numerics 120 hours @ 5 minutes
anesthesia extended 32 numerics 9 hours @ 12 seconds
High-Res Trend Waves
Measurements
available
HR, SpO2, Resp, tcpO2, Pulse, Perf, tcpO2, CO2, ABP, PAP,
CVP, ICP, CPP, BIS, CCO, AWP, Anesthetic Agents, Delta
SpO2, inO2
Resolution
Measurement samples are taken at a resolution of four samples
per second
Update speed
waves are drawn at a speed of 3 cm/minute
343
34 Installation and Specifications
Monitor Performance Specifications
MP20/30, MP40/50, MP60/70/80/90
Events
Information
trigger condition and time, event classification and associated
detailed view of episode data
Episode data
configurable (except MP20/30), either:
4 minutes of high resolution trend or
20 minutes of numerics trend @ 12 sec. resolution or
15 seconds of 4 waves @ 125 samples/sec. (Snapshot)
including all current numerics, alarms and inops
For MP20/30: 4 minutes of high resolution trend
Alarm signal
Review Alarms
Real Time Clock
Buffered Memory
Capacity (max)
25 or 50 events for either 8 or 24 hours
System delay
less than 3 seconds
Pause duration
1,2,3 minutes or infinite, depending on configuration
Extended alarm pause
5 or 10 minutes
Information
all alarms / inops, main alarms on/off, alarm silence and time
of occurrence
Capacity
100 items
Range
from: January 1, 1997, 00:00 to: December 31, 2080, 23:59
Accuracy
< 2 seconds per day (typically)
Hold Time
infinite if powered by AC; otherwise at least 48 hours (typical:
> 72 hours)
Hold Time
if powered by AC: infinite
without power: at least 48 hours (typical: > 72 hours)
Contents
Active settings, trends, patient data, realtime reports, events,
review alarms
MMS M3001A Performance Specifications
Trends
Trend Data Buffered
Memory
if powered by monitor mains connection via MSL: infinite
Contents
trend data, patient identification and all active settings
without power applied: at least 6 hours
D80 Intelligent Display Performance Specifications
Power Specifications
Power consumption
< 145 W
Line Voltage
100 to 240 V ~
Current
1.6 to 0.7 A
Frequency
50/60 Hz ~
Docking Station M8045A Performance Specifications
Power
344
Line Voltage
100 - 240V
Frequency
50/60 Hz
Power Consumption
negligible (for Power On LED)
Current to attached
patient monitor
max. 3.5 A
Monitor Performance Specifications
34 Installation and Specifications
Monitor Interface Specifications
Network
Parallel Printer Port
Dual PS/2 Inputs
Dual MIB/RS232
MIB-ready/RS-232
Interface
(not available in all
geographies)
Standard
IEEE 802.3 10-Base-T
Connector
RJ45 (8 pin)
Isolation
1.5 kV
Standard
IEEE 1284-I
Connector
DB-25
Signals
Level 1 and Level 2 (switchable)
Isolation
1.5 kV
Communication
Modes
Compatibility (for example Centronics), Nibble, ECP, EPP
Input Voltage
5V ±5%
Output Current
250mA (comb. max) to connected PS/2 devices
Standard
IEEE 1073-3.2-2000
Connectors
RJ45 (8 pin)
Mode
Software-controllable
BCC (RxD/TxD cross over) or
DCC (RxD/TxD straight through)
Power
5V +/- 5%, 100mA (max.)
Isolation
1.5kV
Measurement data
exported to external
systems:
Numerics, alarms and INOPs, patient demographics, waves (up
to 7; maximum number depends on the sample rate of the
selected waves).
ECG Output/Marker Input (1/4” stereo phone jack with tip, ring, sleeve)
General
ECG Output
(ring, tip)
Marker Input
Requirements
(tip)
Flexible Nurse Call
Relay
Connector
1/4” phone each with tip, ring, sleeve
Isolation
500 V
Signal Gain
320 to 3200
Full Scale on Display
3.2Vpp
Gain Error
<20%
Baseline Offset
<150mV
Bandwidth
1 to 80Hz
Output Impedance
ECG Output (ring): <2.2KΩ±20%
ECG Output/Marker Input (tip) <2.5kΩ ±20%
Signal delay
≤30ms
Signal Type
0 to -12V, negative edge pulse
Pulse Source
Impedance
<7kΩ
Pulse Fall Time
<100µs
Pulse Duration
>4ms
Connector
20 pin MDR (Mini D-Ribbon), active open and closed contacts
3.5 mm phone jack, active closed contact only
Contact
<= 100 mA, <= 24 V DC
Isolation
1.5 kV
Delay
< (Configured Latency + 0.5 sec)
345
34 Installation and Specifications
Monitor Performance Specifications
Monitor Interface Specifications
Wireless Network
Device Interface
Connector
8 pin Mini-DIN
Signals
RD+/-, TD+/-: IEEE 802.3 10Base-T, PWR, GND
12.5 V ±20%, 3.5 W continuous
Remote Application
Support
Technology
Citrix® and ICA® (Independent Computing Architecture)
client, Tunneling Control Engine (TCE)
Capabilities
a monitor connected to a Philips Application Server can show a
Windows application on the monitor display. The application
can be controlled by the monitor user input devices.
Display Specifications
All displays
Sweep Speeds
6.25, 12.5, 25 and 50 mm/s; additional EEG sweep speeds 15
mm/s, 30 mm/s with ±5% accuracy (guaranteed only for
integrated displays)
Integrated SVGA
Display, MP20/30
Resolution
800 x 600
Refresh frequency
60 Hz
Useful screen
211,2 x 158,4 mm
Pixel size
0.264 x 0.264 mm
Resolution
800 x 600
Refresh frequency
60 Hz
Useful screen
246 x 184.4 mm
Pixel size
0.3075 x 0.3075 mm
Integrated SVGA
Display, MP40/50
Integrated XGA Display, Resolution
MP60/70
Refresh frequency
External XGA Display
(e.g. M8031B),
1024 x 768
60 Hz
Useful screen
304 x 228 mm (12 x 9 in)
Pixel size
0.297 x 0.297 mm
Resolution
1024 x 768
Refresh frequency
60 Hz or 75 Hz
Useful screen
depends on size of display
Pixel size
depends on size of display
External SXGA Display Resolution
(e.g. M8033C),
Refresh frequency
MP80, MP90, D80 only
Useful screen
Pixel size
1280 x 1024 pixel
60 Hz
depends on size of display
depends on size of display
Video Interface MP20/ Specifications must be the same as the integrated display
30, MP40/50, MP60/70
Video Interface SVGA
MP20/MP30
Video Interface SVGA
MP40/MP50
346
Horizontal Frequency
37.9 kHz
Video Signals
0.7 Vpp @ 75 Ohm, HSYNC/VSYNC Signals TTL
Connector
15 pin D-SUB
Horizontal Frequency
37.5 kHz
Video Signals
0.7 Vpp @ 75 Ohm, HSYNC/VSYNC Signals TTL
Connector
15 pin D-SUB
Monitor Performance Specifications
34 Installation and Specifications
Display Specifications
Video Interface MP60/
MP70/MP80/MP90
SXGA (MP80, MP90,
D80 only), XGA
Horizontal Frequency
48.4 kHz or 60.0 kHz or 64.0 kHz
Video Signals
0.7 Vpp @ 75 Ohm, HSYNC/VSYNC Signals TTL
DDC
Signals I2C compliant, 5V, 100 mA (max) (M8010 only)
Connector
15 pin D-SUB
Digital Video
Video Signals
Single Link TMDS
MP80, MP90, D80
only
DDC Signals
I2C compliant
DDC Power
5V, 100mA (max)
Connector
DVI
Compatible Devices
Printers
PCL5 capability required
Examples:
HP Laserjet 1200 (monochrome)
HP Laserjet 2100 (monochrome)
HP DeskJet 2500 C+ (color)
Do not use printers that emulate PCL5
Displays (must be approved for medical use)
MP20/30/40/50/60/70/80/90, M1097A option A02
D80
M8031B
XGA color 15” LCD touchscreen
MP80, MP90, D80
M8033B/M8033C
SXGA color 17” LCD touchscreen
Wireless Network
Type
Proxim Range LAN2 7920
Technology
Frequency Hopping Spread Spectrum (FHSS)
Frequency Band
2.4 GHz ISM Band
Weight
300g max.
XGA color 15” LCD touchscreen
IntelliVue Instrument Telemetry Wireless Network (USA only, MP20/30/40/50 only)
Internal WMTS Adapter
(MP20/MP30)
External WMTS Adapter
M2638A
(MP40/MP50)
Technology
compatible with Philips Cellular Telemetry System
(CTS), cellular infrastructure
Frequency Band
WMTS, 1395-1400 MHz and 1427-1432 MHz
Technology
compatible with Philips Cellular Telemetry System
(CTS), cellular infrastructure
Frequency Band
WMTS, 1395-1400 MHz and 1427-1432 MHz
Weight
350g max.
IntelliVue 802.11 Bedside Adapter (Wireless Network Adapter)
Internal Wireless Adapter
Option J35
Technology
IEEE 802.11a/b/g
Frequency Band
2.4 GHz and 5 GHz ISM Band
347
34 Installation and Specifications
Measurement Specifications
Measurement Specifications
See the Appendix on Default Settings for a list of the settings the monitor is initially shipped with.
ECG/Arrhythmia/ST
Complies with IEC 60601-2-25:1993 + A1:1999 /EN60601-2-25:1995 + A1:1999, IEC 60601-2-27/
EN60601-2-27:1994, IEC 60601-2-51:2003 /EN 60601-2-51:2003 and AAMI EC11/EC13:1991/
2002.
ECG/Arrhythmia/ST Performance Specifications
Cardiotach
PVC Rate
ST Numeric
Range
Adult/pedi: 15 to 300 bpm
Neo range: 15 to 350 bpm
Accuracy
±1% of range
Resolution
1 bpm
Sensitivity
≥200 µVpeak
Range
0 to 300 bpm
Resolution
1 bpm
Range
-20 to +20 mm
Accuracy
±0.5 mm or 15%, whichever is greater
Resolution
0.1 mm
Sinus and SV Rhythm Brady
Ranges
Bandwidth
Adult: 15 to 60 bpm
Pedi: 15 to 80 bpm
Neo: 15 to 90 bpm
Normal
Adult:60 to 100 bpm
Pedi: 80 to 160 bpm
Neo: 90 to 180 bpm
Tachy
Adult: > 100 bpm
Pedi: >160 bpm
Neo: >180 bpm
Diagnostic Mode
Adult: 0.05 to 150Hz
Neo/pedi: 0.5 to 150Hz
Monitoring Mode Adult: 0.5 to 40Hz
Neo/pedi: 0.5 to 55Hz
Filter Mode
348
Adult/neo/pedi: 0.5 to 20Hz
Differential Input Impedance
>2MΩ RA-LL leads (Resp)
>5MΩ at all other leads (at 10Hz including patient cable)
Common Mode Rejection Ratio
Diagnostic mode: >86 dB (with a 51 kΩ/47 nF imbalance).
Filter mode: >106 dB (with a 51 kΩ/47 nF imbalance).
Electrode Offset Potential Tolerance
±500mV
Auxiliary Current
(Leads off Detection)
Active electrode: <100 nA
Reference electrode: <900 nA
Input Signal Range
±5 mV
Measurement Specifications
34 Installation and Specifications
ECG/Arrhythmia/ST Alarm
Specifications
Range
Adjustment
HR
15 to 300 bpm
maximum delay: 10 seconds according
to AAMI EC 13-1992 standard
Adult:1 bpm steps (15 to 40 bpm)
5 bpm steps (40 to 300 bpm)
Pedi/Neo:1 bpm steps (15 to 50 bpm)
5 bpm steps (50 to 300 bpm)
Extreme Tachy
Difference to high limit 0 to 50 bpm
5 bpm steps
Clamping at 150 to 300 bpm
5 bpm steps
Extreme Brady
Difference to low limit 0 to 50 bpm
5 bpm steps
Clamping at 15 to 100 bpm
5 bpm steps
Run PVCs
2 PVCs
Not adjustable by user
PVCs Rate
1 to 99 PVCs/minute
1 PVC
Vent Tach HR
20 to 300 bpm
5 bpm
Vent Tach Run
3 to 99 PVCs/minute
1 PVC
Vent Rhythm Run
2 to 99 PVCs/minute
1 PVC
SVT HR
120 to 300 bpm
5 bpm
SVT Run
3 to 99 SV beats
1 SV beat
ST High
-19.8 to +20 mm
0.2 mm
ST Low
-20 to +19.8 mm
0.2 mm
ECG/Arrhythmia/ST Supplemental Information as required by AAMI EC11/13
Respiration Excitation Waveform
Sinusoidal signal, 260 µA, 39 kHz
Noise Suppression
RL drive gain 44 dB max., max. voltage 1.8 Vrms
Time to Alarm for
Tachycardia
Vent Tachycardia
1mVpp,206 bpm
Gain 0.5, Range 6.5 to 8.4 seconds, Average 7.2 seconds
Gain 1.0 Range 6.1 to 6.9 seconds, Average 6.5 seconds
Gain 2.0, Range 5.9 to 6.7 seconds, Average 6.3 seconds
Vent Tachycardia
2 mVpp,195bpm
Gain 0.5, Range 5.4 to 6.2 seconds, Average 5.8 seconds
Gain 1.0, Range 5.7 to 6.5 seconds, Average 6.1 seconds
Gain 2.0, Range 5.3 to 6.1 seconds, Average 5.7 seconds
Tall T-Wave Rejection Capability
Exceeds ANSI/AAMI EC 13 Sect. 3.1.2.1(c)
minimum recommended 1.2 mV T-Wave amplitude
349
34 Installation and Specifications
Measurement Specifications
ECG/Arrhythmia/ST Supplemental Information as required by AAMI EC11/13
Heart Rate Averaging Method
Three different methods are used:
Normally, heart rate is computed by averaging the 12 most
recent RR intervals.
For runs of PVCs, up to 8 RR intervals are averaged to compute
the HR.
If each of 3 consecutive RR intervals is greater than 1200 ms
(that is, rate less than 50 bpm), then the 4 most recent RR
intervals are averaged to compute the HR.
Response Time of Heart Rate Meter to Change in HR change from 80 to 120 bpm:
Heart Rate
Range: [6.4 to 7.2 seconds] Average: 6.8 seconds
HR change from 80 to 40 bpm:
Range: [5.6 to 6.4 sec] Average: 6.0 seconds
Heart Rate Meter Accuracy and Response to
Irregular Rhythm
Ventricular bigeminy: 80 bpm
Slow alternating ventricular bigeminy: 60 bpm
Rapid alternating ventricular bigeminy: 120 bpm
Bidirectional systoles: 90 bpm
Accuracy of Input Signal Reproduction
Methods A and D were used to establish overall system error
and frequency response.
Respiration
Respiration Performance Specifications
Respiration Rate
Range
Adult/pedi: 0 to 120 rpm
Neo: 0 to 170 rpm
Accuracy
at 0 to 120 rpm ±1 rpm
at 120 to 170 rpm ±2 rpm
Resolution
1 rpm
Bandwidth
0.3 to 2.5Hz (–6dB)
Noise
Less than 25mΩ (rms) referred to the input
Respiration Alarm
Range
Specifications
Adjustment
Delay
High
Adult/pedi: 10 to 100 rpm
Neo: 30 to 150 rpm
under 20 rpm: 1 rpm steps max. 14 seconds
over 20 rpm: 5 rpm steps
Low
Adult/pedi: 0 to 95 rpm
Neo: 0 to 145 rpm
under 20 rpm: 1 rpm steps for limits from 0 to 20 rpm: max. 4
over 20 rpm: 5 rpm steps
seconds
for limits above 20 rpm: max. 14
seconds
Apnea Alarm
10 to 40 seconds
5 second steps
SpO2
Unless otherwise specified, this information is valid for SpO2 measured using the M3001A
measurement server and the M1020B measurement module.
Complies with EN ISO 9919:2005 (except alarm system; alarm system complies with IEC 60601-249:2001).
350
Measurement Specifications
34 Installation and Specifications
Measurement Validation: The SpO2 accuracy has been validated in human studies against arterial
blood sample reference measured with a CO-oximeter. Pulse oximeter measurements are statistically
distributed, only about two-thirds of the measurements can be expected to fall within the specified
accuracy compared to CO-oximeter measurements. Display Update Period: Typical: 2 seconds,
Maximum: 30 seconds. Max. with NBP INOP suppression on: 60 seconds.
SpO2 Performance Specifications
SpO2
Range
The specified accuracy Option #A01
is the root-meanAccuracy
square (RMS)
difference between the
measured values and
the reference values
0 to 100%
Philips Reusable Sensors:
M1191A, M1191AL, M1192A, M1192AN = 2% (70% to 100%)
M1193A, M1194A, M1195A, = 3% (70% to 100%)
M1191T, M1192T, M1193T (Adult) = 3% (70% to 100%)
M1193T (Neonate) = 4% (70% to 100%)
Philips Disposable Sensors with M1943A(L):
M1132A, M1133A (adult/infant) = 2%
M1901B, M1902B, M1903B, M1904B, M1131A, M1133A (neonate)
= 3% (70% to 100%)
NellcorPB® Sensors with M1943A(L):
MAX-A, MAX-AL, MAX-P, MAX-I, MAX-N, D-25, D-20, I-20, N25, OxiCliq A, P, I, N = 3% (70% to 100%)
Masimo Sensors® with AC-1:
LNOP Adt, Adtx,Pdt, Pdtx, INF-L, DC-I, DC-IP, Y-I: 2% (70% to
100%)
LNOP NEO-L, NEOPT-L: 3% (70% to 100%)
LNOP TC-I: 3.5% (70% to 100%)
Option #A02
Accuracy
Philips Reusable Sensors
M1191ANL, M1192AN = 2% (70% to 100%)
M1193AN, M1194AN, M1195AN = 3% (70% to 100%)
Philips Disposable Sensors with M1943NL:
M1901B (Adult), M1902B, M1903B, M1904B = 2% (70% to 100%)
M1901B (Neonate) = 3%
NellcorPB® Sensors with M1943NL:
MAX-FAST, MAX-A, MAX-AL, MAX-P, MAX-I, MAX-N (Adult) =
2% (70 - 100%)
SC-A, OxiCliq A, P, I, N (Adult) = 2.5% (70 - 100%)
MAX-N (Neonate), Dura-Y D-YS (Infant to Adult), DS100A,Oxiband OXI-A/N (Adult), OXI-P/I = 3% (70 - 100%)
MAX-R, OxiCliq N (Neonate), SC-NEO (Neonate), SC-PR
(Neonate), Dura-Y D-YS with D-YSE or D-YSPD clip = 3.5% (70 100%)
Dura-Y D-YS (Neonate), Oxiband OXI-A/N (Neonate) = 4% (70 100%)
Resolution
1%
351
34 Installation and Specifications
Measurement Specifications
SpO2 Performance Specifications
Pulse
Range
30 to 300 bpm
Accuracy
±2% or 1 bpm, whichever is greater
Resolution
1 bpm
Sensors
Wavelength range: 500 to 1000 nm
Emitted Light Energy: ≤ 15mW
Information about the wavelength range can be especially useful to
clinicians (for instance, when photodynamic therapy is performed)
Pulse Oximeter Calibration Range
SpO2 Alarm
Specifications
70 - 100%
Range
Adjustment
Delay
SpO2
Adult: 50 to 100%
Pedi/Neo: 30 to 100%
1% steps
(0, 1, 2, 3,... 30)
+ 4 seconds
Desat
Adult: 50 to Low alarm limit
Pedi/Neo: 30 to Low alarm limit
1% steps
Pulse
30 to 300 bpm
Adult:
max. 14 seconds
1 bpm steps (30 to 40 bpm)
5 bpm steps (40 to 300 bpm)
Pedi/Neo:
1 bpm steps (30 to 50 bpm)
5 bpm steps (50 to 300 bpm)
Tachycardia
Bradycardia
Difference to high limit 0 to 50 bpm 5 bpm steps
Clamping at 150 to 300 bpm
5 bpm steps
Difference to low limit 0 to 50 bpm
5 bpm steps
Clamping at 30 to 100 bpm
5 bpm steps
NBP
Complies with IEC 60601-2-30:1999/EN60601-2-30:2000.
NBP Performance Specifications
Measurement Ranges Systolic
352
Adult: 30 to 270 mmHg (4 to 36 kPa)
Pedi: 30 to 180 mmHg (4 to 24 kPa)
Neo: 30 to 130 mmHg (4 to 17 kPa)
Diastolic
Adult: 10 to 245 mmHg (1.5 to 32 kPa)
Pedi: 10 to 150 mmHg (1.5 to 20 kPa)
Neo: 10 to 100 mmHg (1.5 to 13 kPa)
Mean
Adult: 20 to 255 mmHg (2.5 to 34 kPa)
Pedi: 20 to 160 mmHg (2.5 to 21 kPa)
Neo: 20 to 120 mmHg (2.5 to 16 kPa)
Accuracy
Max. Std. Deviation: 8 mmHg (1.1 kPa)
Max. Mean Error: ±5 mmHg (±0.7 kPa)
Heart Rate Range
40 to 300 bpm
max. 14 seconds
max. 14 seconds
Measurement Specifications
34 Installation and Specifications
NBP Performance Specifications
Measurement Time
Typical at HR > 60bpm
Auto/manual: 30 seconds (adult)
25 seconds (neonatal)
Stat: 20 seconds
Maximum time: 180 seconds (adult/pediatric)
90 seconds (neonates)
Cuff Inflation Time
Typical for normal adult cuff: Less than 10 seconds
Typical for neonatal cuff: Less than 2 seconds
Initial Cuff Inflation Pressure
Adult: 165 ±15 mmHg
Pedi: 130 ±15 mmHg
Neo: 100 ±15 mmHg
Auto Mode Repetition Times
1, 2, 2.5, 3, 5, 10, 15, 20, 30, 45, 60 or 120 minutes
STAT Mode Cycle Time
5 minutes
Venipuncture Mode Inflation
Inflation Pressure
Automatic deflation
after
Adult
20 to 120 mmHg (3 to 16 kPa)
Pediatric
20 to 80 mmHg (3 to 11 kPa)
Neonatal
20 to 50 mmHg (3 to 7 kPa)
Adult/pediatric
170 seconds
Neonatal
85 seconds
Measurement Validation: In adult and pediatric mode, the blood pressure measurements determined
with this device comply with the American National Standard for Electronic or Automated
Sphygmomanometers (ANSI/AAMI SP10 - 1992) in relation to mean error and standard deviation,
when compared to intra-arterial or auscultatory measurements (depending on the configuration) in a
representative patient population. For the auscultatory reference the 5th Korotkoff sound was used to
determine the diastolic pressure.
In neonatal mode, the blood pressure measurements determined with this device comply with the
American National Standard for Electronic or Automated Sphygmomanometers (ANSI/AAMI SP10 1992 and AAMI/ANSI SP10A -1996) in relation to mean error and standard deviation, when
compared to intra-arterial measurements in a representative patient population.
NBP Alarm Specifications Range
Adjustment
Systolic
10 to 30 mmHg: 2 mmHg (0.5 kPa)
> 30 mmHg: 5 mmHg (1kPa)
Adult: 30 to 270 mmHg (4 to 36 kPa)
Pedi: 30 to 180 mmHg (4 to 24 kPa)
Neo: 30 to 130 mmHg (4 to 17 kPa)
Diastolic
Adult: 10 to 245 mmHg (1.5 to 32 kPa)
Pedi: 10 to 150 mmHg (1.5 to 20 kPa)
Neo: 10 to 100 mmHg (1.5 to 13 kPa)
Mean
Adult: 20 to 255 mmHg (2.5 to 34 kPa)
Pedi: 20 to 160 mmHg (2.5 to 21 kPa)
Neo: 20 to 120 mmHg (2.5 to 16 kPa)
353
34 Installation and Specifications
Measurement Specifications
NBP Overpressure Settings
Adult
> 300 mmHg (40 kPa) > 2 sec
Pedi
> 300 mmHg (40 kPa) > 2 sec
Neo
> 150 mmHg (20 kPa) > 2 sec
not user adjustable
Invasive Pressure and Pulse
Complies with IEC 60601-2-34:2000/EN60601-2-34:2000.
Invasive Pressure Performance Specifications
Measurement Range
Pulse Rate
–40 to 360 mmHg
Range
25 to 350 bpm
Accuracy
±1% Full Range
Resolution
1 bpm
Input Sensitivity
Sensitivity:5µV/V/mmHg (37.5µV/V/kPa)
Adjustment range:±10%
Transducer
Load Impedance:200 to 2000 Ω (resistive)
Output Impedance:≤3000 Ω (resistive)
Frequency Response
dc to 12.5 Hz or 40 Hz
Zero Adjustment
Range:
±200 mmHg (±26 kPa)
Accuracy
±1 mmHg (±0.1 kPa)
Drift
Less than 0.1mmHg/°C (0.013 kPa/°C)
Accuracy
±1%
Drift
Less than 0.05%/°C
Non linearity
and Hysteresis
Error of ≤ 0.4% FS (@CAL 200 mmHg)
Overall Accuracy
(including
transducer)
± 4% of reading or ± 4 mmHg (± 0.5 kPa), whichever is greater
Analog Output
Range
-0.4 V to 3.6 V
available only with
M1006B #C01 (@
CAL 200 mmHg)
Level
1 V / 100 mmHg
Accuracy
± 3% full scale
Offset
± 30 mV
Resolution
8 Bit (@ 5 V range)
Signal delay
20 ms
Gain Accuracy
Volume displacement of CPJ840J6
354
0.1 mm3 /100 mmHg
Measurement Specifications
34 Installation and Specifications
Invasive Pressure Alarm Specifications Range
Adjustment
Delay
Pressure
-40 to 30 mmHg
2 mmHg (0.5 kPa)
max. 12
seconds
–40 to 360 mmHg
(–5.0 to 48 kPa)
> 30 mmHg
5 mmHg (1 kPa)
Pulse
25 to 300 bpm
Tachycardia
Difference to high limit 0 to 5 bpm steps
50 bpm
Bradycardia
Adult:
1 bpm steps (25 to 40 bpm)
5 bpm steps (40 to 300 bpm)
Pedi/Neo:
1 bpm steps (25 to 50 bpm)
5 bpm steps (50 to 300 bpm)
Clamping at 150 to 300
bpm
5 bpm steps
Difference to low limit 0 to
50 bpm
5 bpm steps
max. 14
seconds
max. 14
seconds
Clamping at 25 to 100 bpm 5 bpm steps
Temp
Temp Performance Specifications
Temp
Range
–1 to 45 °C (30 to 113 °F)
Resolution
0.1 °C (32.2 °F)
Accuracy
±0.1 °C (±0.2 °F)
Average Time Constant
Less than 10 seconds
Alarms
Range
–1 to 45 °C (30 to 113 °F)
Adjustment
-1 to 35 °C (30 to 95 °F): 0.5 °C (1.0 °F) steps
35 to 45 °C (95 to 113 °F): 0.1 °C (0.2 °F) steps
Temp Alarm Specifications
Temp High/Low Alarms
Range
Adjustment
–1 to 45 ºC (30 to 113 ºF)
-1 to 35 °C (30 to 95 °F), 0.5 °C (1.0 °F) steps
35 to 45 °C (95 to 113 °F), 0.1 °C (0.2 °F) steps
355
34 Installation and Specifications
Measurement Specifications
CO2
The CO2 measurement in M3014A and M3015A complies with EN ISO 21647 (except alarm system;
alarm system complies with IEC 60601-2-49:2001)
M3015A Microstream CO2 Performance Specifications
CO2
awRR
Range
0 to 98mmHg (0 to 13 kPa), or 13% CO2, whichever is lower
Accuracy
Up to 5 minutes during warmup: ±4 mmHg or 12%, whichever is greater
After 5 minutes warmup:
0 to 40 mmHg (0 to 5.3 kPa):±2.2 mmHg (±0.3 kPa)
Above 40 mmHg (5.3 kPa):±(5.5% + (0.08%/mmHg above 40 mmHg)) of
reading
These specifications are valid for 21% O2 and N2 balance, up to 35°C
ambient temperature, up to 60 rpm in adult mode and 100 rpm in neonatal
mode. Outside of these conditions the accuracy reaches at a minimum ±4
mmHg or ±12% of the reading, whichever is greater.
Resolution
Numeric: 1.0 mmHg (0.1 kPa)
Wave: 0.1 mmHg (0.01 kPa)
Stability
Included in Accuracy specifications
Range
0 to 150 rpm
Accuracy
0 to 40 rpm: ±1 rpm
41 to 70 rpm: ±2 rpm
71 to 100 rpm: ±3 rpm
>100 rpm: ±5% of reading
Warm-up Time
20 minutes for full accuracy specification
Rise Time
190 ms for neonatal mode
(measured with FilterLine H for neonatal)
240 ms for adult mode
(measured with FilterLine H for adult)
Sample Flow Rate
50+15/-7.5 ml/minute
Gas Sampling Delay Time
Typical:2.3 seconds
Maximum:3 seconds
Sound Pressure
Acoustic noise: < 45 dBA
Total System Response Time
The total system response time is the sum of the delay time and the rise time.
Microstream CO2 Humidity Correction Factor
Either BTPS or STPD can be selected as the humidity correction factor for the Microstream CO2
readings. The formula for the correction calculation is:
PBTPS = (PSTPD . 0.94)
356
Measurement Specifications
34 Installation and Specifications
M3014A Mainstream CO2 Performance Specifications
CO2
awRR
Range
0 to 150 mmHg (0 to 20.0 kPa)
Accuracy
after 2 minutes warmup:
For values between 0 and 40 mmHg:±2.0 mmHg (±0.29 kPa)
For values from 41 to 70 mmHg: ±5% of reading
For values from 71 to 100 mmHg: ±8% of reading
The specifications are valid for standard gas mixtures, balance air, fully
hydrated at 35°C, Pabs = 760 mmHg, flow rate = 2 l/min.
Resolution
Numeric: 1.0 mmHg (0.1 kPa)
Wave: 0.1 mmHg (0.01 kPa)
Stability:
Short term drift
Long term drift
±0.8 mmHg over four hours
Accuracy specification will be maintained over a 120 hour period
Range
2 to 150 rpm
Accuracy
±1 rpm
Warm-up Time
2 minutes with CO2 transducer attached for full accuracy specification
Response Time
Less than 60 ms (with adult or infant reusable or disposable adapter)
M3014A Sidestream CO2 Performance Specifications
CO2
awRR
Range
0 to 150 mmHg (0 to 20.0 kPa)
Accuracy
after 2 minutes warmup:
For values between 0 and 40 mmHg:±2.0 mmHg (±0.29 kPa)
For values from 41 to 70 mmHg: ±5% of reading
For values from 71 to 100 mmHg: ±8% of reading
For values from 101 to 150 mmHg: ±10% of reading
At respiration rates above 80 rpm, all ranges are ±12% of actual. The
specifications are valid for gas mixtures of CO2, balance N2, dry gas at
760 mmHg within specified operating temperature range.
Resolution
Numeric: 1.0 mmHg (0.1 kPa)
Wave: 0.1 mmHg (0.01 kPa)
Stability:
Short term drift
Long term drift
±0.8 mmHg over four hours
Accuracy specification will be maintained over a 120 hour period
Range
2 to 150 rpm
Accuracy
±1 rpm
Warm-up Time
2 minutes with CO2 sensor attached for full accuracy specification
Sample Flow Rate
50±10 ml/minute
Total System Response Time
3 seconds
Operating Temperature
0 to 40 °C (32 to 100 °F)
M3014A Mainstream and Sidestream CO2 Humidity Correction Factor
Either BTPS or STPD can be selected as the humidity correction factor for the Mainstream CO2
readings. The formula for the correction calculation is:
P abs
P STPD = P BTPS ⋅ ----------------------------P abs – P H2O
357
34 Installation and Specifications
Measurement Specifications
Where p = partial pressure, Pabs = absolute pressure, and PH2O = 42 mmHg @35°C and 100% RH.
M3016A Mainstream CO2 Performance Specifications
CO2
awRR
Range
–4 to 150 mmHg (-0.5 to 20.0 kPa)
Accuracy
after 20 minutes warmup and calibration:
For values between 0 and 40 mmHg:±2.2 mmHg (±0.29 kPa)
For values between 40 and 76 mmHg:±5.5% of reading
The specifications are valid for 45% O2 and N2 or N2O balance. Outside
these conditions the accuracy reaches at a minimum the requirements of
EN864/ISO9918.
Resolution
Numeric: 1.0 mmHg (0.1 kPa)
Wave: 0.1 mmHg (0.01 kPa)
Stability
±1.0 mmHg over a 7 day period
Range
0 to 150 rpm
Accuracy
±2 rpm
Warm-up Time
20 minutes with CO2 transducer attached for full accuracy specification
Response Time
Less than 125 ms (for step from 10% to 90%)
Mainstream CO2 Humidity Correction Factor
Either BTPS or STPD can be selected as the humidity correction factor for the Mainstream CO2
readings. The formula for the correction calculation is:
P abs
P STPD = P BTPS ⋅ ----------------------------P abs – P H2O
Where p = partial pressure, Pabs = absolute pressure, and PH2O = 47 mmHg @37°C and 100% RH.
CO2 Alarm
Specifications
Range
etCO2 High
20 to 95 mmHg (2 to 13 kPa) 1 mmHg (0.1 kPa)
Adjustment
Delay
M3014A/M3016A: less than 14 seconds
M3015A: less than18 seconds.
etCO2 Low
10 to 90 mmHg (1 to 12 kPa)
imCO2 High
2 to 20 mmHg
(0.3 to 3.0 kPa)
steps of 1 mmHg (0.1
kPa)
M3014A/M3016A: less than 14 seconds
M3015A: less than18 seconds.
awRR High
Adult/pedi: 10 to 100 rpm
Neo: 30 to 150 rpm
M3014A/M3016A: less than 14 seconds
M3015A: less than18 seconds.
awRR Low
Adult/pedi: 0 to 95 rpm
Neo: 0 to 145 rpm
under 20 rpm: 1 rpm
steps
over 20 rpm:5 rpm
steps
M3015A:
settings < 20 rpm: less than 8 seconds
> 20 rpm: less than 18 seconds
M3014A/M3016A
settings < 20 rpm: less than 4seconds
> 20 rpm: less than 14 seconds
Apnea delay
358
10 to 40 seconds
5 second steps
set apnea delay time + 4 seconds
(M3014A/M3016A) or 8 seconds
(M3015A)
Measurement Specifications
34 Installation and Specifications
Interfering Gas and Vapor Effects On CO2 Measurement Values
The specified deviations for M3014A are valid when the appropriate corrections are switched on and
set correctly.
M3014A
M3015A
Gas or Vapor
Gas Level
(% volume fraction)
Additional deviation due to gas interfence, measured at
0 - 40 mmHg CO2
Nitrous Oxide
60
±1 mmHg
± 5%
Halothane
4
±1 mmHg
± 5%
Enflurane
5
±1 mmHg
± 5%
Isoflurane
5
±1 mmHg
± 5%
Sevoflurane
5
±1 mmHg
± 5%
Xenon
80
-5 mmHg
± 5%
Helium
50
±1 mmHg
± 5%
Metered dose inhaler
propellants
-
not specified for use
Desflurane
15
+3 mmHg
± 5%
Ethanol
0.1
±1 mmHg
± 5%
Isopropanol
0.1
±1 mmHg
± 5%
Acetone
0.1
±1 mmHg
± 5%
Methane
1.0
±1 mmHg
± 5%
Spirometry
The following specifications apply for 760 mmHg ambient pressure and patient gas: room air at 35°,
unless otherwise noted
Spirometry Performance Specifications
Flow Wave (AWF)
Range
±25 l/min (neonatal)
±100 l/min (pediatric)
±180 l/min (adult)
Accuracy
±3% or
0.125 l/min (neonatal)
0.25 l/min (pediatric)
0.5 l/min (adult)
Scales
±10, ±20, ±40, ±60, ±80, ±100, ±120, ±150 l/min
Scale Default
±20 l/min (neonatal
±100 l/min (pediatric)
±150 l/min (adult)
359
34 Installation and Specifications
Measurement Specifications
Spirometry Performance Specifications
Volume Wave (AWV) Range
Accuracy
0 to 100 ml (neonatal
0 to 400 ml (pediatric)
0 to 3000 ml (adult)
±5% or
±3 ml (neonatal)
±12 ml (pediatric)
±90 ml (adult),
whichever is greater
Scales
50, 100, 200, 600, 800, 1000, 2000, 3000 ml
Scale Default
50 ml (neonatal
200 ml (pediatric)
800 ml (adult)
Pressure Wave (AWP) Range
Accuracy
±2% or ±0.5 cmH2O whichever is greater
Scales
10, 20, 40, 60, 80, 100, 120 cmH2O
Scale Default
20 l/min (neonatal
40 l/min (pediatric)
40 l/min (adult)
Respiration Rate
numeric (RRspir)
Range
2 to 120 breaths/min
Resolution
1 breath/min
Inspired Minute
Volume numeric
(MVin)
Range
0.01 to 5 l/min (neonatal)
0.06 to 30 l/min (pediatric)
0.4 to 60l/min (adult)
Resolution
0.01 l/min (neonatal/pediatric)
0.1 l/min (adult)
Range
0.01 to 5 l/min (neonatal)
0.06 to 30 l/min (pediatric)
0.4 to 60l/min (adult)
Resolution
0.01 l/min (neonatal/pediatric)
0.1 l/min (adult)
Range
5 to 100 ml (neonatal)
30 to 400 ml (pediatric)
200 to 3000 ml (adult)
Resolution
1 ml (neonatal/pediatric))
10 ml (adult)
Range
5 to 100 ml (neonatal)
30 to 400 ml (pediatric)
200 to 3000 ml (adult)
Resolution
1 ml (neonatal/pediatric)
10 ml (adult)
Range
0 to 500 ml/cmH2O
Resolution
1 ml/cmH2O
Range
0 to 500 cmH2O/l/s (neonatal)
0 to 250 cmH2O/l/s (pediatric)
0 to 100 cmH2O/l/s (adult)
Resolution
1 cmH2O/l/s
Range
0 to +120 cmH2O
Resolution
1 cmH2O
Expired Minute
Volume numeric
(MVexp)
Inspired Volume
numeric (TVin)
Expired Volume
numeric (TVexp)
Lung Compliance
numeric
Airway Resistance
numeric
Peak Inspiratory
Pressure numeric
(PIP)
360
-20 to 120 cmH2O
Measurement Specifications
34 Installation and Specifications
Spirometry Performance Specifications
Negative Inspiratory
Pressure numeric
Range
-20 to 0 cmH2O
Resolution
1 cmH2O
Mean Airway Pressure Range
Plateau Pressure
numeric
Positive EndExpiratory Pressure
numeric (PEEP)
Barometric Pressure
numeric (PB)
Resolution
1 cmH2O
Range
0 to +120 cmH2O
Resolution
1 cmH2O
Range
0 to 99 cmH2O
Resolution
1 cmH2O
Range
400 to 800 mmHg
Resolution
1 mmHg
Peak Inspiratory Flow Range
numeric (PIF)
Resolution
Peak Expiratory Flow Range
numeric (PEF)
Inspiration to
Expiration ratio
numeric (I:E)
-20 to +120 cmH2O
0.1 to 25 l/min (neonatal)
1 to 100 l/min (pediatric)
2 to 180 l/min (adult)
0.1 l/min (neonatal)
1 l/min (pediatric/adult)
0.1 to 25 l/min (neonatal)
1 to 100 l/min (pediatric)
2 to 180 l/min (adult)
Resolution
0.1 l/min (neonatal)
1 l/min (pediatric/adult)
Range
1: 0.2 ... 9.9
Resolution
0.1
Cardiac Output / Continuous Cardiac Output
C.O./CCO Performance Specifications
C.O. (right heart)
Range
0.1 to 20.0 l/min
Accuracy
Instrument Specification (electrical):+ 3% or 0.1 l/min
System Specification:+ 5%.or 0.2 l/min
Repeatability
Instrument Specification (electrical):+ 2% or 0.1 l/min
System Specification:+ 3%.or 0.1 l/min
Range
0.1 to 25.0 l/min
Accuracy
Instrument Specification (electrical):+ 4% or 0.15 l/min
System Specification:+ 5% or 0.2 l/min
Repeatability
Instrument Specification (electrical):+ 2% or 0.1 l/min
System Specification:+ 3% or 0.1 l/min
EVLW
Range
10 to 5000 ml
not available in USA
Standard Deviation
10% or 1 ml/kg
C.O.
(transpulmonary)
361
34 Installation and Specifications
Measurement Specifications
C.O./CCO Performance Specifications
ITBV
CCO
Blood Temperature
Range
50 to 6000 ml
Accuracy
+ 10% or 30 ml
Repeatability
+ 5% or 20 ml
Range
0.1 to 25.0 l/min
Standard Deviation
10% or 0.3 l/min
Display Update
2 seconds nominal
Range
17,0 to 43°C (62,6 to 109,4°F)
Injectate Temperature Range
-1 to 30°C
C.O./CCO Alarm Specifications Range
Adjustment
Delay
TBlood
Steps of 0.5°C (17 to 35°C)
Steps of 0.1°C (35 to 43°C)
10 seconds after the value
exceeds the set limit range
17 to 43°C
Steps of 1°F (63 to 95°C)
Steps of 0.2°F (95 to 109°C
CCO
0.1 to 25.0 l/min
0.1 l/min (0.1 to10.0 l/min) 10 seconds after the value
0.5 l/min (10.0 to 25.0 l/min) exceeds the set limit range
tcGas
Complies with IEC 60601-2-23:1999/EN60601-2-23:2000.
tcGas Performance Specifications
tcpO2
Range
0 to 750 mmHg (0 to 100 kPa)
Accuracy
0.5% (+ 1 digit)
Resolution
1 mmHg (0.1 kPa)
Overall Accuracy
(incl. transducer)
0 to 160 mmHg + 5 mmHg
0.0 to 21.3 kPa + 0.7 kPa
>160 mmHg (21.3 kPA) + 3% of reading
tcpO2 Temperature Drift
tcpO2 Test Signal
60 mmHg (8.0 kPa)
tcpO2 Drift, including transducer
< 1 mmHg / h @ 10% O2
tcpO2 response time, including transducer
< 30 s
tcpCO2
362
< 0.1% / °C
Range
5 to 200 mmHg (0.7 to 26.7 kPa)
Accuracy
1.0% (1 + digit)
Resolution
1 mmHg (0.1 kPa)
Overall Accuracy
(incl. transducer)
0 to 76 mmHg + 5 mmHg
0.0 to 10.1 kPa + 0.7 kPa
>76 mmHg (10.1 kPa) + 10% of reading
tcpCO2 Temperature Drift
< 0.1% / °C
tcpCO2 Test Signal
40 mmHg (5.3 kPa)
tcpCO2 Drift, including transducer
< 1 mmHg / h @ 5% CO2
Measurement Specifications
34 Installation and Specifications
tcGas Performance Specifications
tcpCO2 response time, including transducer
< 50 s
Warm-up Time
< 3 minutes
Site Timer
0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, or 8 hours. Change Site alarm
when site time is expired and configurable automatic heating
switch-off
Transducer Heating
Available Temperatures 37.0°C, 41.0 to 45°C in steps of 0.5°C
tcGas Alarm Specifications
Range
Adjustment
Alarm Delay
tcpO2
10 to 745 mmHg
1.0 to 99.5 kPa
10 to 30 mmHg: 1 mmHg
1.0 to 4.0 kPa: 0.1 kPa
10 seconds after the
value exceeds the set
limit range.
32 to 100 mmHg: 2 mmHg
4.2 to 13 kPa: 0.2 kPa
105 to 745mmHg: 5 mmHg
13.5 to 99.5 kPa: 0.5 kPa
tcpCO2
10 to 195 mmHg
1.0 to 26 kPa
10 to 30 mmHg: 1 mmHg
1.0 to 4.0 kPa: 0.1 kPa
32 to 100 mmHg: 2 mmHg
4.2 to 13 kPa: 0.2 kPa
105 to 195 mmHg: 5 mmHg
13.5 to 26 kPa: 0.5 kPa
SvO2
SvO2 Performance Specifications
SvO2
Range
10% to 100%
Accuracy
± 2 % (i.e. ± 2 units), 1 standard deviation over 40 % to 100 %
range.
Resolution
1%
Stability (system)
Drift < 2% over 24 hours
Response Time (10 % to 90%)
5 seconds
SvO2 Alarm Specifications
Range
Adjustment
Delay
SvO2
10% to 100%
1%
max. 15+4 seconds after value goes beyond the
low/high alarm limit settings
EEG
Complies with IEC 60601-2-26:1994/EN60601-2-26:1994.
363
34 Installation and Specifications
Measurement Specifications
EEG Performance Specifications
Leakage Current
<=10 µA @ 110Vac
Input Signal Range
1 mVp-p
Differential Input Impedance
>15 MΩ @ 10 Hz
Max. DC Input Offset Voltage
±320 mV
Input Protection
Against defibrillation (5 kV) and electrosurgery
Common Mode Rejection
>105 dB @ 5kΩ imbalance and 60 Hz
Noise
<0.4 µVRMS (1 to 30 Hz)
Electromagnetic Susceptibility
<10 µVp-p @ 3 V/m, 26-1000 MHz
Electrode Impedance
Measurement
Range
0 to 30 kΩ
Accuracy
±1 kΩ
Bandwidth
0.5 Hz to 50 Hz (–3 dB)
Low Filter Cut-Off Frequencies
0.5, 1.0, 2.0, and 5.0 Hz
(12 dB/octave)
High Filter Cut-Off Frequencies
15 Hz (65 dB/octave)
30 Hz (75 dB/octave)
50 Hz (85 dB/octave)
BIS
364
BIS Performance Specifications
BIS, BISx M1034A, BIS Interface board for MP20/30
Bispectral Index (BIS) Range
0 - 100
Signal Quality Index (SQI) Range
0 - 100%
EMG Range
0 - 100dB
Suppression Ratio (SR)
0 - 100%
Spectral Edge Frequency (SEF)
0.5 - 30.0Hz
Total Power (TP)
0 - 100 dB
Bursts
(BISx only) 0 - 30/minute
Noise
<0.3µV RMS (2.0µV peak-to-peak)
Wave Scale
With gridlines on: ± 25µV, ± 50µV, ± 100µV, ± 250µV
With gridlines off: 50µV, 100µV, 200µV, 500µV
Update Frequency (BIS Numeric)
2048 ms
Bandwidth
0.25 - 100Hz (-3dB)
High Pass Filters
0.25 Hz, 1 Hz, 2 Hz (-3dB)
Low Pass Filters
30 Hz, 50 Hz, 70 Hz, 100 Hz (-3dB)
Notch Filters (for line frequency)
50 Hz, 60 Hz
Impedance Measurement Range
0 to 999 kΩ
BIS Alarm Specifications
Range
Adjustment
Alarm Delay
BIS High/Low Alarm
0 - 100
1
Max. 2 seconds
Safety and Performance Tests
34 Installation and Specifications
Safety and Performance Tests
You must observe any national regulations on the qualification of the testing personnel and suitable
measuring and testing facilities. See the maintenance section for a list of required tests. Safety and
performance tests, and what to do if the instrument does not meet these specifications are described in
the Installation and Service guide.
Electromagnetic Compatibility (EMC) Specifications
Take special precautions regarding electromagnetic compatibility (EMC) when using medical electrical
equipment. You must operate your monitoring equipment according to the EMC information
provided in this book. Portable and mobile radio frequency (RF) communications equipment can
affect medical electrical equipment.
Accessories Compliant with EMC Standards
All accessories listed in the accessories section comply, in combination with the IntelliVue patient
monitors, with the requirements of IEC 60601-1-2:2001.
WARNING
Using accessories other than those specified may result in increased electromagnetic emission or
decreased electromagnetic immunity of the monitoring equipment.
Electromagnetic Emissions
The monitor is suitable for use in the electromagnetic environment specified in the table below. You
must ensure that it is used in such an environment
Emissions test
Compliance
Avoiding Electromagnetic Interference
Radio Frequency (RF) emissions
Group 1
The monitor uses RF energy only for its internal function.
Therefore, its RF emissions are very low and are not likely to
cause any interference in nearby electronic equipment
RF emissions CISPR 11
Class A
Harmonic emissions IEC 61000-3-2
n/a
Voltage fluctuations IEC 61000-3-3
n/a
The monitor is suitable for use in all establishments other
than domestic and those directly connected to the public
low-voltage power supply network that supplies buildings
used for domestic purposes
Avoiding Electromagnetic Interference (Resp and BIS)
The respiration (Resp) and BIS measurements are very sensitive measurements that measure very small
signals. Technological limitations don't allow higher immunity levels than 1V/m for radiated RF
electromagnetic fields and 1Vrms for conducted disturbances induced by RF fields. Electromagnetic
fields with field strengths above 1 V/m and conducted disturbances above 1Vrms may cause erroneous
measurements. Therefore Philips recommends that you avoid using electrically radiating equipment in
the close proximity of these measurements.
WARNING
The monitor should not be used next to or stacked with other equipment. If you must stack the
monitor, you must check that normal operation is possible in the necessary configuration before you
start monitoring patients.
365
34 Installation and Specifications
Safety and Performance Tests
Electromagnetic Immunity
The monitor is suitable for use in the specified electromagnetic environment. The user must ensure
that it is used in the appropriate environment as described below.
Immunity test
IEC 60601-1-2
test level
Compliance level
Electromagnetic environment
guidance
Electrostatic
± 6 kV contact
discharge (ESD) ± 8kV air
IEC 61000-4-2
± 6 kV contact
Electrical fast
± 2 kV for power supply lines
transient/burst ± 1 kV for input/output lines
IEC 61000-4-4
± 2 kV for power supply
Mains power quality should be that
lines
of a typical commercial and/or
± 1 kV for input/output lines hospital environment
Surge
± 1 kV differential mode
IEC 61000-4-5 ± 2 kV common mode
± 1 kV differential mode
± 2 kV common mode
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC 61000-411
<5% UT
(> 95% dip in UT) for 0.5
cycles
± 8kV air
Floors should be wood, concrete, or
ceramic tile. If floors are covered
with synthetic material, the relative
humidity should be at least 30%.
Mains power quality should be that
of a typical commercial and/or
hospital environment
<5% UT
(> 95% dip in UT) for 0.5
cycles
Mains power quality should be that
of a typical commercial and/or
hospital environment. If the user of
the monitor requires continued
40% UT
40% UT
(60% dip in UT) for 5 cycles (60% dip in UT) for 5 cycles operation during power mains
interruptions, it is recommended
70% UT
70% UT
that the monitor is equipped with
(30% dip in UT) for 25 cycles (30% dip in UT) for 25
an internal battery or is powered
cycles
from an uninterruptible power
< 5% UT
supply.
(> 95% dip in UT) for 5 sec
< 5% UT
(> 95% dip in UT) for 5 sec
Power frequency 3 A/m
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
Power frequency magnetic fields
should be a t levels characteristic of
a typical location in a typical
commercial and/or hospital
environment
In this table, UT is the a.c. mains voltage prior to application of the test level.
Recommended Separation Distance
WARNING
The monitor, equipped with a wireless network interface, intentionally receives RF electromagnetic
energy for the purpose of its operation. Therefore, other equipment may cause interference, even if that
other equipment complies with CISPR emission requirements.
In the following table, P is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer and d is the recommended separation distance in metres
(m). The values given in brackets are for respiration and BIS.
Portable and mobile RF communications equipment should be used no closer to any part of the
monitor, including cables, than the recommended separation distance calculated from the equation
appropriate for the frequency of the transmitter.
Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be
less than the compliance level in each frequency range (over the frequency range 150 kHz to 80 MHz,
field strengths should be less than 1 V/m for respiration and BIS and 3 V/m for all other functions).
366
Safety and Performance Tests
34 Installation and Specifications
Interference may occur in the vicinity of equipment marked with this symbol:
Immunity test
Conducted RF
IEC 61000-4-6
IEC 60601-1-2
test level
Compliance level
Electromagnetic environment guidance
3 VRMS
3 VRMS
Recommended separation distance:
150 kHz to 80 MHz (1 V
for
respiration
RMS
and BIS)
d = 1.2 P :
for respiration and BIS:
d = 3.5 P :
Radiated RF
IEC 61000-4-3
3 V/m
3 V/m
80 MHz to 2.5 GHz (1 V/m for respiration
and BIS)
Recommended separation distance:
80 MHz to 800 MHz
d = 1.2 P
80 MHz to 800 MHz for respiration and BIS
d = 3.5 P :
800 MHz to 2,5 GHz
d = 2.3 P
800 MHz to 2,5 GHz for respiration and BIS
d = 7.0 P
Field strengths from fixed transmitters, such as base stations for radio (cellular, cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in
which the monitor is used exceeds the applicable RF compliance level above, the monitor should be
observed to verify normal operation. If abnormal performance is observed, additional measures may be
necessary, such as reorienting or relocating the monitor.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects, and people.
Recommended separation distances from portable and mobile RF
communication equipment
The monitor is intended for use in an electromagnetic environment in which radiated RF disturbances
are controlled. The customer or user of the monitor can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment and
the monitor as recommended below, according to the maximum output power of the communications
equipment.
367
34 Installation and Specifications
Frequency of transmitter
Equation
Safety and Performance Tests
150 kHz to 80 MHz
150 kHz to 800 MHz
800 MHz to 2,5 GHz
d = 1.2 P
d = 1.2 P
d = 2.3 P
for respiration and BIS:
for respiration and BIS:
for respiration and BIS:
d = 3.5 p
d = 3.5 P
d = 7.0 P
Separation distance (m)
Separation distance (m)
Rated max. output power
of transmitter (W)
Separation distance (m)
0.01
0.1 (0.4)
0.1 (0.4)
0.2 (0.7)
0.1
0.4 (1.1)
0.4 (1.1)
0.7 (2.2)
1
1.3 (3.5)
1.3 (3.5)
2.3 (7.0)
10
3.8 (11.1)
3.8 (11.1)
7.3 (22.1)
100
12.0 (35.0)
12.0 (35.0)
23.0 (70.0)
Electrosurgery Interference/Defibrillation/Electrostatic Discharge
The equipment returns to the previous operating mode within 10 seconds without loss of any stored
data. Measurement accuracy may be temporarily decreased while performing electro-surgery or
defibrillation. This does not affect patient or equipment safety. Do not expose the equipment to x-ray
or strong magnetic fields (MRI).
Fast Transients/Bursts
The equipment will return to the previous operating mode within 10 seconds without loss of any
stored data (M1032 within 30 seconds). If any user interaction is required, the monitor indicates with
a technical alarm (INOP).
Restart time
After power interruption, an ECG wave will be shown on the display after 30 seconds maximum.
368
35
Default Settings Appendix
35
This appendix documents the most important default settings of your monitor as it is delivered from
the factory. For a comprehensive list and explanation of default settings, see the Configuration Guide
supplied with your monitor. The monitor’s default settings can be permanently changed in
Configuration Mode.
Settings are only entered once per table row if they are the same for all patient categories.
369
35 Default Settings Appendix
Alarm Default Settings
Alarm Default Settings
Alarm Settings
Factory Default H10 / H20 / H40
Alarm Volume
5
Alarms Off
3 min.
Pause Al. 5min
Enabled
H30 (deviations from H10/20/40)
Pause Al. 10min
Enabled
Auto Alarms Off
Off
Alarm Off Reminder
Off
Visual Latching
Red & Yell
Red Only
Audible Latching
Red & Yell
Off
Alarm Reminder
On
Reminder Time
3 min
Alarm Sounds
Traditional
Red Alarm Interval
10 sec
Yel. Al. Interval
20 sec
Alarm Low
4
Red Alarm Volume
AlarmVol +2
Yell. Alarm Volume
AlarmVol +0
Inop Volume
AlarmVol +0
Auto Increase Vol.
2 Steps
Increase Vol Delay
20 sec
Keep Blinking
No
Relay 1 Sensitiv.
R&Y&I
Relay 2 Sensitiv.
Red & Yell
Relay 3 Sensitiv.
Red
2
Inop Relay Latency
5 sec
Yel. Relay Latency
2 sec
Alarm Text
Standard
No Centr Mon Min Vol
4
ECG, Arrhythmia, and ST Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Pedi
Neo
Adult
High Limit
120 bpm
160bpm
200 bpm
Low Limit
50 bpm
75 bpm
100 bpm
Alarms
On
Alarm Source
HR
ECG
On
QRS Volume
1
ECG Settings
370
Auto
Pedi
Neo
ECG, Arrhythmia, and ST Default Settings
35 Default Settings Appendix
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
ECG Settings
Primary Lead
II
Secondary Lead
V
Analysis Mode
Multi-lead
Lead Placement
Standard
Mod. Lead Placment
Off
Filter
Monitor
Speed
25mm/s
Auto Filter
Off
Default ECG Size
x1
Color
Green
Asystole Thresh
4.0 sec
∆ ExtrTachy
20 bpm
Tachy Clamp
200 bpm
∆ ExtrBrady
20 bpm
Brady Clamp
40 bpm
ALL ECG IN.
On
Fallback
On
Alarms Off
Enabled
Alarm Source Sel.
Enabled
Pedi
Neo
Pedi
Neo
60 bpm
80 bpm
Filter
3.0 sec
220 bpm
240 bpm
50 bpm
40 bpm
371
35 Default Settings Appendix
ECG, Arrhythmia, and ST Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Neo
Adult
Off
Arrhythmia Settings
372
Pedi
Arrhythmia
On
Off
Pause Threshold
2.0 sec
1.5 sec
VTach HR
100
VTach Run
5
Vent Rhythm
14
120
150
200
210
5
5
SVT HR
180
SVT Run
5
PVCs/min
10
Non-Sustain
On
Vent Rhythm
On
Run PVCs
On
Pair PVCs
On
Off
R-On-T PVCs
On
Off
V.Bigeminy
On
Off
V.Trigeminy
On
Off
PVCs/min
On
Off
Multif. PVCs
On
Off
Pacer N. Cap
On
Pacer N. Pac
On
Pause
On
Off
Missed Beat
On
Off
SVT
On
IrregularHR
On
TimeOut 1st
3 min
TimeOut 2nd
10 min
Arrhy Off Message
Yes
SOME ECG IN
On
Pedi
Neo
Off
Off
Lead-independent ST Settings
Factory Adult
ST Alarm Mode
Single ST
Alarms
On
ST Analysis
On
ST-Index
On
ISO Point
-80 ms
J Point
48 ms
ST Point
J+60
Factory Pedi
Off
Factory Neo
Pulse Default Settings
35 Default Settings Appendix
Lead I, II, III, V, aVR, aVL, aVF, V1-6,
MCL Settings
Factory Adult
Factory Pedi
ST(Label)
On
Off
Factory Neo
For Alarm Mode = Single-ST
ST(Label) High
+2.0 mm
ST(Label) Low
-2.0 mm
For Alarm Mode = Multi-ST
ST(Label) High
+1.0 mm
ST(Label) Low
-1.0 mm
Pulse Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
Pulse Settings
Alarm Source
HR
Pulse (Label)
On
System Pulse
SpO2
Alarms Off
Enabled
Alarm Source Sel.
Enabled
Pedi
Neo
Pedi
Neo
Auto
Auto
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
Pulse Alarm Settings
Pedi
Neo
Pulse (SpO2)
on
Pulse Alarms
on
High Limit
120 bpm
160 bpm
200 bpm
Low Limit
50 bpm
75 bpm
100 bpm
40 bpm
50 bpm
220 bpm
240 bpm
∆ Extr Brady
20 bpm
Brady Clamp
40 bpm
∆ Extr Tachy
20 bpm
Tachy Clamp
200 bpm
Pedi
Neo
Pulse alarms use the settings of the currently selected Pulse alarm source.
373
35 Default Settings Appendix
Respiration Default Settings
Respiration Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
Respiration Settings
Pedi
Neo
High Limit
30 rpm
100 rpm
Low Limit
8 rpm
30 rpm
Apnea Time
20 sec
Alarms
On
Resp
On
Auto/Manual
Auto (Trigger Mode)
Resp Speed
6.25mm/s
Color
Yellow
Pedi
Neo
Off
White
SpO2 Default Settings
SpO2 Settings
Factory Adult
Alarms
On
QRS Volume
1
Tone Modulation
Yes
Tone Mod. Type
Enhanced
Speed
25mm/s
Perfusion
On
Average
10 sec
NBP Alarm Suppr.
On
Extd. Auto OnOff
Disabled
Color
Cyan
Factory Pedi
Factory Neo
SpO2 Alarm Default Settings
Setting
adult
pediatric
neonatal
Desat Limit
80
80
80
Low Limit
90
90
85
High Limit
100
100
95
Desat delay
20 sec
20 sec
20 sec
High Alarm delay
10 sec
10 sec
10 sec
Low Alarm delay
10 sec
10 sec
10 sec
Parameter Alarms On/Off
on
on
on
Label
SpO2
SpO2
SpO2
on
on
on
Pulse Settings
Pulse (SpO2) On/Off
374
NBP Default Settings
35 Default Settings Appendix
SpO2 Alarm Default Settings
Setting
adult
pediatric
neonatal
Pulse Alarms On/Off
on
on
on
Pulse High Limit
120 bpm
160bpm
200 bpm
Pulse Low Limit
50 bpm
75 bpm
100 bpm
∆ Extr Brady
20 bpm
20 bpm
20 bpm
Brady Clamp
40 bpm
40 bpm
50 bpm
∆ ExtrTachy
20 bpm
20 bpm
20 bpm
Tachy Clamp
200 bpm
220 bpm
240 bpm
NBP Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
NBP Settings
Pedi
Neo
Auto/Manual
Auto
Alarms from
Sys.
High Alarm Limit
160/ 90 (110) 120/ 70 (90)
90/ 60 (70)
180/ 90 (110)
Low Alarm Limit
90/ 50 (60)
40/ 20 (24)
70/ 50 (65)
Alarms
On
NBP
On
Repetition Time
15 min
Unit
mmHg
Done Tone
Off
On
Start Time
Synchronized
NotSynchron.
VP Pressure
60 mmHg
Reference
Auscultatory
Color
Red
Pedi
Neo
Manual
70/ 40 (50)
3 min
40 mmHg
30 mmHg
Invasive
Magenta
Temperature Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
Temp Settings
Pedi
Neo
Low Limit
36
High Limit
39
Alarms
On
Unit
0
Range
35...43
30 ... 43
Color
Green
Light Green
Pedi
Neo
35
C
375
35 Default Settings Appendix
Invasive Pressure Default Settings
Invasive Pressure Default Settings
ABP, ART, Ao, BAP, Factory defaults H10 / H20 / H40
FAP, P, P1, P2, P3,
Adult
Pedi
Neo
P4, UAP Settings
Adult
Alarms from
Sys.
High Limit
160/ 90 (110)
120/ 70 (90) 90/ 60 (70)
180/ 90 (110)
Low Limit
90/ 50 (70)
70/ 40 (50)
55/ 20 (35)
70/ 50 (70)
Alarms
On
Scale
150
100
100
Speed
25mm/s
Mean Only
No
Filter
12 Hz
Mercury Cal.
Yes
Artifact Suppr.
60 sec
Unit
mmHg
Color
Red
CVP, RAP, LAP,
UVP Settings
Pedi
Neo
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
Pedi
Neo
Alarms from
Mean
High Limit
14 / 6 (10)
10 / 2 (4)
10 / 2 (4)
Low Limit
6 / -4 (0)
2 / -4 (0)
2 / -4 (0)
Alarms
On
Scale
30
Speed
25mm/s
Mean Only
Yes
Pedi
Filter
12 Hz
Mercury Cal.
Yes
Artifact Suppr.
60 sec
Unit
mmHg
Color
Cyan
Blue
PAP Settings
ICP, IC1, IC2 Settings
Invasive Pressure
Settings
376
H30 (deviations from H10/20/40)
Factory Adult
Neo
Factory Pedi Factory Neo Factory Adult Factory Pedi Factory Neo
Alarms from
Dia.
High Limit
35 / 16 (20)
60 / 4 (26)
60 / 4 (26)
14 / 6 (10)
Mean
10 / 2 (4)
10 / 2 (4)
Low Limit
10 / 0 (0)
24 / -4 (12)
24 / -4 (12)
6 / -4 (0)
2 / -4 (0)
2 / -4 (0)
Alarms
On
On
Scale
30
30
Speed
25mm/s
25mm/s
Cardiac Output Default Settings
Invasive Pressure
Settings
35 Default Settings Appendix
PAP Settings
Factory Adult
ICP, IC1, IC2 Settings
Factory Pedi Factory Neo Factory Adult Factory Pedi Factory Neo
Mean Only
No
Yes
Filter
12 Hz
12 Hz
Mercury Cal.
Yes
Yes
Artifact Suppr.
60 sec
60 sec
Unit
mmHg
mmHg
Color
Yellow
Magenta
Cardiac Output Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
C.O. Settings
Auto-Calibration
On
Tblood High Limit
39.0 ºC
Tblood Low Limit
36.0 ºC
Tblood Alarm On/Off
On
Temperature Unit
0C
Color
Green
CCO/CCI Settings
Factory Adult
Pedi
Neo
Pedi
Neo
Yellow
Factory Pedi
Factory Neo
Settings common to CCO and CCI
Alarms from
CCO
CCO from
ABP
Color
Green
CCO
Alarms
On
CCO High Limit
8.5 l/min
3.7 l/min
1.3 l/min
CCO Low Limit
4.0 l/min
2.6 l/min
0.3 l/min
CCI
Alarms
On
CCI High Limit
4.3 l/min/m2
3.7 l/min/m2
5.2 l/min/m2
CCI Low Limit
2.0 l/min/m2
2.6 l/min/m2
1.2 l/min/m2
377
35 Default Settings Appendix
CO2 Default Settings
CO2 Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
CO2 Settings
Adult
Adult
etCO2 low
30
25
etCO2 high
50
60
imCO2 high
4
CO2 Alarms
on
Unit
mmHg
Scale
40 mmHg
50
ImCO2
on
Off
N2O Corr (only
M3015A/
M3016A)
Off
Pedi
Neo
Pedi
Neo
Oxygen Corr (only 16%
M3014A)
Gas Corr (only
M3014A)
Off
Humidity Corr
BTPS
Max Hold
Off
AwRR
On
AwRR Alarms
On
AwRR high limit
30
100
AwRR low limit
8
30
Apnea time
20 secs
Color
Yellow
White
Spirometry Default Settings
Spirometry
Settings
Adult
APNEA high limit 20
378
Pedi
Neo
20
20
MVexp low limit
4.0
2.5
0.4
MVexp high limit
8.0
4.0
0.8
PIP high limit
40
25
20
PEEP low limit
0
0
0
PEEP high limit
25
25
25
RRspir low limit
8
8
30
RRSpir high limit
30
30
60
AWF scale
±150 l/min
±100 l/min
±20 l/min
AWV scale
±800 ml
±200 ml
±50 ml
AWP scale
±40 cmH2O
±40 cmH2O
±20 cmH2O
tcGas Default Settings
35 Default Settings Appendix
tcGas Default Settings
tcGas Settings
Factory Adult
tcpO2 High
80 mmHg
tcpO2 Low
50 mmHg
tcpO2 Alarms
On
tcpCO2 High
50 mmHg
tcpCO2 Low
30 mmHg
tcpCO2 Alarms
On
Site Time
4.0 hours
Disable Timer
Not Allowed
Heat Switch Off (i.e., after Site Timer
elapsed)
No
Transducer Temp.
43.0 °C
CO2 Correction (Severinghaus)
On
Metabolism Factor
8 mmHg
TcGas Unit
mmHg
Temperature Unit
0C
tcpO2 Color
Blue
tcpCO2 Color
Green
Factory Pedi
Factory Neo
SvO2 Default Settings
SvO2 Settings
Factory Adult
Low Limit
60%
High Limit
80%
Alarms
On
Light Intensity
On
Color
Yellow
Factory Pedi
Factory Neo
379
35 Default Settings Appendix
EEG Default Settings
EEG Default Settings
EEG Settings
Factory Adult
TP, SEF
On
MDF, PPF, Delta, Theta,
Alpha, Beta
Off
Factory Pedi
Factory Neo
SEF Threshold
90 %
Numeric Average
8 sec
Wave Scale
100uV (or +/- 50uV if Show Gridlines is configured to Yes)
Show Gridlines
No
Low Filter
0.5 Hz
High Filter
30 Hz
Impedance Limit
5 kOhm
Smoothing CSA
On
Color
Yellow
BIS Default Settings
Factory defaults H10 / H20 / H40
H30 (deviations from H10/20/40)
Adult
Adult
BIS Settings
380
Pedi
Neo
SQI
On
EMG
On
SR
On
SEF
Off
TP
Off
Bursts
On
Scale
100uV (or +/- 50uV if Show Gridlines
is configured to Yes)
Show Gridlines
No
Filters
On
Low Filter
2 Hz
High Filter
70 Hz
Notch Filter
On
Off
High Alarm Limit
70
Low Alarm Limit
20
Alarms
On
Smoothing Rate
30 sec
15 sec
Color
Yellow
Magenta
Pedi
Neo
VueLink Default Settings
35 Default Settings Appendix
VueLink Default Settings
Device Alarms
Ignored
Color
Green
381
35 Default Settings Appendix
382
VueLink Default Settings
#
10-lead placement (ECG) 100
12-lead placement (ECG) 100
3-lead placement (ECG) 98
4-channel recorder 258
5-lead placement (ECG) 98
A
AAMI ECG lead labels 97
abdominal breathing
and Resp electrode placement 132
aberrantly conducted beats 108
AC power input 332
accessories
10-electrode cable sets 310
3-electrode cable sets 309
3-electrode one piece cables 310
5-electrode cable sets 310
5-electrode one piece cables 310
Aspect Medical Systems 322
C.O. 319
CO2 176, 181, 188
CO2 (mainstream) 320
CO2 (microstream) 321
ECG 309
EEG 322
Hospira Inc. 323
NBP
adult cuffs 312
comfort cuffs 311
disposable cuffs 311
multi-patient comfort cuff kits 311
neonatal/infant cuffs
(disposable) 312
reusable cuffs 311
single-hose disposable cuffs 312
Nellcor 313
pressure 313
Pulsion 313
recorder paper 324
resp 309
set combiners and organizers 311
SpO2 313
Nellcor adhesive sensors
(disposable) 313
Philips sensors (disposable) 313
Philips sensors (reusable) 313
SvO2 323
temperature 318
trunk cables 309
active alarms 41
address, Philips 326
addressograph (printer configuration
setting) 272
adjusting ST measurement points 120
adjusting wave scale (pressure) 154
adjusting wave size (CO2) 183, 192
admit
editing information 79
quick admit 78
admitting a patient 77
advanced event surveillance 241
airway adapter
CO2, microstream accessory 182
alarm latching 51, 52, 113
alarm limits
changing 48
checking 46
manually adjusting 48
narrow 49
report 273
setting 46
ST 122
switching auto limits on/off 49
using automatic limits 49
wide 49
window 47
alarm recording 259
choosing recorded measurements 261
alarm source selection, disabled 129
alarm status area 14
alarms
acknowledging 44
active 41
active SpO2 source 141
alphabetical listing 53
apnea delay 184, 192
apnea delay time (Resp) 134
arrhythmia 41
audible indicators 42
awrr limits 184
chaining 115
CO2 specific 184
CO2, apnea delay 184, 192
CO2, awRR 184
desat, SpO2 140
effect on pressure alarms during
zero 153
extending pause time 46
high priority 41
INOP 41
ISO/IEC standard 9703-2 43
limit, SpO2 352
NBP source 147
patient messages 53
pausing 44
physiological 53
pleth as source 141
red 41
reminder 44
restarting 46
reviewing 50
reviewing messages 50
reviewing window 50
selftest 52
silencing 44
SpO2 high and low limits 140
SpO2 specific 140
ST 122
suspended symbol 45
SvO2, behavior during
measurement 204
switching on and off 45
temperature 149
testing 52
tone configuration 42
traditional 43
visual indicators 42
volume, changing 43
VueLink and external devices 283
yellow 41
alphabetical listing of alarms 53
alternating current symbol 328
analog interface symbol 329
analog output
ECG 329
pressure 160
analog video out connector 332
annotating events 251
annotation
recording strip 262
apnea alarm delay
CO2 184, 192
apnea alarm delay time (RESP) 134
apnea alarms
and Resp detection modes 134
Application Server 33
arrhythmia
aberrantly conducted beats 108
analysis, how it works 107
atrial fibrillation and flutter 108
beat labels 109
initiating learning 111, 112
intermittent bundle branch block 109
learning during ventricular rhythm 112
levels of analysis 104, 107
monitoring non-paced patients 108
monitoring paced patients 108
options 107
relearning 111
relearning and lead fallback 112
status messages 110
switching on/off 108
understanding the display 109
arrhythmia alarms 41, 112
adjusting alarm limits 113
all yellow on/off 113
chaining 115
latching 113
multiple 115
i
pvc-related alarms 116
short yellow 105
sinus and SV rhythm ranges 350, 352
switching on/off 113
timeout periods 113
yellow 113
arrhythmia monitoring
and defibrillation 106
arrhythmia options 104
arrhythmia relearning
with EASI INOP 102
arterial catheter constant (PiCCO) 166
arterial pressure source 157, 158
arterial pulsation 137
arterial values 195
artifact suppression (pressure) 155
Aspect Medical Systems Inc 327
atrial fibrillation and flutter 108
audlatching (arrhythmia alarms) 113
auto alarm limits
switching on/off 49
using 49
auto detection mode (Resp) 132
auto ECG wave gain (recordings) 261
auto window (care groups) 88
autofilter 95
automatic arrhythmia relearn 112
automatic default setting 26
automatic NBP
repeat time 146
autosize
ECG wave 94
average trend events 243
awRR alarm
limits 184
awRR alarms
CO2 184
B
backlight
maintenance interval 306
balloon inflation, wedge measurement 159
baseline
ST map, updating 125
ST, updating 119
basic arrhythmia option 104, 107
basic event surveillance 241
setup 245
battery
and display brightness 302
battery compartment location 297, 298
battery reports 300
battery status recording 300
ii
battery status window 300
charge status 301
conditioning 302
conserving power 302
LED 298
malfunction symbols 298
power gauge 298
recharging 298
replacing 301
safety information 303
symbol 329
battery operation
MP20 MP30 297
MP40 MP50 297
beat labels
arrhythmia 109
BIS
BIS engine software revision 221
cables, securing 221
Continuous Impedance Check 218
Cyclic Impedance Check 218
filters 220
Ground Check 218
impedance indicators 219
monitoring 215
monitoring setup 216
numeric 215
numerics
on/off 220
safety information 221
smoothing rate
changing 220
updating software 221
window 219
Bispectral Index monitoring 215
blood pressure. See also NBP (non-invasive)
or PRESS (invasive)
Brightness SmartKey 31
brightness, adjusting 31
BSA formula (trends) 236
buffer (EEG) 211
buffer (EEG) on reports 213
buffer (EEG) on screen 212
bursts numeric (BIS) 215
C
C.I. 162
C.O. 161
accessories 319
calibrating measurements (PiCCO) 167
curve alert messages 171
documenting measurements 169
editing measurements (PiCCO) 166
editing measurements (RH
method) 169
flow-through method 168
hemocalc window 164
hemodynamic parameters available 162
injectate guidelines 170
PiCCO method 164
Procedure window 163
prompt messages 172
results table 163
right heart thermodilution method 168
saving measurements (PiCCO) 167
setup for PiCCO method 165
setup for RH method 168
setup menu 164
temperature unit 163
C.O. warning messages 173
C.O./CCO safety information 173
Calc Type 233
calculating
drug infusions 277
calculating cerebral perfusion 157
calculating oxygen extraction 206
calculating pulse pressure variation 157
calculating temperature difference 150
calculations 233
pop-up keys 234
calculations reports 237
calculations review 235
calculator 20
calibrating
CO2 transducer 180
tcGas transducer 199
calibrating C.O. measurements 167
calibration
interval, NBP 306
NBP 147
pressure 156
pressure transducer 156
SvO2 light intensity 205
SvO2 required equipment 203
SvO2, in-vivo 206
SvO2, pre-insertion 204
calibration status indicators (C.O) 167
capnography
mainstream 12
Microstream 12
capturing loops 290
carbon dioxide, see CO2 175, 187
cardiac output
how the measurement works 161
report 275
cardiac overlay
and Resp detection modes 133
when measuring Resp 131
cardiotach alarms 104
care groups
alarm notification 88
other bed window 87
pop-up window 88
catheter
SvO2, insertion 205
catheter constant, setting (PiCCO) 166
catheter preparation
SvO2 204
cautions 1
CCO
calibration status indicators 167
choosing the correct pressure source 166
how the measurement works 161
PiCCO method 164
central recorder
choosing 261
cerebral perfusion 157
CFI 162
chaining 115
change screen menu 22
changing ECG lead sets 96
changing EEG wave scale 212
changing EEG wave speed 213
changing Resp detection mode 132
changing Resp wave size 133
changing Resp wave speed 134
changing screen content 22
changing screens 22
changing wave scale
EEG 220
channels
recorder 261
checking battery charge 301
checking paced status 92
cleaning
infection control 293
method 294
monitoring accessories 294
recommended substances 294
recorder printhead 295
CO2
airway adapter 182
alarms, apnea delay 184, 192
alarms, awRR 184
alarms, specific 184
awRR alarm limits 184
checking transducer accuracy 179
correction, humidity 183
correction, N2O 183
corrections 183, 192
FilterLine 182
mainstream accessories 176, 188
measuring mainstream 176, 179
measuring microstream 181
method, mainstream 175
method, microstream 175
method, sidestream 175
microstream accessories 181
microstream extension 181
removing exhaust gases 179, 182
transducer, calibrating 180
transducer, using 180
troubleshooting 183, 192
wave scale, adjusting 183, 192
CO2 (mainstream).
accessories 320
CO2 (microstream).
accessories 321
code
recording 262
combi-events 248
Compressed Spectral Arrays (CSA) 211
computation constant (RH) 169
conditioning batteries 302
configuration
drug calculator 278
trends database 229
configuration mode 21
conflict
label 29
connecting BIS accessories 216
connecting temperature probe 149
connection direction indicator symbol 328
connection direction symbol 328
connector
AC power input 332
additional MSL 333
analog video out 332
ECG analog (sync) output 330, 332, 333
equipotential ground 332
marker input 345
MMS patient cable 333
mouse 332
MSL 332
printer 332
protective earth 332
recorder module 333
trackball 332
wired network 332
wireless network 332
connectors 329
serial/MIB 330, 331, 332
continuous cardiac output 161
Continuous Impedance Check (BIS) 218
conventional 12-lead ECG 100
correcting the NBP measurement 145
counting events 247
CPAP (RESP) 133
CSA (Compressed Spectral Arrays) 211
cuff
pressure, NBP 146
selection, NBP 145
current view
ST map 122
curve alert messages (C.O.) 171
Cyclic Impedance Check (BIS) 218
D
damage
mechanical 32
database
events 247
database configuration
trends 229
date, setting 31
default profile 26
default settings 369
defibrillation
and arrhythmia monitoring 106
and ECG monitoring 106
and monitoring BIS 221
during EEG monitoring 214
synchronization marks 93
defibrillator input 345
defibrillator proof symbol 328
defibrillator synch
maintenance interval 306
delay time
recording 261
delayed recording 259
deleting events 247
demonstration mode 21
desat alarm, SpO2 140
detection modes (Resp) 132
device driver
language conflict with monitor 284
diagnostic (ECG filter setting) 96
digital interface symbol 329
digital video device connection symbol 328
disabling touch operation 15
discharging a patient 79
disconnect INOPs
silencing 44
disinfecting
infection control 293
recommended substances 294
display
arrhythmia 109
ECG 93
NBP 145
Resp 132
ST 118
using a second display 23
display brightness 302
iii
display settings 24
disposal
gas cylinder 307
parts and accessories 307
documenting events 251
dosemeter (drug calculator) 279
dPmax 162
drip table (drug calculator) 280
drug calculator 277
DSC (BIS)
software revision 221
dual SpO2 141
dual Temp measurement 150
dyshemoglobins
intravascular (SpO2) 139
E
early systolic blood pressure, NBP 146
EASI
activating 96
ECG monitoring 102
lead placement 102
EASI ECG lead labels 97
ECG 91
accessories 309
alarms off (Config Mode) 105
changing lead sets 96
choosing electrode sites 96
conventional 12-lead 100
external pacing electrodes 106
filter settings 95
fusion beat pacemakers 106
intrinsic rhythm 106
modified 12-lead 100
New Lead Setup 96
pacemaker failure 106
rate adaptive pacemakers 106
unfiltered 96
wave size 94
ECG analog (sync) output 330, 332, 333
ECG analog output 329
ECG cable
for operating room 106
ECG cables, connecting 91
ECG connector 91
ECG display 93
ECG electrode colors 97
ECG electrode placement
during electrosurgery 106
ECG gain
in recordings 261
in reports 268
ECG lead labels 97
ECG lead placement
iv
choosing EASI/Standard 96
ECG leads monitored 96
ECG output 345
ECG report 276
lead layout 268
ECG safety information 105
ECG wave
autosize 94
calibration bar 94
ectopic status messages (arrhythmia
monitoring) 111
editing C.O. measurements (PiCCO
method) 166
editing C.O. measurements (RH method)
C.O.
saving measurements (RH
method) 169
EEG
accessories 322
monitor configuration and upgrade 214
EEG monitoring 207
buffer time 211
changing filter frequencies 213
changing wave scale 212
changing wave speed 213
choosing electrode montages 209
CSAs 211
electrical interference 214
electrode-to-skin impedance 210
gridlines 212
impedance quality indicators 210
Impedance/Montage Window 208
international 10-20 electrode placement
system 209
safety information 214
setting report buffer time 213
setting screen buffer time 212
setup 208
skin preparation 208
switching numerics on and off 212
EEG wave
changing scale 220
electrical input symbol 328
electrical interference
during EEG monitoring 214
electrical output symbol 328
electrode montage
EEG 209
electrode placement (ECG) 91
conventional 12-lead 100
modified 12-lead 100
electrode placement (Resp) 131
with abdominal breathing 132
with lateral chest expansion 132
electrode-to-skin impedance (BIS) 219
electrode-to-skin impedance (EEG) 210
electromyographic activity numeric
(BIS) 215
electrosurgery
and ECG 106
EMC interference
Resp 134
EMG numeric (BIS) 215
EMI filter for ECG 95
end case
discharging a patient 79
report, printing 79
end case reports
setup 269
enhanced arrhythmia option 104, 107
entering values
calculations 236
equipotential ground connector 332
equipotential grounding symbol 328
event
annotation 251
combi-events 248
counting oxyCRG/NER events 248
event counter 247
event episode 242
event episode recording 253
event episode types 243
event episode window 250
event post-time 242
event pre-time 242
event retriggering 245
event review recording 252
event review window 249
event summary view 249
event time 242
event triggers 244
event values 251
manual event triggers 246
recording 251
setting up NER 245
event database 247
event episode reports 270
event groups 242
event report 254
event review reports 270
event snapshots 243
event surveillance 241
options 241
events pop-up keys 243
EVLW/EVLWI 162
exclamation mark symbol 328
exhaust gases, removing 179, 182
extension cable for SpO2 138
external devices
alarms and INOPS 283
connecting to VueLink 281
connecting via VueLink 282
external pacing electrodes
and ECG monitoring 106
extreme bradycardia alarm 105, 129
extreme rate alarms 105, 129
extreme tachycardia alarm 105, 129
F
fallback (ECG) 97
FAST
Fourier artefact suppression
technology 137
filter (ECG filter setting) 95
filter (ECG) 95
filter frequencies (EEG) 213
FilterLine
CO2, microstream accessory 182
filters
BIS 220
flexible module server - see FMS 8
flushing invasive pressure accessories 151
FMS
connecting to monitor 8
modules 8
functional arterial oxygen saturation 137
fusion beat pacemakers
and ECG monitoring 106
G
gas cylinder
empty, disposing of 307
gas input symbol 328
gas output symbol 328
GEDV/GEDVI 162
getting started 32
global trend time 230
graphic trend
report 225
graphic trends 224
graphic trends report 228
gridlines (EEG) 212, 220
Ground Check (BIS) 218
H
hardkeys 19
help
INOPS 51
hemodynamic calculations 233
hemodynamic measurement server
extension 13
hemodynamic parameters 162
high filter (EEG) 213
high pass filter (BIS) 220
high resolution recording 259
high-res trend event episodes 243
high-res trend waves
about 239
OxyCRG 239
high-res waves
in reports 240
list of available measurements 343
recordings 240
HiResTrnd
see high-res trend 243
horizon trend
trend time 230
HR = RR (Resp) 132
HR alarms
when arrhythmia off 105
HR alarms off (Config Mode) 105
HR and pulse alarm source selection 129
HR from (heart rate source) 128
humidity correction
CO2 183
I
IEC ECG lead labels 97
impedance indicators (BIS) 219
impedance quality indicators 210
IMV (Resp) 133
independent display connection
symbol 328
infection control
cleaning 293
disinfecting 293
sterilizing 293
Information Center
central recording 258
transferring patients 80
injectate guidelines for C.O. 170
injectate volume setting (C.O.) 166
INOPs
from external devices 283
indicators 41
silencing 44
input
defibrillator 345
installation
connectors 329
Instructions for Use
intended audience 1
integrated module slots (MP40 50 60
70) 257
IntelliVue family 1
intermittent bundle branch block 109
intermittent mandatory ventilation
(Resp) 133
interruption symbol 328
intravascular dyshemoglobins (SpO2) 139
intrinsic rhythm 106
invasive pressure 151
in-vivo calibration, SvO2 206
ISO point (ST) 120
ITBV/ITBVI 162
J
J point (ST) 120
K
keyboard connection symbol 328
keys
hardkeys 19
permanent keys 17
pop-up 19
SmartKeys 18
L
label conflict resolution 29
labels
resolving conflict 30
language conflicts with device driver 284
latching
alarms 51
alarms, behavior 52
latching arrhythmia alarms 113
lateral chest expansion (neonates)
monitoring Resp 132
LCW/LCWI 162
lead fallback
and arrhythmia relearning 112
lead fallback (ECG) 97
lead labels (ECG) 97
lead placement
activating EASI/Standard 96
for Resp measurement 131
leads monitored (ECG) 96
Leads Off INOP (ECG) 97
LED
battery status 298
levels of arrhythmia analysis 107
levels of event surveillance 241
line frequency interference (BIS) 220
loops 289
capturing 290
loop size in window 291
loops report 292
source device 291
volume-flow 289
low filter (EEG) 213
v
low pass filter (BIS) 220
LVCI 162
M
M1116B 257
M3160A recorder 258
main screen overview 14
mainstream
capnography 12
mainstream CO2
accessories 176, 188
measuring 176, 179
maintenance
cables 305
cords 305
measurements, schedule 306
microstream CO2, calibration 306
schedule 305
visual inspection 305
major parts and keys
MP20 MP30 3
MP40 MP50 4
malfunction symbols
battery 298
manual detection mode (Resp) 133
and apnea alarms 134
manually triggering events 246
manufacture date symbol 328
manufacturer’s information 326
map
ST 122
marker input connector 345
Mason-Likar lead system 100
max hold setting (CO2) 175
MDF (mean dominant frequency) 207
mean dominant frequency (MDF) 207
mean pressure calculation (trends) 236
measurement
adjusting a wave 27
preparation 32
setting up 26
switching on and off 27
wave speed, changing 27
measurement modules
setting up 32
measurement points, ST 120
measurement selection window 31
measurement server
ECG connector 91
measurement server extension
M3012A 13
M3015A 12
M3016A 12
measurement server link cable 8
vi
measurement server link connection
symbol 328
measurement servers
setting up 32
measurement settings 24
mechanical damage 32
merging patient data 84
methemoglobin (SpO2) 139
MIB connector 330, 331, 332
Microstream capnography 12
microstream CO2 181
accessories 181
maintenance, calibration 306
measuring 181
minimize 34
mismatch
patient data, resolving 82
MMS
connecting to FMS 10
connecting to monitor 10
patient cable connector 333
using for patient transfer 81
modified 12-lead ECG 100
modified screen history 22
modifying
screens 22
module
connecting 9
reconnecting 9
removing 9
setup key 9
setup menu 9
tcGas 195
unplugging 9
VueLink 281
VueLink Type A and Type B 281
modules
setting up 32
monitor
inspecting before use 32
starting monitoring 33
switching on 32
monitor (ECG filter setting) 95
monitor defaults 369
monitor revision
how to find 32
monitor settings 24
changing 31
monitoring
preparation 32
monitoring BIS 215
monitoring EEG 207
monitoring mode 21
mouse
using 17
mouse connection symbol 328
mouse connector 332
MP20 2
MP20 Junior 2
MP20 MP30
major parts and keys 3
screen menus 15
MP30 2
MP40 4
MP40 MP50
major parts and keys 4
screen menus 15
MP50 4
MR imaging and the SpO2 transducer 139
MSL cable 8
MSL connector 332
MSL, additional connector 333
multi-lead ST alarming 122
multi-measurement server (MMS) 10
N
N2O correction
CO2 183
narrow alarm limits 49
navigating 14
mouse 17
permanent keys 17
SmartKeys 18
trackball 17
navigation point 17
NBP
adult cuffs 312
alarm source 147
ANSI/AAMI SP10-1992 143
automatic mode, enabling 146
calibrating 147
calibration interval 306
comfort cuff kits 311
comfort cuffs 311
cuff pressure 146
cuff, applying 145
cuff, selecting 145
cuff, tightness 145
disposable cuffs 311
how the measurement works 143
measurement correction 145
measurement limitations 144
measurement methods, auto 144
measurement methods, manual 144
measurement methods, stat 144
measurement, starting 146
measurement, stopping 146
neonatal cuffs (disposable) 312
numerics 145
oscillometric method 143
pediatric cuffs 312
preparing to measure 144
repeat time 145
repeat time for automatic 146
repetition time, setting 146
reusable cuffs 311
single-hose disposable cuffs 312
site inspection 145
time of last measurement 145
units 145
venous puncture 147
neonatal event counting 248
neonates
Resp electrode placement 132
NER setup 245
network connection indicator 14
network connector, wired 332
network connector, wireless 332
networked monitoring 33
new features 35
non-invasive blood pressure. See NBP
non-paced patients
arrhythmia monitoring 108
notch filter (BIS) 220
numerics
explanation of NBP display 145
nurse call 45
nurse call relay connection symbol 328
O
on screen calculator 20
operating 14
mouse 17
permanent keys 17
SmartKeys, using 18
trackball 17
operating modes 21
configuration 21
demonstration 21
monitoring 21
passcode protection 21
service 21
operating room ECG cable 106
orange ECG cable 106
organizers 311
Oridion Systems Ltd 327
Original Calc pop-up key 235
oscillometric NBP measurement
method 143
other bed window 87
output
ECG 345
overlap
in recordings 261
overlapping screen trends 231
oxyCRG 239
event counting 248
OxyCRG event episodes 243
oxygen extraction 206
oxygenation calculations 233
P
pace pulse rejection (ECG)
about 92
switching on/off 94
paced patients
arrhythmia monitoring 108
repolarization tails 94
safety information 106
setting status 106
paced status
checking 92
pacemaker failure 106
paper
reloading (recorder) 264
paper size
for reports 270
parallel interface symbol 328
parallel printer connection symbol 328
parameter scales
trends 227
passcode protection 21
patient
admit 77
category, NBP 143
discharge 79
end case 79
patient alarm messages 53
patient demographics window 77
patient mismatch 82
patient reports
contents 272
patient trends
viewing 223
paused alarms 44
extending time 46
restarting 46
PAWP 158
peak power frequency (PPF) 207
performance specifications
pressure 348, 354
performance test 365
performing calculations 235
perfusion indicator 137, 138, 141
pf loops 289
Philips contact information 326
physiological alarms 41
PIC cable (BIS)
securing 221
PiCCO method
C.O. 164
CCO 164
setup 165
pleth alarm source 141
pleth wave 140
pleth waveform 137
plug-in recorder 257
pop-up keys 19
events 243
power
disconnecting from
mains power
disconnecting from 33
power on symbol 328
PPF (peak power frequency) 207
PPV 157
preparing skin
for ECG 91
pressure
alarms during zero 153
arterial source 157, 158
calibration pressure 156
cerebral perfusion, calculating 157
performance specifications 348, 354
wave scale 154
wave size 154
wedge 158
wedge, editing 159
zeroing the transducer 152
pressure accessories 313
pressure analog output 160
pressure artifact suppression 155
pressure of NBP cuff 146
pressure transducer
calibration 156
zeroing 153
pressure-flow loops 289
pressure-volume loops 289
previous screen 22
primary lead (ECG)
selecting 92
print job
suspended 271
printer
disabling 271
settings 270
status messages 272
unavailable 271
printer connection symbol 328
printer connector 332
vii
printing
C.O. measurements 169
calculations reports 237
event reports 251
ST map reports 125
status log 307
trends reports 228
wedge 159
priority list for trends 227
probes
disposable temperature 149
profiles 24
default profile 26
patient category 25
swapping 25
swapping setting block 26
prompt messages
C.O. 172
protective earth 332
protective earth symbol 328
pulse
alarms 128
system pulse source 127
pulse numerics for SpO2 138
pulse pressure variation 157
Pulsion Medical Systems AG 327
pv loops 289
PVC-related alarms 116
PVR/PVRI 162
Q
QRS tone 129
changing volume 31
QRS tone pitch, SpO2 141
QRS volume, changing 95
quick admit 78
quick mount release symbol 328
R
radiated field immunity
Resp 134
rate adaptive pacemakers
and ECG monitoring 106
ratemeter (drug calculator) 279
RCW/RCWI 162
realtime recording 259
realtime report 274
realtime reports
content 270
reconnecting a module 9
recorder 257
4-channel 258
cleaning the print head 295
viii
paper accessories 324
recorder module connector 333
recorder status messages 265
recording
alarm 259
annotation 262
battery status 300
beat-to-beat 259
C.O. measurements 169
central 258
changing recording type 261
channels 261
choosing recorder 261
choosing recording speed 261
context 259
creating templates 260
delayed 259
drug calculations 280
ECG gain 261
extending 259
high resolution 259
local 257
preventing fading ink 263
procedure 259
realtime 259
recording strip 262
recording strip code 262
reloading paper 264
runtime 261
setting the runtime 261
setup menu 260
ST segments 119
starting and stopping 258
types 259
wave overlap 261
wave scale 261
waveforms recorded 263
wedge 159
with the plug-in recorder 257
recording delay time 261
recording events 251
reference waves, wedge measurement 158
refresh 34
rejecting pace pulses 92
related products
power-on LED 8
problem LED 8
switching on 8
relearning arrhythmia 111
reloading recorder paper 264
remembraning tcGas transducer 197
reminder, alarm 44
remote alarm device
alarms
remote device 7
remote applications
minimize 34
refresh 34
using 33
window size 34
remote SpeedPoint 16
removing a module 9
replacing batteries 301
repolarization tails 94
report
cardiac output 275
event review 254
reports
alarm limits 273
battery reports 300
calculations 237
choosing paper size 270
contents 272
drip table 280
drug calculator 280
ECG 276
end case 269
loops 292
patient trends 228
realtime report 274
re-routing 271
scheduled 269
setting up 268
ST map 125
stopping printouts 268
titration table 280
trends 225
re-routing reports 271
resampling vitals 234
resolution
trends 227
resolving patient mismatch 82
resp accessories 309
Resp alarms
apnea alarm delay time 134
Resp detection level
and apnea detection 134
Resp detection modes
and cardiac overlay 133
changing 132
Resp display 132
Resp monitoring
and cardiac overlay 131
Resp safety information 134
Resp wave
changing size 133
changing speed 134
respiratory loops
source device 291
restarting paused alarms 46
results table (C.O.) 163
re-triggering events 245
retrolental fibroplasia (SpO2) 140
review
calculations 235
reviewing alarm messages 50
reviewing alarms 50
reviewing alarms window 50
RH method
computation constant 169
rhythm status messages (arrhythmia
monitoring) 110
right heart thermodilution method
(C.O.) 168
right heart thermodilution setup
(C.O.) 168
rs-232 interface symbol 328
rule of six 278
runtime
setting recording runtime 261
RVSW/RVSWI 162
S
safety
maintenance interval 306
monitor 336
safety information
batteries 303
BIS 221
C.O./CCO 173
ECG 105
Resp 134
safety test 365
same patient data merge 84
scale
ECG wave 94
Resp wave 133
scales
for trends waveforms 227
scheduled reports 269
screen
adjusting brightness 31
disabling touch operation 15
elements 15
using a second display 23
screen trend
trend time 230
screen trends 229
screens
changing 22
changing content 22
understanding 22
visitor screen 24
secondary lead (ECG)
selecting 92
SEF (spectral edge frequency) 207
SEF numeric (BIS) 215
on/off 220
selecting the primary lead (ECG) 92
selecting the secondary lead (ECG) 92
selftest
alarms 52
sensor
disposable SpO2 137
sensor temperature
tcGas 196
serial LAN interface 329
serial/MIB connector symbol 328
service mode 21
set combiners 311
setting the arterial catheter constant
(PiCCO) 166
setting the computation constant (RH) 169
setting up
trends 225
setting up reports 268
settings
about 26
default 369
measurement settings 26
monitor settings 26
screen settings 26
settings blocks 24
setup key, module 9
setup menu, module 9
setup menu, MP20 30 40 50 15
Setup Recording menu 260
short yellow alarms 105
signal quality index numeric (BIS) 215
signal quality of SpO2 139
sinus and SV rhythm ranges 350, 352
site timer
tcGas 196
skin preparation
ECG 91
EEG 208
SmartKeys 18
smoothing rate (BIS) 220
snapshots
events 243
source device
loops 291
specifications 325
arrhythmia 348
spectral edge frequency (SEF) 207
spectral edge frequency numeric (BIS) 215
speed
recording 261
wave speed, changing 27
SpeedPoint 16
SpeedPoint, remote 16
SpO2
accessories 313
active alarm source 141
alarms specific to 140
arterial pulsation 137
assessing suspicious reading 139
calculating difference between
values 141
connecting the cables 138
disposable sensors 137
dual SpO2 141
extension cable 138
FAST technology 137
Nellcor adhesive sensors
(disposable) 313
perfusion indicator 137, 138, 141
Philips sensors (disposable) 313
Philips sensors (reusable) 313
pleth as alarm source 141
pleth wave 140
pleth waveform 137
pulse numerics 138
QRS tone 141
signal quality 139
site inspection 139
site selection 137
tone modulation 141
SpO2 desat alarm 140
SpO2 limit alarms 140
Sp-vO2 206
SQI numeric
on/off 220
SQI numeric (BIS) 215
SR numeric (BIS) 215
on/off 220
ST
adjusting alarm limits 122
alarms 104, 122
baseline, updating 119
ensuring diagnostic quality 117
filtering 117
measurement points, adjusting
adjusting 120
multi-lead alarms 122
numerics in ECG wave 93
snippets 118
ST display 118
ST map
baseline, updating 125
current view 122
report, printing
printing
ST map report 125
scale, changing
ix
scale
ST map 125
task window 124
trend view 123
trending interval, changing 125
trending priority 124
ST maps 122
ST point 120
standard 10-lead placement 100
standard 3-lead placement 98
standard 5-lead placement (ECG) 98
standardized rate 277
standby symbol 328
starting monitoring 33
status line 14
status log
printing 307
status messages
printer 272
recorder 265
status messages (arrhythmia) 110
ectopic 111
rhythm 110
sterilizing
infection control 293
stopping reports printouts 268
suppression ratio (BIS) 215
surgical ECG cable 106
suspended alarm 45
suspicious SpO2 reading 139
SV/SI 162
SvO2
accessories 323
alarms 204
calibration equipment 203
catheter insertion 205
catheter preparation 204
Hospira, accessories 203
in-vivo calibration 206
light intensity calibration 205
measurement principle 203
monitoring 204
SVR/SVRI 162
switching on
monitor 32
symbols 328
battery 298
synchronization marks (defibrillator) 93
system pulse 127
systolic blood pressure, NBP, early 146
T
tabular trends 224
Tamb 150
x
task window for ST map 124
Tcereb 150
tcGas 195
sensor temperature 196
transducer, calibrating 199
transducer, remembraning 197
tcGas site timer 196
technical alarms messages
see INOPs 59
temperature 149
accessories 318
alarm settings 149
connecting probe to monitor 149
difference, calculating 150
dual Temp measurement 150
extended label set 150
first 150
label 149
making a measurement 149
probe, disposable 149
probe, selecting 149
second 150
tcGas sensor 196
temperature probe
connecting 149
templates
creating for recordings 260
testing alarms 52
time, setting 31
Tinj Probe Type 165
titration table (drug calculator) 280
tone configuration, alarm 42
tone mod (SpO2) 141
tone modulation 141
total power (TP) 207
total power numeric (BIS) 215
touch tone volume 31
touchscreen 15
disabling 15
TP (total power) 207
TP numeric (BIS)
on/off 220
trackball connector 332
trackball, using 17
trademarks 327
transcutaneous gas measurements 195
transducer
CO2, accuracy 179
CO2, calibrating 180
pressure, zeroing 152
tcGas, calibrating 199
tcGas, remembraning 197
transferring centrally-monitored
patients 80
transferring patients with MMS 81
transport brightness setting 302
trend time 230
global 230
trend view
ST map 123
trending interval
ST map 125
trends
automatic unit conversion 236
automatic value substitution 236
database configuration 229
resolution 227
screen trends 229
setting parameter scales 227
setup 225
viewing 223
trends pop-up keys 225
trends priority list 227
ST map 124
trigger conditions
events 245
triggers
for events 244
troubleshooting
CO2 183, 192
trunk cables
accessories 309
Ttymp 150
Tvesic 150
Tyco Healthcare Group LP 327
U
unfiltered ECG signal 96
unplugging a module 9
upgrading
effect on EEG configuration 214
user interface settings
changing 31
V
V electrode placement (ECG) 99
venous puncture 147
ventilation calculations 233
viewing arrhythmia waves 109
viewing trends 223
visible waves report 270
visitor screen 24
vislatching (arrhythmia alarms) 113
vital signs
recording 225
report 225
vital signs report 228
volume
alarm 43
touch tone volume 31
volume-flow loops 289
VueLink
alarm messages 283
device driver conflicts 284
language conflicts 284
module 281
module options 281
module setup 282
visible waves and numerics 281
Z
zero
effect on pressure alarms 153
zeroing
pressure transducer 152
W
warnings 1
wave
adjusting 27
changing speed 27
scale (CO2) 183, 192
scale (pressure) 154
size (CO2) 183, 192
size (pressure) 154
wave channel speed 28
wave group speed 27
wave scale (EEG)
changing 220
wave size
Resp 133
wave size (ECG)
changing 94
wave speed
eeg speed
wave speed
global speed 27
respiratory speed 27
wave speed (EEG) 213
wave speed (Resp) 134
wedge
balloon inflation 159
editing 159
printing 159
pulmonary artery 158
recording 159
reference waves 158
what’s new 35
wide alarms limits 49
wired network connection symbol 328
wireless device connection symbol 328
Y
yellow arrhythmia alarms 113
yellow arrhythmia alarms on/off 113
xi
xii
