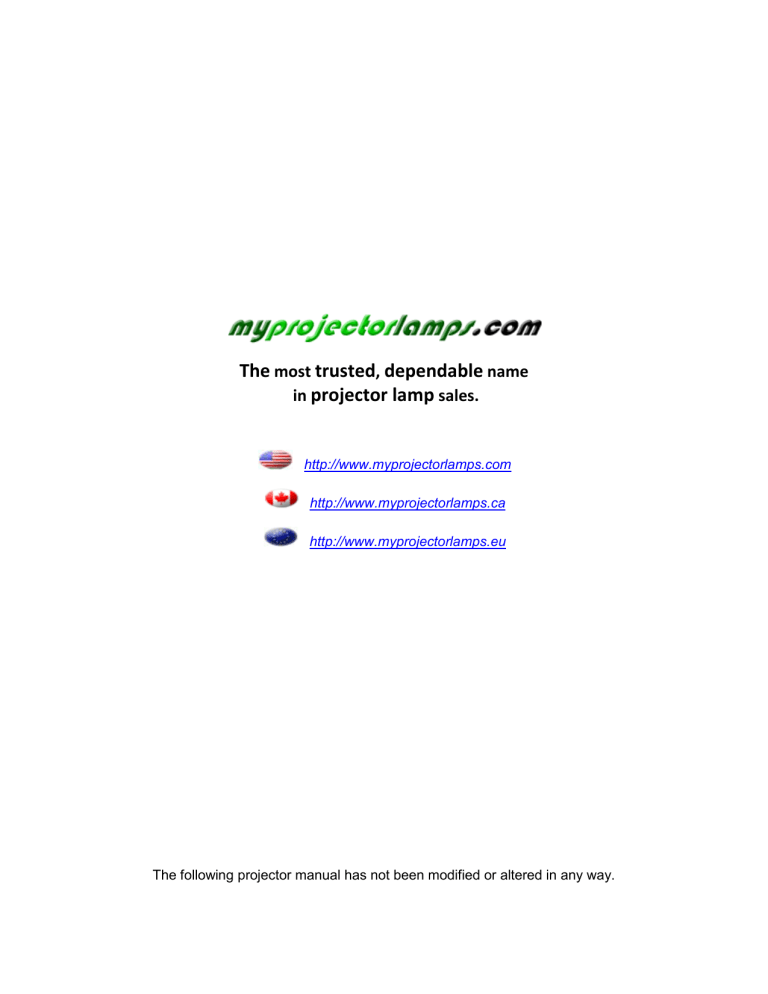

The most trusted, dependable name in projector lamp sales. http://www.myprojectorlamps.com http://www.myprojectorlamps.ca http://www.myprojectorlamps.eu The following projector manual has not been modified or altered in any way. Liquid Crystal Projector ENGLISH Model name MP-93i OPERATING GUIDE Thank you very much for purchasing this BOXLIGHT Liquid Crystal Projector. Please read this operating guide to use correctly. After reading this manual, keep it carefully for future reference. Outline This Liquid Crystal Projector can display various computer signals and NTSC/PAL/SECAM video signals. Features (1) High brightness A highly efficient optical system with a UHP lamp ensures high brightness. (2) High resolution Three separate high-definition liquid crystal panels are used for the R, G and B signals. (3) (4) (5) (6) (7) (8) (9) Compact size, light weight for portability RGB output terminal RS232C Communication Mouse emulation Power zoom and power focus functions Complies with VESA DDC1/2B specifications Auto-adjustment function Contents Page Before use ......................................3 Contents of shipping box..................7 Names and functions of each part ..7 Installation ....................................11 Basic operations ............................12 Adjustments and functions ............15 Connection to the video signal terminals ................................19 Connection to the RGB signal terminal ..................................19 Connection to the control signal terminal ........................22 Example of system setup ..............27 Cleaning the air filter ......................28 Lamp ..............................................29 Message table................................30 When you think something wrong ..31 Specifications ................................32 FOR THE CUSTOMERS IN U.K THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE U.K PLEASE REFER TO THE NOTES ON THIS PAGE. IMPORTANT FOR UNITED KINGDOM WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug. Fuse covers are available from your dealer. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferable a qualified electrician. If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply. WARNING: THIS EQUIPMENT MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green and Yellow=Earth, Blue=Neutral, Brown=Live. Green & Yellow to Earth Brown to Live Fuse Blue to Neutral Cord Clamp As these colours may not correspond with the coloured makings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow. The wire coloured Blue must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED. 2 WARNING:This equipment has been tested and found to comply with the limits for a Class A digital ENGLISH device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications, Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Instructions to Users: This equipment complies with the requirements of FCC (Federal Communication Commission) Class A equipments provided that following conditions are met. (1) Video signal cables: Double shielded coaxial cables (so called FCC shield cable) must be used and the outer shield must be connected to the ground. Or, if normal coaxial cables are used, the cables must be enclosed in metal pipes or similar way to reduce the interference noise radiation. (2) Power cord: Shielded power cord must be used. The outer shield must be connected to the ground. (3) Video inputs: The input signal amplitude must no exceed the specified level. Before use (Before Use) Illustrated marks Various illustrated marks are used in this product and instruction manual so the product is used correctly and safely, and also to protect you and others from danger and your property from being damaged. Warning Caution Examples of illustrated marks This shows that a person could be killed or injured if the wrong operation is done by ignoring this indication. This shows that a person could be injured or material may be damaged if the wrong operation is done by ignoring this indication. The mark informs you that there is a warning (including caution). The concrete details of the warning (the left diagram shows the caution for an electric shock hazard) is shown in the diagram. The mark informs you of a prohibited action. The concrete prohibited action (the left diagram shows the prohibition of disassembly) is drawn in the diagram or near it. The mark informs you of actions you must do. The concrete instruction details (the left diagram shows "Disconnect the power plug from the power outlet") is drawn in the diagram. 3 [Safety precaution] Warning If any abnormality occurs. • When there is an abnormal smell or smoke, if you use this unit as it is, this could cause a fire or electric shock, etc. When an abnormality is found, immediately turn off the power switch and pull out the power plug from the power outlet. Check that there is no smoke, etc., then contact your dealer to repair the unit. Do not repair it yourself as it is very dangerous. • Do not use this unit as it is after trouble has occurred, such as "No picture", "No sound", "Abnormal sound", etc. This may cause a fire, • electric shock, etc. In this case Pull out the power plug from the power outlet. immediately turn off the power switch and disconnect the power plug, then contact your dealer to repair the unit. • If water, etc. enters inside the unit, turn off the power switch of the unit first and disconnect the power plug and then contact your dealer. If you use it as it is, it may cause a fire, electric shock, etc. Do not install this unit in an unstable place. Avoid placing it in an unstable place such as weak base, inclined floor, etc. This may cause it to drop or fall over, resulting in injury. Do not look directly at the lens when the lamp is lit. Do not look directly at the lens when the lamp is lit. Since a strong light is used, it could damage you vision, etc. Especially pay attention if children are present. Do not insert any foreign object. • Do not insert a metal or flammable object inside through the ventilation holes, etc. This may cause a fire, electric shock, etc. • If foreign matter enters inside, turn the power switch off and disconnect Pull out the the power plug from the power power plug outlet and contact your dealer. If from the power you use as it is, it may cause a fire, outlet. electric shock, etc. Be careful especially if children could touch the unit. Do not apply any shock. If you drop this unit or if the cabinet is broken, turn off the power switch, disconnect the power plug and contact your dealer. If you use it as it is, it may cause a fire, electric shock, etc. Pull out the power plug from the power outlet. Do not remodel this unit. Do not remodel this unit. It may cause a fire, electric shock, etc. Do not open the cabinet. 4 Prohibition of disassembly Do not open the cabinet. There are high voltage parts inside the cabinet and this may cause an Electric shock Prohibition of electric shock. Ask your hazard disassembly dealer to check inside and adjust and repair the unit. Do not put a container, etc. with Do not use this in a bathroom, etc. Do not use power supplies other Do not use this unit in a bathroom, etc. This may cause a fire, electric shock, etc. than that specified. Do not use near water liquid on this unit. Do not put a vase, flowerpot, cosmetic container, medicine or water and small metal objects on this unit. If liquid spills and enter inside the unit, it may cause a fire, electric shock, etc. Do not use this unit with a power voltage other than specified power supply voltage. It may cause a fire, electric shock, etc. Warning • Do not scratch, damage or process the power cord. Do not bend it forcibly. Also do not put a heavy object on it, do not heat it and do not pull it. If you do, the power cord may be damaged and it may cause a fire, electric shock, etc. ⋅ Do not pull the cord. ⋅ Do not put a heavy object on it. ⋅ Do not damage the cord. ⋅ Do not put it near a heating device. • Be careful that this unit is not placed on the power cord. The power cord may be damaged and it may cause a fire, electric shock, etc. If the cord is covered with a carpet, etc. a heavy object may be put on it without your realizing it. • If the cord is damaged (core wire is exposed, disconnected, etc.), ask your dealer to replace it. It may cause a fire, electric shock, etc. • Check that no dirt adheres to the power plug and fully insert without any play. If dirt adheres or the connection is incomplete, it may cause a fire, electric shock, etc. • The outer shield of power cord must be connected to ground. If you do not, it may cause a electric shock. ENGLISH Be careful in handling the power cord. Caution Do not step on this unit or do not put a heavy object on it. • Do not step on this unit. Especially pay attention if children are present. If you do, the unit may fall over or may be broken causing an injury. • Do not put a heavy object on this unit. If you do, the unit may fall due to its imbalance or it may drop, causing an injury. Do not block the ventilation holes. Do not block the ventilation holes. If the ventilation holes are blocked, the heat inside may build up and it may cause a fire. Do not use this unit in the following ways: On its side. In a poorly ventilated, narrow place. On a carpet or bedspread. Covered with a tablecloth. Place this unit so that the ventilation holes are kept 50cm or more away from the wall. Cleaning Be sure to pull out the power plug from the power outlet for safety when cleaning. Set the caster stoppers. When this unit is installed on the table with casters, set the caster stoppers. If the table moves, it may fall over, causing an injury. Do not place this unit in a moist or dusty place. • Do not place this unit in a moist or dusty place. It may cause a fire, electric shock, etc. • Do not place this unit where it would be exposed to soot or steam, near a cooking stove or humidifier, etc. It may cause a fire, electric shock, etc. Handle the power cord carefully. • Do not bring the power cord near a heating device. The shield of the cord may melt and it may cause a fire, electric shock, etc. • Do not insert / disconnect the power plug with wet hands. It may cause an electric shock. • When the power plug is to be disconnected, do not pull the power cord. The power cord may be damaged and it may cause a fire, electric shock, etc. Be sure to hold the power plug. Caution when carrying it. Pull out the power plug from the power outlet. When this unit is to be moved, apply a cover to the lens and be sure to disconnect the power plug from the power outlet and check that all external connection cords are removed before moving it. If not, the cord may be damaged and it may Pull out the cause a fire, electric shock, etc. power plug from the power outlet. 5 Caution Caution when replacing the lamp. Use of batteries. • Do not use batteries not specified for this unit. Do not use new batteries mixed together with old ones. This may cause a fire, injury due to burst of battery, liquid leakage. • When inserting batteries in this unit, pay attention to the direction of the and polarity indications and insert the batteries correctly. If the polarities are confused, it may cause injury or damage near the unit due to burst batteries, liquid leakage, etc. When you are not going to use for a long time. When you are not going use this unit for a long time because you are going on a trip, etc., be sure to pull out the power plug from the power outlet for safety. And also apply cover to the lens so that the lens is not damaged. Pull out the power plug from the power outlet. Clean inside the unit at least once two years. Ask your dealer to clean inside the unit at least once two years. If the unit is left with too much dust inside as it is for a long this without cleaning, it may cause a fire. Especially it is effective to clean before the rainy season starts. Consult your dealer for the cost of the cleaning the inside the unit. • When replacing the lamp, turn off the power of the projector and disconnect the power plug from the power outlet. Then wait for 45 minutes to allow the lamp cool: Failure to do so could result in a burn. • For disposal of used lamp, treat Pull out the according to the instruction of power plug from the community authorities. power • Since the lamp is made of glass, do outlet. not apply shock to it and do not scratch it. • Also, do not use old lamp. This could also cause explosion of the lamp. • If it is probable that the lamp has exploded (explosive sound is heard), disconnect the power plug from the power outlet and ask your dealer to replace lamp. The lamp is covered by front glass and air-tight structure, but, in rare cases, the reflector and the inside of the projector may be damaged by scattered broken pieces of glass, and broken pieces could cause injury when being handled. • When the lamp has been replaced, reset the accumulated operation time of the lamp. • Do not reset if the lamp has not been replaced. Front glass Reflector Lamp [General cautions] Do not place this unit where it gets hot. Be careful since if you place the unit outdoors, in a place exposed to direct sunlight or near a heating device, the cabinet and parts could be affected. Volume. Use at the proper volume level so that it does not bother persons in the neighborhood. Especially, since the sound is likely to carry well at the night even at a low volume, consider the neighborhood to a good living environment. Cleaning the lens. To clean the lens, use a generallyavailable lens cleaning tissue (used for cleaning lens of camera, glasses, etc.). Be careful not to scratch the lens with a hard object. 6 Cleaning the cabinet. • Since many plastic materials are used on the surface of the cabinet, if the surface is cleaned using benzene, thinner, etc., it may change in quality or the coating may be peeled off. Avoid using chemicals. • When a chemically-teated cloth is used, follow the cautions that come with the cloth. • Do not spray a volatile agent such as insecticide on the unit. Do not leave a rubber or vinyl object touching the cabinet for a long time. It may cause the cabinet to change in quality or the coating to peel off. • Clean the dirt from the cabinet and operation panel by dusting lightly with a soft cloth. If the dirt is conspicuous, wipe off with a cloth moistened with detergent diluted with water, then wipe off with a dry soft cloth. Rest your eyes occasionally when viewing for a long time. Contents of shipping box Check that the carton contains the following items. STANDBY/ON MUTE Liquid Crystal Projector OPERATING GUIDE Flüssigkristall-Projektor BEDIENUNGSANLEITUNG Vidéoprojecteur à cristaux liquidis NOTICE D'UTILISATION LIBRETTO D'ISTRUZIONI TIMER RGB Proyector con paneles de cristal líquido VIDEO INPUT MANUAL DE INSTRUCCIONES Vloeibare-kristallen Projektor GEBRUIKSAANWIJZING Flytende krystall prosjektør BRUKERHÅNDBOK Remote Control Transmitter (batteries included) ESPAÑOL BLANK NEDERLANDS Proiettore A Cristalli Liquidi MOUSE ON NORSK MENU ON ITALIANO RIGHT RESET Liquid Crystal Projector ENGLISH LASER DEUTSCH POSITION ON FRANÇAIS MP-93i MAGNIFY VOLUME OFF ENGLISH FREEZE Operating Guide ON 1 2 3 4 5 6 OFF Power Cord 110V - US 3-Conductor Video/Audio Cable RGB Cable (15-15 pin M/M) Mouse cable 3 Mac adapter with dip switch Names and functions of each part Main unit ON indicator This blinks in the standby mode and lights in the operation mode.(See page 31) STANDBY / ON button Power ON/OFF button. OFF sets the unit in standby mode. (see page 12~13) STANDBY/ON INPUT button To select the input source. Each time this button is pressed, the input source is changed in sequence as shown below.(See page 12) INPUT MUTE MUTE button Silences the sound. (Cancels the mute when the unit is set in mute mode.) RESET button MENU RGB1 VIDEO RESET MENU button Resets unit to factory settings. (See page 15) LAMP indicator RGB2 Picture adjustments. Refer to page 15~18 for details. LAMP TEMP TEMP indicator This lights or blinks when the lamp does not light. (See page 31) This lights or blinks when temperature inside the projector is too high or when fan is abnormal.(See page 31) Speaker ZOOM knob Speaker Adjusts picture size. (See page 12) Remote control sensor Cooling fan (exhaust) Lens Lens cap Cooling fan Handle (in take) • Use the remote control transmitter within the range of about 16 feet from the remote control sensor and within 30° to both the left and right. FOCUS ring Adjusts focus. (See page 12) 7 Names and functions of each part (continued) Remote control sensor MAIN POWER switch Main power ON/OFF switch. : OFF : ON VIDEO input terminal (on video-equipped models only) S-VIDEO input terminal Mini DIN 4pin connector VIDEO input terminal RCA Jack AUDIO L/R input terminal RCA Jack AC IN socket Connect the provided power cord. S-VIDEO IN 1 RGB IN 2 RGB input terminal VIDEO IN D-sub 15pin shrink terminal (1/2) CONTROL RGB OUT AUDIO IN L MONO AUDIO IN 1 2 AUDIO OUT R CONTROL terminal D-sub 15pin shrink terminal AUDIO output terminal (RGB/VIDEO) Stereo mini jack 8 AUDIO input terminal RGB output terminal Stereo mini jack (1/2) D-sub 15pin shrink terminal RGB output can be displayed even in the standby mode. Names and functions of each part (continued) Remote control transmitter MUTE button STANDBY / ON button FREEZE Button Silences the sound. (Cancels the mute when the unit is set in mute mode.) STANDBY/ON Pressing this button partially magnifies a displayed picture. (See page 14) MAGNIFY VOLUME OFF POSITION ON LASER DISK PAD RESET MENU ON RIGHT MOUSE ON 1 When the back light of MENU ON button on, selects or adjusts the menu item. (See page 15) 2 When removes the on-screen menus, works as mouse. 3 When the back light of the POSITION ON button on, moves picture. *2 LASER button Laser pointer ON button. Use as a stick (for indication). (See page 10) MOUSE LEFT button Mouse left button is the left click of the mouse. (bottom button) (See page 22) POSITION button Moves the picture by DISK PAD after pressed the POSITION ON button. (Only RGB signal input) While the back light on, you can operate POSITION. *1 VOLUME button Adjusts volume. The sound is loud or low while pressing the "+" or "-" button. FREEZE Pressing this button displays a still picture (by freezing). (See page 14) MAGNIFY button MUTE ENGLISH Power ON/OFF button. OFF sets the unit in standby mode. (See page 12, 13) BLANK TIMER RGB VIDEO INPUT RESET / RIGHT button When displays the on-screen menus, resets the menu item to factory settings. When operates the mouse emulation, works as right click of mouse in computer mode. (See page 22) After moving the picture (POSITION ON), resets the position to factory settings. MOUSE ON button Mouse emulation mode starts. (See page 22) When menu are open or blank screen is displayed or icon of position is displayed, there are stopped and back light off. MENU ON button Displays the on-screen menus. And back light on. (See page 15 ~ 18) While the back light on, you can operate MENU. TIMER ON / OFF button Displays the setting time by count down. See page 18 "TIMER" of menu when you set the minutes of timer. BLANK ON button 1 The blank screen which is displayed by pressing BLANK. 2 And the blank screen will be revealed down by pressing BLANK again. (See page 18) INPUT SELECT button Selects the input source. (See page 12) *1 POSITION ON icon *2 When presses POSITION ON button, back light on and icon is displayed. While displaying the icon, you can operate POSITION. Icon is displaying in video mode, but can not operate POSITION. When the back light of MENU ON or POSITION ON button on without displaying the icon of POSITION ON or MENU, can operate DISK PAD too. Displays the icon or MENU at the same time as starting the operation. When presses the MOUSE ON button, MENU mode or POSITION ON mode is stopped. 9 Names and functions of each part (continued) How to insert batteries Insert the provided batteries (LR6 (alkal) into the remote control transmitter. 2 Insert the batteries 1 Remove the battery as illustrated inside the battery compartment. compartment cover. 3 Replace the cover. Slide the battery compartment cover in the direction of the arrow while pressing slightly down on it. Caution Cautions on use of batteries • Do not use batteries not specified for this unit. Also do not use old and new batteries together. It may cause a fire, injury due to burst of battery or liquid leakage. • When inserting batteries, pay attention to the direction of the and polarity indications and insert the batteries correctly. If the polarities are confused, it may cause injury or damage near the unit due to a burst of battery or liquid leakage. Caution Caution Cautions on use • Do not drop the remote control transmitter or apply any shock to it. • Do not let the remote control transmitter get wet and do not put it on a wet object. It may cause a malfunction. • If you are not going to use it for a long time, remove the batteries from the remote control transmitter. • If operation of the remote control becomes difficult, replace the batteries. Cautions on use of the laser pointer. • The laser pointer on the remote control unit radiates the laser beam from the laser aperture. • This laser pointer used as a stick (for indication). • Do not stare directly into the laser aperture or radiate the laser beam to other persons as the laser emitted is a class II laser and it could damage you vision , etc. Especially pay attention if children are present. • The three labels below are caution labels for the laser beam. CAUTION LASER RADIATION DO NOT STARE INTO BEAM WAVE LEGTH : 670nm MAX. OUTPUT : 1mW CLASS LASER PRODUCT AVOIDE EXPOSURE-LASER RADIATION IS EMITTED FROM THIS APERTURE LASER APERTURE 10 RADIAZIONI LASER NON GUARDARE NEL RAGGIO LUCE APPARECCHIO LASER DI CLASS 2 RAYONNEMENT LASER MANUFACTURED NE PAS REGARDER DANS LE FAISCEAU APPAREIL August-97 A LASER DE CLASSE 2 LASER-STRAHLUNG NICHT IN DEN STRAHL BLICKEN LASAER KLASSE 2MANUFACTURER:A MADE IN JAPAN Installation Example of the projector and screen installation ENGLISH Determine picture size and projection distance as illustrated below. View from the side View from the top Screen Lens center a Screen (inch) 40 60 80 100 120 150 200 a (inch) Minimum 64 97 130 163 196 244 326 Maximum 84 127 169 213 256 319 a:Distance from the projector to the screen. (tolerance : ±10%) This screen size is full-screen size.(1024 dots X 768 dots) Installation of liquid crystal projector Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. Be especially careful not to install it with ventilation holes blocked. How to use foot adjusters Adjust the projection position using the foot adjusters at the bottom of the projector. View from the side View from the front Foot adjuster Vertical adjustments can be made in the range of 0 to 9°. Horizontal inclination may be adjusted using the adjuster at the rear. 1. Lift up the projector and press the button of the adjuster to release the lock. 2. Adjust the projection angle, release the button of the adjuster and securely lock it. 3. To adjust the angle slightly, revolve the foot adjusters. Caution • Do not unlock the foot adjusters while you do not support the projector, to avoid falling of the projector and causing an injury. • Do not revolve the foot adjusters by force, the foot adjusters is damaged. • Securely lock the adjuster. • Do not apply unnecessary force from the upper side when lifting the projector. Otherwise, projector may be damaged or a finger could be caught and cause injury. 11 Basic operations To project the picture 2 2 4 STANDBY/ON FREEZE STANDBY/ON 3 MUTE MAGNIFY VOLUME OFF INPUT MUTE LASER POSITION ON MENU 7 RESET 5 RESET MENU ON 7 RIGHT MOUSE ON BLANK TIMER RGB VIDEO INPUT 1 1 Turn the MAIN POWER switch of the projector on.[ I : ON] 2 Press the STANDBY/ON button. 3 4 5 6 Remove the lens cap. 7 • The ON indicator will light up orange. • The ON indicator blinks (green) during warm-up and then lights (green). • Power cannot be turned on even if the STANDBY/ON button is pressed within 60 seconds after power is turned off, since the lamp has cooled preparing for next lighting. Adjust picture size using the projection lens ZOOM knob. Adjust focus using the projection lens FOCUS ring. Power on all connected equipment. The method of connecting various equipment, see on the page 19~27. Press the INPUT button or the INPUT SELECT (VIDEO or RGB) button to select the source of the signal to be projected on the screen. Example on-screen display • The selected signal input is displayed at the bottom right of the screen for 3 seconds. RGB1 12 Basic operations (continued) To turn off the power 1 STANDBY/ON 1 MUTE ENGLISH FREEZE MAGNIFY VOLUME STANDBY/ON OFF 3 INPUT POSITION ON MUTE LASER MENU RESET RESET RIGHT MENU ON MOUSE ON BLANK TIMER RGB VIDEO INPUT 2 1 Press the STANDBY/ON button, for 1 second. 2 Turn the MAIN POWER switch of the projector off.[ 3 Install the lens cap. • The ON indicator blinks orange and the lamp turns off. (About 1 minute later), the fan stops and the indicator lights up orange. • Press the STANDBY/ON button for short time (less than 1 second), the projector do not set in standby mode. Caution : OFF] • To reduce temperature inside the projector, fan will rotate for about 1 minute after the lamp is turned off. • Do not turn off the MAIN POWER switch during the lamp on because the lamp is damaged. PLUG&PLAY This projector complies with VESA DDC1/2B specifications. PLUG&PLAY is a system with computer, peripherals (including projectors), and operating system. It works when the projector is connected to DDC (Display Data Channel) ready computer that is running an operating system software that incorporates plug & play functionality. (Only RGB 1) 13 Basic operations (continued) FREEZE FUNCTION This function can display a still picture (by freezing). This function can be used in combination with a MAGNIFY function. 1 Press the FREEZE button. STANDBY/ON MUTE FREEZE 1, 2 MAGNIFY VOLUME OFF The display image stops. A mark appears at the lower right of the screen for about 3 seconds during the FREEZE function. POSITION ON LASER [TO RELEASE FREEZE] 2 Press the FREEZE button. The freeze function is cancelled. Furthermore, a seconds or so when FREEZE is released. mark appears at the bottom of the screen for 3 Caution • Note: When the FREEZE Button is pressed, FREEZE and RELEASE can function alternately. • What is more, FREEZE is released when an input selector button is pressed or when the display mode of a personal computer is switched over during display. • The POSITION ON icon is not displayed during freeze. Also, scrolling using DISK PAD operation is not possible. • When a still picture signal is given as input and the freeze function is ON, do not forget to cancel the freeze function. MAGNIFYING FUNCTION It is possible to display a partially magnified picture. This function can be used in combination with a FREEZE function. 1 Press the MAGNIFY + button. • By doing so, the center of the picture can be magnified as one part, becoming double in size. [TO CHANGE MAGNIFICATION] 2 Press the MAGNIFY + button. 3 Press the MAGNIFY - button. • When the button is pressed, more magnification of display takes place. (Maximum about 4 times) • When the button is pressed, the magnified display reduces its size. (Minimum about 1.1 times) STANDBY/ON 1, 2 6 4 5 [TO SHIFT DISPLAY AREA] MUTE FREEZE MAGNIFY VOLUME OFF POSITION ON LASER 3 RESET MENU ON RIGHT MOUSE ON BLANK TIMER RGB VIDEO INPUT 4 5 Press the POSITION ON button. Press the DISK PAD button up and down and left and right. • The magnified display area shifts in the direction the button is pressed. [TO RETURN TO NORMAL DISPLAY] 6 Press MAGNIFY OFF button. Caution 14 Note: The MAGNIFY function is released when an input selector button is pressed or when the display mode of a personal computer is switched over during display. Adjustments and functions STANDBY/ON MUTE ENGLISH FREEZE STANDBY/ON MAGNIFY VOLUME INPUT OFF MUTE POSITION ON LASER MENU RESET 2, 3 RIGHT RESET 1, 2, 3 1 MENU ON MOUSE ON BLANK TIMER RGB VIDEO INPUT 1 Press the MENU ( OFF button. ) buttons or the MENU ON / • On-screen menus are displayed on the screen. 2 Select the menu to be adjusted using the MENU ( buttons or DISK PAD. ) • Menu displayed in green is selected. 3 Select the item to be adjusted using the MENU ( buttons or DISK PAD. ) • Item displayed in green can be adjusted. When no operation is done for about 5 ~ 10 seconds, menu screen will go off. Memory function Individual memory functions are provided for the VIDEO, RGB1 and RGB2 input terminals. Adjustments are saved after power off. To return to the initial setting • Resetting menu items (SETUP, INPUT, IMAGE, OPT.) (1) Select the menu item to return to the initial setting. (2) Press the RESET button. (3) Select the DEFAULT (To select the CANCEL is not changed). (Display shown on the right will appear.) • Resetting adjustment items (VOLUME, BRIGHT etc.) (1) Select the adjustment item to return to the initial setting. (2) Press the RESET button. SETU P IN PU T IMAG E OPT. VOLUME BRIGHT RESET 'SETUP' CONTRAST DEFAULT SHARPNESS CANCEL COLOR TINT COLOR BAL R B 15 Adjustments and functions (continued) SET UP The menu SET UP serves for the change of parameters influencing the picture and for the move picture position. RGB signal input SETUP INPUT VOLUME BRIGHT CONTRAST V POSIT H POSIT H PHASE H SIZE COLOR BAL Adjustment Item VOLUME IMAGE 123 111 31 1024 R VIDEO signal input OPT. SETUP INPUT IMAGE OPT. VOLUME BRIGHT CONTRAST SHARPNESS COLOR TINT COLOR BAL AUTO B R Details of adjustment Decrease Dark CONTRAST Lower SHARPNESS Soft Sharp COLOR Less More TINT Red Green & Magnify Freeze Magnify Bright Higher V.POSIT (V.POSITION) Moves the picture up or down. Or automatic control. H.POSIT (H.POSITION) Moves the picture left or right. Or automatic control. H.PHASE Decreases the picture flicker. Or automatic control. H.SIZE Widens of Narrow the horizontal size of the picture. Or automatic control. for Red Freeze Increase BRIGHT (BRIGHTNESS) COLOR BAL (COLOR BALANCE) B for Blue How to use the SET UP menu 1. Bar display items (VOLUME, BRIGHT etc.) Move the green cursor to the item you wish to adjust, then move the MENU buttons on the unit, or the DISK PAD, to left and right to adjust the length of the bar display. Some items can not be adjusted during freeze or during magnify. (Please refer to the above table.) 2. Numerical display items (V POSIT, H POSIT etc.) Use either manual operation or auto-adjustment. Some items can not be adjusted during freeze or during magnify. (Please refer to the above table.) < Manual Operation > Adjust optional items manually. (1) Use the MENU buttons on the unit or the DISK PAD on the remote control to move the green cursor to the number of the item you wish to adjust. (2) With the green cursor on the number, use the MENU buttons on the unit or the DISK PAD on the remote control to raise or lower the value. 16 SETUP INPUT VOLUME BRIGHT CONTRAST V POSIT H POSIT H PHASE H SIZE COLOR BAL IMAGE 123 111 31 1024 R OPT. AUTO B Adjustments and functions (continued) < AUTO-adjustment > < AUTO-adjustment Confirm Screen > SETUP While the AUTO confirmation screen is displayed as illustrated on the upper right, if you shift the cursor upward and select AUTO, the projector will perform auto-adjustment. It will become as illustrated on the lower right. If CANCEL is selected for three seconds, or if the RESET button on either the unit or the remote control is pressed, the green cursor will return to the value for the selected item (Manual Operation) INPUT IMAGE VOLUME BRIGHT CONTRAST 123 V POSIT AUTO 111 H POSIT CANCEL31 H PHASE 1024 H SIZE R COLOR BAL ENGLISH The projector will automatically adjust four items (V POSIT, H POSIT, H PHASE, H SIZE, White level). When AUTO is selected (the cursor is moved from Manual Operation towards the right) the AUTO Confirm screen shown below will be displayed. OPT. AUTO B < During AUTO-adjustment > At the lower right of the screen the word <AUTO> will flash in green letters. When the auto-adjustment is completed the word <AUTO> will disappear. The auto-adjustment of the white level is cancelled by input switching and signal mode change. AUTO • When start up screen is displayed ("NO INPUT IS DETECTED" or "SYNC IS OUT OF RANGE" is displayed), SETUP menu items other than VOLUME cannot be set. • TINT cannot be adjusted with PAL/SECAM video signal input. • TINT, COLOR and SHARPNESS cannot be adjusted with an RGB signal input. • V.POSIT, H.POSIT, H.PHASE and H.SIZE cannot be adjusted with a VIDEO signal input. • Auto-adjustment will take about 10 to 15 seconds to complete. • In some cases auto-adjustment may not function normally, depending on the type of computer to which the unit is connected, and the signal sent. • Auto-adjustment may not perform normally with some images. Do not use with animated or dark images. • Carry out the auto-adjustment when the application, which is activated on the computer, is set to the maximum display. • After auto-adjustment the screen may become slightly dark due to the auto-adjustment of the signal level. • Auto-adjust can not be performed during freeze, during magnify, or during the initial screen display ("NO INPUT IS DETECTED" or "SYNC IS OUT OF RANGE"). Caution INPUT The menu INPUT serves for the selection of input source. SETUP INPUT IMAGE OPT. RGB1 RGB2 VIDEO Adjustment Item RGB1 RGB2 V I DEO SYSTEM AUTO NTSC PAL SECAM NTSC4.43 M-PAL N-PAL Details of adjustment RGB 1 Selects the RGB 1 terminal. RGB 2 Selects the RGB 2 terminal. VIDEO Selects the VIDEO terminal. SYSTEM SETUP INPUT IMAGE OPT. Selects the video signal systems. In normal circumstances, select AUTO. AUTO does not support N-PAL. When the picture (Video) is abnormal (no color), selects the input signal mode (NTSC, PAL, SECAM, NTSC4.43 M-PAL and N-PAL). To input N-PAL signals, select N-PAL. 17 Adjustments and functions (continued) IMAGE SETUP INPUT The menu IMAGE serves of the picture inversion. IMAGE OPT. SETUP INPUT IMAGE MIRROR MIRROR BLANK REVEAL MESSAGE SETUP INPUT OPT. SETUP REVEAL OPT. IMAGE BLANK NORMAL H : INVERT V : INVERT H&V : INVERT IMAGE INPUT SETUP INPUT WHITE BLUE BLACK IMAGE MESSAGE FAST OPT. OPT. TURN ON TURN OFF MEDIUM SLOW Adjustment Item MIRROR BLANK REVEAL MESSAGE OPT. SETUP INPUT Details of adjustment Inverts the picture horizontally or vertically. NORMAL Not invert. H:INVERT Inverts the picture horizontally. H:INVERT Inverts the picture vertically. H&V:INVERT Inverts the picture horizontally and vertically. Selects the blank color of signal. See page 9 "BLANK ON button. When start up screen is displayed, screen will blank out 5 minutes later. Selects the speed or revelation. See page 9 "BLANK ON button. Turn off the on-screen message. (VOLUME, Input selection display) The menu OPT. allows you to control communication function etc. IMAGE OPT. SETUP COM. SPEED COM. BITS TIMER LANGUAGE AUTO OFF START UP INPUT IMAGE COM. SPEED (bps) SETUP INPUT LANGUAGE IMAGE OPT. 1200 2400 4800 9600 19200 OPT. COM. SPEED COM. BITS (COMMUNICATION BITS) TIMER LANGUAGE 18 INPUT IMAGE SETUP INPUT OPT. SETUP 7N1 8N1 COM. BITS ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NORSK NEDERLANDS Adjustment Item (COMMUNICATION SPEED) SETUP IMAGE OPT. INPUT TIMER SETUP INPUT START UP AUTO OFF 0 min. STOP IMAGE OPT. 15 min. IMAGE OPT. TURN ON TURN OFF Details of adjustment Selects the data speed of transmission. (five kinds) Selects the data format or transmission 7N1...7 data bits, No parity, 1 stop bit. 8N1...8 data bits, No parity, 1 stop bit. Sets the minutes of timer. (0~99) Selects the language on-screen menu. (English, Français, Deutsch, Español, Italiano, Norsk, Nederlands) AUTO OFF Sets time (minutes) from the start of displaying start up screen (No input is detected or sync is out of range) to turning the power OFF. "0" is stop and another "1~99" START UP Sets/releases start up screen displayed when power is turned on, or when no input is detected or sync is out of range. Connection to the video signal terminals 1. Input signal ENGLISH Luminance signal 1.0Vp-p, 75Ω termination Chrominance signal 0.286Vp-p (burst signal), 75Ω termination S-VIDEO signal 1.0Vp-p, 75Ω termination VIDEO signal Input 200mVrms, 20kΩ below (MAX 3.0Vp-p) Output 0~200mVrms, 1kΩ AUDIO signal 2. Signal input terminal Chrominance signal Ground Luminance signal Ground S VIDEO input (Mini DIN4 pin) Caution Video input signal terminals have priority in the following order. 2 RCA jack input terminal S-VIDEO input terminal Even when the video signal is displayed, only an audio signal is output to RGB audio output terminals. 1 Connection to the RGB signal terminal 1. Input / output signal Video signal Analog 0.7Vp-p 75Ω termination (Positive polarity) Horizontal sync signal TTL level (Positive/negative polarity) Vertical sync signal TTL level (Positive/negative polarity) Composite sync signal TTL level Input 200mVrms, 20kΩ below (MAX 3.0Vp-p) Output 0~200mVrms, 1kΩ Audio signal 2. Signal input / output terminal 1 Video signal (Red) 9 N.C 2 Video signal (Green) 10 Ground 3 Video signal (Blue) 11 N.C 4 N.C 12 DDC (Display Data channel) RGB1 only 5 N.C 13 Horizontal/Composite sync signal 6 Ground (for R) 14 Vertical sync signal 7 Ground (for G) 15 DDC (Display Data channel) RGB1 only 8 Ground (for B) Caution 5 1 10 6 15 11 D-sub 15pin shrink terminal (Female) Do not use RGB cable other than that specified. Some RGB cable may not operate DDC (Display Data Channel) because there are not connect from pin NO. 15 to pin NO. 12 . 19 Connection to the RGB signal terminal(continued) 3. Example of computer signal Resolution HXV fH (kHz) fV (Hz) 640 X 400 24.8 56.4 640 X 350 37.9 85.1 640 X 400 37.9 720 X 400 Standard Type Note 1 Note 3 Display Dots NEC PC9800 Expanded 1024 X 640 VESA VGA-1 Expanded 1008 X 560 85.1 VESA VGA-2 Expanded 1008 X 640 37.9 85.0 VESA TEXT Expanded 1008 X 640 640 X 480 31.5 59.9 VESA VGA-3 Expanded 1024 X 768 640 X 480 35.0 66.7 Expanded 1024 X 768 640 X 480 37.9 72.8 VESA VGA-3(72Hz) Expanded 1024 X 768 640 X 480 37.5 75.0 VESA VGA-3(75Hz) Expanded 1024 X 768 640 X 480 43.3 85.0 VESA VGA-3(85Hz) Expanded 1024 X 768 800 X 600 35.2 56.3 VESA SVGA (56Hz) Expanded 1000 X 750 800 X 600 37.9 60.3 VESA SVGA (60Hz) Expanded 1000 X 750 800 X 600 48.1 72.2 VESA SVGA (72Hz) Expanded 1000 X 750 800 X 600 46.9 75.0 VESA SVGA (75Hz) Expanded 1000 X 750 800 X 600 53.7 85.1 VESA SVGA (85Hz) Expanded 1000 X 750 832 X 624 49.7 74.5 Expanded 1024 X 768 1024 X 768 48.4 60.0 VESA XGA (60Hz) 1024 X 768 1024 X 768 56.5 70.1 VESA XGA (70Hz) 1024 X 768 1024 X 768 60.0 75.0 VESA XGA (75Hz) 1024 X 768 1152 X 768 67.5 75.0 VESA SXGA (75Hz) Compressed 1008 X 756 1280 X 960 60.0 60.0 VESA SXGA (60Hz) Compressed 1024 X 768 1280 X 1024 64.0 60.0 VESA SXGA (60Hz) Compressed 960 X 768 1280 X 1024 80.0 75.0 VESA SXGA (75Hz) Compressed 960 X 768 Mac13" mode Mac16" mode Note 2 SW 1 ON SW 2 ON SW 2 ON SW 4 ON Note 1: Signal mode Note 2: MAC adapter is necessary to the resolution mode. Projector is compatible with 13 inch mode and 16 inch mode. MAC13"mode=switch 1 and switch 2 are ON. MAC16"mode=switch 2 and switch 4 are ON. Note 3:Display mode Caution 20 ON 1 2 3 4 5 6 OFF (Example 16inch mode) • Some input source may not be displayed properly because they are not compatible with the projector. • Some input source may not be displayed in full size as shown "Display Dots". Connection to the RGB signal terminal(continued) 4. Initial set signals Back porch(b) ENGLISH The following signals are initially set. The settings may be different depending on the computer type. In this case, adjust the settings referring to pages 15, 16. Front porch(d) Active(c) DATA HSYNC Sync.(a) Computer/signal VGA-1 (85Hz) VGA-2 (85Hz) PC-9800 TEXT VGA-3 Mac 13" mode VGA-3 (72Hz) VGA-3 (75Hz) VGA-3 (85Hz) SVGA (56Hz) SVGA (60Hz) Horizontal Timing (µs) a b c d 2.0 3.0 20.3 1.0 2.0 3.0 20.3 1.0 3.0 3.8 30.4 3.0 2.0 3.0 20.3 1.0 3.8 1.9 25.4 0.6 2.1 3.2 21.2 2.1 1.3 3.8 20.3 1.0 2.0 3.8 20.3 0.5 1.6 2.2 17.8 1.6 2.0 3.6 22.2 0.7 3.2 2.2 20.0 1.0 Computer/signal SVGA (72Hz) SVGA (75Hz) SVGA (85Hz) Mac 16" mode XGA (60Hz) XGA (70Hz) XGA (75Hz) SXGA (1152 X 864, 75Hz) SXGA (1280 X 960, 60Hz) SXGA (1280 X 1024, 60Hz) SXGA (1280 X 1024, 75Hz) Horizontal Timing (µs) a b c d 2.4 1.3 16.0 1.1 1.6 3.2 16.2 0.3 1.1 2.7 14.2 0.6 1.1 3.9 14.5 0.6 2.1 2.5 15.8 0.4 1.8 1.9 13.7 0.3 1.2 2.2 13.0 0.2 1.2 2.4 10.7 0.6 1.0 2.9 11.9 0.9 1.0 2.9 11.9 0.9 1.1 1.8 9.5 0.1 Front porch(d) Back porch(b) Active(c) DATA VSYNC Sync.(a) Computer/signal VGA-1 (85Hz) VGA-2 (85Hz) PC-9800 TEXT VGA-3 Mac 13" mode VGA-3 (72Hz) VGA-3 (75Hz) VGA-3 (85Hz) SVGA (56Hz) SVGA (60Hz) a 3 3 8 3 2 3 3 3 3 2 4 Vertical Timing (lines) b c d 60 350 32 41 400 1 25 400 7 42 480 1 33 480 10 39 480 3 28 480 9 16 480 1 25 480 1 22 600 1 23 600 1 Computer/signal SVGA (72Hz) SVGA (75Hz) SVGA (85Hz) Mac 16" mode XGA (60Hz) XGA (70Hz) XGA (75Hz) SXGA (1152 X 864, 75Hz) SXGA (1280 X 960, 60Hz) SXGA (1280 X 1024, 60Hz) SXGA (1280 X 1024, 75Hz) a 6 3 3 3 6 6 3 3 3 3 3 Vertical Timing (lines) b c d 23 600 37 21 600 1 27 600 1 39 624 1 29 768 3 29 768 3 28 768 1 32 864 1 36 960 1 38 1024 1 38 1024 1 21 Connection to the control signal terminal 1. Control signal terminal Pin No. RS-232C Mouse PS/2 ADB Serial 1 2 CLK 3 DATA DATA 1 5 4 10 6 5 6 SELO SELO SELO 7 RTS RTS RTS +5V +5V GND GND RTS 11 15 D-sub 15pin shrink terminal (Male) 8 9 10 GND GND 11 12 13 RDP 14 TDP TD 15 Caution Turn off the power of both the projector and computer before connecting. Connect the computer to the control terminal of the projector using an appropriate cable. Refer to the instruction manual of each device before connecting. 2. Mouse emulation (1) Connect the projector and the mouse terminal of computer using an appropriate cable, while the projector and the computer are turn off. (2) Turn the main power switch of the projector on and press the STANDBY/ON button. The indicator will light. (The ON indicator will light up green.). (3) Press the INPUT of the projector or RGB button of the remote control transmitter and select the input connection. (4) Turn on the computer. (5) Start mouse emulation mode. If can not start mouse emulation, reset the computer. (With soft reset or reset switch) (6) See on the page 9 about to operate the remote control transmitter. Caution : Mouse cannot be operated while start up screen or menu screen is being displayed. Caution 22 • In some note computers which have internal pointing device, mouse emulation don't work without setting the internal pointing device disabled. In this case, set the internal pointing device disabled in BIOS setting. After setting in BIOS, operate (1) ~ (5) Please check its hardware manuals to disable internal pointing device in BIOS setting. • In some computers, mouse emulation don't work without the utility program. In this case, see and check the operating manuals of the computer. Connection to the control signal terminal (continued) PS/2 mouse 1 CLK 2 DATA 3 4 5 SEL0 6 RTS 7 8 +5V 9 GND 10 11 12 13 14 15 Computer 1 2 3 4 5 6 DATA GND +5V CLK Mini Din 6pin 6 ENGLISH Projector 5 3 4 2 1 PS/2 cable ADB (Mac) mouse Projector DATA RTS +5V GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Computer 1 2 3 4 ADB (POWER ON) +5V GND Mini Din 4pin 3 4 1 2 ADB cable Serial mouse Projector SEL0 RTS GND TD Caution 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Computer 1 2 3 4 5 6 7 8 9 CD RD TD DTR GND DSR RTS CTS RI D-sub 9pin 1 2 6 3 7 5 4 8 9 Serial cable Communication via RS-232C cannot be operated with Serial mouse cable. Purchase RS-232C cable. Type name : Cable serial interface Parts No. : ZU 0243 70 0010 23 Connection to the control signal terminal (continued) 3. Communication (1) Connect the projector and computer using RS 232C cable. (2) Turn off the computer and after computer is setting up, turn on the projector. (3) Select the data speed (COM.SPEED) and the data format (COM.BITS) of the projector. (See page 18) (4) Start communication. Projector SEL0 RTS GND RDP TDP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Computer 1 2 3 4 5 6 7 8 9 CD RD TD DTR GND DSR RTS CTS RI D-sub 9pin 1 2 6 3 7 5 4 8 9 RS232C cable (Reference) 4. Control command table Control command table Item MOUSE COMMUNICATE POWER MIRROR INPUT (VIDEO) SYSTEM VOLUME MUTE BRIGHT CONTRAST COLOR TINT SHARPNESS H. PHASE H. POSIT H. SIZE V. POSIT COLOR BALANCE AUTO ADJUSTMENT BLANK REVEAL MAGNIFY FREEZE 24 Projector→Computer Reply code 1st 2nd data 11h 05h +1 11h 06h +1 11h 11h +1 11h 14h +1 11h 21h +1 12h 22h +2 11h 23h +1 11h 24h +1 13h 31h +3 13h 32h +3 13h 33h +3 13h 34h +3 13h 35h +3 13h 37h +3 14h 38h +4 14h 36h +4 14h 3Ah +4 13h 3Bh +3 11h 3Ch +1 11h 41h +1 11h 42h +1 11h 15h +1 16h 15h +6 11h 16h +1 Ask code 1st 2nd 20h 05h 20h 06h 20h 11h 20h 14h 20h 21h 20h 22h 20h 23h 20h 24h 20h 31h 20h 32h 20h 33h 20h 34h 20h 35h 20h 37h 20h 38h 20h 36h 20h 3Ah 20h 3Bh 20h 3Ch 20h 41h 20h 42h 20h 15h 20h 16h Computer→Projector Set code 1st 2nd data 31h 05h +1 31h 06h +1 31h 11h +1 31h 14h +1 31h 21h +1 32h 22h +2 31h 23h +1 31h 24h +1 33h 31h +3 33h 32h +3 33h 33h +3 33h 34h +3 33h 35h +3 33h 37h +3 34h 38h +4 34h 36h +4 34h 3Ah +4 33h 3Bh +3 31h 3Ch +1 31h 41h +1 31h 42h +1 36h 31h 15h 16h +6 +1 Default code 1st 2nd 40h 05h 40h 06h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 40h 14h 21h 22h 23h 24h 31h 32h 33h 34h 35h 37h 38h 36h 3Ah 3Bh 3Ch 41h 40h 15h 40h 16h Connection to the control signal terminal (continued) Control data table Data code MOUSE 00h=stop mouse emulation. 01~7Fh=start mouse emulation COMMUNICATE 0Xh=8N1, 1Xh=7N1 X0h=1200bps, X1h=2400bps, X2h=4800bps, X3h=9600bps, X4h=19200bps POWER 3Eh=Power off (Standby mode), 3Fh=Power on MIRROR 00h=Normal, 01h=H:Invert, 02h=V:Invert, 03h=H&V:Invert INPUT 11h=VIDEO, 21h=RGB1, 22h=RGB2 VIDEO SYSTEM 00h 00h=Auto, 00h 01h=NTSC, 00h 04h=NTSC4.43 00h 02h=PAL, 00h 03h=SECAM, 00h 05h=M-PAL, 00h 06h=N-PAL VOLUME 00h (min) ~ 24h (max) MUTE 00h=Mute off, 01h=Mute on BRIGHT 00h 00h 00h (dark) ~ 00h 00h 24h (brite) CONTRAST 00h 00h 00h (lower) ~ 00h 00h 24h (higher) COLOR 00h 00h 00h (less) ~ 00h 00h 24h (more) TINT 00h 00h 00h (red) ~ 00h 00h 24h (green) SHARPNESS 00h 00h 00h (soft) ~ 00h 00h 24h (sharp) H. PHASE 00h 00h 00h ~ 00h 00h 1Fh H. POSIT 00h 00h 4Fh 00h (left) ~ 00h 00h 17h 05h (right) H. SIZE 00h 00h 06h 06h (narrow) ~ 00h 00h 04h 0Ch (wide) V. POSIT 00h 00h 03h 00h (down) ~ 00h 00h 00h 06h (up) ENGLISH Item COLOR BALANCE 00h 00h 00h (for Red) ~ 00h 00h 24h (for Blue) AUTO ADJUST 00h (start) , 07h (stop) BLANK 0Xh=Blank off, 1Xh=Blank on bit0 0=Blue off, 1=Blue on, bit1 0=Green off, 1=Green on bit2 0=Red off, 1=Red on, bit3 0=Not change, 1=change REVEAL X1h=Reveal down, X4h=Reveal right, X=0 (slow) ~ 7 (fast) MAGNIFY (1) Circuit codes when ask code and default set code are issued (Number of data byte=1) 00h=normal display, 01h=magnified display (2) When magnification is set by setting codes (Number of data bytes=6) 1st, 2nd data bytes: magnification starting positions in horizontal direction (left end) 00h 00h (left) ~ 3Ch 05h (right) 3rd, 4th data bytes: magnification starting positions in vertical direction (top) 00h 00h (top) ~ 0Dh 04h (bottom) 5th, 6th data bytes: Horizontally magnified dot number data 64h 00h (large) ~ 20h 06h (small) FREEZE 00h=normal display, 01h=still picture display Caution If computer sends the undefined command code or data code, Projector can not guarantee operation. Command is consisted of 2 command bytes and following data bytes. 1-st byte indicates the kinds of commands and the length of command. '0xH' : Error-reply Projector sends to computer. '1xH' : Command reply Projector sends to computer. '2xH' : Ask command Computer sends to Projector. '3xH' : Set command Computer sends to Projector. '4xH' : Default set command Computer sends to Projector '5xH' - 'FxH' : Reserved 'x' indicates the length of data bytes. 2-nd byte indicates the command code 'yy' as command table. Data table shows the data byte. 25 Connection to the control signal terminal (continued) The procedure of getting the Projector status (1)Computer sends the command '20H'+'yyH' to Projector. (2)Projector reply the command '1xH'+'yyH'+data bytes. The procedure of setting the Projector status (1)Computer sends the command '3xH'+'yyH'+data bytes. (2)Projector changes it’s status. (3)Projector reply the command '1xH'+'yyH'+data bytes which indicate status. Caution • (3) data bytes is not always same as (1) data bytes. If projector cannot realize the status of (1) data bytes, projector set the proper status and reply this new setting data bytes or projector reply the error reply '0xH'+'yyH'+data bytes same as (1). • When only power control (POWER COMMAND) is performed, it takes about 2~140 seconds between sending set code and receiving answering code. The procedure of default setting the Projector status (1)Computer sends the command '40H'+'yyH' (2)Projector changes it's status to default setting. (3)Projector reply the command '1xH'+'yyH'+data bytes which indicate default. The example of command error When projector cannot accept command from PC, error code '00H'+'yyH' is sent back. (in a case when command code '2xH', '3xH' or '4xH'+'yyH'+data is sent from PC to projector) The example of data error When projector cannot accept command from PC, error code with data '00H'+'yyH'+data is sent back as it is. (in a case when command code '2xH', '3xH' or '4xH'+'yyH'+data is sent from PC to projector) When data is longer than required data code length, projector ignores excess data code. When data is shorter than required data code length, projector sends back error code shown above. The example of framing error Projector sends error code '70H'+'70H' up to 10 times at intervals of 1 second until any answer is received. The interval of command bytes and data bytes After command code '2xH', '3xH' or '4xH' is sent from PC, if command or data is not sent within 500ms, projector sends back error command '70H'+70H'. If no answer is sent within 1 second from that time, framing error is assumed. Caution 26 • The interval of command bytes and data bytes must be over 1mS and under 500mS. If it is under 1mS, it may be treat as framing error. • After projector has sent back answer code, when next command is to be sent from PC, allow for an interval of 40ms or more between answer code and other code. Example of system setup ENGLISH Connecting various equipment. AC Inlet Computer (Note type) S-VIDEO IN 1 RGB IN 2 VIDEO IN CONTROL RGB OUT AUDIO IN L MONO AUDIO IN 1 2 AUDIO OUT R VTR with S-VHS out (video model only) Computer(Desk type) VTR, etc. (video model only) Audio amplifying equipment CRT Display 27 Cleaning the air filter Clean the air filter about every 100 hours. 1 Turn the main power switch off and disconnect the power plug from the power outlet. 2 Remove the front filter cover. 3 Clean the air filter using a vacuum cleaner. 4 Attach the air filter on the cover. • When air filter is very dirty, wash it using neutral detergent diluted with water, and dry well. Air filter Caution 28 Filter cover • If air filter is strutted with dust, etc., protection circuit will turn the power off. • Do not use with removed air filter. Lamp Caution ENGLISH Light source lamp has a service life. The picture will become dark or color will be poor when the lamp is used for a long time. If usage of lamp is continued in such cases, it could cause a malfunction. Replace lamp with new one. As reference for replacement time, indicator will operate or message will be displayed when the power is turned on, as shown on page 30~31. In these cases the lamp should be replaced. Consult your dealer. Also LAMP indicator will light when the lamp becomes too hot. Turn off the power and let the projector cool for 45 minutes. Turn on. If LAMP indicator still lights up red, contact your dealer. 1. How to replace lamp (Option lamp : Lamp unit DT00201) HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE When replacing lamp, turn off and remove AC cord, wait 45 minutes to let lamp cool. High-pressure lamp when hot, may explode if improperly handled. Caution • For disposal of used lamp, treat according to the instruction of community authorities. • Since the lamp is made of glass, do not apply shock to it and do not scratch it. • Also, do not use old lamp. This could also cause explosion of the lamp. • If it is probable that the lamp has exploded Reflector Front glass (explosive sound is heard), disconnect the power plug from the power outlet and ask your dealer to replace lamp. The lamp is covered by front glass Lamp and air-tight structure, but, in rare cases, the reflector and the inside of the projector may be damaged by scattered broken pieces of glass, and broken pieces could cause injury when being handled. 1 Turn the main power switch off and disconnect the power plug from the power outlet. 2 Remove the lamp cover. 3 • If lamp is hot at this time, this could cause burn. Wait for minimum 45 minutes until lamp is cooled down. • Loosen a screw and remove the cover. Loosen two screws and pull the handle to remove the lamp. Lamp cover Screw Screw • If the screws are not loosened completely, your fingers Lamp may be damaged. • Do not insert your hand into the box after the lamp is removed. (There are optical parts inside. If touched by hand, it may result in color unevenness, etc.) 4 Replace the lamp with new one and fix it using the same two screws. • Firmly tighten the lamp screws. Loose screws may cause bad connection of the connector which in turn may result in malfunctioning. Screw Lamp 29 Lamp (continued) 5 Install the lamp cover and fix it using screws. • To prevent burn, install the lamp cover and secure it using the screws. • Do not turn on the power with lamp cover removed. Lamp cover • Whenever the lamp is replaced, reset the total operation time of the lamp. Do not reset if the lamp has not been replaced. • Do not perform resetting without changing the lamp, as this can cause lamp breakage. Screw 2. Reset the lamp time Please carry out the following operation within 10 minutes from power on, if you replaced the lamp after 2,000 hours. VOLUME MAGNIFY OFF POSITION ON LASER STANDBY/ON INPUT 3 MUTE MENU RIGHT RESET 2 MENU ON MOUSE ON BLANK TIMER RGB VIDEO 1 3 RESET 1, 2 INPUT LAMP 1700 h LAMP 1700 □ ← 1) Press the RESET button on projector for 3 seconds or remote control TIMER button for 3 seconds and display the total lamp used time. • When accumulated operation time of the lamp reaches 1700 hours, the following display will appear at the bottom of the screen. 2) Press the RESET button on projector or remote control MENU ON button during displaying the lamp used time. 3) Select the “0” on the screen using the MENU ( ) button or DISK PAD. 0 ■CANCEL Message table On-screen display The following messages are displayed on the screen. MESSAGE CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. THE POWER WILL TURN OFF AFTER 20 Hr. Action Accumulated operation of lamp has exceeded 1,700 hours. It is recommended to replace lamp. Replace with new lamp. If accumulated operation reaches 2,000 hours, lamp will automatically turn off. *1 Lamp has 1,979 hours on it. Call a maintenance person. *1 Time is 20 ~ 0. (count down.) Blinking of CHANGE THE LAMP When the lamp has 2,000 hours or more on it, the message will blink, and the power will turns off after 10 minutes.*2 NO INPUT IS DETECTED Signal is hot input. (See page 19, 20) SYNC IS OUT OF RANGE The horizontal frequency of the input signal exceeds the range of the projector, it cannot be displayed. (See page 20, 21) *1 This message are not displayed after 3 minutes. But this message are displayed when you turn on the power again. *2 It is possible to again turn on the power, however the power will go off after about 10 minutes. 30 Message table (continued) Indicator display ON indicator The ON indicator, LAMP indicator and TEMP indicator will light or blink in the following cases. LAMP indicator TEMP indicator Meaning Remedy Goes off Goes off Standby mode Blinks green Goes off Goes off During warming up Lights green Goes off Goes off During operation *1 Blinks orange Goes off Goes off During cooling down Lights red Lights red Goes off Lamp cannot light *2 Lights red Blinks red Goes off Lamp is not inserted or the Securely insert the lamp or close the lamp door open lamp door. Lights red Goes off Blinks red Blinks red Blinks red Goes off ENGLISH Lights orange Cool projector by power off for 45 minutes. If the indicator is still it, lamp may be defective. Replace. Cooling fan accidented Call a maintenance person. Accumulated lamp operation time has exceeded 2,000 hours Replace lamp and reset the accumulated lamp operation time. (See page 29, 30) When the LAMP indicator lights, turn the power off. If the problem cannot be recovered, contact your dealer. *1 When the suction fan is stopped and the inside becomes hot, the power is cut automatically for cooling. (The indicator light will go out.) In this case, turn off the power switch and allow the unit to cool down before turning the power switch on again. The lamp will light. If the lamp does not light because it is still automatically turned off, contact your dealer. *2 If temperature inside the unit increases because of blocked vets, the lamp may go off for protection, and the LAMP indicator will turn red. Should this happen, turn off the main switch, wait until the set cools down (about 45 minutes), then again turn on the main switch. When you think something wrong Check the following again before asking for service. If the trouble cannot be recovered, consult your dealer. Phenomena Power cannot be turned on. No picture and sound Only picture is displayed with no sound Only sound is heard without a picture Color is weak and tint is incorrect Picture is dark Cause Check point •Turn the MAIN POWER switch on. •The Main power is not turned on. •Insert the power cord into an AC socket. •The power cord is disconnected. •60 seconds have not elapsed since the •When the power is turned off turn the power power was turned off. Page P.12 P.8 P.12 switch on after waiting at least 60 seconds. •The setting of the input source is not P.5 •Do not block the ventilation holes. P.28 •Clean the air filter. •Use the projector under 35°C temperature. •Set the correct input using the input select button P.7, 9, •Wiring to the projector is not correct. •Wiring to the projector is not correct. •The volume is set to minimum. P.8, 27 •Connect the cable correctly. P.8, 27 •Connect the cable correctly. •Press the VOL button or press the MENU button P.9, 16 •The unit enters the mute mode. •Wiring the projector is not correct. •The brightness is set fully to the dark P.7, 9 •Press the MUTE button. P.8, 27 •Connect the cable correctly. •Press the MENU button and select BRIGHT and P.16 •Lens cap is attached. •Remove the lens cap. •Inside the projector too hot. correct. side. of the projector or the remote control. 12, 17 and adjust the volume. press the button. P.12 The color and tint have been adjusted Adjust the color and tint correctly. incorrectly. P.16 •The brightness and contrast has been •Adjust the brightness and contrast correctly. P.16 adjusted incorrectly. •The lamp has not been adjusted. •Replace the lamp with a new one. P.29 Picture is not clear Focus or H.PHASE is not matched. Adjust the focus or H.PHASE P.12, 16 LAMP indicator lights red. Trouble with the lamp. Turn off the power and leave for 45 minutes ; then turn the power on again. •Be sure to perform procedure in the following order: (1)Connect cable. (2)Turn on projector. (3)Turn PC on. •Input RGB signal and select and display input source. P.31 Remote control mouse cannot be operated. •Cable was connected after the power was turned on. •RGB signal not selected. P.22 A bright dot may be seen in the picture. This is a phenomenon peculiar to the liquid crystal and is not a problem. 31 Specifications • All specifications are subject to change without notice. Product name Liquid crystal projector Model name MP-93i Display system 3 sheets of liquid crystal panels, 3 primary color lights shutter system Panel size 2.3cm (0.9 inchs) Liquid crystal Drive system TFT active matrix panel Number of pixels 786,432 pixels (V768 X H1024) Lens Zoom lens F=1.7 ~ 2.0 Lamp UHP lamp 120W Speaker 1W+1W (stereo) Power supply AC100 ~ 120V, 2.3A/AC220 ~ 240V, 1.2A Power consumption 200W Usable temperature range 32 ~ 95°F Dimensions (W X H X D) 9.8" X 3.9" (including foot adjuster) X 13.0" (including lens). 9.8" X 4.2" (excluding foot adjuster) X 13.2" (excluding lens). Weight 9.9 lbs. Video signal input terminal Input/Output terminal RGB input/output signal terminal f=38 ~ 49 Storage Temperature range -4 ~ 140°F S VIDEO : Mini DIN4-pin terminal VIDEO : RCA Jack terminal AUDIO : RCA Jack terminal RGB signal : D-sub 15pin shrink terminal (Female) AUDIO : Stereo mini jack Control terminal D-sub 15pin shrink terminal (Male) Accessories Remote control POWER code BATTERIES LR6 RGB cable 1 1 2 1 MAC adaptor Video/Audio cable Mouse cable Operating guide Dimension diagram 13.0 13.2 All dimensions shown in inches. 9.8 1.1 32 0.5 4.2 2.2 3.9 10.1 1 1 3 1
