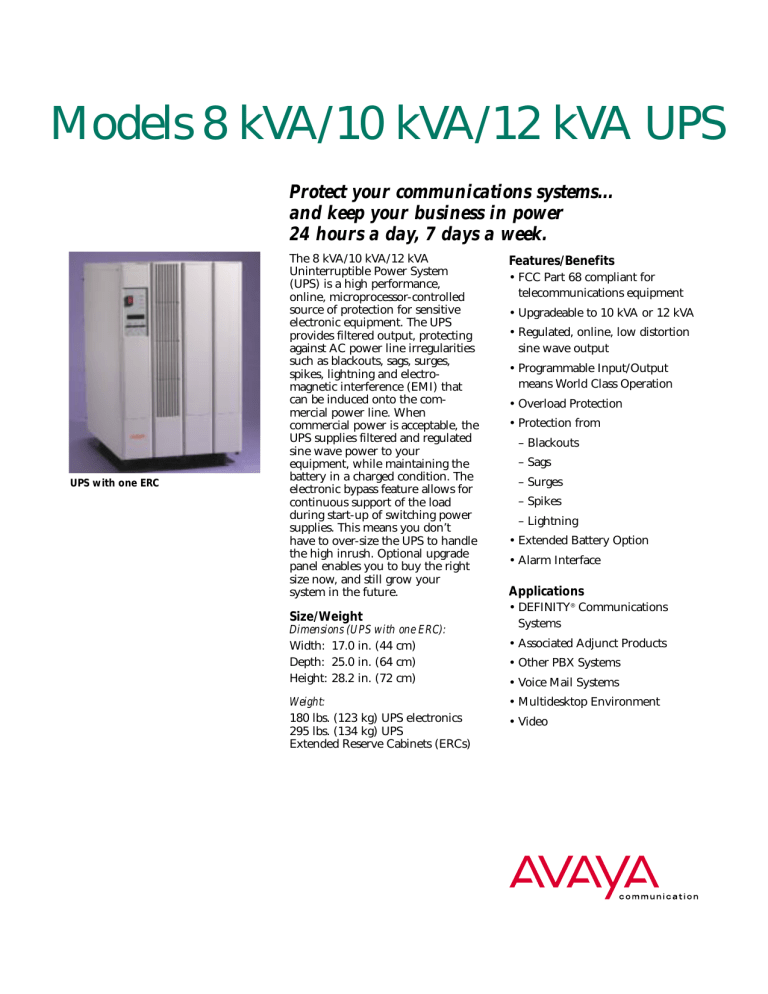

Models 8 kVA/10 kVA/12 kVA UPS
Protect your communications systems...
and keep your business in power
24 hours a day, 7 days a week.
UPS with one ERC
The 8 kVA/10 kVA/12 kVA
Uninterruptible Power System
(UPS) is a high performance,
online, microprocessor-controlled
source of protection for sensitive
electronic equipment. The UPS
provides filtered output, protecting
against AC power line irregularities
such as blackouts, sags, surges,
spikes, lightning and electromagnetic interference (EMI) that
can be induced onto the commercial power line. When
commercial power is acceptable, the
UPS supplies filtered and regulated
sine wave power to your
equipment, while maintaining the
battery in a charged condition. The
electronic bypass feature allows for
continuous support of the load
during start-up of switching power
supplies. This means you don’t
have to over-size the UPS to handle
the high inrush. Optional upgrade
panel enables you to buy the right
size now, and still grow your
system in the future.
Size/Weight
Dimensions (UPS with one ERC):
Width: 17.0 in. (44 cm)
Depth: 25.0 in. (64 cm)
Height: 28.2 in. (72 cm)
Weight:
180 lbs. (123 kg) UPS electronics
295 lbs. (134 kg) UPS
Extended Reserve Cabinets (ERCs)
Features/Benefits
• FCC Part 68 compliant for
telecommunications equipment
• Upgradeable to 10 kVA or 12 kVA
• Regulated, online, low distortion
sine wave output
• Programmable Input/Output
means World Class Operation
• Overload Protection
• Protection from
– Blackouts
– Sags
– Surges
– Spikes
– Lightning
• Extended Battery Option
• Alarm Interface
Applications
• DEFINITY® Communications
Systems
• Associated Adjunct Products
• Other PBX Systems
• Voice Mail Systems
• Multidesktop Environment
• Video
THE POWER MANAGEMENT SOLUTIONS FOR YOUR SYSTEMS.
SPECIFICATIONS
Input
Frequency
ANSI C62.41 Rating
(Lightning/Surge Protection)
Battery
Category B
Type
Voltage Range
Output
Reserve Time
176-276 Vac
Frequency (Adjustable)
Circuit Breaker
50±1 Hz or 60±1 Hz
60A double-pole
Voltage Range
8 kVA
Full Load
Half Load
16 minutes
40 minutes
Receptacle
120/208/240 Vac
Hardwire
Maximum Load Current
Unit Over Voltage Protection
8 kVA
10 kVA
12 kVA
10 kVA
Full Load
Half Load
11 minutes
26 minutes
12 kVA
Full Load
Half Load
9 minutes
22 minutes
45-65 Hz
360 Vac shutdown
Environmental
Cooling
Forced Air
Operating Temperature
32-104˚F (0-40˚C)
Storage Temperature
5-122˚F (-15-50˚C)
Operating Elevation
0-5,000 ft. (1524 m)
Noise
<50 dBA @ 5 ft. (1.5 m)
Humidity (non-condensing)
10-95%
Heat Dissipation
4000 BTU/Hr.
UL/CSA Rating (Safety)
1778 / C22.2 #107
FCC Part 15 Rating (EMI)
68A @ 120 Vac
84A @ 120 Vac
100A @ 120 Vac
(50A/Phase maximum)
Efficiency
>82%
Crest Factor
3:1
Transition Time to Battery
None
12 Vdc, 7 A/H or 12 Vdc, 18 A/H
Battery Life
5 Years
Battery String Voltage
240 Vdc
Recharge Time
2 hours to 80%
Indicators
Digital Front Panel
Output Wave Form
Sine Wave
Distribution
Hardwired
Remote Alarms
On-Battery
Low-Battery
UPS Fail
Bypass Overload
Class A
C
Feb/01
I.S. EN ISO 9001
UL
®
UL
®
LISTED
