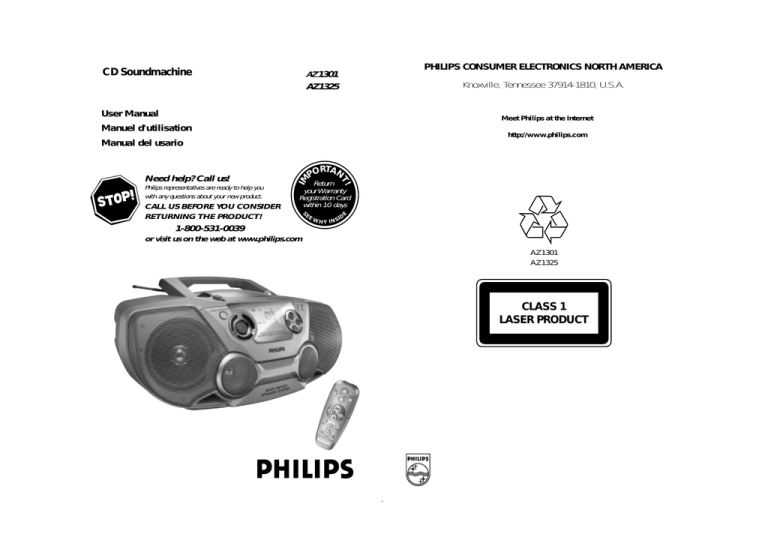

CD Soundmachine
PHILIPS CONSUMER ELECTRONICS NORTH AMERICA
AZ
AZ1301
Knoxville, Tennessee 37914-1810, U.S.A.
AZ1325
User Manual
Manuel d'utilisation
Manual del usario
RTAN
PO
Return
your Warranty
Registration Card
within 10 days
1-800-531-0039
or visit us on the web at www.philips.com
EE
E
S
CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!
IM
Philips representatives are ready to help you
with any questions about your new product.
http://www.philips.com
T!
Need help? Call us!
Meet Philips at the Internet
WH
Y INS
ID
W
AZ1301
AZ1325
CLASS 1
LASER PRODUCT
Return your Warranty Registration card today to
ensure you receive all the benefits you’re entitled to.
• Once your Philips purchase is registered,
you’re eligible to receive all the privileges
of owning a Philips product.
• So complete and return the Warranty
Registration Card enclosed with your
purchase at once, and take advantage
of these important benefits.
Warranty
Verification
Owner
Confirmation
Model
Registration
Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Philips warranty.
Your completed Warranty
Registration Card serves
as verification of ownership in the event of product theft or loss.
Returning your Warranty
Registration Card right
away guarantees you’ll
receive all the information
and special offers which
you qualify for as the
owner of your model.
Know these
safety symbols
IMPORTANT SAFETY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
For Customer Use
Enter below the Serial No. which is located on the rear of the cabinet. Retain this
information for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Model No. _______________________
10.
Serial No. ________________________
This “bolt of lightning” indicates uninsulated material
within your unit may cause
an electrical shock. For the safety of
everyone in your household, please do
not remove product covering.
WARNING: TO PREVENT
The “exclamation point” calls
attention to features for
which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
shock, match wide blade of plug to
wide slot, and fully insert.
FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
CAUTION: To prevent electric
MAC5097
11.
12.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near
water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer´s instructions.
Do not install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety
purpose of the polarized or
grounding-type plug. A polarized plug has
two blades with one wider than the other.
A grounding type plug has two blades and
a third grounding prong.The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories
specified by the manufacturer.
Use only with the cart,
stand, tripod, bracket, or table
specified by the manufacturer or
sold with the apparatus. When a
cart is used, use caution when
moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
15. Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
● Install all batteries correctly, + and - as
marked on the unit.
● Do not mix batteries (old and new or
carbon and alkaline, etc.).
● Remove batteries when the unit is not
used for a long time.
16. Apparatus shall not be exposed to dripping
or splashing.
17. Do not place any sources of danger on the
apparatus. (e.g. liquid filled objects, lighted
candles).
18. This product may contain lead and mercury.
Disposal of these material may be regulated
due to environment considerations. For disposal or recycling information, please
contact your local authorities or the
Electronic Industries Alliance :
www.eiae.org.
EL 6475-E004: 03/12
Class II equipment symbol
This symbol indicates that the unit has a double insulation system.
1
2
7
1
3
8
2
7
6
3
5
4
X
4
9
5
0
!
A C M AI N S ~
@
9
8
7
REPEAT
VOLUME
SEARCH
+
-
PRESET
6
SHUFFLE
SEARCH
TUNING
for AZ1325 only
1
2
3
4
5
6
8
English
CONTROL
ACCESSORIES
1 x AC power cord
1 x Remote Control (For AZ1325 only)
TOP AND FRONT PANEL (See 1)
1 OPEN•CLOSE– opens/closes the CD door
REMOTE CONTROL (For AZ1325 only)
1
2
3
4
VOLUME 3 , 4 - adjusts volume level.
SHUFFLE - plays all CD tracks in random order.
2; - starts or pauses CD playback.
SEARCH 5 , 6 - searches backwards/
forwards within a track.
PRESET + , (up, down) - selects a preset radio
station.
TUNING ∞ , § (down, up) - tunes to tuner stations.
9 - to stop playback;
- erases a CD program.
¡ , ™ - skips to the beginning of a current track
previous/ subsequent track.
REPEAT - repeats a track /program/ entire CD.
-
2 PROG
CD: - programs tracks and reviews the program;
Tuner: - programs preset radio stations.
3 MODE - selects different play modes: e.g. REPEAT
or SHUFFLE (random) order.
4 VOLUME 3 , 4 - to adjust volume level.
PRESET + , (up, down) - selects a preset radio
station.
5 Display - shows the status of the set.
6 2; - starts or pauses CD playback.
9 - to stop playback or erase a CD program.
SEARCH ∞ , §
CD: - searches backward and forward within a track;
- skips to the beginning of a current track/
previous/ later track.
RADIO: - (down, up) tunes to radio stations.
7 DBB (Dynamic Bass Boost) - activates a more vivid
bass response.
8 POWER slider - selects CD/ AM / FM / OFF
function and also the power off switch (OFF).
5
BACK PANEL (See 1)
Batteries (not included)
• Insert 6 batteries, type R-14, UM-2 or C-cells,
(preferably alkaline) with the correct polarity. (See 6)
• Remote control (For AZ1325 only)
Insert 2 batteries, type AAA, R03 or UM4
(preferably alkaline). (See 8)
6
7
8
-
9 Telescopic antenna - improves FM reception.
0 p - 3.5 mm stereo headphone jack.
Note: The speakers will be muted when headphones
are connected to the set.
! Battery compartment - for 6 batteries, type
R-14, UM2 or C-cells.
@ AC MAINS - inlet for power cord.
9
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
POWER SUPPLY
Whenever convenient, use the AC power supply to
conserve battery life. Make sure you remove the
power plug from the set and wall outlet before
inserting batteries.
POWER SUPPLY
POWER SUPPLY
IMPORTANT!
BASIC FUNCTIONS
• Incorrect use of batteries can cause electrolyte
leakage and will corrode the compartment or cause
the batteries to burst.
• Do not mix battery types: e.g. alkaline with carbon
zinc. Only use batteries of the same type for the
set.
• When inserting new batteries, do not try to mix old
batteries with the new ones.
• Batteries contain chemical substances, so
they should be disposed of properly.
Switching on and off and selecting function
1. To switch on, adjust the POWER slider to select:
CD, AM, FM function, and operate the respective
function controls.
2. To switch off, adjust the POWER slider to select
OFF .
Note : The DBB setting, tuner presets and the
volume level (maximum to 20) will be retained in the
set's memory.
Adjusting volume and sound (See 2)
Using AC Power
1. Check if the AC power supply, as shown on the
type plate located on the bottom of the set,
corresponds to your local power supply. If it does
not, consult your dealer or service center.
2. Connect the power cord to the outlet.
3. To disconnect the power supply, unplug the set
from the outlet.
The type plate is located on the bottom of the
set.
1. Adjust the volume with the VOLUME controls.
™ Display shows the volume level in number from
0-32.
2. Press DBB once or more to select dynamic bass
boost on or off.
™ Display: shows
when activated.
DIGITAL TUNER
DIGITAL TUNER
Tuning to radio stations
1. Adjust the POWER slider to AM or FM.
™ The radio station frequency, waveband are
shown (See 3)
2. Press and hold SEARCH ∞ or § until the
frequency in the display starts running.
™ The radio automatically tunes to a station of
sufficient reception. Display shows Srch
during automatic tuning.
3. Repeat step 2 if necessary until you find the
desired station.
• To tune to a weak station, press ∞ or § briefly
and repeatedly until you have found optimal
reception.
DIGITAL TUNER
Playing a CD
Finding a passage within a track
1. Tune to your desired station (see Tuning to radio
stations).
2. Press PROG to activate programming.
™ PROG flashes.
3. Press PRESET + / once or more to select a
preset number.
• Remote control (AZ1325 models only): Press
PRESET + / once or more to select a preset
station.
4. Press PROG to confirm.
5. Repeat steps 1-4 to store other stations.
This CD-player can play all kinds of Audio Discs such
as CD-Recordables and CD-Rewritables. Do not try to
play a CD-ROM, CDi, VCD, DVD or computer CD.
1. Press and hold SEARCH ∞ or §.
– The CD is played at high speed and low volume.
2. When you recognize the passage you want,
release ∞ or § to resume normal playback.
Note : During a CD program or if SHUFFLE/
REPEAT active, searching is only possible within a
track.
-
-
Note : You can erase a preset station by storing
another frequency in its place.
Autostore
• For FM, extend, incline and turn the telescopic
antenna. Reduce its length if the signal is too
strong.
• For AM , the set uses a built-in antenna. Direct this
antenna by turning the whole set.
Autostore automatically starts programming radio
stations from preset 1. Available stations are
programmed in order if the station with sufficient
reception strength. Any previous presets e.g. manually
programmed will be erased.
• Press PROG for 2 seconds or more to activate
autostore programming.
™ The display shows AUtO, PROG blinks,
followed by the radio station details when
stored.
After all stations are stored, the first preset station
will then automatically play.
You can store up to a total of 30 radio stations (20 FM
and 10 AM) in the memory, manually or automatically
(Autostore).
CD PLAYER
Manual programming
To improve radio reception:
Programming radio stations
CD PLAYER
To listen to a preset station
-
• Press the PRESET + , buttons once or more until
the desired preset station is displayed.
• Remote control : optionally, press PRESET + , to
select your preset station.
-
1. Adjust the POWER slider to CD.
2. Open the CD Door.
™ OPEN is displayed.
3. Insert a CD with the printed side facing up and
close the door.
™ nocd if no CD inserted/ CD dirty, incorrectly
inserted or damaged.
™ nFcd if you have inserted a non-finalized CDR(W).
4. Press 2; to start playback.
5. To pause playback press 2;. Press 2; again to
resume play.
™ Display: flashes during pause.
6. To stop CD playback, press the 9 button.
Note : CD play will also stop when:
- the CD door is opened
- the CD has reached the end
- you select AM / FM function.
Selecting a different track
• Press SEARCH ∞ or § once or repeatedly to
select your track.
• In the pause / stop position, press 2; to start
playback.
Different play modes: SHUFFLE and REPEAT
You can select and change the various play modes
before or during playback, and combine the modes
with PROG. (See 4)
(SHUFFLE) - tracks of the entire CD/ program
are played in random order
(SHUFFLE REPEAT ALL) - to repeat the
entire CD/ program continuously in random order
(REPEAT ALL) - repeats the entire CD/
program
(REPEAT) - plays the current track continuously
1. To select play mode, press MODE once or more.
2. Press 2; to start playback if in the stop position.
3. To select normal playback, press MODE
repeatedly until the various modes are no longer
displayed.
– You can also press the 9 button to cancel your
play mode.
CD PLAYER
SAFETY AND MAINTENANCE
Programming track numbers
SAFETY & MAINTENANCE INFORMATION
(See 7)
In the stop position, select and store your CD tracks in
the desired sequence. Up to 20 tracks can be stored in
the memory.
1. Press SEARCH ∞ or § on the set to select your
desired track number.
2. Press PROG.
™ Display: PROG, Prog briefly and your
selected track number. (See 5)
™ If you attempt to program without first
selecting a track number, noSE is shown.
3. Repeat steps 1-2 to select and store all desired
tracks.
™ Display: FULL if you try to program more
than 20 tracks.
Reviewing the program
In the stop position, press and hold PROG until the
display shows all your stored track numbers in
sequence.
Erasing a program
You can erase the program by either:
• pressing 9 twice
™ CLr is displayed briefly and PROG
disappears.
• You select AM / FM function.
• Open the CD door.
• Don't expose the set, batteries, CDs to humidity,
rain, sand or excessive heat.
• Clean the set with a dry cloth. Don't use any
cleaning agents containing alcohol, ammonia,
benzene or abrasives as these may harm the set.
• Place the set on a hard and flat surface so that the
system does not tilt. Make sure there is good
ventilation to prevent the set overheating.
• Apparatus shall not be exposed to dripping or
splashing.
• Do not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).
• The mechanical parts of the set contain
self-lubricating bearings and must not be oiled or
lubricated.
CD player and CD handling
• If the CD player cannot read CDs correctly, use a
cleaning CD to clean the lens before taking the set
to repair.
• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature
can cause condensation on the lens of your CD
player. Playing a CD is then not possible. Do not
attempt to clean the lens but leave the set in a
warm environment until the moisture evaporates.
• Always close the CD door to avoid dust on the lens.
• To clean the CD, wipe in a straight line from the
center towards the edge using a soft, lint-free
cloth. Do not use cleaning agents as they may
damage the disc.
• Never write on a CD or attach any stickers to it.
TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service center.
WARNING: Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this will
invalidate the warranty.
No sound /power
dAtA indication
–
•
–
•
–
•
–
•
– CD contains non-audio files
• Press SEARCH ∞ or § once or more to skip to a
CD audio track, instead of the data file
Volume not adjusted
Adjust the VOLUME
Power cord not securely connected
Connect the AC power cord properly
Batteries drained/ incorrectly inserted
Insert (fresh) batteries correctly
Headphones connected to the set
Disconnect headphones
Severe radio hum or noise
– Electrical interference: set too close to TV, VCR or
computer
• Move the set to increase the distance
Poor radio reception
– Weak radio signal
• FM: Adjust the FM telescopic antenna
The CD skips tracks
–
•
–
•
CD damaged or dirty
Replace or clean CD
SHUFFLE or PROG is active
Switch off SHUFFLE / PROG
Remote control does not function properly
(For AZ1325 only)
–
•
–
•
Batteries exhausted/ incorrectly inserted
Insert (fresh) batteries correctly
Distance/ angle between the set too large
Reduce the distance/ angle
nocd indication
–
•
–
•
CD badly scratched or dirty
Replace/ clean CD, see Maintenance
Laser lens steamed up
Wait until lens has cleared
nFcd indication
– CD-R(W) is blank/ not finalized
• Use a finalized CD-R(W)
Environmental information
We have done our best to reduce the packaging and make it easy to separate into 3 materials:
cardboard, expandable polystyrene, polyethylene.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.
LIMITED WARRANTY
PORTABLE AUDIO
One Year Free Exchange
This product must be carried in for an exchange.
WHO IS COVERED?
You must have proof of purchase to exchange the product.
A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach
it to this owner’s manual and keep both nearby.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product.
For one year thereafter, a defective or inoperative product
will be replaced with a new, renewed or comparable product at no charge to you. A replacement product is covered
only for the original warranty period.When the warranty
on the original product expires, the warranty on the
replacement product also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product,
adjustment of customer controls on the product, and
installation or repair of antenna systems outside of the
product.
• product repair and/or part replacement because of
misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• reception problems caused by signal conditions or
cable or antenna systems outside the unit.
• a product that requires modification or adaptation to
enable it to operate in any country other than the
country for which it was designed, manufactured,
approved and/or authorized, or repair of products
damaged by these modifications.
• incidental or consequential damages resulting from the
product. (Some states do not allow the exclusion of
incidental or consequential damages, so the above
exclusion may not apply to you.This includes, but is not
limited to, prerecorded material, whether copyrighted
or not copyrighted.)
• a product used for commercial or institutional purposes.
WHERE IS EXCHANGE AVAILABLE?
You may exchange the product in all countries where the
product is officially distributed by Philips. In countries
where Philips does not distribute the product, the local
Philips service organization will attempt to provide a
replacement product (although there may be a delay if the
appropriate product is not readily available).
BEFORE REQUESTING EXCHANGE...
Please check your owner's manual for assistance. If you
have additional questions, call us at 1-800-531-0039.
EXCHANGING A PRODUCT IN U.S.A.,
PUERTO RICO, OR U.S.VIRGIN ISLANDS...
Contact 1-800-531-0039 to arrange an exchange. Or, ship
the product, insured and freight prepaid, and with proof of
purchase enclosed, to the address listed below.
Philips Exchange Program
Suite A
406 North Irish Street
Greeneville TN 37745
(In U.S.A., Puerto Rico, and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the
duration of this express warranty. But, because some states do
not allow limitations on how long an implied warranty may
last, this limitation may not apply to you.)
EXCHANGING A PRODUCT IN CANADA...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-531-0039 (English or Spanish Speaking)
(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied,
including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any
circumstances for any direct, indirect, special, incidental or
consequential damages, howsoever incurred, even if notified
of the possibility of such damages.)
REMEMBER...
Please record below the model and serial numbers found
on the product. Also, please fill out and mail your warranty
registration card promptly. It will be easier for us to notify
you if necessary.
MODEL #
__________________________________
SERIAL #
__________________________________
This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 520890, Miami, FL 33152, USA, (402) 536-4171
EL6095T004 / 8-02
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
