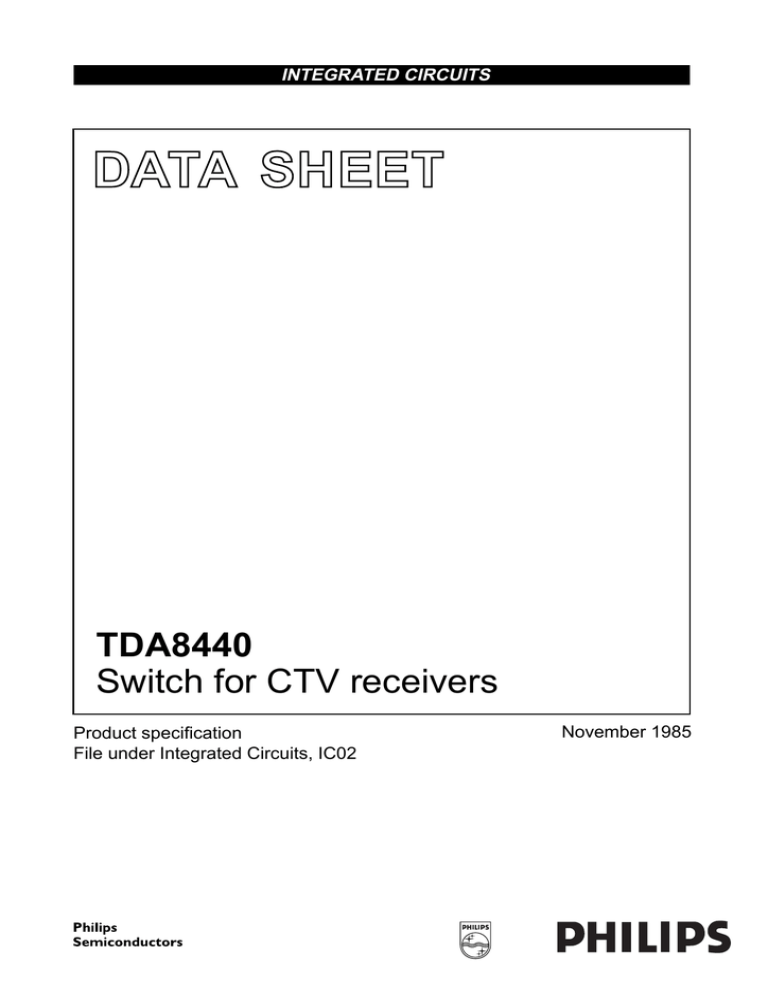

INTEGRATED CIRCUITS
DATA SHEET
TDA8440
Switch for CTV receivers
Product specification
File under Integrated Circuits, IC02
November 1985
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
GENERAL DESCRIPTION
Features
The TDA8440 is a versatile video/audio switch, intended to
be used in CTV receivers equipped with an AUXILIARY
VIDEO/AUDIO plug.
• Combined analogue and digital circuitry gives maximum
flexibility in channel switching
It provides two 3-state switches for audio channels and
one 3-state switch for the video channel and a video
amplifier with selectable gain (times 1 or times 2).
• Selectable gain for the video channels
• 3-state switches for all channels
• Sub-addressing facility
• I2C bus or non-I2C bus mode (controlled by d.c.
voltages)
The integrated circuit can be used in conjunction with a
microcontroller from the MAB8400 family, and is controlled
via a bidirectional I2C bus. Sufficient sub-addressing is
provided for the I2C bus mode. It can also be controlled
directly by d.c. switching signals.
• Slave receiver in the I2C bus mode
• External OFF command
• System expansion possible up to 7 devices (14 sources)
• Static short-circuit proof outputs
QUICK REFERENCE DATA
10 to 13,2 V
Supply voltage range
V15-4
typ.
33 mA
Supply current (without load)
I15
max.
50 mA
Storage temperature
Tstg
max.
Operating ambient temperature range
Tamb
PACKAGE OUTLINE
18-lead DIL; plastic (SOT102); SOT102-1; 1996 November 19.
November 1985
2
+ 125 °C
0 to + 70 °C
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
S0, S1, S2 and OFF (pins 11, 13, 6 and 2) connected to VP or GND.
If more than 1 device is used, then the outputs and the pins 8 (bias decoupling of the audio inputs) may be connected in parallel.
Fig.1 Block diagram and test circuit.
November 1985
3
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
FUNCTIONAL DESCRIPTION
The TDA8440 is a monolithic system of switches and can be used in CTV receivers equipped with an AUXILIARY
VIDEO/AUDIO plug.
The IC incorporates 3-state switches; they comprise:
a) An electronic video switch with selectable gain (times 1 or times 2) for switching between an internal video signal
(from the IF amplifier) and an AUXILIARY input signal.
b) Two electronic audio switches, for two sound channels (stereo or dual language), for switching between internal
audio sources and signals from the AUXILIARY VIDEO/AUDIO plug.
A selection can be made between two input signals and an OFF-state. The OFF-state is necessary if more than one
TDA8440 device is used.
The SDA and SCL pins can be connected to the I2C bus or to d.c. switching voltages. Inputs S0 (pin 11), S1 (pin 13), and
S2 (pin 6) are used for selection of sub-addresses or switching to the non-I2C mode. Inputs S0, S1 and S2 can be
connected to the supply voltage (H) or to ground (L). In this way no peripheral components are required for selection.
Table 1
Sub-addressing
SUB-ADDRESS
S2
S1
L
L
L
0
0
0
L
L
H
0
0
1
L
H
L
0
1
0
L
H
H
0
1
1
H
L
L
1
0
0
H
L
H
1
0
1
H
H
L
1
1
0
H
H
S0
A2
H
A1
non
I2C
A0
addressable
NON-I2C BUS CONTROL
If the TDA8440 switching device has to be operated via the AUXILIARY VIDEO/AUDIO plug, inputs S2, S1 and S0 must
be connected to the supply line (12 V).
The sources (internal and external) and the gain of the video amplifier can be selected via the SDA and SCL pins with
the switching voltage from the AUXILIARY VIDEO/AUDIO plug:
• Sources I are selected if SDA = 12 V (external source)
• Sources II are selected if SDA = 0 V (TV mode)
• Video amplifier gain is 2 × if SCL = 12 V (external source)
• Video amplifier gain is 1 × if SCL = 0 V (TV mode)
If more than one TDA8440 device is used in the non-I2C bus system, the OFF pin can be used to switch off the desired
devices. This can be done via the 12 V switching voltage on the AUXILIARY VIDEO/AUDIO plug.
• All switches are in the OFF position if OFF = H (12 V)
• All switches are in the selected position via SDA and SCL pins if OFF = L (0 V)
November 1985
4
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
I2C BUS CONTROL
Detailed information on the I2C bus is available on request.
Table 2
TDA8440 I2C bus protocol.
STA
A6
A5
A4
A3
A2
A1
A0
R/W
AC D7
STA
=
start condition
A6
=
1
Fixed address bits
A5
=
0
Fixed address bits
A4
=
0
Fixed address bits
A3
=
1
Fixed address bits
A2
=
sub-address bit, fixed via S2 input
A1
=
sub-address bit, fixed via S1 input
A0
=
sub-address bit, fixed via S0 input
R/W
=
read/write bit (has to be 0, only write mode allowed)
AC
=
acknowledge bit (= 0) generated by the TDA8440
D7
=
1 audio la is selected to audio output a
D7
=
0 audio la is not selected
D6
=
1 audio lla is selected to audio output a
D6
=
0 audio lla is not selected
D5
=
1 audio lb is selected to audio output b
D5
=
0 audio lb output is not selected
D4
=
1 audio llb is selected to audio output b
D4
=
0 audio llb is not selected
D3
=
1 video l is selected to video output
D3
=
0 video l is not selected
D2
=
1 video ll is selected to video output
D2
=
0 video ll is not selected
D1
=
1 video amplifier gain is times 2
D1
=
0 video amplifier gain is times 1
D0
=
1 OFF-input inactive
D0
=
0 OFF-input active
STO
=
stop condition
D6
D5
D4
D3
D2
D1
D0
OFF FUNCTION
With the OFF input all outputs can be switched off (mode high ohmic), depending on the value of D0.
November 1985
5
AC
STO
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
D0/OFF gating
OFF INPUT
D0
OUTPUTS
0 (off input active)
H
OFF
0
L
in accordance with last defined
D7 - D1 (may be entered while OFF = HIGH)
1 (off input inactive)
H
in accordance with D7 - D1
1
L
in accordance with D7 - D1
Power-on reset
The circuit is provided with a power-on reset function.
When the power supply is switched on an internal pulse will be generated that will reset the internal memory S0, in the
initial state all the switches will be in the off position and the OFF input is active (D7 - D0 = 0) (I2C mode), position defined
via SDA and SCL inputs (non-I2C mode).
When the power supply decreases below 5 V a pulse will be generated and the internal memory will be reset. The
behaviour of the switches will be the same as described above.
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134)
MIN. TYP.
MAX.
UNIT
Supply voltage
pin 15
VP
−
−
14
Input voltage range
pin 17
VSDA
−0,3
−
VP + 0,3 V
pin 18
VSCL
−0,3
−
VP + 0,3 V
pin 2
VOFF
−0,3
−
VP + 0,3 V
pin 11
VS0
−0,3
−
VP + 0,3 V
pin 13
VS1
−0,3
−
VP + 0,3 V
V
pin 6
VS2
−0,3
−
VP + 0,3 V
Video output current
pin 16
−I16
−
−
50
mA
Storage temperature range
Tstg
−
−
+ 125
°C
Operating ambient temperature range
Tamb
0
−
+ 70
°C
Junction temperature
Tj
−
−
+ 150
°C
THERMAL RESISTANCE
PARAMETER
SYMBOL
From junction to ambient in free air
November 1985
Rth j−a
6
VALUE
50
UNIT
K/W
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
CHARACTERISTICS
Tamb = 25 °C; VP = 12 V; unless otherwise specified
PARAMETER
SYMBOL
MIN.
TYP.
MAX.
UNIT
Supply
Supply voltage
V15-4
10
−
13,2
V
Supply current (without load)
I15
−
37
50
mA
Input coupling capacitor
C1C3
100
−
−
nF
Voltage gain (times 1; SCL = L)
A3-16
−1
0
+1
dB
(times 2; SCL = H)
A3-16
+5
+6
+7
dB
Voltage gain (times 1; SCL = L)
A1-16
−1
0
+1
dB
(times 2; SCL = H)
A1-16
+5
+6
+7
dB
V3-4
−
−
4,5
V
Input video signal amplitude (gain times 1)
V1-4
−
−
4,5
V
Output impedance
Z16-4
−
7
−
Ω
Output impedance in ‘OFF’ state
Z16-4
100
−
−
kΩ
60
−
−
dB
Video switch
Input video signal amplitude (gain times 1)
Isolation (off state) (fo = 5 MHz)
Signal-to-noise ratio (note 3)
S/S + N
60
−
−
dB
Output top-sync level
V16-4
2,4
2,8
3,2
V
Differential gain
G
−
−
3
%
Minimum crosstalk attenuation (note 2)
V16-4
60
−
−
dB
Supply voltage rejection (note 4)
RR
36
−
−
dB
Bandwidth (1 dB)
B
10
−
−
MHz
α
60
−
−
dB
Crosstalk attenuation for interference
caused by bus signals (source
impedance 75 Ω)
Audio switch a and b
Input signal level
Input impedance
Output impedance
Output impedance (off state)
November 1985
V9-4(rms)
−
−
2
V
V10-4(rms)
−
−
2
V
V5-4(rms)
−
−
2
V
V7-4(rms)
−
−
2
V
Z9-4
50
100
−
kΩ
Z10-4
50
100
−
kΩ
Z5-4
50
100
−
kΩ
Z7-4
50
100
−
kΩ
Z12-4
−
−
10
Ω
Z14-4
−
−
10
Ω
Z14-4
100
−
−
kΩ
7
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
PARAMETER
SYMBOL
MIN.
TYP.
MAX.
UNIT
V9-12
−1
0
+1
dB
V10-12
−1
0
+1
dB
V5-14
−1
0
+1
dB
V7-14
−1
0
+1
dB
90
−
−
dB
Signal-to-noise ratio (note 5)
S/S + N
90
−
−
dB
Total harmonic distortion (note 7)
THD
−
−
0,1
%
Weighted
α
80
−
−
dB
Unweighted
α
80
−
−
dB
α
80
−
−
dB
Voltage gain
Isolation (off state) (f = 20 kHz)
Crosstalk attenuation for interferences
caused by video signals (note 6)
Crosstalk attenuation for interferences
caused by sinusoidal sound signals
(note 6)
Crosstalk attenuation for interferences
caused by the bus signal (weighted)
(source impedance = 1 kΩ)
80
−
−
dB
Supply voltage rejection
RR
50
−
−
dB
Bandwidth (−1 dB)
B
50
−
−
kHz
Input voltage HIGH
VIH
3
−
VP
V
Input voltage LOW
VIL
−0,3
−
+ 1,5
V
Input current
HIGH(1)
IIH
−
−
10
µA
Input current
LOW(1)
I2C bus inputs/outputs SDA (pin 17) and SCL
(pin 18)
IIL
−
−
10
µA
Output voltage LOW at IOL = 3 mA
VOL
−
−
0,4
V
Maximum output sink current
IOL
−
5
−
mA
CI
−
−
10
pF
VIH
3
−
VP
V
Capacitance of SDA and SDL inputs,
pins 17 and 18
Sub-address inputs S0 (pin 11), S1 (pin 13), S2 (pin 6)
Input voltage HIGH
Input voltage LOW
VIL
−0,3
−
+ 0,4
V
Input current HIGH
IIH
−
−
10
µA
Input current LOW
IIL
−50
−
0
µA
Input voltage HIGH
VIH
+3
−
VP
V
Input voltage LOW
VIL
−0,3
−
+ 0,4
V
Input current HIGH
IIH
−
−
20
µA
Input current LOW
IIL
−10
−
2
µA
OFF input (pin 2)
November 1985
8
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
PARAMETER
SYMBOL
MIN.
TYP.
MAX.
UNIT
tBUF
4
−
−
µs
Start condition set-up time
ts(STA)
4
−
−
µs
Start condition hold time
th(STA)
4
−
−
µs
SCL, SDA LOW period
tLOW
4
−
−
µs
SCL, HIGH period
tHIGH
4
−
−
µs
SCL, SDA rise time
tr
−
−
1
µs
SCL, SDA fall time
tf
−
−
0,3
µs
Data set-up time (write)
ts(DAT)
1
−
−
µs
Data hold time (write)
th(DAT)
1
−
−
µs
Acknowledge (from TDA8440) set-up time
ts(CAC)
−
−
2
µs
Acknowledge (from TDA8440) hold time
th(CAC)
0
−
−
µs
Stop condition set-up time
ts(STO)
4
−
−
µs
Bus free before
start(11)
Notes to the characteristics
1. Also if the supply is switched off.
2. Caused by drive on any other input at maximum level, measured in B = 5 MHz, source impedance
for the used input 75 Ω,
V out
crosstalk = 20 log ---------------------V IN max
3.
˙ (p-p) (2 V)
V O video noise
S/N = 20 log ---------------------------------------------------------------------- .
V O noise rms B = 5 MHz
V r supply
4. Supply voltage ripple rejection = 20 log -------------------------------- at f = max. 100 kHz.
V r on output
5.
˙˙ (0,5 V)
V O nominal
S/N = 20 log ------------------------------------------------------- .
V O noise B = 20 kHz
6. Caused by drive of any other input at maximum level, measured in B = 20 kHz, source impedance
of the used input = 1 kΩ,
V out
crosstalk = 20 log --------------------- according to DIN 45405 (CCIR 468).
V in max
7. f = 20 Hz to 20 kHz.
8. All outputs are short-circuit proof (static).
9. The inputs and output (apart from SDA, SCL and OFF) withstand tests of MIL-STD-883 C. It is advisable to
connected series resistors to these pins.
10. Timings tS, DAT and tH, DAT deviate from the I2C bus specification. After reset has been activated, transmission may
only be started after a 50 µs delay.
11. I2C bus load conditions are as follows:
4kΩ pull-up resistor to + 5 V; 200 pF to GND.
All values are referred to VIH = 3 V and VIL = 1,5 V.
November 1985
9
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
Fig.2 Timing diagram I2C bus.
November 1985
10
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
PACKAGE OUTLINE
DIP18: plastic dual in-line package; 18 leads (300 mil)
SOT102-1
ME
seating plane
D
A2
A
A1
L
c
e
Z
w M
b1
(e 1)
b
b2
MH
10
18
pin 1 index
E
1
9
0
5
10 mm
scale
DIMENSIONS (inch dimensions are derived from the original mm dimensions)
UNIT
A
max.
A1
min.
A2
max.
b
b1
b2
c
D (1)
E (1)
e
e1
L
ME
MH
w
Z (1)
max.
mm
4.7
0.51
3.7
1.40
1.14
0.53
0.38
1.40
1.14
0.32
0.23
21.8
21.4
6.48
6.20
2.54
7.62
3.9
3.4
8.25
7.80
9.5
8.3
0.254
0.85
inches
0.19
0.020
0.15
0.055
0.044
0.021
0.015
0.055
0.044
0.013
0.009
0.86
0.84
0.26
0.24
0.10
0.30
0.15
0.13
0.32
0.31
0.37
0.33
0.01
0.033
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE
VERSION
REFERENCES
IEC
JEDEC
EIAJ
ISSUE DATE
93-10-14
95-01-23
SOT102-1
November 1985
EUROPEAN
PROJECTION
11
Philips Semiconductors
Product specification
Switch for CTV receivers
TDA8440
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.
SOLDERING
Introduction
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (Tstg max). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our “IC Package Databook” (order code 9398 652 90011).
Repairing soldered joints
Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.
Soldering by dipping or by wave
The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
DEFINITIONS
Data sheet status
Objective specification
This data sheet contains target or goal specifications for product development.
Preliminary specification
This data sheet contains preliminary data; supplementary data may be published later.
Product specification
This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
PURCHASE OF PHILIPS I2C COMPONENTS
Purchase of Philips I2C components conveys a license under the Philips’ I2C patent to use the
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.
November 1985
12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
