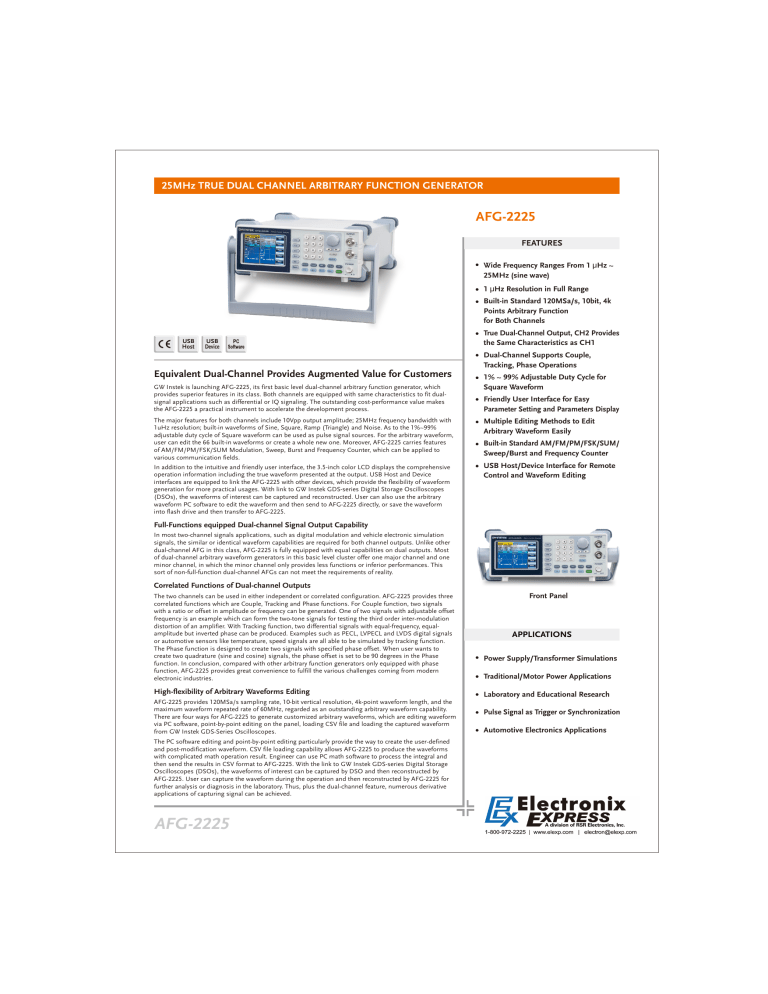

AFG-2225
25MHz TRUE DUAL CHANNEL ARBITRARY FUNCTION GENERATOR
AFG-2225
FEATURES
Wide Frequency Ranges From 1 μHz ~
25MHz (sine wave)
1 μHz Resolution in Full Range
Built-in Standard 120MSa/s, 10bit, 4k
Points Arbitrary Function
for Both Channels
USB
Host
USB
Device
True Dual-Channel Output, CH2 Provides
the Same Characteristics as CH1
Dual-Channel Supports Couple,
Tracking, Phase Operations
Equivalent Dual-Channel Provides Augmented Value for Customers
GW Instek is launching AFG-2225, its first basic level dual-channel arbitrary function generator, which
provides superior features in its class. Both channels are equipped with same characteristics to fit dualsignal applications such as differential or IQ signaling. The outstanding cost-performance value makes
the AFG-2225 a practical instrument to accelerate the development process.
1% ~ 99% Adjustable Duty Cycle for
Square Waveform
Friendly User Interface for Easy
Parameter Setting and Parameters Display
The major features for both channels include 10Vpp output amplitude; 25MHz frequency bandwidth with
1uHz resolution; built-in waveforms of Sine, Square, Ramp (Triangle) and Noise. As to the 1%~99%
adjustable duty cycle of Square waveform can be used as pulse signal sources. For the arbitrary waveform,
user can edit the 66 built-in waveforms or create a whole new one. Moreover, AFG-2225 carries features
of AM/FM/PM/FSK/SUM Modulation, Sweep, Burst and Frequency Counter, which can be applied to
various communication fields.
Multiple Editing Methods to Edit
Arbitrary Waveform Easily
In addition to the intuitive and friendly user interface, the 3.5-inch color LCD displays the comprehensive
operation information including the true waveform presented at the output. USB Host and Device
interfaces are equipped to link the AFG-2225 with other devices, which provide the flexibility of waveform
generation for more practical usages. With link to GW Instek GDS-series Digital Storage Oscilloscopes
(DSOs), the waveforms of interest can be captured and reconstructed. User can also use the arbitrary
waveform PC software to edit the waveform and then send to AFG-2225 directly, or save the waveform
into flash drive and then transfer to AFG-2225.
USB Host/Device Interface for Remote
Control and Waveform Editing
Built-in Standard AM/FM/PM/FSK/SUM/
Sweep/Burst and Frequency Counter
Full-Functions equipped Dual-channel Signal Output Capability
In most two-channel signals applications, such as digital modulation and vehicle electronic simulation
signals, the similar or identical waveform capabilities are required for both channel outputs. Unlike other
dual-channel AFG in this class, AFG-2225 is fully equipped with equal capabilities on dual outputs. Most
of dual-channel arbitrary waveform generators in this basic level cluster offer one major channel and one
minor channel, in which the minor channel only provides less functions or inferior performances. This
sort of non-full-function dual-channel AFGs can not meet the requirements of reality.
Correlated Functions of Dual-channel Outputs
The two channels can be used in either independent or correlated configuration. AFG-2225 provides three
correlated functions which are Couple, Tracking and Phase functions. For Couple function, two signals
with a ratio or offset in amplitude or frequency can be generated. One of two signals with adjustable offset
frequency is an example which can form the two-tone signals for testing the third order inter-modulation
distortion of an amplifier. With Tracking function, two differential signals with equal-frequency, equalamplitude but inverted phase can be produced. Examples such as PECL, LVPECL and LVDS digital signals
or automotive sensors like temperature, speed signals are all able to be simulated by tracking function.
The Phase function is designed to create two signals with specified phase offset. When user wants to
create two quadrature (sine and cosine) signals, the phase offset is set to be 90 degrees in the Phase
function. In conclusion, compared with other arbitrary function generators only equipped with phase
function, AFG-2225 provides great convenience to fulfill the various challenges coming from modern
electronic industries.
High-flexibility of Arbitrary Waveforms Editing
AFG-2225 provides 120MSa/s sampling rate, 10-bit vertical resolution, 4k-point waveform length, and the
maximum waveform repeated rate of 60MHz, regarded as an outstanding arbitrary waveform capability.
There are four ways for AFG-2225 to generate customized arbitrary waveforms, which are editing waveform
via PC software, point-by-point editing on the panel, loading CSV file and loading the captured waveform
from GW Instek GDS-Series Oscilloscopes.
The PC software editing and point-by-point editing particularly provide the way to create the user-defined
and post-modification waveform. CSV file loading capability allows AFG-2225 to produce the waveforms
with complicated math operation result. Engineer can use PC math software to process the integral and
then send the results in CSV format to AFG-2225. With the link to GW Instek GDS-series Digital Storage
Oscilloscopes (DSOs), the waveforms of interest can be captured by DSO and then reconstructed by
AFG-2225. User can capture the waveform during the operation and then reconstructed by AFG-2225 for
further analysis or diagnosis in the laboratory. Thus, plus the dual-channel feature, numerous derivative
applications of capturing signal can be achieved.
AFG-2225
Front Panel
APPLICATIONS
Power Supply/Transformer Simulations
Traditional/Motor Power Applications
Laboratory and Educational Research
Pulse Signal as Trigger or Synchronization
Automotive Electronics Applications
SPECIFICATIONS
CH1
ARITRARY FUNCTION
Sample Rate
Repetition Rate
Waveform Length
Amplitude Resolution
Non-Volatile Memory
120MSa/s
60MHz
4k point
10 bit
4k points
FREQUENCY CHARACTERISTICS
Range
1mHz ~ 25MHz
1MHz
1 m Hz
±20ppm
±1ppm, per 1 year
≤1mHz
Resolution
Accuracy
OUTPUT CHARACTERISTICS
CH2
Sine, Square, Ramp, Pulse, Noise, ARB
WAVEFORMS
Amplitude
Sine/Square
Ramp
Stability
Aging
Tolerance
Range
Accuracy
Resolution
Flatness
Offset
Waveform Output
Units
Range
Accuracy
Impedance
Protection
1mVpp~10Vpp(into 50Ω), 2mVpp~20Vpp(open-circuit)
1mVpp~5Vpp(into 50Ω)for 20MHz~25MHz; 2mVpp~10 pp(open-circuit)for 20MHz~25MHz
±2% of setting ±1mVpp(at 1kHz)
1mV or 3digits
±1% (0.1dB) ≤100kHz, ±3% (0.3 dB) ≤5MHz, ±5% (0.4 dB) ≤12MHz, ±10%(0.9dB)≤25MHz
(sine wave relative to 1kHz)
Vpp, Vrms, dBm
±5Vpk ac+dc(into 50Ω); ±10Vpk ac+dc(open circuit); ±2.5Vpk ac+dc(into 50Ω) for 20MHz~25MHz
±5Vpk ac+dc(open circuit) for 20MHz~25MHz
2% of setting + 5mV+ 0.5% of amplitude
50Ω typical (fixed); >10MΩ (output disabled)
Short-circuit protected ; Overload relay auto matically disables main output
SINE WAVE CHARACTERISTICS
Harmonic Distortion
≤-55 dBc, DC ~ 200kHz, Ampl > 0.1Vpp; ≤-50 dBc, 200kHz ~ 1MHz, Ampl > 0.1Vpp
≤-35 dBc, 1MHz ~ 5MHz, Ampl > 0.1Vpp; ≤-30 dBc, 5MHz ~ 25MHz, Ampl > 0.1Vpp
SQUARE WAVE CHARACTERISTICS
Rise/Fall Time
Overshoot
Asymmetry
Variable Duty Cycle
RAMP CHARACTERISTICS
Linearity
Variable Symmetry
25ns at maximum output (into 50Ω load)
5%
1% of period + 5 ns
1.0%~99% 100kHz ; 10.0%~90.0% 1MHz ; 50.0% 25MHz
< 0.1% of peak output
0%~100%(0.1% Resolution)
PULSE CHARACTERISTICS
Period
Pulse Width
Overshoot
Jitter
40ns ~ 2000s
20ns ~ 1999.9s
<5%
20ppm + 5ns
AM MODULATION
Carrier Waveforms
Modulating Waveforms
Modulating Frequency
Depth
Source
Carrier Waveforms
Modulating Waveforms
Modulating Frequency
Peak Deviation
Source
Sine, Square, Ramp, Pulse, Arb
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
0% ~ 120.0%
Internal / External
Sine, Square, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
DC ~ Max Frequency
Internal / External
Sine, Square, Ramp, Pulse, Arb
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
0% ~ 120.0%
Internal / External
Sine, Square, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
DC ~ Max Frequency
Internal / External
PM
Carrier Waveforms
Modulating Waveforms
Modulation Frequency
Phase Deviation
Source
Sine, Square, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
0˚ ~ 360˚
Internal / External
Sine, Square, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
0˚ ~ 360˚
Internal / External
FSK
Carrier Waveforms
Modulating Waveforms
Modulation Frequency
Phase Deviation
Source
Sine, Square, Ramp, Pulse
50% duty cycle square
2mHz ~ 100 kHz (INT); DC ~ 100 kHz(EXT)
1mHz ~ Max Frequency
Internal / External
Sine, Square, Ramp, Pulse
50% duty cycle square
2mHz ~ 100 kHz (INT); DC ~ 100 kHz(EXT)
1mHz ~ Max Frequency
Internal / External
SUM
Carrier Waveforms
Modulating Waveforms
Modulation Frequency
Phase Deviation
Source
Sine, Square, Ramp, Pulse, Noise
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
0% ~ 100.0%
Internal / External
Sine, Square, Ramp, Pulse, Noise
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT)
0% ~ 100.0%
Internal / External
SWEEP
Waveforms
Type
Start/Stop Freq
Sweep Time
Source
Sine, Square, Ramp
Linear or Logarithmic
1mHz to Max Frequency
1ms ~ 500s
Internal / External/Manual
Sine, Square, Ramp
Linear or Logarithmic
1mHz to Max Frequency
1ms ~ 500s
Internal / External/Manual
BURST
Waveforms
Frequency
Burst Count
Start/Stop Phase
Internal Period
Gate Source
Trigger Source
N-Cycle, Infinite
Sine, Square, Ramp
1mHz ~ 25MHz
1 ~ 65535 cycles or Infinite
-360 ~ +360
1ms ~ 500s
External Trigger
Single, External or Internal Rate
0s ~ 655350ns
Sine, Square, Ramp
1mHz ~ 25MHz
1 ~ 65535 cycles or Infinite
-360 ~ +360
1ms ~ 500s
External Trigger
Single, External or Internal Rate
0s ~ 655350ns
FREQUENCY COUNTER
Range
Accuracy
Time Base
Resolution
Input Impedance
Sensitivity
5Hz ~ 150MHz
Time Base accuracy±1count
±20ppm (23˚C ± 5˚C) after 30 minutes warm up
The maximum resolution is : 100nHz for 1Hz, 0.1Hz for 100MHz
1k W /1pf
35mVrms ~ 30Vms (5Hz ~ 150MHz)
DUAL CHANNEL FUNCTION
Phase
Tracking
Coupling
DSOlink
-180˚ ~ 180˚, Synchronize phase
CH2=CH1
Frequency(Ratio or Difference)Amplitude & DC Offset
EXTERNAL TRIGGER INPUT
Type
Input Level
Slope
Pulse Width
Input Impedance
For FSK, Burst, Sweep
TTL Compatibility
Rising or Falling(Selectable)
>100ns
10kW , DC coupled
EXTERNAL MODULATION INPUT
Type
Voltage Range
Input Impedance
Frequency
For AM, FM, PM, SUM
±5V full scale
10k W
DC ~ 20kHz
FM MODULATION
TRIGGER OUTPUT
-180˚ ~ 180˚, Synchronize phase
CH1=CH2
Frequency(Ratio or Difference)Amplitude & DC Offset
Type
For Burst, Sweep, Arb
Level
TTL Compatible into 50 W
>450ns
Pulse Width
1MHz
Maximum Rate
Fan-out
≥4 TTL Load
Impedance
50W Typical
Save/RECALL
10 Groups of Setting Memories
USB(Host
&
Device)
INTERFACE
DISPLAY
3.5" TFT LCD
POWER SOURCE
AC100~240V , 50~60Hz
POWER CONSUMPTION
25W (Max.)
OPERATING ENVIRONMENT
Temperature to satisfy the specification: 18~28°C; Operating temperature: 0~40°C; Relative Humidity: ≤80%, 0~40°C; ≤70%, 35~40°C;
Installation category: CAT Ⅱ
OPERATING ALTITUDE
2000 meters
STORAGE TEMPERATURE
-10~70°C, Humidity: ≤70%
266(W)×107(H)×293(D) mm ; Approx. 2.5 kg
DIMENSIONS & WEIGHT
Specifications subject to change without notice.
