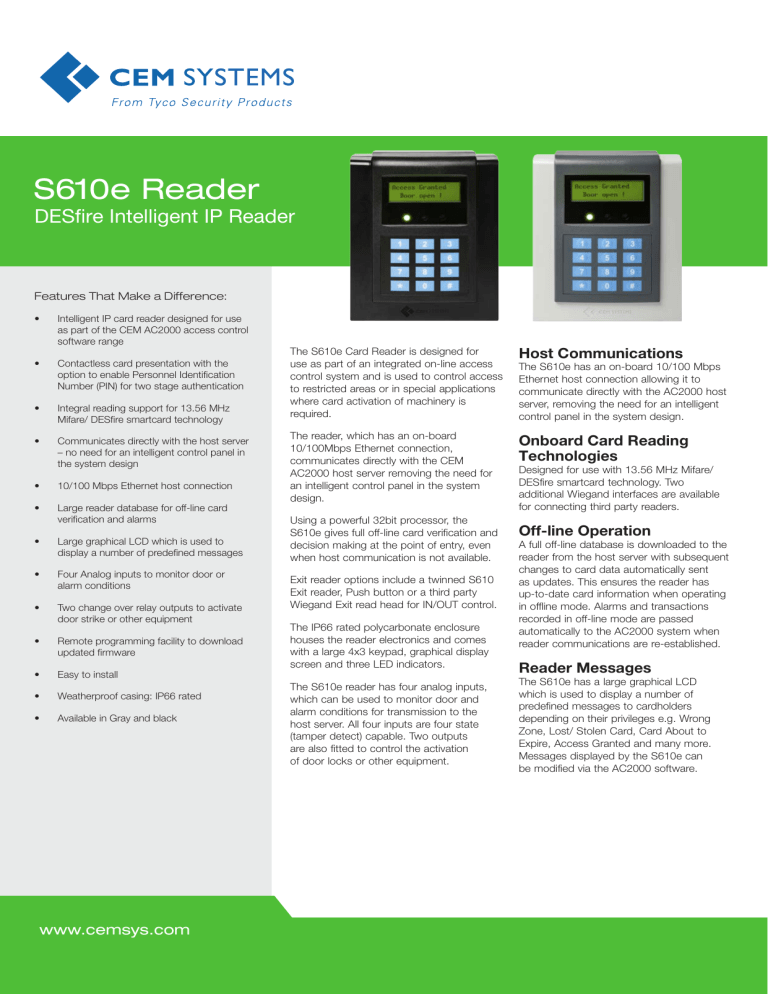

S610e Reader
DESfire Intelligent IP Reader
Features That Make a Difference:
•
Intelligent IP card reader designed for use
as part of the CEM AC2000 access control
software range
•
Contactless card presentation with the
option to enable Personnel Identification
Number (PIN) for two stage authentication
•
Integral reading support for 13.56 MHz
Mifare/ DESfire smartcard technology
•
Communicates directly with the host server
– no need for an intelligent control panel in
the system design
•
10/100 Mbps Ethernet host connection
•
Large reader database for off-line card
verification and alarms
•
Large graphical LCD which is used to
display a number of predefined messages
•
Four Analog inputs to monitor door or
alarm conditions
•
Two change over relay outputs to activate
door strike or other equipment
•
Remote programming facility to download
updated firmware
•
Easy to install
•
Weatherproof casing: IP66 rated
•
Available in Gray and black
www.cemsys.com
The S610e Card Reader is designed for
use as part of an integrated on-line access
control system and is used to control access
to restricted areas or in special applications
where card activation of machinery is
required.
Host Communications
The reader, which has an on-board
10/100Mbps Ethernet connection,
communicates directly with the CEM
AC2000 host server removing the need for
an intelligent control panel in the system
design.
Onboard Card Reading
Technologies
Using a powerful 32bit processor, the
S610e gives full off-line card verification and
decision making at the point of entry, even
when host communication is not available.
Exit reader options include a twinned S610
Exit reader, Push button or a third party
Wiegand Exit read head for IN/OUT control.
The IP66 rated polycarbonate enclosure
houses the reader electronics and comes
with a large 4x3 keypad, graphical display
screen and three LED indicators.
The S610e reader has four analog inputs,
which can be used to monitor door and
alarm conditions for transmission to the
host server. All four inputs are four state
(tamper detect) capable. Two outputs
are also fitted to control the activation
of door locks or other equipment.
The S610e has an on-board 10/100 Mbps
Ethernet host connection allowing it to
communicate directly with the AC2000 host
server, removing the need for an intelligent
control panel in the system design.
Designed for use with 13.56 MHz Mifare/
DESfire smartcard technology. Two
additional Wiegand interfaces are available
for connecting third party readers.
Off-line Operation
A full off-line database is downloaded to the
reader from the host server with subsequent
changes to card data automatically sent
as updates. This ensures the reader has
up-to-date card information when operating
in offline mode. Alarms and transactions
recorded in off-line mode are passed
automatically to the AC2000 system when
reader communications are re-established.
Reader Messages
The S610e has a large graphical LCD
which is used to display a number of
predefined messages to cardholders
depending on their privileges e.g. Wrong
Zone, Lost/ Stolen Card, Card About to
Expire, Access Granted and many more.
Messages displayed by the S610e can
be modified via the AC2000 software.
Easy to Install
The S610e is designed to be extremely easy to install. The installer
simply enters the unit IP address on the AC2000 workstation,
provides it with power, connects to an Ethernet network and the
reader self-configures by means of downloading data from the host.
Remote Programming
The S610e reader can be remotely programmed from the host
computer, eliminating the need to physically replace firmware,
giving increased system flexibility and efficiency. Some configuration
setting can be set using the keypad and operational parameters,
e.g. door open time, can also be downloaded to the reader.
Standard Operating Modes include, but are not limited to,
Door Access, Passenger (extended opening time),Turnstile,
Verification, Control Post, and Equipment Enable mode.
Specification
Physical
Size . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . .
Housing . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Color options . . . . . . . . . . . . .
142 x 115 x 44mm (5.6 x 4.5 x 1.7inch)
370g (13oz) with connectors
Flame retardant polycarbonate containing
fully encapsulated electronics.
Dark and Light Gray or Black
Power Requirements
Voltage . . . . . . . . . . . . . . . . . . 9 – 14Vdc
Current Consumption . . . . . . . 360mA (passive), 480mA (active)
Environmental
IP Rating . . . . . . . . . . . . . . . .
Temperature . . . . . . . . . . . . . .
LED Indicators . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
LCD Indicators . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Keypad . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Functionality
Inputs . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Outputs . . . . . . . . . . . . . . . . .
Rating . . . . . . . . . . . . . . . . . . .
Duration . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Memory . . . . . . . . . . . . . . . . .
Database battery backup . . . .
IP66
-20°C to 60°C (-4°F to 140°F)
Three high intensity LED indicators, Red,
Amber and Green
32 x 122 dots Monochrome Graphics LCD
with backlight
12 character, standard layout, tactile
response keypad
Four analogue inputs – voltage supplied,
4 state (tamper detect)
Two relay fitted – changeover volt free contacts
30Vdc @ 5A
Programmable suppression device
(diode, MOV) required at load
2MB battery backed memory
3.0V rechargeable Lithium-Ion
Dynamic Database Sizes
In Offline Operation . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
8 Byte Mode (Card number, Timezone,
PIN, Card Status)
Card holders Transactions
210,000
10,000
150,000
50,000
80,000
100,000
3 Byte Mode (Card Number Only)
Card holders Transactions
430,000
10,000
310,000
50,000
160,000
100,000
Communication Interface
To Exit Reader . . . . . . . . . . . .
Interfaces . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Connection . . . . . . . . . . . . . . .
To system Host . . . . . . . . . . .
Connection . . . . . . . . . . . . . . .
RS485
Two Wiegand interfaces with a maximum
cable length of 150M
2 part JST connector
10/100 base-T TCP/IP using CAT5 Unshielded twisted pair cable
RJ45
Requirements
• AC2000
• AC2000 Lite
• AC2000 Airport
• RTC Ethernet Reader Controller
Ordering Information
Product Codes
Description
Gray Version
RDR/610/107
S610e 13.56MHz DESfire
Black Version
RDR/610/117
S610e 13.56MHz DESfire
Related Products
AC2000
AC2000Lite
AC2000 Airport
www.cemsys.com
© 2014 Tyco Security Products. All Rights Reserved. CEM/B/162 Rev A
Tyco and the product names listed above are marks and/or registered marks. Unauthorized use is strictly prohibited.
Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region; contact your sales representative.
