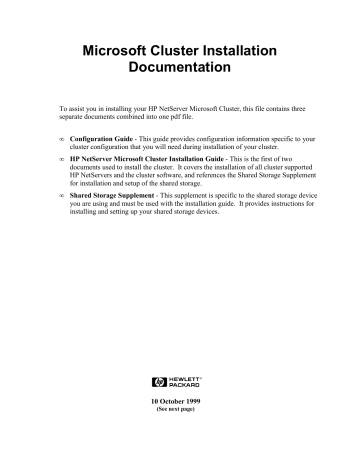

Microsoft Cluster Installation Documentation

Microsoft Cluster Installation Documentation

Microsoft Cluster Installation

Documentation

To assist you in installing your HP NetServer Microsoft Cluster, this file contains three separate documents combined into one pdf file.

Configuration Guide - This guide provides configuration information specific to your cluster configuration that you will need during installation of your cluster.

HP NetServer Microsoft Cluster Installation Guide - This is the first of two documents used to install the cluster. It covers the installation of all cluster supported

HP NetServers and the cluster software, and references the Shared Storage Supplement for installation and setup of the shared storage.

Shared Storage Supplement - This supplement is specific to the shared storage device you are using and must be used with the installation guide. It provides instructions for installing and setting up your shared storage devices.

10 October 1999

(See next page)

10 October 1999

30 November 1998

Version History

Updated the pdf to include the latest version of the HP NetServer Microsoft

Cluster Installation Guide. This later version changes the product name from

"AutoRAID 12H" to "SureStore E 12H" and the shared storage HBA model number from "A5252A" to "A5252B."

Package released

HP NetServer LH 4 with

A3700AB HP SureStore E 12H Disk Array

Cluster Configuration Guide

10 October 1999

(see Versions History at the end of this document)

Introduction

This document defines the supported HP NetServer LH 4 with A3700AB HP SureStore E 12H Disk Array configurations for Microsoft Cluster Server. These configurations minimize single points of failure, provide maximum availability, and have been certified by Hewlett-Packard and Microsoft. This guide is prescriptive; it describes the configurations supported by HP. Any configuration not expressly allowed by this guide will not be supported by HP.

What’s Defined in Cluster

Cluster

SPUs

Local and Shared Storage

Intra-cluster and Client LANs

Shared Storage Cabling

Cluster

Type of SPUs

Installation

Number of nodes

Shared Storage

LANs:

Client LAN

Intra-cluster

(Heartbeat) LAN

Power source

HP NetServer LH 4

Each node must be the same model SPU, but may have different size main memory, cache, and CPU clock speeds.

Pedestal or racked

2

HP SureStore E 12 Disk Array and HP disks. See

Shared Storage

below.

Any NIC that is HP and Microsoft approved. See

Client LAN

below.

HP D5013A or J3171A only with crossover cable. See

Intra-cluster LAN

below.

Direct from power mains, power conditioner or uninterruptible power supply (UPS) using any power conditioner or UPS.

System software:

Navigator version

Operating System

Service pack

SPU

Model

Clock speed

No. of CPUs

BIOS version

CPU cache

RAM

No. of power supplies

Local storage

I/O slots:

L.15.00 or later

Microsoft Windows NT Server 4.0, Enterprise Edition or later

SP4 or later

HP NetServer LH 4

400 or 450 MHz.

2 - 4

4.06.12 PS

Any size

256 MB minimum. Must be HP.

3 or 4

Internal or external. See

Local Storage

below.

P6, P7, P8 - Shared storage controller

P2 – Intra-cluster (Heartbeat) LAN

P1 – Client LAN

P3-P5 - Local storage controller or any other plug-in cards.

Storage

Local

Controller

Cabinets (Physical drive location)

Disk drives (hot swap or fixed)

SCSI IDs

Shared

Host Bus Adapter

Model

No. of HBAs

Driver

SPU I/O slot

SCSI ID

Disk Array Controller

Model

No. of controllers

Firmware

RAID level (internal)

Logical disks

Hot spare

SCSI ID

Disk Array Storage

Model

Use embedded RAID, otherwise any manufacturer or driver in any available I/O slot.

SPU internal drive

Must be HP.

Any

HP A5252B Wide Differential SCSI Adapter.

1 – 3 per NetServer.

“Adaptec AHA-294X/AHA-394X/AIC-78XX SCSI Controller” driver in NT 4.0 SP4 or later

P8 (1 st

HBA), P7 (2 nd

HBA), P6 (3 rd

HBA)

7

HP A3706A Model 12H 96MB Controller with SureStore E 12H

2 per SureStore E 12H

HP54 or later.

1/0 and 5

Logical units within each array must be numbered from 0 – 7.

Active Hot Spare.

0 – 6, or 8 – 15

HP A3700AB SureStore E 12H Disk Array

2

No. of cabinets

Disk modules:

Power supply

SureStore E Manager

Cabling

NIC:

Model

Driver

1 – 6; Maximum 2 SureStore E 12Hs per SCSI bus.

HP A3702A 4.2 GB Disk Module;

HP A3703A 9.1 GB Disk Module;

HP A3710A 18.2 GB Disk Module.

3

3.0 or later.

HP C2981A 0.5 meter Ultra-flexible SCSI Cable;

HP C2911A 0.9 meter 68-pin HD Male to 68-pin HD Male Cable;

HP C2924A 2.5 meter 68-pin HD Male to 68-pin HD Male Cable;

HP C2925A 10 meter 68-pin HD Male to 68-pin HD Male Cable.

Maximum 25 meters per SCSI bus.

HP C2905A Wide Differential SCSI Terminator.

Terminator

LANs

LAN connection

No. of NICs

SPU I\O slot

Intra-cluster (Heartbeat) LAN

HP D5954A crossover cable or any equivalent.

The intra-cluster LAN may only be used for cluster node communication via a crossover cable. It may not be used for client communication.

HP D5013A (10/100TX PCI)

3.00.06.004 or later

1

P2

Client LAN

Any LAN

Any that is on both the HP

Tested Products List and the

Microsoft Hardware

Compatibility List.

Any driver

If the NIC used is the same as the Intra-cluster LAN, then the

Client LAN must use the same driver as the Intra-cluster LAN.

1 minimum

P1

3

Shared Storage Cabling

This part of the guide defines the allowable cabling configurations for HP LXr Pro8 NetServer clusters using the HP SureStore E 12H Disk Array. Only these cabling configurations and cables are supported. These diagrams show single and daisy-chained configurations.

A5252B

SCSI HBA

A5252B

SCSI HBA

HP Microsoft Cluster Server with a single HP SureStore E 12H Disk Array

4

A5252A

SCSI HBA

A5252A

SCSI HBA

HP Microsoft Cluster Server and two daisy-chained HP SureStore E 12H Disk Arrays

5

Version History

10 October 1999 Updated the shared storage model name from AutoRAID 12H to

SureStore E 12H throughout, and changed the shared storage Host Bus

Adapter model number from HP A5252A to A5252B.

30 November 1998 Initial release

6

HP NetServer

Microsoft Cluster Installation Guide

with

Shared Storage System Supplement

Rack Storage/12FC

Rack Storage/12

Rack Storage/8

Storage System/6

HP SureStore E 12H Disk Array or

HP A3661B Model 30/FC High Availability Disk Array

10 October 1999

(See Version History below)

This page intentionally left blank.

HP NetServer Installation Guide 2

Notice

The information in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warranty

If you have any questions about the warranty for this product, contact your dealer.

Safety Considerations

The product and related documentation must be reviewed for familiarization with safety markings and instructions before installation and operation.

Safety Symbols

A

WARNING

denotes a hazard that can cause personal injury.

A

CAUTION

denotes a hazard that can damage equipment or result in lost data.

A

NOTE

contains information that is useful in accomplishing a task and should be read before performing the associated instruction(s).

Do not proceed beyond a

WARNING

or

CAUTION

notice until you understand the hazardous conditions and have taken appropriate steps.

Grounding

The computer in which this product is installed is a safety class I product and has a protective earthing terminal. There must be an uninterruptible safety earth ground from the main power source to the product’s input wiring terminals, power cord, or supplied power cord set. Whenever it is likely that the protection has been impaired, disconnect the power cord until the ground has been restored.

Servicing

Any service, adjustment, maintenance, or repair must be performed only by authorized service-trained personnel.

Trademark Notice

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

The use of trademarks or other designations is for reference purposes only. The following trademarks are used in this manual:

Microsoft and MS-DOS are U.S. registered trademarks of Microsoft Corp.

Windows and Windows NT are trademarks of Microsoft Corporation.

3M is a registered Trademark of the 3M Company.

Hewlett-Packard

Network Server Division

10955 Tantau Avenue

Cupertino, CA 95014-0770, USA

© Copyright 1999, Hewlett-Packard Company

HP NetServer Installation Guide 3

Contents

Some topics in this guide are applicable to all HP NetServer clusters while others are HP NetServer and shared storage specific. A complete installation guide consists of two documents: this document (common to all HP NetServers) and the supplement for your shared storage system.

O

VERVIEW

................................................................................................................................................... 5

V

ERSION

H

ISTORY

....................................................................................................................................... 5

I

NTENDED

A

UDIENCE

.................................................................................................................................. 5

A G

RAPHICAL

O

VERVIEW TO

S

ETTING

U

P THE

C

LUSTER

............................................................................ 6

1 WHAT’S NEEDED ................................................................................................................................... 7

N

EED

M

ORE

H

ELP

?...................................................................................................................................... 8

R

EFERENCED

D

OCUMENTS

.......................................................................................................................... 8

2 NETSERVER HARDWARE SETUP ..................................................................................................... 9

I

NSTALL

C

OMPONENTS

................................................................................................................................ 9

3 SHARED STORAGE HARDWARE SETUP....................................................................................... 10

4 CLUSTER CABLING AND SETUP..................................................................................................... 11

S

ETUP

C

LUSTER

H

ARDWARE

..................................................................................................................... 11

C

ONNECT THE

LAN A

DAPTERS

................................................................................................................. 11

C

ONNECT

S

HARED

S

TORAGE

& C

ABLE THE

C

LUSTER

............................................................................... 11

5 NETSERVER SOFTWARE SETUP..................................................................................................... 12

S

TART

H

ERE

.............................................................................................................................................. 12

LCII........................................................................................................................................................... 12

LC3 ........................................................................................................................................................... 13

LH P

RO

..................................................................................................................................................... 14

LH 3 .......................................................................................................................................................... 15

LH 3 (

WITH

N

ET

RAID L

OCAL AND

S

HARED

S

TORAGE

) ........................................................................... 17

LH 4 .......................................................................................................................................................... 19

LP

R

............................................................................................................................................................ 21

LP

R

(

WITH

N

ET

RAID L

OCAL AND

S

HARED

S

TORAGE

) ............................................................................. 23

LX/LX

R

P

RO

............................................................................................................................................. 25

LX

R

8000 .................................................................................................................................................. 26

LX

R

8000 (

WITH

F

IBRE

C

HANNEL

)............................................................................................................ 28

I

NSTALL

S

ERVICE

P

ACK FOR

A

LL

HP N

ET

S

ERVERS

.................................................................................. 29

6 SHARED STORAGE SOFTWARE SETUP ........................................................................................ 31

S

HARED

S

TORAGE

S

ETUP

.......................................................................................................................... 31

C

REATE THE

A

RRAY

F

ILE

S

YSTEMS

........................................................................................................... 31

7 MICROSOFT CLUSTER SERVER SOFTWARE SETUP................................................................ 37

I

NSTALL

MSCS

ON

S

YSTEM

A................................................................................................................... 37

I

NSTALL

MSCS

ON

S

YSTEM

B................................................................................................................... 41

I

NSTALL

S

ERVICE

P

ACK OR

H

OT

F

IX

......................................................................................................... 41

8 CLUSTER TESTING ............................................................................................................................. 42

H

ARDWARE

V

ERIFICATION AND

L

ABELING

U

TILITY

................................................................................. 42

C

LUSTER

I

NSTALLATION

T

EST

................................................................................................................... 42

HP NetServer Installation Guide 4

Overview

HP NetServer clusters provide increased availability solutions for critical applications. The basic cluster consists of two HP NetServer systems coupled to shared storage units. The operating system files, application files, and other files local to each node are stored on fixed or hot swap disks. Local disks are usually located internally in the system.

Both HP NetServers share external drives located in the shared storage unit(s). Shared drives are accessed using an interface card (typically referred to as the Host Bus Adapter) located in each HP NetServer unit.

Both HP NetServers run Microsoft Windows NT Server, Enterprise Edition, which includes Microsoft

Cluster Server software.

This guide has been designed to help you setup the HP NetServers, set up, assemble and cable the cluster, and install server and cluster software.

NOTE

This installation guide is incomplete without the supplement specific to your shared storage system. When directed by this guide, turn to the supplement to get the necessary instructions.

Version History

Date

10 October 99

Change

Changed "AutoRAID" and "AutoRAID Model 12H" to "SureStore E 12H" throughout.

1 September 99 Added installation instructions f or a fibre channel cluster solution using the LXr 8000 with the Rack Storage/12FC and up to two optional Rack Storage/12s.

7 April 99 Corrected error (changed LHI to LH4 two places in the LH4 install procedures).

Simplified the overall installation procedure by removing the need to match drive letters for the second node.

8 March 99

19 Jan. 99

Added instructions for the LPr, using NetRAID local and shared storage and Revised instructions to use Navigator L.15.05 on LH4, LPr, and LXr 8000.

Added installation instructions for the LPr.

18 Dec. 98

20 Nov. 98

5 Oct. 98

20 July 98

9 June 98

Added installation procedures for the HP NetServer LH 4 and LXr 8000.

Revised the LH3 installation procedures in part 5 to allow using LH3 clusters with

Model 12H and FC-30 shared storage subsystems.

Revised part 5 – Installation to provide separate server configuration and Windows NT installation procedures. Added the LH3 installation procedure including using a

NetRAID adapter for local storage.

Added installation instructions in part 5 for the LC3.

Initial release

Intended Audience

The guide is for the person who installs, administers, and troubleshoots the Microsoft Cluster Server.

Hewlett-Packard assumes this person is qualified to service computer equipment and trained to recognize hazards in products with hazardous energy levels.

NOTE

Hewlett-Packard only supports and recommends installation of clustered HP NetServer systems using Microsoft Cluster Server software by a Microsoft or HP Cluster Certified

Installer.

HP NetServer Installation Guide 5

A Graphical Overview to Setting Up the Cluster

CAUTION

Departing from the sequence shown here can cause unnecessary work and unpredictable results.

HP NetServer Installation Guide 6

1 What’s Needed

Before beginning the installation, make sure you have the following items prepared and tools and resources available.

Some information in this part is shared storage specific. See part "1 What’s Needed" of the

Shared Storage Supplement and the Configuration Guide for your cluster. Review the supplement, refer to the Configuration Guide as directed, then return to this part.

Addresses / Names

Minimum of three Client LAN IP addresses: one for each HP NetServer system and one for the HP

NetServer cluster client LAN.

Two Intra-cluster LAN IP addresses for the intra-cluster LAN: One for each HP NetServer system.

(May use hidden or intranet addresses. See the MSCS Administrator’s Guide for a discussion of IP addressing.)

NOTE

The Client LAN IP address and Intra-cluster LAN IP addresses must be on different subnets.

Cluster and node names (limited to 15 or fewer alphanumeric characters)

Subnet mask

User name, password, and domain to be used for the cluster service.

Hardware

Compare the hardware you have received with your ordering documentation, such as the parts lists created by

HP NetServer Order Assistant and Rack Assistant

Software

Microsoft Windows NT Server (Enterprise Edition), version 4.0, which includes Windows NT, version

4.0 and Service Pack (SP). See the Configuration Guide for your cluster solution for the applicable

Windows NT and SP versions and Microsoft Cluster Server installation software.

NOTE

Some HP NetServers, as stated in part “5 NetServer Software Setup,” require installing

Windows NT from floppy disks. To create floppy disks, on a computer running Windows

95 or NT, insert the Windows NT Server/E base CD in the CDROM drive and from the comm

D nd line execute: D:\i386\winnt32.exe /ox. If needed, see, “How to Create

Windows NT Boot Floppy Disks” under Support Online for the Microsoft web site.

Microsoft Hotfix (clusfixi.exe) for Windows NT (for SP3 only). This software is only needed if you are using Service Pack 3. To download.

1.

Access the Microsoft web site at http://www.microsoft.com.

2.

On the site navigator bar, select SEARCH, then search for Q147222 in the "Support & Knowledge

Base" category.

3.

On the Search Results page, select Group of Hotfixes for Exchange 5.5 and IIS 4.0, then follow the ftp path to download the "clusfixi.exe" file.

HP NetServer Installation Guide 7

NOTE

When performing this search on the Microsoft web site you may be prompted to register with Support Online. If prompted to register, you must first complete the questionnaire and then complete the search.

HP NetServer Navigator CD. HP recommends you use the latest version, however you may use an earlier version if it is specified in the Configuration Guide for your cluster.

Cluster Installation Test. Downloaded from the Certified Installer Corner under Install & Configure on the HP NetServer Clustering Solutions web site.

NIC drivers. Download HP drivers from Software Downloads page under Install & Configure" on the

HP NetServer Clustering Solutions web site.

Tools

Common hand tools plus the following:

Torx™ T-25 driver supplied in the Rack Installation Toolkit. For rack installed clusters only.

Portable Field Service Grounding Kit (3M® part number 8505, or equivalent).

Need More Help?

HP Information Assistant provides extensive support information and is available on the HP NetServer

Online Documentation CD-ROM. Although you can access HP Information Assistant from the NetServer

Navigator Main menu, HP recommends that you install it on an available Windows client connected to a printer. For more information about installing HP Information Assistant, refer to the system documentation.

The following reference materials may also be useful:

HP NetServer Microsoft Windows NT 4.0 Installation Guide for your HP NetServer

Processor Upgrade Instructions

These materials are available by choosing Install or Reference Books on the HP Information Assistant's Main menu.

Referenced Documents

MSCS Administrator's Guide on the Microsoft NT 4.0 base CD under \Support\Books

HP NetServer Configuration Guide. If not bundled with this Installation Guide downloaded from the

Supported Configurations page under Plan on the HP Cluster Solutions web site

HP NetServer Installation Guide 8

2 NetServer Hardware Setup

When HP NetServers are shipped from the factory, they are configured for stand-alone operation. The first step in creating a cluster is to install additional hardware that allows the HP NetServers to:

Share data

Communicate with one another

Communicate with the LAN

CAUTION

Installing hardware requires opening the HP NetServers. HP therefore, recommends using a grounding kit. See part "1 What’s Needed" for details. The kit contains a wrist strap, anti-static mat, and cable.

Install Components

NOTE

Perform the following procedure on either HP NetServer first, and then repeat the procedure for the second NetServer.

1.

Gather the required hardware components for the HP NetServers and separate the components into two systems.

2.

Remove the HP NetServer cover(s).

3.

Install any of the following types of components that were supplied with your HP NetServers using the instructions supplied with each component. If needed, refer to HP Information Assistant for additional instructions:

Processors. If additional processors were supplied with your HP NetServers install them at this time.

Main Memory. Cluster operations require a minimum amount of main memory (RAM). Typically you do not need to add memory to your HP NetServers. However, if additional memory is required, it will be identified by the HP Order Assistant program and will be supplied. Install any additional memory that has been provided with your order. See the Configuration Guide for your cluster configuration and check that you meet the minimum memory requirements.

LAN Adapters. Install two LAN adapters in each HP NetServer. Refer to the HP NetServer

Configuration Guide for your cluster and install the adapters in the PCI slots stated in the guide. If other boards are installed in these slots, remove them and install them in other slots.

Internal Disks. If provided install the local storage drives (fixed or hot swap) into the HP

NetServers.

Local Storage Adapter. This adapter provides the interface to the local storage of the node. See the Configuration Guide for your cluster configuration for the PCI slot to use.

Host Bus (Shared Storage) Adapters. These adapters provide the interface to the Shared Storage

Systems and must be installed in specific PCI slots. See the Configuration Guide for your cluster configuration for the HP NetServer PCI slots to use.

See instructions supplied with the component or see part "2 NetServer Hardware Setup" of the Shared Storage Supplement for instructions on installing these adapters.

HP NetServer Installation Guide 9

3 Shared Storage Hardware Setup

part "3 Shared Storage Hardware Setup" in the Shared Storage Supplement

HP NetServer Installation Guide 10

4 Cluster Cabling and Setup

Setup Cluster Hardware

Non-racked clusters - Follow the Site Preparation guidelines provided in the Planning Guide under Plan on the HP NetServers Clustering Solutions web site.

Racked clusters - Follow the Road Map supplied with the system and instructions in the shared storage supplement. In addition you should have rack layouts of your system printed from the HP NetServers Rack

Assistant program. If not, see HP NetServers web site to download this program.

Connect the LAN Adapters

Two sets of LAN adapters need to be connected. One set allows the cluster to communicate node-to-node over what is typically called the intra-cluster LAN. The second set allows the cluster to communicate with external clients over what is typically called the client LAN.

NOTE

See the Configuration Guide for your cluster for the PCI slots to be used for the intracluster and client LANs.

To connect the cluster’s LAN adapters:

1.

Connect the intra-cluster LAN adapter in one node to the intra-cluster LAN adapter in the other node using a crossover cable.

2.

Connect the client LAN adapter in each node to the client LAN using Ethernet cables.

Connect Shared Storage & Cable the Cluster

part "4 Cluster Cabling and Setup" in the Shared Storage Supplement

HP NetServer Installation Guide 11

5 NetServer Software Setup

Follow the procedures in this part to configure the hardware and BIOS and to install Windows NT including the applicable Service Pack.

Start Here

In this part you will perform two major tasks. First you will configure the NetServer Hardware and BIOS and Install Windows NT following a procedure specific to your HP NetServer as listed below. Secondly, you will install the applicable Service Pack on the NetServer. Select your procedure from the following list:

You will… Go to procedure for…

First

Second

LCII

LC3

LH Pro

LH 3

LH 3 (with NetRAID local storage)

LH 4

LPr

LPr (with NetRAID local and shared storage)

LX/LXr Pro

LXr 8000

LXr 8000 (with fibre channel)

Installing the Microsoft Service Pack

On page …

21

25

27

28

28

30

12

13

14

15

17

19

LCII

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive of System B and restart the server.

The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 3; otherwise go to step 6.

3.

To update the BIOS, choose

Configuration Assistant

, then

Custom

,

Microsoft

,

NT 4.0

, and

No

for automated NOS installation.

4.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

5.

After the server reboots return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

Install a utilities partition on the local storage disk by choosing

Configuration Assistant

, then

Custom

,

Microsoft

, MS Windows

NT 4.0 Enterprise Edition

, and

No

for automated

NOS installation.

7.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

HP NetServer Installation Guide 12

Install Windows NT

1.

Remove the HP NetServer Navigator CD, insert the first CD of the Microsoft Windows NT Server,

Enterprise Edition, and exit Navigator to reboot the server.

2.

Select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system.

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

LC3

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive of System B and restart the server.

The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 3; otherwise go to step 6.

3.

To update the BIOS, choose

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

NT 4.0

and

No

for automated NOS installation.

4.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

5.

After the server reboots return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

Install a utilities partition on the local storage disk by choosing

Configuration Assistant and

Installation Assistant

, then

Custom

,

Microsoft

, MS Windows

NT 4.0 Enterprise

Edition

, and

No

for automated NOS installation.

7.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

HP NetServer Installation Guide 13

Install Windows NT

1.

Remove the HP NetServer Navigator CD, insert the first CD of the Microsoft Windows NT Server,

Enterprise Edition, and exit Navigator to reboot the server.

2.

Select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system.

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

LH Pro

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive of System B and restart the server.

The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 3; otherwise go to step 6.

3.

To update the BIOS, choose

Configuration Assistant

, then

Custom

,

Microsoft

, MS

Windows

NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

4.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

5.

After the server reboots return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

From the Navigator Main menu, choose

NetServer Utilities

, then

EISA Configuration

Utility

.

7.

In the EISA Configuration Utility, disable the

Embedded IDE Hard Disk Controller

.

(The embedded IDE controller is not used on HP NetServer systems.)

8.

Save and exit the EISA Configuration Utility.

The Utility saves your configuration data, restarts the HP NetServer and reloads the HP Navigator CD-

ROM.

9.

Install a utility partition on the local storage disk by choosing

Configuration Assistant

, then

Custom

,

Microsoft

, MS Windows

NT 4.0 Enterprise Edition

, and

No

for automated

NOS installation.

10.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

HP NetServer Installation Guide 14

Install Windows NT

1.

Remove the HP NetServer Navigator CD, insert the first CD of the Microsoft Windows NT Server,

Enterprise Edition, and exit Navigator to reboot the server.

2.

Select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure TCP/IP Protocol is selected.

Other protocols may be selected in addition, but TCP/IP is required.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

LH 3

These procedures provide instructions for servers using NetRAID, SureStore E 12H, and Model 30/FC shared storage solutions.

NOTE

If you are use NetRAID adapters for both shared and local storage go to the next procedure, LH3 (with NetRAID Local and Shared Storage) on page 17.

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

3.

During reboot enter the Setup Utility by pressing F2.

4.

Select

User Preferences

and then the

LH4 Integrated NetRAID

setting you want to use.

If you are using NetRAID for shared storage, disable the

LH4 Integrated HP NetRAID

.

It must be disabled otherwise it will conflict with the HP NetRAID adapter used for shared storage.

5.

Exit the Setup Utility.

The server reboots. If you have special NetServer local SCSI bus options enter the Symbios utility, by pressing Ctrl+C at the Symbios boot banner during reboot and set the options you need; otherwise allow the server to reboot. The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 6; otherwise go to step 9.

6.

To update the BIOS, choose

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

7.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

HP NetServer Installation Guide 15

8.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

9.

From the Navigator main menu, install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

10.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

11.

Make an NT 4.0 Drivers disk by choosing

Create Driver Diskette(s), Execute,

and following the prompts. Label the floppy disk NT 4.0 Drivers.

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” for additional information.

1.

Remove the HP NetServer Navigator CD, insert the boot floppy for Windows NT4.0, and exit Navigator to reboot the server.

2.

When Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

The drivers are loaded from the NT 4.0 Drivers floppy disk you created from the Navigator CD.

First, load the driver for the device you want to boot from. For drives in the LH 3 internal bays this will normally be the embedded SCSI Symbios driver.

Secondly, load the IDE driver, since the CD drive is on the IDE bus.

Finally, load any other mass storage drivers you need. If you are using NetRAID for shared storage do not load the HP NetRAID driver at this time. It will be loaded later.

3.

Continue the installation, inserting floppy disks #2 and #3 and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [2] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [1] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

HP NetServer Installation Guide 16

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

4.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

LH 3

(with NetRAID Local and Shared Storage)

A NetRAID adapter may only be used for either shared storage or local storage; one adapter may not be used for both. To use NetRAID adapters for both shared and local storage, you must use two adapters.

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

3.

During reboot enter the Setup Utility by pressing F2.

4.

Using the Setup Utility disable the LH3 Integrated NetRAID.

Integrated NetRAID is not used in a cluster because it conflicts with the HP NetRAID adapter used for shared storage.

NOTE

Auto IRQ assignments can give IRQ conflicts. If this occurs manually set the IRQ assignments. In

Configuration

,

PCI Slot Devices

,

PCI IRQ Locking

, assign the IRQs to the cards. The following assignments work for the standard configuration:

Card PCI Slot

NIC P1

NIC P2

NetRAID P7

NetRAID P8

-

-

SCSI A

SCSI B

IRQ

9

9

5

5

10 (or disabled)

10 (or disabled)

Disable SCSI A and SCSI B if they are not used!

Set any other options as you desire.

5.

Exit the Setup Utility

The server reboots. If you have special NetServer local SCSI bus options enter the Symbios utility, by pressing Ctrl+C at the Symbios boot banner during reboot and set the options you need; otherwise allow the server to reboot. The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 6; otherwise go to step 9.

6.

To update the BIOS, choose

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

7.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

8.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

HP NetServer Installation Guide 17

9.

From the Navigator main menu select,

Configuration Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No.

Check the advisories in Configuration

Advisor for IRQ conflicts and other problems. Click

Continue

.

10.

Define the local storage RAID arrays. Select

Configure Disk Array

and use HP NetRAID

Assistant to define the arrays. Be sure to define the arrays for the local storage adapter (Adapter_0), not the shared storage adapter (Adapter_1).

NOTE

DO NOT define the shared storage arrays at this time. They will be defined later.

11.

From the Navigator main menu install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

12.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

13.

Make an NT 4.0 Drivers floppy disk by choosing

Create Driver Diskette(s), Execute,

and following the prompts. Label the floppy disk NT 4.0 Drivers.

Copy the NetRAID Driver for Clusters

Copy the “Mraidnt.sys” file from the NR Firmware & Driver floppy disk to the “\Netraid” directory on the

NT 4.0 Drivers floppy disk you created in step 13 above (page 18). You can do this either by booting the server on which you are installing to DOS and copying the file, or by copying this file using another computer:

This will overwrite the NetRAID single system driver already there with the NetRAID cluster driver.

NOTE

Do not copy the oemsetup.inf file on the NR Firmware & Driver floppy disk.

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” for additional information.

1.

Insert the boot floppy for Windows NT4.0 and exit Navigator to reboot the server.

2.

When Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

3.

Load drivers using the NT 4.0 Drivers floppy disk you created in step 13 above (page 18).

Load the driver for the device you want to boot from. This will be the HP NetRAID Adapter Driver.

Load the IDE driver, since the CD drive is on the IDE bus.

Load any other mass storage drivers you need. If you are using the embedded SCSI channels, load the Symbios driver at this time.

4.

Continue the installation and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

HP NetServer Installation Guide 18

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [2] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [1] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

5.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

LH 4

These procedures provide instructions for servers using NetRAID, SureStore E 12H, and Model 30/FC shared storage solutions.

Configure NetServer Hardware and BIOS

6.

Make sure you power down System A and power up System B.

7.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

8.

During reboot enter the Setup Utility by pressing F2.

9.

Select

User Preferences

and then the

LH4 Integrated NetRAID

setting you want to use.

If you are using NetRAID for shared storage, disable the

LH4 Integrated HP NetRAID

.

It must be disabled otherwise it will conflict with the HP NetRAID adapter used for shared storage.

10.

Exit the Setup Utility (F10, Save, and Exit).

The server reboots. If you have special NetServer local SCSI bus options enter the Symbios utility, by pressing Ctrl+C at the Symbios boot banner during reboot and set the options you need; otherwise allow the server to reboot. The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 6; otherwise go to step 9.

11.

To update the BIOS, choose

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

HP NetServer Installation Guide 19

12.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

13.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

14.

From the Navigator main menu, install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

,

Custom

,

Microsoft

, then either:

MS Windows NT4.0 Enterprise Edition Cluster Server

if using Navigator if

L.15.05 or later.

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation if using Navigator L.15.04 or earlier.

15.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

16.

Make a NT4.0 Drivers floppy disk by choosing

Create Driver Diskette(s), Execute,

and following the prompts. Label the floppy disk NT 4.0 Drivers.

17.

Return to the Navigator main menu by clicking the Back button three times.

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” in the installation guide supplement for additional information.

18.

Insert the boot floppy disk for Windows NT4.0 and exit Navigator to reboot the server.

19.

When Windows NT Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

The drivers are loaded from the NT 4.0 Drivers floppy disk you created from the Navigator CD.

First, load the driver for the device you want to boot from. For drives in the LH 4 internal bays this will normally be the embedded SCSI Symbios driver.

Secondly, load the IDE driver, since the CD drive is on the IDE bus.

Finally, load any other mass storage drivers you need. If you are using NetRAID for shared storage do not load the HP NetRAID driver at this time. It will be loaded later.

20.

Continue the installation using floppy disks#2 and #3 and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

HP NetServer Installation Guide 20

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [2] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [1] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

21.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

LPr

These procedures provide instructions for servers using NetRAID and SureStore E 12H shared storage solutions.

NOTE

If you are use NetRAID adapters for both shared and local storage go to the next procedure, LPr (with NetRAID Local and Shared Storage) on page 25.

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

3.

If you have special NetServer local SCSI bus options enter the Symbios utility by pressing Ctrl+C at the

Symbios boot banner during boot and set the options you need; otherwise allow the server to boot. The server boots from the CD and displays the Navigator Main Menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 4; otherwise go to step 6.

4.

To update the BIOS, choose

NetServer Utilities | More NetServer Utilities |

BIOS Update Utility

. Select

Execute

and follow the screen prompts to update the BIOS.

5.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

From the Navigator main menu, install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

,

Custom

,

Microsoft

, then either:

MS Windows NT4.0 Enterprise Edition Cluster Server

if using Navigator if

L.15.05 or later.

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation if using Navigator L.15.04 or earlier.

HP NetServer Installation Guide 21

7.

Choose

Install/Update Utility Partition

and

Execute

.

When finished, the system reboots and displays the Custom Configuration window.

8.

Make an NT 4.0 Drivers floppy disk by choosing

Create Driver Diskette(s), Execute,

and following the prompts. Label the floppy disk NT 4.0 Drivers.

9.

Press the

Back

button three times to return the Navigator Main Menu.

10.

If you are using a NetRAID adapter for either shared or local storage, create a set of installation floppy disks for NetRAID Assistant by choosing

NetServer Utilities | Diskette Library

.

Select

NetRAID Assistant for WindowsNT

and

Windows95

from the list and then the

Execute

button. Follow the instructions to create the NetRAID Assistant installation floppy disks.

Label the floppy disks HP NetRAID Assistant 1 and HP NetRAID Assistant 2.

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” for additional information.

1.

Remove the HP NetServer Navigator CD, insert the boot floppy for Windows NT4.0, and exit Navigator to reboot the server.

2.

When Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

The drivers are loaded from the NT 4.0 Drivers floppy disk you created from the Navigator CD.

First, load the driver for the device you want to boot from. For drives in the LPr internal bays this will normally be the embedded SCSI Symbios driver on the drivers disk. Select "SCSI Symbios driver for the HP NetServer LPr."

Secondly, load the IDE driver, since the CD drive is on the IDE bus.

Finally, load any other mass storage drivers you need. If you are using NetRAID for shared storage do not load the HP NetRAID driver at this time. It will be loaded later.

3.

Continue the installation, inserting floppy disk #3 and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [2] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [1] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

HP NetServer Installation Guide 22

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

4.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

LPr (with NetRAID Local and Shared Storage)

A NetRAID adapter may only be used for either shared storage or local storage; one adapter may not be used for both. To use NetRAID adapters for both shared and local storage, you must use two adapters.

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

3.

If you have special NetServer local SCSI bus options enter the Symbios utility by pressing Ctrl+C at the

Symbios boot banner during boot and set the options you need; otherwise allow the server to boot. The server boots from the CD and displays the Navigator Main Menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 4; otherwise go to step 6.

4.

To update the BIOS, choose

NetServer Utilities | More NetServer Utilities |

BIOS Update Utility

. Select

Execute

and follow the screen prompts to update the BIOS.

5.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

From the Navigator main menu, install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

,

Custom

,

Microsoft

, then either:

MS Windows NT4.0 Enterprise Edition Cluster Server

if using Navigator if

L.15.05 or later.

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation if using Navigator L.15.04 or earlier.

7.

Define the local storage RAID arrays. Select

Configure Disk Array

and use HP NetRAID

Assistant to define the arrays. Be sure to define the arrays for the local storage adapter (Adapter_0), not the shared storage adapter (Adapter_1).

NOTE

DO NOT define the shared storage arrays at this time. They will be defined later.

8.

Exit HP NetRAID Assistant. The server will reboot.

During the reboot, at the NetRAID banner press

<Ctrl><M>

to enter the NetRAID Express utility.

From the Management Menu, check that the BIOS is enabled. If it is not, enable it.

9.

Exit the NetRAID Express utility and reboot. Navigator will return to the Custom Configuration screen.

Install a utility partition on the local storage disk by choosing

Install/Update Utility

Partition

.

After installing the utility partition, Navigator returns to the Custom Configuration screen.

HP NetServer Installation Guide 23

10.

Make an NT 4.0 Drivers floppy disk by choosing

Create Driver Diskette(s), Execute,

and following the prompts. Label the floppy disk NT 4.0 Drivers.

11.

Press the

Back

button three times to return the Navigator Main Menu.

12.

Create a set of installation floppy disks for NetRAID Assistant by choosing

NetServer Utilities

| Diskette Library

. Select

NetRAID Assistant for WindowsNT

and

Windows95

from the list and then the

Execute

button. Follow the instructions to create the NetRAID Assistant installation floppy disks. Label the floppy disks HP NetRAID Assistant 1 and HP NetRAID Assistant 2.

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” for additional information.

1.

Remove the Navigator CD, insert the boot floppy for Windows NT4.0, and exit Navigator to reboot the server.

2.

When Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

3.

Load drivers using the NetRAID-3Si Cluster Firmware and Driver floppy disk you created in part 1

“What’s Needed” and the NT 4.0 Drivers floppy disk you created in step 10 above of this procedure.

Load the driver for the device you want to boot from. This will be the HP NetRAID Adapter Driver.

If you are using a NetRAID-3Si Adapter for shared storage, load this driver from the NetRAID-3Si

Cluster Firmware and Driver floppy disk. Be sure to use the driver version specified for shared storage in the Configuration Guide, since this driver is used for both the NetRAID local storage adapter and the NetRAID-3Si shared storage adapter.

Load the IDE driver from the NT 4.0 Drivers floppy disk, since the CD drive is on the IDE bus.

Load any other mass storage drivers you need. If you are using the embedded SCSI channel, load the Symbios driver from the NT 4.0 Drivers floppy disk at this time.

4.

Continue the installation and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [2] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [1] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

HP NetServer Installation Guide 24

NOTE

5.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

LX/LXr Pro

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive of System B and restart the server.

The server boots from the CD and displays the Navigator Main menu.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 3; otherwise go to step 6.

3.

To update the BIOS, choose

Configuration Assistant

, then

Custom

,

Microsoft

, MS

Windows

NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

4.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

5.

After the server reboots return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

From the Navigator Main menu, choose

NetServer Utilities

, then

EISA Configuration

Utility

.

7.

At the Utility window select

Step 3 - View or Edit Details

and:

Make sure

MP Spec Version

is set to

V1.4

.

Disable the on-board IDE Hard Disk Controller by scrolling to

On-board IDE Hard Disk

Controller, pressing Enter, and choosing

Disable

.

The embedded IDE controller is not used on the HP NetServer LX and LXr Pro.

8.

Save and exit the EISA Configuration Utility.

The utility saves the configuration data, restarts the server, and reloads the HP NetServer Navigator CD.

9.

Install a utility partition on the local storage disk by choosing

Configuration Assistant

, then

Custom

,

Microsoft

, MS Windows

NT 4.0 Enterprise Edition

, and

No

for automated

NOS installation.

10.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

Install Windows NT

1.

Remove the HP NetServer Navigator CD, insert the first CD of the Microsoft Windows NT Server,

Enterprise Edition, and exit Navigator to reboot the server.

2.

Select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

HP NetServer Installation Guide 25

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

LXr 8000

These procedures provide instructions for servers using NetRAID, SureStore E 12H, and Model 30/FC shared storage solutions

Configure NetServer Hardware and BIOS

1.

Make sure you power down System A and power up System B.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 3; otherwise go to step 6.

3.

To update the BIOS, choose

Configuration Assistant

, then

Custom

,

Microsoft

,

MS

Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

4.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

5.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

6.

From the Navigator main menu, install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

,

Custom

,

Microsoft

, then either:

MS Windows NT4.0 Enterprise Edition Cluster Server

if using Navigator if

L.15.05 or later.

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation if using Navigator L.15.04 or earlier.

7.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

8.

Make an NT 4.0 Drivers floppy disk by choosing

Create Driver Diskette(s), Execute

, and following the prompts. Label the floppy disk NT 4.0 Drivers.

HP NetServer Installation Guide 26

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” for additional information.

1.

Insert the boot floppy disk for Windows NT4.0 and exit Diagnostic Assistant to reboot the server.

2.

When Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

The drivers are loaded from the NT 4.0 Drivers floppy disk you created from the Navigator CD.

First, load the driver for the device you want to boot from. For drives in the LXr 8000 internal bays this will normally be the embedded SCSI Symbios driver.

Secondly, load the IDE driver, since the CD drive is on the IDE bus.

Finally, load any other mass storage drivers you need. If you are using NetRAID for shared storage do not load the HP NetRAID driver at this time. It will be loaded later.

3.

Continue the installation and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [1] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [2] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

4.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

HP NetServer Installation Guide 27

LXr 8000 (with Fibre Channel)

These procedures provide instructions for servers using Fibre Channel shared storage solutions (HP Rack

Storage/12FC.

Configure NetServer Hardware and BIOS

1.

System A and System B can both be powered on.

2.

Insert the HP NetServer Navigator CD in the CD-ROM drive and restart the server.

3.

During reboot enter the Setup Utility by pressing F2.

4.

Select

User Preferences

and then the

LH4 Integrated NetRAID

setting you want to use.

5.

Exit the Setup Utility (F10, Save, and Exit).

The server reboots. If you have special NetServer local SCSI bus options enter the Symbios utility, by pressing Ctrl+C at the Symbios boot banner during reboot and set the options you need; otherwise allow the server to reboot. The server boots from the CD and displays the Navigator Main menu.

NOTE

If prompted that the HP NetServer Navigator BIOS is a newer version, choose

Continue

and go to step 6; otherwise go to step 9.

6.

To update the BIOS, choose

Configuration Assistant and Installation Assistant

, then

Custom

,

Microsoft

,

MS Windows NT 4.0 Enterprise Edition

, and

No

for automated NOS installation.

7.

Select

Update

, then

Execute

. Follow screen prompts to update the BIOS.

8.

After the server reboots, return to the Navigator main menu by clicking the Back button twice on the displayed window.

9.

From the Navigator main menu, install a utility partition on the local storage disk by choosing

Configuration Assistant and Installation Assistant

,

Custom

,

Microsoft

, then

MS Windows NT4.0 Enterprise Edition Cluster Server

.

10.

Choose

Install/Update Utility Partition

.

When finished, the system reboots and displays the Custom Configuration window.

11.

Make a NT4.0 Drivers floppy disk by choosing

Create Driver Diskette(s), Execute,

and following the prompts. Label the floppy disk NT 4.0 Drivers.

12.

Return to the Navigator main menu by clicking the Back button three times.

Install Windows NT

NOTE

Windows NT must be installed from floppy disks, not the CD, so that the mass storage drivers will be loaded correctly. If you have not created a set of Windows NT boot floppy disks, see Software in part “1 What’s Needed” of the installation guide supplement for additional information.

1.

Insert the boot floppy disk for Windows NT4.0 and exit Navigator to reboot the server.

2.

When Windows NT Setup prompts to detect mass storage devices, skip detection and manually specify the mass storage drivers:

The drivers are loaded from the NT 4.0 Drivers floppy disk you created from the Navigator CD.

HP NetServer Installation Guide 28

First, load the driver for the device you want to boot from. For drives in the LH 4 internal bays this will normally be the embedded SCSI Symbios driver or embedded NetRAID.

Secondly, load the IDE driver, since the CD drive is on the IDE bus.

Finally, load any other mass storage drivers you need. If you are using the Fibre Channel HBA for shared storage do not load the HP Fibre Channel driver at this time. It will be loaded later.

3.

Continue the installation using floppy disks#2 and #3 and select the following options when prompted:

Choose the unpartitioned space and install Windows NT.

Choose NTFS file system

When prompted to search for a Network Adapter, load NIC drivers for both the intra-cluster and the client LAN. Be sure to load the correct intra-cluster LAN driver version as specified in the

Configuration Guide for your cluster. If you are using two HP D5013A NICs, load the driver twice, once for the intra-cluster NIC and once for the client NIC.

Make sure

TCP/IP Protocol

is selected.

Other protocols may be selected in addition, but TCP/IP is required.

If you are using two HP D5013A NICs, when prompted for TCP/IP Properties:

Make sure adapter [2] is highlighted and specify its IP address and subnet mask. This will be the

LAN adapter for the intra-cluster LAN.

Select adapter [1] and specify its IP address and subnet mask. This will be the LAN adapter for the client LAN.

Set TCP/IP Properties for DNS, WINS Address, etc. at this time.

NOTE

The Client LAN IP addresses and Intra-cluster LAN IP addresses must be on different subnets.

4.

Once the NT installation is complete, the D5013A NIC drivers must be manually set to the correct LAN speed. Log on and from the start menu select:

Settings

,

Control Panel

,

Network

, and

Adapters

. For each D5013A adapter, select

Properties

then

Settings

and set the network speed to the appropriate setting (either 10 Mbps or 100 Mbps) for your network. The intra-cluster LAN should be set to 100 Mbps. Do not use the Auto setting.

Part "6 Shared Storage Software Setup" in the Shared Storage Supplement and start with

Install Fibre Channel HBA Driver.

Install Service Pack for All HP NetServers

Refer to the Configuration Guide for your cluster configuration and install the applicable Microsoft Service

Pack (SP3 or SP4). Do not install the Hot Fix associated with Service Pack 3 at this time.

NOTE

Do not install the Microsoft Cluster Server Software (MSCS) at this time.

NOTE

After completing these procedures, power down System B and power up System A.

Repeat all of the procedures in this part for System A.

HP NetServer Installation Guide 29

For Fibre Channel solutions using the Rack Storage/12FC simply reboot System B and repeat the procedures on Systems A. Both systems can be powered up.

HP NetServer Installation Guide 30

6 Shared Storage Software Setup

Use these procedures to install host bus adapter (interface) software, create the arrays and array file systems.

Shared Storage Setup

Part "6 Shared Storage Software Setup" in the Shared Storage Supplement. For Fibre

Channel solutions go to Configure the Storage Devices using FCArray Assistant in the supplement

Create the Array File Systems

Use the instructions below and Windows NT Disk Administrator to partition, assign drive letters, and format the shared logical drives.

Reboot System A

Reboot System A so that Windows NT can recognize the logical drives created when you setup the shared storage. The system boots and loads Windows NT on System A.

CAUTION

You running Disk Administrator.

Run Windows NT Disk Administrator

From the Start menu, choose

Programs

,

Administrative Tools

, and then

Disk

Administrator

. Disk Administrator loads and scans the disks, and displays a list of the logical disks you identified. An example display follows:

NOTE

Disk Administrator lists disks in order, beginning with local (non-shared) disks followed by the shared disk arrays.

HP NetServer Installation Guide 31

Disk Administrator, Scanned Logical Disks

Create Full Disk Partitions for each Array

1.

Click the disk box to select the shared array to be partitioned.

Disk Administrator highlights the selected disk.

2.

From Disk Administrator’s

Partition

menu, choose

Create

.

A dialog appears indicating the maximum size of a single partition.

NOTE

Don’t be misled by the displayed disk capacity for your arrays. When Disk Administrator calculates disk capacity, it disregards redundancy storage used by the selected RAID level. The displayed and usable storage capacity for the array is, therefore, less than the total capacity of all drives in the array. For example, the displayed and usable array capacity for a RAID 5 array would be C(N-1), where N is the number of drives and C is the capacity of one drive. Likewise, for RAID 1 the capacity would be one-half the capacity of the two drives.

3.

Click

OK

to include the full disk in the partition (the default).

In the following example, Disk 1 has been partitioned and Disk Administrator assigned a temporary drive letter to the disk array.

HP NetServer Installation Guide 32

NOTE

Disk Administrator, Partitioned Disk Array

Do not partition a disk into separate drives. Microsoft Cluster Server Software will only manage one partition per disk.

4.

Repeat steps 1 through 3 to create a partition for each disk array to be shared by the cluster.

5.

From Disk Administrator’s

Partition

menu, choose

Commit Changes Now

, then choose

Yes

to save changes and

OK

when prompted.

NOTE

In the following example, Disk 2 has been partitioned and Disk Administrator assigned the next sequential letter to the disk array.

HP NetServer Installation Guide 33

Disk Administrator, All Disk Arrays Partitioned and Committed

Assign Drive Letters

Disk Administrator has assigned sequential and temporary drive letters to the disk arrays you partitioned.

You must assign a permanent (static) drive letter to each drive you want to make available to both Systems A and B.

NOTE

When partitioning logical drives with Windows NT the logical drive letters are sequentially assigned in a predefined sequence. These drive letters are temporary assignments that can change according to the drives installed in your system. For clustered systems it is critical that the drive letters for the shared storage drives be fixed.

Therefore, make sure that you assign permanent drive letters to the shared logical drives.

1.

Select one of the disks you just partitioned.

Disk Administrator highlights the selected disk.

2.

From the Disk Administrator’s

Tools

menu, choose

Assign Drive Letter

.

Disk Administrator displays the

Assign Drive Letter

dialog.

3.

In the dialog, select a drive letter, and click

OK

.

To avoid confusion later, HP recommends that you choose sequential drive letters. The example in this guide uses drive letters X and Y.

HP NetServer Installation Guide 34

Disk Administrator, Assigning Drive Letters

4.

Repeat steps 1 through 3 to assign a drive letter for each array to be shared in the cluster.

Format Logical Drives

1.

Click a disk box to select one of the arrays that you just partitioned and assigned a drive letter.

Disk Administrator highlights the selected disk.

2.

From the Disk Administrator’s

Tools

menu, choose

Format

.

A dialog appears with a list of formatting options.

Disk Administrator, Formatting and Assigning Volume labels

3.

In the

Format

dialog make sure that

File System

is set for

NTFS

.

4.

In the

Volume Label

field type a label (name) for the drive.

Choose a descriptive label such as "Shared Drive X.".

HP NetServer Installation Guide 35

5.

Select

Quick Format

in the

Format Options

field, and then

Start

to begin formatting the logical drive.

NOTE

No action is necessary for the

Capacity

and

Allocation Unit Size

fields.

6.

Repeat steps 1 through 5 to format each drive to be shared in the cluster.

The following example depicts both drives formatted with permanent drive letters assigned.

Disk Administrator, Formatting and Assigning Volume labels

7.

Exit Disk Administrator.

HP NetServer Installation Guide 36

7 Microsoft Cluster Server Software Setup

During installation of Microsoft Cluster Server Software (MSCS) at System A, you will create a Microsoft

Cluster Server. Initially, it is a cluster with only one server (System A). Later, you will join System B to the cluster and thus create a standard two-server (node) cluster. If you need more information about the installation process outlined here, see the Microsoft Cluster Server Administrators Guide.

Install MSCS on System A

MSCS installation includes slightly different software setups for System A and System B. Since you just finished configuring arrays on System A, continue Microsoft Cluster Server Setup where you left off with

Disk Administrator.

To install MSCS at System A:

1.

Insert the Component CD of Microsoft Windows NT Server, Enterprise Edition in the CD-ROM drive of

System B.

2.

Run the Microsoft Cluster Server setup program.

Setup.exe is located in the following folder on the Component CD: \ mscs\cluster\i386

3.

Choose

Form a new cluster

and click

Next

.

Setup prompts you to identify the cluster by name.

4.

Type a name for the cluster. Make note of the name you type. You will need to provide the identical name during Microsoft Cluster Server software setup of System A. Click

Next

.

HP NetServer Installation Guide

Microsoft Cluster Administrator, Assigning a Cluster Name

37

5.

Setup prompts you for the location to store cluster files. Either accept the default or type a new location and click

Next

.

6.

Setup prompts you for the cluster domain account. Provide a user name and password for an appropriate

Microsoft Domain account for the cluster. Click

Next

.

NOTE

If you are unsure of the correct MS Domain account, consult the Windows NT documentation supplied with your system.

7.

Setup presents a two-column list of

Available unshared

and

Shared cluster disks

. Use the

Add

and

Remove

buttons to place the disks in the desired columns. Click

Next

.

Keep in mind that disks listed in the left column are reserved for the exclusive use of System B while disks listed in the right column are shared by both systems. Normally you would share all disks listed.

Microsoft Cluster Server Setup, Assigning Shared Disks to the Cluster

8.

Setup prompts you to select a disk (quorum disk) on which to store permanent cluster files. Cluster

Administrator uses the disk you select to store synchronizing information about Systems A and B. The disk must always be available to the cluster. Select the disk that you will commit to keeping online then click

Next

.

9.

Configure your LAN adapters.

Setup scans the System’s LAN adapters so they can be configured for cluster use and presents a dialog for each LAN adapter installed in your HP NetServer. Setup uses the IP address you specified during

NT installation. Type a

Network Name

for the LAN Adapter, and check

Enable for cluster use

.

HP recommends that you identify the LAN adapter according to use (for example, intra-cluster LAN).

When you enable cluster use setup gives you three options:

Use for all communications

Choose this option if you are configuring a client LAN adapter, and System A and B reside on the same IP subnet.

HP NetServer Installation Guide 38

NOTE

Use only for internal cluster communications

Choose this option if you are configuring an intra-cluster LAN adapter.

Use only for client access

Choose this option if you are configuring a client LAN adapter and System A and B reside on different IP subnets.

In this example, the intra-cluster LAN is shown first with the

Adapter Name

and

IP

Address already filled in. However, your configuration may display the Client LAN first.

Microsoft Cluster Server Setup, Assigning a Network Name to the intra-cluster LAN

10.

Repeat the previous step for each LAN adapter. After you have configured all LAN adapters, click

Next

.

11.

Setup lists your LAN adapters and asks you to prioritize them for internal communications between nodes. Move the Intra-cluster LAN to the top of the list so it has the highest priority. See the example dialog below.

HP NetServer Installation Guide 39

Microsoft Cluster Server Setup, Setting the LAN Priority

12.

Follow the on-screen instructions to order the adapters so that the intra-cluster LAN adapter is identified first (at the top of the list). After you have ordered the adapters click

Next

.

NOTE

If you previously defined the client IP addresses of Systems A and B as residing on different subnets, the client LAN will be unable to assume responsibility for intra-cluster communication.

13.

Setup prompts you for the Cluster IP address. Type the proper IP address and subnet mask for the

CLUSTER, then click

Next

.

NOTE

The previous step requires a unique IP address for the cluster. Do not use either of the IP addresses assigned to System A or System B.

14.

Click

Finish

to complete installation of the Microsoft Cluster Server software.

Setup activates your configuration specifications and starts the cluster service.

15.

Microsoft Cluster Server is now fully installed on System A. Reboot System A.

16.

To finish installation of the Microsoft Cluster Server, leave System A running, go to the next procedure and install MSCS on System B.

HP NetServer Installation Guide 40

Install MSCS on System B

While you have been configuring System A, System B has been idling at the Restart dialog.

1.

Click

Restart

to reboot System B to Windows NT.

2.

Insert the Component CD of Microsoft Windows NT Server (Enterprise Edition) in the CD-ROM drive of System B.

3.

Run the Microsoft Cluster Server setup program.

Setup.exe is located in the following folder on the Component CD: \ mscs\cluster\i386.

4.

Setup examines your system and displays a dialog that lists a number of install options including

Join an existing cluster

.

5.

Choose

Join an existing cluster

and click

Next

.

6.

Identify the cluster using the same name you used when you formed the cluster at System B.

Setup validates your entry by prompting you for the cluster domain account password.

7.

Type the password.

Setup prompts you to complete the installation upon entry of a valid password.

8.

Click

Finish

.

You have now installed and configured all necessary software and hardware components to create a

Microsoft Cluster Server.

9.

Reboot System B.

Install Service Pack or Hot Fix

After installing MSCS software your must either reinstall SP4 or if you installed SP 3, install the Hot Fix at this time.

Install Hot Fix

Install the Hot Fix (clusfixi.exe):

1.

If you have not already downloaded clusfixi.exe, see "Software" in part "1 What’s Needed."

2.

Install the Microsoft hotfix clusfixi.exe on System A and System B.

NOTE

When downloading the file, refer to the Microsoft readme file for instructions on installing the hotfix.

HP NetServer Installation Guide 41

8 Cluster Testing

There are two programs for testing the installed cluster. These programs are the Hardware Verification and

Labeling Utility and the Cluster Installation Test.

Hardware Verification and Labeling Utility

The Hardware Verification and Labeling Utility scans the system and checks system integrity before you perform system configuration. It helps you simplify the assembly process that must be performed while trying to setup a new product.

With this utility you can:

Create an asset inventory list

Check cabling connections

Label installed hardware

Health check hardware components

Obtain the Utility

The Hardware Verification and Labeling Utility is included on the HP NetServer Navigator CD-ROM. You can run the test directly from the CD, or you can create a bootable floppy disk from HP NetServer

Navigator’s disk library. The floppy disk is bootable to ensure that it is independent of the customer’s network operating system. However, it does not include COMMAND.COM, so it is not usable as a DOS disk.

Run the Utility

CAUTION

The Hardware and Verification Utility is designed to run on a single HP NetServer and not a cluster. Therefore, to prevent corrupting the shared storage in your cluster, power down the cluster node (HP NetServer) not being tested when running this test.

If the system is booted from the HP NetServer Navigator CD-ROM you will find that the utility does not appear as a direct menu choice. However, when the Configuration Assistant is run, you will be given the option of first running the Hardware Verification and Labeling Utility. This offer is only made the first time

Configuration Assistant is selected after a reboot.

The Hardware Verification and Labeling Utility is supplied with a README.TXT file. This file contains detailed information on the utility and instructions for setting up and running the utility.

Cluster Installation Test

The HP Cluster Installation Test (CIT) should be performed on your installed cluster before placing it online.

The CIT performs an operational failover test of the cluster to verify that if a node fails the operating node takes over all functions..

Obtain CIT

If you do not have CIT, see part "1 What’s Needed" for instructions to download this program.

Run CIT

Follow the instructions in the CIT program. If additional information is needed refer to CIT on-line help.

CIT help is context sensitive and has been expanded to provide detailed instructions for each step of the program.

HP NetServer Installation Guide 42

HP SureStore E 12H Disk Array

Supplement to

HP NetServer

Microsoft Cluster Installation Guide

October 10, 1998

(See Version History below)

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Warranty

If you have any questions about the warranty for this product, contact your reseller and/or your HP representative.

Safety Considerations

The product and related documentation must be reviewed for familiarization with safety markings and instructions before installation and operation.

Safety Symbols

WARNING

CAUTION

A

WARNING

denotes a hazard that can cause personal injury.

A

CAUTION

denotes a hazard that can damage equipment or result in lost data.

NOTE

A

NOTE

contains information that is useful in accomplishing a task.

Do not proceed beyond a

WARNING

or

CAUTION

notice until you understand the hazardous conditions and have taken appropriate steps.

Trademark Notice

The use of trademarks or other designations is for reference purposes only. The following trademarks are used in this manual:

Microsoft

®

is an U.S. registered trademark of Microsoft Corporation.

Windows

TM

and Windows NT

TM

are trademarks of Microsoft Corporation.

Enterprise NetServer Division

5301 Stevens Creek Boulevard

P.O. Box 58059

Santa Clara, CA 95052-8059, USA

© Copyright 1998, Hewlett-Packard Company

2

Contents

O

VERVIEW

................................................................................................................................................................ 4

V

ERSION

H

ISTORY

.................................................................................................................................................... 4

1 WHAT’S NEEDED .......................................................................................................................................... 5

S

OFTWARE

................................................................................................................................................................ 5

N

EED

M

ORE

H

ELP

?................................................................................................................................................... 5

2 NETSERVER HARDWARE SETUP.............................................................................................................. 6

I

NSTALLING THE

HP A5252B SCSI H

OST

B

US

A

DAPTER

........................................................................................ 6

3 SHARED STORAGE HARDWARE SETUP ................................................................................................. 7

I

DENTIFY

C

ONTROLS AND

C

ONNECTORS

.................................................................................................................. 7

I

NSTALL

D

ISK

M

ODULES

.......................................................................................................................................... 9

I

NSTALL

C

ONTROLLER

B

ATTERIES

......................................................................................................................... 10

I

NSTALL

C

ONTROLLER

M

ODULES

........................................................................................................................... 11

C

ONNECTING

D

ISK

A

RRAY

P

OWER

C

ORDS

............................................................................................................. 12

P

OWER

U

P THE

D

ISK

A

RRAY

.................................................................................................................................. 13

C

ONFIGURE THE

D

ISK

A

RRAY

U

SING THE

C

ONTROL

P

ANEL

................................................................................... 13

4 CLUSTER CABLING AND SETUP ............................................................................................................. 15

C

ONNECTING

SCSI C

ABLES

................................................................................................................................... 15

6 SHARED STORAGE SOFTWARE SETUP ................................................................................................ 18

P

OWER

U

P THE

D

ISK

A

RRAY

.................................................................................................................................. 18

I

NSTALL

S

URE

S

TORE

E M

ANAGER

S

OFTWARE

....................................................................................................... 18

S

ET

U

P

S

URE

S

TORE

M

ANAGER

............................................................................................................................... 19

C

REATE

L

OGICAL

D

RIVES

....................................................................................................................................... 20

Figures

FIGURE 1. DISK ARRAY FRONT PANEL ............................................................................................................... 7

FIGURE 2. DISK ARRAY REAR PANEL ................................................................................................................ 8

FIGURE 3. DISK ARRAY CONTROLS AND INDICATORS (COVER OPEN)...................................................... 8

FIGURE 4. INSTALLING DISK MODULES ............................................................................................................. 9

FIGURE 5. INSTALLING CONTROLLER BATTERIES........................................................................................ 10

FIGURE 6. INSTALLING CONTROLLER MODULES .......................................................................................... 11

FIGURE 7. CONNECTING DISK ARRAY POWER CABLES ............................................................................... 12

FIGURE 8. CONTROL PANEL DISPLAY AND FUNCTION KEYS..................................................................... 13

FIGURE 9. SCSI BUS CABLING FOR CONNECTING ONE DISK ARRAY ....................................................... 16

FIGURE 10. SCSI BUS CABLING FOR CONNECTING MULTIPLE DISK ARRAYS........................................ 17

3

Overview

This supplement describes the process for installing and configuring the HP SureStore E 12H Disk Array as shared storage in an HP NetServer cluster. This supplement is incomplete without the HP NetServer Cluster

Installation Guide. When prompted in this supplement, return to the HP NetServer Cluster Installation Guide for more information on installing the other components of the cluster.

Version History

Date

10 October 99

1 July 98

Change

Changed "AutoRAID" and "AutoRAID Model 12H" to "SureStore E 12H" throughout.

Initial release

4

1 What’s Needed

Software

HP SureStore E for Windows NT CD. This CD, which is included with the HP SureStore E 12H

Disk Array, contains all the software you need to install the disk array.

Need More Help?

The following reference material may be useful when installing the HP SureStore E 12H Disk Array. These documents are included with the disk array.

HP SureStore E 12H Disk Array User’s And Service Manual

HP SureStore E 12H Disk Array System Administrator’s Guide for HP-UX and Windows

NT

To part 1 of the HP NetServer Microsoft Cluster Installation Guide

5

2 NetServer Hardware Setup

Installing the HP A5252B SCSI Host Bus Adapter

The A5252B SCSI host adapter is the only host bus adapter (HBA) supported for use with the HP SureStore E

12H Disk Array in a Windows NT cluster. The A5252B is an AHA-2944UW HBA customized with the necessary SCSI settings for the disk array, thus ensuring proper operation in a Windows NT cluster.

Disk arrays can be connected in a daisy chain fashion to each A5252B HBA. Refer to the Cluster Configuration

Guide for the recommended number of disk arrays that can be connected to each HBA.

Install the A5252B HBA in an available PCI slot following the instructions included with the HBA. Refer to the

Cluster Configuration Guide for information on which SPU I/O slot to use.

NOTE

The A5252B uses the standard Windows NT SCSI driver included with NT 4.0 Service

Pack 3, so it is not necessary to install an additional driver. Refer to the Cluster

Configuration Guide for more information.

To part 2 of the HP NetServer Microsoft Cluster Installation Guide

6

3 Shared Storage Hardware Setup

This section contains instructions for installing the hardware components of the HP SureStore E 12H Disk

Array for use as shared storage on your NT cluster.

NOTE

Refer to the HP SureStore E 12H Disk Array User’s And Service Manual for instructions on rack mounting the disk array.

Identify Controls and Connectors

The various controls and connectors used during installation of the HP SureStore E 12H Disk Array are shown in Figure 1, Figure 2, and Figure 3. Take a moment to familiarize yourself with the location of the components before beginning the hardware installation.

1 – Power/Standby Switch 2 – Control Panel Display 3 – Control Panel Status Light

Figure 1. Disk Array Front Panel

7

1 – Controller X SCSI Connector 1

2 – Controller X SCSI Connector 2

3 – Controller Y SCSI Connector 1

4 – Controller Y SCSI Connector 2

5 – P1-P3 AC Power Connectors

Figure 2. Disk Array Rear Panel

1 – Power Module Status Light

2 – Disk Module Status Light

3 – Fan Module Status Light

4 – Power/Standby Switch

5 – Control Panel Display

6 – Control Panel Status Light

7 – Controller Module Status Light

Figure 3. Disk Array Controls and Indicators (cover open)

8

Install Disk Modules

NOTE

To improve enclosure cooling and balance the load on the internal SCSI buses, the disk modules should be installed from left to right and from top to bottom. Disk module SCSI addresses are automatically preset by the backplane inside the disk array enclosure upon insertion.

CAUTION

The module lever must be pulled all the way out or the module will jam in the slot upon insertion. Also, always handle the disk modules carefully when they are out of the disk array enclosure, since they are susceptible to shock and vibration.

1.

Pull out the module lever.

2.

Insert the module into the disk array.

3.

Push in the module lever to lock the module in place.

Figure 4. Installing Disk Modules

9

Install Controller Batteries

The two battery packs included with the controller module must be installed before the controller module is installed in the disk array.

1.

Remove the battery cover latch and then remove the RFI shield (if necessary, you can use a flat-bladed screwdriver to remove the RFI shield).

2.

Install both battery packs, and connect the cables as shown in panel 4 of Figure 5.

3.

Reinstall the RFI shield and the battery cover latch.

CAUTION

Make sure you reinstall the battery cover latch carefully, so each of the locking tabs

(items 1 and 2 in panel 5 of Figure 5) slide beneath the battery compartment. If the battery cover latch is not secured properly, it could prevent the removal of the controller module once it is installed in the disk array enclosure.

Figure 5. Installing Controller Batteries

10

Install Controller Modules

CAUTION

Before installing a controller module, ensure that all of the pins on the controller connector are straight. Bent pins will cause the controller module to fail, and the array will not function properly. Also, do not attempt to install the controller module upsidedown.

1.

Pull the controller module levers all the way out.

2.

Insert the controller module into the disk array, while pushing on both sides of the controller module.

3.

When the enclosure engages the levers, press the center of the levers with the palm of your hand until they lock securely into place. You should hear an audible click when the levers lock.

Figure 6. Installing Controller Modules

11

Connecting Disk Array Power Cords

1.

Connect a power cord to each of the three power receptacles on the rear of the disk array.

2.

Plug the other end of the power cords into the cabinet power strips as shown in Figure 7.

NOTE

The disk array cannot operate on a single power supply; consequently, the disk array will shutdown if power to two of the power supplies is lost. However, by connecting the third power supply to a different power strip, the disk array will shut down properly if power is lost to the other two supplies. Connecting all three supplies to the same power strip will not allow the disk array to shutdown properly if power to the strip is lost.

Figure 7. Connecting Disk Array Power Cables

12

Power Up the Disk Array

1.

Lift the power/standby switch door up, then press the power/standby switch to the power on (in) position.

2.

Wait for the control panel to display “Ready”, indicating that the disk array has successfully completed its initialization and is ready for use.

NOTE

If the controller batteries are fully discharged, it may take up seven minutes for the disk array to display “READY” status.

Configure the Disk Array Using the Control Panel

Several disk array operating settings must be configured before the disk array will operate properly in the

Windows NT cluster environment. These settings are changed using the control panel located on the front of the disk array.

1 – Available Choice

2 – Selection History

3 – Scroll Text Left

4 – Cancel Selection

5 – Display Main Menu

6 – Scroll Menus/Items

7 – Select Menu/Items

8 – Scroll Text Right

9 – Control Panel Status Light

10 – Controller Indicator (x or y)

11 – Menu/Item Scroll Indicator

Figure 8. Control Panel Display and Function Keys

13

Step 1. Set the Controller SCSI ID

NOTE

If two controllers are connected to the same SCSI bus, they must each have unique SCSI

IDs. SCSI ID 7 is reserved for use by the SCSI HBA.

1.

Press

Menu

2.

Press

+

until

Cntrl Changes

appears in the display, then press

Enter

.

3.

Press

+

until

SCSI ID

appears in the display, then press

Enter.

4.

Press

+

until

For Cntrl X

appears, then press

Enter

5.

Press

+

to select the desired SCSI ID, then press

Enter

.

6.

When prompted to

Reset OK?

, press

Enter

.

7.

When prompted to

Confirm,

press

Enter

.

8.

Repeat this procedure selecting

For Cntrl Y

in step 4.

Step 2. Enable SCSI Settings SDTR and WDTR

The SCSI settings SDTR (Synchronous Data Transfer Request) and WDTR (Wide Data Transfer Request) must be enabled for proper operation. These settings control the transfer of data over the SCSI bus.

1.

Press

Menu

2.

Press

+

until

Cntrl Changes

appears in the display, then press

Enter

.

3.

Press

+

until

SDTR

appears, then press

Enter.

4.

Press

+

until

Enable

appears, then press

Enter.

5.

When prompted to

Confirm,

press

Enter

.

6.

Repeat the above steps, selecting

WDTR

in step 4.

Step 3. Create a Logical Drive

A single logical drive must be created on the disk array before the operating system can communicate with the disk array. This logical drive must be reserved for exclusive use by the SureStore E Manager software and cannot be used for user data.

1.

Press

Menu

2.

Press

+

until

Logical Drv Changes

appears in the display, then press

Enter

.

3.

Press

+

until

Create L-Drv

appears in the display, then press

Enter

.

4.

Select the default drive number

0

, then press

Enter

.

5.

Set the capacity size to the default of

100 MB

(megabytes), then press

Enter

.

6.

When prompted to

Confirm,

press

Enter

.

NOTE

Make sure you leave the disk array power on after completing these steps.

To part 3 of the HP NetServer Microsoft Cluster Installation Guide

14

4 Cluster Cabling and Setup

This section explains how to connect the disk array to the SCSI HBA installed in the server. It includes diagrams that illustrate connecting the SCSI cabling to ensure high availability. Cabling not restricted by the cluster configuration (video, keyboard, mouse, etc.) are not depicted in these diagrams. Refer to the HP

NetServer Rack Assembly and Cabling Reference Guide for additional information on cabling routing and connections.

Connecting SCSI Cables

Disk arrays can be connected in a daisy chain fashion to each A5252B SCSI HBA. Refer to the Cluster

Configuration Guide for the recommended number of disk arrays that can be connected to each HBA.

Figure 9 illustrates the cabling connections required when connecting a single disk array to the SCSI HBA.

Figure 10 illustrates the cabling connections required when connecting multiple disk arrays to the SCSI

HBA.

Two factors are vital in cabling a Microsoft NetServer Cluster.

Cables bundled with a clustered system dictate the stacking or arrangement of devices in the rack.

When defining your cluster using HP Rack Assistant a rack layout should have been printed. Lay out devices in the rack according to the Rack Assistant layout to ensure that all required cable connections can be made and the layout confirms to usability and safety standards.

Cabling a cluster requires that SCSI connections be made in a specific manner so that the appropriate redundancy and, therefore, high availability requirements are met. Use the diagrams included in this supplement or the diagrams in the Cluster Configuration Guide for your cluster configuration.

To part 4 of the HP NetServer Microsoft Cluster Installation Guide

15

Figure 9. SCSI Bus Cabling for Connecting One Disk Array

16

Figure 10. SCSI Bus Cabling for Connecting Multiple Disk Arrays

17

6 Shared Storage Software Setup

SureStore E Manager is an online management tool that allows you to monitor and manage your HP SureStore

E 12H Disk Array from a single network Windows client - either locally or remotely.

Once the SureStore E Manager is installed, use it to create the required logical drive structure on the disk array.

The NT Disk Administrator can then be used to create the array file systems.

Power Up the Disk Array

1.

Lift the power/standby switch door up, then press the power/standby switch to the power on (in) position.

2.

Wait for the control panel to display “Ready”, indicating that the disk array has successfully completed its initialization and is ready for use.

Install SureStore E Manager Software

Install the SureStore E Manager software on both servers.

1.

Insert the HP SureStore E on Windows NT CD into the CD-ROM drive. The setup program will start automatically.

2.

As you proceed through the setup, select the following options when prompted:

Select

Clustered Server Installation

option.

It is recommended that you use the default locations for the program files.

View the README file for the latest information on SureStore Manager

Share the SureStore Administrator folder to allow remote clients to manage the disk array

Make sure firmware revision HP26 is installed on the disk array. If an earlier version of firmware is installed on the disk array, download HP26 to the disk array. The HP26 firmware is included with the software.

CAUTION

Firmware version HP26 or later is required for proper operation on Windows NT.

Using an earlier version of firmware could result in possible data loss.

18

Set Up SureStore Manager

After installing the software, a few steps must be performed before you can begin managing the disk arrays.

This involves adding the disk arrays in the cluster to the Array List.

1.

From the Start menu, select

Programs|SureStore Manager|SureStore Manager

.

SureStore Manager begins looking for all SureStore E 12H disk arrays connected to the cluster. As disk arrays are identified, they are added to the Discovered Arrays in the Array List Edit dialog box. If both cluster servers are operating, each SureStore E 12H on your cluster will be displayed twice in the

Discovered Arrays box - once for each server. Any other SureStore E 12H disk arrays detected on the local network will also be displayed.

2.

Select the disk array you want to manage from the Discovered Arrays. You can select multiple arrays at once.

3.

Click the

<<<Add

button to move the disk array to the Monitored Arrays. Use the

<<<Add All

button if you want to manage all discovered disk arrays.

4.

Click

OK

. All the disk arrays you added are now displayed in the Array List window. There may be a delay as the status of each disk array is retrieved. Until the status is retrieved, each disk array is assigned a status of

UNKNOWN

.

Missing Disk Arrays

If a disk array connected to the cluster is not displayed in the Discovered Arrays, check the following:

Make sure the disk array is turned on and operating properly.

Make sure the disk array is properly connected to the servers. This includes proper termination of the SCSI bus.

Make sure there is at least one logical drive created on the disk array. A logical drive should have been created in Step 3 of the “Configure the Disk Array Using the Control Panel” procedure performed earlier.

19

Create Logical Drives

You can now begin creating logical drives on the disk array. Creating logical drives makes array capacity available to the operating system. Each logical drive appears to the host as a physical disk device. Defining the necessary logical drive structure for the cluster should have been done as part of the shared storage planning process.

1.

Select the disk array from the Array List window.

2.

Click the

Logical Drive

button on the toolbar.

3.

Click

Create...

to display the Create Logical Drive window. If there is no remaining unallocated capacity on the disk array, the

Create…

option will not be available.

4.

In the

Logical Drive Number

field, select the number of the new logical drive.

5.

In the

Logical Drive Size

field, enter the desired size of the logical drive.

6.

Click

Create

.

7.

Repeat these steps until you have created all the logical drives you need.

NOTE

During installation and configuration of the disk array hardware, logical drive 0 was created on the disk array. This logical drive is reserved for exclusive access by the

SureStore Manager software and should not be formatted or used for data storage.

To part 6 of the HP NetServer Microsoft Cluster Installation Guide

20

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
