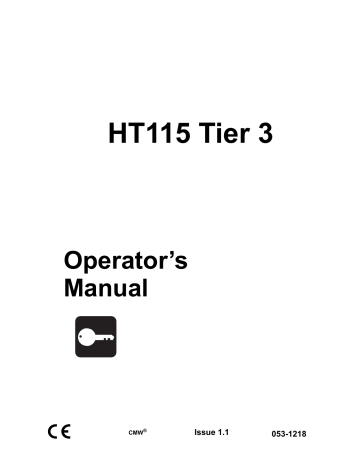

HT115 Tier 3
Operator’s
Manual
CMW®
Issue 1.1
053-1218
HT115 Tier 3 Operator’s Manual
Overview - 1
Overview
Chapter Contents
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator Orientation. . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•
Bulleted Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
•
Numbered Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
CMW
HT115 Tier 3 Operator’s Manual
Overview - 2
Serial Number Location
Serial Number Location
Record serial numbers and date of purchase in spaces provided. HT115 (1) and engine serial numbers (2)
are located as shown.
Date of manufacture
Date of purchase
HT115 serial number
Engine serial number
Front attachment serial number
Rear attachment serial number
Trailer serial number
CMW
HT115 Tier 3 Operator’s Manual
Overview - 3
Intended Use
Intended Use
The HT115 is a track-mounted tractor designed to install buried service lines of various sizes using a
variety of Ditch Witch attachments. It is available with both steel and rubber tracks.
Attachment
Note
Max. depth
H910 trencher
centerline trencher
94” (2.4 m)
maximum trench width 24” (610 mm)
H911 trencher
trencher moves from center to right
94” (2.4 m)
maximum trench width 24” (610 mm)
H932 plow
capable of pulling 3” (75 mm)
material and feeding 2” (50 mm)
material
36” (915 mm)
H1130 plow
hydraulically adjustable blade depth
48” (1220 mm)
capable of pulling 3” (75 mm)
material and feeding 2” (50 mm)
material
H942 saw
trench width 4.5” (115 mm), 6” (150
mm), 8” (203 mm)
30” (762 mm)
H1140 saw
trench width 4.5” (115 mm), 6” (150
mm), 8” (203 mm)
40” (991 mm)
RC115 reel carrier
maximum reel diameter 84” (2.1 m)
n/a
A720 backhoe
bucket width 12 - 24” (305 - 610 mm)
91” (2.3 m)
A920 backhoe
109” (2.8 m)
The HT115 is designed for operation in temperatures typically experienced in earth moving and
construction work environments. Provisions may be required to operate in extreme temperatures. Contact
your Ditch Witch dealer. Use in any other way is considered contrary to the intended use.
The HT115 should be used with genuine Ditch Witch components. They should be operated, serviced, and
repaired only by persons familiar with their particular characteristics and acquainted with the relevant
safety procedures.
Equipment Modification
This equipment was designed and built in accordance with applicable standards and regulations.
Modification of equipment could mean that it will no longer meet regulations and may not function properly
or in accordance with the operating instructions. Modification of equipment should only be made by
competent personnel possessing knowledge of applicable standards, regulations, equipment design
functionality/requirements and any required specialized testing.
CMW
Overview - 4
HT115 Tier 3 Operator’s Manual
Unit Components
Unit Components
1. Rollover Protective Structure (ROPS)
5. Front console
2. Rear console
6. Engine compartment
3. Right console
7. Backfill blade (optional)
4. Operator’s station
CMW
HT115 Tier 3 Operator’s Manual
Overview - 5
Operator Orientation
Operator Orientation
1. Front of unit
3. Rear of unit
2. Right of unit
4. Left of unit
Right and left sides of machine are determined by facing
front of unit while seated at the controls.
1
4
2
3
t12om111h.eps
About This Manual
This manual contains information for the proper use of this machine. See Operation Overview for basic
operating procedures. Cross references such as “See page 50” will direct you to detailed procedures.
Bulleted Lists
Bulleted lists provide helpful or important information or contain procedures that do not have to be
performed in a specific order.
Numbered Lists
Numbered lists contain illustration callouts or list steps that must be performed in order.
CMW
Overview - 6
HT115 Tier 3 Operator’s Manual
About This Manual
CMW
HT115 Tier 3 Operator’s Manual
Foreword - 7
Foreword
This manual is an important part of your equipment. It provides safety information and operation
instructions to help you use and maintain your Ditch Witch equipment.
Read this manual before using your equipment. Keep it with the equipment at all times for future reference.
If you sell your equipment, be sure to give this manual to the new owner.
If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a
dealer, visit our website at www.ditchwitch.com or write to the following address:
The Charles Machine Works, Inc.
Attn: Marketing Department
PO Box 66
Perry, OK 73077-0066
USA
The descriptions and specifications in this manual are subject to change without notice. The Charles
Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have
taken place after this manual was published. For the latest information on Ditch Witch equipment, see your
Ditch Witch dealer.
Thank you for buying and using Ditch Witch equipment.
CMW
Foreword - 8
HT115 Tier 3 Operator’s Manual
HT115 Tier 3
Operator’s Manual
Issue number 1.1/OM-1/08
Part number 053-1218
Copyright 2008, 2009
by The Charles Machine Works, Inc.
, Ditch Witch, CMW, AutoCrowd, Modularmatic, Jet Trac, Roto Witch, Subsite,
Fluid Miser, Perma-Soil, Power Pipe, Super Witch, Super Witch II, Pierce Airrow, The Underground, and
The Underground Authority Worldwide are registered trademarks of The Charles Machine Works, Inc.
CMW
HT115 Tier 3 Operator’s Manual
Contents - 9
Contents
Overview
1
Foreword
7
Safety
11
Controls
21
Operation Overview
57
Prepare
61
Drive
67
Transport
71
Trench
83
Plow
89
Reel Carrier
97
Saw
101
machine serial number, information about the type of work this machine is designed
to perform, basic machine components, and how to use this manual
part number, revision level, and publication date of this manual, and factory contact
information
machine safety alerts and emergency procedures
machine controls, gauges, and indicators and how to use them
an overview for completing a job with this machine: planning, setting up, installing
product, and restoring the jobsite; with cross references to detailed procedures
procedures for inspecting and classifying the jobsite, planning the installation path,
and preparing the jobsite for work
procedures for startup, cold start, driving, and shutdown
procedures for lifting, hauling, and towing
procedures for trenching
procedures for plowing
procedures for using reel carrier/winder
procedures for sawing
CMW
Contents - 10
HT115 Tier 3 Operator’s Manual
Backhoe
107
Systems and Equipment
113
Complete the Job
123
Service
125
Specifications
189
Support
211
Service Record
215
procedures for digging with backhoe
chain, teeth, sprockets, and optional equipment
procedures for backfilling and restoring the jobsite and rinsing and storing
equipment
service intervals and instructions for this machine including lubrication, replacement
of wear items, and basic maintenance
machine specifications including weights, measurements, power ratings, and fluid
capacities
the warranty policy for this machine, and procedures for obtaining warranty
consideration and training
a record of major service performed on the machine
CMW
HT115 Operator’s Manual
Safety - 11
Safety
Chapter Contents
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Alert Classifications . . . . . . . . . . . . . . . . . . 13
Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Emergency Procedures . . . . . . . . . . . . . . . . . . . . . 17
•
Electric Strike Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
•
If an Electric Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
•
If a Gas Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
•
If a Fiber Optic Cable is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
•
If Machine Catches on Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CMW
Safety - 12
HT115 Operator’s Manual
Guidelines
Guidelines
Follow these guidelines before operating any jobsite equipment:
•
Complete proper training and read operator’s manual before using equipment.
•
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
•
Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work
methods for jobsite.
•
Mark jobsite clearly and keep spectators away.
•
Wear personal protective equipment.
•
Review jobsite hazards, safety and emergency procedures, and individual responsibilities with all
personnel before work begins. Safety videos are available from your Ditch Witch dealer.
•
Replace missing or damaged safety shields and safety signs.
•
Use equipment carefully. Stop operation and investigate anything that does not look or feel right.
•
Do not operate unit where flammable gas may be present.
•
Contact your Ditch Witch dealer if you have any question about operation, maintenance, or equipment
use.
CMW
HT115 Operator’s Manual
Safety - 13
Safety Alert Classifications
Safety Alert Classifications
These classifications and the icons defined on the following pages work together to alert you to situations
which could be harmful to you, jobsite bystanders or your equipment. When you see these words and
icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY IS AT
STAKE.
Watch for the three safety alert levels: DANGER, WARNING and CAUTION. Learn what each level
means.
indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Watch for two other words: NOTICE and IMPORTANT.
NOTICE can keep you from doing something that might damage the machine or someone's property. It
can also alert you against unsafe practices.
IMPORTANT can help you do a better job or make your job easier in some way.
CMW
HT115 Operator’s Manual
Safety - 14
Safety Alerts
Safety Alerts
Moving digging teeth will kill you or cut off arm or leg. Stay
away.
Turning shaft will kill you or crush arm or leg. Stay away.
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
Deadly gases. Lack of oxygen or presence of gas will cause sickness or
death. Provide ventilation.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
Moving parts could cut off hand or foot. Stay away.
CMW
HT115 Operator’s Manual
Safety - 15
Safety Alerts
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Fall possible. Riders can fall from machine and be injured or killed. Only
operator is allowed on machine.
Rollover possible. If machine rolls over, you could be thrown from seat and
killed or crushed. Wear seat belt.
Improper control function could cause death or serious injury. If control does
not work as described in instructions, stop machine and have it serviced.
Looking into fiber optic cable could result in permanent vision damage. Do
not look into ends of fiber optic or unidentified cable.
Pressurized fluid or air could pierce skin and cause injury or
death. Stay away.
Runaway possible. Machine could run over you or others. Learn how to use
all controls. Start and operate only from operator’s position.
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
CMW
HT115 Operator’s Manual
Safety - 16
Safety Alerts
Moving traffic - hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
Hot pressurized cooling system fluid could cause serious burns. Allow to
cool before servicing.
Flying objects may cause injury. Wear hard hat and safety glasses.
Hot parts may cause burns. Do not touch until cool.
Exposure to high noise levels may cause hearing loss. Wear hearing
protection.
Fall possible. Slips or trips may result in injury. Keep area clean.
Battery acid may cause burns. Avoid contact.
Improper handling or use of chemicals may result in illness, injury, or
equipment damage. Follow instructions on labels and in material safety data sheets
(MSDS).
CMW
HT115 Operator’s Manual
Safety - 17
Emergency Procedures
Emergency Procedures
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
Before operating any equipment, review emergency procedures and check that all safety precautions have
been taken.
EMERGENCY SHUTDOWN - Turn ignition switch to stop position or push remote engine stop button (if
equipped).
Electric Strike Description
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
When working near electric cables, remember the following:
•
Electricity follows all paths to ground, not just path of least resistance.
•
Pipes, hoses, and cables will conduct electricity back to all equipment.
•
Low voltage current can injure or kill. Many work-related electrocutions result from contact with less
than 440 volts.
Most electric strikes are not noticeable, but indications of a strike include:
•
power outage
•
smoke
•
explosion
•
popping noises
•
arcing electricity
If any of these occur, assume an electric strike has occurred.
CMW
Safety - 18
HT115 Operator’s Manual
Emergency Procedures
If an Electric Line is Damaged
If you suspect an electric line has been damaged and you are on tractor, DO NOT MOVE. Remain on
tractor and take the following actions. The order and degree of action will depend upon the situation.
•
Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact
utility.
•
Raise attachments and drive from immediate area.
•
Contact utility company to shut off power.
•
Do not return to jobsite or allow anyone into area until given permission by utility company.
If you suspect an electric line has been damaged and you are off tractor, DO NOT TOUCH TRACTOR.
Take the following actions. The order and degree of action will depend upon the situation.
•
LEAVE AREA. The ground surface may be electrified, so take small steps with feet close together to
reduce the hazard of being shocked from one foot to the other. For more information, contact your
Ditch Witch dealer.
•
Contact utility company to shut off power.
•
Do not return to jobsite or allow anyone into area until given permission by utility company.
CMW
HT115 Operator’s Manual
Safety - 19
Emergency Procedures
If a Gas Line is Damaged
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
If you suspect a gas line has been damaged, take the following actions. The order and degree of action will
depend on the situation.
•
Immediately shut off engine(s), if this can be done safely and quickly.
•
Remove any ignition source(s), if this can be done safely and quickly.
•
Warn others that a gas line has been cut and that they should leave the area.
•
Leave jobsite as quickly as possible.
•
Immediately call your local emergency phone number and utility company.
•
If jobsite is along street, stop traffic from driving near jobsite.
•
Do not return to jobsite until given permission by emergency personnel and utility company.
CMW
Safety - 20
HT115 Operator’s Manual
Emergency Procedures
If a Fiber Optic Cable is Damaged
Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur.
If Machine Catches on Fire
Perform emergency shutdown procedure and then take the following actions. The order and degree of
action will depend on the situation.
•
Immediately move battery disconnect switch (if equipped) to disconnect position.
•
If fire is small and fire extinguisher is available, attempt to extinguish fire.
•
If fire cannot be extinguished, leave area as quickly as possible and contact emergency personnel.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 21
Controls
Chapter Contents
Front Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
•
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
•
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
•
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Right Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Rear Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
•
Common Indicators and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
•
Trencher Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
•
H932 Plow Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
•
H1130 Plow Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
•
Saw Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Seat Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
•
Left Armrest Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
•
Right Armrest Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
•
Seat Adjustment Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Backhoe Console . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
CMW
HT115 Tier 3 Operator’s Manual
Controls - 22
Front Console
Front Console
Gauges
1. Voltmeter
4. Coolant temperature gauge
2. Fuel gauge
5. Engine oil pressure gauge
3. Tachometer/hourmeter/diagnostic gauge
Item
Description
Notes
1. Voltmeter
Displays system voltage.
Should show 12-15V with engine
running.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 23
Item
Description
Notes
2. Fuel gauge
Displays fuel level in tank.
Use only #2 diesel fuel.
In temperatures below 40° F (4° C),
use #1 diesel fuel.
Fuel tank capacity is 45 gal (170 L).
3. Tachometer/hourmeter/
diagnostic gauge
Displays engine speed,
diagnostic codes, and records
engine operating time.
Use engine operating times to
schedule service.
To view information, press the
selection switch.
4. Coolant temperature
gauge
5. Engine oil pressure
gauge
Displays engine coolant
temperature.
Normal coolant temperature is 180°220° F (82°-104° C).
Coolant temperature indicator
will light and alarm will sound
if engine overheats.
If temperature is high:
Displays engine oil pressure.
Indicator will light and alarm
will sound if pressure is low.
NOTICE: Engine will begin derate
and shutdown.
•
Remove loads from engine and
let it run to help cool.
•
Turn off engine and let it fully cool.
•
Check cooling system for low fluid
level, radiator debris, or leaks.
Normal operating pressure is
15-50 psi (1-3 bar).
If pressure is low:
NOTICE: Engine will begin derate
and shutdown.
•
Check oil level.
•
If pressure is still low, consult
engine manual.
CMW
Controls - 24
HT115 Tier 3 Operator’s Manual
Indicators
1. Operator presence indicator
7. Cold start wait indicator
2. Attachment speed/direction indicator
8. Operator alert indicator
3. Ground drive indicator
9. High speed indicator
4. Cruise control indicator
10. Low speed indicator
5. Parking brake indicator
11. Hydraulic filter restriction indicator
6. Engine shutdown indicator
12. Hydraulic fluid temperature indicator
CMW
HT115 Tier 3 Operator’s Manual
Controls - 25
Item
Description
Notes
1. Operator presence
indicator
Lights when operator is in
seat.
IMPORTANT: This indicator is part of
the start interlock system. All four start
interlock indicators must be on to start
engine.
2. Attachment speed/
direction indicator
Lights when attachment
speed/direction control is in
neutral.
IMPORTANT: This indicator is part of
the start interlock system. All four start
interlock indicators must be on to start
engine.
3. Ground drive indicator
Lights when joystick control is
in neutral.
IMPORTANT: This indicator is part of
the start interlock system. All four start
interlock indicators must be on to start
engine.
4. Cruise control indicator
Lights when AutoTrack is
activated.
Flashes when a fault occurs
in the AutoTrack diagnostic
system.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 26
Item
Description
Notes
5. Parking brake indicator
Lights when parking brake is
engaged and locked by
parking brake switch.
NOTICE: Tractor should not move
when parking brake is locked by
parking brake switch.
Does not light during
automatic brake application.
Parking brake is spring-applied and is
automatically pressure released when
all conditions are met to operate
ground drive. The brake is reapplied
when these conditions are no longer
met.
6. Engine shutdown
indicator
Lights when a critical engine
fault occurs. A fault code will
be stored in the diagnostic
gauge, and the engine will
shut down within 30 seconds.
7. Cold start wait indicator
Lights when air intake preheater is operating.
NOTICE: If indicator is on, wait until it
goes out before starting engine.
IMPORTANT: If ignition switch is
turned to start position before
indicator goes out, the system will be
disabled and must be reset.
To reset, turn ignition switch to STOP,
then to run.
8. Operator alert indicator
CMW
Lights when a Tier 3 engine
fault occurs.
•
Light flashes when a
“warning” fault is present.
•
Light is steady when an
“engine shutdown” fault is
present.
IMPORTANT: See “Tier 3 Engine
Diagnostic Codes” on page 185 for
more information on diagnostic
system and trouble codes.
NOTICE: Engine may derate and
alarm may sound. A code will be
stored in the ECU.
HT115 Tier 3 Operator’s Manual
Controls - 27
Item
Description
9. High speed indicator
Lights when ground drive
hydraulic motor is in high
speed.
10. Low speed indicator
Lights when ground drive
hydraulic motor is in low
speed.
11. Hydraulic filter
restriction indicator
Lights when hydraulic filter is
restricted.
Change filter when indicator lights at
normal operating temperature.
Will also light in cold weather.
Run tractor at low engine speed until
hydraulic fluid warms and light goes
out.
Indicator lights and alarm
sounds when hydraulic fluid
overheats.
If temperature is high:
12. Hydraulic fluid
temperature indicator
Notes
•
Reduce loads with engine running
to help it cool.
•
Turn off engine and let it cool fully.
•
Check hydraulic fluid level.
•
Check hydraulic fluid cooler for
debris.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 28
Item
Description
Notes
13. Coolant temperature
indicator
Indicator lights and alarm
sounds when engine
overheats.
If temperature is high:
Reduce loads with engine running
to help it cool.
•
Turn off engine and let it cool fully.
•
Check cooling system for low fluid
level, radiator debris, or leaks.
NOTICE: Engine will begin derate
and shutdown.
c00ic120h.eps
14. Engine oil pressure
indicator
•
Indicator lights and alarm
sounds when oil pressure is
low.
May light briefly when engine
is started.
If light remains on:
•
Turn off engine.
•
Check oil level.
•
If pressure is still low, consult
engine manual.
NOTICE: Engine will begin derate
and shutdown.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 29
Controls
1. Shutdown override control
5. Auxiliary power outlet
2. Horn
6. Hydraulic motor control
3. Parking brake switch
7. Reel carrier control*
4. Ignition switch
*optional
Item
Description
Notes
1. Shutdown override
control
Press to delay engine
shutdown for 30 seconds
after cycling ignition switch to
STOP.
This control allows a temporary
override of engine shutdown.
c00ic178h.eps
NOTICE: After 30 seconds, engine
will again shut down unless fault
condition has been cleared on
diagnostic gauge.
IMPORTANT: See “Tier 3 Engine
Diagnostic Codes” on page 185 for
more information.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 30
Item
Description
2. Horn
To sound horn, press button.
3. Parking brake switch
To engage, press top.
Notes
When parking brake switch is in on
position:
To release, press bottom.
•
Parking brake is engaged and
locked into applied position.
•
Parking brake indicator lights.
•
Moving joystick does not cause
tractor to move and does not
activate AutoTrack.
•
Pressing RESUME or SET does
not activate AutoTrack.
When parking brake switch is in off
position:
•
Parking brake is engaged, but
automatically disengages when
conditions are met to operate
ground drive.
•
Parking brake indicator is off.
•
Allows AutoTrack to activate.
•
Tractor will move when operator
is in seat and joystick is moved.
IMPORTANT: See “Stopping” on
page 115 for more information.
CMW
HT115 Tier 3 Operator’s Manual
Item
Description
4. Ignition switch
To start engine:
c00ic217h.eps
•
Turn key clockwise to run
position.
•
Wait until cold start wait
indicator goes out.
•
Turn key to start position
and release key when
engine starts.
To stop engine, turn key
counterclockwise.
Controls - 31
Notes
NOTICE: If cold start wait indicator is
on, wait until it goes out before
starting engine.
IMPORTANT: All four start interlock
indicators must be on to start engine.
IMPORTANT: If ignition switch is
turned to start position before
indicator goes out, the system will be
disabled and must be reset.
To reset, turn ignition switch to STOP,
then to run.
5. Auxiliary power outlet
To use, uncap.
Power output is 12V, 5A.
To select high speed, press
left.
High speed indicator will light.
c00ic179h.eps
6. Hydraulic motor control
To select low speed, press
right.
7. Reel carrier control
To raise, press top.
To lower, press bottom.
c00ic205h.eps
Low speed indicator will light.
NOTICE: Operate reel carrier in the
lowest position possible for improved
stability and visibility. See “RC115
Reel Carrier” on page 209 for
counterweight requirements.
IMPORTANT: For more information
on attachment operation see “Reel
Carrier” on page 97.
CMW
Controls - 32
HT115 Tier 3 Operator’s Manual
Right Console
Right Console
1. Backfill blade control/Reel winder attachment
control*
3. Throttle
4. Auxiliary circuit pressure gauge
2. Reel winder selector switch*
*optional
CMW
HT115 Tier 3 Operator’s Manual
Controls - 33
Right Console
Item
Description
1. Backfill blade control
Backfill blade mode:
•
To lower, move forward.
•
To raise, move backward.
•
To tilt right side down,
move right.
•
To tilt left side down,
move left.
•
To angle left, twist left.
•
To angle right, twist right.
•
To float, move forward to
end.
Notes
IMPORTANT: Backfill blade control
converts to reel winder function when
reel winder is selected.
NOTICE: Ensure that intended
function is selected before operating.
Reel winder mode:
•
To unwind, move forward.
•
To wind, move backward.
•
To lower reel winder arm,
move right.
•
c00ic207h.eps
2. Reel winder selector
switch
To raise reel winder arm,
move left.
For reel winder function,
press right.
For backfill blade function,
press left.
NOTICE: Ensure that intended
function is selected before operating.
NOTICE: Do not continue to push lift
control after tire makes contact with
reel.
IMPORTANT: Backfill blade control
converts to reel winder function when
reel winder is selected.
NOTICE: Ensure that intended
function is selected before operating.
IMPORTANT: For more information
on attachment operation see “Reel
Carrier” on page 97.
c00ic206h.eps
3. Throttle
IMPORTANT: Backfill blade control
converts to backfill blade function
when backfill blade is selected.
To increase engine speed,
move left.
To decrease engine speed,
move right.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 34
Right Console
Item
Description
Notes
4. Auxiliary circuit
pressure gauge
Displays auxiliary circuit
pressure.
Maximum operating pressure is
2550 psi (172 bar).
c00ic191h.eps
CMW
HT115 Tier 3 Operator’s Manual
Controls - 35
Rear Console
Rear Console
Common Indicators and Controls
1. Diagnostic connector
3. Climate control selector*
2. Fan speed selector*
*optional
Item
Description
1. Diagnostic connector
This connector allows manual
reading of Tier 3 diagnostic
codes.
Notes
IMPORTANT: For more information
about the diagnostic system and
codes see “Tier 3 Engine Diagnostic
Codes” on page 185.
2. Fan speed selector
For high speed, turn
clockwise.
For low speed, turn
counterclockwise.
c00ic190h.eps
CMW
HT115 Tier 3 Operator’s Manual
Controls - 36
Rear Console
Item
Description
3. Climate control selector
For more heat, turn
clockwise.
For less heat, turn
counterclockwise.
c00ic188h.eps
CMW
Notes
HT115 Tier 3 Operator’s Manual
Controls - 37
Rear Console
Trencher Controls
1. Trencher slide control
3. Boom lift control
2. Trench cleaner lift control*
*optional
Item
Description
Notes
1. Trencher slide control
To slide trencher right, push.
IMPORTANT: If slide sticks:
To slide trencher left, pull.
•
Lower trencher to ground.
•
Operate trencher slide until
trencher moves slightly.
•
Raise trencher and slide it into
position.
c00ic198h.eps
2. Trench cleaner lift
control
To lower, push.
To raise, pull.
c00ic199h.eps
CMW
HT115 Tier 3 Operator’s Manual
Controls - 38
Rear Console
Item
Description
3. Boom lift control
To lower, push.
To raise, pull.
c00ic200h.eps
CMW
Notes
HT115 Tier 3 Operator’s Manual
Controls - 39
Rear Console
H932 Plow Controls
1. Plow swing control
3. Plow lift control
2. Blade position control
IMPORTANT: For more information on attachment operation see “Plow” on page 89.
Item
Description
Notes
1. Plow swing control
To swing left, pull.
NOTICE:
To swing right, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving plow swing control to float
position.
•
Do not raise plow with plow swing
control in float position.
To float, push to end.
c00ic202h.eps
2. Blade position control
To steer right, pull.
To steer left, push.
c00ic203h.eps
CMW
HT115 Tier 3 Operator’s Manual
Controls - 40
Rear Console
Item
Description
3. Plow lift control
To raise, pull.
Notes
To lower, push.
To float, push to end.
c00ic204h.eps
4. Plow stow lock control
To release, lift plow and pull
lever.
To engage, raise plow fully.
Lower plow slightly to secure.
CMW
This lever is located on plow
attachment.
HT115 Tier 3 Operator’s Manual
Controls - 41
Rear Console
H1130 Plow Controls
1. Plow swing control
4. Blade lift control
2. Blade steer control
5. Plow stow lock control
3. Plow lift control
Item
Description
Notes
1. Plow swing control
To swing left, pull.
NOTICE:
To swing right, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
•
Do not raise plow with control in
float position.
To float, push to end.
c00ic202h.eps
2. Blade steer control
To steer right, push.
To steer left, pull.
c00ic203h.eps
CMW
HT115 Tier 3 Operator’s Manual
Controls - 42
Rear Console
Item
Description
Notes
3. Plow lift control
To raise, pull.
NOTICE:
To lower, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
To float, push to end.
c00ic204h.eps
4. Blade lift control
5. Plow stow lock control
To lower, push.
NOTICE:
To raise, pull.
•
To lock:
Use this control to lock plow in the up
position.
•
Raise plow fully.
•
Pull stow lock handle.
•
Lower plow slightly to
engage lock.
To unlock:
CMW
•
Raise plow slightly.
•
Push stow lock handle to
release lock.
Slow forward motion before
lowering the plow blade.
HT115 Tier 3 Operator’s Manual
Controls - 43
Rear Console
Saw Controls
1. Stabilizer lift control
2. Saw lift control
Item
Description
1. Stabilizer lift control
To lower, push.
Notes
To raise, pull.
c00ic208h.eps
2. Saw lift control
To lower, push.
To raise, pull.
c00ic209h.eps
CMW
Controls - 44
HT115 Tier 3 Operator’s Manual
Seat Console
Seat Console
Left Armrest Controls
1. AutoTrack trigger switch
3. AutoTrack steering switch
2. Ground drive joystick
4. AutoTrack speed switch
CMW
HT115 Tier 3 Operator’s Manual
Controls - 45
Seat Console
Item
Description
1. AutoTrack trigger
switch
To activate AutoTrack while
moving forward at desired
speed:
•
Press and release switch
and move joystick to
neutral.
Notes
NOTICE: Cruise control indicator (on
front console) will light and tractor will
continue to move at current speed/
direction.
To activate AutoTrack while
stopped:
•
Press and hold switch
and move joystick
forward.
•
When cruise control
indicator lights, release
switch and return joystick
to neutral.
NOTICE: Cruise control indicator will
light but tractor should not move.
•
Press and hold RESUME
until desired speed is
reached. See “AutoTrack
speed switch” on
page 47.
NOTICE: Cruise control indicator
remains lit and tractor should begin to
move at selected speed/direction.
•
Press and hold steering
selector switch to set
desired turn rate. See
“AutoTrack steering
selector switch” on
page 46.
IMPORTANT: See “AutoTrack” on
page 114 for more information.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 46
Seat Console
Item
Description
Notes
2. Ground drive joystick
To move forward, push
forward.
IMPORTANT: Speed or rate of turn
increases as joystick is moved farther
from neutral.
To move backward, pull
backward.
To steer left, move left and
forward or backward.
To steer right, move right and
forward or backward.
To stop at normal rate in
manual mode, return joystick
to neutral.
To pause AutoTrack and stop
tractor, move joystick
momentarily behind neutral.
3. AutoTrack steering
selector switch
AutoTrack
c00ic196h.eps
CMW
To change steering setting
more to the left, push left and
hold until desired setting is
reached.
To change steering setting
more to the right, push right
and hold until desired setting
is reached.
NOTICE: In manual mode, if joystick
position is maintained after stopping,
tractor will move in opposite direction.
IMPORTANT: Make adjustments only
while tractor is moving.
NOTICE: Joystick provides temporary
override of steering and speed switch
settings.
HT115 Tier 3 Operator’s Manual
Controls - 47
Seat Console
Item
Description
Notes
4. AutoTrack speed switch
To increase speed while
AutoTrack is engaged press
and hold RESUME.
IMPORTANT: Make adjustments only
while tractor is moving.
RESUME
To decrease speed while
AutoTrack is engaged press
and hold SET.
SET
c00ic195h.eps
To pause AutoTrack (and stop
tractor), pull joystick out of
neutral and release.
To return to previous settings
when paused, press and hold
RESUME and move joystick
forward from neutral.
NOTICE: Tractor should begin to
move and return to previous speed/
direction settings.
Alternative Method to
Activate AutoTrack
To activate AutoTrack while
moving forward at desired
speed:
•
Press SET and release
joystick.
NOTICE: Cruise control indicator (on
front console) will light and tractor
should continue to move at current
speed/direction.
To activate AutoTrack while
stopped:
NOTICE: Cruise control indicator will
light but tractor should not move.
•
Press and hold SET and
move joystick forward.
•
When cruise control
indicator lights, release
SET and return joystick to
neutral.
•
Press and hold RESUME
until desired speed is
reached.
NOTICE: Cruise control indicator
remains lit and tractor should begin to
move at selected speed/direction.
•
Press and hold steering
selector switch to set
desired turn rate.
IMPORTANT: See “AutoTrack” on
page 114 for more information.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 48
Seat Console
Right Armrest Controls
1. Attachment speed/direction control
Item
Description
Notes
1. Attachment speed/
direction control
To start plow vibrator, push
forward.
NOTICE: To avoid damage to plow,
operate only in forward direction.
To stop plow, move control to
neutral position.
IMPORTANT: To go faster in either
direction, move control farther from
neutral position.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 49
Seat Console
Seat Adjustment Controls
1. Seat belt
4. Seat pivot control
2. Armrest adjustment control
5. Seat slide control
3. Seat height adjustment lock
Item
Description
Notes
1. Seat belt
To fasten, insert latch into
buckle.
NOTICE: Always position seat belt
low on hips and tighten.
To release, lift top of buckle.
2. Armrest adjustment
control
To raise or lower armrest:
•
Remove knob.
•
Adjust armrest to desired
position.
•
Replace knob.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 50
Item
Description
3. Seat height adjustment
lock
To raise or lower seat, turn
counterclockwise, then adjust
seat height.
Notes
To lock seat in place, turn
clockwise.
4. Seat pivot control
To pivot seat, pull.
To lock seat in place, release.
5. Seat slide control
To move seat forward or
backward, pull.
To lock seat in place, release.
CMW
NOTICE: Drive tractor with seat
facing front. Operate rear attachments
with seat pivoted 90° to right.
HT115 Tier 3 Operator’s Manual
Controls - 51
Backhoe Console
Backhoe Console
Backhoe Controls
1. Remote backfill blade control
7. Swing lock pin
2. Left stabilizer control
8. Right track switch
3. Boom/Swing control
9. Remote engine stop switch
4. Remote throttle
10. Bucket/Dipper control
5. Left track switch
11. Stow lock control
6. Work light switch*
12. Right stabilizer control
*optional
IMPORTANT: For more information on attachment operation “Backhoe” on page 107.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 52
Backhoe Console
Item
Description
Notes
1. Remote backfill blade
control
To raise, pull.
NOTICE: Do not operate remote
ground drive (track switches) without
first raising backfill blade.
To lower, push.
c00ic210h.eps
2. Left stabilizer control
To lower, press left.
To raise, press right.
c00ic211h.eps
3. Boom/Swing control
To swing boom left, move left.
To swing boom right, move
right.
To raise boom, pull.
To lower boom, push.
c00ic212h.eps
4. Remote throttle
To increase engine speed,
push forward.
To decrease engine speed,
pull back.
CMW
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
NOTICE: Do not operate with
backhoe in the stowed (upright)
position. Component failure could
occur.
IMPORTANT: Remote throttle will
only function above throttle setting at
operator station.
NOTICE: Before returning to operator
station:
•
Return remote throttle to low idle.
•
Raise stabilizers.
•
Stow and lock boom.
HT115 Tier 3 Operator’s Manual
Controls - 53
Backhoe Console
Item
Description
Notes
5. Left track switch
To move left track forward,
push top.
NOTICE:
F
•
Ensure that backfill blade is
raised before operating this
switch.
•
Do not move more than 30’ (10
m) at a time.
To move left track backward,
push bottom.
R
c00ic240h.eps
To drive tractor forward, push
top of both switches.
To drive tractor backward,
push bottom of both switches.
6. Work light switch
To turn on, press right.
To turn off, press left.
7. Swing lock pin
2
To lock:
•
Engage stow lock.
•
Insert swing lock pin into
hole (1).
To release:
c00ic234h.eps
8. Right track switch
F
•
Remove pin and store in
hole (2).
•
Release stow lock.
To move right track forward,
push top.
This pin locks boom from swinging
during transport.
NOTICE: Do not store pin in holes
marked with an “X.” Backhoe could
swing and destroy pin.
NOTICE:
•
Ensure that backfill blade is
raised before operating this
switch.
•
Do not move more than 30’ (10
m) at a time.
To move right track backward,
push bottom.
R
c00ic240h.eps
To drive tractor forward, push
top of both switches.
To drive tractor backward,
push bottom of both switches.
CMW
HT115 Tier 3 Operator’s Manual
Controls - 54
Backhoe Console
Item
Description
Notes
9. Remote engine stop
switch
Stops engine immediately.
NOTICE: Except in an emergency,
move throttle to idle before using stop
switch.
NOTICE: To prevent turbocharger
damage, do not shut down engine at
full throttle or under load. Should
engine die, immediately remove load
and restart engine.
10. Bucket/Dipper control
To open bucket, move right.
To close bucket, move left.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
To move dipper in, pull.
To move dipper out, push.
IMPORTANT: For more information
on attachment operation see
“Backhoe” on page 107.
c00ic213h.eps
11. Stow lock control
To lock:
•
Raise boom fully.
•
Pull stow lock handle.
•
Lower boom slightly to
engage lock.
•
Insert swing lock pin.
Use this control to lock boom in the up
position.
NOTICE: Always lock boom during
transport.
NOTICE: Always install swing lock pin
during transport.
c00ic215h.eps
To unlock:
12. Right stabilizer control
•
Remove swing lock pin.
•
Raise boom slightly.
•
Push stow lock handle to
release lock.
To lower, press right.
To raise, press left.
CMW
NOTICE: When unlocked, store swing
lock pin in holder located on left
stabilizer support.
HT115 Tier 3 Operator’s Manual
Controls - 55
Battery
Battery
1. Battery disconnect switch
Item
Description
Notes
1. Battery disconnect
switch
To disconnect, move switch
so that indicator points to left.
IMPORTANT: Use when servicing
tractor and during long-term storage.
To connect, move switch so
that indicator points to right.
CMW
Controls - 56
CMW
HT115 Tier 3 Operator’s Manual
HT115 Tier 3 Operator’s Manual
Operation Overview - 57
Operation Overview
Chapter Contents
Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Trenching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Plowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Sawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Digging with Backhoe . . . . . . . . . . . . . . . . . . . . . . 59
Leaving Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
CMW
Operation Overview - 58
HT115 Tier 3 Operator’s Manual
Planning
Planning
1. Gather information about jobsite. See page 62.
2. Inspect jobsite. See page 63.
3. Classify jobsite. See page 64.
4. Check supplies and prepare equipment. See page 66.
5. Haul equipment. See page 78.
Trenching
1. Start unit. See page 68.
2. Position tractor and controls. See page 84.
3. Begin trenching. See page 86.
4. Engage optional Auto Track if desired. See page 114.
5. Complete the installation. See page 86.
6. Shut down tractor. See page 70.
Plowing
1. Start unit. See page 68.
2. Position tractor and controls. See “Drive” on page 70 and “Plow” on page 89.
3. Attach product. See page 92.
4. Begin plowing. See page 93.
5. Engage AutoTrack if desired. See page 115.
6. Complete the installation. See page 121.
7. Shut down tractor. See page 70.
CMW
HT115 Tier 3 Operator’s Manual
Operation Overview - 59
Sawing
Sawing
1. Start unit. See page 68.
2. Before first use and after replacing bits, check bit clearance. See page 103.
3. Position tractor and controls. See page 103.
4. Begin sawing. See page 104.
5. Engage optional Auto Track if desired. See page 114.
6. Complete the installation. See page 105.
7. Shut down tractor. See page 70.
Digging with Backhoe
1. Start unit. See page 68.
2. Set stabilizers and unstow backhoe. See page 108.
3. Excavate. See page 109.
4. Stow backhoe properly. See page 110.
5. Shut down tractor. See page 70.
Leaving Jobsite
1. Backfill if necessary. See “Complete the Job” on page 121.
2. Rinse equipment. See page 122.
3. Stow tools. See page 122.
4. Haul equipment. See page 78.
CMW
Operation Overview - 60
HT115 Tier 3 Operator’s Manual
Leaving Jobsite
CMW
HT115 Tier 3 Operator’s Manual
Prepare - 61
Prepare
Chapter Contents
Gather Information . . . . . . . . . . . . . . . . . . . . . . . . . 62
•
Review Job Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
•
Notify One-Call Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
•
Arrange for Traffic Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
•
Plan for Emergency Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Inspect Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
•
Identify Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Classify Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
•
Inspect Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
•
Select a Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
•
Apply Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Check Supplies and Prepare Equipment . . . . . . . 66
•
Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
•
Fluid Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
•
Condition and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
•
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
CMW
Prepare - 62
HT115 Tier 3 Operator’s Manual
Gather Information
Gather Information
A successful job begins before you dig. The first step in planning is reviewing information already available
about the job and jobsite.
Review Job Plan
Review blueprints or other plans. Check for information about existing or planned structures, elevations, or
proposed work that may be taking place at the same time.
Notify One-Call Services
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
Arrange for Traffic Control
If working near a road or other traffic area, contact local authorities about safety procedures and
regulations.
Plan for Emergency Services
Have the telephone numbers for local emergency and medical facilities on hand. Check that you will have
access to a telephone.
CMW
HT115 Tier 3 Operator’s Manual
Prepare - 63
Inspect Site
Inspect Site
Inspect jobsite before transporting equipment. Check for the following:
•
Changes in elevation such as hills or other open trenches.
•
Obstacles such as buildings, railroad crossings, or streams.
•
Signs of utilities.
•
Traffic.
•
Access.
•
Soil type and condition.
Identify Hazards
Identify safety hazards and classify jobsite. See “Classify Jobsite” on page 64.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE:
•
Wear personal protective equipment including hard hat, safety eye wear, and hearing protection.
•
Do not wear jewelry or loose clothing.
•
Notify One-Call and companies which do not subscribe to One-Call.
•
Comply with all utility notification regulations before digging or drilling.
•
Verify location of previously marked underground hazards.
•
Mark jobsite clearly and keep spectators away.
Remember, jobsite is classified by hazards in place -- not by line being installed.
CMW
Prepare - 64
HT115 Tier 3 Operator’s Manual
Classify Jobsite
Classify Jobsite
Inspect Jobsite
•
Follow U.S. Department of Labor regulations on excavating and trenching (Part 1926, Subpart P) and
other similar regulations.
•
Contact One-Call (888-258-0808) and any utility companies which do not subscribe to One-Call.
•
Inspect jobsite and perimeter for evidence of underground hazards, such as:
– “buried utility” notices
– utility facilities without overhead lines
– gas or water meters
– junction boxes
– drop boxes
– light poles
– manhole covers
– sunken ground
•
Have an experienced locating equipment operator sweep area within 20’ (6 m) to each side of trench
path. Verify previously marked line and cable locations.
•
Mark location of all buried utilities and obstructions.
•
Classify jobsite.
Select a Classification
Jobsites are classified according to underground hazards present.
If working . . .
then classify jobsite as . . .
within 10’ (3 m) of a buried electric line
electric
within 10’ (3 m) of a natural gas line
natural gas
in sand, granite, or concrete which are capable of producing
crystalline silica (quartz) dust
crystalline silica (quartz) dust
within 10’ (3 m) of any other hazard
other
NOTICE: If you have any doubt about jobsite classification, or if jobsite might contain unmarked
hazards, take steps outlined previously to identify hazards and classify jobsite before working.
CMW
HT115 Tier 3 Operator’s Manual
Prepare - 65
Classify Jobsite
Apply Precautions
Once classified, precautions appropriate for jobsite must be taken.
Electric Jobsite Precautions
Use one or both of these methods.
•
Expose line by careful hand digging or soft excavation.
•
Have service shut down while work is in progress. Have electric company test lines before returning
them to service.
Natural Gas Jobsite Precautions
In addition to positioning equipment upwind from gas lines, use one or both of these methods.
•
Expose lines by careful hand digging or soft excavation.
•
Have gas shut off while work is in progress. Have gas company test lines before returning them to
service.
Crystalline Silica (Quartz) Dust Precautions
Follow OSHA or other guidelines for exposure to crystalline silica when trenching, sawing or drilling
through material that might produce dust containing crystalline silica (quartz).
Other Jobsite Precautions
You may need to use different methods to safely avoid other underground hazards. Talk with those
knowledgeable about hazards present at each site to determine which precautions should be taken or if
job should be attempted.
CMW
Prepare - 66
HT115 Tier 3 Operator’s Manual
Check Supplies and Prepare Equipment
Check Supplies and Prepare Equipment
Supplies
•
fuel
•
keys
•
personal protective equipment, such as hard hat and safety glasses
Fluid Levels
•
fuel
•
hydraulic fluid
•
battery charge
•
engine oil
Condition and Function
•
fan belts
•
light bulbs
•
filters (air, oil, hydraulic)
•
tracks
•
pumps and motors
•
hoses and valves
•
signs, guards, and shields
Accessories
Fire Extinguisher
If required, mount a fire extinguisher near the power unit but away from possible points of ignition. The fire
extinguisher should always be classified for both oil and electric fires. It should meet legal and regulatory
requirements.
CMW
HT115 Tier 3 Operator’s Manual
Drive - 67
Drive
Chapter Contents
Start Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
CMW
HT115 Tier 3 Operator’s Manual
Drive - 68
Start Unit
Start Unit
Before operating tractor, read engine manufacturer’s starting and operating instructions. Follow
instructions for new engine break-in.
Runaway possible. Machine could run over you or others. Learn how to
use all controls. Start and operate only from operator’s position.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Read operator’s manual before operating equipment. Follow instructions carefully. Contact Ditch
Witch dealership for operation information or demonstration.
•
Wear hard hat, safety glasses, and other protective equipment required by job. Do not wear jewelry
or loose clothing that can catch on controls.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
CMW
HT115 Tier 3 Operator’s Manual
Drive - 69
Start Unit
1. Fasten and adjust seatbelt.
2. Check that ground drive control and attachment speed/direction control are in neutral.
3. Move throttle to idle.
4. Turn ignition switch to the run position (key on, engine off). Cold start wait indicator will light.
Warning alarm will sound. Indicators will light.
5. When cold start wait indicator goes off, turn ignition switch all the way clockwise to start tractor.
•
If engine does not crank, check start interlock display. See “Indicators” on page 24 for start
interlock information.
•
If engine cranks but does not start within 10 seconds, allow starter to cool before trying again.
Improper control function could cause death or serious injury. If
control does not work as described in instructions, stop machine and have it
serviced.
NOTICE:
•
If warning alarm does not sound, have machine serviced.
•
Machine will not start if start interlock requirements are not met. See “Front Console” on
page 22 for start interlock information.
6. Run engine at half-throttle or less for five minutes before operating tractor. During warm-up, check that
all controls work properly.
CMW
HT115 Tier 3 Operator’s Manual
Drive - 70
Drive
Drive
EMERGENCY SHUTDOWN: Turn ignition switch to stop position.
1. Turn on lights as needed.
2. Raise backfill blade and all attachments.
3. Adjust throttle.
4. Move ground drive control to forward or reverse.
Moving traffic – hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
NOTICE:
•
Drive carefully in congested areas. Know machine’s clearance and turning radius.
•
Keep attachments low when operating on slope. Drive slowly and cautiously.
Shut Down
1. When job is complete, move ground drive control to neutral.
2. Lower all attachments to ground.
3. Move throttle to idle for 3 minutes to cool engine.
4. Turn ignition switch to STOP position. If leaving machine unattended, remove key.
5. For maintenance or long-term storage, turn battery disconnect switch to disconnect position.
CMW
HT115 Tier 3 Operator’s Manual
Transport - 71
Transport
Chapter Contents
Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Tie Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
•
Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Haul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
•
Inspect Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
•
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
•
Unload... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
CMW
HT115 Tier 3 Operator’s Manual
Transport - 72
Lift
Lift
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Points
Lifting points are identified by lifting decals. Lifting at other points is unsafe
and can damage machinery.
Procedure
Tractor
Use a crane capable of supporting the equipment's size
and weight. See “HT115 Tractor” on page 189. Use
indicated lift points. Do not attempt to lift tractor with
attachments installed.
t12om008h.eps
CMW
HT115 Tier 3 Operator’s Manual
Transport - 73
Lift
Centerline Trencher
Use crane capable of supporting the equipment's
size and weight. See “H910 Trencher” on page 193
or measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
t12om065h.eps
Traversing Trencher
Use crane capable of supporting the equipment's
size and weight. See “H911 Trencher” on page 195
or measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
t12om066h.eps
Plow
Use crane capable of supporting the equipment's size
and weight. See “H932 Plow” on page 197 or measure
and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed attachment.
CMW
Transport - 74
HT115 Tier 3 Operator’s Manual
Lift
Saw
Use crane capable of supporting the equipment's size
and weight. See “H942 Saw” on page 201 or “H1140
Saw” on page 203 or measure and weigh equipment
before lifting.
NOTICE: Do not lift tractor with installed
attachment.
t12om069h.eps
Reel Carrier
Use crane capable of supporting the equipment's size
and weight. See “RC115 Reel Carrier” on page 209 or
measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
CMW
HT115 Tier 3 Operator’s Manual
Transport - 75
Tie Down
Tie Down
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Points
Tiedown points are identified by tiedown decals. Securing to trailer at other
points is unsafe and can damage machinery.
Procedure
Tractor
Attach two chains at D-rings and tiedown points, as shown, on both sides of tractor. Make sure all chains
are tight before transporting.
t12om136h.eps
CMW
Transport - 76
HT115 Tier 3 Operator’s Manual
Tie Down
Centerline Trencher
Lower trencher to trailer deck and chain at
attachment frame and through boom. Make sure
chains are tight before transporting.
IMPORTANT: If trencher is equipped with a
trench cleaner, ensure that trench cleaner shoe is
fully up and extra bolt (found in operator’s manual
compartment) is installed in appropriate hole for
additional support.
t12om070h.eps
Traversing Trencher
Lower trencher to trailer deck and chain at
attachment frame and through boom. Make sure
chains are tight before transporting.
IMPORTANT: If trencher is equipped with a
trench cleaner, ensure that trench cleaner shoe is
fully up and extra bolt (found in operator’s manual
compartment) is installed in appropriate hole for
additional support.
Plow
Lower plow to trailer deck and chain at attachment
frame and vibrator box. Make sure chains are tight
before transporting.
NOTICE:
•
Engage attachment stow lock and swing lock
devices in addition to securing at tiedowns.
•
Unsecured plow can swing outside the trailer and
become a traffic hazard. Lower plow and chain to
trailer deck before hauling.
CMW
t12om071h.eps
HT115 Tier 3 Operator’s Manual
Transport - 77
Tie Down
Saw
Lower saw to trailer deck and chain at attachment
frame and at hook on rear of saw. Make sure chains
are tight before transporting.
t12om074h.eps
Reel Carrier
Lower reel carrier to lowest position and tie down at
attachment arms. Make sure chains are tight before
transporting.
CMW
HT115 Tier 3 Operator’s Manual
Transport - 78
Haul
Haul
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Read trailer operator’s manual before loading or transporting your machine. Incorrectly loaded
machine can slip or cause trailer sway.
•
Attach trailer to tow vehicle before loading or unloading.
•
Park, load, and unload trailer on level ground.
•
Check that unit and trailer do not exceed size or weight regulations.
•
Ensure that tow vehicle has proper tow capacity rating.
•
Ten to fifteen percent of total vehicle weight (equipment plus trailer) must be on tongue to help
prevent trailer sway.
•
Connect safety chains to tow vehicle. Attach left chain to right side of tow vehicle and vice versa
to cradle hitch. Do not connect to pintle hook or hitch ball.
•
Connect breakaway switch cable to tow vehicle. Do not connect to pintle hook or hitch ball.
Procedure
Inspect Trailer
1. Check hitch for wear and cracks. Lubricate if needed.
2. Check battery for 12V charge.
3. Inspect lights for cleanliness and correct operation. Inspect reflectors and replace if needed.
4. Check tire pressure. Check lug nut torque with a torque wrench. Adjust if needed.
5. Ensure trailer brakes are adjusted to come on in synchronization with tow vehicle brakes.
6. Check ramps and trailer bed for cracks.
CMW
HT115 Tier 3 Operator’s Manual
Transport - 79
Haul
Load
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
NOTICE:
•
Attach trailer to tow vehicle before loading or unloading.
•
Load and unload trailer on level ground.
•
Put tow vehicle manual transmission into first or reverse gear or automatic transmission into park.
Turn off ignition. Set parking brake.
•
Block trailer wheels.
•
Incorrect loading can cause trailer swaying.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
sf1011
1. Fasten and adjust seat belt.
2. Start tractor. See “Start Unit” on page 68 for proper start-up procedures.
3. Raise attachments, but keep them low.
4. Move attachments to center position and check that they are not in float.
5. Move hydraulic ground drive motor switch to low. See page 31.
6. With engine at low throttle, slowly drive tractor onto trailer.
7. Position tractor on trailer deck for proper weight distribution.
8. Engage plow swing lock (if equipped with plow).
9. Engage parking brake switch and verify that parking brake indicator is on.
10. Lower attachments to trailer bed and turn tractor off. See “Shut Down” on page 70 for proper shutdown
procedures.
11. Attach chains to tractor and attachments where tiedown decals are located. See“Tie Down” on
page 75.
CMW
HT115 Tier 3 Operator’s Manual
Transport - 80
Haul
Unload
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
NOTICE:
•
Attach trailer to tow vehicle before loading or unloading.
•
Load and unload trailer on level ground.
•
Put tow vehicle manual transmission into first or reverse gear or automatic transmission into park.
Turn off ignition. Set parking brake.
•
Block trailer wheels.
•
Incorrect loading can cause trailer swaying.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
sf1011
1. Lower trailer or ramps.
2. Remove chains from tiedowns.
3. Fasten and adjust seat belt.
4. Start tractor. See “Start Unit” on page 68 for proper start-up procedures.
5. Raise attachments, but keep them low and centered.
6. Disengage parking brake and verify parking brake indicator is off.
7. With engine at low throttle, slowly back tractor down trailer or ramps.
CMW
HT115 Tier 3 Operator’s Manual
Transport - 81
Tow
Tow
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Under normal conditions, tractor should not be towed. If tractor becomes disabled and towing is
necessary:
•
Do not tow for more than 200 yd (180 m).
•
Tow at less than 1 mph (1.6 kph).
•
Use maximum towing force of 1.5 times unit weight.
Procedure
Special items required:
•
3/8”-NC bolt (p/n 105-217), or equivalent, about 4 1/2” long; 16 threads per inch
•
Thin-blade screwdriver or similar tool about 6” long
1. Engage parking brake switch and verify parking brake indicator is on.
2. Block tracks at both ends.
3. Attach tow lines to tractor tiedowns and tow vehicle.
To attach chains to tow points, determine which points are facing tow vehicle:
•
If back tow points are facing tow vehicle, choose option A or B.
Option A: Loop chain through both tow points and attach to common cross member. Always pull straight.
Option B: Loop chain through each tow point and attach chains to tow vehicle. Always pull straight.
CMW
Transport - 82
HT115 Tier 3 Operator’s Manual
Tow
•
If front tow points are facing tow vehicle, loop chain through tow points and pull straight.
NOTICE:
•
Once shaft is removed, planetary is disengaged and will not prevent tractor from moving.
•
Parking brake will not function in tow mode.
•
Follow procedure exactly to avoid gear spacer from becoming misaligned.
4. Remove planetary shaft.
•
Grasp bolt to remove shaft (2) while holding slight
pressure against planetary gear.
1
U
Insert a thin-blade screwdriver or similar tool
alongside shaft and apply pressure to seat outer
planetary gear and to prevent gear spacer from
becoming misaligned or dropping while removing
shaft.
H
•
2
UE
Q
Locate a 3/8”-NC bolt about 4 1/2” in length, such
as (p/n 105-217), and install into shaft threads.
Do not tighten.
R
•
TO
Remove cover plate (1).
B
•
t12om138h.eps
5. Reverse planetary shaft.
•
Replace cover plate (1).
1
6. Repeat for opposite planetary.
7. After towing, repeat procedure to engage each
planetary.
t12om139h.eps
CMW
U
Remove bolt.
H
•
UE
Q
Carefully reinstall shaft while applying pressure
against planetary gear as before.
R
•
2
TO
Remove bolt, reverse direction of shaft (2), and
reinstall bolt into opposite end of shaft.
B
•
HT115 Tier 3 Operator’s Manual
Trench - 83
Trench
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
CMW
HT115 Tier 3 Operator’s Manual
Trench - 84
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
NOTICE: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
1. Fasten and adjust seat belt.
2. Start tractor. See “Drive” on page 70 for start-up procedures.
3. Drive to starting point. Move in line with planned trench. See “Drive” on page 70 for operating
procedures.
4. Engage parking brake and verify parking brake indicator is on.
5. Select low ground drive hydraulic motor speed.
6. Lower backfill blade.
7. Swivel seat to the work position.
8. Lower boom to just above ground.
9. Check that attachment speed/direction control is in neutral.
10. Check that boom is in line with planned trench.
CMW
HT115 Tier 3 Operator’s Manual
Trench - 85
Operation
Operation
Jobsite hazards could cause death or serious injury. Use correct
equipment and work methods. Use and maintain proper safety equipment.
NOTICE: Cutting, drilling, or working materials such as concrete, sand, or rock containing quartz may
result in exposure to silica dust. Use water spray or other means to control dust. If workers are exposed
to dust they must wear appropriate breathing protection. Silica dust may cause lung disease and is
known to the State of California to cause cancer.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
NOTICE: Cutting high voltage cable can cause electrocution. Expose lines by hand before
digging.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Comply with all utility notification regulations before digging or drilling.
•
Notify companies that do not subscribe to One-Call.
Flying objects thrown by machine may strike people. Wear hard hat and
safety glasses.
Moving digging teeth will cause death or serious injury. Stay away.
NOTICE:
•
Ensure parking brake is engaged and parking brake indicator is on.
•
Machine might jerk when digging starts. Allow 3’ (1 m) between digging teeth and obstacle.
•
Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
CMW
Trench - 86
HT115 Tier 3 Operator’s Manual
Operation
1. If necessary, adjust throttle to low idle.
2. Move attachment speed/direction control to desired speed. DIGGING CHAIN WILL MOVE.
3. Lift trench cleaner, if equipped.
4. Increase engine speed to full throttle.
5. Slowly lower digging boom to depth.
6. Raise backfill blade.
7. Release parking brake and verify parking brake indicator is off.
8. Move ground drive control to desired speed.
IMPORTANT: For Auto Track operation, see “AutoTrack” on page 114.
9. Move throttle to full when possible.
10. If using optional trench cleaner, return ground drive control to neutral when desired trench depth is
reached. Raise boom slightly, then lower trench cleaner completely. This ensures trench cleaner will
lock in place.
NOTICE:
•
Do not have trench cleaner in working position when starting a trench.
•
Do not back up with trench cleaner in working position.
•
Do not use trench cleaner in conditions where large rocks can get between chain and
cleaner.
11. Lower boom to trench depth and push ground drive control forward to trenching speed.
IMPORTANT:
CMW
•
Do not make sharp turns. Lower boom to full depth when turning.
•
If an object becomes lodged in chain, move attachment speed/direction control to neutral
and raise boom slightly. Reverse chain direction. If object must be removed manually, turn
engine off and engage parking brake.
•
Always start trenching with ground drive speed set at low. If soil conditions permit optimal
digging at higher ground drive speed, select high.
•
Sight along center of hood to a stake driven beyond end of trench line for straight trench.
•
When cutting asphalt, start trench in soil at edge of road and use shortest possible boom at
full depth.
•
Use correct length boom. See your Ditch Witch dealer for more information.
HT115 Tier 3 Operator’s Manual
Trench - 87
Operation
12. When trench is complete, move ground drive control to neutral.
13. Adjust throttle to low idle.
14. Raise boom.
15. As boom clears top of trench, move attachment speed/direction control to neutral.
16. Swivel seat to the drive position.
17. Drive a short distance away from work site.
18. Shut down tractor. See “Shut Down” on page 70 for proper shutdown procedures.
CMW
Trench - 88
HT115 Tier 3 Operator’s Manual
Operation
CMW
HT115 Tier 3 Operator’s Manual
Plow - 89
Plow
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
•
Set Blade (H1130 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
•
Position Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
•
Attach Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
CMW
HT115 Tier 3 Operator’s Manual
Plow - 90
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to stop position.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
NOTICE:
•
Plow will swing freely in float.
•
Keep everyone at least 6 feet (2 m) from machine, attachments, and their range of movement.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Use attachments or counterweights to make front and rear loads balance when all attachments are
raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
•
Do not operate vibrator unless plow is in the ground.
CMW
HT115 Tier 3 Operator’s Manual
Plow - 91
Setup
Set Blade (H1130 only)
•
For maximum cover depth, install blade lift hydraulic
cylinder in top mount holes, and install blade
retainer with the slot at the bottom (shown).
In this position, the short blade will adjust from
26” to 40” (660 - 1016 mm). The long blade will
adjust from 34” to 48” (864-1219 mm).
•
For minimum cover depth, install blade lift hydraulic
cylinder in bottom mount holes, and install blade
retainer with the slot at the top.
In this position, the short blade will adjust from
23” to 37” (584-940 mm). The long blade will adjust
from 26” to 40” (660-1016 mm).
Position Tractor
1. Fasten and adjust seat belt.
2. Start tractor. See “Start Unit” on page 68 for start-up
procedures.
3. Drive to starting point. Move in line with planned trench.
4. Lower backfill blade.
5. Lower plow to starting point of trench. See “H1130 Plow Controls” on page 42.
IMPORTANT: If material must be at a constant depth, dig starting and target trenches.
6. Turn ignition switch to off position.
CMW
Plow - 92
HT115 Tier 3 Operator’s Manual
Setup
Attach ProductTo Pull Product
1. Insert material into pulling grip.
2. Tape grip with duct tape.
To Feed Product
1. Remove cable guide.
2. Feed cable through tube from top to bottom.
3. Replace cable guide and tighten fasteners.
IMPORTANT: If ROPS-attached cable
guide is used, it should be a genuine Ditch
Witch cable guide manufactured for this
purpose.
4. Secure cable.
NOTICE: Keep everyone away from
material being installed.
CMW
HT115 Tier 3 Operator’s Manual
Plow - 93
Operation
Operation
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
NOTICE: Cutting high voltage cable can cause electrocution. Expose lines by hand before digging.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Comply with all utility notification regulations before digging or drilling.
•
Notify companies that do not subscribe to One-Call.
•
Do not drive backward with plow in the ground.
CMW
Plow - 94
HT115 Tier 3 Operator’s Manual
1. Fasten and adjust seat belt.
2. Check that ground drive control is in neutral.
3. Start tractor.
4. Adjust throttle to low idle.
5. Lower reel carrier to lowest position possible, if equipped.
NOTICE: Use extreme caution when operating reel carrier on sloped surfaces.
6. Raise backfill blade.
7. Swivel seat to the work position.
8. Move ground drive control forward to plowing speed and lower plow blade into ground.
NOTICE:
•
Lower plow into ground before moving plow lift control or plow swing control to float.
•
Do NOT move ground drive to reverse with plow blade in the ground.
9. Move plow lift control to float.
10. Move plow swing control to float.
11. Increase engine speed to full throttle.
12. Move attachment speed/direction control to full speed forward. PLOW WILL VIBRATE.
13. Reduce attachment speed to a point with the least tractor vibration and the highest ground drive speed
possible.
14. Adjust vibrator speed if ROPS vibrates excessively.
IMPORTANT:
CMW
•
Check cable for damage during plowing. Run continuity checks on electric cable and check
pipe pressure. Damage can result from improper operation, incorrect blade choice, striking
underground obstructions, or other conditions.
•
Keep sod cutter edge sharp when plowing in areas with heavy grass cover or surface
clutter.
•
In some soil conditions, changing vibrator weights can improve plow performance. Contact
your Ditch Witch dealer for details.
HT115 Tier 3 Operator’s Manual
Plow - 95
15. When installation is complete, move plow swing to neutral.
16. With vibrator running, raise plow to ground level.
NOTICE: Do not operate vibrator when plow is out of the ground. This will cause excessive
vibration resulting in rapid wear, and possible damage to the unit and product being installed.
17. Move attachment speed/direction control to neutral.
18. Swivel seat to the drive position.
19. Lower backfill blade.
20. Turn ignition switch to STOP position and remove product from plow.
21. Start tractor, swing plow to center position, and engage swing lock and stow lock. See “H1130 Plow
Controls” on page 42.
22. Drive a short distance away from work site.
23. Shut down tractor. See “Shut Down” on page 70 for proper shutdown procedures.
CMW
Plow - 96
CMW
HT115 Tier 3 Operator’s Manual
HT115 Tier 3 Operator’s Manual
Reel Carrier - 97
Reel Carrier
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
•
Adjust Reel Winder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
CMW
HT115 Tier 3 Operator’s Manual
Reel Carrier - 98
Setup
Setup
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
Adjust Reel Winder
1. Lower reel carrier.
2. Turn ignition switch to stop position.
3. Remove reel.
Crushing weight could cause death or serious
injury. Use proper procedures and equipment or stay away.
4. While supporting lever arm (3), remove bolt (1)
that attaches hydraulic lift cylinder to lever arm.
5. Attach cylinder rod to the correct mounting hole for
your diameter reel:
•
For 2-5’ (61-152 cm) diameter reels, attach to
bottom mounting hole (1).
•
For 5-7’ (152-213 cm) diameter reels, attach to
top mounting hole (2).
CMW
HT115 Tier 3 Operator’s Manual
Reel Carrier - 99
Operation
Operation
1. Drive to beginning of planned plow path. See “Drive” on page 67.
2. Engage parking brake and verify parking brake indicator is on.
3. Lower backfill blade.
4. Lower plow attachment. See “Trencher Controls” on page 38.
5. Adjust throttle.
6. Attach service line to reel.
7. Move reel winder selector switch to activate reel winder control functions. See “Right Console” on
page 32.
8. Lower reel winder arm until tire meets reel flange.
9. Wind service line.
10. When finished winding, raise reel winder arm.
11. Adjust throttle.
12. Move reel winder selector switch to activate backfill blade controls.
13. Raise backfill blade.
14. Release parking brake and verify parking brake indicator is off.
15. Follow directions in “Plow” on page 89 to begin plowing.
CMW
Reel Carrier - 100
HT115 Tier 3 Operator’s Manual
Operation
CMW
HT115 Tier 3 Operator’s Manual
Saw - 101
Saw
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
•
Before First Use and After Replacing Bits. . . . . . . . . . . . . . . . . . . . . . .103
•
Normal Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
CMW
Saw - 102
HT115 Tier 3 Operator’s Manual
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
NOTICE: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
CMW
HT115 Tier 3 Operator’s Manual
Saw - 103
Setup
Before First Use and After Replacing Bits
NOTICE: Unless otherwise instructed, all service should be performed with tractor off.
IMPORTANT:
•
For best results, use retaining clip loading and removing tool and a knock-out bar included with saw
to remove and reinsert bits.
•
Carbide bits are recommended for cutting abrasive material, such as sandstone or frozen sands or
gravels.
Check Bit Clearance
1. Check that all bits are properly secured.
2. Check that all bit retaining rings are secure.
3. Spin wheel by hand and listen for bits hitting diverters.
4. If bits hit diverters, repeat steps 1-3 to make sure bits are in the proper location and secured at proper
depth.
5. If bits do not hit diverters:
•
Set parking brake.
•
Fasten and adjust seat belt.
•
Start tractor and adjust throttle.
•
Raise saw slightly.
•
Use attachment speed/direction control to rotate saw slowly. As it rotates, listen for clicking
sounds. If clicking is present, repeat steps 1-4.
Normal Use
1. Before operating saw, check bits for free rotation. Tap bits lightly with a hammer and turn by hand. If
bits are stuck, remove and clean packed soil from bit block.
2. Fasten and adjust seat belt.
3. Start tractor. See “Start Unit” on page 68 for start-up procedures.
4. Drive to starting point. Move in line with planned trench. See “Drive” on page 70 for correct operating
procedures.
5. Engage parking brake and verify parking brake indicator is on.
6. Swivel seat to the work position.
7. Lower saw to just above ground.
8. Check that saw is in line with planned trench and that tires are pointing straight ahead.
CMW
HT115 Tier 3 Operator’s Manual
Saw - 104
Operation
Operation
Jobsite hazards could cause death or serious injury. Use correct
equipment and work methods. Use and maintain proper safety equipment.
NOTICE: Cutting, drilling, or working materials such as concrete, sand, or rock containing quartz may
result in exposure to silica dust. Use water spray or other means to control dust. If workers are exposed
to dust they must wear appropriate breathing protection. Silica dust may cause lung disease and is
known to the State of California to cause cancer.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
NOTICE: Cutting high voltage cable can cause electrocution. Expose lines by hand before
digging.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Flying objects thrown by machine may strike people. Wear hard hat and
safety glasses.
Moving digging teeth will kill you or cut off arm or leg. Stay away.
NOTICE:
•
Machine might jerk when digging starts. Allow 3’ (1 m) between digging teeth and obstacle.
•
Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
CMW
HT115 Tier 3 Operator’s Manual
Saw - 105
Operation
IMPORTANT: Saw use is not recommended for soft, wet, or sticky soil conditions.
1. Adjust throttle to low idle.
2. Move attachment speed/direction control to desired speed. SAW WILL TURN.
3. Slowly lower saw to trench depth.
Incorrect procedures could result in death, injury, or property
damage. Learn to use equipment correctly.
NOTICE: Ensure that stabilizers are in contact with the ground while sawing. Failure to use
stabilizers correctly will damage equipment.
4. Release parking brake and verify parking brake indicator is off.
5. Increase engine speed to full throttle.
6. Push ground drive control forward to trenching speed.
IMPORTANT:
•
Lower saw into softer material then move into harder or abrasive material. For example,
lower saw into dirt at shoulder before cutting across road.
•
If a curved trench must be cut, make a series of straight cuts.
•
For Auto Track operation, see “AutoTrack” on page 114.
7. When trench is complete, adjust throttle to low idle.
8. Raise saw.
9. As saw clears top of trench, move attachment speed/direction control to neutral.
10. Swivel seat to the drive position.
11. Drive a short distance away from work site.
12. Shut down tractor. See “Shut Down” on page 70 for correct shutdown procedures.
13. Wash bits and mounting blocks with high pressure water before parking unit overnight.
CMW
Saw - 106
HT115 Tier 3 Operator’s Manual
Operation
CMW
HT115 Tier 3 Operator’s Manual
Backhoe - 107
Backhoe
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Stowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
CMW
Backhoe - 108
HT115 Tier 3 Operator’s Manual
Setup
Setup
1. Move attachment speed/direction control to neutral position.
2. Move ground drive control to neutral position.
3. Lower rear attachment to 6” (150 mm) above ground.
4. Check that backfill blade is straight and lower it to ground.
5. Decrease engine speed to low throttle.
6. Move to backhoe operator’s station.
7. Lower stabilizers enough to lift front tires.
8. Remove swing lock pin from hole (1) and store in
hole (2).
9. Raise boom to release tension on stow lock.
10. Release stow lock by pushing handle forward.
IMPORTANT: For more information about
stow lock, see “Backhoe Console” on
page 52.
11. Adjust engine speed to 1/2 to 3/4 throttle for
digging.
NOTICE: Engine speed affects speed of
backhoe operation.
CMW
HT115 Tier 3 Operator’s Manual
Backhoe - 109
Operation
Operation
Use boom/swing control and bucket/dipper control to dig hole or trench.
•
Keep dipper and boom at right angles as much as
possible for maximum power.
•
Keep bucket in line with dipper as much as
possible.
•
Position bucket so teeth cut soil. As soil is cut, curl
bucket under dipper.
•
Move dipper and bucket together. Increasing
engine speed will not increase backhoe force.
CMW
Backhoe - 110
HT115 Tier 3 Operator’s Manual
Stowing
Stowing
NOTICE: Before returning to tractor operator station, raise stabilizers, return remote throttle to low idle,
and stow and lock boom.
1. When hole or trench is complete, lift boom while
keeping dipper pointed at ground.
2. Curl bucket closed and move dipper fully toward
boom.
3. Lift boom to highest position and latch stow lock.
4. Lower boom slightly to engage lock.
5. Engage swing lock. See “Backhoe Console” on
page 52.
CMW
HT115 Tier 3 Operator’s Manual
Backhoe - 111
Stowing
6. Raise stabilizers.
7. Return remote throttle to low idle.
CMW
Backhoe - 112
HT115 Tier 3 Operator’s Manual
Stowing
CMW
HT115 Tier 3 Operator’s Manual
Systems and Equipment - 113
Systems and Equipment
Chapter Contents
AutoTrack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
•
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
•
Operate AutoTrack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
•
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
•
Ground Drive Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Tier 3 Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
•
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
•
Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Chain, Teeth and Sprockets . . . . . . . . . . . . . . . . . 118
•
Chain and Tooth Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
•
Chain Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
•
Chain Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . 115
•
HT115 Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
•
H910/H911 Trencher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
•
H932 Plow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
•
H942/H1142 Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
•
RC115 Reel Carrier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
•
A720/A920 Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
Systems and Equipment - 114
HT115 Tier 3 Operator’s Manual
AutoTrack
AutoTrack
Overview
The HT115 ground drive is a computer-controlled speed/direction system. A variety of sensors send input
data to an ECU (Electronic Control Unit) that compares inputs with pre-programmed memory and sends
output voltage to a variety of actuators to adjust and operate the tractor speed and direction within
specified parameters.
The AutoTrack feature allows the operator to save a set of input control settings. These settings maintain
the speed/direction outputs for hands-free operation. Settings can be temporarily overridden by the
joystick or changed during operation by using the speed switch and/or steering switches.
AutoTrack controls include:
•
ground drive joystick
•
trigger switch
•
speed switch (resume/set)
•
steering selector switch (left/right)
The cruise control indicator on the front console illuminates to tell the operator when the AutoTrack system
is activated. The indicator flashes to alert the operator to an error in the ground drive control system.
Direction and speed can be controlled by the ground drive joystick and by speed and steering switches. To
turn, move the joystick left or right from neutral while traveling. Turning radius decreases as the joystick is
moved farther from neutral. When AutoTrack is not activated, moving the ground drive joystick beyond 2/3
of full travel to either side of neutral causes the track on the inside of the turn to counter-rotate (moves at
the same speed as the outside track but in the opposite direction).
When the joystick is returned to neutral while driving, tractor will derate and stop.
AutoTrack can be activated while the tractor is stationary by pulling and holding the set switch or trigger
switch on the joystick, and moving the joystick forward. When the cruise control indicator lights, release set
switch and return joystick to neutral. The tractor will not move until the RESUME switch (increase speed) is
pressed and held. Release the switch when the desired speed is reached. Steering can be adjusted by
pressing the steering switches. Release the switch when the tractor is turning as desired.
To activate AutoTrack while moving, move the joystick until the desired speed and direction are achieved,
press and release the set switch, and return the joystick to neutral. Speed and direction can be adjusted
while moving by using the speed switch and steering switches.
To temporarily increase speed or change direction while AutoTrack is activated, move the joystick to the
desired settings. Return the joystick to neutral to return to previous speed and degree of turn.
Deactivate AutoTrack by pulling the joystick back, past neutral (reverse direction), then back to neutral.
After deactivating AutoTrack, (when ignition has not been switched off), you can reactivate AutoTrack
using existing settings by pressing and holding the RESUME switch and moving the joystick forward out of
neutral. The tractor will return to the previously established settings.
HT115 Tier 3 Operator’s Manual
Systems and Equipment - 115
AutoTrack
Operate AutoTrack
EMERGENCY SHUTDOWN - Turn ignition switch to stop position.
1. Following procedures in “Operation” on page 93, begin plowing to desired depth.
2. When desired depth is reached, ensure throttle is fully open.
3. Adjust ground drive speed to match digging conditions.
4. To activate AutoTrack while moving, move the joystick until the desired speed and path are achieved,
press and release the set switch, and return the joystick to neutral. Speed and direction can be
adjusted while moving by using the speed switch and steering switches.
5. To deactivate AutoTrack and stop tractor, momentarily pull joystick to reverse.
Stopping
The tractor will decelerate and stop when:
•
joystick is returned to neutral while AutoTrack is not activated
•
joystick is pulled past neutral (in reverse) when AutoTrack is activated
•
operator leaves the seat
•
parking brake switch is moved to the on position
The HT115 parking brake is automatically applied whenever the joystick is in neutral and AutoTrack is not
active (cruise control indicator is not lit), or when the operator is not in the seat.
NOTICE: The parking brake indicator does not light for this automatic function.
Pressing the parking brake switch engages and locks the brake, lights the parking brake indicator, and
causes the joystick and AutoTrack switch inputs to be ignored.
Systems and Equipment - 116
HT115 Tier 3 Operator’s Manual
AutoTrack
Ground Drive Diagnostics
The HT115 Tier 3 AutoTrack ground drive system uses hydraulic valves actuated by electrical solenoids
energized by output voltage from the machine controller. The system is self-diagnostic. The cruise control
indicator flashes to alert the operator to a ground drive control system error. An electronic diagnostic tool
(EDT) can be used to view system faults and perform diagnostics. Accumulated codes can be retrieved
only by dealership service technicians with this specialized electronic equipment.
Should a fault occur, the cruise indicator will flash on and off for 10 seconds, then return to either on or off,
depending upon whether AutoTrack is activated. If the ignition key is turned off, all faults are cleared. The
next time the controller is powered up the indicator will resume normal operation until a new fault is
detected.
IMPORTANT: Contact your Ditch Witch dealer if the cruise indicator starts flashing.
HT115 Tier 3 Operator’s Manual
Systems and Equipment - 117
Tier 3 Engine
Tier 3 Engine
Overview
Tier 3 is a computer-controlled fuel management system. A variety of sensors send input data to an ECU
(Electronic Control Unit) that compares inputs with pre-programed memory and sends output voltage to a
variety of actuators to adjust and operate the engine within specified parameters.
Diagnostic Codes
When a monitored fault condition occurs in the Tier 3 system, diagnostic codes are displayed on the
tachometer/diagnostic gauge or read directly from the diagnostic connector located on the rear console.
An operator alert indicator tells the operator when warning faults or engine shutdown faults develop.
•
Warning faults occur when engine sensors indicate moderate trouble with coolant temperature, oil
pressure, charge air temperature, or fuel temperature. Warning faults cause the operator alert indicator
to flash, and the engine will begin a slow power derate. In some situations an alarm may also sound. A
code is stored in the ECU. If the fault corrects itself, the engine will gradually return to normal power.
The alert indicator will continue to flash until the trouble goes away, but a code will remain stored.
•
Engine shutdown will occur due to severe faults in engine coolant temperature, oil pressure, or fuel
temperature. Before shutdown, the operator alert indicator will light continuously and the engine will
begin a rapid power derate. If the fault does not improve in 30 seconds the engine will shut down.
IMPORTANT:
•
For more information on the operator alert indicator and how to operate and read the diagnostic
gauge, see “Indicators” on page 24.
•
For an explanation and interpretation of codes, see “Tier 3 Engine Diagnostic Codes” on page 185.
HT115 Tier 3 Operator’s Manual
Systems and Equipment - 118
Chain, Teeth, and Sprockets
Chain, Teeth, and Sprockets
Chain and Tooth Maintenance
•
Always replace sprockets at the same time you replace the digging chain. Sprockets and chain are
designed to work together. Replacing one without the other will cause premature wear of the new part.
•
Keep digging teeth sharp. Using dull, worn teeth will decrease production and increase shock load to
other trencher components. It can also cause chain stretch, which leads to premature chain wear and
failure.
•
Maintain the proper amount of tension on the digging chain. Overtightening will cause chain stretch
and loss of machine performance.
•
Use the tooth pattern most appropriate for your digging conditions. If you move to a different soil type,
contact your Ditch Witch dealer for information about the most effective chain type and tooth pattern.
Chain Types
Chain type
Features
4-pitch
standard chain
2-pitch
more teeth for smoother cutting
alternating side bar
prevents spoil compaction on chain
bolt-on adapters
allow easy configuration changes
Shark Chain II
versatile, virtually maintenance-free
combination
provides pick and shovel effect
HT115 Tier 3 Operator’s Manual
Systems and Equipment - 119
Chain, Teeth, and Sprockets
Chain Selection
These charts are meant as a guideline only. No one chain type works well in all conditions. See your Ditch
Witch dealer for soil conditions and chain recommendations for your area. Ask for the latest Chain, Teeth,
and Sprockets Parts Catalog.
•
1 = best
•
2 = better
•
3 = good
•
4 = not recommended
Chain
Sandy
Soil
Soft Soil
Medium
Soil
Hard Soil
Rocky
Soil
Sticky
Soil
4-pitch cup tooth
3
1
2
3
4
1
2-pitch cup tooth
2
3
1
1
3
4
bolt-on adaptor, 2-pitch
4
4
3
2
1
4
bolt-on adaptor/cup tooth
combo
4
3
2
1
2
4
Shark Chain II
4
3
2
1
1
4
alternating side bar
4
4
4
4
4
1
Soil
Description
sandy soil
sugar sand, blow sand, or other soils where sand is the predominant component
soft soil
sandy loam
medium soil
loams, loamy clays
hard soil
packed clays, gumbo, all compacted soils
rocky soil
chunk rock, glacial till, cobble, rip rap, gravel
sticky soil
gumbo, sticky clays
Systems and Equipment - 120
HT115 Tier 3 Operator’s Manual
Optional Equipment
Optional Equipment
See your Ditch Witch dealer for more information about the following optional equipment. Refer to
equipment chapters for operating information.
HT115 Tractor
Equipment
Description
backfill blade
heater kit
heater-only climate control system
backup alarm
for use with saws or other low visibility situations
light kit
mounts to ROPS and includes work lights and hazard light
auxiliary manifold kit
use to plumb hydraulics for Roto Witch attachment
muffler support kit
for use with plows and saws to prevent excessive vibration
reel winder backfill blade
valve kit
use to expand hydraulic capabilities when installing both reel winder and
backfill blade
street pad kit
mounts to steel tracks to protect concrete and asphalt
H910/H911 Trencher
Equipment
Description
booms
several boom length options are available
hydraulic trench cleaner
removes spoils from the trench door
long auger extensions
for conditions that require spoils to be removed farther from the trench
H932/H1130 Plow
Equipment
Description
blades
contact your Ditch Witch dealer for blade options
toes
stabilize the plow for more constant depth
bullets
allow a larger cavity for the material being installed
HT115 Tier 3 Operator’s Manual
Systems and Equipment - 121
Optional Equipment
H942/H1142 Saw
Equipment
Description
bits and bit holders
replace as needed to increase efficiency and keep from damaging machine
block repair jigs
use to repair worn or damaged blocks or plates housing the bit holder; use
block repair jig available from your Ditch Witch dealer and an E7018 or
equivalent
RC115 Reel Carrier
Equipment
Description
reel winder
designed to fit your Ditch Witch equipment and speed cable installation
A720 and A920 Backhoe
Equipment
Description
bucket
contact your Ditch Witch dealer for bucket options
Systems and Equipment - 122
HT115 Tier 3 Operator’s Manual
Optional Equipment
HT115 Tier 3 Operator’s Manual
Complete the Job - 123
Complete the Job
Chapter Contents
Restore Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
•
Backfilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Rinse Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 124
Stow Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
CMW
Complete the Job - 124
HT115 Tier 3 Operator’s Manual
Restore Jobsite
Restore Jobsite
After product is installed, return spoils to the trench
with optional backfill blade.
Backfilling
1. Position unit at end of trench, several feet from
spoils. Aim tractor at outer edge of spoils.
2. Adjust backfill blade to fit land contour.
3. Move outer edge of spoils toward trench. Take
two or more passes at spoils rather than moving
all spoils at once.
4. Repeat on other side of trench, if necessary.
5. Engage float and make final pass over trench.
Rinse Equipment
Spray water onto equipment to remove dirt and mud. Make sure track rollers are clean.
NOTICE: Do not spray water onto operator’s console. Electrical components could be damaged. Wipe
down instead.
Stow Tools
Make sure all tools and accessories are loaded and properly secured on trailer.
CMW
HT115 Tier 3 Operator’s Manual
Service - 125
Service
Chapter Contents
Service Precautions . . . . . . . . . . . . . . . . . . . . . . . 126
•
Welding Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126
•
Cleaning Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126
Lubrication Overview . . . . . . . . . . . . . . . . . . . . . . 127
•
Recommended Lubricants/Service Key . . . . . . . . . . . . . . . . . . . . . . . .128
•
Engine Oil Temperature Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
•
Approved Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
10 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
30 Hour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
50 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
100 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
250 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
500 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
1000 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
2000 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
5000 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
As Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
AutoTrack Diagnostics . . . . . . . . . . . . . . . . . . . . . 185
Tier 3 Engine Diagnostic Codes . . . . . . . . . . . . . 185
CMW
HT115 Tier 3 Operator’s Manual
Service - 126
Service Precautions
Service Precautions
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICES:
•
Unless otherwise instructed, all service should be performed with engine off.
•
Refer to engine manufacturer’s manual for engine maintenance instructions.
•
Before servicing equipment, lower unstowed attachments to ground.
Welding Precaution
NOTICE: Welding can damage electronics.
•
Disconnect battery at battery disconnect switch before welding to prevent damage to battery.
Do not turn off battery disconnect switch with engine running or alternator and other electronic
devices may be damaged.
•
Connect welder ground clamp close to welding point and make sure no electronic components
are in the ground path.
•
Always disconnect the ECU ground connection from the frame, harness connections to the ECU,
and other electronic components prior to welding on machine or attachments.
Cleaning Precaution
NOTICE: When cleaning equipment, do not spray electrical components with water.
CMW
HT115 Tier 3 Operator’s Manual
Service - 127
Lubrication Overview
Lubrication Overview
10 00
5 00
2 50
1 00
50
10
h
h
h
h
h
h
OPPOSITE SIDE
t12om063h.eps
CMW
HT115 Tier 3 Operator’s Manual
Service - 128
Recommended Lubricants/Service Key
Recommended Lubricants/Service Key
Item
Description
DEO
Diesel engine oil meeting current API service classifications and SAE viscosity
recommended by engine manufacturer (SAE 10W40)
MPG
Multipurpose grease meeting ASTM D217 and NLGI 5
MPL
Multipurpose gear oil meeting API service classification GL-5 (SAE 80W90)
SDL
Synthetic drivetrain lubricant Mobil SHC 75W90 meeting API service MT-1/GL-5 gear
oil service classification and perform at the MIL-PRF-2105E level
THF
Tractor hydraulic fluid, similar to Phillips 66 HG, Mobilfluid 423, Chevron Tractor
Hydraulic Fluid, Texaco TDH Oil, or equivalent
DEAC
Diesel engine antifreeze/coolant meeting ASTM D5345 (prediluted) or D4985
(concentrate) with SCAs meeting John Deere JDM H24A2
Check level of fluid or lubricant
Check condition
Filter
Change, replace, adjust, service or test
Proper lubrication and maintenance protects Ditch Witch equipment from damage and failure. Service
intervals listed are for minimum requirements. In extreme conditions, service machine more frequently.
Use only recommended lubricants. Fill to capacities listed in “Fluid Capacities” on page 191.
For more information on engine lubrication and maintenance, see your John Deere® engine manual.
NOTICE:
•
Use only genuine Ditch Witch parts, filters, approved lubricants, TJC, and approved coolants to
maintain warranty.
•
Use the “Service Record” on page 215 to record all required service to your machine.
CMW
HT115 Tier 3 Operator’s Manual
Service - 129
Recommended Lubricants/Service Key
Engine Oil Temperature Chart
30 10W- 30
10W- 30
10W- 40
10W- 40
5W- 20 5W- 30
F -20
C-30
j07om070h.eps
0
-20
10
20
0
40
10
60
20
80
30
100
40
Temperature range anticipated before next oil change
Approved Coolant
This unit was filled with John Deere Cool-Gard coolant before shipment from factory. Add only John Deere
Cool-Gard (p/n 255-006) or any fully-formulated, ethylene glycol based, low-silicate, heavy-duty diesel
engine coolant meeting ASTM specification D5345 (prediluted) or D4985 (concentrate) and containing
supplemental coolant additives (SCAs) meeting John Deere specification JDM H24A2.
NOTICE: Do not use water or high-silicate automotive-type coolant. This will lead to engine damage or
premature engine failure.
NOTICE: Do not mix heavy-duty diesel engine coolant and automotive-type coolant. This will lead
coolant breakdown and engine damage.
CMW
HT115 Tier 3 Operator’s Manual
Service - 130
10 Hour
10 Hour
Location
Task
Notes
TRACTOR
Check engine oil level
DEO
Check air filter indicator and clean dust trap
Check water separators and fuel filters
Check steel track tension
1-1 1/4” (25-32 mm)
Check hydraulic fluid
THF
Check hydraulic reservoir fill and strainer
Check hydraulic hoses
Check engine coolant level
DEAC
Check hoses
Check radiator for debris
TRENCHER
Lube trencher tail roller
EPG
Lube trencher pivot
EPG
Lube trencher auger bearings
EPG
Lube trencher auger shaft
EPG
Check trencher auger bolts
Check digging chain
Check digging chain tension
PLOW
Check boom mounting bolts
250 ft•lb (339 N•m)
Check attachment mounting bolts
200 ft•lb (271 N•m)
Check personnel restraint bar bolts
350 ft•lb (475 N•m)
Lube plow pivots
EPG
Check plow vibrator oil
MPL
Check plow arm pins and bushings
Check plow connector pivots
Check attachment mounting bolts
CMW
200 ft•lb (270 N•m)
HT115 Tier 3 Operator’s Manual
Service - 131
10 Hour
Location
Task
SAW
Clean saw
Notes
Clean spoils chutes
Lube saw wheel shaft bearings
EPG
Check saw bits
Check segments
Check segment bolts (initial)
700 ft•lb (950 N•m)
Check attachment mounting bolts
200 ft•lb (271 N•m)
Tractor
Check Engine Oil Level
t12om014h.eps
Check engine oil at dipstick (shown) every 10 hours. Add DEO at fill as necessary to keep oil level at
highest line on dipstick.
IMPORTANT: See “Recommended Lubricants/Service Key” on page 128 for more information on DEO.
CMW
HT115 Tier 3 Operator’s Manual
Service - 132
10 Hour
Check Air Filter Indicator and Clean Dust Trap
1
2
t12om015h.eps
Check air filter indicator (1) and clean dust trap every 10 hours. Red band indicates filter must be changed.
Push button (2) to reset indicator.
Wipe dust from trap (shown) with a clean cloth every 10 hours.
Check Water Separators and Fuel Filters
Check water separators (1) and fuel filters every 10 hours. Drain at plug as needed until water is removed
and fuel runs from drain.
CMW
HT115 Tier 3 Operator’s Manual
Service - 133
10 Hour
Check Steel Track Tension
Check steel track tension every 10 hours. To check, place a straightedge across front track span, as
shown. Distance from top of grouser to straightedge (1) should be 1-1 1/4” (25-32 mm).
Fluid pressure could pierce skin and cause injury or death. Stay away.
NOTICE: Service track grease cylinder only while standing away from zerk. Wear gloves
and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
To adjust:
•
Remove cover (3).
•
Clean track cylinder zerk (2).
•
Use 7/8” buttonhead coupler on grease gun.
•
Add MPG to increase track tension.
•
Loosen zerk to release grease and reduce track tension.
•
Replace cover.
NOTICE: Over-tensioning track will shorten life of track and components.
CMW
HT115 Tier 3 Operator’s Manual
Service - 134
10 Hour
Check Hydraulic Fluid
F
C
t12om114h.eps
With tractor frame level, check fluid level at indicator every 10 hours. Add THF at fill as necessary.
Reservoir fluid capacity is 21 gal (79.5 L). System capacity is 32 gal (121 L).
Check Hydraulic Reservoir Fill and Strainer
t12om100h.eps
Check hydraulic reservoir fill and strainer every 10 hours. Wipe away any dirt or debris.
CMW
HT115 Tier 3 Operator’s Manual
Service - 135
10 Hour
Check Hydraulic Hoses
t12om018h.eps
Check all hydraulic hoses every 10 hours.
Fluid or air pressure could pierce skin and cause injury or death. Stay
away.
NOTICE: Escaping pressurized fluid can cause injury or pierce skin and poison.
•
Before disconnecting a hydraulic line, turn engine off and operate all controls to relieve pressure.
Lower, block, or support any raised component with a hoist. Cover connection with heavy cloth and
loosen connector nut slightly to relieve residual pressure. Catch all fluid in a container.
•
Before using system, check that all connections are tight and all lines are undamaged.
•
Fluid leaks can be hard to detect. Use a piece of cardboard or wood, rather than hands, to search for
leaks.
•
Wear protective clothing, including gloves and eye protection.
If you are injured, seek immediate medical attention from a doctor familiar with this type of injury.
CMW
Service - 136
HT115 Tier 3 Operator’s Manual
10 Hour
Check Coolant Level
With engine cool, check coolant level in auxiliary tank sight glass every 10 hours. Maintain level so that
coolant is visible in sight glass and no higher than bottom of fill neck. If low, add approved coolant. Do not
overfill.
IMPORTANT: See “Approved Coolant” on page 129 for information on approved coolants.
Check Hoses
t12om019h.eps
Check all hoses every 10 hours. Look for obvious leaks or deterioration.
CMW
HT115 Tier 3 Operator’s Manual
Service - 137
10 Hour
Check Radiator For Debris
t12om021h.eps
Check radiator for dirt, grass, and other debris every 10 hours. Check more often if operating in dusty or
grassy conditions. See “Clean Radiator” on page 173 for cleaning procedure.
Trencher
Lube Trencher Tail Roller
Wipe zerks clean and lube every 10 hours with EPG. Lube roller zerks on both sides of boom.
CMW
Service - 138
HT115 Tier 3 Operator’s Manual
10 Hour
Lube Trencher Pivot
Wipe five zerks located on right of trencher pivot clean and lube every 10 hours with EPG.
Wipe four zerks located on left of trencher pivot clean and lube every 10 hours with EPG.
Lube Trencher Auger Bearings
Lube two auger bearing zerks (one on each side) every 10 hours with EPG.
CMW
HT115 Tier 3 Operator’s Manual
Service - 139
10 Hour
Lube Trencher Auger Shaft
Lube four auger shaft zerks (two on each side) every 10 hours with EPG.
Check Trencher Auger Bolts
Check trencher auger bolts every 10 hours. For optimal spoils delivery, adjust augers to match terrain and
digging depth.
CMW
Service - 140
HT115 Tier 3 Operator’s Manual
10 Hour
Check Digging Chain Teeth and Bits
Check teeth (1) for wear every 10 hours. Replace worn teeth, using Ditch Witch replacement parts and
maintaining original tooth pattern.
For more efficient digging, contact your Ditch Witch dealer for information about the tooth pattern best
suited to your jobsite.
If using rock chain bits, check that bits rotate freely. Clean chain and check bits after each use. Replace bit
when carbide cap or insert is worn or adapter can be damaged.
Check chain every 10 hours. Replace worn or broken chains. If sidebars (2) are bent or loose on chain
pins (3), chain spacers should be used to join sidebars.
Check Boom Mounting Bolts
Check 10 bolts (5 on each side) every 10 hours and torque as necessary to keep bolts and other fasteners
tight. Check for looseness or wear. Check that bolts are torqued to 250 ft•lb (339 N•m).
CMW
HT115 Tier 3 Operator’s Manual
Service - 141
10 Hour
Check Attachment Mounting Bolts
t12om039h.eps
Check bolts every 10 hours and torque as necessary to keep bolts and other fasteners tight. Check for
looseness or wear. Apply Loctite 271® adhesive. Check that bolts are torqued to 200 ft•lb (271 N•m).
Check Personnel Restraint Bar/Trench Cleaner
t12om040h.eps
Check 6 bolts that mount restraint bar/trench cleaner to arm every 10 hours and torque as necessary to
keep bolts tight. Check for looseness or wear. Apply Loctite 271® adhesive.
Check that bolts holding personnel restraint bar/trench cleaner to arm are torqued to 350 ft•lb (475 N•m).
Bolts mounting arm to boom should be torqued to 400 ft•lb (542 N•m).
CMW
HT115 Tier 3 Operator’s Manual
Service - 142
10 Hour
Check Digging Chain Tension
Check digging chain tension every 10 hours. With boom horizontal, measure distance from bottom of
boom to chain. When properly adjusted, distance should be 4.5 - 5.5” (114 - 140 mm).
To tighten chain, loosen six bolts on trencher boom and pump EPG into cylinder. To relieve chain tension,
loosen plug on grease cylinder.
Fluid pressure could pierce skin and cause injury or death. Stay away.
NOTICE: Service digging boom grease cylinder only while standing on opposite side of
boom. Wear gloves and safety glasses, and cover fitting with cloth when relieving pressure
in cylinder.
Plow
Lube Plow Pivots
Lube pivots every 10 hours with EPG.
CMW
HT115 Tier 3 Operator’s Manual
Service - 143
10 Hour
Check Plow Vibrator Oil
NOTICE: Plow vibrator oil is under pressure when hot. Let plow vibrator cool before removing fill plug.
Check plow vibrator oil at sight glass (2) every 10 hours. With vibrator horizontal, oil should be halfway up
sight glass. Add MPL as needed at fill (1).
Check Plow Arm Pins and Bushings
Check plow arm pins and bushings every 10 hours. Tighten as needed.
CMW
Service - 144
HT115 Tier 3 Operator’s Manual
10 Hour
Check Plow Connector Pivots
Visually check pivots every 10 hours for wear or damage.
Check Attachment Mounting Bolts
t12om049h.eps
Check bolts every 10 hours and torque as necessary to keep bolts and other fasteners tight. Tighten to 200
ft•lb (270 N•m). Apply Loctite® 271 any time bolts are removed.
CMW
HT115 Tier 3 Operator’s Manual
Service - 145
10 Hour
Saw
Clean Saw
Clean saw after each use. After using saw, clean tractor before performing routine lubrication and
maintenance. Wash bits and mounting blocks with high pressure water.
Clean Spoil Chutes
Clean spoil chutes after each use. To clean:
1. Lower wheel to ground.
2. Turn engine off.
3. Clean out chute.
Lube Saw Wheel Shaft Bearings
Lube saw wheel shaft bearings every 10 hours with EPG.
CMW
Service - 146
HT115 Tier 3 Operator’s Manual
10 Hour
Check Saw Bits
Check that saw bits rotate freely. Clean and check bits after each use. If bits are stuck, remove and clean
packed soil from retaining ring.
Replace bit when carbide cap or insert is worn or adapter can be damaged.
Check Segments
Check saw segments every 10 hours. Replace as needed. Check segment bolts after first 10 hours of
operation and then as needed. Torque to 700 ft•lb (950 N•m).
CMW
HT115 Tier 3 Operator’s Manual
Service - 147
10 Hour
Check Attachment Mounting Bolts
t12om059h.eps
Check mounting bolts every 10 hours and tighten as necessary. Check for looseness or wear. Apply
Loctite® 271 adhesive. Check that bolts are torqued to 200 ft•lb (271 N•m).
CMW
HT115 Tier 3 Operator’s Manual
Service - 148
30 Hour
30 Hour
Location
Task
Notes
TRACTOR
Check track sprocket bolts (initial)
350 ft•lb (475 N•m)
Check steel track grouser shoe bolts (initial)
steel tracks only;
126-140 ft•lb (171-190 N•m)
Tractor
Check Track Sprocket Bolts (Initial)
Check track sprocket bolts at 30 hours and then every 100 hours thereafter. Tighten to 350 ft•lb (475 N•m).
Apply Loctite® 242 any time bolts are removed.
Check Steel Track Grouser Shoe Bolts (Initial)
t12om105h.eps
For steel tracks only, check grouser shoe bolts at 30 hours and then every 100 hours thereafter. Check that
bolts are well lubricated and tighten to 126-140 ft•lb (171-190 N•m). Apply Loctite® 242 any time bolts are
removed.
CMW
HT115 Tier 3 Operator’s Manual
Service - 149
50 Hour
50 Hour
Location
Task
Notes
TRACTOR
Check engine drive belt
Check hydraulic reservoir breather
Change hydraulic filter (initial)
Check fuel tank breather
Check nose counterweight bolts
350 ft•lb (475 N•m)
Change ground drive planetary oil (initial)
SDL
TRENCHER
Check trencher gearbox oil
MPL
PLOW
Change plow vibrator oil (initial)
MPL
Inspect bolts and pins
SAW
Lube saw lift arm pivot
EPG
Tractor
Check Engine Drive Belt
1
2
t12om022h.eps
Check engine drive belt every 50 hours for damage or wear. Replace worn belt.
Belt is properly tensioned when long span (2) moves about 1/2" (13 mm) when pushed. If needed, loosen
alternator bolts (1) and adjust idler pulley.
CMW
Service - 150
HT115 Tier 3 Operator’s Manual
50 Hour
Check Hydraulic Reservoir Breather
t12om023h.eps
Check hydraulic reservoir breather every 50 hours. Ensure breather is not clogged. Remove dust around
breather as needed by blowing with low-pressure air. When breather element becomes clogged, remove
and clean or replace.
Check Nose Counterweight Bolts
Check tightness of nose weight bolts every 50 hours. Check for looseness or wear. Use the numbered
sequence shown to tighten bolts to 350 ft•lb (475 N•m).
CMW
HT115 Tier 3 Operator’s Manual
Service - 151
50 Hour
Change Hydraulic Filter (Initial)
Change hydraulic filter after 50 hours, and every 500 hours thereafter.
NOTICE: Change hydraulic filter anytime restriction indicator lights at normal operating temperatures.
Check Fuel Tank Breather
t12om024h.eps
Check fuel tank breather every 50 hours. Ensure breather is not clogged. Remove dust around breather as
needed by blowing with low pressure air. When breather element becomes clogged, remove and clean or
replace.
CMW
Service - 152
HT115 Tier 3 Operator’s Manual
50 Hour
Change Ground Drive Planetary Oil (Drain)
Change Ground Drive Planetary Oil (Fill)
Change ground drive planetary oil after first 50 hours, then every 500 hours thereafter. Refill capacity is 55
oz (1.6 L) of SDL.
To change:
1. Position planetary with plugs (1, 2) positioned at top and bottom, with lettering on hub oriented as
shown in Drain.
2. Remove both plugs.
3. Drain oil.
4. Replace bottom plug.
5. Move tractor to orient plugs and lettering on hub as shown in Fill.
6. Remove middle plug (3).
7. Fill with SDL to middle plug.
8. Replace plugs.
9. Repeat for other side.
NOTICE: Change every 250 hours if jobsite temperatures exceed 100° F (38° C) more than 50% of the
time.
CMW
HT115 Tier 3 Operator’s Manual
Service - 153
50 Hour
Trencher
Check Trencher Gearbox Oil
Check oil at sight tube every 50 hours. Keep oil level at horizontal line on housing. If necessary, add MPL
at fill plug.
Plow
Change Plow Vibrator Oil (Initial)
NOTICE: Plow vibrator oil is under pressure when hot. Let plow vibrator cool before removing fill plug.
Change plow vibrator oil after first 50 hours of operation.
To change:
1. Drain oil at drain plug (3).
2. Replace plug and move plow vibrator to horizontal position.
3. Fill with MPL at fill (1) until oil is halfway up sight glass (2).
Refill capacity is 4 qt (3.8 L).
CMW
Service - 154
HT115 Tier 3 Operator’s Manual
50 Hour
Inspect Bolts and Pins
Inspect plow pins and retaining bolts every 50 hours. Make sure bolts are tight.
Saw
Lube Saw Lift Arm Pivot
t12om060h.eps
Wipe zerks clean and lube saw lift arm pivots every 50 hours with EPG.
CMW
HT115 Tier 3 Operator’s Manual
Service - 155
100 Hour
100 Hour
Location
Task
Notes
TRACTOR
Change engine oil and filter (initial)
DEO
Check steel track grouser shoe bolts
210-260 ft•lb (285-355 N•m)
Check track sprocket bolts
350 ft•lb (475 N•m)
Check track sprockets
1 3/16” (30 mm)
PLOW
Check shear mounts
Test plow connector pivots
Tractor
Change Engine Oil and Filter (Initial)
1
2
3
t12om026h.eps
Change engine oil and filter after first 100 hours of operation.
To change:
1. While oil is warm, remove drain plug (3). Drain oil and replace plug.
2. Remove filter (1) and replace with new filter each time oil is changed. Refill with DEO at fill neck (2).
NOTICE:
•
Regular oil change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/E5.
•
Oil change interval is 250 hours when using alternative oils meeting API service classifications CI-4,
CH-4, or ACEA E3.
•
See “Recommended Lubricants/Service Key” on page 128 for more information about DEO
specifications.
CMW
Service - 156
HT115 Tier 3 Operator’s Manual
100 Hour
Check Steel Track Grouser Shoe Bolts
t12om105h.eps
For steel tracks only, check grouser shoe bolts at 30 hours and then every 100 hours thereafter. Check that
bolts are well lubricated and tighten to 126-140 ft•lb (171-190 N•m).
Check Track Sprocket Bolts
Check track sprocket bolts at 30 hours and then every 100 hours thereafter. Tighten to 350 ft•lb (475 N•m).
Apply Loctite® 242 any time bolts are removed.
CMW
HT115 Tier 3 Operator’s Manual
Service - 157
100 Hour
Check Track Sprockets
Check track sprockets for wear every 100 hours.
Replace sprocket when excessive wear is evident. Tighten bolts to 350 ft•lb (475 N•m). Apply Loctite® 242
any time bolts are removed.
Plow
Check Plow Shear Mounts
Check shear mounts for wear every 100 hours. Replace as needed.
IMPORTANT: When replacing shear mounts, it is important to compress the shear mounts with the
washers to prevent the shear mount from tearing.
CMW
Service - 158
HT115 Tier 3 Operator’s Manual
100 Hour
Test Plow Connector Pivots
Test upper and lower connector pivots every 100 hours.
To test upper pivot:
1. Lower plow to ground.
2. Use plow lift control to put hydraulic load on pivot joints. Do not raise plow.
3. As hydraulic load is applied and released, visually check joints for motion. If motion is observed,
contact your Ditch Witch dealer.
To test lower pivot:
1. Lower plow to ground.
2. Use hydraulic jack to place load on lower arm.
3. As hydraulic load is applied and released, visually check joints for motion. If motion is observed,
contact your Ditch Witch dealer.
IMPORTANT: Lower plow blade to ground and visually inspect bushings and joints. Replace bushings if
there is excessive movement.
CMW
HT115 Tier 3 Operator’s Manual
Service - 159
250 Hour
250 Hour
Location
Task
Notes
TRACTOR
Check ROPS nuts
250 ft•lb (340 N•m)
Change hydraulic filter
Change ground drive planetary oil
SDL
Check ROPS Nuts
Check ROPS mount nuts for proper tightness every 250 hours. Tighten to 250 ft•lb (340 N•m).
Change Hydraulic Filter
Change hydraulic filter after 50 hours, and every 500 hours thereafter.
NOTICE: Change hydraulic filter anytime restriction indicator lights at normal operating temperatures.
CMW
Service - 160
HT115 Tier 3 Operator’s Manual
250 Hour
Change Ground Drive Planetary Oil (Drain)
Change Ground Drive Planetary Oil (Fill)
Change ground drive planetary oil every 250 hours if jobsite temperatures exceed 100° F (38° C) more
than 50% of the time. Normal change interval is 500 hours. Refill capacity is 55 oz (1.6 L) of SDL.
To change:
1. Position planetary with plugs (1, 2) positioned at top and bottom, with lettering on hub oriented as
shown in Drain.
2. Remove both plugs.
3. Drain oil.
4. Replace bottom plug.
5. Move tractor to orient plugs and lettering on hub as shown in Fill.
6. Remove middle plug (3).
7. Fill with SDL to middle plug.
8. Replace plugs.
9. Repeat for other side.
CMW
HT115 Tier 3 Operator’s Manual
Service - 161
500 Hour
500 Hour
Location
Task
TRACTOR
Change fuel filters
Notes
Change ground drive planetary oil
SDL
Change engine oil and filter
DEO
Change hydraulic filter
PLOW
Test coolant SCA level
test kit (p/n 256-032)
Check steel track rollers and grouser tooth wear
steel tracks only
Change plow vibrator oil
MPL
Tractor
Change Fuel Filters
Change fuel filters (1) every 500 hours.
CMW
Service - 162
HT115 Tier 3 Operator’s Manual
500 Hour
Change Ground Drive Planetary Oil (Drain)
Change Ground Drive Planetary Oil (Fill)
Change ground drive planetary oil every 500 hours. Refill capacity is 55 oz (1.6 L) of SDL.
To change:
1. Position planetary with plugs (1, 2) positioned at top and bottom, with lettering on hub oriented as
shown in Drain.
2. Remove both plugs.
3. Drain oil.
4. Replace bottom plug.
5. Move tractor to orient plugs and lettering on hub as shown in Fill.
6. Remove middle plug (3).
7. Fill with SDL to middle plug.
8. Replace plugs.
9. Repeat for other side.
NOTICE: Change every 250 hours if jobsite temperatures exceed 100° F (38° C) more than 50% of the
time.
CMW
HT115 Tier 3 Operator’s Manual
Service - 163
500 Hour
Change Engine Oil and Filter
1
2
3
t12om026h.eps
Regular engine oil and filter change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/
E5.
To change:
1. While oil is warm, remove drain plug (3). Drain oil and replace plug.
2. Remove filter (1) and replace with new filter each time oil is changed. Refill with DEO at fill neck (2).
NOTICE:
•
Regular oil change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/E5.
•
Oil change interval is 250 hours when using alternative oils meeting API service classifications CI-4,
CH-4, or ACEA E3.
•
See “Recommended Lubricants/Service Key” on page 128 for more information about DEO
specifications.
CMW
Service - 164
HT115 Tier 3 Operator’s Manual
500 Hour
Change Hydraulic Filter
Change hydraulic filter every 500 hours, or any time restriction indicator lights at normal operating
temperature.
Test Coolant SCA Level
t12om029h.eps
Test SCA level every 500 hours using 3-Way Heavy Duty Coolant Test Kit (p/n 256-032). If SCA levels do
not fall within appropriate range, replenish with a heavy-duty coolant conditioner such as John Deere
coolant conditioner (p/n 256-033).
IMPORTANT:
•
Always check expiration date on 3-Way Heavy Duty Coolant Test Kit. An expired kit will not give
accurate readings.
•
See “Approved Coolant” on page 129 for more information on approved coolants.
CMW
HT115 Tier 3 Operator’s Manual
Service - 165
500 Hour
Check Steel Track Rollers and Grouser Tooth Wear
1
2
t12om106h.eps
Check steel track grouser tooth wear every 500 hours by measuring grouser tooth height (1). New grouser
teeth are 1 5/8” (41 mm) tall. Check sealed rollers (2) for leaks. Replace leaking rollers.
NOTICE:
•
In normal soil conditions replace grouser shoes when teeth are worn to approximately 1/2” (13 mm).
•
In rocky soil conditions replace grouser shoes when teeth are worn to approximately 13/16” (20
mm).
CMW
Service - 166
HT115 Tier 3 Operator’s Manual
500 Hour
Plow
Change Plow Vibrator Oil
NOTICE: Plow vibrator oil is under pressure when hot. Let plow vibrator cool before removing fill plug.
Change plow vibrator oil every 500 hours. If normal operating temperature exceeds 100° F (38° C), change
plow vibrator oil every 250 hours.
To change:
1. Drain oil at drain plug (3).
2. Replace plug and move plow vibrator to horizontal position.
3. Fill with MPL at fill (1) until oil is halfway up sight glass (2).
Refill capacity is 4 qts (3.8 L).
CMW
HT115 Tier 3 Operator’s Manual
Service - 167
1000 Hour
1000 Hour
Location
Task
Notes
TRACTOR
Check steel track pins and bushings
steel tracks only
Change hydraulic fluid and filter
THF
Change trencher gearbox oil
MPL
TRENCHER
Tractor
Check Steel Track Pins and Bushings
Check steel track pins and bushings for wear or damage every1000 hours. Measure length of 4 sections in
a properly tensioned portion of the top of tracks. Do not include master pin. Replace components when
distance A is 22 5/16” (566 mm).
CMW
Service - 168
HT115 Tier 3 Operator’s Manual
1000 Hour
Change Hydraulic Fluid and Filter
Change hydraulic fluid and filter every 1000 hours.
To change:
1. Remove drain plug (2).
2. Drain fluid and replace plug.
3. Change filter (shown).
4. Refill with THF at fill (1).
Reservoir fluid capacity is 21 gal (79.5 L). System capacity is 32 gal (121 L).
CMW
HT115 Tier 3 Operator’s Manual
Service - 169
1000 Hour
Trencher
Change Trencher Gearbox Oil
Change trencher gearbox oil every 1000 hours. Drain at plug. Replace drain plug and fill with MPL to
lowest line on sight tube.
CMW
HT115 Tier 3 Operator’s Manual
Service - 170
2000 Hour
2000 Hour
Location
Task
Notes
TRACTOR
Change engine coolant
if proper SCA levels are not
maintained when using CoolGard or if using approved
coolant other than Cool-Gard;
see "5000 Hour Service" if
proper SCA levels are
maintained when using CoolGard
Tractor
Change Engine Coolant
1
2
t12om030h.eps
If proper SCA levels are not maintained when using Cool-Gard or if using approved coolant other than
Cool-Gard, drain cooling system at drain (2) every two years or 2000 hours. Refill at fill (1) with approved
coolant. Refill capacity is 24.8 qt (23.5 L).
NOTICE:
•
Coolant change interval depends on coolant used and whether SCA levels are properly maintained.
Read note above carefully to ensure coolant is changed at the correct interval.
•
The use of non-approved coolant may lead to engine damage or premature engine failure and will
void engine warranty.
•
See “Approved Coolant” on page 129 for list of approved coolants.
CMW
HT115 Tier 3 Operator’s Manual
Service - 171
5000 Hour
5000 Hour
Location
Task
Notes
TRACTOR
Change engine coolant
if proper SCA levels are
maintained when using CoolGard; see "2000 Hour
Service" if proper SCA levels
are not maintained when
using Cool-Gard or if using
approved coolant other than
Cool-Gard
Tractor
Change Engine Coolant
1
2
t12om030h.eps
If using Cool-Gard with properly maintained SCA levels, drain cooling system at drain (2) every five years
or 5000 hours. Refill with Cool-Gard coolant (p/n 255-006). Refill at fill (1) with approved coolant. Refill
capacity is 24.8 qt (23.5 L).
NOTICE:
•
Coolant change interval depends on coolant used and whether SCA levels are properly maintained.
Read note above carefully to ensure coolant is changed at the correct interval.
•
The use of non-approved coolant may lead to engine damage or premature engine failure and will
void engine warranty.
•
See “Approved Coolant” on page 129 for list of approved coolants.
CMW
HT115 Tier 3 Operator’s Manual
Service - 172
As Needed
As Needed
Location
Task
TRACTOR
Clean radiator
Notes
Adjust steel track tension
1-1 1/4” (25-32 mm)
Change steel track middle guide wear bars
steel tracks only
Change steel track wear bar bolts
Change steel track grouser shoes and rollers
Change steel track pins and bushings
Adjust rubber track tension
TRENCHER
Replace digging chain
PLOW
Clean feed tube
Replace sod cutter and blade
Check plow blade bolts
SAW
210 ft•lb (285 N•m)
Replace saw bits
Replace saw segments
Check saw segment bolts
Hard surface saw segments and wear bars
BACKHOE
CMW
Replace pins and bushings
700 ft•lb (950 N•m)
HT115 Tier 3 Operator’s Manual
Service - 173
As Needed
Tractor
Clean Radiator
t12om021h.eps
Clean radiator with compressed air or spray wash as needed. Be careful not to damage fins with highpressure air or water. Clean more often if operating in dusty or grassy conditions.
To clean:
1. Clean fins with compressed air or spray wash.
2. If grease and oil are present on radiator, spray with solvent and allow to soak overnight.
CMW
HT115 Tier 3 Operator’s Manual
Service - 174
As Needed
Adjust Steel Track Tension
5
1
2
3
4
t12om118h.eps
Adjust steel track tension as needed. To check, place a straightedge across front track span, as shown.
Distance from top of grouser to straightedge (5) should be 1-1 1/4” (25-32 mm).
Fluid pressure could pierce skin and cause injury or death. Stay away.
NOTICE: Service track grease cylinder only while standing away from zerk. Wear gloves
and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
To adjust:
1. Raise and support tractor as if to remove tracks.
2. Remove covers (3,4) from track frame to expose idler cylinder zerk and recoil stop bars.
3. Clean track cylinder zerk (2).
4. Use 7/8” buttonhead coupler on grease gun.
5. Add MPG to increase track tension until recoil stop bars (1) can be removed.
6. Re-insert recoil stop bars.
7. Adjust track tension using straightedge as explained above.
8. Replace covers.
9. Repeat for other track.
IMPORTANT: Over-tensioning track will shorten life of track and components.
CMW
HT115 Tier 3 Operator’s Manual
Service - 175
As Needed
Change Steel Track Middle Guide Wear Bars
Change steel track middle guide wear bars when they are worn to 3/16” (5 mm). Change more often when
working on slopes.
NOTICE: Check middle guide wear bars and other track components often when working on slopes.
Change Steel Track Wear Bar Bolts
Change steel track wear bar bolts when excessively worn or damaged.
NOTICE: Check middle guide wear bars and other track components more often when working on
slopes.
CMW
HT115 Tier 3 Operator’s Manual
Service - 176
As Needed
Change Steel Track Rollers and Grouser Shoes
1
2
t12om108h.eps
Change steel track grouser shoes when grouser teeth are excessively worn or damaged. New grouser
teeth (1) are 1 5/8” (41 mm) tall. Check steel rollers (2) for leaks. Replace leaking rollers.
NOTICE:
•
In normal soil conditions replace grouser shoes when teeth are worn to approximately 1/2” (13 mm).
•
In rocky soil conditions replace grouser shoes when teeth are worn to approximately 13/16” (20
mm).
Change Steel Track Pins and Bushings
Change steel track pins and bushings when excessively worn or damaged. Measure length of 4 sections in
a properly tensioned portion of the top of tracks. Do not include master pin. Replace when distance A is
22 5/16” (566 mm).
NOTICE: See “Adjust Steel Track Tension” on page 174.
CMW
HT115 Tier 3 Operator’s Manual
Service - 177
As Needed
Adjust Rubber Track Tension
4
1
2
3
t12om131h.eps
Rubber track tension may not require tension adjustment except when excessively worn or damaged, and
in need of replacement. See repair guide for replacement procedure. Should rubber track tension ever
need adjusting, follow procedure below.
Fluid pressure could pierce skin and cause injury or death. Stay away.
NOTICE: Service track grease cylinder only while standing away from zerk. Wear gloves
and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
To adjust:
1. Raise and support tractor as if to remove tracks.
2. Remove covers (2, 3) from track frame to expose idler cylinder zerk and recoil stop bars.
3. Clean track cylinder zerk (1).
4. Use 7/8” button head coupler on grease gun.
5. Add MPG to increase track tension until recoil stop bars (4) can be removed.
6. Re-insert recoil stop bars.
7. Replace covers.
8. Repeat for other track.
CMW
Service - 178
HT115 Tier 3 Operator’s Manual
As Needed
Trencher
Replace Digging Chain
Visually check digging chains for wear on teeth (1), rollers, and sidebars (2). Check pins (3) and bushing
wear by measuring distance between chain pins and comparing it with a new chain.
IMPORTANT: Replace sprockets when a new chain is installed.
To remove chain:
1. Fasten and adjust seat belt.
2. Start tractor. See page 68 for proper start-up procedures.
3. Move attachment direction/speed control until digging chain connector pin is on top of boom.
4. Lower boom to ground.
5. Engage parking brake and verify parking brake indicator is on.
6. Turn ignition switch to STOP.
7. Secure chain by clamping links on either side of
connector pin with chain jaws. Squeeze jaws to
reduce pressure on connector pin.
t12om089h.eps
CMW
HT115 Tier 3 Operator’s Manual
Service - 179
As Needed
8. Loop cable through links nearest connector pin.
t12om090h.eps
Fluid pressure could pierce skin and cause injury or death. Stay
away.
NOTICE: Service digging boom grease cylinder only while standing on opposite side of boom.
Wear gloves and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
9. Loosen plug on grease cylinder to relieve chain tension.
10. Stand clear of chain and remove lock key from connector pin. Drive connector pin out of link.
Crushing weight could cause death or serious
injury. Use proper procedures and equipment or stay away.
11. Unclamp links. Slowly release cable and lower chain to ground.
12. Lay chain on ground with teeth down.
CMW
Service - 180
HT115 Tier 3 Operator’s Manual
As Needed
To install chain:
1. Lay chain on ground with teeth down and pointed toward unit.
2. Fasten and adjust seatbelt.
3. Start tractor. See page 68 for start-up procedures.
4. Disengage parking brake and verify parking brake indicator is off.
5. Move ground drive control to reverse.
6. Back unit up until chain extends past head shaft about 1’ (305 mm).
7. Move ground drive control to neutral.
8. Lower backfill blade to ground.
9. Lower boom to horizontal position.
10. Engage parking brake and verify parking brake indicator is on.
11. Turn ignition switch to STOP.
12. Pull rear end of chain over and about 10" (26 cm) past tail roller.
13. Use hoist to pull front end of chain over head shaft sprocket.
14. Move chain down boom until chain connector pin and lock key can be installed. Install connector pin
and lock key.
15. Tighten chain by pumping EPG into grease cylinder.
Time Augers
Ensure that augers are balanced, as shown. If auger
timing is off, unit will bounce from side to side even in
normal digging conditions.
To adjust timing:
1. Remove bolts holding augers to auger shaft and
rotate either auger as needed until augers are
balanced.
2. Reinstall bolts and tighten securely.
t12om081h.eps
CMW
HT115 Tier 3 Operator’s Manual
Service - 181
As Needed
Plow
Clean Plow Feed Tube
Clean feed tube as needed.
Replace Sod Cutter and Blade
Replace sod cutter and plow blade when excessively worn or damaged.
CMW
Service - 182
HT115 Tier 3 Operator’s Manual
As Needed
Check Plow Blade Bolts
Check plow blade bolts as needed. Tighten to 210 ft•lb (285 N•m). Apply Loctite® 242 any time bolts are
removed.
Saw
Replace Saw Bits
Replace bit when carbide cap or insert is worn or adapter can be damaged.
CMW
HT115 Tier 3 Operator’s Manual
Service - 183
As Needed
Replace Saw Segments
t12om062h.eps
Replace worn segments as needed. To repair, clamp jig to block and weld block to the segment with E7018
or equivalent.
Check Saw Segment Bolts
Check segment bolts after first 10 hours of operation and then as needed. Torque to 700 ft•lb (950 N•m).
Hard Surface Saw Segments and Wear Bars
Hard surface saw segments and wear bars before hard surfacing wears away to protect the life of the part.
CMW
HT115 Tier 3 Operator’s Manual
Service - 184
As Needed
Backhoe
Replace Pins and Bushings
2
1
t12om091h.eps
Replace pins (1) and bushings (2) when worn or damaged. Movement indicates excessive wear.
CMW
HT115 Tier 3 Operator’s Manual
Service - 185
AutoTrack Diagnostics
AutoTrack Diagnostics
The HT115 Tier 3 AutoTrack ground drive system uses hydraulic valves actuated by electrical solenoids
energized by output voltage from the machine controller. The system is self-diagnostic. The cruise control
indicator flashes to alert the operator to a ground drive control system error. An electronic diagnostic tool
(EDT) can be used to view system faults and perform diagnostics. Accumulated codes can be retrieved
only by dealership service technicians with this specialized electronic equipment.
Should a fault occur, the cruise indicator will flash on and off for 10 seconds, then return to either on or off,
depending upon whether AutoTrack is activated. If the ignition key is turned off, all faults are cleared. The
next time the controller is powered up the indicator will resume normal operation until a new fault is
detected.
IMPORTANT: Contact your Ditch Witch dealer if the cruise indicator starts flashing.
Tier 3 Engine Diagnostic Codes
The operator alert indicator tells the operator when warning faults or engine shutdown faults develop.
•
Warning faults occur when engine sensors indicate moderate trouble with coolant temperature, oil
pressure, charge air temperature, or fuel temperature. Warning faults cause the operator alert indicator
to flash, and the engine will begin a slow power derate. In some situations an alarm may also sound. A
trouble code is stored in the ECU. If the fault corrects itself, the engine will gradually return to normal
power. The alert indicator will continue to flash until the trouble goes away, but a trouble code will
remain stored.
•
Engine shutdown will occur due to severe faults in engine coolant temperature, oil pressure, or fuel
temperature. Before shutdown, the operator alert indicator will light continuously and the engine will
begin a rapid power derate. If the fault does not improve in 30 seconds the engine will shut down.
To read a step-by-step troubleshooting sequence for each code, see repair guide.
Two-line
diagnostic code
Definition
Possible cause
SPN 28, FMI 3
attachment throttle input high
throttle sensor (E2) and wiring
SPN 28, FMI 4
attachment throttle input low
SPN 29, FMI 3
primary throttle input high
SPN 28, FMI 4
primary throttle input low
SPN 100, FMI 1
engine oil pressure extremely low
SPN 100, FMI 3
engine oil pressure input voltage high
SPN 100, FMI 4
engine oil pressure input voltage low
SPN 100, FMI 18
engine oil pressure moderately low
oil pressure sensor (R1)
CMW
HT115 Tier 3 Operator’s Manual
Service - 186
Tier 3 Engine Diagnostic Codes
Two-line
diagnostic code
Definition
Possible cause
SPN 105, FMI 3
manifold air temp input voltage high
manifold air temp sensor (R2)
SPN 105, FMI 4
manifold air temp input voltage low
SPN 105, FMI 16
manifold air temp moderately high
SPN 110, FMI 0
engine coolant temp extremely high
SPN 110, FMI 3
engine coolant temp input voltage high
SPN 110, FMI 4
engine coolant temp input voltage low
SPN 110, FMI 15
engine coolant temp high least severe
SPN 110, FMI 16
engine coolant temp moderately high
SPN 158, FMI 17
ECU power down error
ignition switch (S2), ignition circuit
SPN 174, FMI 3
fuel temperature input voltage high
fuel temperature sensor (R4)
SPN 174, FMI 4
fuel temperature input voltage low
SPN 174, FMI 16
fuel temperature moderately high
SPN 190, FMI 0
engine overspeed extreme
SPN 190, FMI 16
engine overspeed moderate
SPN 620, FMI 3
sensor supply voltage high
SPN 620, FMI 4
sensor supply voltage low
SPN 627, FMI 1
all injector currents low
battery voltage or wiring
SPN 629, FMI 13
ECU error
ECU (U1)
SPN 636, FMI 2
engine position sensor signal unreliable
engine position sensor or wiring
SPN 636, FMI 8
engine position sensor signal missing
SPN 636, FMI 10
engine position sensor signal rate of
change abnormal
SPN 637, FMI 2
engine timing sensor signal unreliable
timing sensor or wiring
SPN 637, FMI 7
engine timing and position sensors out of
sync
sensors or wiring
SPN 637, FMI 8
engine timing sensor signal missing
timing sensor or wiring
SPN 637, FMI 10
engine timing signal rate of change
abnormal
SPN 639, FMI 13
CAN error
ECU (U1), diagnostic gauge (M1),
wiring connections
SPN 651, FMI 5
injector #1 circuit has high resistance
check wiring and injector solenoid
CMW
coolant temp sensor (R3)
crank position sensor (MT1)
wire 17 BLU/GRN, ECU (U1)
HT115 Tier 3 Operator’s Manual
Service - 187
Tier 3 Engine Diagnostic Codes
Two-line
diagnostic code
Definition
Possible cause
SPN 651, FMI 6
injector #1 circuit has low resistance
check wiring and injector solenoid
SPN 651, FMI 7
injector #1 not responding
check injector and flow limiter
SPN 652, FMI 5
injector #2 circuit has high resistance
check wiring and injector solenoid
SPN 652, FMI 6
injector #2 circuit has low resistance
SPN 652, FMI 7
injector #2 not responding
check injector and flow limiter
SPN 653, FMI 5
injector #3 circuit has high resistance
check wiring and injector solenoid
SPN 653, FMI 6
injector #3 circuit has low resistance
SPN 653, FMI 7
injector #3 not responding
check injector and flow limiter
SPN 654, FMI 5
injector #4 circuit has high resistance
check wiring and injector solenoid
SPN 654, FMI 6
injector #4 circuit has low resistance
SPN 654, FMI 7
injector #4 not responding
check injector and flow limiter
SPN 655, FMI 5
injector #5 circuit has high resistance
check wiring and injector solenoid
SPN 655, FMI 6
injector #5 circuit has low resistance
SPN 655, FMI 7
injector #5 not responding
check injector and flow limiter
SPN 656, FMI 5
injector #6 circuit has high resistance
check wiring and injector solenoid
SPN 656, FMI 6
injector #6 circuit has low resistance
SPN 656, FMI 7
injector #6 not responding
check injector and flow limiter
SPN 898, FMI 9
speed or torque signal unreliable
contact Product Support
SPN 970, FMI 31
engine shutdown signal (not engine fault)
check other shutdown devices
SPN 971, FMI 31
external fuel derate switch active (not
engine fault)
SPN 1069, FMI 9
improper tire size
SPN 1069, FMI 31
tire size error
SPN 1079, FMI 3
sensor supply voltage high
wire 17 BLU/GRN, ECU (U1)
SPN 1079, FMI 4
sensor supply voltage low
ECU (U1), wiring
SPN 1080, FMI 3
fuel rail pressure sensor supply voltage
high
check wiring
SPN 1080, FMI 4
fuel rail pressure sensor supply voltage
low
SPN 1109, FMI 31
engine shutdown warning
SPN 1110, FMI 31
engine shutdown
contact Product Support
various
CMW
HT115 Tier 3 Operator’s Manual
Service - 188
Tier 3 Engine Diagnostic Codes
Two-line
diagnostic code
Definition
Possible cause
SPN 1347, FMI 3
high pressure fuel pump control valve
signal high
contact Product Support
SPN 1347, FMI 5
high pressure fuel pump solenoid #1
circuit has high resistance
check pump wiring
SPN 1347, FMI 7
inadequate fuel pump pressure
check fuel filter and lines
SPN 1568, FMI 2
torque curve signal unreliable
contact Product Support
SPN 1569, FMI 31
fuel derate
various
SPN 2000, FMI 13
security violation
ECU (U1) programming
CMW
HT115 Tier 3 Operator’s Manual
Specifications - 189
HT115 Tractor
Specifications
HT115 Tractor
Dimensions
U.S.
Metric
A1
Angle of approach
15°
15°
H1
Height
102.5 in
2.6 m
L1
Length
130 in
3.3 m
L2
Length - transport
139 in
3.5 m
L3
Pitch - length from center drive sprocket to center idler
91 in
2311 mm
W1
Width - steel tracks
84 in
2.1 m
W2
Width - rubber tracks
82 in
2.1 m
W3
Track gauge
65.3 in
1.7 m
Specifications - 190
HT115 Tier 3 Operator’s Manual
HT115 Tractor
Operation
U.S.
Metric
Low
2.7 mph
4.3 km/h
High
4.7 mph
7.6 km/h
Vehicle clearance circle (SAE) wall-to-wall with backfill blade
187 in
4.75 m
Vehicle clearance circle (SAE) wall-to-wall without backfill blade
171 in
4.3 m
Ground clearance
11.5 in
292 mm
Basic unit weight
12,000 lb
5443 kg
Maximum allowable tractor weight
22,000 lb
9979 kg
Ground pressure (steel tracks)
5.8 psi
0.40 bar
Ground pressure (rubber tracks)
6.2 psi
0.43 bar
Front counterweight
2100 lb
953 kg
Backfill Blade
U.S.
Metric
Blade width
80 in
2.0 m
Blade height
17 in
432 mm
Lift height above ground
21 in
533 mm
Blade drop below ground
11 in
279 mm
Maximum swing angle (left/right)
30°
30°
Tilt angle (up/down)
24°
24°
Power Plant
U.S.
Metric
Displacement
276 in3
4.5 L
Bore
4.19 in
106 mm
Stroke
5.00 in
127 mm
Forward/Reverse speeds
Engine: John Deere 4045TF275, diesel
Cooling medium: liquid
Injection: direct
Aspiration: turbocharged
Number of cylinders: 4
HT115 Tier 3 Operator’s Manual
Specifications - 191
HT115 Tractor
Engine manufacturer’s gross power rating (SAE J1995)
115 hp
86 kW
Estimated net power rating (SAE J1349)
103 hp
77kW
Rated speed
2500 rpm
2500 rpm
Longitudinal
30°
30°
Lateral
30°
30°
Maximum engine tilt angles*
*Exceeding these operating angles will cause engine damage. This DOES NOT IMPLY machine is
stable to maximum angle of safe engine operation.
Power Train
Ground drive transmission: hydrostatic
Parking brake: spring applied; pressure released
Tracks: steel or rubber
Attachment drive transmission: hydrostatic, lever-operated speed infinitely variable from zero to
maximum
Hydraulic System
U.S.
Metric
Ground drive pump capacity @ 2500 rpm (2)
35 gpm
132.5 L/min
Ground drive pump relief pressure @ 2500 rpm (2)
5800-6200 psi
400- 428 bar
Ground drive motor displacement H/L (2)
3.35/1.80 in3
55/29 cm3
Ground drive motor pressure (2)
6000 psi
413.7 bar
Attachment pump capacity @ 2500 rpm
50 gpm
189 L/min
Attachment pump relief pressure @ 2500 rpm
6090 psi
420 bar
Auxiliary pump capacity @ 2500 rpm
13 gpm
50 L/min
Auxiliary pump relief pressure @ 2500 rpm
2500 psi
172 bar
Fluid Capacities
U.S.
Metric
Fuel tank
45 gal
170 L
Engine oil
16 qt
15 L
Hydraulic reservoir
20 gal
76 L
Hydraulic system
32 gal
121 L
Cooling system
25 qt
24 L
Ground drive planetary (2)
1.85 qt
55 mL
Specifications - 192
HT115 Tier 3 Operator’s Manual
HT115 Tractor
Battery (2 used)
Group 65, SAE res. cap 165 min., SAE cold crank @ 0° F (-18° C), 875 amp
Auxiliary power outlet - 12V, 10A
Vibration Level
Vibration transmitted to the operator’s hand/arm and whole body during normal operation does not
exceed 14.6 and 0.5 meters per second squared respectively.
Operator seat per ISO 7096
Noise Levels
Operator 96 dbA sound pressure per ISO 6394
Exterior 111 dbA sound power per ISO 6393
Unless otherwise specified, all figures are for standard equipment only.
Specifications are called out according to SAE recommended procedures. Specifications are general and subject to change without
notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered
equipment may not necessarily match that described.
HT115 Tier 3 Operator’s Manual
Specifications - 193
H910 Trencher
H910 Trencher
Dimensions
U.S.
Metric
A3
Angle of departure
37°
37°
A
Trench depth, maximum
100 in
2.5 m
B
Trench width, maximum
24 in
610 mm
C
Boom travel down
65°
65°
C1
Boom travel up
50°
50°
E1
Centerline of trench to outside edge, left (steel track)
47 in
1.2 m
Centerline of trench to outside edge, left (rubber track)
46 in
1.2 m
Centerline of trench to outside edge, right (steel track)
37 in
940 mm
Centerline of trench to outside edge, right (rubber track)
36 in
914 mm
F
Headshaft height - digging chain
30 in
762 mm
H1
Transport height
123 in
3.1 m
L2
Transport length
112 in
2.8 m
E2
Specifications - 194
HT115 Tier 3 Operator’s Manual
H910 Trencher
L3
Transport length from centerline of track drive sprocket
108 in
2.8 m
L
Headshaft overhang
25 in
635 mm
N
Soil discharge reach
33 in
838 mm
Attachment weight
1750 lb
794 kg
U.S.
Metric
Ratio low
159 rpm
159 rpm
Ratio standard
213 rpm
213 rpm
Ratio high1
258 rpm
258 rpm
Ratio low
652 ft/min
199 m/min
Ratio standard
872 ft/min
266 m/min
Ratio high1
1176 ft/min
358 m/min
Operation
Headshaft speeds @ 2500 rpm engine
Digging chain speeds
1
Not recommended on HT115
HT115 Tier 3 Operator’s Manual
Specifications - 195
H911 Trencher
H911 Trencher
Dimensions
U.S.
Metric
A3
Angle of departure
29°
29°
A
Trench depth, maximum
96 in
2.4 m
B
Trench width, maximum
24 in
610 mm
C
Boom travel down
65°
65°
C1
Boom travel up
50°
50°
E1
Centerline of trench to outside edge, left
25 in
635 mm
E2
Centerline of trench to outside edge, right
13.5 in
343 mm
F
Headshaft height - digging chain
33 in
838 mm
H1
Transport height
125 in
3.2 m
L2
Transport length
126 in
3.2 m
L
Headshaft overhang
54 in
1.4 m
L3
Transport length from centerline of track drive sprocket
115 in
2.9 m
HT115 Tier 3 Operator’s Manual
Specifications - 196
H911 Trencher
N
Soil discharge reach
33 in
838 mm
Attachment weight
2350 lb
1066 kg
U.S.
Metric
Ratio low
159 rpm
159 rpm
Ratio standard
213 rpm
213 rpm
Ratio high1
258 rpm
258 rpm
Ratio low
652 ft/min
199 m/min
Ratio standard
872 ft/min
266 m/min
Ratio high1
1176 ft/min
358 m/min
Operation
Headshaft speeds @ 2500 rpm engine
Digging chain speeds
1Not
recommended on HT115
HT115 Tier 3 Operator’s Manual
Specifications - 197
H932 Plow
H932 Plow
Dimensions
U.S.
Metric
A3’
Angle of departure, transport, no blade
30°
30°
A3
Angle of departure, transport, 24” (610-mm) blade
27°
27°
Angle of departure, transport, 30” (762-mm) blade
23°
23°
H
Angle of depression, plow max.
10°
10°
H2
Height transport
92 in
2.5 m
L2
Attachment length, fully lowered, no blade
102 in
2.6 m
L2’
Attachment length, fully raised, no blade
69 in
1.7 m
L3
Transport length from centerline of track drive sprocket
91 in
2.3 m
J
Blade ground clearance, 30” (762-mm) blade
29 in
740 mm
A
Cover depth*
36 in
920 mm
A’
Penetration*
40 in
1.0 m
Plow swing angle
43°
43°
Specifications - 198
HT115 Tier 3 Operator’s Manual
H932 Plow
Inclusive blade steer angle
89°
89°
Center of plow to outside edge of machine, left (steel tracks)
41 in
1.0 m
Center of plow to outside edge of machine, right (steel tracks)
43 in
1.1 m
Center of plow to outside edge of machine, left (rubber tracks)
40 in
1.0 m
Center of plow to outside edge of machine, right (rubber tracks)
42 in
1.1 m
Operation
U.S.
Metric
Plow vibrator force @ 1800 rpm
35,215 lb
157 kN
Pulled
3 in
80 mm
Fed
2 in
50 mm
General
U.S.
Metric
Operating weight, without plow blade
2400 lb
1100 kg
Maximum material diameter
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
Noise Levels
Operator 96 dBA sound pressure per ISO 6394.
Exterior 111 dBA sound power per ISO 6393.
*Suggested maximum. Plow blade used will be determined by job requirements and soil conditions
HT115 Tier 3 Operator’s Manual
Specifications - 199
H1130 Plow
H1130 Plow
Dimensions
U.S.
Metric
A3’
Angle of departure, transport, no blade
30°
30°
A3
Angle of departure, transport, 23-40” (610-1016 mm) blade
24°
24°
Angle of departure, transport, 26-48” (660-1219 mm) blade
15°
15°
H
Angle of depression, plow max.
10°
10°
H2
Height transport with cable guide
129”
3.4 m
Height transport without cable guide
115 in
2.9 m
L2
Attachment length, fully lowered, no blade
125 in
3.2 m
L2’
Attachment length, fully raised, no blade
90
2.3 m
L3
Transport length from centerline of track drive sprocket
106 in
2.7 m
J
Blade ground clearance, 23-40” (610-1016 mm) blade
22 in
560 mm
Specifications - 200
HT115 Tier 3 Operator’s Manual
H1130 Plow
Blade ground clearance, 26-48” (660-1219 mm) blade
14 in
355 mm
A
Cover depth*
48 in
1.2 m
A’
Penetration*
55 in
1.4 m
Plow swing angle
45°
45°
Inclusive blade steer angle
89°
89°
Center of plow to outside edge of machine, left (steel tracks)
41 in
1.0 m
Center of plow to outside edge of machine, right (steel tracks)
43 in
1.1 m
Center of plow to outside edge of machine, left (rubber tracks)
40 in
1.0 m
Center of plow to outside edge of machine, right (rubber tracks)
42 in
1.1 m
Operation
U.S.
Metric
Plow vibrator force @ 1800 rpm
35,215 lb
157 kN
Maximum material diameter, fed
3 in
80 mm
General
U.S.
Metric
Operating weight, without plow blade
2970 lb
1350 kg
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
Noise Levels
Operator 96 dBA sound pressure per ISO 6394.
Exterior 111 dBA sound power per ISO 6393.
*Suggested maximum. Plow blade used will be determined by job requirements and soil conditions
HT115 Tier 3 Operator’s Manual
Specifications - 201
H942 Saw
H942 Saw
Dimensions
U.S.
Metric
Trench depth
30 in
762 mm
Trench width
4.5, 6, 8 in
114, 152,
203 mm
Transport height - attachment
114 in
2.9 m°
Height - wheel on ground
85 in
2.2 m
L2’
Overall length - wheel on ground
238 in
6.0 m
L5
Transport length from centerline of rear track drive sprocket
111 in
2.8 m
J
Ground clearance at wheel
29 in
602 mm
A3
Angle of departure
23°
23°
Attachment weight
4500 lb
2041 kg
Operation
U.S.
Metric
Maximum breakover angle at full depth
17°
17°
Quantity of cutting teeth on wheel (4.5”, 6”, 8”)
70, 80, 110
70, 80, 110
A’
D
Counterweight required. Contact your Ditch Witch dealer for counterweight requirements.
Specifications - 202
HT115 Tier 3 Operator’s Manual
H942 Saw
.
Power Train
Cutting bit types: Rotating, self-sharpening conical bit with spring retainer. Carbide cap or carbide insert
available.
Cutter wheel type: steel wheel with 10 bolt-on segments.
Wheel motor: 107 in3 (1753 cc) radial piston with pair of tapered roller bearings.
Wheel shaft bearing: 3 in (76 mm) flanged cartridge double row, spherical roller bearing.
Lift provision: Two 3.5 in (89 mm) hydraulic cylinders.
Gauge shoes: Minimize shock, bearing load, and vibration when cutting and move spoils away from
teeth.
Spoil placement: Both sides approximately 12-18 in (305-457 mm) from trench.
HT115 Tier 3 Operator’s Manual
Specifications - 203
H1140 Saw
H1140 Saw
Dimensions
U.S.
Metric
Trench depth
40 in
991 mm
Trench width
4.5, 6, 8 in
114, 152,
203 mm
Transport height - attachment
130 in
3.3 m°
Height - wheel on ground
102 in
2.6 m
L2’
Overall length - wheel on ground
252 in
6.4 m
L5
Transport length from centerline of rear track drive sprocket
125 in
3.2 m
J
Ground clearance at wheel
27 in
700 mm
A3
Angle of departure
21°
21°
Attachment weight
5900 lb
2676 kg
A’
D
Specifications - 204
HT115 Tier 3 Operator’s Manual
H1140 Saw
Operation
U.S.
Metric
Maximum breakover angle at full depth
17°
17°
Quantity of cutting teeth on wheel (4.5”, 6”, 8”)
70, 80, 110
70, 80, 110
Counterweight required. Contact your Ditch Witch dealer for counterweight requirements.
.
Power Train
Cutting bit types: Rotating, self-sharpening conical bit with spring retainer. Carbide cap or carbide insert
available.
Cutter wheel type: steel wheel with 10 bolt-on segments.
Wheel motor: 107 in3 (1747 cc) radial piston with pair of tapered roller bearings.
Wheel shaft bearing: 3 in (76 mm) flanged cartridge double row, spherical roller bearing.
Lift provision: Two 4 in (107 mm) hydraulic cylinders.
Gauge shoes: Minimize shock, bearing load, and vibration when cutting and move spoils away from
teeth.
Spoil placement: Both sides approximately 12-18 in (305-457 mm) from trench.
HT115 Tier 3 Operator’s Manual
Specifications - 205
A720 Backhoe
A720 Backhoe
Dimensions
U.S.
Metric
A
Transport height
110 in
2.8 m
C
Ground clearance
28 in
711 mm
D
Backhoe length, stowed
122 in
3.1 m
F
Digging depth, max.
94 in
2.4 m
G
Digging depth, 2’ (0.6 m) flat bottom
90 in
2.3 m
J
Operating height, fully raised
138 in
3.5 m
K
Loading height
87 in
2.2 m
L
Loading reach
76 in
1.9 m
L3
Transport length from centerline of track idler
124 in
3.2 m
M
Reach from swing pivot
143 in
3.6 m
N
Swing pivot to centerline of track idler
55 in
1.4 m
P
Bucket rotation
165°
165°
B
Stabilizer spread, transport
86 in
2.1 m
HT115 Tier 3 Operator’s Manual
Specifications - 206
A720 Backhoe
E
Backhoe or basic unit width
82 in
2.0 m
R
Stabilizer spread, operating
121 in
3.0 m
U
Leveling angle
15°
15°
General
U.S.
Metric
Width
12-24 in
305-610 mm
Capacity
1.7-3.5 ft3
0.05-.1m3
2975 lb
1350 kg
@ 48” (1.2 m)
1050 lb
476 kg
@ ground level
880 lb
399 kg
@ 72” (1.8 m)
1042 lb
473 kg
@ 52” (1.3 m)
2650 lb
1202 kg
@ 96” (2.4 m)
2150 lb
975 kg
180°
180°
Using bucket cylinder
6600 lb
2994 kg
Using dipperstick cylinder
4025 lb
1825 kg
Bucket
Backhoe weight with 18” (686 mm) bucket
Lift capacity, boom over end and swing arc, SAE*
Lift capacity, dipperstick over end and swing arc, SAE*
Swing arc
Digging force
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
*Lift capacities are for a stationary machine supported by stabilizers.
HT115 Tier 3 Operator’s Manual
Specifications - 207
A920 Backhoe
A920 Backhoe
Dimensions
U.S.
Metric
A
Transport height
117 in
3.0 m
C
Ground clearance
28 in
711 mm
D
Backhoe length, stowed
117 in
2.9 m
F
Digging depth, max.
114 in
2.8 m
G
Digging depth, 2’ (0.6 m) flat bottom
111 in
2.8 m
J
Operating height, fully raised
155 in
3.9 m
K
Loading height
102 in
2.6 m
L
Loading reach
78 in
1.9 m
L3
Transport length from centerline of track idler
119 in
3.0 m
M
Reach from swing pivot
158 in
4.0 m
N
Swing pivot to centerline of track idler
55 in
1.4 m
P
Bucket rotation
170°
170°
B
Stabilizer spread, transport
86 in
2.2 m
HT115 Tier 3 Operator’s Manual
Specifications - 208
A920 Backhoe
E
Backhoe or basic unit width
82 in
2.0 m
R
Stabilizer spread, operating
121 in
3.0 m
U
Leveling angle
10°
10°
General
U.S.
Metric
Width
12-24 in
305-610 mm
Capacity
1.7-3.5 ft3
0.05-.1m3
3300 lb
1497 kg
@ 48” (1.2 m)
1170 lb
530 kg
@ ground level
1250 lb
567 kg
@ 72” (1.8 m)
1184 lb
537 kg
@ 52” (1.3 m)
3184 lb
1444 kg
@ 96” (2.4 m)
2242 lb
1017 kg
180°
180°
Using bucket cylinder
6600 lb
2994 kg
Using dipperstick cylinder
4475 lb
2030 kg
Bucket
Backhoe weight with 18” (686 mm) bucket
Lift capacity, boom over end and swing arc, SAE*
Lift capacity, dipperstick over end and swing arc, SAE*
Swing arc
Digging force
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
*Lift capacities are for a stationary machine supported by stabilizers.
HT115 Tier 3 Operator’s Manual
Specifications - 209
RC115 Reel Carrier
RC115 Reel Carrier
Dimensions
U.S.
Metric
L5
Distance from backfill blade to outside edge of reel carrier with
maximum diameter reel
76 in
1.9 m
L3
Distance from center of track idler to front of maximum reel
diameter
129 in
3.3 m
N
Maximum reel diameter
84 in
2.1 m
H3
Recommended operating height from ground to center of reel
48 in
1.2 m
Internal width
54 in
1.4 m
Capacity
3000 lb
1361 kg
Attachment weight with six 90-lb (41-kg) counterweights
1600 lb
726 kg
RC115 counterweight requirements
HT115 with H932 plow
Reel weight
Front RC weight
Rear weight
0-1500 lb
(0-680 kg)
600 lb
(272 kg)
0 lb
(0 kg)
1500-3000 lb
(680-1361 kg)
0 lb
(0 kg)
0 lb
(0 kg)
Specifications - 210
HT115 Tier 3 Operator’s Manual
RC115 Reel Carrier
HT115 Operator’s Manual
Support - 211
Procedure
Support
Procedure
Notify your dealer immediately of any malfunction or failure of Ditch Witch equipment.
Always give model, serial number, and approximate date of your equipment purchase. This information
should be recorded and placed on file by the owner at the time of purchase.
Return damaged parts to dealer for inspection and warranty consideration if in warranty time frame.
Order genuine Ditch Witch replacement or repair parts from your authorized Ditch Witch dealer. Use of
another manufacturer's parts may void warranty consideration.
Resources
Publications
Contact your Ditch Witch dealer for publications and videos covering safety, operation, service, and repair
of your equipment.
Ditch Witch Training
For information about on-site, individualized training, contact your Ditch Witch dealer.
CMW
HT115 Operator’s Manual
Warranty - 212
Warranty
Ditch Witch Equipment and Replacement Parts
Limited Warranty Policy
Subject to the limitation and exclusions herein, free replacement parts will be provided at any authorized Ditch Witch dealership for
any Ditch Witch equipment or parts manufactured by The Charles Machine Works, Inc. (CMW) that fail due to a defect in material or
workmanship within one (1) year of first commercial use (Exception: 2 years for all SK5 attachments). Free labor will be provided at
any authorized Ditch Witch dealership for installation of parts under this warranty during the first year following “initial commercial”
use of the serial-numbered Ditch Witch equipment on which it is installed. The customer is responsible for transporting their
equipment to an authorized Ditch Witch dealership for all warranty work.
Exclusions from Product Warranty
•
All incidental or consequential damages.
•
All defects, damages, or injuries caused by misuse, abuse, improper installation, alteration, neglect, or uses other than those for
which products were intended.
•
All defects, damages, or injuries caused by improper training, operation, or servicing of products in a manner inconsistent with
manufacturer’s recommendations.
•
All engines and engine accessories (these are covered by original manufacturer’s warranty).
•
Tires, belts, and other parts which may be subject to another manufacturer’s warranty (such warranty will be available to
purchaser).
•
ALL IMPLIED WARRANTIES NOT EXPRESSLY STATED HEREIN, INCLUDING ANY WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE AND MERCHANTABILITY.
IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES, AS DEFINED BY THE UNIFORM COMMERCIAL
CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE HEREOF AND THERE ARE NO IMPLIED
WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED
WARRANTY APPLY INCLUDING THE DUTIES IMPOSED.
Ditch Witch products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver
acceptable performance in all conditions. Therefore, to assure suitability, products should be operated under anticipated working
conditions prior to purchase.
Defects will be determined by an inspection within thirty (30) days of the date of failure of the product or part by CMW or its authorized
dealer. CMW will provide the location of its inspection facilities or its nearest authorized dealer upon inquiry. CMW reserves the right
to supply remanufactured replacements parts under this warranty as it deems appropriate.
Extended warranties are available upon request from your local Ditch Witch dealer or CMW.
Some states do not allow exclusion or limitation of incidental or consequential damages, so above limitation of exclusion may not
apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so the above limitation may
not apply. This limited warranty gives product owner specific legal rights and the product owner may also have other rights which vary
from state to state.
For information regarding this limited warranty, contact CMW’s Product Support department, P.O. Box 66, Perry, OK 73077-0066, or
contact your local Ditch Witch dealer.
First version: 1/91; Latest version: 7/05
CMW
HT115 Operator’s Manual
Service Record - 215
Service Record
Service Performed
Date
Hours
CMW
Service Record - 216
Service Performed
CMW
HT115 Operator’s Manual
Date
Hours
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
