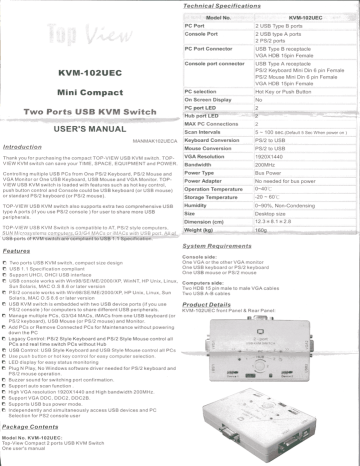

Introduction
Thank you for purchasing the compact TOP-VIEW USB KVM switch. TOP-
VIEW KVM switch can save your TIME, SPACE, EQUIPMENT and POWER.
Controlling multiple USB PCs from One PS/2 Keyboard, PS/2 Mouse and
VGA Monitor or One USB Keyboard, USB Mouse and VGA Monitor. TOP-
VIEW USB KVM switch is loaded with features such as hot key control,
push button control and Console could be USB keyboard (or USB mouse)
or standard PS/2 keyboard (or PS/2 mouse).
TOP-VIEW USB KVM switch also supports extra two comprehensive USB
type A ports (if you use PS/2 console ) for user to share more USB
peripherals.
TOP-VIEW USB KVM Switch is compatible to AT, PS/2 style computers,
SUN Microsystems computers, G3/G4 MACs or iMACs with USB port. AlLof…
USB ports of KVM switch are compliant to USB 1.1 Specification.
Features
© Two ports USB KVM switch, compact size design
© USB 1.1 Specification compliant
© Support UHCI, OHCI USB interface
© USB console works with Win98/SE/ME/2000/XP, WinNT, HP Unix, Linux,
Sun Solaris, MAC O.S 8.6 or later version
O PS/2 console works with Win98/SE/ME/2000/XP, HP Unix, Linux, Sun
Solaris, MAC O.S 8.6 or later version
B® USB KVM switch is embedded with two USB device ports (if you use
PS/2 console ) for computers to share different USB peripherals.
© Manage multiple PCs, G3/G4 MACs, iMACs from one USB keyboard (or
PS/2 keyboard), USB Mouse (or PS/2 mouse) and Monitor.
© Add PCs or Remove Connected PCs for Maintenance without powering
down the PC
© Legacy Control: PS/2 Style Keyboard and PS/2 Style Mouse control all
PCs andreal time switch PCs without Hub
© USB Control: USB Style Keyboard and USB Style Mouse control all PCs
© Use push button or hot key control for easy computer selection.
© LED display for easy status monitoring
© Plug N Play, No Windows software driver needed for PS/2 keyboard and
PS/2 mouse operation.
© Buzzer sound for switching port confirmation.
© Support auto scan function.
O High VGA resolution 1920X1440 and High bandwidth 200MHz.
© Support VGA DDC, DDC2, DDC2B.
© Supports USB bus power mode.
© Independently and simultaneously access USB devices and PC
Selection for PS2 console user
Package Contents
Model No. KVM-102UEC:
Top-View Compact 2 ports USB KVM Switch
One user's manual
Technical Specifications
| Model No.
| KVM-102UEC
IPC Port
2 USB Type B ports
Console Port
2 USB type A ports
2 PS/2 ports
PC Port Connector
USB Type B receptacle
VGA HDB 15pin Female
Console port connector
USB Type A receptacle
PS/2 Keyboard Mini Din 6 pin Female
PS/2 Mouse Mini Din 6 pin Female
VGA HDB 15pin Female
PC selection
Hot Key or Push Button
|
On Screen Display No
PC port LED | 2
[Hub port LED 12 —
MAX PC Connections 2
|
‘Scan Intervals
‘Keyboard Conversion
5 ~ 100 sec.(Default 5 Sec When power on )
|
i
\PS/2 to USB
‘Mouse Conversion 'PS/2 to USB
VGA Resolution 1920X1440
Bandwidth 200MHz
Power Type Bus Power
‘Power Adapter No needed for bus power
|
‘Operation Temperature
0~40C
Storage Temperature
-20 ~ 60°C
Humidity '0-90%, Non-Condensing
Size Desktop size
Dimension (cm) 12.3%8.1%2.8
¡Weight (kg) 11609 .
System Requirements
Console side:
One VGA or the other VGA monitor
One USB keyboard or PS/2 keyboard
One USB mouse or PS/2 mouse
Computers side:
Two HDB 15 pin male to male VGA cables
Two USB A-B cables
Product Details
KVM-102UEC front Panel & Rear Panel:
2-port
USB KUM SWITCH
MAC O.S. and Sun Micro Systems Keyboard Mapping
The following diagram indexes the Hotkey combination that emulates Mac
O.S. and Sun Micro keyboard commands. This feature is only available on
the PS/2 keyboard attached to the KVM, and is not available on the USB
keyboard.
Left Windows Key = L_Win
Sun Microsystems
Keyboard Mac OS
Stop L Win &L_Alt
Props L_Win a L_Ctrl
Compose L Win & L_Shift
Front L_ Win &F1
Open L_Win € F2
Find L_Win & F3
Again L_Win & F4
Undo L Win &F5
Copy L_Win & F6
Paste L Win&F7
Cut — _L Win é F8 na |
Help L “Win & F11 a a ——
Power C L Win&F12 Power ©
Mute [1] = L_Win 8"1"
V DN — "O L Win &"2"
V UP D+ =) L Win &"3"
Windows Key Apple Key
Alt Option
Print Screen F13
Scroll Lock F14
Pause Break F15
Hardware Installation
Before installation, please make sure all of peripherals and computers
have been turned off.
1. Connecting USB A-B type cables to PC* and USB KVM switch. The type
A connector of USB cable is for PC and the other end of USB cable is for
USB KVM Switch.
2. Connecting HDB15 pin ( Male to Male ) cables to PC and USB KVM
switch.
VGA menitors cables 6 :
. Connecting keyboard and mouse to console PS/2 port.
[6
"*" MAC and Sun Micro Systems has the similar installation to mentioned-
above PC installation process.
The console ports of USB KVM switch support PS/2 or USB keyboard and
Mouse. You have four kinds combinations ---
a. PS/2 keyboard and PS/2 mouse
b. PS/2 keyboard and USB mouse
c. USB keyboard and PS/2 mouse
d. USB keyboard and USB mouse
Note: When you finishing to install the PC systems with this KVM switch,
there is only one of PCs can get the keyboard and mouse.
1. Ifthe PC BIOS need check keyboard to accomplish boot up process and
the PC might show keyboard error message on the screen, please
configure the BIOS setting again ( When you power on the PC system
again, please press " del " key immediately for a couple of times and you
will get into BIOS setting mode ).
When you enter BIOS set up mode, please select the item” Halt on
Error" or the other Error condition setting and select " Halt all errors
but Keyboard " or to ignore keyboard during boot up BIOS process.
After you have configured the system BIOS already, please add the power
adapter to the USB KVM switch. You need power on the system PC port by
PC port for Windows O.S. recognizing what kind of keyboard and mouse.
After the console port (keyboard and mouse) goes through all of PC port at
first, you can boot all PCs simultaneously in next time.
2. The other PCs are unable to get the mouse during boot up system if PC
BIOS system can accept no keyboard condition, The Window O.S. will
show the following message or similar things :
Windows did not detect a mouse attached to the computer. You can
safely attach a serial mouse now. To attach a mouse to a PS/2 mouse
port, you must first turn the computer off.
[| Do not show this message in the future.
Please select the item " [v] Do not show this message in the future. "
and finishing booting Windows O.S..
Usage
The Push Button:
USB KVM switch supports one push button. You can select PC port and
USB hub together through it. i.e. Hub and PC are selected at the same time
Keyboard:
There are two kinds of keyboard --- PS/2 type or USB type can be applied
to this switch.
Mouse:
There are two kinds of mouse --- PS/2 type or USB type can be applied to
this switch.
The Push Buttons:
Pressing the button cyclically through all the ports with USB Hub.
KVM-102UEC ( 2 Ports)
[Per re
…._— —
The LED of PC Selection Indication:
You can press the button in order like mentioned-above diagram.
When you select one of two PC ports and this PC is shut down or this PC
port is disconnected to the PC, the selected port LED will flash. When you
select one of two PCs ports and this PC is powered on, the selected port
LED is lit.
The LED of USB Hub Selection Indication:
There are two LEDs indicate the location of USB hub. When USB hub LED
1 is lit, it means that USB hub is occupied by PC 1. When USB hub LED 2 is
lit, it means that USB hub is occupied by PC 2.
Hot Key control:
You can also conveniently command Top- View KVM switch by switching
ports through simple key sequences.
Operation: PS2 Keyboard Hot Key
© PS/2 Keyboard user: ( This application is for Win98/98SE/ME/2000/XP ,
HP Unix; Linux, Sun Solaris, MAC O.S 8.6 or later version operation
systems )
To send commands to Top-View USB KVM, the SCROLL LOCK key must be
pressed twice within 2 seconds. You will hear a beep for confirmation. If
you have not pressed any key in hot key mode within 2 seconds (It means
to key in any key follows up Scroll Lock Scroll Lock key ), the keyboard
Will back to under Operation System control state.
To select PC port with USB hub in PS2 hot key :
Г” within 2 seconds ]
Previous Channel
+ 4 =
Il
Scro + = Next Channel
Port No. .
Scroll + 1-2 | = Toselect PC1 or
Lock < PC2 with USB hub
To select PC port only in PS2 hot key :
> within 2 seconds + > within 2 seconds |
| Scroll .
+ + = Previous
Lock Channel
Scroll : . Scroll : x Е d + - Next
Lock | Lock | Channel
Port No.
Scroll |
Lock * || 7
(2 ports) |
To select PC1 or PC2 with
USB hub
To select USB Hub port only in PS2 hot key :
Г” within 2 seconds + Г” within 2 seconds <
“Scroll | Previ
+ = Previous
Lock Channel
Scroll [| , Scroll = Next
Lock | Lock Channel
Scroll L
Lock |
Scroll 3
Lock
To select USB hub only
Beeper Function:
Scroll i Beeper
Lock (Note: The default
Beeper function is ON
and beeperis only
available for Scan Mode )
Auto Scan Mode:
Scroll
Lock
= Auto Scan (The scan
interval is 5 secs, Power
On Default) -
Auto scan mode only works
with two PCs powered on
simultaneously)
One digital |
Number
0-9
scroll |
Lock X
Auto Scan (The scan interval is 10 - 100 secs)
|
Digital Number 1: 10 secs 2:20 secs 3: 30 secs 4:40 secs 5: 50 secs
6:60 secs 7:70secs 8:80 secs 9:90 secs 0: 100 secs
Operation: USB Keyboard Hot Key
USB Keyboard user: ( This application is only available on PC* with
Win98/98SE/ME/2000/XP operation systems )
Press "Scroll Lock" twice within two seconds to switch to the next
channels.
To switch PC channel and USB Hub together in the following key
sequence:
Scroll
Lock
Scroll
Lock
= Next Channel
"*" Mac O.S. and Sun Micro Systems Keyboard Mapping is not available
on USB keyboard
Troubleshooting ~~
Ensure that all cables are well seated. Label all of cables with the number
for each respective computer to avoid confusion.
IBM PC or Compatible :
O PC cannot find keyboard or mouse after the boot process. Please make
sure you power on the system PC port by PC port for booting Windows
O.S. and for recognizing what kind of keyboard and mouse before you
install this USB KVM switch first.
© Keyboard or mouse not working or not compatible with the PC, please
make sure the keyboard or mouse works when directly plug in to the
computer. If the problem persists, please try another keyboard or
mouse. |
© Mouse doesn't work in Auto Scan mode, you can press any key on the
keyboard or the front button on the face plate for returning standard
mode and then use the Keyboard or Mouse again.
© When KVM switch is in Auto Scan mode, there are only VGA monitor
display and CPU alternately (but the USB Hub is not switched in auto
scan mode ). After you press any key, the PC port will be selected at the
same time, as you see the current PC Screen. :
If you apply PS/2 keyboard to USB KVM switch's PS/2 port and are fail
in booting PC on account of keyboard error ( There is a keyboard error
message exists on the screen ), the PC BIOS( Basic Input Output
System) need be upgraded to new BIOS for accepting USB to PS/2
conversion. Normally, most of BIOS' support , during PC boot process,
to recognize USB to PS/2 keyboard conversion or USB keyboard.
© If your motherboard BIOS is unable to be upgraded to new BIOS, you
may need boot this PC individually and the console port need be
switched to this PC before you power on this PC.
O Some Operation System (O.S.) like Win NT, Unix need boot with KB and
Mouse. So, please switch the console port of KVM switch to PC which
installed Win NT or Unix before you power on the PC.
© The recommended VGA cable distance is 5 meters maximum without
ghosting and degradation. Normally, the cable length is based on driver
capacity of your VGA card. If you need longer VGA cable, please use
VGA extender to accomplish your applications.
KO The recommended keyboard or mouse cable is 10 feet maximum
without degradation. Normally, the cable length is based on driver
capacity of your motherboard. If you need longer keyboard or mouse
cable, please use keyboard or mouse extender to get your applications.
© When you switch USB-Hub fromone PC to another and there are many
— USB devices are attached to the PC, it will take about 5-10 seconds for
all USB devices initialization. So, to switch port will take more time than
the switching time of conventional PS/2 KVM switch.
© When you use Japanese windows OS with 106 key keyboard, there are
some special keys like " Y " need 106 key driver(Microsoft native driver
in OS CD-ROM ). Please follow procedures below and click the mouse
to add new driver.
Control Panel > Add New Hardware» Next > Next» Select "No, the
device isn't in the list" > Select "No, | want to select the hardware from a
list" > Select Keyboard > Select Standard Keyboard — Select 106 H
AEE (106 key driver ) > reboot PC
SUN Microsystems :
© If you use SUN Microsystems with Top View compact USB KVM switch,
you need switch the console to SUN Microsystems before you boot up
SUN Microsystems. After you finish booting SUN Microsystems, you
can switch console to the other computer port.
© Ifyou apply PC USB keyboard to USB hub ports and SUN Microsystems
are connected to this USB KVM switch, there is no SUN-to-PC keyboard
mapping available. SUN-to-PC keyboard mapping is only valid at PS/2
keyboard port of USB KVM switch. You also can connect SUN USB
keyboard to one of USB Hub ports.
© If you apply PC USB keyboard or SUN USB keyboard to one of USB hub
ports and SUN Microsystems are connected to this USB KVM switch,
there is no Hot Key function for this application.
MAC Computer:
© If you apply PC USB keyboard to one of USB hub ports and MAC
computers are connected to this USB KVM switch, there is no MAC-to-
PC keyboard mapping available. MAC-to-PC keyboard mapping is only
valid at PS/2 keyboard port of USB KVM switch. You also can connect a
MAC keyboard to one of USB Hub ports. re Sk
© If you apply PC USB keyboard or MAC keyboard to one USB-hub-ports
and MAC computers are connected to this USB KVM switch, there is no
Hot Key function for this application.
CERTIFICATIONS
FCC
This equipment has been tested and found to comply with Part 15 of the
FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received. Including
interference that may cause undesired operation.
CE Certificate |
This equipmentis in compliance with the requirements of the following
regulations: EN 55 022: CLASS B
TTS) tem Ce HAE et WL йо)
8) В Во
USB Keyboard orthe USB Mouse or the
other USB device other USB device
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
