10 Amp 10 Way CCTV Power Supply PSU with LED

10 Amp 10 Way CCTV Power Supply PSU with LED

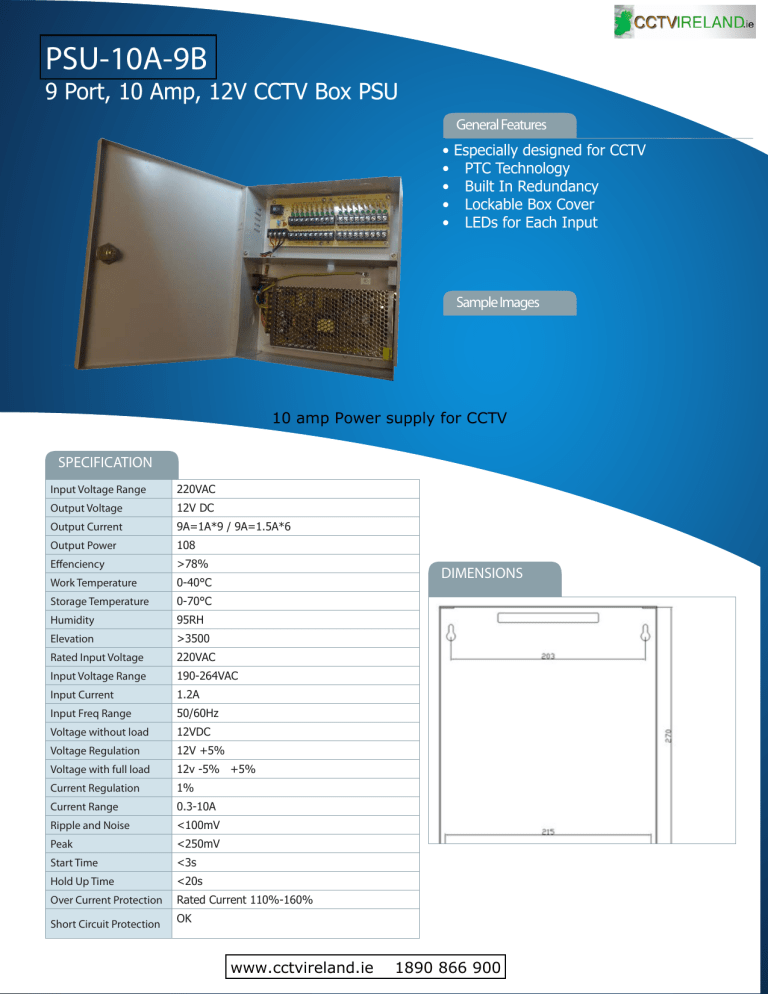

PSU-10A-9B
9Port,10Amp,12VCCTV BoxPSU
General Features
•Especially designed for CCTV
• PTCTechnology
• BuiltInRedundancy
• LockableBoxCover
• LEDsforEachInput
Sample Images
10 amp Power supply for CCTV
SPECIFICATION
Input Voltage Range
220VAC
Output Voltage
12VDC
Output Current
9A=1A*9/9A=1.5A*6
Output Power
108
Effenciency
>78%
Work Temperature
0-40°C
Storage Temperature
0-70°C
Humidity
95RH
Elevation
>3500
Rated Input Voltage
220VAC
Input Voltage Range
190-264VAC
Input Current
1.2A
Input Freq Range
50/60Hz
Voltage without load
12VDC
Voltage Regulation
12V+5%
Voltage with full load
12v-5%+5%
Current Regulation
1%
Current Range
0.3-10A
Ripple and Noise
<100mV
Peak
<250mV
Start Time
<3s
Hold Up Time
<20s
Over Current Protection
RatedCurrent110%-160%
Short Circuit Protection
OK
DIMENSIONS
www.cctvireland.ie
1890 866 900
