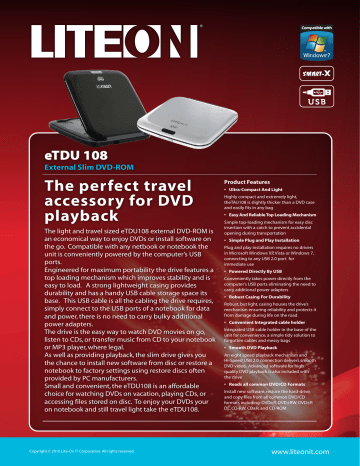

eTDU 108正
eTDU 108
External Slim DVD-ROM
The perfect travel
accessory for DVD
playback
The light and travel sized eTDU108 external DVD-ROM is
an economical way to enjoy DVDs or install software on
the go. Compatible with any netbook or notebook the
unit is conveniently powered by the computer’s USB
ports.
Engineered for maximum portability the drive features a
top loading mechanism which improves stability and is
easy to load. A strong lightweight casing provides
durability and has a handy USB cable storage space its
base. This USB cable is all the cabling the drive requires,
simply connect to the USB ports of a notebook for data
and power, there is no need to carry bulky additional
power adapters.
The drive is the easy way to watch DVD movies on go,
listen to CDs, or transfer music from CD to your notebook
or MP3 player, where legal.
As well as providing playback, the slim drive gives you
the chance to install new software from disc or restore a
notebook to factory settings using restore discs often
provided by PC manufacturers.
Small and convenient, the eTDU108 is an affordable
choice for watching DVDs on vacation, playing CDs, or
accessing files stored on disc. To enjoy your DVDs your
on notebook and still travel light take the eTDU108.
Copyright © 2010 Lite-On IT Corporation. All rights reserved.
Product Features
• Ultra-Compact And Light
Highly compact and extremely light,
theTAU108 is slightly thicker than a DVD case
and easily fits in any bag
• Easy And Reliable Top Loading Mechanism
Simple top-loading mechanism for easy disc
insertion with a catch to prevent accidental
opening during transportation
• Simple Plug and Play Installation
Plug and play installation requires no drivers
in Microsoft Windows XP, Vista or Windows 7,
connecting to any USB 2.0 port for
immediate use
• Powered Directly By USB
Conveniently takes power directly from the
computer’s USB ports eliminating the need to
carry additional power adapters
• Robust Casing For Durability
Robust, but light, casing houses the drive’s
mechanism ensuring reliability and protects it
from damage during life on the road
• Convenient Integrated cable holder
Integrated USB cable holder in the base of the
unit for convenience, a simple tidy solution to
forgotten cables and messy bags
• Smooth DVD Playback
An eight speed playback mechanism and
Hi-Speed USB 2.0 connection delivers smooth
DVD video. Advanced software for high
quality DVD playback is also included with
the drive
• Reads all common DVD/CD Formats
Install new software, restore the hard-drive,
and copy files from all common DVD/CD
formats including: DVD±R, DVD±RW, DVD±R
DL, CD-RW, CD±R, and CD-ROM
www.liteonit.com
eTDU 108
8X EXTERNAL DVD-ROM
Interface
USB2.0
Data Transfer Rate (maximum)
DVD+R
*8X
* In order to reach 24X only certain
recommended high quality media
can be used.
DVD-R
*8X
Random Access Time
To Start
DVD+R DL
6X
DVD-R DL
6X
DVD+RW
6X
DVD-RW
6X
CD-ROM
24X
CD-R
24X
CD-RW
24X
Remove USB cable from the built-in
holder under the drive
Connect mini-B type USB connector to
the drive
DVD family 160 ms
CD family 150 ms
MTBF(Life)
6000POH
Environment Temperature
Operating 5°C to 50°C
Relative Humidity 15% to 80%
(no-condensation)
Non-Operating -40°C to 65°C;
Connect the A type USB connector to
your PC
Relative Humidity: 15% to 95%
(no-condensation)
To Load a Disc
Compatibility
Windows® 7/ XP/ 2003/ Vista & Linux
System Requirements
Pentium 4 1.3GHz or higher CPU and
128MB or higher RAM are required,
HDD must have access time < 20 ms;
with a minimum of
650MB free space,
Slide OPEN latch to the right to release
top cover. Open top cover and insert disc
9GB free space for creating a DVD
image file (9GB for double layer; 5GB
To Remove a Disc
for single layer)
Physical Dimensions
141.8(W) x 19.8(H) x 143.1(L) mm
(5.6" x 7.8" x 5.6")
Weight
<0.3 kg (1.59 lbs)
Press STOP to stop spinning. Slide OPEN
latch to the right to release top cover and
remove disc
HEAD OFFICE
USA
EUROPE
Philips & Lite-On Digital Solutions Corp.
Tel: +886-2-8798-2798
16F, No. 392, Ruey Kuang Road, Neihu, Taipei 114, Taiwan
Fax: +886-2-5581-0868
Philips & Lite-On Digital Solutions USA, Inc.
Tel: +1-510-687-1800
42000 Christy Street, Fremont, CA94538
Fax: +1-510-687-1900
Philips & Lite-On Digital Solutions Netherlands BV.
Tel: +31-40-250-8000
Hoevenweg 13, 5652 AW Eindhoven, The Netherlands
Fax: +31-40-250-8091
