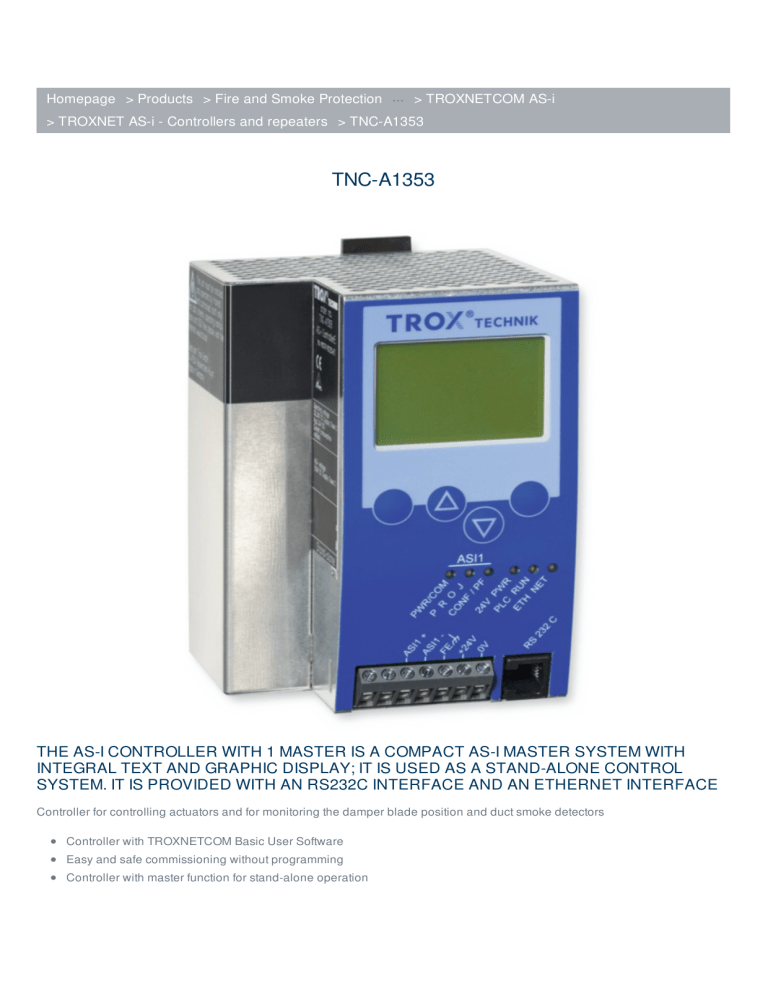

TNC-A1353
THE AS-I CONTROLLER WITH 1 MASTER IS A COMPACT AS-I MASTER SYSTEM WITH
INTEGRAL TEXT AND GRAPHIC DISPLAY; IT IS USED AS A STAND-ALONE CONTROL
SYSTEM. IT IS PROVIDED WITH AN RS232C INTERFACE AND AN ETHERNET INTERFACE
Controller for controlling actuators and for monitoring the damper blade position and duct smoke detectors
Controller with TROXNETCOM Basic User Software
Easy and safe commissioning without programming
Controller with master function for stand-alone operation
System monitoring
Automatic recognition of components and their status
Menu-driven user interface (controller display) for system configuration
Peripheral equipment can be tested without additional auxiliary equipment
APPLICATION
Application
AS-i controller TNC-A1353 with 1 master for 31 AS-i slaves
Decentralised operating and monitoring system with signal preprocessing and
gateway
With TNC Basic User Software
Recognition of all slaves on a bus
For initialising the AS interface network
Error diagnosis and signalling
LC display, 43 × 28 mm, also for operation
Ethernet
Modbus/TCP interface
TECHNICAL INFORMATION
FUNCTION
AS-i controller TNC-A1353
Homepage > Products > Fire and Smoke Protection ... > TROXNETCOM AS-i
> TROXNET AS-i - Controllers and repeaters > TNC-A1353
TECHNOLOGY
Description
TNC-A1353
Supply voltage
24 V DC
Current consumption
< 400 mA
Power consumption
< 10 VA
Programming interface
RS232C: RJ11; 9600 – 115200 Bd, galvanically isolated Ethernet CAA, RJ45; 10/100 MBd
Data interface
Modbus/TCP
Diagnosis via PROFIBUS DP
Yes
PLC memory for user program
128 Kwords
Display
Graphic LC display 128 × 64 pixels, 43 × 28 mm
Max. acceptable rel. humidity
< 95 %
Status LED
1 × red; 2 x green; 3 × yellow
Ambient temperature
0 to 60 °C
Storage temperature
–20 to 70 °C
Protection level
IP 20
MTTF
5.2 years
AS-i profile
M3
AS-i certificate
In preparation
Casing materials
Aluminium, galvanised sheet steel
Casing dimensions
124 × 97 × 86 mm
Fixing
On DIN mounting rail
Home Contacts Imprint Delivery and payment terms Privacy Disclaimer
2017-09-19 © TROX GmbH
Homepage > Products > Fire and Smoke Protection ... > TROXNETCOM AS-i
> TROXNET AS-i - Controllers and repeaters > TNC-A1353
SPECIFICATION TEXT
Standard description (characteristics)
AS-i controller TNC-A1353 (1 master) is a compact AS-i master system with integral text/graphic display and Ethernet interface.
(Modbus TCP)
Control of components as part of fire damper control
Integral TNC Basic User Software with the following functions:
Automatic recognition of TROX modules and their functions
Automatic grouping
Network control
Automatic functional test
Manual control of dampers
Integral display, also for operation
Simple, menu-driven configuration and adjustment
Supply voltage: 24 V DC
Total current consumption from AS-i: < 10 mA
Casing materials: Aluminium, galvanised sheet steel
Ambient temperature: 0 – 60 C°
Protection level: IP 20
Status display: LEDs, 1 x red, 2 x green, 3 x yellow
Make: TROX GmbH or equivalent
Type: TNC-A1353
Home Contacts Imprint Delivery and payment terms Privacy Disclaimer
2017-09-19 © TROX GmbH
Homepage > Products > Fire and Smoke Protection ... > TROXNETCOM AS-i
> TROXNET AS-i - Controllers and repeaters > TNC-A1353
ORDER CODE
Component
TNC-A1305
Controller with PROFIBUS DP interface; 1 master
TNC-A1306
Controller with PROFIBUS DP interface; 2 masters
TNC-A1353
Controller with Modbus/TCP interface; 1 master
TNC-A1354
Controller with Modbus/TCP interface; 2 masters
TNC-A1375
Gateway with PROFIBUS DP interface; 1 master
TNC-A2225
Repeater
TNC-ZB0252
AS-i safety gateway
TNC-Z0119
Passive bus termination
TNC-A1146
AS-i tuner (diagnosis module)
