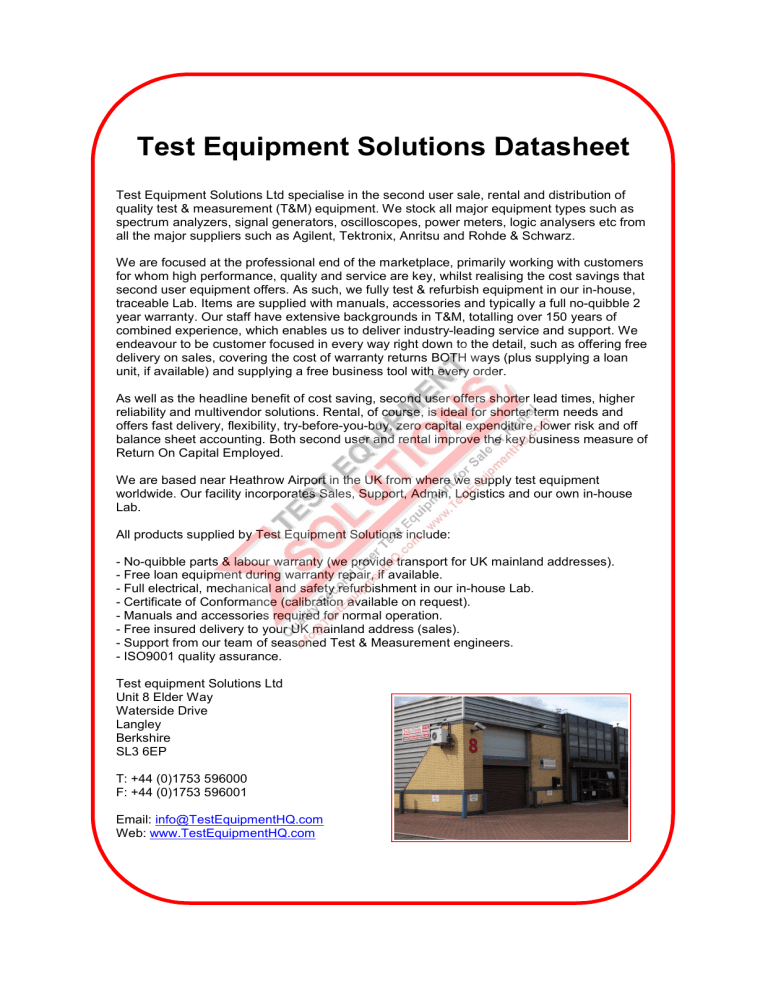

Test Equipment Solutions Datasheet
Test Equipment Solutions Ltd specialise in the second user sale, rental and distribution of
quality test & measurement (T&M) equipment. We stock all major equipment types such as
spectrum analyzers, signal generators, oscilloscopes, power meters, logic analysers etc from
all the major suppliers such as Agilent, Tektronix, Anritsu and Rohde & Schwarz.
We are focused at the professional end of the marketplace, primarily working with customers
for whom high performance, quality and service are key, whilst realising the cost savings that
second user equipment offers. As such, we fully test & refurbish equipment in our in-house,
traceable Lab. Items are supplied with manuals, accessories and typically a full no-quibble 2
year warranty. Our staff have extensive backgrounds in T&M, totalling over 150 years of
combined experience, which enables us to deliver industry-leading service and support. We
endeavour to be customer focused in every way right down to the detail, such as offering free
delivery on sales, covering the cost of warranty returns BOTH ways (plus supplying a loan
unit, if available) and supplying a free business tool with every order.
As well as the headline benefit of cost saving, second user offers shorter lead times, higher
reliability and multivendor solutions. Rental, of course, is ideal for shorter term needs and
offers fast delivery, flexibility, try-before-you-buy, zero capital expenditure, lower risk and off
balance sheet accounting. Both second user and rental improve the key business measure of
Return On Capital Employed.
We are based near Heathrow Airport in the UK from where we supply test equipment
worldwide. Our facility incorporates Sales, Support, Admin, Logistics and our own in-house
Lab.
All products supplied by Test Equipment Solutions include:
- No-quibble parts & labour warranty (we provide transport for UK mainland addresses).
- Free loan equipment during warranty repair, if available.
- Full electrical, mechanical and safety refurbishment in our in-house Lab.
- Certificate of Conformance (calibration available on request).
- Manuals and accessories required for normal operation.
- Free insured delivery to your UK mainland address (sales).
- Support from our team of seasoned Test & Measurement engineers.
- ISO9001 quality assurance.
Test equipment Solutions Ltd
Unit 8 Elder Way
Waterside Drive
Langley
Berkshire
SL3 6EP
T: +44 (0)1753 596000
F: +44 (0)1753 596001
Email: [email protected]
Web: www.TestEquipmentHQ.com
HM8143
Arbitrary Power Supply
Technical Data
PD 5210.8720.32 - 02.00
Technical Data
Key facts
❙ 2x 0 V to 30 V / 1x 5 V, 3x 2 A (130 W)
❙ Linear regulated, two-quadrant power supply (current source and sink)
❙ Realtime voltage and current values
❙ Advanced parallel and serial operation
❙ Setting and readback resolution: 10 mV, 1 mA
❙ Electronic fuse and tracking mode
❙ Front connectors: 4 mm safety sockets
❙ SENSE connectors for line loss compensation (30 V channels)
❙ External modulation of output voltages up to 20 kHz
❙ Arbitrary module: 4,096 points, 12 bit
❙ RS-232/USB dual interface, IEEE-488 (GPIB) optionally
Specifications
Specifications
HM8143
Three-Channel Arbitrary Power Supply
from firmware version 2.45
Electrical Specifications
Total power output
130 W
Number of outputs
3
Front connectors
4 mm saftey sockets
Maximum power per channel
CH1, CH3
CH2
60 W
10 W
Voltage output
CH1, CH3
0 V to 30 V
CH2
5 V (±50 mV)
Current output
all channels
max 2 A
Current sinking
CH1, CH3
max 2 A
Line & load regulation
Constant voltage mode
CH1, CH3
<0.02% + 5 mV
CH2
<0.25% + 10 mV
Constant current mode
CH1, CH3
<0.02% + 5 mA
CH2
(no constant current mode)
Voltage ripple 3 Hz to 300 kHz (front connectors)
CH1, CH3
<5 mVrms
CH2
<1 mVrms
Transient response time (10 % to 90 % load change)
CH1, CH3
<45 µs in a band of ±20 mV of Vset
max. deviation: <800 mV
CH2
<45 µs in a band of ±20 mV of Vset
max. deviation: <200 mV
Modulation Input (CH1, CH3)
Rear connectors
2x BNC
Input level
0 V to 10 V
Accuracy
1 % of full scale
Modulation bandwidth
DC to 20 kHz
Trigger Input (BNC)
Function
Triggering the arbitrary function
Trigger level
TTL
Edge direction
rising, falling
Arbitrary Function (CH1)
Parameter
Voltage, dwell time
Number of Points
max. 4,096
Dwell time
100 µs to 60 s
Repetition rate
continous or burst mode with 1 to 255
repetitions
Resolution
12 Bit
Trigger
interface, trigger input
Remote Interfaces
Standard
Dual interface RS-232 / USB (HO820)
Optional
IEEE-488 (GPIB) interface (HO880)
Miscellaneous
Input power option
115 VAC / 230 VAC (±10 %), 50 Hz to 60 Hz,
CAT II
Power consumption
300 VA
Mains fuses
115 VAC
2x 6 A, slow blow (5 mm x 20 mm)
230 VAC
2x 3.15 A, slow blow (5 mm x 20 mm)
Operating temperature
+5 °C to +40 °C
Storage temperature
-20 °C to +70 °C
Humidity
5 % to 80 %
Display
4x 4 digits, 7-segment LEDs
Dimensions (H x W x D)
75 x 285 x 365 mm
Rack mount capability
(19“ rack mount kit, 2RU)
Yes (HZ42)
Weight
9 kg
The specifications are based on a 30 min warm-up period.
SENSE connectors available for CH1, CH3
Max. SENSE compensation
300 mV
Programming accuracy (23° C ±5° C)
Voltage / Current
CH1, CH3
±3 digits (typ. ±2 digits)
Readback accuracy (23° C ±5° C)
Voltage / Current
CH1, CH3
±3 digits (typ. ±2 digits)
Resolution
Voltage
CH1, CH3
10 mV
Current
CH1, CH3
1 mA
Voltage to earth
max. 150 VDC
Over current protection
(electronic fuse)
Yes
Accessories included:
Line cord, operating manual, software-CD
Recommended accessories:
HZ42 19” rackmount kit, 2 RU
HZ10S 5 x silicon test lead (black)
HZ10R 5 x silicon test lead (red)
HZ10B 5 x silicon test lead (blue)
HO880 IEEE-488 (GPIB) interface card
1
