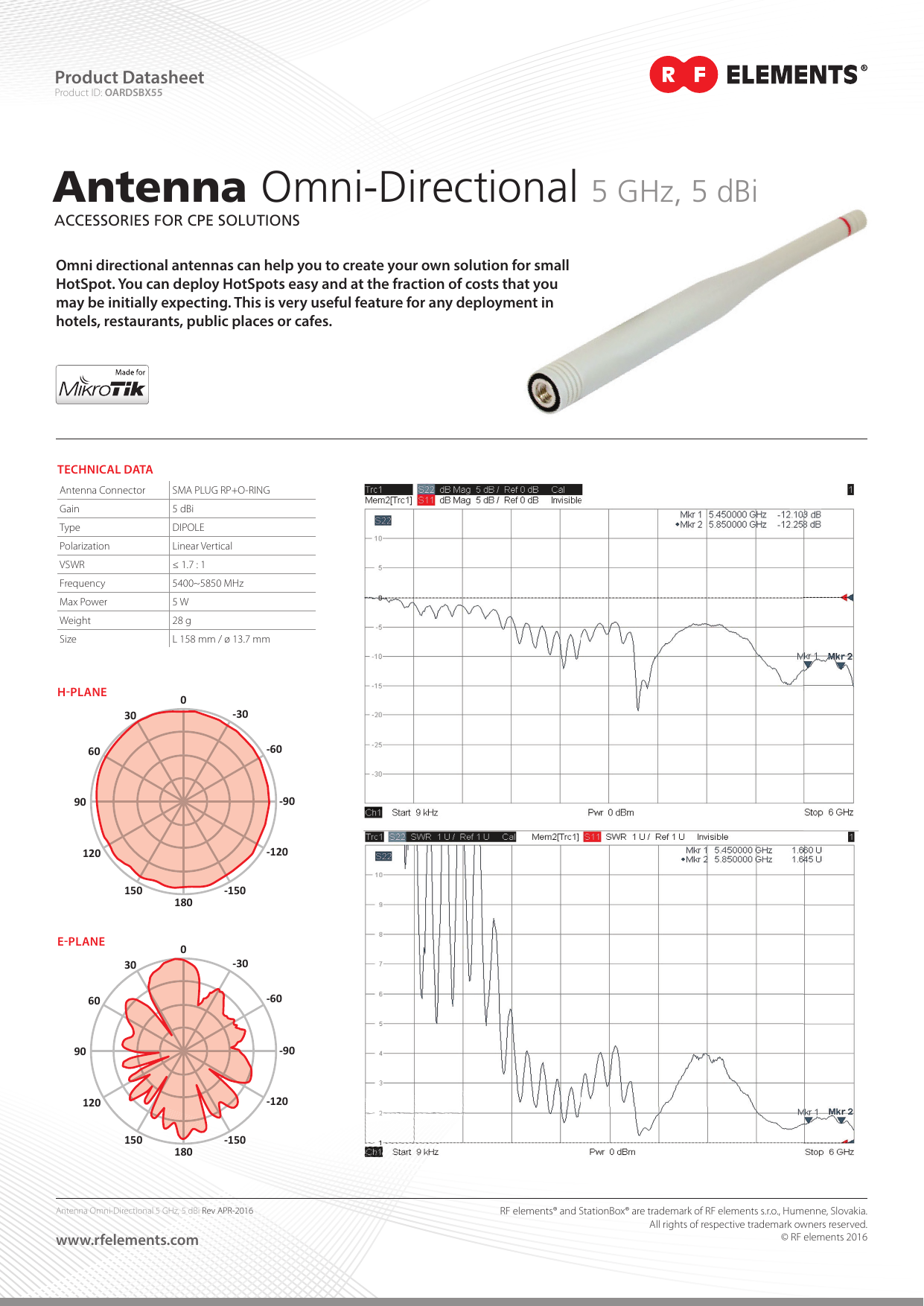

RF elements® OARDSBX55 Antenna Omni-Directional 5 GHz, 5 dBi für CPE Lösungen Datasheet

Product Datasheet
Product ID: OARDSBX55
Antenna Omni-Directional 5 GHz, 5 dBi
ACCESSORIES FOR CPE SOLUTIONS
Omni directional antennas can help you to create your own solution for small
HotSpot. You can deploy HotSpots easy and at the fraction of costs that you
may be initially expecting. This is very useful feature for any deployment in
hotels, restaurants, public places or cafes.
TECHNICAL DATA
Antenna Connector
SMA PLUG RP+O-RING
Gain
5 dBi
Type
DIPOLE
Polarization
Linear Vertical
VSWR
≤ 1.7 : 1
Frequency
5400~5850 MHz
Max Power
5W
Weight
28 g
Size
L 158 mm / ø 13.7 mm
H-PLANE
0
30
-30
-60
60
-90
90
-120
120
150
E-PLANE
180
0
30
-150
-30
-60
60
-90
90
-120
120
150
180
-150
Antenna Omni-Directional 5 GHz, 5 dBi Rev APR-2016
www.rfelements.com
RF elements® and StationBox® are trademark of RF elements s.r.o., Humenne, Slovakia.
All rights of respective trademark owners reserved.
© RF elements 2016
