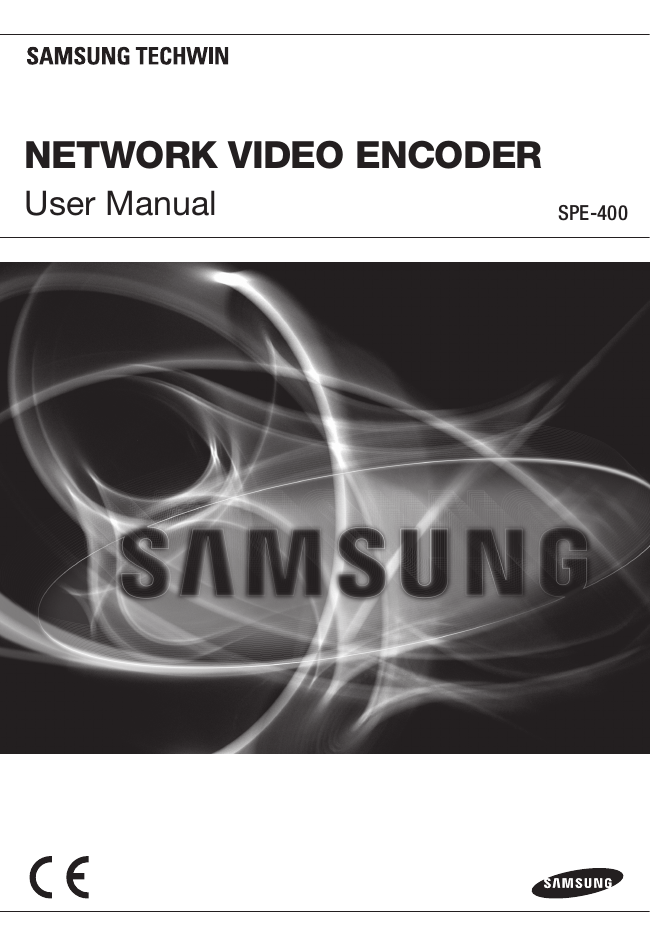

NETWORK VIDEO ENCODER

User Manual

SPE-400

Network Video Encoder

User Manual

Copyright

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

English _3

overview warninG

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC

OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS

ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

caution

riSK of eLectric SHocK.

Do not open

CAUTION

: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

eXpLanation of GrapHicaL SymBoLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

4_ overview

class construction

An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion.

caLifornia uSa onLy

This Perchlorate warning applies only to primary CR (Manganese Dioxide)

Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”

caution

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Please use the input power with just one camera and other devices must not be connected.

English _5

overview

Please read the following recommend safety precautions carefully.

y

Do not Place this apparatus on an uneven surface.

y

Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

y

Do not place this apparatus near conductive material.

y

Do not attempt to service this apparatus yourself.

y

Do not place a glass of water on the product.

y

Do not install near any magnetic sources.

y

Do not block any ventilation openings.

y

Do not place heavy items on the product.

User’s Manual is a guidance book how to use the products

The meaning of the using sign in the book is following y

Reference : In case of providing information for helping of product’s usages y

Notice : If there’s any possibility to occur any damages for the goods and human caused by not following the instruction



Please read this manual for the safety before using of goods and keep it in the safe place.

6_ overview

oVERViEw

Important Safety Instructions

Product Features

9 Recomended PC Specifications

9 Recomended SD/SDHC Memory

Card Specifications

10 What’s Included

11 At a Glance

iNSTALLATioN &

CoNNECTioN

14 Inserting/Removing an SD

Memory Card

15 Memory Card Information (Not

Included)

16 Connecting with other Device

NETwoRk CoNNECTioN

AND SETup

21 Connecting the Network video encoder Directly to Local Area

Networking

22 Connecting the Network video encoder Directly to a DHCP

Based DSL/Cable Modem

23 Connecting the Network video encoder Directly to a PPPoE

Modem

24 Connecting the Network video encoder to a Broadband Router with the PPPoE/Cable Modem

25 Buttons used in IP Installer

26 Static IP Setup

29 Dynamic IP Setup

30 Port Range Forward (Port

Mapping) Setup

33 Connecting to the Network

Device from a Shared Local PC

33 Connecting to the Network video encoder from a Remote PC via the Internet

English _7

overview

wEb ViEwER

34 Connecting to the Network Video encoder

35 Login

36 Installing Silverlight Runtime

38 Using the Live Screen

39 Using the Camera Menu

42 Playback

43 Playing the Backup Recordings

SETup SCREEN

44 Setup

44 Audio & Video Setup

48 Network Setup

54 Event Setup

60 System Setup

AppENDix

65 Specification

67 Product Overview

68 Troubleshooting

70 Open Source Announcement

71 License

74 GPL/LGPL Software License

8_ overview

proDuct featureS

y multi-Streaming

This network video encoder can display videos in different resolutions and qualities simultaneously using different CODECs.

However, MPEG-4 video can not be played on a web page. Use CMS software if you want to play the video on a web page.

Support various communication protocols y web Browser-based monitoring

Using the Internet web browser to display the image in a local network environment.

y alarm

If an event occurs, the event-related video will be transferred to the Email specified by the user or saved to the SD memory, or the event signal will be sent to the Alarm Out port.

y onvif compliance

This product supports ONVIF.

For more information, refer to www.onvif.org.

recomenDeD pc SpecificationS

CPU : Intel(R) Core(TM)2 2.00 GHz or higher y

Operating System : Windows XP, VISTA, 7

Mac OS y

Resolution : 1280X1024 pixels or higher y

RAM : 1GB or higher y

Web Browser : Internet Explorer 7.0 or higher, Firefox, Chrome, Safari y

Video Memory : 128MB or higher

recomenDeD SD/SDHc memory carD SpecificationS

2GB ~ 32GB y

To ensure proper recording of video data, we recommend you use a memory card that supports at least read/write speed 10Mbps and Class 6.

For your network video encoder, we recommend you use a memory card from the following manufacturers: SD/SDHC Memory Card : Sandisk, Transcend

English _9

overview

wHat’S incLuDeD

Please check if your network video encoder and accessories are all included in the product package.

Appearance Item Name Quantity Description

Network Video Encoder 1

CH1

AUDIO IN AUDIO OUT

CH1 CH2 CH3

VIDEO IN

CH4

CH1 CH2

CH3 CH4

NETWORK

RESET

Instruction book,

Installation CD

CMS S/W DVD

User manual, Quick Guide,

IP Installer S/W Program

NET-i viewer S/W Program

Quick Guide 1

ASSY-Tapping Screw 4 Used for installation on the wall or ceiling

10_ overview

at a GLance front Side

CH1 CH2 CH3 CH4

CH1

AUDIO IN AUDIO OUT

CH1 CH2

CH3 CH4

NETWORK

RESET a b

VIDEO IN c d e a b

Item

AUDIO IN

AUDIO OUT

Description

Audio input terminal which brings sound to the network video encoder.

Used to connect the microphone.

Audio output terminal which outputs sound from the network video encoder.

Used to connect the speaker.

VIDEO IN (CH 1~CH 4) Used to connect the BNC video input signal.

Network connection indicator (CH 1~CH 4) Display the network connection status for each channel.

Reset Button

Hold it down for 5 seconds to return all your settings to the factory default.

If you reset the network video encoder, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.

For more information on IP settings, refer to “Network Setup”.(page 48)

Audio I/O can be performed only in channel 1.

English _11

overview

rear Side

Item a

Network Port b

I/O Port c

ETHERNET

D1+ D1 D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4

RS-485 SENSOR RELAY OUT a b

SD Memory Card

Compartment

SD CARD (CH1)

POWER

DC 12V

c d

Description

Used to connect a Ethernet cable.

D+ (1~4)

D- (1~4)

S1~S4

R1~R4

CM1~CM4

RS-485 Data Line

Alarm In

GND

Alarm Relay Output

Alarm Out (Common)

Compartment for the SD memory card.

e f

12_ overview

Item d

Power,

SD Indicators

POWER

Description

ON : A memory card is inserted and operates normally.

Flashing : Failed to record, insufficient space, or inserted abnormally.

OFF : Network video encoder is off, network video encoder is restarting, or memory card is not in place,

When record is off.

ON : While the power is on.

OFF : If the power is off.

Used to connect the specified power source.

Used for earth-grounding.

Power Port f

GND

The SD memory can be performed only in channel 1.

channel i/o port table

CH 1

CH 2

RS-485 SENSOR RELAY OUT

D1+, D1S1, G R1, CM1

D2+, D2S2, G R2, CM2

CH 3

CH 4

RS-485 SENSOR RELAY OUT

D3+, D3S3, G R3, CM3

D4+, D4S4, G R4, CM4

English _13

ETHERNET

D1+ D1- D2+D2- D3+ D3- D4+

RS-485

D4- G S1 S2 S3 S4 G

R1 CM1 R2 CM2 R3 CM3 R4 CM4

SENSOR RE

LAY OUT

SD CARD (CH1)

POWER

DC 12V

inSertinG/removinG an SD memory carD

ETHERNET SD

RS-485

D4- G S1 S2 S3 S4 G

SENSOR RE

LAY OUT

inserting an SD memory card

SD CARD (CH1)

POWER

DC 12V

Push the SD memory card in the direction of the arrow shown in the diagram.

ETHERNET

D1+ D1- D2+D2- D3+ D3- D4+

RS-485

D4- G S1 S2 S3 S4 G

R1 CM1 R2 CM2 R3 CM3 R4 CM4

SENSOR RE

LAY OUT

CM4

SD CARD (CH1)

POWER

DC 12V

ETHERNET

D1+ D1- D2+D2- D3+ D3- D4+

RS-485

D4- G S1 S2 S3 S4 G

R1 CM1 R2 CM2

SENSOR RE R3 CM3 R4 CM4

LAY OUT

SD CARD (CH1)

POWER

DC 12V

Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the

SD memory card.

removing an SD memory card

ETHERNET

SD D1+ D1- D2+D2- D3+ D3- D4+

RS-485

D4- G S1 S2 S3 S4 G

R1 CM1 R2 CM2 R3 CM3 R4

LAY OUT

CM4

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

SD CARD (CH1)

POWER

DC 12V

ETHERNET

D1+ D1- D2+D2- D3+ D3- D4+

RS-485

D4- G S1 S2 S3 S4 G

R1 CM1 R2 CM2 R3 CM3 R4

LAY OUT

CM4

SD CARD (CH1)

POWER

DC 12V

ETHERNET

RS-485

D4- G S1 S2 S3 S4 G

R1 CM1 R2 CM2 R3 CM3 R4

LAY OUT

CM4

SD CARD (CH1)

POWER

DC 12V

Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the slot when released.

To remove the SD memory card, set <Record> to <Off> from <SD record> and press [Apply

( )]. (page 56)

If you have saved data in the SD memory card, removing the SD memory card prior to setting record to OFF will cause damage to the data stored in the card.

If the SD memory is inserted and when record is on, the SD LED indicator on the rear of the network video encoder will turn on.

If there occurs a problem in the SD memory, the SD LED indicator will blink.

14_ installation & connection

memory carD information (not incLuDeD) what is a memory card?

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Selecting a memory card that’s suitable for you

Your network video encoder supports SD/SDHC memory cards.

You may, however, experience compatibility issues depending on the model and make of the memory card.

Playback performance can be affected depending on the speed of memory card, so use the high-speed memory card.

memory card use

SD and SDHC memory cards feature a switch that disables writing data on to the media.

Having this switch to the Lock position will prevent accidental deletion of data stored in the memory card but at the same time will also prevent you from writing data on to the media.

❖ memory card components

Contacts

Lock Switch

SD/SDHC

English _15

installation & connection

connectinG witH otHer Device connecting the camera

Connect the [viDeo in] port of the network video encoder to the video output port of the camera.

Camera Camera

CH1

AUDIO IN AUDIO OUT

CH1 CH2 CH3

VIDEO IN

CH4

CH1 CH2

CH3 CH4

NETWORK

RESET

Camera Camera

16_ installation & connection

ethernet connection

Connect the Ethernet cable to the local network or to the Internet.

power Supply

Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the network video encoder.

Be careful not to reverse the polarity when you connect the power cable.

You can also use a router featuring PoE (Power over Ethernet) to supply power to the device.

If PoE and DC 12V are both applied, this device will get supplied with power from PoE.

If you want to connect an external device, you must turn off the external device before proceeding.

ETHERNET D1+ D1-

D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4

RS-485 SENSOR RELAY OUT

SD CARD (CH1)

POWER

DC 12V

Ethernet Power electrical resistance of copper wire at [20°c (68°f)]

Copper Wire Gauge (AWG)

Resistance (Ω/m)

Drop Voltage (V/m)

Recommended Distance (m)

#24(0.22mm

) #22(0.33mm

) #20(0.52mm

) #18(0.83mm

)

0.078

0.050

0.030

0.018

0.028

Less than 20

0.018

Less than 30

0.011

Less than 30

0.006

Less than 30

` As shown in the table above, you may encounter a voltage-sag depending on the wire length.

If you use an excessively long wire for network video encoder connection, the network video encoder may not work properly.

- Network Video Encoder Operating Voltage : DC 12V±10%

- Voltage drop measurements on the chart above may vary depending on the type and manufacture of the copper cable.

English _17

installation & connection

connecting to audio input/output

Speaker

Microphone

network

Camera

Microphone

CH1

AUDIO IN AUDIO OUT

CH1

CH2

VIDEO IN

CH3

CH4

CH1 CH2

CH3 CH4

NETWORK

RESET

Amp Speaker

Microphone Amp

1. Connect the AUDIO IN port of the network video encoder with the microphone directly or LINE OUT port of the amplifier that the microphone is connected to.

2. Connect the AUDIO OUT port of the network video encoder with the LINE IN port of the speaker.

3. Check the specifications for audio input.

Audio I/O can be performed only in channel 1.

18_ installation & connection

y audio codec

G.711 PCM. μ-law 64kbps 8kHz sampling y full duplex audio y audio in

Used for mono signal line input (Max.2.4 Vpp) y audio out

Used for mono signal line output (Max.2.4 Vpp) y

Line out impedance

600Ω

alarm i/o wiring Diagram

GND

ALARM IN S1

ALARM IN S2

ALARM IN S3

ALARM IN S4

GND

ALARM OUT R1

(NO)

ALARM COM1

ALARM OUT R2

(NO)

ALARM COM2

ALARM OUT R3

(NO)

ALARM COM3

ALARM OUT R4

(NO)

ALARM COM4

(12mA sink)

(24VDC 1A,

125VAC 0.5A MAX)

(24VDC 1A,

125VAC 0.5A MAX)

(24VDC 1A,

125VAC 0.5A MAX)

(24VDC 1A,

125VAC 0.5A MAX)

For controlling the power with electrical contacts, a separate circuit is required.

English _19

installation & connection

connecting to the i/o port box

Connect the Alarm I/O signal to the corresponding port of the rear port box.

ETHERNET

D1+ D1 D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4

RS-485 SENSOR RELAY OUT

SD CARD (CH1)

POWER

DC 12V

D1+ D1 D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4

RS-485 SENSOR RELAY OUT

Port Description

D+(1~4) RS-485 Data Line

D-(1~4) RS-485 Data Line

S1~S4 Alarm In

Port Description

R1~R4 Alarm Relay Output

CM1~CM4 Alarm Out (Common)

G GND

connecting to the rS-485 device

Connect the external device to the [rS-485 D+, D-] ports.

You can connect and control PTZ camera that supports RS-485 communication.

` Depending on camera’s type, connection polarity can be different.

For further information, refer to the corresponding PTZ Camera’s documentation.

connecting to the alarm input

Connect one signal cable (out of 2) of applicable sensor to the [S1] port, and the other to the [G] port.

connecting the alarm output

Connect one signal cable (out of 2) of applicable external device to the [reLay out], and the other to the [cm] port.

You must use the specific RS-485 alarm I/O ports for each channel.

20_ installation & connection

network connection and setup

You can set up the network settings according to your network configurations.

connectinG tHe networK viDeo encoDer DirectLy to LocaL area networKinG connecting to the network video encoder from a local pc in the Lan

1. Launch an Internet browser on the local PC.

2. Enter the IP address of the network video encoder in the address bar of the browser.

CH2 CH3

CH4

CH1

CH1 CH2

CH3 CH4

NETWORK

RESET

VIDEO IN

AUDIO IN A

UDIO OUT

Network Video Encoder

CH4

CH3 CH1 CH2

CH1 CH2

CH1 CH3 CH4

NETWORK

RESET

VIDEO IN

AUDIO IN AU

DIO OUT

Network Video Encoder

Firewall

INTERNET

External Remote PC

Local PC

DDNS Server

(Data Center, KOREA)

A remote PC in an external Internet out of the LAN network may not be able to connect to the network video encoder installed in the intranet if the port-forwarding is not properly set or a firewall is set.

In this case, to resolve the problem, contact your network administrator.

By factory default, the IP address will be assigned from the DHCP server automatically.

If there is no DHCP server available, the IP address will be set to 192.168.1.100~103(CH 1~CH 4).

To change the IP address, use the IP Installer.

For further details on IP Installer use, refer to “Static IP Setup”. (Page 26)

English _21

network connection and setup

connectinG tHe networK viDeo encoDer DirectLy to a DHcp BaSeD DSL/caBLe moDem

INTERNET

CH1

CH2

CH3 CH4

VIDEO IN

CH1 CH2

CH3 CH4

NETWORK

RESET

Network Video Encoder

DSL/Cable Modem

External Remote PC

DDNS Server

(Data Center, KOREA)

1. Use the cross cable to manually connect between your PC and network video encoder.

2. Run the IP Installer and change the IP address of the network video encoder so that you can use the web browser on your desktop to connect to the Internet.

3. Use the Internet browser to connect to the network video encoder.

4. Move to [Setup] page.

5. Move to [network] – [DDnS] and configure the DDNS settings.

6. Move to [network] – [interface], and set the network type to [DHcp].

7. Connect the network video encoder, which was removed from your PC, directly to the modem.

8. Restart the network video encoder.

For registering the DDNS settings, refer to “Registering with DDNS”. (page 50)

For configuring the DDNS settings, refer to “DDNS”. (page 49)

For setting the network type, refer to “Interface”. (page 48)

22_ network connection and setup

connectinG tHe networK viDeo encoDer DirectLy to a pppoe moDem

INTERNET

CH3

CH4

CH1 CH2

CH3 CH4

NETWORK

RESET

CH1

UDIO OUT

AUDIO IN A

VIDEO IN

Network Video Encoder

PPPoE Modem

External Remote PC

DDNS Server

(Data Center, KOREA)

1. Use the cross cable to manually connect between your PC and network video encoder.

2. Run the IP Installer and change the IP address of the network video encoder so that you can use the web browser on your desktop to connect to the Internet.

3. Use the Internet browser to connect to the network video encoder.

4. Move to [Setup] page.

5. Move to [network] – [DDnS] and configure the DDNS settings.

6. Move to [network] – [interface], and set the network type to [pppoe].

7. Connect the network video encoder, which was removed from your PC, directly to the modem.

8. Restart the network video encoder.

For registering the DDNS settings, refer to “Registering with DDNS”. (page 50)

For configuring the DDNS settings, refer to “DDNS”. (page 49)

For setting the network type, refer to “Interface”. (page 48)

English _23

network connection and setup

connectinG tHe networK viDeo encoDer to a

BroaDBanD router witH tHe pppoe/caBLe moDem

This is for a small network environment such as homes, SOHO and ordinary shops.

CH3 CH4 CH1 CH2

CH2

CH1

CH3 CH4

NETWORK

RESET

VIDEO IN

AUDIO IN A UDIO OUT

Network Video Encoder

CH4

CH3 CH1 CH2

CH1 CH2

CH1

RESET

CH3 CH4

NETWORK

VIDEO IN

AUDIO IN AU

DIO OUT

Network Video Encoder

Broadband Router

PPPoE or

Cable Modem

INTERNET

PPPoE or

Cable Modem

External Remote PC

Local PC

DDNS Server

(Data Center, KOREA)

configuring the network settings of the local pc connected to a

Broadband router

Configuring the network settings of the local PC connected to a Broadband Router, follow the instructions below.

Select : <network neighborhood>  <properties>  <Local area connection>



<properties>  <General>  <internet protocol (tcp/ip)>  <properties> 

<obtain an ip address automatically> or <use the following ip address>.

Follow the instructions below if you select <use the following ip address>: ex1) If the address (LAN IP) of the Broadband Router is 192.168.1.1

IP address : 192.168.1.100

Subnet Mask : 255.255.255.0

Default Gateway : 192.168.1.1

ex2) If the address (LAN IP) of the Broadband Router is 192.168.0.1

IP address : 192.168.0.100

Subnet Mask : 255.255.255.0

Default Gateway : 192.168.0.1

ex3) If the address (LAN IP) of the Broadband Router is 192.168.xxx.1

IP address : 192.168.xxx.100

Subnet Mask : 255.255.255.0

Default Gateway : 192.168.xxx.1

For the address of the Broadband Router, refer to the product’s documentation.

Refer to the “Port Range Forward (Port Mapping) Setup” section of the Broadband Router’s documentation. (Page 30)

24_ network connection and setup

ButtonS uSeD in ip inStaLLer

a b c d e f g

Item a

Device Name b

Alias c

Mode d

MAC(Ethernet)

Address e f

IP Address

Protocol h i j k l m

Description

Model name of the connected network device.

Click the column to sort the list by model name.

However, search will be stopped if clicked during the search.

Channel name of a connected network device.

Displays either <Static> or <Dynamic> for the current network connection status.

Ethernet address of the connected network device.

Click the column to sort the list by Ethernet address.

However, search will be stopped if clicked during the search.

IP address.

Click the column to sort the list by IP address.

However, search will be stopped if clicked during the search.

The factory default is “192.168.1.100~103”.

Network settings of the network device.

The factory default is “IPv4”.

Network device with the IPv6 setting will be displayed “IPv6”.

English _25

network connection and setup g

URL

Item h

IPv4 i

IPv6 j

Search k

Auto Set l

Manual Set m

Exit

Description

Shows URL address.

Scans for network device with the IPv4 setting.

Scans for nnetwork device with the IPv6 setting.

Activated in an IPv6 compliant environment.

Scans for network devices that are currently connected to the network.

However, this button will be grayed out if neither IPv4 nor IPv6 is checked.

The IP Installer automatically configures the network settings.

You should configure the network settings manually.

Exits the IP Installer program.

For the IP installer, use only the installer version provided in the installation CD.

Static ip Setup manual network Setup

Run <ip installer_vX.XX.exe> to display the network device search list.

At the initial startup, both [auto Set] and [manual Set] will be grayed out.

For network devices found with the IPv6 setting, these buttons will be grayed out as the network devices do not support this function.

1. Select a network device. in the search list.

Find the MAC (Ethernet) address labeled on the rear of the network device.

Both the [auto Set] and [manual Set] buttons will be activated.

2. Click [manual Set].

The Manual Setting dialog appears.

The default values of <ip address>, <Subnet mask>, <Gateway>, <Http port> and <vnp port> of the network device will be displayed.

26_ network connection and setup

3. In the <address> pane, provide the necessary information.

MAC (Ethernet) Address : The MAC

(Ethernet) address assigned to the network device will be set and displayed automatically so you don’t need to assign it manually.

You can configure the static IP settings only if the DHCP checkbox is unchecked.

if using a broadband router y

IP Address : Enter an address falling in the IP range provided by the Broadband router. ex) 192.168.1.2~254, 192.168.0.2~254,

192.168.XXX.2~254 y

Subnet Mask : The <Subnet mask> of the Broadband router will be the

<Subnet mask> of the network video encoder.

Gateway : The <Local ip address> of the Broadband router will be the

<Gateway> of the network video encoder.

The settings may differ depending on the connected Broadband router model.

For more information, refer to the user manual of the applicable router.

Refer to the “Port Range Forward (Port Mapping) Setup” section of the Broadband router’s documentation. (Page 30) if not using a broadband router

For setting <ip address>, <Subnet mask>, and <Gateway>, contact your network administrator.

4. In the <port> pane, provide necessary information.

HTTP Port : Used to access the network device using the Internet browser, defaulted to 80.

Use the spin button to change the

HTTP Port value. y

VNP Port : Used to control the video signal transfer, defaulted to 4520.

5. Enter the password.

This is the login password for the “admin” user who accesses the network device.

The default password is “4321”.

English _27

network connection and setup

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

6. Click [oK].

Manual network setup will be completed.

if the Broadband router has more than one network video encoder connected

Configure the IP related settings and the Port related settings distinctly with each other.

IP related settings

auto network Setup

Run <ip installer_vX.XX.exe> to display the network device search list.

At the initial startup, both [auto Set] and [manual Set] will be grayed out.

For network devices found with the IPv6 setting, these buttons will be grayed out as the network devices do not support this function.

1. Select a network device. in the search list.

Find the MAC (Ethernet) address labeled on the rear of the network device.

Both the [auto Set] and [manual Set] buttons will be activated.

2. Click [auto Set].

The Auto Setting dialog appears.

The <ip address>, <Subnet mask>, and <Gateway> will be set automatically.

28_ network connection and setup

3. Enter the password.

This is the login password for the “admin” user who accesses the network device.

The default password is “4321”.

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

4. Click [oK].

Auto network setup will be completed.

Dynamic ip Setup

Dynamic ip environment Setup

Example of the Dynamic IP environment

- If a Broadband Router, with network video encoders connected, is assigned an IP address by the DHCP server

- Network device is connected to a DHCP based modem directly

- If IPs are assigned by the internal DHCP server via the LAN checking the Dynamic ip

1. From a local PC, run <ip installer> to display a list of network devices that are assigned <Dynamic ip>.

2. Select a network device in the list, and click [manual Set] to check the

<Dynamic ip> of the network device.

If you uncheck <DHcp>, you can change IP to <Static>.

English _29

network connection and setup

port ranGe forwarD (port mappinG) Setup

If you have installed a Broadband Router with a network video encoder connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the network video encoder in it.

manual port range forwarding

1. From the Setup menu of the Broadband Router, select <applications &

Gaming> - <port range forward>.

For setting the port range forward for a third-party Broadband Router, refer to the user guide of that Broadband

Router.

2. Select <tcp> and <uDp port> for each connected network video encoder to the Broadband Router.

Each port number for the Broadband

Router should match that specified in

<network> - <port> from the network video encoder's Setup menu.

3. When done, click [Save Settings].

Your settings will be saved.

Above sample instructions are based on the CISCO’s Broadband Router (Model: LINKSYS).

The settings may differ depending on the connected Broadband Router model.

For more information, refer to the user manual of the applicable router.

30_ network connection and setup

port forwarding for the network video encoder

If the network video encoder (SPE-400) is connected to the router, you must set the port forwarding for any one channel of the network video encoder (SPE-400) to port no. TCP 943.

If you don't set properly the TCP 943 port of the router, you cannot get any video stream from the web page of the network video encoder.

TCP 943 port is a port for the Silverlight policy server of a network video encoder.

You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. y

You cannot change the Silverlight policy server port of a network video encoder. y

You can change the ports of the network video encoder except the policy server port through its configuration web pages.

English _31

network connection and setup

Ex) If the network video encoder (SPE-400) is connected to the router

4522

4523

8080

8081

8082

8083

Start

943

3000

3001

3002

3003

4520

4521

User



Internet

3003

4520

4521

4522

4523

8080

8081

8082

8083

End

Broadband Router

943

3000

3001

3002

Protocol

TCP

TCP/UDP



IP Address

192.168.1.100

192.168.1.101

192.168.1.102

192.168.1.103

192.168.1.100

192.168.1.101

192.168.1.102

192.168.1.103

192.168.1.100

192.168.1.101

192.168.1.102

192.168.1.103



CH 1 (192.168.1.100)

Web Server Port

VNP Port

RTSP Port

Policy Server Port

8080

4520

3000

943



CH 2 (192.168.1.101)

Web Server Port

VNP Port

RTSP Port

Policy Server Port

8081

4521

3001

943

CH 3 (192.168.1.102)

Web Server Port

VNP Port

RTSP Port

Policy Server Port

8082

4522

3002

943

CH 4 (192.168.1.103)

Web Server Port

VNP Port

RTSP Port

Policy Server Port

8083

4523

3003

943

32_ network connection and setup

connectinG to tHe networK Device from a

SHareD LocaL pc

1. Run the IP Installer.

Searches for connected network devices and displays on the list.

2. Double click the desired network device to connect to.

The Internet browser starts and connects to the network device.

You can also access the vieo encoder in such way you type the IP address of the found network device in the address bar of the Internet browser.

connectinG to tHe networK viDeo encoDer from a remote pc via tHe internet

Since using the IP Installer on a remote computer that is not in the Broadband Router’s network cluster is not allowed, users can access network video encoders within a Broadband Router’s network by using the network video encoder’s DDNS URL.

1. Before you can access a network video encoder in the Broadband Router network, you should have set the port range forward for the Broadband Router.

2. From the remote PC, launch the Internet browser and type the DDNS URL address of the network video encoder, or the IP address of the Broadband Router in the address bar. ex) http://www.samsungipolis.com/[Product ID]

English _33

web viewer

connectinG to tHe networK viDeo encoDer normally, you would

1. Launch the Internet browser.

2. Type the IP address of the network video encoder in the address bar. ex) • IP address (IPv4) : 192.168.1.100



http://192.168.1.100

- the Login dialog should appear.

• IP address (IPv6) : 2001:230:abcd:ffff:

0000:0000:ffff:1111



http://[2001:230:abcd:ffff::ffff:1111]

-the Login dialog should appear.

if the Http port is other than 80

1. Launch the Internet browser.

2. Type the IP address and HTTP port number of the network video encoder in the address bar. ex) IP address : 192.168.1.100:HTTP Port number(8080)



http://192.168.1.100:8080 - the Login dialog should appear.

using urL

1. Launch the Internet browser.

2. Type the DDNS URL of the network video encoder in the address bar. ex) URL address : http://www.samsungipolis.com/[Product ID]

- the Login dialog should appear.

34_ web viewer

to check the DDnS address

If the network video encoder is connected directly to the DHCP cable modem, DSL modem, or PPPoE modem, the IP address of your network will be changed each time you try to connect to the ISP (Internet Service Provider) server.

If this is the case, you will not be informed of the IP address changed by DDNS.

Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP when you try to access the device.

To add the IP address to the <DDnS> server, visit www.samsungipolis.com and register your device, and set the DDNS option to <Samsung DDnS> before providing the user ID and password for the DDNS server.

LoGin

The default user ID is “admin”, and the default password is “4321”.

1. Enter “admin” in the <user name> input box.

2. Enter “4321” in the <password> input box.

If the password is changed, enter the changed password instead.

3. Click [oK].

If you have logged in successfully, you will the Live Viewer screen.

For security purposes, ensure that you change the password in <System>

- <User>.

The administrator ID, “admin”, is fixed and can not be changed.

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

If you check the “Remember my password” option when your input is done, in future you will be logged in automatically without being prompted to enter the login information.

You will experience the best video quality if the screen size is 100%. Reducing the ratio may cut the image on the borders.

English _35

web viewer

This network video encoder uses Microsoft Silverlight for displaying the video.

inStaLLinG SiLverLiGHt runtime

If your PC has not installed Silverlight Runtime or has just installed an old runtime version, you will be redirected to the Silverlight Runtime installation page automatically when accessing the web viewer.

1. Click <click Here>.

2. When the file download dialog pops up, click <run>.

3. When the download is completed, click

<run>.

4. The Silverlight Runtime installation page will be displayed. <install now> to proceed with the installation.

36_ web viewer

5. When done, click <close>.

6. Close and restart the web browser, and try to access the Web Viewer.

When Silverlight Runtime is properly installed, you will see the Live screen.

For normal installation, set the Block

Popup setting as follows: ex) Internet Explorer  Tools  Block

Popup  Turn Off Pop-up Blocker (B)

However, MAC OS X users who are not connected to the Internet can use the provided installation

CD to install Silverlight Runtime (Run the executable “Silverlight_xxx.dmg” in the CD. You will be guided through installation of the software).

English _37

web viewer

uSinG tHe Live Screen

Item a

Monitoring b

Playback

Move to the monitoring screen.

Switch to the monitoring screen that plays recording data in the SD memory.

Setup Move to the Setup screen.

Viewer Screen Displays the Live video on the screen.

Description e

Alarm Output Activate the Alarm Out port.

Audio g

Hide the alarm indicator

Display the audio Listen and Talk toggle button on the screen. (Only CH 1 activated)

Hides the alarm indicator near the border of the viewer screen.

` In the following cases, the alarm message will pop up on the border of the viewer.

- If an event (Alarm, motion detection) occurs

- If the network video encoder is turned off

- If the network is disconnected

38_ web viewer

Item h

Camera Menu i

PTZ j

Digital PTZ k

Screen

Optimization,

Full Screen l

Capture m

Video Format

Description

Used to retrieve and customize connected camera's Setup menu.

For selecting and saving each menu item, refer to “Using the Camera Menu”. (page 39)

You can control Pan/Tilt/Zoom/Focus of the cameras that are connected to the network video encoder.

You can use the mouse wheel to activate the digital zooming.

Adjust the screen to the optimal size, and display the Full Screen icon on the Live screen.

Saves the snapshot as an image file in the .bmp format.

You can select a profile type in <Video profile> under the <Audio & Video> setup menu.

If the “Invalid codec” message is displayed, select a profile type from the profile list again.

If the temperature drops below the operational range, video signal may not be produced. In such cases, please wait for the video.

uSinG tHe camera menu

Used to retrieve and customize the connected Camera Setup menu.

1. Launch the Web Viewer.

2. Click [camera menu ( corner of the Live screen.

)] in the left

The camera setup menu appears.

3. Use the Up/Down (▲/▼) buttons to move to a desired item.

4. Click [enter ( )]. Then, use the up/down (▲/▼) button to move to a desired item.

5. To access a sub menu item, click [enter ( )].

6. To move to previous menu or exit the menu setup, click [cancel (

The camera menu may different depend on camera.

For more information, refer to camera's user manual.

)] button.

English _39

web viewer

to control the ptZ function

You can control the operations of a network camera that supports the PTZ control.

` If the PTZ function is not controllable, check the RS-485 connection status of the camera and network video encoder.

1. Press the [ptZ ( )] button.

2. When the PTZ button bar appears on the screen, use the direction buttons to adjust the camera angle, zoom factor or focus to your preference.

to capture the snapshot

1. Click [ ] on the scene to capture.

The Capture dialog should appear.

2. Click [Save] button.

The screenshot will be saved in the specified path.

If you encounter an interrupted video when capturing the image with IE8 on a

Windows 7-based PC, deselect “Turn On

Protected Mode” from “Tools – Internet

Options – Security”.

40_ web viewer

to toggle the audio sound

1. Click the [audio ( )] button.

The corresponding button will be displayed in the Viewer.

2. Click the button to listen to / mute the sound as you wish.

This button operates as a toggle button.

to toggle the microphone sound

1. Click the [mic ( )] button.

The corresponding button will be displayed in the Viewer.

“Cannot find audio recording device” message appears if there is no

Microphone.

2. Click the button to start / stop talking.

This button operates as a toggle button.

The Silverlight permission dialog appears when you click the microphone button.

to fit the full screen

1. Click the [full Screen ( )] button.

The corresponding button will be displayed in the Viewer.

2. Click the button.

This will fit the Viewer to the full screen.

3. To exit the full screen mode, press [esc] on the keyboard.

English _41

web viewer

pLayBacK

Only SD memory contents in channel 1 can be played. Channels 2 through 4 do not support SD memory recording or playback.

1. Click the [playback ( )] button.

2. Specify the start time and end time of your search.

3. Select a search type.

4. Click the [Search ( )] button.

The search results will be displayed in the list.

If more than 500 events are recorded within the search period, your search will be limited up to the date when the 500th event is recorded.

For instance, if the search period is between 10th and 15th day of the month, and more than 500 events were recorded 10th through 11th, your search will be limited up to 11th day with a total of

500 events, and events after then (from 12th) will not be found.

5. Select a data item to play in the search list.

6. Click the [play ( )] button.

7. To stop playing the video, click [Stop

( )].

To return to the search screen, click

[exit ( )].

to check time information of the playing video

1. Click the [about ( )] button.

2. Date and time information appears on the screen.

42_ web viewer

to back up the searched video

1. Click [ ] on the scene to back up.

Save as window appears.

2. Click [Save].

The screenshot will be backed up to the specified path.

pLayinG tHe BacKup recorDinGS

You can play backup recordings by using the SlimPlayer.

to download Slimplayer

1. Click [Slimplayer ( )].

You will see a download dialog where you can specify the download path.

2. Specify the path with a proper file name and click [Save].

3. Unzip the downloaded file and run the executable.

English _43

setup screen

Setup

You can configure the audio & video, network, event and system settings of the network video encoder in the network.

1. In the Live screen, click [Setup (

2. The Setup screen appears.

)].

auDio & viDeo Setup video profile

1. From the Setup menu, select the <audio

& video ( )> tab.

2. Click <video profile>.

3. Select a <video profile> number.

4. Click the input box of each item and enter / select a desired value.

` The context menu may differ depending on the selected codec type.

Default profile : This is the default video profile.

Fixed framerate profile : Fix the frame rate of the selected profile regardless of the settings of other profiles.

E-mail/FTP profile : Video profile to be transferred to the specified email or FTP site.

` Only the MJPEG codec can be set as the E-mail/FTP Profile.

Record profile : This is the profile that is applied to video recording.

5. When done, click [apply ( )].

Profiles using H.264 codec can be stored in the SD memory only in resolutions of 640x480 or less.

MPEG-4 videos can not be stored in the SD memory.

44_ setup screen

to add a video profile

You can add as many codecs as necessary so that a variety of profiles can be applied according to the recording condition.

1. Select a profile number.

2. Provide the name and select a codec.

3. Specify the conditions under which the codec will be applied.

4. Specify the details of the selected codec including resolution and frame rate.

Resolution : Set the video size of the MPEG-4, H.264, and MJPEG files.

y y

Compression : Specify the compression rate of the video.

Framerate : Specify the frame rate.

Maximum bitrate : Specify the maximum bit rate of the video.

As the bit rate can be adjusted limitedly according to the resolution, frame rate and screen complexity, the actual bit rate can be greater than the maximum bit rate. So you must consider the use conditions when setting the value.

Bitrate control : You can select one from constant bit rate and variable bit rate for compression. Constant bit rate (CBR) varies the video quality and fixes network transfer bit rate, while variable bit rate emphasizes the quality by varying network transfer bit rate.

Target bitrate : Specify the bit rate at which you will transfer the video.

Encoding priority : You can set the video transfer method to Framerate or

Compression.

GOP size : Select a GOP size between 1 and 15.

Profile : You can select the H.264 profiling method.

Entropy coding : Reduce the possible compression loss due to encoding.

Multicast (VNP) : Specify the use of the VNP protocol.

- IPv4 : Enter an IPv4 address with which you can connect to the IPv4 network.

- Port : Specify the video communication port.

- TTL : Set the TTL for the VNP packet.

Multicast (RTP) : Specify the use of the RTP protocol.

- IPv4 : Enter an IPv4 address with which you can connect to the IPv4 network.

- Port : Specify the video communication port.

- TTL : You can set the TTL for the RTP packet.

English _45

setup screen

what is Gop size?

GOP (Group of Pictures) is a set of video frames for MPEG-4 and H.264 format compression, indicating a collection of frames from the initial I-Frame (key frame) to the next I-Frame. GOP consists of 2 kinds of frames: I-Frame and P-Frame.

I-Frame is the basic frame for the compression, also known as Key Frame, which contains one complete image data. P-Frame contains only the data that has changed from the preceding I-Frame.

You can set between 1 and 15 for the MPEG-4 and H.264 CODEC.

audio setup

You can configure the I/O settings of the audio source from the network video encoder.

` Audio I/O can be performed only in channel 1.

1. From the Setup menu, select the

<audio & video ( )> tab.

2. Click <audio setup>.

3. Adjust the audio I/O levels to your preference. y

Audio-In : Set the audio input value.

Audio-Out : Set the audio output value.

4. When done, click [apply ( )].

46_ setup screen

ptZ setup

You can activate the zoom and set the zoom preset as you want.

1. Select the <audio & video ( )> tab from Setup menu.

2. Click the <ptZ setup>.

3. Set the preset and serial port.

Preset setup : Select a number between 1 and 255, and press Move.

The camera angle will be adjusted as specified in the preset.

The connected camera should be configured to allow serial port communication.

Serial Setup : You can set the

RS-485 communication mode of the connected camera.

The camera and device are connected via RS-485 communication ports.

The camera will not perform properly if communication related settings of the connected camera are incorrect.

SAMSUNG-T/E, PELCO-P/D, Panasonic, Vicon, Honeywell, AD, GE, BOSCH and SUNGJIN protocols are supported.

4. When done, click [apply ( )].

to add a preset

1. Select the preset number to add.

2. Set the name for the preset.

3. Press the [add ( )] button.

to delete a preset

1. Select the preset number to delete.

2. Press the [Delete ( )] button.

to move the preset

1. Select the preset number to move.

2. Press the [move ( )] button.

English _47

setup screen

networK Setup interface

1. From the Setup menu, select the

<network ( )> tab.

2. Click <interface>.

3. Set the <interface> and <ipv6 setup> as necessary. y

IP type : Select an IP connection type.

- Manual : Specify the IP address,

Subnet Mask, Gateway, DNS1, and DNS2.

- DHCP : Specify the DNS1 and

DNS2.

- PPPoE : Specify the DNS1, DNS2, ID and password.

` If you set it to <Manual>, you should specify the IP, Subnet mask, Gateway, DNS 1 & 2 manually.

MAC address : Shows the MAC address. y

IP address : Displays the current IP address. y

Subnet mask : Displays the <Subnet mask> for the set IP. y

Gateway : Displays the <Gateway> for the set IP. y

DNS1/DNS2 : Displays the DNS(Domain Name Service) server address.

IPv6 use : Specify the use of IPv6. y

Mode

- Static : Selecting “Static” will activate the <ipv6 address>.

` Enter the IPv6 address in a specified format.

- Auto : Automatically obtain the IPv6 address to access the IPv6 network.

IPv6 address : Enter the address in a total of 8 parts in hexadecimal notation. ex) 2001:230:abcd:ffff:0000:0000:ffff:1111

4. When done, click [apply ( )].

The IP addressing system will be defaulted to DHCP. If no DHCP server is found, the previous settings will be restored automatically.

48_ setup screen

port

1. From the Setup menu, select the

<network ( )> tab.

2. Click <port>.

3. Type in each item in the Port menu as necessary.

` Neither the port range between 0 and 1023 nor port 3702 is available.

HTTP port : HTTP port used to access the network video encoder via the web browser.

The default is 80(TCP).

VNP port : Set a port used to transfer video signals with the Samsung protocols. y

RTSP port : Used to transfer videos in the RTSP mode; the default is 554.

Viewer port : Used to transfer videos to the Web Viewer; the default is 4520.

` The port range of the Viewer is between 4502 and 4534. If the VNP port is with this effective range, the Viewer port should be specified the same as the VNP port.

Silverlight policy port : Silverlight is used to permit to acquire a network connection; the default is 943.

` You cannot change the Viewer/Silverlight policy server port of a device.

4. When done, click [apply ( )].

DDnS

DDNS is an abbreviation of Dynamic Domain Name Service that converts the IP address of a network video encoder into a general Host Name so that the user can easily remember it.

1. From the Setup menu, select the

<network ( )> tab.

2. Click <DDnS>.

3. Select <DDnS>.

4. Type in the DDNS items according to the selected type.

Samsung DDNS : Select this if you use the DDNS server provided by

Samsung Techwin.

English _49

setup screen y

Public DDNS : Select one of provided public DDNS servers when you use a public

DDNS server.

- Host name : Enter the name of the host (i.e., host name of Dyndns) that is registered with the DDNS server.

- User name : Enter the user name for the DDNS service. (i.e., user ID that is registered with Dyndns)

- Password : Enter the password for the DDNS service. (i.e., password that is registered with Dyndns)

5. When done, click [apply ( )].

registering with DDnS

to register your product with the Samsung DDnS

1. Visit the iPOLiS web site

(www.samsungipolis.com) and sign in with a registered account.

2. From the top menu bar, select <DDnS

Service>-<my DDnS>.

3. Click [proDuct reGiStration].

4. Enter the product ID.

` You must perform the duplicate check for the

ID that you entered.

50_ setup screen

5. Select a <cLaSSification> and specify the <moDeL numBer>.

6. Specify the product location with a description if necessary.

7. Click [reGiStration].

The product will be added to the product list that you can check.

to connect to the Samsung DDnS in network video encoder setup

1. From the DDNS setup page, set

<DDnS> to <Samsung DDnS>.

2. Provide the <Host name> that you specified when registering the product

ID with the DDNS site.

3. Click [apply ( )].

When the connection is successfully made, you will see the message of

<(Success)> on the screen.

configuring public DDnS in network video encoder Settings

1. Open the DDNS settings page and select <public DDnS> for <DDnS>.

2. Enter the corresponding site’s host name, user name and password.

3. Click [apply ( )] button.

If the connection properly establishes, <(Success)> appears.

4. Once completed with the configuration, click [apply ( )] button.

English _51

setup screen

ip filtering

You can create a list of IPs that you want to grant or deny access to them.

1. From the Setup menu, select the

<network ( )> tab.

2. Click <ip filtering>.

3. Select a <filtering type>.

Deny : If selecting this, access from those IPs that are added to the filtering will be restricted.

Allow : If selecting this, access from only those IPs that are added to the filtering will be accepted.

4. Provide the IP that you want to grant or deny access from.

For IPv4, the default IP address is

0.0.0.0, and the default prefix is 32.

5. Select desired IP address to be approved or rejected from the entered IP addresses.

Only the selected IPs are filtered out.

6. When done, click [apply ( )].

52_ setup screen

SSL

You can select a secure connection system or install the public certificate for this purpose.

1. From the Setup menu, select the

<network ( )> tab.

2. Click <SSL>.

3. Select a secure connection system.

` To access the network video encoder using

HTTPS mode, you have to type the IP address for the network video encoder in the form of

“https://<Network video encoder_IP>”.

4. Search for the public certificate that you want to install on the network video encoder.

To install the certificate on the network video encoder, you need to provide a certificate name (it can be arbitrarily assigned by the user), certificate file issued from the certification authority and a key file.

` The <HTTPS(Secure connection mode using the public certificate)> item will be active only if there exists a public certificate installed.

5. When done, click [apply ( )].

installing the certificate

1. Enter the certificate name.

2. Select the certificate file to be installed and certificate key, and click [install ( button.

Deleting the certificate

1. Click [Delete ( )] button.

2. To delete a public certificate, you should access the network video decoder in the mode of <Http (Do not use secure connection)> or <HttpS (Secure connection mode using a unique certificate)>.

)]

English _53

setup screen

event Setup ftp / e-mail

You can configure the FTP / E-mail server settings so that you can transfer the images stored in the network video encoder to your PC if an event occurs.

1. From the Setup menu, select the

<event ( )> tab.

2. Click <ftp / e-mail>.

3. Select <ftp configuration> or

<e-mail configuration> and enter / select a desired value.

FTP configuration

- Server address : Enter the IP address of the FTP server that you transfer the alarm images to.

- User ID : Enter the user ID with which you will log in to the FTP server.

- Password : Enter the user account password for logging into the FTP server.

- Upload directory : Specify the FTP path where you will transfer the alarm images.

- Port : The default port of the FTP server is 21; however, you can use a different port number according to the FTP server settings.

- Passive mode : Select <on> if you need to connect in passive mode due to the firewall or the FTP server settings.

54_ setup screen

E-mail configuration

- Use SSL : Check this option if you use an email server using SSL. ex) Google

- Server address : Enter the IP address of the email server that you use for the email transfer.

- Use authentication : Select whether to use authorization.

- User ID : Enter the user ID for logging into the email server.

- Password : Enter the user account password for logging into the email server.

- Port : The default port of the email server is 25; however, you can use a different port number according to the email server settings.

- Recipient : Enter the address of the email recipient.

- Sender : Enter the address of the email sender. If the sender address is incorrect, the email from the sender may be classified as SPAM by the email server and thus may not be sent.

- Subject : Enter a subject for your email.

- Body : Provide the text for the massage. Attach the alarm images to the email that you are preparing.

4. When done, click [apply ( )].

English _55

setup screen

SD record

You can set the record conditions or the use of recording for the SD memory, check the size of stored data, or format the SD memory itself.

` Only SD memory contents in channel 1 can be played. Channels 2 through 4 do not support SD memory recording or playback.

1. From the Setup menu, select the

<event ( )> tab.

2. Click <SD record>.

to make recording on the SD memory

1. Check the <total size> and the <free size>.

2. If the SD memory has a sufficient free space, set <record> to <on>.

Otherwise, check the stored data and if you find them not important, then click

<format> to format the SD memory.

` If your SD memory card writes slowly, only one frame per second will be stored.

` For a SD memory card with a large capacity, the formatting will be slowed down accordingly.

` If the size of data grows with time, only 1 fps can be stored even if you set the record quality to Full

Frame.

3. Specify the record conditions.

Record 1 fps forcibly : Only one frame per second will be recorded regardless of the existing record profile.

Overwrite : If the SD memory is full, this will delete old data and store new data in replacement.

Pre-alarm duration : Specify the time point before the occurrence of the alarm; starting from the time point, the images will be transferred. You can specify up to

5 seconds before the occurrence of the alarm.

Post-alarm duration : Specify the time point after the occurrence of the alarm; to the specified time point, the images will be transferred. You can specify up to 120 seconds after the occurrence of the alarm.

4. When done, click [apply ( )].

56_ setup screen

alarm input

You can set the alarm input type, activation time, and operation mode.

1. From the Setup menu, select the

<event ( )> tab.

2. Click <alarm input>.

to set the alarm input

1. Set <input device setup> to <enable>.

2. Specify the <type>.

Type

- Normal Open : It is normally open, but if it is closed, an alarm will be triggered.

- Normal Close : It is normally closed, but if it is open, an alarm will be triggered.

3. Specify the <activation time>.

Always : Always check if an alarm occurs. It activates in operated mode when the alarm occurs.

If set to Always, the activation time cannot be changed.

Only scheduled time : Check if an alarm occurs at a specified day of the week for a specified time period. It activates in operated mode when the alarm occurs.

4. Specify an operation that will perform if an alarm occurs.

Alarm output : Specify the alarm output time in the alarm input setup.

y y

Record : Specify the use of recording in the alarm input setup.

E-mail sending : Specify the use of email transfer in the alarm input setup.

Goto Preset : Moves to the specified preset location when setting the alarm input.

5. When done, click [apply ( )].

English _57

setup screen

motion detection

You can set target detection region and motion, as well as the alarm signal output.

1. From the Setup menu, select the

<event ( )> tab.

2. Click <motion detection>.

to set the motion Detection

1. Set <motion Detection> to <enable>.

2. Select a sensitivity level of the motion detection. Higher the sensitivity is, the smaller motion is detected.

3. Set the activation time and condition.

Refer to the “alarm input” for how to set the <activation time> and

<action>. (page 57)

4. Use the drag-and-drop method to specify the detection area on the video.

Motion detection is activated in the mask area set.

To delete set area, click [Delete ( )] button.

5. When done, click [apply ( )].

The motion detection function may not work properly in the following cases:

- The object color or brightness is similar to the background.

- Multiple movements continue occurring at random due to a scene change or other reasons.

- A fixed object continues moving in the same position.

- An object hides other objects behind.

- Two or more objects overlap or one object divides in multiple portions.

- Too fast object (for a proper detection, one object should be found overlapping between contiguous frames).

- Reflection / blur / shadow due to a strong light such as direct sunlight, illumination, or headlamp.

- In severe snow, rain, wind or in dawn / dusk.

58_ setup screen

time schedule

You can configure so that an event will occur at a scheduled time regardless of the actual occurrence of the event.

1. From the Setup menu, select the

<event ( )> tab.

2. Click <time schedule>.

to set the time schedule

1. Set <timer event setup> to <enable>.

2. Specify the <activation time>.

Always : Always activates in operated mode at the set interval.

Only scheduled time : Periodically activates in operated mode at a specified time and date.

3. Specify the <transfer interval>.

4. Specify the activation conditions.

FTP sending : Specify the use of the FTP transfer if an event occurs.

Record : Specify the use of recording if an event occurs.

5. When done, click [apply ( )].

video Loss

You can set the alarm to be generated on a camera disconnection, which causes a video loss.

1. From the Setup menu, select the

<event ( )> tab.

2. Click <video Loss>.

to set the video loss

1. Set <video Loss> to <enable>.

2. Set the activation time and condition.

Refer to the “alarm input” for how to set the <activation time> and

<action>. (page 57)

3. When done, click [apply ( )].

English _59

setup screen

SyStem Setup product information

1. From the Setup menu, select the

<System ( )> tab.

2. Click <product information>.

3. Check the network video encoder information, or provide details according to your network environment.

Device name : Provide a device name that will be displayed on the

Live screen.

Location : Specify the location where the network video encoder is installed.

Description : Provide detailed information about the network video encoder location.

Memo : Provide an explanation about the network video encoder for better understanding.

Language : Select a preferred language for the network video encoder menus and the Web Viewer OSD.

4. When done, click [apply ( )].

Product related information only allows English for input.

Date & time

1. From the Setup menu, select the

<System ( )> tab.

2. Click <Date & time>.

3. Specify the time and date that will be applied to the network video encoder.

Current system time : Displays the current time settings of your system.

Timezone : Specify the local time zone based on the GMT.

Use daylight saving time :

If checked, the time will be set one hour before the local time zone for the specified time period.

This option will be displayed only in areas where DST is applied.

60_ setup screen

System time setup : Specify the time and date that will be applied to your system.

- Manual : Specify the time manually.

- Synchronize with NTP server : Sync with the time of the specified server address.

- Synchronize with PC viewer : Synchronize the time with the connected PC.

4. When done, click [apply ( )].

If the time settings differ between network video encoder and PC, selecting <Synchronize with

PC viewer> may still have a difference. So it is recommended to specify the same time settings for both network video encoder and PC.

The time setting for each of 4 channels should be specified separately.

If you want to perform the time sync, select Synchronize with NTP server or Synchronize with PC viewer.

user

1. From the Setup menu, select the

<System ( )> tab.

2. Click <user>.

3. Provide the necessary user information.

Administrator Password Change :

Change the current password for the administrator.

The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

Guest setup : If <Guest access> is allowed, the user with the guest account who accesses the web viewer can view only the Live viewer screen.

The ID/password for the guest account is guest/guest, which cannot be changed.

Current users : You can change the user information and adjust the permission level for a user who is set to <enable>.

- Video : You can select a video profile in the Liver viewer screen.

- Audio-In : The audio input option will be activated in the Live Viewer screen.

- Controls : You can control network video encoder menu buttons.

4. When done, click [apply ( )].

English _61

setup screen

upgrade / reboot

1. From the Setup menu, select the

<System ( )> tab.

2. Click <upgrade / reboot>.

3. Select a desired item and set it appropriately.

Upgrade : Performs upgrading the system.

Factory default : Resets the system to the factory default.

- Except network parameter :

Reset the other settings except for the network settings.

- All : Resets all settings including the network video encoder settings. (however, the log information will not be reset)

` The IP addressing system will be defaulted to DHCP if you reset the network video encoder. If no

DHCP server is found, the previous settings will be restored automatically.

Configuration backup & Restore : Backs up the current system settings before performing the restoration process. The system is automatically restarts after backup or restoration.

Restart : Restarts the system.

4. When done, click [restart ( )].

to perform the upgrade

1. Click [upgrade].

2. Click [Browse] and specify a file to upgrade.

3. Click [Send].

4. The “upgrade” dialog appears where the progression will be shown in the bottom.

If you forcibly terminate the upgrade process, upgrade will not be completed properly.

62_ setup screen

to save the current settings and restore the backup settings

1. Click [Backup].

The Save As dialog should appear.

2. Specify the backup path with a proper file name, and click [Save].

The backup file will be saved to the specified path in the format of “.bin”.

3. To restore the backup settings, click

[restore].

4. Select a backup file and click [open].

If you perform the backup or restoration, the web browser will be closed and the network video encoder will reboots.

English _63

setup screen

Log

You can check the system log or event log.

1. From the Setup menu, select the

<System ( )> tab.

2. Click <Log>.

3. Select a log type.

Syslog : You can check the system logs where any system changes are recorded including the time information.

Evtlog : You can check the event logs including the time information.

4. From the right log list, select an item to search for.

If you select <all> in the top left dropdown list, all logs for the applicable log type will be displayed.

5. If one page can not display all the logs available, use the bottom buttons to move to the previous, next, or the last item.

If you want to view the details of a log, click [Info ( )] in the right column of the log; the log information will be shown in the bottom pane.

Each page displays 15 logs with the latest one displayed at the top.

The event/system log list can contain up to 1000 logs; after that, the existing logs will be deleted from the oldest one each time a new log is created.

64_ setup screen

appendix

Specification

Operational

Items

Video In

Description

4 CVBS : 1.0 Vp-p / 75Ω composite, NTSC/PAL Auto Detection

Video Out -

De-interlacing Filter Built-in

Event Trigger Motion Detection, Alarm Input, Video Loss

Alarm I/O

Remote Control

Interface

Input 4ea / Output 4ea (Relay)

4ea RS-485 (Half Duplex)

RS-485 Protocol

Ethernet

Video Compression

Format

SAMSUNG-T/E, PELCO-P/D, Panasonic, Vicon, Honeywell, AD, GE,

BOSCH, SUNGJIN

RJ-45 (10/100/1000BASE-T)

H.264, MPEG-4, MJPEG

Resolution

Max. Framerate

Video Quality

Adjustment

NTSC : 704x480, 640x480, 352x240, 320x240

PAL : 704x576, 640x480, 352x288, 320x240

NTSC : 30fps Per channel / PAL : 25fps Per channel

H.264/MPEG-4 : Compression Level, Target Bitrate Level Control

MJPEG : Quality Level Control

Network

Streaming Capability Multiple Streaming (Up to 10 Profiles)

Audio I/O 1ea Line in / 1ea Line out (CH1 Only)

Audio Compression

Format

G.711 μ-law

Audio Communication 2-Way

IP IPv4, IPv6

English _65

appendix

Network

Environmental

Electrical

Mechanical

Items

Protocol

Description

TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL,

DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c(MIB-2), ARP,

DNS, DDNS, ONVIF

Security

Streaming Method

Web Viewer

HTTPS(SSL) Login Authentication

Digest Login Authentication

IP Address Filtering

User access Log

Unicast / Multicast

Max. User Access

Memory Slot

10 users at Unicast Mode

SD/SDHC Memory Slot (CH1 Only)

ONVIF Conformance Yes

Supported OS : Windows XP / VISTA / 7, MAC OS

Supported Browser : Internet Explorer 7.0 or 8.0, Firefox, Chrome, Safari

Central Management

Software

NET-i viewer

Operating Temperature

/ Humidity

0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 80% RH

Ingress Protection

Input Voltage

DC 12V

Power Consumption Max. 15W

Color / Material Silver / Metal

Dimensions (WxHxD) W178.0 x H34.0 x D128.0mm (7.00" x 1.34" x 5.04")

Weight 562g

66_ appendix

proDuct overview

Unit : mm (inch)

170 (6.69")

178 (7.00")

English _67

appendix

trouBLeSHootinG

PROBLEM

I can’t access the network video encoder from a web browser.

Viewer got disconnected during monitoring.

I cannot connect to the system using a tab browser of Internet

Explorer 7.0.

The network video encoder connected to the network is not detected in the IP installer program.

SOLUTION

y Check whether the <Network> settings of the network video encoder are valid and correct.

y Check to make sure that all network cables have been connected properly.

y If connected using DHCP, verify that the network video encoder is able to acquire dynamic IP addresses without any problem.

y If the network video encoder is connected to a router, verify that port forwarding is properly configured.

y The existing <Web Viewer> connection can be expired if the network setting or configuration of the network video encoder is modified by another user.

y Check all network connections.

y <Web Viewer> connection may be interrupted by poor network traffic or condition if the network video encoder is connected to a PPPoE network.

y When you try to connect to the system using a tab browser, the same cookie information is shared, resulting in errors when connected.

Therefore, instead of using a tab browser, open a new browser window to connect to the system.

y Turn off the firewall settings on your PC and then search the network video encoder again.

Images overlap.

No image appears.

y Check whether two or more network video encoders are set to a single multicast address instead of different addresses. If a single address is used for multiple network video encoders, the images may overlap.

y If the transmission method is set to multicast, check whether there is a router that supports multicast in the LAN the network video encoder is connected to.

68_ appendix

PROBLEM

Cannot record into the SD memory card.

SD memory indicator does not turn on even when the SD memory card is inserted.

SD memory card is inserted but the network video encoder does not operate properly.

Cannot format the SD memory card.

SOLUTION

y Check if the memory card is defective.

y Check if the write protection tab of the memory card is set to “LOCK”.

y Check if the memory card is defective.

y Check if the <Record> is checked in <Setup>  <Event>  <SD Record> menu.

y Check if the memory card is inserted in the proper direction. Operation of memory card that is formatted by other devices is not guaranteed with this network video encoder unit.

y Format the memory card again in <Setup>  <Event>  <SD Record> menu.

y Check if the write protection tab of the memory card is set to “LOCK”.

English _69

open Source announcement

Some software components of this product incorporate source code covered under the BSD license as follows.

component name lighttpd 1.4.25

librtp 1.20

net-snmp-5.4.1

License

BSD 2.0

BSD 1.0

BSD

License urL http://www.opensource.org/licenses/bsd-license.html

http://www.net-snmp.org/about/license.html

lighttpd is a secure, fast, compliant, and very flexible webserver that has been optimized for high-performance environments. It has a very low memory footprint compared to other webservers and takes care of cpuload. Its advanced feature-set (FastCGI, CGI, Auth, Output-

Compression, URL-Rewriting and many more) make lighttpd the perfect webserver-software for every server that suffers load problems.

Simple Network Management Protocol (SNMP) is an Internetstandard protocol for managing devices on IP networks. It is used mostly in network management systems to monitor the devices attached to the network for conditions that need administrative attention. Net-SNMP is a suite of applications used to implement SNMP v1, SNMP v2c and SNMP v3 using both IPv4 and IPv6.

For more additional information, send email to [email protected] samsung.com.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met :

-Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

-Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the ‘incremental’ nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT OWNER OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

London

Redistribution and use in source and binary forms, with or without modification, is permitted provided that the following conditions are met :

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

This product includes software developed by the Computer

Science Department at University College London.

4. Neither the name of the University nor of the Department may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHORS AND

CONTRIBUTORS ``AS IS’’ AND ANY EXPRESSED OR

IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSEARE DISCLAIMED.

IN NO EVENT SHALL THE AUTHORS OR CONTRIBUTORS

BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

LicenSe

Various copyrights apply to this package, listed in various separate parts below. Please make sure that you read all the parts.

part 1: cmu/ucD copyright notice: (BSD like)

Derivative Work - 1996, 1998-2000

California

Permission to use, copy, modify and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission.

CMU AND THE REGENTS OF THE UNIVERSITY OF

CALIFORNIA DISCLAIM ALL WARRANTIES WITH

REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS.

IN NO EVENT SHALL CMU OR THE REGENTS OF THE

UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY

SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES

OR ANY DAMAGES WHATSOEVER RESULTING FROM

THE LOSS OF USE, DATA OR PROFITS, WHETHER IN

AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER

TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION

WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

part 2: networks associates technology, inc copyright notice (BSD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Networks Associates Technology,

Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS "AS IS" AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 3: cambridge Broadband Ltd. copyright notice (BSD)

Broadband Ltd.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

The name of Cambridge Broadband Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDER “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL THE COPYRIGHT HOLDER BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 4: Sun microsystems, inc. copyright notice

(BSD)

Circle, Santa Clara,

California 95054, U.S.A.

Use is subject to license terms below. This distribution may include materials developed by third parties. Sun, Sun

Microsystems, the Sun logo and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Neither the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 5: Sparta, inc copyright notice (BSD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Neither the name of Sparta, Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 6: cisco/Buptnic copyright notice (BSD)

Center of Beijing University of Posts and Telecommunications.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Neither the name of Cisco, Inc, Beijing University of

Posts and Telecommunications, nor the names of their contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 7: fabasoft r&D Software GmbH & co KG copyright notice (BSD)

Author: Bernhard Penz

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

The name of Fabasoft R&D Software GmbH & Co KG or any of its subsidiaries, brand or product names may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDER “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL THE COPYRIGHT HOLDER BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 8: apple inc. copyright notice (BSD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

3. Neither the name of Apple Inc. (“Apple”) nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY APPLE AND ITS

CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL APPLE OR ITSCONTRIBUTORS

BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

part 9: ScienceLogic, LLc copyright notice

(BSD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions aremet: y

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Neither the name of ScienceLogic, LLC nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

GpL/LGpL Software LicenSe

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to [email protected]

If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.

• GPL S/W

- Base Kernel, Busybox, Sysvinit, dosfstools

• LGPL S/W

- gLibc, Inetutils

Gnu GeneraL puBLic LicenSe

Version 2, June 1991

51 Franklin Street,Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the

GNU General Public License is intended to guarantee your freedom to share and change free software-- to make sure the software is free for all its users.

This General Public License applies to most of the Free

Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software

Foundation software is covered by the GNU Lesser General

Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price.

Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs ; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.

You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps :

(1)copyright the software, and (2)offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

termS anD conDitionS for copyinG,

DiStriBution anD moDification

Software Foundation, Inc. 51 Franklin S

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General

Public License.

The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law : that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

Each licensee is addressed as “you”.

Activities other than copying, distribution and modification are not covered by this License ; they are outside its scope.

The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the

Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty ; and give any other recipients of the Program a copy of this

License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the

Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions : a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run,you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception:if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole.

If identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the

Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you ; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the

Program)on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2)in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following : a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange ; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machinereadable copy of the corresponding source code, to be distributed under the terms of

Sections 1 and 2 above on a medium customarily used for software interchange ; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code.

(This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form)with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the

Program except as expressly provided under this License.

Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License.

However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it.

However, nothing else grants you permission to modify or distribute the Program or its derivative works.

These actions are prohibited by law if you do not accept this License.Therefore, by modifying or distributing the

Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the

Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions.

You may not impose any further restrictions on the recipients’ exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise)that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this

License and any other pertinent obligations, then as a consequence you may not distribute the Program at all.

For example, if a patent license would not permit royaltyfree redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system ; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the

Program under this License may add an explicit geographical distribution limitation excluding those countries,so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/ or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the

Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.

If the Program does not specify a version number of this

License, you may choose any version ever published by the

Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software

Foundation,write to the Free Software Foundation ; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

no warranty

11. BECAUSE THE PROGRAM IS LICENSED FREE

OF CHARGE, THERE IS NO WARRANTY FOR

THE PROGRAM, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES PROVIDE THE PROGRAM

“ASIS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY

AND PERFORMANCE OF THE PROGRAM IS WITH

YOU. SHOULD THE PROGRAMPROVE DEFECTIVE,

YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE DAMAGES,

INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL

OR CONSEQUENTIAL DAMAGES ARISING OUT OF

THE USE OR INABILITY TO USE THE PROGRAM

(INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURATE OR

LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR

A FAILURE OF THE PROGRAM TO OPERATE WITH

ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER

OR OTHER PARTY HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

enD of termS anD conDitionS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty ; and each file should have at least the “copyright” line and a pointer to where the full notice is found.

one line to give the program’s name and an idea of what it does.

This program is free software ; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation ; either version

2 of the License, or (at your option)any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY ; without even the implied warranty of MERCHANTABILITY or FITNESS FOR

A PARTICULAR PURPOSE. See the GNU General Public

License for more details.

You should have received a copy of the GNU General Public

License along with this program ; if not, write to the Free

Software Foundation, Inc.,51 Franklin Street, Fifth Floor,

Boston, MA 02110-1301, USA.

Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode :

Gnomovision version 69,

Gnomovision comes with ABSOLUTELY NO

WARRANTY ; for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain conditions ; type ‘show c’ for details.

The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License.

Of course, the commands you use may be called something other than ‘show w’ and ‘show c’ ; they could even be mouse-clicks or menu items-- whatever suits your program.

You should also get your employer (if you work as a programmer)or your school, if any, to sign a “copyright disclaimer” for the program,if necessary. Here is a sample ; alter the names:

Yoyodyne, Inc.,hereby disclaims all copyright interest in the program ‘Gnomovision’ (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNu Lesser General public

License instead of this License.

Gnu GeneraL puBLic LicenSe

Version 3, 29 June 2007

org/>

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

preamble

The GNU General Public License is a free, copyleft license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works.

By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users.

We, the Free Software Foundation, use the GNU General

Public License for most of our software; it applies also to any other work released this way by its authors.

You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.

To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the freedom of others.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

Developers that use the GNU GPL protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License giving you legal permission to copy, distribute and/or modify it.

For the developers’ and authors’ protection, the GPL clearly explains that there is no warranty for this free software.

For both users’ and authors’ sake, the GPL requires that modified versions be marked as changed, so that their problems will not be attributed erroneously to authors of previous versions.

Some devices are designed to deny users access to install or run modified versions of the software inside them, although the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users’ freedom to change the software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it is most unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GPL, as needed to protect the freedom of users.

Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free.

The precise terms and conditions for copying, distribution and modification follow. termS anD conDitionS

0. Definitions.

“This License” refers to version 3 of the GNU General Public

License.

“Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.

“The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”.

“Licensees” and “recipients” may be individuals or organizations.

To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a “modified version” of the earlier work or a work “based on” the earlier work.

A “covered work” means either the unmodified Program or a work based on the Program.

To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy.

Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.

To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with a user through a computer network, with no transfer of a copy, is not conveying.

An interactive user interface displays “Appropriate Legal

Notices” to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.

1. Source code.

The “source code” for a work means the preferred form of the work for making modifications to it. “Object code” means any non-source form of a work.

A “Standard Interface” means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.

The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable use of the work with that Major

Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A “Major Component”, in this context, means a major essential component (kernel, window system, and so on) of the specific operating system (if any) on which the executable work runs, or a compiler used to produce the work, or an object code interpreter used to run it.

The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for an executable work) run the object code and to modify the work, including scripts to control those activities. However, it does not include the work’s System Libraries, or generalpurpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between those subprograms and other parts of the work.

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the

Corresponding Source.

The Corresponding Source for a work in source code form is that same work.

2. Basic permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided

the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program.

The output from running a covered work is covered by this

License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed; section 10 makes it unnecessary.

3. protecting users’ Legal rights from anticircumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention of such measures.

When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work’s users, your or third parties’ legal rights to forbid circumvention of technological measures.

4. conveying verbatim copies.

You may convey verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any warranty; and give all recipients a copy of this License along with the Program.

You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. conveying modified Source versions.

You may convey a work based on the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions: a) The work must carry prominent notices stating that you modified it, and giving a relevant date. b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement modifies the requirement in section 4 to “keep intact all notices”. c) You must license the entire work, as a whole, under this

License to anyone who comes into possession of a copy.

This License will therefore apply, along with any applicable section 7 additional terms, to the whole of the work, and all its parts, regardless of how they are packaged. This

License gives no permission to license the work in any other way, but it does not invalidate such permission if you have separately received it. d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has interactive interfaces that do not display Appropriate

Legal Notices, your work need not make them do so.

A compilation of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation’s users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.

6. conveying non-Source forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways: a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange. b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by a written offer, valid for at least three years and valid for as long as you offer spare parts or customer support for that product model, to give anyone who possesses the object code either (1) a copy of the

Corresponding Source for all the software in the product that is covered by this License, on a durable physical medium customarily used for software interchange, for a price no more than your reasonable cost of physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network server at no charge. c) Convey individual copies of the object code with a copy of the written offer to provide the corresponding

Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 6b. d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge.

You need not require recipients to copy the Corresponding

Source along with the object code. If the place to copy the object code is a network server, the Corresponding

Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source.

Regardless of what server hosts the Corresponding

Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements. e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object code and Corresponding Source of the work are being offered to the general public at no charge under subsection 6d.

A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work.

A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling.

In determining whether a product is a consumer product,

doubtful cases shall be resolved in favor of coverage. For a particular product received by a particular user, “normally used” refers to a typical or common use of that class of product, regardless of the status of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer uses, unless such uses represent the only significant mode of use of the product.

“Installation Information” for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding Source. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.

If you convey an object code work under this section in, or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in perpetuity or for a fixed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under this section must be accompanied by the

Installation Information. But this requirement does not apply if neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROM).

The requirement to provide Installation Information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.

Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.

7. additional terms.

“Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the entire Program remains governed by this License without regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.) You may place additional permissions on material, added by you to a covered work, for which you have or can give appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms: a) Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate

Legal Notices displayed by works containing it; or c) Prohibiting misrepresentation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version; or d) Limiting the use for publicity purposes of names of licensors or authors of the material; or e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or f) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on those licensors and authors.

All other non-permissive additional terms are considered

“further restrictions” within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.

Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.

8. termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminates your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to receive new licenses for the same material under section 10.

9. acceptance not required for Having copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this

License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.

10. automatic Licensing of Downstream recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License.

You are not responsible for enforcing compliance by third parties with this License.

An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations.

If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party’s predecessor in interest had or could give under the previous paragraph, plus a right to possession of the

Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it.

11. patents.

A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the

Program is based. The work thus licensed is called the contributor’s “contributor version”.

A contributor’s “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of this definition, “control” includes the right to grant patent sublicenses in a manner consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor’s essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To “grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive yourself of the benefit of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements of this License, to extend the patent license to downstream recipients. “Knowingly relying” means you have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient’s use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.

A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this License.

You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license

(a) in connection with copies of the covered work conveyed by you (or copies made from those copies), or

(b) primarily for and in connection with specific products or compilations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. no Surrender of others’ freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this

License, they do not excuse you from the conditions of this

License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.

13. use with the Gnu affero General public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU Affero General

Public License into a single combined work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU Affero General Public License, section 13, concerning interaction through a network will apply to the combination as such.

14. revised versions of this License.

The Free Software Foundation may publish revised and/ or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the

Program specifies that a certain numbered version of the

GNU General Public License “or any later version” applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General

Public License, you may choose any version ever published by the Free Software Foundation.

If the Program specifies that a proxy can decide which future versions of the GNU General Public License can be used, that proxy’s public statement of acceptance of a version permanently authorizes you to choose that version for the

Program.

Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT

WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR OTHER PARTIES PROVIDE THE

PROGRAM “AS IS” WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE PROGRAM IS WITH YOU.

SHOULD THE PROGRAM PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS

THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO

YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THE USE OR INABILITY TO USE THE PROGRAM

(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA

BEING RENDERED INACCURATE OR LOSSES SUSTAINED

BY YOU OR THIRD PARTIES OR A FAILURE OF THE

PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee. enD of termS anD conDitionS

Gnu LeSSer GeneraL puBLic LicenSe

Version 2.1, February 1999

Franklin Street, Fifth Floor, Boston, MA 02110-1301

USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU

General Public Licenses are intended to guarantee your freedom to share and change free software to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages-typically libraries-of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary

General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary

General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library.

The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom.

The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.

However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, nonfree programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in nonfree programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/ Linux operating system.

Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run. termS anD conDitionS for copyinG,

DiStriBution anD moDification

0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General

Public License (also called “this License”). Each licensee is addressed as “you”.

A “library” means a collection of software functions and/ or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A

“work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the

Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this

License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the

Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU

General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided t hat you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and

2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the

Library creates an executable that is a derivative of the

Library (because it contains portions of the Library), rather than a “work that uses the library”.

The executable is therefore covered by this License. Section

6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of

Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the

Library to produce a work containing portions of the

Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this

License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine readable “work that uses the Library”, as object code and/or source code, so that the user can modify the

Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that

(1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this

License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether

by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the

Library at all. For example, if a patent license would not permit royalty free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices.

Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this

License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/ or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the

Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.

If the Library does not specify a license version number, you may choose any version ever published by the Free Software

Foundation.

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the

Free Software Foundation, write to the Free Software

Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. no warranty

15. BECAUSE THE LIBRARY IS LICENSED FREE

OF CHARGE, THERE IS NO WARRANTY FOR

THE LIBRARY, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES PROVIDE THE LIBRARY

“AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY

AND PERFORMANCE OF THE LIBRARY IS WITH YOU.

SHOULD THE LIBRARY PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE

LAW OR AGREED TO IN WRITING WILL ANY

MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY

AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE

LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS

OF DATA OR DATA BEING RENDERED INACCURATE

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES

OR A FAILURE OF THE LIBRARY TO OPERATE WITH

ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER

OR OTHER PARTY HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. enD of termS anD conDitionS

How to apply these terms to your new Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public

License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. one line to give the library’s name and an idea of what it does.

This library is free software; you can redistribute it and/ or modify it under the terms of the GNU Lesser General Public

License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A

PARTICULAR PURPOSE. See the GNU Lesser General

Public License for more details.

You should have received a copy of the GNU Lesser General

Public License along with this library; if not, write to the Free

Software Foundation, Inc., 51 Franklin Street, Fifth Floor,

Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James

Random Hacker. signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice.

openSSL LicenSe

Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment:

“This product includes software developed by the

OpenSSL Project for use in the OpenSSL Toolkit. (http:// www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission.

For written permission, please contact [email protected] openssl.org.

5. Products derived from this software may not be called

“OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the

OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL

PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE ARE

DISCLAIMED. IN NO EVENT SHALL THE OpenSSL

PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS

OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR

BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON

ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR

OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young ([email protected]). This product includes software written by Tim Hudson([email protected] cryptsoft.com). original SSLeay License

SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to.

The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([email protected]).

Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

“This product includes cryptographic software written by Eric Young ([email protected] cryptsoft.com)” The word

‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-).

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: “This product includes software written by Tim Hudson ([email protected] cryptsoft.com)”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ‘‘AS

IS AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN

NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS

BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Samsung Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.

The Eco mark represents Samsung Techwin’s devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400

TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660

Toll Free : +1-877-213-1222 Direct : +1-201-325-6920

Fax : +1-201-373-0124 www.samsungcctvusa.com

www.samsungtechwin.com

www.samsungsecurity.com

www.samsungipolis.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business

Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS

TEL : +44-1932-45-5300 FAX : +44-1932-45-5325

Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

User manual | NETWORK VIDEO ENCODER

NETWORK VIDEO ENCODER

User Manual

SPE-400

Network Video Encoder

User Manual

important Safety inStructionS

English _3

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC

OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS

ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

caution

: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

4_ overview

An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion.

This Perchlorate warning applies only to primary CR (Manganese Dioxide)

Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Please use the input power with just one camera and other devices must not be connected.

English _5

Please read the following recommend safety precautions carefully.

y

Do not Place this apparatus on an uneven surface.

y

Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

y

Do not place this apparatus near conductive material.

y

Do not attempt to service this apparatus yourself.

y

Do not place a glass of water on the product.

y

Do not install near any magnetic sources.

y

Do not block any ventilation openings.

y

Do not place heavy items on the product.

User’s Manual is a guidance book how to use the products

The meaning of the using sign in the book is following y

Reference : In case of providing information for helping of product’s usages y

Notice : If there’s any possibility to occur any damages for the goods and human caused by not following the instruction



Please read this manual for the safety before using of goods and keep it in the safe place.

6_ overview

contentS

oVERViEw

iNSTALLATioN &

CoNNECTioN

NETwoRk CoNNECTioN

AND SETup

English _7

wEb ViEwER

SETup SCREEN

AppENDix

8_ overview

proDuct featureS

recomenDeD pc SpecificationS

recomenDeD SD/SDHc memory carD SpecificationS

English _9

wHat’S incLuDeD

10_ overview

at a GLance front Side

English _11

rear Side

12_ overview

channel i/o port table

English _13

inSertinG/removinG an SD memory carD

inserting an SD memory card
