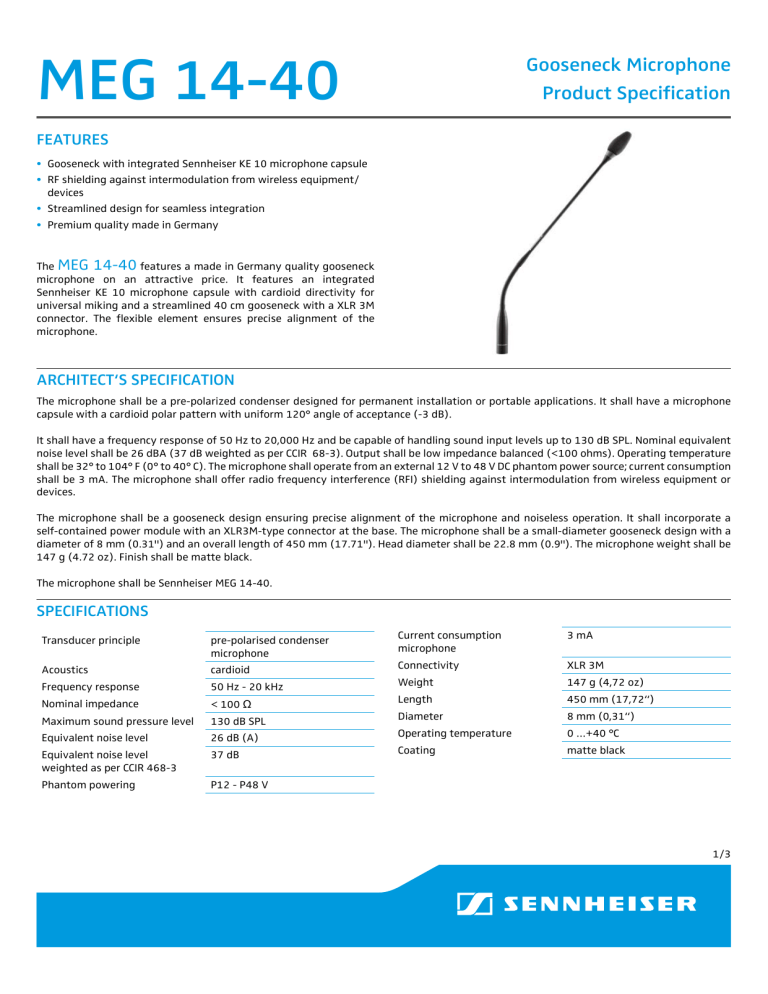

MEG 14-40
Gooseneck Microphone
Product Specification
FEATURES
• Gooseneck with integrated Sennheiser KE 10 microphone capsule
• RF shielding against intermodulation from wireless equipment/
devices
• Streamlined design for seamless integration
• Premium quality made in Germany
The MEG 14-40 features a made in Germany quality gooseneck
microphone on an attractive price. It features an integrated
Sennheiser KE 10 microphone capsule with cardioid directivity for
universal miking and a streamlined 40 cm gooseneck with a XLR 3M
connector. The flexible element ensures precise alignment of the
microphone.
ARCHITECT‘S SPECIFICATION
The microphone shall be a pre-polarized condenser designed for permanent installation or portable applications. It shall have a microphone
capsule with a cardioid polar pattern with uniform 120° angle of acceptance (-3 dB).
It shall have a frequency response of 50 Hz to 20,000 Hz and be capable of handling sound input levels up to 130 dB SPL. Nominal equivalent
noise level shall be 26 dBA (37 dB weighted as per CCIR 68-3). Output shall be low impedance balanced (<100 ohms). Operating temperature
shall be 32° to 104° F (0° to 40° C). The microphone shall operate from an external 12 V to 48 V DC phantom power source; current consumption
shall be 3 mA. The microphone shall offer radio frequency interference (RFI) shielding against intermodulation from wireless equipment or
devices.
The microphone shall be a gooseneck design ensuring precise alignment of the microphone and noiseless operation. It shall incorporate a
self-contained power module with an XLR3M-type connector at the base. The microphone shall be a small-diameter gooseneck design with a
diameter of 8 mm (0.31") and an overall length of 450 mm (17.71"). Head diameter shall be 22.8 mm (0.9"). The microphone weight shall be
147 g (4.72 oz). Finish shall be matte black.
The microphone shall be Sennheiser MEG 14-40.
SPECIFICATIONS
Transducer principle
pre-polarised condenser
microphone
Current consumption
microphone
3 mA
Acoustics
cardioid
Connectivity
XLR 3M
Frequency response
50 Hz - 20 kHz
Weight
147 g (4,72 oz)
Nominal impedance
< 100 Ω
Length
450 mm (17,72“)
Maximum sound pressure level
130 dB SPL
Diameter
8 mm (0,31“)
Equivalent noise level
26 dB (A)
Equivalent noise level
weighted as per CCIR 468-3
37 dB
Phantom powering
P12 - P48 V
Operating temperature
0 …+40 °C
Coating
matte black
1/3
MEG 14-40
Product Specification
DIMENSIONS
POLAR PATTERN
PIN ASSIGNMENT
0°
330°
30°
1
2
300°
60°
90°
270°
240°
120°
3
1 Ground
2 Microphone +
3 Microphone –
210°
150°
180°
FREQUENCY RESPONSE
2/3
MEG 14-40
Product Specification
PRODUCT VARIANTS
Product
Features
MEG 14-40 B
• Gooseneck with integrated Sennheiser
KE 10 microphone capsule
Art. no. 504791
• RF shielding against intermodulation
from wireless equipment/devices
• Streamlined design for seamless
integration
The MEG 14-40 features a made in Germany quality gooseneck
microphone on an attractive price. It features an integrated
Sennheiser KE 10 microphone capsule with cardioid directivity for
universal miking and a streamlined 40 cm gooseneck with a XLR
3M connector. The flexible element ensures precise alignment of
the microphone.
• Premium quality made in Germany
MEG 14-40-L B
• Gooseneck with integrated Sennheiser
KE 10 microphone capsule
Art. no. 504792
• RF shielding against intermodulation
from wireless equipment/devices
• Streamlined design for seamless
integration
• LED ring for speech indication
• AC/DC lightring powering
The MEG 14-40-L features a made in Germany quality gooseneck
microphone on an attractive price. A lightring indicates the
spokesperson that is allowed to take the floor. It features a
Sennheiser KE 10 microphone capsule with cardioid directivity for
universal miking. The flexible element of the streamlined 40 cm
gooseneck ensures precise alignment of the microphone. A XLR
5M connector delivers power for the red LED ring and connects the
microphone signal.
• Premium quality made in Germany
MEG 14-40-L-II B
• Intuitive handling
Art. no. 506398
• Clearly visible LED ring and microphone
button
• Proven Sennheiser KE 10 microphone
capsule
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
SP 1102 v1.0
The MEG 14-40-L-II features a made in Germany quality gooseneck
microphone on an attractive price. A lightring indicates the
spokesperson that is allowed to take the floor. It features a
Sennheiser KE 10 microphone capsule with cardioid directivity for
universal miking. The flexible element of the streamlined 40 cm
gooseneck ensures precise alignment of the microphone. An XLR
5M connector delivers power for the red LED ring and connects the
microphone signal.
3/3
