CUBE-60_e.book 1 ページ 2004年3月5日 金曜日 午後4時41分

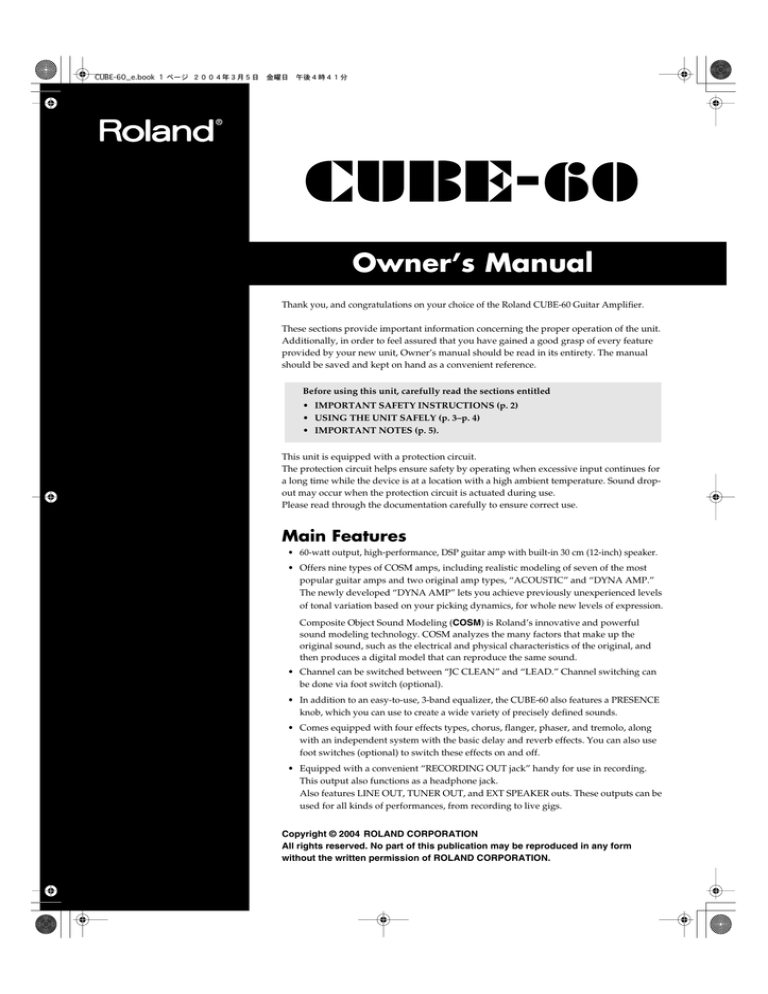

Owner’s Manual
Thank you, and congratulations on your choice of the Roland CUBE-60 Guitar Amplifier.
These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature
provided by your new unit, Owner’s manual should be read in its entirety. The manual
should be saved and kept on hand as a convenient reference.
Before using this unit, carefully read the sections entitled
• IMPORTANT SAFETY INSTRUCTIONS (p. 2)
• USING THE UNIT SAFELY (p. 3–p. 4)
• IMPORTANT NOTES (p. 5).
This unit is equipped with a protection circuit.
The protection circuit helps ensure safety by operating when excessive input continues for
a long time while the device is at a location with a high ambient temperature. Sound dropout may occur when the protection circuit is actuated during use.
Please read through the documentation carefully to ensure correct use.
Main Features
• 60-watt output, high-performance, DSP guitar amp with built-in 30 cm (12-inch) speaker.
• Offers nine types of COSM amps, including realistic modeling of seven of the most
popular guitar amps and two original amp types, “ACOUSTIC” and “DYNA AMP.”
The newly developed “DYNA AMP” lets you achieve previously unexperienced levels
of tonal variation based on your picking dynamics, for whole new levels of expression.
Composite Object Sound Modeling (COSM) is Roland’s innovative and powerful
sound modeling technology. COSM analyzes the many factors that make up the
original sound, such as the electrical and physical characteristics of the original, and
then produces a digital model that can reproduce the same sound.
• Channel can be switched between “JC CLEAN” and “LEAD.” Channel switching can
be done via foot switch (optional).
• In addition to an easy-to-use, 3-band equalizer, the CUBE-60 also features a PRESENCE
knob, which you can use to create a wide variety of precisely defined sounds.
• Comes equipped with four effects types, chorus, flanger, phaser, and tremolo, along
with an independent system with the basic delay and reverb effects. You can also use
foot switches (optional) to switch these effects on and off.
• Equipped with a convenient “RECORDING OUT jack” handy for use in recording.
This output also functions as a headphone jack.
Also features LINE OUT, TUNER OUT, and EXT SPEAKER outs. These outputs can be
used for all kinds of performances, from recording to live gigs.
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form
without the written permission of ROLAND CORPORATION.
CUBE-60_e.book 2 ページ 2004年3月5日 金曜日 午後4時41分
30
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING - When using electric products, basic precautions should always be followed, including the following:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in
accordance with the manufacturers instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Never use with a cart, stand, tripod, bracket,
or table except as specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
For the U.K.
WARNING:
THIS APPARATUS MUST BE EARTHED
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
2
CUBE-60_e.book 3 ページ 2004年3月5日 金曜日 午後4時41分
USING THE UNIT SAFELY
The
symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers
other adverse effects
respect to the home
furnishings, as well
animals or pets.
The
symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
to damage or
caused with
and all its
to domestic
The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.
001
010
• Before using this unit, make sure to read the
instructions below, and the Owner’s Manual.
• This unit, either alone or in combination with an
amplifier and headphones or speakers, may be
capable of producing sound levels that could
cause permanent hearing loss. Do not operate for
a long period of time at a high volume level, or at
a level that is uncomfortable. If you experience
any hearing loss or ringing in the ears, you should
immediately stop using the unit, and consult an
audiologist.
..........................................................................................................
..........................................................................................................
002a
• Do not open or perform any internal modifications on the unit.
..........................................................................................................
003
• Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
..........................................................................................................
004
• Never use or store the unit in places that are:
• Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
..........................................................................................................
011
• Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.
..........................................................................................................
012a:
• Immediately turn the power off, remove the
power cord from the outlet, and request servicing
by your retailer, the nearest Roland Service
Center, or an authorized Roland distributor, as
listed on the “Information” page when:
• The power-supply cord, or the plug has been
damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
007
• Make sure you always have the unit placed so it is
level and sure to remain stable. Never place it on
stands that could wobble, or on inclined surfaces.
..........................................................................................................
008a
• The unit should be connected to a power supply
only of the type described in the operating instructions, or as marked on the rear side of unit.
..........................................................................................................
009
• Do not excessively twist or bend the power cord,
nor place heavy objects on it. Doing so can
damage the cord, producing severed elements and
short circuits. Damaged cords are fire and shock
hazards!
..........................................................................................................
• The unit has been exposed to rain (or otherwise
has become wet); or
• The unit does not appear to operate normally or
exhibits a marked change in performance.
..........................................................................................................
013
• In households with small children, an adult
should provide supervision until the child is
capable of following all the rules essential for the
safe operation of the unit.
..........................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
..........................................................................................................
3
CUBE-60_e.book 4 ページ 2004年3月5日 金曜日 午後4時41分
015
103a:
• Do not force the unit’s power-supply cord to share
an outlet with an unreasonable number of other
devices. Be especially careful when using
extension cords—the total power used by all
devices you have connected to the extension
cord’s outlet must never exceed the power rating
(watts/amperes) for the extension cord. Excessive
loads can cause the insulation on the cord to heat
up and eventually melt through.
..........................................................................................................
• At regular intervals, you should unplug the power
plug and clean it by using a dry cloth to wipe all
dust and other accumulations away from its prongs.
Also, disconnect the power plug from the power
outlet whenever the unit is to remain unused for an
extended period of time. Any accumulation of dust
between the power plug and the power outlet can
result in poor insulation and lead to fire.
..........................................................................................................
104
• Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
..........................................................................................................
016
• Before using the unit in a foreign country, consult
with your retailer, the nearest Roland Service
Center, or an authorized Roland distributor, as
listed on the “Information” page.
..........................................................................................................
106
• Never climb on top of, nor place heavy objects on
the unit.
026
• Do not put anything that contains water (e.g.,
flower vases) on this unit. Also, avoid the use of
insecticides, perfumes, alcohol, nail polish, spray
cans, etc., near the unit. Swiftly wipe away any
liquid that spills on the unit using a dry, soft cloth.
..........................................................................................................
..........................................................................................................
107a
• Never handle the power cord or its plug with wet
hands when plugging into, or unplugging from,
an outlet.
..........................................................................................................
108a
• Before moving the unit, disconnect the power
plug from the outlet, and pull out all cords from
external devices.
..........................................................................................................
101a
• The unit should be located so that its location or
position does not interfere with its proper ventilation.
..........................................................................................................
109a
• Before cleaning the unit, turn off the power and
unplug the power cord from the outlet (P. 5).
102a
• Always grasp only the plug on the power-supply
cord when plugging into, or unplugging from an
outlet.
..........................................................................................................
..........................................................................................................
110a
• Whenever you suspect the possibility of lightning
in your area, pull the plug on the power cord out
of the outlet.
..........................................................................................................
For EU Countries
This product complies with the requirements of European Directives EMC 89/336/EEC and LVD 73/23/EEC.
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For Canada
NOTICE
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
AVIS
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
4
CUBE-60_e.book 5 ページ 2004年3月5日 金曜日 午後4時41分
IMPORTANT NOTES
291b
In addition to the items listed under “IMPORTANT SAFETY INSTRUCTIONS” and “USING THE UNIT SAFELY” on pages 2,
3 and 4, please read and observe the following:
Power Supply
Maintenance
301
401a
• Do not connect this unit to same electrical outlet that is being
used by an electrical appliance that is controlled by an
inverter (such as a refrigerator, washing machine,
microwave oven, or air conditioner), or that contains a
motor. Depending on the way in which the electrical
appliance is used, power supply noise may cause this unit to
malfunction or may produce audible noise. If it is not
practical to use a separate electrical outlet, connect a power
supply noise filter between this unit and the electrical outlet.
307
• Before connecting this unit to other devices, turn off the
power to all units. This will help prevent malfunctions
and/or damage to speakers or other devices.
308
• Although the LEDs are switched off when the POWER
switch is switched off, this does not mean that the unit has
been completely disconnected from the source of power. If
you need to turn off the power completely, first turn off
the POWER switch, then unplug the power cord from the
power outlet. For this reason, the outlet into which you
choose to connect the power cord’s plug should be one
that is within easy reach.
Placement
351
• Using the unit near power amplifiers (or other equipment
containing large power transformers) may induce hum. To
alleviate the problem, change the orientation of this unit; or
move it farther away from the source of interference.
352a
• This device may interfere with radio and television reception.
Do not use this device in the vicinity of such receivers.
352b
• Noise may be produced if wireless communications devices,
such as cell phones, are operated in the vicinity of this unit.
Such noise could occur when receiving or initiating a call, or
while conversing. Should you experience such problems,
you should relocate such wireless devices so they are at a
greater distance from this unit, or switch them off.
354b
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Also, do not allow lighting devices that normally are used
while their light source is very close to the unit (such as a
piano light), or powerful spotlights to shine upon the
same area of the unit for extended periods of time.
Excessive heat can deform or discolor the unit.
355b
• When moved from one location to another where the
temperature and/or humidity is very different, water
droplets (condensation) may form inside the unit. Damage
or malfunction may result if you attempt to use the unit in
this condition. Therefore, before using the unit, you must
allow it to stand for several hours, until the condensation
has completely evaporated.
• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any kind,
to avoid the possibility of discoloration and/or deformation.
Additional Precautions
553
• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its jacks
and connectors. Rough handling can lead to malfunctions.
556
• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s
internal elements.
557
• A small amount of heat will radiate from the unit during
normal operation.
558a
• To avoid disturbing your neighbors, try to keep the unit’s
volume at reasonable levels. You may prefer to use
headphones, so you do not need to be concerned about
those around you (especially when it is late at night).
559a
• When you need to transport the unit, package it in the box
(including padding) that it came in, if possible. Otherwise,
you will need to use equivalent packaging materials.
921
• To prevent malfunction and/or damage to speakers or
other devices, always turn down the volume, and turn off
the power on all devices before making any connections.
941
• Once the connections have been completed, turn on power
to your various devices in the order specified. By turning
on devices in the wrong order, you risk causing
malfunction and/or damage to speakers and other devices.
1. Turn on the device connected to the CUBE-60’s input
jack.
2. Turn on the CUBE-60.
3. Switch on any equipment connected to the CUBE-60’s
LINE OUT and RECORDING OUT/PHONES jacks.
Turn off the devices in the reverse order to which they
were switched on.
• Wrap the power cord around the cord hook when transporting or storing the unit.
• Do not insert hands, fingers, etc, into the openings in the
unit's rear panel. In particular, if the unit is to used in
households with small children, always provide adult
supervision to ensure that children keep their hands and
feet out of these openings.
356
• Do not allow rubber, vinyl, or similar materials to remain
on the unit for long periods of time. Such objects can
discolor or otherwise harmfully affect the finish.
359
• Do not paste stickers, decals, or the like to this instrument.
Peeling such matter off the instrument may damage the
exterior finish.
5
CUBE-60_e.book 6 ページ 2004年3月5日 金曜日 午後4時41分
Panel Descriptions
Control Panel
fig.01
8
9
10
11
12
13
14
7
15
16
1
3
4
2
1. INPUT Jack
Connect your guitar here.
2. SELECT Switch
Switches you between the JC CLEAN and LEAD channels.
You can confirm which channel is selected by checking the
indicator’s color (JC CLEAN: green; LEAD: red).
The channel can be switched using the optional BOSS FS-5U
foot switch.
JC CLEAN Channel
This is a model of Roland’s famous JC-120 Jazz Chorus guitar
amplifier.
The ultra-clean, ultra-flat sound offers a smooth. This becomes
more effective when used in combination with a multi effector.
3. BRIGHT Switch
Creates a sparkling midrange and high end for a crisp and
distinct sound.
This is perfect for chord strumming with humbucking pickups.
4. VOLUME Knob
Adjusts the JC CLEAN channel volume. On the CUBE-60,
distortion is gradually added as you turn this knob to the
right, producing a crunch sound as the knob is turned up
near maximum.
LEAD Channel
5. Type Switch
You can select from the following eight amp types:
ACOUSTIC
This is an original amp type included with the acoustic
simulator. Turns the sounds from your electric guitar into a
clear, refined acoustic guitar sound.
Using this type together with a single coil pickup in the
front position provides optimum sound quality. If using
a humbucking pickup, slightly turn down the
equalizer’s BASS and MIDDLE settings.
5
6
BLACK PANEL
This is modeled on the classic Fender Twin Reverb amplifier,
used in a wide variety of musical styles, from country to blues,
jazz and rock. Exhibiting rich lows and a bright high end.
BRIT COMBO
This is modeled on the Vox AC-30TB, the rock amplifier that
created the Liverpool sound of the ’60s. It can produce a
broad range of sounds, from clean to overdrive.
TWEED
This is modeled on the vintage Tweed Fender Bassman 4x10
Combo. The amplifier’s four 10-inch speakers produce a
clear upper-midrange with a fat low end, and its unique
crunch tones make it a favorite of blues-rock guitarists.
CLASSIC STACK
This is modeled on the sound and response of a Marshall
JMP1987. Used extensively in hard rock during the 1970s,
this is truly the perfect amp for the “top rock” guitar sound.
METAL STACK
This is modeled on the Peavey EVH-5150. This is the high
gain amp, so even at low volumes, you can still get heavy
distortion and sustain.
R-FIER STACK
This is modeled on the MESA/Boogie Rectifier. This super
high gain amp is capable of producing slash metal, grunge,
and a wide range of other lead sounds.
DYNA AMP
This is an original amp sound that lets the player create
previously unobtainable tonal changes according to the
picking strength. Soft picking produces a transparent clean
amp sound, while hard picking results in a deeply distorted
high-gain amp sound. Once the sound is distorted, the tone
then changes according to the force used in picking, greatly
expanding your range of expression.
Setting the GAIN knob to the optimal position provides
the greatest effect.
Start by setting the GAIN knob to the center position,
then adjust the knob so that a clean tone is obtained
with soft picking and deep distortion is obtained with
hard picking.
“Sample Settings” (p. 10; Dynamic Style)
6
CUBE-60_e.book 7 ページ 2004年3月5日 金曜日 午後4時41分
Panel Descriptions
* All product names mentioned in this document are trademarks or
registered trademarks of their respective owners, and are not
related to Roland Corporation.
In this manual, these names are used as appropriate ways to
indicate sounds that are simulated using COSM technology.
6. GAIN Knob
Adjusts the LEAD channel’s distortion level.
7. VOLUME Knob
fig.04
PHASER
This effect adds a variable phaseshifted signal to the direct sound,
giving the sound a swirling character.
fig.05
TREMOLO
Tremolo is an effect that creates a
cyclic change in volume.
Adjusts the LEAD channel volume.
EQUALIZER
DELAY/REVERB
8. BASS Knob
13. DELAY/REVERB Knob
Adjusts the tone of the lower range.
9. MIDDLE Knob
Adjusts the tone of the midrange.
10.TREBLE Knob
Adjusts the tone of the upper range.
* No sound will be produced when BASS, MIDDLE, and TREBLE
knobs are all set to 0 while the Type switch is set to BLACK
PANEL or TWEED.
PRESENCE
11. PRESENCE Knob
Gives the midrange and high end a more lustrous contour.
Very effective when you want to give the sound a good
feeling of airiness.
Turn this knob to DELAY or REVERB to switch to that effect.
Turn the knob to adjust the amount of effect applied.
The ON indicator lights up when DELAY or REVERB is
turned on, and goes out when DELAY or REVERB is turned
off. You can also turn DELAY or REVERB on and off using
an optional foot switch (the BOSS FS-5U).
* Graduations for DELAY, REVERB on a panel are for reference.
Be sure to check the sound as you adjust the effects.
fig.05a
DELAY
Turn the knob to change the time and
amount of delay effects.
fig.05b
REVERB
Turn the knob to adjust the reverb level.
EFX (Effects)
14. RECORDING OUT/PHONES Jack
12. EFX (Effects) Knob
Turn this knob to chorus, flanger, phaser, or tremolo to
select the corresponding effect. Turn the knob to adjust the
amount of effect applied.
The ON indicator lights up when EFX is turned on, and
goes out when EFX is turned off. You can also turn EFX on
and off using an optional foot switch (the BOSS FS-5U).
* Graduations for CHORUS, FLANGER, PHASER, TREMOLO
on a panel are for reference. Be sure to check the sound as you
adjust the effects.
When Using RECORDING OUT
Connect to a recorder or other recording device.
Features COSM speaker modeling, allowing you to use the
CUBE-60 as a high-performance amp simulator.
When Using Headphones
Connect headphones to this jack.
The COSM speaker modeling allows the guitar amp to
produce sounds with real punch.
* No sound is output from the CUBE-60’s speaker or any external
speaker when the RECORDING OUT/PHONES jack is in use.
fig.02
CHORUS
In this effect, a slightly detuned sound
is added to the original sound, giving
the sound greater breadth and
fullness.
fig.03
FLANGER
This creates a flanging effect that
creates a sort of spinning sensation
with the sound.
15. POWER Switch
Turn the power on and off.
* This unit is equipped with a protection circuit. A brief interval (a few
seconds) after power up is required before the unit will operate normally.
* Always make sure to have the volume level turned down before
switching on power. Even with the volume all the way down, you
may still hear some sound when the power is switched on, but this
is normal, and does not indicate a malfunction.
16. Power Indicator
This indicator lights when the unit is turned on.
7
CUBE-60_e.book 8 ページ 2004年3月5日 金曜日 午後4時41分
Panel Descriptions
Rear Panel
1
2
3
4
Speaker
cable
INPUT
FS-5U
FS-5U
Tuner
FS-5U
INPUT
INPUT
External Speaker
Mixer
1. FOOT SW (Foot Switch) Jack
Foot switches (the optional BOSS FS-5U) are connected here.
* Set the polarity switch as shown below.
fig.06
* Only use speaker cable to connect the speaker. Do not use any
shielded cable designed for use with guitars.
* No sound is output from the CUBE-60’s speaker or any external
speaker when the RECORDING OUT/PHONES jack is in use.
3. LINE OUT Jack
Connects to a PA system, recorder, or other external system.
Polarity switch
(CH SELECT)
Switches JC CLEAN/LEAD channels.
(EFX)
Switches on and off of EFX.
(DELAY/REVERB)
Switches on and off of DELAY/REVERB.
2. EXT SPEAKER (External Speaker) Jack
You can connect external speaker here.
When connected, sounds are played from both the CUBE-60
and the external speakers.
* When connecting to an external speaker, make sure the speaker
conforms to the following specifications.
Impedance: 8 Ω maximum
Allowable power input: 60 watts minimum
8
The COSM speaker modeling allows the guitar amp to
produce sounds with real punch.
Use this when using the unit with an external PA system or
when line-recording performances while listening to the
sound from the CUBE-60’s speaker.
Adjust the output level with the JC CLEAN channel or
LEAD channel VOLUME knob.
4. TUNER OUT Jack
Connect tuner to this jack.
* The output from here is unaffected by the CUBE-60’s knob and
switch settings.
................................................................................................................
Q: The volume level of the instrument connected to the CUBE60 is too low.
A: Could you be using a connection cable that contains a resistor?
Use a connection cable that does not contain a resistor.
................................................................................................................
CUBE-60_e.book 9 ページ 2004年3月5日 金曜日 午後4時41分
Sample Settings
Alternative Metal
The perfect sound for heavy, sharp riffs.
Select the high-gain R-FIER amp, then use the equalizer to
boost the low end even more.
You can add even more to the distortion’s edge by raising
the presence.
Used with a humbucking pickup in the rear position, it
results in an extreme distortion effect.
SELECT : LEAD
Plus, you can add a long delay to use this as a lead sound
with great sustain.
Space Clean
This is a transparent sound using spacial effects.
Select the JC CLEAN amp, modeled on the Roland JC-120,
then add chorus and long delay.
Using this setting with a guitar equipped with single coil
pickups makes beautiful sounding arpeggios and chord
strumming.
If using a humbucking pickup, turn the BRIGHT switch to
ON to achieve a bright, sparkling sound.
BRIGHT : ON or OFF
SELECT : JC CLEAN
Depending on the phrase being played, it can be effective
to set the delay sound’s delay time slightly slower than the
phrase’s tempo.
Swamp Crunch
This is a blues sound found in vintage amps.
The boosted midrange is a particular characteristic of the
TWEED amp.
By adjusting the TREBLE knob, you can emphasize the
picking’s attack sound.
To create a fat, sweet sound, reduce the presence a little.
SELECT : LEAD
To produce a transparent and sharp crunch sound, lower
the midrange and boost the presence slightly.
You can also control the tube amp’s characteristic sustain
by adjusting the GAIN knob.
Classic Rock
This is a 70s-style rock sound.
Turning up the gain produces a powerful rock sound in all
riffs and solos.
A powerful low end is a characteristic of the sound emitted
by the surfaces of the cabinet, so you can turn up the
equalizer knobs, especially the BASS knob, and increase
the presence to produce a sound with great punch.
SELECT : LEAD
Turning the GAIN knob and equalizer all the way up
produces an even more powerful, driving sound.
Turning down the GAIN knob is also a perfect way to get a
sharp crunch sound.
9
CUBE-60_e.book 10 ページ 2004年3月5日 金曜日 午後4時41分
Sample Settings
Dynamic Style
DYNA AMP is an original amp that uses relative picking
strength to create changes in distortion depth.
SELECT : LEAD
First, adjust the GAIN knob so that a clean tone is obtained
with soft picking and deep distortion is obtained when you
pick hard.
Now, mixing arpeggios played with a gentle touch along
with firmly picked chords and solos results in a guitar
sound with huge dynamics.
Now, to create a broader, more open sound, cut the
midrange and raise the low end and presence.
Using this in combination with the EFX and delay and
reverb creates a sound with an even greater feeling of scale.
Country Twang
SELECT : LEAD
A dry, distinctive country sound.
The BLACK PANEL amp has a powerful midrange
supported by a thick, solid low end, providing a clean
sound that is punchy and sweet.
By adjusting the sound while maintaining the balance
between the low and high ends, and in some cases cutting
back on the midrange, you bring out the guitar's bright
resonance even more.
Adding deep tremolo and reverb creates a good effect on
guitars equipped with single-coil pickups.
On guitars equipped with humbucking pickups, turning
down the highs creates a sweet sound that is perfectly
matched for jazz and similar genres.
Mersey Beat
This is the famous Liverpool sound from the past.
This sound features a mild distortion that still lets all the
notes in a chord come through clearly and distinctly.
SELECT : LEAD
Raise the midrange and presence on the BRIT COMBO
amp to create a lively, energetic sound.
Adjust the GAIN knob so that sound does not distort too
much when you play chords.
Use of a rear pickup provides a powerful sound with no
muddiness, producing a beautiful resonance when mixing
open strings with chords.
The sound may distort excessively when a guitar equipped
with humbucking pickups or other high-output guitar is
used. If this occurs, you can reduce the gain in order to get
a good balance between the guitar sound and the
distortion sound, or alternatively, you can adjust the sound
by cutting back the low end.
Setting Name:
Use this for keeping notes regarding your settings.
.....................................................................................................
.....................................................................................................
.....................................................................................................
.....................................................................................................
.....................................................................................................
BRIGHT switch
ON
OFF
SELECT switch
JC CLEAN
LEAD
.....................................................................................................
.....................................................................................................
.....................................................................................................
10
CUBE-60_e.book 11 ページ 2004年3月5日 金曜日 午後4時41分
Main Specifications
Rated Power Output
Connectors
60 W
30 cm (12 inches)
INPUT Jack (1/4” phone type)
RECORDING OUT/PHONES Jack (Stereo 1/4” phone type)
FOOT SW Jack (CH SELECT, EFX, DELAY/REVERB) (1/4”
phone type)
EXT SPEAKER Jack (1/4” phone type)
LINE OUT Jack (1/4” phone type)
TUNER OUT Jack (1/4” phone type)
Controls
Power Supply
POWER Switch, SELECT Switch
AC 117 V, AC 230 V, AC 240 V (50/60 Hz)
AC 220 V (60 Hz)
Nominal Input Level (1 kHz)
INPUT: -10 dBu/1 MΩ
Speaker
<JC CLEAN Channel>
BRIGHT Switch, VOLUME Knob
Power Consumption
<LEAD Channel>
TYPE Switch (ACOUSTIC, BLACK PANEL, BRIT COMBO,
TWEED, CLASSIC STACK, METAL STACK, R-FIER STACK,
DYNA AMP), GAIN Knob, VOLUME Knob
60 W
Dimensions
410 (W) x 275 (D) x 440 (H) mm
16-3/16 (W) x 10-7/8 (D) x 17-3/8 (H) inches
<EQUALIZER>
BASS Knob, MIDDLE Knob, TREBLE Knob
<PRESENCE>
PRESENCE Knob
Weight
<EFX>
EFX Knob (CHORUS, FLANGER, PHASER, TREMOLO)
Accessory
<DELAY/REVERB>
DELAY/REVERB Knob
Option
14.5 kg / 32 lbs
Owner’s Manual
Foot Switch FS-5U (BOSS)
Indicators
JC CLEAN Channel, LEAD Channel, EFX, DELAY/REVERB,
POWER
* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior notice.
Block Diagram
INPUT
SELECT
POWER AMP
JC CLEAN
EFX
LEAD
SPEAKER
DELAY/
REVERB
EXT SPEAKER
ACOUSTIC
BLACK PANEL
BRIT COMBO
TWEED
CLASSIC STACK
METAL STACK
R-FIER STACK
LINE OUT
CABINET &
SPEAKER
SIMULATOR
RECORDING OUT/
PHONES
DYNA AMP
* No sound is played through the unit’s speaker and
external speaker while the PHONES jack is in use.
TUNER OUT
11
CUBE-60_e.book 12 ページ 2004年3月5日 金曜日 午後4時41分
Information
When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as
shown below.
AFRICA
EGYPT
Al Fanny Trading Office
9, EBN Hagar A1 Askalany Street,
ARD E1 Golf, Heliopolis,
Cairo 11341, EGYPT
TEL: 20-2-417-1828
REUNION
Maison FO - YAM Marcel
25 Rue Jules Hermann,
Chaudron - BP79 97 491
Ste Clotilde Cedex,
REUNION ISLAND
TEL: (0262) 218-429
SOUTH AFRICA
That Other Music Shop
(PTY) Ltd.
11 Melle St., Braamfontein,
Johannesbourg, SOUTH AFRICA
P.O.Box 32918, Braamfontein 2017
Johannesbourg, SOUTH AFRICA
TEL: (011) 403 4105
Paul Bothner (PTY) Ltd.
17 Werdmuller Centre,
Main Road, Claremont 7708
SOUTH AFRICA
MEXICO
IRELAND
Casa Veerkamp, s.a. de c.v.
Roland Ireland
339 Gil J. Puyat Avenue
Makati, Metro Manila 1200,
PHILIPPINES
TEL: (02) 899 9801
Av. Toluca No. 323, Col. Olivar
de los Padres 01780 Mexico D.F.
MEXICO
TEL: (55) 5668-6699
G2 Calmount Park, Calmount
Avenue, Dublin 12
Republic of IRELAND
TEL: (01) 4294444
SINGAPORE
PANAMA
Swee Lee Company
SUPRO MUNDIAL, S.A.
150 Sims Drive,
SINGAPORE 387381
TEL: 6846-3676
Boulevard Andrews, Albrook,
Panama City, REP. DE PANAMA
TEL: 315-0101
CRISTOFORI MUSIC PTE
LTD
PARAGUAY
PHILIPPINES
G.A. Yupangco & Co. Inc.
Blk 3014, Bedok Industrial Park E,
#02-2148, SINGAPORE 489980
TEL: 6243-9555
TAIWAN
J.E. Olear y ESQ. Manduvira
Asuncion PARAGUAY
TEL: (021) 492-124
ROLAND TAIWAN
ENTERPRISE CO., LTD.
URUGUAY
10F. No.18 Anhuaxili
Chaoyang District, Beijing 100011
CHINA
TEL: (010) 6426-5050
Roland Shanghai Electronics
Co.,Ltd.
(GUANGZHOU OFFICE)
2/F., No.30 Si You Nan Er Jie Yi
Xiang, Wu Yang Xin Cheng,
Guangzhou 510600, CHINA
Tel: (020) 8736-0428
HONG KONG
Tom Lee Music Co., Ltd.
Service Division
22-32 Pun Shan Street, Tsuen
Wan, New Territories,
HONG KONG
TEL: 2415 0911
Parsons Music Ltd.
8th Floor, Railway Plaza, 39
Chatham Road South, T.S.T,
Kowloon, HONG KONG
TEL: 2333 1863
INDIA
Rivera Digitec (India) Pvt. Ltd.
409, Nirman Kendra Mahalaxmi
Flats Compound Off. Dr. Edwin
Moses Road, Mumbai-400011,
INDIA
TEL: (022) 2493 9051
INDONESIA
PT Citra IntiRama
J1. Cideng Timur No. 15J-150
Jakarta Pusat
INDONESIA
TEL: (021) 6324170
KOREA
Cosmos Corporation
1461-9, Seocho-Dong,
Seocho Ku, Seoul, KOREA
TEL: (02) 3486-8855
MALAYSIA
BENTLEY MUSIC SDN BHD
140 & 142, Jalan Bukit Bintang
55100 Kuala Lumpur,MALAYSIA
TEL: (03) 2144-3333
Roland Scandinavia Avd.
Kontor Norge
Halilit P. Greenspoon &
Sons Ltd.
8 Retzif Ha'aliya Hashnya St.
Tel-Aviv-Yafo ISRAEL
TEL: (03) 6823666
JORDAN
AMMAN Trading Agency
POLAND
Easa Husain Al Yousifi Est.
Francisco Acuna de Figueroa 1771
C.P.: 11.800
Montevideo, URUGUAY
TEL: (02) 924-2335
MX MUSIC SP.Z.O.O.
UL. Gibraltarska 4.
PL-03664 Warszawa POLAND
TEL: (022) 679 44 19
Theera Music Co. , Ltd.
VENEZUELA
PORTUGAL
330 Verng NakornKasem, Soi 2,
Bangkok 10100, THAILAND
TEL: (02) 2248821
Musicland Digital C.A.
THAILAND
ASIA
Roland Shanghai Electronics
Co.,Ltd.
(BEIJING OFFICE)
NORWAY
ISRAEL
Todo Musica S.A.
Room 5, 9fl. No. 112 Chung Shan
N.Road Sec.2, Taipei, TAIWAN,
R.O.C.
TEL: (02) 2561 3339
Suite DP-8
40 Ba Huyen Thanh Quan Street
Hochiminh City, VIETNAM
Tel: (08) 930-1969
5F. No.1500 Pingliang Road
Shanghai 200090, CHINA
TEL: (021) 5580-0800
Viale delle Industrie 8,
20020 Arese, Milano, ITALY
TEL: (02) 937-78300
No.41 Nike St., Dr.Shariyati Ave.,
Roberoye Cerahe Mirdamad
Tehran, IRAN
TEL: (021) 285-4169
245 Prince Mohammad St.,
Amman 1118, JORDAN
TEL: (06) 464-1200
VIETNAM
Roland Shanghai Electronics
Co.,Ltd.
Roland Italy S. p. A.
MOCO, INC.
Lilleakerveien 2 Postboks 95
Lilleaker N-0216 Oslo
NORWAY
TEL: 2273 0074
P.O.BOX 23032, Claremont 7735,
SOUTH AFRICA
TEL: (021) 674 4030
CHINA
Distribuidora De
Instrumentos Musicales
ITALY
IRAN
Saigon Music
AUSTRALIA/
NEW ZEALAND
AUSTRALIA
Roland Corporation
Australia Pty., Ltd.
38 Campbell Avenue
Dee Why West. NSW 2099
AUSTRALIA
TEL: (02) 9982 8266
NEW ZEALAND
Roland Corporation Ltd.
32 Shaddock Street, Mount Eden,
Auckland, NEW ZEALAND
TEL: (09) 3098 715
CENTRAL/LATIN
AMERICA
ARGENTINA
Instrumentos Musicales S.A.
Av.Santa Fe 2055
(1123) Buenos Aires
ARGENTINA
TEL: (011) 4508-2700
EUROPE
AUSTRIA
Roland Austria GES.M.B.H.
Siemensstrasse 4, P.O. Box 74,
A-6063 RUM, AUSTRIA
TEL: (0512) 26 44 260
BELGIUM/HOLLAND/
LUXEMBOURG
Roland Benelux N. V.
Houtstraat 3, B-2260, Oevel
(Westerlo) BELGIUM
TEL: (014) 575811
CZECH REP.
K-AUDIO
Kardasovska 626.
CZ-198 00 Praha 9,
CZECH REP.
TEL: (2) 666 10529
DENMARK
Rua San Jose, 780 Sala B
Parque Industrial San Jose
Cotia - Sao Paulo - SP, BRAZIL
TEL: (011) 4615 5666
COSTA RICA
JUAN Bansbach
Instrumentos Musicales
Ave.1. Calle 11, Apartado 10237,
San Jose, COSTA RICA
TEL: 258-0211
CHILE
S.A.
Rut.: 96.919.420-1
Nataniel Cox #739, 4th Floor
Santiago - Centro, CHILE
TEL: (02) 688-9540
EL SALVADOR
OMNI MUSIC
75 Avenida Norte y Final
Alameda Juan Pablo ,
Edificio No.4010 San Salvador,
EL SALVADOR
TEL: 262-0788
FBS LINES
Chahine S.A.L.
Gerge Zeidan St., Chahine Bldg.,
Achrafieh, P.O.Box: 16-5857
Beirut, LEBANON
TEL: (01) 20-1441
QATAR
Al Emadi Co. (Badie Studio
& Stores)
P.O. Box 62, Doha, QATAR
TEL: 4423-554
SAUDI ARABIA
aDawliah Universal
Electronics APL
MuTek
3-Bogatyrskaya Str. 1.k.l
107 564 Moscow, RUSSIA
TEL: (095) 169 5043
SPAIN
Roland Electronics
de España, S. A.
Calle Bolivia 239, 08020
Barcelona, SPAIN
TEL: (93) 308 1000
SWEDEN
Roland Scandinavia A/S
SWEDISH SALES OFFICE
Danvik Center 28, 2 tr.
S-131 30 Nacka SWEDEN
TEL: (0)8 702 00 20
Nordhavnsvej 7, Postbox 880,
DK-2100 Copenhagen
DENMARK
TEL: 3916 6200
Roland (Switzerland) AG
FINLAND
LEBANON
RUSSIA
SWITZERLAND
4, Rue Paul Henri SPAAK,
Parc de l'Esplanade, F 77 462 St.
Thibault, Lagny Cedex FRANCE
TEL: 01 600 73 500
Abdullah Salem Street,
Safat, KUWAIT
TEL: 243-6399
Piata Libertatii 1,
535500 Gheorgheni, ROMANIA
TEL: (266) 364 609
Roland Scandinavia A/S
Roland France SA
Roland Brasil Ltda
Cais Das Pedras, 8/9-1 Dto
4050-465 PORTO
PORTUGAL
TEL: (022) 608 00 60
ROMANIA
FRANCE
BRAZIL
Comercial Fancy
Av. Francisco de Miranda,
Centro Parque de Cristal, Nivel
C2 Local 20 Caracas
VENEZUELA
TEL: (212) 285-8586
Tecnologias Musica e Audio,
Roland Portugal, S.A.
KUWAIT
Corniche Road, Aldossary Bldg.,
1st Floor, Alkhobar,
SAUDI ARABIA
P.O.Box 2154, Alkhobar 31952
SAUDI ARABIA
TEL: (03) 898 2081
SYRIA
Technical Light & Sound
Center
Khaled Ebn Al Walid St.
Bldg. No. 47, P.O.BOX 13520,
Damascus, SYRIA
TEL: (011) 223-5384
TURKEY
Ant Muzik Aletleri Ithalat
Ve Ihracat Ltd Sti
Siraselviler Caddesi Siraselviler
Pasaji No:74/20
Taksim - Istanbul, TURKEY
TEL: (0212) 2499324
Landstrasse 5, Postfach,
CH-4452 Itingen,
SWITZERLAND
TEL: (061) 927-8383
U.A.E.
UKRAINE
Zak Electronics & Musical
Instruments Co. L.L.C.
TIC-TAC
Mira Str. 19/108
P.O. Box 180
295400 Munkachevo, UKRAINE
TEL: (03131) 414-40
Zabeel Road, Al Sherooq Bldg.,
No. 14, Grand Floor, Dubai, U.A.E.
TEL: (04) 3360715
NORTH AMERICA
Roland Scandinavia As,
Filial Finland
UNITED KINGDOM
Elannontie 5
FIN-01510 Vantaa, FINLAND
TEL: (0)9 68 24 020
Atlantic Close, Swansea
Enterprise Park, SWANSEA
SA7 9FJ,
UNITED KINGDOM
TEL: (01792) 702701
CANADA
MIDDLE EAST
Roland Canada Music Ltd.
(Toronto Office)
BAHRAIN
170 Admiral Boulevard
Mississauga On L5T 2N6
CANADA
TEL: (905) 362 9707
GERMANY
Roland (U.K.) Ltd.
Roland Elektronische
Musikinstrumente HmbH.
Oststrasse 96, 22844 Norderstedt,
GERMANY
TEL: (040) 52 60090
GREECE
STOLLAS S.A.
Music Sound Light
155, New National Road
Patras 26442, GREECE
TEL: 2610 435400
HUNGARY
Roland East Europe Ltd.
Warehouse Area ‘DEPO’ Pf.83
H-2046 Torokbalint, HUNGARY
TEL: (23) 511011
Moon Stores
No.16, Bab Al Bahrain Avenue,
P.O.Box 247, Manama 304,
State of BAHRAIN
TEL: 211 005
CYPRUS
Radex Sound Equipment Ltd.
17, Diagorou Street, Nicosia,
CYPRUS
TEL: (022) 66-9426
Roland Canada Music Ltd.
(Head Office)
5480 Parkwood Way Richmond
B. C., V6V 2M4 CANADA
TEL: (604) 270 6626
U. S. A.
Roland Corporation U.S.
5100 S. Eastern Avenue
Los Angeles, CA 90040-2938,
U. S. A.
TEL: (323) 890 3700
As of November 1, 2003 (Roland)
SD000453
1GT
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
