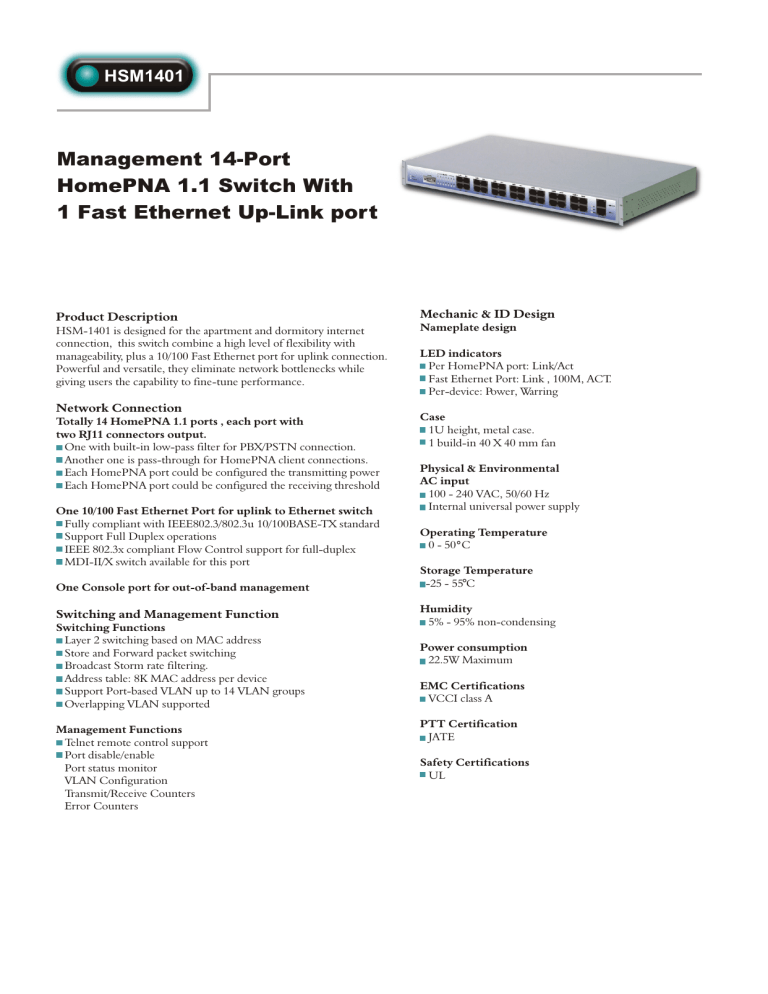

Management 14-Port HomePNA 1.1 Switch With 1 Fast Ethernet Up

Management 14-Port HomePNA 1.1 Switch With 1 Fast Ethernet Up
Management 14-Port
HomePNA 1.1 Switch With
1 Fast Ethernet Up-Link port
Product Description
HSM-1401 is designed for the apartment and dormitory internet
connection, this switch combine a high level of flexibility with
manageability, plus a 10/100 Fast Ethernet port for uplink connection.
Powerful and versatile, they eliminate network bottlenecks while
giving users the capability to fine-tune performance.
Network Connection
Totally 14 HomePNA 1.1 ports , each port with
two RJ11 connectors output.
One with built-in low-pass filter for PBX/PSTN connection.
Another one is pass-through for HomePNA client connections.
Each HomePNA port could be configured the transmitting power
Each HomePNA port could be configured the receiving threshold
One 10/100 Fast Ethernet Port for uplink to Ethernet switch
Fully compliant with IEEE802.3/802.3u 10/100BASE-TX standard
Support Full Duplex operations
IEEE 802.3x compliant Flow Control support for full-duplex
MDI-II/X switch available for this port
One Console port for out-of-band management
Switching and Management Function
Switching Functions
Layer 2 switching based on MAC address
Store and Forward packet switching
Broadcast Storm rate filtering.
Address table: 8K MAC address per device
Support Port-based VLAN up to 14 VLAN groups
Overlapping VLAN supported
Management Functions
Telnet remote control support
Port disable/enable
Port status monitor
VLAN Configuration
Transmit/Receive Counters
Error Counters
Mechanic & ID Design
Nameplate design
LED indicators
Per HomePNA port: Link/Act
Fast Ethernet Port: Link , 100M, ACT.
Per-device: Power, Warring
1U height, metal case.
1 build-in 40 X 40 mm fan
Physical & Environmental
AC input
100 - 240 VAC, 50/60 Hz
Internal universal power supply
Operating Temperature
0 - 50 C
Storage Temperature
-25 - 55 C
5% - 95% non-condensing
Power consumption
22.5W Maximum
EMC Certifications
VCCI class A
PTT Certification
Safety Certifications
