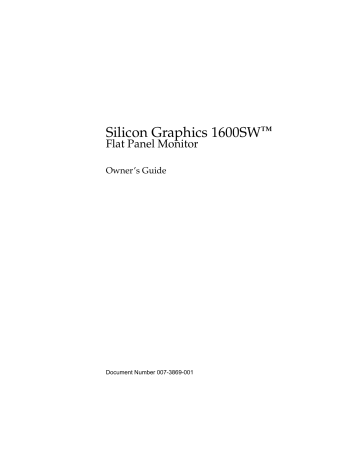

Silicon Graphics 1600SW ™

Flat Panel Monitor

Owner’s Guide

Document Number 007-3869-001

CONTRIBUTORS

Written by Judy Muchowski and Kameran Kashani

Illustrated by Kwong Liew and Kameran Kashani

Engineering contributions by Dan Evanicky, Lisa Feldman, Lori Gager, David

Hanttula, Ken Klingman, Oscar Medina, Jonathan Mendelson, Alice Meng,

Steve Proffitt, Larry Roberts, I-Ching Wang, Michael Wright.

©1998, Silicon Graphics, Inc.— All Rights Reserved

The contents of this document may not be copied or duplicated in any form, in whole or in part, without the prior written permission of Silicon Graphics,

Inc.

RESTRICTED RIGHTS LEGEND

Use, duplication, or disclosure of the technical data contained in this document by the Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 52.227-7013 and/or in similar or successor clauses in the

FAR, or in the DOD or NASA FAR Supplement. Unpublished rights reserved under the Copyright Laws of the United States. Contractor/manufacturer is

Silicon Graphics, Inc., 2011 N. Shoreline Blvd., Mountain View, CA

94043-1389.

Silicon Graphics is a registered trademark and Silicon Graphics 1600SW is a trademark of Silicon Graphics Inc. Post-it is a registered trademark of 3M.

Contents

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

1.

Setting Up and Using the Flat Panel Monitor

. . . . . . . . . . . . . . . . . . 1

Using the Flat Panel Monitor With a Standard CRT . . . . . . . . . . . 1

Unpacking the Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About the Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Turning On the Flat Panel Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . 5

Adjusting the Viewing Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Turning Off the Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 7

Removing the Flat Panel Monitor From Its Base and

Replacing It. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Replacing the Flat Panel Monitor On Its Base . . . . . . . . . . . . . 9

Using a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Adjusting the White Balance (White Point). . . . . . . . . . . . . . . . . . 10

Recommended Use and Viewing Angles . . . . . . . . . . . . . . . . . . . 10

iii

iv

2.

Troubleshooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

No Image on the Flat Panel Monitor . . . . . . . . . . . . . . . . . . . 15

Image Appears Too Light or Too Dark . . . . . . . . . . . . . . . . . 16

Image Is Dim When Monitor Is First Turned On . . . . . . . . . 16

Bright Dots on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Diagnostic Tests for the Flat Panel Monitor . . . . . . . . . . . . . 17

Warranty Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Returning the Flat Panel Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.

Maintenance, Technical Specifications and Regulatory

Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning and General Care of the Flat Panel Monitor . . . . . . . . 19

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Manufacturer’s Regulatory Declarations . . . . . . . . . . . . . . . . . . . 23

Shielded Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

A.

Statements of Compliance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

FCC Class B Conformance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Electromagnetic Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

TCO ‘95 Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Industry Canada Notice (Canada Only) . . . . . . . . . . . . . . . . . . . . 27

CE Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

VCCI Notice (Japan Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Korean Regulatory Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

NOM 024 Information (Mexico Only) . . . . . . . . . . . . . . . . . . . . . . 29

EN 55022 Compliance (Czech Republic Only) . . . . . . . . . . . . . . . 29

Polish Notice (Poland Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Introduction

Congratulations and welcome to the world of precise color. You have purchased a professional-quality, digitally driven, flat panel monitor.

This flat panel monitor supports true color (24-bit) with a screen resolution of 1600 x 1024 pixels.

Because of its high resolution, this monitor must be connected to a graphics adapter card or system that supports the OpenLDI digital flat panel interface. You cannot plug this monitor into a typical analog

VGA connector.

This guide contains instructions that are specific to the flat panel monitor. It assumes that the adapter board that drives the monitor has been installed in your computer. Information related to your computer, adapter board, and other peripherals is located in the documents that ship with them.

• Chapter 1, “Setting Up and Using the Flat Panel Monitor,” explains how to unpack, set up, and adjust the flat panel monitor.

• Chapter 2, “Troubleshooting,” contains troubleshooting and product support information.

• Chapter 3, “Maintenance, Technical Specifications and

Regulatory Information,” tells you how to take care of the flat panel monitor. It also contains technical specifications and regulatory information.

• Appendix A, “Statements of Compliance,” describes the regulatory rules with which the flat panel monitor complies.

v

Chapter 1

1.

Setting Up and Using the Flat Panel Monitor

This chapter explains how to unpack the flat panel monitor and set it up with your computer.

The flat panel monitor is driven by an adapter board that is installed in your computer. In some cases, the adapter board and software are installed at the factory before shipment; in other cases, you need to install them yourself.

• If the flat panel adapter board and software have already been installed, continue with these instructions.

• If you are installing the adapter board and software, install them now, using the instructions and CD that come with the adapter board. Be sure to read any documentation or release notes on the

CD for instructions specific to your computer. Then return to this manual.

In addition, see your computer’s documentation (in most cases, an owner’s guide) for any information specific to your computer.

Using the Flat Panel Monitor With a Standard CRT

If you plan to use the flat panel monitor along with a standard cathode-ray tube (CRT) monitor, be aware of the following:

• The flat panel monitor was not designed to be used simultaneously with a conventional cathode-ray tube (CRT) monitor when both monitors are attached to the same graphics adapter board. If you are operating your flat panel monitor from

Setting Up and Using the Flat Panel Monitor

1

2

Chapter 1 a PCI or AGP board and have a CRT monitor connected to your system, you may need to use your system’s setup utility to select a primary (default) monitor.

• If your system can use separate, dual PCI or AGP cards, then you may be able to use the flat panel monitor and a CRT monitor at the same time. See your system’s owner’s guide and any documentation provided with the adapter board for more information.

Unpacking the Flat Panel Monitor

To unpack and set up the flat panel monitor, follow these steps.

(Unpacking instructions are also printed on the shipping box.) Save the original shipping materials in case you need to return the monitor for service.

1.

Open the box, remove the top carton and AC power card, and set both aside.

2.

Using the lifting strap that is packed around the monitor, carefully lift the monitor, its base, and some protective foam pieces from the box. Place this assembly on a flat surface.

3.

Remove the top foam support, then lift the monitor from the bottom foam piece and remove the plastic bag.

4.

Remove the protective film from the screen by peeling it away slowly from one corner, keeping the peeled off portion as close to the monitor’s surface as possible. Be careful not to get fingerprints on the exposed coated glass surface. Keep this protective film in case you need to return the monitor for service.

Caution:

The screen is made of glass coated with optical films and is the most expensive component in the monitor. A blow from a sharp instrument such as a pen can scratch the surface or break the glass.

5.

Remove the box containing the AC adapter from the foam packing, and remove the AC adapter from the box.

Also note the 3 mm hex wrench included with the shipment.

Use this tool if you wish to remove the monitor from its pedestal, for example to place the monitor on a mounting arm or wall mount.

You are finished unpacking the flat panel monitor. The next sections describe the flat panel monitor and how to set it up.

About the Flat Panel Monitor

You may want to take a moment to familiarize yourself with the monitor’s features, as shown in Figure 1-1.

LED

Power button

Figure 1-1

Front and Rear Views of the Flat Panel Monitor.

Power connector

3 mm hex screws

Interface cable

Clip

Connects to the computer

Setting Up and Using the Flat Panel Monitor

3

4

Chapter 1

Connecting the Cables

In order for your computer to recognize the flat panel monitor, you should connect the monitor first, before turning on your computer.

Follow these steps to connect the cables:

1.

Turn off your computer.

2.

Attach the flat panel monitor’s interface cable, indicated in

Figure 1-1, to the appropriate connector on your computer. (See your computer’s documentation.)

3.

Tuck the interface cable behind the clip on the base of the monitor, as shown in Figure 1-1.

4.

Connect the power cables as follows:

Connect the DC power cable from the AC adapter to the DC input power connector on the back of the flat panel monitor, as shown in Figure 1-2.

AC power

DC power

AC adapter

Figure 1-2

Connecting the Power Cable and AC Adapter

Tuck the power cable behind the clip on the rear of the stand.

Connect one end of the AC power cord to the AC adapter.

and the other end of the AC power cord to a grounded electrical wall outlet or power strip. (The illustration shows the AC adapter and cord for the U.S.A. The power cord for your country may look different.)

Note:

The AC adapter is auto-ranging, which means that it automatically adjusts for different AC voltages from almost any power source (50-60 Hz, 110-220 VAC) without using an additional transformer.

Turning On the Flat Panel Monitor

To turn on the monitor, press the power button on the front. See

Figure 1-1 for the location of the power button. Once the system supplies signals to the flat panel monitor, the LED on the bottom left turns green.

If the flat panel monitor does not light up, and if the LED is blinking yellow, check that its interface cable is firmly attached to the correct connector on the computer.

For additional troubleshooting information, go to Chapter 2,

“Troubleshooting.”

Setting Up and Using the Flat Panel Monitor

5

Adjusting the Viewing Position

You can adjust the flat panel monitor to a height and tilt that is comfortable for you. You can raise or lower the monitor a maximum of 3.75 inches (95 mm).

6

Chapter 1

Figure 1-3

Adjusting the Height and Tilt

To raise the monitor:

1.

Hold the monitor along the bottom or right edge with your right hand.

2.

Grip the left side of the monitor with your left hand and pull the lever behind the monitor toward you, while raising the monitor to the desired height.

To lower the monitor:

1.

Pull the lever behind the monitor toward you with your left hand and immediately release the lever.

Each time you pull the lever, the monitor lowers one step.

There are 10 stops total and each stop is about 3/8 inch

(9.5mm) lower than the previous one.Repeat this step until you find the desired height, or hold the lever in the depressed position until it reaches the height you want.

To adjust the tilt, hold the monitor on both sides and tilt it forward or back until you find the best viewing angle.

If you want more desktop space or more versatility in viewing positions, you may want to purchase a mobile arm or wall mounting bracket. The flat panel monitor has a standard Video Electronics

Standards Association (VESA) mounting on the rear. Mobile arms are available in many computer stores.

Turning Off the Flat Panel Monitor

To turn off the monitor, press the power button on the front. See

Figure 1-1. It is recommend that you turn your monitor off whenever you are going to be away for more than a few hours; doing so can dramatically increase the life span of the lamps in the backlight of the flat panel monitor.

Also, if your computer has screen-saver and power-saving functions, make sure they are enabled. As with a CRT, the screen saver prevents an image from being burned into the screen. Using a power-saving function helps prolong the life of the backlight lamps inside the flat panel monitor.

In power- saving mode, the LED on the monitor is solid yellow. To restore power, move the mouse or press a key on the keyboard. Refer also to the documentation that came with your computer’s flat panel adapter board for instructions specific to your computer.

Setting Up and Using the Flat Panel Monitor

7

Removing the Flat Panel Monitor From Its Base and

Replacing It

In typical operation, the flat panel monitor should remain attached to its pedestal. However, if you need to remove the monitor from its pedestal, follow the instructions in this section.

You may find this task easier to accomplish if a second person helps you. The steps below describe how to remove the monitor from its base.

1.

Locate the 3 mm hex wrench included with your flat panel monitor.

2.

Raise the monitor to its highest position. This makes it easier to remove the screws. See Figure 1-3.

3.

Tilt the monitor forward for easier access to the two screws.

Note:

Once you’ve removed the two screws, make sure that you or someone else is holding the monitor.

8

Chapter 1

Figure 1-4

Removing the Monitor From Its Base

4.

Holding the monitor as pictured in Figure 1-4, use the 3 mm hex wrench to loosen and remove the two hex screws that secure the monitor to its base. Save the screws in case you need to replace the monitor on its stand.

5.

Pull the monitor toward you. You may need someone else to support the base as you do this.

6.

Optionally, fold down the metal tab at the rear of the flat panel, as shown in Figure 1-4. You may need to use pliers.

Replacing the Flat Panel Monitor On Its Base

Replacing the flat panel monitor on its base is the reverse procedure of removing it:

1.

If the metal mounting tab has been folded down, flip it back up.

You may need to use pliers.

2.

With the base and the front of the monitor facing you, grasp the monitor with both hands, and guide the hinge into the opening for it on the base.

Note:

Do not leave the monitor unsupported before inserting the screws.

3.

Supporting the monitor with one hand, insert and tighten the two screws that you removed when the monitor was first removed from its base.

To tighten the screws, use either the wrench originally supplied with the monitor or any 3 mm hex wrench.

Using a Screen Saver

If your computer has a screen saver program, make sure it is enabled.

As with a CRT monitor, leaving an image up without a screen saver for a long time may burn the image into the monitor.

Setting Up and Using the Flat Panel Monitor

9

10

Chapter 1

Adjusting the Brightness

Brightness is adjusted by a software control panel. The way this feature works differs between computers and adapter boards. See the documentation that comes with the flat panel monitor’s adapter board or your computer’s owner’s guide for information on adjusting the brightness.

Adjusting the White Balance (White Point)

Your flat panel monitor has a separate and unique system to set the white point of your screen. As with the brightness adjustment, the white point is adjusted through a software control panel, and the way this feature works differs between computers and adapter boards. See the documentation that comes with the flat panel monitor’s adapter board or your computer’s owner’s guide for information on setting the white point.

Specifications for the adjustable white balance range are in “Technical

Specifications” on page 20.

Recommended Use and Viewing Angles

Follow these recommendations to use your flat panel monitor:

• Allow the flat panel monitor to warm up for at least a minute.

• Always have your computer’s screen saver enabled to prevent images from burning into the monitor.

• Turn the monitor off when you will be away from it for more than a few hours. This will dramatically lengthen the life span of the monitor’s backlight lamps.

• If your computer has a power-saving feature, enable it to help lengthen the life span of the monitor’s backlight lamps.

• For best color viewing, the monitor should be between 18 inches

(46 cm) and 28 inches (71 cm) away from your eyes.

• Adjust the monitor height so that the center of the screen is at or slightly below eye level. For the brightest image and most accurate color, view the screen as close as possible to perpendicular (a 90

° angle). See Figure 1-5. (Refer to Table 3-1 for the viewing angle limits.)

90

°

90

°

Figure 1-5

Optimum Viewing Angle for the Flat Panel Monitor

• Although the monitor screen has a special anti-glare coating, you should place the monitor at a 90

° angle to light sources, including windows, to minimize glare and reflections. Adjust the monitor tilt to minimize reflections.

• Keep the monitor screen clean. See “Cleaning and General Care of the Flat Panel Monitor” on page 19.

Setting Up and Using the Flat Panel Monitor

11

Chapter 2

2.

Troubleshooting

This chapter contains information on solving problems that you may encounter when using the flat panel monitor. For further troubleshooting information, see the manual that came with the flat panel monitor’s adapter board for your computer.

LED States

The LED on the left bottom side of the flat panel monitor indicates the state of the monitor. Table 2-1 explains the LED states and offers possible solutions if a problem occurs.

Table 2-1

Explanation of LED States

LED

No LED

State Monitor State Possible Causes and Solutions

0 Screen is off.

Power button is not depressed.

Power cable is not connected.

Interface cable is not connected to the computer.

Troubleshooting

13

14

Chapter 2

Table 2-1 (continued)

Explanation of LED States

LED

Blinking yellow 1

Solid green

State Monitor State Possible Causes and Solutions

2

Screen is off.

Software is not configured correctly. See the manual that comes with the monitor’s adapter board for your computer.

Another cause might be a loose or disconnected interface cable.

Also, the adapter board (in systems so equipped) may be loose or otherwise not installed properly.

The flat panel is operating normally.

Solid yellow 3

Screen and backlighting are on.

System

Power Save is on and screen is off.

System Power Save mode has turned off the screen because there has been no keyboard or mouse action for a while. Move the mouse or touch the keyboard to enable the monitor.

Troubleshooting Tips

Subsequent sections offer more detailed troubleshooting information.

In addition, check any documents that come with your monitor’s adapter board.

If the problem persists after following the suggestions below, call your service provider.

No Image on the Flat Panel Monitor

1.

Check to see if the flat panel monitor and computer are turned on. (Press the power button on the front of the monitor.) The flat panel monitor takes about a minute to warm up to full brightness.

2.

Check the color of the LED on the front of the flat panel monitor and look for a possible cause in Table 2-1.

3.

Make sure that the DC power cable is connected securely to the flat panel monitor.

4.

Check that the correct AC power cable for your country (110 V or

220 V) is connected securely to the AC adapter and to a working wall outlet or power strip. (See “Connecting the Cables” on page 4.)

5.

Check that the interface cable is connected securely to the flat panel monitor’s adapter’s connector on the computer. (See

“Connecting the Cables” on page 4.)

6.

If you recently installed the flat panel monitor’s adapter board in your computer, the board may not be installed correctly, or the software may not be installed. Follow the instructions in the installation manual that came with the board to make sure you have installed the hardware and software correctly. Also, you may wish to re-seat the adapter board in the computer to make sure that the board is making proper electrical contact.

7.

If the flat panel monitor was not connected to the computer via the interface cable when the computer was turned on, reboot the computer so that the correct timing table is used for the flat panel monitor.

Troubleshooting

15

16

Chapter 2

Image Appears Too Light or Too Dark

The images on flat panel monitors look lighter or darker when viewed from different angles (especially from highly oblique angles). Check that your line of sight is as close to perpendicular as possible. See

“Recommended Use and Viewing Angles” on page 10 and Table 3-1.

Considerable development has been done to ensure that your flat panel monitor has the widest possible viewing angles without compromising such features as displaying fast-moving video. For more technical information, see “Technical Specifications” on page 20.

Image Is Dim When Monitor Is First Turned On

It takes about one minute for flat panel monitors to warm up to full brightness from a cold start, so at first the image may appear dim or faded. This is because the ambient air temperature affects the start-up brightness of the flat panel monitor. For example, when the air temperature is about 77

°

F (25

°

C), the panel is initially at about 80% of its maximum brightness. However, at 50

°

F (10

°

C), the light output can start out as little as 30% of its maximum.

Eventually, though, as the backlight lamps warm up, the monitor should reach its maximum brightness, as long as it is being operated within the proper temperature range. See Table 3-4 for the operating temperature range.

Bright Dots on the Monitor

Occasionally you may notice some bright dots on the monitor that remain in the same place regardless of the image being displayed on the screen. This is intrinsic to thin-film transistor (TFT) liquid crystal displays (LCDs) and does not indicate a defective screen.

Diagnostic Tests for the Flat Panel Monitor

If your computer has diagnostic tests, they will be explained in the documentation that came with your computer’s flat panel adapter board.

Warranty Service

Your flat panel monitor is covered by a three-year warranty. To ensure full coverage under your monitor’s warranty, be sure to submit your registration card within 30 days of receiving the monitor. Warranty service may not be provided by the vendor of your host system.

Contact the vendor you purchased your flat panel from for information and service.

Returning the Flat Panel Monitor

If your service provider instructs you to return the flat panel monitor, follow the instructions below.

Note:

If you are instructed to return the adapter board for your flat panel monitor, check in the documentation that came with the adapter board for removal and return instructions.

1.

Turn off your computer. Disconnect the power cable from the rear of the flat panel monitor.

2.

Disconnect the interface cable from the computer.

3.

Replace the original protective plastic film over the monitor’s screen. Be sure the plastic film is clean and free of grit that may damage the monitor’s screen.

Troubleshooting

17

18

Chapter 2

4.

If your service provider instructs you to do so, remove the flat panel monitor from its base. See “Removing the Flat Panel

Monitor From Its Base and Replacing It” on page 8.

5.

If you receive a replacement flat panel monitor, use that shipping carton and packing materials to return the faulty monitor, or use the flat panel monitor’s original shipping carton and packing materials.

Chapter 3

3.

Maintenance, Technical Specifications and

Regulatory Information

This chapter contains information on how to take care of your flat panel monitor, technical specifications, and regulatory information.

Cleaning and General Care of the Flat Panel

Monitor

Handle your flat panel monitor with care. A sharp instrument such as a pen can scratch the monitor’s surface and felt-tip pens can leave permanent stains. Do not place objects on the glass surface,

especially suction devices

(although Post-it notes are OK).

From time to time dust builds up on the surface of the monitor, and you need to clean it to get the best possible image. Follow the steps below to clean the monitor.

Caution:

Only use a soft cloth, either dry or moistened with water. Using other substances, abrasive cleaners, cleaning pads, alcohol, or ammonia to clean the monitor will scratch or damage the monitor’s surface.

Also, do not spray directly on the coated glass surface, because the liquid may drip inside the unit and damage the components.

1.

Dampen a soft cloth with water just enough so it won’t streak.

2.

Wipe the glass surface of the monitor gently with the cloth.

Maintenance, Technical Specifications and Regulatory Information

19

20

Chapter 3

Technical Specifications

This section lists various technical specifications for your flat panel monitor. You can find additional technical information at the following World Wide Web site: http://www.sgi.com/go/flatpanel

Table 3-1 below lists the electro-optical specifications of the flat panel monitor.

Table 3-1

Electro-Optical Specifications for the Silicon Graphics 1600SW

Flat Panel Monitor

Specification

Brightness

Color resolution

Contrast ratio

Display area

Dimming range

Monitor Surface

Pixel pitch

Pixel resolution

Response time

Viewing angle

White balance range

Value

170 Cd/m

2

min., > 235 Cd/m

2

max.

16.7 million true colors

350:1 typical

15.6 inches (H) x 9.3 inches (V)

(396.6 mm (H) x 236.5 mm (V))

17.3 inch (44 cm) diagonal

35% to 100%

Front: Anti-glare 3H hardcoat

0.077 x 3 mm (H) x 0.231 mm (V)

1600 H x RGB x 1024 V

(4,915,200 sub-pixels)

40 ms typical combined rise and fall

Horizontal:

±

60

°

Vertical: +45

°

/-55

°

5000

°

K to 7000

°

K, adjustable through software on the host computer

Table 3-2 lists the power requirements and specifications of the flat panel monitor.

Table 3-2

Power Specifications for the Silicon Graphics 1600SW Flat Panel

Monitor

Specification

Input

Value

110/220 VAC, 50/60 Hz

Auto-ranging power supply (AC adapter)

12 VDC at 3A maximum Output

Power consumption

Normal

Dimmed

Sleep mode

30 watts

20.4 watts

2.5 watts (backlight and LCD off)

Table 3-3 describes the cables used with the flat panel monitor.

Table 3-3

Cables Used With the Silicon Graphics 1600SW Flat Panel

Monitor

Cable

Monitor

Specification

9 foot (2.75 m), shielded, 16-twisted pairs conductors, internal connector at monitor end

Power

AC cable

DC cable

IEC socket with removable 5-foot (1.5 m) cable to wall outlet

Integral to the AC adapter on most models, 6.5 feet (2 m) long

Maintenance, Technical Specifications and Regulatory Information

21

22

Chapter 3

Table 3-4 lists the flat panel monitor’s physical and environmental specifications.

Table 3-4

Physical and Environmental Specifications for the Silicon

Graphics 1600SW Flat Panel Monitor

Specification

Monitor size

Base (pedestal) size

Weight

Color

Desktop use

Value

12.6 in. H x 17.9 in. W x 2.5 in D

(320.3 mm x 454 mm x 63.6 mm)

0.75 in. H x 14 in. W x 6.75 in. D

(1.9 cm x 35.6 cm x 17.1 cm)

16 lbs (7.26 kg)

Grey/Blue

Integral base supports desktop use at

+

15

°

to -

tilt

Pedestal can raise or lower monitor in ten

9.5 mm (0.375 inch) increments for a total of 95 mm (3.75 inches).

Temperature

Operating

Non-operating

Relative humidity

Operating

Non-operating

Vibration (operating and non-operating)

Shock (operating and non-op.)

Altitude (operating)

+13

°

C to +35

°

C

-2

C to +60

°

C

10% to 85%, no condensation

5% to 90%, no condensation

0.3 G (2.9 m/s

2

), 5-500 Hz sinusoidal wave

10 G (98 m/s

2

), 2 ms half-sinusoidal wave

10,000 feet (3,048 m)

Manufacturer’s Regulatory Declarations

For detailed regulatory information, refer to Appendix A, “Statements of Compliance” at the end of this manual.

This product conforms to several national and international specifications and European Directives listed on the “Manufacturer’s

Declaration of Conformity.” The CE insignia displayed on each device is an indication of conformity to the European requirements

Caution:

This product has several governmental and third-party approvals, licenses, and permits. Do not modify this product in any way that is not expressly approved by Silicon Graphics. If you do, you may lose these approvals and your governmental agency authority to operate this device.

Shielded Cables

The flat panel monitor is FCC-compliant under test conditions that include the use of shielded cables. Shielded cables reduce the possibility of interference with radio, television, and other devices. If you use any cables that are not from Silicon Graphics, make sure they are shielded.

The cable that attaches the flat panel monitor to your host computer or adapter board uses additional filtering molded into the cable jacket to reduce radio frequency interference. If your monitor cable becomes damaged, contact your service provider.

Maintenance, Technical Specifications and Regulatory Information

23

24

Chapter 3

Electrostatic Discharge

Silicon Graphics designs and tests its products to be immune to the effects of electrostatic discharge (ESD). ESD is a source of electromagnetic interference and can cause problems ranging from data errors and lockups to permanent component damage.

The shielded cable that attaches the flat panel monitor to your host system or adapter board should be correctly installed and in good condition.

Appendix A

A.

Statements of Compliance

The following sections contain information about how the flat panel monitor complies with various regulatory agency rules.

FCC Class B Conformance

The following information is provided about the device covered in this manual in compliance with FCC regulations.

Trade Name

Product

Model Number

Date of Conformance

Responsible Party

Address

Silicon Graphics, Inc.

Silicon Graphics 1600SW Flat Panel

Monitor

AM173Y01

September 1998

Mitsubishi Inc.

997 Miyoshi, Nishigoshi-Machi

Kikuchi-Gun, Kumamoto, 861-1198

81-96-242-5856 Telephone

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Statements of Compliance

25

26

Appendix A

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Electromagnetic Emissions

This device complies with the Class B limits of Part 15 of the FCC

Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

Also, this device complies with Class B electromagnetic emissions limits of C.I.S.P.R. Publication 22, Limits and Methods of

Measurement of Radio Interference Characteristics of Information

Technology Equipment.

ENERGY STAR

Silicon Graphics has determined that this product meets the ENERGY

STAR guidelines for energy efficiency.

TCO ‘95 Guidelines

This product complies with TCO ‘95 Guidelines.

Industry Canada Notice (Canada Only)

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique német pas de perturbations radioélectriques dépassant les normes applicables aux appareils numériques de Classe

A préscrites dans le Règlement sur les interferences radioélectriques

établi par le Ministère des Communications du Canada.

CE Notice

Marking by the “CE” symbol indicates compliance of the device to directives of the European Community. A “Declaration of

Conformity” in accordance with the above standards has been made and is available from Silicon Graphics upon request.

Statements of Compliance

27

28

Appendix A

VCCI Notice (Japan Only)

Korean Regulatory Notice

NOM 024 Information (Mexico Only)

La información siguiente se proporciona en el dispositivo o en dispositivos descritos en este documento, en cumplimiento con los requisitos de la Norma Ofical Mexicana (NOM 024):

Exportador:

Importador:

Embarcar a:

Mitsubishi, Inc.

Silicon Graphics, Inc.

Av. Vasco de Quiroga

No. 3000

Col. Santa Fe

C.P. 01210

Mexico, D.F. Mexico

Tensión alimentación:

Frecuencia:

Consumo de corriente:

100/250 VAC

50/60 Hz

3 A @ 12 VDC

EN 55022 Compliance (Czech Republic Only)

Statements of Compliance

29

30

Appendix A

Polish Notice (Poland Only)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
