Chapter 15 - Configuring FlexConnect

Chapter 15 - Configuring FlexConnect
CH A P T E R
16

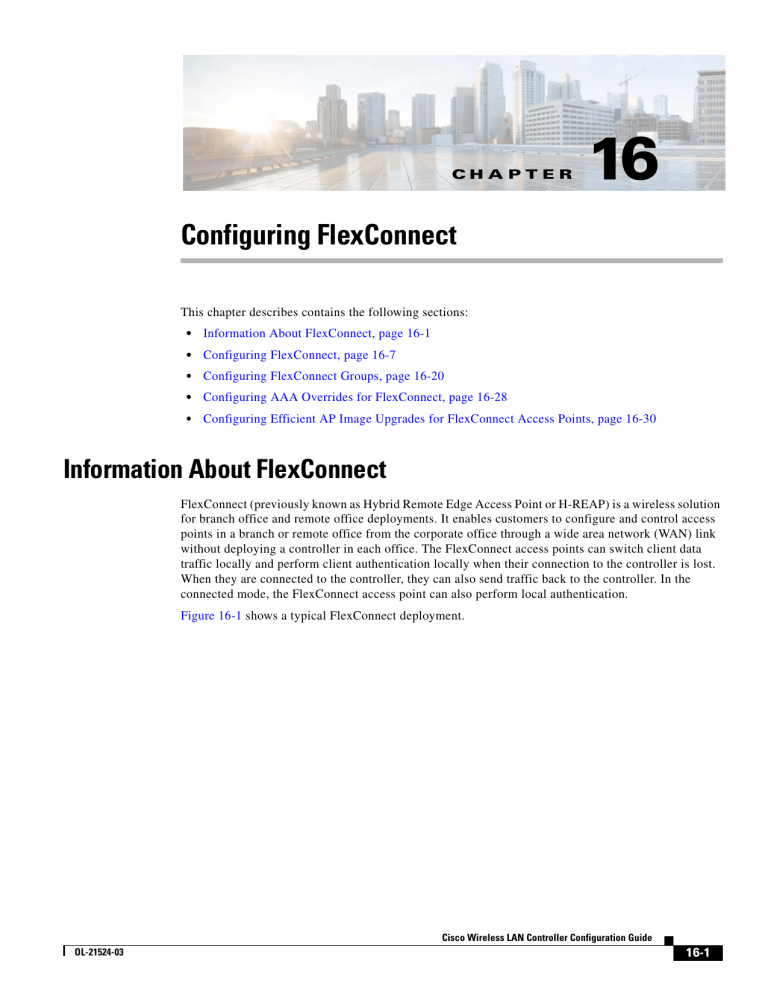

Configuring FlexConnect
This chapter describes contains the following sections:
•
Information About FlexConnect, page 16-1
•
Configuring FlexConnect, page 16-7
•
Configuring FlexConnect Groups, page 16-20
•
Configuring AAA Overrides for FlexConnect, page 16-28
•
Configuring Efficient AP Image Upgrades for FlexConnect Access Points, page 16-30
Information About FlexConnect
FlexConnect (previously known as Hybrid Remote Edge Access Point or H-REAP) is a wireless solution
for branch office and remote office deployments. It enables customers to configure and control access
points in a branch or remote office from the corporate office through a wide area network (WAN) link
without deploying a controller in each office. The FlexConnect access points can switch client data
traffic locally and perform client authentication locally when their connection to the controller is lost.
When they are connected to the controller, they can also send traffic back to the controller. In the
connected mode, the FlexConnect access point can also perform local authentication.
Figure 16-1 shows a typical FlexConnect deployment.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-1
Chapter 16
Configuring FlexConnect
Information About FlexConnect
Figure 16-1
FlexConnect Deployment
Headquarters
NCS
DHCP server
VLAN 101
Local VLAN
WAN link
Local switch
802.1x
Management 10.10.99.2 AAA
AP-Manager 10.10.99.3 server
WLAN 99
Branch
Trunk port
native VLAN 100
FlexConnect Access Points
331650
Controller
This section contains the following topics:
FlexConnect Authentication Process, page 16-2
Guidelines and Limitations, page 16-5
FlexConnect Authentication Process
When an access point boots up, it looks for a controller. If it finds one, it joins the controller, downloads
the latest software image and configuration from the controller, and initializes the radio. It saves the
downloaded configuration in nonvolatile memory for use in standalone mode.
Note
Once the access point is rebooted after downloading the latest controller software, it must be converted
to the FlexConnect mode. This can be done using the GUI or CLI.
A FlexConnect access point can learn the controller IP address in one of these ways:
•
If the access point has been assigned an IP address from a DHCP server, it can discover a controller
through the regular CAPWAP or LWAPP discovery process.
Note
OTAP is no longer supported on the controllers with 6.0.196 code and above.
•
If the access point has been assigned a static IP address, it can discover a controller through any of
the discovery process methods except DHCP option 43. If the access point cannot discover a
controller through Layer 3 broadcast, we recommend DNS resolution. With DNS, any access point
with a static IP address that knows of a DNS server can find at least one controller.
•
If you want the access point to discover a controller from a remote network where CAPWAP or
LWAPP discovery mechanisms are not available, you can use priming. This method enables you to
specify (through the access point CLI) the controller to which the access point is to connect.
Cisco Wireless LAN Controller Configuration Guide
16-2
OL-21524-03
Chapter 16
Configuring FlexConnect
Information About FlexConnect
Note
For more information about how access points find controllers, see Chapter 9, “Controlling Lightweight
Access Points,” or the controller deployment guide at:
http://www.cisco.com/en/US/docs/wireless/technology/controller/deployment/guide/dep.html
When a FlexConnect access point can reach the controller (referred to as the connected mode), the
controller assists in client authentication. When a FlexConnect access point cannot access the controller,
the access point enters the standalone mode and authenticates clients by itself.
Note
The LEDs on the access point change as the device enters different FlexConnect modes. See the
hardware installation guide for your access point for information on LED patterns.
When a client associates to a FlexConnect access point, the access point sends all authentication
messages to the controller and either switches the client data packets locally (locally switched) or sends
them to the controller (centrally switched), depending on the WLAN configuration. With respect to
client authentication (open, shared, EAP, web authentication, and NAC) and data packets, the WLAN
can be in any one of the following states depending on the configuration and state of controller
connectivity:
•
central authentication, central switching—In this state, the controller handles client authentication,
and all client data is tunneled back to the controller. This state is valid only in connected mode.
•
central authentication, local switching—In this state, the controller handles client authentication,
and the FlexConnect access point switches data packets locally. After the client authenticates
successfully, the controller sends a configuration command with a new payload to instruct the
FlexConnect access point to start switching data packets locally. This message is sent per client.
This state is applicable only in connected mode.
•
local authentication, local switching—In this state, the FlexConnect access point handles client
authentication and switches client data packets locally. This state is valid in standalone mode and
connected mode.
In connected mode, the access point provides minimal information about the locally authenticated
client to the controller. The following information is not available to the controller:
– Policy type
– Access VLAN
– VLAN name
– Supported rates
– Encryption cipher
Local authentication is useful where you cannot maintain a remote office setup of a minimum
bandwidth of 128 kbps with the round-trip latency no greater than 100 ms and the maximum
transmission unit (MTU) no smaller than 500 bytes. In local authentication, the authentication
capabilities are present in the access point itself. Local authentication reduces the latency
requirements of the branch office.
Note
Local authentication can only be enabled on the WLAN of a FlexConnect access point that is in
local switching mode.
Notes about local authentication are as follows:
– Guest authentication cannot be done on a FlexConnect local authentication-enabled WLAN.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-3
Chapter 16
Configuring FlexConnect
Information About FlexConnect
– Local RADIUS on the controller is not supported.
– Once the client has been authenticated, roaming is only supported after the controller and the
other FlexConnect access points in the group are updated with the client information.
– Local authentication in connected mode requires a WLAN configuration.
Note
When locally switched clients that are connected to a FlexConnect access point renew the IP
addresses, on joining back, the client continues to stay in the run state. These clients are not
reauthenticated by the controller.
•
authentication down, switch down—In this state, the WLAN disassociates existing clients and stops
sending beacon and probe requests. This state is valid in both standalone mode and connected mode.
•
authentication down, local switching—In this state, the WLAN rejects any new clients trying to
authenticate, but it continues sending beacon and probe responses to keep existing clients alive. This
state is valid only in standalone mode.
When a FlexConnect access point enters standalone mode, WLANs that are configured for open, shared,
WPA-PSK, or WPA2-PSK authentication enter the “local authentication, local switching” state and
continue new client authentications. In controller software release 4.2 or later releases, this configuration
is also correct for WLANs that are configured for 802.1X, WPA-802.1X, WPA2-802.1X, or CCKM, but
these authentication types require that an external RADIUS server be configured. You can also configure
a local RADIUS server on a FlexConnect access point to support 802.1X in a standalone mode or with
local authentication.
Other WLANs enter either the “authentication down, switching down” state (if the WLAN was
configured for central switching) or the “authentication down, local switching” state (if the WLAN was
configured for local switching).
When FlexConnect access points are connected to the controller (rather than in standalone mode), the
controller uses its primary RADIUS servers and accesses them in the order specified on the RADIUS
Authentication Servers page or in the config radius auth add CLI command (unless the server order is
overridden for a particular WLAN). However, to support 802.1X EAP authentication, FlexConnect
access points in standalone mode need to have their own backup RADIUS server to authenticate clients.
Note
A controller does not use a backup RADIUS server. The controller uses the backup RADIUS server in
local authentication mode.
You can configure a backup RADIUS server for individual FlexConnect access points in standalone
mode by using the controller CLI or for groups of FlexConnect access points in standalone mode by
using either the GUI or CLI. A backup server configured for an individual access point overrides the
backup RADIUS server configuration for a FlexConnect.
When a FlexConnect access point enters standalone mode, it disassociates all clients that are on centrally
switched WLANs. For web-authentication WLANs, existing clients are not disassociated, but the
FlexConnect access point stops sending beacons when the number of associated clients reaches zero (0).
It also sends disassociation messages to new clients associating to web-authentication WLANs.
Controller-dependent activities, such as network access control (NAC) and web authentication (guest
access), are disabled, and the access point does not send any intrusion detection system (IDS) reports to
the controller. Most radio resource management (RRM) features (such as neighbor discovery; noise,
interference, load, and coverage measurements; use of the neighbor list; and rogue containment and
detection) are disabled. However, a FlexConnect access point supports dynamic frequency selection in
standalone mode.
Cisco Wireless LAN Controller Configuration Guide
16-4
OL-21524-03
Chapter 16
Configuring FlexConnect
Information About FlexConnect
Note
•
For Wi-Fi Protected Access version 2 (WPA2) in FlexConnect standalone mode or local-auth in
connected mode or cckm fast-roaming in connected mode, only Advanced Encryption Standard
(AES) is supported.
•
For Wi-Fi Protected Access (WPA) in FlexConnect standalone mode or local-auth in connected
mode or cckm fast-roaming in connected mode, only Temporal Key Integrity Protocol (TKIP) is
supported.
•
WPA2 with TKIP and WPA with AES is not supported in standalone mode, local-auth in connected
mode, and CCKM fast-roaming in connected mode.
Note
If your controller is configured for NAC, clients can associate only when the access point is in connected
mode. When NAC is enabled, you need to create an unhealthy (or quarantined) VLAN so that the data
traffic of any client that is assigned to this VLAN passes through the controller, even if the WLAN is
configured for local switching. After a client is assigned to a quarantined VLAN, all of its data packets
are centrally switched. See the “Configuring Dynamic Interfaces” section on page 4-15 for information
on creating quarantined VLANs and the “Configuring NAC Out-of-Band Integration” section on
page 8-70 for information on configuring NAC out-of-band support.
Note
Even after configuring WLAN Override to stop transmitting locally switched WLAN on both radios, the
WLAN still appears in the H-REAP VLAN mapping configuration on the AP.
When a FlexConnect access point enters into a standalone mode, the following occurs:
•
The access point checks whether it is able to reach the default gateway via ARP. If so, it will
continue to try and reach the controller.
If the access point fails to establish the ARP, the following occurs:
•
The access point attempts to discover for five times and if it still cannot find the controller, it tries
to renew the DHCP on the ethernet interface to get a new DHCP IP.
•
The access point will retry for five times, and if that fails, the access point will renew the IP address
of the interface again, this will happen for three attempts.
•
If the three attempts fail, the access point will fall back to the static IP and will reboot (only if the
access point is configured with a static IP).
•
Reboot is done to remove the possibility of any unknown error the access point configuration.
Once the access point reestablishes a connection with the controller, it disassociates all clients, applies
new configuration information from the controller, and reallows client connectivity.
Guidelines and Limitations
•
You can deploy a FlexConnect access point with either a static IP address or a DHCP address. In the
case of DHCP, a DHCP server must be available locally and must be able to provide the IP address
for the access point at bootup.
•
FlexConnect supports up to four fragmented packets or a minimum 500-byte maximum transmission
unit (MTU) WAN link.
•
FlexConnect is supported only on the following access points: Cisco Aironet 1130AG, 1140, 1240,
1250, 1260, AP801, AP802 and Cisco Aironet 600 Series OfficeExtend Access Points.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-5
Chapter 16
Configuring FlexConnect
Information About FlexConnect
•
Round-trip latency must not exceed 300 milliseconds (ms) between the access point and the
controller, and CAPWAP control packets must be prioritized over all other traffic. In cases where
you cannot achieve the 300 milliseconds round-trip latency, you can configure the access point to
perform local authentication.
•
Starting with the 7.0.116.0 release, the controller software has a more robust fault tolerance
methodology to FlexConnect access points. In previous releases, whenever a FlexConnect access
point disassociates from a controller, it moves to the standalone mode. The clients that are centrally
switched are disassociated. However, the FlexConnect access point continues to serve locally
switched clients. When the FlexConnect access point rejoins the controller (or a standby controller),
all clients are disconnected and are authenticated again. In the controller software 7.0.116.0 and
later releases, this functionality has been enhanced and the connection between the clients and the
FlexConnect access points are maintained intact and the clients experience seamless connectivity.
This feature can be used only when both the access point and the controller have the same
configuration.
•
Clients that are centrally authenticated are reauthenticated.
•
Client connections are restored only for locally switched clients that are in the RUN state when the
access point moves from standalone mode to connected mode. After the access point moves from
the standalone mode to the connected mode, the access point’s radio is also reset.
•
The configuration on the controller must be the same between the time the access point went into
standalone mode and the time the access point came back to connected mode. Similarly, if the access
point is falling back to a secondary or backup controller, the configuration between the primary and
secondary or backup controller must be the same.
•
Session timeout and reauthentication is performed when the access point establishes a connected to
the controller.
•
After the client connection has been established, the controller does not restore the original
attributes of the client. The client username, current rate and supported rates, and listen interval
values are reset to the default values only after the session timer expires.
•
There is no deployment restriction on the number of FlexConnect access points per location.
However, the minimum bandwidth restriction remains 128 kbps with the roundtrip latency no
greater than 300 ms and the maximum transmission unit (MTU) no smaller than 500 bytes.
•
A newly connected access point cannot be booted in FlexConnect mode.
•
The controller can send multicast packets in the form of unicast or multicast packets to the access
point. In FlexConnect mode, the access point can receive multicast packets only in unicast form.
•
To use CCKM fast roaming with FlexConnect access points, you must configure FlexConnect
Groups.
•
FlexConnect access points support a 1-1 network address translation (NAT) configuration. They also
support port address translation (PAT) for all features except true multicast. Multicast is supported
across NAT boundaries when configured using the Unicast option. FlexConnect access points also
support a many-to-one NAT/PAT boundary, except when you want true multicast to operate for all
centrally switched WLANs.
Note
•
Although NAT and PAT are supported for FlexConnect access points, they are not supported
on the corresponding controller. Cisco does not support configurations in which the
controller is behind a NAT/PAT boundary.
VPN and PPTP are supported for locally switched traffic if these security types are accessible
locally at the access point.
Cisco Wireless LAN Controller Configuration Guide
16-6
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
•
FlexConnect access points support multiple SSIDs. See the “Creating WLANs” section on page 8-3
for more information.
•
NAC out-of-band integration is supported only on WLANs configured for FlexConnect central
switching. It is not supported for use on WLANs configured for FlexConnect local switching. See
the “Configuring NAC Out-of-Band Integration” section on page 8-70 for more information.
•
The primary and secondary controllers for a FlexConnect access point must have the same
configuration. Otherwise, the access point might lose its configuration, and certain features (such as
WLAN overrides, VLANs, static channel number, and so on) might not operate correctly. In
addition, make sure to duplicate the SSID of the FlexConnect access point and its index number on
both controllers.
•
The QoS profile per-user bandwidth contracts are not supported for FlexConnect locally switched
WLANs. The QoS per-user bandwidth contracts are only supported for centrally switched WLANs
and APs in the local mode.
•
Guest user configuration is not supported with FlexConnect local switching.
•
Do not connect access points in FlexConnect mode directly to a Cisco 2500 Series Controllers.
•
FlexConnect access points do not support client load balancing.
•
If you configure a FlexConnect access point with a syslog server configured on the access point,
after the access point is reloaded and the native VLAN other than 1, at time of initialization, few
syslog packets from the access point are tagged with VLAN ID 1. This is a known issue.
•
FlexConnect supports IPv6 clients by bridging the traffic to local VLAN, similar to the IPv4
operation. FlexConnect supports client mobility for a group of up to 50 Access Points.
•
FlexConnect does not support IPv6 ACLs, neighbor discovery caching, and DHCPv6 snooping of
IPv6 NDP packets.
•
FlexConnect does not display any IPv6 client addresses within the client detail page.
•
FlexConnect Access Points with Locally Switched WLAN cannot perform IP Source Guard and
prevent ARP spoofing. For Centrally Switched WLAN, the wireless controller performs the IP
Source Guard and ARP Spoofing.
•
To prevent ARP spoofing attacks in FlexConnect AP with Local Switching, we recommend you to
use ARP Inspection.
Configuring FlexConnect
This section contains the following topics:
Note
•
Configuring the Switch at the Remote Site, page 16-8
•
Configuring the Controller for FlexConnect, page 16-8
•
Configuring an Access Point for FlexConnect, page 16-12
•
Connecting Client Devices to WLANs, page 16-15
You must perform the procedures in the order listed.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-7
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Configuring the Switch at the Remote Site
Step 1
Attach the access point that will be enabled for FlexConnect to a trunk or access port on the switch.
Note
Step 2
The sample configuration in this procedure shows the FlexConnect access point connected to a
trunk port on the switch.
See the sample configuration in this procedure to configure the switch to support the FlexConnect access
point.
In this sample configuration, the FlexConnect access point is connected to trunk interface FastEthernet
1/0/2 with native VLAN 100. The access point needs IP connectivity on the native VLAN. The remote
site has local servers/resources on VLAN 101. A DHCP pool is created in the local switch for both
VLANs in the switch. The first DHCP pool (NATIVE) is used by the FlexConnect access point, and the
second DHCP pool (LOCAL-SWITCH) is used by the clients when they associate to a WLAN that is
locally switched. The text in bold below shows these settings.
A sample local switch configuration is as follows:
ip dhcp pool NATIVE
network 209.165.200.224 255.255.255.224
default-router 209.165.200.225
!
ip dhcp pool LOCAL-SWITCH
network 209.165.200.224 255.255.255.224
default-router 209.165.200.225
!
interface FastEthernet1/0/1
description Uplink port
no switchport
ip address 209.165.200.228 255.255.255.224
spanning-tree portfast
!
interface FastEthernet1/0/2
description the Access Point port
switchport trunk encapsulation dot1q
switchport trunk native vlan 100
switchport trunk allowed vlan 100,101
switchport mode trunk
spanning-tree portfast
!
interface Vlan100
ip address 209.165.200.225 255.255.255.224
ip helper-address 209.165.200.225
!
interface Vlan101
ip address 209.165.200.225 255.255.255.224
ip helper-address 209.165.200.225
end
!
Configuring the Controller for FlexConnect
You can configure the controller for FlexConnect in two environments:
•
Centrally switched WLAN
Cisco Wireless LAN Controller Configuration Guide
16-8
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
•
Locally switched WLAN
Configuring the Controller for FlexConnect (GUI)
Step 1
Choose WLANs to open the WLANs page.
Step 2
From the drop-down list, choose Create New and click Go to open the WLANs > New page.
Figure 16-2
WLANs > New Page
Step 3
From the Type drop-down list, choose WLAN.
Step 4
In the Profile Name text box, enter a unique profile name for the WLAN.
Step 5
In the WLAN SSID text box, enter a name for the WLAN.
Step 6
From the WLAN ID drop-down list, choose the ID number for this WLAN.
Step 7
Click Apply to commit your changes. The WLANs > Edit page appears.
Step 8
You can configure the controller for FlexConnect in both centrally switched and locally switched
WLANs:
•
To configure the controller for FlexConnect in a centrally switched WLAN:
a. In the General tab, choose the Status check box to enable the WLAN.
b. If you have enabled NAC and have created a quarantined VLAN and want to use it for this
WLAN, select the interface from the Interface/Interface Group(G) drop-down list in the General
tab.
c. In the Security > Layer 2 tab, choose WPA+WPA2 from the Layer 2 Security drop-down list
and then set the WPA+WPA2 parameters as required.
•
To configure the controller for FlexConnect in a locally switched WLAN:
a. In the General tab, select the Status check box to enable the WLAN.
b. If you have enabled NAC and have created a quarantined VLAN and want to use it for this
WLAN, select the interface from the Interface/Interface Group(G) drop-down list in the General
tab.
c. In the Security > Layer 2 tab, select WPA+WPA2 from the Layer 2 Security drop-down list
and then set the WPA+WPA2 parameters as required.
d. In the Advanced tab, select the FlexConnect Local Switching check box to enable local
switching for the WLAN.
Note
When you enable local switching, any FlexConnect access point that advertises this WLAN
is able to locally switch data packets (instead of tunneling them to the controller).
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-9
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Note
When you enable FlexConnect local switching, the controller is enabled to learn the client’s
IP address by default. However, if the client is configured with Fortress Layer 2 encryption,
the controller cannot learn the client’s IP address, and the controller periodically drops the
client. Disable the client IP address learning feature so that the controller maintains the
client connection without waiting to learn the client’s IP address. The ability to disable this
option is supported only with FlexConnect local switching; it is not supported with
FlexConnect central switching.
Note
For FlexConnect access points, the interface mapping at the controller for WLANs that is
configured for FlexConnect local switching is inherited at the access point as the default
VLAN tagging. This mapping can be changed per SSID and per FlexConnect access point.
Non-FlexConnect access points tunnel all traffic back to the controller, and VLAN tagging
is determined by each WLAN’s interface mapping.
Step 9
Click Apply to commit your changes.
Step 10
Click Save Configuration to save your changes.
Example Configuration of Controller for FlexConnect
The controller configuration for FlexConnect consists of creating centrally switched and locally
switched WLANs. Table 16-1 shows three WLAN scenarios.
Table 16-1
Note
WANs Example
WLAN
Security
Authentication Switching
employee
WPA1+WPA2
Central
employee-local
Interface Mapping
(VLAN)
Central
management (centrally
switched VLAN)
WPA1+WPA2 (PSK) Local
Local
101 (locally switched
VLAN)
guest-central
Web authentication
Central
Central
management (centrally
switched VLAN)
employee-local-auth
WPA1+WPA2
Local
Local
101 (locally switched
VLAN)
Guest user configuration is not supported with FlexConnect local switching.
Configuring the Controller for FlexConnect—For a Centrally Switched WLAN Used for Guest Access
Before you begin, you must have created guest user accounts. For more information about creating guest
user accounts, see Chapter 12, “Managing User Accounts.”
Step 1
Choose WLANs to open the WLANs page.
Step 2
From the drop-down list, choose Create New and click Go to open the WLANs > New page.
Cisco Wireless LAN Controller Configuration Guide
16-10
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Step 3
From the Type drop-down list, choose WLAN.
Step 4
In the Profile Name text box, enter guest-central (as per the example in Table 16-1).
Step 5
In the WLAN SSID text box, enter guest-central.
Step 6
From the WLAN ID drop-down list, choose and ID for the WLAN.
Step 7
Click Apply to commit your changes. The WLANs > Edit page appears.
Step 8
In the General tab, select the Status check box to enable the WLAN.
Step 9
In the Security > Layer 2 tab, choose None from the Layer 2 Security drop-down list.
Step 10
In the Security > Layer 3 tab:
a.
Choose None from the Layer 3 Security drop-down list.
b.
Select the Web Policy check box.
c.
Choose Authentication.
Note
If you are using an external web server, you must configure a preauthentication access
control list (ACL) on the WLAN for the server and then choose this ACL as the WLAN
preauthentication ACL on the Layer 3 tab. For more information about ACLs, see Chapter 7,
“Configuring Security Solutions.”
Step 11
Click Apply to commit your changes.
Step 12
Click Save Configuration to save your changes.
Note
For more information about adding a local user to a WLAN and to customize the content and appearance
of the login page for guest users when they access the WLAN, follow the instructions in Chapter 7,
“Configuring Security Solutions.”.
Configuring the Controller for FlexConnect (CLI)
•
config wlan flexconnect local-switching wlan_id enable—Configures the WLAN for local
switching.
Note
•
When you enable FlexConnect local switching, the controller waits to learn the client IP
address by default. However, if the client is configured with Fortress Layer 2 encryption, the
controller cannot learn the client IP address, and the controller periodically drops the client.
Use the config wlan flexconnect learn-ipaddr wlan_id disable command to disable the
client IP address learning feature so that the controller maintains the client connection
without waiting to learn the client’s IP address. The ability to disable this feature is
supported only with FlexConnect local switching; it is not supported with FlexConnect
central switching. To enable this feature, enter the config wlan flexconnect learn-ipaddr
wlan_id enable command.
config wlan flexconnect local-switching wlan_id disable—Configures the WLAN for central
switching. This is the default value.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-11
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Commands Related to Configuring the Controller for FlexConnect
Use these commands to get FlexConnect information:
•
show ap config general Cisco_AP—Shows VLAN configurations.
•
show wlan wlan_id—Shows whether the WLAN is locally or centrally switched.
•
show client detail client_mac—Shows whether the client is locally or centrally switched.
Use these commands to obtain debug information:
•
debug flexconnect aaa {event | error} {enable | disable}—Enables or disables debugging of
FlexConnect backup RADIUS server events or errors.
•
debug flexconnect cckm {enable | disable}—Enables or disables debugging of FlexConnect
CCKM.
•
debug flexconnect {enable | disable}—Enables or disables debugging of FlexConnect Groups.
•
debug pem state {enable | disable}—Enables or disables debugging of the policy manager state
machine.
•
debug pem events {enable | disable}—Enables or disables debugging of policy manager events.
Configuring an Access Point for FlexConnect
This section contains the following topics:
•
Configuring an Access Point for FlexConnect (GUI), page 16-12
•
Configuring an Access Point for FlexConnect (CLI), page 16-13
Configuring an Access Point for FlexConnect (GUI)
Ensure that the access point has been physically added to your network.
Step 1
Choose Wireless to open the All APs page.
Step 2
Click the name of the desired access point. The All APs > Details page appears.
Figure 16-3
Step 3
All APs Page
Choose FlexConnect from the AP Mode drop-down list to enable FlexConnect for this access point.
Cisco Wireless LAN Controller Configuration Guide
16-12
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Note
The last parameter in the Inventory tab indicates whether the access point can be configured for
FlexConnect.
Step 4
Click Apply to commit your changes and to cause the access point to reboot.
Step 5
Choose the FlexConnect tab to open the All APs > Details for (FlexConnect) page.
If the access point belongs to a FlexConnect group, the name of the group appears in the FlexConnect
Name text box.
Step 6
Select the VLAN Support check box and enter the number of the native VLAN on the remote network
(such as 100) in the Native VLAN ID text box.
Note
By default, a VLAN is not enabled on the FlexConnect access point. After FlexConnect is
enabled, the access point inherits the VLAN ID associated to the WLAN. This configuration is
saved in the access point and received after the successful join response. By default, the native
VLAN is 1. One native VLAN must be configured per FlexConnect access point in a
VLAN-enabled domain. Otherwise, the access point cannot send and receive packets to and from
the controller.
Note
To preserve the VLAN mappings in the access point after an upgrade or downgrade, it is
necessary that the access point join is restricted to the controller for which it is primed. That is,
no other discoverable controller with a different configuration should be available by other
means. Similarly, at the time the access point joins, if it moves across controllers which have
different VLAN mappings, the VLAN mappings at the access point may get mismatched.
Step 7
Click Apply to commit your changes. The access point temporarily loses its connection to the controller
while its Ethernet port is reset.
Step 8
Click the name of the same access point and then select the FlexConnect tab.
Step 9
Click VLAN Mappings to open the All APs > Access Point Name > VLAN Mappings page.
Step 10
Enter the number of the VLAN from which the clients will get an IP address when doing local switching
(VLAN 101, in this example) in the VLAN ID text box.
Step 11
Click Apply to commit your changes.
Step 12
Click Save Configuration to save your changes.
Note
Repeat this procedure for any additional access points that need to be configured for FlexConnect at the
remote site.
Configuring an Access Point for FlexConnect (CLI)
•
config ap mode flexconnect Cisco_AP—Enables FlexConnect for this access point.
•
config ap flexconnect radius auth set {primary | secondary} ip_address auth_port secret
Cisco_AP—Configures a primary or secondary RADIUS server for a specific FlexConnect access
point.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-13
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Note
Only the Session Timeout RADIUS attribute is supported in standalone mode. All other
attributes as well as RADIUS accounting are not supported.
Note
To delete a RADIUS server that is configured for a FlexConnect access point, enter the
config ap flexconnect radius auth delete {primary | secondary} Cisco_AP command.
•
config ap flexconnect vlan wlan wlan_id vlan-id Cisco_AP—Enables you to assign a VLAN ID to
this FlexConnect access point. By default, the access point inherits the VLAN ID associated to the
WLAN.
•
config ap flexconnect vlan {enable | disable} Cisco_AP—Enables or disables VLAN tagging for
this FlexConnect access point. By default, VLAN tagging is not enabled. Once VLAN tagging is
enabled on the FlexConnect access point, WLANs enabled for local switching inherit the VLAN
assigned at the controller.
•
config ap flexconnect vlan native vlan-id Cisco_AP—Enables you to configure a native VLAN for
this FlexConnect access point. By default, no VLAN is set as the native VLAN. One native VLAN
must be configured per FlexConnect access point (when VLAN tagging is enabled). Make sure the
switch port to which the access point is connected has a corresponding native VLAN configured as
well. If the FlexConnect access point’s native VLAN setting and the upstream switchport native
VLAN do not match, the access point cannot transmit packets to and from the controller.
Note
To save the VLAN mappings in the access point after an upgrade or downgrade, you should
restrict the access point join is restricted to the controller for which it is primed. No other
discoverable controller with a different configuration should be available by other means.
Similarly, at the time the access point joins, if it moves across controllers that have different
VLAN mappings, the VLAN mappings at the access point might get mismatched.
Commands Related to Configuring the Access Point for FlexConnect
Use these commands on the FlexConnect access point to get status information:
•
show capwap reap status—Shows the status of the FlexConnect access point (connected or
standalone).
•
show capwap reap association—Shows the list of clients associated to this access point and their
SSIDs.
Use these commands on the FlexConnect access point to get debug information:
•
debug capwap reap—Shows general FlexConnect activities.
•
debug capwap reap mgmt—Shows client authentication and association messages.
•
debug capwap reap load—Shows payload activities, which is useful when the FlexConnect access
point boots up in standalone mode.
•
debug dot11 mgmt interface—Shows 802.11 management interface events.
•
debug dot11 mgmt msg—Shows 802.11 management messages.
•
debug dot11 mgmt ssid—Shows SSID management events.
•
debug dot11 mgmt state-machine—Shows the 802.11 state machine.
•
debug dot11 mgmt station—Shows client events.
Cisco Wireless LAN Controller Configuration Guide
16-14
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect
Configuring an Access Point for Local Authentication on a WLAN (GUI)
Step 1
Choose WLANs to open the WLANs page.
Step 2
Click the ID of the WLAN. The WLANs > Edit page appears.
Step 3
Click the Advanced tab to open the WLANs > Edit (WLAN Name) page.
Step 4
Select the FlexConnect Local Switching check box to enable FlexConnect local switching.
Step 5
Select the FlexConnect Local Auth check box to enable FlexConnect local authentication.
Caution
Step 6
Do not connect access points in FlexConnect mode directly to Cisco 2500 Series Controllers.
Click Apply to commit your changes.
Configuring an Access Point for Local Authentication on a WLAN (CLI)
Before you begin, you must have enabled local switching on the WLAN where you want to enable local
authentication for an access point. For instructions on how to enable local switching on the WLAN, see
the “Configuring the Controller for FlexConnect (CLI)” section on page 16-11.
•
Caution
config wlan flexconnect ap-auth wlan_id {enable | disable}—Configures the access point to
enable or disable local authentication on a WLAN.
Do not connect the access points in FlexConnect mode directly to Cisco 2500 Series Controllers.
•
show wlan wlan-id —Displays the configuration for the WLAN. If local authentication is enabled,
the following information appears:
. . .
. . .
Web Based Authentication...................... Disabled
Web-Passthrough............................... Disabled
Conditional Web Redirect...................... Disabled
Splash-Page Web Redirect...................... Disabled
Auto Anchor................................... Disabled
FlexConnect Local Switching........................ Enabled
FlexConnect Local Authentication................... Enabled
FlexConnect Learn IP Address....................... Enabled
Client MFP.................................... Optional
Tkip MIC Countermeasure Hold-down Timer....... 60
Call Snooping.................................... Disabled
Roamed Call Re-Anchor Policy..................... Disabled
. . .
. . .
Connecting Client Devices to WLANs
Follow the instructions for your client device to create profiles to connect to the WLANs you created in
the “Configuring the Controller for FlexConnect” section on page 16-8.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-15
Chapter 16
Configuring FlexConnect
Configuring FlexConnect ACLs
In the example scenarios (see Table 16-1), there are three profiles on the client:
1.
To connect to the “employee” WLAN, create a client profile that uses WPA/WPA2 with
PEAP-MSCHAPV2 authentication. After the client becomes authenticated, the client gets an IP
address from the management VLAN of the controller.
2.
To connect to the “local-employee” WLAN, create a client profile that uses WPA/WPA2
authentication. After the client becomes authenticated, the client gets an IP address from VLAN 101
on the local switch.
3.
To connect to the “guest-central” WLAN, create a client profile that uses open authentication. After
the client becomes authenticated, the client gets an IP address from VLAN 101 on the network local
to the access point. After the client connects, the local user can type any http address in the web
browser. The user is automatically directed to the controller to complete the web-authentication
process. When the web login page appears, the user enters the username and password.
To determine if a client’s data traffic is being locally or centrally switched, choose Monitor > Clients
on the controller GUI, click the Detail link for the desired client, and look at the Data Switching
parameter under AP Properties.
Configuring FlexConnect ACLs
This section contains the following topics:
•
Information About Access Control Lists, page 16-16
•
Guidelines and Limitations, page 16-16
•
Configuring FlexConnect ACLs, page 16-17
Information About Access Control Lists
An access control list (ACL) is a set of rules that are used to limit access to a particular interface (for
example, if you want to restrict a wireless client from pinging the management interface of the
controller). ACLs enable access control of network traffic. After ACLs are configured on the controller
and subsequently pushed to the FlexConnect access point, you can apply them to the access point’s
VLAN interface. ACLs enable you to control data traffic to and from wireless clients. You can configure
ACLs on the FlexConnect access points to enable effective usage and access control of locally switched
data traffic on an access point.
Guidelines and Limitations
•
FlexConnect ACLs can only be applied to FlexConnect access points. The configurations applied
are per AP, per VLAN.
•
The FlexConnect ACLs can be applied to VLAN interfaces on access points in both the Ingress and
Egress mode.
•
Existing interfaces on an access point can be mapped to ACLs. The interfaces can be created
configuring a WLAN-VLAN mapping on the FlexConnect access point.
•
The FlexConnect ACLs can be applied to an access point’s VLAN only if VLAN support is enabled
on the FlexConnect access point.
•
Non-FlexConnect ACLs configured on the controller cannot be applied to a FlexConnect AP.
Cisco Wireless LAN Controller Configuration Guide
16-16
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect ACLs
•
FlexConnect ACLs do not support direction per rule. Unlike normal ACLs, Flexconnect ACLs
cannot be configured with a direction. An ACL as a whole needs to be applied to an interface as
Ingress or Egress.
•
You can define up to 512 FlexConnect ACLs, each with up to 64 rules (or filters). Each rule has
parameters that affect its action. When a packet matches all of the parameters for a rule, the action
set for that rule is applied to the packet.
•
ACLs in your network might need to be modified if CAPWAP uses different ports than LWAPP.
•
All ACLs have an implicit “deny all rule” as the last rule. If a packet does not match any of the rules,
it is dropped by the FlexConnect access point.
•
FlexConnect ACLs cannot be combined with Local mode ACLs on the same WLAN. If ACLs are
needed for both FlexConnect and Local mode APs, you can apply two different WLANs to support
the use of ACLs in both operating modes (one WLAN for FlexConnect APs and the other WLAN
for Local mode APs).
•
ACLs mapping on the VLANs which are created on the AP using WLAN-VLAN mapping, must be
done on a per AP basis only. VLANs can be created on a FlexConnect group for AAA override.
These VLANs will not have any mapping for a WLAN. ACLs for VLANs created on the
FlexConnect group, must be mapped on the FlexConnect group only. In case the same VLAN is
present on the AP as well as the Flexconnect group, AP VLAN will take priority. This means if no
ACL is mapped on the AP, the VLAN will not have any ACL, even if the ACL is mapped to the
VLAN on the FlexConnect group.
Configuring FlexConnect ACLs
This section contains the following topics:
•
Configuring FlexConnect ACLs (GUI), page 16-17
•
Configuring FlexConnect ACLs (CLI), page 16-19
•
Viewing and Debugging FlexConnect ACLs (CLI), page 16-20
Configuring FlexConnect ACLs (GUI)
Step 1
Choose Security > Access Control Lists > FlexConnect ACLs.
Figure 16-4
FlexConnect ACLs Page
This page lists all FlexConnect ACLs created and configured on the controller. To remove an ACL, hover
your mouse over the blue drop-down arrow and choose Remove.
Step 2
Add a new ACL by clicking New.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-17
Chapter 16
Configuring FlexConnect
Configuring FlexConnect ACLs
The Access Control Lists > New page appears.
Step 3
In the Access Control List Name text box, enter a name for the new ACL.
You can enter up to 32 alphanumeric characters.
Step 4
Click Apply.
When the Access Control Lists page reappears, click the name of the new ACL.
Step 5
When the Access Control Lists > Edit page appears, click Add New Rule.
The Access Control Lists > Rules > New page appears.
Step 6
Configure a rule for this ACL as follows:
a.
The controller supports up to 64 rules for each ACL. These rules are listed in order from 1 to 64. In
the Sequence text box, enter a value (between 1 and 64) to determine the order of this rule in relation
to any other rules defined for this ACL.
Note
b.
c.
d.
If rules 1 through 4 are already defined and you add rule 29, it is added as rule 5. If you add
or change a sequence number for a rule, the sequence numbers for other rules adjust to
maintain a continuous sequence. For instance, if you change a rule’s sequence number from
7 to 5, the rules with sequence numbers 5 and 6 are automatically reassigned as 6 and 7,
respectively.
From the Source drop-down list, choose one of these options to specify the source of the packets to
which this ACL applies:
•
Any—Any source (this is the default value).
•
IP Address—A specific source. If you choose this option, enter the IP address and netmask of
the source in the text boxes.
From the Destination drop-down list, choose one of these options to specify the destination of the
packets to which this ACL applies:
•
Any—Any destination (this is the default value).
•
IP Address—A specific destination. If you choose this option, enter the IP address and netmask
of the destination in the text boxes.
From the Protocol drop-down list, choose the protocol ID of the IP packets to be used for this ACL.
The protocol options that you can choose are as follows:
•
Any—Any protocol (this is the default value)
•
TCP—Transmission Control Protocol
•
UDP—User Datagram Protocol
•
ICMP—Internet Control Message Protocol
•
ESP—IP Encapsulating Security Payload
•
AH—Authentication Header
•
GRE—Generic Routing Encapsulation
•
IP in IP—Internet Protocol (IP) in IP (permits or denies IP-in-IP packets)
•
Eth Over IP—Ethernet-over-Internet Protocol
•
OSPF—Open Shortest Path First
•
Other—Any other Internet Assigned Numbers Authority (IANA) protocol
Cisco Wireless LAN Controller Configuration Guide
16-18
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect ACLs
Note
If you choose Other, enter the number of the desired protocol in the Protocol text box.
You can find the list of available protocols in the INAI website.
The access point can permit or deny only IP packets in an ACL. Other types of packets (such as ARP
packets) cannot be specified.
If you chose TCP or UDP, two additional parameters appear: Source Port and Destination Port.
These parameters enable you to choose a specific source port and destination port or port ranges.
The port options are used by applications that send and receive data to and from the networking
stack. Some ports are designated for certain applications such as Telnet, SSH, HTTP, and so on.
e.
Step 7
From the DSCP drop-down list, choose one of these options to specify the differentiated services
code point (DSCP) value of this ACL. DSCP is an IP header text box that can be used to define the
quality of service across the Internet.
•
Any—Any DSCP (this is the default value)
•
Specific—A specific DSCP from 0 to 63, which you enter in the DSCP edit box
f.
From the Action drop-down list, choose Deny to cause this ACL to block packets or Permit to cause
this ACL to allow packets. The default value is Deny.
g.
Click Apply to commit your changes. The Access Control Lists > Edit page reappears, showing the
rules for this ACL.
h.
Repeat this procedure to add any additional rules for this ACL.
Click Save Configuration to save your changes.
Configuring FlexConnect ACLs (CLI)
•
config flexconnect acl create name—Creates an ACL on a FlexConnect access point. The name
must be an IPv4 ACL name of up to 32 characters.
•
config flexconnect acl delete name—Deletes a FlexConnect ACL.
•
config flexconnect acl rule action acl-name rule-index {permit |deny}—Permits or denies an
ACL.
•
config flexconnect acl rule add acl-name rule-index—Adds an ACL rule.
•
config flexconnect acl rule change index acl-name old-index new-index—Changes the index value
for an ACL rule.
•
config flexconnect acl rule delete name—Deletes an ACL rule.
•
config flexconnect acl rule dscp acl-name rule-index {0-63 | any }—Specifies the differentiated
services code point (DSCP) value of this rule index. DSCP is an IP header that can be used to define
the quality of service across the Internet. Enter a value between 0 and 63 or ‘any’. The default is
‘any.’
•
config flexconnect acl rule protocol acl-name rule-index {0-255 | any}—Assigns the rule index to
an ACL rule. Specify a value between 0 and 255 or any. The default is any.
•
config flexconnect acl rule destination address acl-name rule-index ipv4-addr
subnet-mask—Configures a rule's destination IP address, netmask and port range.
•
config flexconnect acl rule destination port range acl-name rule-index start-port
end-port—Configures a rule’s destination port range.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-19
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
•
config flexconnect acl rule source address acl-name rule-index ipv4-addr subnet-mask—
Configures a rule's source IP address and netmask.
•
config flexconnect acl rule source port range acl-name rule-index start-port
end-port—Configures a rule’s source port range.
•
config flexconnect acl apply acl-name—Applies the ACL to the FlexConnect access point.
•
config flexconnectacl rule swap acl-name index-1 index-2—Swaps the index values of two rules.
•
config ap flexconnect vlan add acl vlan-id ingress-aclname egress-acl-name ap-name—Maps an
ACL to an existing VLAN configured through WLAN-VLAN mapping.
Viewing and Debugging FlexConnect ACLs (CLI)
•
show flexconnect acl summary—Displays a summary of the access control lists.
•
show flexconnect acl detailed acl-name—Displays the detailed ACL information for the access
control list.
•
debug flexconnect acl {enable | disable}—Enables or disables FlexConnect ACL. Use this
command to troubleshoot.
•
debug capwap reap—Displays the debug messages for the FlexConnect ACLs on a FlexConnect
access point.
Configuring FlexConnect Groups
This section contains the following topics:
•
Information About FlexConnect Groups, page 16-20
•
Configuring FlexConnect Groups, page 16-22
Information About FlexConnect Groups
To organize and manage your FlexConnect access points, you can create FlexConnect Groups and assign
specific access points to them.
All of the FlexConnect access points in a group share the same backup RADIUS server, CCKM, and
local authentication configuration information. This feature is helpful if you have multiple FlexConnect
access points in a remote office or on the floor of a building and you want to configure them all at once.
For example, you can configure a backup RADIUS server for a FlexConnect rather than having to
configure the same server on each access point. Figure 16-5 shows a typical FlexConnect deployment
with a backup RADIUS server in the branch office.
Cisco Wireless LAN Controller Configuration Guide
16-20
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
FlexConnect Group Deployment
Backup RADIUS
server
DHCP server
VLAN 101
Local VLAN
WAN link
Local switch
802.1x
Branch
Trunk port
native VLAN 100
FlexConnect Access Points
331667
Figure 16-5
FlexConnect Groups and Backup RADIUS Servers
You can configure the controller to allow a FlexConnect access point in standalone mode to perform full
802.1X authentication to a backup RADIUS server. You can configure a primary backup RADIUS server
or both a primary and secondary backup RADIUS server. These servers can be used when the
FlexConnect access point is in of these two modes: standalone or connected.
FlexConnect Groups and CCKM
FlexConnect Groups are required for CCKM fast roaming to work with FlexConnect access points.
CCKM fast roaming is achieved by caching a derivative of the master key from a full EAP authentication
so that a simple and secure key exchange can occur when a wireless client roams to a different access
point. This feature prevents the need to perform a full RADIUS EAP authentication as the client roams
from one access point to another. The FlexConnect access points need to obtain the CCKM cache
information for all the clients that might associate so they can process it quickly instead of sending it
back to the controller. If, for example, you have a controller with 300 access points and 100 clients that
might associate, sending the CCKM cache for all 100 clients is not practical. If you create a FlexConnect
that includes a limited number of access points (for example, you create a group for four access points
in a remote office), the clients roam only among those four access points, and the CCKM cache is
distributed among those four access points only when the clients associate to one of them.
Note
CCKM fast roaming among FlexConnect and non-FlexConnect access points is not supported. See the
“Configuring WPA1 +WPA2” section on page 8-26 for information on configuring CCKM.
FlexConnect Groups and Opportunistic Key Caching
Starting in the 7.0.116.0 release, FlexConnect groups enable Opportunistic Key Caching (OKC) to
enable fast roaming of clients. OKC facilitates fast roaming by using PMK caching in access points that
are in the same FlexConnect group.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-21
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
This feature prevents the need to perform a full authentication as the client roams from one access point
to another. Whenever a client roams from one FlexConnect access point to another, the FlexConnect
group access point calculates the PMKID using the cached PMK.
To see the PMK cache entries at the FlexConnect access point, use the show capwap reap pmk
command. This feature is supported on Cisco FlexConnect access points.
Note
The FlexConnect access point must be in connected mode when the PMK is derived during
WPA2/802.1x authentication.
When using FlexConenct groups for OKC or CCKM, the PMK-cache is shared only across the access
points that are part of the same FlexConnect group and are associated to the same controller. If the access
points are in the same FlexConnect group but are associated to different controllers that are part of the
same mobility group, the PMK cache is not updated and CCKM roaming will fail.
FlexConnect Groups and Local Authentication
You can configure the controller to allow a FlexConnect access point in standalone mode to perform
LEAP or EAP-FAST authentication for up to 100 statically configured users. The controller sends the
static list of usernames and passwords to each FlexConnect access point when it joins the controller.
Each access point in the group authenticates only its own associated clients.
This feature is ideal for customers who are migrating from an autonomous access point network to a
lightweight FlexConnect access point network and are not interested in maintaining a large user database
or adding another hardware device to replace the RADIUS server functionality available in the
autonomous access point.
Note
This feature can be used with the FlexConnect backup RADIUS server feature. If a FlexConnect is
configured with both a backup RADIUS server and local authentication, the FlexConnect access point
always attempts to authenticate clients using the primary backup RADIUS server first, followed by the
secondary backup RADIUS server (if the primary is not reachable), and finally the FlexConnect access
point itself (if the primary and secondary are not reachable).
The number of FlexConnect groups and access point support depends on the platform that you are using.
You can configure the following:
•
Up to 100 FlexConnect groups for a Cisco 5500 Series Controller
•
Up to 1000 FlexConnect groups for a Cisco Flex 7500 Series Controller. The Cisco Flex 7500 Series
Controller can accommodate up to 50 access points per FlexConnect group.
•
Up to 20 FlexConnect groups with up to 25 access points per group for the remaining platforms.
Configuring FlexConnect Groups
This section contains the following topics:
•
Configuring FlexConnect Groups (GUI), page 16-23
•
Configuring FlexConnect Groups (CLI), page 16-25
Cisco Wireless LAN Controller Configuration Guide
16-22
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
Configuring FlexConnect Groups (GUI)
Step 1
Choose Wireless > FlexConnect Groups to open the FlexConnect Groups page.
Figure 16-6
FlexConnect Groups Page
This page lists any FlexConnect groups that have already been created.
Note
If you want to delete an existing group, hover your cursor over the blue drop-down arrow for that
group and choose Remove.
Step 2
Click New to create a new FlexConnect Group.
Step 3
On the FlexConnect Groups > New page, enter the name of the new group in the Group Name text box.
You can enter up to 32 alphanumeric characters.
Step 4
Click Apply to commit your changes. The new group appears on the FlexConnect Groups page.
Step 5
To edit the properties of a group, click the name of the desired group. The FlexConnect Groups > Edit
page appears.
Step 6
If you want to configure a primary RADIUS server for this group (for example, the access points are
using 802.1X authentication), choose the desired server from the Primary RADIUS Server drop-down
list. Otherwise, leave the text box set to the default value of None.
Step 7
If you want to configure a secondary RADIUS server for this group, choose the server from the
Secondary RADIUS Server drop-down list. Otherwise, leave the field set to the default value of None.
Step 8
To add an access point to the group, click Add AP. Additional fields appear on the page under Add AP.
Step 9
Perform one of the following tasks:
•
To choose an access point that is connected to this controller, select the Select APs from Current
Controller check box and choose the name of the access point from the AP Name drop-down list.
Note
•
If you choose an access point on this controller, the MAC address of the access point is
automatically entered in the Ethernet MAC text box to prevent any mismatches from
occurring.
To choose an access point that is connected to a different controller, leave the Select APs from
Current Controller check box unselected and enter its MAC address in the Ethernet MAC text box.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-23
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
Note
Step 10
If the FlexConnect access points within a group are connected to different controllers, all of
the controllers must belong to the same mobility group.
Click Add to add the access point to this FlexConnect group. The access point’s MAC address, name,
and status appear at the bottom of the page.
If you want to delete an access point, hover your cursor over the blue drop-down arrow for that
access point and choose Remove.
Note
Step 11
Click Apply to commit your changes.
Step 12
Repeat Step 9 through Step 11 if you want to add more access points to this FlexConnect Group.
Step 13
Enable local authentication for a FlexConnect Group as follows:
a.
Ensure that the Primary RADIUS Server and Secondary RADIUS Server parameters are set to None.
b.
Select the Enable AP Local Authentication check box to enable local authentication for this
FlexConnect Group. The default value is unselected.
c.
Click Apply to commit your changes.
d.
Click the Local Authentication tab to open the FlexConnect > Edit (Local Authentication > Local
Users) page.
e.
To add clients that you want to be able to authenticate using LEAP or EAP-FAST, perform one of
the following:
•
Upload a comma-separated values (CSV) file by selecting the Upload CSV File check box,
clicking the Browse button to browse to an CSV file that contains usernames and passwords
(each line of the file needs to be in the following format: username, password), and clicking
Add to upload the CSV file. The clients’ names appear on the left side of the page under the
“User Name” heading.
•
Add clients individually by entering the client’s username in the User Name text box and a
password for the client in the Password and Confirm Password text boxes, and clicking Add to
add this client to the list of supported local users. The client name appears on the left side of the
page under the “User Name” heading.
Note
You can add up to 100 clients.
f.
Click Apply to commit your changes.
g.
Click the Protocols tab to open the FlexConnect > Edit (Local Authentication > Protocols) page.
h.
To allow a FlexConnect access point to authenticate clients using LEAP, select the Enable LEAP
Authentication check box and then go to Step n.
i.
To allow a FlexConnect access point to authenticate clients using EAP-FAST, select the Enable
EAP-FAST Authentication check box and then go to the next step. The default value is unselected.
j.
Perform one of the following, depending on how you want protected access credentials (PACs) to
be provisioned:
•
To use manual PAC provisioning, enter the server key used to encrypt and decrypt PACs in the
Server Key and Confirm Server Key text boxes. The key must be 32 hexadecimal characters.
Cisco Wireless LAN Controller Configuration Guide
16-24
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
To allow PACs to be sent automatically to clients that do not have one during PAC provisioning,
select the Enable Auto Key Generation check box.
•
k.
In the Authority ID text box, enter the authority identifier of the EAP-FAST server. The identifier
must be 32 hexadecimal characters.
l.
In the Authority Info text box, enter the authority identifier of the EAP-FAST server in text format.
You can enter up to 32 hexadecimal characters.
m.
To specify a PAC timeout value, select the PAC Timeout check box and enter the number of seconds
for the PAC to remain viable in the text box. The default value is unselected, and the valid range is
2 to 4095 seconds when enabled.
n.
Click Apply to commit your changes.
Step 14
Click Save Configuration to save your changes.
Step 15
Repeat this procedure if you want to add more FlexConnects.
Note
To see if an individual access point belongs to a FlexConnect Group, you can choose Wireless
> Access Points > All APs > the name of the desired access point in the FlexConnect tab. If the
access point belongs to a FlexConnect, the name of the group appears in the FlexConnect Name
text box.
Configuring FlexConnect Groups (CLI)
Step 1
Add or delete a FlexConnect Group by entering this command:
config flexconnect group_name {add | delete}
Step 2
Configure a primary or secondary RADIUS server for the FlexConnect Group by entering this command:
config flexconnect group_name radius server {add | delete} {primary | secondary} server_index
Step 3
Add an access point to the FlexConnect Group by entering this command:
config flexconnect group_name ap {add | delete} ap_mac
Step 4
Configure local authentication for a FlexConnect group as follows:
a.
Make sure that a primary and secondary RADIUS server are not configured for the FlexConnect
Group.
b.
To enable or disable local authentication for this FlexConnect group, enter this command:
config flexconnect group_name radius ap {enable | disable}
c.
To enter the username and password of a client that you want to be able to authenticate using LEAP
or EAP-FAST, enter this command:
config flexconnect group_name radius ap user add username password password
Note
d.
You can add up to 100 clients.
To allow a FlexConnect access point to authenticate clients using LEAP or to disable this behavior,
enter this command:
config flexconnect group_name radius ap leap {enable | disable}
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-25
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
e.
To allow a FlexConnect access point to authenticate clients using EAP-FAST or to disable this
behavior, enter this command:
config flexconnect group_name radius ap eap-fast {enable | disable}
f.
g.
Enter one of the following commands, depending on how you want PACs to be provisioned:
•
config flexconnect group_name radius ap server-key key—Specifies the server key used to
encrypt and decrypt PACs. The key must be 32 hexadecimal characters.
•
config flexconnect group_name radius ap server-key auto—Allows PACs to be sent
automatically to clients that do not have one during PAC provisioning.
To specify the authority identifier of the EAP-FAST server, enter this command:
config flexconnect group_name radius ap authority id id
where id is 32 hexadecimal characters.
h.
To specify the authority identifier of the EAP-FAST server in text format, enter this command:
config flexconnect group_name radius ap authority info info
where info is up to 32 hexadecimal characters.
i.
To specify the number of seconds for the PAC to remain viable, enter this command:
config flexconnect group_name radius ap pac-timeout timeout
where timeout is a value between 2 and 4095 seconds (inclusive) or 0. A value of 0, which the default
value, disables the PAC timeout.
Step 5
Save your changes by entering this command:
save config
Step 6
See the current list of FlexConnect Groups by entering this command:
show flexconnect summary
Information similar to the following appears:
flexconnect Summary: Count 2
Group Name
Group 1
Group 2
Step 7
# Aps
1
1
See the details for a specific FlexConnect Groups by entering this command:
show flexconnect group detail group_name
Information similar to the following appears:
Number of Ap's in Group: 3
00:1d:45:12:f2:24
00:1d:45:12:f7:12
00:1d:a1:ed:9f:84
AP1240.EW3.f224
AP1240.10.f712
AP1131.23.9f84
Joined
Joined
Joined
Group Radius Servers Settings:
Primary Server Index............................ Disabled
Secondary Server Index.......................... Disabled
Group Radius AP Settings:
AP RADIUS server............
EAP-FAST Auth...............
LEAP Auth...................
Server Key Auto Generated...
Enabled
Enabled
Enabled
No
Cisco Wireless LAN Controller Configuration Guide
16-26
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring FlexConnect Groups
Server Key..................
<hidden>
Authority ID................ 436973636f0000000000000000000000
Authority Info.............. Cisco A_ID
PAC Timeout................. 0
Number of User's in Group: 20
1cisco
3cisco
cisco
test10
test12
test14
test2
test4
test6
test8
2cisco
4cisco
test1
test11
test13
test15
test3
test5
test7
test9
Configuring VLAN-ACL Mapping on FlexConnect Groups (GUI)
Step 1
Choose Wireless > FlexConnect Groups.
The FlexConnect Groups page appears. This page lists the access points associated with the controller.
Step 2
Click the Group Name link of the FlexConnect Group for which you want to configure VLAN-ACL
mapping.
Step 3
Click the VLAN-ACL Mapping tab.
The VLAN-ACL Mapping page for that FlexConnect group is displayed.
Step 4
Enter the Native VLAN ID in the VLAN ID text box.
Step 5
From the Ingress ACL drop-down list, choose the Ingress ACL.
Step 6
From the Egress ACL drop-down list, choose the Egress ACL.
Step 7
Click Add to add this mapping to the FlexConnect Group.
The VLAN ID is mapped with the required ACLs. To remove the mapping, hover your mouse over the
blue drop-down arrow and choose Remove.
Configuring VLAN-ACL Mapping on FlexConnect Groups (CLI)
•
config flexconnect group group-name vlan add vlan-id acl ingress-acl egress-acl—Adds a VLAN
to a FlexConnect group and maps the ingress and egress ACLs.
Viewing VLAN-ACL Mappings (CLI)
•
show flexconnect group detail group-name—Displays the FlexConnect group details.
•
show ap config general ap-name—Displays the VLAN-ACL mappings on the access point. An
output similar to the following is displayed:
.. . .
. . . . .
FlexConnect Vlan mode :.......................... Enabled
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-27
Chapter 16
Configuring FlexConnect
Configuring AAA Overrides for FlexConnect
Native ID :..................................... 45
WLAN 1 :........................................ 45
FlexConnect VLAN ACL Mappings
Vlan :........................................... 45
Ingress ACL :................................... None
Egress ACL :.................................... None
VLAN with least priority :....................... 75
FlexConnect Group................................ fc-grp-1
Group VLAN ACL Mappings
Vlan :........................................... 61
Ingress ACL :................................... fc-grp-65
Egress ACL :.................................... fc-grp-81
Vlan :........................................... 62
Ingress ACL :................................... fc-grp-66
Egress ACL :.................................... fc-grp-82
Vlan :........................................... 63
Ingress ACL :................................... fc-grp-67
Egress ACL :.................................... fc-grp-83
Vlan :........................................... 64
Ingress ACL :................................... fc-grp-68
Egress ACL :.................................... fc-grp-84
Vlan :........................................... 65
Ingress ACL :................................... fc-grp-69
Egress ACL :.................................... fc-grp-85
. . .
. . .
•
The VLAN with least priority—Specifies the least priority VLANs from the list of VLANs added
to the access point using the WLAN-VLAN mapping. If the a VLAN is added and if it exceeds the
maximum allowed VLANs (16) on the AP, the VLAN specified in this section is replaced.
•
FlexConnect VLAN ACL Mappings—Refers to the configuration of VLANs done using
WLAN-VLAN mappings on a per-AP basis using the config ap flexconnect vlan add comm and.
•
Group VLAN ACL Mappings—Refers to the configuration of VLAN and the corrsponding Ingress
and Egress ACLs on a FlexConnect group that is pushed to the access point using the config
flexconnect group group-name vlan add command.
Configuring AAA Overrides for FlexConnect
This section contains the following topics:
•
Information About AAA Overrides, page 16-28
•
Guidelines and Limitations, page 16-29
•
Configuring AAA Override for FlexConnect on an Access Point (GUI), page 16-29
•
Configuring VLAN Overrides for FlexConnect on an Access Point (CLI), page 16-30
Information About AAA Overrides
The Allow AAA Override option of a WLAN enables you to configure the WLAN for authentication. It
enables you to apply VLAN tagging to individual clients based on the returned RADIUS attribute from
the AAA server.
AAA overrides for FlexConnect access points introduce a dynamic VLAN assignment for locally
switched clients. AAA overrides for FlexConnect also supports fast roaming (OKC/CCKM) of
overridden clients.
Cisco Wireless LAN Controller Configuration Guide
16-28
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring AAA Overrides for FlexConnect
Guidelines and Limitations
•
VLAN overrides for FlexConnect is applicable for both centrally and locally authenticated clients.
•
Before configuring an AAA override, the VLAN must be created on the access points. These
VLANs can be created on the access points by using the existing WLAN-VLAN mappings.
•
VLANs can be configured on FlexConnect groups. VLANs are pushed to the access points
belonging to the FlexConnect group.
•
At any given point, an AP has a maximum of 16 VLANs. The VLANs are selected based on the
WLAN-VLAN mapping in the AP . The remaining VLANs will be pushed from the Flexconnect
group in the order that they are configured/shown in the Flexconnect group. If the VLAN slots are
full, an error message is logged.
•
If the VLAN on the AP is configured using the WLAN-VLAN, the AP configuration of the ACL is
applied.
•
If the VLAN is configured using the FlexConnect group, the ACL configured on the FlexConnect
group is applied.
•
If the same VLAN is configured on the FlexConnect group and also at the AP, the AP configuration
with its ACL takes precedence.
•
If there is no slot for a new VLAN from the WLAN-VLAN mapping, the latest FlexConnect group
VLAN is replaced.
•
If the VLAN that was returned from the AAA is not present on the AP, the client falls back to the
default VLAN configured for the WLAN.
•
AAA for locally switched clients only supports VLAN overrides.
•
AAA Override for FlexConnect is supported through IETF parameters in the ACS. The following
parameters must be configured with the specified values as defined below for a user:
– [064] Tunnel-Type : Tag 1 value VLAN
– [065] Tunnel-Medium Type : Tag1 value 802
– [081] Tunnel-Private-Group-ID : Tag1 value : Overridden VLAN ID.
•
Note
Dynamic VLAN assignment is not supported for web authentication from a controller with ACS.
To know more about how to configure IETF parameters, refer to the documentation of ACS server you
are using.
Configuring AAA Override for FlexConnect on an Access Point (GUI)
Step 1
Choose Wireless > All APs.
The All APs appears. This page lists the access points associated with the controller.
Step 2
Click the AP name link of the access point for which you want to configure VLAN Override.
Step 3
Click the FlexConnect tab.
Step 4
Enter the Native VLAN ID.
Step 5
Click the VLAN Mappings button to configure the AP VLANs mappings. This page displays the
following parameters:
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-29
Chapter 16
Configuring FlexConnect
Configuring Efficient AP Image Upgrades for FlexConnect Access Points
•
AP Name—The access point name.
•
Base Radio MAC—The base radio of the AP.
•
WLAN-SSID-VLAN ID Mappings—For each WLAN configured on the controller, the
corresponding SSID and VLAN IDs are listed. Change the WLAN-VLAN ID mappings by editing
the VLAN ID column for a WLAN.
•
Centrally Switched WLANs—If centrally switched WLANs are configured, the WLAN–VLAN
mapping is listed.
•
AP Level VLAN ACL Mapping—Change the ingress ACL and egress ACL mappings by choosing
the mappings from the drop-down list for each ACL type. The following parameters are available:
– VLAN ID—The VLAN ID.
– Ingress ACL—The ingress ACL that corresponds to the VLAN.
– Egress ACL—The egress ACL that corresponds to the VLAN.
•
Group Level VLAN ACL Mappings—The following group level VLAN ACL mapping parameters
are available:
– VLAN ID—The VLAN ID.
– Ingress ACL—The ingress ACL for this VLAN.
– Egress ACL—The egress ACL for this VLAN.
Step 6
Click Apply.
Configuring VLAN Overrides for FlexConnect on an Access Point (CLI)
Step 1
Add a VLAN to a FlexConnect group and map the ingress and egress ACLs:
config flexconnect group group-name vlan add vlan-id acl ingress-acl egress-acl
Note
Step 2
Use the none keyword in place of ‘ingress-acl’ or ‘egress-acl’ If you do not want to set a value to the
ACL You can also use the none keyword to clear the ACL.
Enable AAA override on the WLAN using the following command:
config wlan aaa-override enable wlan_id
Configuring Efficient AP Image Upgrades for FlexConnect
Access Points
This section contains the following topics:
•
Information About Efficient AP Image Upgrades, page 16-31
•
Guidelines and Limitations, page 16-31
•
Configuring Efficient AP Image Upgrades on FlexConnect APs (GUI), page 16-31
Cisco Wireless LAN Controller Configuration Guide
16-30
OL-21524-03
Chapter 16
Configuring FlexConnect
Configuring Efficient AP Image Upgrades for FlexConnect Access Points
•
Configuring Efficient AP Image Upgrades (CLI), page 16-32
Information About Efficient AP Image Upgrades
Normally, when upgrading the image of an AP, you can use the preimage download feature to reduce the
amount of time that the AP is unavailable to serve clients. However, it also increases the downtime
because the access point cannot serve clients during an upgrade. The preimage download feature can be
used to reduce this downtime. However, in the case of a branch office setup, the upgrade images are still
downloaded to each access point over the WAN link, which has a higher latency.
A more efficient way is to use the Efficient AP Image Upgrade feature. When the Efficient Image
Upgrade feature is enabled, one access point of each model in the local network first downloads the
upgrade image over the WAN link. The process is similar to the master-slave or client-server model. This
access point then becomes the master for the remaining access point of the similar model. The remaining
access points then download the upgrade image from the master access point using the preimage
download feature over the local network, which reduces the WAN latency.
Guidelines and Limitations
•
The primary and secondary controllers in the network must have the same set of primary and backup
images.
•
If you configured a FlexConnect group, all access points in that group must be within the same
subnet or must be accessible through NAT.
Configuring Efficient AP Image Upgrades on FlexConnect APs (GUI)
Step 1
Choose Wireless > FlexConnect Groups.
The FlexConnect Groups page appears. This page lists the FlexConnect Groups configured on the
controller.
Step 2
Click the Group Name link on which you want to configure the image upgrade.
Step 3
Click the Image Upgrade tab.
Step 4
Select the FlexConnect AP Upgrade check box to enable efficient FlexConnect AP Upgrade.
Step 5
If you enabled FlexConnect AP Upgrade in the previous step, you must enable the following parameters:
•
Slave Maximum Retry Count—The number of attempts that the slave access point must try to
connect to the master access point for downloading the upgrade image. If the image download does
not occur for the configured retry attempts, the image is upgraded over the WAN.
•
Upgrade Image—Upgrade image that you can choose. The options are Primary and Backup, and
Abort.
Step 6
Click FlexConnect Upgrade to upgrade.
Step 7
You can manually assign master access points in the FlexConnect group by selecting the access points
from the AP Name drop-down list. Click Add Master to add the master access point.
Step 8
Click Apply.
Cisco Wireless LAN Controller Configuration Guide
OL-21524-03
16-31
Chapter 16
Configuring FlexConnect
Configuring Efficient AP Image Upgrades for FlexConnect Access Points
Configuring Efficient AP Image Upgrades (CLI)
•
config flexconnect group group-name predownload {enable | disable}—Enables or disables the
efficient AP upgrade image.
•
config flexconnect group group-name predownload master ap-name—Manually assigns an
access point as the master access point.
•
config flexconnect group group-name predownload slave retry-count ap-name—Sets the access
point as a slave access point with a retry count.
•
config flexconnect group group-name predownload start—Initiates the image download on the
access points in the FlexConnect group.
•
config ap image predownload {abort | primary | backup}—Assigns the image type that must be
downloaded for the preimage upgrade.
•
show flexconnect group group-name—Displays the summary of the FlexConnect group
configuration.
•
show ap image all—Displays the details of the images on the access point.
Cisco Wireless LAN Controller Configuration Guide
16-32
OL-21524-03
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
