S A M S U N G
D I G I T A L
R E C O R D E R
Q U I C K
G U I D E

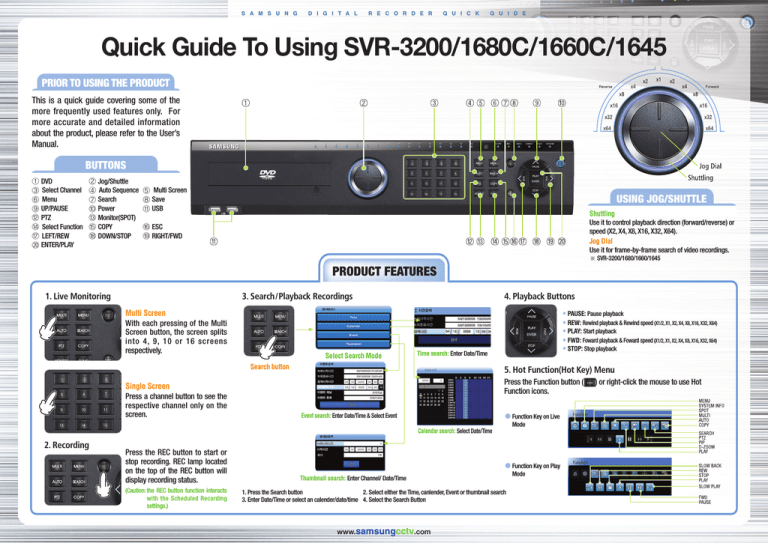

Quick Guide To Using SVR-3200/1680C/1660C/1645
Prior to using the product
This is a quick guide covering some of the
more frequently used features only. For
more accurate and detailed information
about the product, please refer to the User’s
Manual.
Buttons
① DVD ③ Select Channel
⑥ Menu
⑨ UP/PAUSE
⑫ PTZ
⑭ Select Function
LEFT/REW
ENTER/PLAY
② Jog/Shuttle
④ Auto Sequence
⑦ Search
⑩ Power
⑬ Monitor(SPOT)
⑮ COPY
DOWN/STOP
⑤ Multi Screen
⑧ Save
⑪ USB
Using Jog/Shuttle
Shuttling
Use it to control playback direction (forward/reverse) or
speed (X2, X4, X8, X16, X32, X64).
Jog Dial
Use it for frame-by-frame search of video recordings.
ESC
RIGHT/FWD
※ SVR-3200/1680/1660/1645
Product Features
1. Live Monitoring
3. Search/Playback Recordings
Multi Screen
With each pressing of the Multi
Screen button, the screen splits
into 4, 9, 10 or 16 screens
respectively.
4. Playback Buttons
▶
Time search: Enter Date/Time
Select Search Mode
▶
Search button
▶
Single Screen
Press a channel button to see the
respective channel only on the
screen.
• PAUSE: Pause playback
• REW: Rewind playback & Rewind speed (X1/2, X1, X2, X4, X8, X16, X32, X64)
• PLAY: Start playback
• FWD: Foward playback & Foward speed (X1/2, X1, X2, X4, X8, X16, X32, X64)
• STOP: Stop playback
▶
Event search: Enter Date/Time & Select Event
5. Hot Function(Hot Key) Menu
Press the Function button (
Function icons.
●Function Key on Live
Mode
Calendar search: Select Date/Time
▶
2. Recording
Press the REC button to start or
stop recording. REC lamp located
on the top of the REC button will
display recording status.
(Caution: the REC button function interacts
with the Scheduled Recording
settings.)
●Function Key on Play
Thumbnail search: Enter Channel/ Date/Time
1. Press the Search button
2. Select either the Time, canlender, Event or thumbnail search
3. Enter Date/Time or select an calender/date/time 4. Select the Search Button
www.samsungcctv.com
Mode
) or right-click the mouse to use Hot
S A M S U N G
D I G I T A L
R E C O R D E R
Q U I C K
G U I D E
Quick Guide To Using SVR-3200/1680C/1660C/1645
Recording Function
SAMSUNG DVR provides several different recording methods. You can easily select and set any recording method that is most suitable for your environment or needs.
[Program Setup]
3. Event Recording Setup
STEP 1 : Event check settings
Complete program setup before recording setup.
Key Button
Select
Key Button
▶ Record Setup ▶ Program
Select
● You can specify resolution (R), frame rate (F), and quality (Q) for each
channel for normal operation and when events occur.
1. Manual Recording Setup
You can set record to start when a user presses the [REC] button on the front.
▶ Event Setup ▶ Event
● Time for event recording
Always
Timezone : For specified time only.
Off : Not using event record.
STEP 2 : Event settings
Set the general event (MD/Sensor/Text/Audio) for event recording. For more information, please refer to the
user manual.
Key Button
Key Button
Select
Select
▶ Record Setup ▶ Record
1. Record Mode : Set manual & event recording.
2. Program : Set a Program.
2. Schedule Recording Setup
Scheduled recording lets you choose the date and time to record.
STEP 1 : Record mode settings
▶ Event Setup ▶ Normal Event
● MD : Set the event recording channel.
● Sensitivity : Set sensitivity levels from Lowest/1~10/Highest.
● Area : Set user defined parameters.
Event recording, manual recording and scheduled recording can be used at the same
time. Only Event Record is needed : Program > General > Channel > Frame Rate > 0fps.
4. Copy (Back-up)
Key Button
Select
HDD content can be stored in other storage medium including
DVD-R, CD-R and USB memory stick.
Key Button
▶ Record Setup ▶ Record
1. Press COPY button after inserting a storage device
2. Select Type (CD/DVD, RE4, AVI)
3. Select Channel
4. Enter From/To Time
5. Select Start Button
1. Record Mode : Set the Schedule & Event.
2. Schedule >>
STEP 2: Schedule settings
Key Button
Select
▶ Record Setup ▶ Record
● Index : Up to 50 different programs can be set.
● Day : Set a recording date.
● Program : Select a recording program (A~T).
● Time : Set a recording time.
● Delete : Delete an Index.
CD/DVD COPY
●Recommended media
• DVD-R : Mitsubishi, TDK, imation, Sony (16X recommended)
• CD-R : Mitsubishi, TDK, imation, Sony (16X recommended)
• U SB memory stick : SanDisk (1GB, 2GB, 4GB, 8GB recommended)
* Caution : U
sing authentic and new media products is recommended. If DVD-R or CD-R is over a long period of time,
errors may occur.
■SAMSUNG TECHWIN CO., LTD. 145-3, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-120, Korea • TEL : +82-31-740-8151~8158 • FAX: +82-31-740-8145
