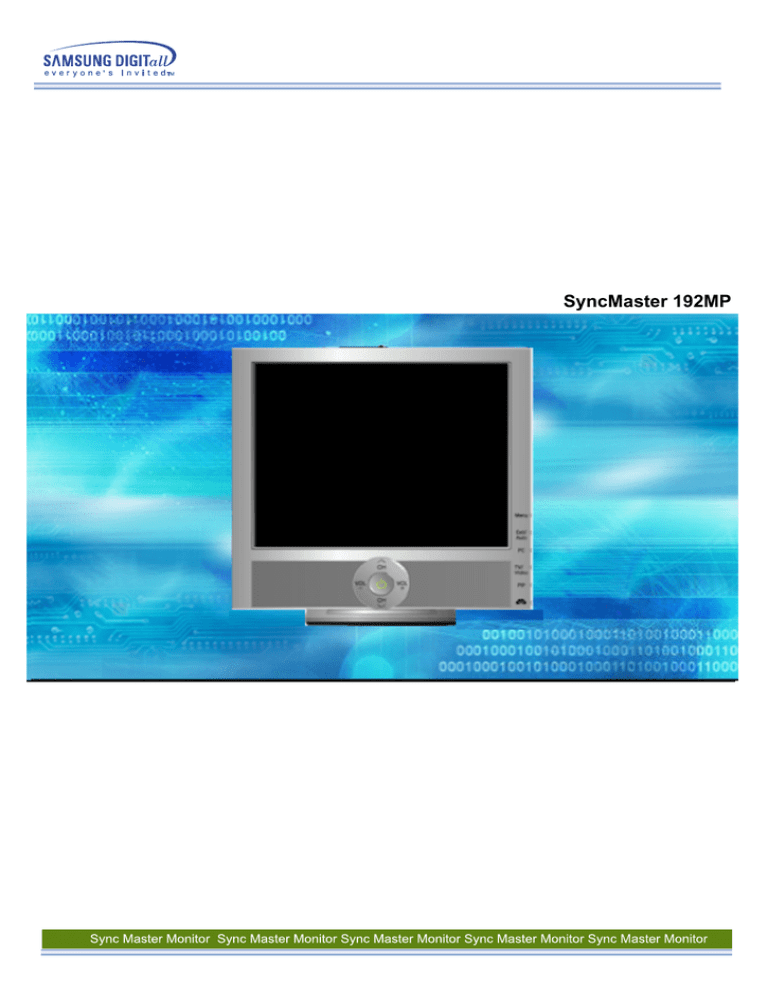

SyncMaster 192MP
Index
Main Page
Safety Instructions
Notational
Power
Installation
Cleaning
Other
Introduction
Unpacking
Front
Rear
Remote Control
Setup
Connecting Your Monitor
Connecting to a Computer
Connecting to Other Devices
Installing the Monitor Driver
Automatic
Manual
Installing a VESA Base
Folding the base / Removing the base
Installing a VESA Base
Adjusting Your LCD Monitor
User Controls
User control buttons
Direct-Access Features
On-Screen Display
OSD Functions
Screen Adjustment Animation Clips
Troubleshooting
Check before Calling for Service
Problems and Solutions
Q&A
Specifications
General Specifications
PowerSaver
Preset Timing Modes
Information
Service Center
Terms
Regulatory
Natural Color
For Better Display
Authority
Safety Instructions - Notational
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited
Important to read and understand at all times
Do not disassemble
Disconnect the plug from the outlet
Do not touch
Grounding to prevent an electric shock
Safety Instructions - Power
When not used for extended periods of time, set your computer to DPMS. If using a
screen saver, set it to the active screen mode.
Do not use a damaged or loose plug.
z
This may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
z
This may cause an electric shock or fire.
Use only a properly grounded plug and receptacle.
z
An improper ground may cause electric shock or equipment damage.
Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.
z
This may cause an electric shock or fire.
Disconnect the plug from the outlet during storms or lightening or if it is
not used for a long period of time.
z
Failure to do so may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
z
This may cause a fire.
Safety Instructions - Installation
Put your monitor in a location with low humidity and a minimum of dust.
z
An electric shock or fire could result inside the monitor.
Do not drop the monitor when moving it.
z
This may cause damage to the product or human body.
Place the monitor on a flat and stable surface.
z
The monitor can cause injury by falling.
Set down the monitor carefully.
z
It could be damaged or broken.
Do not place the monitor face down.
z
The TFT-LCD surface may be damaged.
Installing a wall bracket must be done by a qualified professional.
z
Installation by unqualified personnel may result in injury.
z
Always use the mounting device specified in the owner's manual.
Leave a space for ventilation between the product and the wall.
z
Poor ventilation may cause the interior temperature to rise and lead to a
fire.
Safety Instructions - Installation
To prevent rainwater from running along the outdoor antenna cable and
entering the house, be sure the outdoor portion of the cable hangs down
below the point of entry.
z
If rainwater enters the product, it may cause an electric shock or fire.
If you are using an outdoor antenna, be sure to put sufficient distance
between your antenna and the electrical wires nearby so that they would
not come in contact with each other in case the antenna is knocked over
by strong wind.
z
A knocked-over antenna may cause injury or an electric shock.
Safety Instructions - Cleaning
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a
slightly moistened, soft fabric.
Do not spray water or detergent directly on the monitor.
z
This may cause damage, electric shock or a fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.
z
A dirty connector can cause an electric shock or fire.
When you remove batteries from the remote, be careful that they are not
swallowed by children. Keep batteries out of the reach of children.
z
If swallowed, see a doctor immediately.
When replacing batteries, place the batteries in the correct +/- polarity
position as indicated on battery holder.
z
Incorrect polarity may cause a battery to break or leak and could lead to a
fire, injury, or contamination (damage).
Use only specified standard batteries. Do not use new and used batteries
together.
z
may cause a battery to break or leak and could lead to a fire, injury, or
contamination (damage).
Do not set a glass of water, chemicals or any small metal objects on the
monitor.
z
z
This may cause damage, electric shock or a fire.
If a foreign substance gets into the monitor, disconnect the plug and then
contact a service center.
Contact a Service Center or Customer Center for interior cleaning once a
year.
z
Keep the product's interior clean. Dust which has accumulated in the
interior over an extended period of time may cause malfunction or a fire.
Safety Instructions - Other
Do not remove cover (or back). No user serviceable parts inside.
z
z
This may cause an electric shock or a fire.
Refer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or service.
z
This may cause an electric shock or fire.
Be careful not to let water drip into the monitor or expose the monitor to
moisture.
z
z
This may cause malfunction, an electric shock or a fire.
Especially avoid operating the monitor near water or outdoors where it
could be exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord.
z
z
The monitor may malfunction, causing an electric shock or a fire.
Then contact the Service Center.
Keep the power off when there is thunder and lightening outside, or let
the monitor remain unused for an extended period of time.
z
The monitor may malfunction, causing an electric shock or a fire.
Do not try to move the monitor by pulling on the wire or the signal cable.
z
This may cause a breakdown, electric shock or a fire due to damage to
the cable.
Do not move the monitor right or left by pulling only the wire or the signal
cable.
z
This may cause a breakdown, electric shock or a fire due to damage to
the cable.
Do not cover the vents on the monitor cabinet.
z
Bad ventilation may cause a breakdown or fire.
Do not place any heavy objects on the monitor.
z
This may cause malfunction, an electric shock or a fire.
Do not place water containers, chemical products or small metal objects
on the monitor.
z
z
This may cause malfunction, an electric shock or a fire.
If a foreign substance enters the monitor, unplug the power cord and
contact the Service Center.
Do not use or store inflammable substances near the monitor.
z
This may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
z
This may cause an electric shock, fire or injury.
Do not insert metal objects such as utensils, wire or drill bits, or things
that catch fire easily, such as pieces of paper or matches, into the vents
or the headphone or A/V ports on the monitor.
z
z
This may cause malfunction, an electric shock or a fire.
Always contact the Service Center if foreign substances/objects enter
into the monitor.
If you view a fixed screen for an extended period of time, residual image
or blurriness may appear.
z
Change the mode to energy save or set a screensaver to moving picture
when you need to be away from the monitor for an extended period of
time.
Be careful when adjusting the stand angle.
z
z
Applying too much force may cause the monitor topple over or fall,
resulting in injury.
Your hand or finger(s) may get caught between the monitor and the
stand, causing injury.
Adjust the resolution and frequency to the levels appropriate for the
model.
z
Inappropriate resolution may cause undesirable picture quality.
19 inch - 1280 X 1024
Be careful that adapter should not be in contact with water and therefore
not be wet.
z
z
z
This may cause malfunction, an electric shock or a fire.
Do not use adaptor by the waterside or outside particularly when it rains
or snows.
Be careful that adaptor should not be wet while cleaning floor with water.
Keep all power adaptors apart.
z
Possible fire hazard.
Keep power adaptor away from any other heat source.
z
Possible fire hazard.
Remove and discard vinyl bag from power adaptor before use.
z
Possible fire hazard.
Always keep power adaptor in well-ventilated area.
Keep the volume at a proper level when you use the headphones.
z
Excessively loud volume levels may damage hearing.
Keep a proper distance between your eyes and the monitor screen.
z
Sitting too close to the monitor on a continuous basis may damage
eyesight.
To ease eye strain, take at least a five-minute break after every hour of
using the monitor.
Do not use the monitor where it can be exposed to strong vibrations.
z
Exposure to strong vibrations can be a fire hazard and shorten the life of
the monitor.
When moving the monitor, turn the power switch off and unplug the
power cord. Make sure that all cables, including the antenna cable and
cables connecting to other devices, are disconnected before moving the
monitor.
z
Failure to disconnect a cable may damage it and lead to a fire or an
electric shock.
Introduction - Unpacking
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
User's Guide and Natural Color/
Driver Installation CD
Power Cord
Monitor
Quick Setup Guide
Signal Cable(15 pin D-Sub)
Warranty Card
(Not available in all locations)
DC Adapter
Remote Control
Batteries (AAA X 2)
Option
DVI cable
Contact a local dealer or Samsung call center to buy optional items.
Audio Cable
Introduction - Front
For detailed information concerning the monitor functions, refer to User Controls under Adjusting Your
Monitor. The monitor's front configuration may vary slightly depending on the monitor model.
1. Menu
6. MagicBright™
2. Exit / Auto
7. Up-Down / Channel
3. Enter
8. Left-Right / Volume
4. Source
9. Power / Power indicator
5. PIP
10. Remote Control Sensor
PIP(Picture in Picture)?
Feature allowing one program to be viewed on the entire screen
while one or more programs play in small windows superimposed
over the base program.
Introduction - Rear
For detailed information concerning cable connections, refer to Connecting Cables under Setup.
The monitor's rear configuration may vary slightly depending on the monitor model.
A.
Power Connection Terminal (14V DC)
This product may be used with 90 ~ 264. (Voltage
is automatically adjusted by the power adaptor.)
Connect the power source plug when all
Connecting Your Montior.
B.
PC Connection Terminal
1. Computer Connection Terminal (DVI)
2. Computer Connection Terminal (15 Pin D-SUB)
3. Audio Connection Terminal (Audio (ST))
B.
DVD/DTV Connection Terminal
1. DVD/DTV component(Y, Pb, Pr) terminal
2. DVD/DTV left / right audio connection terminal
(L/R)
3. TV Connection Terminal
D.
AV Connection Terminal
1. Headphone connection terminal
2. Audio L / R, Video connection terminal
3. S-Video connection terminal
Introduction - Remote Control
For detailed information of the Remote Control Unit functions, refer to Adjusting Your Monitor > User
Controls > User Control Buttons > Remote Control buttons.
The remote control's configuration may vary slightly depending on the monitor model.
The Remote control may function within a range of 0.23 to 33 feet (7cm to 10m) and 30 degrees to the
left and right of the monitor's Remote Control Reception sensor.
Button Names | Replacing Batteries | Usage
1. Button Names
1. POWER
2. Channel
3. +100
4. VOL
5. MUTE
6. AUTO
7. MENU
8. ENTER
9. PRE-CH
10. CH
11. SOURCE
12. INFO
13. EXIT
14. Up-Down Left-Right Buttons
15. P.MODE, M/B (MagicBright™)
16. STILL
17. S.MODE
18. MTS
19. PIP
20. SOURCE
21. SIZE
22. POSITION
2. Replacing Batteries
1. Slide out the cover pressing part marked .
2. Insert the batteries matching their polarities (+, -).
3. Slide in the cover.
Setup - Connecting Your Monitor
Connecting to a Computer
Connecting to other devices
Turn on your computer and monitor. If your monitor displays an image, installation is complete.
The configuration at the back of the monitor may vary from product to product.
1. Connecting to a Computer
1.
Connect the power cord to the DC adapter and connect the adapter jack to the DC POWER port on
the back of your monitor.
2.
Connect the signal cable to the PC Connecting Terminal on your computer.
There are 2 ways to connect the signal cable to your monitor.
Choose one of the followings :
2-1. Using the D-sub (Analog) connector on the Video card.
Connect the signal cable to the 15 pin D-sub Port on the back of your monitor.
2-2. Using the DVI (Digital) connector on the Video card.
Connect the DVI Cable(DVI-D + DVI-D) to the DVI Port on the back of your Monitor.
3.
Connect the audio cable for your monitor to the audio port on the back of your computer.
4.
Connect the power cord insert a plug in a wall outlet.
5.
Turn on both your computer and the monitor.
6.
You may enjoy clear and quality sound from the computer sound card using the monitor speakers.
(You don't need to install any separate speakers for your computer.)
You may get a blank screen depending on the type of Video card you are using, if you connect
simultaneously both the D-sub and DVI cables to one computer.
If you properly connect your monitor using the DVI connector but get a blank or fuzzy screen, check to
see if the monitor status is set to analog. Press Source button to have the monitor double-check the
input signal source.
Setup - Connecting to other devices
Connecting to a Computer
Connecting to other devices
This monitor allows the user to connect it to such input devices as a DVD player, a VCR or camcorder,
or a DTV or TV without disconnecting the PC. For detailed information on connecting AV input devices,
refer to User Controls under Adjusting Your Monitor.
The configuration at the back of the monitor may vary from product to product.
Connecting AV Devices | Connecting TV | Connecting DVD / DTV Set Top Box
Connecting to a Macintosh | Connecting Headphone
1. Connecting AV Devices
The monitor has AV connection terminals to connect AV input devices like DVDs, VCRs or
Camcorders. You may enjoy AV signals as long as the monitor is turned on.
1. Input devices such as DVDs, VCRs or Camcorders are connected to the AV or S-Video terminal of
the monitor using the RCA or S-Video cable.
S-Video or RCA cable is optional.
2. Connect the Audio (R) and Audio (L) terminals of a DVD, VCR or Camcorders to the monitor's R
and L audio input terminals using audio cables.
3. Select AV or S-Video using the SOURCE button on the monitor's front.
4. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
2. Connecting TV
You may view television programs on the monitor if it is connected to an antenna or CATV cable
without installing any separate TV reception hardware or software on your computer.
Setup - Connecting to other devices
1. Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor.
You need to use a coaxial antenna cable.
When using an interior antenna terminal:
Check the antenna terminal on the wall first and connect the antenna cable.
When using an outdoor antenna:
If you are using an outdoor antenna, use a professional for installation if possible.
To connect the RF cable to the antenna input terminal:
Keep the copper wire portion of the RF cable straight.
2. Turn on the monitor.
3. Select TV using the SOURCE button on the monitor's front.
4. Select a desired TV channel.
As this product is designed for NTSC signals only, you cannot view TV programs in countries
where PAL or SECAM signals are used.
Purchase the antenna cable, antenna converter and amplifier at your neighborhood electronics
store.
Is weak signal causing poor reception?
Purchase and install a signal amplifier for better reception.
3. Connecting DVD / DTV Set Top Box
Connect to the DVD / DTV Set Top Box input if the device has a DVD / DTV connector. You can watch
DVD / DTV simply by hooking up the DVD / DTV with the monitor as long as the power is on.
1. Connect a AV cable between the component(Y, Pb, Pr) jacks on the Monitor and the Y, Pb, Pr jacks
on the DVD / DTV set top box.
2. Connect the Audio (R) and Audio (L) outputs on the DVD / DTV set top box to the Audio (R) and
Audio (L) inputs on the monitor using audio cables.
3. Select Component using the SOURCE button on the monitor's front.
Setup - Connecting to other devices
4. Connecting to a Macintosh
1. Connect the power cord to the DC adapter and then connect the adapter jack to the DC POWER
port on the monitor. (Voltage is automatically adjusted by the power adaptor.)
2. Connect the signal cable to the D-SUB port on the Macintosh computer.
3. For older model Macintoshes, you need to adjust the resolution control DIP switch on the Macintosh
adapter (optional) referring to the switch configuration table shown on its rear.
4. Turn on the monitor and Macintosh.
5. Connecting Headphone
You may connect your headphones to the monitor.
1. Connect your headphones to the Headphone connection terminal.
Setup - Installing the Monitor Driver
Automatic
Manual
When prompted by the operating system for the monitor driver, insert the CD-ROM included with
this monitor. Driver installation is slightly different from one operating system to another. Follow
the directions as appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown here.
z
Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME | Windows XP/2000
1. Windows ME
Refer to "Installing the Monitor Driver and User Manual" CD-ROM supplied with the monitor.
When inserted into the computer CD drive, the CD-ROM boots up automatically. If it fails to boot up
automatically, click monsetup.exe twice in the CD-ROM drive folder of Windows Explorer.
1. Insert CD into the CD-ROM driver.
2. Click "Windows ME Driver"
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.
Setup - Installing the Monitor Driver
2. Windows XP/2000
Refer to "Installing the Monitor Driver and User Manual" CD-ROM supplied with the monitor.
When inserted into the computer CD drive, the CD-ROM boots up automatically. If it fails to boot up
automatically, click monsetup.exe twice in the CD-ROM drive folder of Windows Explorer.
1. Insert CD into the CD-ROM driver.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. If you can see following Message window, then click the "Continue Anyway" button. Then click "OK"
button.
This monitor driver is under a certified MS logo. This installation will not damage your system.
The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/
6. Monitor driver installation is completed.
Setup - Installing the Monitor Driver
Automatic
Manual
When prompted by the operating system for the monitor driver, insert the CD-ROM included with
this monitor. Driver installation is slightly different from one operating system to another. Follow
the directions as appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown here.
z
Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
To install the monitor driver manually, follow the procedures explained below after checking your
operating system.
Windows XP | Windows 2000 | Windows Me | Windows NT | Linux
1. Microsoft® Windows® XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start"
"Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
Setup - Installing the Monitor Driver
5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver)and choose your monitor model in the model list
and click the "Next" button.
8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click
"OK" button.
Setup - Installing the Monitor Driver
This monitor driver is under a certified MS logo. This installation will not damage your system.
The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/
9. Click the "Close" button then click "OK" button continually.
10. Monitor driver installation is completed.
2. Microsoft® Windows® 2000 Operating System
* When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver)then click the "Open" button and then click "OK" button.
* How to install
1.
2.
3.
4.
Click "Start" , "Setting" , "Control Panel".
Double click the "Display" Icon.
Choose the "Settings" tab and then click "Advanced..".
Choose "Monitor".
Case 1: If the "Properties" button is inactive, it means your monitor is properly configured.
Please stop installation.
Case 2: If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
Setup - Installing the Monitor Driver
3. Microsoft® Windows® Millennium Operating System
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Click "Start" , "Setting" , "Control Panel".
Double click "Display" icon.
Select the "Settings" tab and click "Advanced Properties" button.
Select the "Monitor" tab.
Click the "Change" button in the "Monitor Type" area.
Choose "Specify the location of the driver".
Choose "Display a list of all the driver in a specific location.." then click "Next" button.
Click the "Have Disk" button
Specify A:(D:\Driver)then click "OK" button.
Select "Show all devices" and choose the monitor that corresponds to the one you connected to
your computer and click "NEXT". Click "NEXT" again and "FINISH" to complete installation.
11. Continue choosing "CLOSE" button and "OK" button until you close the Display Properties
dialogue box.
(You may get a screen with a warning or other message, just click the appropriate option for your
monitor.)
4. Microsoft® Windows® NT 4.0 Operating System
1. Click Start, Settings, Control Panel, and then double-click Display icon.
2. In Display Registration Information window, click Settings Tab and then click All Display Modes.
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then
click OK.
4. Click Apply button if you see the screen working normally after clicking Test. If the screen is not
normal, change to a different mode (lower mode of resolution, colors or frequency).
If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by
referring to the Preset Display Modes in the user guide.
5. Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Press Enter at the first and the second screen after executing the X86Config file.
The third screen is for setting your mouse.
Set a mouse for your computer.
The next screen is for selecting a keyboard.
Set a Keyboard for your computer.
The next screen is for setting your monitor.
First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
Set a vertical frequency for your monitor. (You can enter the frequency directly.)
Enter the model name of your monitor. This information will not affect the actual execution of XWindow.
10. You have finished setting up your monitor.
Execute X-Window after setting other requested hardware.
Setup - Installing a VESA base
Folding or removing the base
Installing a VESA base
This monitor supports various types of VESA-standard bases. You need to either fold or remove the
base in use in order to install a VESA base.
Folding the base | Removing the base
1. Folding the base
The monitor may be reclined from 0 to 90 degrees. When fully folded (reclined), the base becomes a
handy holder for moving the monitor around.
1.
2.
3.
4.
Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
Disconnect the monitor cables.
Fully recline the monitor backward pressing the FOLD button.
Reconnect the monitor cables.
You may install a VESA base when the monitor base is fully folded.
2. Removing the base
You can separate the base from the monitor.
Setup - Installing a VESA base
1.
2.
3.
4.
Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
Disconnect the monitor cables.
Remove the four bolts that fasten the base to the monitor.
Reconnect the monitor cables.
You may install a VESA base when the monitor base is separated.
Setup - Installing a VESA base
Folding or removing the base
Installing a VESA base
The monitor supports VESA mounting standard for use with various VESA mounting devices.
This monitor accepts a 100mm x 100mm VESA-compliant mounting interface pad.
You need to fold the monitor base before installing a VESA base.
Align the four bolt holes
the base with the four bolts
on the monitor base with the holes
on the VESA base and then fasten
.
Samsung Electronics will not be responsible for damages caused by using a base other than those
specified.
Adjusting Your LCD Monitor - User Controls
User control buttons
Direct-Access Features
The control button configuration may vary slightly depending on the monitor model.
Control Buttons | Remote Control Buttons
| Control Buttons |
For more information on the screen adjustment functions, refer to On-Screen Display.
1.
Menu
Use this button for open the on-screen menu and exits from the menu screen or closes screen
adjustment menu.
2.
Exit / Auto
When screen adjustment menu is on
: Exit button exits from the menu screen or closes screen adjustment menu.
When screen adjustment menu is off
: Auto button adjusts the screen automatically
For more information, refer to Direct-Access Features > Auto Adjustment.
3.
ENTER
Activate a highlighted menu item.
4.
SOURCE
Push the button, Selects the Video source changes.
For more information, refer to Direct-Access Features > Source.
5.
PIP
In PC Mode, turns on AV or TV screens in PIP mode. Using this function, you may view a AV or TV
program while performing PC work. (PIP mode button works in PC mode only.)
6.
MagicBright™
MagicBright™ is a new feature providing optimum viewing environment depending on the contents of
the image you are watching.
(Press here to view MagicBright™ Animation Clips)
7.
CH
Moves from one menu item to another vertically or adjusts selected menu values. In TV mode,
selects TV channels. For more information, refer to Direct-Access Features > Channel.
Adjusting Your LCD Monitor User Controls
8.
- VOL +
Moves from one menu item to another horizontally or adjusts selected menu values. Also adjusts the
audio volume. For more information, refer to Direct-Access Features > Volume.
9.
Power / Power indicator
Use this button for turn the monitor on and off.
Power Indicator shows PowerSaver mode by green blinking. Refer to Specifications > PowerSaver.
10. Remote Control Sensor
Aim the remote control towards this spot on the Monitor.
| Remote Control Buttons |
For more information on the screen adjustment functions, refer to On-Screen Display.
1. POWER
2. Channel
3. +100
4. VOL
5. MUTE
6. AUTO
7. MENU
8. ENTER
9. PRE-CH
10. CH
11. SOURCE
12. INFO
13. EXIT
14. Up-Down Left-Right Buttons
15. P.MODE, M/B (MagicBright™)
16. STILL
17. S.MODE
18. MTS
19. PIP
20. SOURCE
21. SIZE
22. POSITION
1. POWER
Use this button for turn the monitor on and off.
2. Channel
Selects TV channels in the TV mode. You may use this button in PIP mode as well.
3. +100
Press to select channels over 100.
For example, to select channel 121, press "+100", then press "2" and "1".
4. VOL
Also adjusts the audio volume. For more information, refer to Direct-Access Features > Volume.
5. MUTE
Pauses (mutes) the audio output temporarily. Displayed on the lower left corner of the screen.
The audio resumes if Mute or VOL - / VOL + is pressed in the Mute mode.
6. AUTO
Adjusting Your LCD Monitor User Controls
Adjusts the screen display automatically.
7. MENU
Use this button for open the on-screen menu and exits from the menu screen or closes screen
adjustment menu.
8. ENTER
Activate a highlighted menu item.
9. PRE-CH
This button is used to return to the immediately previous channel.
10. CH
In TV mode, selects TV channels.
For more information, refer to Direct-Access Features > Channel
11. SOURCE
Push the button, Selects the AV source changes.
12. INFO
Shows a AV source, current channel number, picture mode, sound mode, Caption On/Off and Vchip On/Off on the upper right corner of the screen.
13. EXIT
Exits from the menu screen. Exits from the PIP screen.
14. Up-Down , Left-Right Buttons
Moves from one menu item to another horizontally, vertically or adjusts selected menu values.
15. P.MODE, M/B
When you press this button, current sound mode is displayed on the lower center of the screen.
TV / AV / S-Video / Component Mode : P.MODE( Picture Mode )
Then push button again to circle through available preconfigured modes.
( Dynamic
Standard
Movie
Custom )
PC / DVI Mode : M/B (MagicBright™)
Then push button again to circle through available preconfigured modes.
( Text
Internet
Entertain
Custom )
16. STILL
When you press this button, current sound mode is displayed on the lower center of the screen.
Press the button once to freeze the screen. Press it again to unfreeze.
17. S.MODE ( Sound Mode )
When you press this button, current sound mode is displayed on the lower left corner of the
screen. The Monitor has five automatic sound settings ("Standard", "Music", "Movie", "Speech"
and "Custom" ) that are preset at the factory.
18. MTS
You can select the MTS (Multichannel Television Stereo) mode.
FM Stereo
Audio Type
MTS/S_Mode
Mono
Mono
Stereo
SAP
Default
Manual Change
Mono
Mono
Stereo
SAP
Mono
Adjusting Your LCD Monitor User Controls
19. PIP
Push the PIP button to PIP screen ON.
20. SOURCE
Push the button, the PIP window's signal source changes.
21. SIZE
Adjusts the PIP image size in PIP mode.
22. POSITION
Changing the Position of the PIP window.
Then push button again to circle through available preconfigured modes.
( Lower-Right
Upper-Right
Upper-Left
Lower-Left )
Adjusting Your LCD Monitor User Controls
User control buttons
Direct-Access Features
Direct-Access Features let you display Monitor Adjustment Menu by simply pressing Auto button once.
Or they are used to adjust monitor functions. You need to activate functions other than Auto Adjustment
only when Auto-Access Features are off.
Source | Exit / Auto | MagicBright™ | Volume | Channel | PIP
1. Source
Ex) To switch Screen modes:
[PC]
[DVI]
[TV]
[AV]
[S-Video]
[Component]
Changing the source is allowed only for external devices that are connected to the monitor at the
time.
2. Exit / Auto (Only PC mode)
Adjusting Your LCD Monitor User Controls
The monitor display becomes more stabilized if adjusted by Auto Adjustment functions when the monitor is
installed for the first time. Try Auto Adjustment before attempting Manual Adjustment. Ensure the clock
frequency of the monitor matches that of the computer Video card before carrying out Auto Adjustment.
When the Auto button is pressed, the Auto Adjustment screen appears as shown in the animated screen
on the center.
To make the automatic adjustment function sharper, execute the 'AUTO' function while the
AutoPattern.exe is on.
3. MagicBright™
MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of
the image you are watching.
Currently four different modes are available: Text, Internet, Entertain and Custom. Each mode has its own
pre-configured brightness value. You can easily select one of four settings by simply pressing the
MagicBright™ control button.
Although the values are carefully chosen by our engineers, the pre-configured values may not be
Adjusting Your LCD Monitor User Controls
comfortable to your eyes depending on your taste. If this is the case, adjust the Brightness and
Contrast by using the OSD menu.
4. Volume
When OSD is not on the screen, push the VOL - / VOL + button to adjust
volume.
1. Push the "-" button to decrease the volume.
2. Push the "+" button to increase the volume.
5. Channel
When OSD is not on the screen, push the
CH
button to select channel number.
Adjusting Your LCD Monitor User Controls
1. Push the
2. Push the
button to decrease the channel number.
button to increase the channel number.
This function is available in TV or PC + TV (PIP) mode only.
6. PIP
Every time you push the button, activate a PIP screen.
This function is available in PC mode only.
Adjusting Your LCD Monitor On-Screen Display
OSD Functions
Screen Adjustment Animation Clips
Input Control | Picture Control | Sound Control | Channel Contrrol | Setup Control
1. Input Control
For detailed information on Screen Adjustment in the Input Control, refer to the Input Control
Adjustment Animation Clips.
OSD
Description
Source
Use to select PC, TV or other external input source connected to the Monitor.
Use to select the screen of your choice.
• PC
• DVI
• TV
• AV
• S-Video
• Component
PIP
When external A/V devices such as VCRs or DVDs are connected to the monitor, PIP allows
you to watch Video from those devices in a small window super-imposed on the PC Video
signal. (On/Off)
While V-chip is in operation, the PIP function cannot be used.
- Available in PC Mode Only
1) PIP
• ON/ Off
: Turn the PIP Screen on or off.
2) Source
• PC / DVI : TV / AV / S-Video / Component Mode
: Select the input source for the PIP.
3) Size
: Changing the Size of the PIP window.
4) Position
: Changing the Position of the PIP window.
Edit Name
Name the input device connected to the input jacks to make your input source selection
easier.
• PC
• DVI
• AV
• S-Video
• Component
Adjusting Your LCD Monitor On-Screen Display
2. Picture Control
PC / DVI Mode
For detailed information on Screen Adjustment in the Picture Control, refer to the Picture Control
Adjustment Animation Clips.
OSD
Description
MagicBright™ MagicBright™ is a new feature providing the optimum viewing environment depending on
the contents of the image you are watching.
Currently four different modes are available: Text, Internet, Game and Custom.
Each mode has its own pre-configured brightness value. You can easily select one of four
settings by simply pressing the MagicBright™ control button.
1) Text
: Normal Brightness
For documentations or works involving heavy text.
2) Internet
: Medium Brightness
For working with a mixture of images such as text and graphics.
3) Entertain
: High Brightness
For watching motion pictures such as a DVD or VCD.
4) Custom
Although the values are carefully chosen by our engineers, the pre-configured values
may not be comfortable to your eyes depending on your taste.
If this is the case, adjust the Brightness and Contrast by using the OSD menu. Or push
the (+) button when OSD screen is not on to access the Brightness control directly.
Custom
You can use the on-screen menus to change the contrast, and brightness according to
personal preference.
1) Contrast
: Adjust the Contrast.
2) Brightness
: Adjust the Brightness.
Color Control Adjust the individual R, G, B color controls.
1) Red
2) Green
3) Blue
Image Lock
Image Lock is used to fine tune and get the best image by removing noise that creates
unstable images with jitter and shimmer. If satisfactory results are not obtained using the
Fine adjustment, use the Coarse adjustment and then use Fine again.
- Available in PC Mode Only
1) Coarse
: Removes noise such as vertical stripes. Coarse adjustment may move the screen
image area. You may relocate it to the center using the Horizontal Control menu.
2) Fine
: Removes noise such as horizontal stripes. If the noise persists even after Fine tuning,
repeat it after adjusting the frequency (clock speed).
3) Position
: Adjusts the screen location horizontally and vertically.
Auto
Adjustment
The values of Fine, Coarse, position are adjusted automatically.
PIP Picture
You can adjust the PIP Screen Settings.
1) Contrast
: Adjusts the Contrast of the PIP window on the screen.
2) Brightness
Adjusting Your LCD Monitor On-Screen Display
: Adjusts the Brightness of the PIP window on the screen.
3) Sharpness
: Use to adjust the difference between the lightest and darkest areas of the PIP window.
4) Color
: Use to adjust the lightness/darkness on the PIP window.
5) Tint
: Use to add a natural tone to the PIP window.
TV / AV / S-Video / Component Mode
For detailed information on Screen Adjustment in the Picture Control, refer to the Picture Control
Adjustment Animation Clips.
OSD
Description
Mode
The Monitor has four automatic picture settings ("Custom", "Dynamic", "Standard", and
"Movie") that are preset at the factory.
You can activate either Custom, Dynamic, Standard, or Movie. You can select "Custom"
which automatically recalls your personalized picture settings.
• Dynamic
• Standard
• Movie
• Custom
Custom
You can use the on-screen menus to change the contrast, and brightness according to
personal preference.
1) Contrast
: Adjusts the Contrast.
2) Brightness
: Adjusts the Brightness.
3) Sharpness
: Use to adjust the difference between the lightest and darkest areas of the display.
4) Color
: Use to adjust the lightness/darkness of the display.
5) Tint
: Use to add a natural tone to the display.
Color Tone
The tone of the color can be changed. The individual color Components are also user
customizable.
• Cool2 / Cool1 / Normal / Warm1 / Warm2
Size
You can switch the Size.
• Normal
• Wide
• Zoom ( Not available in Component Mode)
DNIe
- Digital Natural Image engine
Samsung's new technology brings you more detailed images with contrast and white
enhancement and 3D noise reduction. A New image compensation algorithm gives brighter,
clearer, images to our customers. DNIe technology will match every signal to your eyes.
1) Demo
: The screen before applying DNIe appears on the right and the screen after applying
DNIe appears on the left.
2) Medium
: Switches on the DNIe mode.
3) High
: The screen is clearer than in Medium.
4) Off
: Switches off the DNIe mode.
Adjusting Your LCD Monitor On-Screen Display
3. Sound Control
For detailed information on Screen Adjustment in the Sound Control, refer to the Sound Control
Adjustment Animation Clips.
OSD
Description
Mode
The Monitor has a built-in high fidelity stereo amplifier.
1) Standard
: Choose Standard for the standard factory settings.
2) Music
: Choose Music when watching music videos or concerts.
3) Movie
: Choose Movie when viewing movies.
4) Speech
: Choose Speech when watching a show that is mostly dialogue (i.e., news).
5) Custom
: Choose Custom if you want to adjust the settings according to personal preference.
Custom
The sound settings can be adjusted to suit your personal preference.
1) Bass
: Emphasize low frequency audio.
2) Treble
: Emphasize high frequency audio.
MTS
You can select the MTS (Multichannel Television Stereo) mode.
- Available in TV Mode Only
• Mono, Stereo, SAP (Separate Audio Program)
Set 'MTS Setting' to ON to choose Mono, Stereo or SAP.
4. Channel Control
The channel change function is available only in TV mode or when the PIP feature is ON in
PC mode and the PIP source is set to TV. (You can change the channel in PC mode when the
PIP feature is ON. )
For detailed information on Screen Adjustment in the Channel Control, refer to the Channel Control
Adjustment Animation Clips.
Adjusting Your LCD Monitor On-Screen Display
OSD
Description
Air/CATV
The channel system can be set in several different ways.
• Air
• STD
• HRC
• IRC
STD, HRC, IRC and Air identify various types of cable TV systems.
Contact your local cable company to identify the type of cable system that exists in your
particular area.
Auto
Program
The TV automatically cycles through all of the available channels and stores them in
memory. This takes about one to two minutes.
In rare cases, "Auto program" may miss a few channels due to weak signals and the
channels may not be added to the channel memory.
Fine Tune
Due to weak signals or an incorrect antenna configuration, some of the channels may not be
tuned correctly.
Add/Delete
Addsd or Deleted channels from the memory.
5. Setup Control
For detailed information on Screen Adjustment in the Setup Control, refer to the Setup Control
Adjustment Animation Clips.
OSD
Description
Sleep
Use to set the Monitor to turn off automatically a set number of minutes.
(Off, 30, 60, 90, 120, 150, 180) - Not available in PC Mode
Language
You can choose one of 4 language.
• English, Spanish, French, Portuguese
Note : The language chosen affects only the language of the OSD.
It has no effect on any software running on the computer.
Half tone
Change the opaqueness of the background of the OSD.
• Opaque
• High
• Normal
• Low
Reset
Picture parameters are replaced with the factory default values.
- Available in PC Mode Only
1) Image Reset
2) Color Reset
Caption
Enable or disable the Caption feature and set the appearance of closed caption text.
1) Caption : Off / On
2) Mode : Caption / Text
3) Channel : 1 / 2
4) Field : 1 / 2
V-Chip
Protects children from viewing inappropriate programs by blocking certain broadcast or AV
programs.
(More Information)
While V-chip is in operation, the PIP function cannot be used.
Troubleshooting
Check before Calling for Service
Check the following items yourself before calling for service. Contact the service center for problems
that you cannot solve by yourself.
Self-Test Feature Check | Not Supported Mode | Not Optimum Mode | Display Adapter Driver
Maintenance and Cleaning | Symptoms & Recommended Actions
1. Self-Test Feature Check
Your monitor provides a self test feature that allows you to check whether your monitor is functioning
properly.
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
The figure shown below ("Check Signal Cable") appears on a black background when the monitor is
in its normal working condition though it does not sense any video signal: While in the Self-Test
mode, the LED power indicator remains green and the figure moves around on the screen.
Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears
during normal operation if the video cable becomes disconnected or damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video controller and
computer system; your monitor is functioning properly.
2. Not Supported Mode
This indicates the display resolution or refresh rate is not properly set on your computer video card. Reboot
the computer in Safe Mode and select "Default" in the "Refresh Rate Unknown" box while setting Adapter
for Display Properties.
Contact the computer dealer or manufacturer for information on Safe Mode Booting.
Refer to Specifications > Preset Timing Modes for the resolutions or frequencies that are supported
by the monitor.
Sometimes the screen turns black without the "Not supported mode " message appearing on the screen.
This indicates the monitor is set for a frequency out of range or the PowerSaver mode is on.
Troubleshooting
Check before Calling for Service
3. Not Optimum Mode
If the vertical resolution is set to 85Hz, you can still see the display but the warning message below
appears and disappears after one minute. Since the monitor does not support a vertical resolution that is
85Hz or higher, the monitor goes into “ Not Supported Mode ” and the screen becomes blank after one
minute.
The user must adjust the frequency within that one minute.
If the resolution is set to UXGA (1600x1200 60Hz), the same warning message as above appears and
disappears after one minute, but the display still works properly. (Down-Scaling)
4. Display Adapter Driver
Display adapter refers to the computer video card driver.
If the adapter is not properly set, you cannot adjust resolution, frequency or color and you cannot install
the monitor driver.
1. Checking Adapter Driver
Click Start
Settings
Control Panel
Display
Settings
Advanced
Adapter.
If "Default" or a wrong product model is indicated, it means that the adapter driver is not properly
installed. Install the adapter driver again according to the information provided by the computer or
video card manufacturers.
2. Installing Adapter Driver
The instructions given below are for general circumstances.
For specific issues, contact the relevant computer or video card manufacturers.
1) Click Start
Settings
Control Panel
Display
Settings
Advanced
Adapter
Update Driver
Next
Display a list of the known drivers for this device so
that I can choose a specific driver
Next
Have Disk (Insert Video Card Driver diskette)
OK
Next
Next
Finish.
2) In case you have Adapter Driver Setup file on your computer:
Run Setup.exe or Install.exe, which is found in the Adapter Driver Setup file.
5. Maintenance and Cleaning
1. Maintaining the Monitor Case.
Clean with a soft cloth after disconnecting the power cord.
z
z
Do not use benzene, thinner or other flammable substances, or a
wet cloth.
We recommend a Samsung cleansing agent is used to prevent
damage to the screen.
2. Maintaining the Flat Panel Display Screen.
Clean with a soft cloth (cotton flannel) smoothly.
z
z
Never use acetone, benzene or thinner.
(They may cause flaws or deformation of the screen surface.)
The user will be required to pay costs and related expenses for
repair of damages caused by him/her.
6. Symptoms and Recommended Actions
Troubleshooting
Check before Calling for Service
A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the
computer or the video card, this can cause the monitor to become blank, have poor coloring, noise,
Video mode not supported, etc. In this case, first check the source of the problem, and then contact a
service center or your dealer.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if you installed the adapter
(video) driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 75Hz or 85Hz.
(Do not exceed 60Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "Control Panel, System, Device Administrator" and then
reboot the computer to reinstall the adapter (video) driver.
Troubleshooting
Problems and Solutions
The following table lists possible problems and their solutions. Before calling for service, check the
information in this section to see if you can remedy any problems yourself. If you do need assistance,
please call, the phone number on the Information section or contact your dealer.
Installation | Screen | Audio | Remote Control
1. Problems related to Installation
Problems related to the monitor installation and their solutions are listed.
Problems
Solutions
It appears the PC does not
function normally.
z
Check if the Display Adapter Driver (VGA Driver) is properly
installed. (Refer to Installing Driver)
The monitor screen flickers.
z
Check if the signal cable between the computer and the
monitor is securely connected and tightened. (Refer to
Connecting to a Computer)
TV screen is blurred or shows
noise signals.
z
Check if the TV antenna connector is securely connected to
the external antenna. (Refer to Connecting to TV)
TV signal is not received
z
Check "Channel system" and make sure you choose the
correct channel system. (Refer to the Channel System)
Select "Channel auto program" to configure the channel
system automatically. (Refer to the Auto Program)
z
Strange characters appear on the
screen.
z
Switch "Caption On" to "Caption Off" if strange characters
appear on the TV screen. (Refer to Caption)
2. Problems related to Screen
Problems related to the monitor screen and their solutions are listed.
Problems
Solutions
Screen is blank and power
indicator is off
z
Ensure that the power cord is firmly connected and the LCD
monitor is on. (Refer to the Connecting Your Monitor)
"Check Signal Cable" message
z
Ensure that the signal cable is firmly connected to the PC or
Video sources. (Refer to the Connecting Your Monitor)
Ensure that the PC or Video sources are turned on.
z
"Not Supported Mode" message
z
z
Check the maximum resolution and the frequency of the
Video adaptor.
Compare these values with the data in the Preset Timing
Modes Chart.
Picture rolls vertically.
z
Check if the signal cable is securely connected. Connect it
again securely.(Refer to Connecting to a Computer)
Image is not clear. Picture is
blurred.
z
Run Frequency Coarse and Fine tuning.
Turn on again after removing all accessories (Video
extension cable, etc.)
Set resolution and frequency to the recommended ranges.
z
z
Picture image is unstable and
vibrates.
z
Check if the resolution and frequency set for the computer
Video card falls in the range supported by the monitor. If not,
reset them referring to the current Information under the
Troubleshooting
Problems and Solutions
Ghost images are shown in the
picture.
monitor menu and Preset Timing Modes.
The image is too light or too dark
z
Adjust the Brightness and Contrast.
(Refer to the Brightness, Contrast)
Screen color is inconsistent.
z
Adjust color using Custom under OSD Color Adjustment
menu.
Power Indicator blinks green.
z
The monitor is currently saving the changes made in settings
to the OSD memory.
Screen is blank and power
indicator light is steady green or
blinks every 0.5 or 1 seconds
z
The monitor is using its power management system.
press a key on the keyboard
Color image is distorted with
dark shadows.
White color is poor.
z
3. Problems related to Audio
Problems related to audio signals and their solutions are listed below.
Problems
No sound
Solutions
z
z
Sound level is too low.
z
z
Sound is too high pitched or too
low pitched
z
Ensure that the audio cable is firmly connected to both the
audio-in port on your monitor and the audio-out port on your
sound card. (Refer to the Connecting Your Monitor)
Check the volume level. (Refer to the Volume)
Check the volume level. (Refer to the Volume)
If the volume is still too low after turning the control to its
maximum, check the volume control on the computer sound
card or software program.
Adjust the Treble and Bass to appropriate level.
4. Problems related to Remote Control
Problems related to the remote control and their solutions are listed.
Problems
The remote control buttons do
not respond.
Items to check
z
z
z
z
z
Check the battery polarities (+/-).
Check if the batteries have been exhausted.
Check if the power is on.
Check if the power cord is securely connected.
Check if a special fluorescent or neon lamp is on in the
vicinity.
Troubleshooting - Q & A
Frequently asked questions are summarized here for your reference.
Question
How can I change the frequency?
Answer
Frequency can be changed by reconfiguring the AV card.
Note that AV card support can vary, depending on the version
of the driver used. (Refer to the computer or the AV card
manual for details.)
How can I adjust the resolution?
Windows XP:
Reset resolution by clicking Control Panel
Theme
Display
Settings.
Windows ME/2000:
Set the resolution at the Control Panel
Settings.
Appearance &
Display
* Contact the AV card manufacturer for details.
How can I set the Power Saving
function?
Windows XP:
Reset Power Saving parameters by clicking Control Panel
Appearance & Theme
Display
Screen Saver or
in the computer BIOS SETUP. (Refer to Windows/Computer
Manual)
Windows ME/2000:
Set the function at BIOS-SETUP of the computer or the screen
saver. (Refer to Windows/Computer Manual).
How can I clean the outer case/LCD
Panel?
Disconnect the power cord and then clean the monitor with a
soft cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the
case. Do not allow any water to go inside the monitor.
Specifications - General
Design and specifications are subject to change without prior notice.
General
Model Name
SyncMaster 192MP
LCD Panel
Size
19.0 inch (Diagonal)
Display area
376.32 (H) x 301.056 (V)
Pixel Pitch
0.294 (H) x 0.294 (V)
Type
a-si TFT active matrix
Synchronization
Horizontal
31 ~ 81 kHz
Vertical
56 ~ 75 Hz
Display Color
16,777,219 Colors
Resolution
Optimum resolution
1280 x [email protected]
Maximum resolution
1280 x [email protected]
Input Signal, Terminated
RGB Analog , DVI Compliant Digital RGB. Composite H/V Sync, 0.7Vp-p Positive at 75 ohms,
Separate H/V sync, TTL level positive or negative
TV / Video
Color system
NTSC-M, PAL-M
Sound system
M
Video format
CVBS, S-Video
DTV(Component)
DVD
Composite Sync 480i, 480p
YPbPr
Composite Sync 1080i, 720p, 480p, 480i
Video signal
0.7 Vp-p @ 75 ohm
Maximum Pixel Clock
140 MHz
Power Supply
90 to 264 VAC, 60/50Hz ± 3Hz
Signal Cable
15pin to 15pin D-sub cable, Detachable
DVI-D to DVI-D cable, Detachable (option)
Power Consumption
Less than 62 W
Power Saving
Less than 2W
Dimensions / Weight (WxDxH)
433 x 58 x 419.5 mm (Without stand)
433 x 198 x 436 mm / 5.9 kg (With Stand)
VESA Mounting Interface
Specifications - General
100mm x 100mm
Environmental considerations
Operating
Temperature : 50°F ~ 104°F(10°C ~ 40°C)
Humidity : 10% ~ 80%, non-condensing
Storage
Temperature : -4°F ~113°F (-20°C ~ 45°C)
Humidity : 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer
systems will provide the best operating conditions and monitor settings. In most cases, monitor installation
will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 99.999%
above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright
sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without
uneasiness.
The number of TFT LCD pixels :
z
19 inch: 3,932,160
Specifications - PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant AV card installed in your
computer. Use a software utility installed on your computer to set up this feature.
Normal Operation
Power saving mode
EPA/ENERGY 2000
Power off (110 Vac)
Power Indicator
Green
Green, Blinking
Black
Power Consumption
Less than 62W
Less than 2W
2W
State
This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
Specifications - Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the
power LED is on. Refer to the Video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+,-/+,-
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 1024
79.976
75.025
135.00
+/+
Table 2. NTSC Broadcasting Systems
Color System
NTSC
Sound System
M
Stereo System
Channel System
Countries
A2
US
Korea
BTSC (SAP)
US
USA, Canada,
Chile, Venezuela,
Cuba, Colombia,
Jamaica, Mexico,
Panama, Peru,
Philippines, PuertoRico, Taiwan
EIAJ
Japan
Japan
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the
screen horizontally is called Horizontal Cycle and the inverse number of the
Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many times
per second to display an image to the user. The frequency of this repetition is
called Vertical Frequency or Refresh Rate. Unit: Hz
Information - Service Center
AUSTRALIA :
Samsung Electronics Australia Pty Ltd.
Customer Response Centre
7 Parkview Drive, Homebush Bay NSW 2127
Tel : 1300 362 603
http://www.samsung.com.au/
BRAZIL :
Samsung Eletronica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303, Terro B
Chacara Sto. Antonio, CEP : 04719-040
Sao Paulo, SP
SAC : 0800 124 421
http://www.samsung.com.br/
CANADA :
Samsung Electronics Canada Inc.
Samsung Customer Care
7037 Financial Drive
Mississauga, Ontario
L5N 6R3
1-800-SAMSUNG (1-800-726-7864)
http://www.samsung.ca/
CHILE :
SONDA S.A.
Teatinos 550, Santiago Centro, Santiago, Chile
Fono: 56-2-5605000 Fax: 56-2-5605353
56-2-800200211
http://www.sonda.com/
http://www.samsung.cl/
COLOMBIA :
Samsung Electronics Colombia
Cra 9 No 99A-02 Of. 106
Bogota, Colombia
Tel.: 9-800-112-112
Fax: (571) 618 - 2068
http://www.samsung-latin.com/
e-mail : [email protected]
ESPAÑA :
Samsung Electronics Comercial Iberica, S.A.
Ciencies, 55-65 (Poligono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : (93) 261 67 00
Fax. : (93) 261 67 50
http://samsung.es/
FRANCE :
SAMSUNG ELECTRONICS FRANCE Service
Paris Nord 2
66 rue des Vanesses
BP 50116 Villepinte
95950 Roissy CDG Cedex
Tel : 08 25 08 65 65
Fax : 01 48 63 06 38
http://www.samsungservices.com/
GERMANY :
TELEPLAN Rhein-Main GmbH
Feldstr. 16
64331 Weiterstadt
T. 06151/957-1306
F. 06151/957-1732
* EURO 0.12/Min
http://www.samsung.de/
HUNGARY :
Samsung Electronics Magyar Rt.
1039, Budapest, Lehel u. 15-17.
Tel: 36 1 453 1100
Fax: 36 1 453 1101
http://www.samsung.hu/
ITALY :
Information - Service Center
Samsung Electronics Italia S.p.a.
Via C. Donat Cattin, 5
20063 Cernusco s/Naviglio (MI)
Servizio Clienti: 199.153.153
http://www.samsung-italia.com/
MEXICO :
SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.
Saturno NO.44, Col. Nueva Industrial Vallejo
Gustavo A.Madero C.P.07700, Mexico D.F. Mexico
TEL. 52-55-5747-5100
Fax. 52-55-47 52 02
RFC: SEM950215S98
http://www.samsung.com.mx/
IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.
Saturno NO.44, Col. Nueva Industrial Vallejo
Gustavo A.Madero C.P.07700, Mexico D.F. Mexico
TEL. 52-55-5747-5100
EXPORTADO POR: Samsung Electronics CO.,LTD.
416, Mae tan-3dong, Yeongtong-gu,
Suwon City, Kyoungki-Do Korea
NETHERLANDS/BELGIUM/LUXEMBOURG :
Samsung Electronics Benelux B. V.
Fleminglaan 12 2289 CP Rijiswijk, NEDERLANDS
Service and informatielijn ;
Belgium :0800-95214, http://www.samsung.be/
Netherlands : 0800-2295214, http://www.samsung.nl/
PANAMA :
Samsung Electronics Latinoamerica( Z.L.) S.A.
Calle 50 Edificio Plaza Credicorp, Planta Baja
Panama
Tel. : (507) 210-1122, 210-1133
Tel : 800-3278(FAST)
http://www.samsung-latin.com/
PERU
Servicio Integral Samsung
Av.Argentina 1790 Lima1. Peru
Tel: 51-1-336-8686
Fax: 51-1-336-8551
http://www.samsungperu.com/
PORTUGAL :
SAMSUNG ELECTRONICA PORTUGUESA S.A.
Rua Mário Dioniso, No2 - 1º Drt. 2795-140 LINDA-A-VELHA
Tel. 214 148 114/100 Fax. 214 148 133/128
Free Line 800 220 120
http://www.samsung.pt/
SOUTH AFRICA :
Samsung Electronics,5 Libertas Road, Somerset Office Park,
Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa
Tel : 0027-11-549-1621
Fax : 0027-11-549-1629
http://www.samsung.co.za/
SWEDEN/DENMARK/NORWAY/FINLAND :
Samsung Electronics AB
Box 713
S-194 27 UPPLANDS VÄSBY
SVERIGE
Besöksadress : Johanneslundsvägen 4
Samsung support Sverige: 020-46 46 46
Samsung support Danmark : 8088-4646
Samsung support Norge: 8001-1800
Samsung support Finland: 0800-118001
Tel +46 8 590 966 00
Fax +46 8 590 966 50
http://www.samsung.se/
Information - Service Center
THAILAND :
HAI SAMSUNG SERVICE CENTER
MPA COMPLEX BUILDING,1st-2nd Floor
175 SOI SUEKSA VIDHAYA SATHON SOI 12
SILOM ROAD ,SILOM,BANGRAK
BANGKOK 10500
TEL : 0-2635-2567
FAX : 0-2635-2556
UKRAINE :
SAMSUNG ELECTRONICS REPRESENTATIVE OFFICE IN UKRAINE
4 Glybochitska str.
Kiev, Ukraine
Tel. 8-044-4906878
Fax 8-044-4906887
Toll-free 8-800-502-0000
http://www.samsung.com.ua/
United Kingdom :
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : (0208) 391 0168
Fax. : (0208) 397 9949
< European Service Center & National Service >
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : (0870) 242 0303
Fax. : (01952) 292 033
http://samsungservice.co.uk/
U.S.A. :
Samsung Electronics America
Service Division
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
http://samsungusa.com
Information - Terms
Sync Signal
Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on
the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal
color images by the set resolution and frequency.
Types of Sync Signals
Separate
This is a scheme of transmitting individual vertical sync signals to the monitor.
Composite
This is a scheme of combining vertical sync signals into one composite signal
and transmitting it to the monitor. The monitor displays the color signals by
separating the composite signal into original color signals.
Sync On Green
This scheme does not use sync signals. Instead, it combines horizontal and
vertical sync signals into a Green signal and transmits to the monitor. It is mainly
used for workstations.
Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the
user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz
Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace
method while showing odd lines and then even lines in turn is called the Interlace method. The NonInterlace method is used for the majority of monitors to ensure a clear image. The Interlace method is
the same as that used in TVs.
Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the
monitor to exchange information automatically. This monitor follows the international standard VESA
DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This
number shows the accuracy of the display. High resolution is good for performing multiple tasks as more
image information can be shown on the screen.
Example: If the resolution is 1280 X 1024, this means the screen is composed of 1280 horizontal dots
(horizontal resolution) and 1024 vertical lines (vertical resolution).
A2
This system uses two carriers to transmit voice data. Countries such as South Korea and Germany use
this system.
BTSC
Broadcast Television System Committee
The stereo broadcasting system that is used in most of the countries that have adopted the NTSC
system, including the United States, Canada, Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote its development and management.
EIAJ
Electronic Industries Association of Japan
RF Cable
A round signal cable generally used for TV antennas.
Satellite Broadcasting
Broadcasting service provided via satellite. Enables high picture quality and clear sound throughout the
country regardless of the location of the viewer.
Sound Balance
Balances the levels of the sound coming from each speaker in televisions with two speakers.
Cable TV
Information - Terms
Whereas the terrestrial broadcasting is delivered via frequency signals through the air, cable
broadcasting is transmitted via a cable network. In order to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.
CATV
"CATV" refers to the broadcasting service offered at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF broadcasting by terrestrial broadcasters. The CATV
programs may include movies, entertainment and educational programs. (Different from cable TV.)
CATV can be viewed only within the area in which the CATV service is offered.
S-Video
Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality
video.
VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indicates channels 14 through 69.
Channel Fine Tuning
This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The
Samsung Monet TV has both automatic and manual channel fine-tuning features to enable the viewer to
adjust their desired settings.
External Device Input
External device input refers to video input from such external video devices as VCRs, camcorders and
DVD players, separate from a TV broadcast.
Information - Regulatory
FCC Information | IC Compliance Notice | MPR II Compliance |
European Notice (Europe only) | PCT Notice | VCCI |
TCO'99-Ecological requirements for personal computers (TCO'99 applied model only)
TCO'03-Ecological requirements for personal computers (TCO'03 applied model only)
TCO'03 Recycling Information (TCO'03 applied model only)
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes the following
warning:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television receptions,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment. If necessary, consult your dealer or an experienced
radio/television technician for additional suggestions. You may find the booklet called How to Identify and
Resolve Radio/TV Interference Problems helpful. This booklet was prepared by the Federal
Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC
20402, Stock Number 004-000-00345-4.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
3351 Michelson Drive,
Suite #290, Irvine, CA92612 USA
Tel) 949-975-7310
Fax) 949-922-8301
Warning
User must use shielded signal interface cables to maintain FCC compliance for the product.
Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be
suitable for connection to any UL Listed personal computer with similar configuration. Before making the
connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor
and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage
rating.
For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type
(parallel blades) plug cap. For 240 Volt applications use only UL Listed Detachable power supply cord with
NEMA configuration 6-15P type (tandem blades) plug cap.
IC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations of ICES-003.
Cet appareil Numérique de classe B respecte toutes les exigences du Règlemont NMB-03 sur les
équipements produisant des interférences au Canada.
Information - Regulatory
MPR II Compliance
This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields.
European Notice (Europe only)
Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC), (93/68/EEC) and
the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms:
z EN55022:1998+A1:2000 - Radio Frequency Interference
z EN55024:1998 - Electromagnetic Immunity
z EN55013:1990+A12:1994+A13:1996+A14:1999 - Radio Frequency Interference
z EN55020:1994+A11:1996+A12/A13/A14:1999 - Electromagnetic Immunity
z EN61000-3-2:1995+A1/A2:1998 - Power Line Harmonics
z EN61000-3-3:1995 - Voltage Fluctuations
z EN60065:1997 or EN60950:1998 - Product Safety
PCT Notice
VCCI
This is a Class B product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the equipment according to the instruction
manual.
TCO'99-Ecological requirements for personal computers (TCO'99 applied model only)
Congratulations!
You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a
product developed for professional use. Your purchase has also contributed to reducing the burden on the
environment and also to the further development of environmentally adapted electronics products.
This product meets the requirements for the TCO'99 scheme which provides for an international
environmental and quality labelling labelling of personal computers. The labelling scheme was developed
as a joint effort by the TCO(The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen(The Swedish Society for Nature Conservation), Statens Energimyndighet(The
Swedish National Energy Administration) and SEMKO AB.
The requirements cover a wide range of issuse: environment, ergonomics, usability, reduction of electric
and magnetic fields, energy consumption and electrical safety.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging the
adaptation of goods and services to the environment. The main problem, as far as computers and other
electronics equipment are concerned, is that environmentally harmful substances are used both in the
products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of
electronics equipment, most of these potentially damaging substances sooner or later enter nature.
Information - Regulatory
There are also other characteristics of a computer, such as energy consumption levels, that are important
from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of
electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing
emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running
continuously and thereby consumes a lot of energy.
What does labelling involve?
The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish
Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy
metals, brominated and chlorinated flame retardants, CFCs(freons)and chlorinated solvents, among other
things. The product must be prepared for recycling and the manufacturer is obliged to have an
environmental policy which must be adhered to in each country where the company implements its
operational policy.
The energy requirements include a demand that the computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to
reactivate the computer shall be reasonable for the user.
Below you will find a brief summary of the environmental requirements met by this product. The complete
environmental criteria document may be ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): [email protected]
Current information regarding TCO'99 approved and labelled products may also be obtained via the
Internet, using the address: http://www.tco-info.com/
Environmental requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose
is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can
consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame
retardants are chemically related to another group of environmental toxins, PCBs. Both the flame
retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health
effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative*
processes. Flame retardants have been found in human blood and researchers fear that disturbances in
foetus development may occur.
The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not
contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the
printed circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer
displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99
requirement states that batteries, the colour-generating layers of display screens and the electrical or
electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic
in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also
demands that mercury is not present in any of the electrical or electronics components associated with the
labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light
system of flat panel monitors as today there is no commercially available alternative. TCO aims on
removing this exception when a Mercury free alternative is available.
CFCs (freons)
The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the
manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit
boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing
increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant
melanoma) as a consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the
inclusion of lead since no replacement has yet been developed.
* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
Information - Regulatory
TCO'03-Ecological requirements for personal computers (TCO'03 applied model only)
Congratulations!
The display you have just purchased carries the TCO03 Displays label. This means that your display is
designed, manufactured and tested according to some of the strictest quality and environmental
requirements in the world. This makes for a high performance product, designed with the user in focus that
also minimizes the impact on our natural environment.
Some of the features of the TCO03 Display requirements:
Ergonomics
Good visual ergonomics and image quality in order to improve the working environment for the user and to
reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance,
colour rendition and image stability.
Energy
Energy-saving mode after a certain time - beneficial both for the user and the environment
z Electrical safety
z
Emissions
z
z
Electromagnetic fields
Noise emissions
Ecology
The product must be prepared for recycling and the manufacturer must have a certified environmental
management system such as EMAS or ISO 14 000
z Restrictions on
o chlorinated and brominated flame retardants and polymers
o heavy metals such as cadmium, mercury and lead.
z
The requirements included in this label have been developed by TCO Development in cooperation with
scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has
been involved in influencing the development of IT equipment in a more user-friendly direction. Our
labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over
the world.
For more information, Please visit
www.tcodevelopment.com
Information - Regulatory
TCO'03 Recycling Information (TCO'03 applied model only)
For recycling information for TCO'03 certified monitors, for the residents in the following countries, please
contact the company corresponding to your region of residence. For those who reside in other countries,
please contact a nearest local Samsung dealer for recycling information for the products to be treated in
environmentally acceptable way.
[U.S.A. Residents Only]
U.S.A.
[European Residents Only]
SWEDEN
NORWAY
GERMANY
Solid Waste Transfer &
Recycling Inc
ELKRETSEN
442 Frelinghuysen Ave
Newark, NJ 07114
ELKRETSEN Box
1357, 111 83
6454 Etterstad 0602 Oslo
Stockholm
Barnhusgatan 3, 4 Fyrstikkalln 3B
tr.
Max Plank
Strasse 42
50858 Collogne
Germany
TELEPHONE 973-565-0181
08-545 212 90
23 06 07 40
49 0 2234 9587 0
FAX
Fax: 973-565-9485
23 06 07 41
E-MAIL
none
08-545 212 99
[email protected]
HOME
http://www.bcua.org/Solid http://www.el-
PAGE
Waste_Disposal.htm
COMPANY
ADDRESS
kretsen.se/
Elektronikkretur AS
[email protected]
http://www.elretur.no/
vfw AG
[email protected]
Information - Natural Color
Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a printer or
other images scanned by a scanner or a digital camera are not the same as those shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system developed
by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute
(ETRI). This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the
program installation will be executed. Click Natural Color on the initial screen to install the Natural Color
software. To install the program manually, insert the CD included with the Samsung monitor into the CDROM Drive, click the [Start] button of Windows and then select [Execute].
Enter D:\color\eng\setup.exe and then press the <Entrer> key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
How to delete the Natural Color software program
Select [Setting]/[Control Panel] on the [Start] menu and then double-click [Add/Delete a program].
Select Natural Color from the list and then click the [Add/Delete] button.
Information - For Better Display
For Better Display
1. Adjust computer resolution and screen injection rate (refresh rate) on computer as described
below to enjoy the best quality of picture. You can have an uneven quality of picture in the screen
if the best quality of picture is not provided in TFT-LCD.
{
{
Resolution: 1280 x 1024
Vertical frequency (refresh rate): 60 Hz
2. TFT LCD panel manufactured by using advanced semiconductor technology with precision of
99.999% above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color
seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality
and you can use it without uneasiness.
{
For example, the number of TFT LCD pixels that is contained in this product are 3,932,160.
3. When you clean the monitor and the panel outside, please apply the recommended small amount
of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be
scrubbed out softly. If excessive force is applied, you can have a stain on it.
4. If you are not satisfied with the quality of picture, you can get better quality of picture by executing
"auto adjustment function" in display screen that is appeared as window termination button is
pressed. If there's still noise after automatic adjustment, use FINE/COARSE adjustment function.
5. If you view a fixed screen for an extended period of time, residual image or blurriness may appear.
Change the mode to energy save or set a screensaver to moving picture when you need to be
away from the monitor for an extended period of time.
Information - Authority
Information in this document is subject to change without notice.
© 2003 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is
strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows
NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are registered trademarks of
AV Electronics Standard Association; the ENERGY STAR name and logo are registered trademarks of the
U.S. Environmental Protection Agency (EPA). As an ENERGY STAR Partner, Samsung Electronics Co., Ltd.
has determined that this product meets the ENERGY STAR guidelines for energy efficiency. All other product
names mentioned herein may be the trademarks or registered trademarks of their respective owners.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
