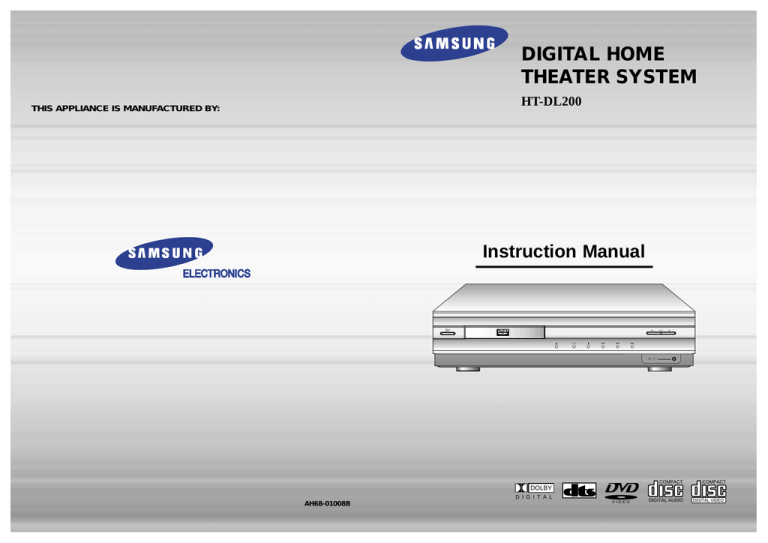

DIGITAL HOME
THEATER SYSTEM
HT-DL200
THIS APPLIANCE IS MANUFACTURED BY:
Instruction Manual
Volume
VIDEO
Function
Phones
COMPACT
COMPACT
DOLBY
D I G I T A L
AH68-01008B
VIDEO
DIGITAL AUDIO
DIGITAL VIDEO
Safety Warnings
Precautions
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This Compact Disc player is classified as a CLASS 1
LASER product.
Volume
Function
Phones
O
VIDE
Volume
VIDEO
Function
Phones
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
Ensure that the mains supply in your house complies whit that indicated on the identification sticker located at the back of your play. Install
your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10cm). Make sure the ventilation slots
are not covered. Do not stack other, or heavy devices on top over the player. Do not place the player on amplifiers or other equipmentwhich
may become hot. Before moving the player ensure the disc tray empty. This player is designed for continuous use. Switching off the DVD
player to the stand-by mode dose not disconnect the electricity supply In order to separate the player completely from the mains,it has to be
disconnected by unplugging the main plug, especially when left unused for a long period of time.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
Volume
VIDEO
Volume
Function
VIDEO
Function
Phones
Phones
This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.
During thunderstorms, disconnect the main plug from the
socket.
Main voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sun radiation or other heat
sources.
This could lead to overheating and malfunction of the unit.
This symbol alerts you to important operating and maintenance instructions accompanying
the unit.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
Volume
VIDEO
Function
Phones
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
1
Protect the player from moisture(dripping or splashing and that no objects
filled with liquids,such as vases, shall be placed on the player), and excess
heat(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...) disconnect the power cable from the mains electricity supply
if the player malfunction. Your player is not intended for industrial use but
for domestic purposes only. Use of this product is for personal use only.
Condensation If your player or disc have been stored in a cold atmosphsre.
as for example during transportation in the winter, wait for approximately 2
hours until they have reached room temperature.
The battery used in this product contains the chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household waster. It
is recommended that the replacement of the battery should be
done by technician.
2
Contents
Safety Warnings
VIDEO
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby
Precautions
Digital surround sound and MPEG-2 video compression technology. Now you can
enjoy these realistic effects in the home, as if you were in a movie theater or concert
hall.
Description
Remote Control Unit
Connecting the Speakers
Connect Video to TV
Connecting the FM and AM(MW) Antennas
AUX Connections
Before Using the DVD Player
DVD Playback
1
~ 6
DVD players and the discs are coded by region. These regional codes must match in
order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
Forward/Reverse Searching
(Your DVD player with the same regional code will only play DVDs that are labeld with identical region
codes.)
Using Disc Menu/Title
Slow Playback/Checking the Remaining Time
Repeat Playback
Program Playback
Selecting the Audio Language/Subtitle Language
Various DVD Functions
•To enlarge an image
•Selecting the desired Screen Angle
•To move directly to a title, chapter, or time
System Setup
Setting up the Language Features
Controlling a TV with the Remote
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your
•
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture
from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
Speaker Setup
Creating Realistic Sound Fields
DSP Function
Listening to the Radio
Presetting stations
Sleep Function
Troubleshooting
Cautions on Handling and Storing Discs
Disc Type and Protection
Specification
Reference
3
1
2
5
7
9
10
11
12
14
15
17
18
19
20
21
23
24
24
24
24
25
27
28
29
33
34
35
36
37
38
40
41
42
43
4
Description
Rear Panel
COMPONENT VIDEO
OUTPUT/INPUT jacks
Front Panel
Connect a TV with the component video
input jacks to these jacks.
Stop ( ) button
Play/Pause (
Voltage
Selector(option)
) button
Tuning Down & Skip (
Function button
Power (
Tuning up & Skip (
) buttons
) buttons
Volume control
) button
R-REAR-L
WOOFER
CENTER
AM Antenna
Connector
R-FRONT-L
FM Antenna
Connector
IMPEDANCE
S-Video Output Connector
Volume
VIDEO
If the TV is equipped with an S-Video input
connector (S-VIDEO IN), connect it to the
player's S-Video output jack.
Function
5.1 Channel Speaker
Output Terminals
Phones
Video Output Connector
Open/Close button
Headphone Jack
External Audio Component
Input Connector
Connect the TV's video input jacks (VIDEO
IN) to the VIDEO OUT connector.
Disc Tray
Display
LINEAR PCM
indicator
DSP
indicator
PBC
indicator
TITLE
indicator
LINEAR PCM DSP TITLE
L
C
R
LFE
LS
S
PROGRAM
indicator
PBC
PRGM
TUNER indicator
Accessories
STEREO indicator
ST
TUNED
PRO LOGIC
kHZ
MHZ
D I G ITAL
RS
Remote Control
SPEAKER
indicator
DOLBY DIGITAL indicator
PRO LOGIC indicator
5
Video/Audio Cable
AM Antenna
FM Antenna
User's Manual
DTS Disc indicator
System States Display
RADIO
FREQUENCY
indicator
6
Remote Control Unit
Sound Edit
DVD POWER button
Number(0~9) buttons
TV Power button
Channel
DVD
DVD button
TV Volume Control button
DVD
TUNER
AUX
TV
Title
Menu
Channel
Menu
Subtitle
Audio
MO/ST
MO/ST(mono/stereo) button
3
4
5
6
Sound Edit
Sound Edit button
SPK Mode button
Pro Logic button
Test Tone button
Audio
Subtitle
Volume
Play/Pause button
MO/ST
Display
Return
Go To
TV/VIDEO
7
8
Slow
9
Setup
Test Tone
D.R.C
Clear
Program
Step
Angle
TV/System
Repeat
Repeat
Angle button
Tuning
Test Tone
Zoom
A B
Remain
TV System/Zoom button
Clear button
Step button
Repeat A↔B button
Program button
Tuning Up/Down/CD Search button
Down
Pro Logic
0
Slow button
Stop button
Tuning Preset/CD Skip button
DVD/CD/TUNER
SPK Mode
Pro Logic
Repeat button
Title
Title button
Menu button
Subtitle button
Audio
TV/VIDEO
TV/VIDEO button
Band
AUX
AUX button
TV Channel Selection button
Volume
TUNER
TUNER button
2
SPK Mode
TV
Band
1
Setup button
Up
Remain button
Display
Return
Go To
Display button
Return button
Go To button
D.R.C button
+
Effect button
Volume
DSP Mode
DSP button
To open the cover of the
romote control, push the top
of the cover, then slide
downward.
Direction/Enter button
Enter
Effect
Mute
Sleep
Volume Control buttons
Speaker output volume control
Sleep button
Mute button
Insert Remote Batteries
1
Remove the battery cover on
the back of the remote by
pressing down and sliding the
cover in the direction of the
arrow.
Range of Operation of the Remote Control
The remote control can be used up to
approximately 23 feet/7 meters in a straight line.
It can also be operated at a horizontal angle of
up to 30° from the remote control sensor.
Volume
VIDEO
Function
2
Phones
Insert two 1.5V AAA batteries,
paying attention to the correct
polarities (+ and –).
30
30
7~10m
3
7
Replace the battery cover.
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the
CAUTION polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar
may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
8
Connecting the Speakers
Left front
speaker
Connect Video to TV
Center
speaker Right front
speaker
Subwoofer
• Connect the satellite speakers, center speaker, and
subwoofer to the terminls on the rear panel using speaker
cords supplied.
• Connect the white cord to the red (+) terminal, and the black
cord to the black (–) terminal respectively.
Left rear
speaker
1
2
3
Right rear
speaker
R-REAR-L
WOOFER
CENTER
R-FRONT-L
Press and hold the terminal tab.
1
2
3
IMPEDANCE
Insert the speaker cord.
Release the finger.
TV
Component
Video
Subwoofer
Composite
Video
S-Video
Right rear speaker
Left rear speaker
Composite Video (Good Quality)
Connect the supplied video cable from the VIDEO OUT jack on the back panel of the
system to the VIDEO IN jack on your television.
R-REAR-L
WOOFER
CENTER
R-FRONT-L
IMPEDANCE
S-Video (Better Quality)
If you television is equipped with an S-Video input, connect an S-Video cable (not supplied)
from the S-VIDEO OUT jack on the back panel of the system to the S-VIDEO IN jack on
your television.
Component Video (Best Quality)
If your television is equipped with Component Video inputs, connect a component video
cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the
corresponding jacks on your television.
Center speaker
Right front speaker
Left front speaker
• for in-depth information about adjusting the delay time,
9
see “Speaker Settings” on pages 30.
10
Connecting the FM and AM(MW/LW) Antennas
1
2
3
AUX Connections
AM Loop Antenna (supplied)
TV
If FM reception is poor, connect outdoor
FM antenna (not supplied).
VIDEO IN
ANTENNA
To view pictures from external
input (AUX 1, AUX 2), first
connect the VIDEO IN jack
(VIDEO 1 or VIDEO 2) and
then connect the VIDEO OUT
jack.
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.
R-FRONT-L
FM Antenna (supplied)
IMPEDANCE
R-REAR-L
WOOFER
CENTER
R-FRONT-L
Audio Cable (Red/White)
If the external analog
component has only one
output jack, you may
connect either L or R.
IMPEDANCE
Cooling fan (See “About Cooling Fan” below.)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75
COAXIAL terminal as temporary measure.
2. Moderately strain the antenna wire and then
fasten it to a wall or other rigid surface within a
location where reception is good.
• If reception is poor, connect an outdoor antenna.
Before attaching a 75 coaxial cable (with a standard
type connector), disconnect the supplied FM antenna.
External Analog
Components
AM(MW) antenna connection
1. Connect the AM loop antenna supplied
to the AM and
terminals.
2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).
• Always connect the video and
R
L
Connect to external equipment with
analog output.
Example: Video, TV, LDP, etc.
audio connection cables to the
equivalent colored jack.
• Even if DIGITAL IN is selected, if
the video input jack of an external
analog component is connected to
the player’s VIDEO IN connector,
the player will still output a video
signal from the analog component.
Making Analog Input Selection
(About the cooling fan)
A cooling fan is mounted on the rear panel of the center unit to
prevent abnormal temperature inside the center unit, thus assuring
normal operation of the unit. The cooling fan automatically starts
rotating to supply external cool air to the inside of the center unit
when the internal temperature exceeds the specified limit.
11
For safety, observe the following carefully.
• Make sure there is good ventilation around the center unit. Poor
ventilation could overheat and damage the canter unit.
• DO NOT block the cooling fan and the ventilation openings or
holes. (If they are blocked by a newspaper or cloth, etc., the heat
may not be able to get out.)
Remote Control
Main Unit
Press the AUX button and select AUX1 IN, AUX2 IN.
Press the Function button and select AUX1 IN, AUX2 IN.
12
Before Using the DVD Player
Your DVD player is capable of playing DVD, VCD, and CD discs.
User instructions may vary depending on the type of disc. Read the instructions
carefully before use.
Connecting your System to the Power Supply
1
The main lead must be plugged into an appropriate socket.
Turn on the power
Before plugging your system into a main socket, you must check the voltage.
Prepe- to your DVD player
rations and TV.
before
TV
use
Check the position of the voltage selector on the rear of the system (OPTIONAL).
1. Plug the main lead (marked AC Cord on the rear of the system) into an appropriate socket.
2. Press the On/Standby button to switch your DVD Player system on.
R-REAR-L
WOOFER
CENTER
2
3
Select a video mode by
pressing the TV/VIDEO
button.
Press the DVD button
to select the DVD input
function.
TV/VIDEO
DVD
R-FRONT-L
• The “WAIT” message that appears on the display for about seven to eight seconds when
IMPEDANCE
•
•
turning on the power or selecting a DVD function indicates a stabilization period for
optimizing the condition of your DVD player. While the message is being displayed, other
buttons remain inactive.
When the power is not turned on, press down the Stop ( ) button on the main unit for
over 5 seconds.
The inside of the product will be initialized to its optimum state.
If your TV model is not SAMSUNG, refer to “Remote Control Unit Setup” on page 28.
Listening on headphones
TV System
TV System Selection
Zoom
Use headphones for private listening pleasure (not supplied).
Press the TV System button while in stop mode.
Connect the headphones to the HEADPHONES jack of the front panel.
• Each time the TV System button is pressed, “NTSC, PAL” are
• No sound is produced from the speakers.
• To prevent hearing damage, do not raise the volume level excessively when
using headphones.
selected in this order.
Different countries use different types of TV broadcast systems, video,
audio and channel systems.
Example : The player cannot playback PAL-encoded DVD with NTSC-TV.
CD-R/RW playback compatibility
• Your DVD player can also play CD-R and CD-RW discs recorded in digital
Volume
VIDEO
Function
Phones
HEADPHONE jack
13
audio format. When recording your own CD-R or CD-RW discs, make sure that
the recording session is properly terminated, or they will not be playable.
(Depending on disc properties and recording quality, some CD-R/RW may not
be playable.)
• CD-RW has a lower reflection rate than CD-R media and consequently it will
take a longer to read CD-R discs.
• CD-RW discs recorded at high speed tend to be difficult for the DVD player to
read. If the recording speed for the CD-RW disc is not predetermined, write it
at low speed.
14
DVD Playback
Display
1
Using the On-Screen Display
Press the Display button on the remote.
Press the Open/Close( ) button
to open the disc tray.
Display
•
The button is located only on the Front
Panel of the player (not on the remote).
T1/2
VIDEO
2
DVD indicator
C 1/8
00:00:00
TITLE indicator
CHAPTER indicator TITLE ELAPSED
indicator
Insert a DVD disc.
Display
VIDEO
VIDEO
• Place a disc gently into the tray with the
KOR
KOR 1/3
OFF
disc’s label facing up.
SUBTITLE LANGUAGE
indicator
AUDIO LANGUAGE
indicator
3
Press the Open/Close( ) button
again to close the disc tray.
1/1
ANGLE indicator
REPEAT indicator
DISC TYPE indicator
Display
The On-Screen Display disappears.
• Playback starts automatically.
Stopping Playback
Pausing Playback
Press the Play/Pause (
playback.
) button during
Press the Stop (
) button during playback.
• During playback, when the Stop (
)button is pressed,
the position is stored in the memory, and
STOP is
button again.
shown on the display.
When the Play/Pause (
) button or Return button is
pressed subsequently , playback resumes from the
position at which it was stopped.
Depending on the disc, the initial disc
information screen may look disc to disc. • If the Stop ( ) button is pressed a second time, the
resume play' memory function is canceled, and
STOP is shown on the display. When the Play/Pause
(
)button is pressed, playback starts from the
beginning.
• To resume, press the Play/Pause (
15
)
Mute
What is a Title?
Turning the sound off temporarily?
A movie contained in a
DVD disc.
Press the Mute button during playback.
What is a Chapter?
Each Title on a DVD
disc is divided into
several smaller sections
called "chapters".
• This operation may be useful when you need
to greet the guests or answer the telephone.
If the player is left for more than 3 minutes
in pause mode, it will stop.
16
Forward/Reverse Searching
During playback, you can search quickly through a chapter or track for a specific scene
or tune.
Playing Slowly
button is pressed
Slow
Press the Slow button.
Each time the
X2
button is pressed
▲
▲
Each time the
button.
▲
▲
and
▲
▲
▲
▲
High-Speed Playback
Press the
Slow Playback/Checking the
Remaining Time
Each time the Slow button is pressed
X2
SLOW 1/2
X4
X4
SLOW 1/4
X8
The slow playback speed changes
and the selections (1/2X, 1/4X, 1/8X,
1/16X and normal play) are repeated.
X8
PLAY
•
▲
PLAY
PLAY
playback (reverse playback) is possible on DVDs.
Remain
and
▲
▲
Press the
▲
▲
Skipping through a Chapter
Checking the Remaining Time
button.
Press the Remain button.
• For checking check the total time and the
• Each time the button is pressed during playback, it moves to the next
remaining time of a title or chapter being played.
or previous chapter and plays it.
• However, you cannot skip forward or backward through consecutive
the chapters.
Each time the Remain button is pressed
SEARCH
SEARCH
Step
Playing Frame by Frame
Press the Step button.
• The picture moves forward one frame each time the button is pressed.
17
TITLE TIME
TRACK TIME
REMAIN TIME : TITLE
REMAIN TIME : TRACK
CHAPTER TIME
DISC TIME
REMAIN TIME : CHAPTER
REMAIN TIME : DISC
No sound is heard during
high-speed playback, slow
playback, and step motion.
18
Repeat Playback
Using Disc Menu/Title
Repeat playback allows you to repeat a chapter, title, or track.
Repeat
Menu
To Select the Disc Menu
Playing Repeatedly
You can use the menus for the audio language,
subtitle language, profile, etc. DVD menu contents
differ from disc to disc.
Each time the Repeat button is pressed
1
2
Use the Up/Down (▲ / ▼ ) or
Left/Right( / ) button to
access the different features.
• The Menu Screen appears.
• When playing a VCD version
3
Press the Enter button.
▲
Press the Menu button during
playback.
▲
Press the Repeat button.
• The selected item will play.
2.0, you can operate it using
PBC On/Off function.
• Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on.
To operate this feature, press the MENU button, and then select "PBC OFF".
Title
Using the Title Menu
A↔B Repeat Playback
1
2
Press the Repeat A↔B button at the
beginning (A) of the segment you want to
review.
Repeat
A B
For DVDs containing multiple titles, you can
view the title of each movie.
Depending on the disc, this function may either
not work at all, or may work differently.
Press the Repeat A↔B button again at
the end (B) of the segment you want to
review.
• The segment will begin repeating.
To return to normal playback
Press the Repeat A<–>B button again.
19
20
Program Playback
Use this function with video and music CDs to play the tracks in a particular order.
Program
To Program Tracks in a particular order
Press the Program button.
Press the Enter button then
use the Number buttons to
select the desired title.
PLAY :
TITLE CHAPT
6
7
8
9
10
NEXT
FINISH : PROGRAM
▲
PROGRAM MENU SELECT : ENTER
TITLE CHAPT
1
1
2
3
4
5
PREVIOUS
PLAY :
4
Press the Enter button.
• The selected track number is
programming and the cursor
moves to the next number.
PROGRAM MENU SELECT : ENTER
TITLE CHAPT
1
1
2
2
3
4
5
PREVIOUS
PLAY :
TITLE CHAPT
6
7
8
9
10
NEXT
FINISH : PROGRAM
TITLE CHAPT
6
7
8
9
10
NEXT
FINISH : PROGRAM
5
At this time, you can continue
programming if you want to.
Press the Enter button, then use
the Number buttons to select the
desired chapter.
2
Press the Up/Down ( ▲ / ▼ )
button to select the track
number to be changed.
• You can use also just the
Left/Right (
/
/ ▲ / ▼ ) button.
PROGRAM MENU SELECT : ENTER
TITLE CHAPT
1
2
1
2
3
4
5
PREVIOUS
PLAY :
TITLE CHAPT
6
7
8
9
10
Press the Clear button and
then press the Number
buttons.
• The cursor moves to the next
• You can use also just the
number when the Enter button
is pressed again.
4
Left/Right (
/
) button.
5
Press the Enter button.
NEXT
Repeat steps 1-4 above to
change the program.
FINISH : PROGRAM
• The cursor moves to the
number below.
To Playback the
Tracks in the
Programmed Order
• When programming more than
10 tracks, select NEXT and
then press the Enter button.
The program selection screen
where you can program up to
10 additional tracks appears.
To delete the entire Program
Press the Play/Pause
(
) button.
PROGRAM MENU SELECT : ENTER
TITLE CHAPT
1
2
1
1
2
2
1
7
3
2
3
4
2
4
5
PREVIOUS
PLAY :
TITLE CHAPT
6
4
1
6
2
7
3
4
8
5
5
9
1
2
10
NEXT
• Press the Stop (
) button twice during playback.
• Press the Stop (
) button once when in the Stop mode.
• Press the Open/Close (
) button on the main unit.
The disc tray will open and then close.
The program will then be deleted.
FINISH : PROGRAM
When you have entered a
wrong number
To Cancel the Programming
3
Press the Enter button to
select the title or chapter to be
changed.
▲
PROGRAM MENU SELECT : ENTER
also just the
/ / ▲ / ▼ ) button.
1
▲
Left/Right (
▲
• You can use
TITLE CHAPT
1
2
3
4
5
PREVIOUS
3
▲
2
▲
1
To Change the Program
Press either the Program button or Stop (
) button.
Clear
You can program or change
particular tracks for VCD or CD
discs in the same manner.
Press the Clear button.
• When you want to delete a selection during
21
programming, select the track (or chapter, or title) to be
deleted and then press the Clear button.
22
Selecting the Audio Language/Subtitle Language
Press the Zoom button.
OFF
•
• Only 2X zoom
to zoom in 2X/4X/normal, in that order.
Press / / ▲ / ▼ to move the enlarged
portion you want to watch.
operation is
possible during
VCD playback.
2
▲
different audio language (KOREAN, ENGLISH, JAPANESE, etc.) is
selected each time the button is pressed.
• Images can be enlarged 2x and 4x.
• During DVD playback, press the Zoom button
▲
• Depending on the number of languages recorded on a DVD disc, a
KOR 1/3
Zoom
MO/ST
Press the Audio button.
KOR
TV System
To enlarge an image
Audio
Selecting the Audio Language
VIDEO
Various DVD Functions
1/1
ENG 2/3
JAP 3/3
Angle
• Depending on the disc, DTS or DIGITAL PRO LOGIC can be
selected.
Selecting the desired Screen Angle
Press the Angle button.
• This function only works with discs on which multiple angles have been recorded.
• During playback, press the Angle button to select the desired angle in 1/3, 2/3, 3/3,
normal, in that order.
OFF
1/3
Subtitle
Selecting the Subtitle Language
2/3
Press the Subtitle button.
3/3
• Depending on the number of languages recorded on a DVD disc, a
•
different subtitle language (KOREAN, ENGLISH, JAPANESE, etc.)
is selected each time the button is pressed.
To make the subtitles disappear, select "OFF".
VIDEO
KOR 1/3
Go To
To move directly to a title, chapter, or time
KOR 1/1
OFF
1/1
2
Press the Go To button.
Press Number(0~9) button or the
Left/Right ( / ) button.
JAP 3/3
▲
OFF
INVALID appears on the TV screen!
• The word
• If this message appears on the TV screen while buttons are being
operated, that operation is not possible with that particular disc.
• Depending on the disc, the audio or subtitle language function
• Each time the button is pressed, it repeats as shown below.
▲
1
ENG 2/3
• Each The desired scene is
located and then played.
VIDEO
TITLE
T1/2
C 1/8
00:00:00
VIDEO
T1/2
CHAPTER
C 1/8
00:00:00
VIDEO
TIME
T1/2
C 1/8
:
00:00:00
:
• Depending on the disc, the Title
function may not work.
may not work.
23
24
System Setup
You can use the DVD player's Setup function to select the TV screen ratio,
rating limit, or digital output mode.
Setup
To Set up the System
TV SCREEN(TV SCREEN RATIO)
Select when you want to watch a 16:9 screen ratio DVD movie on a TV with a 4:3 ratio screen.
1
2
3
4:3LB
LANGUAGES
TV SCREEN
Press the Up/Down ( ▲ / ▼ )
button to select the desired
item.
▲
Press the Left/Right ( / )
button to select the system.
▲
From the stop mode, press
the Setup button.
RATING LEVEL
DIGITAL OUTPUT
: Move
SYSTEM
4:3 LB
OFF
BITSTREAM
4:3PS
16:9
Setup : Exit
You can see the full 16:9 picture, but black bars will appear at the
top and bottom of the screen.
You can only view the central portion of the 16:9 screen.
You can view in wide screen but the top and bottom of the picture
will be cut off.
• However if the movie is recorded in 4:3 ratio, you cannot view the full 16:9 picture with the
above functions.
LANGUAGES
SYSTEM
LANGUAGES
OSD LANGUAGE
ENGLISH
TV SCREEN
AUDIO
CHINESE
CHINESE
CHINESE
RATING LEVEL
DIGITAL OUTPUT
SUBTITLE
MENU LANGUAGE
: Move
Setup : Exit
SYSTEM
: Move
LANGUAGES
TV SCREEN
4:3 LB
OFF
BITSTREAM
RATING LEVEL
DIGITAL OUTPUT
Setup : Exit
: Move
4
SYSTEM
4:3 LB
OFF
BITSTREAM
5
▲
Press the Enter button or Right (
) button.
RATING LEVEL
Setup : Exit
The Rating Level function works in conjunction with DVDs which have been assigned
a rating, to help control the type of DVD that your family watches.
LANGUAGES
Press the Up/Down ( ▲ / ▼ ) button to select the
desired sub-item and then press the Enter
button.
▲
• Move to the detailed items.
• Then press the Left ( ) button to return to the previous step.
TV SCREEN
RATING LEVEL
DIGITAL OUTPUT
: Move
TV SCREEN
RATING LEVEL
DIGITAL OUTPUT
: Move
SYSTEM
4:3 LB
OFF
BITSTREAM
LANGUAGES
SYSTEM
TV SCREEN
4:3LB
LB
4:3
OFFPS
4:3
16:9
RATING LEVEL
DIGITAL OUTPUT
: Move
Setup : Exit
1. Select RATING LEVEL, then press the
Enter button.
Setup : Exit
SYSTEM
TV SCREEN
4:3 LB
RATING LEVEL
DIGITAL OUTPUT
BITSTREAM
2. Use the number(0~9) buttons to input
a 4-digit password.
• The player’s password is set to "7890" by
default.
When the rating level
password has been forgotten
While the player is in the stop
mode, hold the Stop ( ) button
down on the main unit for more than
5 seconds.
• "INITIAL" appears on the display and
all default settings will return to
Factory Preset.
Setup : Exit
LANGUAGES
SYSTEM
TV SCREEN
4:3 LB
RATING LEVEL
DIGITAL OUTPUT
: Move
Setup : Exit
4:3 LB
OFF
BITSTREAM
LANGUAGES
: Move
LANGUAGES
SYSTEM
Setup : Exit
3.Use the Up/Down (▲ / ▼ ) button to select either RATING LEVEL or
NEW PASSWORD, and then press the Enter button.
• There are up to 8 rating levels on a disc.
• If LEVEL 6 is selected, a disc which contains rating LEVEL 7 and above cannot
be played.
• If you select NEW PASSWORD, the screen changes and enables you to enter
the new password.
Setup
To End the System Setup
• Press the Setup button again.
25
26
Setting up the Language Features
Controlling a TV with the Remote
The remote can also be set up to control most TVs. To program the remote, use the code that
corresponds to your brand.
Using the DVD player's Setup function, you can customize the Menu
Language, Subtitle Language, and Disc Menu Language.
Setup
To set up the language feature
1
2
Press the Setup button from the stop mode.
Press the Up/Down ( ▲ / ▼ ) button to select
the desired item.
LANGUAGES
SYSTEM
OSD LANGUAGE
LANGUAGES
ENGLISH
AUDIO
CHINESE
CHINESE
CHINESE
SUBTITLE
MENU LANGUAGE
: Move
OSD LANGUAGE
ENGLISH
AUDIO
CHINESE
CHINESE
CHI NESE
SUBTITLE
MENU LANGUAGE
Setup : Exit
(PLAYER MENU LANGUAGE)
AUDIO
(AUDIO LANGUAGE)
SUBTITLE
MENU LANGUAGE
(SUBTITLE LANGUAGE)
3
(DISC MENU LANGUAGE)
4
▲
Press the Enter button or Right (
) button.
Press the Up/Down ( ▲ / ▼ ) button to select
the desired language and then press the Enter
button.
• Move to the language features.
• Then press the Left ( ) button to return the previous step.
▲
LANGUAGES
LANGUAGES
SYSTEM
ENGLISH
OSD LANGUAGE
ENGLISH
ENGLISH
AUDIO
CHINESE
CHINESE
ENGLISH
AUDIO
CHINESE
CHINESE
CHINESE
FRENCH
SUBTITLE
MENU LANGUAGE
Setup : Exit
: Move
Menu
Audio
Subtitle
AUX
TV
Channel
Display
Volume
Return
Go To
3
TV/VIDEO
DVD/CD/TUNER
TV
While holding the
your brand.
Tuning
Down
Up
button down, enter the code for
Enter
Brand
Code
SAMSUNG 1
SHARP 2
SONY
MAGNAVOX
SANYO 1
LG 2
RCA
LG 1
TOSHIBA
HITACHI
JVC
PANASONIC 1
MITSUBISHI 2
SAMSUNG 2
SAMSUNG 3
Brand
+
SHARP 3
ZENITH
LG 3
DAEWOO 8
SANYO 2
EMERSON
SHARP 3
SAMSUNG 4
MATSUSHITA
NOBLEX
TELEFUNKEN
NEWSAN
LOEWE
RCA2
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Volume
DSP Mode
Effect
Mute
1
2
3
4
5
6
7
8
Sleep
Sound Edit
SPK Mode
Pro Logic
Slow
9
Setup
Test Tone
D.R.C
Clear
Program
Step
0
Angle
TV System
Repeat
Repeat
Zoom
A B
Remain
• If your TV does not switch
TV
•
button,
from VIDEO mode to TV
mode, press the TV
POWER(
) button
twice.
The remote may not be
able to control every
model TV of the brands
listed.
If the TV turns off, setup is complete.
SYSTEM
OSD LANGUAGE
SUBTITLE
MENU LANGUAGE
TUNER
Title
MO/ST
Point the DVD’s remote at the TV.
example : For SAMSUNG 1TVs
While holding down the
enter
.
4
DVD
Band
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Setup : Exit
OSD LANGUAGE
Turn on the TV.
Code
SYSTEM
: Move
: Move
1
2
3
GERMAN
Setup
: Exit
JAPANESE
D.R.C
Dynamic range compression (DRC) function
This function allows for fullness of sound with Dolby Digital effect even
when playing at low volumes during nighttime listening.
Press the D.R.C button.
Setup
To End the Language Features Setup
• The selection switches back and forth between
•
“D.R.C. ON” and “D.R.C. OFF” each time the
button is pressed.
This function only works when in the Dolby Digital mode.
TUNED
PRO LOGIC
D I G ITAL
TITLE
ST
PROGRAM
SURROUND
PBC MHZ
DSP KHZ
LINEAR PCM
L
C
R
LFE
LS S RS
• Press the Setup button again.
27
28
Speaker Setup
SPK Mode
To set the delay time
Setting up Speaker Mode and Delay Time
(A)=Df-Dc
2
/
▲
Press the Left/Right (
the desired item.
Press the SPK Mode button.
▲
1
• When 5.1 Channel Surround Sound is played, you
) button to select
• Each time the button is pressed, a different mode selection is
displayed on the front panel display as shown below.
L
C
R
LFE
S
p
e
a
k
e
r
LS
D I G ITAL
Front speaker: Small
L
C
R
LFE
LS
D I G ITAL
C SP SMALL
RS
L
L
C
LS
R
D I G ITAL
R SP SMALL
RS
Rear speaker: Small
C
R
LFE
LS
Center speaker: Small
LFE
M
o
d
e
F SP SMALL
RS
D I G ITAL
can enjoy the best sound if the distance between
you and each speaker is the same. You can set
Delay Time in the Center/Rear Speaker to
customize the sound to the acoustics of your room.
• Setting Center Speaker
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the
table on the table.
• Setting Rear Speakers
If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms.
Otherwise, change the setting according to the
table.
C SP NONE
Distance of (A)
Value(ms)
50
100
400
200
1.3
2.6
3.9
5.3
Ideal Center Speaker Position
Dc
Df
(B)=Df-Ds
Distance of (B)
Value(ms)
200
5.3
400
10.6
600
15.9
Dc: Distance from center speaker to
listening position
Df: Distance from front speakers to
listening position
Ds: Distance from rear speakers to
listening position
Ds
Ideal Rear Speaker Position
Arrange all speakers within a circle
as shown in the figure.
RS
Center speaker: Not Use
L
C
R
LFE
LS
D I G ITAL
R SP NONE
Speaker Setting Methods
RS
Rear speaker: Not Use
Front Speakers
L
C
R
LFE
LS
D I G ITAL
SW SP USE
Set the front speakers so that their tweeters (high-range) are
aligned at about ear level and at a horizontal angle of 45° to the
prime listening position.
RS
Subwoofer: Use
VIDEO
L
C
R
LFE
LS
Delay
Time
D I G ITAL
C DEL
MS Setting up Delay Time from 00~05ms
RS
Center Speaker Delay Time
L
C
R
LFE
LS
D I G ITAL
R DEL
MS Setting up Delay Time from 00~15ms
RS
Rear Speaker Delay Time
• SMALL: When this setting is selected, low frequencies of below 200 Hz are assigned to
the subwoofer only.
• USE: Select when using speakers.
• NONE: Select this when no speakers are installed.
The display changes depending on the current audio output mode
(DSP, PRO LOGIC, 3-STEREO, STEREO, etc.).
29
Center Speaker
Ideally the center speaker should be positioned with its top
surface flush with the front speakers. However, you may place
the speaker either on top or near the bottom of your TV set.
Rear Speakers
Set the rear speakers further back parallel to the walls, at
60 to 90 centimeters (2 to 3 feet) above prime listening
position ear level.
If the space behind the listening position is insufficient
(i.e., too close to the wall), place the rear speakers facing
each other on either side.
Subwoofer Speaker
Place the subwoofer at any convenient location within
the vicinity of the listening position.
30
Speaker Setup
Speaker Setting Methods
Test Tone
Press the Test Tone button.
Sound Edit
• The test signal will be sent to the Left Front, Center, Right Front,
To set up Speaker Balance
Right Rear, Left Rear and Subwoofer in that order.
Use the Left/Right (
adjustment.
• Each time the button is pressed the selection switches as shown below.
/
▲
Press the Sound Edit button.
2
▲
1
L
Test Tone
) button to make
LS
To End the Language Features Setup
•
C
LFE
R
RS
Press the Test Tone button again.
While in DSP or PRO LOGIC mode, TEST TONE may
operate differently for VCDs or CDs
Example: 5.1CH Sound Setup
L
C
R
LFE
LS
S
D I G ITAL
Selecting Dolby Pro Logic
Front Speakers: L level, R level
L
C
R
LFE
LS
S
D I G ITAL
OFF, range of – 6 ~ 0
RS
Rear Speakers: L level, R level
L
C
R
LFE
LS
S
D I G ITAL
Pro Logic
OFF, range of – 6 ~ 0
RS
range of – 6 ~ – 00 ~ +6
Press the Pro Logic button.
Converts Dolby Surround encoded 2-channel sound (e.g., program material received by Stereo
VCR could be Dolby Surround encoded 2-channel material that can be decoded into 4-channel
sound using the Dolby Pro Logic mode). Pro Logic mode can also be enjoyed when in DVD
mode or when playing Dolby Digital or PCM material that are Dolby Surround encoded.
1
2
Press the Function Selection button to
select the desired function.
Press the PRO LOGIC button.
RS
Center Speaker
L
C
R
LFE
LS
S
D I G ITAL
range of – 6 ~ – 00 ~ +6
RS
Rear Speakers
L
C
R
LFE
LS
S
D I G ITAL
RS
range of – 6 ~ – 00 ~ +6
• Select from FM, AM, DVD and AUX 1 IN, • Each time the Pro Logic button is pressed
AUX 2 IN.
L
R
PRO LOGIC
Subwoofer Speaker
PRO LOGIC : Left, Center, Right, Subwoofer and
Surround Channel
L
The display changes depending on the current audio output
mode (DSP, PRO LOGIC, 3-STEREO, STEREO, etc.).
C
R
PRO LOGIC
3-STEREO : Left, Center, Right and Subwoofer
Channel
L
R
STEREO : Left, Right and Subwoofer Channel
31
32
Creating Realistic Sound Fields
DSP Function
You can use the following surround to reproduce a realistic sound field.
• Digital Multichannel Surround —Dolby Digital and DTS Digital Surround
• Dolby Surround
DSP Mode
Dolby Digital and DTS Digital Surround
To Select a DSP
To enjoy surround effectively,all the speakers need to be connected and activated.
Dolby Digital
Used to reproduce multichannel sound tracks of the software encoded with Dolby Digital (
Press the DSP Mode button.
).
Dolby Digital encoding method (so-called discrete 5.1 channel digital audio format)records and digitally compresses the
left front channel,right front channel,center channel,left rear channel,right rear channel,and LFE channel signals (total 6
channels,but LFE channel is counted as 0.1 channel.Therefore,called 5.1 channel).
Since each channel is completely independent from the other channel signals to avoid interference,you can obtain much
better sound quality with much stereo and surround effects.
In addition,Dolby Digital enables stereo rear sounds,and sets the cutoff frequency of the rear treble at 20 kHz,compared
to 7 kHz for Dolby Pro Logic.These facts enhance the sound movement and being-there feelings much more than Dolby
Pro Logic.
• The DSP mode toggles in the following
order each time the DSP button is pressed:
HALL ➔ THEATER ➔ PAVILION ➔
DANCE CLUB ➔ LIVE CLUB.
DSP synthetically recreates the sound
field to achieve a more realistic,
powerful sound.
• DSP mode cannot be selected when a microphone is connected.
• When playing a DVD encoded in two or more channels, DSP mode cannot be selected.
When the system detects Dolby Digital signals,the DOLBY DIGITAL indicator lights up on the display.
DTS Digital Surround
Used to reproduce multichannel sound tracks of the software encoded with DTS Digital Surround (
What is a DSP?
).
DTS Digital Surround is another discrete 5.1 channel digital audio format available on CD,LD,and DVD software.
Compared to Dolby Digital,audio compression rate is relatively low.
This fact allows DTS Digital Surround format to add breadth and depth to the reproduced sounds.As a result,DTS Digital
Surround features natural,solid and clear sound.
When the system detects DTS Digital Surround signals,the DTS indicator lights up on the display.
To increase Effect level
Dolby Surround
Used to reproduce sound tracks of the VCR tapes encoded with Dolby Surround (
This is only used for the sound sources coming through the AUX IN jacks.
).
Dolby Pro Logic and Dolby 3 Stereo
Dolby Surround encoding format records the left front channel, right front channel,center channel,and rear channel
signals (total 4 channels)into 2 channels.
The Dolby Pro Logic decoder built in this system decodes these 2 channel signals into original 4 channel signals —
matrix-based multichannel reproduction,and allows you to enjoy a realistic stereo sound in your listening room.
When one of Dolby Surround is selected,the PRO LOGIC indicator lights up on the display.
Manufactured under license from Dolby Laboratories. “Dolby,”
“Pro Logic,” and the double-D symbol are trademarks of Dolby
Laboratories. Confidential Unpublished Works. ©1992–1997
Dolby Laboratories, Inc. All rights reserved.
33
Effect
Press the Effect button.
• The effect level can be set in steps from 1 to 4
•
EFFECT1 ➔ EFFECT2 ➔ EFFECT3 ➔
OFF(DEFAULT).
Each time the button is pressed the selection
moves to the next effect.
The higher the number, the stronger the DSP
surround effect will be.
What is a Effect?
This sets the strength of the DSP
mode.
Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942 and other world-wide patents issued
and pending. “DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems, Inc. ©1996 Digital
Theater Systems, Inc. All rights reserved.
34
Listening to the Radio
Presetting stations
You can listen to the chosen band (FM, AM broadcast stations) by using either the
automatic tuning or manual tuning operation.
You can store up to:
• FM
• AM(MW)
15 FM stations
15 AM stations
Frequency Modulation
Medium Wave
Example: Presetting FM 89.1 in the memory
2
1
• The selection toggles back
and forth between "FM" and
"AM" each time the
Tuner(Band) button is
pressed.
1
2
3
Select a broadcast station.
Press the Tuner(Band) button
and select the FM band.
Auto Station 1
When the
button is pressed, a preset
broadcast station is selected.
▲
▲
Press the Tuner(Band)
button.
▲
▲
Remote
Control
Unit
Use the
and
button to tune into 89.1
Select the MANUAL by
pressing the Stop ( ) button
on the main unit.
• The selection toggles back and forth between “FM” and “AM”
Auto Station 2
Hold in the
button. Automatic searching
begins, and then stops when a station is tuned in.
each time the Tuner(Band) button is pressed.
Manual Station Press the
button to tune to the chosen
station. The frequency changes incrementally in either
direction each time the corresponding button is pressed.
Select a broadcast station.
Auto Station 1
Auto Station 2
Manual Station
Press the
press the
the preset
4
Press the Program button.
button to select the PRESET mode. Then
button to select a station stored in
Press the Stop (
) button to select the MANUAL
mode on the front panel. Then hold in the
button to make the unit begin automaticall searching for
broadcast stations.
Press the Stop ( ) button to select the MANUAL mode front
panel. Press the
button to tune to the desired
station. The frequency changes incrementally in either direction
each time the corresponding button is pressed.
5
6
▲
▲
Main
Unit
▲
▲
2
1
Press the Function button to
select the desired band (FM,
AM).
Use the
and
button to select FM2.
Press the Program button.
• The preset stations operation is
completed.
• When using this feature for the
first time, be sure to store the
station in the preset memory at
FM1 as the unit does not come
preprogrammed with default
presets.
Audio
To Listen in Mono/Stereo
MO/ST
Press the MO/ST button. (only FM)
To change the Preset Stations
• Store the changes while repeating
To store other Channels
Repeat steps 3 to 4 above.
steps 1 to 4 above.
• The selection toggles back and forth between “STEREO” and “MONO”
each time the MO/ST button is pressed.
• In a poor reception areas, select Mono mode for a clear, interference-free
broadcast.
35
36
Sleep Function
Troubleshooting
Problem
Sleep
To set up Sleep
The disc tray does not
open.
Press the Sleep button.
• Each time the button is pressed the selection
toggles as follows: SLEEP 10 ➔ SLEEP 20
➔ SLEEP 30 ➔ SLEEP 60 ➔ SLEEP 90
➔ SLEEP 120 ➔ SLEEP 150 ➔ OFF.
To Review Sleep Setting
• The remaining time for the selected Sleep time is displayed.
• Pressing the button once again changes the Sleep time from the
last setting.
• Is the disc installed with the label side facing up?
• Is the power cord plugged securely into the power outlet?
• Turn off the power to the unit by pressing the Power (
) button
and turn it back on.
What is the
Sleep function?
You can set the delay time so that
the unit powers off automatically
after a preset period of time.
Check
Disc does not play.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Check the region number of the DVD.
• DVD discs purchased abroad may not be playable.
• This player cannot play CD-ROMs, DVD-ROMs, etc.
• Check the rating level of the DVD.
• Check whether the disc has any scratch marks or is deformed?
• No sound is heard during high-speed playback, slow playback,
and step motion playback modes.
No sound is produced.
• Are the speakers properly connected? Is the speaker Setup
correctly customized?
• Is the disc severely damaged?
The disc may be dirty. Wipe off fingerprints or dirt.
Sound can be heard only
from a few speakers and
not all six.
• When listening to a CD or radio, sound is output to the front
•
37
speakers only (L/R). Select the “PRO LOGIC” option by pressing
the Pro Logic button on the remote control unit to use all six
speakers.
Check whether your DVD disc is 5.1 CH compatible.
Picture does not appear; sound
is not produced; the disc tray
opens 2-5 seconds later.
• Was the player moved suddenly from a cold pace to a warm one?
Sound quality is
irregular.
• Are the speaker cables loose?
• Is there any dirt or debris at the end of the speaker connector?
Dolby Digital 5.1 Channel
Surround Sound is not
being reproduced.
• Does the disc being played show the “Dolby Digital 5.1CH” mark ?
38
When condensation forms inside the player, remove the disc
and let the player stand for 1 or 2 hours with the power on.
(You can use the player after the condensation disappears.)
•
5.1-channel sound is reproduced only if the disc is recorded with
5.1 channel sound.
Is the DVD player connected to the proper speakers?
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause breaks
in playback. Be especially careful not to scratch discs when handling them.
Problem
Check
Handling and Storing Discs
• Is the TV power turned on?
• Are the video cables properly connected?
• Is it the player in PAUSE mode?
• Is your TV’s video format (NTSC/PAL) set correctly?
When you get fingerprints or dirt on the
disc, clean it with a mild detergent diluted
in water and wipe with a soft cloth.
• The disc revolves but no
picture appears.
• Picture shows interference Press the NTSC/PAL button once again to change the current selection.
• Is there any dirt on the disc, or is the disc damaged?
and quality is poor.
• It may not be possible to play some DVD discs due to poor manufacture.
• When a dark scene changes to a bright scene during playback, the
• When cleaning, wipe gently from the inside to the
outside of the disc.
screen may flicker vertically. Some disturbance is normal.
• Is the remote control being used within the appropriate distance
Remote control unit does
not operate.
•
Condensation may form if warm air comes into
contact with cold parts inside the player. When
condensation forms inside the player, the
player may not operate correctly. If this occurs,
remove the disc and let the player stand for 1
or 2 hours with the power on.
and angle of operation for the unit?
Are there any obstacles between the remote control unit and the
remote control sensor?
• Are the batteries dead? Is it time to replace the batteries with new ones?
Audio or subtitle language
does not operate.
The Menu button is
pressed but the Menu
screen does not appear.
The screen ratio cannot
be changed.
The desired radio station
cannot be tuned in.
• The audio or subtitle language features does not operate with
DVDs that do not include multiple audio or subtitle languages.
Disc Storage
• Is the remote control being used within the appropriate distance
and angle of operation for the unit?
Do not keep in direct
sunlight
• Are the batteries dead?
• Does tje disc have a Menu?
Keep in a cool
ventilated area
• You can play 16:9 wide DVDs in 16:9 WIDE mode or 4:3 LETTER
BOX mode or 4:3 PAN-SCAN mode; but 4:3 encoded DVDs only
show in 4:3 ratio. Refer to the DVD disc jacket and then select the
appropriate function.
• Is the antenna installed properly?
• When the antenna's input signal is weak, install an external FM
antenna in an area with good reception quality.
• Do not allow the discs to become contaminated
The system is
malfunctioning (the
system does not work or
no sound).
with dirt.
• While the player is in the stop mode, hold the Stop (
) button
down on the main unit for over 5 seconds."INITIAL" appears on the
display and all settings will return to the Factory Preset condition.
• Do not load cracked discs or discs that are
scratched.
The RESET function erases all settings; do not use this
function unless necessary.
39
40
Keep in a clean
Protection jacket.
Store vertically.
Disc Type and Protection
Specification
Usable Discs
Disc Types
Marks
Recording
Types
DVD
VIDEO
Audio + Video
8cm
COMPACT
VIDEO-CD
DIGITAL VIDEO
DIGITAL AUDIO
Approx. 240 min. (Single-sided)
Approx. 480 min. (Double-sided)
Approx. 160 min. (Single-sided)
Approx. 160 min. (Double-sided)
12cm
74 min.
8cm
20 min.
12cm
DIGITAL
SOUND
DOLBY
D I G I T A L
Dolby Digital
disc
DTS Disc
Digital Audio
disc
STEREO
74 min.
Stereo disc
V
I
D
E
O
20 min.
NTSC
R
Power Consumption
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Usable Sensitivity
S/N Ratio
Distortion
VIDEO
Component Video
INPUT
Audio
8cm
T
F U
N
M E
T
A U
M N
E
R
Audio + Video
COMPACT
AUDIO-CD
Max. Playing Time
Disc Size
12cm
G
E
N
E
R
A
L
O
U
T
P
U
T
A
M
P
L
I
F
I
E
R
PAL
NTSC broadcast PAL broadcast
system in USA, system in U.K,
Canada, Japan,
France,
South Korea, etc.. Germany, etc.
Composite Video
Component Video
S-VIDEO
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity
160W
9.1Kg
W 430mm x D 370mm x H 100mm
+5°C~+35°C
10%~75%
10dB
60dB
0.5%
54dB
40dB
2%
Y:1.0Vp-p(75Ω load), Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
1.0Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
Luminance Signal: 1.0Vp-p(75Ω load)
Color Signal: 0.286Vp-p(75Ω load)
50W x 2(6Ω)
50W(6Ω)
50W x 2(6Ω)
100W(3Ω)
20Hz~25KHz
75dB
50dB
(AUX)500mV
5.1ch speaker system
Speaker system
S
P
E
A
K
E
R
Do not use the following types of disc!
• LD, CDG, CD-I, CD-ROM and DVD-ROM cannot be played on this player.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions
Weights
41
42
Front/Center/Rear speaker
6Ω x 5
150Hz~18KHz
87dB/W/M
50W
100W
138mm x 202mm x 140mm
370mmx 140mmx 140mm
Front/Rear 1.6Kg
Center
2.2Kg
Front/Rear
Subwoofer speaker
3Ω
45Hz~200Hz
86dB/W/M
100W
200W
250mm x 403mm x 335mm
Center
6.8Kg
Reference
Note on Terminology
ANGLE
CHAPTER
NUMBER
Recorded onto some DVD discs are scenes which have been simultaneously shot from a number
of different angles (the same scene is shot from the front, from the left , from the right , etc.).
With such discs, the Angle button can be used to change the angle of view for specific scenes.
These numbers are recorded on DVD discs. A Title is subdivided into many
sections, each of which is numbered, and specific parts of the video can be
searched quickly using these numbers.
DVD
A high-density optical disc on which high-quality pictures and sound have been recorded by
means of digital signals. Incorporating a new video compression technology (MPEG-2) and highdensity recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.
PCM
An acronym for Pulse Code Modulation - another name for digital audio.
PBC
(PLAYBACK
CONTROL)
This is recorded on a video CD (version 2.0). Selected scenes or information can
be chosen from the menu displayed on the TV monitor.
REGION NUMBER
Both the DVD player and DVD discs are encoded with a region number.
If the region number on the DVD disc does not correspond to the region number
of the DVD player, the player cannot play the disc.
SUBTITLES
Translated appearing at the bottom of the screen. A DVD disc can contain up to
32 subtitle languages.
TITLE NUMBER
These numbers are recorded on DVD discs. When a disc contains two or more
movies, these movies are numbered as Title 1, Title 2, etc.
TRACK NUMBER
VIDEO CD
These numbers are assigned to the tracks which are recorded on video and
audio CDs. They enable specific tracks to be located quickly.
Contains recordings of pictures and sound whose quality is roughly comparable
to that of video tape.
This player also supports video CDs with playback control (version 2.0).
You can enjoy 5.1 (or 6) channels of high fidelity digital sound from various
digital input sources such as laser discs, DVD, CD etc.
DTS provides a realistic, clear surround sound that has not previously been
available from conventional surround sound.
DOLBY
D I G I T A L
PRO LOGIC
5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs
recorded as a digital signals (with
disc marking). With better sound quality,
dynamic range, and directionality than the traditional Dolby surround technology,
you can enjoy the dynamic realistic sound.
DOLBY
D I G I T A L
A 4 channel analog sound reproduced from a program source such as a
PRO LOGIC mark. You can enjoy a more realistic,
videotape or LD with the
robust sound unavailable from regular stereo sources.
DOLBY
43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
