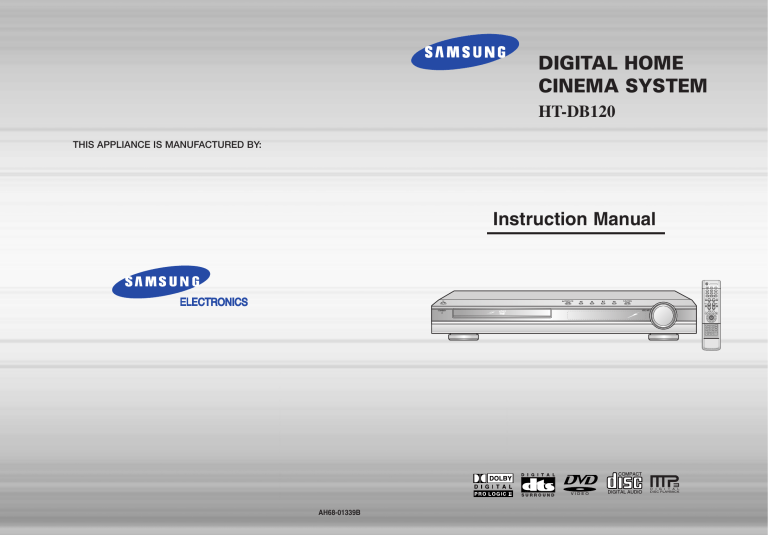

DIGITAL HOME
CINEMA SYSTEM
HT-DB120
THIS APPLIANCE IS MANUFACTURED BY:
Instruction Manual
OPEN/CLOSE
DIMMER
DVD
REMAIN
TUNER
BAND
AUX
EZ VIEW
NTSC/PAL
SLOW
MO/ST
SUB TITLE
STEP
DSP/EQ
REPEAT
TUNING
VOLUME
U
MEN
INFO
PL II
EFFECT
E
UT
M
RE
TU
RN
PL II
MODE
ENTER
TEST TONE
SOUND EDIT
TUNER
MEMORY
COMPACT
VIDEO
AH68-01339B
DIGITAL AUDIO
SLEEP
CANCEL
LOGO
SLIDE MODE DIGEST
ZOOM
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
PREPARATION
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
Precautions
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED, AVOID EXPOSURE TO
BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation
slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may
become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD
player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Wiring the Main Power Supply Plug(UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin
face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same
colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should
obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the
plug to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
Phones
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:–
BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E OR BY THE EARTH SYMBOL
, OR COLOURED GREEN OR GREEN
AND YELLOW.
1
Protect the player from moisture(i.e. vases) , and excess heat(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
The battery used with this product contain chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household
trash.
2
Features
The HT-DB120 combines the convenience of multi-disc playback capability,
including DVD, CD, MP3-CD, CD-R, CD-RW, and DVD-RW, with a sophisticated
AM/FM tuner, all in a single player.
PREPARATION
Multi-Disc Playback & AM/FM Tuner
Contents
PREPARATION
Safety Warnings..................................................................................................................................................................1
Precautions .........................................................................................................................................................................2
Features..............................................................................................................................................................................3
Notes on Discs....................................................................................................................................................................5
Description ..........................................................................................................................................................................7
CONNECTIONS
Dolby Pro Logic II
Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology
that improves upon existing Dolby Pro Logic.
Connecting the Speakers ...................................................................................................................................................11
Connecting the FM and AM(MW) Antennas.......................................................................................................................13
Connecting the Video to TV ................................................................................................................................................14
Connecting External Components......................................................................................................................................15
OPERATION
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater
Systems Inc. It delivers full-frequency 5.1 channel sound.
TV Screen Saver Function
The HT-DB120 automatically brightens and darkens the brightness of
the TV screen after 2 minutes in the stop or pause mode.
The HT-DB120 automatically switches itself into the power saving mode
after 20 minutes in the screen saver mode.
Disc Playback .....................................................................................................................................................................17
Displaying Disc Information ................................................................................................................................................18
Fast/Slow Playback.............................................................................................................................................................19
Skipping Scenes/Songs......................................................................................................................................................20
Repeat Playback.................................................................................................................................................................21
A-B Repeat Playback..........................................................................................................................................................22
Angle Function....................................................................................................................................................................23
Zoom Function....................................................................................................................................................................24
Selecting Audio/Subtitle Language.....................................................................................................................................25
Moving Directly to a Scene/Song .......................................................................................................................................26
JPEG File Playback ............................................................................................................................................................27
Using Disc Menu.................................................................................................................................................................29
Using the Title Menu...........................................................................................................................................................30
SETUP
Power Saving Function
The HT-DB120 automatically shuts itself off after 20 minutes in the stop or pause mode.
Customized TV Screen Display
The HT-DB120 allows you to select your favorite image during JPEG,
DVD playback and set it as your background wallpaper.
Selecting the Video Format
Setting the Language..........................................................................................................................................................31
Setting TV Screen type.......................................................................................................................................................33
Setting Parental Controls (Rating Level).............................................................................................................................35
Setting the Password ..........................................................................................................................................................37
Setting the Wallpaper..........................................................................................................................................................39
Setting the Speaker Mode ..................................................................................................................................................41
Setting the Test Tone ..........................................................................................................................................................42
Setting the Delay Time........................................................................................................................................................43
Setting the Audio Quality .......................................................................................................................................................................45
Setting the DRC (Dynamic Range Compression) ..............................................................................................................47
Sound Field (DSP)/EQ Function.........................................................................................................................................48
Dolby Pro Logic II Mode .....................................................................................................................................................49
Dolby Pro Logic II Effect .....................................................................................................................................................50
RADIO OPERATION
Turn off the main unit and then press NTSC/PAL.
• By default, the video format is set to "PAL".
• Each time the button is pressed, the video format switches between "NTSC" and "PAL".
• Each country has a different video format standard.
• For normal playback, the video format of the disc must be the same as the video format of your TV.
3
Listening to Radio ...............................................................................................................................................................51
Presetting Stations..............................................................................................................................................................52
MISCELLANEOUS
Convenient Functions .........................................................................................................................................................53
Before Calling for Service ...................................................................................................................................................55
Cautions on Handling and Storing Discs............................................................................................................................57
Specifications......................................................................................................................................................................58
Notes on Terminology .........................................................................................................................................................59
Memo ..................................................................................................................................................................................60
4
Notes on Discs
VIDEO
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
PREPARATION
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
Disc Recording Format
CD-R Discs
• Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discs
1
~ 6
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
may not be playable.
• Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable.
• If possible, do not use CD-RW (Rewritable) media, as they may not be playable.
• Only the CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open,
you may not be able to fully play the disc.
CD-R MP3 Discs
Playable Discs
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
12cm
Audio + Video
DVD
8cm
VIDEO
COMPACT
Audio
AUDIO-CD
DIGITAL AUDIO
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
12cm
74 min.
8cm
20 min.
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• If the name of a file is in Korean, the name will be displayed on the TV screen in Korean and * will be shown in the
display of the main unit.
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g.,
32Kbps ~ 320Kbps), the sound may skip during playback.
• If more than 500 tracks are recorded on a single CD, a maximum of 500 tracks can be played.
• If more than 300 folders are recorded on a single CD, a maximum of 300 folders can be played.
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
What is MP3?
MP3 is short for MPEG-1 Audio Layer 3 and MPEG is an acronym for Moving Pictures Experts
Group. MP3 is a file format with compression ratio of 1:12 (128 Kbps*) That is, you can use MP3
format to record about 12 times the usual amount of data on a regular CD.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.
CD-R JPEG Discs
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect
•
5
your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
6
Description
Play/Pause (
Power (
) button
Stop (
) button
PREPARATION
—Front Panel—
—Rear Panel—
) button
Video Output Connector
Function button
Connect the TV's video input jacks
(VIDEO IN) to the VIDEO OUT connector.
Open/Close button
External Digital Component Input Connector
Use this to connect external equipment capable of digital output.
VIDEO OUT SELECT SWITCH
Use the switch to set video out
SCART JACK
Connect to a TV with scart input jack.
Volume control
Standby indicator
Tuning Up & Skip (
) buttons
Tuning Down & Skip (
) buttons
Disc Tray
5.1 Channel Speaker
Output Terminals External Audio
Component Input
Connector
FM Antenna
Connector
AM Antenna
Connector
DOLBY DIGITAL indicator
LINEAR PCM indicator
DSP indicator
CHAPTER indicator
STEREO indicator
PROGRAM indicator
TUNER indicator
TITLE indicator
Accessories
PBC indicator
E
LOS
N/C
OPE
EZ
R
ME
DIM
DVD
SUB
/EQ
DSP
TUNED
X
AU
W
SLO /ST
MO
E
TITL
EAT
REP
E
LUM
VO
ST
AIN
REM
PRGM
ER
TUN D
BAN
W
VIE L
C/PA
NTS
P
STE
TITLE PBC CHAP
ING
TUN
DSP
II
PL
DE
MO
LINEAR PCM
RETURN
MENU
II
PL
ECT
EFF
INFO
R
P
SLEE
TEST
O
LOG
C
M
ZOO
EST
DIG
PRO LOGIC indicator
ER
TUN ORY
MEM
MPEG indicator
EDIT
DTS Disc indicator
CEL
CAN
DE
E MO
SLID
MPEG
RS
ND
SOU
S
E
TON
kHz
MHz
SW
LS
MUTE
ER
ENT
L
Remote Control
Audio Cable
Video Cable
FM Antenna
User's Manual
System Status Display
RADIO FREQUENCY
indicator
AM Antenna
SPEAKER indicator
7
8
Description
DVD POWER button
DIMMER button
OPEN/CLOSE button
EZ VIEW, NTSC/PAL button
Insert Remote Batteries
1
REMAIN button
OPEN/CLOSE
DIMMER
REMAIN
DVD
TUNER
BAND
AUX
EZ VIEW
NTSC/PAL
SLOW
MO/ST
SUB TITLE
STEP
DSP/EQ
REPEAT
DVD button
STEP button
DSP/EQ button
AUX button
TUNER BAND button
SUB TITLE button
SLOW, MO/ST button
REPEAT button
Play/Pause button
TUNING
PL II
EFFECT
PL II MODE button
INFO
U
MEN
ENTER
3
Replace the battery
cover.
Stop button
Tuning Preset/CD Skip button
MUTE button
Direction/Enter button
TEST TONE
Caution
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
TEST TONE button
SOUND EDIT
Number(0~9) buttons
TUNER
MEMORY
SLEEP
9
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
INFO button
E
UT
M
RE
TU
RN
MENU button
SLIDE MODE button
2
PL II EFFECT button
VOLUME button
TUNING button
SLEEP button
LOGO button
Remove the battery
cover on the back
of the remote by
pressing down and
sliding the cover in
the direction of the
arrow.
VOLUME
PL II
MODE
RETURN button
PREPARATION
—Remote Control—
LOGO
CANCEL
SLIDE MODE DIGEST
SOUND EDIT button
TUNER MEMORY button
Range of Operation of the Remote Control
ZOOM
ZOOM button
CANCEL button
DIGEST button
The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control
sensor.
To open the remote control cover, push the
top of the cover, then slide downward.
10
Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Front Speaker (R)
Front Speaker (L)
C
L
R
LS
Green
Red
White
RS
Purple
Position of the DVD Player
• Place it on a stand or cabinet shelf, or under
the TV stand.
CONNECTIONS
Center Speaker
SW
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Gray
Blue
Subwoofer
Rear Speaker (L)
Rear Speaker (R)
Front Speakers L R
• Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at
the same height as your ear.
• Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
Rear Speakers LS RS
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers to face each other.
• Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.
the front and center speakers, the rear speakers are used
* toUnlike
handle mainly sound effects and sound will not come from
them all the time.
Center Speaker C
• It is best to install it at the same height as the front
•
speakers.
You can also install it directly over or under the TV.
tab on the back of the
speaker.
terminal and release the
terminal tab.
• Insert the black wire into the black
•
Subwoofer
• The position of the subwoofer is not so critical.
SW
Place it anywhere you like.
• Usually, it is placed by a corner near the front speakers.
11
Back of the Speakers
1 Press down the terminal 2 Insert the wire into the
(–) terminal and the gray wire into
the gray (+) terminal.
Make sure the polarities (+ and –)
are correctly.
Black
Back of the Main Unit
3 Connect the connecting jacks to
the back of the DVD player.
• Make sure the colors of the speaker terminals
match the colors of the connecting jacks.
• Make sure the polarities (+ and -) are correctly.
Gray
12
Connecting the FM and AM(MW) Antennas
If AM reception is poor, connect an
outdoor AM antenna(not supplied).
1
2
Connecting the Video to TV
3
CONNECTIONS
If FM reception is poor,
connect an outdoor FM
antenna (not supplied).
AM Loop Antenna
(supplied)
FM Antenna (supplied)
ANTENNA
TV
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.
VIDEO
IN
SCART
IN
Composite Video (Good Quality)
Connect the supplied video cable from the VIDEO OUT jack on the back panel of the
system to the VIDEO IN jack on your television.
Scart (Best Quality)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75Ω
COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you
find a location where reception is good, then
fasten it to a wall or other rigid surface.
• If reception is poor, connect an outdoor antenna.
Before attaching a 75Ω coaxial cable (with a standard
type connector), disconnect the supplied FM antenna.
Cooling Fan
AM(MW) antenna connection
1. Connect the AM loop antenna supplied
to the AM and
terminals.
2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).
The cooling fan dissipates the heat generated inside the unit so that the unit can be operated
normally.The cooling fan is activated automatically to supply cool air to the unit.
If you television is equipped with an SCART input, connect an Scart Jack (not supplied)
from the AV OUT jack on the back panel of the system to the SCART IN jack on your
television.
For using the SCART cable
• If Scart is equipped for your TV, set RGB-COMPOSITE selector
of the center unit to RGB. You can get a better picture quality by
using Scart setting.
• If Scart (RGB Input) is not equipped for your TV, set RGBCOMPOSITE selector to COMPOSITE.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise
13
and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)
Note
RGB
COMPOSITE
RGB
COMPOSITE
• On the rear panel SCART cable is indicated as “AV OUT.”
14
Connecting External Components
Connecting an External Analog Component
Example: Digital signal components such as a DVD or CD Recorder.
Example: Analog signal components such as a VCR, Camcorder, and TV.
CONNECTIONS
Connecting an External Digital Component
Audio Cable
Optical Cable
(not included)
If the external
analog component
has only one Audio
Out, connect either
left or right.
DIGITAL OUT
L
R
1
Connect the Digital Input (OPTICAL) to the Digital Output on the external
digital component.
1
Connect Audio In on the DVD player to Audio Out on the external analog component.
2
Press AUX on the remote control to select ‘DIGITAL IN’.
2
Press AUX on the remote control to select AUX.
• Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX ➝ FM ➝ AM(MW) ➝ LW(UK Only).
15
• Be sure to match connector colors.
• Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX ➝ FM ➝ AM(MW) ➝ LW(UK Only).
16
Disc Playback
Displaying Disc Information
You can view playback information on the disc on the TV screen.
1
3
Press OPEN/CLOSE button to
open the disc tray.
2
•
Load a disc.
Press INFO button.
Place a disc gently into the tray with the
disc’s label facing up.
• Each time the button is pressed, the display changes as follows:
Press OPEN/CLOSE button
to close the disc tray.
DVD
• Playback starts automatically.
CD will appear on the TV screen.
DVD RECEIVER
•
stop position will be stored in memory. If PLAY/PAUSE
(
) button or ENTER button is pressed, playback
resumes from the stop position. (This function works
only with DVDs.)
If pressed twice, “STOP” is displayed, and if
PLAY/PAUSE (
) button is pressed, playback
starts from the beginning.
Display disappears
To temporarily pause playback,
press PLAY/PAUSE during playback.
SMART NAVI
Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl
• To resume playback, press PLAY/PAUSE
Display disappears
button again.
Note
• What is a Title?
• Depending on the content of the disc, the initial screen may appear different.
• Depending on the recording mode, some MP3-CDs cannot be played.
• Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.
A movie contained in a DVD disc.
• What is a Chapter?
Each title on a DVD disc is divided into several smaller sections
called "chapters".
Note
• Depending on the disc, the disc information
•
Checking the Remaining Time
display may appear different.
Depending on the disc, you can also select
DTS, DOLBY DIGITAL, or PRO LOGIC.
Press the REMAIN button.
•
appears on the TV screen!
If this symbol appears on the TV screen while buttons are being
operated, that operation is not possible with the disc currently being
played.
• What is a Track (File)?
A section of video or a music file recorded on a CD, or MP3-CD.
• For checking the total and remaining time of a title or chapter being played.
Screen Display
Each time the REMAIN button is pressed
DVD display
CHAPTER display
AUDIO LANGUAGE display
STEREO (L/R) display
TRACK REMAIN
CD display
TRACK (FILE) display
SUBTITLE display
DOLBY DIGITAL display
CHAPTER ELAPSED
TOTAL ELAPSED
MP3 CD display
ELAPSED TIME display
ANGLE display
CHAPTER REMAIN
TOTAL REMAIN
TITLE display
REPEAT PLAYBACK display
TITLE ELAPSED
TRACK ELAPSED
TITLE REMAIN
DVD
17
SMART NAVI
Something like you
Back for good
Love of my life
More than words
OPERATION
• Playback starts automatically.
• If the TV is on, a list of MP3s on the
JPEG
• If pressed once, “PRESS PLAY” is displayed and the
JPEG
DVD RECEIVER
MP3
To stop playback,
press STOP during playback.
CD
MP3
DVD
CD
18
Fast/Slow Playback
Fast Playback
Press and hold
DVD
CD
.
• Each time the button is held down during playback,
the playback speed changes as follows:
MP3
Skipping Scenes/Songs
DVD
CD
MP3
Briefly press
•
•
.
Each time the button is pressed briefly during playback, the previous or
next chapter, track, or directory (file) will be played.
But, you cannot skip chapters consecutively.
DVD
MP3
TITLE 01/05 CHAPTER 002/040
DVD RECEIVER
SMART NAVI
DVD RECEIVER
OPERATION
Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl
SMART NAVI
Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl
Slow Playback
TITLE 01/05 CHAPTER 004/040
Press SLOW button.
DVD RECEIVER
SMART NAVI
Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl
• Each time the button is pressed during playback,
the playback speed changes as follows:
DVD
Playing Frame by Frame
DVD
Press STEP button.
• The picture moves forward one frame each time the
button is pressed during playback.
Note
• During fast playback of a CD or MP3-CD, sound is heard only at 2x speed,
19
and not at 4x, 8x, and 32x speeds.
• No sound is heard during slow playback and step motion playback.
20
Repeat Playback
A-B Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
DVD
CD
MP3
JPEG
DVD
Press REPEAT button.
1
• Each time the button is pressed during playback, the repeat playback mode changes as follows:
DVD
MP3
JPEG
Repeat Playback Options
CD
Press INFO button
twice.
2
Press Cursor button
to move to REPEAT
PLAYBACK display.
4
Press ENTER
button at the end
of the desired
segment.
• For a CD, press INFO button
once.
CHAPTER
Repeatedly plays the selected chapter.
RANDOM
Plays tracks in random order.
(A track that has already been played may
be played again.)
TRACK
Repeatedly plays the selected track.
CD
FOLDER
Repeatedly plays all tracks in the selected
folder.
3
Press Cursor , buttons
to select ‘A-’ and then press
ENTER button at the beginning
of the desired segment.
• When ENTER button is pressed,
the selected position will be stored
in memory.
• The specified segment will be
played repeatedly.
A-
DISC
Repeatedly plays the entire disc.
A-B
REPEAT : A—B
OFF
Cancels Repeat Playback.
A -?
REPEAT : A—
To Select a Repeat Playback Mode in the Disc Information Screen
1
2
Press INFO button twice.
3
Press Cursor button to select the desired
Repeat Playback mode.
4
DVD
To return to normal playback, press Cursor
buttons to select
OFF.
,
Press Cursor button to move to REPEAT
PLAYBACK display.
Press ENTER button.
CD
Note
• The A-B Repeat function will not work on an MP3 or JPEG disc.
MP3 and JPEG discs, you cannot select Repeat
* For
Play from the information display screen.
21
22
OPERATION
TITLE
Repeatedly plays the selected title.
Angle Function
Zoom Function
This function allows you to view the same scene in different angles.
This function allows you to enlarge a particular area of the displayed image.
DVD
1
Zoom (Screen Enlarge) Function
Press INFO button.
2
Press Cursor
button to move to
ANGLE display.
1
Press ZOOM
button.
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
DVD
3
Press ENTER
button.
• Each time the button is pressed, the
1/3
zoom level changes as follows:
1/3
SELECT ZOOM POSITION
OPERATION
3
Press Cursor , buttons or numeric
buttons to select the desired angle.
Aspect Ratio
DVD
• Each time the button is pressed, the angle changes as follows:
1/3
2/3
Press EZ VIEW button.
3/3
• Each time the button is pressed, the zoom function will switch between On
and Off.
• When a movie is played in Widescreen format, black bars at the top and
bottom of the TV screen can be removed by pressing the EZ VIEW button.
EZ VIEW
Note
EZ VIEW OFF
• The Angle function works only with discs on which multiple
angles have been recorded.
Note
• This function will not work if the DVD is recorded with multi-camera angle format.
• Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
23
24
Moving Directly to a Scene/Song
Selecting Audio/Subtitle Language
Audio Language Selection Function
1
Press INFO button
twice.
2
DVD
DVD
Press Cursor ,
buttons or numeric
buttons to select the
desired audio language.
1
CD
Moving to a Title/Track
Press INFO button.
2
Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.
Moving to a Chapter
3
Press Cursor ,
buttons to move to
Chapter display.
• Depending on the number of languages on a
01/05
001/040
0:00:37
1/1
03/05
001/002
0:00:01
01/05
1/1
001/040
0:00:01
1/1
EN 2/3
JA 3/3
Moving to a Chapter
Subtitle Language Selection Function
1
Press INFO button
twice.
2
DVD
4
Press Cursor
button to move to
SUBTITLE display.
Press Cursor ,
buttons or numeric buttons
to select the desired
chapter and then press
ENTER button.
01/05
3
MP3
Press Cursor
button or numeric
buttons to select
the desired subtitle.
KO 1/3
KO 01/ 03
1/1
Note
• You can use the SUBTITLE button
•
on the remote control to select a
subtitle language.
Depending on the disc, the Subtitle
and Audio Language functions may
not work.
Press Cursor ,
buttons to move to
time display.
01/05
025/040
1:17:30
Moving to a Specific Time
6
1/1
Press the numeric
buttons to select the
desired time and then
press ENTER button.
01/05
028/040
1:30:00
1/1
JPEG
OFF
JA 03/ 03
25
0:00:01
5
Press the numeric
buttons.
EN 02/ 03
OFF / 03
025/040
Moving to a Specific Time
OPERATION
DVD disc, a different audio language (KOREAN,
ENGLISH, JAPANESE, etc.) is selected each
time the button is pressed.
• The selected file will be played.
• An MP3 or JPEG disc cannot be moved
Note
• You can press
•
on the
remote control to move directly to the
desired title, chapter, or track.
Depending on the disc, you may not
be able to move to the selected title
or time.
from the disc information screen.
• When playing an MP3 or JPG disc, you
cannot use
,
to move a folder.
To move a folder, press (Stop) and
then press
, .
26
JPEG File Playback
JPEG
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored
on a CD and then played back with this DVD player.
Slide Mode
Digest Function
You can view 9 JPEG images on the TV screen.
1
1
Place the JPEG disc on the disc tray.
Press DIGEST
button during
playback.
2
• JPEG files will be shown in
• The selected image is played for 5 seconds before moving to
9 windows.
Press the OPEN/CLOSE button.
• Playback starts automatically.
• Each image is shown for 5 seconds before another image is displayed.
3
the next image.
OPERATION
2
Press Cursor , , , buttons
to select the desired image and
then press ENTER button.
To view the previous or next image with 9 windows, press
.
Press SLIDE MODE button.
• Playback starts automatically.
• Each time the button is pressed, the image makes the transition as follows:
Rotate/Flip Function
From top to bottom
Press Cursor
,
,
,
buttons during playback.
From bottom to top
Rectangular shape in the center
button: Flip Vertically
Vertical curtain shape
Each time a new image is displayed, slide modes
(1~11) will be randomly and automatically be applied.
button: Rotate 90°
Counterclockwise
button: Rotate 90° Clockwise
Original Image
Cancels the slide mode.
button: Flip Horizontally
27
Press
to skip to the next slide.
• Each time the button is pressed, the slide moves backward or forward.
28
Using Disc Menu
Using the Title Menu
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, this function may either not work at all or may work differently.
DVD
1
Press MENU
button.
DVD
2
Press Cursor ,
buttons to move to
‘DISC MENU’ and then
press ENTER button.
• When you select the disc menu that is not
supported by the disc, the "This menu is not
supported" message appears on the screen.
1
Press MENU
button.
2
Press Cursor ,
button to move to
‘Title Menu’.
3
Press ENTER
button.
• The title menu appears.
OPERATION
3
29
Press Cursor ,
, buttons to
select the desired
item.
4
Press ENTER
button.
Press MENU button to exit the setup screen.
30
Setting the Language
OSD language is set to English by default.
1
Press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
3
Press ENTER
button.
4
Press Cursor ,
button to select the
desired item and then
press ENTER button.
5
Press Cursor ,
button to select the
desired language and then
press ENTER button.
• Once the setup is complete, if the language was
set to English, OSD will be displayed in English.
SETUP
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
Selecting the
OSD Language
Selecting the
Audio Language
(recorded on the disc)
Selecting the
Subtitle Language
(recorded on the disc)
Selecting the Menu Language
(recorded on the disc)
language you selected is
* Ifnottherecorded
on the disc, menu
language will not change even
if you set it to your desired
language.
31
32
Setting TV Screen type
1
Press MENU button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen size, you should adjust the aspect ratio to fit your TV or monitor.
✱ For a standard TV, select either "4:3LB" or "4:3PS" option according to
personal preference. Select "16:9" if you have a widescreen TV.
WIDE
: Select this to view a 16:9 picture in the full-screen
mode on your widescreen TV.
• You can enjoy the widescreen aspect.
4:3LB
3
4
Press Cursor ,
button to select the
desired item and then
press ENTER button.
• Once the setup is complete, you will
: Select this to play a 16:9 picture in the letter box
mode on a conventional TV.
• Black bars will appear at the top and bottom of the screen.
4:3PS
(4:3 Pan&Scan)
: Select this to play a 16:9 picture in the pan & scan
mode on a conventional TV.
SETUP
Press Cursor
button to move to ‘TV
DISPLAY’ and then
press ENTER button.
(4:3 Letterbox)
• You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).
be taken to the previous screen.
Note
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on
the software, the type of TV, and the TV aspect ratio setting.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
33
34
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1
Press MENU button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
3
Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.
4
Press Cursor , button
to select the desired rating
level and then press
ENTER button.
• If you have selected Level 6, you
•
cannot view DVDs with Level 7 or
higher.
The higher the level, the closer the
content is to violent or adult material.
5
Enter the password
and then press
ENTER button.
• The password is set to "7890" by default.
• Once the setup is complete, you will be
taken to the previous screen.
SETUP
Note
• This function works only if a DVD disc contains the rating level information.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
35
36
Setting the Password
You can set the password for the Parental (rating level) setting.
1
Press MENU button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
3
Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.
4
Press ENTER
button.
5
Enter the password
and then press
ENTER button.
• Enter the old password, a new
password, and confirm new password.
• The setting is complete.
SETUP
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
37
38
Setting the Wallpaper
JPEG
DVD
While watching a DVD or JPEG CD, you can set the image you like as a wallpaper.
Setting the Wallpaper
1
During playback, press
PLAY/PAUSE button
when the image you
like comes up.
2
To Change the Wallpaper
Press LOGO
button.
1
Press MENU
button.
4
Press to select
the desired ‘USER’,
and then press
ENTER.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
5
Press MENU
button to exit the
setup screen.
3
Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.
• “LOGO COPY DATA” will be
displayed on the TV screen.
LOGO COPY DATA
PAUSE
• The selected wallpaper will be
displayed.
4
Press OPEN/
CLOSE to close
the disc tray.
SETUP
3
The power will turn off
and then back on and
the disc tray will open
automatically.
• You can repeat Steps 1 and 2 to
set up to 3 wallpapers.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
Select this to set the
Samsung Logo image as
your wallpaper.
39
Select this to set the desired
image as your wallpaper.
40
Setting the Speaker Mode
1
Press MENU button.
Setting the Test Tone
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
2
1
Press MENU button.
2
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
3
Press Cursor button
to move to ‘TEST
TONE’ and then press
ENTER button.
• The test tone will be sent to L ➝ C ➝
R ➝ RS ➝ LS ➝ SW in that order.
If the button is pressed again at this
time, the test tone will stop.
3
In the Speaker
Setup, press the
ENTER button again.
4
Press RETURN button to return to the previous level.
• For C, LS, and RS, each time the button
•
is pressed, the mode switches
alternately as follows: SMALL ➝ NONE.
For L and R, the mode is set to SMALL.
SMALL : Select this when using the speakers.
NONE : Select this when no speakers are installed.
Press MENU button to exit the setup screen.
When manually testing using the TEST TONE button
Press TEST TONE button.
Note
• With
L: Front Speaker (L)
R: Front Speaker (R)
C: Center Speaker
LS: Rear Speaker (L)
SW: Subwoofer
RS: Rear Speaker (R)
Multi-Channel Pro Logic Mode
• Test tone will be produced as follows:
(Dolby Pro Logic II), the delay time may be different for each
mode.
41
SETUP
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
• With AC-3 and DTS, the delay time is set between 00 and 15mSEC.
• Depending on PRO LOGIC and STEREO, the speaker mode may vary.
•
When playing a DVD or CD, this will work
only in Stop mode.
Use this function to check that each speaker is
correctly connected and that there is no problem.
To end the test tone,
press TEST TONE button.
Start
42
Setting the Delay Time
1
Press MENU button.
2
Press Cursor button
to move to ‘Audio’ and
then press ENTER
button.
3
Press Cursor button
to move to ‘DELAY
TIME’ and then press
ENTER button.
4
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
5
Press Cursor ,
to set the Delay
time.
• You can set the delay time for C
between 00 and 05mSEC and for
LS and RS between 00 and
15mSEC.
SETUP
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center Speaker and Surround Speakers.
• Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than
the distance of Df in the figure, set the mode as
0ms. Otherwise, change the setting according to
the table.
Distance between Df and Dc
50
100
150
200
Ideal CENTER
SPEAKER placement
Delay Time
1.3 ms
2.6 ms
3.9 ms
5.3 ms
• Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms. Otherwise,
change the setting according to the table.
Ideal
SURROUND
SPEAKER
placement
It is desirable to place all speakers within this circle.
Distance between Ds and Dc
43
200
400
600
Delay Time
5.3 ms
10.6 ms
15.9 ms
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
44
Setting the Audio Quality
You can adjust the balance and level for each speaker.
Method 1
1
When adjusting the audio quality using the setup screen
Press MENU button.
2
Press Cursor
button to move to
‘Audio’ and then press
ENTER button.
When manually adjusting with the SOUND EDIT button
Method 2
Adjusting Front Speaker Balance
1
TITLE
Press SOUND
EDIT button and
then press Cursor
, .
CHAP PRGM RDS RT
ST
TUNED
Adjusting Rear Speaker Balance
Adjusting Center Speaker Level
Press SOUND
EDIT button and
then press Cursor
, .
Press SOUND
EDIT button and
then press Cursor
, .
2
TITLE
CHAP PRGM RDS RT
ST
kHz
MHz
4
Press Cursor , ,
, buttons to select
the desired item and then
press ENTER button.
Adjusting Rear Speaker Level
4
TITLE
Press SOUND
EDIT button and
then press Cursor
, .
CHAP PRGM RDS RT
ST
TUNED
TITLE
kHz
MHz
CHAP PRGM RDS RT
ST
TUNED
kHz
MHz
Adjusting Subwoofer Speaker Level
5
TITLE
SETUP
3
Press Cursor button
to move to ‘SOUND
EDIT’ and then press
ENTER button.
TUNED
3
Press SOUND
EDIT button and
then press Cursor
, .
CHAP PRGM RDS RT
kHz
MHz
ST
TUNED
kHz
MHz
Note
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
45
Adjusting Front/Rear Speaker Balance
• You can select between 00 and –06 and OFF.
• The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
• The volume level can be adjusted in steps from +6dB to –6dB.
• The sound gets louder as you move closer to +6dB and smaller as you get closer to -6dB.
46
Setting the DRC (Dynamic Range Compression)
Sound Field (DSP)/EQ Function
DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments.
EQ: You can select from ROCK, POP, or CLASSIC, depending on the genre of music.
You can use this function to enjoy Dolby Digital sound when watching movies at
low volume at night.
1
Press MENU button.
2
Press Cursor button to
move to ‘Audio’ and then
press ENTER button.
Press DSP/EQ button.
• "DSP" appears on the display panel.
• Each time the button is pressed, the selection changes as follows:
4
Press Cursor ,
adjust the ‘DRC’.
to
SETUP
3
Press Cursor button to
move to ‘DRC’ and then
press ENTER button.
• The longer the Cursor
•
button is held down, the greater the
effect, and the longer Cursor button is held down, the
smaller the effect.
Once the setup is complete, you will be taken to the previous
screen.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
47
Note
POP, JAZZ, ROCK: Depending on the genre of music, you can select from POP, JAZZ, and ROCK.
STUDIO : Provides a sense of presence as if in a studio.
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
HALL : Provides a clear vocal as if listening in a concert hall.
MOVIE: Provides the feeling of a movie theater.
CHURCH: Gives the feel of being in a grand church.
PASS: Select this for normal listening.
48
Dolby Pro Logic II Mode
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic MUSIC mode.
You can select the desired Dolby Pro Logic II audio mode.
Press
PL II MODE button.
• Each time the button is pressed, the mode changes as follows.
Press
PL II MODE
button to select ‘MUSIC’
mode.
1
Press
PL II EFFECT button
and then press Cursor ,
buttons to select the mode.
2
• You can select either 0 or 1.
LINEAR PCM
L
C
DSP TITLE PBC CHAP PRGM RDS RT
TA
ST
TUNED
R
kHz
MHz
RS MPEG-2 AAC MPEG
Press
PL II EFFECT button
and then press Cursor ,
buttons to select the mode.
3
LINEAR PCM
C
LS
Note
• When selecting Pro Logic II mode, connect your external device to the
AUDIO INPUT jacks (L and R) on the player. If you connect to only one of
the inputs (L or R), you cannot listen to 5.1 channel surround sound.
DSP TITLE PBC CHAP PRGM RDS RT
TA
RS
ST
TA
ST
CMX
TUNED
kHz
MHz
Press
PL II EFFECT button
and then press Cursor ,
buttons to select the mode.
4
TUNED
LINEAR PCM
L
CMX
MPEG-2 AAC MPEG
Note
DSP TITLE PBC CHAP PRGM RDS RT
R
RS MPEG-2 AAC MPEG
• You can select between 0 and 6.
R
SW
C
SW
LS
kHz
MHz
C
LS
DSP TITLE PBC CHAP PRGM RDS RT
TA
ST
TUNED
R
SW
RS
CMX
MPEG-2 AAC MPEG
kHz
MHz
• When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and
(Dolby Pro Logic II) button does not work.
PRO LOGIC II
• MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
• CINEMA: Adds realism to the movie soundtrack.
• PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left
and right speakers.
• MATRIX: You will hear 5.1 channel surround sound.
STEREO: Select this to listen to sounds from the front left and right speakers and the subwoofer only.
49
• PANORAMA: This mode extends the front stereo image to include the surround speakers for
an exciting "wraparound" effect with side wall imaging.
• CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakers
produce phantom sound.
• DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.
50
SETUP
• You can select between 0 and 7.
L
LINEAR PCM
L
CMX
SW
LS
Listening to Radio
Presetting Stations
You can store up to:
You can listen to the chosen band (FM, MW, LW(UK Only) broadcast stations)
by using either the automatic or manual tuning operation.
Remote Control Unit
1
• The selection toggles back
and forth between "FM ➝ MW
➝ LW(UK Only)" each time
the TUNER(BAND) button is
pressed.
Frequency Modulation
Medium Wave
Long Wave
Example: Presetting FM 89.1 in the memory
2
Press TUNER/
BAND button.
• FM
• AM(MW)
• LW
15 FM stations
8 MW stations
7 LW stations(UK Only)
Tune in to the
desired station.
Automatic Tuning 1
Automatic Tuning 2
When
is pressed, a
preset broadcast station is
selected.
Press and hold
to
automatically search for
active broadcasting stations.
1
Press the
TUNER(BAND)
button and select
the FM band.
• Each time the button is pressed,
the band switches between
"FM ➝ MW ➝ LW(UK Only)".
TITLE
CHAP PRGM RDS RT
ST
TUNED
2
• Refer to Step 2 on page 51 to
Press the TUNER
MEMORY button.
• “PRGM” flashes in the display.
automatically or manually tune in
to a station.
TITLE
CHAP PRGM RDS RT
ST
TITLE
TUNED
kHz
MHz
Manual Tuning
3
Press
to
select "89.10".
RDS RT
ST
TUNED
kHz
MHz
kHz
MHz
Briefly press
to
increase or decrease the
frequency incrementally.
Main Unit
1
Press the Function
button to select the
desired band (FM,
MW, LW(UK Only)).
2
Select a broadcast
station.
the STOP ( ) button
Automatic Tuning 2 Press
to select "MANUAL" and
then press and hold
button to
automatically search the band.
• You can select between 1 and
5
6
Press the TUNER
MEMORY button.
To preset another
station, repeat
steps 2 to 5.
• Press the TUNER MEMORY button before
RADIO OPERATION
Press the STOP ( )
button to select
PRESET and then press
button to select the preset station.
Automatic Tuning 1
4
Press
to select preset
number.
‘PRGM’ disappears from the display.
15.
• ‘PRGM’ disappears from the display and
the station is stored in memory.
TITLE
RDS RT
ST
TUNED
TITLE
CHAP
RDS RT
kHz
MHz
ST
TUNED
kHz
MHz
STOP ( ) to select
Manual Tuning Press
MANUAL and then briefly
press
to tune in to a lower or
higher frequency.
Press MO/ST button to listen in Mono/Stereo.
(This applies only when listening to an FM station.)
51
• Each time the button is pressed, the sound switches between "STEREO" and "MONO".
• In a poor reception area, select MONO for a clear, interference-free broadcast.
To tune in to a preset station, press
remote control to select a channel.
on the
52
Convenient Functions
Sleep Timer Function
Adjusting Display Brightness
You can set the time that the DVD player will shut itself off.
You can adjust the brightness of the display on the
main unit so it won't interfere with your movie viewing.
Press SLEEP button.
Press DIMMER button.
• "SLEEP" will be displayed. Each time the button is pressed
the preset time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝
90 ➝ 120 ➝ 150 ➝ OFF.
TITLE
CHAP PRGM RDS RT
ST
• Each time the button is press, the brightness changes as
follows: SLIGHTLY DARK ➞ DARK ➞ BRIGHT.
TUNED
kHz
MHz
Mute Function
This is useful when answering a doorbell or
telephone call.
To confirm the sleep timer setting, press SLEEP button.
•The remaining time before the DVD player will shut itself off is displayed.
•Pressing the button again changes the sleep time from what you have set
earlier.
• ‘MUTE’ flash in the display.
• To switch the sound back on (at the same volume as
MISCELLANEOUS
To cancel the sleep timer, press SLEEP button until
OFF appears on the display.
Press MUTE button.
before), press MUTE again or the VOLUME buttons.
TITLE
CHAP PRGM RDS RT
ST
TUNED
kHz
MHz
53
54
Before Calling for Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not
listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact
the nearest authorized dealer or Samsung Electronics Service Center.
Symptom
Disc tray does not open.
Playback does not start.
Check/Remedy
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
• Make sure that the rating level is correct.
Playback does not start
• Are you using a deformed disc or a disc with scratches on
the surface?
immediately when the
• Wipe the disc clean.
Play/Pause button is pressed.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and step
motion playback.
• Are the speakers connected properly? Is the speaker setup
•
Sound can be heard only
from a few speakers and
not all six.
correctly customized?
Is the disc severely damaged?
• When listening to a CD or radio, sound is output to the front
•
•
speakers (L/R) only. Select "PRO LOGIC II" by pressing
(Dolby Pro Logic II) on the remote control to use all six speakers.
Make sure that the DVD disc is 5.1-CH compatible.
If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.
Dolby Digital 5.1 CH
Surround Sound is not
produced.
55
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1
•
CH Surround Sound is produced only if the disc is recorded with
5.1 channel sound.
Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
Check/Remedy
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
The remote control does not • Is the remote control being operated within its operation range of
angle and distance?
work.
• Are the batteries exhausted?
Audio language and
subtitles do not work.
• Audio language and subtitles will not work for DVDs not containing
Menu screen does not appear even
when the menu function is selected.
• Are you using a disc that does not contain menus?
them. And depending on the disc, they may work differently.
Aspect ratio cannot be
changed.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
Can't receive radio
broadcast.
• The main unit is not working.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
(Example: The power goes out or
strange noise is heard.)
• The DVD player is not
working normally.
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.
antenna in an area with good reception.
• Turn off the power and hold the
button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While “NO DISC” message appears on the display of main unit, hold
The password for rating
level has been forgotten.
the main unit's
button for longer than 5 seconds. “INITIAL”
appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
56
MISCELLANEOUS
Picture does not appear, sound • Was the DVD player suddenly moved from a cold place to a warm
When condensation forms inside the player, remove the disc
is not produced, or the disc tray one?
and let the player stand for 1 or 2 hours with the power on. (You
opens 2 to 5 seconds later.
can use the player again after condensation disappears.)
Symptom
Specifications
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause breaks in
playback. Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Keep in a cool
ventilated area
Do not keep in
direct sunlight
Caution
Keep in a clean
Protection jacket.
Store vertically.
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked discs or discs that are scratched.
Power Consumption
110W
Weight
6.3Kg
Dimensions (W x H x D)
360 x 65 x 408 mm
Operating Temperature Range
+5°C~+35°C
Operating Humidity Range
10%~75%
Usable Sensitivity
10dB
S/N Ratio
60dB
Distortion
0.5%
T Usable Sensitivity
AM U
S/N Ratio
(WM) N
E
R Distortion
54dB
G
E
N
E
R
A
L
T
F U
N
M E
R
V
I
D
E
O
A
M
P
L
I
F
I
E
R
Handling and Storing Discs
• When cleaning, wipe gently from the inside to the outside of the disc.
Note
• Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.
57
Composite Video
2%
1.0Vp-p(75Ω load)
Compositive Video : 1.0Vp-p(75Ω load)
Scart Jack
Luminance signal : 1.0Vp-p(75Ω load)
Color Signal : 0.286Vp-p(75Ω load)
Front speaker output
40W(6Ω)/CH
Center speaker output
40W(6Ω)
Rear speaker output
40W(6Ω)/CH
Subwoofer speaker output
50W(3Ω)
Frequency range
20Hz~20KHz
S/N Ratio
75dB
Channel separation
50dB
Input sensitivity
(AUX)500mV
5.1ch speaker system
Speaker system
S
P
E
A
K
E
R
Front/Center/Rear speaker
Subwoofer speaker
Impedance
6Ω x 5
3Ω
Frequency range
150Hz~20KHz
30Hz~150Hz
Output sound pressure level
82dB/W/M
85dB/W/M
Rated input
40W
50W
Maximum input
80W
100W
Dimensions (W x H x D)
77 x 132 x 87 mm
180 x 320 x 410 mm
Weights
0.3 Kg
6.1 Kg
58
MISCELLANEOUS
When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.
O
U
T
P
U
T
40dB
Notes on Terminology
ANGLE
CHAPTER
NUMBER
Recorded onto some DVD discs are scenes which have been simultaneously shot
from a number of different angles (the same scene is shot from the front, from the
left , from the right , etc.).
With such discs, the Angle button can be used to change the angle of view for
specific scenes.
These numbers are recorded on DVD discs. A Title is subdivided into many
sections, each of which is numbered, and specific parts of the video can be
searched quickly using these numbers.
DVD
A high-density optical disc on which high-quality pictures and sound have been
recorded by means of digital signals. Incorporating a new video compression
technology (MPEG-2) and high-density recording technology, a DVD disc
comprises two 0.6 mm thick discs bonded together.
PCM
An acronym for Pulse Code Modulation - another name for digital audio.
REGION NUMBER
Both the DVD player and DVD discs are encoded with a region number.
If the region number on the DVD disc does not correspond to the region number
of the DVD player, the player cannot play the disc.
SUBTITLES
Translated appearing at the bottom of the screen. A DVD disc can contain up to
32 subtitle languages.
TITLE NUMBER
These numbers are recorded on DVD discs. When a disc contains two or more
movies, these movies are numbered as Title 1, Title 2, etc.
TRACK NUMBER
Memo
These numbers are assigned to the tracks which are recorded on video and
audio CDs. They enable specific tracks to be located quickly.
You can enjoy 5.1 (or 6) channels of high fidelity digital sound from various
digital input sources such as DVD, CD etc.
DTS provides a realistic, clear surround sound that has not previously been
available from conventional surround sound.
MISCELLANEOUS
5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs
recorded as a digital signals (with
disc marking). With better sound quality,
dynamic range, and directionality than traditional Dolby surround technology, you
can enjoy dynamic, realistic sound.
A 4 channel analog sound reproduced from a program source such as a
videotape or LD with the
mark. You can enjoy a more realistic, robust
sound unavailable from regular stereo sources.
59
60
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
