TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 2

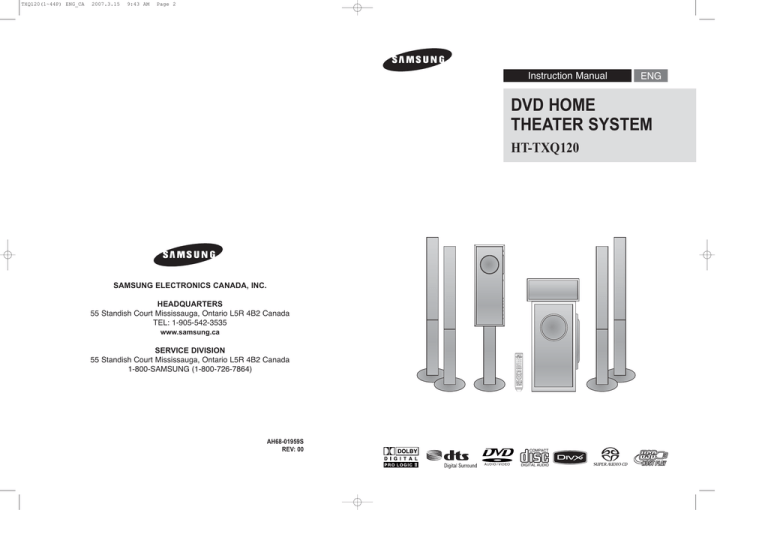

Instruction Manual
ENG
DVD HOME
THEATER SYSTEM
HT-TXQ120
SAMSUNG ELECTRONICS CANADA, INC.
HEADQUARTERS
55 Standish Court Mississauga, Ontario L5R 4B2 Canada
TEL: 1-905-542-3535
www.samsung.ca
SERVICE DIVISION
55 Standish Court Mississauga, Ontario L5R 4B2 Canada
1-800-SAMSUNG (1-800-726-7864)
AH68-01959S
REV: 00
COMPACT
DIGITAL AUDIO
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 2
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
ENG
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player or subwoofer.
Install your player or subwoofer horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches).
Make sure the ventilation slots are not covered. Do not stack anything on top of the player or subwoofer. Do not place the player or
subwoofer on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc insert hole is empty.
This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply.
In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused
for a long period of time.
PREPARATION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER (or BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Precautions
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
Note to CATV system installer
This reminder is provided to call the CATV system installer’s attention to Section 820~40 of the NEC which
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of cable entry as practical.
WARNING
During thunderstorms, disconnect the AC main plug from
the wall outlet.
Voltage peaks due to lightning could damage the unit.
The Mains plug is used as a disconnect device and shall
stay readily operable at any time.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
Phones
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
2
The batteries used with this product contain chemicals that are
harmful to the environment.
Do not dispose of batteries in the general household trash.
3
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 4
Features
Multi-Disc Playback & FM Tuner
Contents
SETUP
Safety Warnings ............................................................2
Settings........................................................................44
Precautions....................................................................3
Setting the Language................................................44
Features.........................................................................4
Setting TV Screen type.............................................45
Notes on Discs ..............................................................6
Setting Parental Controls (Rating Level) ..................46
Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this
player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
Description.....................................................................8
Setting the Password................................................46
USB Host Play
CONNECTIONS
You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera, or USB memory
by connecting the storage device to the USB port of the home theater.
Speaker Installation .....................................................12
DVD-Audio compatible
SACD Play
You can listen to high quality multi-channel sound that exceeds regular CD playback.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro
Logic.
Setting the Wallpaper ...............................................47
Installing the DVD player.............................................13
Connecting the Speakers ............................................14
Connecting the Optional Wireless Receiving Amplifier ....17
Connecting the Video Out to TV..................................19
Connecting the HDMI IN/OUT.....................................20
HDMI Function.............................................................21
Connecting Audio from External Components ............22
Connecting the FM Antenna........................................23
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel
sound.
TV Screen Saver Function
The HT-TXQ120 automatically brightens and darkens your TV screen after 3 minutes in the stop mode.
The HT-TXQ120 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.
Power Saving Function
The HT-TXQ120 automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-TXQ120 allows you to select your favorite image during JPEG or DVD playback and set it as your
background wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
The 1080p resolution provides even clearer pictures.
To Select One of the 3 Wallpaper Settings
you've made..............................................................47
PREPARATION
PREPARATION
The HT-TXQ120 combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO,
SACD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD R/RW, with a sophisticated FM tuner, all in a single player.
4
ENG
DVD Playback Mode.................................................48
DivX (R) registration .................................................48
SACD Playback Mode ..............................................49
Setting the Speaker Mode ........................................49
Setting the Delay Time .............................................50
Setting the Test Tone ................................................51
Setting the Audio.......................................................52
Setting the DRC (Dynamic Range Compression) ....53
Setting the AV SYNC ................................................53
Dolby Pro Logic II Mode ..............................................54
OPERATION
Before Reading the User's Manual .............................24
Before Using Your Home Theater ...............................25
Disc Playback ..............................................................26
SACD (Super Audio CD) Playback..............................27
MP3/WMA-CD Playback .............................................28
JPEG File Playback.....................................................29
DivX Playback .............................................................30
Using the Playback Function.......................................32
Displaying Disc Information ......................................32
Checking the Remaining Time..................................33
Fast Playback ...........................................................33
Slow Playback ..........................................................33
Skipping Scenes/Songs............................................34
Repeat Playback.......................................................35
To Select a Repeat Playback Mode in the Disc
Information Screen ...................................................35
A-B Repeat Playback................................................36
Step Function............................................................36
Angle Function..........................................................37
Zoom (Screen Enlarge) Function .............................37
EZ VIEW Function ....................................................38
Bonus Group.............................................................38
Navigating Pages......................................................38
Audio Language Selection Function.........................39
Subtitle Language Selection Function ......................39
Moving Directly to a Scene/Song .............................40
Using the Disc Menu ................................................41
Using the Title Menu.................................................41
Playing Media Files using the USB HOST feature......42
Dolby Pro Logic II Effect..............................................55
MISCELLANEOUS
Auto Sound Calibration Setup .....................................56
Live Surround Mode ....................................................58
Listening to Radio........................................................60
Convenient Functions..................................................63
Operating a TV with the Remote Control ....................62
Troubleshooting ...........................................................64
Cautions on Handling and Storing Discs.....................66
Language Code List ....................................................67
USB Host Feature Supported Products ......................68
Specifications...............................................................69
5
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 6
Notes on Discs
ENG
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
1
~ 6
DVD players and the discs are coded by region. These regional codes must match
in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Disc Recording Format
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC)
and the condition of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open,
Playable Discs
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
5 inch
DVD-AUDIO
DVD-VIDEO
Audio + Video
3 1/2 inch
COMPACT
Audio
AUDIO-CD
DIGITAL AUDIO
Divx
Audio + Video
Super Audio CD
Audio
you may not be able to fully play the disc.
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
5 inch
74 min.
3 1/2 inch
20 min.
5 inch
74 min.
3 1/2 inch
20 min.
5 inch
74 min.
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the <mp3> and extensions can be played.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc,
•
•
•
•
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message
appears on the TV screen.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your
•
6
PREPARATION
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
A maximum of 500 tracks can be played per CD.
A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
• Only files with the <jpg> extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc,
the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD R/RW, CD-R/RW DivX Discs
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user
might not play.
• Software updates for incompatible formats are not supported.
(Example: QPEL, GMC, resolution higher than 720 X 480 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".
7
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 8
Description
ENG
Main unit
Subwoofer
PREPARATION
<FRONT>
<FRONT>
<REAR>
<REAR>
1
2
3
4
1
3
6
7
8
9
10
11
2
11
4
5
5
12
13
14
15
16
17
6
7
8
9
10
1 Standby indicator
6 FM 75Ω COAXIAL Jack
9
2 Power on indicator
7 Component Video Output
Connectors
10 TX Card Connection (WIRELESS)
3 Auto Sound Calibration Input
Connector
4 5.1 Channel Speaker Output
Connector
5 Cooling Fan
1 Power (
) button
8 Play/Pause (
2 Disc Insert Hole
3 Eject button
4 Display panel
10 Volume Control buttons
14 HDMI OUT Jack
5 Function button
11 System Connector cable
15 HDMI IN Jack
12 External Digital Optical Input
Connector 2
16 USB Port
7 Stop ( ) button
) button
)
Use this to connect external
equipment capable of digital output.
Use this to connect external
equipment capable of digital output.
8 Video Output Connector
Connect the TV's video input jacks
(VIDEO IN) to the VIDEO OUT
connector.
Accessories
17 Headphone Jack
Remote Control
(AH59-01643Z)
8
11 System Connector
13 External Digital Optical Input
Connector 1
) button
9 Tuning Down & Skip (
button
6 Tuning Up & Skip (
Connect a TV with component video
inputs to these jacks.
External Audio Input Connectors
Video Cable
(AH39-40001V)
Auto Sound Calibration
Microphone
Core (4EA)
(Toroidal Ferrite Core)
(AH59-01183D)
(3301-000144)
Cable Holder (3EA)
(AH61-02393A)
FM Antenna
HDMI Cable
User's Manual
Screw (6EA)
Stand base
STAND
(AH42-00017A)
(AH39-00923A)
(AH68-01959R)
(AH64-01106Q)
(AH97-01906A)
(AH97-01905A)
9
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 10
Description (Con’t)
ENG
Remote Control
2
19
20
3
21
4
5
6
22
23
7
24
25
8
26
9
27
28
29
10
11
12
30
31
32
13
33
14
34
15
16
17
35
36
18
10
37
38
1. TV button
2. DVD RECEIVER button
3. POWER button
4. Number (0~9) buttons
5. REMAIN button
6. STEP button
7. SEARCH buttons
8. VOLUME button
9. MENU button
10. INFO button
11. MOVIE button
12. MUSIC button
13. TUNER MEMORY button
14. ZOOM button
15.
PL II MODE button
16. SLOW, MO/ST button
17.
PL II EFFECT button
18. EZ VIEW button
19.
DVD button
AUX button
TUNER button
USB button
20. EJECT button
21. TV/VIDEO button
22. CANCEL button
23. REPEAT button
24.
PLAY/PAUSE button
STOP button
1
2
3
Remove the battery cover in the direction of the arrow.
Insert two 1.5V AAA batteries, paying attention to the correct polarities
(+ and –).
Replace the battery cover.
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose the batteries to heat or a flame.
PREPARATION
1
Insert Remote Batteries
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a
horizontal angle of up to 30° from the remote control sensor.
Tuning Preset/CD Skip button
25. MUTE button
26. TUNING/CH button
27. RETURN button
28. Cursor/ENTER button
29. AUDIO button
30. SUB TITLE button
31. ASC (Auto Sound Calibration) button
32. SUPER 5.1, V-H/P (Virtual Headphone) button
33. SOUND EDIT button
34. DIMMER button
35. SD(Standard Definition)/HD(High Definition) button
36. LOGO button
37. HDMI AUDIO SELECT button
38. SLEEP
11
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 12
Speaker Installation
Installing the DVD player
STAND
1
How to Install the Speaker and the Stand
1
STAND
BASE
2
1
STAND
4
2
Tighten 4 screws on the bottom side of the stand base.
3
Place the stand on the floor and tighten 2 screws on the
back of the stand.
2
4
Mount the speaker on the stand.
5
Tighten 2 screws on the back of the speaker.
6
This is the successfully assembled speaker.
BACK COVER
4
• Make sure that the speaker is installed on a flat and
stable area. Otherwise it may be easily knocked over.
6
7
Toroidal
System connection
Ferrite Core cable - main unit
Speaker Accessories
9
Loosen 2 screws at the bottom of the back cover.
10
Center Speaker
Detach the back cover by lifting it up.
Secure the main unit by aligning 4 protruding points
on the back of the main unit with the fixing holes
on the stand.
5
6
Tighten 2 screws in the middle of the stand.
7
8
Push the cable into the cable fixing hole in the stand.
Open a Toroidal Ferrite Core by pulling it upward.
Wrap it around of the system connection cable so it
will be next to the DVD Player. Close it back by
pressing it all the way down until you hear a clicking
sound.
To fix the cable, insert the cable holder into the hole
on the stand.
9
Let the cable run through the hole at the bottom
of the back cover and close the back cover.
10
11
Tighten 2 screws at the bottom of the back cover.
8
Speaker Packages
Please confirm that all the following contents are included in the package.
2
3
4
5
STAND
6
Mount the stand on the stand base and tighten 4
screws on the bottom side of the stand base.
3
SPEAKER
STAND
5
Turn the stand upside down and mount it on the stand
base.
1
CONNECTIONS
3
STAND BASE
ENG
Open a Toroidal Ferrite Core by pulling it upward.
Wrap it around of the system connection cable so it
will be next to the DVD Player. Close it back by
pressing it all the way down until you hear a clicking
sound.
• The Toroidal Ferrite Core is designed to reduce electromagnetic waves that may cause interference.
Stand Packages
STAND BASE
Please confirm that all the following contents are included in
the package.
BACK COVER
SPEAKER
STAND
Screw
Screw
Front/Rear Speaker (4EA)
Subwoofer Speaker
Speaker Cable (5EA)
STAND BASE
11
speakers and rear speakers are
* Front
packaged separately as shown in the
BACK COVER
diagram.
STAND
12
System connection cable Main Unit to Subwoofer
Screw (6EA)
Cable Holder (3EA)
13
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 14
Connecting the Speakers
ENG
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
C
L
Rear of Subwoofer
SW
Rear of Main unit
R
Center Speaker
SL
Front Speaker (L)
SR
Rear Speaker (R)
Position of the DVD Player
• Place it on a stand or cabinet shelf, or under the TV stand.
Front Speakers L R
• Place these speakers in front of your listening position, facing
•
•
inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same
height as your ear.
Align the front face of the front speakers with the front face of
the center speaker or place them slightly in front of the center
speakers.
Rear Speakers SL SR
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they face
2
Black
Red
1
2
Press down the terminal tab on the back of the speaker.
3
Connect the connecting plugs to the back of the Subwoofer.
Insert the black wire into the black terminal (–) and the red
wire into the red (+) terminal, and then release the tab.
Make sure the colors of the speaker terminals match the colors of the
connecting plugs.
each other.
facing slightly downward.
come from them all the time.
Subwoofer SW
• The position of the subwoofer is not so critical.
Place it anywhere you like.
14
1
• Place them about 60 to 90cm (2 to 3feet) above your ear,
Unlike the front and center speakers, the rear speakers are
* used
to handle mainly sound effects and sound will not
Center Speaker C
• It is best to install it at the same height as the front speakers.
• You can also install it directly over or under the TV.
Rear Speaker (L)
Connecting the Speakers
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the
distance of the TV's screen size away from the TV. Example :
For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
CONNECTIONS
Front Speaker (R)
• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
• Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances
into the duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duct (hole).
• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated
by the speaker. If this occurs, place the speaker away from your TV set.
15
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 16
Connecting the Speakers (Con’t)
Connecting the Optional Wireless Receiving Amplifier
ENG
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and
TX card from your Samsung retailer.
Connecting the Main Unit and Subwoofer
When you have Purchased the Wireless Receiving Module (SWA-3000)
Front Speaker (R)
Front Speaker (L)
Center Speaker
CONNECTIONS
Rear of
Subwoofer
WIRELESS RECEIVER MODULE
Rear of Subwoofer
Rear of Main unit
Rear Speaker (R)
Rear Speaker (L)
Connect the System Connector cable from the main unit to the System Connector on the Subwoofer.
Subwoofer Functions
1
Connect the front and center speakers to the Subwoofer, referring to
pages 15~16.
2
With the subwoofer turned off, insert the TX card into the TX Card
Connection(WIRELESS) on the back of the subwoofer.
Subwoofer : With a built-in, dedicated 185W amplifier, the Subwoofer generates rich bass sounds.
Hold the TX card so that the slanted side faces leftward and insert the
card into the port.
The TX card enables communication between the subwoofer and the wireless receiver.
Attaching the Toroidal Ferrite Core to the Power Cord of the Subwoofer
If you attach a Toroidal ferrite core to the power cord of the subwoofer, it will prevent help to prevent RF
interference from radio signals.
16
Connect the left and right rear speakers to the wireless receiving
module.
4
Plug the power cord of the wireless receiving module in the wall outlet
and switch the power switch <ON>.
Slanted side face left
TX card
1
2
3
3
Pull the fixing tab of the Toroidal ferrite core to open it.
Make a loop in the subwoofer power cord.
Attach the Toroidal ferrite core to the subwoofer power
cord as the figure shows and press it until it clicks.
• Do not insert a card other than the TX card dedicated for the product.
The product might be damaged or the card may not be removed easily.
• Do not insert the TX card upside down or in the reverse direction.
• If the TX Card is inserted, sound is not output from the Rear Speaker
connectors on the subwoofer.
17
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 18
Connecting the Wireless Receiving Amplifier (Con’t)
Connecting the Video Out to your TV
ENG
Choose one of the three methods for connecting to a TV.
Resetting the Wireless Receiving Module
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not
light up and the "REAR CHECK" message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.
1
With the main unit turned off, press and hold the remote
control's REMAIN button for 5 seconds.
The STANDBY LED on the front panel of the wireless receiver module
CONNECTIONS
■
TV
blinks.
2
With the wireless receiver module turned on, use a ball point
pen or a toothpick to press the RESET button on the back of
the unit.
■
METHOD2
METHOD 3
(supplied)
METHOD 1
(supplied)
The STANDBY LED on the front panel of the wireless receiver module
blinks 2 Times.
3
Turn on the main unit.
■
The LINK LED of the wireless receiver module is lit and the Reset is
completed.
■
If Power Standby mode continues, repeat Steps 1 to 3 above.
Rear of
Subwoofer
Rear of
Main unit
METHOD 1 : HDMI ....... (Best Quality)
• When the wireless receiving module setting is complete, no audio signal is output from the Rear Speaker Output
Connector on the back of the subwoofer.
• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and
moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of
any obstructions.
• Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
• In 2-CH mode, no sound will be heard from the wireless rear speakers.
Connect the supplied HDMI cable from the HDMI OUT jack on the back of the Main Unit to the HDMI IN jack on your TV.
METHOD 2 : Component ....... (Better Quality)
If your television is equipped with Component Video inputs, connect a component video cable(not supplied) from the
Component Video Output (PR, PB and Y) Connectors on the back of the subwoofer to the Component Video Input
Connectors on your TV.
METHOD 3 : Composite Video ....... (Good Quality)
• Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close
to the main unit, some sound interruption may be heard due to interference.
• If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that
uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.
• The transmission distance of a radio wave is about 33 feet, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.
Connect the supplied video cable from the VIDEO OUT jack on the back of the subwoofer to the VIDEO IN jack on your
TV.
• This product only operates in 480i for Component Output.
• After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Home theater.
See your TV owner's manual for more information on how to select the TV's Video Input source.
18
19
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 20
Connecting the HDMI IN/OUT
HDMI Function
ENG
HDMI (High-Definition Multimedia Interface) is a digital interface that enables transmitting digital video and audio over a
single cable. In addition, it enables you to enjoy multi-channel digital audio.
HDMI Audio ON/OFF function
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
Press the HDMI AUDIO SELECT button on the remote control.
■
This toggles between <ON> and <OFF> on the display.
HDMI Cable
• The default setting of this product is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
• The HDMI AUDIO is not available when using the HDMI IN function.
(supplied)
TV
What is HDMI (High Definition Multimedia Interface)?
This device transmits a DVD video signal digitally without the process of
converting to analog. You will get sharper digital pictures when using an HDMI
connection.
Set-Top/Cable box
1
2
3
Connect the HDMI IN Jack of this unit to the HDMI OUT Jack of your Set-Top Box.
Resolution Selection
Connect the HDMI OUT Jack of this unit to the HDMI IN Jack of your TV.
This function allows the user to select the screen resolution for HDMI output.
Press the AUX button on the remote control to select <HDMI>.
■
In Stop mode, press and hold the SD/HD button on the remote control.
You can also use the FUNCTION button on the main unit.
The mode switches as follows : <DVD> ➝ <USB> ➝ <HDMI> ➝ <D.IN 1> ➝ <D.IN 2> ➝ <AUX> ➝ <FM>.
• Audio from SACD discs cannot be heard via the HDMI connection. To play a DVD disk whose copyright is
protected by CPPM, use a player supporting CPPM.
• The quality of the audio output through the HDMI OUT Jack (sampling frequency and bit rate) may be limited by the
performance of the external device.
• Since HDMI connection supports both video and audio, you don’t have to connect an audio cable.
• When this unit is turned off, no HDMI video or audio signal is output through this unit from a set-top box.
• When a Cable Box/Satellite Receiver is connected to HDMI IN, the SD/HD(Standard Definition/High Definition) button on the Remote control does not work
• When the output from an external device is connected via DVI/HDMI to this unit, no audio will be output. In this
case, you can listen to digital audio by connecting the Optical OUT of the source device (Set-Top Box) to the
Optical IN 1 or 2 of this unit.
High-bandwidth Digital Content
Protection System (HDCP) support
To play digital content through the HDMI connection,
both the connected external device and TV must
support High-bandwidth Digital Content Protection
System (HDCP). This product supports HDCP.
20
CONNECTIONS
• ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio
is output through your TV speakers only.
• OFF : Video is transmitted over the HDMI connection cable only, and audio is output through the
home theater speakers only.
■
Resolutions available for the HDMI output are 480p, 720p,1080i and 1080p
■
SD(Standard Definition) resolution is 480p and HD(High Definition) resolution is 720p/1080i/1080p.
• If the TV does not support the configured resolution, you will not be able to see
the picture properly.
• See your TV owner's manual for more information on how to select the TV's Video
Input source.
COMPATIBILITY WITH A TV SUPPORTING HDMI
A TV with an HDMI jack.
Video/Audio
A TV with an DVI-D jack (TV that supports HDCP)
Video
A TV with an DVI-D jack (TV that does not support HDCP)
-
21
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 22
Connecting Audio from External Components
(not supplied)
Audio Cable (not supplied)
If the external analog component has
only one Audio Out, connect either
left or right.
Connecting an External Digital Component
Digital signal components such as a Set-Top/Cable Box.
1
2
Connect the Digital Input (OPTICAL 1 or 2) on the Home Theater to the Digital Output of the external digital
component.
Press the AUX button on the remote control to select <D.IN1> <D.IN2> input.
■
Analog signal components such as a VCR.
Connect the AUX (Audio) In on the subwoofer to the Audio Out of the external analog component.
■
2
Be sure to match connector colors.
Press the AUX button on the remote control to select <AUX> input.
■
1
2
Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a
wall or other rigid surface.
• This unit does not receive AM broadcasts.
You can also use the FUNCTION button on the main unit.
The mode switches as follows : <DVD> ➝ <USB> ➝ <HDMI> ➝ <D.IN 1> ➝ <D.IN 2> ➝ <AUX> ➝ <FM>.
Connecting an External Analog Component
1
FM Antenna (supplied)
ENG
CONNECTIONS
Optical Cable
Connecting the FM Antenna
You can also use the FUNCTION button on the main unit.
The mode switches as follows : <DVD> ➝ <USB> ➝ <HDMI> ➝ <D.IN 1> ➝ <D.IN 2> ➝ <AUX> ➝ <FM>.
Cooling Fan
The cooling fan supplies cool air to the subwoofer to prevent overheating.
Please observe the following cautions for your safety.
■
Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit
may rise and may damage it.
■
Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered
with a newspaper or cloth, heat may build up inside the unit and fire may result.)
• To listen to the audio from the TV in 5.1 channel through the Home Theater, press the Dolby Pro Logic II or the
SUPER 5.1 button.
• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to
this product.
22
23
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 24
Before Reading the User's Manual
Before Using Your Home Theater
ENG
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
To Operate your Samsung TV and the Home Theater with the HT-TXQ120’s Remote Control
The DVD Home Theater's remote can be used to control Samsung TVs.
Icon
Term
Definition
DVD
This involves a function available with DVD or
DVD-R/DVD-RW discs that have been recorded and
finalized in Video Mode.
Super Audio CD
This involves a function available with a Super Audio
CD (Single Layer, Dual Layer, Hybrid Layer).
CD
This involves a function available with a data CD
(CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs.
DivX
This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
JPEG
This involves a function available with CD-R/-RW discs.
1
Plug the subwoofer's power cord into the AC power supply.
Before plugging your system into a main socket, you must check the voltage setting
(OPTIONAL). If the voltage of the socket does not correspond to the setting on the rear of
the unit, you may seriously damage your system.
2
Press the TV button to set the remote to TV mode.
3
Press the POWER button to turn on your Samsung TV
with this remote.
4
Press the TV/VIDEO button to select VIDEO mode on your TV.
VIDEO
NOTE
This involves a case where a function does not
operate or settings may be cancelled.
This involves tips or instructions on the page that
help each function operate.
5
Press the DVD RECEIVER button to switch to DVD RECEIVER mode to
operate the DVD Home Theater.
6
Press the FUNCTION button on the main unit or DVD button
on the remote to enable DVD/CD playback.
OPERATION
CAUTION
• In this manual, the instructions marked with "DVD (
)" are applicable to DVD-VIDEO, DVD-AUDIO,
and DVD-R/-RW discs that have been recorded in Video Mode and then finalized.
Where a particular DVD type is mentioned, it is indicated separately.
• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
24
25
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 26
Disc Playback
SACD (Super Audio CD) Playback
ENG
You can listen to high quality multi-channel sound that exceeds regular CD playback.
1
2
1
Load a disc vertically into the Disc Insert Hole.
■
Insert a disc so that the label side facing forward.
■
Playback starts automatically.
Load the SACD disc.
■
The SACD menu appears and playback will start.
2
When the play is stopped, select a track using the Cursor ,
press the ENTER button.
■ During the play, you cannot select a track using the Cursor
, button.
3
Press the STOP (
To eject the disc, press the EJECT button.
button and
) button to stop playback.
ALL
OPERATION
To stop playback, press the STOP button during playback.
■
■
If pressed once, <PRESS PLAY> is displayed and the stop position will be stored in memory.
If the PLAY/PAUSE (
) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
If pressed twice, <STOP> is displayed, and if the PLAY/PAUSE (
) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the PLAY/PAUSE (
■
To resume playback, press the PLAY/PAUSE (
) button during playback.
) button again.
• Depending on the content of the disc, the initial screen may appear different.
• Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) rec-
Disc Spec
Item
CD
SACD
DVD Audio
Number of Channels and
Play Time
2 Channels : 70 Minutes
2 Channels : 110 Minutes
5.1 Channels : 81 Minutes
2 Channels : 120 Minutes
5.1 Channels : 89 Minutes
Sampling Frequency
44.1 KHz
2822.4 KHz
(64 Times of CD)
44.1~192 KHz
(4.4 Times of CD)
Dynamic Range
96 dB
120 dB
144 dB
Play Frequency
~20 KHz
~100 KHz
~96 KHz
ommendations.
• SACD has three kinds of formats: Single Layer Disc that has 1 HD layer, Dual Layer Disc that has 2 HD
layers and Hybrid Disc that has both CD and HD layers. Hybrid Discs can play in regular CD players.
26
27
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 28
MP3/WMA-CD Playback
JPEG File Playback
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
1
2
■
The MP3/WMA menu screen will appear and playback will start.
The appearance of the menu depends on the MP3/WMA disc.
■
WMA-DRM files cannot be played.
In Stop mode, use the Cursor
then press the ENTER button.
■
3
Use the Cursor
,
,
,
,
button to select the album, and
Load the JPEG disc.
■
Playback starts automatically. Each image is displayed for 5 seconds and then the next image
is displayed.
Press the
button to skip to the next slide.
Each time the button is pressed, the slide moves backward or forward.
button to select the track.
To change the album, use the Cursor , , , button to select another
album in Stop mode, and then press the ENTER button.
■
4
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played
back with this Home Theater.
Load the MP3/WMA disc.
■
ENG
To select another album and track, repeat Steps 2 and 3 above.
Rotate/Flip Function
Press the STOP button to stop playback.
Press the Cursor
,
,
,
button during playback.
• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3-CD varies depending on the MP3/WMA track format
recorded on the disc.
To play a file icon in the screen,
Press the Cursor
,
,
,
button: Rotate 90°
Counterclockwise
button when it is in Stop mode and select a desired icon from the top part of the menu.
button: Rotate 90°
Clockwise
OPERATION
button: Flip Vertically
Original Image
Music File Icon : To play music files only, select the
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To view movie files only, select the
28
Icon.
Icon.
button: Flip Horizontally
• The maximum resolutions supported by this product are 5120 x 3480
(or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel)
for progressive image files.
29
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 30
DivX Playback
ENG
The functions on this page apply to DivX disc playback.
Skip Forward/Back
During playback, press the
Subtitle Display
,
Press the SUBTITLE button.
button.
■
Goes to the next file whenever you press the
■
Goes to the previous file whenever you press the
■
button, if there are over 2 files in the disk.
Each time you press the button, your selection will toggle between <SUBTITLE (1/N, 2/N ...)>
and <SUBTITLE OFF>.
button, if there are over 2 files in the disk.
■
If the disc has only one subtitle file, it will be played automatically.
■
See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX
discs.
Fast Playback
If the disc has more than one subtitle file
To play back the disc at a faster speed, press the
playback.
■
or
button during
If the disc has more than one subtitle file, the default subtitle may not match the
movie and you will have to select your subtitle language as follows:
Each time you press either button, the playback speed will change as follows:
2x ➝ 4x ➝ 8x ➝ 32x ➝ Normal.
1
In Stop mode, press the Cursor , button, select the desired subtitle (
from the TV screen, and then press the ENTER button.
2
When you select the desired DivX file from the TV screen, the movie will be
played normally.
5 Minute Skip function
During playback, press the Cursor
,
button.
Playback skips 5 minutes forward whenever you press the Cursor
■
Playback skips 5 minutes back whenever you press the Cursor
button.
DivX(Digital internet video eXpress)
button.
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and
video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality
video and audio.
Zoom Function
1
2
1. Supported Formats
Press the ZOOM button.
■
Each time you press the button, your selection will toggle between <ZOOM X2> and <ZOOM OFF>.
Press the Cursor
,
,
OPERATION
■
)
,
button to move to the area you want to enlarge.
This product only supports the following media formats. If both video and audio formats are not supported, the user may
experience problems such as broken images or no sound.
Supported Video Formats
Format
Supported Versions
• DivX file can be zoomed only in ZOOM X2 mode.
• DivX files have .Avi file extensions, however, not all .Avi files are DivX and may not be
playable in this unit.
AVI
DivX3.11~DivX5.1, XviD
WMV
V1/V2/V3/V7
Supported Audio Formats
Format
Bit Rate
Sampling Frequency
Audio Display
MP3
WMA
80~384kbps
56~128kbps
44.1khz
AC3
128~384kbps
44.1/48khz
DTS
1.5Mbps
44.1khz
• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
Press the AUDIO button.
■
■
• Aspect Ratio: Although default DivX resolution is 640x480 pixels (4:3), this product supports up to 720X480 pixels
(16:9). TV screen resolutions higher than 800 will not be supported.
If there are multiple audio tracks on a disc, you can toggle between them.
Each time you press the button, your selection will toggle between <AUDIO (1/N, 2/N ...)> and
•
is displayed when there is one supported language in the disc.
.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the
screen during playback.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi)
within the same folder.
Example. Root
30
Samsung_007CD1.avi
Samsung_007CD1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for
the file name.
31
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 32
Using the Playback Function
ENG
Checking the Remaining Time
Displaying Disc Information
You can view disc playback information on the TV screen.
Press the REMAIN button.
■
Press the INFO button.
■
For checking the total and remaining time of a title or chapter being played.
Each time the Remain button is pressed
Each time the button is pressed, the display changes as follows:
TITLE ELAPSED ➝ TITLE REMAIN ➝ CHAPTER ELAPSED ➝ CHAPTER REMAIN
GROUP ELAPSED ➝ GROUP REMAIN ➝ TRACK ELAPSED ➝ TRACK REMAIN
The information
Display disappears
from the screen
TRACK ELAPSED ➝ TRACK REMAIN ➝ TOTAL ELAPSED ➝ TOTAL REMAIN
TRACK REMAIN ➝ TRACK ELAPSED
Fast Playback
Press the
The information
Display disappears
from the screen
button.
Each time the button is pressed during playback, the playback speed changes as follows:
• Depending on the disc,
the disc information
display may appear
different.
• Depending on the disc,
you can also select
DTS, DOLBY DIGITAL,
or PRO LOGIC.
2X ➝
4X ➝
8X ➝
32X ➝
PLAY
2X ➝
4X ➝
8X ➝
32X ➝
PLAY
• During fast playback of a SACD, CD or MP3-CD, sound is heard only at 2x speed, and
not at 4x, 8x, and 32x speeds.
OPERATION
The information
Display disappears
from the screen
■
Slow Playback
appears on the TV screen!
The information
Display disappears
from the screen
If this symbol appears on the TV
screen when pressing a button,
that operation is not possible with
the disc currently being played.
Press the SLOW button.
■
Each time the button is pressed during playback, the playback speed changes as follows:
DVD
1/2 ➝
1/4 ➝
1/8 ➝
1/2 ➝
1/2 ➝
1/4 ➝
1/8 ➝
PLAY
1/4 ➝
1/8 ➝
PLAY
DivX
Screen Display
32
DVD display
TITLE display
ELAPSED TIME display
CD display
CHAPTER display
REPEAT PLAYBACK display
DVD DVD-AUDIO display
AUDIO
TRACK (FILE) display
AUDIO LANGUAGE display
DOLBY DIGITAL display
SACD SACD display
GROUP display
SUBTITLE display
ANGLE display
STEREO (L/R) display
• No sound is heard during slow playback.
• Reverse slow playback does not work with DivX.
MCH 2CH/Multi CH display
33
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 34
Using the Playback Function (Con’t)
ENG
Skipping Scenes/Songs
Press the
■
■
Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
button.
Each time the button is pressed during playback, the previous or next chapter, track or directory
(file) will be played.
You cannot skip chapters consecutively.
Press the REPEAT button.
Each time the button is pressed during playback, the repeat playback mode changes as follows:
REPEAT : CHAPTER ➝ REPEAT : TITLE ➝ REPEAT : OFF
DVD
TITLE 01/05 CHAPTER 002/045
REPEAT : TRACK ➝ REPEAT : GROUP ➝ REPEAT : OFF
TITLE 01/05 CHAPTER 004/045
REPEAT : DISC ➝ REPEAT : TRACK ➝ REPEAT : OFF
REPEAT : TRACK ➝ REPEAT : DISC ➝ REPEAT : OFF
REPEAT : RANDOM ➝ REPEAT : TRACK ➝ REPEAT : DIR ➝
REPEAT : DISC ➝ REPEAT : OFF
MP3
Repeat Playback Options
TRACK : Repeatedly plays the selected track.
TITLE : Repeatedly plays the selected title.
DIR : Repeatedly plays all tracks in the selected folder.
GROUP : Repeatedly plays the selected group.
DISC : Repeatedly plays the entire disc.
RANDOM : Plays tracks in random order.
(A track that has already been played may be played again.)
OFF : Cancels Repeat Playback.
OPERATION
CHAPTER : Repeatedly plays the selected chapter.
To Select a Repeat Playback Mode in the Disc Information Screen
1
2
3
Press the INFO button twice.
Press the Cursor
Press the Cursor
button to move to the REPEAT PLAYBACK (
) display.
button to select the desired Repeat Playback mode.
To select another album and track, repeat Steps 2 and 3 above.
4
Press the ENTER button.
• For Divx, MP3 and JPEG discs, you cannot select Repeat Play from the information
display screen.
34
35
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 36
Using the Playback Function (Con’t)
ENG
Angle Function
A-B Repeat Playback
This function allows you to view the same scene in different angles.
You can repeatedly play back a designated section of a DVD.
1
2
3
Press the Cursor
button to move to the REPEAT PLAYBACK (
) display.
Press the Cursor
, button to select <A-> and then press the ENTER
button at the beginning of the desired segment.
■
4
1
2
3
Press the INFO button twice.
Press the INFO button.
Press the Cursor
button to move to ANGLE (
Press the Cursor
,
■
or numeric buttons to select the desired angle.
Each time the button is pressed, the angle changes as follows:
When the ENTER button is pressed, the selected position will be stored in memory.
1/3
Press the ENTER button at the end of the desired segment.
■
) display.
2/3
The specified segment will be played repeatedly.
3/3
A-B
• The Angle function works only with discs on which multiple angles have been recorded.
To return to normal playback, press the Cursor
OFF.
,
button to select
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
1
2
Step Function
3
■
The picture moves forward one frame each time the button is pressed during playback.
• No sound is heard during step motion playback.
Press the ZOOM button.
Press the Cursor
enlarge.
,
,
,
button to move to the area you want to
Press the ENTER button.
■
Press the STEP button.
OPERATION
• The A-B Repeat function does not operate with DivX, SACD, MP3 or JPEG discs.
Each time the button is pressed, the zoom level changes as follows:
ZOOM X 1.5 ➝ ZOOM X 2 ➝ ZOOM X 3 ➝ ZOOM OFF
SELECT ZOOM POSITION
• When a DivX disc is being played, the screen is enlarged up to twice the normal size.
36
37
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 38
Using the Playback Function (Con’t)
EZ VIEW Function
ENG
Audio Language Selection Function
Press the EZ VIEW button.
Each time the button is pressed, the zoom function will switch between On and Off.
When a movie is played in Widescreen format, black bars at the top and bottom of the TV
screen can be removed by pressing the EZ VIEW button.
1
2
Press the INFO button twice.
Press the Cursor
language.
■
EZ VIEW
EZ VIEW OFF
,
button or numeric buttons to select the desired audio
Depending on the number of languages on a DVD disc, a different audio language (ENGLISH,
SPANISH, FRENCH, etc.) is selected each time the button is pressed.
SP 2/3
FR 3/3
• This function will not work if the DVD is recorded with multi-camera angle format.
• Black bars may not disappear because some DVD discs have a built-in horizontal to
vertical ratio.
• This feature is not supported for DivX discs.
• During the EZ View operation, some of the left and right sides may be cut slightly.
Subtitle Language Selection Function
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging
for details and the-key number.
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
BONUS GROUP
Press the INFO button twice.
Press the Cursor
button to move to the SUBTITLE (
Press the Cursor
button or numeric buttons to select the desired subtitle.
EN 1/3
EN 01/ 03
) display.
OPERATION
Bonus Group
1
2
3
OFF
SP 02/ 03
FR 03/ 03
OFF / 03
KEY NUMBER :
• If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
the key number.
• To operate this function, you can also press the AUDIO or SUBTITLE buttons on the
remote control.
• Depending on the disc, the Subtitle and Audio Language functions may not be available.
Navigating Pages
During playback, press the
,
button on the remote control.
You can select the desired image from a DVD-Audio disc containing still images.
With some discs, you may not be able to select images.
38
39
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 40
Using the Playback Function (Con’t)
ENG
Moving Directly to a Scene/Song
Using the Disc Menu
You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.
1
2
1
2
Press the INFO button.
Press the Cursor , button or numeric buttons to select the desired
title/track and then press the ENTER button.
3
4
Press the Cursor
5
6
Press the Cursor
button to move to the Chapter (
,
button to move to time (
Press the Cursor
, button to move to the <Disc Menu> and then
press the ENTER button.
■
) display.
3
4
Press the Cursor
, button or numeric buttons to select the desired
chapter and then press the ENTER button.
,
In Stop mode, press the MENU button.
) display.
When you select Disc Menu and it is not supported by the disc,
the <This menu is not supported> message appears on the screen.
Press the Cursor
, ,
Press the ENTER button.
,
button to select the desired item.
Press the MENU button to exit the setup screen.
Press the numeric buttons to select the desired time and then press the
ENTER button.
MOVE
01/05
001/040
0:00:37
ENTER
• The Disc menu display may be different depending on the disc.
EXIT
1/1
■
The selected file will be played.
■
When playing an MP3 or JPEG disc, you cannot use the Cursor
To move a folder, press the STOP ( ) and then press the Cursor
button to move to a folder.
,
,
For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this
feature may vary.
OPERATION
Using the Title Menu
Press the numeric buttons.
button.
1
2
3
In Stop mode, press the MENU button.
Press the Cursor
, button to move to the <Title Menu>.
Press the ENTER button.
■
The title menu appears.
Press the MENU button to exit the setup screen.
• You can press the
button on the remote control to move directly to the desired
title, chapter, or track.
• Depending on the disc, you may not be able to move to the selected title or time.
• The Title menu display may be different depending on the disc.
MOVE
40
ENTER
EXIT
41
TXQ120(1~44P) ENG_CA
2007.3.15
9:43 AM
Page 42
Playing Media Files using the USB HOST Feature
You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high
quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.
1
Connect the USB device to the USB port on the back of the unit.
ENG
Compatible Devices
1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in
Windows (2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 players.
3. Digital camera: Cameras that support USB Mass Storage v1.0.
• Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
• You may experience a difference in playback quality when you connect a USB1.1 device.
• For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader.
2
Press the FUNCTION button on the main unit or the USB button on the
remote control to select the USB mode.
3
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
6. If you use a USB extension cable, the USB device might not be recognized.
■
”USB” appears on the display screen and then disappears.
■
The USB MENU screen appears on the TV screen and the saved file is played.
To stop playback, press the STOP ( ) button.
Supported Formats
Safe USB Removal
(1) Press the STOP ( ) button twice in a row.
The display will show REMOVE➝USB.
(2) Remove the USB cable.
Music
Movie
• To listen to your music files with 5.1 channel home theater sound, you must set the Dolby
Pro Logic II mode to Matrix. (See page 54)
Skip Forward/Back
During playback, press the
Still Picture
button.
■
When there is more than one file and you press the
button, the next file is selected.
■
When there is more than one file and you press the
button, the previous file is selected.
• CBI
File
extension
Bit rate
Version
Pixel
Sampling
Frequency
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720x480 44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~DivX5.1,XviD
720x480 44.1KHz~48KHz
OPERATION
To prevent damage to the memory stored in the USB device, perform safe removal before
disconnecting the USB cable.
File name
(Control/Bulk/Interrupt) is not supported.
• Digital
Cameras that use PTP protocol or require additional program installation when connected
to a PC are not supported.
• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file
system is supported.)
• Some MP3 players, when connected to this product,may not operate depending on the sector size
of their file system.
• The USB HOST function is not supported if a product that transfers media files by its manufacturerspecific program is connected.
• Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
• The
USB host function of this product does not support all USB devices.
For information on the supported devices, see page 68.
Fast Playback
To play back the disc at a faster speed, press the
■
42
button during playback.
Each time you press either button, the playback speed will change as follows:
2x ➝ 4x ➝ 8x ➝ 32x ➝ Normal.
43
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 44
Settings
ENG
Setting the Language
Setting TV Screen type
OSD(On-Screen Display) language is set to English by default.
MOVE
ENTER
RETURN
EXIT
1
2
3
4
5
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
1
2
3
In Stop mode, press the MENU button.
Press the Cursor
button to move to <Setup> and then press the ENTER button.
Select <LANGUAGE> and then press the ENTER button.
Press the Cursor ,
the ENTER button.
button to select <OSD LANGUAGE> and then press
Press the Cursor ,
the ENTER button.
button to select the desired language and then press
MOVE
ENTER
RETURN
EXIT
4
In Stop mode, press the MENU button.
Press the Cursor
button to move to <Setup> and then press the ENTER button.
Press the Cursor
ENTER button.
button to move to <TV DISPLAY> and then press the
Press the Cursor
ENTER button.
,
button to select the desired item and then press the
Once the setup is complete, you will be taken to the previous screen.
Once the setup is complete, the OSD will be English if English has been selected as language.
MOVE
ENTER
RETURN
EXIT
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
MOVE
ENTER
RETURN
EXIT
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
Adjusting the TV Aspect Ratio (Screen Size)
• OSD LANGUAGE : Selecting the OSD Language
• AUDIO : Selecting the Audio Language (recorded on the disc)
• SUBTITLE : Selecting the Subtitle Language (recorded on the disc)
• DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
If the language you selected is not recorded on the disc, the menu language will not change even
if you set it to your desired language.
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
For a standard TV, select either <4:3LB> or <4:3PS> option according to personal preference. Select "16:9" if you have a widescreen TV.
WIDE
Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.
■ You can enjoy the widescreen aspect.
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a conventional TV.
■ Black bars will appear at the top and bottom of the screen.
SETUP
• OTHER : To select another language, select OTHER and enter the language code of your country.
(See page 67 for language codes) AUDIO, SUBTITLE and DISC MENU language can be
selected.
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is
called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
EXIT
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.
■ You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on the software,
the type of TV, and the TV aspect ratio setting.
44
45
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 46
Settings (Con’t)
ENG
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1
2
3
MOVE
ENTER
RETURN
EXIT
4
Setting the Wallpaper
While watching a DVD ou CD JPEG, you can set the image you like as background wallpaper.
In Stop mode, press the MENU button.
Press the Cursor
button to move to <Setup> and then press the ENTER button.
Press the Cursor
button.
button to move to <PARENTAL> and then press the ENTER
1
During playback, press the PLAY/PAUSE button when an image you like
appears.
2
Press the LOGO button.
<COPY LOGO DATA> will be displayed on the TV screen.
COPY LOGO DATA
Press the Cursor ,
the ENTER button.
3
button to select the desired rating level and then press
The selected wallpaper will be displayed.
You can select up to 3 wallpaper settings.
If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
The higher the level, the closer the content is to violent or adult material.
5
MOVE
ENTER
RETURN
The power will turn off and then back on.
Enter the password and then press the ENTER button.
The password is set to "7890" by default.
Once the setup is complete, you will be taken to the previous screen.
EXIT
To Select One of the 3 Wallpaper Settings you've made
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
• This function works only if a DVD disc contains the rating level information.
Setting the Password
MOVE
ENTER
RETURN
1
2
3
In Stop mode, press the MENU button.
4
Press the Cursor ,
the ENTER button.
ENTER
RETURN
EXIT
4
5
ENTER
RETURN
EXIT
button to select the desired <USER>, and then press
This selects one of the 3 wallpaper screens
In Stop mode, press the MENU button.
Press the Cursor
Press the Cursor
ENTER button.
5
Press the MENU button to exit the setup screen.
button to move to <Setup> and then press the ENTER button.
button to move to <PASSWORD> and then press the
• ORIGINAL : Select this to set the Samsung Logo image as your wallpaper.
MOVE
ENTER
RETURN
EXIT
• USER : Select this to set the desired image as your wallpaper.
Press the ENTER button.
Enter the password and then press the ENTER button.
Enter the old password, a new password, and confirm new password.
The setting is complete.
MOVE
button to move to <LOGO> and then press the ENTER
SETUP
MOVE
Press the Cursor
button.
button to move to <Setup> and then press the ENTER button.
EXIT
You can set the password for the Parental (rating level) setting.
1
2
3
Press the Cursor
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
• The password is set to "7890" by default.
If you have forgotten the rating level password, do the following
• While the player is in No DIsc mode, hold the main unit's STOP (
and all settings will return to the default values.
• Press the POWER button.
) button for longer than 5 seconds. “INITIALIZE” appears on the display
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
46
47
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 48
Settings (Con’t)
ENG
DVD Playback Mode
SACD Playback Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
1
2
3
MOVE
ENTER
RETURN
EXIT
4
If the SACD is a HYBRID disc, you can play the disc in CDDA MODE as well.
1
2
3
Press the EJECT button and then press the MENU button.
Press the Cursor
button to move to <Setup> and then press the ENTER button.
Press the Cursor
button.
button to move to <DVD TYPE> and then press the ENTER
Press the Cursor
ENTER button.
,
MOVE
ENTER
RETURN
EXIT
button to move to <DVD VIDEO> and then press the
4
MOVE
ENTER
RETURN
EXIT
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
button to move to <Setup> and then press the ENTER button.
Press the Cursor
button.
button to move to <SACD TYPE> and then press the ENTER
Press the Cursor
ENTER button.
,
button to move to <SACD MODE> and then press the
• SACD MODE : Set this mode to play SACD.
• CDDA MODE : Set this mode to play CDDA contents included in a disc.
MOVE
ENTER
RETURN
EXIT
• Powering off the main unit will automatically switch to the SACD mode.
• DVD Play mode is set to DVD Audio as factory default setting.
• Powering off the main unit will automatically switch to the DVD Audio mode.
DivX (R) registration
Press the Cursor
Set steps 1 ~ 4 again if you want to switch to CDDA Play mode.
Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.
When Selecting DVD Play Mode:
• DVD VIDEO : set to play the DVD video contents contained on a DVD audio disc.
• DVD AUDIO : set to play the default DVD audio.
Press the EJECT button and then press the MENU button.
Setting the Speaker Mode
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker
configuration and whether certain speakers are used or not.
MOVE
ENTER
RETURN
EXIT
3
4
In Stop mode, press the MENU button.
Press the Cursor
button.
button to move to <Audio> and then press the ENTER
SETUP
1
2
In the <SPEAKER SETUP>, press the ENTER button again.
Press the Cursor , ,
press the ENTER button.
,
button to move to the desired speaker and then
For C, SL, and SR, each time the button is pressed, the mode switches alternately as follows :
SMALL ➝ NONE.
For L and R, the mode is set to SMALL.
MOVE
ENTER
RETURN
EXIT
• SMALL : Select this when using the speakers.
• NONE : Select this when no speakers are connected.
• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary
(see page 54).
48
49
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 50
Settings (Con’t)
ENG
Setting the Delay Time
Setting the Test Tone
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio
signals from the center and rear speakers.
1
2
3
MOVE
ENTER
RETURN
EXIT
Use the Test Tone feature to check the speaker connections.
1
2
3
In Stop mode, press the MENU button.
Press the Cursor
Press the Cursor
ENTER button.
button to move to <Audio> and then press the ENTER button.
button to move to <DELAY TIME> and then press the
MOVE
ENTER
RETURN
EXIT
ENTER
RETURN
EXIT
Press the Cursor
Press the Cursor
ENTER button.
button to move to <Audio> and then press the ENTER button.
button to move to <TEST TONE> and then press the
The test tone will be sent to L ➝ C ➝ R ➝ SR ➝ SL ➝ SW in order.
4
Press the Cursor , ,
press the ENTER button.
5
Press the Cursor
,
,
button to move to the desired speaker and then
If the ENTER button is pressed again at this time, the test tone will stop.
button to set the Delay time.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and
15mSEC.
MOVE
In Stop mode, press the MENU button.
ENTER
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
EXIT
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by
adding a delay effect to the sound of the Center and Surround Speakers.
Ideal CENTER SPEAKER
placement
Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the distance of Df in the figure,
set the mode as 0ms. Otherwise, change the setting according to the table.
Delay Time
0 inch
0 ms
13.6 inches 27.2 inches 40.8 inches 4.5 feet
1 ms
2 ms
3 ms
4 ms
5.6 feet
5 ms
SETUP
Distance between Df and Dc
Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds in the figure, set the mode
as 0ms. Otherwise, change the setting according to the table.
Ideal
SURROUND
SPEAKER
placement
Distance between Df and Dc 0 inch
Delay Time
0 ms
40.8 inches 6.7 feet 10.0 feet 13.4 feet 16.7 feet
3 ms
6 ms
9 ms
12 ms
15 ms
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
50
• With
(Dolby Pro Logic II), the delay time may be
different for each mode.
• With AC-3 and DTS, the delay time can be set between 00 and
15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.
51
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 52
Settings (Con’t)
ENG
Setting the Audio
Setting the DRC (Dynamic Range Compression)
You can adjust the balance and level for each speaker.
1
2
3
MOVE
ENTER
RETURN
EXIT
4
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital
sound when watching movies at low volume at night.
In Stop mode, press the MENU button.
Press the Cursor
button to move to <Audio> and then press the ENTER button.
Press the Cursor
ENTER button.
button to move to <SOUND EDIT> and then press the
Press the Cursor
Press the Cursor
,
,
button to select and adjust the desired item.
button to adjust the settings.
MOVE
ENTER
EXIT
1
2
3
4
ENTER
RETURN
Press the Cursor
button to move to <Audio> and then press the ENTER button.
Press the Cursor
button to move to <DRC> and then press the ENTER button.
Press the Cursor
,
When the Cursor
button to adjust the DRC.
button is pressed, the effect is greater, and when the Cursor
button is
pressed, the effect is smaller.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
MOVE
In Stop mode, press the MENU button.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
EXIT
CHANGE
RETURN
EXIT
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
Press the SOUND EDIT button and then press the Cursor
,
button.
Setting the AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match
the video.
MOVE
ENTER
RETURN
EXIT
Adjusting Front/Rear Speaker Balance
Adjusting Center/Rear/Subwoofer Speaker Level
52
Press the Cursor
button to move to <Audio> and then press the ENTER button.
Press the Cursor
button.
button to move to <AV-SYNC> and then press the ENTER
Press the Cursor , button to select the AV-SYNC Delay Time and then
press the ENTER button.
You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.
• You can select between 0, -6, and OFF.
• The volume decreases as you move closer to –6.
• The volume level can be adjusted in steps from +6dB to –6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
4
In Stop mode, press the MENU button.
SETUP
1
2
3
MOVE
ENTER
RETURN
EXIT
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
53
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 54
Settings (Con’t)
ENG
Dolby Pro Logic II Mode
Dolby Pro Logic II Effect
You can select the desired Dolby Pro Logic II audio mode.
Press the
PL II MODE button.
Each time the button is pressed, the mode changes as follows.
This function works only in Dolby Pro Logic MUSIC mode.
1
2
Press the
PL II MODE button to select <MUSIC> mode.
Press the
the Cursor
PL II EFFECT button to select <P> (PANORAMA), then press
, button to select the desired effect setting.
You can select either 0 or 1.
This mode extends the front stereo image to include the surround speakers for an exciting
"wraparound" effect with side wall imaging.
3
Press the
PL II EFFECT button to select <C> (CENTER WIDTH),
then press the Cursor , button to select the desired effect setting.
You can select between 0 and 7.
This sets the width of the center image. The higher the setting, the less sound comes from
the center speaker.
4
PRO LOGIC II
• MUSIC: When listening to music, you can experience sound effects as if you are listening to the
actual performance.
Press the
the Cursor
PL II EFFECT button to select <D> (DIMENSION), then press
, button to select the desired setting
You can select between 0 and 6.
Incrementally adjusts the sound field (DSP)from the front or rear.
• CINEMA : Adds realism to the movie soundtrack.
• PRO LOGIC : You will experience a realistic multi-channel effect, as if using five speakers, while
using just the front left and right speakers.
• MATRIX : You will hear 5.1 channel surround sound.
SETUP
STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.
• When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and
(Dolby Pro Logic II) button does not work.
• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks
(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to
surround sound.
54
55
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 56
Auto Sound Calibration Setup
ENG
This function is available only for DVD/CD playback.
Auto Sound Calibration
By setting the auto sound calibration function just once when you relocate or install the unit, you can have the unit automatically recognize
the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound field optimized for
the listener's environment.
* The following images are for illustrative purposes only and
may differ from the actual product.
1
Connect the auto sound calibration microphone to the auto sound
calibration input connector on the subwoofer.
2
3
Place the auto sound calibration microphone at the listener's position.
4
A tone is output.
˜
Press the Volume Control buttons on the main unit to make adjustments
as below.
■
If the distance between the listener and the speaker is over 194 inch :
Set the main unit's volume to over 25.
■
If the distance between the listener and the speaker is 118 to 194 inch :
Set the main unit's volume to 25.
■
If the distance between the listener and the speaker is less than 118 inch :
Set the main unit's volume to 15.
Press the ASC button.
■
To create the optimal 5.1 channel sound filed, the selections are in the following sequence:
L ➝ C ➝ R ➝ SR ➝ SL ➝ SW
■
The auto sound calibration setup takes about 2 minutes to complete.
`
¿ł·º–
5
When the message <REMOVE MIC> appears in the display, unplug the
auto sound calibration microphone.
To cancel the auto sound calibration setup, press the ASC button.
■
L: Front Speaker (L)
C: Center Speaker
SL: Rear Speaker (L)
R: Front Speaker (R)
SW: Subwoofer
SR: Rear Speaker (R)
A result for each speaker is displayed.
To listen in the auto sound calibration mode, briefly press the ASC button.
■
■
• If you have not perfomed the ASC function, pressing the Auto Sound Calibration button without connecting the auto sound
calibration microphone will display the message <PLEASE SET ASC FUNCTION> in the display.
• Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volume using the
volume control buttons.
• If the auto sound microphone is disconnected during the auto sound calibration setup, the setup will be cancelled.
The tone output stops, <CANCEL ASC> appears in the display followed by
<REMOVE MIC>, and the setup is cancelled.
The selection alternates between <ASC ON> and <ASC OFF> in the display.
If you select <ASC ON>, you will hear sound in the auto sound calibration mode.
If you select <ASC OFF>, you will hear sound in the mode set in the audio setting
of the setup screen.
To Turn the Sound Logo On/Off
1
MISCELLANEOUS
When you turn on the power, the unit produces a sound logo after the disc is read to notify that the unit is optimized for
playback.
Press and hold the ASC button.
<S.LOGO ON> or <S.LOGO OFF> appears in the display.
2
Briefly press the ASC button.
Each time the button is pressed, the selection alternates between <S.LOGO ON> and
<S.LOGO OFF>.
If you select <S.LOGO ON>, a sound logo will be output when the disc reading is finished
after power-on.
If you select <S.LOGO OFF>, no sound logo will be output.
56
57
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 58
Live Surround Mode
Super 5.1
ENG
Virtual Headphone Function
You can reproduce a 2-channel sound source, such as CD, and radio broadcast, in 5.1-channel surround sound.
Press the SUPER5.1 button.
■
Each time the button is pressed, the selection alternates between <SUPER 5.1> and <BYPASS>.
■
Select <SUPER 5.1> to play 2-channel sound in 5.1 channels.
Use headphones (3.5 ) (not supplied) for private listening pleasure. You can enjoy dynamic sound effects similar
to that of 5.1 channel surround sound using conventional stereo headphones.
1
Plug the headphones into the headphone jack.
■
You can purchase headphones from most Electronics stores.
Music
If you press the MUSIC button when listening to a 2-channel sound source, it will be reproduced in 4.1-channel surround
sound so that you can enjoy a dynamic sound with a sense of presence.
Press the MUSIC button.
■
Each time the button is pressed, the selection changes as follows :
CONCERT1 ➝ CONCERT2 ➝ JAZZ ➝ CATHEDRAL ➝ BYPASS
2
Press the V-H/P button.
■
Each time the button is pressed, the selection alternates between <V-H/P ON> and
<V-H/P OFF>.
• V-H/P ON : Select to enjoy a 5.1-channel surround sound that gives the feeling of being in
a baseball park or concert hall.
• V-H/P OFF : Select to listen to a standard 2-channel stereo sound.
Movie
You can select from 4 different sound field modes for movies.
Press the MOVIE button.
■
• Do not listen at extremely high volume levels when using headphones.
Extended, high-volume listening can lead to permanent hearing loss.
Each time the button is pressed, the selection changes as follows :
VIRTUAL 9.1 ➝ EX-MOVIE ➝ CINEMA ➝ SPORTS ➝ BYPASS
VIRTUAL 9.1: Provides surround sound effect for audiences at home that simulates 9.1 channel
surround sound of a movie theater.
MISCELLANEOUS
• When you insert a DVD recorded in 2-channel or multi-channel format and press the SUPER 5.1 button, the message
<THIS FUNCTION APPLIES ONLY 2CH SOURCE> appears in the display and it will not work.
• This function does not work with SACD or DVD-AUDIO discs.
• 5.1 channel outputs are available in VIRTUAL 9.1 or EX-MOVIE mode only.
58
59
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 60
Listening to Radio
Convenient Functions
Remote Control
1
2
Sleep Timer Function
Press the TUNER button to select the FM band.
You can set the time that the Home Theater will shut itself off.
Tune in to the desired station.
Automatic Tuning 1 : When the
Manual Tuning : Briefly press the
Press the SLEEP button.
button is pressed, a preset broadcast station is selected.
Automatic Tuning 2 : Press and hold the
broadcasting stations.
,
,
Each time the button is pressed, the preset time changes as follows :
10 ➝ 20➝ 30➝ 60➝ 90➝ 120➝ 150➝ OFF.
button to automatically search for active
button to increase or decrease the frequency incrementally
To confirm the sleep timer setting, press the SLEEP button.
Main Unit
1
2
ENG
The remaining time before the Home Theater will shut itself off is displayed.
Pressing the button again changes the sleep time from what you have set earlier.
Press the FUNCTION button to select the FM band.
To cancel the sleep timer, press the SLEEP button until <OFF> appears on
the display.
Select a broadcast station.
Automatic Tuning 1 : Press the STOP ( ) button to select <PRESET> and then press the
button to select the preset station.
Automatic Tuning 2 : Press the STOP ( ) button to select <MANUAL> and then press and hold
the
button to automatically search the band.
Manual Tuning : Press the STOP ( ) to select <MANUAL> and then briefly press the
button to tune in to a lower or higher frequency.
Adjusting Display Brightness
You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.
Press the DIMMER button.
Press the MO/ST button to listen in Mono/Stereo.
Each time the button is pressed, the brightness of front display will be adjusted.
Each time the button is pressed, the sound switches between <STEREO> and <MONO>.
In a poor reception area, select MONO for a clear, interference-free broadcast.
Presetting Stations
Example : Presetting FM 89.10 in the memory
1
Press the TUNER button to select the FM band.
2
Press the
3
Press the TUNER MEMORY button.
,
button to select <89.10>.
Mute Function
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
“01” flashes in the display.
<MUTE> appears in the display.
Press the
button to select preset number.
MISCELLANEOUS
4
To restore the sound, press the button again.
You can select between 1 and 15 presets.
5
Press the TUNER MEMORY button again.
Press the TUNER MEMORY button before “number” disappears from the display.
“number” disappears from the display and the station is stored in memory.
6
To preset another station, repeat steps 2 to 5.
To tune in to a preset station, press the
control to select a channel.
button on the remote
• This unit does not receive AM broadcasts.
60
61
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 62
Operating a TV with the Remote Control
ENG
When operating a TV with the remote control
1
2
3
Press the TV button to set the remote to TV mode.
No.
Brand
Code
No.
Brand
Press the POWER button to turn on the TV.
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
While holding down the POWER button, enter the code corresponding to
your brand of TV.
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12,
46
Nikei
03
13, 14
47
Onking
03
If there is more than one code listed for your TV in the table, enter one at a time to determine
which code works.
Example: For a Samsung TV
While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.
4
If the TV turns off, the setting is complete.
You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).
• The remote control may not work on some brands of TVs. Also, some operations may not be
possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control will
work on a Samsung TV by default.
Code
4
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
6
Brocsonic
59, 60
50
Penney
18
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Cinema
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
40
17
Crown
03
61
Samsung
00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60,
18
Curtis Mates
59, 61, 63
19
CXC
03
62
Sanyo
19, 61, 65
20
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
15, 57, 64
98
21
Daytron
40
65
Sharp
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
38
Luxman
18
81
Yamaha
18
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
MISCELLANEOUS
62
TV Brand Code List
63
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 64
Troubleshooting
ENG
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below
or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized
dealer or Samsung Electronics Service Center.
Symptom
I cannot eject the disc.
Check/Remedy
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
Symptom
Check/Remedy
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
Audio language and subtitles
do not work.
• Audio language and subtitles will not work for DVDs not containing
Menu screen does not appear
even when the menu function is
selected.
• Are you using a disc that does not contain menus?
DVD discs purchased from abroad may not be playable.
Playback does not start.
• CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
• Make sure that the rating level is correct.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on
•
the surface?
Wipe the disc clean.
• No sound is heard during fast playback, slow playback, and step
Sound is not produced.
•
•
motion playback.
Are the speakers connected properly? Is the speaker setup correctly customized?
Is the disc severely damaged?
• When listening to a CD or radio, sound is output to the front
Sound can be heard only from a
few speakers and not all six.
•
•
speakers (L/R) only. Select "PRO LOGIC II" by pressing
PL II
(Dolby Pro Logic II) on the remote control to use all six speakers.
Make sure that the DVD disc is 5.1-CH compatible.
If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.
Dolby Digital 5.1 CH Surround
Sound is not produced.
•
5.1 CH Surround Sound is produced only if the disc is recorded
with 5.1 channel sound.
Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
• The main unit is not working.
(Example: The power goes out
or strange noise is heard.)
• The DVD player is not working
normally.
The remote control does not
work.
64
•
•
• Turn off the power and hold the STOP(
) button on the main unit
for longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While “NO DISC” message appears on the display of main unit, hold
The password for rating level
has been forgotten.
•
the main unit's STOP( ) button for longer than 5 seconds. “INITIALIZE” appears on the display and all settings will return to
the
default values.
Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• Is the remote control being operated within its operation range of
angle and distance?
Are the batteries exhausted?
Have you selected the mode(TV/DVD) functions of the remote
control (TV or DVD) correctly?
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the appropriate function.
Aspect ratio cannot be changed.
MISCELLANEOUS
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital
them. And depending on the disc, they may work differently.
Can't receive radio broadcast.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.
While listening to TV audio
through the main unit,
no sound is heard.
• If the eject button is pressed while listening to TV audio using
the D.IN1, D.IN2, AUX functions, the DVD functions are turned on
and this stops the TV audio.
65
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 66
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Code
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on
the surface.
Do not stick paper or tape on the disc.
Disc Storage
Keep in a cool
ventilated area
Keep in a clean
Protection jacket.
Store vertically.
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.
Handling and Storing Discs
• Condensation may form if warm air comes into contact with cold parts inside
the player. When condensation forms inside the player, the player may not
operate correctly. If this occurs, remove the disc and let the player stand for
1 or 2 hours with the power on.
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
MISCELLANEOUS
When you get fingerprints or dirt on the disc, clean it with a mild
detergent diluted in water and wipe with a soft cloth.
• When cleaning, wipe gently from the inside to the outside of the
disc.
66
ENG
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 44).
Handling discs
Do not keep in
direct sunlight
Language Code List
67
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 68
USB Host Feature Supported Products
Digital Camera
Product
USB Flash Disc
Company
Type
Fuji
Fuji
Fuji
Fuji
Fuji
Fuji
Konica
Kyocera
Kyocera
Kyocera
Kyocera
Minolta
Minolta
Minolta
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Panasonic
Panasonic
Panasonic
Panasonic
Pentax
Pentax
Pentax
Pentax
Samsung
Samsung
Toshiba
Nikon
Nikon
Nikon
Panasonic
Minolta
Olympus
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Product
Cruzer Micro
Cruzer Mini
Cruzer Mini
SONY Micro Vault
FLEX DRIVE
AnyDrive
XTICK
Micro Mini
iFlash
LG
RiDATA
Company
Type
Sandisk
Sandisk
Sandisk
Sony
Serotech
A.L tech
LG
Iomega
Imation
XTICK(M)
EZDrive
USB 2.0 USB Flash Drive 128M
USB 2.0 128M
USB 2.0 256M
USB 2.0 64MB
USB 2.0 32MB
USB 2.0 128MB
USB 2.0 128M
USB 2.0 128M
USB 2.0 64M
USB 2.0 64M
USB 2.0 64M
MP3 Player
Product
Company
Type
Creative MuVo NX128M
Iriver H320
YH-920
YP-T7
YP-MT6
YP-T6
YP-53
YP-ST5
YP-T5
YP-60
YP-780
YP-35
YP-55
iAUDIO U2
iAUDIO G3
iAudio M3
SI-M500L
H10
YP-T5 VB
YP-53
Creative
Iriver
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Cowon
Cowon
Cowon
Sharp
Iriver
Samsung
Samsung
128 MB MP3 Player
20G HDD MP3 Player
20G HDD MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
HDD MP3 Player
256MB MP3 Player
MP3 Player
MP3 Player
256MB MP3 Player
USB External HDD
Product
MOMOBAY UX-2
Company
Type
Dvico
USB 2.0
G
E
N
E
R
A
L
T
F U
N
M E
R
V
I
D
E
O
O
U
T
P
U
T
A
M
P
L
I
F
I
E
R
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Composite Video
Component Video
HDMI
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity
Speaker system
S
P
E
A
K
E
R
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
68
ENG
110W
11 Ibs
20.5 in.x 12.6 in.x 7 in.
41°F ~ 95°F
10% ~ 75%
10dB
60dB
0.5%
1.0Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
Impedance: 85~115
167W x 2(3Ω)
167W(3Ω)
167W x 2(3Ω)
165W(3Ω)
20Hz~20KHz
70dB
60dB
(AUX)500mV
5.1ch speaker system
Subwoofer speaker
Front/Center/Rear speaker
3Ω (DCR 3.4Ω)
3Ω (DCR 3.4Ω)
45Hz~150Hz
100Hz~20kHz
86dB/W/M
84dB/W/M
165W
167W
330W
334W
Front/Rear 13.4 in.x 52 in.x 13.4 in.
10.6 in.x 16.5 in.x 19.3in.
Center 21.7 in.x 5.4 in.x 3.3in.
Front/Rear 13.8 Ibs
34.8 Ibs
Center 4.9 Ibs
MISCELLANEOUS
Finepix-A340
Finepix-F810
Finepix-F610
Finepix-f450
Finepix S7000
Finepix A310
KD-310Z
Finecam SL300R
Finecam SL400R
Finecam S5R
Finecam Xt
Dimage-Z1
Dimage Z1
Dimage X21
Coolpix4200
Coolpix4300
Coolpix 2200
Coolpix 3500
Coolpix 3700
Coolpix 4100
Coolpix 5200
Stylus 410 digital
300-digital
U300
X-350
C-760
C-5060
X1
U-mini
Lumix-FZ20
DMC-FX7GD
Lumix LC33
LUMIX DMC-F1
Optio-S40
Optio-S50
Optio 33LF
Optio MX
Digimax-420
Digimax-400
Sora PDR-T30
Coolpix 5900
Coolpix S1
Coolpix 7600
DMC-FX7
Dimage Xt
AZ-1
Specifications
69
TXQ120(45~69P) ENG_CA
2007.3.15
9:38 AM
Page 70
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Region
LIMITED WARRANTY TO ORIGINAL PURCHASER
Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material
and workmanship.
SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace
the product at its option.
All warranty repairs must be performed by a SECA Authorized Service Center. (The name and
address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)
LABOR
PARTS
One year (Carry- in)
One year
On carry-in models, transportation to and from the service center is the customer’s responsibility.
The original dated sales receipt must be retained by the customer and is the only acceptable proof
of purchase. It must be presented to the authorized service center at the time service is requested.
EXCLUSIONS (WHAT IS NOT COVERED)
This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse,
incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or
damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this
warranty. Customer adjustments which are explained in the instruction manual are not covered
under the terms of this warranty. This warranty will automatically be voided for any unit found with a
missing or altered serial number. This warranty is valid only on products purchased and used in
Canada.
HEADQUARTERS
SAMSUNG ELECTRONICS CANADA INC.,
CUSTOMER SERVICE
55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA
FABRIQUE EN CORÉE
1-800-SAMSUNG (1-800-7267864)
www.samsung.com/ca
Country
Customer Care Center
Web Site
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
