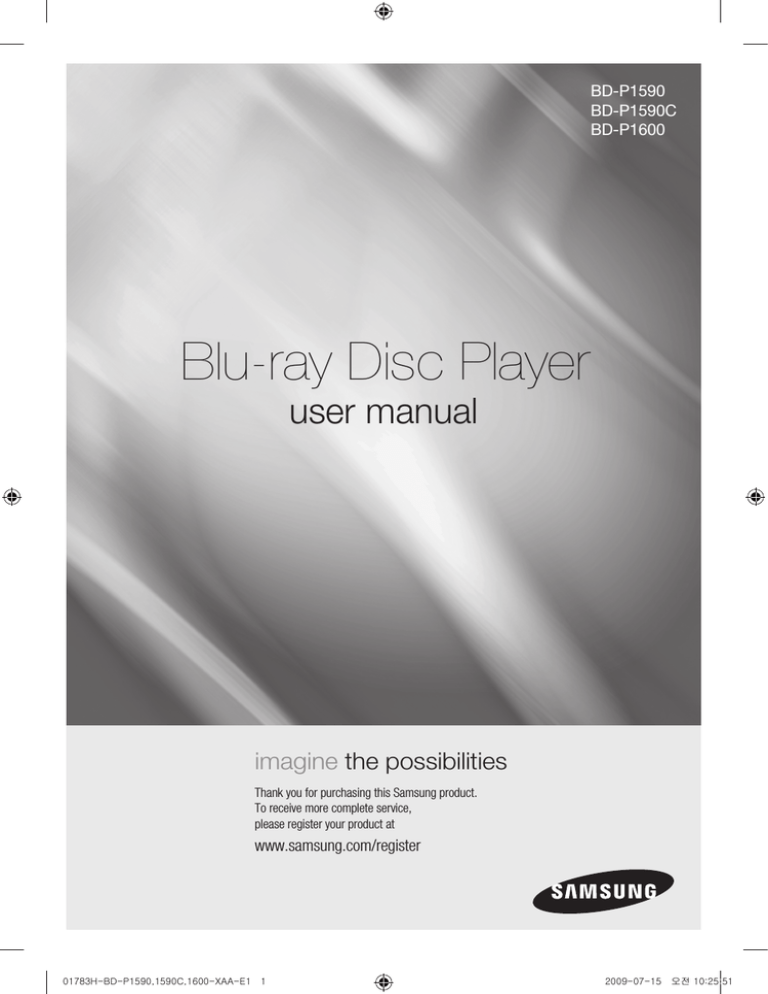

BD-P1590
BD-P1590C
BD-P1600
Blu-ray Disc Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
01783H-BD-P1590,1590C,1600-XAA-E1 1
2009-07-15 오전 10:25:51
key features of your blu-ray
disc player
Player Features
Supports a Variety of Disc Types
• Blu-ray (BD-ROM, BD-RE, BD-R), DVD Video, DVD-RW/-R (V mode and finalized only) discs and Audio CD.
• CD-RW/CD-R, DVD-RW/-R and USB memory flash stick content such as MP3 and JPEG files.
HDMi (High Definition Multimedia interface)
HDMI reduces picture noise by allowing a pure digital video/audio signal path from the player to your TV.
Blu-ray Disc Features
Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise
on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.
* The following Blu-ray Disc features are disc dependant and will vary.
Appearance and navigation of features will also vary from disc to disc.
Not all discs will have the features described below.
Video highlights
The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.
HD video resolutions are also available:
• 1920 x 1080 High Definition
• 1280 x 720 High Definition
For High-Definition Playback
To view high-definition contents on a Blu-ray Disc, an HDTV (High Definition Television) is required.
Some Blu-ray Discs may require using the player's HDMI OUT to view high-definition content. The ability to view
high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.
graphic planes
Two individual, full HD resolution (1920x1080)
video layers are available on top of the HD
video layer.
One layer is assigned to video-related
graphics (like subtitles), and the other layer is
assigned to interactive elements, such as
buttons or menus. Various wipes, fades and
scroll effects may be available on both layers.
PLAY MOVIE
LANGUAGES
SCENE SELECTIONS
PREVIEWS
Graphic
Planes
%
3
4
5
6
7
8
9
10
11
12
13
14
15
HD Video
Menu graphics
Support full color resolution graphics and animation, thereby greatly surpassing the capabilities of DVD-Video.
Unlike DVD, Menus can be accessed during video playback.
Menu sounds
When you highlight or select a menu option on a disc, sounds can be heard such as button clicks or a voice-over
explaining the highlighted menu choice.
2_ key features
01783H-BD-P1590,1590C,1600-XAA-E2 2
2009-07-15 오전 10:25:53
Multi-page/PopUp Menus
Unlike DVD-Video, playback is not interrupted each time a new menu
screen is accessed. Due to Blu-ray Disc's ability to preload data from
the disc without interrupting playback, a menu may consist of several
pages.
You can browse through the menu pages or select different menu
paths, while the audio and video continues playing in the background.
interactivity
Certain Blu-ray Discs may contain Animated menus and Trivia games.
PLAY MOVIE
LANGUAGES
SCENE SELECTIONS
PREVIEWS
%
3
4
5
6
7
8
9
10
11
12
13
14
15
Subtitles
Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and
colors for the subtitles. Subtitles may also be animated, scrolled or faded in and out.
BD-LiVE
You can use a Blu-ray Disc supporting BD-LIVE through network connection to enjoy various contents provided
by the disc manufacturer.
● KEY FEaTUrES
User Browsable Slideshows
With Blu-ray Discs, you can browse through various still pictures while the audio remains playing.
BLOCKBUSTEr
This Blu-ray Disc Player enables you to enjoy movies on-demand provided by Blockbuster through a network
connection.
nETFLiX
This Blu-ray Disc Player enables you to enjoy movies on-demand provided by Netflix through a network
connection.
PanDOra
This Blu-ray Disc Player enables you to enjoy Internet Radio provided by Pandora through a network connection.
© 2005-2009 Pandora Media, Inc., All Rights Reserved Pandora and the Music Genome Project are registered
trademarks of Pandora Media, Inc.
YouTube
This Blu-ray Disc Player enables you to enjoy videos on-demand provided by YouTube through a network
connection.
WHaT’S inCLUDED
Check for the supplied accessories below.
POWER
AUDIO
TV
POWER
OPEN/CLOSE
SUBTITLE
REPEAT
REPEAT
A-B
1
2
4
5
7
8
CANCEL
3
6
9
TV SOURCE
0
BONUSVIEW PAUSE
STOP
PLAY
TV MUTE
TV VOL
NU
RE
ME
O
AK59-00104K
Quick Guide
(AK68-01784F)
Batteries for Remote Control (AAA Size)
(AC43-12002H)
TU
RN
INF
A
DISC MENU
User Manual
(AK68-01783F)
TV CH
ENTER
IT
HDMI Cable (BD-P1590C only)
(MF39-00299A)
EX
Composite (Video), Audio L/R Cable
(AC39-00073A)
B
C
D
POPUP MENU
TITLE MENU
Remote Control
(AK59-00104K)
English _3
01783H-BD-P1590,1590C,1600-XAA-E3 3
2009-07-15 오전 10:25:55
safety information
Warning
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within CAUTION: TO REDUCE THE RISK OF ELECTRIC
the triangle is a warning sign alerting you SHOCK, DO NOT REMOVE COVER (OR BACK) NO
of dangerous voltage inside the product. USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The explanation point within the triangle
is a warning sign alerting you of
important instructions accompanying the
product.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this player must be securely attached to the floor/wall in accordance with the installation instructions.
Note to CATV system installer
This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code
(Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the building as close to the point of
cable entry as practical.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This class B digital player meets all requirements of the Canadian Interference - Causing Equipment Regulations.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1 PRODUCTO
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
CLASS 1 LASER PRODUCT
Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
_ safety information
01783H-BD-P1590,1590C,1600-XAA-E4 4
2009-07-15 오전 10:25:55
This license is limited to private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use. The license does not cover any product unit other than this product unit
and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/
IEC 13818-3 used or sold in combination with this product unit.
The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC
11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not
conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
● SAFETY INFORMATION
Note:
• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
• This Blu-ray Disc Player is designed and manufactured to respond to the Region Management Information.
If the Region number of a Blu-ray Disc/DVD disc does not correspond to the Region number of this Blu-ray Disc
Player, the Blu-ray Disc Player cannot play the disc.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of certain
third parties. This product is covered by one or more of the following U.S. patents:
5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307
6,728,474 6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327
7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437
7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065
7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729 7,286,454 7,304,938
This product is covered by the following U.S. patents:
US4,930,158 US4,930,160
Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this player near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings, install in accordance with the manufacturer's instructions.
8)
Do not install near any heat sources such as radiators, heat registers, or other player (including amplifiers)
that produce heat.
9)
The polarized or the grounding type plug has an important safety purpose. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being deformed or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the player.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the player. When a cart is used, use caution when moving the cart/player
combination to avoid injury from tip-over.
13) Unplug this player during lightning storms or when unused for long periods of time.
14) Refer all servicing to a qualified service personnel. Servicing is required when the player has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
player, the player has been exposed to rain or moisture, does not operate normally, or has been dropped.
English _
01783H-BD-P1590,1590C,1600-XAA-E5 5
2009-07-15 오전 10:25:55
safety information
Handling Cautions
• Before connecting other components to this Blu-ray Disc Player, be sure to turn them all off.
• Do not move the Blu-ray Disc Player while a disc is being played as the disc may be scratched or broken, or the
Blu-ray Disc Player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the Blu-ray Disc Player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interferences such as lightning and static electricity can affect the normal operation of this Blu-ray Disc
Player. If this occurs, turn the Blu-ray Disc Player off and on again with the POWER button, or disconnect and
then reconnect the AC power cord to the AC power outlet. The Blu-ray Disc Player will operate normally.
• Be sure to remove the disc and turn off the Blu-ray Disc Player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the Blu-ray Disc Player for long
periods of time.
• To clean a disc, wipe it in a straight line from the inside to the outside of the disc.
• Do not expose the player to any liquid.
• When the AC plug is connected to a wall outlet, the player will still draw power (standby mode) when it is turned
off.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.
Restrictions on Playback
• This player may not respond to all operating commands because some Blu-ray, DVD and CD discs allow
specific or limited operation and features during playback.
Please note that this is not a defect in the player.
• Samsung cannot assure that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because
disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software
and/or the manufacture of discs.
Please contact the SAMSUNG customer care center if you have questions or encounter difficulty in playing
Blu-ray Disc, DVD, CD discs in this player. Also, refer to rest of this Manual for additional information on
playback restrictions.
_ safety information
01783H-BD-P1590,1590C,1600-XAA-E6 6
2009-07-15 오전 10:25:55
contents
key features of your blu-ray
disc player
3
What’s included
safety information
4
5
Warning
Precautions
getting started
10
11
14
Before Using the User’s Manual
Disc Type and Characteristics
Disc Storage & Management
description
15
16
17
Front Panel
Front Panel Display
Rear Panel
remote control
18
19
19
20
Tour of the Remote Control
Setting the Remote Control
Regarding the Battery
Controllable TV Codes
connections
21
29
Connecting to a TV with an HDMI Cable
- BEST QUALITY (RECOMMENED)
Connecting to a TV with DVI Cable
- BEST QUALITY (RECOMMENED)
Connecting to a TV (Component)
- BETTER QUALITY
Connecting to a TV (Video)
- GOOD QUALITY
Connecting to an Audio System
(HDMI supported Amplifier)
- BEST QUALITY (RECOMMENED)
Connecting to an Audio System
(Dolby Digital, DTS Amplifier)
- BETTER QUALITY
Connecting to an Audio System
(2 Channel Amplifier) - GOOD QUALITY
Connecting to the network
31
32
33
33
34
34
Before Playing
On-Screen Menu Navigation
Playing a Disc
Setting the Sound
Using the Search and Skip Functions
Slow Motion Play/Step Motion Play
4
10
15
18
21
23
24
25
26
27
28
basic functions of your
blu-ray disc player
31
● contents
2
English _
01783H-BD-P1590,1590C,1600-XAA-E7 7
2009-07-15 오전 10:25:56
contents
system setup
35
Setting the Clock
language setup
36
Setting up the Language Options
audio setup
37
Setting up the Audio Options
display setup
40
Setting up the display Options
HDMI setup
44
Setting up the HDMI setup options
parental setup
47
Setting up the Parental Lock
network setup
49
Setting up the Network Setup Options
BD data management
54
System Device Management
system upgrade
55
57
57
Firmware Upgrade
System Information
Firmware upgrade notification
35
36
37
40
44
47
49
54
55
_ contents
01783H-BD-P1590,1590C,1600-XAA-E8 8
2009-07-15 오전 10:25:56
58
59
60
61
61
62
63
63
Using the Display Function
Using the Disc Menu & Popup/Title Menu
Repeat Play
Selecting the Audio Language
Selecting the Subtitle Language
Changing the Camera Angle
BONUSVIEW Settings
BD-LIVE™
listening to music
64
64
65
Buttons on the Remote Control used for
Audio CD (CD-DA)/MP3 playback
Repeat Audio CD(CD-DA)/MP3
Playing an Audio CD(CD-DA)/MP3
playing back a picture
68
Playing a JPEG disc
using the e-contents
69
70
72
74
Using Blockbuster
Using Netflix
Using Pandora
Using Youtube
appendix
80
82
Troubleshooting
Specifications
58
64
68
69
80
● contents
watching a movie
English _
01783H-BD-P1590,1590C,1600-XAA-E9 9
2009-07-15 오전 10:25:56
getting started
Before Using the User’s Manual
Make sure to check the following terms before using the user’s manual.
Icons that will be used in this manual
Icon
h
g
f
Z
C
V
Term
BD-ROM
This involves a function available on a BD-ROM.
BD-RE
This involves a function available on a BD-RE.
BD-R
This involves a function available on a BD-R.
DVD-VIDEO
DVD-RW
DVD-R
Audio CD
A
G
F
M
Definition
This involves a function available on DVD-Video or DVD-RW/-R discs that have been
recorded and finalized in Video Mode.
This involves a function available on DVD-RW. (V mode and finalized only)
This involves a function available on DVD-R. (V mode and finalized only)
This involves a function available on an audio CD-RW/CD-R (CD-DA format).
MP3
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB memory flash sticks.
JPEG
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB memory flash sticks.
USB memory
flash stick
Note
This involves a function available on USB memory flash stick.
This involves tips or instructions on the page that help each function operate.
About the use of this user’s manual
1) Be sure to be familiar with Safety Instructions before using this product. (See pages 4~6)
2) If a problem occurs, check the Troubleshooting section. (See pages 80~81)
Copyright
©2009 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
10_ getting started
01783H-BD-P1590,1590C,1600-XAA-E10 10
2009-07-15 오전 10:25:56
Disc Type and Characteristics
Disc types that can be played
Disc Types
Disc Logo
BD-ROM
BD-RE/BD-R
Disc Shape
Max. Playing minute
AUDIO + VIDEO
Single sided
Playing time depends
on the Title
AUDIO + VIDEO
Single sided(5 inches)
240
Double sided(5 inches)
480
Single sided(3 1/2 inches)
80
Double sided(3 1/2 inches)
160
DVD-RW
(V mode and
finalized only)
AUDIO + VIDEO
5 inches (4.7GB)
480
(EX : Extended Play)
DVD-R
(V mode and
finalized only)
AUDIO + VIDEO
5 inches (4.7GB)
480
(EX : Extended Play)
Single sided(5 inches)
74
Single sided (3 1/2 inches)
20
AUDIO-CD
AUDIO
● GETTING STARTED
DVD-VIDEO
Recorded content
• This player is compatible with the NTSC color system only.
• PAL discs will not play.
Logos of Discs that can be played
Blu-ray Disc
DTS-HD Master Audio
Digital Audio
BD-LIVE
Dolby TrueHD
NTSC broadcast system in
U.S.A, Canada, Korea, Japan
Stereo
Java
Discs that cannot be played
•
•
•
•
•
•
Blu-ray Discs with a region code other than “Region A”.
DVD-Video with a region number other than “1” or “ALL”
HD DVD
DVD+RW/+R
DVD-RAM
DVD-RW(VR mode)
•
•
•
•
3.9 GB DVD-R Disc for Authoring.
DVD-ROM/PD/MV-Disc, etc
Super Audio CD(except CD layer)
CVD/CD-ROM/CDV/CD-G/CD-I/LD
(CDGs play audio only, not graphics.)
English _11
01783H-BD-P1590,1590C,1600-XAA-E11 11
2009-07-15 오전 10:25:57
getting started
[Note]
• Some commercial discs and DVD discs purchased outside your region may not be playable with this
product. When these discs are played, either “This disc can not be played.” or “Please check the
regional code of the disc.” will be displayed.
• If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
• The unit cannot play CD-RW/CD-R and DVD-RW/-R and USB memory flash stick content such as
divx, avi, mpg, mov.
Region code
Both the Blu-ray Disc Player and the discs are coded by region. These regional codes must match in
order to play the disc. If the codes do not match, the disc will not play.
The Region Number for this Blu-ray Disc Player is described on the rear panel of the Blu-ray Disc Player.
Disc Type
Blu-ray
DVD-VIDEO
Region code
a
1
Blu-ray Disc Region Code
Area
A
North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and
South East Asia.
B
Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
C
India, China, Russia, Central and South Asia.
DVD Region Code
Area
1
The U.S., U.S. territories and Canada
2
Europe, Japan, the Middle East, Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines, Indonesia, Hong Kong
4
Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean
5
Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia
6
China
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all
discs are compatible and not every disc will play back. For additional information, refer to the
Compliance and Compatibility Notice section of this Manual. If you encounter compatibility problems,
please contact the SAMSUNG customer care center at 1-800 SAMSUNG.
M
 Playback may not work for some types of discs, or when specific operations, such as angle change and aspect
ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer
to this if necessary.
 Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette
smoke on the recording surface may make it impossible to use the disc for playback.
 Discs with PAL programs recorded on them cannot be played using this product.
 When a BD-J title is played, loading may take longer than a normal title, or some functions may perform slowly.
12_ getting started
01783H-BD-P1590,1590C,1600-XAA-E12 12
2009-07-15 오전 10:25:58
Disc Types
❖ BD-ROM
This Blu-ray disc can only be played back. A BD-ROM disc contains pre-recorded data. Although a
BD-ROM may contain any form of data, most BD-ROM discs will contain movies in High Definition format
for playback on Blu-ray Disc Player's. This unit can play back pre-recorded commercial BD-ROM discs.
❖ BD-RE/BD-R
Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups,
or recording personal video.
• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32
subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround,
allowing you to enjoy vivid and clear theatre quality images.
• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there
may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video. Pre-recorded
(pre-stamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can
play back pre-recorded commercial DVD discs (DVD-Video discs) with movies.
● GETTING STARTED
❖ DVD-Video
❖ Audio CD
• An audio disc on which 44.1kHz PCM Audio is recorded.
• This unit can play back CD-DA format audio CD-RW and CD-R discs.
• The unit may not be able to play some CD-RW or CD-R discs due to the condition of the recording.
❖ CD-RW/CD-R
• Use a 700MB(80 minutes) CD-RW/CD-R disc. If possible, do not use a 800MB(90 minutes) or
above disc, as the disc may not play back.
• If the CD-RW/CD-R disc was not recorded as a closed session, you may experience delays when
playing back the beginning of the disc or all recorded files may not play.
• Some CD-RW/CD-R discs may not be playable with this unit, depending on the device which
was used to burn them. For contents recorded on CD-RW/CD-R media from CDs for your
personal use, playability may vary depending on contents and discs.
❖ DVD-R Disc Playback
• Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
• This unit can play back DVD-R discs recorded and finalized with a DVD video recorder. It may not be
able to play some DVD-R discs depending on the disc and the condition of the recording.
❖ DVD-RW Disc Playback
• Playback can be performed with DVD-RW discs recorded in the Video Mode and finalized.
• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. Ability to play back
may depend on recording conditions.
Disc Format
❖ DVD-RW/-R (V)
• This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be
played by this Blu-ray Disc Player once it has been finalized.
❖ AVCHD (Advanced Video Codec High Definition)
• This player can playback AVCHD format discs. These discs are normally recorded and used in
camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that
of the conventional image compressing format.
• Some AVCHD discs use the “x.v.Color” format.
• This player can playback AVCHD discs using “x.v.Color” format.
• “x.v.Color” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd.
and Sony Corporation.
English _13
01783H-BD-P1590,1590C,1600-XAA-E13 13
2009-07-15 오전 10:25:58
getting started
M
 Some AVCHD format discs may not play, depending on the recording condition.
AVCHD format discs need to be finalized.
 “x.v.Color” offers a wider color range than normal DVD camcorder discs.
Disc Storage & Management
Disc Handling
❖ Disc Shape
• Use discs with regular shapes. If an irregular disc (a disc with a special
shape) is used, this Blu-ray Disc Player may be damaged.
❖ Holding discs
• Avoid touching the surface of a disc where recording is performed.
❖ Blu-ray Discs
• If the player is not used for a long period of time, remove the Blu-ray Disc from the player and
store it in its case.
• Be careful not to leave fingerprints or scratches on the surface of the Blu-ray Disc.
❖ DVD-RW and DVD-R
• Clean with an optional PD disc cleaner (LF-K200DCA1 where available).
Do not use cleaners or cloths for CDs to clean DVD-RW/-R discs.
❖ DVD-Video, Audio-CD
• Wipe off dirt or contamination on the disc with a soft cloth.
❖ Cautions on handling discs
• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile
chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed
tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs.
Disc Storage
Be careful not to damage the disc because the data on these discs is highly vulnerable to the
environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your Blu-ray Disc Player suddenly from a cold place to a warm place, condensation may
generate on the operating parts and lens and cause abnormal disc playback. If this occurs, wait for
two hours before connecting the plug to the power outlet. Then insert the disc and try to play back
again.
14_ getting started
01783H-BD-P1590,1590C,1600-XAA-E14 14
2009-07-15 오전 10:25:59
description
Front Panel
❖ BD-P1590/P1590C
● DESCRIPTION
❖ BD-P1600
M
DISC TRAY
Opens to accept a disc.
DISPLAY
Displays the playing status, time, etc.
Remote Control Sensor
Detects signals from the remote control.
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
SEARCH/SKIP BUTTONS
Goes to the next title/chapter/track or goes back to the previous title/chapter/track.
STOP BUTTON
Stops disc playback.
PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
POWER BUTTON
Turns the Blu-ray Disc Player on and off.
USB HOST
A USB memory flash stick can be connected here and used as storage when connected
to BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG playback.
 You must use the USB HOST on the rear panel of the Blu-ray Disc Player to connect a wireless LAN Adapter.
 You cannot use USB memory flash stick simultaneously in both the front and rear USB ports.
English _15
01783H-BD-P1590,1590C,1600-XAA-E15 15
2009-07-15 오전 10:26:01
description
Front Panel Display
In Disc Indicator
Lights when a disc is in the tray.
Disc Type Indicators
Lights to indicate the disc type in the tray.
USB Indicator
Lights to indicate when USB is connected.
HDMI Indicator
Lights to indicate when HDMI is connected.
HD Indicator
Indicates the display output is HD (High Definition).
24F Indicator
Indicates the current mode is 24Fs (24 frames per second).
STATUS Indicator
Playing time/current status indicator.
16_ description
01783H-BD-P1590,1590C,1600-XAA-E16 16
2009-07-15 오전 10:26:02
Rear Panel
● DESCRIPTION
Fan
The fan always revolves when the power is on.
Ensure a minimum of 4 inches of clear space on
all sides of the fan when installing the product.
M
USB HOST
A USB memory flash stick can be connected here and used as storage when
connected to BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG
playback, as well as for connecting to BD-Live with a wireless LAN adapter.
LAN
Can be used for connection to BD-LIVE, Blockbuster, Netflix, Pandora and YouTube.
It can be also used for firmware upgrades.
COMPONENT
VIDEO OUT
Connects to equipment having Component video input.
DIGITAL AUDIO OUT
(OPTICAL)
Connects to a Receiver.
HDMI OUT
Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal
on your TV for the best quality picture and to your Receiver for the best quality
sound.
VIDEO OUT
Connects the input of external equipment using a video cable.
AUDIO OUT
Connects to the audio input of external equipment using audio cables.
 Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.
 Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.
 A USB device consuming more than 500mA requires a separate power supply device for normal operation.
English _17
01783H-BD-P1590,1590C,1600-XAA-E17 17
2009-07-15 오전 10:26:03
remote control
Tour of the Remote Control
Installing batteries in the Remote Control
1. Lift the cover at the back of the remote control 2.Install two AAA size batteries.
upward as shown.
Make sure to match the “+” and “–” ends
of the batteries with the diagram inside the
compartment.
OPEN/CLOSE Button
To open and close the disc tray.
POWER
TV
POWER
OPEN/CLOSE
TV POWER Button
POWER Button
SUBTITLE Button
Press this to switch the Blu-ray Disc/DVD’s subtitle
language.
AUDIO
SUBTITLE
REPEAT
REPEAT
A-B
1
2
3
NUMBER Buttons
4
5
6
7
8
CANCEL Button
CANCEL
Allows you to repeat a title, chapter, track or disc.
Use this to turn the BONUSVIEW function on or off
with supported Blu-ray Discs.
Allows you to repeat playback of a certain section.
9
TV SOURCE Button
TV SOURCE
0
BONUSVIEW Button
STOP
After setup, allows you to set the input source on
your TV.
PAUSE Button
Press to pause a disc.
BONUSVIEW PAUSE
REVERSE/FORWARD SKIP Buttons
PLAY Button
PLAY
Press to play a disc.
Press to skip backwards or forwards.
REVERSE/FORWARD SEARCH Buttons
STOP Button
Press to search a disc backwards or forwards.
Press to stop a disc.
TV VOL Button
REPEAT Button
REPEAT A-B Button
AUDIO Button
Use this to access various audio functions on a disc
(Blu-ray Disc/DVD).
TV volume adjustment
3.Replace the cover.
Assuming typical TV usage, the batteries last for
about one year.
TV MUTE
TV VOL
TV CH
TV CH Button
RE
RETURN Button
Use this to select a TV program.
TV MUTE Button
ME
N
MENU Button
Brings up the Blu-ray Disc Player’s setup menu.
U
Mutes the speakers of your TV.
TU
RN
ENTER/DIRECTION Buttons
ENTER
IN
FO
A
DISC MENU
EX
IT
INFO Button
Displays current setting or disc status.
B
C
POPUP MENU
DISC MENU Button
Use this to enter the disc menu.
AK59-00104K
EXIT Button
D
TITLE MENU
COLOR Buttons : RED(A), GREEN (B),
YELLOW(C), BLUE(D)
Used to access special features on BD-J discs
(disc dependent).
POPUP MENU/TITLE MENU Button
Use this to enter the popup menu/title menu.
18_ remote control
01783H-BD-P1590,1590C,1600-XAA-E18 18
2009-07-15 오전 10:26:05
SETTing THE rEMOTE COnTrOL
You can control certain functions of your TV with this remote control.
Control function buttons include : TV POWEr, TV CH ,/., TV VOL +/–, TV MUTE, TV SOUrCE
button.
To determine whether your television is compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the television.
If your television is compatible with the remote control, it will switch off.
It is now programmed to operate with the remote control.
M
 If several codes are indicated for your television brand, try each one in turn until you find one that works.
 If you replace the remote control's batteries, you must set the brand code again.
● rEMOTE COnTrOL
3. Press and hold the TV POWEr button and enter the two-figure code corresponding to the brand
of your television by pressing the appropriate number buttons. (see the next page for the code list).
You can then control the television using the following buttons after pressing the TV button.
Button
Function
TV POWER
Used to switch the television on and off.
TV SOURCE
Used to select an external source.
TV VOL (+/–)
Used to adjust the volume of the television.
TV CH (,/.)
Used to select the desired channel.
TV MUTE
Used to toggle the sound on and off.
M
 The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the
television directly.
rEgarDing THE BaTTErY
if the remote does not operate properly:
•
•
•
•
Check the polarity +/– of the batteries (Dry-Cell)
Check if the batteries are drained.
Check if remote sensor is blocked by obstacles.
Check if there is any fluorescent lighting nearby.
Dispose of batteries according to local environmental
regulations. Do not put them in the household trash.
English _1
01783H-BD-P1590,1590C,1600-XAA-E19 19
2009-07-15 오전 10:26:05
remote control
Controllable TV Codes
Brand
SAMSUNG
AIWA
ANAM
BANG & OLUFSEN
BLAUPUNKT
BRANDT
BRIONVEGA
CGE
CONTINENTAL EDISON
DAEWOO
EMERSON
FERGUSON
FINLUX
FORMENTI
FUJITSU
GRADIENTE
GRUNDIG
HITACHI
IMPERIAL
JVC
LG
LOEWE
LOEWE OPTA
MAGNAVOX
METZ
MITSUBISHI
MIVAR
NEC
NEWSAN
NOBLEX
NOKIA
NORDMENDE
PANASONIC
PHILIPS
PHONOLA
PIONEER
RADIOLA
RADIOMARELLI
RCA
REX
SABA
SALORA
SANYO
SCHNEIDER
SELECO
SHARP
SIEMENS
SINGER
SINUDYNE
SONY
TELEAVA
TELEFUNKEN
THOMSON
THOMSON ASIA
TOSHIBA
WEGA
YOKO
ZENITH
Code
TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09
TV POWER+82
TV POWER+10, +11, +12, +13, +14, +15, +16, +17, +18
TV POWER+57
TV POWER+71
TV POWER+73
TV POWER+57
TV POWER+52
TV POWER+75
TV POWER+19, +20, +23, +24, +25, +26, +27, +28, +29, +30, +31, +32, +33, +34
TV POWER+64
TV POWER+73
TV POWER+06, +49, +57
TV POWER+57
TV POWER+84
TV POWER+70
TV POWER+49, +52, +71
TV POWER+60, +72, +73, +75
TV POWER+52
TV POWER+61, +79
TV POWER+06, +19, +20, +21, +22, +78
TV POWER+06, +69
TV POWER+06, +57
TV POWER+40
TV POWER+57
TV POWER+06, +48, +62, +65
TV POWER+52, +77
TV POWER+83
TV POWER+68
TV POWER+66
TV POWER+74
TV POWER+72, +73, +75
TV POWER+53, +54, +74, +75
TV POWER+06, +55, +56, +57
TV POWER+06, +56, +57
TV POWER+58, +59, +73, +74
TV POWER+06, +56
TV POWER+57
TV POWER+45, +46
TV POWER+74
TV POWER+57, +72, +73, +74, +75
TV POWER+74
TV POWER+41, +42, +43, +44, +48
TV POWER+06
TV POWER+74
TV POWER+36, +37, +38, +39, +48
TV POWER+71
TV POWER+57
TV POWER+57
TV POWER+35, +48
TV POWER+73
TV POWER+67, +73, +75, +76
TV POWER+72, +73, +75
TV POWER+80, +81
TV POWER+47, +48, +49, +50, +51, +52
TV POWER+57
TV POWER+06
TV POWER+63
20_ remote control
01783H-BD-P1590,1590C,1600-XAA-E20 20
2009-07-15 오전 10:26:05
connections
This section involves various methods of connecting the Blu-ray Disc Player to
other external components such as a TV.
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to the HDMI IN
terminal of your TV.
2. Press the input selector on your TV remote control until the HDMI signal from the Blu-ray Disc Player appears
on your TV screen.
• If you have set the remote control to operate your TV (see pages 19~20), press the TV SOURCE button on
the remote control and select HDMI as the external source of the TV.
● CONNECTIONS
Connecting to a TV with an HDMI Cable
- BEST QUALITY (RECOMMENED)
HDMI cable
M
 If the Blu-ray Disc Player is connected to your TV in HDMI 1080p output mode, you must use a High
speed(category2) HDMI cable.
 If the HDMI cable is connected or removed during playback of a CD-DA, the player will stop playing.
English _21
01783H-BD-P1590,1590C,1600-XAA-E21 21
2009-07-15 오전 10:26:07
connections
HDMI Auto Detection Function
The player's video output will automatically change to HDMI output resolution when connecting an
HDMI cable while power is on (see page 42).
M
 Depending on your TV, certain HDMI output resolutions may not work.
Please refer to the user's manual of your TV.
 If an HDMI cable is connected from the player to a TV, the Blu-ray Disc Player’s output is set to HDMI output
resolution automatically within 10 seconds.
 If Component and HDMI are both connected, HDMI mode is automatically selected. (See page 42)
 When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI
output resolution will automatically be set to the highest provided by the TV.
 If you connect a Samsung TV to the Blu-ray Disc Player using an HDMI cable, the player can be easily
operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+
feature.) (See pages 44~45)
• HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector.
Using HDMI, the Blu-ray Disc Player transmits a digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
• HDMI connection description
HDMI connector - Supports video and digital audio data (LPCM or Bitstream).
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
• Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal. However, when playing a Blu-ray Disc/DVD, the
data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the Blu-ray Disc
Player) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture
quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no
D/A conversion and is a pure digital signal from the player to your TV.
• What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting Blu-ray Disc/DVD
content outputted via HDMI from being copied. It provides a secure digital link between a video
source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source
device to prevent unauthorized copies from being made.
• What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with
the Anynet+ feature.
- If your Samsung TV has an ' logo, then it supports the Anynet+ function.
-If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn
on automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
• What is BD Wise?
BD Wise is Samsung's latest inter-connectivity feature.
- When you connect Samsung products with BD-Wise to each other via HDMI, the optimum
resolution will be set automatically.
22_ connections
01783H-BD-P1590,1590C,1600-XAA-E22 22
2009-07-15 오전 10:26:07
COnnECTing TO a TV WiTH DVi CaBLE
- BEST QUaLiTY (rECOMMEnED)
1. Using an HDMI-DVI cable (not included), connect the HDMi OUT terminal on the rear of the Blu-ray Disc Player
to the DVi in terminal of your TV.
2. Using the audio cables, connect the aUDiO (red and white) OUT terminals on the rear of the Blu-ray Disc
Player to the aUDiO (red and white) in terminals of your TV.
Turn on the Blu-ray Disc Player and TV.
Connecting the HDMI cable while the Blu-ray Disc Player’s power is on will result in the player’s video output being
changed to HDMI mode automatically (see page 42).
M
● COnnECTiOnS
3. Press the input selector on your TV remote control until the DVI signal from the Blu-ray Disc Player appears on
your TV screen.
• If you have set the remote control to operate your TV (see pages 19~20), press the TV SOUrCE button on
the remote control and select HDMI as the external source of the TV.
 Depending on your TV, certain HDMI output resolutions may not work.
Please refer to the user's manual of your TV.
 If an HDMI-DVI cable is plugged into the TV, the Blu-ray Disc Player’s output resolution is set to HDMI
automatically within 10 seconds.
 If Component and HDMI are both connected, HDMI mode is automatically selected. (See page 42)
 When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI
output resolution will automatically be set to the highest provided by the TV
 If the HDMI cable is connected or removed during playback of a CD-DA, the player will stop playing.
Audio cable
HDMI-DVI cable
(not included)
Red
White
English _23
01783H-BD-P1590,1590C,1600-XAA-E23 23
2009-07-15 오전 10:26:08
connections
COnnECTing TO a TV (COMPOnEnT) - BETTEr QUaLiTY
- Connecting to your TV using Component video cables.
- You will enjoy high quality images with accurate color reproduction. Component video separates the picture
element into black and white(Y), blue(PB) and red(PR) signals to present clear and clean images. (Audio signals are
delivered through the audio output.)
1. Using Component video cables (not included) , connect the COMPOnEnT ViDEO OUT terminals on the rear
of the Blu-ray Disc Player to the COMPOnEnT in terminals of your TV.
2. Using the audio cables, connect the aUDiO (red and white) OUT terminals on the rear of the Blu-ray Disc
Player to the aUDiO (red and white) in terminals of your TV. Turn on the Blu-ray Disc Player and TV.
3. Press the input selector on your TV remote control until the Component signal from the Blu-ray Disc Player
appears on the TV screen.
• If you have set the remote control to operate your TV (see pages 19~20), press the TV SOUrCE button on
the remote control and select COMPONENT as the external source of the TV.
Audio cable
Component cable
(not included)
(Audio)Red White
M
Red
Blue
Green
 Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y” or “Cr,
Cb, Y” instead of “PB, PR, Y”. The number and position of terminals may vary depending on the TV set.
Please refer to the user's manual of your TV.
 You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 480p and 480i,
depending on the disc type. (See page 42)
 The actual resolution may differ from the setting in the SETUP menu if both Component and HDMI cables are
connected. The resolution may also be different depending on the disc. (See page 42)
 In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p,
1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in
the menu.
The resolution is actually 480i.
2_ connections
01783H-BD-P1590,1590C,1600-XAA-E24 24
2009-07-15 오전 10:26:10
COnnECTing TO a TV (ViDEO) - gOOD QUaLiTY
1. Using video/audio cables, connect the ViDEO (yellow) / aUDiO (red and white) OUT terminals on the rear of
the Blu-ray Disc Player to the ViDEO (yellow) / aUDiO (red and white) in terminals of your TV.
2. Turn on the Blu-ray Disc Player and TV.
3. Press the input selector on your TV remote control until the Video signal from the Blu-ray Disc Player appears
on the TV screen.
• If you have set the remote control to operate your TV (see pages 19~20), press the TV SOUrCE button on
the remote control and select VIDEO as the external source of the TV.
● COnnECTiOnS
Audio/Video cable
Red
M
White
Yellow
 Noise may be generated if the audio cable is placed too close to the power cable.
 If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 26~28)
 The number and position of terminals may vary depending on your TV set. Please refer to the user's manual
of your TV.
 If there is only one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the
Blu-ray Disc Player.
 The VIDEO source is always output in 480i resolution regardless of the resolution set in the SETUP menu.
(See page 42)
J
 Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright
protection systems and the picture will be distorted on the television.
English _2
01783H-BD-P1590,1590C,1600-XAA-E25 25
2009-07-15 오전 10:26:12
connections
Connecting to an Audio System
(HDMI supported Amplifier) - BEST QUALITY (RECOMMENED)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to the HDMI IN
terminal of your Amplifier.
2. Using an HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of your TV.
3. Turn on the Blu-ray Disc Player, TV and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.
HDMI cable
HDMI cable
M
 Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the
speakers and your ears.
 Please set the audio in the menu screen according to the Amplifier. (See pages 37~39)
 The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user's manual of
your Amplifier.
26_ connections
01783H-BD-P1590,1590C,1600-XAA-E26 26
2009-07-15 오전 10:26:13
Connecting to an Audio System
(Dolby Digital, DTS Amplifier) - BETTER QUALITY
1. U
sing an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the
Blu-ray Disc Player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier.
2. Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the
Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminals of your TV. (see pages 21~25)
3. Turn on the Blu-ray Disc Player, TV and Amplifier.
● CONNECTIONS
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.
Optical cable
(not included)
M
 Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the
speakers and your ears.
 Please set the audio in the menu screen according to the Amplifier. (See pages 37~39)
 The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of your
Amplifier.
 When using this connection, discs with LPCM audio soundtracks will only be heard over the front two
channels.
English _27
01783H-BD-P1590,1590C,1600-XAA-E27 27
2009-07-15 오전 10:26:14
connections
COnnECTing TO an aUDiO SYSTEM (2 CHannEL aMPLiFiEr)
- gOOD QUaLiTY
1. Using the audio cables, connect the aUDiO (red and white) OUT terminals on the rear of the Blu-ray Disc
Player to the aUDiO (red and white) in terminals of your Amplifier.
2. Using the video signal cable(s), connect the HDMi, COMPOnEnT or ViDEO OUT terminals on the rear of the
Blu-ray Disc Player to the HDMi, COMPOnEnT or ViDEO in terminal of your TV. (See pages 21~25)
3. Turn on the Blu-ray Disc Player, TV and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.
Audio cable
2-Channel stereo amp
Red
M
White
 Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
 Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents
issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master
Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
2_ connections
01783H-BD-P1590,1590C,1600-XAA-E28 28
2009-07-15 오전 10:26:15
Connecting to THE NETWORK
To access network service or upgrade the current firmware, you must make one of the following connections.
By connecting to a network, you can access the BD-LIVE, Blockbuster, Netflix, Pandora, YouTube services and
Software upgrades from Samsung’s update server. We recommend you use an AP or router for the network.
Cable Network
To LAN port
Broadband modem
(with integrated router)
Connecting using a router
(e.g. DSL)
Router
Broadband modem
Or
Broadband
service
To LAN port
M
● CONNECTIONS
1. Using the Direct LAN Cable (UTP cable, not included), connect the LAN terminal of the Blu-ray Disc
Player to the LAN terminal of your modem.
To LAN port
Broadband
service
 Set the network options after connecting the LAN cable.(See pages 49~50)
 Internet access to Samsung’s update server may not be allowed, depending on the router you use or the
ISP’s policy.
For more information, contact your ISP (Internet Service Provider).
 For DSL users, please use a router to make a network connection.
English _29
01783H-BD-P1590,1590C,1600-XAA-E29 29
2009-07-15 오전 10:26:17
connections
Wireless network
You can connect to network with a Wireless IP sharer.
1. A wireless AP/IP router is required to make a wireless network connection. Connect the wireless
LAN adapter to the USB port on the rear panel of the Blu-ray Disc Player, and set the wireless
network options. (See pages 50~52)
Modem Port
Wireless IP sharer
Wireless LAN
Adapter
(not included)
Modem Cable
M
 This unit is compatible with Samsung's Wireless LAN Adapter only. (not included)
(Model name: WIS09ABGN).
- The Samsung Wireless LAN Adapter is sold separately.
- Contact a Samsung Electronics agent or service center for purchasing.
 You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable
operation of the wireless network.)
 Wireless LAN, in its nature, may cause interference, depending on the use condition (AP performance,
distance, obstacle, interference by other radio devices, etc).
 Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
 When applying the security key for the AP (wireless IP sharer), only the following is supported.
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, TKIP, AES
30_ connections
01783H-BD-P1590,1590C,1600-XAA-E30 30
2009-07-15 오전 10:26:20
basic functions of your
blu-ray disc player
This section introduces basic playback functions and playback by disc type.
• Turn on your TV and set it to the correct Video Input (the input the Blu-ray Disc Player is connected to).
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.
After plugging in the player, the first time you press the POWEr button, this screen comes up:
If you want to select a language, press a nUMBEr button.
(This screen will only appear when you plug in the player for
the first time.) If the language for the startup screen is not
set, the settings may change whenever you turn the power
on or off. Therefore, make sure that you select the language
you want to use. Once you select a menu language, you
can change it by pressing the SKiP (]) button on the front
panel of the unit for more than 5 seconds with no disc in the
unit. Then the MENU LANGUAGE SELECTION window
appears again where you can reset your preferred
language.
● BaSiC FUnCTiOnS
BEFOrE PLaYing
MENU LANGUAGE SELECTION
Press 1 for English
Pulsar 2 para Español
Touche 3 pour Français
Macrovision: BBSXXX
When you connect Blu-ray Disc Player and Samsung TV with Anynet+ feature (HDMI-CEC) using
HDMI cable, the MENU LANGUAGE SELECTION window may disappear quickly. If you want to select
language, please disable a Anynet+ feature (HDMI-CEC) on your TV.
M
 Discs which can be played on this player (For the following discs, the ability to play back may depend on
recording conditions.)
• BD-ROM
• BD-RE
• BD-R
• DVD-R
• DVD-RW (V mode)
• CD-RW/CD-R
• The unit may not play certain CD-RW/CD-R and DVD-R due to the disc type or recording conditions.
 Discs which cannot be played on this player.
• HD DVD
• DVD+RW/+R
• DVD-RAM
• DVD-RW(VR mode)
• 3.9 GB DVD-R Disc for Authoring.
• DVD-ROM/PD/MV-Disc, etc • Super Audio CD(except CD layer)
• CVD/CD-ROM/CDV/CD-G/CD-I/LD (CDGs play audio only, not graphics.)
 Blu-ray is a new and evolving format. Accordingly, disc compatibility issues with new and existing format
discs are possible. Not all discs are compatible and not every disc will playback.
For additional information, refer to the Disc Type and Characteristics and Compliance and Compatibility
Notice sections of this Manual. If you encounter compatibility problems, please contact SAMSUNG customer
care center.
 The unit cannot play CD-RW/CD-R and DVD-RW/-R and USB memory flash stick content such as divx, avi,
mpg, mov.
English _31
01783H-BD-P1590,1590C,1600-XAA-E31 31
2009-07-15 오전 10:26:20
basic functions of your
blu-ray disc player
On-Screen Menu Navigation
❖ The GUI (Graphical User Interface) in this manual may differ, depending on the firmware version.
System
System Information
Language
Time Zone
Clock Set
Power On/Off sound
Touch Key Sound
BD Data Management
System Update
Video
Music
Audio
Subtitle
Disc Menu
Menu
Setup
Audio
Display
TV Aspect
Movie Frame (24 Fs)
Resolution
Progressive Mode
Digital Output
PCM Down Sampling
Dynamic Compression
Downmixing mode
Still Mode
Screen Message
Front Display
Anynet+ (HDMI-CEC)
HDMI
Network
Network Selection
Cable Network
Wireless Network
Proxy
HDMI Format
BD Wise
NTP Server
Network Connection Test
BD-LIVE Internet Connection
Parental
Parental Lock
Rating Level
New Password
e-Contents
Blockbuster
Netflix
Pandora
YouTube
32_ basic functions
01783H-BD-P1590,1590C,1600-XAA-E32 32
2009-07-15 오전 10:26:21
PLaYing a DiSC
1. Press the OPEn/CLOSE button.
2. Place a disc gently into the tray with the disc’s label facing up.
3. Press the PLaY button or OPEn/CLOSE button to close the disc tray.
M
 When you stop disc play, the player remembers where you stopped, so when you press the PLAY button
again, it will pick up where you left off. This is called the "Resume" function.
With some BD discs(BD-J), this function may not work.
● BaSiC FUnCTiOnS
 Press the STOP button twice during playback to disable the Resume function.
 To pause the playback, press the PAUSE button during playback.
To resume, press the PLAY button.
 If the player is left in the stop mode more than 5 minutes without any user interface, a screen saver will
appear on your TV. If the player is left in the screen saver mode for more than 15 minutes, the power will
automatically turn off except during playback of a CD-DA (Automatic Power-Off Function).
 If no buttons are pressed on the unit or remote control for more than 5 minutes when the unit is in Pause
mode, operation will stop (except for some Blu-ray Discs).
SETTing THE SOUnD
Setting the Power On / Off Melody Sound
A Melody sound can be set so it is heard each time you turn the player on or off.
1. With the unit in Stop mode, press the MEnU button.
2. Press the $% buttons to select Setup, then press the
EnTEr or + button.
System Information
Music
Time Zone
No disc
Setup
3. Press the $% buttons to select System, then press the
EnTEr or + button.
Clock Set
System
Power On/Off sound
: PCM
✓ On
Language
Touch Key Sound
: On Off
Audio
BD Data Management
Display
System Update
◄
►
HDMI
. Press the ▲▼ buttons to select Power On/Off sound,
then press the EnTEr or + button.
Network
Parental
. Press the $% buttons to select On or Off, then press
the EnTEr or + button.
. Press the MEnU button to exit the setup menu.
Setting the Touch Key Sound On / Off
You can set the player so a sound is heard each time a button is pressed on the front panel of the unit.
To setup, follow steps 1 through 3 above.
. Press the $% buttons to select Touch Key Sound,
then press the EnTEr or + button.
. Press the $% buttons to select On or Off, then press
the EnTEr or + button.
. Press the MEnU button to exit the setup menu.
Time Zone
Music
Clock Set
No disc
Setup
System
◄
Power On/Off sound
: On
Touch Key Sound
: PCM
✓ On
Language
BD Data Management
Audio
System Update
►
Off
Display
HDMI
Network
Parental
English _33
01783H-BD-P1590,1590C,1600-XAA-E33 33
2009-07-15 오전 10:26:28
basic functions of your
blu-ray disc player
Using the Search and Skip Functions
During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.
Searching through a Chapter or Track
During playback, press the SEARCH (
Each time you press the SEARCH (
BD-ROM, BD-RE, BD-R, DVD-VIDEO,
DVD-RW, DVD-R
hgfZCV
) button.
) button, the playback speed will change as follows.
) X 2  ) X 4  ) X 8  ) X 16  ) X 32  ) X 128
( X 2  ( X 4  ( X 8  ( X 16  ( X 32  ( X 128
~ You can scan the program in reverse.
• To return to normal speed playback, press the PLAY button.
M
 No sound is heard during search mode.
hgfZCV
Skipping Tracks
During playback, press the SKIP (
) button.
When playing a Blu-ray Disc/DVD, if you press the SKIP (
) button, it moves to the next chapter.
If you press the SKIP (
) button, it moves to the beginning of the chapter. One more press makes it
move to the beginning of the previous chapter.
Slow Motion Play/Step Motion Play
Slow Motion Play
hgfZCV
In pause mode, press the SEARCH (
) button.
~ If you press the SEARCH (
) button, the playback speed is reduced to
*1/8 * 1/4 * 1/2
• To return to normal speed playback, press the PLAY button.
M
 This ( ) icon indicates an invalid button press.
 No sound is heard during slow mode.
 Slow motion operates only in the forward direction.
Step Motion Play
hgfZCV
In pause mode, press the PAUSE button.
• Each time the PAUSE button is pressed a new frame will appear.
• To return to normal speed playback, press the PLAY button.
M
 N
o sound is heard during step mode.
 Step motion operates only in the forward direction.
34_ basic functions
01783H-BD-P1590,1590C,1600-XAA-E34 34
2009-07-15 오전 10:26:29
system setup
For your convenience, you can set this player’s features for the best use in your
home environment.
SETTing THE CLOCK
1. With the unit in Stop mode, press the MEnU button.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
Music
No disc
Setup
3. Press the ▲▼ buttons to select System, then press the
EnTEr or + button.
. Press the ▲▼ buttons to select Time Zone, then press
the EnTEr or + button.
. Use the _ + button to place the cursor to the
appropriate time zone for your area and press the
EnTEr button.
Time Zone
◄
►
Language
Clock Set
Audio
Power On/Off sound
: On
Display
Touch Key Sound
: On
HDMI
BD Data Management
Network
System Update
Parental
Music
Time Zone
System Information
No disc
Setup
◄
M
System Information
System
● SYSTEM SETUP
Choose your time zone
System
Time Zone
◄
►
Language
Clock Set
Audio
Power On/Off sound
: On
Display
Touch Key Sound
: On
HDMI
GMT + 00:00BD Data Management
NetworkLondon, Lisbon, Casablanca
System Update
Parental
s Save
r Return
►
 To set the time automatically, set the NTP server to On (see page 53).
Set the clock
To setup, follow steps 1 through 3 above.
. Press the ▲▼ buttons to select Clock Set, then press
the EnTEr or + button.
Music
System Information
No disc
Setup
Time Zone
System
Clock Set
◄
►
Language
Power On/Off sound
: On
Audio
Touch Key Sound
: On
Display
BD Data Management
HDMI
System Update
Network
Parental
. Press the _ + buttons to move to “Date”, “hr.” (hour),
“min.” (minute) and “am/pm”. Set the date and time by
pressing the ▲▼ buttons, then press the EnTEr
button.
Music
System Information
No disc
Setup
System
Date
Language
Audio
JAN/01/2009
Display
Thursday
y
HDMI s Save
Network
Clock Set
◄
Time Zone
Clock Set
min. am/pm
Power On/Off sound
01 Touch01Key Sound
PM
hr.
►
: On
: On
BD Data Management
r Return
System Update
Parental
English _3
01783H-BD-P1590,1590C,1600-XAA-E35 35
2009-07-15 오전 10:26:34
language setup
SETTing UP THE LangUagE OPTiOnS
Once you set the audio, subtitle, disc menu and player menu language options, they will be applied automatically
every time you watch a movie.
M
 If you want to choose a different audio and subtitle language while playing a disc, you can also use the disc
menu to make the selection.
1. With the unit in Stop mode, press the MEnU button.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
Music
No disc
Setup
System
_
Language
►
Audio
Display
HDMI
Network
Parental
3. Press the ▲▼ buttons to select Language, then press
the EnTEr or + button.
Language Setup menu will be displayed.
Music
No disc
System
Setup
Language
Audio
: Original
Audio
Subtitle
: Auto
Display
Disc Menu
: English
HDMI
Menu
: Auto
◄
►
Network
Parental
. Press the ▲▼ buttons to select the desired language
option, press the EnTEr or + button.
Music
No disc
•
•
•
•
audio : For the disc audio language.
Subtitle : For the disc subtitles.
Disc Menu : For the disc menu contained on the disc
Menu : For the on-screen menu of your Blu-ray Disc
Player.
System
Setup
Language
Audio
: Original
✓ Original
Audio
Subtitle
Display
Disc Menu
: AutoEnglish
Français
: English
HDMI
Menu
◄
Network
Parental
►
Deutsch
: Auto
Español
Italiano
. Press the ▲▼ buttons to select the desired language, then press the EnTEr button.
M
 Press the RETURN or _ button to return to the previous menu. Press the MENU button to exit the menu.
 The selected language will only appear if it is supported on the disc.
3_ language setup
01783H-BD-P1590,1590C,1600-XAA-E36 36
2009-07-15 오전 10:26:38
audio setup
SETTing UP THE aUDiO OPTiOnS
Allows you to set up the Audio device and sound status depending on the audio system being used with the
player.
1. With the unit in Stop mode, press the MEnU button.
Music
No disc
Setup
3. Press the ▲▼ buttons to select audio, then press the
EnTEr or + button.
Language
_
Audio
►
Display
HDMI
Network
Parental
. Press the ▲▼ buttons to select the desired audio option
from the options described below, then press the
EnTEr or + button.
. Press the ▲▼ buttons to select the desired item, then
press the EnTEr button.
Music
. Each audio option is described in detail below.
M
System
● aUDiO SETUP
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
No disc
Setup
 Press the RETURN or _ button to return to the previous
menu. Press the MENU button to exit the menu.
System
Language
Digital Output
: PCM
Display
PCM Down Sampling
: On
HDMI
Dynamic Compression : On
Network
Downmixing mode
Audio
◄
►
: Normal stereo
Parental
Digital Output
Blu-ray Discs may include three audio streams.
Music
- Primary Audio : Main audio soundtrack of the disc
- Secondary Audio : Provides audio for the BONUSVIEW
window of a Blu-ray Disc.
No disc
Setup
System
Language
Audio
Display
- Effect Audio : You may hear menu prompt sounds (etc.)
when selecting menu items on a Blu-ray Disc (depending
on the disc).
◄
Digital Output
: PCM
✓ PCM
PCM Down Sampling
: On Bitstream(Re-encode)
Downmixing mode
: Normal stereo
►
HDMI
Dynamic Compression : On Bitstream(Audiophile)
Network
Parental
Digital Output Selections
Setup
PCM
Bitstream
(Re-encode)
Bitstream
(Audiophile)
Definition
Pro
You can enjoy not only
Primary audio but also
Secondary and Effect audio
Decodes Primary, Secondary together.
and Effect audio streams
This unit can decode Dolby
together into PCM audio.
TrueHD and DTS-HD Master
Audio, the output audio
quality will be same with
Bitstream (audiophile) setup.
Decodes Primary, Secondary
You can enjoy not only
and Effect audio streams
Primary audio, but also
together into PCM audio, then
Secondary and Effect audio
re-encodes the PCM audio
together.
into DTS bitstream.
Outputs only the Primary
This unit can decode Dolby
audio soundtrack (main
TrueHD and DTS-HD Master
soundtrack of the main
Audio, the output audio
feature) so that your receiver
quality will be same with PCM
can decode the audio
setup.
bitstream.
Con
Recommended use
If you are using an optical
Recommended choice if you
cable, you may not hear
have an HDMI receiver.
multichannel surround audio.
Audio quality may be lower
than PCM or Bitstream
(Audiophile) setups when you
are using a receiver with
HDMI or Optical input.
Recommended choice if you
don’t have an HDMI
supported receiver, but have
a receiver with an Optical
input that can decode DTS.
You will not hear Secondary
and Effect audio.
Recommended choice if you
have an HDMI 1.3 receiver
which has Dolby TrueHD and
DTS-HD Master Audio
decoding capability.
English _3
01783H-BD-P1590,1590C,1600-XAA-E37 37
2009-07-15 오전 10:26:43
audio setup
M
 Be sure to select the correct Digital Output or you will hear no sound or a loud noise.
 If the HDMI device (Receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio
signal outputs as PCM.
 Secondary and Effect audio will not be heard with regular DVDs.
 Some Blu-ray Discs do not have Secondary and Effect audio.
 This Digital Output setup does not effect the analog (L/R) audio or HDMI audio output to your TV. It effects
the optical and HDMI audio output when connected to a receiver.
 When the player outputs HD audio bitstream(Dolby TrueHD or DTS-HD Master Audio) from the Optical jack to
an HDMI 1.3 receiver, only 2 channel PCM audio will be heard.
 If you play MPEG audio soundtracks, audio signal outputs PCM regardless of Digital Output Selections(PCM
or Bitstream).
PCM Down Sampling
• On : Select this when the Amplifier connected to the
player is not 96KHz compatible. 96KHz signals will be
down converted to 48KHz
• Off : Select this when the Amplifier connected to the
player is 96KHz compatible. Signals will be output without
any changes.
M
Music
No disc
Setup
System
Language
Audio
◄
Digital Output
: PCM
PCM Down Sampling
: PCM
✓ On
Display
Dynamic Compression : On Off
HDMI
Downmixing mode
►
: Normal stereo
Network
Parental
 Even when PCM Down Sampling is set to Off,, some discs will only output downsampled audio through the
optical digital outputs.
HDMi
• If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS), the unit may
output PCM 2ch downmixed audio even though you set Bitstream(either Re-encode or Audiophile)
on your setup menu.
• If your TV is not compatible with PCM sampling rates over 48kHz, the unit may output 48kHz
downsampled PCM audio even though you set "PCM Down Sampling" to Off.
Dynamic Compression
This is only active when a Dolby Digital signal is detected.
• On : When Movie soundtracks are played at low volume
or from smaller speakers, the system can apply
appropriate compression to make low-level content more
intelligible and prevent dramatic passages from getting
too loud.
• Off : You can enjoy the movie with the standard Dynamic
Range.
Music
No disc
Setup
System
Digital Output
: PCM
Language
PCM Down Sampling
: On
Audio
Display
◄
Dynamic Compression : PCM
✓ On
Downmixing mode
►
: Normal
Off stereo
HDMI
Network
Parental
3_ audio setup
01783H-BD-P1590,1590C,1600-XAA-E38 38
2009-07-15 오전 10:26:46
Downmixing mode
No disc
Music
Setup
Digital Output
: PCM
System
PCM Down Sampling
: On
Language
Dynamic Compression : On
Audio
Display
HDMI
◄
Downmixing mode
►
: Normal
stereo
✓ Normal
stereo
Surround
Compatible
Network
Parental
● aUDiO SETUP
This option enable you to compatible with Dolby Pro Logic systems.
• normal stereo : This is for just downmixing into 2ch
audio.It is not compatible with Dolby Surround or Dolby
Surround Pro Logic or Dolby Pro Logic II.
• Surround Compatible : The 2/0 Lt/Rt downmix is a twochannel Dolby Surround compatible output that can be
decoded by Dolby Surround (passive), Dolby Surround
Pro Logic (active) or Dolby Pro Logic II (active) decoders.
This downmix provides backward compatibility with
existing Dolby Surround systems and can be recorded on
two-channel media such as the videotape used by
videocassette recorders.
English _3
01783H-BD-P1590,1590C,1600-XAA-E39 39
2009-07-15 오전 10:26:48
display setup
SETTing UP THE DiSPLaY OPTiOnS
This function allows you to setup the TV screen settings. This function
depends on the disc or TV type. It may not work with some discs or TVs.
1. With the unit in Stop mode, press the MEnU button.
System
Music
Language
No disc
Setup
Audio
_
Display
►
HDMI
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
Network
Parental
3. Press the ▲▼ buttons to select Display, then press the
EnTEr or + button.
Display Setup menu will be displayed.
. Press the ▲▼ buttons to select the desired display option
from the options on the following pages.
. Press the ▲▼ buttons to select the desired sub-menu
item from a video display option, then press the EnTEr
button.
Music
No disc
Setup
System
Language
Audio
TV Aspect
: 16:9 Normal
HDMI
Movie Frame (24 Fs)
: Off
Network
Resolution
: 1080p
Parental
Progressive Mode
Display
◄
. Each video option is described in detail below.
M
►
: Auto
Still Mode
: Auto
Screen Message
: On
Front Display
: Bright
 Press the RETURN or _ button to return to the previous
menu. Press the MENU button to exit the menu.
TV aspect
Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)
• 4:3 Letter Box :
Select when you want to see the total
16:9 ratio screen Blu-ray Disc/DVD
supplies, even though you have a TV with
a 4:3 ratio screen. Black bars will appear
at the top and bottom of the screen.
Music
No disc
Setup
• 4:3 Pan-Scan :
Select when you want to see the 16:9
video supplied by the Blu-ray Disc/DVD
without the black bars on top and bottom,
even though you have a TV with a 4:3
ratio screen(extreme left and right portion
of the movie picture will be cut off).
• 16:9 Wide :
You can view the full 16:9 picture on your widescreen TV.
System
Language
Audio
Display
HDMI
◄
TV Aspect
: 16:94:3Normal
Letter Box
Movie Frame (24 Fs)
: Off 4:3 Pan-Scan
Resolution
16:9 Wide
: 1080p
Network
Parental
Progressive Mode
►
✓ 16:9 Normal
: Auto
Still Mode
: Auto
Screen Message
: On
Front Display
: Bright
• 16:9 Normal :
Certain movies(4:3 source) will be displayed in 4:3 Pillarbox (black bars on sides of picture)
if 16:9 normal is selected.
M
 Depending on the disc type, some aspect ratios may not be available.
 If you select an aspect ratio which is different than the aspect ratio of your TV screen, then the picture might
appear to be distorted.
0_ display setup
01783H-BD-P1590,1590C,1600-XAA-E40 40
2009-07-15 오전 10:26:54
Movie Frame (24 Fs)
Movies are usually filmed at 24 frames per second. Some
Blu-ray Discs have the capability of playing back at this
frame rate. Setting the Movie Frame (24Fs) feature to ON
allows you to adjust the Blu-ray Disc Player's HDMI output
to 24 frames per second for improved picture quality.
System
Music
Language
No disc
Audio
Setup
TV Aspect
: 16:9 Normal
Movie Frame (24 Fs)
: PCMOn
HDMI
Resolution
✓ Off
: 1080p
Network
Progressive Mode
Parental
Still Mode
: Auto
Screen Message
: On
Front Display
: Bright
Display
You can enjoy the Movie Frame (24Fs) feature only on a TV
supporting this frame rate.
◄
►
: Auto
Depending on the disc, two types of frame rates may be included: Movie material (24 frame) and Video
material (30 frame). When the setting switches between Movie (24 frame) and Video (30 frame),
the screen may blink for a few seconds.
resolution
Sets the output resolution of the Component and HDMI
video signal.
• The number in 480i, 480p, 720p, 1080p and 1080i
indicates the number of lines of video. The i and p indicate
interlace and progressive scan, respectively.
- BD Wise : Automatically sets the optimal resolution
when connected via HDMI to a TV with the BD Wise
feature.
(The BD Wise menu item appears only if BD Wise is set
to On.)
- 1080p : Outputs 1080 lines of progressive video (HDMI only).
- 1080i : Outputs 1080 lines of interlaced video.
- 720p : Outputs 720 lines of progressive video.
- 480p : Outputs 480 lines of progressive video.
- 480i : Outputs 480 lines of interlaced video (Component only).
No disc
If the connected TV does not support Movie Frame or the
selected resolution, you will see the following message:
If you select Yes and the resolution is not supported, the
TV's screen will be blank. Please wait for 15 seconds and
the resolution will be reverted to the previous value
automatically.
M
System
Music
Language
Audio
Setup
Display
TV Aspect
: 16:9 Normal
Movie Frame (24 Fs)
: Off
Resolution
: PCM
✓ 1080p
Progressive Mode
: Auto1080i
Network
Still Mode
Parental
Screen Message
: Auto720p
: On 480p
480i
: Bright
HDMI
◄
Front Display
►
System
Music
No disc
● DiSPLaY SETUP
This menu can only be selected in 1080i or 1080p HDMI
output resolution modes.
Setup
!
Language
TV Aspect
: 16:9 Normal
Audio
Movie Frame (24 Fs)
: Off
If no pictures are shown
after the selection,
◄
Resolution
Display
please wait for 15 seconds. And then,
Progressive Mode
HDMI
the resolution will be reverted
Still Mode
to the previous value automatically.
Network
Message
Parental
Would you like to make aScreen
selection?
Front Display
Yes
No
: 1080p
►
: Auto
: Auto
: On
: Bright
 If the screen is blank, press and hold the SKIP (])) button on the front of the player for more than 5
seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous
page to access each mode and select the Display Setup that your TV will support.
 When the factory default settings are restored, all the user data stored in the BD data will be deleted.
English _1
01783H-BD-P1590,1590C,1600-XAA-E41 41
2009-07-15 오전 10:26:58
display setup
❖ resolution according to the output mode
• Blu-ray Disc playback
Output
HDMI
Component
(HDMI&Comp. connected / Comp. connected only)
VIDEO
1080p, Movie Frame(24Fs) off
1080p@60F
1080i
480i
1080p/1080i, Movie Frame (24Fs) on
1080p@24F
480i / 1080i
480i
1080i, Movie Frame (24Fs) off
1080i
1080i
480i
720p
720p
720p
480i
480p
480p
480p
480i
480i
480p
480i
480i
HDMI
Component
(HDMI&Comp. connected / Comp. connected only)
VIDEO
1080p
1080p@60F
480i / 480p
480i
1080i
1080i
480i / 480p
480i
720p
720p
480i / 480p
480i
480p
480p
480i / 480p
480i
480i
480p
480i
480i
Setup
• DVD playback
Output
Setup
M
 In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p,
1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in
the menu.
The resolution is actually 480i.
 This player has the HDMI Auto Detect Feature. When the player is first connected to a TV via HDMI, the
player's output will be set automatically to HDMI.
 If the HDMI Auto Detection feature does not work, you can't select the 1080p resolution or Movie Frame
(24Fs).
 The Blu-ray Disc must have the 24 frame feature in order to use the Movie Frame (24Fs) mode.
Progressive Mode
The Progressive Mode helps to improve picture quality when viewing 480i resolution DVD discs.
• auto : Select this to have the player automatically set the
System
TV Aspect
: 16:9 Normal
Music
Language
Movie Frame (24 Fs)
: Off
best picture for the DVD you're watching.
Audio
Resolution
: 1080p
• Video : Select this for the best picture from Concert or TV
Display
Setup
Progressive Mode
: PCM
✓ Auto
show DVDs.
HDMI
Still Mode
: AutoVideo
◄
No disc
Network
Screen Message
: On
Parental
Front Display
: Bright
►
2_ display setup
01783H-BD-P1590,1590C,1600-XAA-E42 42
2009-07-15 오전 10:27:00
Frame & Field bar
Still Mode
Music
No disc
Setup
System
Movie Frame (24 Fs)
Language
Resolution
: 1080p
Audio
Progressive Mode
: Off
: Auto
Still Mode
: PCM
✓ Auto
HDMI
Screen Message
Network
Front Display
: On Field
Frame
: Bright
Display
◄
►
Parental
● DiSPLaY SETUP
Set the Auto, Field or Frame setting for the best possible still
picture (pause mode) from a DVD.
• auto : Select this setting to have the player automatically
display the best Still picture depending on the content.
• Field Mode : Select this when pausing a scene with a lot
of action.
• Frame Mode : Select this to increase the resolution of the
Still picture.
Screen Message
• On : Displays messages related to operation mode.
• Off : Does not display messages related to operation
mode.
Music
No disc
Setup
System
Resolution
: 1080p
Language
Progressive Mode
: Auto
Audio
Still Mode
: Auto
Screen Message
: PCM
✓ On
Front Display
Off
: Bright
Display
◄
HDMI
►
Network
Parental
Front Display
• auto : Display is dim during playback and bright when the
unit is in Stop mode.
• Dim : Select to dim the display window.
• Bright : Select to brighten the display window.
Music
No disc
Setup
System
Progressive Mode
Language
Still Mode
: Auto
Audio
Screen Message
: On
Front Display
: PCM
Auto
Display
HDMI
Network
◄
: Auto
►
Dim
✓ Bright
Parental
English _3
01783H-BD-P1590,1590C,1600-XAA-E43 43
2009-07-15 오전 10:27:04
HDMI setup
SETTing UP THE HDMi SETUP OPTiOnS
1. With the unit in Stop mode, press the MEnU button.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
Language
Music
Audio
No disc
Setup
3. Press the ▲▼ buttons to select HDMi, then press the
EnTEr or + button.
HDMI Setup menu will be displayed.
Display
_
HDMI
►
Network
Parental
. Press the ▲▼ buttons to select the desired display
option, then press the EnTEr or + button.
anynet+ (HDMi-CEC) (Samsung products only)
When HDMI is set to on, you can operate the Anynet+
function.
• On : Anynet+ functions will work.
• Off : Anynet+ function will not work.
Music
No disc
Setup
Language
Audio
Display
Anynet+ (HDMI-CEC)
: 16:9
Normal
✓ On
Network
HDMI Format
: Off Off
Parental
BD Wise
: On
HDMI
◄
►
What is anynet+?
Anynet+ is a convenient function that offers linked
operations with other Samsung products with the Anynet+
feature.
You can operate this unit using a Samsung TV remote control or power on your Samsung TV and
Home theater and start disc playback simply by pressing the PLaY button on the TV’s remote.
M
 This function is not available if the HDMI cable does not support CEC.
To use anynet+
1. Connect the Blu-ray Disc Player to a Samsung TV with an HDMI cable. (See pages 21~23)
2. Set the Anynet+ (HDMI-CEC) to “On” on your Blu-ray Disc Player.
3. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)
anynet+ Functions
• One touch play
You can power on your Samsung TV and Home Theater, and play the disc in this unit simply by
pressing the PLaY button on the TV’s remote.
• One touch watching
Select “Watching Blu-ray Disc Player” or “Connected to Blu-ray Disc Player” (depending on your
TV's menu) in the Anynet+ menu on the TV. The Blu-ray Disc Player will automatically turn on and the
TV will be switched to HDMI mode.
• Remote control Link
You can operate this player with your Samsung TV remote control.
• Available buttons on the Samsung TV remote: These buttons work the same as this Blu-ray Disc
player's remote control.
- Playback control buttons :
- Menu operation button :
- Numeric buttons :
~
- Color buttons :
_ HDMI setup
01783H-BD-P1590,1590C,1600-XAA-E44 44
2009-07-15 오전 10:27:07
M
● HDMi SETUP
TV anynet+ Menu
When you press the Anynet+ button on your Samsung TV's
n
remote control, the following On-Screen Display (OSD) will
BD Player
be shown.
View TV
Select Device
• Blu-ray Disc Player Menu
Record
Menu on Device
- When playing a movie : brings up the disc’s menu (same
Device Operation
as DiSC MEnU button on the Blu-ray Disc Player’s
Receiver : Off
remote control)
Setup
>Move
sEnter
- In Stop mode : brings up the SETUP menu (same as the
eExit
MEnU button on the Blu-ray Disc Player’s remote
control.)
• Blu-ray Disc Player Operation Menu
- When playing a DVD VIDEO, DVD-RW/-R, BD-ROM, BD-RE :
shows INFO OSD (same as inFO button on the player's remote control)
 These menus may look different depending on your Samsung TV.
HDMi Format
You can optimize the HDMI output for connection to a TV or Monitor.
• TV : Select if connected to a TV via HDMI.
Music
• Monitor : Select if connected to a Monitor via HDMI.
If the player is connected to a TV, the Monitor option is
Setup
unavailable.
No disc
Language
Audio
Display
HDMI
Network
◄
Anynet+ (HDMI-CEC)
: On
HDMI Format
: PCM
✓ TV
BD Wise
: On Monitor
►
Parental
M
 TV or monitor has to be connected to the player before you
select this option.
English _
01783H-BD-P1590,1590C,1600-XAA-E45 45
2009-07-15 오전 10:27:10
HDMI setup
BD Wise (Samsung products only)
BD Wise is Samsung's latest inter-connectivity feature.
When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution
will be set automatically.
• On : The original resolution of the BD/DVD disc will be
Language
Music
output to the TV directly.
Anynet+ (HDMI-CEC)
: On
Audio
HDMI Format
: TV
Display
• Off : The output resolution will be fixed according to the
Setup
BD Wise
: PCM
HDMI
✓ On
Resolution previously set, regardless of the resolution of
Off
Network
Parental
the disc.
No disc
M
◄
►
 If you want to change the resolution in BD Wise, you must set BD Wise to Off in advance.
 If you set off the BD Wise, the resolution of the connected TV will be adjusted to its maximum resolution
automatically.
 If the player is connected to a device that does not support BD Wise, you can not use BD wise function.
 For a proper operation of BD Wise, set each BD Wise menu of the player and the TV to On respectively.
_ HDMI setup
01783H-BD-P1590,1590C,1600-XAA-E46 46
2009-07-15 오전 10:27:11
parental setup
SETTing UP THE ParEnTaL LOCK
The Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which
helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a
disc.
1. With the unit in Stop mode, press the MEnU button.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
3. Press the ▲▼ buttons to select Parental, then press
the EnTEr or + button.
When you operate your Blu-ray Disc Player for the first
time, the “Enter New password.” message will be
displayed.
Display
Music
HDMI
No disc
No disc
Setup
Network
_
Parental
Music
Display
Network
Setup
►
HDMI
Parental Setup
Parental
◄
Enter New password.
- Number
. Enter the 4-digit password using the number buttons on
the remote control.
The “Confirm the password.” message will be displayed.
Enter your password again.
● ParEnTaL SETUP
hZ
No disc
Music
Display
Network
Setup
r Return
HDMI
Parental Setup
Parental
◄
Confirm the password.
- Number
. Press the EnTEr or + button to select Parental Lock.
. Press the ▲▼ buttons to select On or Off, then press
the EnTEr button.
Music
No disc
Setup
r Return
Display
HDMI
Network
Parental
◄
Parental Lock
: Off
Rating Level
: 1(Kids)
►
New Password
M
 Press the RETURN or _ button to return to the previous menu. Press the MENU button to exit the menu.
English _
01783H-BD-P1590,1590C,1600-XAA-E47 47
2009-07-15 오전 10:27:16
parental setup
if you forgot your password
1. Remove the disc.
2. Press and hold the SKiP (]) button on the front panel for 5 seconds or more.
• All settings will revert to the factory settings.
M
 When the factory default settings are restored, all the user data stored in the BD data will be deleted.
Setting the rating Level
1. Press the ▲▼ buttons to select rating Level, then
press the EnTEr or + button.
2. Press the ▲▼ buttons to select the rating level you
want, then press the EnTEr button. For example, if you
select up to Level 6, discs that contain Level 7, 8 will not
play.
A larger number indicates that the program is intended
for adult use only.
Level 1 is the most restrictive and Level 8 is the least.
Music
No disc
Setup
Display
HDMI
Network
Parental
◄
Parental Lock
: Off
Rating Level
: Off
8(Adults)
►
7
New Password
6
5
4
3
2
✓ 1(Kids)
Changing the Password
1. Press the ▲▼ buttons to select new Password, then
press the EnTEr or + button.
Music
No disc
2. Enter the 4-digit password using the number buttons on
the remote control. The “Enter New password.”
message will be displayed.
Setup
Music
No disc
Setup
Display
HDMI
Network
Parental
◄
Parental Lock
: Off
Rating Level
: 1(Kids)
New Password
►
Display
HDMI
Parental Lock
Network
Rating Level
Parental Setup
◄
New Password
Parental
: Off
: 1(Kids)
►
Enter New password.
- Number
3. Enter your password again using the number buttons on
the remote control.
Music
No disc
Setup
r Return
Display
HDMI
Parental Lock
Network
Rating Level
Parental Setup
◄
New Password
Parental
: Off
: 1(Kids)
►
Confirm the password.
- Number
r Return
_ parental setup
01783H-BD-P1590,1590C,1600-XAA-E48 48
2009-07-15 오전 10:27:21
network setup
SETTing UP THE nETWOrK SETUP OPTiOnS
To obtain information on the proper settings, check the network settings on your computer or contact
your Internet provider.
To set the network of your Blu-ray Disc player, follow the steps below.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
Audio
Music
Display
No disc
Setup
● nETWOrK SETUP
1. With the unit in Stop mode/No Disc mode, press the
MEnU button.
HDMI
_
Network
►
Parental
3. Press the ▲▼ buttons to select network, then press
the EnTEr or + button.
. Press the ▲▼ buttons to select the desired network
option from the options described below, then press the
EnTEr or + button.
. Press the ▲▼ buttons to select the desired item, then press the EnTEr button.
Each network option is described in detail below.
network Selection
Select Cable or Wireless as the method to connect to
network.
To setup, follow steps 1~3 on page 49.
Music
No disc
Setup
. Press the ▲▼ buttons to select network Selection,
then press the EnTEr or + button.
• Cable : Select this to connect to the network using a
cable. (see page 29)
• Wireless : Select this to connect to the network
wirelessly. (see page 30)
Audio
Display
HDMI
Network
_
Parental
Network Selection
: Cable
►
Cable Network
Wireless Network
Proxy
NTP Server
: Off
Network Connection Test
BD-LIVE Internet
Connection
: Allow (Valid Only)
Network Selection
: Cable
Cable network
To setup, follow steps 1~3 on page 49.
. Press the ▲▼ buttons to select Cable network, then
press the EnTEr or + button.
. Press the ▲▼ buttons to select DHCP, then press the
EnTEr button.
Music
No disc
Setup
Audio
Display
HDMI
Network
_
Parental
Cable Network
►
Wireless Network
Proxy
M
NTP Server
 If DHCP is set to On, you can't select IP Address, Subnet
: Off
Network Connection Test
Mask or Gateway.
BD-LIVE Internet
Connection
: Allow (Valid Only)
 If DNS is set to Auto, you can’t select Primary/ Secondary
DNS.
Music
No disc
Setup
Audio
Cable Network
Display
HDMI
DHCP
Network Selection
: On
IP Address
Network
: _ 0 Cable
. 0 .Network
0 . 0
Subnet Mask
Parental
Gateway
: 255Wireless
. 255 . 255Network
. 0
: 0 Proxy
. 0 . 0 . 0
DNS
►
: Auto
NTP Server
: Off
0 . 0 . 0 . 0
Network Connection Test
0 . 0 . 0 . 0
BD-LIVE Internet
:
(Valid Only)
Cancel
Connection
Primary DNS
:
Secondary DNS
:
Save
:
s Select
r Return
English _
01783H-BD-P1590,1590C,1600-XAA-E49 49
2009-07-15 오전 10:27:27
network setup
. Press the ▲▼ buttons to select a desired item, then press the EnTEr button.
• If DHCP is set to Off and, DNS to Manual,
enter your IP Address, Subnet Mask,
Gateway and Primary DNS settings
(Secondary DNS is optional).
Audio
Music
No disc
Setup
Cable Network
Network Selection
:
: Off
: 0 Cable
. 0 .Network
0 . 0
: 255Wireless
. 255 . 255
. 0
Network
: 0 Proxy
. 0 . 0 . 0
: Manual
NTP Server
:
: 0 . 0 . 0 . 0
Network
Test
: 0 . 0 . 0Connection
. 0
BD-LIVE
Save
CancelInternet
Display
_
DHCP
HDMI
IP Address
Network
Subnet Mask
_
Gateway
DNS
Parental
Primary DNS
Secondary DNS
BD-LIVE Internet
s Select Connection
r Return
• If DHCP is set to On and, DNS to Manual,
enter your Primary DNS setting
(Secondary DNS is optional).
Audio
Music
Setup
_
DHCP
HDMI
Cable Network
Network Selection
:
: On
: 0 Cable
. 0 .Network
0 . 0
: 255Wireless
. 255 . 255
. 0
Network
: 0 Proxy
. 0 . 0 . 0
: Manual
NTP Server
:
: 0 . 0 . 0 . 0
Test
: 0 Network
. 0 . 0Connection
. 0
BD-LIVE
Save
CancelInternet
_
Setup available
: (Valid Only)
Cable Network
Network Selection
:
: On
: 0 Cable
. 0 .Network
0 . 0
: 255Wireless
. 255 . 255
. 0
Network
_
Gateway
: 0 Proxy
. 0 . 0 . 0
DNS
: Auto
Parental
NTP Server
:
Primary DNS : 0 . 0 . 0 . 0
Test
Secondary DNS : 0 Network
. 0 . 0Connection
. 0
BD-LIVE
Save
CancelInternet
DHCP
HDMI
IP Address
►
Network
Subnet Mask
BD-LIVE Internet
s Select Connection
r Return
M
Setup not available
Display
Setup
►
Audio
Music
No disc
: (Valid Only)
IP Address
Network
Subnet Mask
_
Gateway
DNS
Parental
Primary DNS
Secondary DNS
BD-LIVE Internet
s Select Connection
r Return
• If DHCP is set to On and, DNS to Auto,
you don’t need further or additional
settings.
Setup available
Display
No disc
►
Setup not available
: (Valid Only)
 When you select an item, use the number and $%_ + buttons.
 If the automatic settings don’t work, contact your ISP.
. When done, use the $% buttons to select Save, then press the EnTEr button.
. If you don’t want to save your work, use the $%_ + buttons to select Cancel, then press the
EnTEr button.
M
 The IP address used in this manual is for illustrative purposes only. You must refer to your network settings
for the actual IP address.
 To obtain settings for IP address, Subnet mask, Gateway and Primary DNS, check the network settings in
your computer or contact your internet service provider.
Wireless network
To setup, follow steps 1~3 on page 49.
. Press the $% buttons to select Wireless network,
then press the EnTEr or + button.
Music
No disc
Setup
Audio
Display
Network Selection
HDMI
Network
Parental
: Wireless
Cable Network
_
Wireless Network
►
Proxy
NTP Server
: Off
Network Connection Test
BD-LIVE Internet
Connection
: Allow (Valid Only)
0_ network setup
01783H-BD-P1590,1590C,1600-XAA-E50 50
2009-07-15 오전 10:27:33
. Press the $% buttons to select DHCP, then press the
EnTEr button.
M
Audio
Music
 If DHCP is set to On, you can't select IP Address, Subnet
No disc
Wireless Network
Display
Network Selection
: Not Selected
HDMI
Access Point
Setup
Mask or Gateway.
DHCP
Network
: _ OnCable Network
IP Address
Parental
Subnet Mask
:
DNS
DNS Server
DNS.
►
: 255Proxy
. 255 . 255 . 0
: 0 . 0 . 0 . 0
NTP Server
: Off
: Auto
Network Connection Test
: 0 . 0 . 0 . 0
BD-LIVE Internet
:
(Valid Only)
Cancel
Connection
Gateway
 If DNS is set to Auto, you can’t select Primary/ Secondary
:
0 Wireless
. 0 . 0Network
. 0
Save
s Select
r Return
No disc
- Select your appropriate Security Access Point if it is
known. If it is not, select WEP, WPAPSK or
WPA2PSK from the list below and enter in the
password. Keep trying each Security Access Point
and enter the Password until a connection is made.
_
Audio
Music
No disc
Setup
►
● nETWOrK SETUP
. Press the $% buttons to select a desired item, then press the EnTEr button.
• Select an Access Point, and then press the EnTEr
Audio
Music
Display Wireless Network
button to display an available list of APs.
Network Selection
:
HDMI
Access Point
: Not Selected
(It may take several seconds to search.)
Setup
DHCP
: OnCable Network
Network
IP Address
: 0 Wireless
. 0 . 0Network
. 0
- When you select an AP and press the EnTEr
Parental
Subnet Mask
: 255Proxy
. 255 . 255 . 0
button, it tries to connect to the designated AP.
Gateway
: 0 . 0 . 0 . 0
NTP Server
: Off
DNS
: Auto
Network Connection Test
- If successful, a notification appears.
DNS Server
: 0 . 0 . 0 . 0
BD-LIVE Internet
:
(Valid Only)
Save
Cancel
Connection
(If selected AP shows a Lock icon, you may need to
s Select
r Return
provide security authentication.)
Display Access Point – Security
1
2
Network Selection
HDMI
OPEN
Network
WEP
3
:
Cable Network
_
►
Wireless Network
Parental
WPAPSK
Proxy
WPA2PSK
NTP Server
: Off
Network Connection Test
BD-LIVE Internet
Connection
s Select
- Enter in the Password then press the BLUE (D)
button to connect to your access point (Router).
Music
No disc
Audio
Display
:
Password
1
2
Network Selection
HDMI
Setup _
Network
A B C D E F G
Parental
Q R S T U V W
g h i j k l m
w x y z 1 2 3
+ = . ~ ! @ #
a Back Space b Space
- Number
3
:
Cable Network
_
H
X
n
4
$
(Valid Only)
r Return
►
I Wireless
J K LNetwork
M N O P
Y Z a b c d e f
Proxy
o p q r s t u v
5 NTP
6 7Server
8 9 0 − _: Off
% Network
^ & (Connection
) / ?Test|
c Clear
d Connect
BD-LIVE Internet
:
(Valid Only)
Connection
s Select
r Return
For further details on AP security, refer to the AP’s (Router) user manual.
• If DHCP is set to Off and, DNS to Manual,
enter your IP Address, Subnet Mask,
Gateway and DNS Server.
Audio
Music
Display
No disc
Setup
_
Wireless Network
Network Selection
: Not Selected
: Off Cable Network
: 0 Wireless
. 0 . 0Network
. 0
: 255 . 255 . 255 . 0
Proxy
: 0 . 0 . 0 . 0
NTP Server
: Manual
Access Point
HDMI
DHCP
Network
IP Address
_
Subnet Mask
Gateway
Parental
DNS
DNS Server
Save
:
►
:
Setup available
Test
: 0 Network
. 0 . 0Connection
. 0
BD-LIVE
CancelInternet
BD-LIVE Internet
s Select Connection
r Return
: (Valid Only)
English _1
01783H-BD-P1590,1590C,1600-XAA-E51 51
2009-07-15 오전 10:27:40
network setup
• If DHCP is set to On and, DNS to Manual,
enter your DNS Server.
Audio
Music
Display
No disc
Setup
_
Wireless Network
Network Selection
: Not Selected
: On Cable Network
: 0 Wireless
. 0 . 0Network
. 0
: 255 . 255 . 255 . 0
Proxy
: 0 . 0 . 0 . 0
NTP Server
: Manual
:
Access Point
HDMI
DHCP
Network
IP Address
_
Subnet Mask
Gateway
Parental
DNS
DNS Server
Save
►
Setup not available
:
BD-LIVE Internet
s Select Connection
r Return
• If DHCP is set to On and, DNS to Auto,
you don’t need further or additional
settings.
Audio
Music
Setup
_
Wireless Network
Network Selection
:
: Not Selected
: On Cable Network
: 0 Wireless
. 0 . 0Network
. 0
: 255 . 255 . 255 . 0
Proxy
: 0 . 0 . 0 . 0
NTP Server
:
: Auto
Test
: 0 Network
. 0 . 0Connection
. 0
BD-LIVE
Save
CancelInternet
Access Point
HDMI
DHCP
Network
IP Address
_
Subnet Mask
Gateway
Parental
DNS
DNS Server
BD-LIVE Internet
s Select Connection
r Return
M
: (Valid Only)
Display
No disc
Setup available
Test
: 0 Network
. 0 . 0Connection
. 0
BD-LIVE
CancelInternet
►
Setup not available
: (Valid Only)
 When you select an item, use the number and ▲▼_ + buttons.
 If the automatic settings don’t work, contact your ISP.
. When done, use the $% buttons to select Save, then press the EnTEr button.
. If you don’t want to save your work, use the $%_ + buttons to select Cancel, then press the
EnTEr button.
M
 The IP address used in this manual is for illustrative purposes only. You must refer to your network settings
for the actual IP address.
 To obtain settings for IP address, Subnet mask, Gateway and DNS Server, check the network settings in your
computer or contact your internet service provider.
Proxy Setting
A proxy server services requests by forwarding them to other servers.
If you are required to configure the proxy setting, enter the settings specified by the ISP.
To setup, follow steps 1~3 on page 49.
. Press the $% buttons to select Proxy, then press the
EnTEr or + button.
• Server
• Port
• User
• Password
Music
No disc
Setup
Network Selection
Proxy Wireless Network
Audio
Display
HDMI
Proxy
: Off Proxy
Server
Network
Port
Parental
User
:_
Password
Save
s Select
M
: Cable
NTP Server
:
: 8080Network Connection Test
:
BD-LIVE Internet
: A
:
Connection
►
(Valid Only)
Cancel
r Return
 For more information, contact your ISP (Internet Service Provider).
2_ network setup
01783H-BD-P1590,1590C,1600-XAA-E52 52
2009-07-15 오전 10:27:45
nTP Server (Used to retrieve Time information from nTP Server)
To setup, follow steps 1~3 on page 49.
. Press the ▲▼ buttons to select nTP Server, then press
the EnTEr or + button.
• On : The player automatically connects to the Internet
server in order to adjust the time setting.
• Off : The player does not connect to the Internet
server to adjust the time setting.
Music
No disc
Setup
Cable Network
Audio
Wireless Network
Display
Proxy
HDMI
Network
_
NTP Server
: Cable
On
Network Connection Test
Parental
BD-LIVE Internet
Connection
►
✓ Off
: Allow (Valid Only)
● nETWOrK SETUP
network Connection Test
Use this menu to check whether your network connection is working or not.
To setup, follow steps 1~3 on page 49.
. Press the ▲▼ buttons to select network Connection
Test, then press the EnTEr or + button.
Music
No disc
Setup
Wireless Network
Audio
Proxy
Display Network Connection
Test
NTP Server
HDMI
✔ MAC Address (00:10:18:00:00:70)
_
Network Connection Test
Network
✔ IP Address.Subnet Mask.Gateway.DNS Server
BD-LIVE Internet
: Allow (Valid Only
✔ Gateway
ParentalPing
Connection
Connection
✔ Internet Service Test
►
Your network is operating properly
r Return
BD-LiVE internet Connection
The Blu-ray Disc player supports BD-LIVE which enables you to enjoy a variety of interactive service
contents provided by the disc manufacturer through a network connection. To enjoy this feature, you
must first perform the LAN connection (see page 29) or Wireless LAN adapter connection to the USB
slot.
* You must have a minimum 1 GB USB Memory device inserted in one of the USB slots in order to
download content from BD-LIVE.
The Internet connection may be restricted while you are using BD-LIVE contents.
To setup, follow steps 1~3 on page 49.
. Press the ▲▼ buttons to select BD-LiVE internet
Connection, then press the EnTEr or + button.
• allow (all) : The Internet connection will be allowed for
all BD-LIVE contents.
• allow (Valid Only) : The Internet connection will be
allowed only for BD-LIVE contents containing a valid
certificate.
• Prohibit : No Internet connection will be allowed for
any BD-LIVE content.
M
Music
No disc
Setup
Audio
Proxy
Display
NTP Server
HDMI
Network Connection Test
Network
Parental
_
: Off
BD-LIVE Internet
Connection
: Cable
Allow(All)
►
✓ Allow(Valid Only)
Prohibit
 What is a valid certificate? When the Blu-ray Disc player uses BD-LIVE to send the disc data and request
to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends
the certificate back to the player.
 The Internet connection may be restricted while you are using BD-LIVE contents.
English _3
01783H-BD-P1590,1590C,1600-XAA-E53 53
2009-07-15 오전 10:27:49
BD data management
BD Data (stored in external USB flash memory) is Blu-ray Disc content such as
trailers and other special features downloaded from the BD-LIVE service or Blu-ray
Discs.
* You must have a minimum 1GB USB Memory device inserted in one of the USB slots in order to download
content from BD-LIVE.
SYSTEM DEViCE ManagEMEnT
You can manage user data stored in BD data.
1. With the unit in Stop mode, press the MEnU button.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
No disc
Setup
3. Press the ▲▼ buttons to select System, then press the
EnTEr or + button.
◄
Power On/Off sound
: On
Touch Key Sound
: On
BD Data Management
►
System Update
Audio
Display
HDMI
Network
Parental
- To delete the flash memory 1. Press the EnTEr button to select BD Data Delete.
The message "All BD data will be deleted. Do you want
to continue?" will be displayed.
Clock Set
Music
No disc
Description of Device(Storage) information on the
Player
System
Language
. Press the ▲▼ buttons to select BD Data Management,,
then press the EnTEr or + button.
2. Press the _ + button to select Yes, then press the
EnTEr button.
Clock Set
Music
Setup
Power On/Off sound
: On
Touch Key Sound
: On
BD Data Management
◄
BD Data Management
System
Current Device : External Flash Memory
Language
System Update
Total Size : 953MB Available Size : 889MB
Audio
BD Data Delete
Display
HDMI
s Select
►
r Return
Network
Parental
• Total Size : Total size of the Device(Storage).
• Available Size : Available size of the Device(Storage).
M
 In the external memory mode, disc playback will be stopped if you disconnect the USB device in the middle
of the playback.
 Only those USB devices formatted in FAT file system (DOS 8.3 volume label) are supported, and it is
recommended to use USB devices that support USB 2.0 protocol, 4 MB/sec or faster read/write speed.
 The Resume Play function may not work after formatting the storage device.
 The total size of BD Data Management may differ, depending on the firmware version.
_ BD data management
01783H-BD-P1590,1590C,1600-XAA-E54 54
2009-07-15 오전 10:27:53
system upgrade
Samsung may offer upgrades to your Blu-ray Disc Player's firmware in the future. To upgrade this firmware you must :
1. USB : Visit www.samsung.com/bluraysupport, then download and store the latest firmware (RUF file) into the
USB flash drive. Connect the USB flash drive to the USB port of Blu-ray Disc Player (disc tray must be empty)
to update the firmware, then follow the on-screen instructions.
3. Ethernet : If the Blu-ray Disc Player is properly connected to the network by cable or wirelessly, the Blu-ray Disc
Player will automatically connect to our website each time it is turned on and download update files if any valid
upgrade exists. follow the steps below.
FirMWarE UPgraDE
1. With the unit in Stop mode/No Disc mode, press the MEnU button.
● SYSTEM UPgraDE
2. CD/DVD : Visit www.samsung.com/bluraysupport, download and write the latest firmware (RUF file) onto a
disc. Insert and play the disc in the Blu-ray Disc Player to start the update, then follow the on-screen
instructions.
2. Press the ▲▼ buttons to select Setup, then press the EnTEr or + button.
3. Press the ▲▼ buttons to select System, then press the EnTEr or + button.
. Press the ▲▼ buttons to select System Update, then press
the EnTEr or + button.
Music
No disc
Setup
Power On/Off sound
: On
Touch Key Sound
: On
BD Data Management
System
◄
System Update
+
Language
Audio
Display
HDMI
Network
Parental
. The player will check the cable or network connection status
automatically. The connection checking window will be
displayed.
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
System
: On
: On
1 2 ◄ 3 System
4 Update
+
Language
Audio
Display
Now, Checking.
Please wait...
HDMI
Network
Parental
@ If the upgrade is possible : You will see information on the
current and new versions of firmware in a message box.
@ If the upgrade is not possible : You will see the following
description in the message box.
• If the cable is not connected :
“Ethernet cable is not connected. Please, check the
Ethernet cable”
• If the network connection has failed :
“This system can not connect to internet for update.
Please, check the network setup”
• If no latest version is released (the latest version has been
already installed) :
"The latest version of the firmware is already installed.
There is no need to update."
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
System
: On
: On
1 2 ◄ 3 System
4 Update
+
Language
The new update data was found.
Audio
Current Version : XXXXX
Display New Version : XXXXX
HDMI
Network
Start
Parental
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
Cancel
System
1 2 ◄ 3 System
4 Update
: On
: On
+
Language
This system can not connect
Audio
to internet for update.
Display
Please, check the network setup.
HDMI
Network
Parental
OK
English _
01783H-BD-P1590,1590C,1600-XAA-E55 55
2009-07-15 오전 10:27:59
system upgrade
• If there is a disc in the player :
"Please maintain "No Disc" state for network update."
This indicates that you must remove all discs from the unit to perform the update.
• If the server service is not available :
“ Update Server is under maintenance. Please try again later.”
. To perform the system upgrade, press the _ + buttons to
select Start and then press the EnTEr button.
Power On/Off sound
Music
No disc
Touch Key Sound
System Update
BD Data Management
Setup
1 2 ◄ 3 System
4 Update
System
: On
: On
+
Language
The new update data was found.
Audio
Current Version : XXXXX
Display New Version : XXXXX
HDMI
Network
Start
Parental
. The system update gets started.
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
Start
System
: On
: On
1 2 ◄ 3 System
4 Update
+
Language
Downloading update data...
Audio
Please, do not turn off the power.
Display
60%
HDMI
Network
Parental
. If you select Cancel during the download process, you are
prompted to confirm your selection in a message box.
If you want to cancel the download, select Yes and press the
EnTEr button.
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
Cancel
System
: On
: On
1 2 ◄ 3 System
4 Update
+
Language
Do you want to cancel the update
Audio
operation?
Display
HDMI
Network
Yes
Parental
. Verification will proceed. When download is done, the firmware
update process will begin automatically.
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
No
System
: On
: On
1 2 ◄ 3 System
4 Update
+
Language
Audio Verifying update data
Please wait.
Display
HDMI
Network
Parental
10. When the installation is done, the player will automatically turn
off in 5 seconds.
All settings will revert to the factory settings the next time you
start the system and you will see the menu language selection
window.
Power On/Off sound
Music
Touch Key Sound
System Update
BD Data Management
No disc
Setup
System
1 2 ◄ 3 System
4 Update
: On
: On
+
Language Firmware Update.
Audio Now, Processing...
Please, do not turn off the power.
Display
The power will be off automatically
HDMI after update is finished.
Network
Parental
M
 If you want to cancel the upgrade in the process of downloading the upgrade data, press the ENTER button.
You will see a confirmation message.
Selecting Yes will end the upgrade process, and selecting No will continue the upgrade process.
 When the system upgrade is done, check the firmware details in the System Upgrade menu.
 Do not turn off the player during the System Upgrade, as it may cause the player to not work properly.
_ system upgrade
01783H-BD-P1590,1590C,1600-XAA-E56 56
2009-07-15 오전 10:28:07
 Do not use USB devices other than USB Flash Drives to do software upgrades using the USB Host jack.
 There should be only one firmware upgrade file in USB flash drive for the player to properly perform an
upgrade.
 Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.
SYSTEM inFOrMaTiOn
When the firmware upgrade is done, check the firmware details by following the steps below.
2. Press the ▲▼ buttons to select Setup, then press the
EnTEr or + button.
● SYSTEM UPgraDE
1. With the unit in Stop mode/No Disc mode, press the
MEnU button.
Music
No disc
Setup
_
System
►
Language
Audio
3. Press the ▲▼ buttons to select System, then press the
EnTEr or + button.
Display
HDMI
Network
Parental
. Press the ▲▼ buttons to select System information,
then press the EnTEr or + button.
You can see detailed information about the current
firmware.
Music
No disc
. Press the EnTEr button to select OK.
System Setup menu will be displayed.
Setup
System
◄
System Information
►
Language
Time Zone
Audio
Clock Set
Display
Power On/Off sound
: On
HDMI
Touch Key Sound
: On
Network
BD Data Management
Parental
System Update
Music
No disc
Setup
System Information
System Information
◄
System
S/W : XXXXXXX Time Zone
Language
Loader : XXXXXXX
Clock Set
Audio Region : A/1 (BD/DVD)
DisplayESN : XXXX
HDMI
Network
Parental
OK
►
Power On/Off sound
:
Touch Key Sound
:
BD Data Management
System Update
FirMWarE UPgraDE nOTiFiCaTiOn
The popup menu appears when a newer version of the firmware is available from SAMSUNG update server than
that of the Blu-ray Disc Player, if the Blu-ray Disc Player is connected to the network and powered on.
• Yes : Select this to upgrade now.
• no : Select this if you plan to upgrade later.
System Update
New Firmware is available.
Do you want to update now?
Yes
No
English _
01783H-BD-P1590,1590C,1600-XAA-E57 57
2009-07-15 오전 10:28:12
watching a movie
USing THE DiSPLaY FUnCTiOn
hgfZCV
1. During playback, press the inFO button on the remote
control.
• If the Blu-ray Disc has the BONUSVIEW feature, press
the inFO button in the BONUSVIEW section to display
BONUSVIEW-related information.
2. Press the ▲▼ buttons to select the desired item.
3. Press the _ + buttons to make the desired setup
change and then press the EnTEr button.
• You may use the number buttons of the remote
control to directly access a title, chapter or to start the
playback from a desired time.
. To make the screen disappear, press the inFO button
again.
BD
Info
Title
: 000/034
Chapter
: 000/002
Playing Time
: 00:00:06
Audio
: 1/1 ENG Multi CH
Subtitle
: NONE
Angle
: 01/01
Picture Mode
: Normal
{ Change
s Select
<INFO menu for the BONUSVIEW section>
BD
Info
Title
: 000/034
Chapter
: 000/002
Playing Time
: 00:00:06
Audio
: 1/1 ENG Multi CH
Subtitle
: NONE
Angle
: 01/01
BONUSVIEW Video : 01/01
BONUSVIEW Audio : 1/1 ENG 2CH
Picture Mode
{ Change
M
: Normal
s Select
 If you are playing contents from the info menu, some functions may not be enabled depending on the disc.
 Title : To access the desired title when there is more than one in the disc. For example, if there is more than
one movie on a Blu-ray Disc/DVD, each movie will be identified as a Title.
 Chapter: Most Blu-ray Disc/DVD discs are recorded in chapters so that you can quickly find a specific
chapter.
 Playing Time : Allows playback of the film from a desired time. You must enter the starting time
as a reference. The time search function does not operate on some discs.
 Audio : Refers to the film's soundtrack language. A Blu-ray Disc can contain up to 32 audio languages and a
DVD up to 8.
 Subtitle : Refers to the subtitle languages available in the disc. You will be able to choose the subtitle
languages or, if you prefer, turn them off from the screen. A Blu-ray Disc can contain up to 255 subtitle
languages, and a DVD up to 32.
 Angle : When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE
function.
 BONUSVIEW Video/ BONUSVIEW Audio : You can make BONUSVIEW Video or BONUSVIEW Audio settings if
the current title of a Blu-ray Disc appears in the BONUSVIEW section. The BONUSVIEW Video / BONUSVIEW
Audio options, however, will be disabled with a Blu-ray Disc that does not support the BONUSVIEW feature.
 Picture Mode : This function enables you to adjust video quality when you are connected to a TV via HDMI.
- Dynamic : Choose this setting to increase Sharpness.
- Normal : Choose this setting for most viewing applications.
- Movie : This is the best setting for watching movies.
- User : The user can adjust the sharpness and noise reduction function respectively.
_ watching a movie
01783H-BD-P1590,1590C,1600-XAA-E58 58
2009-07-15 오전 10:28:19
USing THE DiSC MEnU & POPUP/TiTLE MEnU
hZ
Using the Disc Menu
1. During playback, press the DiSC MEnU button on the
remote control.
PLAY MOVIE
LANGUAGES
SCENE SELECTIONS
PREVIEWS
%
3
M
4
5
6
7
8
9
10
11
12
13
14
15
 Depending on the disc, the Disc Menu may not be available.
● WaTCHing a MOViE
2. Press the ▲▼_ + buttons to make the desired
selection, then press the + or EnTEr button.
• The Disc menu setup items may vary from disc to disc.
Z
Using the Title Menu
1. During playback, press the TiTLE MEnU button on the remote control.
2. Press the ▲▼_ + buttons to make the desired selection, then press the EnTEr button.
• The Title menu setup options may vary from disc to disc.
M
 Depending on the disc, the Title Menu may not be available.
 Title Menu will only be displayed if there are at least two titles on the disc.
gf
Playing the Title List
1. With the unit in Stop mode/Playback mode, press the
DiSC MEnU or TiTLE MEnU button.
2. Press the ▲▼ buttons to select an entry you want to
play from Title List, then press the + or EnTEr button.
The selected entry (title) will be played back.
BD
RE
Video
Title 007
00:03:32
Music
Title 008
00:04:36
Title 009
00:04:17
Setup
Title 010
00:04:11
Title 011
00:04:07
Title 012
00:04:46
_
Title 013
Title 014
00:04:21
00:03:43
Page
- go to Playlist To go to the Playlist, press the rED(a) button.
English _
01783H-BD-P1590,1590C,1600-XAA-E59 59
2009-07-15 오전 10:28:23
watching a movie
h
Using the Popup Menu
1. During playback, press the POPUP MEnU button on
the remote control.
MAIN MENU
AUDIO SET UP
2. Press the ▲▼_ + buttons or EnTEr button to select
the desired menu.
• The Popup menu setup options may vary from disc to
disc.
SCENE SELECTIONS
%
3
M
SUBTITLES
4
5
6
7
8
9
10
11
12
13
14
15
 Depending on the disc, the Popup Menu may not be available.
rEPEaT PLaY
Repeat the current chapter or title.
hgfZCV
repeat playback
1. During playback, press the rEPEaT button on the
remote control. Repeat screen appears.
Repeat
Off
2. Press the ▲▼ buttons to select Chapter or Title.
• Blu-ray Disc/DVD repeats play by chapter or title.
3. To return to normal play, press the rEPEaT button
again, then press the ▲▼ buttons to select Off.
M
 Depending on the disc, the Repeat function may not be available.
hgfZCV
Using the a-B repeat function
1. Press the rEPEaT a-B button on the remote control
during playback.
2. Press the rEPEaT a-B button at the point where you
want repeat play to start (A).
►
Repeat A-B
00:18:41 / 01:34:37
DVD
3. Press the rEPEaT a-B button at the point where you
want repeat play to stop (B).
. To return to normal play, press the CanCEL button.
REPEAT A
M
B
Off
e Exit
 Point B cannot be set until 5 seconds of playback has elapsed from point A.
 Depending on the disc, the REPEAT A-B menu may not be available.
0_ watching a movie
01783H-BD-P1590,1590C,1600-XAA-E60 60
2009-07-15 오전 10:28:32
hgfZ
SELECTing THE aUDiO LangUagE
You can select a desired audio language quickly and easily with the aUDiO button.
Using the aUDiO button
1. Press the aUDiO button during playback. The Audio
changes when the button is pressed repeatedly.
• The audio languages are represented by abbreviations.
Audio
1/4 ENG Dolby Digital Multi CH
● WaTCHing a MOViE
2. To remove the audio bar, press the CanCEL or
rETUrn button.
Using the inFO button
1. During playback, press the inFO button on the remote
control.
2. Press the ▲▼ buttons to select audio.
3. Press the _ + buttons on the remote control to select the desired audio language.
M
 This function depends on what audio languages are encoded on the disc and may not be available.
 A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8.
 Depending on the disc type, you can use the AUDIO button to change the audio soundtrack as well as the
audio language.
Some Blu-ray Discs may allow you to select either the multi-channel LPCM or Dolby digital audio soundtrack
in English.
 Information about the primary / secondary mode will be also displayed if the Blu-ray Disc has a BONUSVIEW
section.
Use the _ + button to switch between primary and secondary audio modes.
 The _ + indicator will not be displayed on the screen if the BONUSVIEW section does not contain any
BONUSVIEW audio settings.
SELECTing THE SUBTiTLE LangUagE
You can select a desired subtitle quickly and easily with the SUBTiTLE button.
hZ
Using the SUBTiTLE button
1. Press the SUBTiTLE button. The subtitle changes when
the button is pressed repeatedly. The subtitle languages
are represented by abbreviations.
Subtitle
NONE
2. To remove the Subtitle bar, press the CanCEL or
rETUrn button.
English _1
01783H-BD-P1590,1590C,1600-XAA-E61 61
2009-07-15 오전 10:28:39
watching a movie
Using the inFO button
1. During playback, press the inFO button on the remote control.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the _ + buttons on the remote control to select the desired subtitle language.
M
 Depending on the Blu-ray Disc / DVD, you may be able to change the desired subtitle in the Disc Menu.
Press the DISC MENU button.
 This function depends on what subtitles are encoded on the disc and may not be available on all Blu-ray
Discs/DVDs.
 A Blu-ray Disc can contain up to 255 subtitle languages and a DVD up to 32.
 Information about the primary / secondary mode will be also displayed if the Blu-ray Disc has a BONUSVIEW
section.
 This function changes both the primary and secondary subtitles at the same time.
 The total number of subtitles is the sum of the primary and secondary ones.
CHanging THE CaMEra angLE
When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.
hZ
Using the angLE function
2. Press the ▲▼ buttons to select angle.
3. Press the _ + buttons or you can use the number
buttons on the remote control to select the desired
angle.
BD
: 001/500
Chapter
: 001/001
Playing Time
: 00:00:00
Audio
: 1/5 ENG 2CH
Subtitle
: NONE
Angle
: 01/01
Picture Mode
: Normal
{ Change
M
Info
Title
{
1. During playback, press the inFO button on the remote
control.
Move
 If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature.
 Depending on the disc, these functions may not work.
2_ watching a movie
01783H-BD-P1590,1590C,1600-XAA-E62 62
2009-07-15 오전 10:28:42
BOnUSViEW SETTingS
The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window
while the movie is playing.
h
Using the BOnUSViEW button
● WaTCHing a MOViE
1. If the current Blu-ray Disc features the BONUSVIEW
function, you can use the BOnUSViEW button to turn
BONUSVIEW On or Off.
2. Each time you press the BOnUSViEW button, you can
toggle between BONUSVIEW On and BONUSVIEW Off.
M
 You can change detailed settings of the BONUSVIEW feature in the INFO menu (see page 58: selection of
secondary audio, video stream and subtitle etc.).
 If you switch from BONUSVIEW Video, BONUSVIEW Audio will change automatically in accordance with
BONUSVIEW Video.
 If the Blu-ray Disc supports only BONUSVIEW Audio, you can just press the BONUSVIEW button to turn the
secondary audio on or off.
BD-LiVE™
The Blu-ray Disc player supports BD-LIVE which enables you to enjoy a variety of interactive service contents
provided by the disc manufacturer through network connection.
Using the BD-LiVE Disc
1. Connect the network (see pages 29~30) and check the network setup (see pages 49~53).
2. Insert a Blu-ray disc that supports BD-LIVE.
3. Select the contents provided by the disc manufacturer to enjoy the BD-LIVE.
M
 The way you use BD-LIVE and the features may differ, depending on the disc.
 To use BD-LIVE, you must insert a mimimum 1GB USB memory device into one of the USB slots.
English _3
01783H-BD-P1590,1590C,1600-XAA-E63 63
2009-07-15 오전 10:28:45
listening to music
Buttons on the Remote Control used for
Audio CD (CD-DA)/MP3 playback
1. PAUSE button : Pauses playback.
0
2. SKIP (
) button : During playback, moves to the next page
in the Music List or moves to the next track in the Playlist.
BONUSVIEW PAUSE
STOP
3. PLAY button : Plays the currently selected track.
PLAY
4. ▲▼ buttons : Selects a track(song) in the Music List or Playlist.
5. COLOR buttons
• RED(A) button : Selects the Play Mode(Repeat) during
playback.
• GREEN(B) button : Go to Playlist from Music List.
• YELLOW(C) button : Playlist play.
ME
NU
RE
TU
RN
6. _ + buttons : During the playback, these buttons are not
available.
_ : Returns to the Main menu (or high-order)
+ : Moves to the track (song) menu.
ENTER
A
EX
IT
IN
FO
B
C
DISC MENU
7. ENTER button : Plays the selected track (song).
D
8. STOP button : Stops a track(song).
POPUP MENU
9. Press the SEARCH (
) buttons : Fast Play.
10. SKIP (
) button : If you press this button after three
seconds of playback, the current track will be replayed from
the beginning. But, if you press this button within three
seconds after playback starts, the previous track will be played.
Alsoused to move to the previous page in the Music List or
Playlist.
Repeat Audio CD(CD-DA)/MP3
During playback, press the REPEAT or RED(A) button repeatedly to select the repeat mode you want.
❖ Audio CD (CD-DA)
➝
➝
➝
➝
➝
❖ MP3
➝
•
•
•
•
•
Normal (Audio CD (CD-DA)/MP3) : Tracks on a disc are played in the order in which they were
recorded on the disc.
Repeat Track (Audio CD (CD-DA)/MP3)
Repeat Folder (MP3)
Random (Audio CD (CD-DA)/MP3) : The random option plays a disc’s track in random order.
Repeat All (Audio CD (CD-DA)) : All tracks are repeated.
- To return to normal playback Press the REPEAT or RED(A) button repeatedly to return to normal playback.
64_ listening to music
01783H-BD-P1590,1590C,1600-XAA-E64 64
2009-07-15 오전 10:28:48
You can select the data source by pressing the $% button in the menu screen.
(CD/DVD/USB memory flash stick)
AF
PLaYing an aUDiO CD(CD-Da)/MP3
►
TRACK 001
1/18
00:02:24 / 00:05:57
CD
a Play Mode
2. To move to the Music List, press the STOP or rETUrn
button.
The Music List screen is displayed on your TV.
3. Press the ▲▼ buttons to select the track you want to
play, and then press the EnTEr button.
Video
CD
Music
TRACK 001
00:04:08+
TRACK 002
00:03:41
Setup
TRACK 003
00:03:17
TRACK 004
00:03:36
TRACK 005
00:03:47
TRACK 006
00:03:50
_
TRACK 007
b Playlist
● LiSTEning TO MUSiC
1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc
tray.
• For an Audio CD, the first track will be played
automatically.
• For an MP3 disc, press the ▲▼ buttons to select
Music, then press the EnTEr button.
(You can listen to mp3 files using a USB memory
flash stick)
00:03:54
Page
❖ audio CD(CD-Da)/MP3 Screen Elements
Displays the media type.
►
TRACK 001
CD
1/18
00:02:24 / 00:05:57
Current track (song)
Displays the number or title track currently being
played.
Play Status Bar.
Displays the repeat status.
a Play Mode
Displays the current play index, total track number.
Current /Total Play Time.
Displays available COLOR buttons.
English _
01783H-BD-P1590,1590C,1600-XAA-E65 65
2009-07-15 오전 10:28:57
listening to music
AF
Playlist
You can create a playlist with up to 99 tracks.
1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc
tray.
• For an Audio CD, the first track will be played
automatically.
• For an MP3 disc, press the ▲▼ buttons to select
Music, then press the EnTEr button.
(You can listen to mp3 files using a USB memory
flash stick)
Video
Music
CD
00:05:57
TRACK 002
00:04:28
00:04:08
TRACK 004
00:03:41
Setup
TRACK 005
00:03:17
TRACK 006
00:03:36
TRACK 007
00:03:47
TRACK 008
00:03:50
TRACK 009
+
00:03:54
b Playlist
2. To move to the Music List, press the grEEn(B) or
rETUrn button.
The Music List screen is displayed.
3. Press the grEEn(B) button to go to the Playlist.
TRACK 001
TRACK 003
_
Page
Original

Playlist
Video
Music
CD
_
TRACK 001
TRACK 002
Setup
TRACK 003
TRACK 004
TRACK 005
TRACK 006
TRACK 007
b Music List
. Press the ▲▼ buttons to select a track, then press the
EnTEr button to add it to the Playlist. Repeat this
procedure to add additional tracks.
Original

Play
Playlist
TRACK 002
Music
CD
s Add
TRACK 001
Video
. If there is an undesired track in the playlist, press the
+▲▼ button to select that track, and then press the
EnTEr button.
• The selected track will be deleted.
TRACK 003
01.TRACK 001
TRACK 004
02.TRACK 002
Setup
TRACK 005
03.TRACK 003
_
TRACK 006
TRACK 007
TRACK 008
TRACK 009
b Music List
. Press the YELLOW(C) button to play the selected
tracks.
When the track is finished, the next track will
automatically play.
c Playlist Play
►
CD
TRACK 001
c Playlist Play
s Add

Play
1/3
00:02:17 / 00:05:57
a Play Mode
. To edit the Playlist, press the STOP or rETUrn button.
. To go to the Music List, press the rETUrn button.
_ listening to music
01783H-BD-P1590,1590C,1600-XAA-E66 66
2009-07-15 오전 10:29:12
AGF
MP3 & JPEg Simultaneous playback
You can enjoy listening to MP3 files while you simultaneously view JPEG files.
1. When you play MP3 file, press the BLUE(D) button.
The slide show speed screen will be displayed.
2. Select the desired slide show speed.
►
1/18
00:02:24 / 00:05:57
d Slide Show
 To operate this function, you have to select the folder containing both music and photo files.
 When you play MP3 and JPEG files simultaneously, audio drop may occur according to bitrate of MP3, size
of JPEG image and method of encoding.
● LiSTEning TO MUSiC
a Play Mode
M
001. SONG01.mp3
CD
English _
01783H-BD-P1590,1590C,1600-XAA-E67 67
2009-07-15 오전 10:29:14
playing back a picture
GF
PLaYing a JPEg DiSC
1. Insert a JPEG disc into the disc tray.
(You can watch the jpeg files using a USB memory
flash stick)
Video
Music
CD
_
+
Setup
2. Press the ▲▼ buttons to select the Photo, and then
press the EnTEr or + button.
Video
Music
CD
_
Setup
3. Press the ▲▼ buttons to select the folder you want to
play, and then press the EnTEr button.
..
+
640 jpg
03 JUL 2000
full jpg
03 JUL 2000
Video
Music
CD
_
Setup
..
+
03 JUL 2000
465 KB
03 JUL 2000
465 KB
03 JUL 2000
465 KB
03 JUL 2000
465 KB
03 JUL 2000
465 KB
03 JUL 2000
465 KB
d Slide Show
-1. Press the BLUE(D) button to start slide show.
#
03/100
-2. Press the ▲▼ buttons to select the picture you want to
play, and then press the EnTEr button.
You can operate rotation, zoom and slide show
function.
• rED(a) button : Each time this button is pressed, the
picture rotates 90 degrees counterclockwise.
• grEEn(B) button : Each time this button is pressed,
a 90°
b 90°
c Zoom
d Speed
Slide Show
the picture rotates 90 degrees clockwise.
• YELLOW(C) button : Each time this button is pressed, the picture is enlarged up to 4X (Four
times the normal size).
• BLUE(D) button : Selects slide show speed.
• PLaY button : The picture enters slide show mode.
CD
_ playing back a picture
01783H-BD-P1590,1590C,1600-XAA-E68 68
2009-07-15 오전 10:29:26
using the e-contents
With this Blu-ray Disc Player, you can use the e-Contents service (YouTube, for
example) via the network.
After performing the network connection (see pages 29~30), check the network
setup (see pages 49~53).
● USing THE E-COnTEnTS
M
 According to company policy, the specifications are subject to change.
 e-Content video playback may pause, stop or buffer, depending on your broadband speed.
USing BLOCKBUSTEr
This Blu-ray Disc Player enables you to use the following services provided by Blockbuster.
1. With the unit in Stop mode/No Disc mode, press the
rED(a) button on the menu screen.
• Movies : Display movies.
• TV Shows : Display TV Shows.
• Find : Search for a desired movie or TV show by
entering it manually.
• My Library : Display a title that you bought or rented.
• My Favorites : Displays a title that has been added to
My Favorites.
• Configure : Activate or deactivate the Blu-ray Disc Player.
• Help : Get customer service contact information and check the current software version.
Movies
My Library
TV Shows
My Favorites
Find
Configure
Help
2. If you don't have a Blockbuster account yet, visit www.blockbuster.com to create your account.
3. Press the $%_ + button to select the Configure, then
press the EnTEr button.
Configure
Activate this device on your BLOCKBUSTER account.
To get started, please visit www.blockbuster.com
*
*
*
_
5
Use the numbers on your remote control.
Activate
. Enter the activation code that is created by the web site, then press the EnTEr button to select
activate.
When the Blu-ray Disc Player is activated, you will move to the Home page.
. Press the _ + button to select the Movies or TV
shows, then press the EnTEr button.
Movies
Find by Title
New Releases
Title 3 of 36
Most Popular
Adventure
Animation
Rent for $3.99
Buy for $14.95
Polar Bear
Play Traller
English _
01783H-BD-P1590,1590C,1600-XAA-E69 69
2009-07-15 오전 10:29:34
using the e-contents
. Press the $%_ + button to select the desired title, then
press the EnTEr button.
Title Detalis
Polar Bear
Polar Bear likes water.

Rent for $3.99
. Press the _ + button to select the rent or Buy, then
press the EnTEr button.
Buy for $14.95
Checkout
Polar Bear
Polar Bear likes water.
Go Back
Submit Order
. Press the _ + button to select the Submit Order, then press the EnTEr button. If you want to
play any of the titles that you bought, simply click Play now.
M
 Depending on the title, some buttons(rent or buy, etc.) may become inactive.
For more detailed information, visit www.blockbuster.com.
 Press the EXIT button to exit the Blockbuster.
During playback, EXIT button is not available.
USing nETFLiX
This Blu-ray Disc Player enables you to use the following services provided by Netflix.
1. With the unit in Stop mode/No Disc mode, press the
grEEn(B) button.
2. If you don't have an account, select "no-start my FREE
trial" and subscribe to <http://netflix.com/samsung>
from your computer. A user with an existing account can
select the "yes-activate instant streaming from Netflix".
12,000
Netflix.com/Samsung
0_ using the e-contents
01783H-BD-P1590,1590C,1600-XAA-E70 70
2009-07-15 오전 10:29:37
3. If you have an existing account, you will see the next
window if Yes was selected. Select "I'm now a
member".
netflix.com/activate
exit
 Video quality of the Netflix contents (SD or HD) depends on the network speed and the original bit rate.
 In order to activate your Blu-ray Disc Player with Netflix, visit the www.netflix.com/samsung and then enter
● USing THE E-COnTEnTS
M
the activation code.
. To add a movie to the Instant Queue list of this Blu-ray
Disc Player, select the "Add to Instant" button on the
Netflix "Watch Instantly" web page using your PC.
Movie 1
e Exit
. Movies you added to the Instant Queue from the web
are listed.
Press the EnTEr button of the remote control and
select a movie to display the next screen.
• To add a movie in the Instant Queue list of this Blu-ray
Disc Player, select "Add to Instant" button on "Watch
Instantly" page of Netflix web site using your PC.
Actor or Actress name1
Actor or Actress name2
Name
e Exit
. Press the PLaY button to start playback, and the initial
buffering of the streamed data is shown.
English _1
01783H-BD-P1590,1590C,1600-XAA-E71 71
2009-07-15 오전 10:29:40
using the e-contents
. Press the search button ((/)) to select a scene of
your choice.
• To stop the movie or go to the instant movie list, press
the upper arrow key or press Stop.
M
 For more information on the Netflix Instant Streaming feature visit http:www.netflix.com/help/tv or login to your
Netflix account and click "Help" at the top of the page.
USing PanDOra
Pandora provides music personalized to your taste.
1. With the unit in Stop mode/No Disc mode, press the
YELLOW(C) button.
®
PANDORA
internet radio
2. To run Pandora, you need to input the activation code at
<http://www.pandora.com/samsung> page with your
PC. After inputting the activation code, you may have to
create a new account if you don't have one yet.
If you already have an account, you can use the existing
account.
®
PANDORA
internet radio
Listen to radio that is personalized to your tastes.
Go to http://www.pandora.com/samsung
and enter XXXXXXXX to activate.
Enjoy music you know and discover music you’ll
love.
It’s easy and FREE !
Please activate your device to continue.
OK
Highlight
3. It automatically shows the list of stations created from the
web or player, and plays music.
Pandora
Station Title 1
Song Title 1
Station Title 2
Song Title 2
Station Title 3
Song Title 3
Station Title 4
Song Title 4
Station Title 5
Song Title 5
Station Title 6
a Create Station
Song List
Johndoe@sumsung.com
Song Title 6
b Delete Station
Song Title 1
By : Musician
On : Album
c QuickMix
e Exit
Station List
. Press the rED(a) button while the highlight is on the station list to display the create station
window.
2_ using the e-contents
01783H-BD-P1590,1590C,1600-XAA-E72 72
2009-07-15 오전 10:29:43
. Enter the keyword and press the BLUE(D) button to
display the search result.
(The station keyword should be enter music genre, artist,
music title, etc.)
Johndoe@sumsung.com
Pandora
Station Title 1 Create a New Station
Days Past
Station Title 2 AB
Loreta And Desire
A B C D E F G H I J K
Misty
Q R S T U V W X Y Z a
g h i j k l m n o p q
Station Title 4 w x y z 1 2 3 Isabelle
4 5 6 7
+ = . ~ ! @ # $ % ^ &
Melancholia
Station Title 5
a Back Space b Space c Clear
Station Title 3
Station Title 6 - Number
a Create Station
L
b
r
8
(
b Delete Station
O
e
u
–
?
P
f
v
_Song Title 1
|
d Create musician
c QuickMix
e Exit
Station Title 2 Bb
Bbcca
Station Title 3 Abbma
aBbbba
Station Title 4 aaaBan
Booooke
Station Title 5 Acccaake
Song Title 1
New Search
musician
aMelancholia
Select
Station Title 6
b Delete Station
b Return
c QuickMix
e Exit
Johndoe@sumsung.com
Pandora
Station Title 1
● USing THE E-COnTEnTS
Johndoe@sumsung.com
The Winner Takes
Station Title 1 Matching
. Press the grEEn(B) button while the highlight is on the
station list to delete the selected station.
N
d
t
0
/
Mirror, Set Mer
FreeReturn
s Select
Pandora
a Create Station
M
c
s
9
)
Song Title 1
Station Title 2
Station Title 3
Station Title 4
!
Are you sure you want to delete this station?
Abba Radio
Delete
Cancel
Station Title 5
Song Title 1
By : Musician
On : Album
a Create Station
. You can edit your song list by using the color buttons on
the remote control while the highlight is on the song list.
b Delete Station
c QuickMix
e Exit
Johndoe@sumsung.com
Pandora
Station Title 1
Song Title 1
Station Title 2
Song Title 2
Song Title 3
• rED(a) : Thumbs Up. By indicating your preference to
Song Title 1
Song Title 4
Station Title 4
the server, it plays more songs you love.
Song Title 5
Station Title 5
By : Musician
• grEEn(B) : Thumbs Down. By indicating your dislike
On : Album
Song Title 6
Station Title 6
to the server, it plays fewer songs you don’t like.
a Thumbs Up b Thumbs Down
c Bookmark
d Sleep Song e Exit
• YELLOW(C) : Bookmark. It bookmarks the selected
song.
- Once bookmarked with this Blu-ray Disc Player, you can find those songs from www.pandora.
com using your account and various additional services provided by Pandora web service using
your PC.
• BLUE(D) : Sleep Song. It excludes the selected song from the station for a month.
Station Title 3
M
 The www.pandora.com server reflects the changes made on your player.
 In order to activate your Blu-ray Disc Player with Pandora, visit the www.pandora.com/samsung and then
enter the activation code.
 For further information on Pandora service or to unsubscribe the Pandora service, email "samsungsupport@pandora.com".
English _3
01783H-BD-P1590,1590C,1600-XAA-E73 73
2009-07-15 오전 10:29:45
using the e-contents
USing YOUTUBE
This Blu-ray Disc Player enables you to use the following services provided by YouTube.
1. With the unit in Stop mode/No Disc mode, press the BLUE(D) button on the menu screen.
❖ YouTube screen elements
Country Selection Information: Shows a country that
you selected.
Current sorting time: Shows a title list sorted by Time.
(Today, Weekly, Monthly, All)
YouTube /
Worldwide
Most viewed
Top rated
Most Popular
Most Discussed
Top Favorites
Most Linked
Most Responded
Featured
Visited History
My Favorites
You Tube
bkj
Today
abc...
Views : 5969
def...
Views : 5969
ghi...
Views : 5969
jkl...
Views : 5969
1/25
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
00:06:20
00:06:20
User Information: Only shown when logging in.
Number of page: The page number of selected title /
Total pages in current list.
00:06:20
a Log Out b Change Mode c Select d Option [/] Page
Contents List: Shows a Title, Number of views, Ratings,
Runtime and Date.
Navigation Help: Shows available buttons.
Category List: For more detailed information, please
refer to below.
Category List
Most Viewed
Shows the most viewed videos.
Top Rated
Shows the highest rated videos.
Most Popular
Shows a list of popular videos.
Most Discussed
Shows the most discussed videos.
Top Favorites
Shows the videos that are most added to user's Favorites.
Most Linked
Shows the videos that are most linked to other web sites.
Most Responded
Shows the videos that are most responded by web users.
Featured
Shows a list of featured videos.
Visited History
Shows a history of visited videos.
_ using the e-contents
01783H-BD-P1590,1590C,1600-XAA-E74 74
2009-07-15 오전 10:29:51
My Favorites
If you have logged into your YouTube account with the Blu-ray Disc Player and added a
video to My Favorites, you can play the video on the Blu-ray Disc Player or a PC that is
synchronized with the YouTube site.
Player Library
You can add videos to the Player Library without logging into your YouTube account.
Search
Account Management
Shows a list of videos for a desired country.
Enables you to manage YouTube user names and passwords.
Country Setup
If you select a country in Country Setup, you can view videos from the YouTube site of that country.
1. Press the $% button to select the Country Setup, then
press the EnTEr button.
YouTube /
2. Press the $%_ + button to select the desired country,
then press the EnTEr button.
Player Library
Search
Country Setup
Account Management
Worldwide
You Tube
Worldwide
India
Poland
Australia
Ireland
Russia
Brazil
Israel
South Korea
Canada
Italy
Spain
Czech Republic
Japan
Sweden
France
Mexico
Taiwan
Germany
Netherlands
United Kingdom
Hong Kong
New Zealand
● USing THE E-COnTEnTS
Country Setup
Select search criteria, and enter a keyword for the video you want to play.
a Log In
Log in
If you have logged into your YouTube account with the Blu-ray Disc Player, you can play videos added
to My Favorites.
1. Press the rED(a) button on the YouTube screen.
2. Press the $%_ + button to enter the user name, then
press the YELLOW(C) button.
3. Press the $%_ + button to enter the password, then
press the YELLOW(C) button.
YouTube /
Worldwide
Most viewed
I
Top rated
Most Popular
1 .. @
Most Discussed
4 ghi
Top Favorites
Most Linked
7 pgrs
Most Responded
Ø Delete
Featured
Visiteda
History
a/A/1/
My Favorites
. Press the _ + button to select OK, then press the
EnTEr button.
YouTube /
1/25
abc...
abc
Views : 5969
2 abc
5
Username
3 def
def...
jkl
mno
6Views
: 5969
8 tuv
9 wxyz
ghi...
Views : 5969
0
b Blank
Done
c
jkl...
Views : 5969
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
(/) Cursor
00:06:20
00:06:20
00:06:20
Select r Return
Worldwide
Most viewed
Top rated
Most Popular
Most Discussed
Top Favorites
Most Linked
Most Responded
Featured
Visited History
My Favorites
M
You Tube
Today
You Tube
bkj
Today
abc...
Numeric
Password
Setting
Views
: 5969
Rating : 
Please register 4-digit numeric password.
def...
Then you can login YouTube on this player simply
Views : 5969
Rating : 
by pressing numeric buttons on the remote control.
ghi...
Views : 5969
OK
jkl...
Views : 5969
1/1
00:06:20
2009-05-21
00:06:20
2009-05-21
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Skip
00:06:20
 Press the RED(A) button to log out of your YouTube account.
English _
01783H-BD-P1590,1590C,1600-XAA-E75 75
2009-07-15 오전 10:29:56
using the e-contents
. Enter the 4-digit numeric password.
You can login YouTube on this Blu-ray Disc Player
simply by pressing numeric buttons.
YouTube /
Worldwide
You Tube
bkj
Today
Most viewed
Top rated
Most Popular
Most Discussed
Top Favorites
Most Linked
Most Responded
Featured
Visited History
My Favorites
abc...
Numeric
Password
Setting
Views
: 5969
Rating : 
Enter new password
def...
1/1
00:06:20
2009-05-21
00:06:20
Views : 5969
Rating : 
Confirm the password
2009-05-21
Views : 5969
Rating : 
[0~9] Number r Return
2009-05-21
Views : 5969
2009-05-21
ghi...
jkl...
Rating : 
00:06:20
00:06:20
Playing a video
1. Press the $% button to select the desired category.
YouTube /
Worldwide
You Tube
Today
Most viewed
Top rated
Most Popular
Most Discussed
Top Favorites
Most Linked
Most Responded
Featured
Visited History
My Favorites
1/25
abc...
Views : 5969
def...
Views : 5969
ghi...
Views : 5969
jkl...
Views : 5969
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
00:06:20
00:06:20
00:06:20
a Log In b Change Mode
2. Select the current sorting time period (Today, Weekly,
Monthly, All) by pressing the grEEn(B) button.
YouTube /
Worldwide
Most viewed
Top rated
Most Popular
Most Discussed
Top Favorites
Most Linked
Most Responded
Featured
Visited History
My Favorites
You Tube
Today
1/1
abc...
Views : 5969
2009-05-21
Views : 5969MonthlyRatingAll: 

Weekly
2009-05-21
def...
 Today
00:06:20
Rating : 
ghi...
Views : 5969
jkl...
Views : 5969
00:06:20
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
00:06:20
3. Press the + button to move to the contents list, then press the $% button to select the desired title.
. Press the EnTEr button.
YouTube > Most viewed
Worldwide
You Tube
Falling in love
I love my dogs.
+
00:00:00 / 00:06:23
Views : 196
Ratings: 2009-05-21
Report copyright violations:
http://www.youtube.com/t/copyright_notice
Keywords: dog, love, falling
b Add to Favorites [/] Skip _ + Prev/Next
M
Full Screen
 Press the ENTER button to display the video in full screen during playback, and to provide related videos
when it ends.
 Depending on Youtube's specifications, HD contents may not play clearly.
 Press the EXIT button to exit YouTube.
During playback, EXIT button is not available.
_ using the e-contents
01783H-BD-P1590,1590C,1600-XAA-E76 76
2009-07-15 오전 10:30:02
Searching a video
1. Press the $% button to select Search, then press the
EnTEr button.
3. Press the _+ buttons to select Keyword, then press
the EnTEr button.
Worldwide
You Tube
Search
Player Library
Search
Country Setup
Account Management
Relevance
Published
View Count
Rating
Keyword
My Search History
0/0
a Log In
YouTube /
Worldwide
You Tube
Today
Player Library
I
Search
abc
Country Setup
1 .. @
2 abc
Account Management
4 ghi
5 jkl
7 pgrs
8 tuv
Ø Delete
0
a a/A/1/
b Blank
Search
abc...
Views : 5969
3 def
def...
mno
6Views
: 5969
9 wxyz
ghi...
Views : 5969
Done
c
jkl...
Views : 5969
1/25
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
(/) Cursor
00:06:20
00:06:20
00:06:20
● USing THE E-COnTEnTS
2. Press the _+ buttons to select the search criteria, then
press the EnTEr button.
• relevance: Select this if you want to search for similar
videos.
• Published: Select this if you want to sort videos by the
created date.
• View count: Select this if you want to sort videos by
the view count.
• rating: Select this if you want to sort videos by the rating.
YouTube /
Select r Return
. Press the $%_ + button to select a text field.
. Press the EnTEr button in the text field repeatedly to
select a desired letter, number or icon.
YouTube /
Worldwide
You Tube
Search
Today
Player aLibrary
bI
Search
abc
Country Setup
1 .. @
2 abc
Account Management
4 ghi
5 jkl
abc...
Views : 5969
1/25
Rating : 
ab
abc
def...
mno
6Views
: 5969 abcd
Rating : 
abcde
9 wxyz
ghi...
abcdef
3 def
7 pgrs
8 tuv
Ø Delete
0
a a/A/1/
b Blank
Views : 5969
Done
c
jkl...
Views : 5969
Rating : 
Rating : 
(/) Cursor
. After you have entered in the subject you want to
search, press the YELLOW(C) button on the remote
control.
YouTube /
00:06:20
2009-05-21
00:06:20
2009-05-21
00:06:20
2009-05-21
Select r Return
Worldwide
Player Library
Search
Country Setup
Account Management
00:06:20
2009-05-21
You Tube
1/25
ab...
Views : 5969
abc...
Views : 5969
abcd...
Views : 5969
abcde...
Views : 5969
a Log In
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
00:06:20
00:06:20
00:06:20
c Select d Option [/] Page
English _
01783H-BD-P1590,1590C,1600-XAA-E77 77
2009-07-15 오전 10:30:07
using the e-contents
. Press the $% buttons to select the desired video, then
press EnTEr button to play the video.
YouTube > Search
Worldwide
You Tube
abcd
A wild goose is honking.
+
00:00:00 / 00:06:23
Views : 196
Ratings :  2009-05-21
Report copyright violations:
http://www.youtube.com/t/copyright_notice
Keywords: ab, abc, abcd, abcde
b Add to Favorites [/] Skip _ + Prev/Next
M
Full Screen
 Pressing ENTER button while you are in the a/A/1/ text field enables you to change the text fields to lower
case, upper case, numbers and icons.
My Favorites
If you have logged into your YouTube account with the Blu-ray Disc Player and added a video to My
Favorites, you can play the video on the Blu-ray Disc Player or a PC that is synchronized with the
YouTube site.
Saving a video
1. Press the grEEn(B) button during playback.
The Storage Path popup appears
2. Press the $% button to select My Favorites, then
press the EnTEr button.
3. Press the EnTEr button.
The desired video will be added to my favorites.
YouTube > Most viewed
Worldwide
You Tube
bkj
Falling in love


You can select
filedogs.
storage path.
I love amy
Stores the video in the user account.
You can enjoy it in sync with the Favorites
of the YouTube site.
My Favorites
Player Library
+
00:00:00 / 00:06:23
You can store a video in the TV
regardless
login process.
Views :of
196
Ratings: 2009-05-21
Report copyright vidkslf:
http://www.youtube.com/t/copyright_notice
Keywords: dog, love, falling
Playing a video saved in My Favorites
1. Press the $% button to select the My Favorites in the
category list.
2. Press the + button to move to the contents list, then
press the $% button to select the desired video.
3. Press the EnTEr button.
The selected video will be played back.
YouTube /
Worldwide
You Tube
bkj
Most viewed
Top rated
Most Popular
Most Discussed
Top Favorites
Most Linked
Most Responded
Featured
Visited History
My Favorites
abc...
Views : 5969
def...
Views : 5969
ghi...
Views : 5969
jkl...
Views : 5969
a Log Out
M
1/25
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
00:06:20
00:06:20
00:06:20
c Select d Option [/] Page
 If you have logged in your YouTube account, you can also play a video which you added to My Favorites
on your PC.
_ using the e-contents
01783H-BD-P1590,1590C,1600-XAA-E78 78
2009-07-15 오전 10:30:13
Player Library
You can add videos to the Player Library without logging into your YouTube account.
Saving a video
1. Press the grEEn(B) button during the playback.
YouTube > Most viewed
Worldwide
2. Press the EnTEr button.
The desired video will be added to player library.
You Tube
Falling in love
I love my dogs.
Falling in love added to Player Library.
00:00:00 / 00:06:23
Views : 196
Ratings: 2009-05-21
Report copyright violations:
http://www.youtube.com/t/copyright_notice
Keywords: dog, love, falling
Playing a video saved in the Player Library
1. Press the $% button to select the Player Library in the
category list.
YouTube /
2. Press the + button to move to the contents list, then
press the $% button to select the desired video.
Player Library
Search
Country Setup
Account Management
Worldwide
You Tube
1/1
abc...
Views : 5969
def...
Views : 5969
3. Press the EnTEr button.
The selected video will be played back.
ghi...
Views : 5969
jkl...
Views : 5969
a Log In
00:06:20
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
Rating : 
2009-05-21
● USing THE E-COnTEnTS
OK
+
00:06:20
00:06:20
00:06:20
c Select d Option [/] Page
English _
01783H-BD-P1590,1590C,1600-XAA-E79 79
2009-07-15 오전 10:30:16
appendix
troubleshooting
Before requesting service, please check the following.
PROBLEM
No operation can be performed with the
remote control.
SOLUTION
• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• R emove batteries and hold down one or more buttons for several minutes to drain
the microprocessor inside the remote control to reset it. Reinstall batteries and try
to operate the remote control again.
Disc does not play.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the Blu-ray Disc/ DVD.
Disc Menu does not appear.
• Check if the disc has a Menu.
The
• This icon appears when an invalid button is pressed.
icon appears on the screen.
• The features or action cannot be completed at this time because :
1. The Blu-ray Disc/ DVD’s software restricts it.
2. The Blu-ray Disc/ DVD’s software doesn’t support the feature (e.g., angles)
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is out of range.
Play mode differs from the Setup Menu
selection.
• S ome of the functions selected in the Setup Menu may not work properly if the
disc is not encoded with the corresponding function.
The screen ratio cannot be changed.
• The Screen Ratio is fixed on your Blu-ray Disc/ DVDs.
• This is not a problem with the player.
No audio.
• Make sure you have selected the correct Digital Output in the Audio Options Menu.
The screen is blocked
• P ress the SKIP (]) button (on front panel) for more than 5 seconds with no disc
inside. All settings will revert to the factory settings.
• W
hen the factory default settings are restored, all the user data stored in the
BD data will be deleted.
If the HDMI output is set to a resolution your
TV cannot support (for example, 1080p), you
may not see a picture on your TV.
Forgot password
• P ress the SKIP (]) button (on front panel) for more than 5 seconds with no disc
inside. All settings will revert to the factory settings.
• W
hen the factory default settings are restored, all the user data stored in the
BD data will be deleted.
• P ress the SKIP (]) button (on front panel) for more than 5 seconds with no disc
inside. All settings including the password will revert to the factory settings.
Don't use this unless absolutely necessary.
• W
hen the factory default settings are restored, all the user data stored in the
BD data will be deleted.
80_ appendix
01783H-BD-P1590,1590C,1600-XAA-E80 80
2009-07-15 오전 10:30:16
PROBLEM
If you experience other problems.
SOLUTION
• G
o to the contents and find the section of the instruction manual that contains the
explanations regarding the current problem, and follow the procedure once again.
• If the problem still cannot be solved, please contact your nearest Samsung
authorized service center or call 1-800-SAMSUNG.
The picture is noisy or distorted
• Make sure that the disc is not dirty or scratched.
No HDMI output.
• C heck the connection between the TV and the HDMI jack of the Blu-ray Disc
Player.
• Check if your TV supports 480p/720p/1080i/1080p HDMI input resolution.
Abnormal HDMI output screen.
M
● APPENDIX
• Clean the disc.
• If random noise appears on the screen, it means that TV does not support HDCP
(High-bandwidth Digital Content Protection).
 When the factory default settings are restored, all the user data stored in the BD data will be deleted.
English _81
01783H-BD-P1590,1590C,1600-XAA-E81 81
2009-07-15 오전 10:30:16
appendix
Specifications
General
Power Requirements
AC 120V, 60Hz
Power Consumption
30 W
Weight
4.8 Ibs
Dimensions
BD-P1600 : 16.9(W) × 8.2(D) × 2.1(H) inches
BD-P1590(C) : 16.9(W) × 7.8(D) × 2.1(H) inches
Operating Temperature Range
+41°F to +95°F
Operating Humidity Range
10 % to 75 %
BD (Blu-ray Disc)
Reading Speed : 4.917m/sec
DVD (Digital Versatile Disc)
Disc
CD : 5 inches (COMPACT DISC)
CD : 3 1/2 inches (COMPACT DISC)
Composite Video
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 Channel : 1.0 Vp-p (75 Ω load)
Blu-ray/DVD Disc : 480i
Y : 1.0 Vp-p (75 Ω load)
Video Output
Component Video
PR : 0.70 Vp-p (75 Ω load)
PB : 0.70 Vp-p (75 Ω load)
Blu-ray Disc : 1080i, 720p, 480p, 480i
Video/Audio
Audio Output
HDMI
1080p, 1080i, 720p, 480p
PCM multichannel audio, Bitstream audio
2 Channel
L(1/L), R(2/R)
Digital Audio Output
Optical
*Frequency Response
DVD : 480p, 480i
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
*S/N Ratio
110 dB
*Dynamic Range
100 dB
*Total Harmonic Distortion
0.003%
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
82_ appendix
01783H-BD-P1590,1590C,1600-XAA-E82 82
2009-07-15 오전 10:30:16
Notice & Disclaimer
Copy Protection
● APPENDIX
• Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar
to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output,
etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your
time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.
Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for Blu-ray Disc format, which
imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain
additional information on AACS, BD-ROM Mark, BD+, or this product, please contact SAMSUNG customer care center.
• Many Blu-ray Disc/DVD discs are encoded with copy protection. Because of this, you should only connect your
Blu-ray Disc Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected Blu-ray Disc/DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and
other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
• This device is protected by U.S. Patent Nos. 5,315,448; 5,583,936; 6,501,842; 6,381,747; 6,516,132; 6,836,549;
and 7,050,698.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display,
distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other materials may subject
you to civil and/or criminal liability.
• For Blu-ray Disc Players progressive scan output : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE
USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING
OUR TV SET COMPATIBILITY WITH THIS PRODUCT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
Compliance and Compatibility Notice
NOT ALL discs are compatible
• Subject to the restrictions described below and those noted throughout this Manual, including the Disc Type and
Characteristics section of this Manual, disc types that can be played are: pre-recorded commercial BD-ROM, DVDVideo, and Audio CD discs; BD-RE, BD-R, DVD-RW / DVD-R discs; and CD-RW/CD-R discs.
• Discs other than the above cannot and/or is not intended to be played by this player. And some of the above discs
may not play due to one or more reasons provided below.
• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE, BD-R, DVD-Video, DVD-RW/DVDR and CD-RW/CD-R logos, and this player may not respond to all operating commands or operate all features of every disc.
These and other disc compatibility and player operation issues with new and existing format discs are possible because:
- Blu-ray is a new and evolving format and this player may not operate all features of Blu-ray Discs because some
features may be optional, additional features may have been added to the Blu-ray Disc format after the
production of this player, and certain available features may be subject to delayed availability;
- not all new and existing disc format versions are supported by this player;
- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;
- some discs are produced in a manner that allows specific or limited operation and feature during playback;
- some features may be optional, additional features may have been added after the production of this player or
certain available features may be subject to delayed availability;
- some discs bearing the BD-ROM, BD-RE, BD-R, DVD-Video, DVD-RW/ DVD-R and CD-RW/CD-R logos may still
be non-standardized discs;
- some discs may not be played depending on their physical state or recording conditions;
- problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the manufacture of discs;
- this player operates differently than a standard DVD player or other AV equipment; and/or
- for reasons noted throughout this Manual and for other reason(s) discovered and posted by SAMSUNG
customer care center.
• If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care center.
You may also contact SAMSUNG customer care center for possible updates on this player.
• For additional information on playback restrictions and disc compatibility, refer to the Precautions, Before Reading
the User’s Manual, Disc Types and Characteristics, and Before Playing sections of this Manual.
English _83
01783H-BD-P1590,1590C,1600-XAA-E83 83
2009-07-15 오전 10:30:16
appendix
Network Service Disclaimer
All content and services accessible through this device belong to third parties and are protected by copyright,
patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your
personal noncommercial use. You may not use any content or services in a manner that has not been authorized
by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the
applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit,
translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services
displayed through this device.
THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT
CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT
GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT
OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING
NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY
OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS
A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
Third party services may be terminated or interrupted at any time, and Samsung makes no representation or
warranty that any content or service will remain available for any period of time. Content and services are
transmitted by third parties by means of networks and transmission facilities over which Samsung has no control.
Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any
interruption or suspension of any content or service made available through this device.
Samsung is neither responsible nor liable for customer service related to the content and services. Any question or
request for service relating to the content or services should be made directly to the respective content and service
providers.
84_ appendix
01783H-BD-P1590,1590C,1600-XAA-E84 84
2009-07-15 오전 10:30:17
❖
❖
❖
❖
This product uses parts of the software from the Independent JPEG Group.
This product uses parts of the software owned by the Freetype Project (www.freetype.org).
This product uses some software programs which are distributed under the GPL/LGPL license.
This Product uses some software programs which are distributed under the OpenSSL license.
Accordingly, the following GPL and LGPL software source codes that have been used in this product can
be provided after asking to vdswmanager@samsung.com.
GPL software: Linux Kernel, Busybox, Binutils
LGPL software: UClibc, directfb
The GNU General Public License (GPL)
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the
GNU General Public License is intended to guarantee your freedom to share and change free software--to make
sure the software is free for all its users. This General Public License applies to most of the Free Software
Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software
Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed
to make sure that you have the freedom to distribute copies of free software (and charge for this service if you
wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it
in new free programs; and th at you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to
surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the
software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all
the rights that you have. You must make sure that they, too, receive or can get the source code. And you must
show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you
legal permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no
warranty for this free software. If the software is modified by someone else and passed on, we want its recipients
to know that what they have is not the original, so that any problems introduced by others will not reflect on the
original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To
prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder
saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any
such program or work, and a “work based on the Program” means either the Program or any derivative work
under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with
modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the
term “modification”.) Each licensee is addressed as “you”.
01783H-BD-P1590,1590C,1600-XAA-E85 85
2009-07-15 오전 10:30:17
Activities other than copying, distribution and modification are not covered by this License; they are outside its
scope. The act of running the Program is not restricted, and the output from the Program is covered only if its
contents constitute a work based on the Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium,
provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and
give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty
protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the
Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that
you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date
of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from
the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of
this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started
running for such interactive use in the most ordinary way, to print or display an announcement including an
appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a
warranty) and that users may redistribute the program under these conditions, and telling the user how to
view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an
announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from
the Program, and can be reasonably considered independent and separate works in themselves, then this
License, and its terms, do not apply to those sections when you distribute them as separate works. But when you
distribute the same sections as part of a whole which is a work based on the Program, the distribution of the
whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather,
the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based
on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope
of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable
form under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed
under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more
than your cost of physically performing source distribution, a complete machine-readable copy of the
corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and only if you received the program in object code
or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable
work, complete source code means all the source code for all modules it contains, plus any associated interface
definition files, plus the scripts used to control compilation and installation of the executable. However, as a special
exception, the source code distributed need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the operating system on which the
executable runs, unless that component itself accompanies the executable.
01783H-BD-P1590,1590C,1600-XAA-E86 86
2009-07-15 오전 10:30:17
If distribution of executable or object code is made by offering access to copy from a designated place, then
offering equivalent access to copy the source code from the same place counts as distribution of the source code,
even though third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this
License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically
terminate your rights under this License. However, parties who have received copies, or rights, from you under this
License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you
permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do
not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program),
you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or
modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically
receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and
conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You
are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited
to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict
the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute
so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a
consequence you may not distribute the Program at all. For example, if a patent license would not permit royaltyfree redistribution of the Program by all those who receive copies directly or indirectly through you, then the only
way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the
section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software
distribution system, which is implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the Program under this License may add an explicit
geographical distribution limitation excluding those countries, so that distribution is permitted only in or among
countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this
License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from
time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address
new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License
which applies to it and “any later version”, you have the option of following the terms and conditions either of that
version or of any later version published by the Free Software Foundation. If the Program does not specify a
version number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are
different, write to the author to ask for permission. For software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be
guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the
sharing and reuse of software generally.
01783H-BD-P1590,1590C,1600-XAA-E87 87
2009-07-15 오전 10:30:17
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE
RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM
PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY
OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to
most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a
pointer to where the full notice is found.
One line to give the program’s name and a brief idea of what it does.
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General
Public License as published by the Free Software Foundation; either version 2 of the License, or (at your
option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General
Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to
the Free Software Foundation, Inc., 59
Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO
WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under
certain conditions; type `show c’ for details.
The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public
License. Of course, the commands you use may be called something other than `show w’ and `show c’; they
could even be mouse-clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright
disclaimer” for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at
compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program
is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If
this is what you want to do, use the GNU Library General Public License instead of this License.
01783H-BD-P1590,1590C,1600-XAA-E88 88
2009-07-15 오전 10:30:17
GNU Lesser General Public License (LGPL)
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 021111307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but
changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public
License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the
GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to
make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically
libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we
suggest you first think carefully about whether this license or the ordinary General Public License is the better
strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are
designed to make sure that you have the freedom to distribute copies of free software (and charge for this service
if you wish); that you receive source code or can get it if you want it; that you can change the software and use
pieces of it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you
to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the
library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the
rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other
code with the library, you must provide complete object files to the recipients, so that they can relink them with the
library after making changes to the library and recompiling it. And you must show them these terms so they know
their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which
gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the
library is modified by someone else and passed on, the recipients should know that what they have is not the
original version, so that the original author’s reputation will not be affected by problems that might be introduced
by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a
company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent
holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the
full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license,
the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the
ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into
non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is
legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore
permits such linking only if the entire combination fits its criteria of freedom.
The Lesser General Public License permits more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than
the ordinary General Public License. It also provides other free software developers Less of an advantage over
competing non-free programs. These disadvantages are the reason we use the ordinary General Public License
for many libraries. However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain
library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the
library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case,
there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.
01783H-BD-P1590,1590C,1600-XAA-E89 89
2009-07-15 오전 10:30:18
In other cases, permission to use a particular library in non-free programs enables a greater number of people to
use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables
many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating
system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user
of a program that is linked with the Library has the freedom and the wherewithal to run that program using a
modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the
difference between a “work based on the library” and a “work that uses the library”. The former contains code
derived from the library, whereas the latter must be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the
copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General
Public License (also called “this License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with
application programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A
“work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a
work containing the Library or a portion of it, either verbatim or with modifications and/or translated
straightforwardly into another language. (Hereinafter, translation is included without limitation in the term
“modification”.)
“Source code” for a work means the preferred form of the work for making modifications to it. For a library,
complete source code means all the source code for all modules it contains, plus any associated interface
definition files, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its
scope. The act of running a program using the Library is not restricted, and output from such a program is
covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool
for writing it). Whether that is true depends on what the Library does and what the program that uses the Library
does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any
medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice
and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty;
and distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty
protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the
Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you
also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date
of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this
License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application
program that uses the facility, other than as an argument passed when the facility is invoked, then you must
make a good faith effort to ensure that, in the event an application does not supply such function or table, the
facility still operates, and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined
independent of the application. Therefore, Subsection 2d requires that any application-supplied function or
table used by this function must be optional: if the application does not supply it, the square root function must
still compute square roots.)
01783H-BD-P1590,1590C,1600-XAA-E90 90
2009-07-15 오전 10:30:18
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived
from the Library, and can be reasonably considered independent and separate works in themselves, then this
License, and its terms, do not apply to those sections when you distribute them as separate works. But when
you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the
whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole,
and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the
Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based
on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope
of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given
copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the
ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the
ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not
make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public
License applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete
corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2
above on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent
access to copy the source code from the same place satisfies the requirement to distribute the source code, even
though third parties are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by
being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative
work of the Library, and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the
Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is
therefore covered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for
the work may be a derivative work of the Library even though the source code is not. Whether this is true is
especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for
this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and
small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether
it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under
Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms
of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly
with the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the
Library to produce a work containing portions of the Library, and distribute that work under terms of your choice,
provided that the terms permit modification of the work for the customer’s own use and reverse engineering for
debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its
use are covered by this License. You must supply a copy of this License. If the work during execution displays
copyright notices, you must include the copyright notice for the Library among them, as well as a reference
directing the user to the copy of this License. Also, you must do one of these things:
01783H-BD-P1590,1590C,1600-XAA-E91 91
2009-07-15 오전 10:30:18
a) Accompany the work with the complete corresponding machine-readable source code for the Library
including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above);
and, if the work is an executable linked with the Library, with the complete machinereadable “work that uses
the Library”, as object code and/or source code, so that the user can modify the Library and then relink to
produce a modified executable containing the modified Library. (It is understood that the user who changes the
contents of definitions files in the Library will not necessarily be able to recompile the application to use the
modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1)
uses at run time a copy of the library already present on the user’s computer system, rather than copying
library functions into the executable, and (2) will operate properly with a modified version of the library, if the
user installs one, as long as the modified version is interface-compatible with the version that the work was
made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials
specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent
access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a
copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs
needed for reproducing the executable from it. However, as a special exception, the materials to be distributed
need not include anything that is normally distributed (in either source or binary form) with the major components
(compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself
accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not
normally accompany the operating system. Such a contradiction means you cannot use both them and the Library
together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with
other library facilities not covered by this License, and distribute such a combined library, provided that the
separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and
provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any
other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and
explaining where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under
this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will
automatically terminate your rights under this License. However, parties who have received copies, or rights, from
you under this License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you
permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do
not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you
indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or
modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a
license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and
conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You
are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not
limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that
contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot
distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations,
then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit
royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the
only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.
01783H-BD-P1590,1590C,1600-XAA-E92 92
2009-07-15 오전 10:30:18
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the
section is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software
distribution system which is implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the Library under this License may add an explicit geographical
distribution limitation excluding those countries, so that distribution is permitted only in or among countries not
thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License
from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to
address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License
which applies to it and “any later version”, you have the option of following the terms and conditions either of that
version or of any later version published by the Free Software Foundation. If the Library does not specify a license
version number, you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are
incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision
will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting
the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,
TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS
PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN
IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend
making it free software that everyone can redistribute and change. You can do so by permitting redistribution
under these terms (or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each
source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright”
line and a pointer to where the full notice is found.
<one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General
Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your
option) any later version.
01783H-BD-P1590,1590C,1600-XAA-E93 93
2009-07-15 오전 10:30:18
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser
General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write
to the Free Software Foundation, Inc., 59
Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright
disclaimer” for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written
by James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
OpenSSL License
Copyright (c) 1998-2007 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment:
"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.
openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products
derived from this software without prior written permission. For written permission, please contact openssl-core@
openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names
without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT
OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
01783H-BD-P1590,1590C,1600-XAA-E94 94
2009-07-15 오전 10:30:19
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered
new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for the following limited warranty period:
One (1) Year Parts / Ninety Days (90) Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States, and
does not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by SAMSUNG’s authorized
service center. To receive warranty service, the original dated bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center. Transportation to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be defective
during the limited warranty period specified above. The product must be returned during the warranty period with transportation charges
prepaid to SAMSUNG’s designated service center. Prior to returning any product for warranty service, the purchaser must contact
SAMSUNG for problem determination and service procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the
product.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this
product and shall not apply to the following, including, but not limited to: damage which occurs in shipment; applications and uses for
which this product was not intended; failures or problems which are caused by products or equipment not supplied by SAMSUNG;
accidents, misuse, abuse, neglect, misapplication, fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations
or surges; damage caused by improper or faulty installation; improper connection with any peripheral; product alteration or modification;
improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial numbers; failure to follow operating
instructions, customer adjustments, maintenance and environmental instructions that are covered and prescribed in the instruction book;
use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment which damage this product or result in service problems;
failures or problems due to incompatibility with other equipment.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner
whatsoever. The time within which an action must be commended to enforce any obligations of SAMSUNG arising under the warranty or
under any statute, or law of the United States or of any state thereof, is hereby limited to ninety (90) days from the date you discovered or
should have discovered the defect. This limitation does not apply to implied warranties arising under state law, if any.
SAMSUNG does not warrant (i) disc compatibility with new and existing format discs or (ii) error free playback in full compliance with
specifications of the compatible disc formats, and SAMSUNG shall not be liable for any data loss recorded in your discs.
SAMSUNG’s responsibility shall be limited to appropriate warranty services during the warranty period through SAMSUNG customer care
center. If you encounter compatibility or data loss problems, please contact SAMSUNG customer care center.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS
WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE
BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS
OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE
OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN
IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST
SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE
ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE
OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE,
MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS
NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
01783H-BD-P1590,1590C,1600-XAA-E95 95
2009-07-15 오전 10:30:19
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
center.
Region
North America
Latin America
Europe
CIS
Asia Pacific
Country
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421, 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
BELGIUM
02 201 2418
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAKHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
800-SAMSUNG(800-726786)
8-SAMSUNG(7267864)
30-6227 515
01 4863 0000
01805 - SAMSUNG(726-7864 € 0,14/Min)
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
02 261 03 710
0900-SAMSUNG (0900-7267864) (€ 0,10/Min)
3-SAMSUNG(7267864)
0 801 1SAMSUNG(172678), 022-607-93-33
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902-1-SAMSUNG (902 172 678)
075-SAMSUNG(726 78 64)
0845 SAMSUNG (7267864)
0818 717 100
0810-SAMSUNG(7267864, € 0.07/min)
0848-SAMSUNG(7267864, CHF 0.08/min)
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
8000-7267
800-7267
1300 362 603
0800 SAMSUNG (0800 726 786)
800-810-5858, 400-810-5858, 010-6475 1880
3698-4698
3030 8282, 1800 110011, 1-800-3000-8282
0800-112-8888
0120-327-527
1800-88-9999
1-800-10-SAMSUNG(726-7864)
1-800-3-SAMSUNG(726-7864), 02-5805777
1800-SAMSUNG(726-7864)
1800-29-3232, 02-689-3232
0800-329-999
1 800 588 889
444 77 11
0860-SAMSUNG(726-7864)
800-SAMSUNG (726-7864), 8000-4726
PHILIPPINES
Middle East &
Africa
Contact Center 
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
SOUTH AFRICA
U.A.E
01783H-BD-P1590,1590C,1600-XAA-E96 96
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com/us
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be (Dutch)
www.samsung.com/be_fr (French)
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.com/lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.ru
www.samsung.com/kz_ru
www.samsung.com/kz_ru
www.samsung.ua
www.samsung.com/lt
www.samsung.com/lv
www.samsung.com/ee
www.samsung.com/au
www.samsung.com/nz
www.samsung.com/cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/tr
www.samsung.com/za
www.samsung.com/ae
2009-07-15 오전 10:30:20
QUESTIONS OR COMMENTS?
COUNTRY
IN THE US
CALL
1-800-SAMSUNG
(7267864)
OR VISIT US ONLINE AT
WRITE
www.samsung.com
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park,
NJ 07660-0511
AK68-01783H
01783H-BD-P1590,1590C,1600-XAA-E97 97
2009-07-15 오전 10:30:20
Download PDF

advertising
