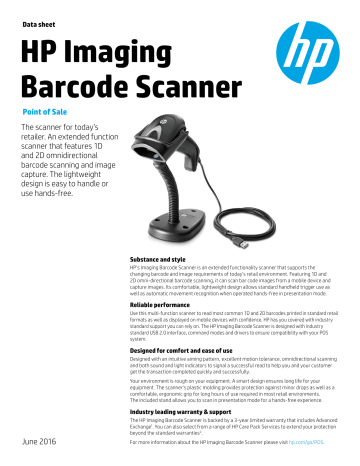

HP Imaging Barcode Scanner

HP Imaging Barcode Scanner
Data sheet
HP Imaging
Barcode Scanner
Point of Sale
The scanner for today’s
retailer. An extended function
scanner that features 1D
and 2D omnidirectional
barcode scanning and image
capture. The lightweight
design is easy to handle or
use hands-free.
Substance and style
HP’s Imaging Barcode Scanner is an extended functionality scanner that supports the
changing barcode and image requirements of today’s retail environment. Featuring 1D and
2D omni-directional barcode scanning, it can scan bar code images from a mobile device and
capture images. Its comfortable, lightweight design allows standard handheld trigger use as
well as automatic movement recognition when operated hands-free in presentation mode.
Reliable performance
Use this multi-function scanner to read most common 1D and 2D barcodes printed in standard retail
formats as well as displayed on mobile devices with confidence. HP has you covered with industry
standard support you can rely on. The HP Imaging Barcode Scanner is designed with industry
standard USB 2.0 interface, command modes and drivers to ensure compatibility with your POS
Designed for comfort and ease of use
Designed with an intuitive aiming pattern, excellent motion tolerance, omnidirectional scanning
and both sound and light indicators to signal a successful read to help you and your customer
get the transaction completed quickly and successfully.
Your environment is rough on your equipment. A smart design ensures long life for your
equipment. The scanner’s plastic molding provides protection against minor drops as well as a
comfortable, ergonomic grip for long hours of use required in most retail environments.
The included stand allows you to scan in presentation mode for a hands-free experience.
Industry leading warranty & support
The HP Imaging Barcode Scanner is backed by a 3-year limited warranty that includes Advanced
Exchange1. You can also select from a range of HP Care Pack Services to extend your protection
beyond the standard warranties2.
June 2016
For more information about the HP Imaging Barcode Scanner please visit hp.com/go/POS.
Data sheet | HP Imaging Barcode Scanner
HP Imaging Barcode Scanner
Scanner type
Light source
Nominal working distance
(Depth of Field)
Print contrast
1D/2D Decode Symbologies
Code 39
5mil: 1.6” - 7.5” (4 - 19 cm)
10mil: 0.4” - 11.8” (1.0 - 30 cm)
20mil: up to 17.7” (45 cm)
13mil: 0.6” - 15.7” (1.5 - 40 cm)
7.5mil: 0.5” - 10.6” (2.0 - 27cm)
6.6mil: 11.0” - 5.9” (2.5 - 15cm)
10mil: 0.2” - 8.6” (0.5 - 22cm)
15mil: 0.6” - 13.4” (1.5 - 34cm)
10mil: 0.8” - 6.3” (2.0 - 16cm)
15mil: 0 - 9.3” (0 - 23.6cm)
25% minimum reflectance
Factory Default Bar Codes, CODE 128, CODE 39, CODE 93, DataMatrix, EAN-13, EAN-8, GS1 DataBar Expanded, GS1
Databar Omnidirectional, PDF417, QR Codes, UPC-A, UPC-E
Note: HP factory setting has these code selection enabled by default.
Dimensions (LxWxH)
4.9 x 2.8 x 7.1 (100 x 71 x 181 mm)
8.0 ounces (226.7g); Scanner 6.9 ounces (195.6g) + Cable 1.0 ounce (28.3g)
Cable Length
6.5 ft (1.9 m)
USB 2.0
Input Current at 5V = 350 mA (max)
Idle Current at 5V = 65 mA max
Windows UBB HID-KB and OPOS & JPOS (via USB-COM mode drivers)
Operating system compatibility
Windows 10 (32-bit)
Windows 10 (64-bit)
Windows 10 IoT (32-bit)
Windows 10 IoT (64-bit)
Windows 8.1 Professional 64-bit
Windows Embedded 8.1
Windows 7 Business 64-bit
Windows XP Professional
Windows Embedded for Point of Service (WEPOS)
Windows Embedded POSReady 2009
Agency Certifications
Option kit contents
HP Imaging Barcode Scanner, Scanner Stand, USB Cable.
QR Code
10mil: 1.2” - 4.9” (3 - 12.5cm)
15mil: 0 - 7.5” (1 - 19.0cm)
HP Peripheral Limited Warranty is a three (3) year parts replacement warranty (HP Option Limited Warranty Period).
HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for
your HP product, use the HP Care Pack Services Lookup Tool at hp.com/go/lookuptool. Additional HP Care Pack Services
information by product is available at hp.com/hps/carepack.
1 Advanced Exchange part is shipped via a carrier or courier to the Customer’s location free of freight charges. HP will ship the replacement product in a container
suitable for returning the defective product to HP. Instructions and a prepaid shipping label for the return of the failed product will be included in the replacement product’s shipping container.
2 Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions
and limitations apply. For details, visit hp.com/go/lookuptool.
Learn more at
© Copyright 2013, 2016 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties
for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft, Windows and Vista are trademarks of the Microsoft group of companies.
4AA4-6089ENW, June 2016
