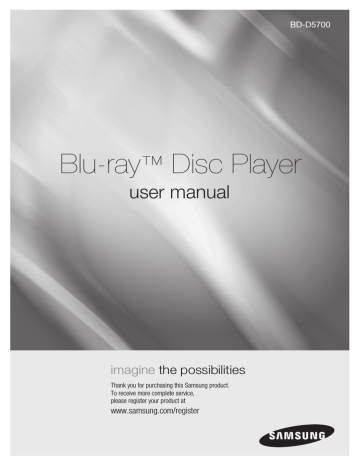

BD-D5700
Blu-ray™ Disc Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
Key features
Blu-ray Disc Features
Blu-ray Discs support the highest quality HD video
available in the industry - Large capacity means
no compromise on video quality.
The following Blu-ray Disc features are disc
dependant and will vary.
Appearance and navigation of features will also
vary from disc to disc.
Not all discs will have the features described
below.
Video highlights
The BD-ROM format supports three highly advanced
video codecs, including AVC, VC-1 and MPEG-2.
HD video resolutions are also supported:
• 1920 x 1080 High Definition
• 1280 x 720 High Definition
For High-Definition Playback
To view high-definition contents on a Blu-ray Disc,
you need an HDTV (High Definition Television).
Some Blu-ray Discs may require you to use the
player’s HDMI OUT to view high-definition content.
The ability to view high-definition content on
Blu-ray Discs may be limited depending on the
resolution of your TV.
BD-LIVE
You can use a Blu-ray Disc that supports BDLIVE to download content provided by the disc
manufacturer through a network connection.
English
Blu-ray Disc Player Features
Smart Hub
You can download various for pay or freeof-charge applications through a network
connection. These applications provide a range
of Internet services and content including news,
weather forecasts, stock market quotes, games,
movies, and music.
AllShare
You can play videos, music, and photos saved on
your devices (such as your PC, mobile phones, or
NAS) through a network connection.
Playing multimedia files
You can use the USB connection to play various
kinds of multimedia files (MP3, JPEG, DivX, etc.)
located from a USB storage device.
Safety Information
02
Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within the CAUTION: TO REDUCE THE RISK OF ELECTRIC The explanation point within the triangle
triangle is a warning sign alerting you of
SHOCK, DO NOT REMOVE COVER (OR BACK)
is a warning sign alerting you of important
dangerous voltage inside the product.
NO USER SERVICEABLE PARTS INSIDE. REFER instructions accompanying the product.
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
• To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
FCC NOTE (for U.S.A)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on.
The user is encouraged to try to correct the
interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect this equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
• This class B digital product meets all
requirements of the Canadian Interference Causing Equipment Regulations.
Note to CATV system installer
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the
National Electrical Code (Section 54 of Canadian
Electrical Code, Part I) that provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building as close to the
point of cable entry as practical.
CLASS 1 LASER product
This Compact Disc player is classified as a CLASS
1 LASER product. Use of controls, adjustments
or performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50, dated
June 24, 2007.
DANGER :
• VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID DIRECT EXPOSURE TO
BEAM. (FDA 21 CFR)
CAUTION :
• CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EXPOSURE
TO THE BEAM (IEC 60825-1)
• THIS product UTILIZES A LASER. USE
OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVER AND DO
NOT REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1 PRODUCTO
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
✎ NOTE
▪ If the Region number of a Blu-ray Disc/DVDs does
not correspond to the Region number of this player,
the player cannot play the disc.
English
Safety Information
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Safety Information
Precautions
Important Safety Instructions
Read these operating instructions carefully before
using the unit. Follow all the safety instructions
listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including AV receivers) that
produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
English
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Disc Storage & Management
Disc Handling
Disc Shape
• Use discs with regular
shapes. If you use an irregular
disc (a disc with a special
shape), you can damage the player.
Holding discs
• Avoid touching the surface of
a disc where data has been
recorded.
Blu-ray Discs
• Do not leave a Blu-ray Disc in the player for long
periods of time. Remove the Blu-ray Disc from
the player and store it in its case.
• Be careful not to scratch or leave fingerprints on
the surface of the Blu-ray Disc.
DVD-VIDEO, Audio CD (CD-DA)
• Wipe off dirt or contamination on the disc with a
soft cloth.
Handling Cautions
• Do not write on the printed side with a ball-point
pen or pencil.
• Do not use record cleaning sprays or antistatic
sprays to clean discs. Also, do not use volatile
chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not
use discs fixed with exposed tape adhesive or
leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers
available on the market.
• Do not load warped or cracked discs.
• Before connecting other components to this
player, be sure to turn them off.
• Do not move the player while it is playing a disc.
The disc can be scratched or damaged and the
player’s internal parts can be damaged.
• Do not put a flower vase filled with water or any
small metal objects on the player.
• Be careful not to put your hand into the disc
tray.
• Do not place anything other than the disc in the
disc tray.
• Interference from exterior sources such as
lightening and static electricity can affect
the normal operation of this player. If this
occurs, turn the player off and on again with
the POWER button, or disconnect and then
reconnect the AC power cord to the AC power
outlet. The player will operate normally.
Maintenance of Cabinet
Before you clean the Blu-ray Disc’s cabinet, be
sure to disconnect the AC power cord from the
AC outlet.
• Do not use benzene, thinner, or other solvents
for cleaning.
• Wipe the cabinet with a soft cloth.
Restrictions on Playback
• This player may not respond to all operating
commands because some Blu-ray Disc, DVD,
and CD discs allow specific or limited operation
and provide only certain features during
playback.
Please note that this is not a defect in the
player.
• Samsung cannot guarantee that this player
will play every disc bearing the Blu-ray Disc,
DVD or CD logo because disc formats evolve,
and problems and errors may occur during the
creation of Blu-ray Disc, DVD, and CD software
and/or the manufacture of discs.
Please contact the SAMSUNG customer care
center if you have questions or encounter
difficulty in playing Blu-ray Disc, DVD, or CD
discs in this player. Also, refer to rest of this user
manual for additional information on playback
restrictions.
English
Safety Information
Be careful not to damage the disc because the
data on these discs is highly vulnerable to the
environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your player suddenly from a cold
place to a warm place, condensation may occur
on the operating parts and lens and cause
abnormal disc playback. If this occurs, unplug
the player, wait for two hours, and then connect
the plug to the power outlet. Then, insert the
disc, and try to play back again.
• Be sure to remove the disc and turn off the
player after use.
• Disconnect the AC power cord from the AC
outlet when you don’t intend to use the player
for long periods of time.
• To clean a disc, wipe it in a straight
line from the inside to the outside of
the disc.
• Do not expose the player to any
liquid.
• When the AC plug is connected to a wall outlet,
the player will still draw power (standby mode)
when it is turned off.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
• The main plug is used as a disconnect device
and shall stay readily operable at any time.
02
Disc Storage
Contents
Key features
2
2
Blu-ray Disc Features
Blu-ray Disc Player Features
Safety Information
3
4
4
4
4
Warning
Precautions
Important Safety Instructions
Disc Storage & Management
Disc Handling
Getting Started
10
10
10
11
11
12
12
13
14
14
15
16
17
17
18
Before using the User Manual
Disc Types and Contents your player can play
Disc types your player cannot play
Blu-ray Disc Compatibility
Disc Types
Region Code
Copyright
Supported File Formats
Logos of Discs the player can play
Accessories
Front Panel
Rear Panel
Remote Control
Tour of the Remote Control
Setting the Remote Control to Operate Your TV
Connections
19
19
Connecting to a TV
Case 1 : Connecting to a TV with an HDMI Cable
- Best Quality (Recommended)
Case 2 : Connecting to a TV with an Audio/Video
cable - Good Quality
20
English
23
23
24
Connecting to an Audio System
Case 1 : Connecting to an Audio System
(HDMI supported AV receiver) - Best Quality
(Recommended)
Case 2 : Connecting to an Audio System
(AV receiver with Dolby Digital or DTS decoder)
- Better Quality
Case 3 : Connecting to an Audio System
(Stereo Amplifier) - Good Quality
Connecting to the Network
Cable Network
Wireless Network
25
26
27
27
27
27
27
29
29
29
29
29
29
29
31
31
31
32
32
35
36
Initial Settings
Accessing the Settings Menu
Display
TV Aspect
Smart Hub Screen Size
BD Wise (Samsung Players only)
Resolution
HDMI Color Format
Movie Frame (24Fs)
HDMI Deep Color
Still Mode
Progressive Mode
Audio
Digital Output
PCM Downsampling
Dynamic Range Control
Downmixing Mode
Network
Network Settings
Network Status
BD-LIVE Internet Connection
21
21
22
22
Setup
English
ENGLISH
Connections
Contents
English
Setup
36
36
36
36
37
37
37
37
37
37
37
37
38
38
38
38
38
40
System
Initial Settings
Anynet+(HDMI-CEC)
BD Data Management
Time Zone
DivX® Video On Demand
Reset
Language
Security
BD Parental Rating
DVD Parental Rating
Change Password
General
Front Display
Network Remote Control
Support
Software Upgrade
Contact Samsung
Basic Functions
41
41
41
41
41
42
42
42
42
42
42
43
43
43
Playing a Video
Playback
Disc Structure
Using the Disc Menu/Title Menu/Popup Menu
Using the Disc Menu
Using the Title Menu
Playing the Title List
Using the Popup Menu
Using the Search and Skip Functions
Searching for a Desired Scene
Skipping Chapters
Slow Motion Play/Step Motion Play
Slow Motion Play
Step Motion Play
46
47
47
48
48
48
49
Using the TOOLS button
Moving to a Desired Scene Directly
Repeating the Title or Chapter
Repeating a Section
Changing to Full Screen
Selecting the Picture Settings
Selecting the Audio Language
Selecting the Subtitle Language
Changing the Camera Angle
Setting BONUSVIEW
Listening to Music
Buttons on the Remote Control used for Music
Playback
Playing an Audio CD (CD-DA)/MP3
Repeat an Audio CD (CD-DA)/MP3
Playlist
Playing back Pictures
Playing a JPEG files
Using the TOOLS button
Playing back a USB Storage Device
Network Services
50
50
53
55
57
57
57
59
59
Using Smart Hub
Starting Smart Hub for the First Time
The Settings Menu - BLUE (D)
The Edit Mode Menu - YELLOW (C)
The Sort Menu - GREEN (B)
Samsung Apps
For Pay Apps
BD-LIVE™
Using the AllShare Function
Appendix
60
62
63
64
Troubleshooting
Repairs
Index
Specifications
43
43
43
44
44
44
44
45
45
45
46
46
English
ENGLISH
Basic Functions
Getting Started
Before using the User Manual
Disc Types and Contents your player can play
Term
Logo
Icon
Definition
h
z
Indicates a function available on a BD-ROM or BD-RE/-R disc recorded in the BD-RE
format.
Z
�
Indicates a function available on a DVD-VIDEO or recorded DVD+RW/
DVD-RW(V)/DVD-R/+R discs that have been recorded and finalized.
�
Indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB
storage media containing DivX, MKV, MP4 contents.
o
Indicates a function available on an audio CD-RW/-R (CD-DA format).
-
�
Indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB
storage media containing MP3 or WMA contents.
-
G
Indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB
storage media containing JPEG contents.
VIDEO
-
MUSIC
✎ NOTE
▪ The player may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.
▪ If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
▪ Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps.
▪ Your player will not play content that has been recorded on a BD-R or USB device at a bit rate that exceeds 30 Mbps.
Disc types your player cannot play
• HD DVD
• DVD-ROM/PD/MVDisc, etc
10
English
• DVD-RAM
• Super Audio CD
(except CD layer)
• DVD-RW(VR mode)
• 3.9 GB DVD-R Disc for
Authoring.
• CVD/CD-ROM/CDV/
CD-G/CD-I/LD
(CD-Gs play audio only,
not graphics.)
▪
▪
▪
▪
▪
▪
outside your region may not play on this player.
Playback may not work for some types of discs, or
when you use specific operations, such as angle
change and aspect ratio adjustment. Information
about the discs is written in detail on the disc box.
Please refer to this if necessary.
Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches or deposits of
cigarette smoke on the recording surface may make
it impossible to use the disc for playback.
Discs with PAL programs recorded on them cannot
be played using this player.
This player is compatible with the NTSC color system
only.
When you play a BD-J title, loading may take longer
than a normal title or some functions may perform
slowly.
This player may not respond to all operating
commands because some Blu-ray Disc, DVD, and
CD discs allow specific or limited operation and
provide only certain features during playback.
Please note that this is not a defect in the player.
Samsung cannot guarantee that this player will play
every disc bearing the Blu-ray Disc, DVD or CD logo
because disc formats evolve, and problems and
errors may occur during the creation of Blu-ray Disc,
DVD, and CD software and/or the manufacture of
discs.
Please contact the SAMSUNG customer care center
if you have questions or encounter difficulty when
playing Blu-ray Disc, DVD, or CD discs in this player.
Also, refer to rest of this user manual for additional
information on playback restrictions.
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format.
Accordingly, disc compatibility issues are possible.
Not all discs are compatible and not every disc will
play back. For additional information, refer to the
Compliance and Compatibility Notice section of
this user manual.
BD-ROM
Getting Started
▪
Disc Types
03
✎ NOTE
▪ Some commercial discs and DVDs purchased
Blu-ray ROM discs can only be played back.
This player can play back pre-recorded
commercial BD-ROM discs.
BD-RE/-R
Blu-ray RE/-R discs can be recorded on and
played back.
This player can play back a BD-RE/-R disc
recorded by other compatible Blu-ray Disc
recorders.
DVD-VIDEO
• This player can play back pre-recorded
commercial DVDs (DVD-VIDEO discs) with
movies.
• When switching from the first layer to the
second layer of a dual-layered DVD-VIDEO disc,
there may be momentary distortion in the image
and sound. This is not a malfunction of the
player.
DVD-RW/-R/+R
This player can play back a DVD-RW/-R/+R disc
recorded and finalized with a DVD video recorder.
The ability to play back may depend on recording
conditions.
DVD+RW
• This player can play back a DVD+RW disc
recorded with a DVD Video recorder. The
ability to play back may depend on recording
conditions.
Audio CD (CD-DA)
• This player can play back CD-DA format audio
CD-RW/-R discs.
• The player may not be able to play some
CD-RW/-R discs due to the condition of the
recording.
English
11
Getting Started
CD-RW/-R
• Use a 700MB (80 minute) CD-RW/-R disc.
If possible, do not use an 800MB (90 minute) or
larger disc, as the disc may not play back.
• If the CD-RW/-R disc was not recorded as a
closed session, you may experience delays
when playing back the beginning of the disc or
all recorded files may not play.
• Some CD-RW/-R discs may not play on this
player, depending on the device which was
used to burn them. For contents recorded on
CD-RW/-R media from CDs for your personal
use, playability may vary depending on the
contents and discs.
AVCHD (Advanced Video Codec High
Definition)
• This player can play back AVCHD format discs.
These discs are normally recorded and used in
camcorders.
• The AVCHD format is a high definition digital
video camera format.
• The MPEG-4 AVC/H.264 format compresses
images with greater efficiency than the
conventional image compressing format.
• Some AVCHD discs use the “x.v.Color” format.
This player can play back AVCHD discs that use
“x.v.Color” format.
• “x.v.Color” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks
of Matsushita Electronic Industrial Co., Ltd. and
Sony Corporation.
✎
Region Code
Both players and discs are coded by region.
These regional codes must match for a disc to
play. If the codes do not match, the disc will not
play.
The Region Number for this player is displayed on
the rear panel of the player.
Disc Type
Blu-ray Disc
DVD-VIDEO
▪
▪
Some AVCHD format discs may not play, depending
on the recording condition.
AVCHD format discs need to be finalized.
“x.v.Color” offers a wider color range than normal
DVD camcorder discs.
Some DivX, MKV and MP4 format discs may not
play, depending on the video resolution and frame
rate condition.
Copyright
Area
a
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong and South
East Asia.
b
Europe, Greenland, French
territories, Middle East, Africa,
Australia and New Zealand.
c
NOTE
▪
Region
Code
India, China, Russia, Central
and South Asia.
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America,
Central America, Australia,
New Zealand, Pacific Islands,
Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
© 2011 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s
manual may be reproduced or copied without the
prior written permission of Samsung Electronics
Co.,Ltd.
12
English
03
Supported File Formats
•
•
•
•
•
•
•
•
•
•
•
•
Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.
The player does not support folder or file names longer than 128 characters.
Some USB/digital camera devices may not be compatible with the player.
Your player supports the FAT16, FAT32, and NTFS files systems.
Connect USB devices directly to the player’s USB port. Connecting through a USB cable may cause
compatibility problems.
Inserting more than one memory device into a multi-card reader may cause the reader to operate
improperly.
The player does not support the PTP protocol.
Do not disconnect a USB device during a “loading” process.
The bigger the image resolution, the longer the image takes to display.
This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial
sites.
External HDD device is not supported.
Your player only supports the video that is under 30fps (frame rate).
Video File Support
File Extension
Container
*.avi
AVI
*.mkv
MKV
*.wmv
WMV (wmv9)
*.mp4
MP4
*.mpg
*.mpeg
PS
Music File Support
Video Codec
DivX 3.11/4.x/5.1/6.0
XviD
MP4v3
H.264 BP/MP/HP
VC-1 AP
DivX 5.1/6.0
XviD
H.264 BP/MP/HP
VC-1 AP
VC-1 SM
MP4 (mp4v)
H.264 BP/MP/HP
MPEG1
MPEG2
H.264 BP/MP/HP
File Extension
Container
Audio Codec
*.wma
WMA
WMA
*.mp3
MP3
MP3
Audio Codec
MP3
AC3
DTS
WMA
PCM
MP3
AC3
DTS
WMA
AAC
MP1, 2
AC3
DTS
Resolution
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
Support Range
-
Compliant with WMA version 10
* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48
* Bit rates - All bit-rates in the range 5kbps to 384kbps
English
13
Getting Started
Notes on the USB connection
Getting Started
Logos of Discs the player can play
Blu-ray Disc
DTS-HD Master Audio
Dolby TrueHD
NTSC broadcast system in U.S.A,
Canada, Korea, Japan
DivX
BD-LIVE
Java
Accessories
Check for the supplied accessories below.
TV
POWER
POWER
BONUSVIEW
2D�3D
2
4
5
7
8
SUBTITLE
Audio/Video cable
(AC39-00073A)
Batteries for Remote Control
(AAA Size)
(AC43-12002H)
SOURCE
1
DISC MENU
0
MENU
TOOLS
6
9
AUDIO
TITLE MENU
POPUP
INFO
RETURN
[email protected]
3
EXIT
SMART
HUB
SEARCH
ALL
79
VOL
User Manual
(AK68-02024A)
14
English
Quick Guide
(AK68-01996B)
MUTE
CH
Remote Control
(AK59-00123A)
b
c
Getting Started
a
03
Front Panel
d e f gh
i
1
2
3
4
5
6
7
8
9
DISC TRAY
Opens to accept a disc.
POWER BUTTON
Turns the player on and off.
DISPLAY
Displays the playing status, time, etc.
STOP BUTTON
Stops disc playback.
PLAY/PAUSE BUTTON
Plays a disc or pauses playback. (It may not play a Blu-ray Disc.)
ENTER BUTTON
Selects menu items or starts a disc.
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
REMOTE CONTROL SENSOR
Detects signals from the remote control.
USB HOST
You can connect a USB memory flash stick here and use it as storage when
the player is connected to BD-LIVE. You can also use the USB Host for software
upgrades and MP3/JPEG/DivX/MKV/MP4 playback.
✎ NOTE
▪ You can perform software upgrades using the USB Host jack with a USB memory flash stick only.
▪ When the player displays the Blu-ray disc menu, you cannot start the movie by pressing the Play button on the player
or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the ENTER
button.
English
15
Getting Started
Rear Panel
a b
e d c
1
LAN
Use for network based services (See pages 50~59), BD-LIVE, and software
upgrades using a network connection.
2
HDMI OUT
3
Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal
on your TV for the best quality picture or to your AV receiver for the best quality
sound.
VIDEO OUT
Connects to the video input of external devices using a video cable.
5
AUDIO OUT
Connects to the audio input of external devices using audio cables.
DIGITAL AUDIO OUT
Connects to an AV receiver.
4
16
English
03
Remote Control
Turn the player on and off.
To open and close the disc tray.
Press to use the bonusview function.
Press numeric buttons to operate options.
Press to switch the Blu-ray Disc/DVD’s
subtitle language.
TV
POWER
POWER
BONUSVIEW
SOURCE
1
2
3
4
5
6
7
8
SUBTITLE
0
Turn the TV on and off.
(To operate your TV, please refer to page
18)
After setup, allows you to set the input
source on your TV.
9
Use to access various audio functions on a
disc (Blu-ray Disc/DVD).
AUDIO
Press to skip backwards or forwards.
Press to search a disc backwards or
forwards.
Press to pause a disc.
Press to stop a disc.
Use to enter the disc menu.
Press to move to the home menu.
DISC MENU
MENU
TITLE MENU
POPUP
TOOLS
INFO
RETURN
EXIT
Press to use Netflix.
[email protected]
Press to use Smart Hub.
TV volume adjustment.
SMART
HUB
These buttons are used both for menus
on the player and also several Blu-ray Disc
functions.
SEARCH
ALL
79
VOL
MUTE
Press to search contents.
CH
Use to select a TV channel.
Mutes the speakers of your TV.
Installing batteries
Use to enter the popup menu/title menu.
Use to display the playback information
during playing a Blu-ray Disc/DVDs.
Use to select menu items and change
menu value.
Press to exit the menu.
Press to use Tools menu.
Return to the previous menu.
Press to play a disc.
✎ NOTE
▪ If the remote does not operate properly:
!
• Check the polarity +/– of the batteries.
• Check if the batteries are drained.
• Check if the remote sensor is blocked by
obstacles.
• Check if there is any fluorescent lighting nearby.
CAUTION
▪
Dispose of batteries according to local environmental
regulations. Do not put them in the household trash.
English
17
Getting Started
Tour of the Remote Control
Getting Started
Setting the Remote Control to
Operate Your TV
You can control certain functions of your TV with
this remote control.
Button
TV POWER
TV SOURCE
TV VOL (+/–)
Function
Used to switch the television on and off.
Used to select an external source
connected to the TV.
Used to adjust the volume of the television.
TV CH (,/.) Used to select the desired channel.
TV MUTE
Used to toggle the sound on and off.
✎ NOTE
▪ The functions listed above will not necessarily work
on all televisions. If you encounter problems, use the
TV remote control.
To determine whether your television is
compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the
television.
3. Press and hold the TV POWER button, and
then enter the two-figure code in the table
to the right that corresponds to the brand of
your television by pressing the appropriate
number buttons.
If your television is compatible with the remote
control, it will switch off.
The remote is now programmed to operate
the TV.
✎ NOTE
▪ If several codes are listed for your television brand,
▪
try each one in turn until you find one that works.
If you replace the remote control’s batteries, you
must set the brand code again.
TV Control Codes
Brand
SAMSUNG
AIWA
TV POWER+82
ANAM
TV POWER+10, +11,
+12, +13, +14,
+15, +16, +17, +18
BANG & OLUFSEN TV POWER+57
BLAUPUNKT
TV POWER+71
BRIONVEGA
TV POWER+57
BRANDT
CGE
CONTINENTAL
EDISON
DAEWOO
EMERSON
FERGUSON
FINLUX
FORMENTI
FUJITSU
GRADIENTE
GRUNDIG
HITACHI
IMPERIAL
JVC
LG
LOEWE
LOEWE OPTA
MAGNAVOX
METZ
MITSUBISHI
MIVAR
NEC
NEWSAN
18
English
Code
TV POWER+01, +02,
+03, +04, +05,
+06, +07, +08, +09
TV POWER+73
TV POWER+52
TV POWER+75
TV POWER+19, +20,
+23, +24, +25,
+26, +27, +28,
+29, +30, +31,
+32, +33, +34
TV POWER+64
TV POWER+73
TV POWER+06, +49,
+57
TV POWER+57
TV POWER+84
TV POWER+70
TV POWER+49, +52,
+71
Brand
NOBLEX
NOKIA
NORDMENDE
PANASONIC
PHILIPS
PHONOLA
Code
TV POWER+66
TV POWER+74
TV POWER+72, +73,
+75
TV POWER+53, +54,
+74, +75
TV POWER+06, +55,
+56, +57
TV POWER+06, +56,
+57
PIONEER
TV POWER+58, +59,
+73, +74
RADIOLA
TV POWER+06, +56
RADIOMARELLI TV POWER+57
RCA
TV POWER+45, +46
SABA
TV POWER+57, +72,
+73, +74, +75
REX
TV POWER+74
SALORA
TV POWER+74
SANYO
TV POWER+41, +42,
+43, +44, +48
SCHNEIDER
SELECO
SHARP
TV POWER+06
TV POWER+74
TV POWER+36, +37,
+38, +39, +48
SIEMENS
TV POWER+71
TV POWER+52
SINUDYNE
TV POWER+57
TV POWER+06, +19,
+20, +21, +22, +78
TELEAVA
TV POWER+60, +72,
+73, +75
TV POWER+61, +79
TV POWER+06, +69
TV POWER+06, +57
TV POWER+40
TV POWER+57
TV POWER+06, +48,
+62, +65
SINGER
SONY
TELEFUNKEN
THOMSON
TV POWER+57
TV POWER+35, +48
TV POWER+73
TV POWER+67, +73,
+75, +76
TV POWER+72, +73,
+75
THOMSON ASIA TV POWER+80, +81
TOSHIBA
TV POWER+47, +48,
+49, +50, +51, +52
TV POWER+52, +77
WEGA
TV POWER+57
TV POWER+68
ZENITH
TV POWER+63
TV POWER+83
YOKO
TV POWER+06
Connections
04
Connecting to a TV
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN
terminal of your TV.
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the HDMI signal from the player appears on
your TV screen.
• If you have set the remote control to operate your TV (See page 18), press the TV SOURCE
button on the remote control and select HDMI as the external source of the TV.
HDMI cable
(not included)
✎ NOTE
▪ An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable.
▪ If the player is connected to your TV in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed
▪
▪
▪
▪
▪
(category 2) HDMI cable.
HDMI outputs only a pure digital signal to the TV.
If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
A long HDMI cable may cause a screen noise. If this occurs, set Deep Color to Off in the menu.
If you use HDMI-to-DVI cable to connect to your display device, you must also connect the AV Out or Digital Audio Out to
your display device or an audio sytem to hear audio.
English
19
Connections
Case 1 : Connecting to a TV with an HDMI Cable - Best Quality
(Recommended)
Connections
Case 2 : Connecting to a TV with an Audio/Video cable - Good Quality
1. Using an Audio/Video cable, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white)
terminals on the rear of the player to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of
your TV.
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the “VIDEO” signal from the player appears
on the TV screen.
• If you have set the remote control to operate your TV (See page 18), press the TV SOURCE
button on the remote control and select VIDEO as the external source of the TV.
Audio/Video cable
Red
White
Yellow
✎ NOTE
▪ Noise may be generated if the audio cable is placed too close to the power cable.
▪ If you want to connect to an AV receiver, please refer to the AV receiver connection pages. (See pages 21~22)
▪ The number and position of input terminals may vary depending on your TV set. Please refer to the user manual of your
!
TV.
CAUTION
▪
20
Do not connect the player to your TV through a VCR. Video signals fed through VCRs may be affected by copyright
protection systems and the picture will be distorted on the television.
English
04
Connecting to an Audio System
Case 1 : Connecting to an Audio System (HDMI supported AV receiver)
- Best Quality (Recommended)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN
terminal of your AV receiver.
2. Using an HDMI cable, connect the HDMI OUT terminal of the AV receiver to the HDMI IN terminal of
your TV.
3. Turn on the player, TV, and AV receiver.
4. Press the input select button of the AV receiver and TV to select the external input to hear sound
from the player. Refer to your AV receiver’s user manual to set the AV receiver’s audio input.
HDMI cable
(not included)
HDMI cable
(not included)
English
21
Connections
• Please turn the volume down when you turn on the AV receiver. A sudden loud sound may cause
damage to the speakers and your ears.
• Set the audio output format according to the capabilities of your AV receiver. (See pages 29~31)
• The position of HDMI input terminals may vary depending on your AV receiver. Please refer to the
user manual of your AV receiver.
Connections
Case 2 : Connecting to an Audio
System (AV receiver with Dolby
Digital or DTS decoder) - Better
Quality
1. Using an optical cable, connect the DIGITAL
AUDIO OUT (OPTICAL) terminal on the
rear of the player to the DIGITAL AUDIO IN
(OPTICAL) terminal of your AV receiver.
2. Using the video signal cable(s), connect the
HDMI, or VIDEO OUT terminals on the rear of
the player to the HDMI, or VIDEO IN terminal
of your TV. (See pages 19~20)
3. Turn on the player, TV, and AV receiver.
4. Press the input select button of the AV receiver
to select the external input and hear sound from
the player. Refer to your AV receiver’s user
manual to set the AV receiver’s audio input.
5. Press the input selector on your TV remote
control to select the video source (HDMI, or
Video.)
Case 2 : Optical cable
(not included)
Red
Case 3 : Connecting to an Audio
System (Stereo Amplifier)
- Good Quality
1. Using the audio cables, connect the AUDIO
OUT (red and white) terminals on the rear of
the player to the AUDIO IN (red and white)
terminals of your Stereo Amplifier.
2. Using the video signal cable(s), connect the
HDMI, or VIDEO OUT terminals on the rear of
the player to the HDMI, or VIDEO IN terminal
of your TV. (See pages 19~20)
3. Turn on the player, TV and Stereo Amplifier.
4. Press the input select button of the Stereo
Amplifier to select the external input in order
to hear sound from the player. Refer to your
Stereo Amplifier’s user manual to set the Stereo
Amplifier’s audio input.
5. Press the input selector on your TV remote
control to select the video source (HDMI, or
Video.)
Case 3 : Audio cable
White
✎ NOTE
▪ If you use the Digital Audio connection described in Case 2, you will hear only front two speakers with Digital Output
setting as PCM.
22
English
04
Connecting to the Network
Cable Network
1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the player to the LAN terminal
of your modem or router.
2. To set the network options, see pages 32~36.
Router
Broadband
service
Broadband modem
(with integrated router)
Or
Broadband modem
Broadband
service
etworking with PC for
N
AllShare function
✎ NOTE
▪ Internet access to Samsung’s software update server may not be allowed, depending on the router you use or your ISP’s
▪
▪
policy. For more information, contact your ISP (Internet Service Provider).
For DSL users, please use a router to make a network connection.
To use the AllShare function, you must connect your PC to your network as shown in the figure.
The connection can be wired or wireless.
English
23
Connections
This player lets you use network based services (See pages 50~59) such as Smart Hub and BD-LIVE,
and software upgrades when it is connected to a network. We recommend using an AP (Access Point)
or IP router for the connection. For more information on router connections, refer to the user manual of
the router or contact the router manufacturer for technical assistance.
Connections
Wireless Network
Your player has built in Wi-Fi capability. You can connect to a network through a Wireless IP sharer
(a router or modem).
To set the network options, see pages 32~36.
Broadband
service
etworking with PC for
N
AllShare function
Wireless IP sharer
✎ NOTE
▪ To use a wireless network, your player must be connected to a wireless IP sharer (router). If the wireless IP sharer
▪
▪
▪
▪
▪
▪
▪
▪
24
supports DHCP, your player can use a DHCP or static IP address to connect to the wireless network.
Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
is currently being used by another device nearby, this will result in interference and communication failure.
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIPAES (WPS2Mixed) for your AP, this player will not support a connection in compliance with new Wi-Fi certification
specifications.
If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration)
or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.
You can setup a wireless network three ways:
- Wireless (General)
- Using WPS(PBC).
- One Foot Connection
Wireless (General) includes both Automatic and Manual setup procedures.
Wireless LAN, by its nature, may cause interference, depending on the operating conditions (AP performance, distance,
obstacles, interference by other radio devices, etc).
Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
The player supports only the following wireless security key protocols :
- WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
To use the AllShare function, you must connect your PC to your network as shown in the figure.
The connection can be wired or wireless.
English
Setup
My Contents
Setup
1. Turn on your TV after connecting the player.
When you connect the player to a TV for the
first time, player turns on automatically and
the Initial Settings screen appears.
• Home Menu
05
Initial Settings
Videos
Photos
Music
My Devices
Internet
Settings
Initial Settings | On-Screen Language
Select a language for the on-screen displays.
Български
Eesti keel
Indonesia
Hrvatski
Čeština
Suomi
Français
Dansk
Nederlands
Deutsch
Ελληνικά
Italiano
d PBC(WPS)
English
Magyar
한국어
m Move " Enter
2. Press the ▲▼◄► buttons to select the
desired language, and then press the ENTER
button.
3. Press the ENTER button to select Start.
4. Press the ▲▼ buttons to select the desired
TV Aspect Ratio, and then press the ENTER
button. (See page 27)
5. Press the ▲▼ buttons to select the desired
Network Settings : Wired, Wireless
(General), WPS(PBC) or One Foot
Connection, and then press the ENTER
button. If you do not know the details of your
Network Settings, press the BLUE (D) button
on your remote instead to skip Network
Settings here, finish the Initial Settings, and go
to the Home menu.
If you selected a Network Setting, go to
pages 32~36 for more information about the
Network settings. When done, go to Step 6.
6. The Home menu appears. (For more
information about the Home menu, please
see page 26.)
✎ NOTE
▪ When the player is connected to the TV for the first
▪
▪
▪
▪
▪
time, the player turns on automatically. This is not a
malfunction.
The Home menu will not appear if you do not
configure the initial settings except as noted below.
If you press the BLUE (D) button during the network
setup, you can access the Home menu even if the
network setup is not completed yet.
If you want to display the Initial Setting screen again
to make changes, select the Reset option. (See page
37)
If you use an HDMI cable to connect the player to an
Anynet+(HDMI-CEC)-compliant Samsung TV and
1.) You have set the Anynet+(HDMI-CEC) feature
to On in both the TV and the player and 2.) You have
set the TV to a language supported by the player,
the player will select that language as the preferred
language automatically.
If you leave the player in the stop mode for more
than 5 minutes without using it, a screen saver will
appear on your TV. If the player is left in the screen
saver mode for more than 20 minutes, the power
will automatically turn off.
English
25
Setup
1
2
3
4
5
6
7
8
SUBTITLE
0
9
AUDIO
Accessing the Settings Menu
DISC MENU
1
MENU
2. Press the ◄► buttons to select Settings,
and then press the ENTER button.
3. Press the ▲▼ buttons to select the desired
submenu, and then press the ENTER button.
TITLE MENU
POPUP
TOOLS
INFO
RETURN
EXIT
4. Press the ▲▼ buttons to select the desired
item, and then press the ENTER button.
3
2
1
[email protected]
SMART
5. Press the EXIT button to exit the menu.
4
SEARCH
ALL
MENU Button : PressHUBto move
to the Home menu.
✎ NOTE
▪ When the player is connected to a network, select
79
2
MUTE
RETURN Button : Return
to the previous menu.
VOL
3
4
▪
CH
ENTER / DIRECTION Button :
Move the cursor or select an item.
Activate the currently selected item.
Confirm a setting.
▪
EXIT Button : Press to exit the current menu.
To access the Settings menu and sub-menus,
follow these steps:
1. Press the POWER button.
The Home Menu appears.
• Home Menu
My Contents
Videos
Photos
2
Music
3
My Devices
Internet
Settings
1
4
d PBC(WPS)
1
Selects My Devices.
2
Selects My Contents.
3
Selects Internet.
4
Selects Settings.
5
Displays the buttons available.
26
English
5
Smart Hub from the Home menu.
Download the desired content from Samsung Apps.
(See pages 57~59)
The access steps may differ depending on the menu
you selected.
The OSD (On Screen Display) may change in this
player after you upgrade the software version.
• Settings menu
The following menu items are on the Settings
Menu :
• Display
• Audio
• Network
• System
• Language
• Security
• General
• Support
The menu items are addressed in the order
listed above on the following pages, starting with
Display.
TV Aspect
Depending on the type of television you have, you
may want to adjust the screen size setting.
• 16:9 Original : Select when you connect the
player to a 16:9 TV screen. The player will
display all content in its original aspect ratio.
Content formatted in 4:3 will be displayed with
black bars on the left and right.
• 16:9 Full : Select when you connect the player
to a 16:9 TV screen. All content will fill the
full screen. Content formatted in 4:3 will be
stretched.
• 4:3 Letter Box : Select when you connect the
player to a 4:3 TV screen. The player will display
all content in its original aspect ratio. Content
formatted in 16:9 will be displayed with black
bars on the top and bottom.
• 4:3 Pan-Scan : Select when you connect the
player to a 4:3 TV screen. 16:9 content will have
the extreme left and right portions cut off.
✎ NOTE
▪ Depending on the disc type, some aspect ratios may
▪
▪
not be available.
If you select an aspect ratio and option which is
different than the aspect ratio of your TV screen,
then the picture might appear to be distorted.
If you select the 16:9 Original, your TV may display
4:3 Pillarbox (black bars on sides of picture).
Smart Hub Screen Size
Set the Smart Hub Screen to the optimal size.
• Size 1 : Smart Hub screen size will be smaller
than default. You may see some black on sides
of screen.
• Size 2 : This is the default setting for Smart
Hub. The player displays the normal Smart Hub
screen size.
• Size 3 : This will display a larger Smart Hub
screen size. The image may be too large for
your TV screen.
BD Wise is Samsung’s latest inter-connectivity
feature.
When you connect a Samsung player and a
Samsung TV with BD Wise to each other via
HDMI, and BD Wise is on in both the player and
TV, the player outputs video at the video resolution
and frame rate of the Blu-ray Disc/DVDs.
• Off : The output resolution stays fixed at the
resolution you set previously in the Resolution
menu, regardless of the resolution of the disc.
See Resolution below.
• On : The player outputs video at the original
resolution and frame rate of the Blu-ray Disc/DVDs.
✎ NOTE
▪ When BD Wise is on, the Resolution setting
▪
▪
automatically defaults to BD Wise and BD Wise
appears in the Resolution menu.
If the player is connected to a device that does not
support BD Wise, you can not use the BD Wise
function.
For proper operation of BD Wise, set the BD Wise
menu of both the player and the TV to On.
Resolution
Lets you set the output resolution of the HDMI
video signal to Auto, 1080p, 1080i, 720p, 480p,
or 480i. The number indicates the number of lines
of video per frame. The i and p indicate interlaced
and progressive scan, respectively. The more
lines, the higher the quality.
• Auto : Automatically sets the output resolution
to the connected TV’s maximum resolution.
• BD Wise : Automatically sets the resolution to
the resolution of the Blu-ray Disc/DVDs if you
have connected the player via HDMI to a TV
with the BD Wise feature. (The BD Wise menu
item appears only if BD Wise is set to On. See
BD Wise above.)
• 1080p : Outputs 1080 lines of progressive
video.
• 1080i : Outputs 1080 lines of interlaced video.
• 720p : Outputs 720 lines of progressive video.
• 480p : Outputs 480 lines of progressive video.
• 480i : Outputs 480 lines of interlaced video.
English
27
Setup
You can configure various display options such as
the TV Aspect Ratio, Resolution, etc.
BD Wise (Samsung Players only)
05
Display
Setup
Resolution according to the output mode
• Blu-ray Disc/DVD/E-contents/Digital Contents playback
Output
Setup
BD Wise
Auto
[email protected]
Movie Frame : Auto (24Fs)
1080i
720p
480p
480i
HDMI Mode
Blu-ray Disc
DVD
VIDEO Mode
VIDEO Mode
Resolution of
Blu-ray Disc
E-contents/
Digital contents
480i
[email protected]
-
-
Max. Resolution
of TV input
Max. Resolution
of TV input
-
-
-
[email protected]
[email protected]
-
-
1080i
-
480i
-
480i
Max. Resolution
of TV input
[email protected]
[email protected]
[email protected]
1080i
1080i
480p
480p
720p
-
720p
28
720p
480p
-
✎ NOTE
▪ If both HDMI and video jacks are connected, analog
▪
-
▪
video signal does not output simultaneously.
If the TV you connected to the player does not
support Movie Frame or the resolution you selected,
the message “If no pictures are shown after
selecting ‘Yes’, please wait for 15 seconds to return
to the previous resolution. Do you want to change
the resolution?” appears.
If you select Yes, the TV’s screen will go blank for
15 seconds, and then the resolution will revert to the
previous resolution automatically.
English
HDMI /
not connected
HDMI / connected
▪
▪
-
-
480i
480i
If the screen stays blank after you have changed the
resolution, remove all discs, and then press and hold
the STOP (
) button on the front of the player for
more than 5 seconds. All settings are restored to
the factory default. Follow the steps on the previous
page to access each mode and select the Display
Setup that your TV will support.
When the factory default settings are restored, all
stored user BD data is deleted.
The Blu-ray Disc must have the 24 frame feature for
the player to use the Movie Frame (24Fs) mode.
Movie Frame (24Fs)
Setting the Movie Frame (24Fs) feature to Auto
allows you to adjust the player’s HDMI output to
24 frames per second for improved picture quality.
You can enjoy the Movie Frame (24Fs) feature only
on a TV supporting this frame rate. You can select
Movie Frame only when the player is in the HDMI
1080i or 1080p output resolution modes.
• Auto : Movie Frame (24Fs) functions work.
• Off : Movie Frame (24Fs) functions are off.
HDMI Deep Color
Lets you output video from the HDMI OUT jack
with Deep Color. Deep Color provides more
accurate color reproduction with greater color
depth.
• Auto : The player outputs video with Deep Color
to a connected TV which supports HDMI Deep
Color.
• Off : The picture is output without Deep Color.
Lets you set the type of picture the player displays
when you pause DVD playback.
• Auto : Automatically shows the best still picture
depending on the content.
• Frame : Select when pausing a scene with a
little action.
• Field : Select when pausing a scene with a lot
of action.
Progressive Mode
Lets you improve picture quality when viewing
DVDs.
• Auto : Select to have the player automatically
select the best picture quality for the DVD you’re
watching.
• Video : Select for the best picture quality from
concert or TV show DVDs.
Audio
Digital Output
You set the Digital Output to match the capabilities
of the AV receiver you’ve connected to the player :
• PCM : Choose if you have connected an HDMI
supported AV receiver.
• Bitstream (Unprocessed) : Select if you have
connected an HDMI supported AV receiver
with Dolby TrueHD and DTS-HD Master Audio
decoding capabilities.
• Bitstream (Re-encoded DTS) : Choose if you
have connected an AV receiver using a Digital
Optical input that can decode DTS.
• Bitstream (Re-encoded Dolby D) : Select if
you don’t have an HDMI supported AV receiver,
but have an AV receiver with Dolby Digital
decoding capabilities.
For more details, please refer to the digital output
selection table. (See pages 30~31)
English
29
Setup
Lets you set the color space format for HDMI
output to match the capabilities of the connected
device (TV, monitor, etc).
• Auto : Automatically sets the player to the
optimum format supported by your device.
• YCbCr (4:4:4) : If your TV supports the YCbCr
color space via HDMI, select this to output the
normal YCbCr color gamut.
• RGB (Standard) : Select this to output the
normal RGB color gamut.
• RGB (Enhanced) : If you have connected the
player to a DVI display device such as a monitor,
select this to output the enhanced RGB color
gamut.
Still Mode
05
HDMI Color Format
Setup
Digital Output Selection
Setup
Bitstream
(Unprocessed)
PCM
Connection
PCM
HDMI
supported
AV receiver
Optical
HDMI
supported
AV receiver
PCM 2ch
PCM 2ch
Dolby Digital
Up to 7.1ch
PCM 2ch Dolby Digital Dolby Digital DTS re-encoded
Dolby Digital
Plus
Up to 7.1ch
PCM 2ch
DTS re-encoded
Dolby Digital
Dolby Digital DTS re-encoded
Plus
PCM 2ch Dolby TrueHD Dolby Digital DTS re-encoded
PCM 2ch
DTS
DTS
DTS re-encoded
DTS-HD HRA Up to 5.1ch
PCM 2ch DTS-HD HRA
DTS
DTS re-encoded
DTS-HD MA
Up to 5.1ch
PCM 2ch
DTS
DTS re-encoded
PCM
Audio Stream
Dolby Digital
on DVD
DTS
PCM 2ch
Up to 5.1ch
Up to 5.1ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch Dolby Digital Dolby Digital
PCM 2ch
DTS
DTS
Definition for
Blu-ray Disc
Any
Decodes the main feature
audio and BONUSVIEW
audio stream together
into PCM audio and adds
Navigation Sound Effects.
DTS-HD MA
Outputs only the main
feature audio stream so that
your AV receiver can decode
the audio bitstream.
You will not hear
BONUSVIEW audio or
Navigation Sound Effects.
Bitstream
(Re-encoded
Dolby D)
HDMI supported HDMI supported
AV receiver or AV receiver or
Optical
Optical
Up to 7.1ch
Audio Stream
on Blu-ray Dolby TrueHD Up to 7.1ch
Disc
DTS
Up to 5.1ch
PCM
Optical
Bitstream
(Re-encoded
DTS)
PCM 2ch
Dolby Digital
DTS
Decodes the main
feature audio and
BONUSVIEW audio
stream together
into PCM audio and
adds Navigation
Sound Effects, then
re-encodes the
PCM audio into DTS
bitstream.
Re-encoded
Dolby Digital *
Re-encoded
Dolby Digital *
Re-encoded
Dolby Digital *
Re-encoded
Dolby Digital *
Re-encoded
Dolby Digital *
Re-encoded
Dolby Digital *
Re-encoded
Dolby Digital *
PCM 2ch
Dolby Digital
DTS
Decodes the main
feature audio and
BONUSVIEW audio
stream together
into PCM audio and
adds Navigation
Sound Effects, then
re-encodes the PCM
audio into Dolby
digital bitstream or
PCM.
* If the Source Stream is 2ch, “Re-encoded Dolby D” Setting are not applied. Output will be LPCM 2ch.
Blu-ray Discs may include three audio streams :
- Main Feature Audio : The audio soundtrack of the main feature.
- BONUSVIEW audio : An additional soundtrack such as the director or actor’s commentary.
- Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may
sound. Navigation Sound Effects are different on each Blu-ray Disc.
30
English
▪
▪
▪
▪
If the HDMI device (AV receiver, TV) is not compatible
with compressed formats (Dolby digital, DTS), the
audio signal outputs as PCM.
Regular DVDs do not have BONUSVIEW audio and
Navigation Sound Effects.
Some Blu-ray Discs do not have BONUSVIEW audio
and Navigation Sound Effects.
This Digital Output setup does not effect the analog
(L/R) audio or HDMI audio output to your TV.
It effects the optical and HDMI audio output when
your player is connected to an AV receiver.
If you play MPEG audio soundtracks, the audio signal
outputs as PCM regardless of your Digital Output
selections (PCM or Bitstream).
PCM Downsampling
Lets you set 48kHz and 96kHz PCM downsampling on or off.
• Off : Select when the AV receiver connected to
the player is 96kHz compatible.
• On : Select when the AV receiver connected
to the player is not 96kHz compatible. 96kHz
signals will be down converted to 48kHz.
✎ NOTE
▪ Even when PCM Downsampling is set to Off, some
discs will only output downsampled audio through
the optical digital outputs.
You can listen at low volumes, but still hear dialog
clearly.
This is only active if your player detects a Dolby
Digital signal.
• Auto : The Dynamic Range Control will be set
automatically based on the information provided
by the Dolby TrueHD Soundtrack.
• Off : You can enjoy the movie with the standard
Dynamic Range.
• On : When Movie soundtracks are played at low
volume or through smaller speakers, the system
can apply appropriate compression to make
low-level content more intelligible and prevent
dramatic passages from getting too loud.
Downmixing Mode
Lets you select how the player will downmix multichannel audio into fewer channels.
• Normal Stereo : Downmixes the multi-channel
audio into two channel stereo. Choose when
connected to equipment that does not support
virtual surround functions such as Dolby Pro
Logic.
• Surround Compatible : Downmixes multichannel audio into surround compatible stereo.
Choose when connected to equipment that
supports virtual surround functions such as
Dolby Pro Logic.
HDMI
• If your TV is not compatible with compressed
multi-channel formats (Dolby Digital, DTS), the
player may output PCM 2ch downmixed audio
even though you selected Bitstream (either Reencoded or Unprocessed) in the setup menu.
• If your TV is not compatible with PCM sampling
rates over 48kHz, the player may output 48kHz
downsampled PCM audio even though you set
PCM Downsampling to Off.
English
31
Setup
▪
will hear no sound or just loud noise.
Dynamic Range Control
05
✎ NOTE
▪ Be sure to select the correct Digital Output or you
Setup
Network
Before you begin, contact your ISP to find out
if your IP address is static or dynamic. If it is
dynamic, and you are using a wired or wireless
connection, we recommend using the Auto
procedures. If you are using a wireless connection
and your router has the capability, you can use
WPS(PBC) or One Foot Connection.
If your IP address is static, you must use the
manual set up procedure for both wired and
wireless connections.
Network Settings
To begin setting up the network connection for
your player, follow these steps:
1. In the Home menu, press the ◄► buttons to
select Settings, and then press the ENTER
button.
2. Press the ▲▼ buttons to select Network, and
then press the ENTER button.
3. Press the ▲▼ buttons to select Network
Settings, and then press the ENTER button.
4. Press the ▲▼ buttons to select Wired,
Wireless (General), WPS(PBC) or One Foot
Connection, and then press the ENTER
button.
5. If you have a wired network, go to Wired
Network below. If you have a wireless
network, go to Wireless Network on pages
33~36.
Wired Network
Setting Up a Wired Connection - Auto
1. Press the ▲▼ buttons to select Wired.
Settings
Display
Audio
Network
System
Language
Security
General
Support
Network Settings
Select a network connection type.
Wired
Wireless
(General)
WPS(PBC)
One Foot
Connection
Connect to the network using LAN cable. Please make
sure that the LAN cable is connected.
> Move " Enter ' Return
2. Press the ENTER button.
The Network Status screen appears. The
player connects to the network after the
network connection is verified.
Setting Up a Wired Connection - Manual
If you have a static IP address or the Auto Setting
does not work, you’ll need to set the Network
Settings values manually.
To view your Network Settings values on most
Windows computers, follow these steps:
 Windows XP
1. Right click the Network icon on the bottom
right of the Windows desktop.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
 Windows 7
1. Click the Network icon on the bottom right of
the Windows desktop.
2. In the pop-up menu, click Network and
Sharing Center.
32
English
✎ NOTE
▪ Depending on your Windows version, the information
may differ.
To enter the Network settings into your player,
follow these steps:
1. Press the ▲▼ buttons to select Wired, and
then press the ENTER button.
2. Press the ◄► buttons to select IP Settings,
and then press the ENTER button.
3. On the Network Status screen, select Cancel,
and then press Enter.
Settings
Display
Audio
Network
System
Language
Security
General
Support
IP Mode
IP Settings
Gateway
DNS Mode
DNS Server
Manual
0 . 0 . 0 . 0
0 . 0 . 0 . 0
0 . 0 . 0 . 0
Manual
IP Address
Subnet Mask
OK
0 . 0 . 0 . 0
> Move " Enter ' Return
4. Press the ENTER button to select IP Mode.
5. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
6. Press the ▼ button to go to the first entry field
(IP Address).
7. Use the number buttons on your remote to
enter numbers.
8. When done with each field, press the ►
button to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
9. Enter the IP Address, Subnet Mask, and
Gateway values.
11. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
12. Press the ENTER button to select OK.
The Network Status screen appears. The
player connects to the network after the
network connection is verified.
Wireless Network
You can setup a wireless network three ways:
• Wireless (General)
• Using WPS(PBC)
• One Foot Connection
Wireless (General) includes both Automatic and
Manual setup procedures.
Setting Up the Wireless Network Connection
- Auto
Most wireless networks have an optional security
system that requires devices that access the
network to transmit an encrypted security code
called an Access or Security Key. The Security
Key is based on a Pass Phrase, typically a word
or a series of letters and numbers of a specified
length you were asked to enter when you set up
security for your wireless network. If you use this
method of setting up the network connection, and
have a Security Key for your wireless network, you
will have to enter the Pass Phrase during the Auto
setup process.
1. Press the ▲▼ buttons to select Wireless
(General).
Settings
Network Settings
Display
Select a network connection type.
Audio
Network
System
Wired
Language Wireless
(General)
Security
WPS(PBC)
General
One Foot
Support Connection
Set up wireless network by selecting your Wireless
Router. You may need to enter security key depending
on the setting of the Wireless Router.
> Move " Enter ' Return
2. Press the ENTER button.
When done, it displays a list of the available
networks.
English
33
Setup
4. On the Support tab, click the Details button.
The Network settings are displayed.
10. Press the ▼ button to go to DNS Mode.
05
3. On the dialog that appears, click the Local
Area Connection or Wireless Network
Connection depending on your network
connection.
Setup
3. Press the ▲▼ buttons to select the desired
network, and then press the ENTER button.
The Security screen appears.
4. On the Security screen, enter your network’s
Pass Phrase. Enter numbers directly using your
remote control.
To select a letter, press the ▲▼◄► buttons to
move the cursor, then press the ENTER button.
Settings
Display
Audio
Network
System
Language
Security
General
Support
Enter security key.
a
b
m
n
g
s
h
a/A
t
Network Settings
c
d
o
p
i
u
*
j
v
e
k
q
w
Delete
0 entered
f
1
2
3
r
7
8
9
l
x
4
y
Space
5
z
6
Done
0
a Previous m Move " Enter ' Return
✎ NOTE
▪ You should be able to find the Pass Phrase on one of
the set up screens you used to set up your router or
modem.
5. When done, press the GREEN (B) button on
your remote, or press the ▲▼◄► buttons to
move the cursor to Done, and then press the
ENTER button.
The Network Status screen appears. The
player connects to the network after the
network connection is verified.
Setting Up the Wireless Network Connection
- Manual
If the Auto Setting does not work, you need to
enter the Network setting values manually.
To view the Network Settings values on most
Windows computers, follow these steps:
 Windows XP
1. Right click the Network icon on the bottom
right of the Windows desktop.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
34
English
 Windows 7
1. Click the Network icon on the bottom right of
the Windows desktop.
2. In the pop-up menu, click Network and
Sharing Center.
3. On the dialog that appears, click the Local
Area Connection or Wireless Network
Connection depending on your network
connection.
4. On the Support tab, click the Details button.
The Network settings are displayed.
✎ NOTE
▪ Depending on your Windows version, the information
may differ.
To enter the Network settings into your player,
follow these steps:
1. Follow Steps 1 through 4 in the ‘Setting Up
the Wireless Network Connection - Auto’
procedure.
2. When done, press the GREEN (B) button on
your remote, or press the ▲▼◄► buttons to
move the cursor to Done, and then press the
ENTER button. The Network Status screen
appears.
Settings
Display
Audio
Network
System
Language
Security
General
Support
IP Mode
IP Settings
Subnet Mask
Gateway
DNS Mode
DNS Server
Manual
0 . 0 . 0 . 0
0 . 0 . 0 . 0
0 . 0 . 0 . 0
Manual
IP Address
OK
0 . 0 . 0 . 0
> Move " Enter ' Return
3. On the Network Status screen, select Cancel,
and then press Enter.
4. Press the ◄► buttons to select IP Settings,
and then press the ENTER button.
5. Press the ENTER button to select IP Mode.
6. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
7. Press the ▼ button to go to the first entry field
(IP Address).
10. Enter the IP Address, Subnet Mask, and
Gateway values.
11. Press the ▼ to go to DNS Mode.
12. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
13. Press the OK button.
14. The Network Status screen appears. The
player connects to the network after the
network connection is verified.
WPS(PBC)
The easiest way to set up the wireless network
connection is using the WPS(PBC) function or the
One Foot Connection function.
If your wireless router has a WPS(PBC) butto
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
